Rhino Shrink Wrap offers a robust sheeting system designed for temporary weather protection and complete containment for construction projects, addressing challenges with conventional methods. Their shrink wrap is heat shrunk tightly to scaffolding, ensuring durability, preventing flapping, and minimizing environmental impacts. Additionally, Rhino provides installation services, training for effective usage, and guarantees the encapsulation for six months, supporting project managers in avoiding costly weather-related delays.

1. Temporary Weather Protection & Containment

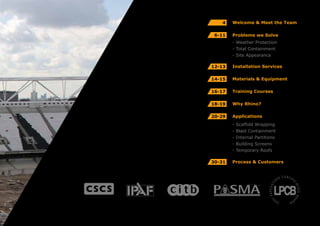

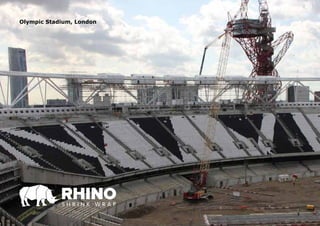

2. Olympic Stadium, London

3. Welcome & Meet the Team4
6-11 Problems we Solve
Installation Services12-13
Materials & Equipment14-15
Training Courses16-17
Why Rhino?18-19
Applications20-29
- Weather Protection
- Total Containment
- Site Appearance
- Scaffold Wrapping

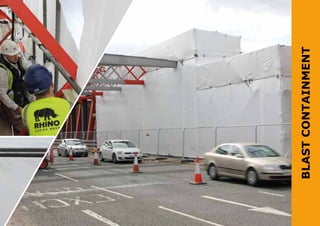

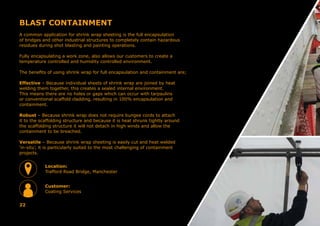

- Blast Containment

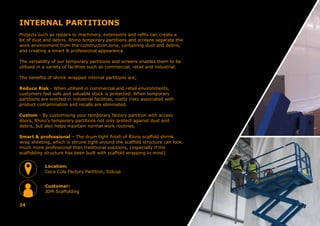

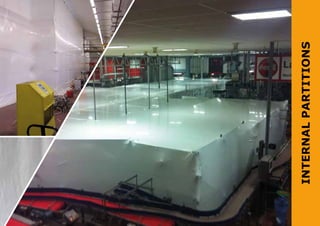

- Internal Partitions
- Building Screens

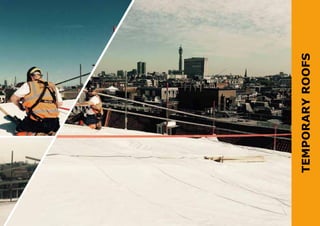

- Temporary Roofs

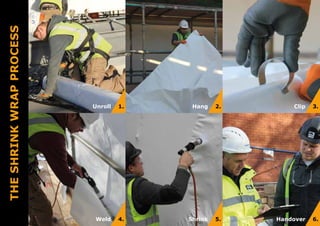

Process & Customers30-31

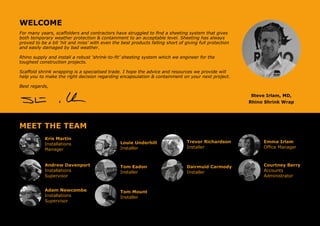

4. WELCOME
For many years, scaffolders and contractors have struggled to find a sheeting system that gives
both temporary weather protection & containment to an acceptable level. Sheeting has always
proved to be a bit ‘hit and miss’ with even the best products falling short of giving full protection
and easily damaged by bad weather.
Rhino supply and install a robust ‘shrink-to-fit’ sheeting system which we engineer for the
toughest construction projects.
Scaffold shrink wrapping is a specialised trade. I hope the advice and resources we provide will
help you to make the right decision regarding encapsulation & containment on your next project.
Best regards,
Steve Irlam, MD,
Rhino Shrink Wrap
MEET THE TEAM
Kris Martin
Installations
Manager
Trevor Richardson
Installer
Andrew Davenport
Installations
Supervisor
Adam Newcombe
Installations
Supervisor
Louie Underhill
Installer
Tom Eadon
Installer
Emma Irlam
Office Manager
Courtney Berry
Accounts
Administrator
Dairmuid Carmody
Installer
Tom Mount
Installer

5. impartial advice
& education

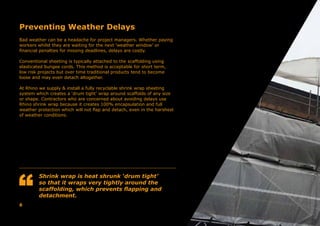

6. Preventing Weather Delays
Bad weather can be a headache for project managers. Whether paying
workers whilst they are waiting for the next ‘weather window’ or
financial penalties for missing deadlines, delays are costly.
Conventional sheeting is typically attached to the scaffolding using
elasticated bungee cords. This method is acceptable for short term,
low risk projects but over time traditional products tend to become
loose and may even detach altogether.
At Rhino we supply & install a fully recyclable shrink wrap sheeting
system which creates a ‘drum tight’ wrap around scaffolds of any size
or shape. Contractors who are concerned about avoiding delays use
Rhino shrink wrap because it creates 100% encapsulation and full
weather protection which will not flap and detach, even in the harshest
of weather conditions.
Shrink wrap is heat shrunk ‘drum tight’
so that it wraps very tightly around the
scaffolding, which prevents flapping and
detachment.
6

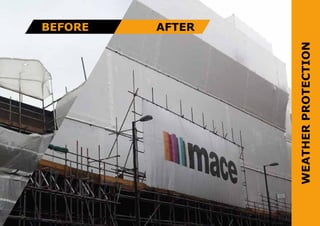

7. AFTERBEFORE
WEATHERPROTECTION

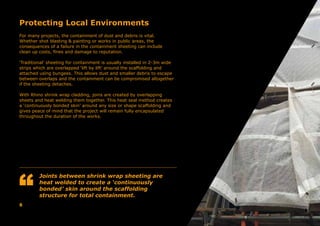

8. Protecting Local Environments
For many projects, the containment of dust and debris is vital.
Whether shot blasting & painting or works in public areas, the
consequences of a failure in the containment sheeting can include
clean up costs, fines and damage to reputation.
‘Traditional’ sheeting for containment is usually installed in 2-3m wide
strips which are overlapped ‘lift by lift’ around the scaffolding and
attached using bungees. This allows dust and smaller debris to escape
between overlaps and the containment can be compromised altogether
if the sheeting detaches.
With Rhino shrink wrap cladding, joins are created by overlapping
sheets and heat welding them together. This heat seal method creates
a ‘continuously bonded skin’ around any size or shape scaffolding and
gives peace of mind that the project will remain fully encapsulated
throughout the duration of the works.
8
Joints between shrink wrap sheeting are
heat welded to create a ‘continuously
bonded’ skin around the scaffolding
structure for total containment.

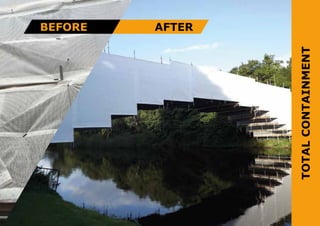

9. AFTERBEFORE
6.
TOTALCONTAINMENT

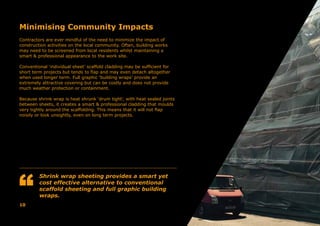

10. Minimising Community Impacts
Contractors are ever mindful of the need to minimize the impact of
construction activities on the local community. Often, building works
may need to be screened from local residents whilst maintaining a
smart & professional appearance to the work site.
Conventional ‘individual sheet’ scaffold cladding may be sufficient for
short term projects but tends to flap and may even detach altogether
when used longer term. Full graphic ‘building wraps’ provide an
extremely attractive covering but can be costly and does not provide
much weather protection or containment.
Because shrink wrap is heat shrunk ‘drum tight’, with heat sealed joints
between sheets, it creates a smart & professional cladding that moulds
very tightly around the scaffolding. This means that it will not flap
noisily or look unsightly, even on long term projects.
Shrink wrap sheeting provides a smart yet
cost effective alternative to conventional
scaffold sheeting and full graphic building
wraps.
10

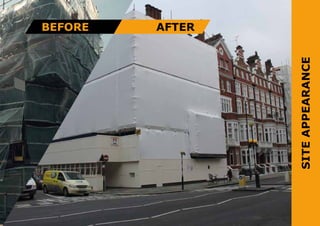

11. AFTERBEFORE
SITEAPPEARANCE

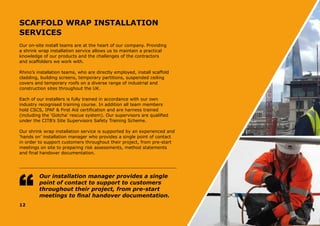

12. SCAFFOLD WRAP INSTALLATION
SERVICES
Our on-site install teams are at the heart of our company. Providing
a shrink wrap installation service allows us to maintain a practical
knowledge of our products and the challenges of the contractors
and scaffolders we work with.
Rhino’s installation teams, who are directly employed, install scaffold
cladding, building screens, temporary partitions, suspended ceiling
covers and temporary roofs on a diverse range of industrial and
construction sites throughout the UK.
Each of our installers is fully trained in accordance with our own
industry recognised training course. In addition all team members
hold CSCS, IPAF & First Aid certification and are harness trained
(including the ‘Gotcha’ rescue system). Our supervisors are qualified
under the CITB’s Site Supervisors Safety Training Scheme.
Our shrink wrap installation service is supported by an experienced and
‘hands on’ installation manager who provides a single point of contact
in order to support customers throughout their project, from pre-start
meetings on site to preparing risk assessments, method statements
and final handover documentation.
12
Our installation manager provides a single
point of contact to support to customers
throughout their project, from pre-start
meetings to final handover documentation.

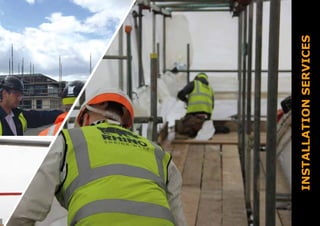

13. INSTALLATIONSERVICES

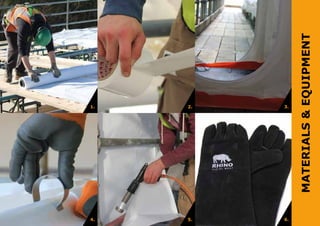

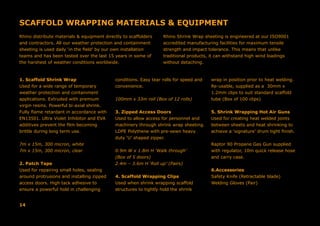

14. SCAFFOLD WRAPPING MATERIALS & EQUIPMENT
1. Scaffold Shrink Wrap
Used for a wide range of temporary
weather protection and containment
applications. Extruded with premium
virgin resins. Powerful bi-axial shrink.
Fully flame retardant in accordance with
EN13501. Ultra Violet Inhibitor and EVA
additives prevent the film becoming
brittle during long term use.
7m x 15m, 300 micron, white
7m x 15m, 300 micron, clear
2. Patch Tape
Used for repairing small holes, sealing
around protrusions and installing zipped
access doors. High tack adhesive to
ensure a powerful hold in challenging
conditions. Easy tear rolls for speed and
convenience.
100mm x 33m roll (Box of 12 rolls)
3. Zipped Access Doors
Used to allow access for personnel and
machinery through shrink wrap sheeting.
LDPE Polythene with pre-sewn heavy
duty ‘U’ shaped zipper.
0.9m W x 1.8m H ‘Walk through’
(Box of 5 doors)
2.4m – 3.6m H ‘Roll up’ (Pairs)
4. Scaffold Wrapping Clips
Used when shrink wrapping scaffold
structures to tightly hold the shrink
wrap in position prior to heat welding.
Re-usable, supplied as a 30mm x
1.2mm clips to suit standard scaffold
tube (Box of 100 clips)
5. Shrink Wrapping Hot Air Guns
Used for creating heat welded joints
between sheets and heat shrinking to
achieve a ‘signature’ drum tight finish.
Raptor 90 Propane Gas Gun supplied
with regulator, 10m quick release hose
and carry case.
6.Accessories
Safety Knife (Retractable blade)
Welding Gloves (Pair)
Rhino distribute materials & equipment directly to scaffolders
and contractors. All our weather protection and containment
sheeting is used daily ‘in the field’ by our own installation
teams and has been tested over the last 15 years in some of
the harshest of weather conditions worldwide.
Rhino Shrink Wrap sheeting is engineered at our ISO9001
accredited manufacturing facilities for maximum tensile
strength and impact tolerance. This means that unlike
traditional products, it can withstand high wind loadings
without detaching.
14

15. MATERIALS&EQUIPMENT
3.2.1.
4. 5. 6.

16. 16

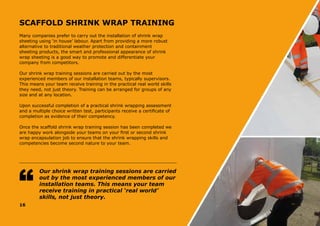

SCAFFOLD SHRINK WRAP TRAINING
Many companies prefer to carry out the installation of shrink wrap
sheeting using ‘in house’ labour. Apart from providing a more robust
alternative to traditional weather protection and containment
sheeting products, the smart and professional appearance of shrink
wrap sheeting is a good way to promote and differentiate your
company from competitors.
Our shrink wrap training sessions are carried out by the most
experienced members of our installation teams, typically supervisors.
This means your team receive training in the practical real world skills
they need, not just theory. Training can be arranged for groups of any
size and at any location.
Upon successful completion of a practical shrink wrapping assessment
and a multiple choice written test, participants receive a certificate of
completion as evidence of their competency.
Once the scaffold shrink wrap training session has been completed we
are happy work alongside your teams on your first or second shrink
wrap encapsulation job to ensure that the shrink wrapping skills and
competencies become second nature to your team.
Our shrink wrap training sessions are carried
out by the most experienced members of our
installation teams. This means your team
receive training in practical ‘real world’
skills, not just theory.

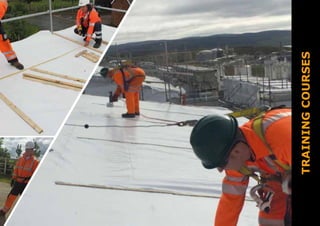

17. TRAININGCOURSES

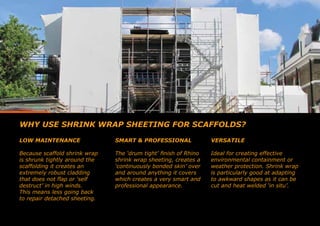

18. WHY USE SHRINK WRAP SHEETING FOR SCAFFOLDS?
LOW MAINTENANCE
Because scaffold shrink wrap
is shrunk tightly around the
scaffolding it creates an
extremely robust cladding
that does not flap or ‘self
destruct’ in high winds.
This means less going back
to repair detached sheeting.
SMART & PROFESSIONAL
The ‘drum tight’ finish of Rhino
shrink wrap sheeting, creates a
‘continuously bonded skin’ over
and around anything it covers
which creates a very smart and
professional appearance.
VERSATILE
Ideal for creating effective
environmental containment or
weather protection. Shrink wrap
is particularly good at adapting
to awkward shapes as it can be
cut and heat welded ‘in situ’.

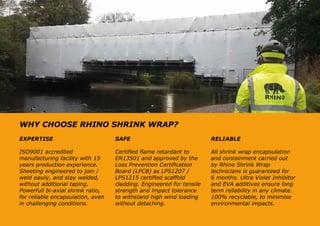

19. WHY CHOOSE RHINO SHRINK WRAP?
EXPERTISE
ISO9001 accredited
manufacturing facility with 15
years production experience.
Sheeting engineered to join /
weld easily, and stay welded,
without additional taping.
Powerfull bi-axial shrink ratio,
for reliable encapsulation, even
in challenging conditions.
SAFE
Certified flame retardant to
EN13501 and approved by the
Loss Prevention Certification
Board (LPCB) as LPS1207 /
LPS1215 certified scaffold
cladding. Engineered for tensile
strength and impact tolerance
to withstand high wind loading
without detaching.
RELIABLE
All shrink wrap encapsulation
and containment carried out
by Rhino Shrink Wrap
technicians is guaranteed for
6 months. Ultra Violet Inhibitor
and EVA additives ensure long
term reliability in any climate.
100% recyclable, to minimise
environmental impacts.

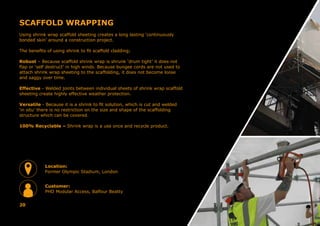

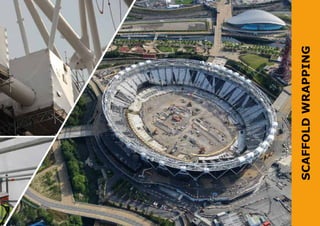

20. SCAFFOLD WRAPPING
Using shrink wrap scaffold sheeting creates a long lasting ‘continuously
bonded skin’ around a construction project.
The benefits of using shrink to fit scaffold cladding;
Robust – Because scaffold shrink wrap is shrunk ‘drum tight’ it does not
flap or ‘self destruct’ in high winds. Because bungee cords are not used to
attach shrink wrap sheeting to the scaffolding, it does not become loose
and saggy over time.
Effective - Welded joints between individual sheets of shrink wrap scaffold
sheeting create highly effective weather protection.
Versatile - Because it is a shrink to fit solution, which is cut and welded
‘in situ’ there is no restriction on the size and shape of the scaffolding
structure which can be covered.
100% Recyclable – Shrink wrap is a use once and recycle product.
20
Location:
Former Olympic Stadium, London
Customer:
PHD Modular Access, Balfour Beatty

21. SCAFFOLDWRAPPING

22. BLAST CONTAINMENT
A common application for shrink wrap sheeting is the full encapsulation
of bridges and other industrial structures to completely contain hazardous
residues during shot blasting and painting operations.
Fully encapsulating a work zone, also allows our customers to create a
temperature controlled and humidity controlled environment.
The benefits of using shrink wrap for full encapsulation and containment are;
Effective – Because individual sheets of shrink wrap are joined by heat
welding them together, this creates a sealed internal environment.
This means there are no holes or gaps which can occur with tarpaulins
or conventional scaffold cladding, resulting in 100% encapsulation and
containment.
Robust – Because shrink wrap does not require bungee cords to attach
it to the scaffolding structure and because it is heat shrunk tightly around
the scaffolding structure it will not detach in high winds and allow the
containment to be breached.
Versatile – Because shrink wrap sheeting is easily cut and heat welded
‘in-situ’, it is particularly suited to the most challenging of containment
projects.
22
Location:
Trafford Road Bridge, Manchester
Customer:
Coating Services

23. BLASTCONTAINMENT

24. INTERNAL PARTITIONS
Projects such as repairs to machinery, extensions and refits can create a
lot of dust and debris. Rhino temporary partitions and screens separate the
work environment from the construction zone, containing dust and debris,
and creating a smart & professional appearance.
The versatility of our temporary partitions and screens enables them to be
utilised in a variety of facilities such as commercial, retail and industrial.
The benefits of shrink wrapped internal partitions are;
Reduce Risk - When utilised in commercial and retail environments,
customers feel safe and valuable stock is protected. When temporary
partitions are erected in industrial facilities, costly risks associated with
product contamination and recalls are eliminated.
Custom - By customising your temporary factory partition with access
doors, Rhino’s temporary partitions not only protect against dust and
debris, but also helps maintain normal work routines.
Smart & professional – The drum tight finish of Rhino scaffold shrink
wrap sheeting, which is shrunk tight around the scaffold structure can look
much more professional than traditional solutions, (especially if the
scaffolding structure has been built with scaffold wrapping in mind).
24
Location:
Coca Cola Factory Partition, Sidcup
Customer:
JDM Scaffolding

25. INTERNALPARTITIONS

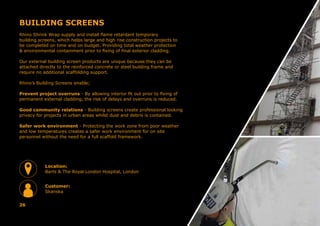

26. BUILDING SCREENS
Rhino Shrink Wrap supply and install flame retardant temporary
building screens, which helps large and high rise construction projects to
be completed on time and on budget. Providing total weather protection
& environmental containment prior to fixing of final exterior cladding.
Our external building screen products are unique because they can be
attached directly to the reinforced concrete or steel building frame and
require no additional scaffolding support.
Rhino’s Building Screens enable;
Prevent project overruns - By allowing interior fit out prior to fixing of
permanent external cladding, the risk of delays and overruns is reduced.
Good community relations - Building screens create professional looking
privacy for projects in urban areas whilst dust and debris is contained.
Safer work environment - Protecting the work zone from poor weather
and low temperatures creates a safer work environment for on site
personnel without the need for a full scaffold framework.
26
Location:
Barts & The Royal London Hospital, London
Customer:
Skanska

27. BUILDINGSCREENS

28. TEMPORARY ROOFS
Shrink wrap sheeting can also be used as a cladding for temporary roofs
in order to provide weather protection or ‘environmental containment’ to
construction projects, thus ensuring projects are not delayed by adverse
weather conditions.
The benefits of using shrink wrap sheeting for temporary roofs are;
Versatile - shrink wrap is particularly suitable for smaller or awkwardly
shaped roofs.
Lightweight - approximately 0.30Kg/m2
.
Excellent light transmission rate - allows almost all available natural
light through to the work area.
Use once and recycle – quick and cost effective to remove.
28
Location:
Canon Street, London
Customer:
Essential Scaffolding

29. TEMPORARYROOFS

30. THESHRINKWRAPPROCESS
1.Unroll Hang2.Hang 3.Clip
4.Weld Hang5.Shrink 6.Handover

31. CUSTOMERS

32. NOTES

33. NOTES

34. NOTES

35. NOTES

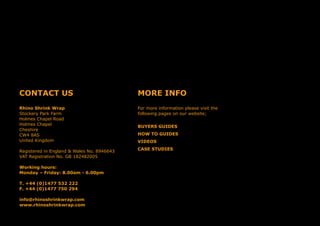

36. CONTACT US
Rhino Shrink Wrap
Stockery Park Farm
Holmes Chapel Road
Holmes Chapel
Cheshire
CW4 8AS
United Kingdom
Registered in England & Wales No. 8946643
VAT Registration No. GB 182482005
Working hours:
Monday – Friday: 8.00am - 6.00pm
T. +44 (0)1477 532 222
F. +44 (0)1477 750 294
info@rhinoshrinkwrap.com
www.rhinoshrinkwrap.com
MORE INFO
For more information please visit the
following pages on our website;
BUYERS GUIDES
HOW TO GUIDES
VIDEOS
CASE STUDIES
