ResourceSync - An Introduction

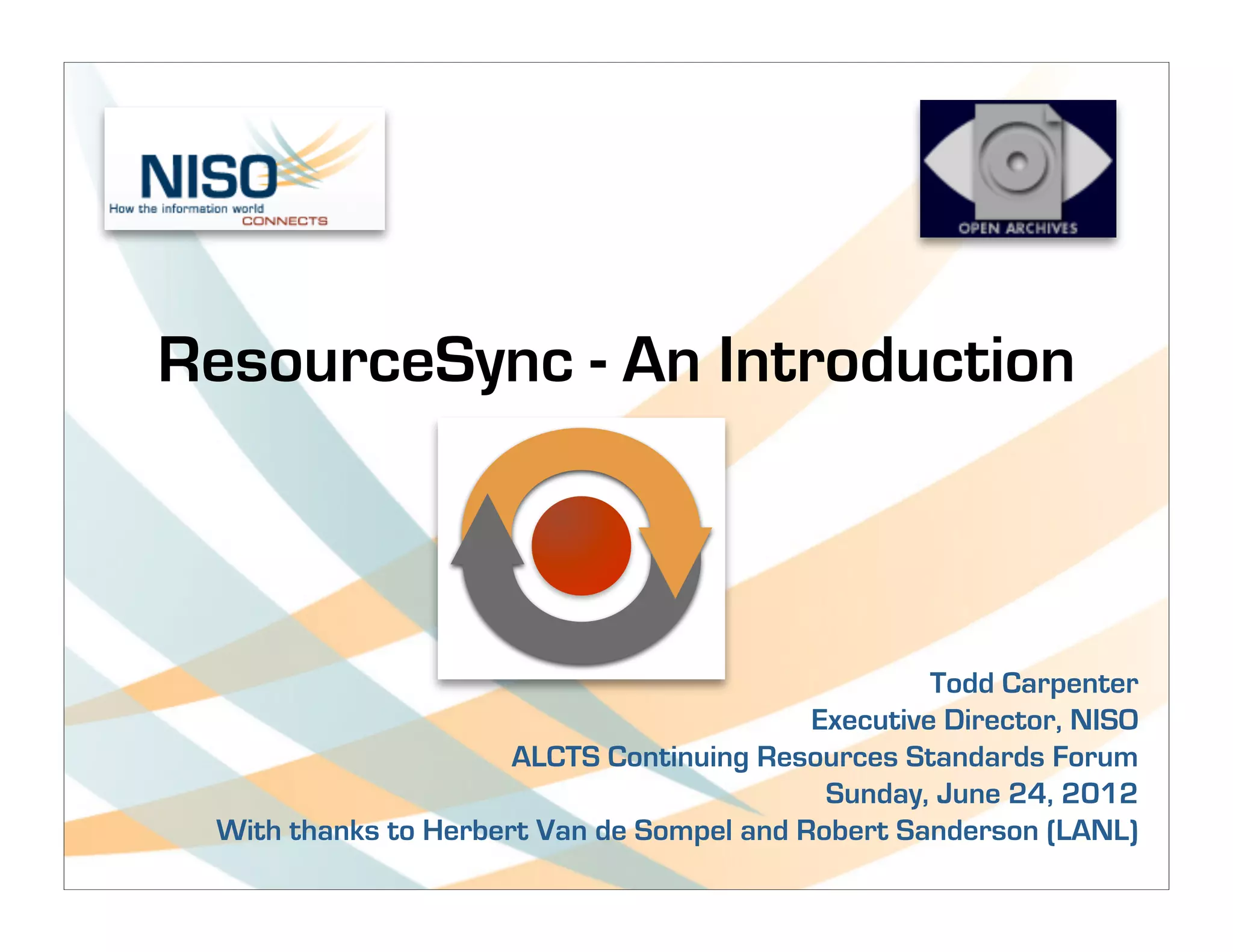

- 1. ResourceSync - AnIntroduction Todd Carpenter Executive Director, NISO ALCTS Continuing Resources Standards Forum Sunday, June 24, 2012 With thanks to Herbert Van de Sompel and Robert Sanderson (LANL)

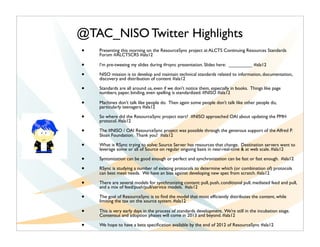

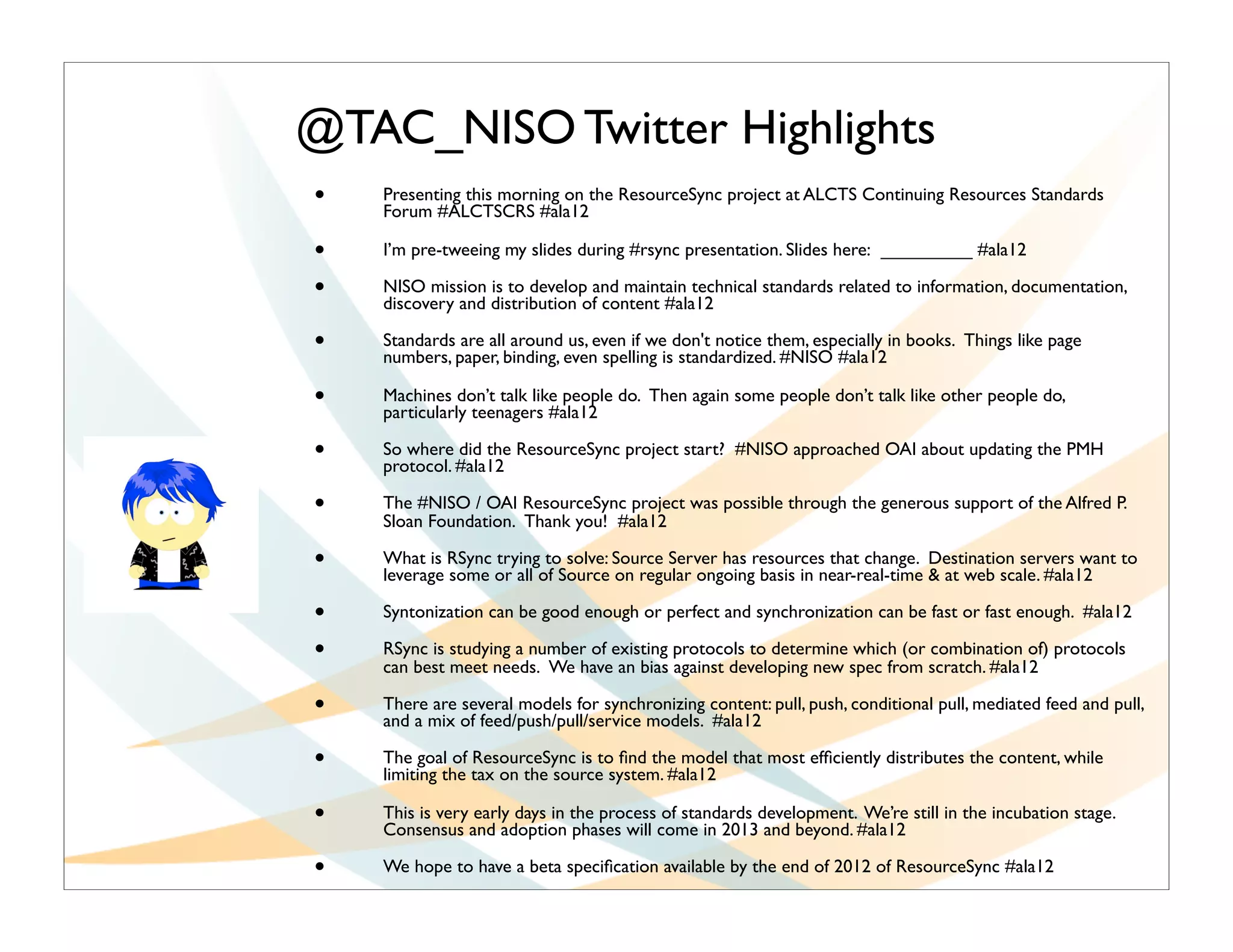

- 2. @TAC_NISO Twitter Highlights • Presenting this morning on the ResourceSync project at ALCTS Continuing Resources Standards Forum #ALCTSCRS #ala12 • I’m pre-tweeing my slides during #rsync presentation. Slides here: _________ #ala12 • NISO mission is to develop and maintain technical standards related to information, documentation, discovery and distribution of content #ala12 • Standards are all around us, even if we don't notice them, especially in books. Things like page numbers, paper, binding, even spelling is standardized. #NISO #ala12 • Machines don’t talk like people do. Then again some people don’t talk like other people do, particularly teenagers #ala12 • So where did the ResourceSync project start? #NISO approached OAI about updating the PMH protocol. #ala12 • The #NISO / OAI ResourceSync project was possible through the generous support of the Alfred P. Sloan Foundation. Thank you! #ala12 • What is RSync trying to solve: Source Server has resources that change. Destination servers want to leverage some or all of Source on regular ongoing basis in near-real-time & at web scale. #ala12 • Syntonization can be good enough or perfect and synchronization can be fast or fast enough. #ala12 • RSync is studying a number of existing protocols to determine which (or combination of) protocols can best meet needs. We have an bias against developing new spec from scratch. #ala12 • There are several models for synchronizing content: pull, push, conditional pull, mediated feed and pull, and a mix of feed/push/pull/service models. #ala12 • The goal of ResourceSync is to find the model that most efficiently distributes the content, while limiting the tax on the source system. #ala12 • This is very early days in the process of standards development. We’re still in the incubation stage. Consensus and adoption phases will come in 2013 and beyond. #ala12 • We hope to have a beta specification available by the end of 2012 of ResourceSync #ala12

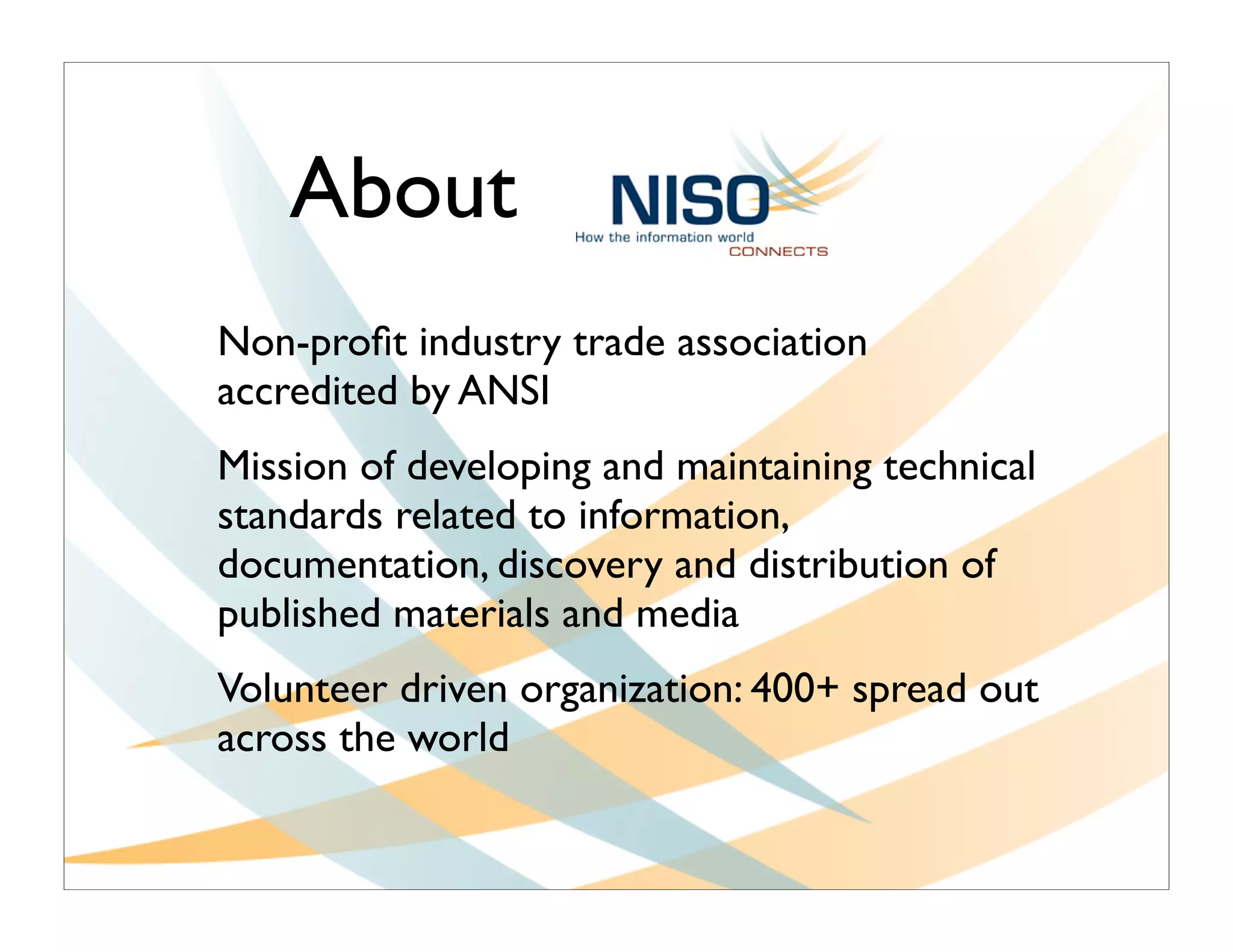

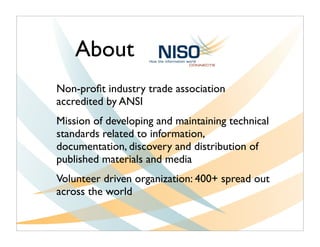

- 3. About Non-profit industry tradeassociation accredited by ANSI Mission of developing and maintaining technical standards related to information, documentation, discovery and distribution of published materials and media Volunteer driven organization: 400+ spread out across the world

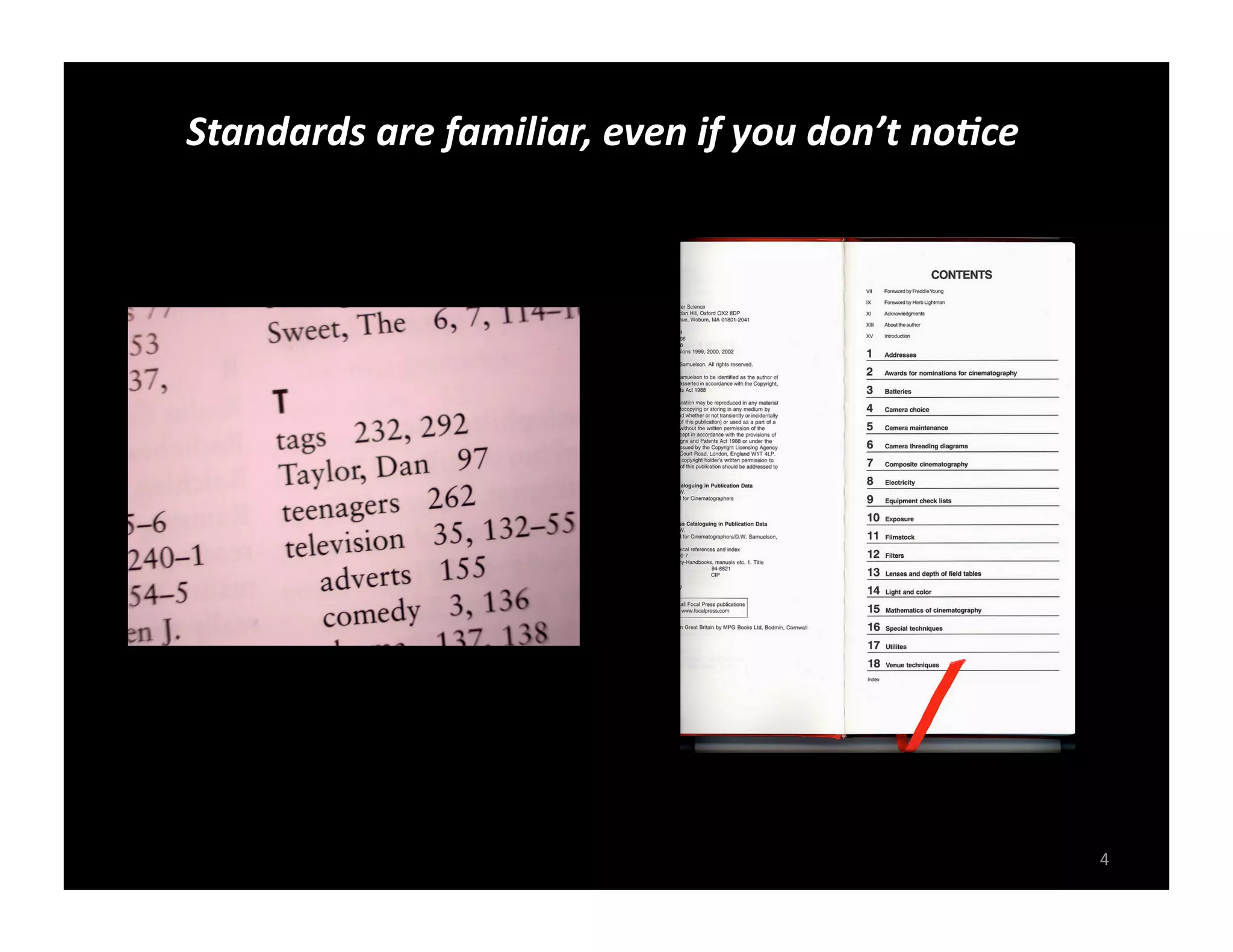

- 4. Standards are familiar, even if you don’t no4ce June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 4
- 5. Machines don’t talklike people do June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 5

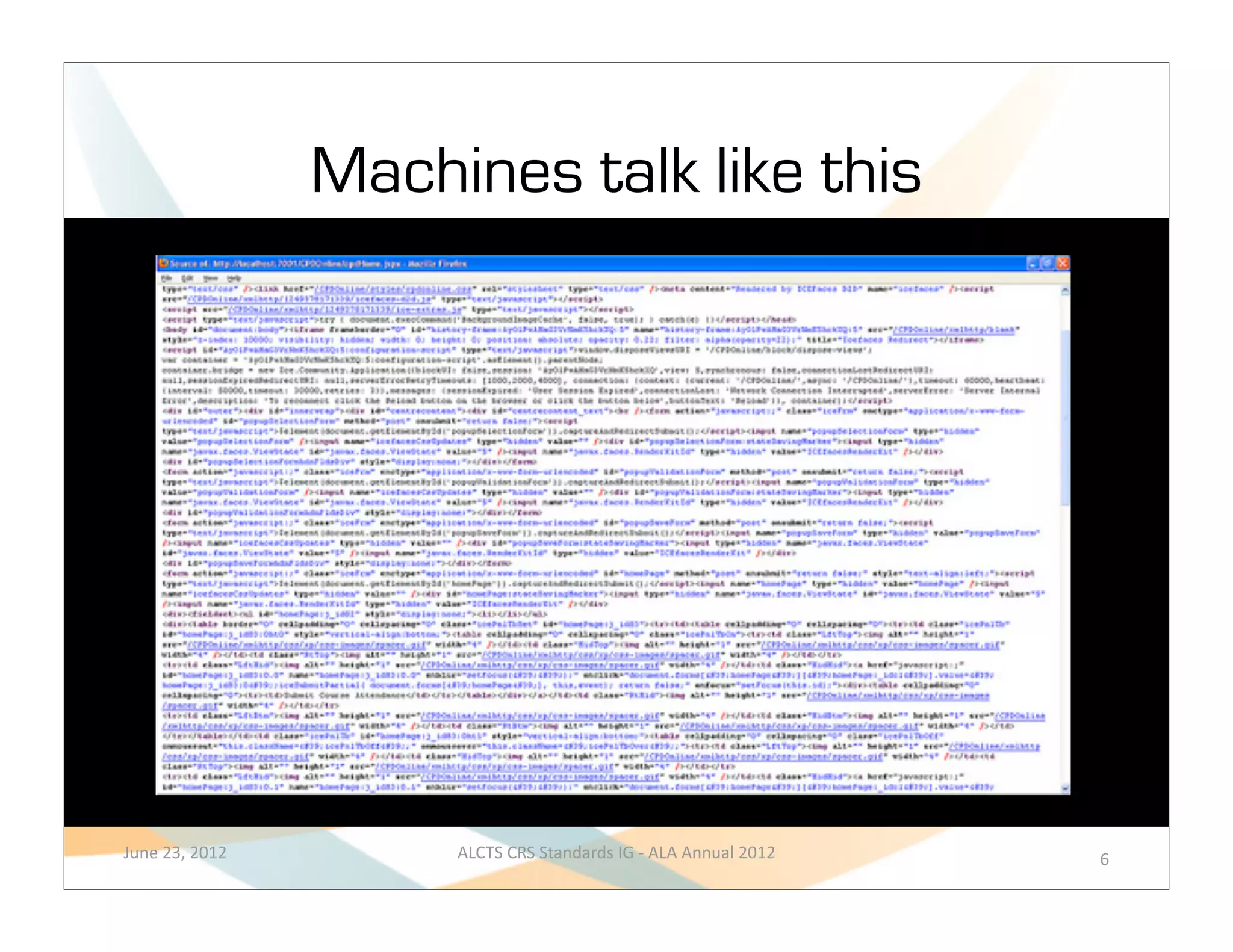

- 6. Machines talk likethis June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 6

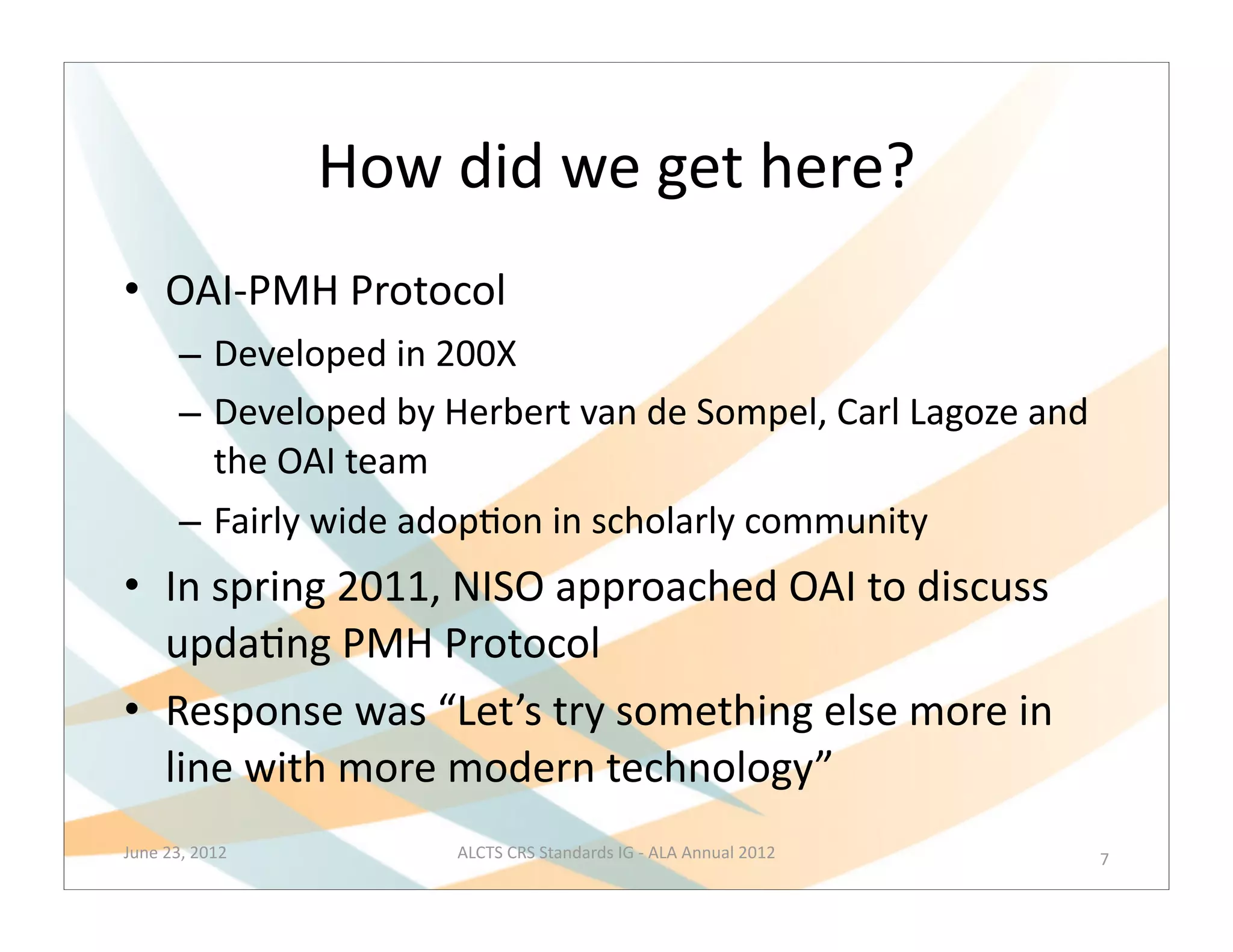

- 7. How did we get here? • OAI-‐PMH Protocol – Developed in 200X – Developed by Herbert van de Sompel, Carl Lagoze and the OAI team – Fairly wide adopQon in scholarly community • In spring 2011, NISO approached OAI to discuss updaQng PMH Protocol • Response was “Let’s try something else more in line with more modern technology” June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 7

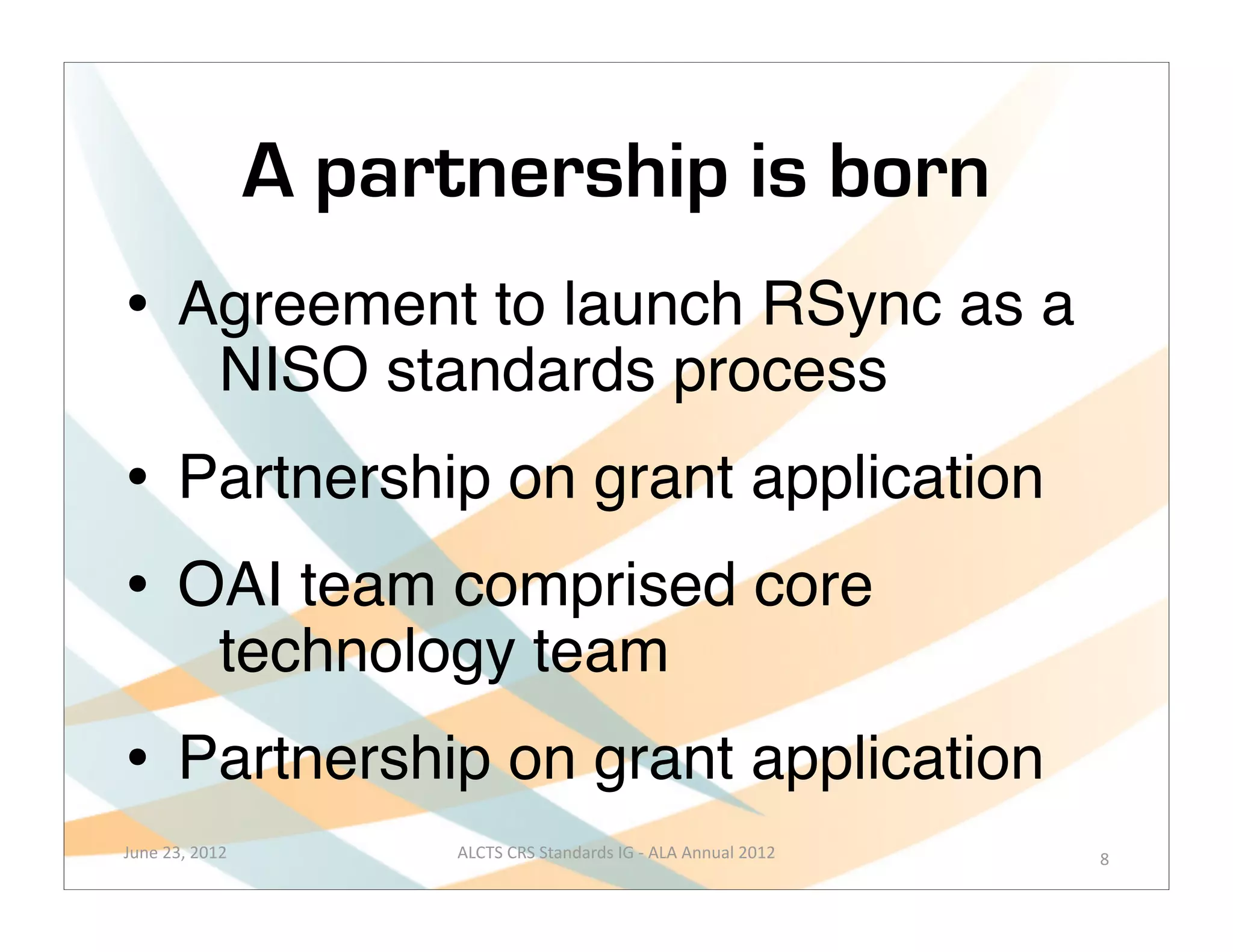

- 8. A partnership isborn • Agreement to launch RSync as a NISO standards process • Partnership on grant application • OAI team comprised core technology team • Partnership on grant application June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 8
- 9. Special thanks are due to... June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 9

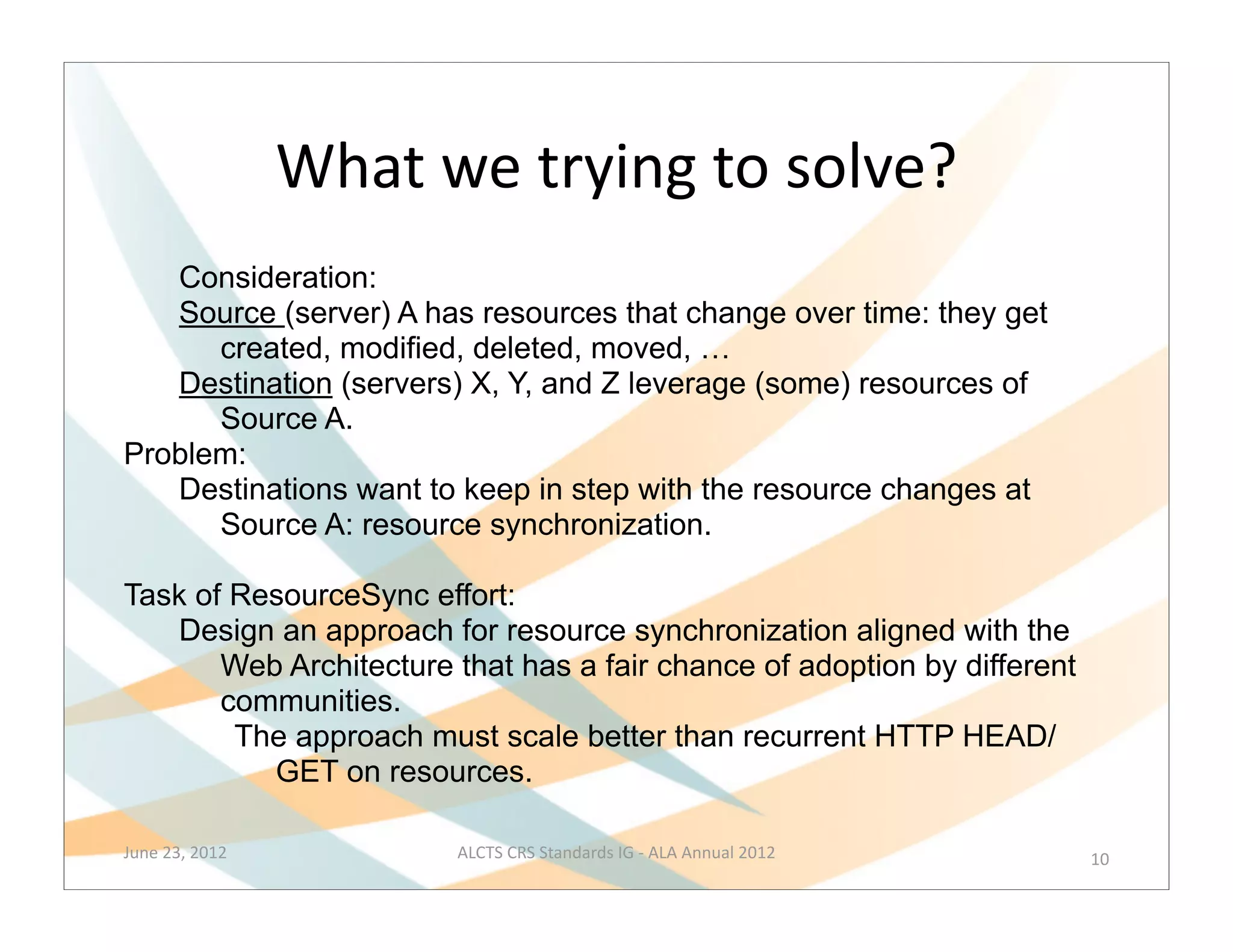

- 10. What we trying to solve? Consideration: Source (server) A has resources that change over time: they get created, modified, deleted, moved, … Destination (servers) X, Y, and Z leverage (some) resources of Source A. Problem: Destinations want to keep in step with the resource changes at Source A: resource synchronization. Task of ResourceSync effort: Design an approach for resource synchronization aligned with the Web Architecture that has a fair chance of adoption by different communities. The approach must scale better than recurrent HTTP HEAD/ GET on resources. June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 10

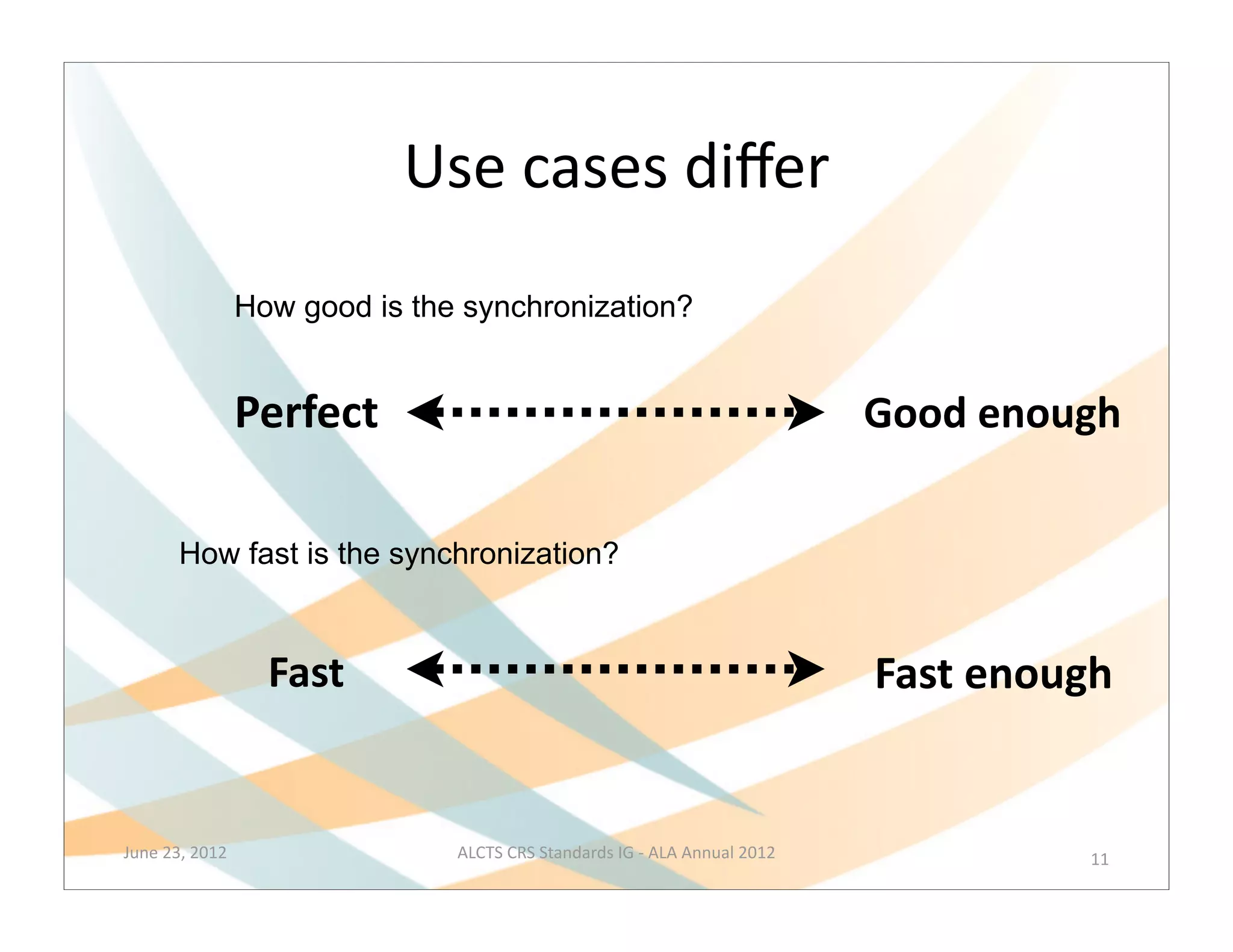

- 11. Use cases differ How good is the synchronization? Perfect Good enough How fast is the synchronization? Fast Fast enough June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 11

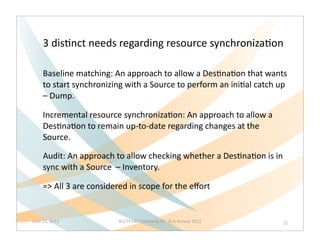

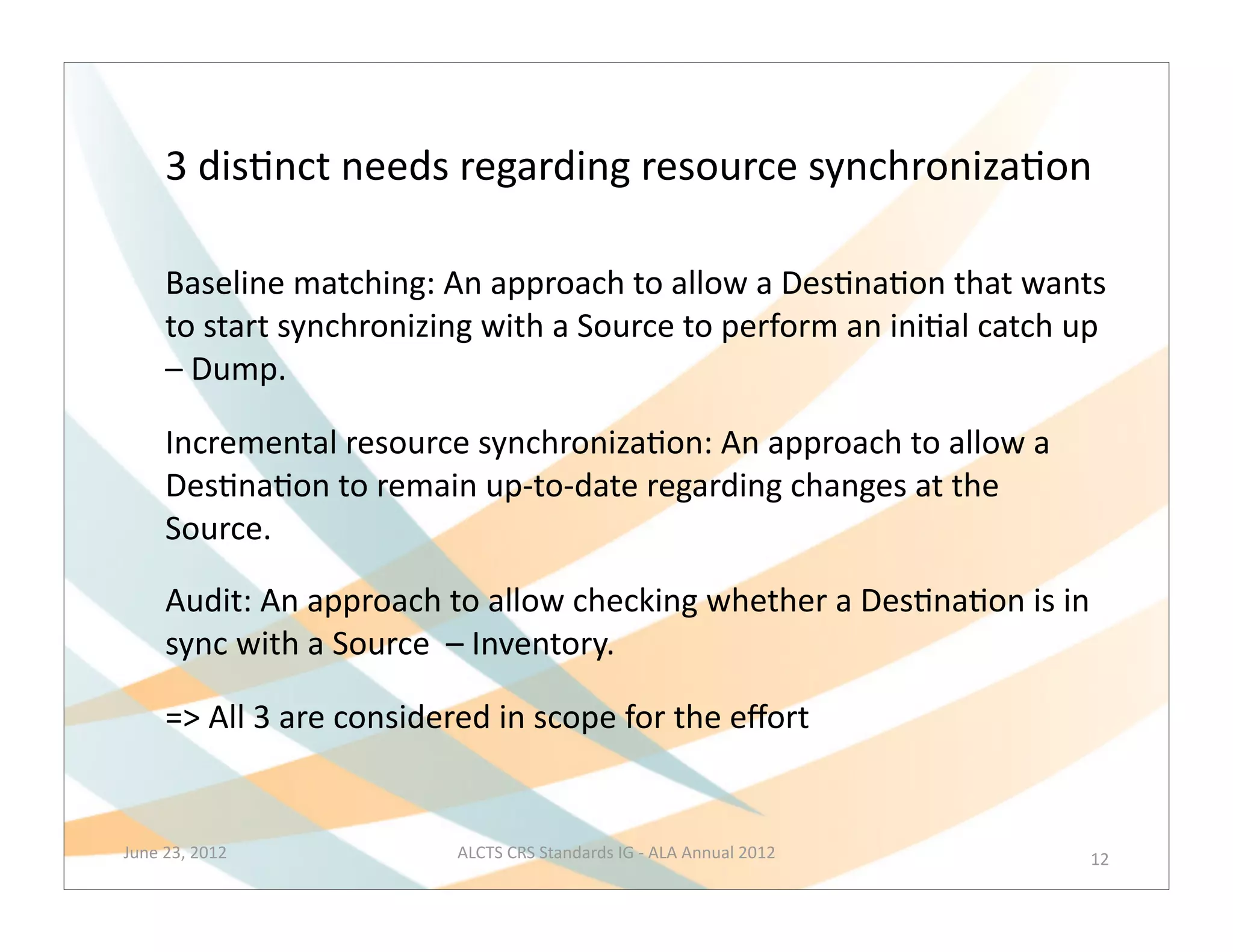

- 12. 3 disQnct needs regarding resource synchronizaQon Baseline matching: An approach to allow a DesQnaQon that wants to start synchronizing with a Source to perform an iniQal catch up – Dump. Incremental resource synchronizaQon: An approach to allow a DesQnaQon to remain up-‐to-‐date regarding changes at the Source. Audit: An approach to allow checking whether a DesQnaQon is in sync with a Source – Inventory. => All 3 are considered in scope for the effort June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 12

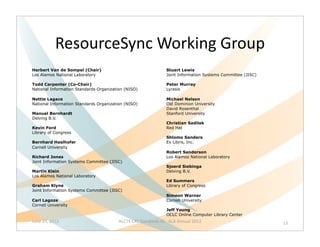

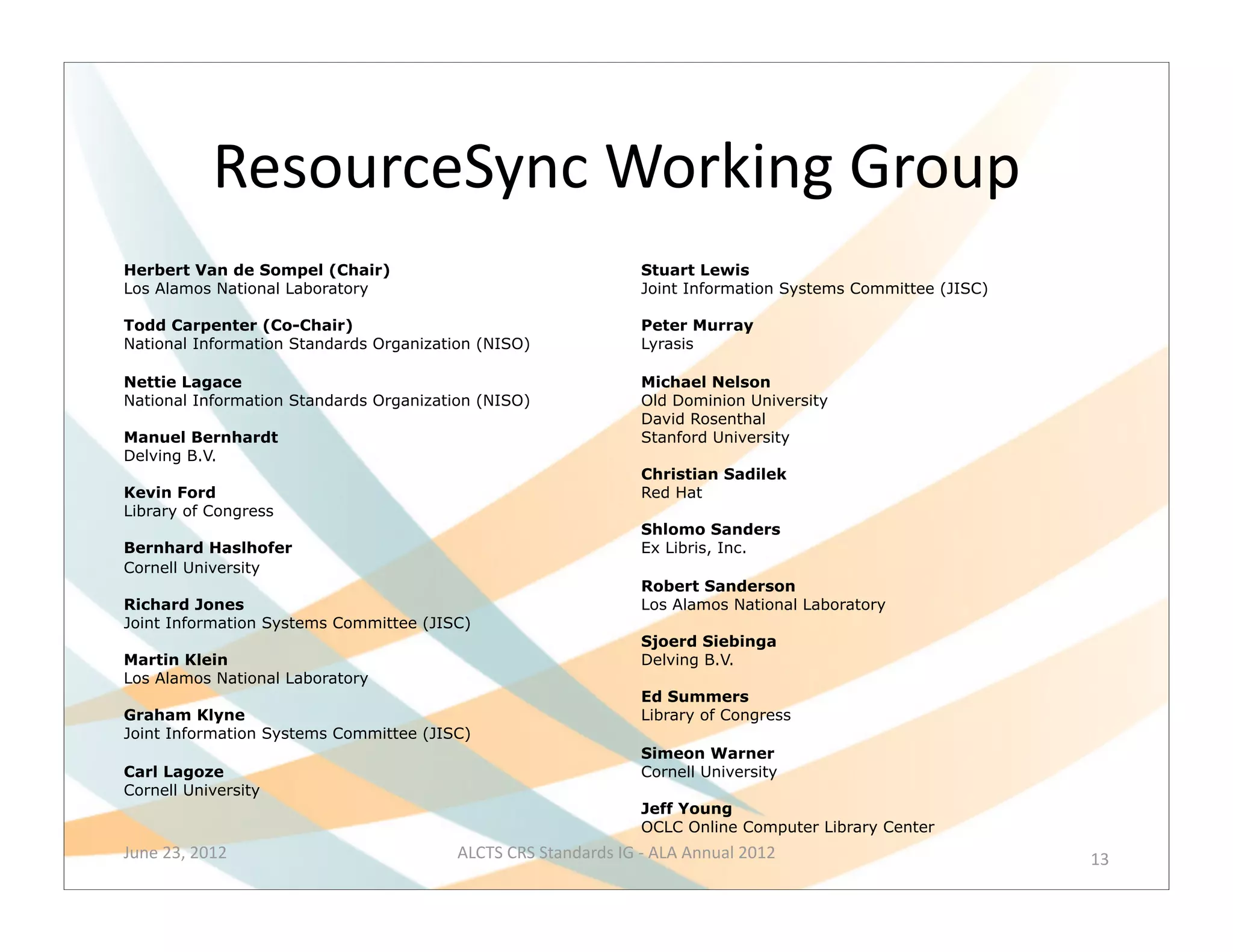

- 13. ResourceSync Working Group HerbertVan de Sompel (Chair) Stuart Lewis Los Alamos National Laboratory Joint Information Systems Committee (JISC) Todd Carpenter (Co-Chair) Peter Murray National Information Standards Organization (NISO) Lyrasis Nettie Lagace Michael Nelson National Information Standards Organization (NISO) Old Dominion University David Rosenthal Manuel Bernhardt Stanford University Delving B.V. Christian Sadilek Kevin Ford Red Hat Library of Congress Shlomo Sanders Bernhard Haslhofer Ex Libris, Inc. Cornell University Robert Sanderson Richard Jones Los Alamos National Laboratory Joint Information Systems Committee (JISC) Sjoerd Siebinga Martin Klein Delving B.V. Los Alamos National Laboratory Ed Summers Graham Klyne Library of Congress Joint Information Systems Committee (JISC) Simeon Warner Carl Lagoze Cornell University Cornell University Jeff Young OCLC Online Computer Library Center June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 13
- 14. hep://imgs.xkcd.com/comics/standards.png/ 8/23/11 Data AeribuQon and CitaQon Workshop 14

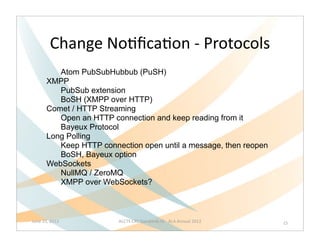

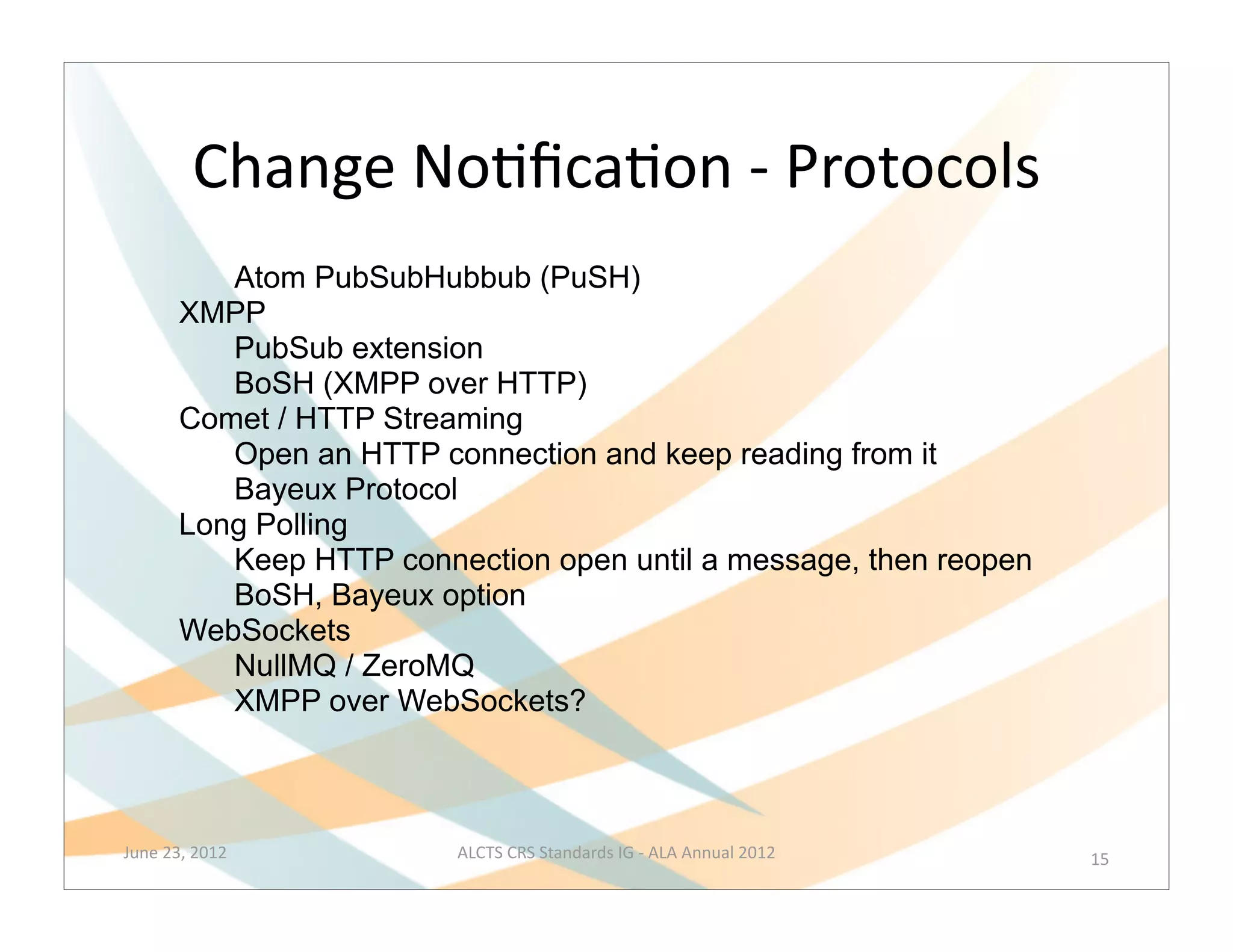

- 15. Change NoQficaQon -‐ Protocols Atom PubSubHubbub (PuSH) XMPP PubSub extension BoSH (XMPP over HTTP) Comet / HTTP Streaming Open an HTTP connection and keep reading from it Bayeux Protocol Long Polling Keep HTTP connection open until a message, then reopen BoSH, Bayeux option WebSockets NullMQ / ZeroMQ XMPP over WebSockets? June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 15

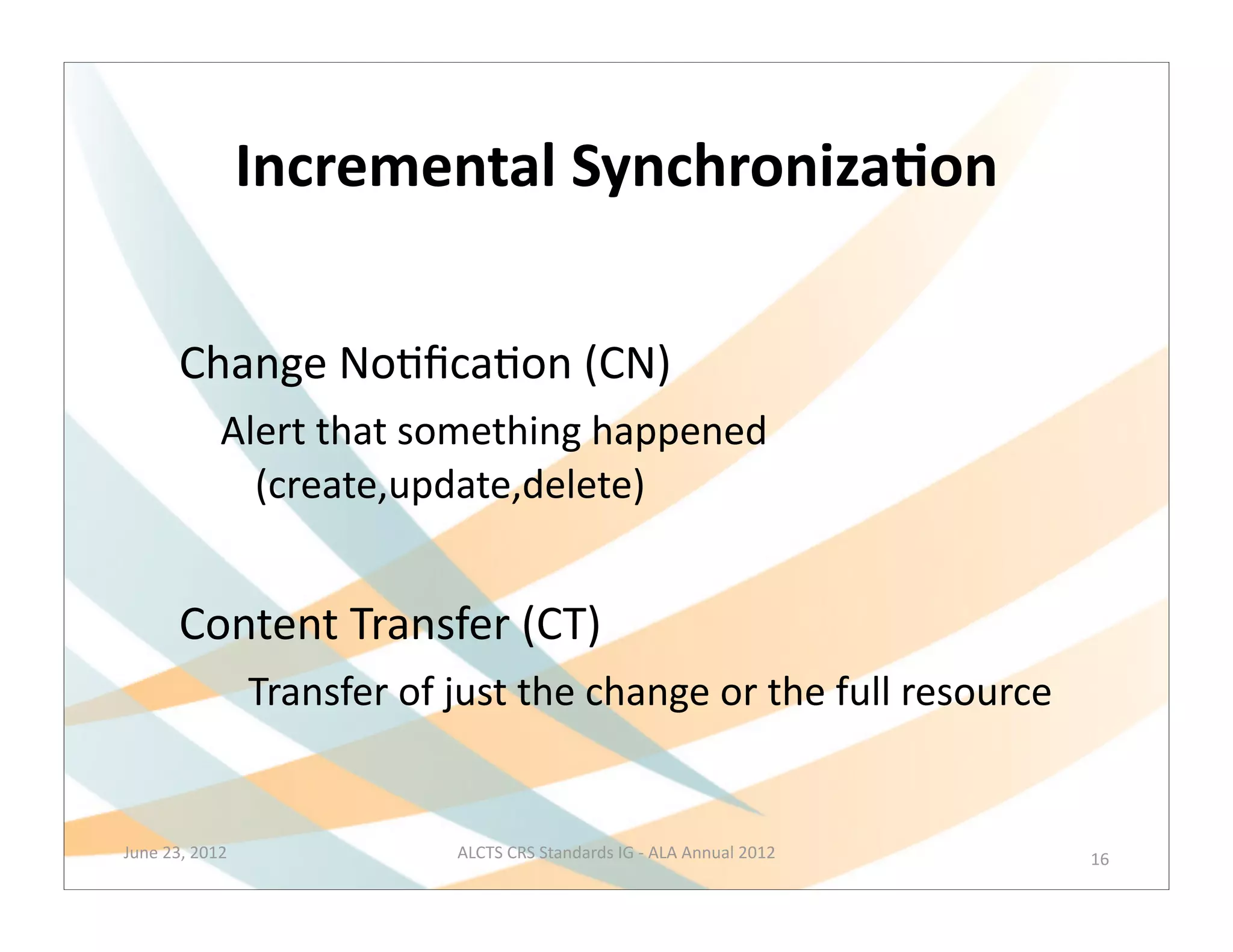

- 16. Incremental Synchroniza9on Change NoQficaQon (CN) Alert that something happened (create,update,delete) Content Transfer (CT) Transfer of just the change or the full resource June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 16

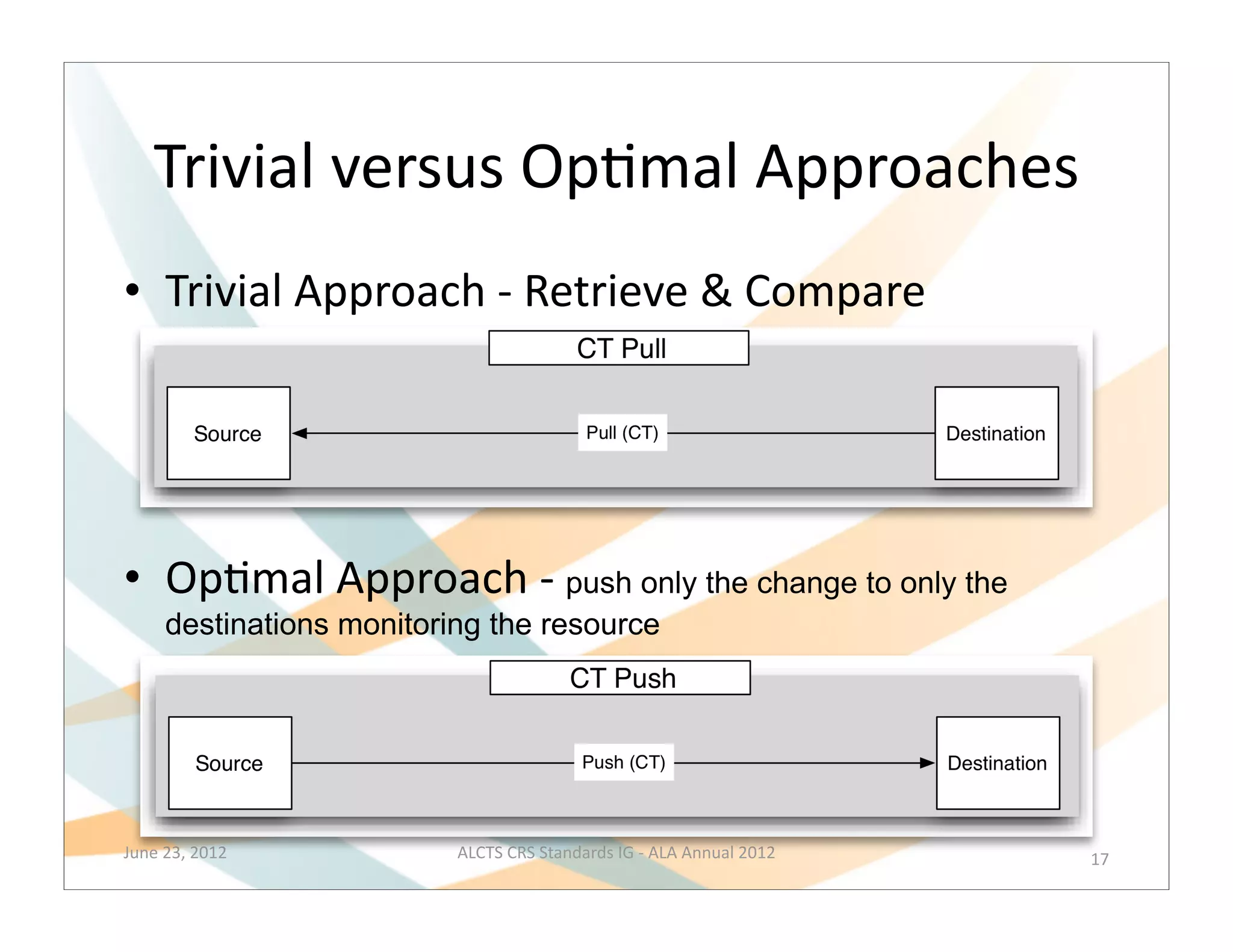

- 17. Trivial versus OpQmal Approaches • Trivial Approach -‐ Retrieve & Compare • OpQmal Approach -‐ push only the change to only the destinations monitoring the resource June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 17

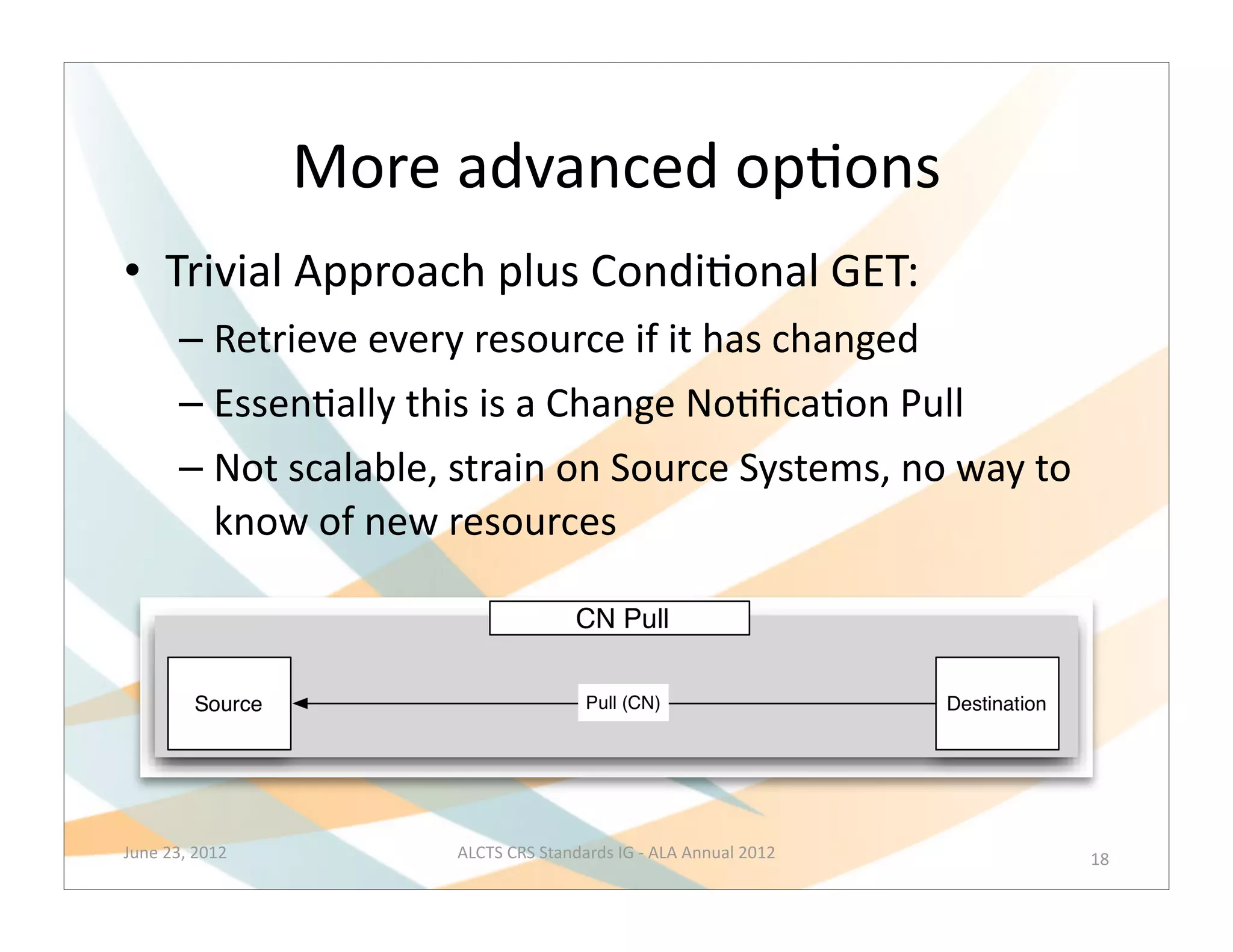

- 18. More advanced opQons •Trivial Approach plus CondiQonal GET: – Retrieve every resource if it has changed – EssenQally this is a Change NoQficaQon Pull – Not scalable, strain on Source Systems, no way to know of new resources June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 18

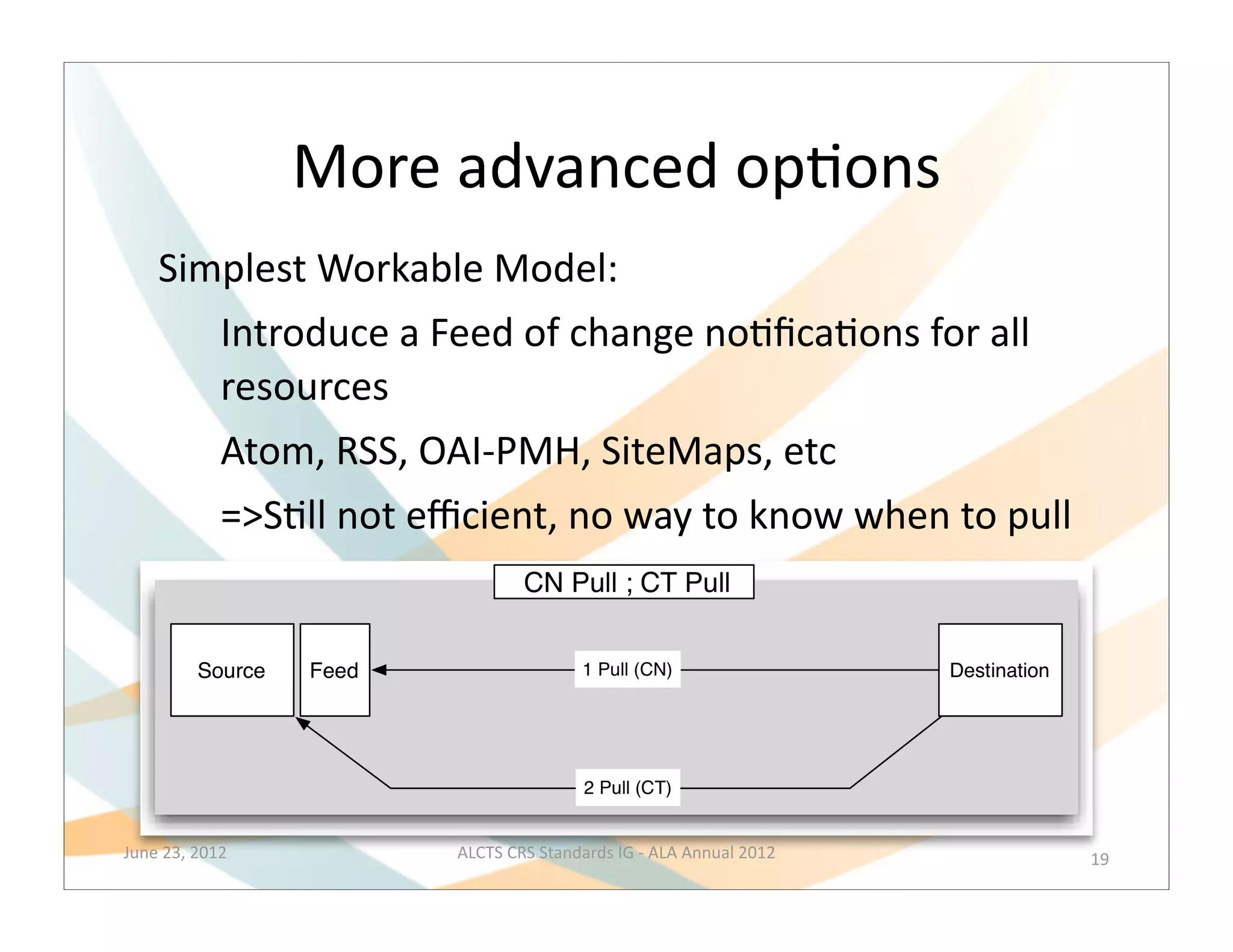

- 19. More advanced opQons Simplest Workable Model: Introduce a Feed of change noQficaQons for all resources Atom, RSS, OAI-‐PMH, SiteMaps, etc =>SQll not efficient, no way to know when to pull June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 19

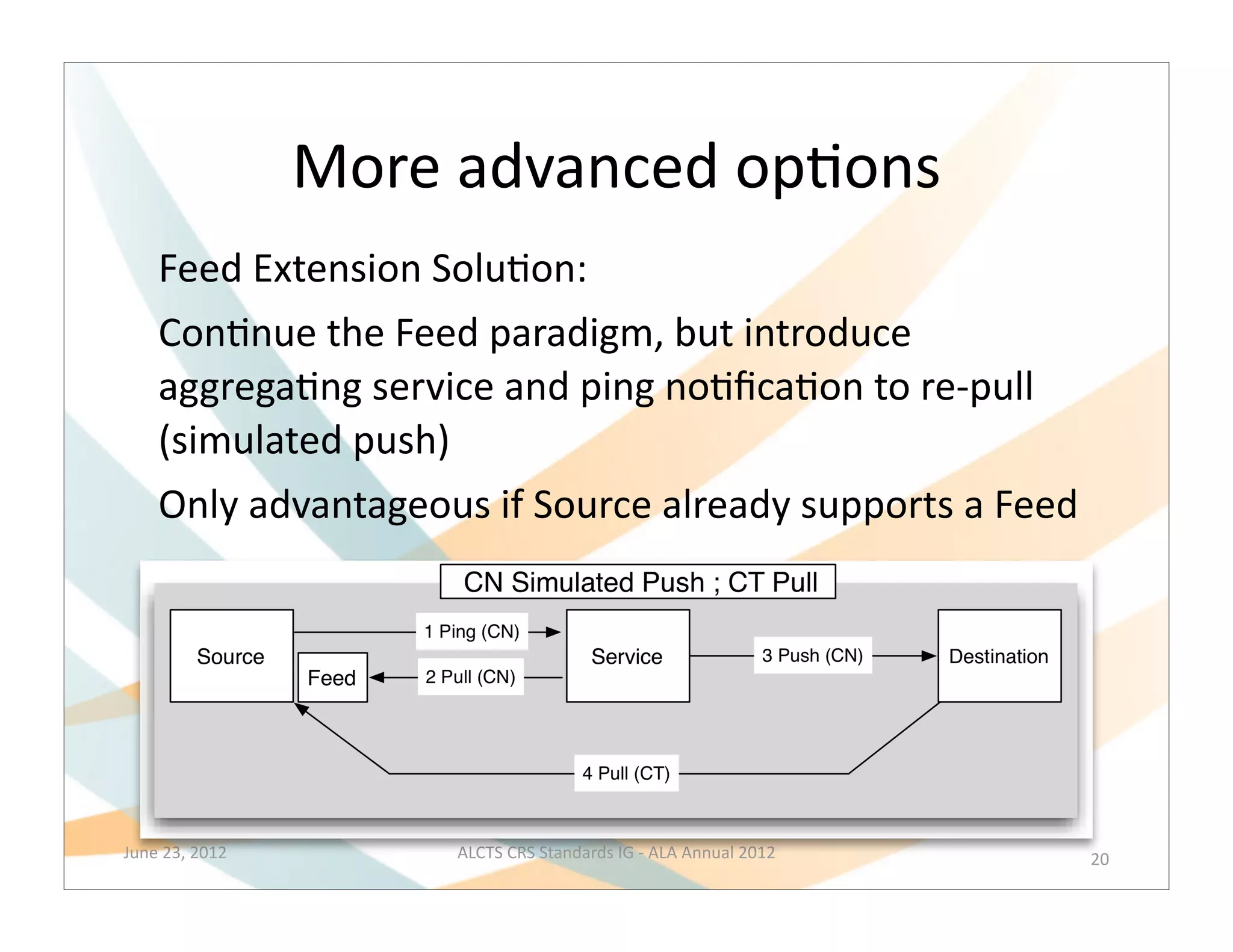

- 20. More advanced opQons Feed Extension SoluQon: ConQnue the Feed paradigm, but introduce aggregaQng service and ping noQficaQon to re-‐pull (simulated push) Only advantageous if Source already supports a Feed June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 20

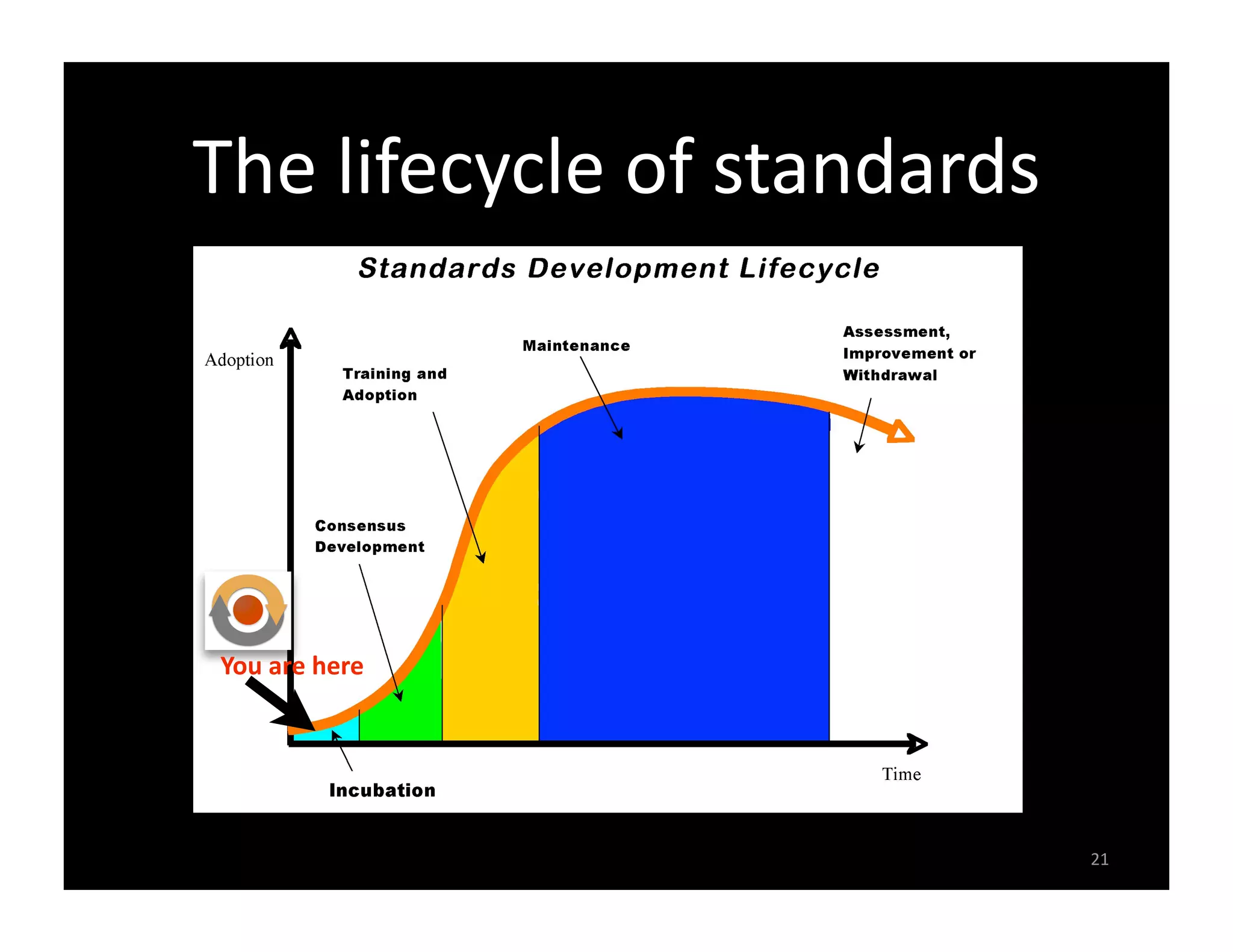

- 21. The lifecycle of standards You are here June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 21

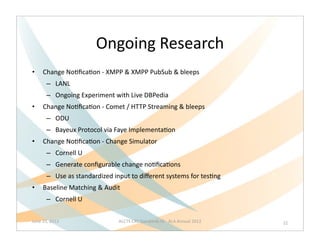

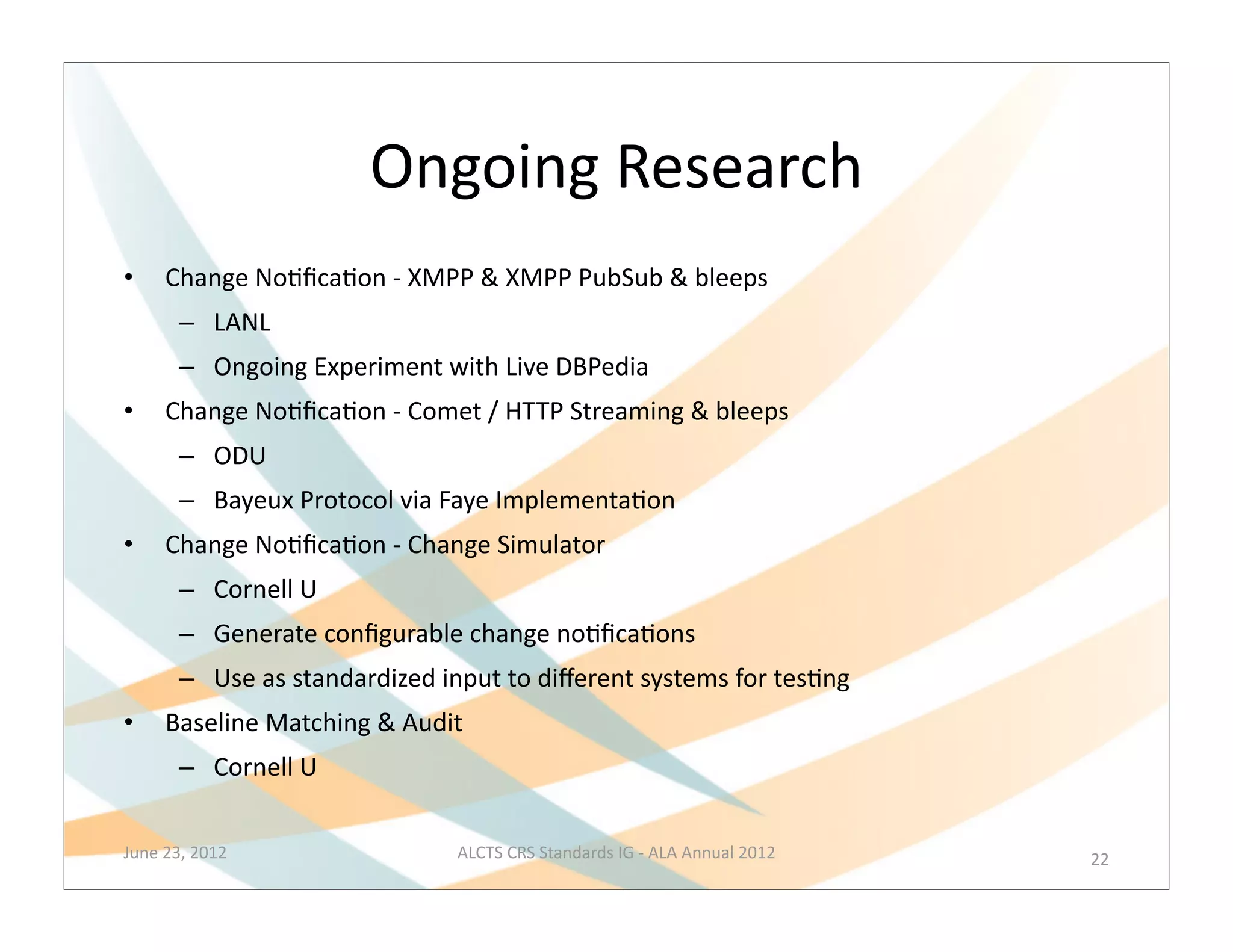

- 22. Ongoing Research • Change NoQficaQon -‐ XMPP & XMPP PubSub & bleeps – LANL – Ongoing Experiment with Live DBPedia • Change NoQficaQon -‐ Comet / HTTP Streaming & bleeps – ODU – Bayeux Protocol via Faye ImplementaQon • Change NoQficaQon -‐ Change Simulator – Cornell U – Generate configurable change noQficaQons – Use as standardized input to different systems for tesQng • Baseline Matching & Audit – Cornell U June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 22

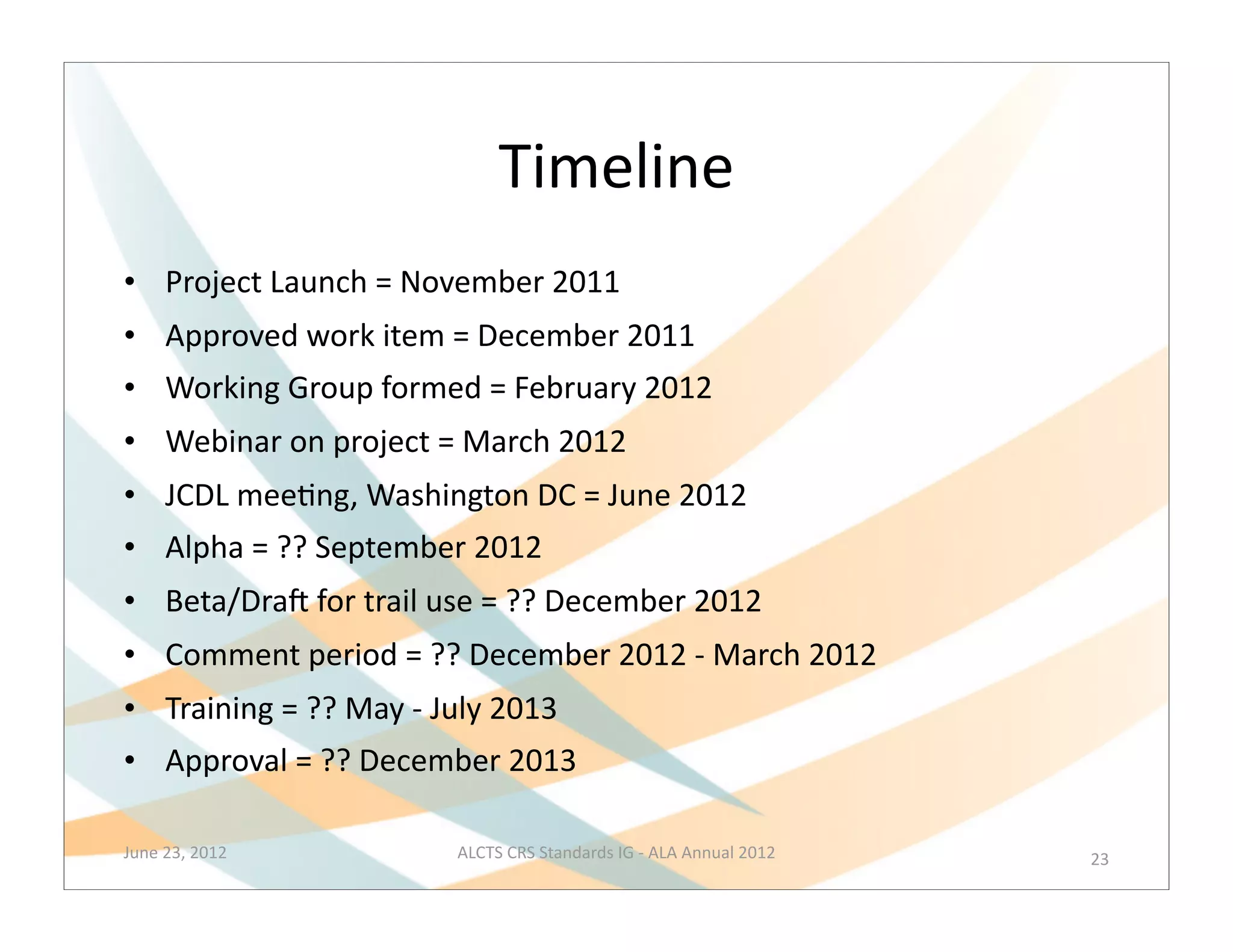

- 23. Timeline • Project Launch = November 2011 • Approved work item = December 2011 • Working Group formed = February 2012 • Webinar on project = March 2012 • JCDL meeQng, Washington DC = June 2012 • Alpha = ?? September 2012 • Beta/Dran for trail use = ?? December 2012 • Comment period = ?? December 2012 -‐ March 2012 • Training = ?? May -‐ July 2013 • Approval = ?? December 2013 June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 23

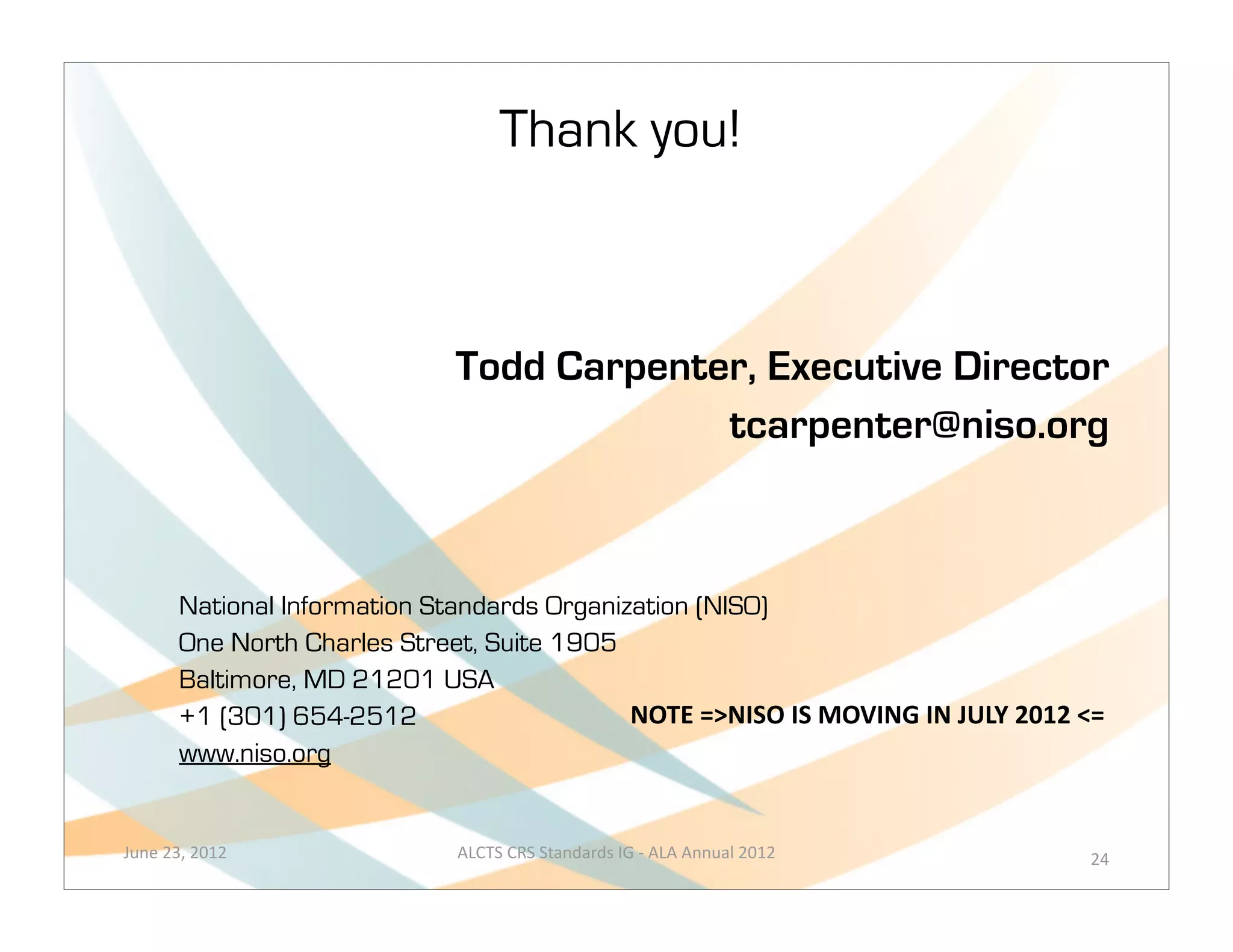

- 24. Thank you! Todd Carpenter, Executive Director tcarpenter@niso.org National Information Standards Organization (NISO) One North Charles Street, Suite 1905 Baltimore, MD 21201 USA +1 (301) 654-2512 NOTE =>NISO IS MOVING IN JULY 2012 <= www.niso.org June 23, 2012 ALCTS CRS Standards IG -‐ ALA Annual 2012 24
