React
The Dawn of Virtual DOM

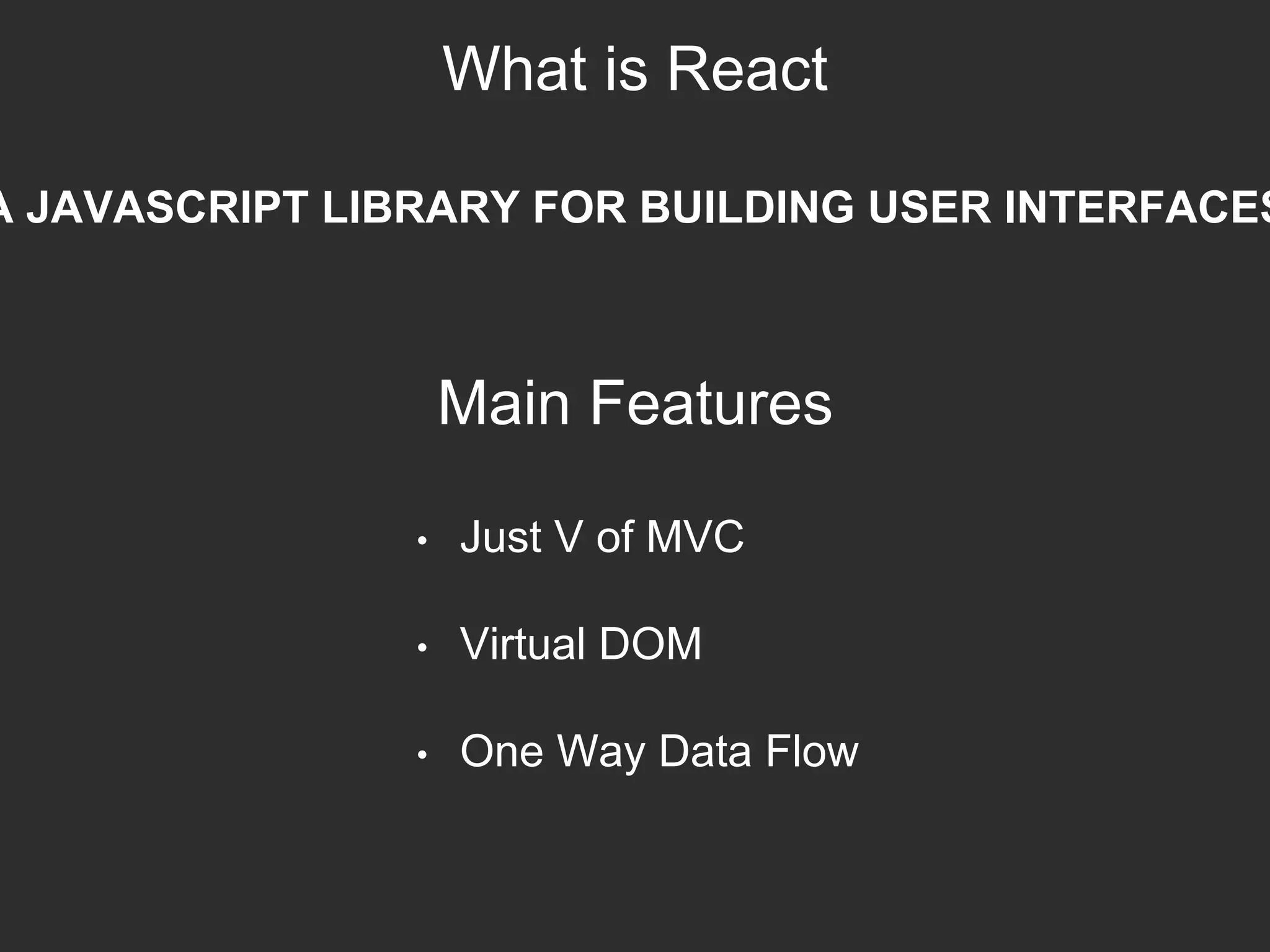

What is React
A JAVASCRIPT LIBRARY FOR BUILDING USER INTERFACES
Main Features
• Just V of MVC
• Virtual DOM
• One Way Data Flow

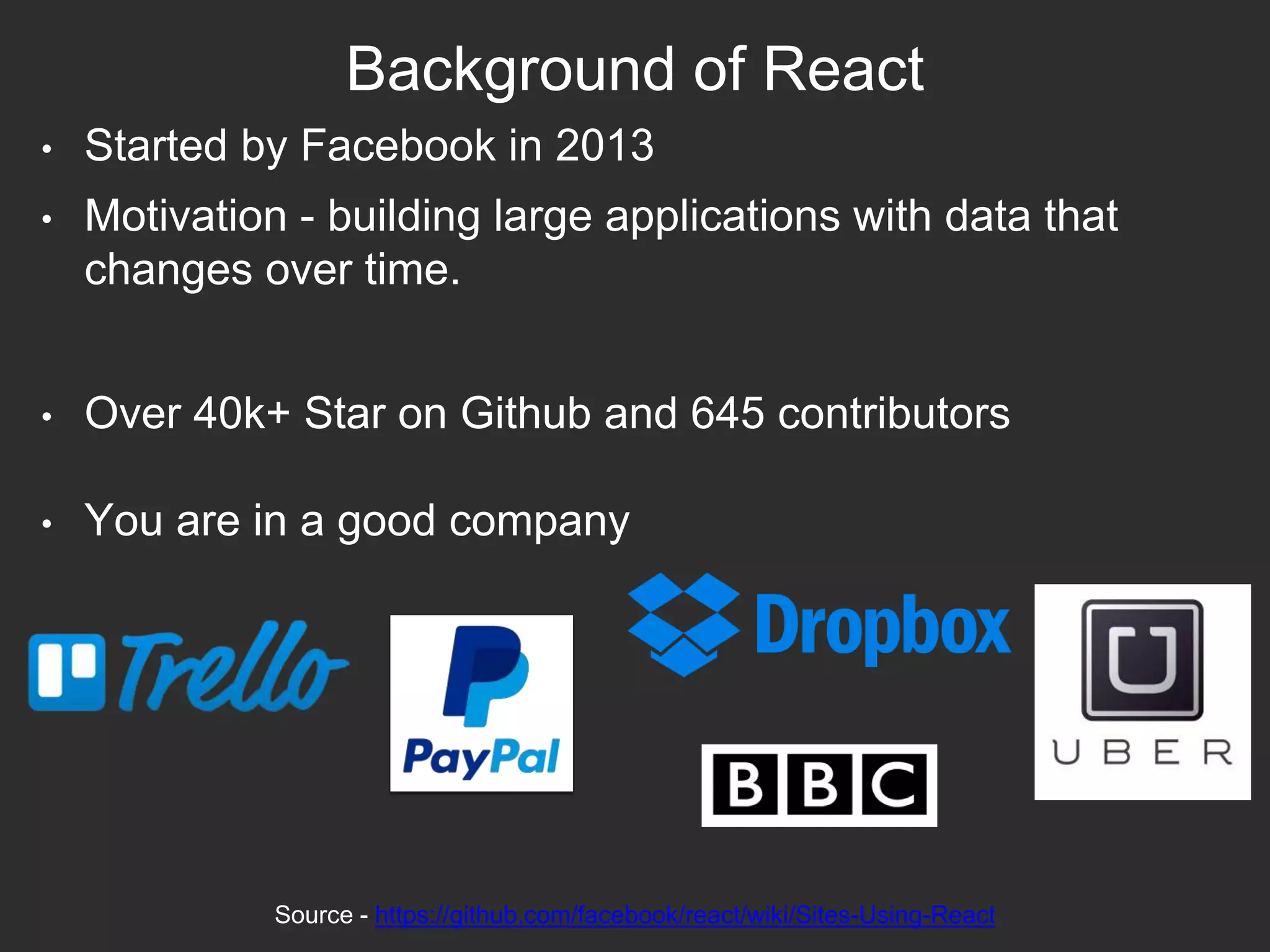

Background of React
• Started by Facebook in 2013
• Motivation - building large applications with data that
changes over time.
• Over 40k+ Star on Github and 645 contributors
• You are in a good company
Source - https://github.com/facebook/react/wiki/Sites-Using-React

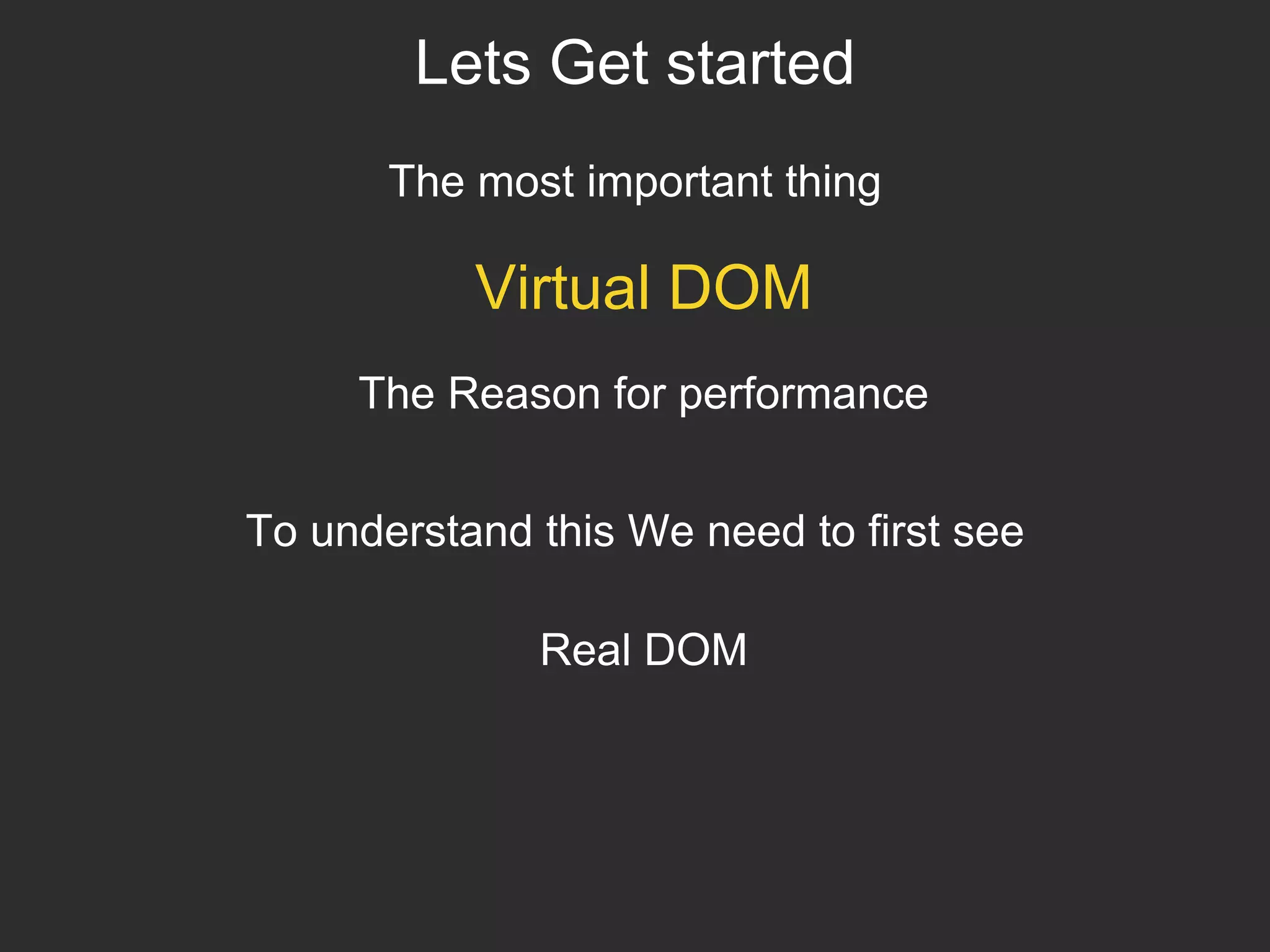

Lets Get started
The most important thing
Virtual DOM
To understand this We need to first see
Real DOM
The Reason for performance

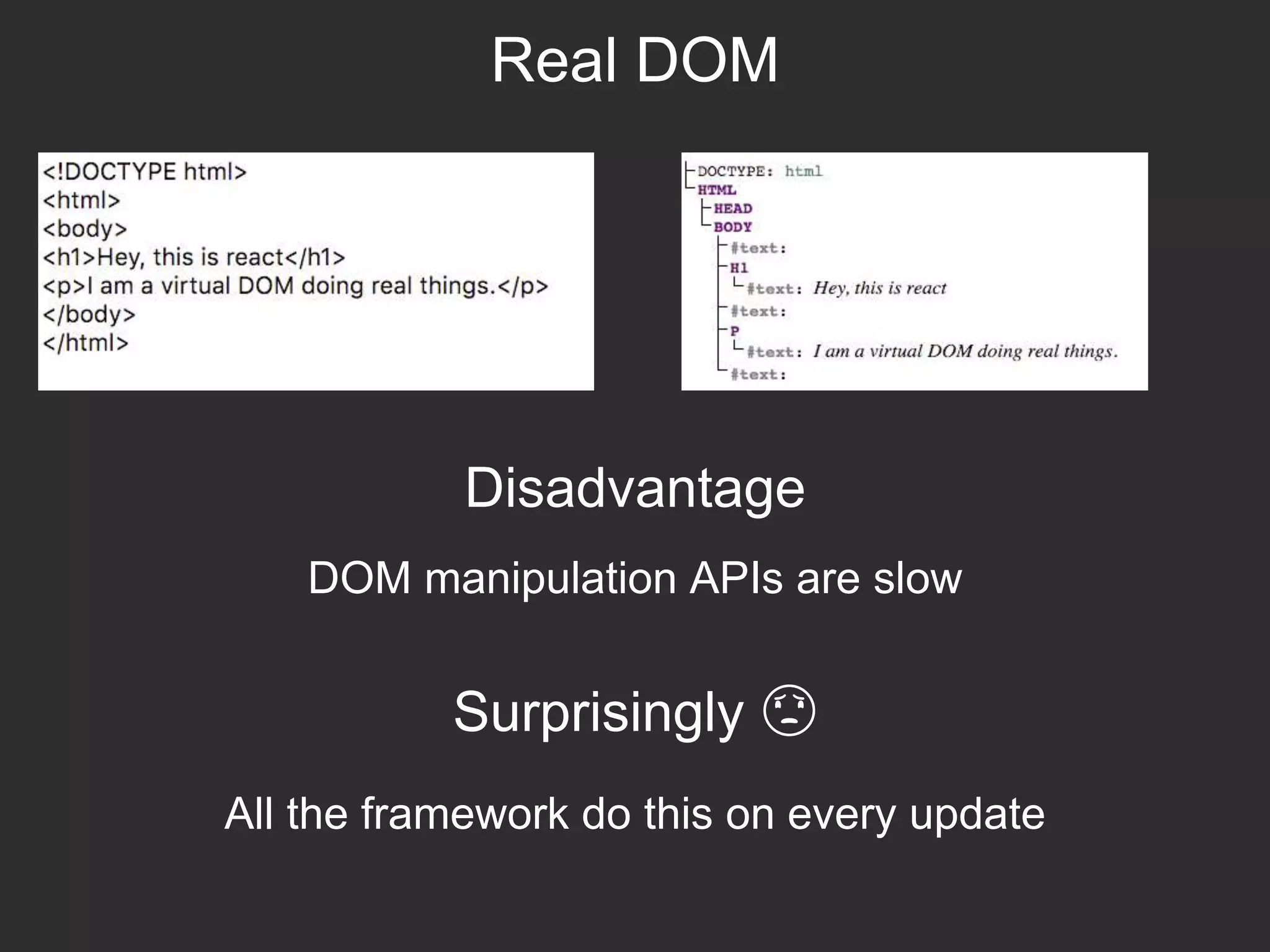

Real DOM
Disadvantage
DOM manipulation APIs are slow
Surprisingly 😟
All the framework do this on every update

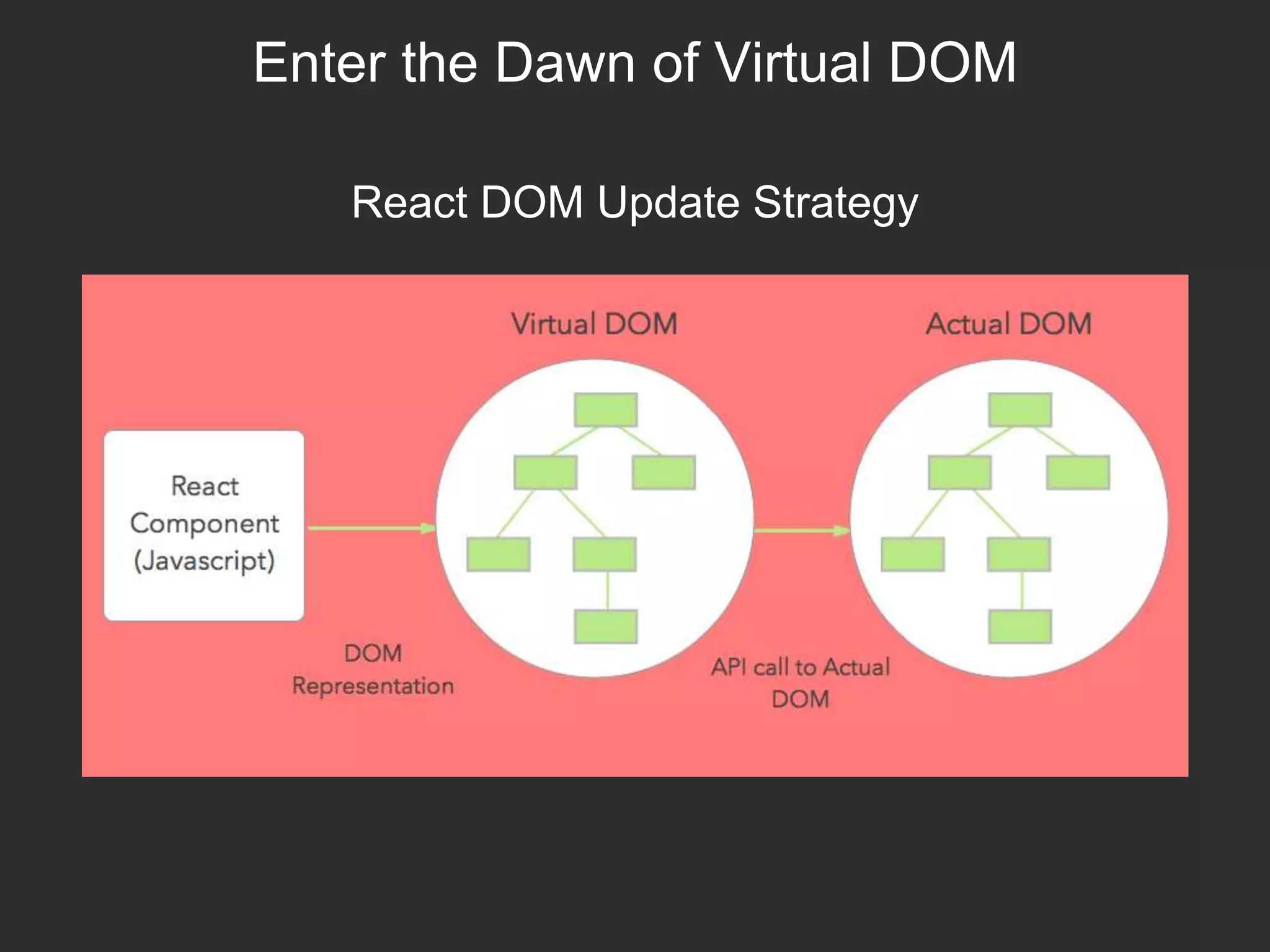

Enter the Dawn of Virtual DOM
React DOM Update Strategy

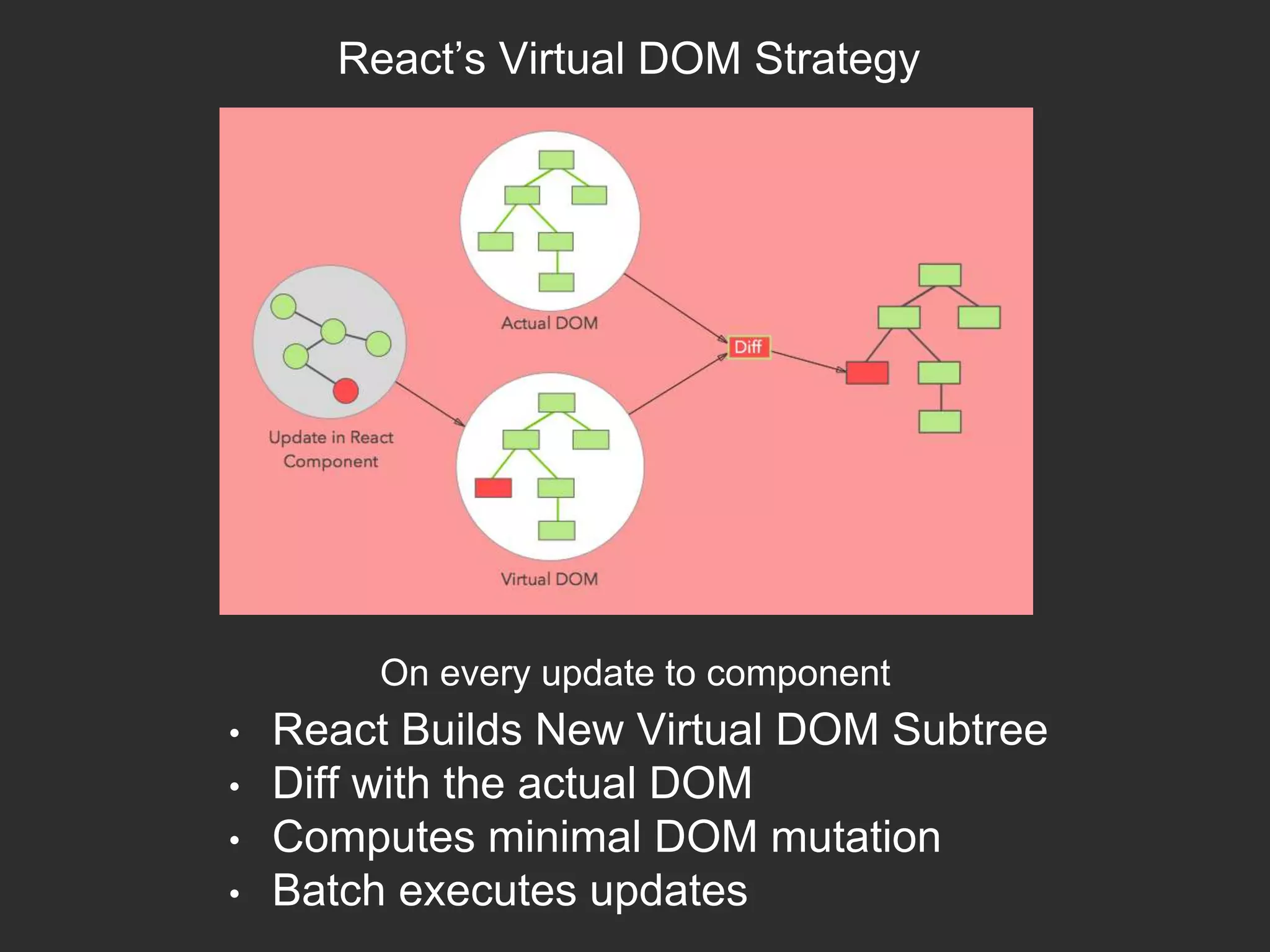

React’s Virtual DOM Strategy
On every update to component
• React Builds New Virtual DOM Subtree
• Diff with the actual DOM
• Computes minimal DOM mutation
• Batch executes updates

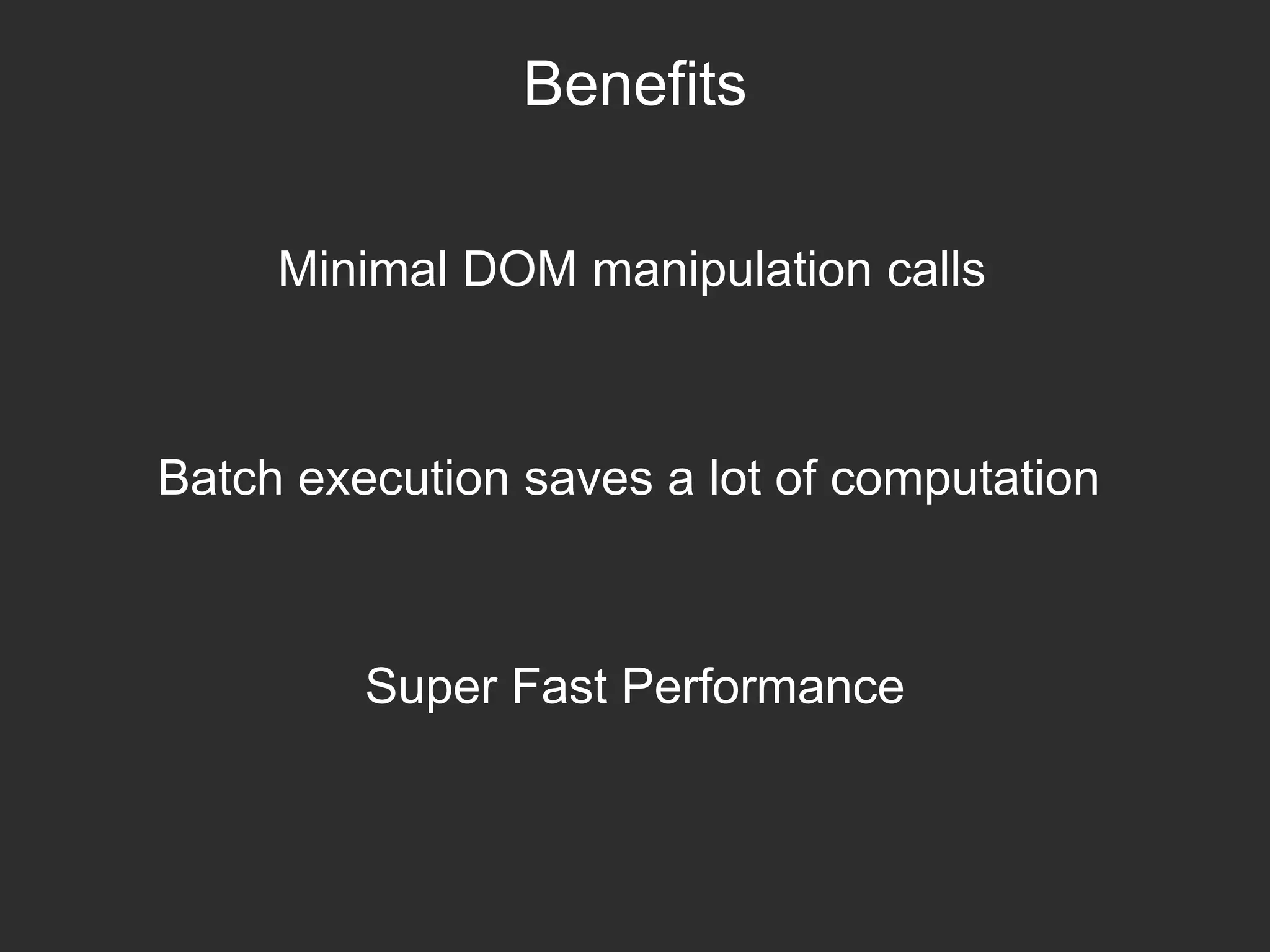

Benefits
Minimal DOM manipulation calls
Batch execution saves a lot of computation
Super Fast Performance

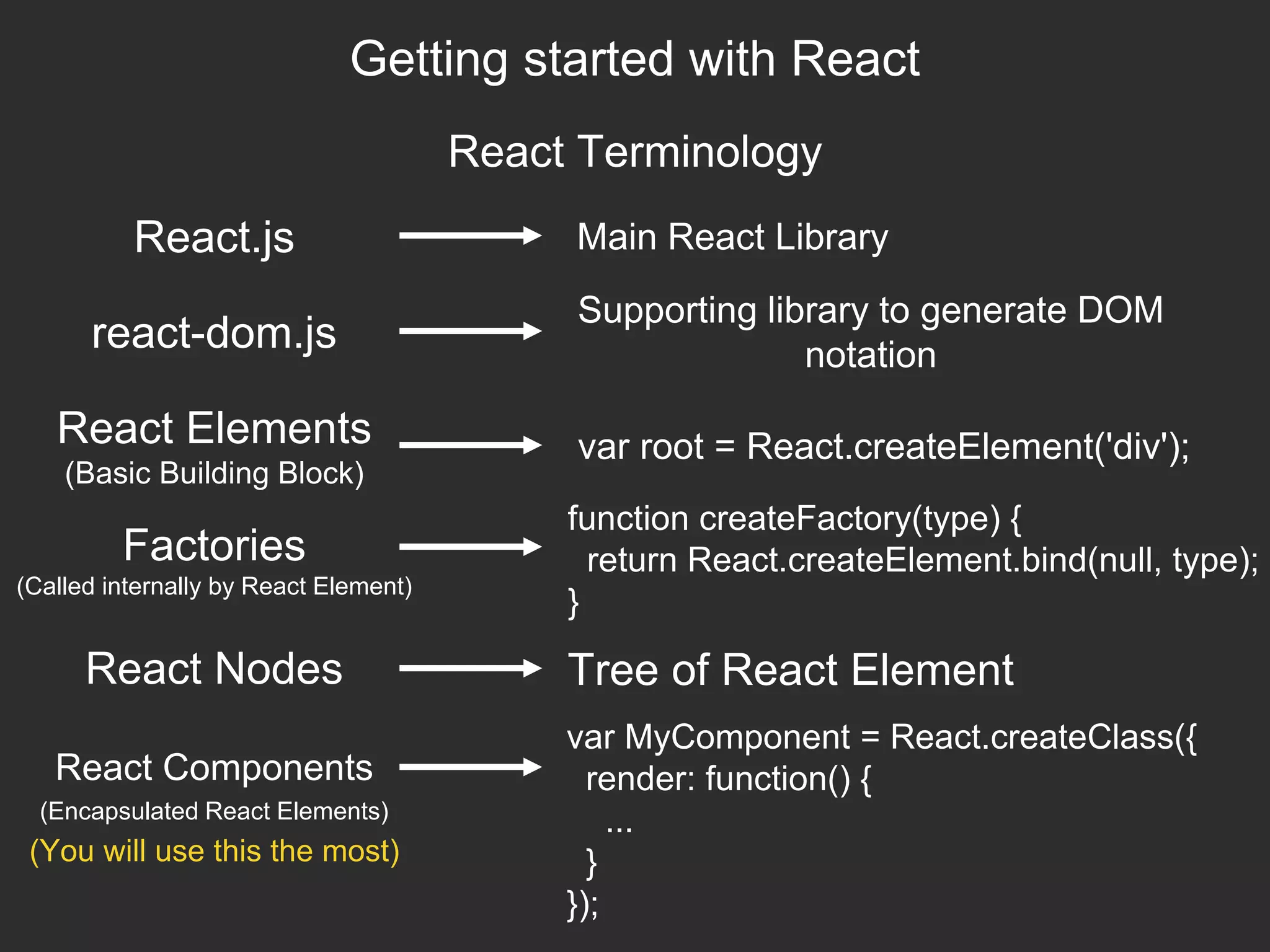

Getting started with React
React Terminology
React Elements
(Basic Building Block)
var root = React.createElement('div');
React.js Main React Library
react-dom.js
Supporting library to generate DOM
notation
Factories
(Called internally by React Element)
function createFactory(type) {
return React.createElement.bind(null, type);
}
React Nodes Tree of React Element
React Components
var MyComponent = React.createClass({
render: function() {
...
}
});
(Encapsulated React Elements)
(You will use this the most)

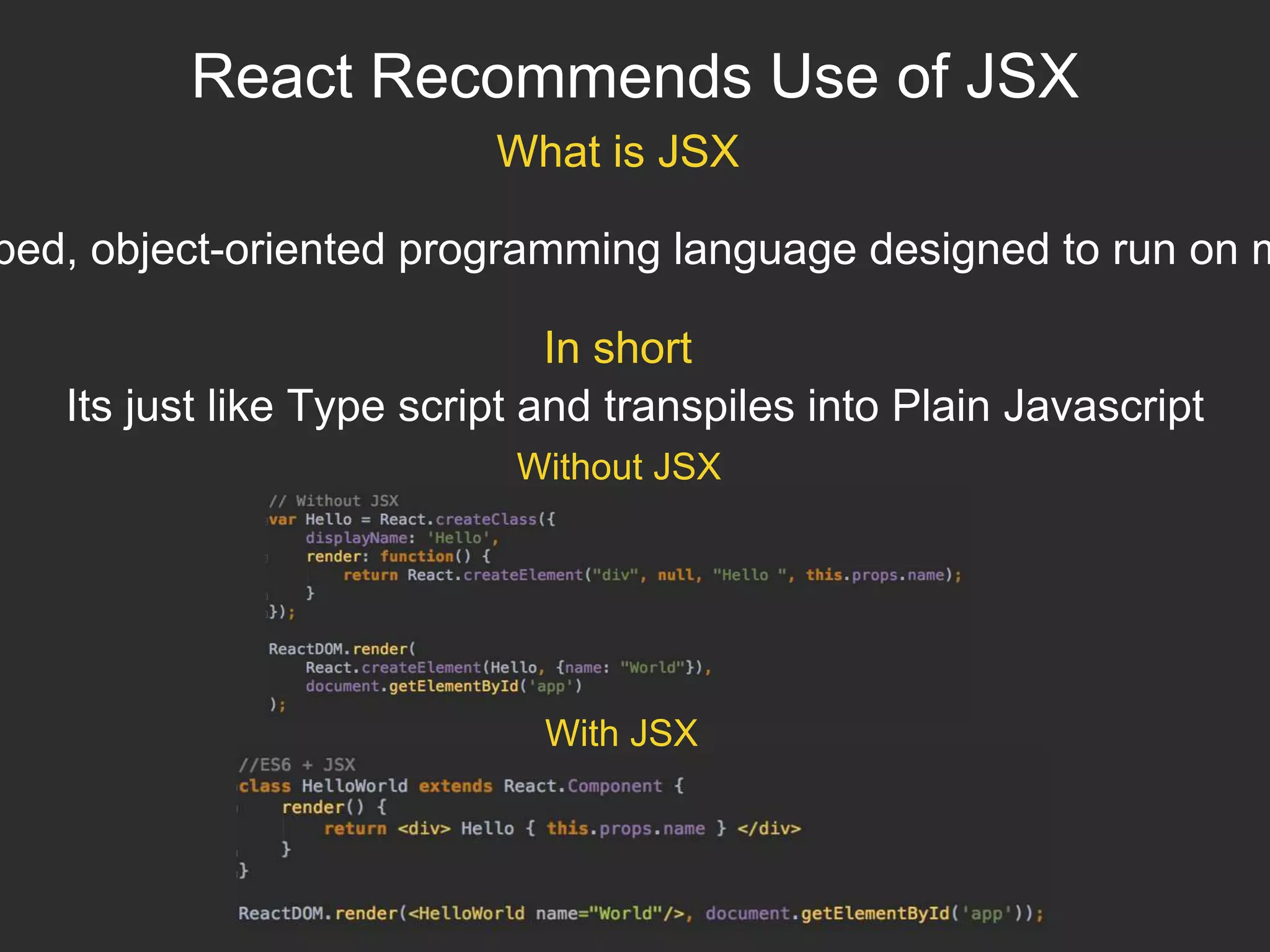

React Recommends Use of JSX
What is JSX
ped, object-oriented programming language designed to run on m
In short
Its just like Type script and transpiles into Plain Javascript
Without JSX
With JSX

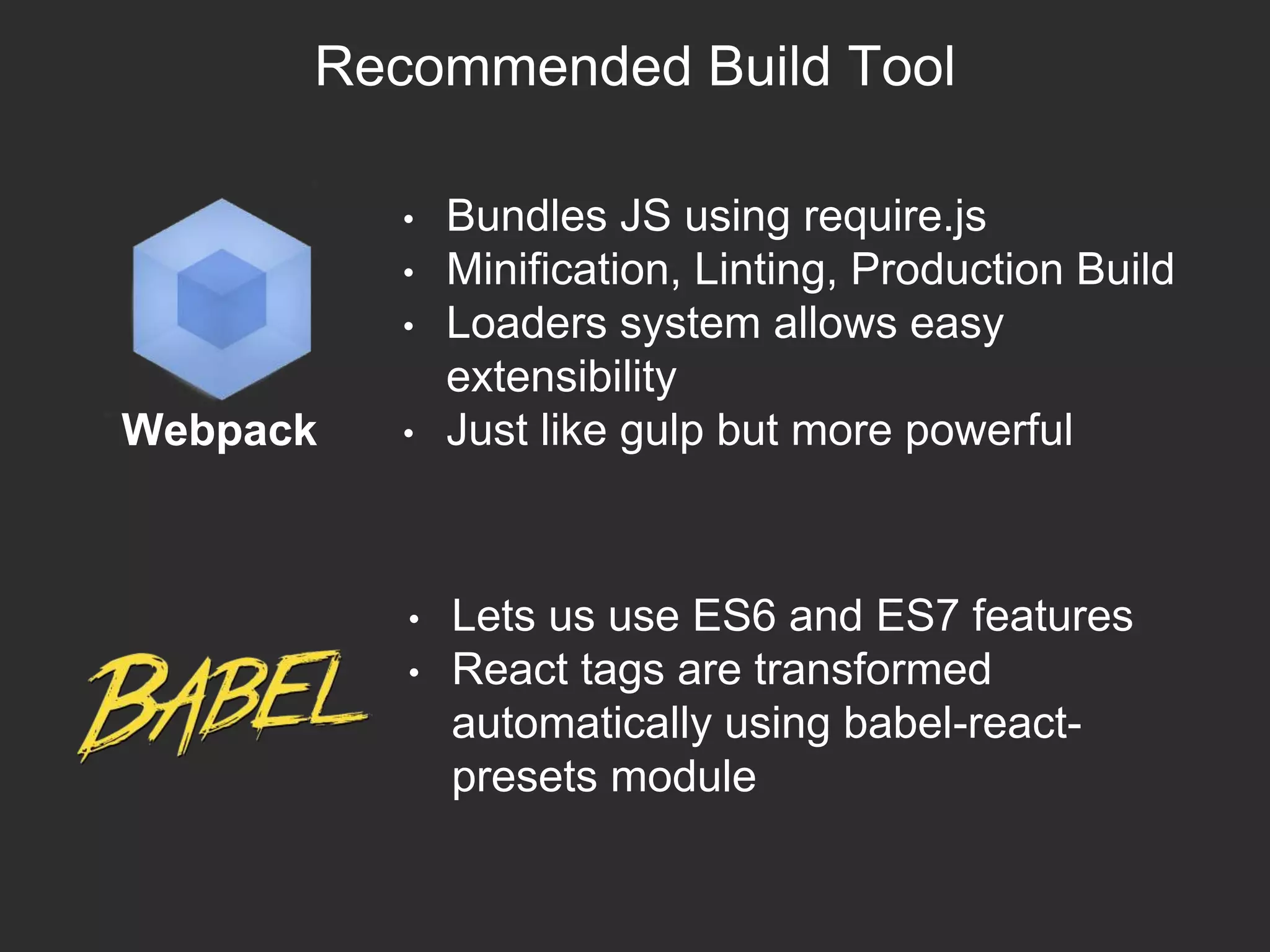

Recommended Build Tool
Webpack
• Bundles JS using require.js
• Minification, Linting, Production Build
• Loaders system allows easy
extensibility
• Just like gulp but more powerful
• Lets us use ES6 and ES7 features
• React tags are transformed
automatically using babel-react-
presets module

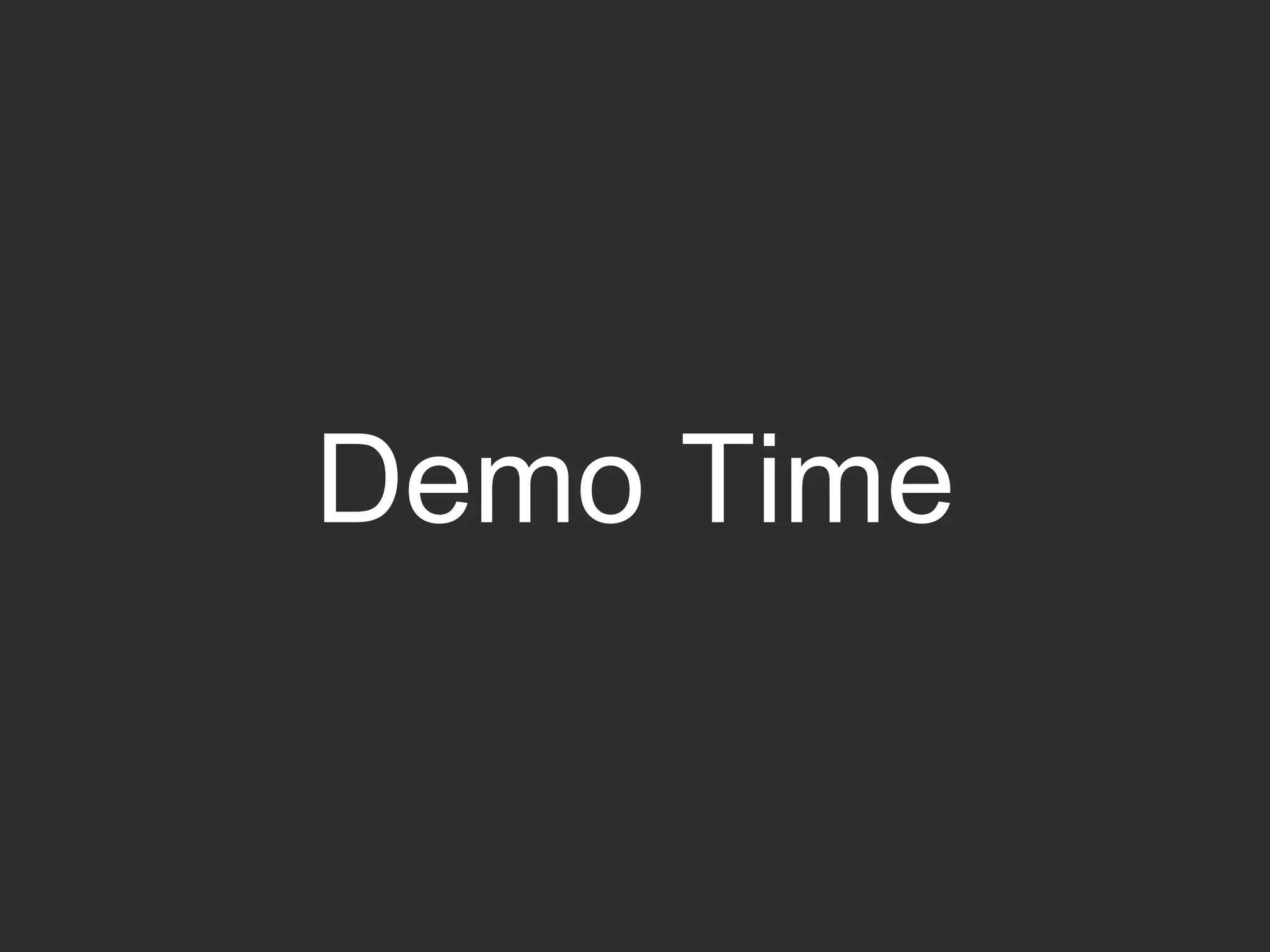

Demo Time

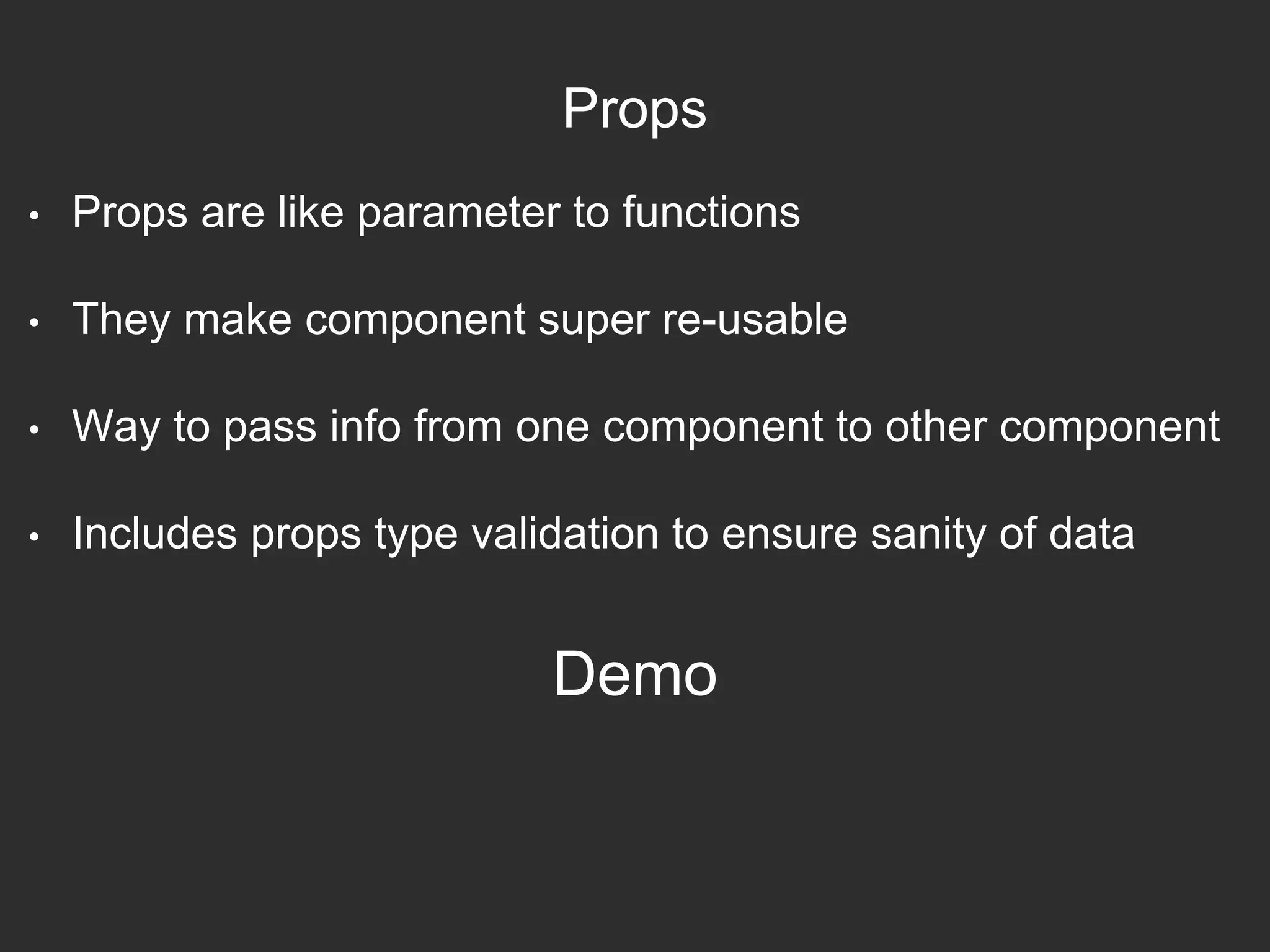

Props
• Props are like parameter to functions
• They make component super re-usable
• Way to pass info from one component to other component
• Includes props type validation to ensure sanity of data
Demo

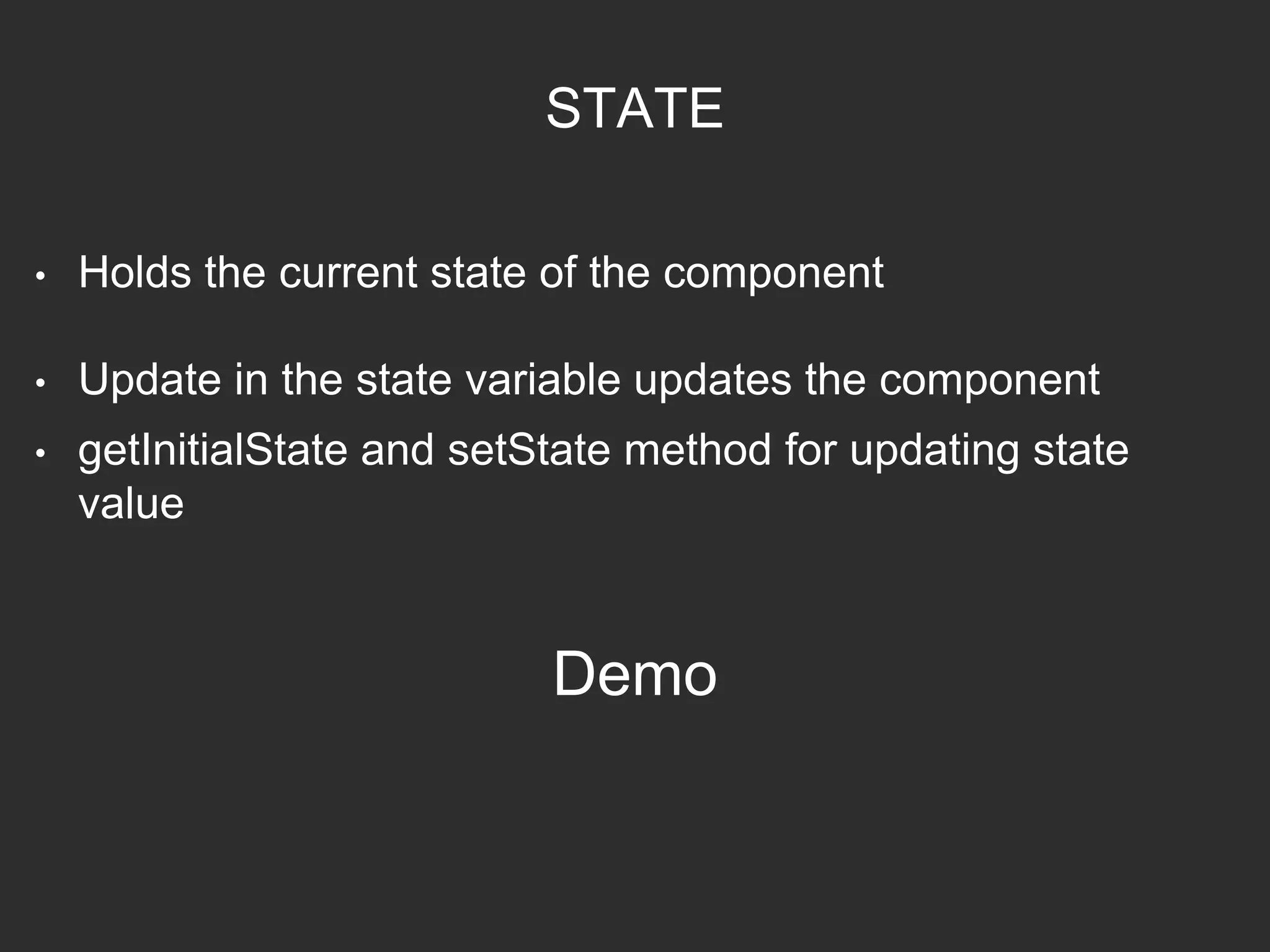

STATE
• Holds the current state of the component
• Update in the state variable updates the component
• getInitialState and setState method for updating state
value
Demo

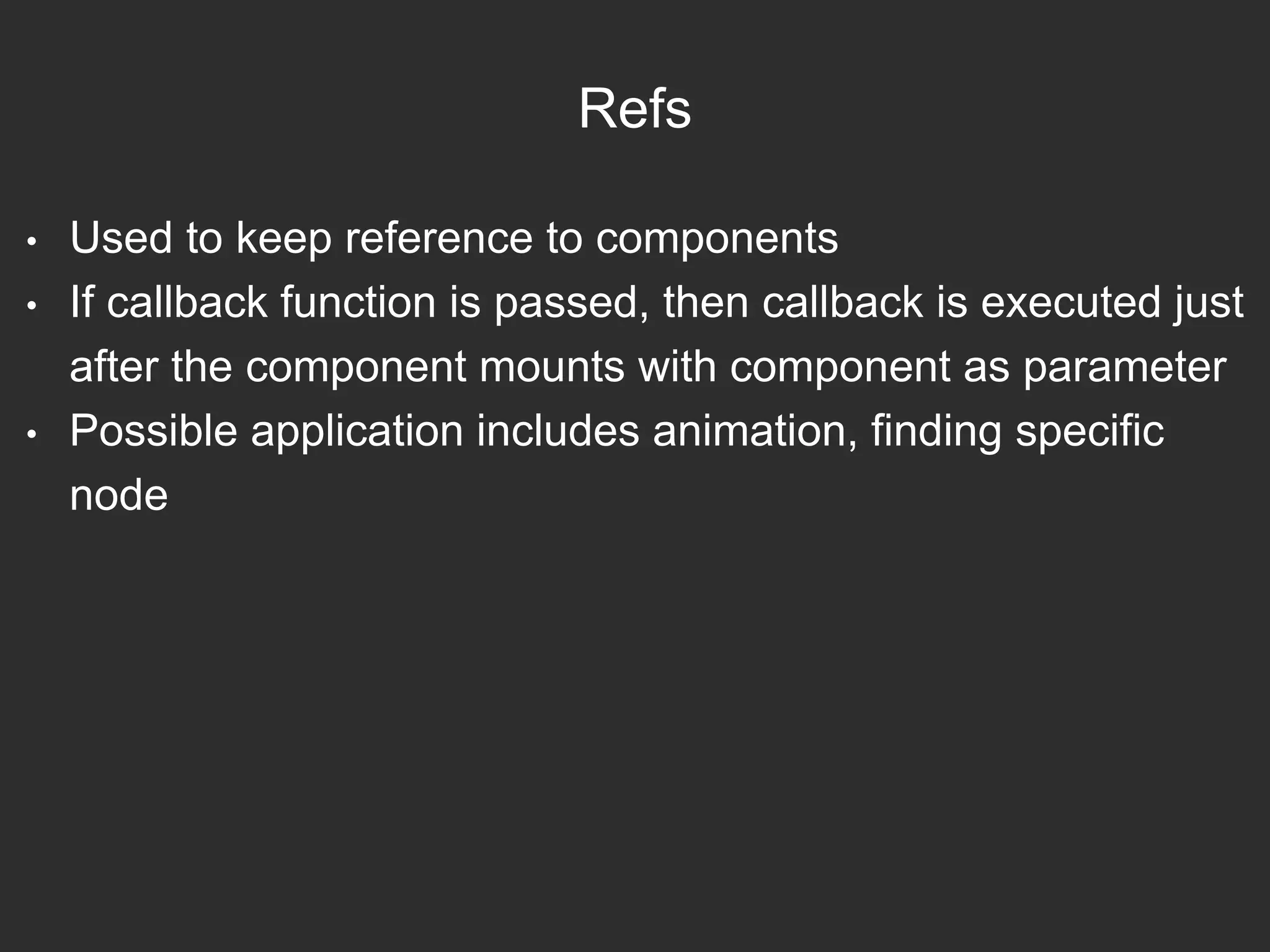

Refs
• Used to keep reference to components
• If callback function is passed, then callback is executed just
after the component mounts with component as parameter
• Possible application includes animation, finding specific
node

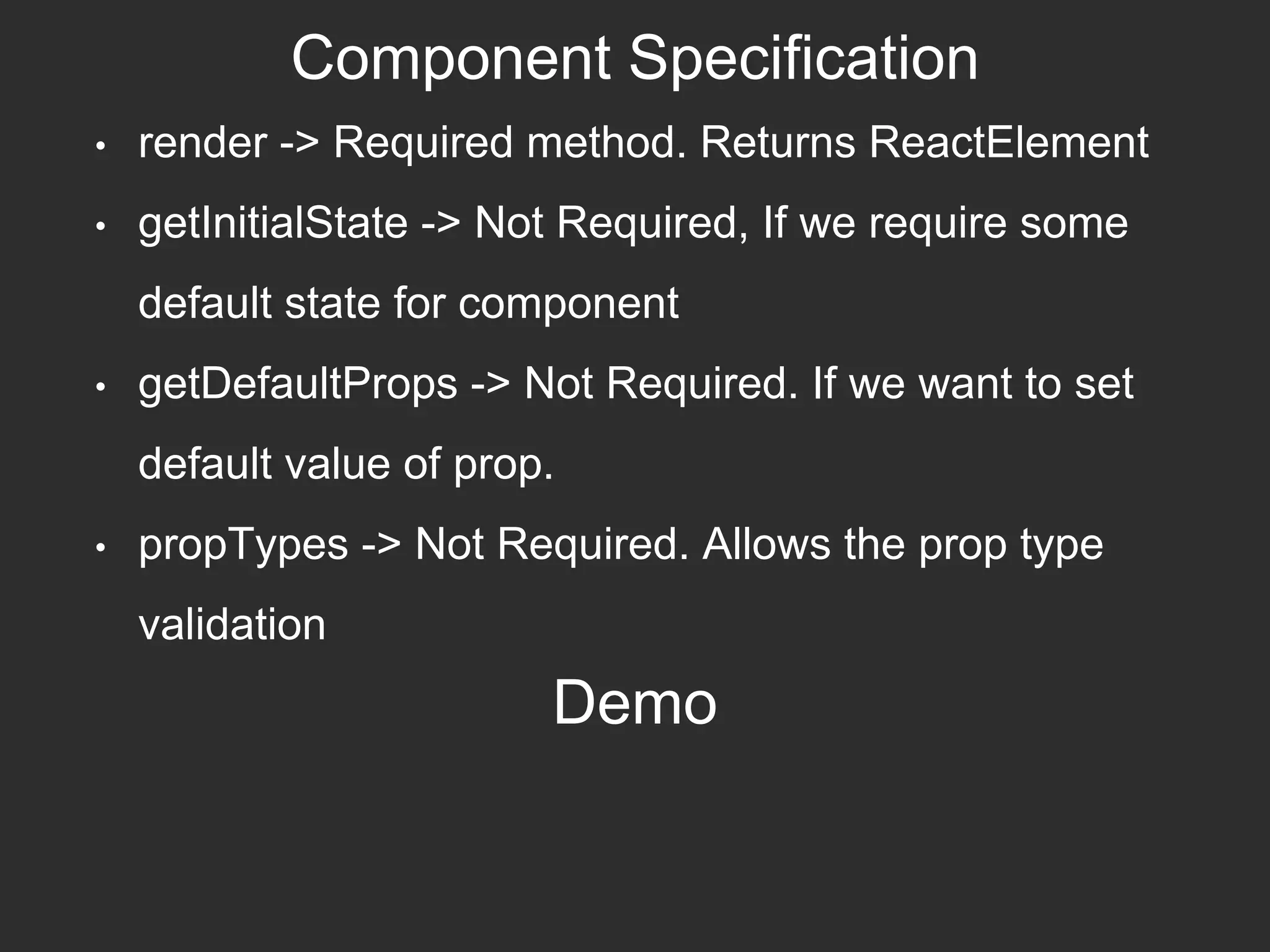

Component Specification
• render -> Required method. Returns ReactElement
• getInitialState -> Not Required, If we require some
default state for component
• getDefaultProps -> Not Required. If we want to set
default value of prop.
• propTypes -> Not Required. Allows the prop type
validation
Demo

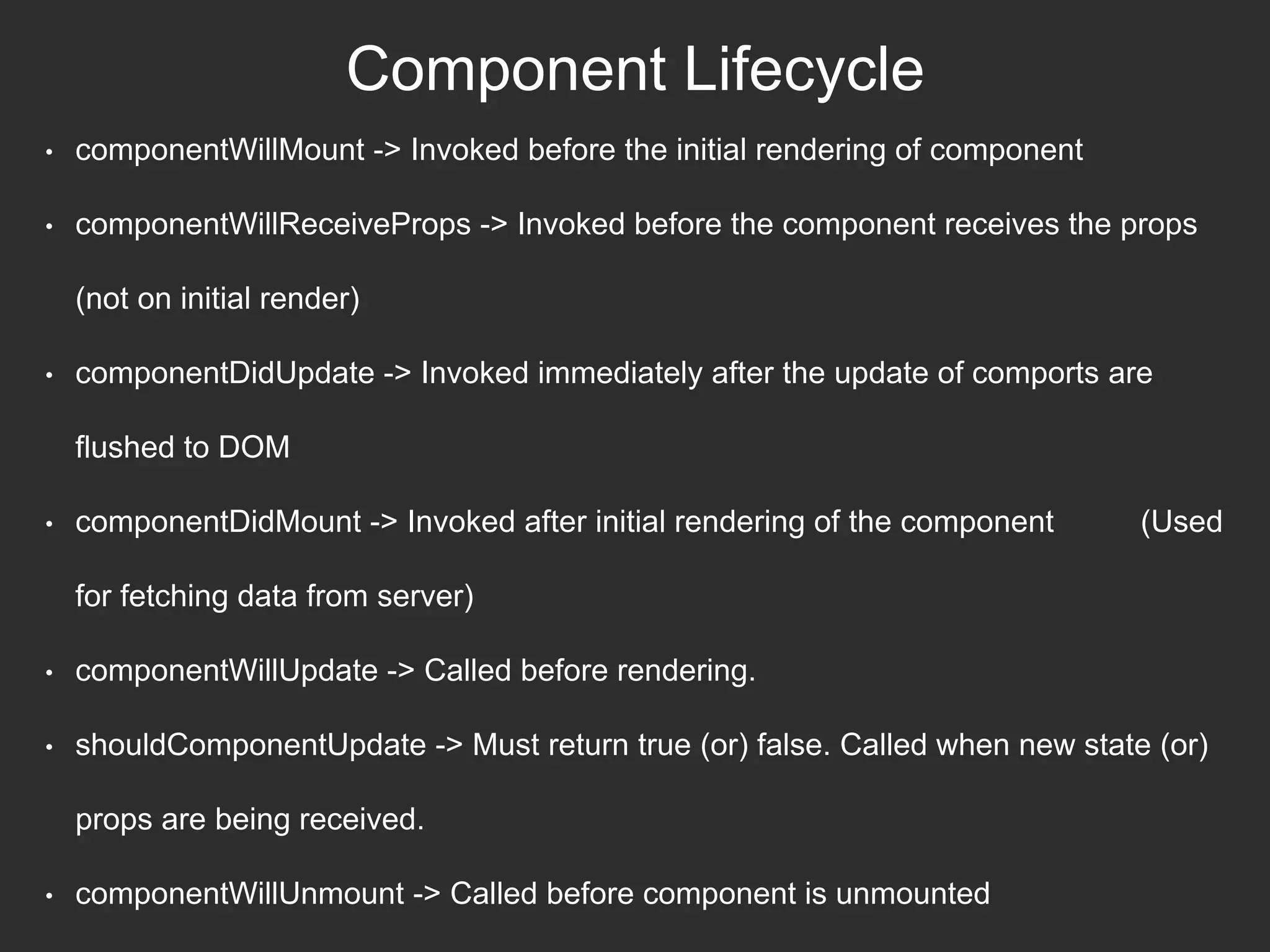

Component Lifecycle
• componentWillMount -> Invoked before the initial rendering of component
• componentWillReceiveProps -> Invoked before the component receives the props
(not on initial render)
• componentDidUpdate -> Invoked immediately after the update of comports are
flushed to DOM
• componentDidMount -> Invoked after initial rendering of the component (Used
for fetching data from server)
• componentWillUpdate -> Called before rendering.
• shouldComponentUpdate -> Must return true (or) false. Called when new state (or)
props are being received.
• componentWillUnmount -> Called before component is unmounted

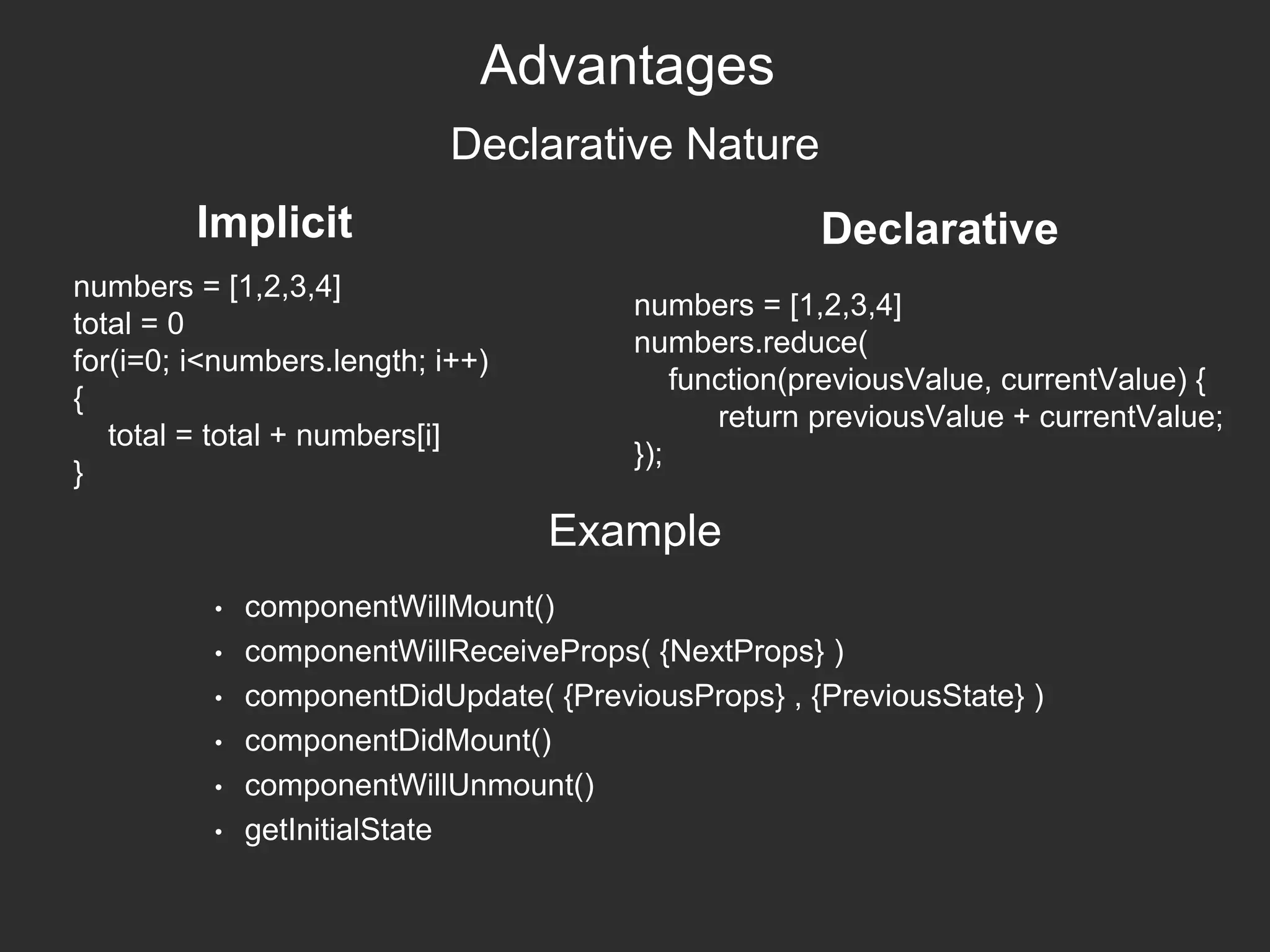

Advantages
Declarative Nature
numbers = [1,2,3,4]
total = 0
for(i=0; i<numbers.length; i++)
{
total = total + numbers[i]
}
Implicit Declarative
numbers = [1,2,3,4]
numbers.reduce(
function(previousValue, currentValue) {
return previousValue + currentValue;
});
• componentWillMount()
• componentWillReceiveProps( {NextProps} )
• componentDidUpdate( {PreviousProps} , {PreviousState} )
• componentDidMount()
• componentWillUnmount()
• getInitialState
Example

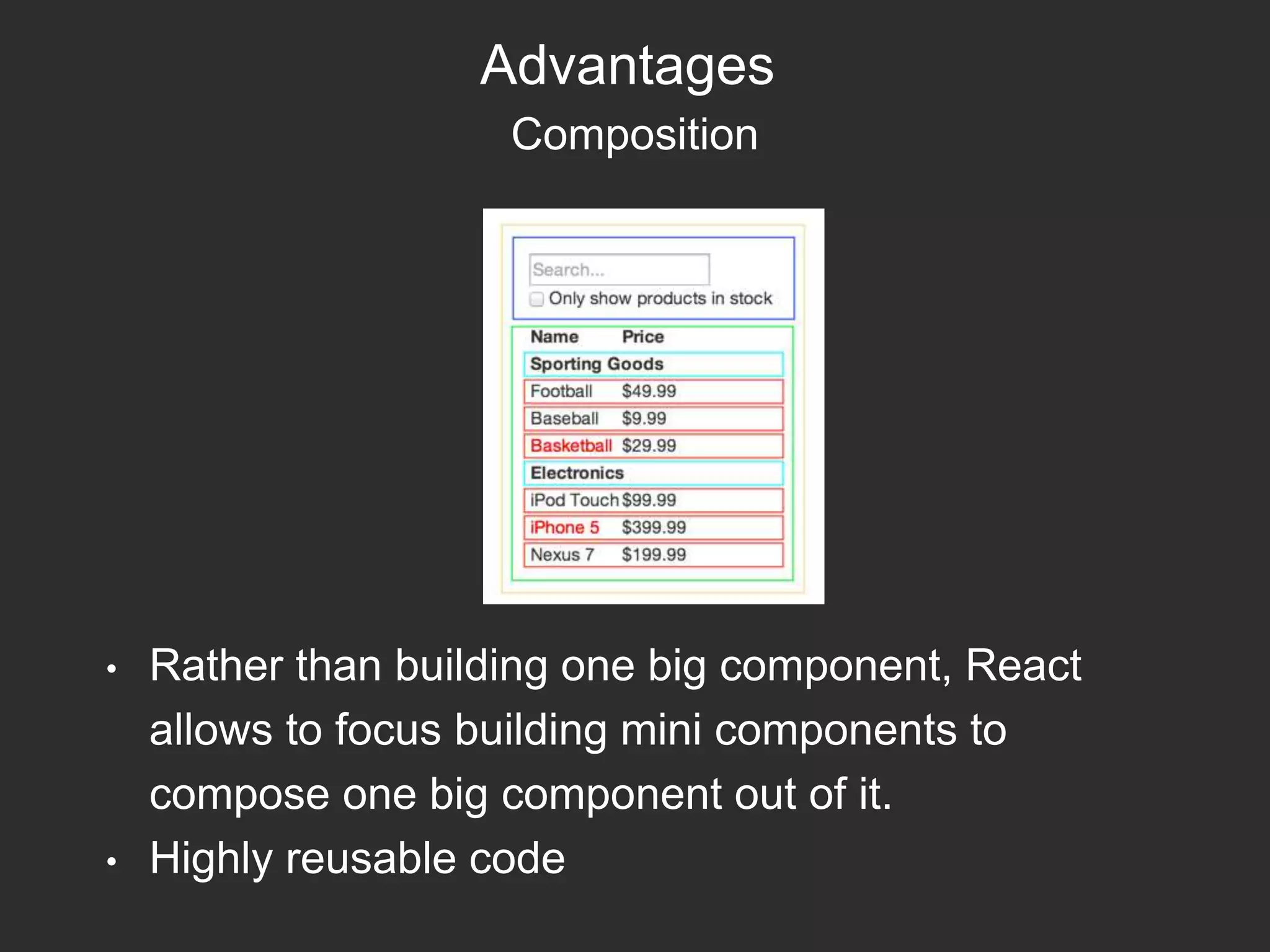

Advantages
Composition
• Rather than building one big component, React
allows to focus building mini components to
compose one big component out of it.
• Highly reusable code

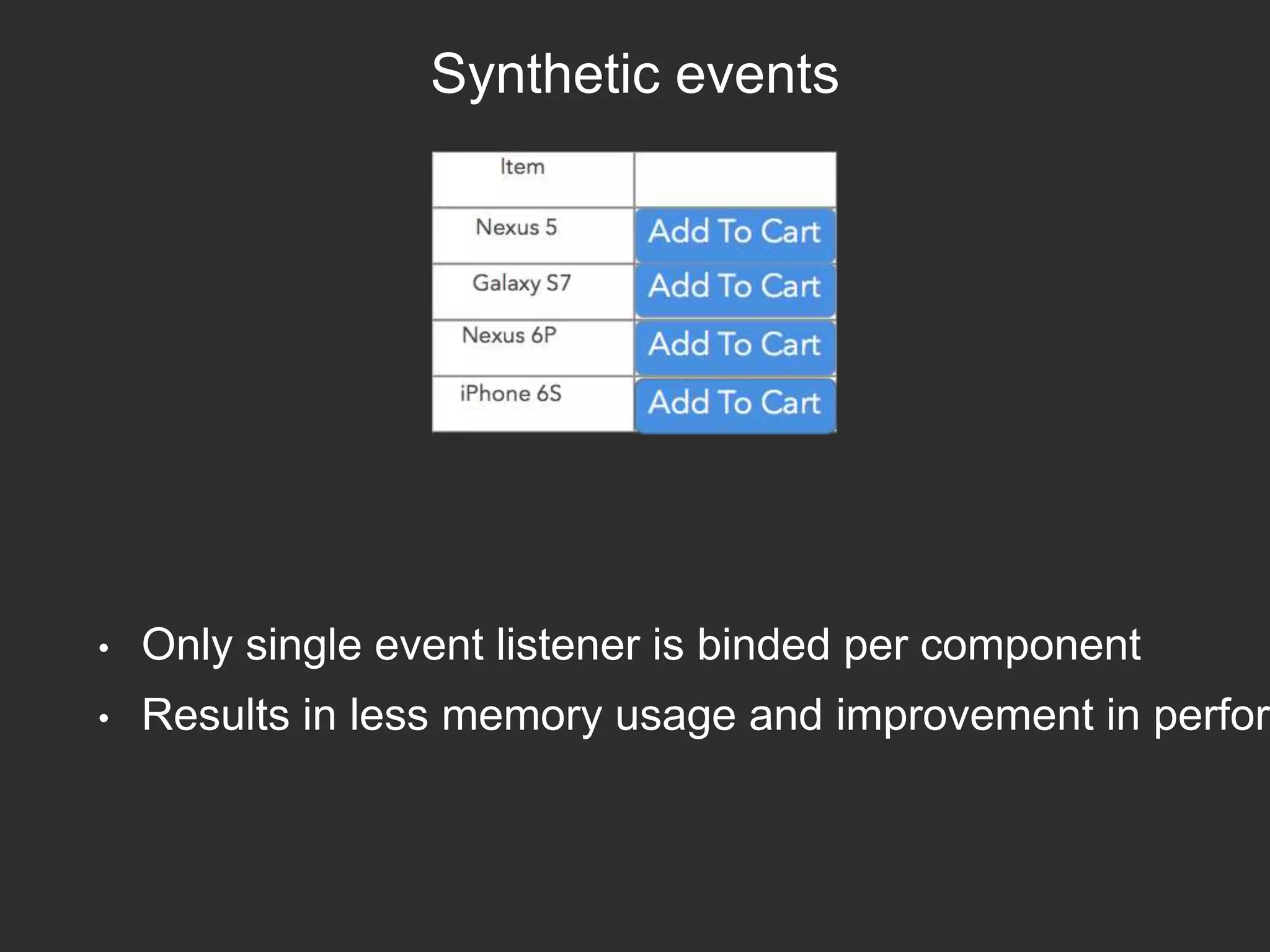

Synthetic events
• Only single event listener is binded per component
• Results in less memory usage and improvement in perform

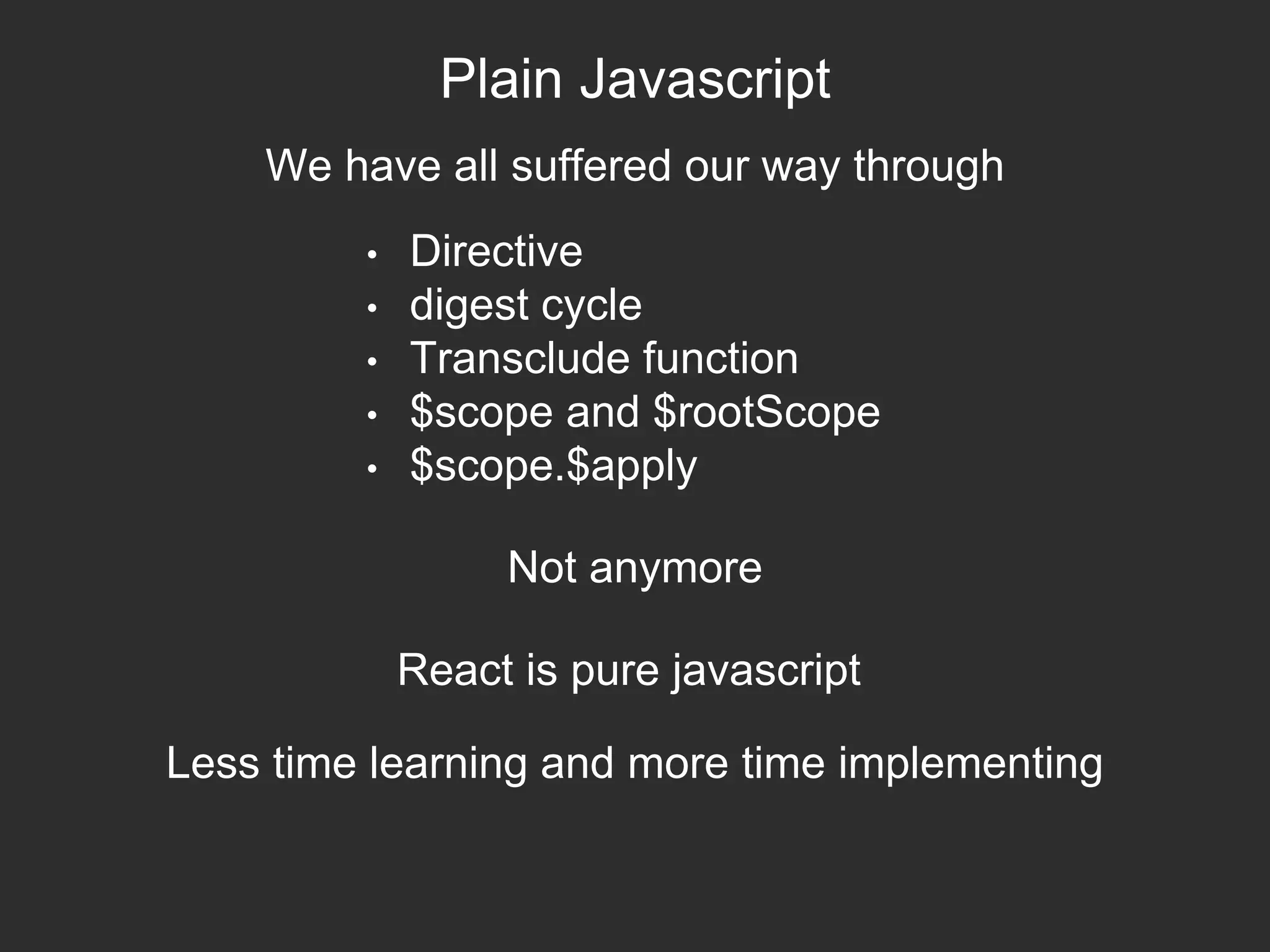

Plain Javascript
• Directive
• digest cycle
• Transclude function
• $scope and $rootScope
• $scope.$apply
We have all suffered our way through
Not anymore
React is pure javascript
Less time learning and more time implementing

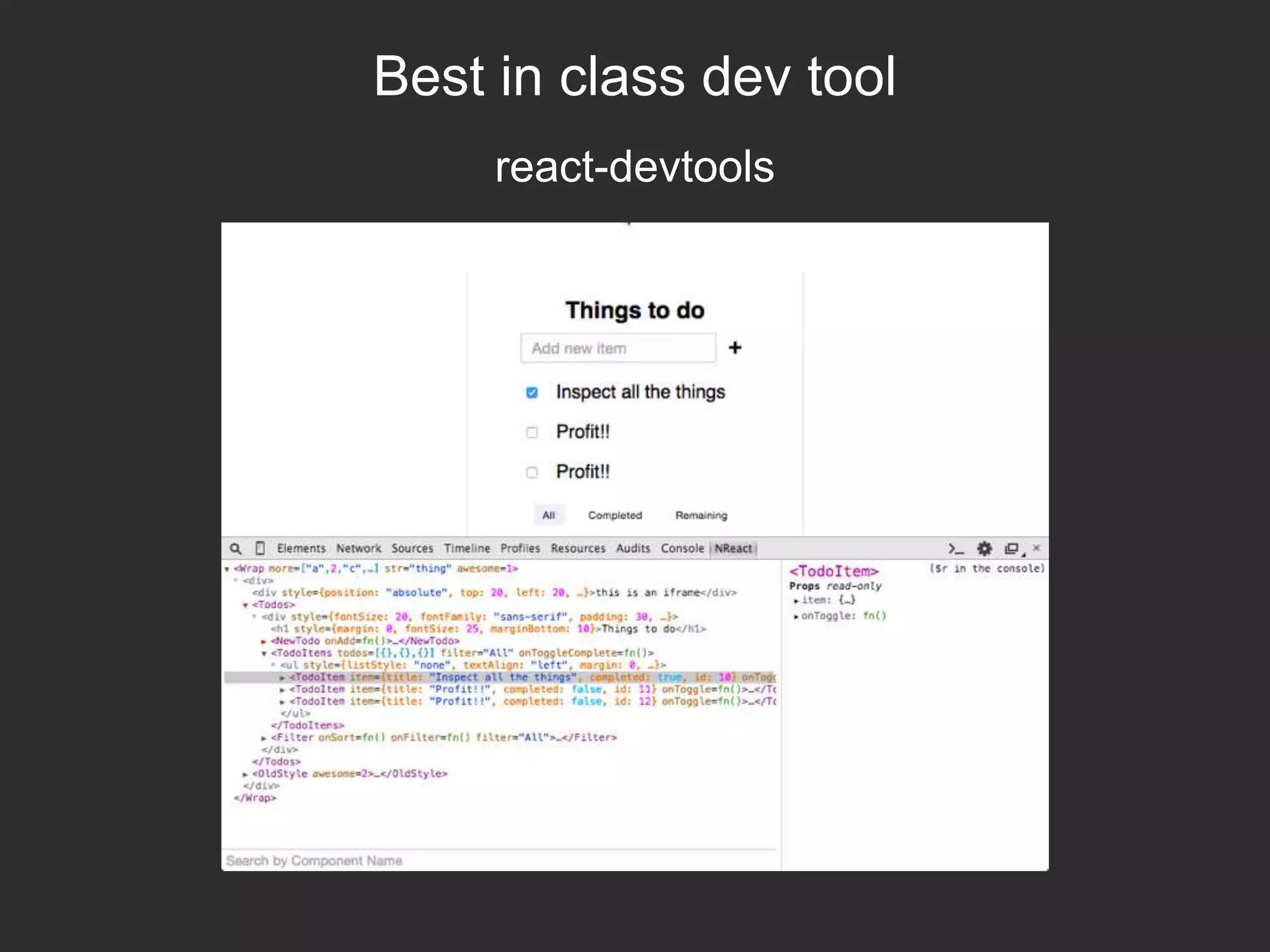

Best in class dev tool
react-devtools

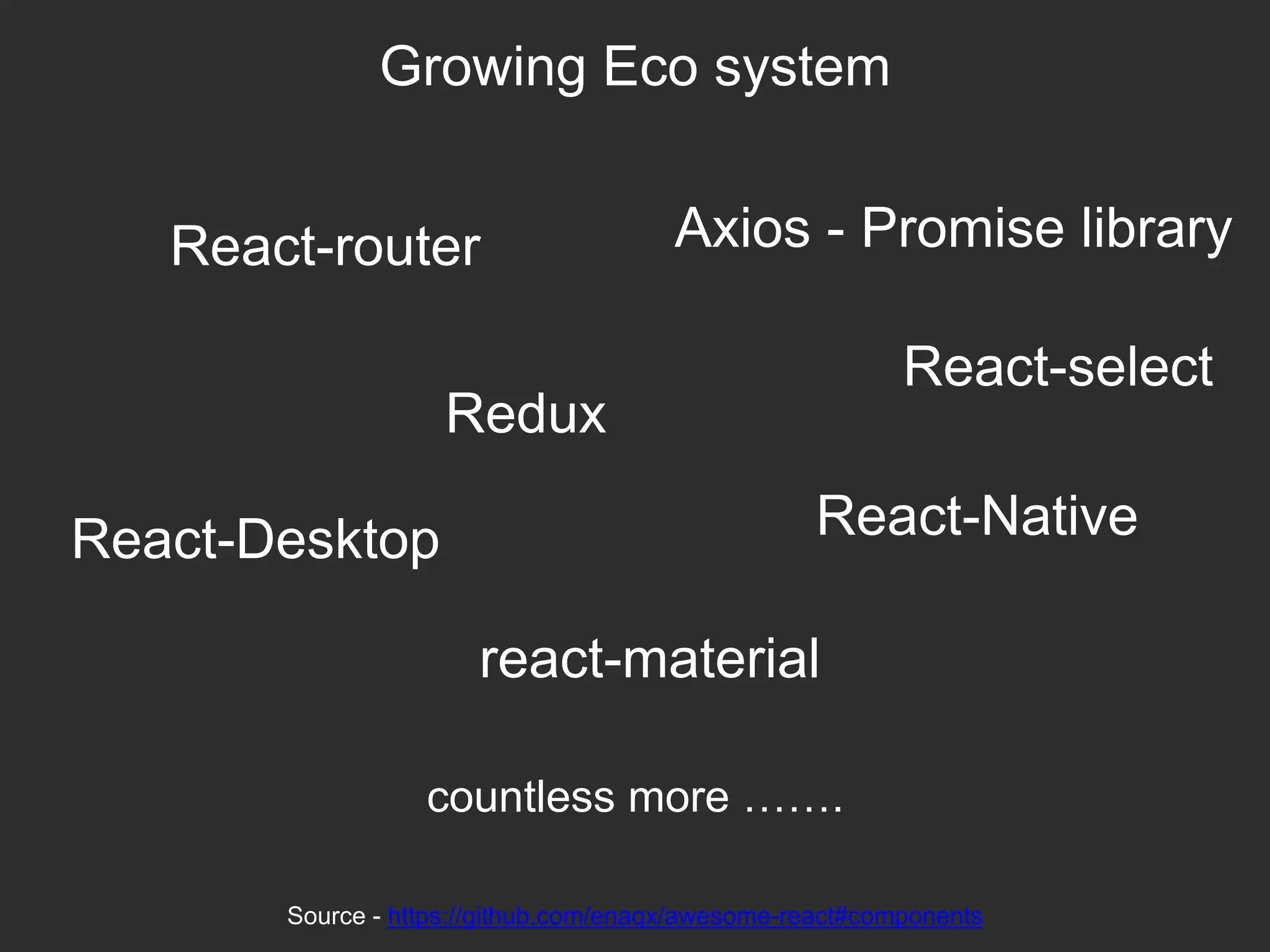

Growing Eco system
React-router Axios - Promise library
Redux
React-Desktop React-Native
react-material
Source - https://github.com/enaqx/awesome-react#components
countless more …….
React-select
Thank You

React.js - The Dawn of Virtual DOM

  • 1.
    React The Dawn ofVirtual DOM
  • 2.
    What is React AJAVASCRIPT LIBRARY FOR BUILDING USER INTERFACES Main Features • Just V of MVC • Virtual DOM • One Way Data Flow
  • 3.
    Background of React •Started by Facebook in 2013 • Motivation - building large applications with data that changes over time. • Over 40k+ Star on Github and 645 contributors • You are in a good company Source - https://github.com/facebook/react/wiki/Sites-Using-React
  • 4.
    Lets Get started Themost important thing Virtual DOM To understand this We need to first see Real DOM The Reason for performance
  • 5.
    Real DOM Disadvantage DOM manipulationAPIs are slow Surprisingly 😟 All the framework do this on every update
  • 6.
    Enter the Dawnof Virtual DOM React DOM Update Strategy
  • 7.
    React’s Virtual DOMStrategy On every update to component • React Builds New Virtual DOM Subtree • Diff with the actual DOM • Computes minimal DOM mutation • Batch executes updates
  • 8.
    Benefits Minimal DOM manipulationcalls Batch execution saves a lot of computation Super Fast Performance
  • 10.
    Getting started withReact React Terminology React Elements (Basic Building Block) var root = React.createElement('div'); React.js Main React Library react-dom.js Supporting library to generate DOM notation Factories (Called internally by React Element) function createFactory(type) { return React.createElement.bind(null, type); } React Nodes Tree of React Element React Components var MyComponent = React.createClass({ render: function() { ... } }); (Encapsulated React Elements) (You will use this the most)
  • 11.
    React Recommends Useof JSX What is JSX ped, object-oriented programming language designed to run on m In short Its just like Type script and transpiles into Plain Javascript Without JSX With JSX
  • 12.
    Recommended Build Tool Webpack •Bundles JS using require.js • Minification, Linting, Production Build • Loaders system allows easy extensibility • Just like gulp but more powerful • Lets us use ES6 and ES7 features • React tags are transformed automatically using babel-react- presets module
  • 13.
  • 14.
    Props • Props arelike parameter to functions • They make component super re-usable • Way to pass info from one component to other component • Includes props type validation to ensure sanity of data Demo
  • 15.
    STATE • Holds thecurrent state of the component • Update in the state variable updates the component • getInitialState and setState method for updating state value Demo
  • 16.
    Refs • Used tokeep reference to components • If callback function is passed, then callback is executed just after the component mounts with component as parameter • Possible application includes animation, finding specific node
  • 17.
    Component Specification • render-> Required method. Returns ReactElement • getInitialState -> Not Required, If we require some default state for component • getDefaultProps -> Not Required. If we want to set default value of prop. • propTypes -> Not Required. Allows the prop type validation Demo
  • 18.
    Component Lifecycle • componentWillMount-> Invoked before the initial rendering of component • componentWillReceiveProps -> Invoked before the component receives the props (not on initial render) • componentDidUpdate -> Invoked immediately after the update of comports are flushed to DOM • componentDidMount -> Invoked after initial rendering of the component (Used for fetching data from server) • componentWillUpdate -> Called before rendering. • shouldComponentUpdate -> Must return true (or) false. Called when new state (or) props are being received. • componentWillUnmount -> Called before component is unmounted
  • 19.
    Advantages Declarative Nature numbers =[1,2,3,4] total = 0 for(i=0; i<numbers.length; i++) { total = total + numbers[i] } Implicit Declarative numbers = [1,2,3,4] numbers.reduce( function(previousValue, currentValue) { return previousValue + currentValue; }); • componentWillMount() • componentWillReceiveProps( {NextProps} ) • componentDidUpdate( {PreviousProps} , {PreviousState} ) • componentDidMount() • componentWillUnmount() • getInitialState Example
  • 20.
    Advantages Composition • Rather thanbuilding one big component, React allows to focus building mini components to compose one big component out of it. • Highly reusable code
  • 21.
    Synthetic events • Onlysingle event listener is binded per component • Results in less memory usage and improvement in perform
  • 22.
    Plain Javascript • Directive •digest cycle • Transclude function • $scope and $rootScope • $scope.$apply We have all suffered our way through Not anymore React is pure javascript Less time learning and more time implementing
  • 23.
    Best in classdev tool react-devtools
  • 24.
    Growing Eco system React-routerAxios - Promise library Redux React-Desktop React-Native react-material Source - https://github.com/enaqx/awesome-react#components countless more ……. React-select
  • 25.
