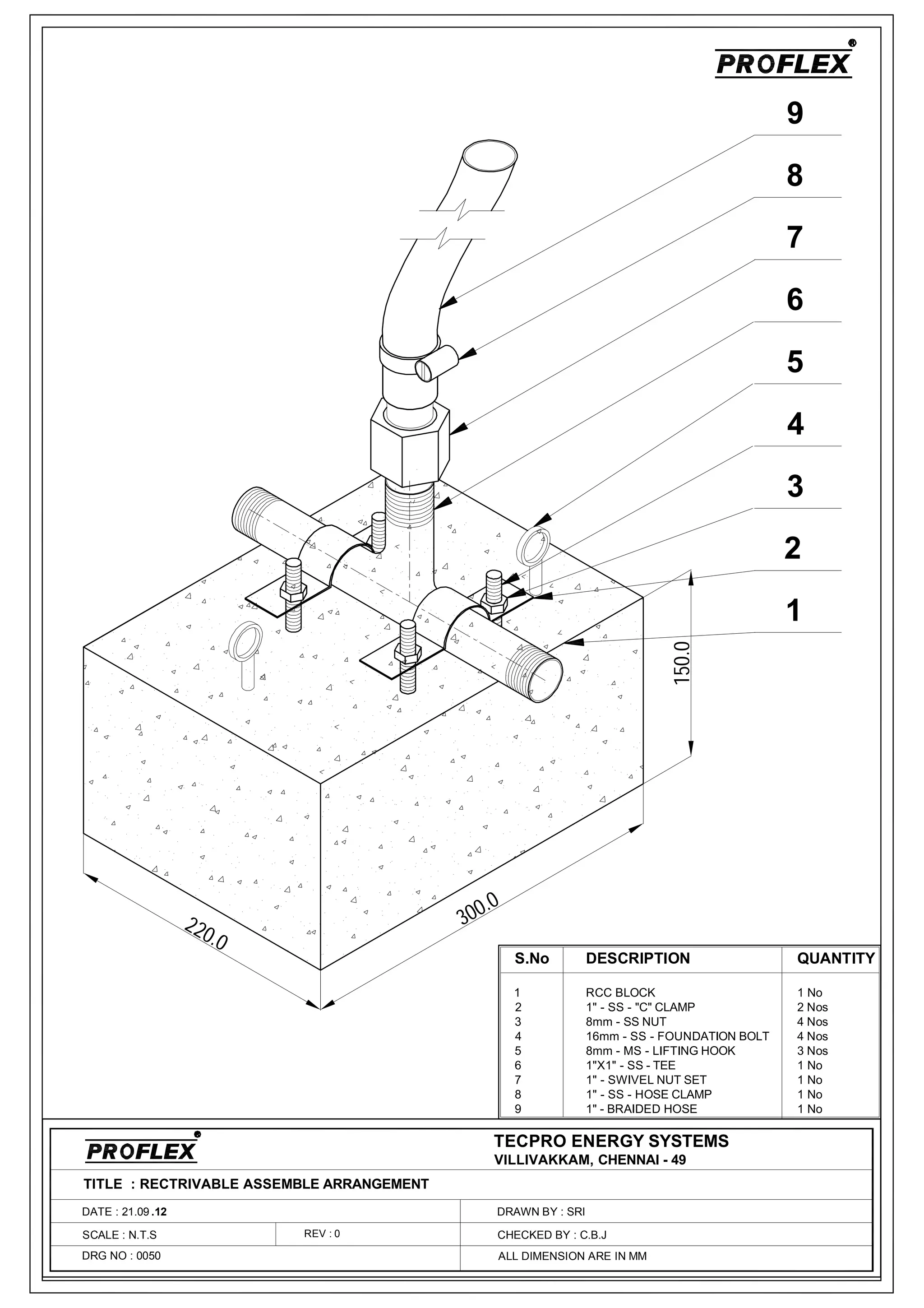

This document is a drawing for a retrievable assemble arrangement dated September 21, 2012 created by Sri and checked by C.B.J. It includes a bill of materials listing the components needed which are: a RCC block, 2 stainless steel C-clamps, 4 stainless steel nuts, 4 stainless steel foundation bolts, 3 mild steel lifting hooks, 1 stainless steel tee, 1 stainless steel swivel nut set, 1 stainless steel hose clamp, and 1 braided hose. All dimensions are in millimeters.

1. 150.0
220.0
300.0
TITLE : RECTRIVABLE ASSEMBLE ARRANGEMENT
DATE : 21.09 .12
SCALE : N.T.S
DRG NO : 0050
DRAWN BY : SRI
CHECKED BY : C.B.J
ALL DIMENSION ARE IN MM
REV : 0
TECPRO ENERGY SYSTEMS
VILLIVAKKAM, CHENNAI - 49
1
2
3
4
5
6
7
8
9
S.No DESCRIPTION QUANTITY
1 RCC BLOCK 1 No
2 1" - SS - "C" CLAMP 2 Nos
3 8mm - SS NUT 4 Nos
4 16mm - SS - FOUNDATION BOLT 4 Nos
5 8mm - MS - LIFTING HOOK 3 Nos
6 1"X1" - SS - TEE 1 No
7 1" - SWIVEL NUT SET 1 No
8 1" - SS - HOSE CLAMP 1 No
9 1" - BRAIDED HOSE 1 No
