Raritan AV-over-IP (RAV-IP) Distribution System
The Raritan AV-over-IP Distribution System (RAV-IP) allows distribution of audio and video over an IP network using standard Ethernet switches, Cat5 cabling, or fiber for long distances up to 10km. It uses an encoder/decoder architecture to convert AV signals to IP packets at the encoder and back to AV at the decoder. Setup is flexible and economical, allowing expansion as needed. RAV-IP provides a simple way to extend AV and computing devices over an IP network.
More Related Content
Similar to Raritan AV-over-IP (RAV-IP) Distribution System
Raritan AV-over-IP (RAV-IP) Distribution System
- 1. Raritan AV-over-IP DistributionSystem (RAV-IP) Cat5 and Fiber High Performance IP Video Easy to Install/Expand
- 2. Why AV-over-IP? • Leverageslow cost IP networking. • Use standard, proven technologies. • IP favored by IT departments. • Powerful, flexible and economical. • Scalable and reliable. • Easy to install and expand. Ethernet TCP/IP Cat5 USB Fiber HDMI IP is the Future of AV !
- 3. AV-over-IP Distribution System •A/V over Ethernet & IP System. • Encoder/Decoder based architecture. • Ethernet switch, Cat5 cable and Fiber. • Unique, low cost Fiber capability. The future of AV ! Flexible, expandable Proven, low cost Up to 10K distance
- 4. AV-over-IP Distribution System •Simple control strategies. • Supports A/V & Computer Devices. • Flexible, low cost, easy-to-install. • Perfect for many AV applications. Simple yet powerful AV & KVM control IP technology Flexible, economical
- 5. The Network isthe Switch • RAV-IP does not use expensive, proprietary AV switches. • Uses powerful, flexible and low cost technologies: ‒ Gigabit Ethernet Switches from multiple vendors. • Inexpensive Cat5 or long distance fiber optic cabling. • Proven multicast technology used for high performance, low bandwidth video distribution. • Easy to expand: • Add additional switches, ports, cabling. Economical, Flexible, Powerful, Proven

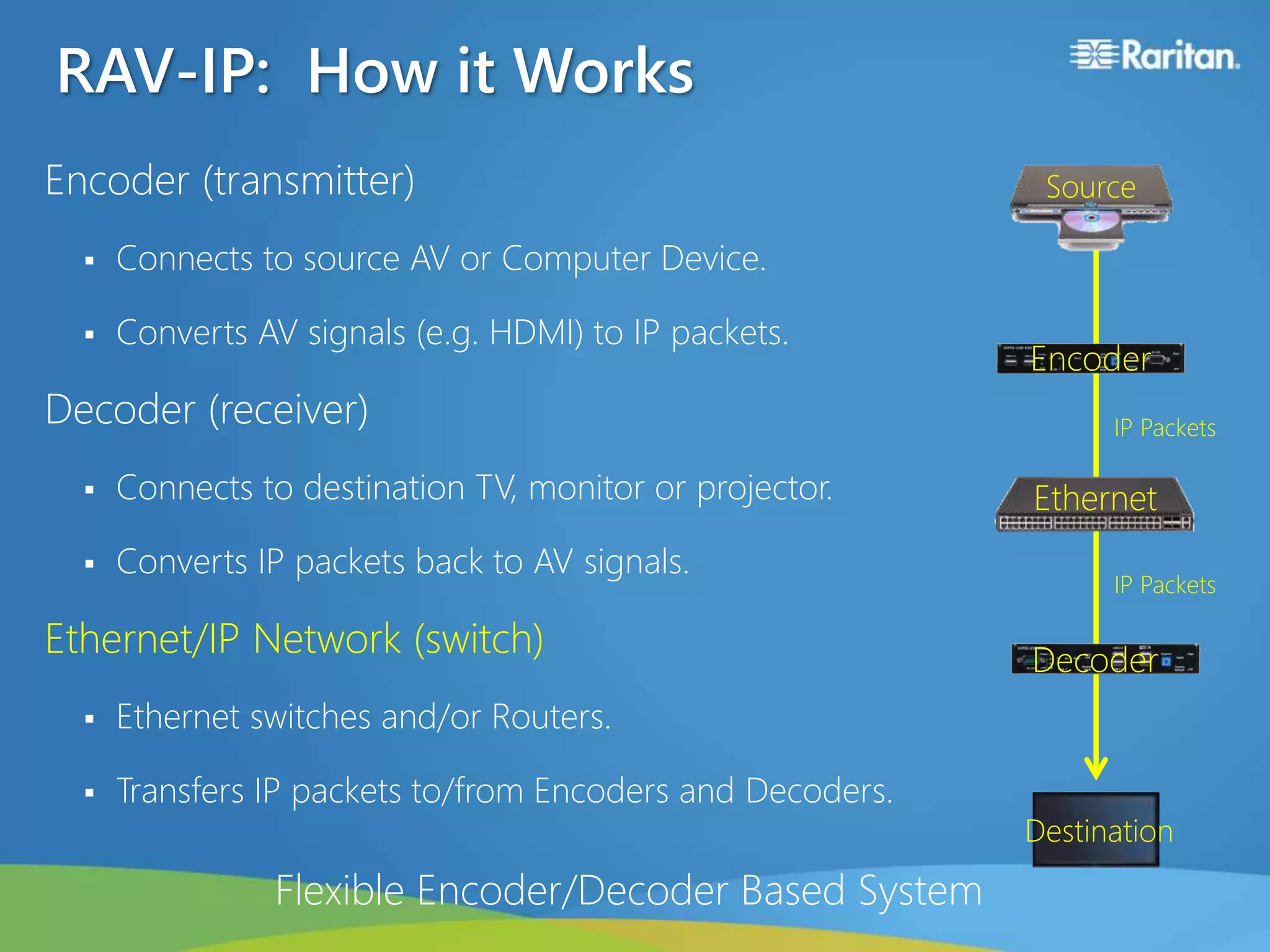

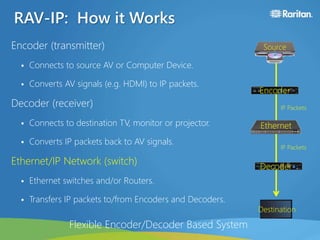

- 6. RAV-IP: How itWorks Encoder (transmitter) Connects to source AV or Computer Device. Converts AV signals (e.g. HDMI) to IP packets. Decoder (receiver) Connects to destination TV, monitor or projector. Converts IP packets back to AV signals. Ethernet/IP Network (switch) Ethernet switches and/or Routers. Transfers IP packets to/from Encoders and Decoders. Source Destination Encoder Decoder Ethernet IP Packets Flexible Encoder/Decoder Based System IP Packets
- 7. Simple & PowerfulControl Options • Set/change channels with simple rotary dial. • Switch channels with included remote control. • Control A/V devices via IR or serial. • USB KVM control for keyboard & mouse. • Web based configuration. No complex AV control systems required

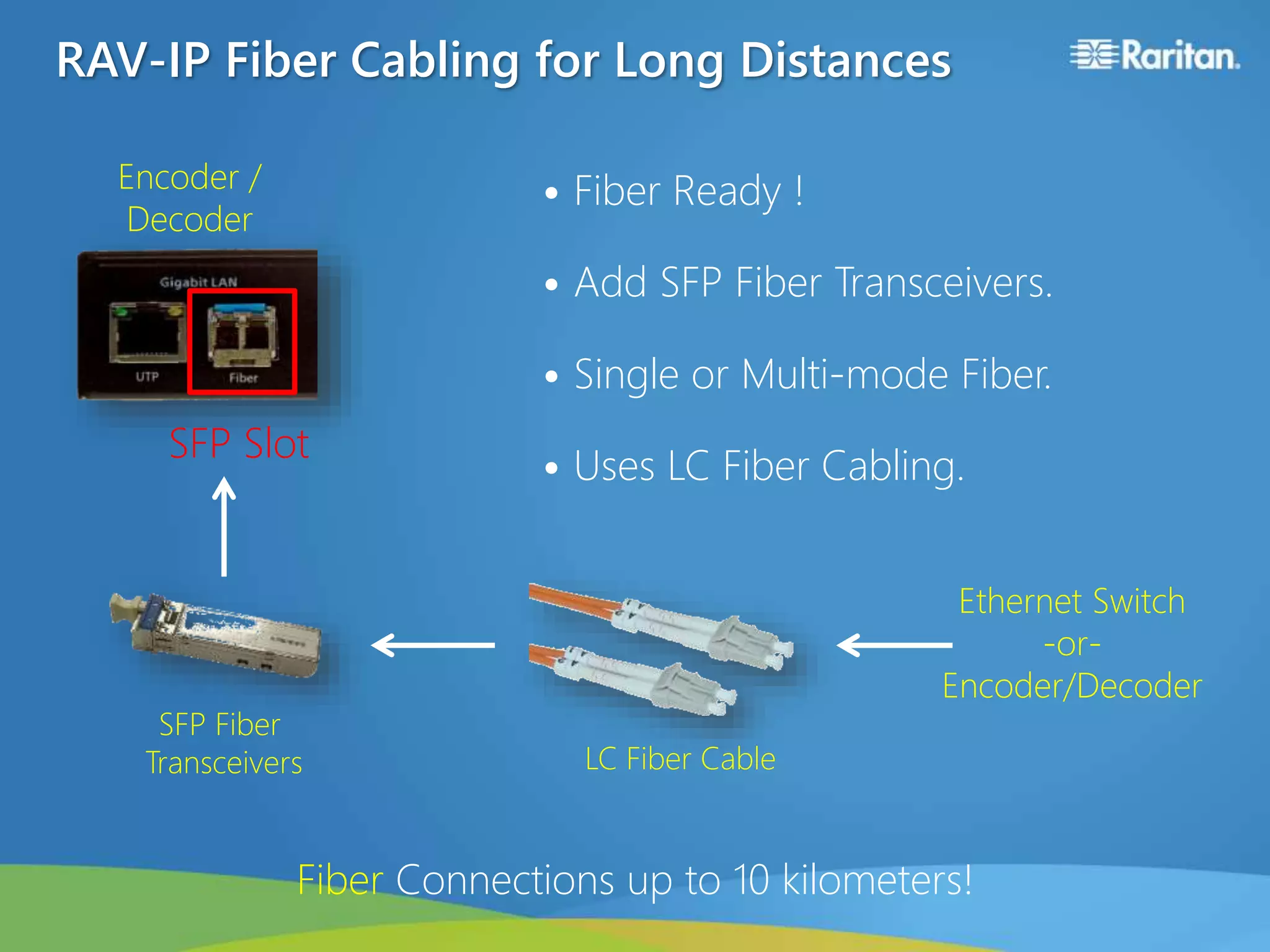

- 8. RAV-IP Fiber Cablingfor Long Distances • Fiber Ready ! • Add SFP Fiber Transceivers. • Single or Multi-mode Fiber. • Uses LC Fiber Cabling. SFP Fiber Transceivers LC Fiber Cable SFP Slot Ethernet Switch -or- Encoder/Decoder Encoder / Decoder Fiber Connections up to 10 kilometers!
- 9. Sample Applications • DigitalSignage. • Corporate Lobby, Employee Information, Conference Rooms. • Hospitality, Retail. • Entertainment and Broadcast. • Rental and Staging. • Education, Transportation, Energy. • House of Worship. • Control Rooms & NOC.

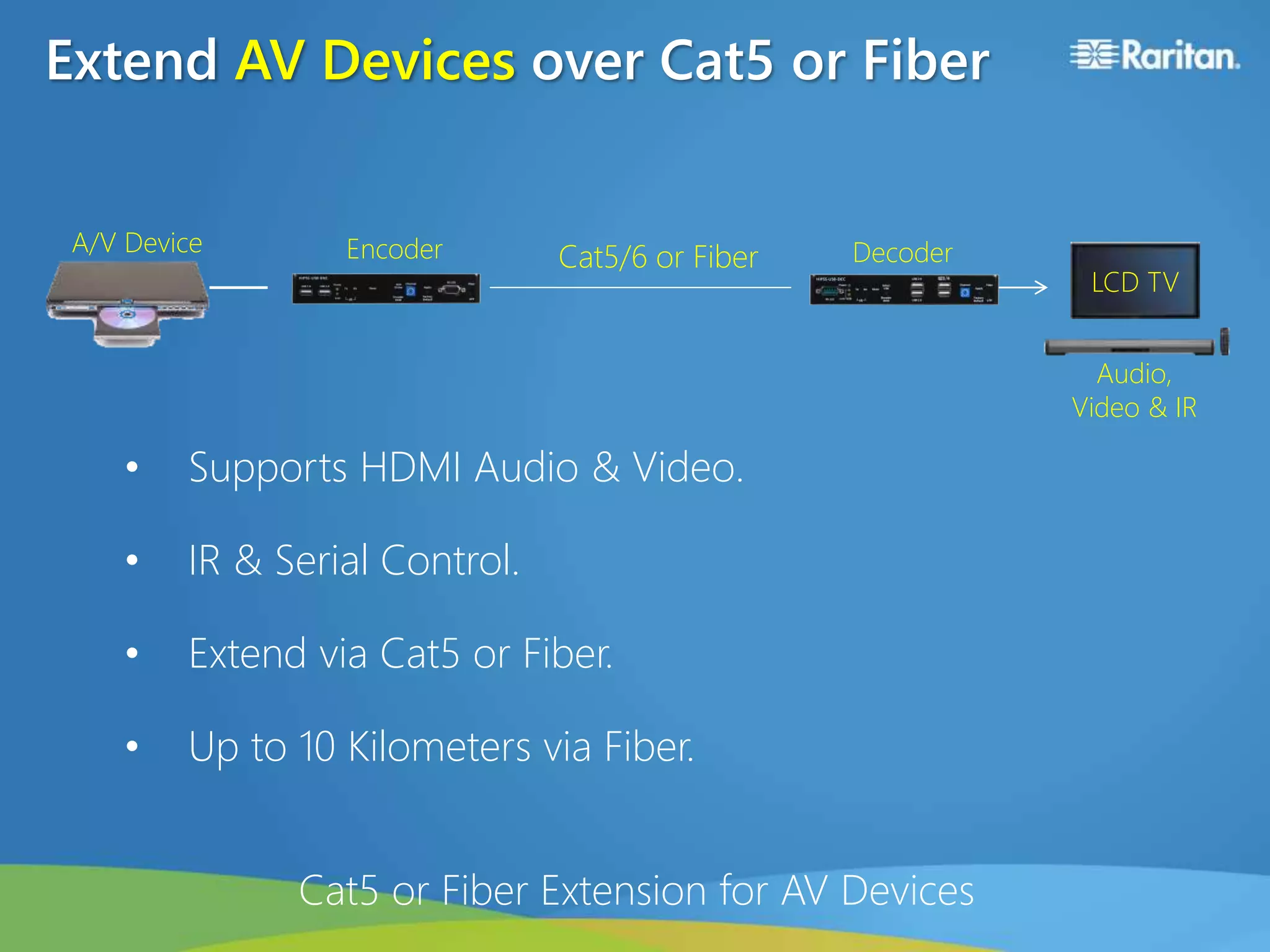

- 10. Extend AV Devicesover Cat5 or Fiber LCD TV DecoderEncoderA/V Device Audio, Video & IR Cat5/6 or Fiber • Supports HDMI Audio & Video. • IR & Serial Control. • Extend via Cat5 or Fiber. • Up to 10 Kilometers via Fiber. Cat5 or Fiber Extension for AV Devices

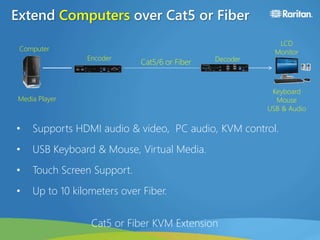

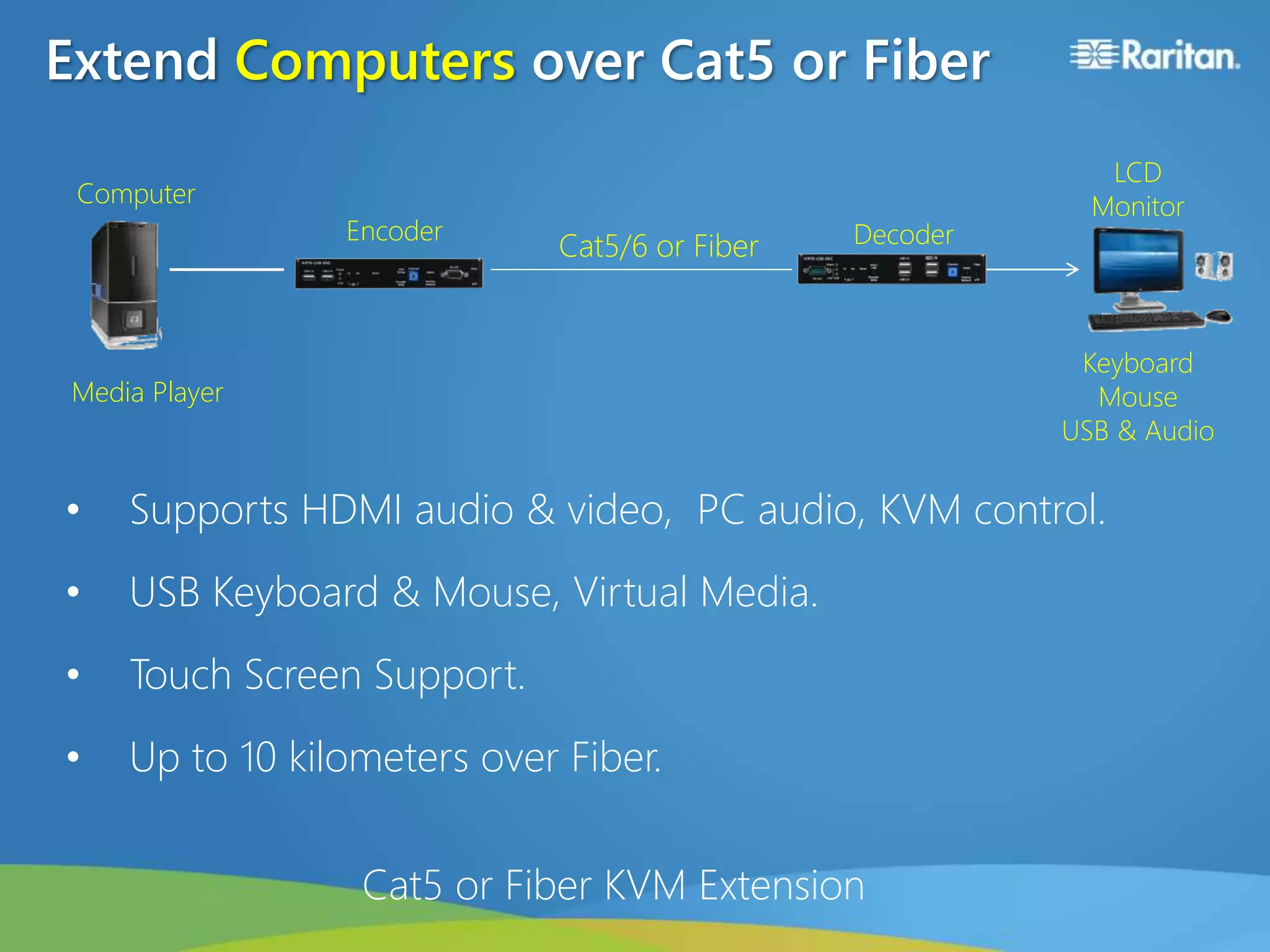

- 11. Extend Computers overCat5 or Fiber LCD Monitor DecoderEncoder Computer Keyboard Mouse USB & Audio Media Player Cat5/6 or Fiber • Supports HDMI audio & video, PC audio, KVM control. • USB Keyboard & Mouse, Virtual Media. • Touch Screen Support. • Up to 10 kilometers over Fiber. Cat5 or Fiber KVM Extension

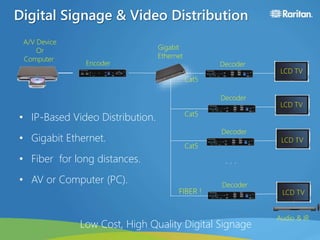

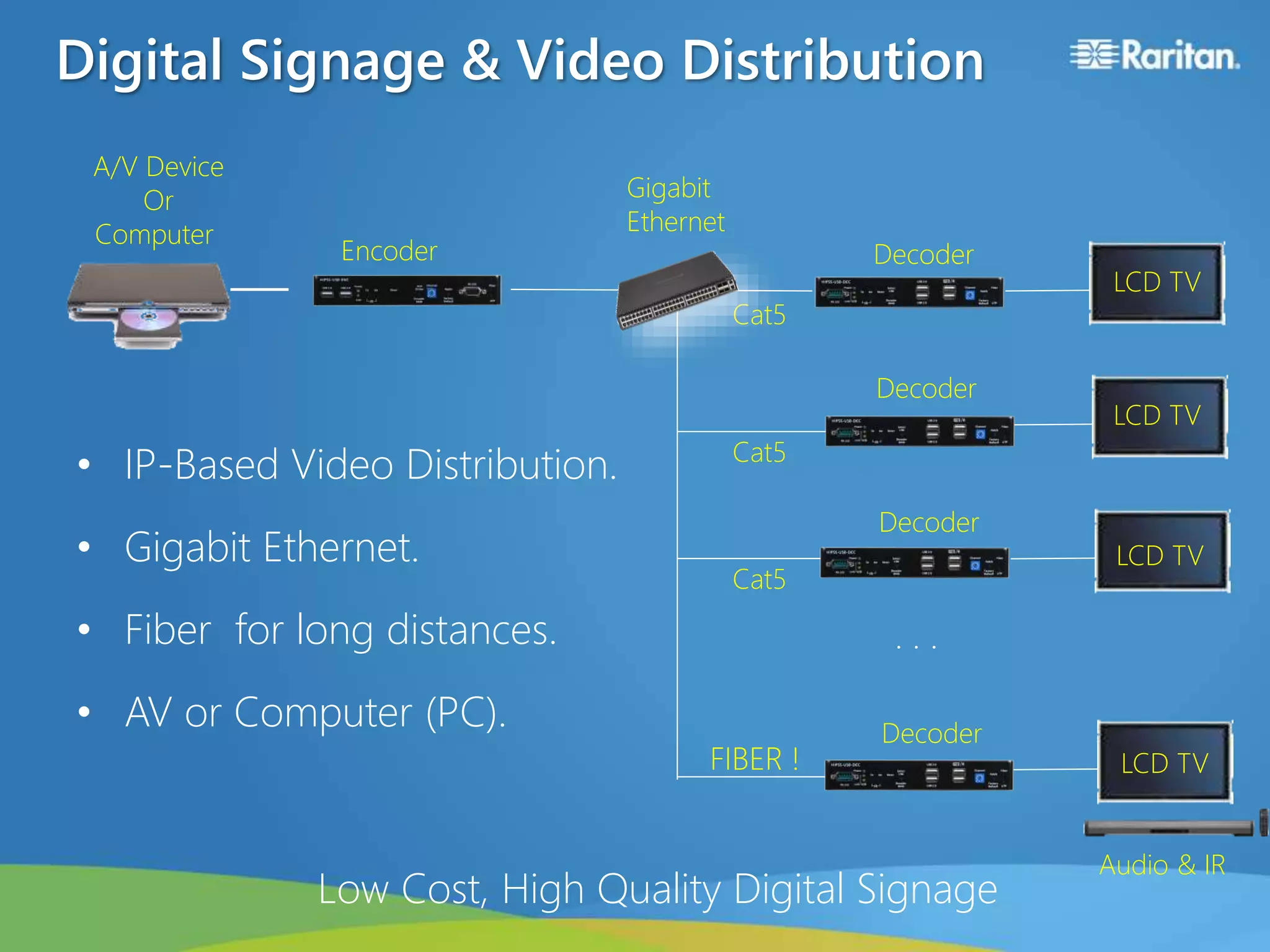

- 12. Digital Signage &Video Distribution LCD TV DecoderEncoder A/V Device Or Computer Gigabit Ethernet LCD TV Decoder LCD TV Decoder LCD TV Decoder . . . Audio & IR • IP-Based Video Distribution. • Gigabit Ethernet. • Fiber for long distances. • AV or Computer (PC). Cat5 Cat5 Cat5 FIBER ! Low Cost, High Quality Digital Signage

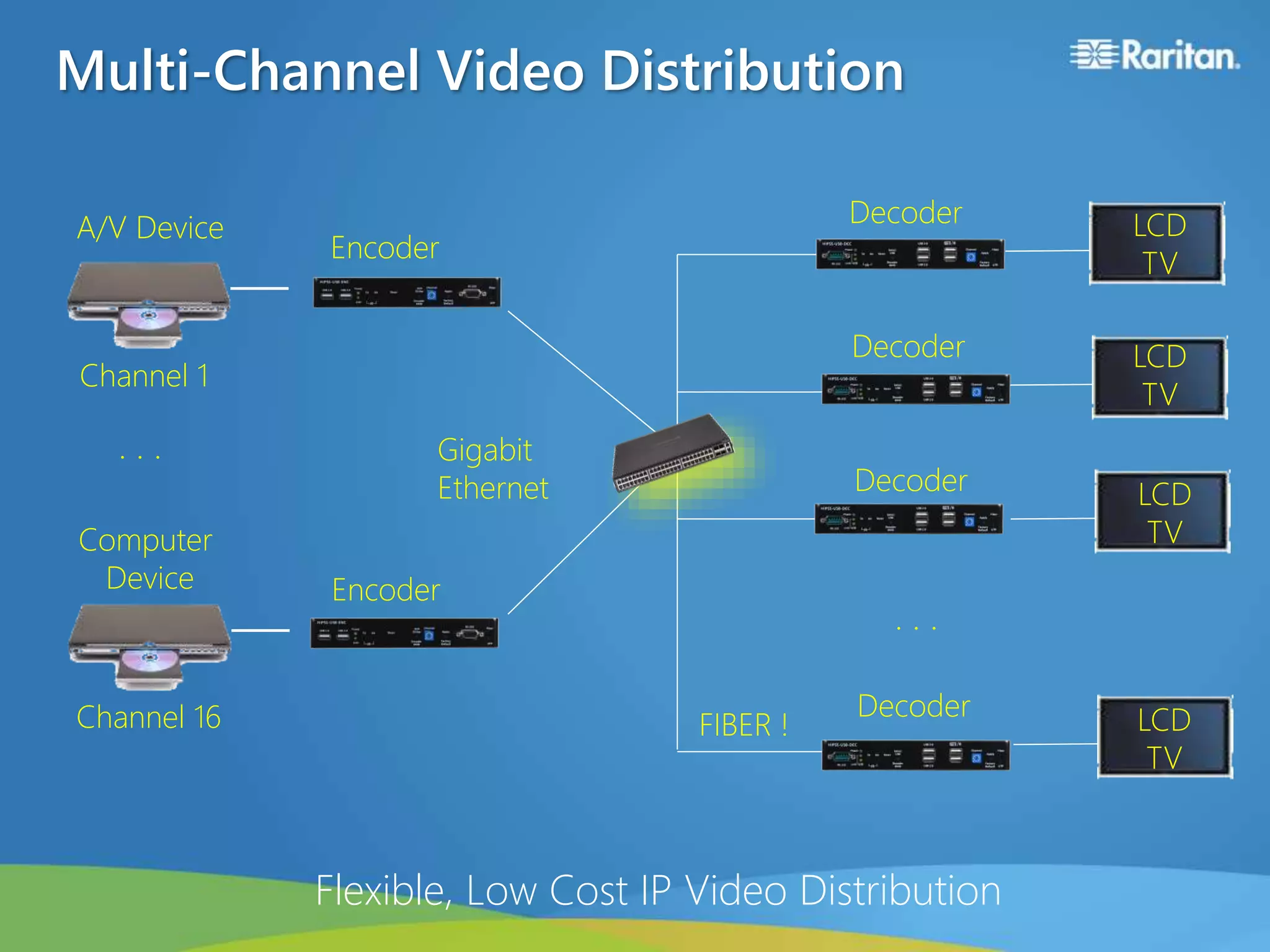

- 13. Multi-Channel Video Distribution LCD TV Decoder Encoder A/VDevice LCD TV Decoder LCD TV Decoder LCD TV Decoder . . . Encoder Computer Device . . . Channel 1 Channel 16 Gigabit Ethernet Flexible, Low Cost IP Video Distribution FIBER !

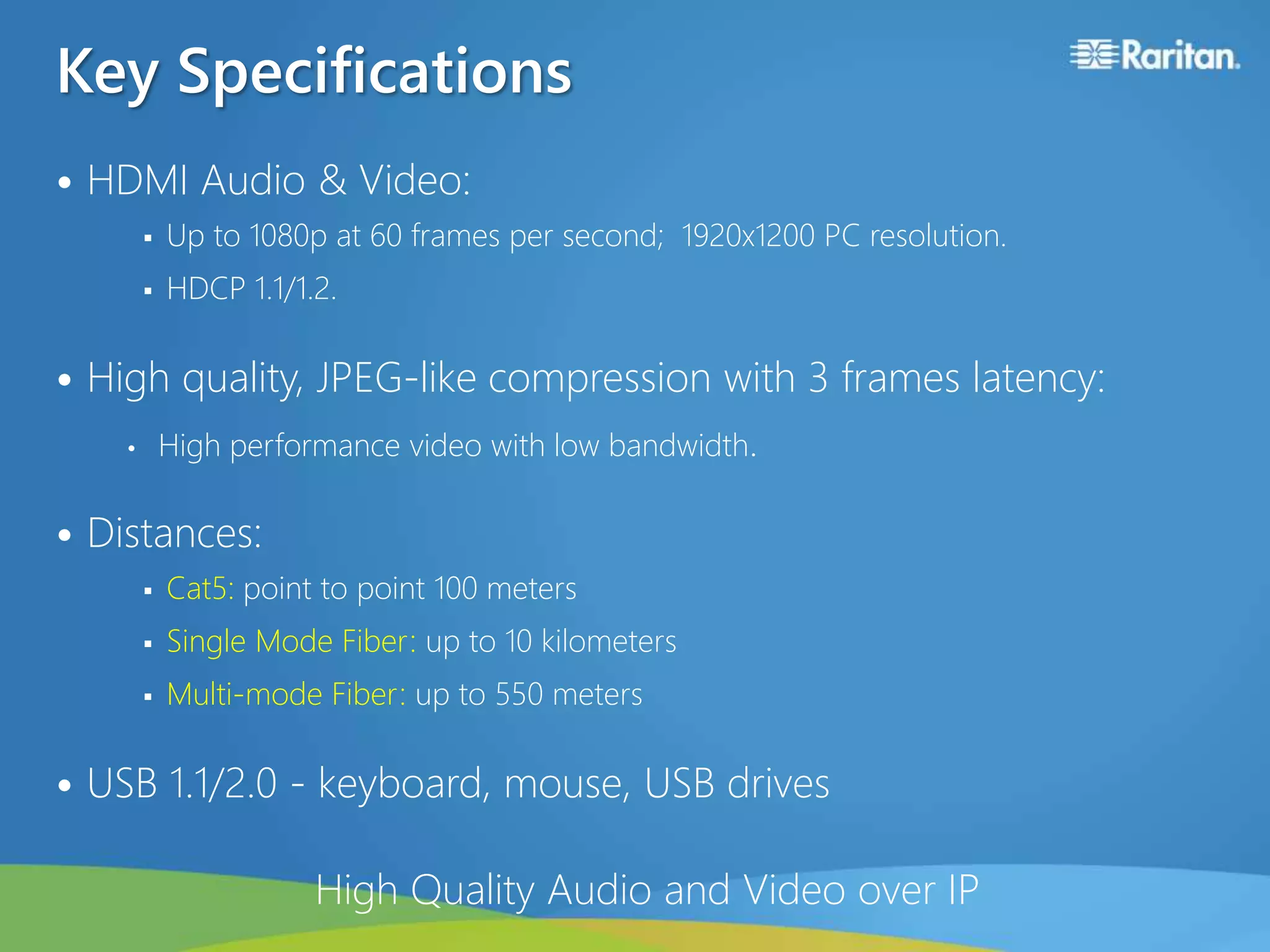

- 14. Key Specifications • HDMIAudio & Video: Up to 1080p at 60 frames per second; 1920x1200 PC resolution. HDCP 1.1/1.2. • High quality, JPEG-like compression with 3 frames latency: • High performance video with low bandwidth. • Distances: Cat5: point to point 100 meters Single Mode Fiber: up to 10 kilometers Multi-mode Fiber: up to 550 meters • USB 1.1/2.0 - keyboard, mouse, USB drives High Quality Audio and Video over IP

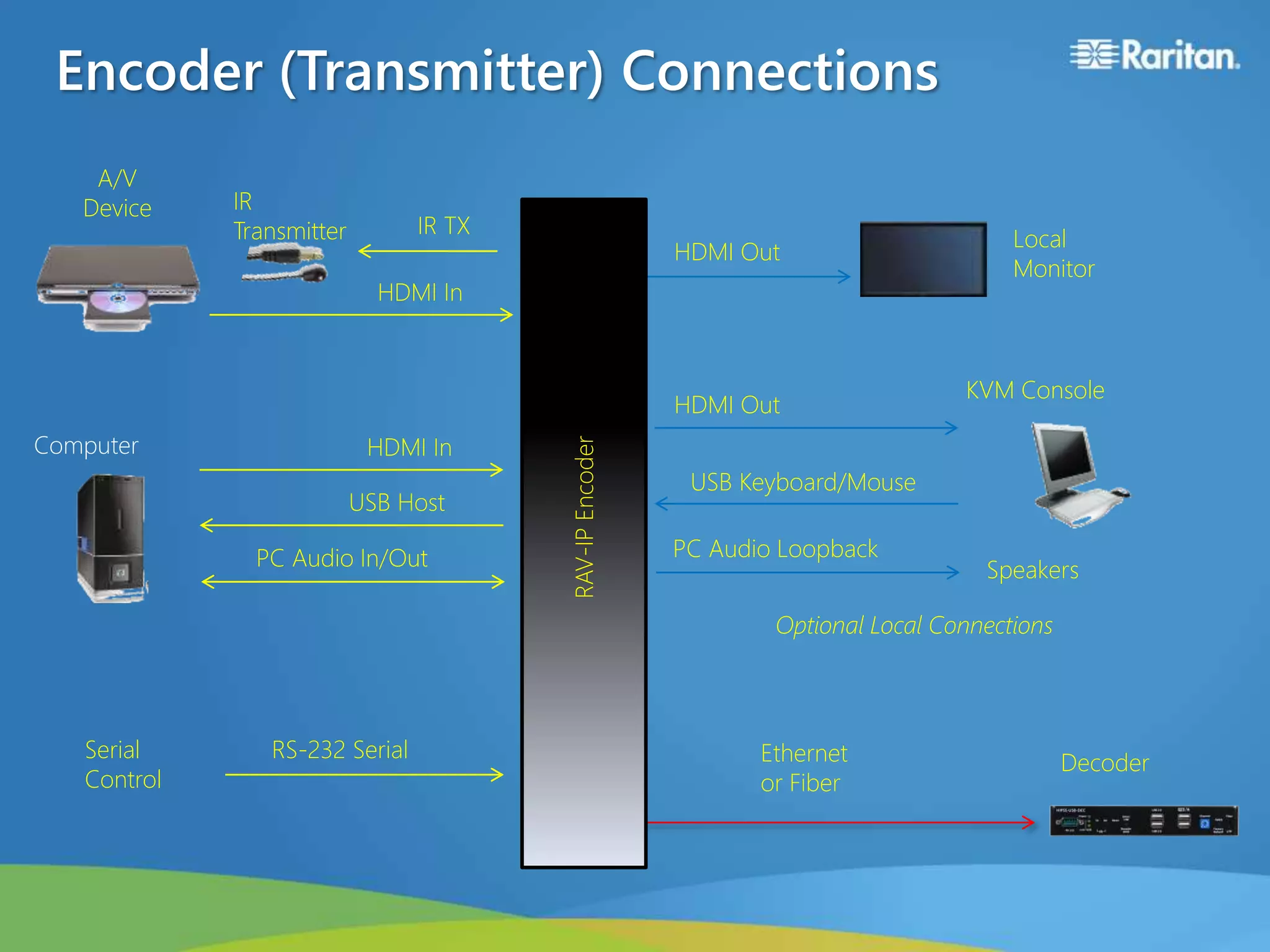

- 15. Encoder (Transmitter) Connections A/V Device RS-232Serial Reset Ethernet or Fiber HDMI In USB Host IR TX Speakers HDMI In PC Audio In/Out HDMI Out USB Keyboard/Mouse KVM Console Decoder PC Audio Loopback HDMI Out Computer Serial Control Local Monitor RAV-IPEncoder IR Transmitter Optional Local Connections

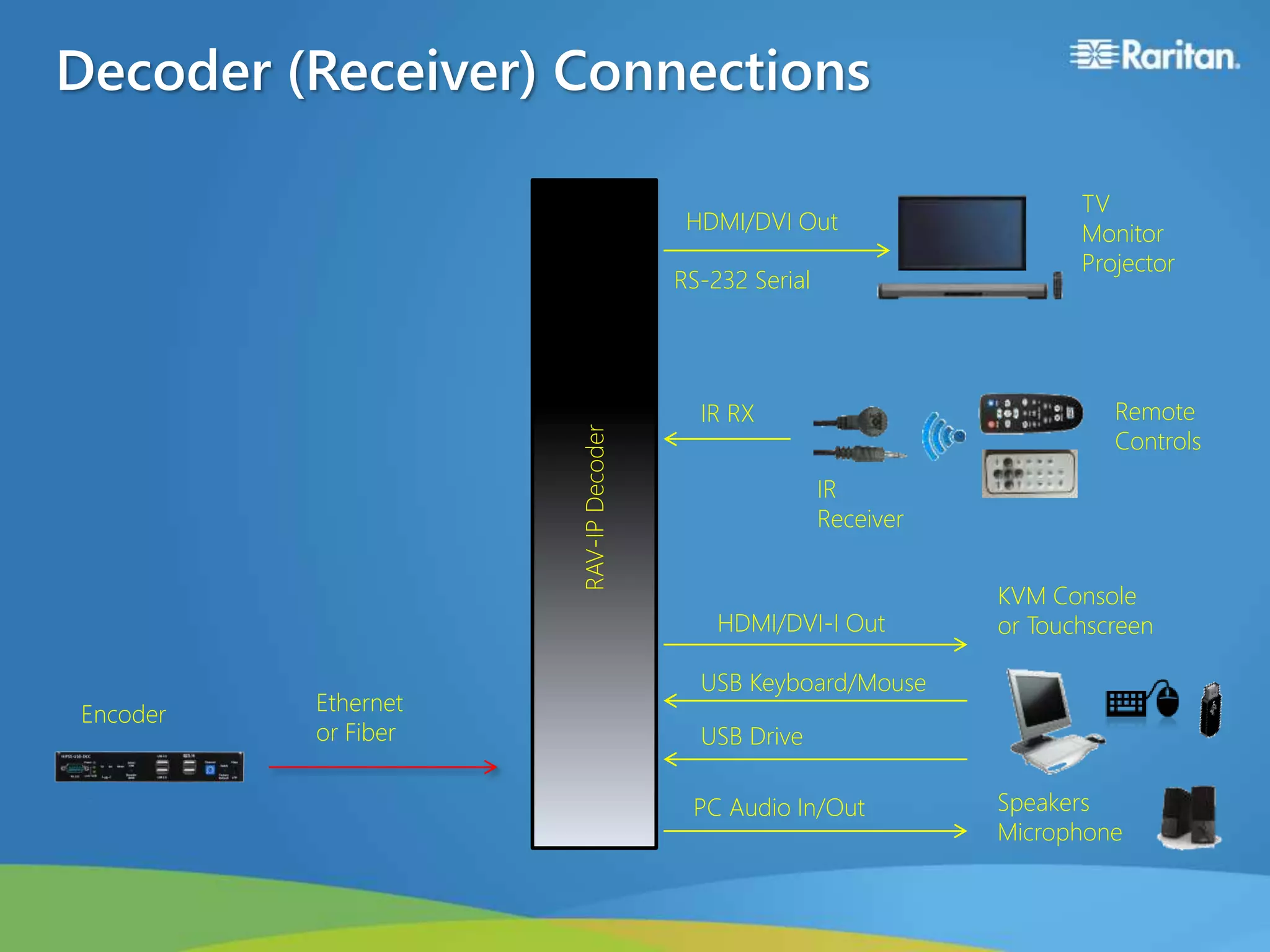

- 16. Decoder (Receiver) Connections RS-232Serial Ethernet or Fiber IR RX Speakers Microphone HDMI/DVI-I Out USB Keyboard/Mouse KVM Console or Touchscreen Encoder PC Audio In/Out HDMI/DVI Out TV Monitor Projector RAV-IPDecoder IR Receiver Remote Controls USB Drive
- 17. RAV-IP Advantages • Lowcost, high performance A/V-over-IP system. • Single unit supporting Cat5 & Fiber. • Fiber connections up to 10 kilometers. • Supports both AV & computer devices. • USB/KVM support, touch screen, virtual media. • Simple switching & control mechanisms. • Easy to install and expand. RAV-IP is the Future of AV !
- 18. Who is Raritan? •Providing video and switching products for 30 years. • Trusted Supplier to 50,000 IT customers in 76 countries. • Launched a focused line of A/V over IP products in 2015. • A pioneer in KVM matrix switching and video over IP. For 30 Years Proud Supplier to 50,000 IT Customers Deployed in thousands of broadcast and control rooms Highest Performance KVM- over-IP Switch Dominion KX III Paragon II Matrix
- 19. Raritan AV-over-IP DistributionSystem (RAV-IP) To Learn More Visit: www.raritan.com/rav-ip Cat5 and Fiber High Performance IP Video Easy to Install/Expand
