The document discusses RaphaelJS, an open source JavaScript library for working with vector graphics on the web. It provides examples of how to use RaphaelJS to draw basic shapes, animate objects, handle drag and drop, convert SVG files, and more. The document also provides references and resources for learning more about RaphaelJS and using SVG paths.

1. Raphaël
magic
Ксения Редунова

2. Чего хочет заказчик?

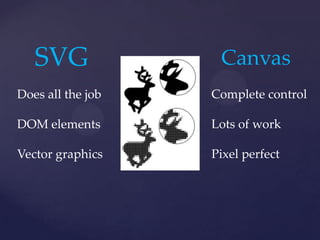

4. SVG Canvas
Does all the job Complete control
DOM elements Lots of work
Vector graphics Pixel perfect

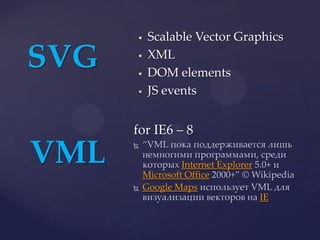

5.  Scalable Vector Graphics
SVG 

XML
DOM elements
 JS events
for IE6 – 8
VML  “VML пока поддерживается лишь
немногими программами, среди
которых Internet Explorer 5.0+ и
Microsoft Office 2000+” © Wikipedia
 Google Maps использует VML для
визуализации векторов на IE

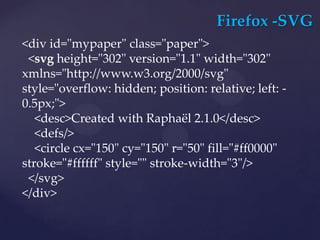

6. Firefox -SVG
<div id="mypaper" class="paper">
<svg height="302" version="1.1" width="302"
xmlns="http://www.w3.org/2000/svg"
style="overflow: hidden; position: relative; left: -
0.5px;">
<desc>Created with Raphaël 2.1.0</desc>
<defs/>
<circle cx="150" cy="150" r="50" fill="#ff0000"
stroke="#ffffff" style="" stroke-width="3"/>
</svg>
</div>

7. <div class="paper" id="mypaper"> IE8 - VML
<div style="left: 0px; top: 0px; width: 302px; height: 302px; overflow: hidden; display:
inline-block; position: relative; cliptop: 0px; clipright: 302px; clipbottom: 302px; clipleft: 0px;">
<span style="left: -9999em; top: -9999em; line-height: 1; padding-top: 0px; padding-
right: 0px; padding-bottom: 0px; padding-left: 0px; margin-top: 0px; margin-right: 0px; margin-bottom:
0px; margin-left: 0px; position: absolute; ">
</span>
<shape class="rvml" style="left: 0px; top: 0px; width: 1px; height: 1px;
position: absolute;" raphael="true" raphaelid="0">
<stroke class="rvml"></stroke>
<skew class="rvml"></skew>
<fill class="rvml"></fill>
</shape>
</div>
</div>

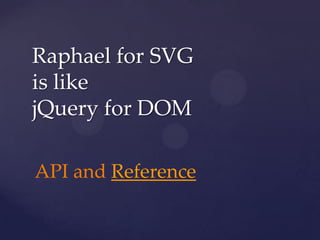

8. Raphael for SVG
is like
jQuery for DOM
API and Reference

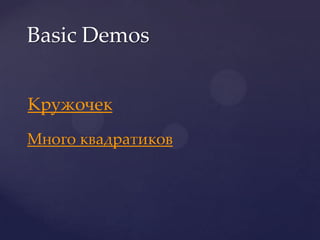

9. Basic Demos
Кружочек
Много квадратиков

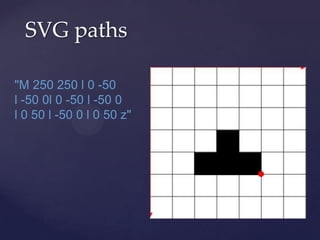

10. SVG paths
"M 250 250 l 0 -50
l -50 0l 0 -50 l -50 0
l 0 50 l -50 0 l 0 50 z"

11. SVG paths syntax
SVG path reference

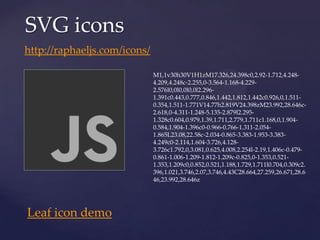

12. SVG icons
http://raphaeljs.com/icons/
M1,1v30h30V1H1zM17.326,24.398c0,2.92-1.712,4.248-
4.209,4.248c-2.255,0-3.564-1.168-4.229-
2.576l0,0l0,0l0,0l2.296-
1.391c0.443,0.777,0.846,1.442,1.812,1.442c0.926,0,1.511-
0.354,1.511-1.771V14.77h2.819V24.398zM23.992,28.646c-
2.618,0-4.311-1.248-5.135-2.879l2.295-
1.328c0.604,0.979,1.39,1.711,2.779,1.711c1.168,0,1.904-
0.584,1.904-1.396c0-0.966-0.766-1.311-2.054-
1.865L23.08,22.58c-2.034-0.865-3.383-1.953-3.383-
4.249c0-2.114,1.604-3.726,4.128-
3.726c1.792,0,3.081,0.625,4.008,2.254l-2.19,1.406c-0.479-
0.861-1.006-1.209-1.812-1.209c-0.825,0-1.353,0.521-
1.353,1.209c0,0.852,0.521,1.188,1.729,1.711l0.704,0.309c2.
396,1.021,3.746,2.07,3.746,4.43C28.664,27.259,26.671,28.6
46,23.992,28.646z
Leaf icon demo

13. Transformation
"t100,100r30,100,100s2,2,100,100r45s1.5"
// translate 100, 100, rotate 45
el.transform("t100,100r45");
Paper.set() var st = paper.set();
st.push(
paper.circle(10, 10, 5),
paper.circle(30, 10, 5)
);
st.attr({fill: "red"});

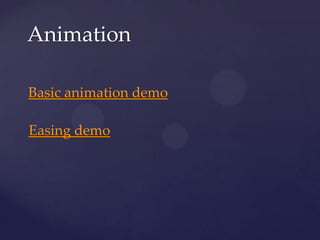

14. Animation
Basic animation demo
Easing demo

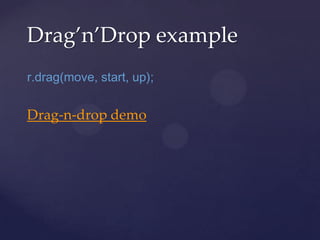

15. Drag’n’Drop example
r.drag(move, start, up);
Drag-n-drop demo

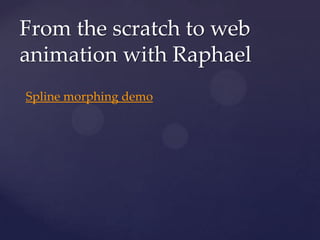

16. From the scratch to web
animation with Raphael
Spline morphing demo

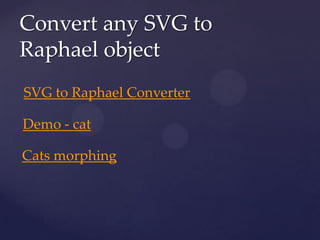

17. Convert any SVG to
Raphael object
SVG to Raphael Converter
Demo - cat
Cats morphing

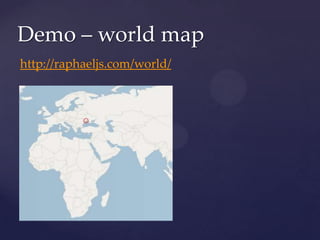

18. Demo – world map
http://raphaeljs.com/world/

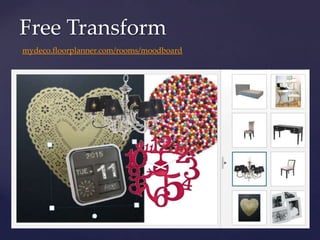

19. Free Transform
mydeco.floorplanner.com/rooms/moodboard

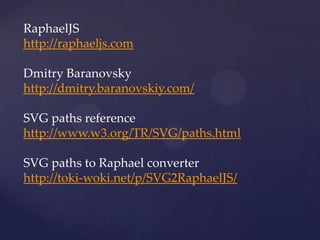

20. RaphaelJS
http://raphaeljs.com
Dmitry Baranovsky
http://dmitry.baranovskiy.com/
SVG paths reference
http://www.w3.org/TR/SVG/paths.html
SVG paths to Raphael converter
http://toki-woki.net/p/SVG2RaphaelJS/

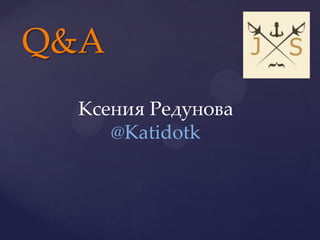

21. Q&A
Ксения Редунова
@Katidotk
