1. Ruby on Rails:
Plug-in Development 101
...and some...
http://jimeh.me/ by Jim Myhrberg

2. The Basics
Helpers
Controller Methods
Controllers, Helpers & Views

3. The Basics
to get you started

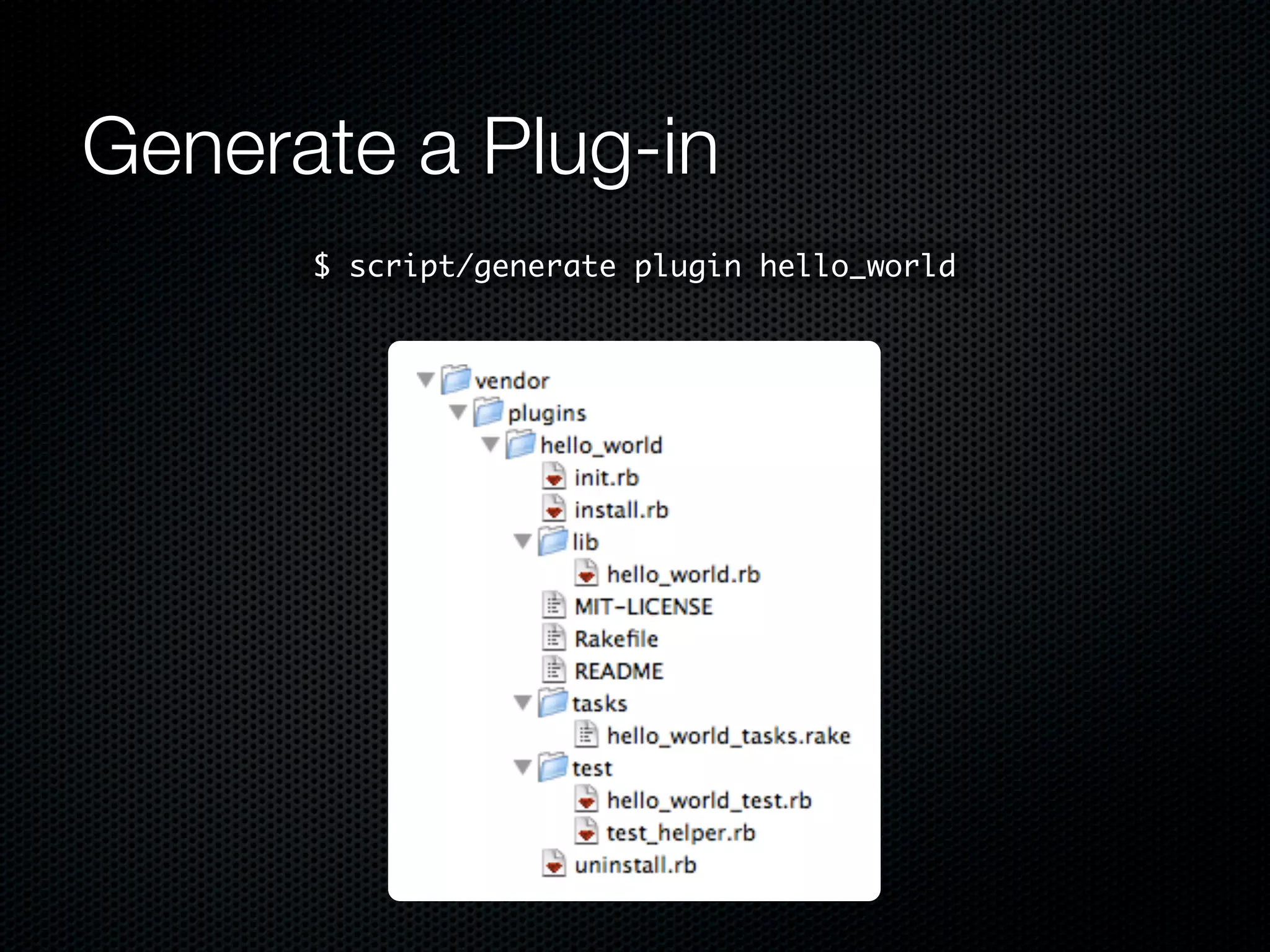

4. Generate a Plug-in
$ script/generate plugin hello_world

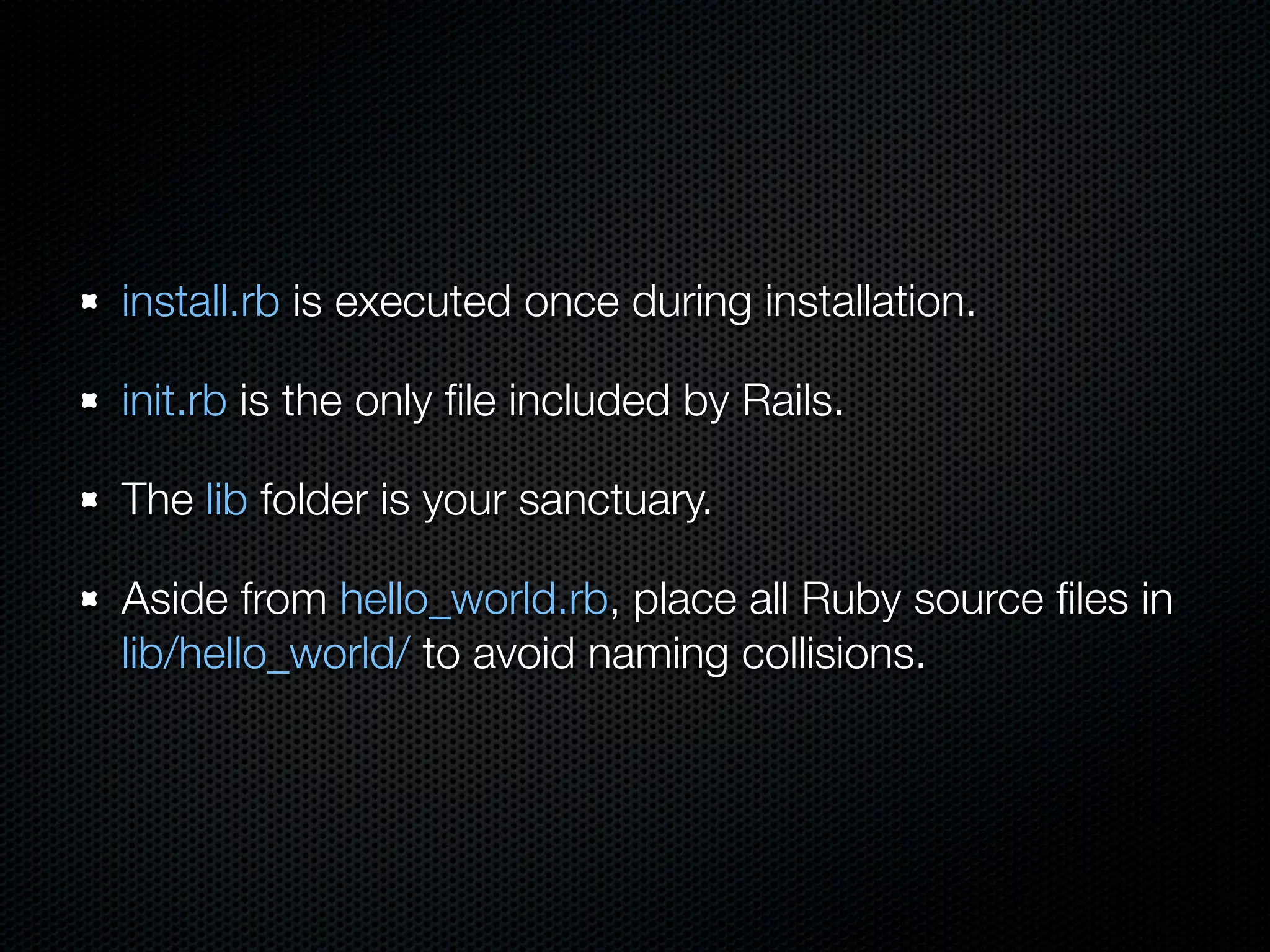

5. install.rb is executed once during installation.
init.rb is the only file included by Rails.
The lib folder is your sanctuary.
Aside from hello_world.rb, place all Ruby source files in
lib/hello_world/ to avoid naming collisions.

6. Example: Collecta_ruby

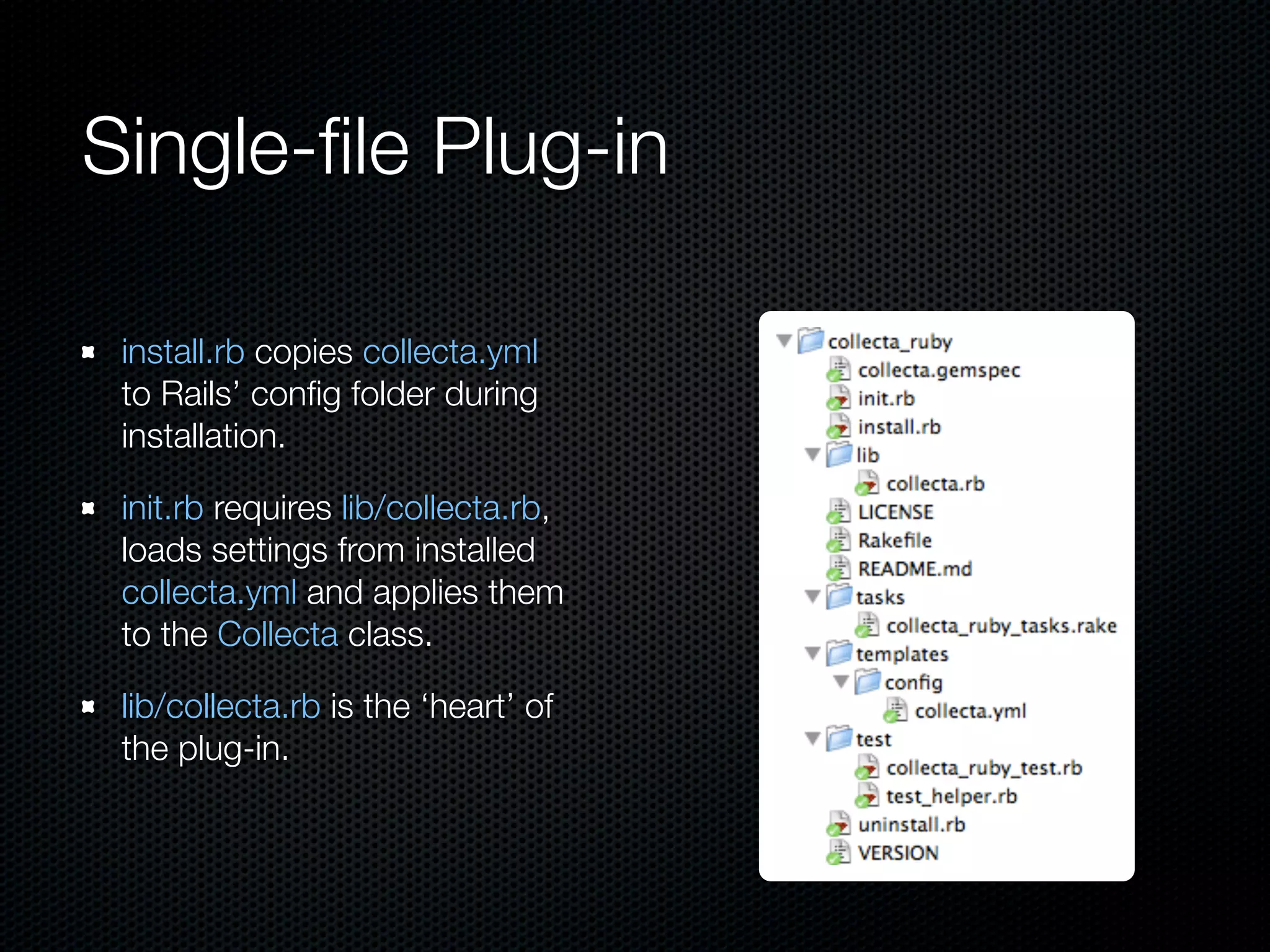

7. Single-file Plug-in
install.rb copies collecta.yml
to Rails’ config folder during
installation.
init.rb requires lib/collecta.rb,
loads settings from installed
collecta.yml and applies them
to the Collecta class.
lib/collecta.rb is the ‘heart’ of
the plug-in.

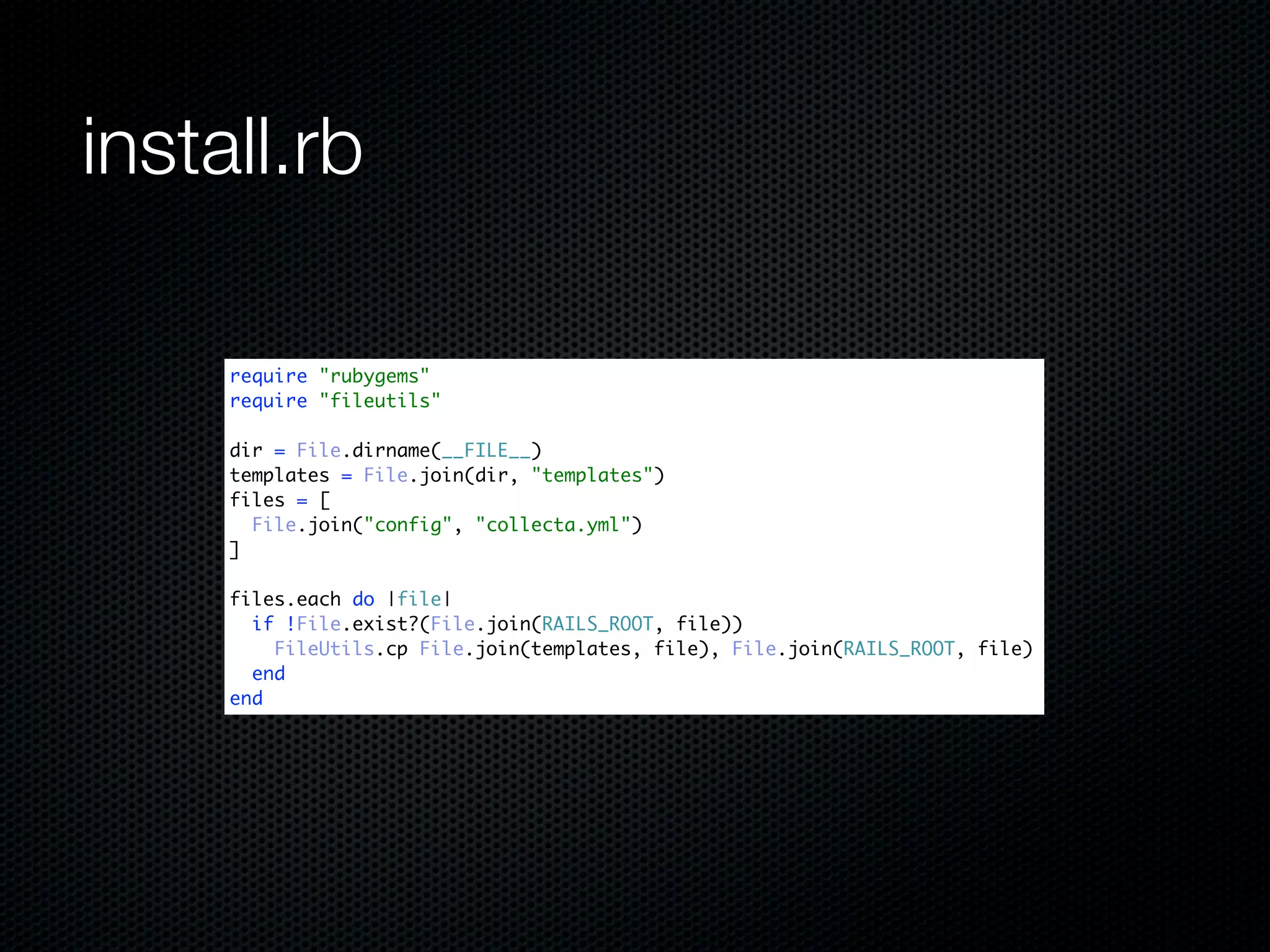

8. install.rb
require "rubygems"
require "fileutils"
dir = File.dirname(__FILE__)
templates = File.join(dir, "templates")
files = [
File.join("config", "collecta.yml")
]
files.each do |file|
if !File.exist?(File.join(RAILS_ROOT, file))
FileUtils.cp File.join(templates, file), File.join(RAILS_ROOT, file)
end
end

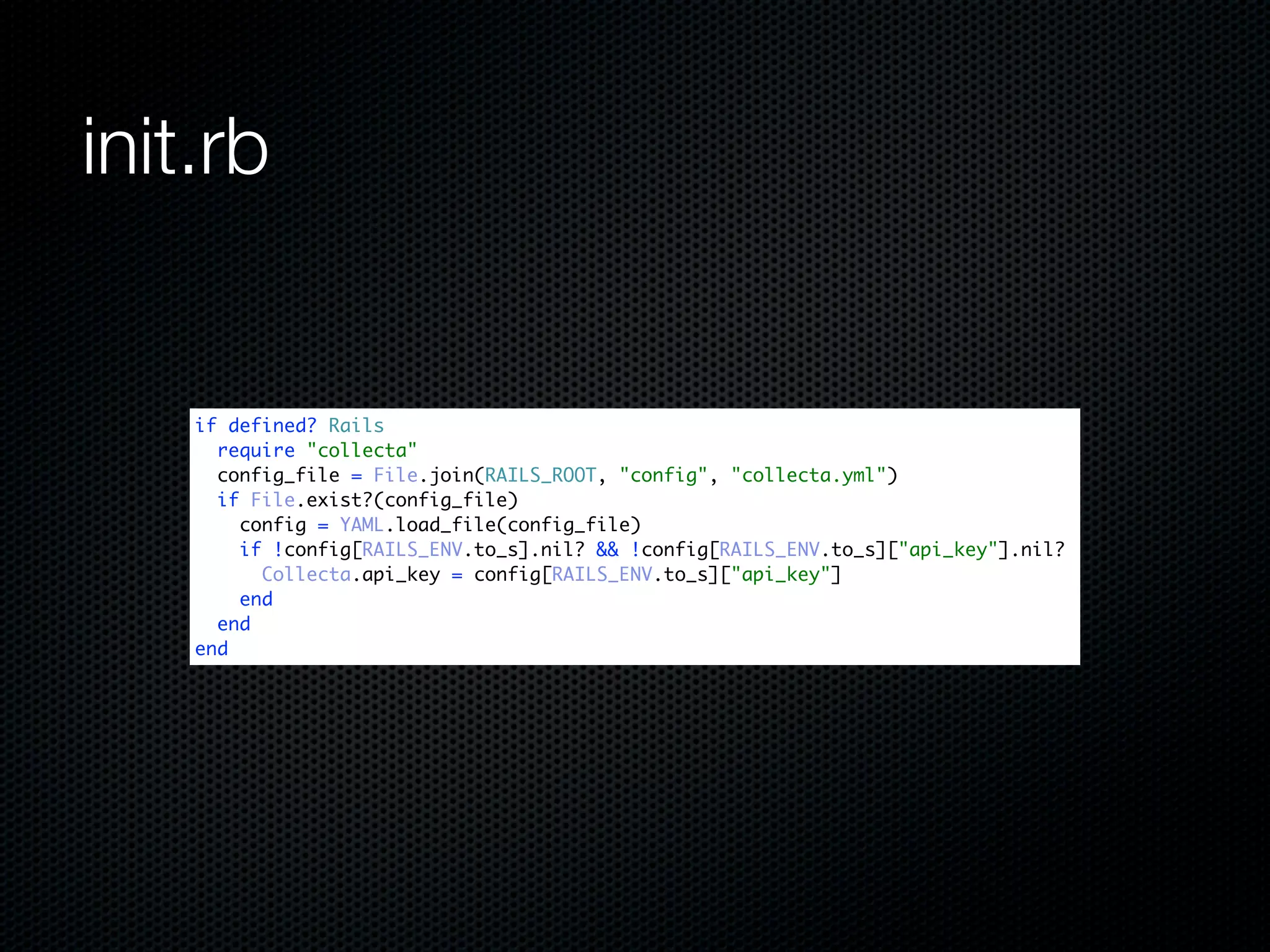

9. init.rb
if defined? Rails
require "collecta"
config_file = File.join(RAILS_ROOT, "config", "collecta.yml")
if File.exist?(config_file)
config = YAML.load_file(config_file)
if !config[RAILS_ENV.to_s].nil? && !config[RAILS_ENV.to_s]["api_key"].nil?
Collecta.api_key = config[RAILS_ENV.to_s]["api_key"]
end
end
end

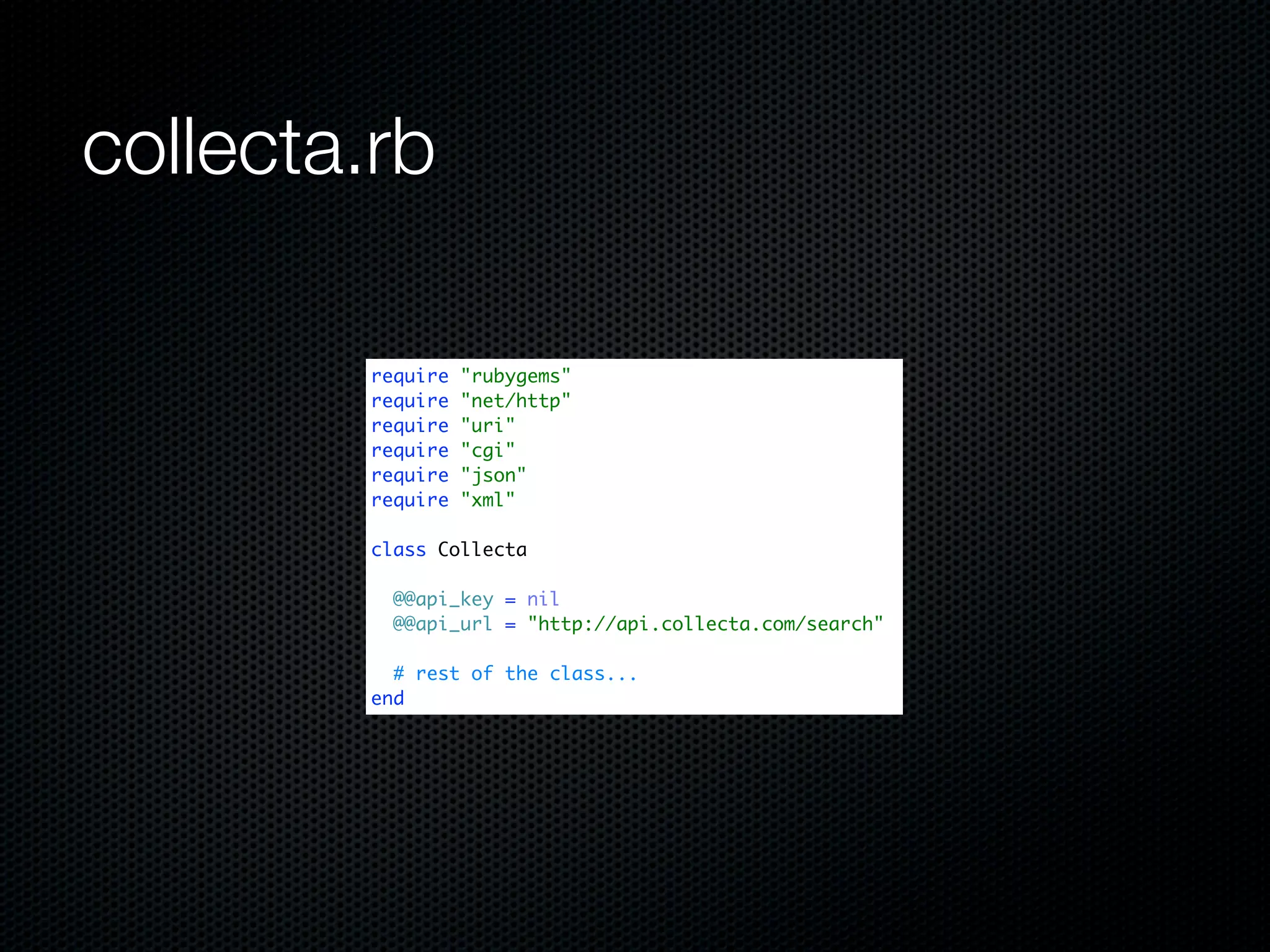

10. collecta.rb
require "rubygems"
require "net/http"
require "uri"
require "cgi"
require "json"
require "xml"
class Collecta
@@api_key = nil
@@api_url = "http://api.collecta.com/search"
# rest of the class...
end

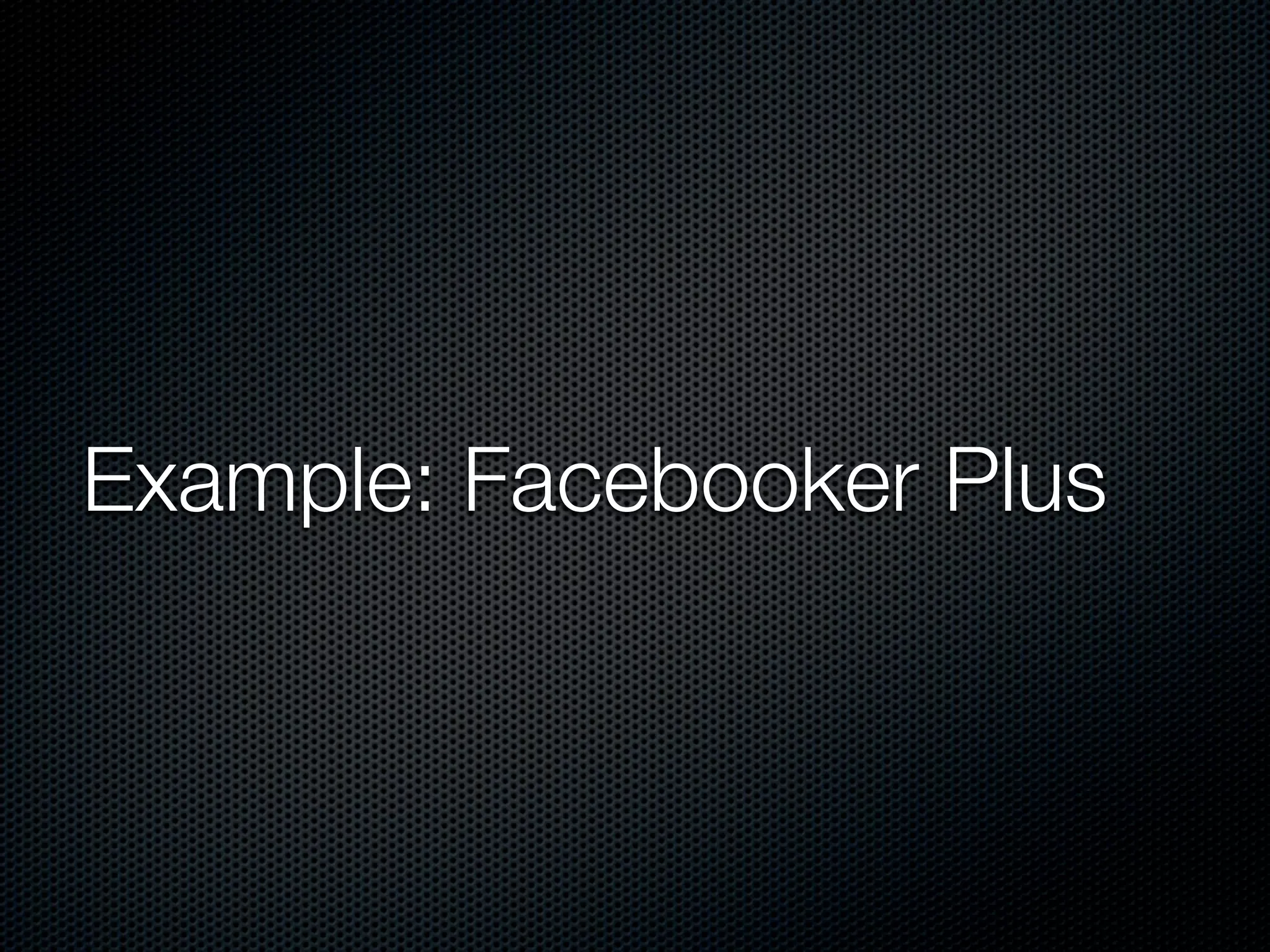

11. Example: Facebooker Plus

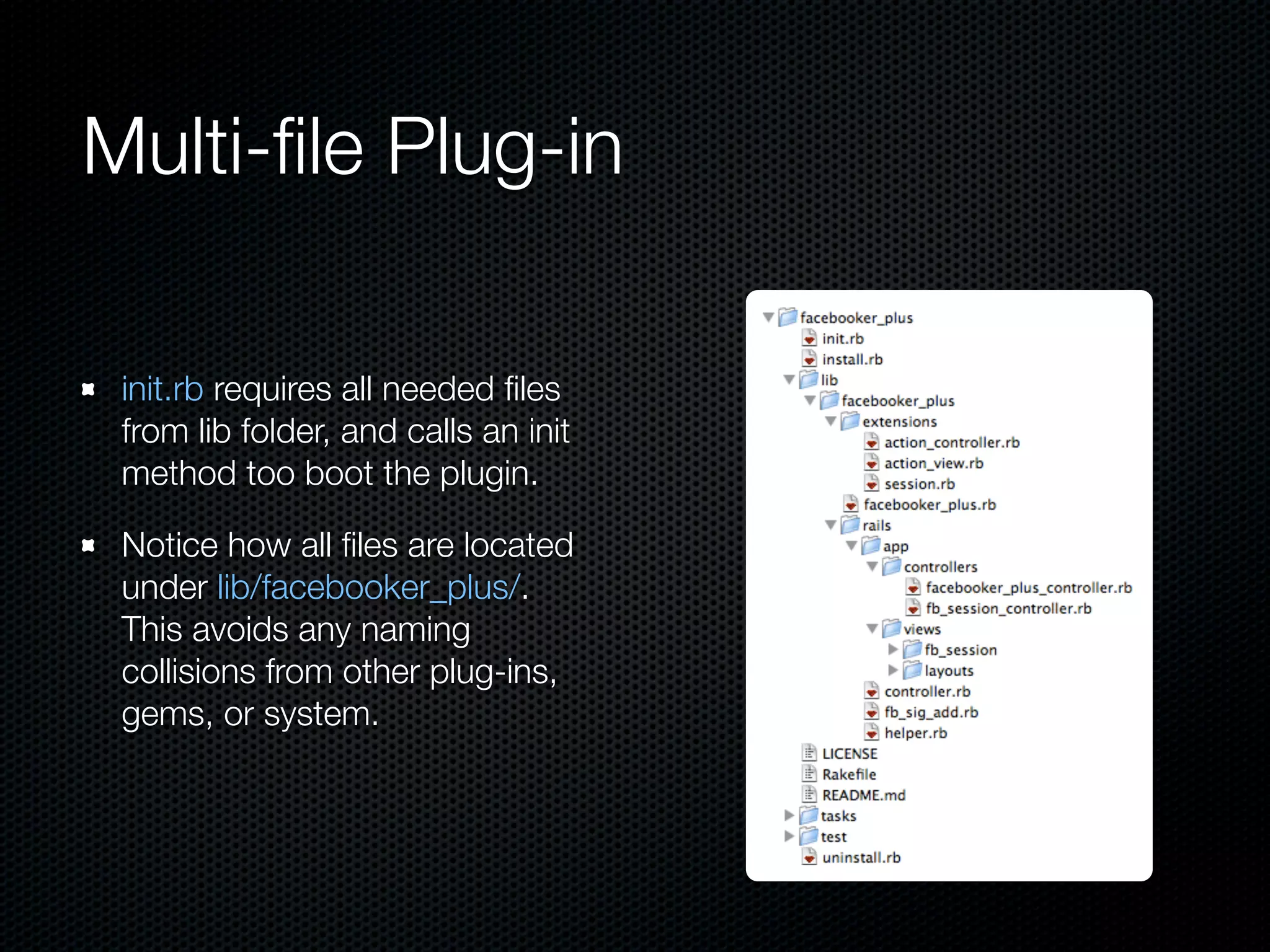

12. Multi-file Plug-in
init.rb requires all needed files
from lib folder, and calls an init
method too boot the plugin.
Notice how all files are located
under lib/facebooker_plus/.
This avoids any naming
collisions from other plug-ins,
gems, or system.

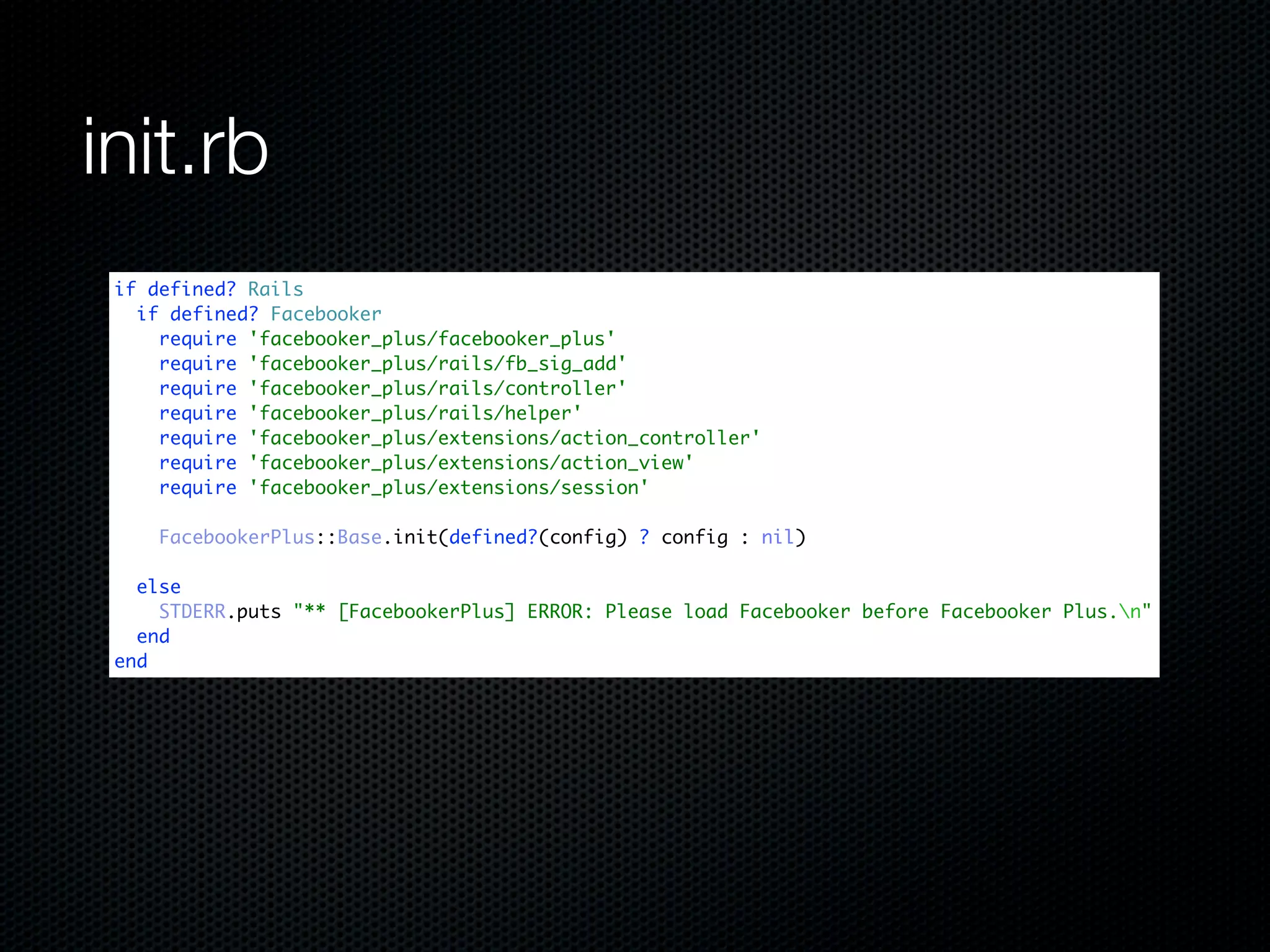

13. init.rb
if defined? Rails
if defined? Facebooker
require 'facebooker_plus/facebooker_plus'
require 'facebooker_plus/rails/fb_sig_add'
require 'facebooker_plus/rails/controller'
require 'facebooker_plus/rails/helper'
require 'facebooker_plus/extensions/action_controller'
require 'facebooker_plus/extensions/action_view'
require 'facebooker_plus/extensions/session'
FacebookerPlus::Base.init(defined?(config) ? config : nil)
else
STDERR.puts "** [FacebookerPlus] ERROR: Please load Facebooker before Facebooker Plus.n"
end
end

14. Helpers
create or overload helpers

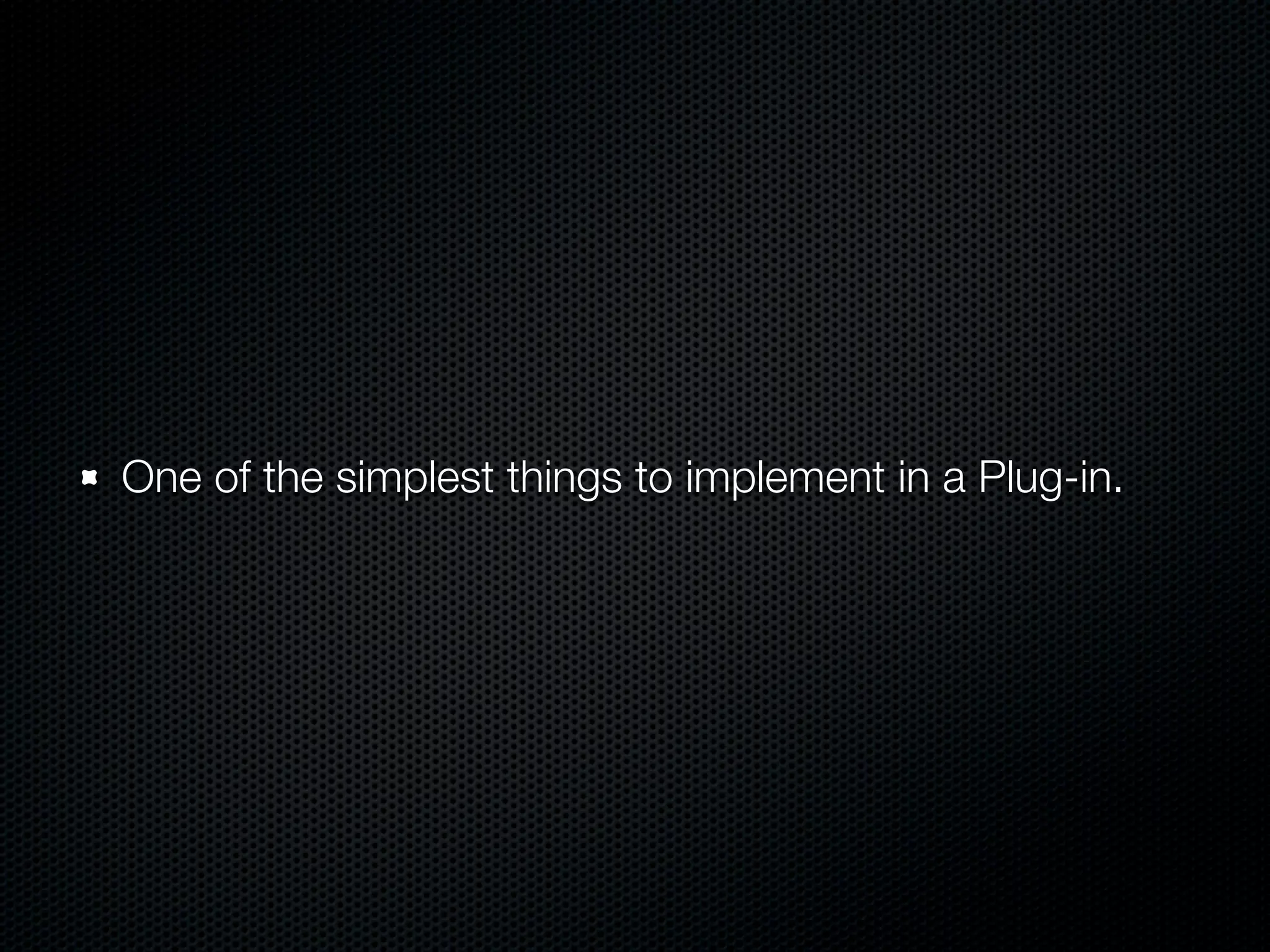

15. One of the simplest things to implement in a Plug-in.

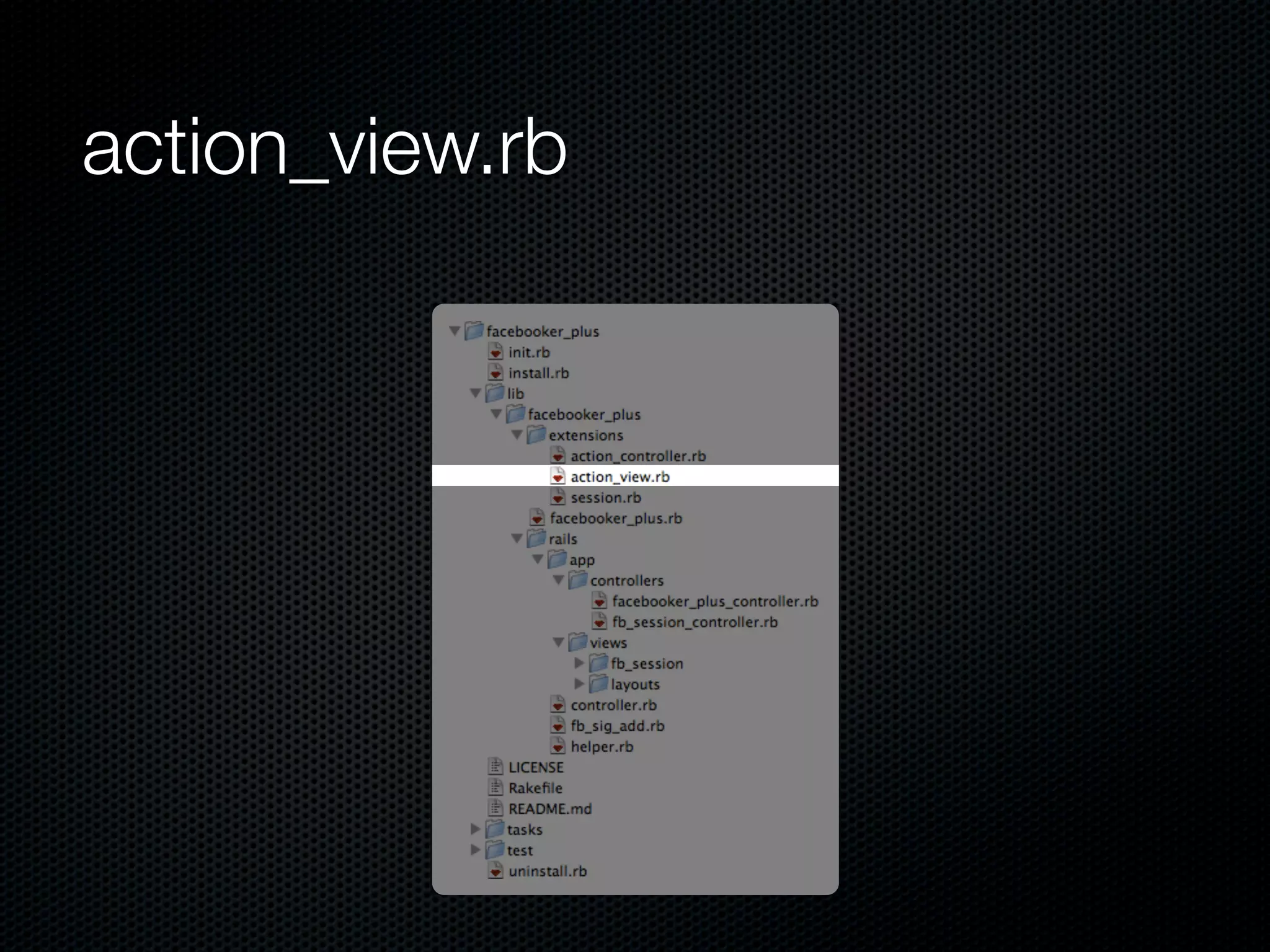

16. action_view.rb

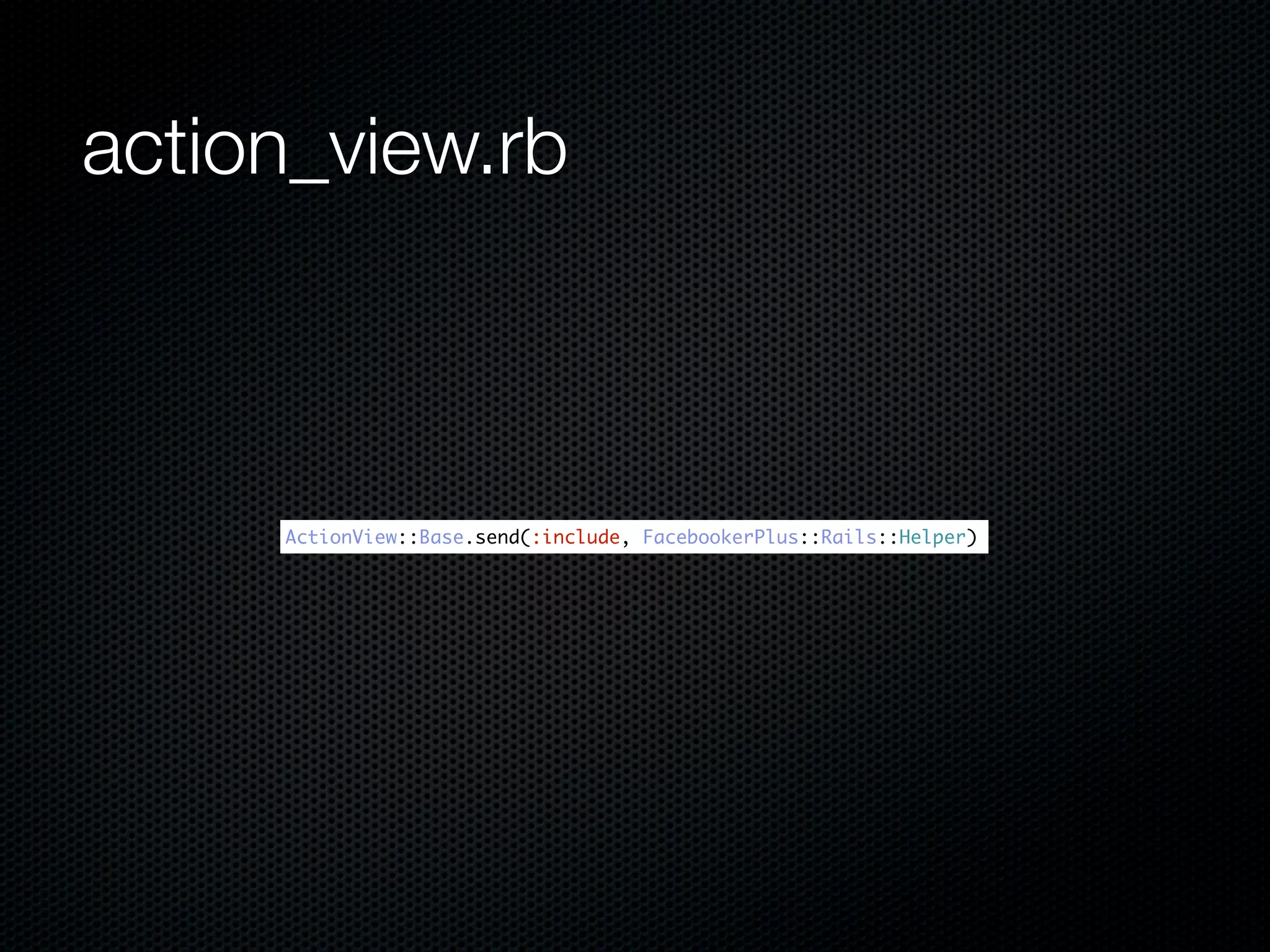

17. action_view.rb
ActionView::Base.send(:include, FacebookerPlus::Rails::Helper)

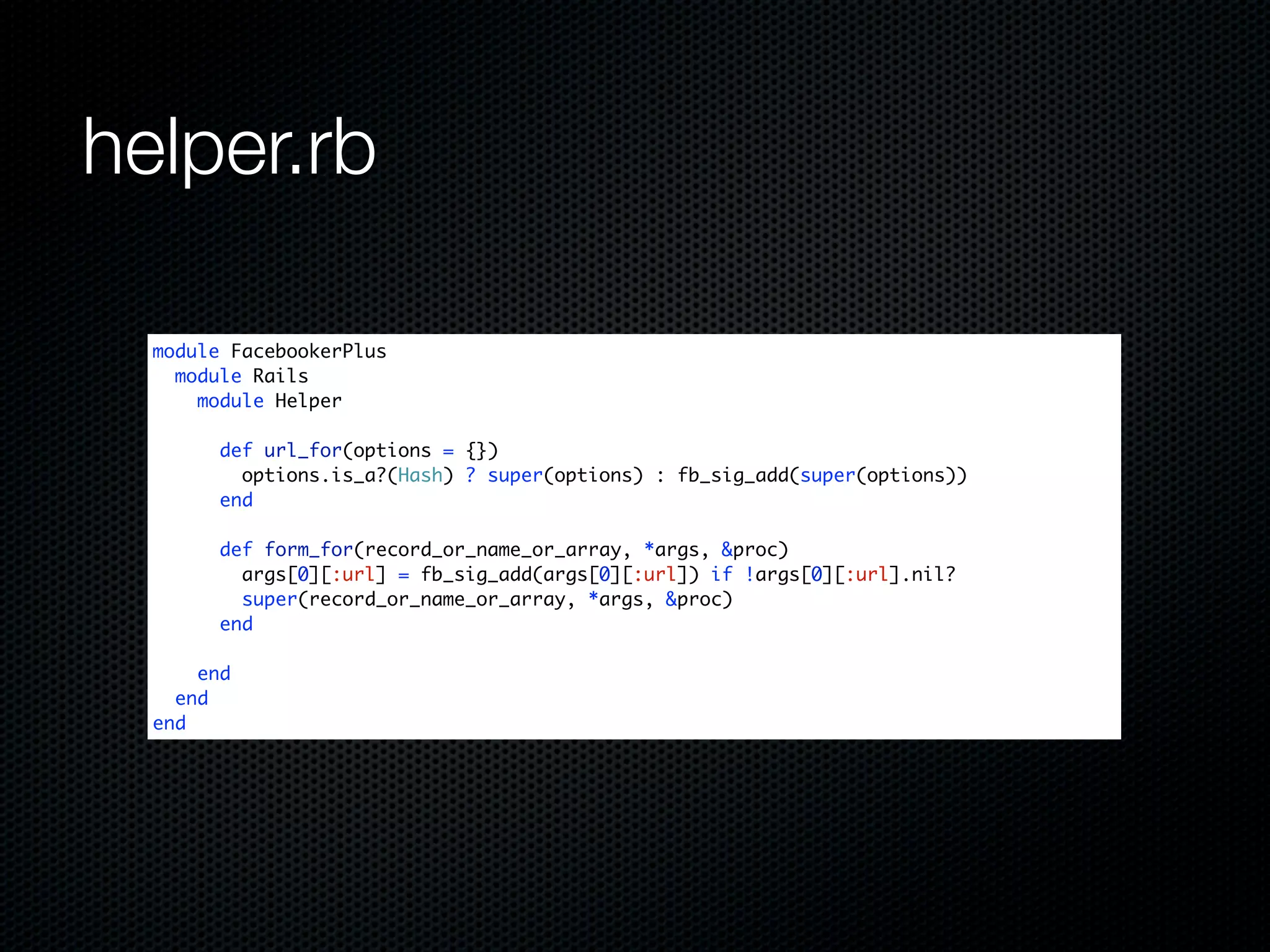

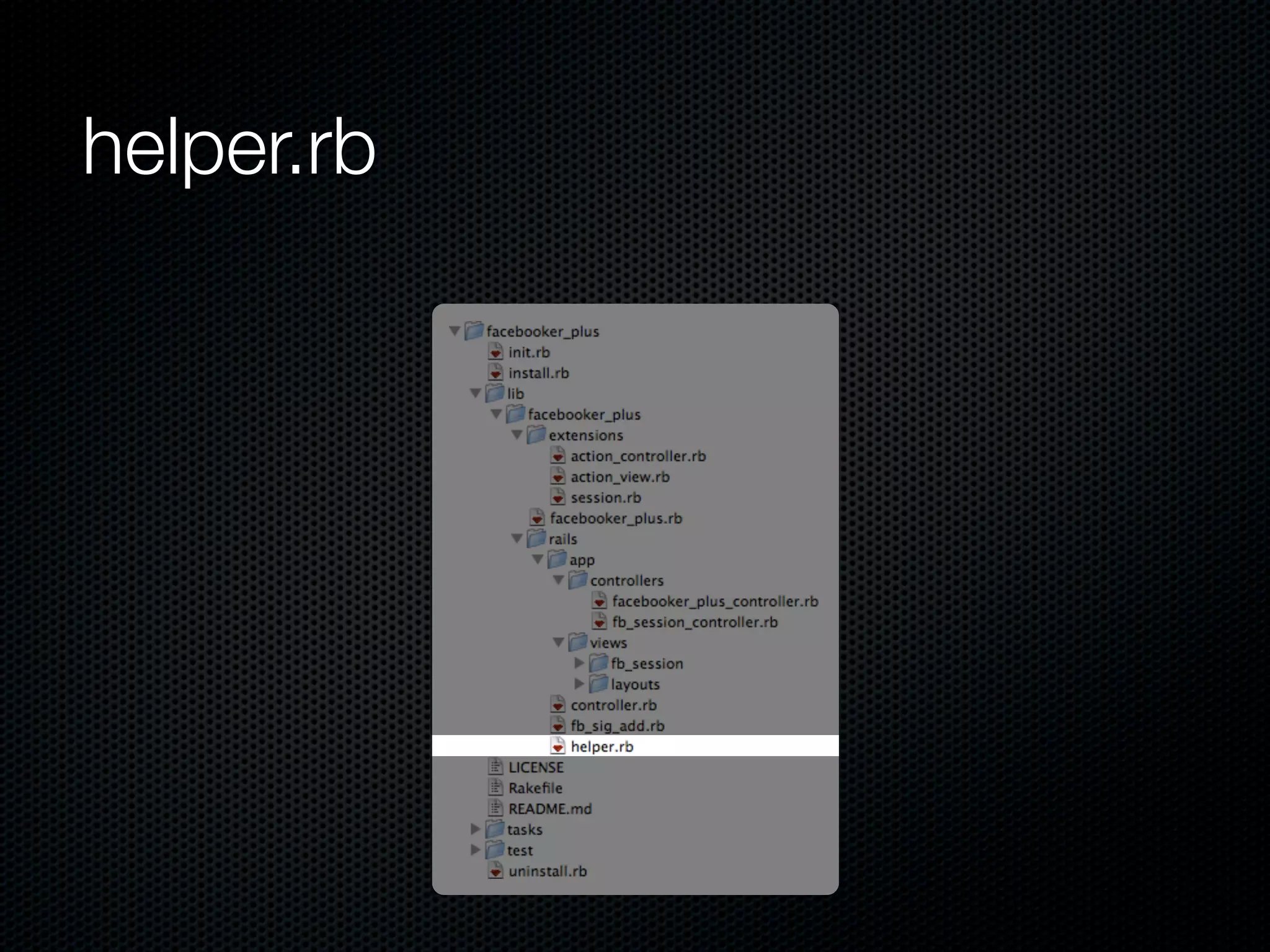

18. helper.rb

19. helper.rb
module FacebookerPlus
module Rails
module Helper
def url_for(options = {})
options.is_a?(Hash) ? super(options) : fb_sig_add(super(options))
end
def form_for(record_or_name_or_array, *args, &proc)
args[0][:url] = fb_sig_add(args[0][:url]) if !args[0][:url].nil?
super(record_or_name_or_array, *args, &proc)
end
end
end
end

20. Controller Methods
access custom methods in all controllers

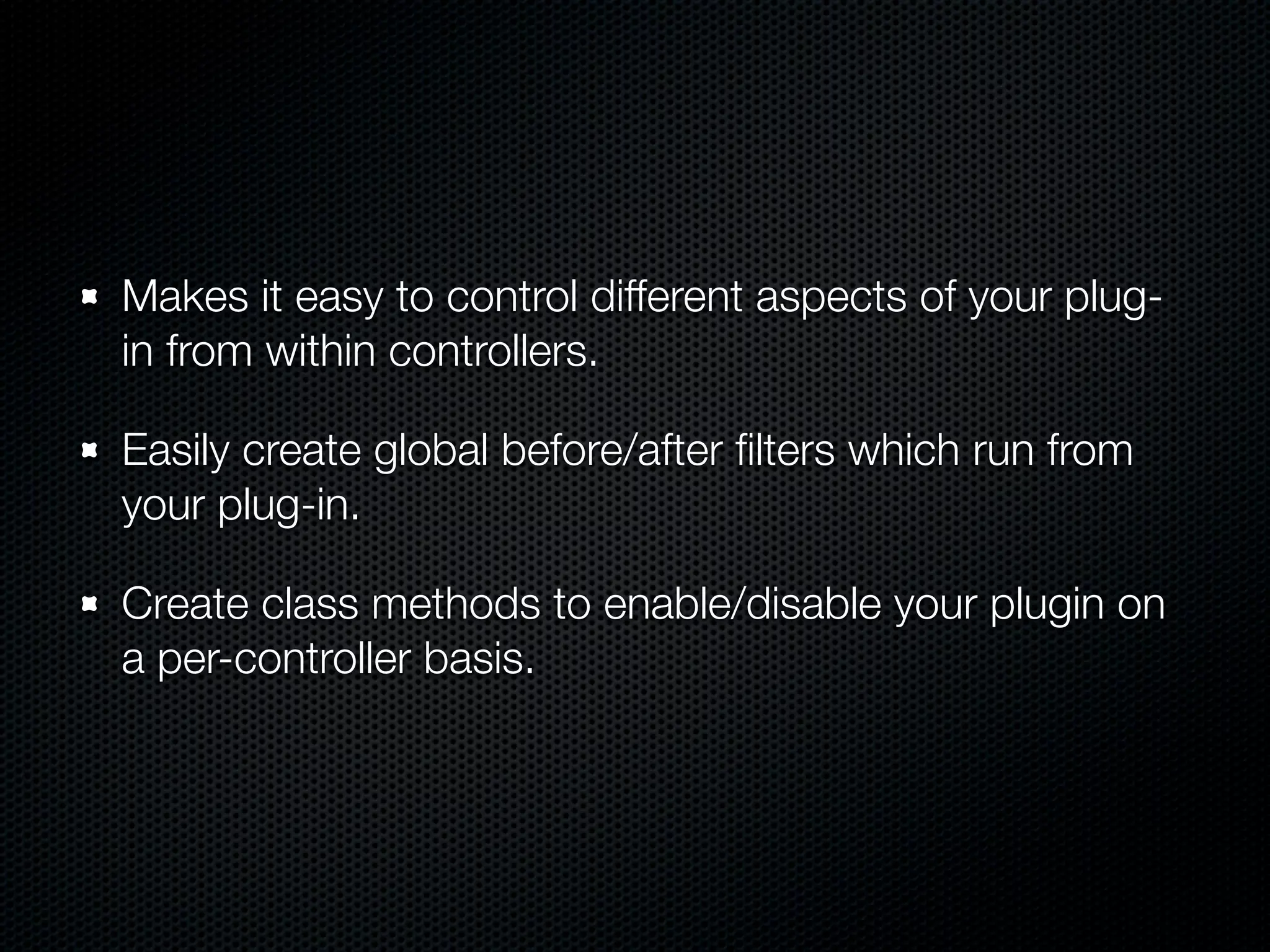

21. Makes it easy to control different aspects of your plug-
in from within controllers.
Easily create global before/after filters which run from
your plug-in.
Create class methods to enable/disable your plugin on
a per-controller basis.

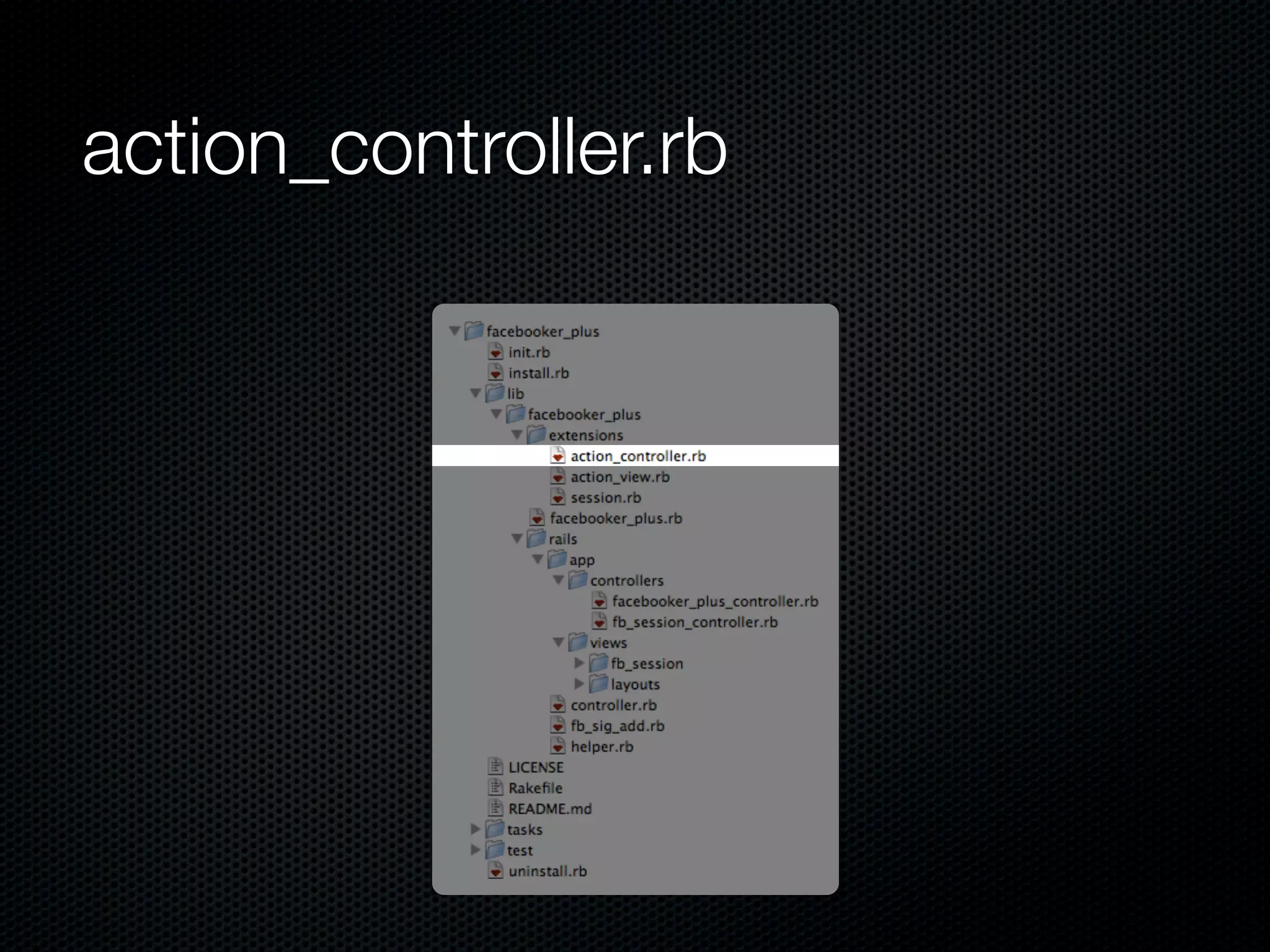

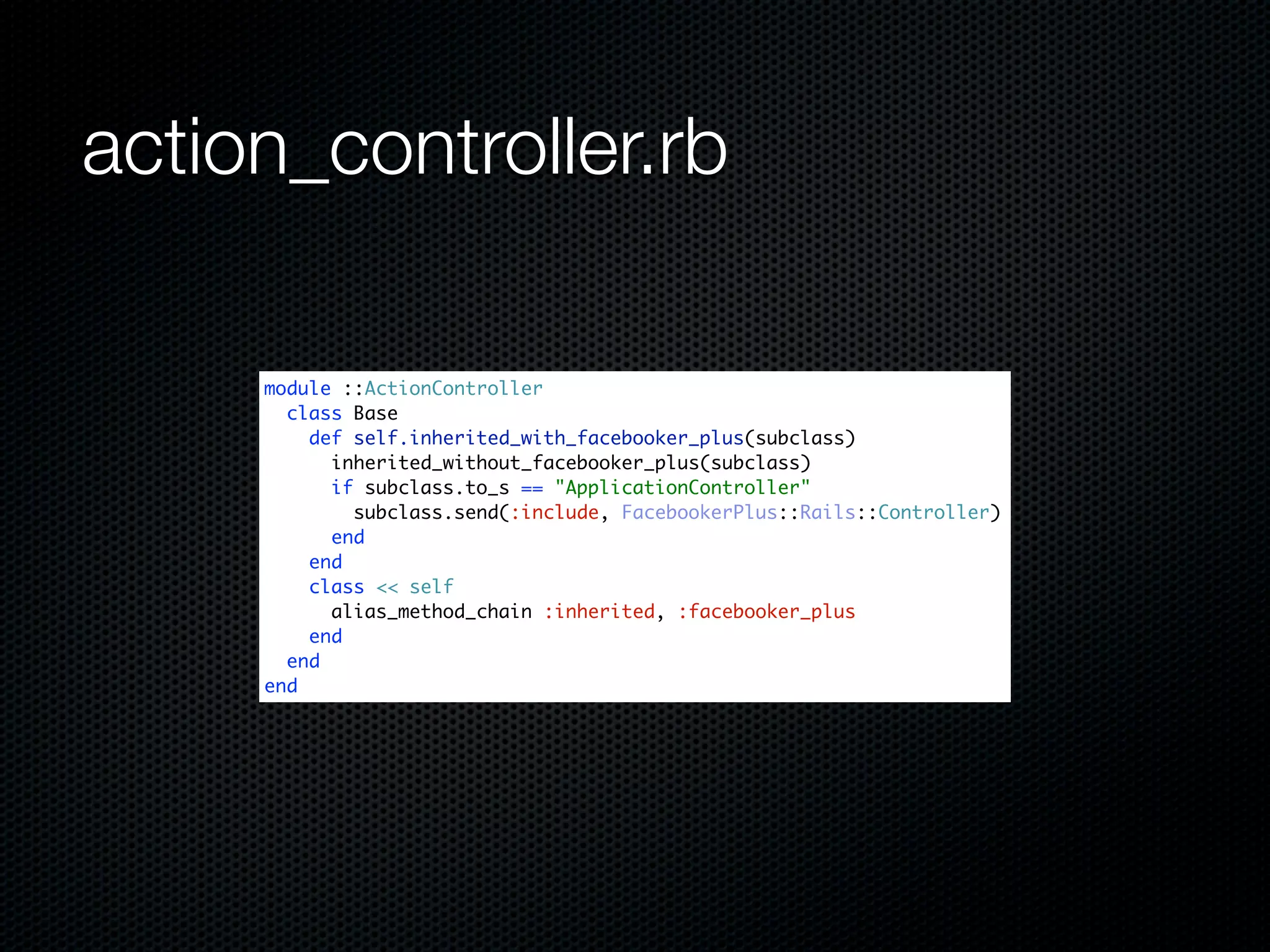

22. action_controller.rb

23. action_controller.rb
module ::ActionController
class Base
def self.inherited_with_facebooker_plus(subclass)
inherited_without_facebooker_plus(subclass)
if subclass.to_s == "ApplicationController"
subclass.send(:include, FacebookerPlus::Rails::Controller)
end
end
class << self
alias_method_chain :inherited, :facebooker_plus
end
end
end

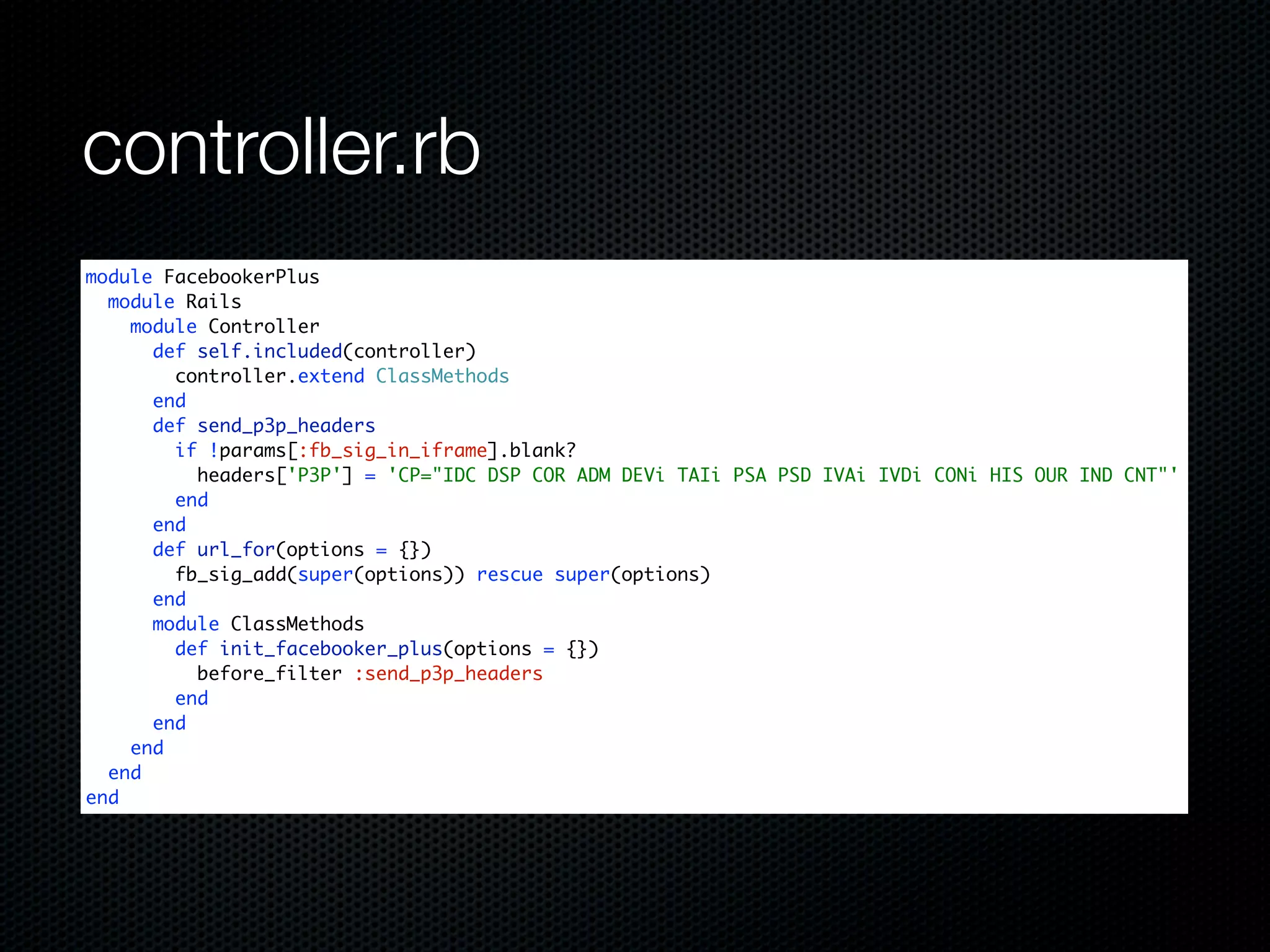

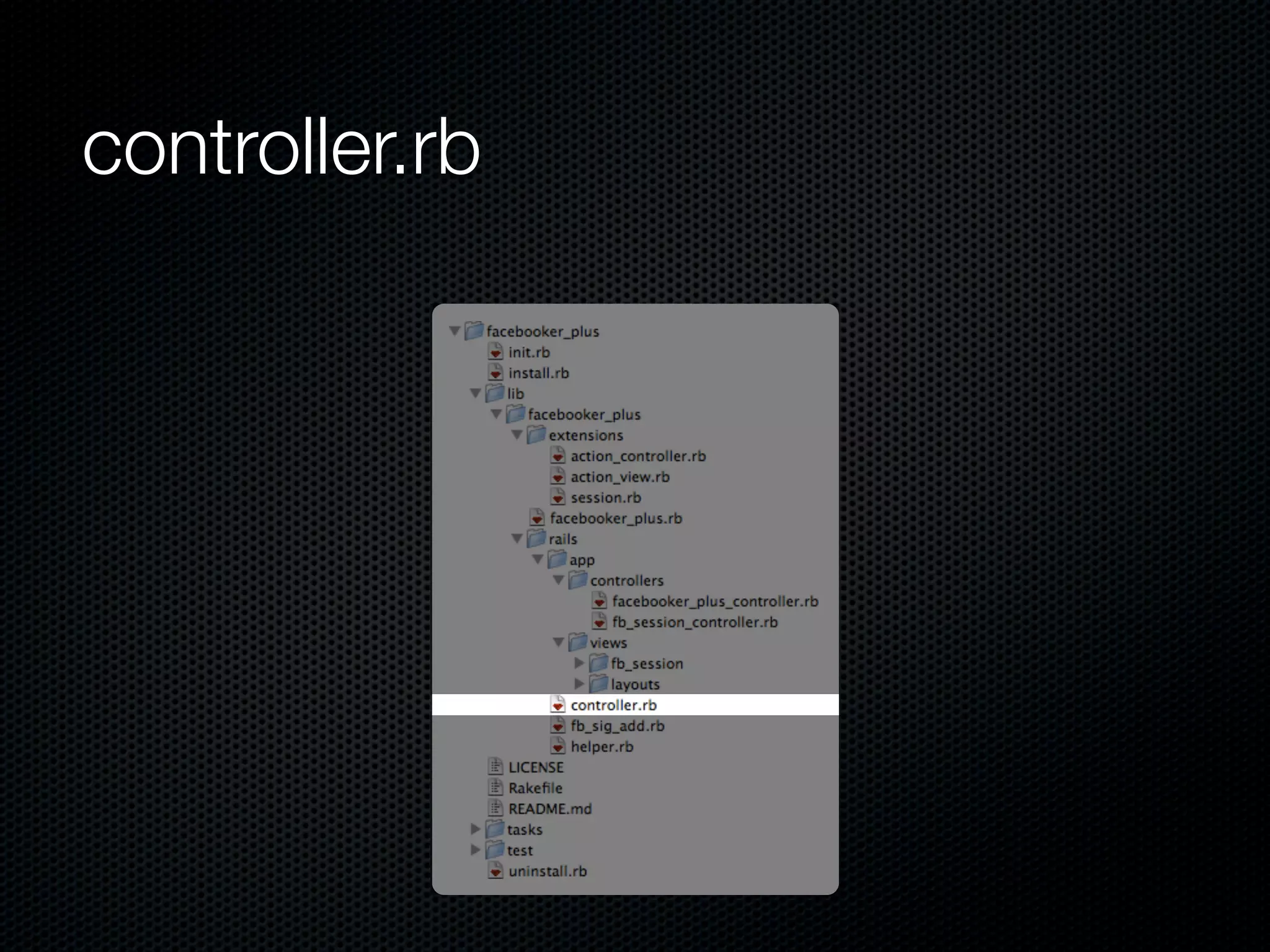

24. controller.rb

25. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
end
def send_p3p_headers
if !params[:fb_sig_in_iframe].blank?
headers['P3P'] = 'CP="IDC DSP COR ADM DEVi TAIi PSA PSD IVAi IVDi CONi HIS OUR IND CNT"'
end
end
def url_for(options = {})
fb_sig_add(super(options)) rescue super(options)
end
module ClassMethods
def init_facebooker_plus(options = {})
before_filter :send_p3p_headers
end
end
end
end
end

26. Fancy initialization

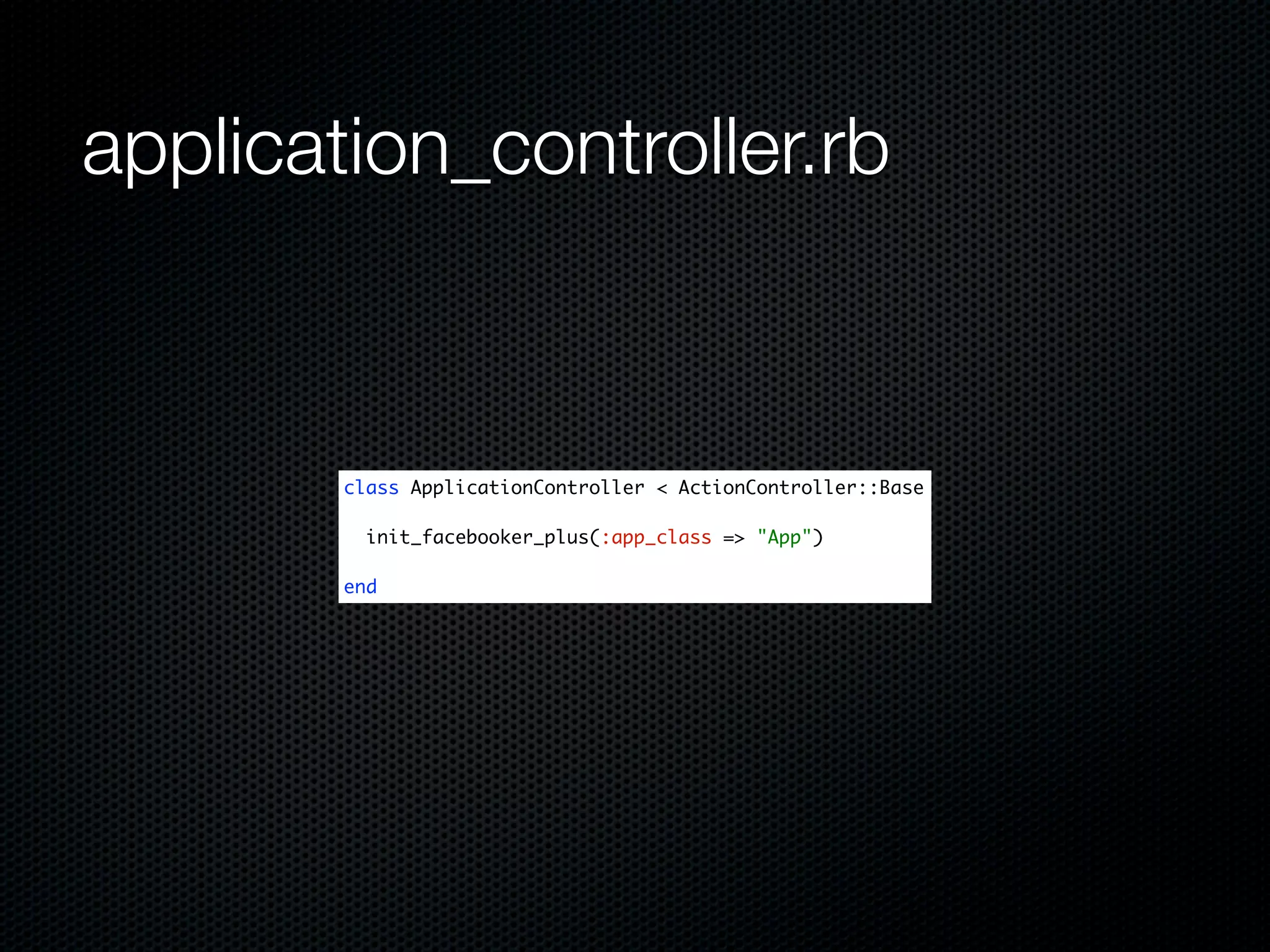

27. application_controller.rb
class ApplicationController < ActionController::Base
init_facebooker_plus(:app_class => "App")
end

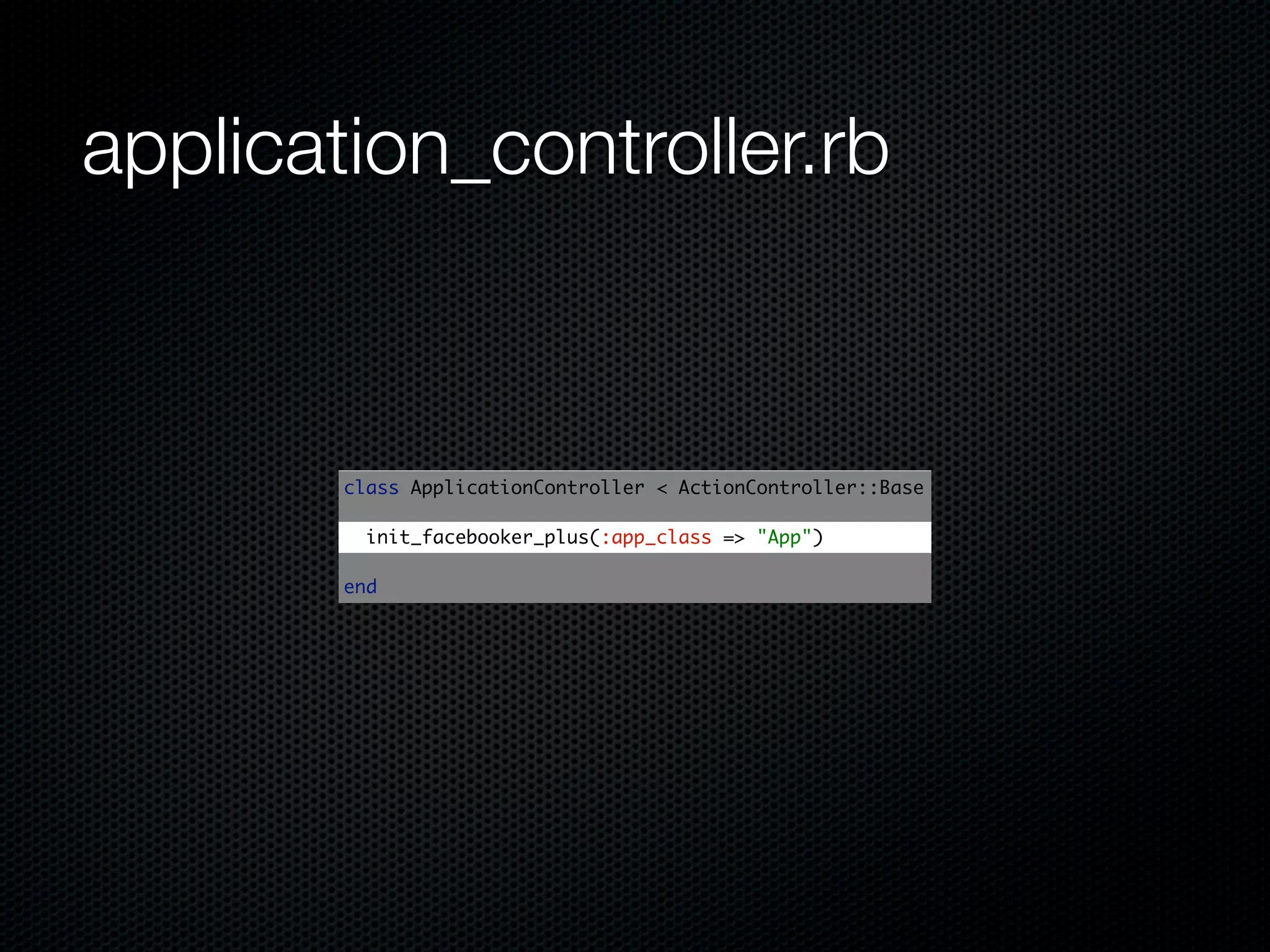

28. application_controller.rb
class ApplicationController < ActionController::Base
init_facebooker_plus(:app_class => "App")
end

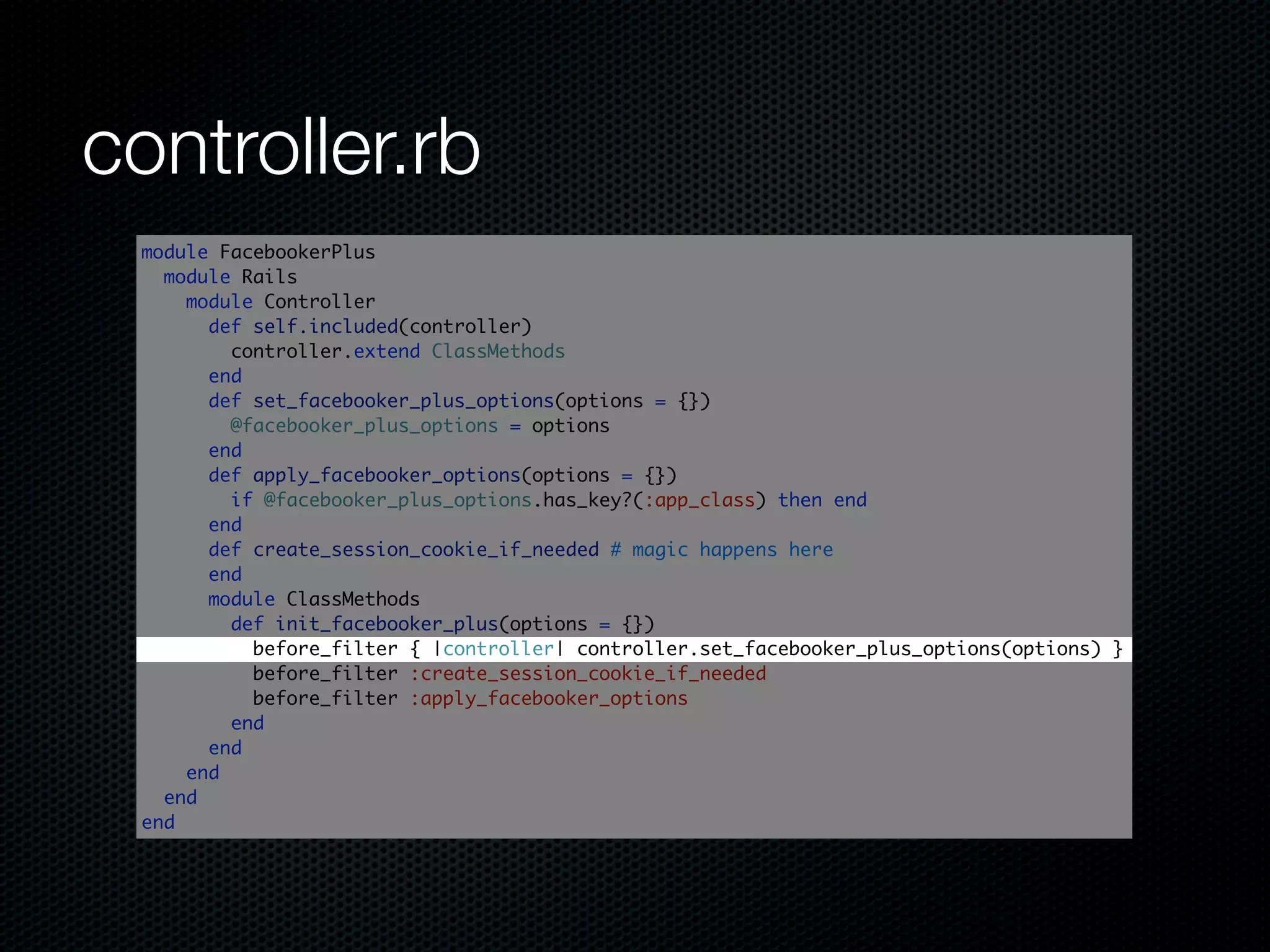

29. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
end
def set_facebooker_plus_options(options = {})
@facebooker_plus_options = options
end
def apply_facebooker_options(options = {})
if @facebooker_plus_options.has_key?(:app_class) then end
end
def create_session_cookie_if_needed # magic happens here
end
module ClassMethods
def init_facebooker_plus(options = {})
before_filter { |controller| controller.set_facebooker_plus_options(options) }
before_filter :create_session_cookie_if_needed
before_filter :apply_facebooker_options
end
end
end
end
end

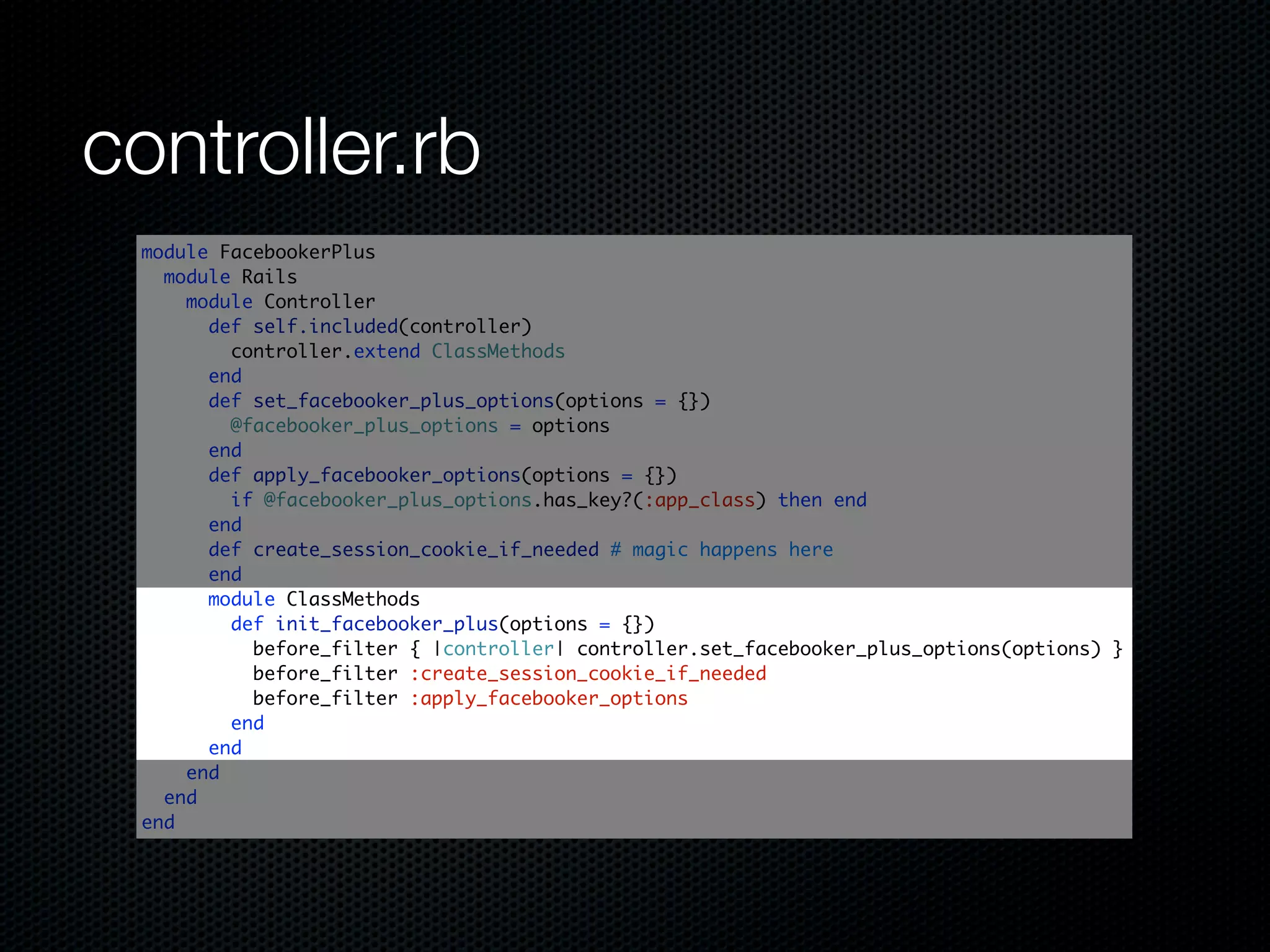

30. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
end
def set_facebooker_plus_options(options = {})
@facebooker_plus_options = options
end
def apply_facebooker_options(options = {})
if @facebooker_plus_options.has_key?(:app_class) then end
end
def create_session_cookie_if_needed # magic happens here
end
module ClassMethods
def init_facebooker_plus(options = {})
before_filter { |controller| controller.set_facebooker_plus_options(options) }
before_filter :create_session_cookie_if_needed
before_filter :apply_facebooker_options
end
end
end
end
end

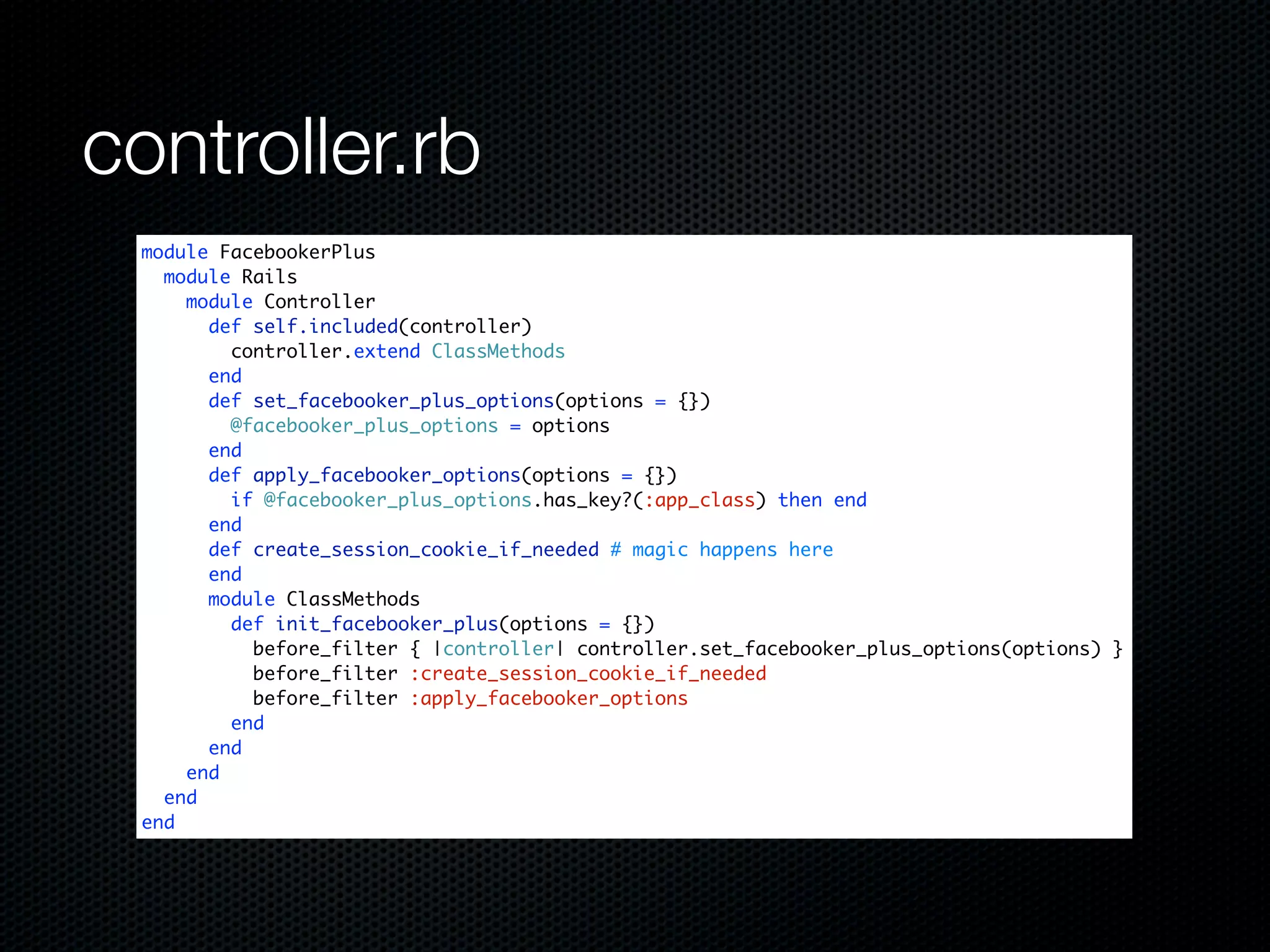

31. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
end
def set_facebooker_plus_options(options = {})
@facebooker_plus_options = options
end
def apply_facebooker_options(options = {})
if @facebooker_plus_options.has_key?(:app_class) then end
end
def create_session_cookie_if_needed # magic happens here
end
module ClassMethods
def init_facebooker_plus(options = {})
before_filter { |controller| controller.set_facebooker_plus_options(options) }
before_filter :create_session_cookie_if_needed
before_filter :apply_facebooker_options
end
end
end
end
end

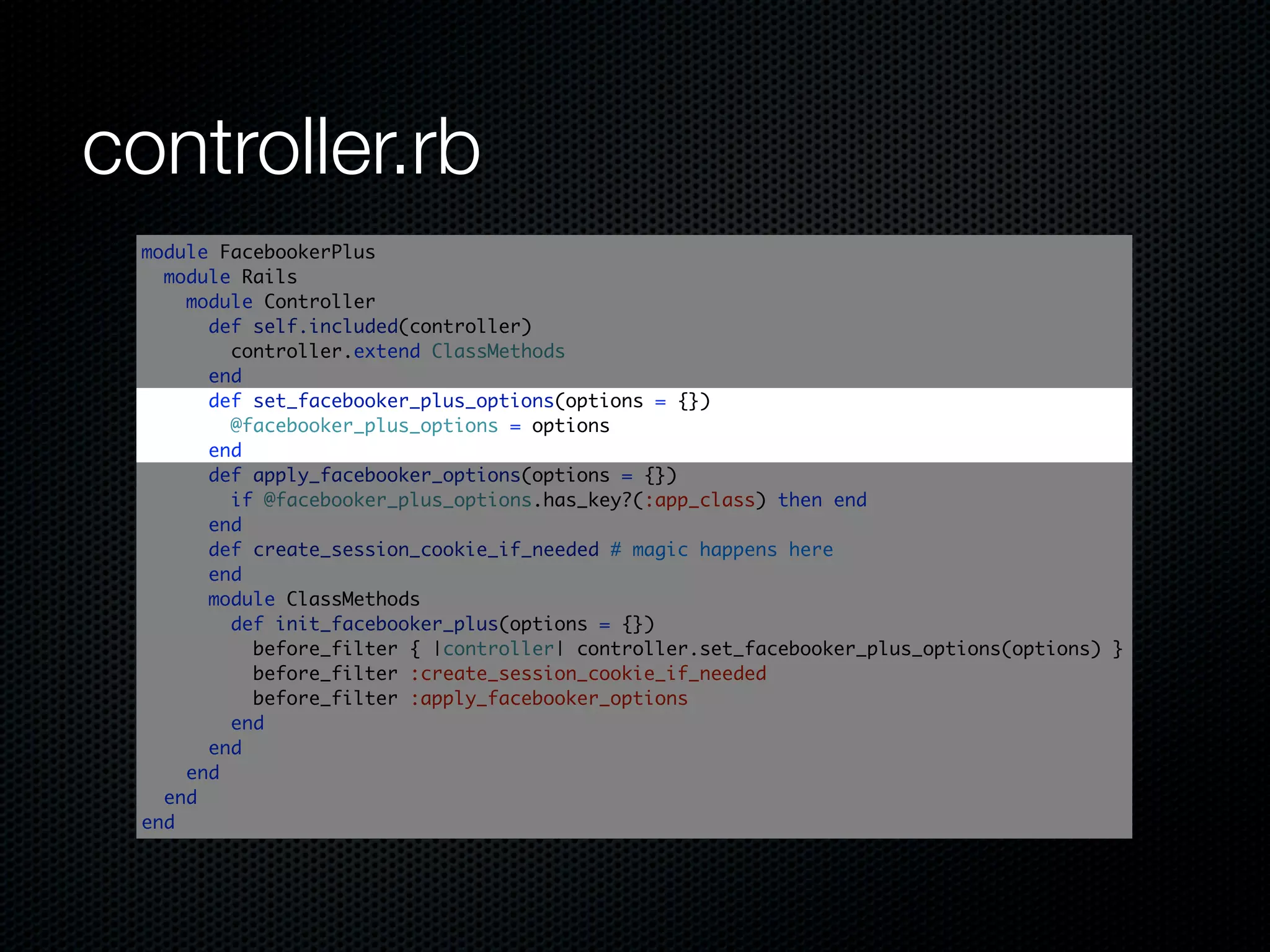

32. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
end
def set_facebooker_plus_options(options = {})
@facebooker_plus_options = options
end
def apply_facebooker_options(options = {})
if @facebooker_plus_options.has_key?(:app_class) then end
end
def create_session_cookie_if_needed # magic happens here
end
module ClassMethods
def init_facebooker_plus(options = {})
before_filter { |controller| controller.set_facebooker_plus_options(options) }
before_filter :create_session_cookie_if_needed
before_filter :apply_facebooker_options
end
end
end
end
end

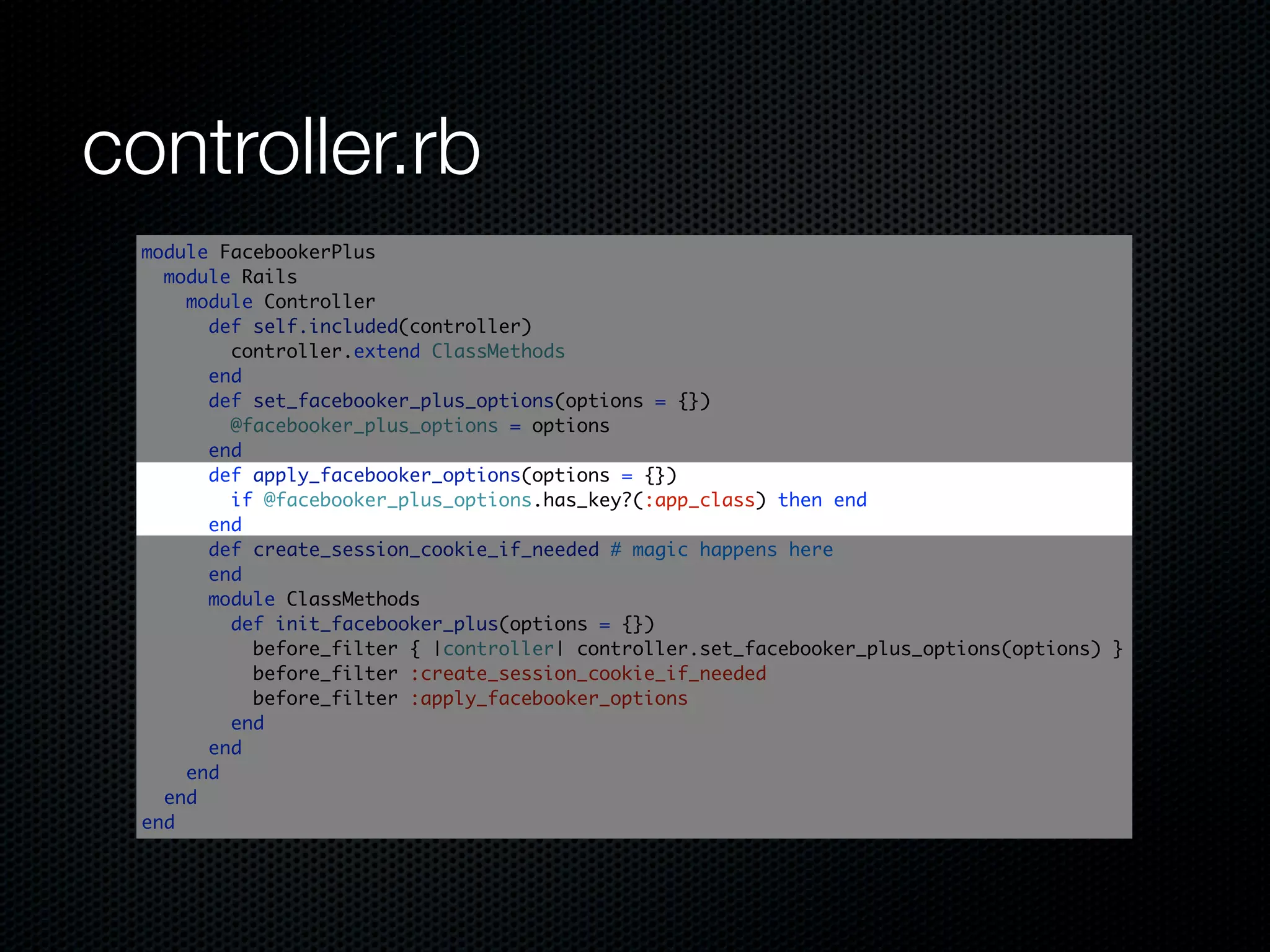

33. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
end
def set_facebooker_plus_options(options = {})
@facebooker_plus_options = options
end
def apply_facebooker_options(options = {})
if @facebooker_plus_options.has_key?(:app_class) then end
end
def create_session_cookie_if_needed # magic happens here
end
module ClassMethods
def init_facebooker_plus(options = {})
before_filter { |controller| controller.set_facebooker_plus_options(options) }
before_filter :create_session_cookie_if_needed
before_filter :apply_facebooker_options
end
end
end
end
end

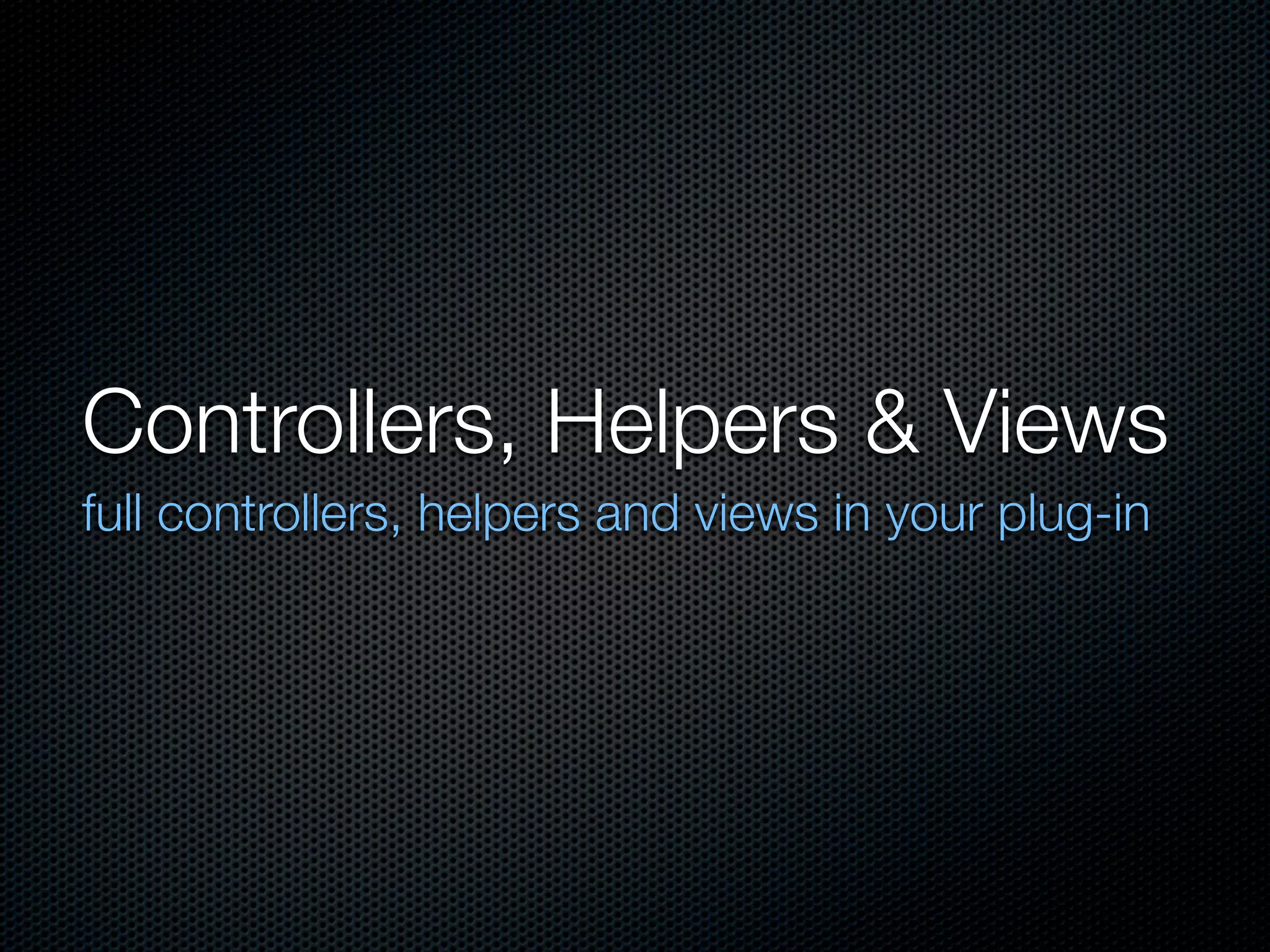

34. Controllers, Helpers & Views
full controllers, helpers and views in your plug-in

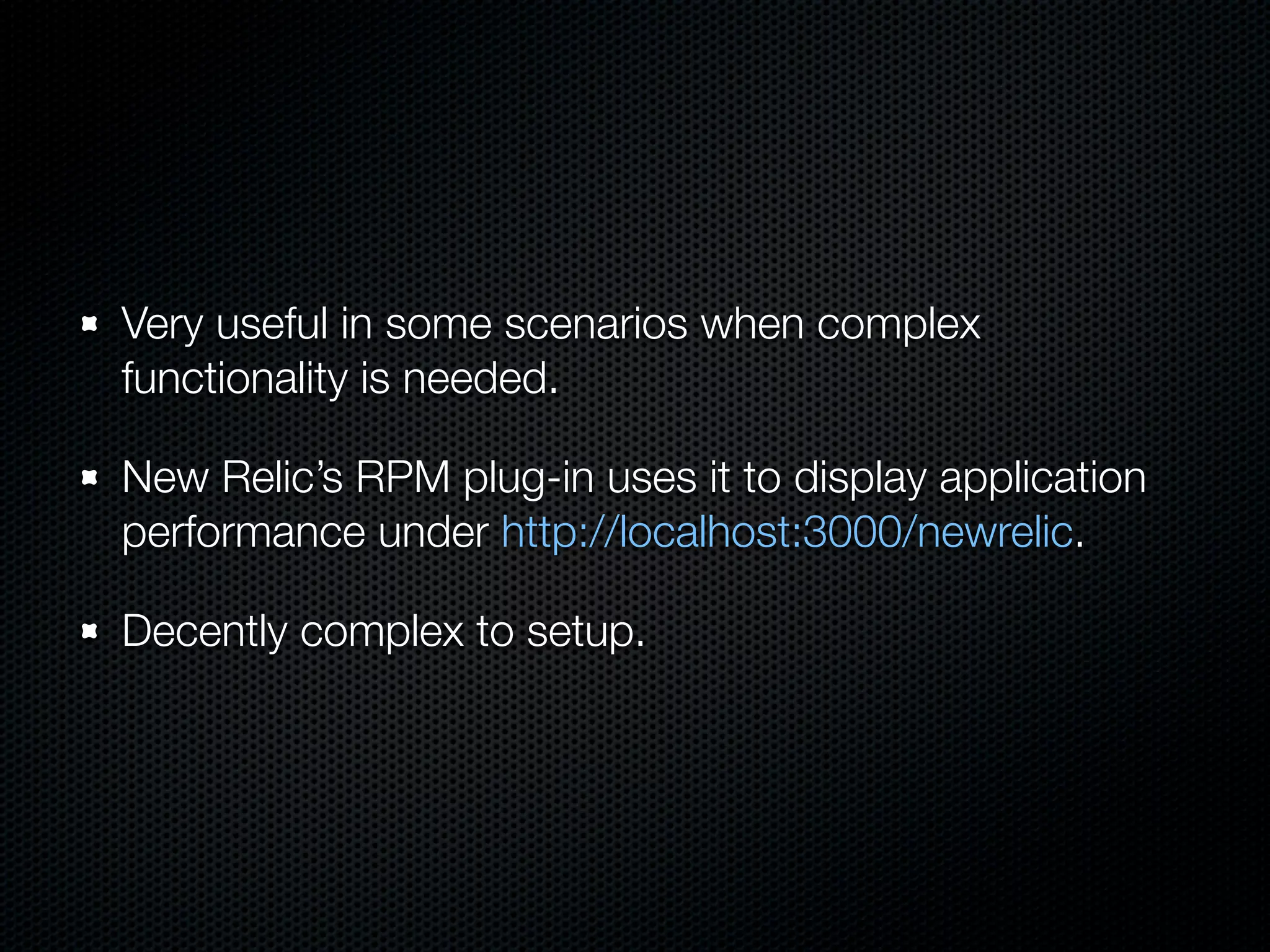

35. Very useful in some scenarios when complex
functionality is needed.
New Relic’s RPM plug-in uses it to display application
performance under http://localhost:3000/newrelic.
Decently complex to setup.

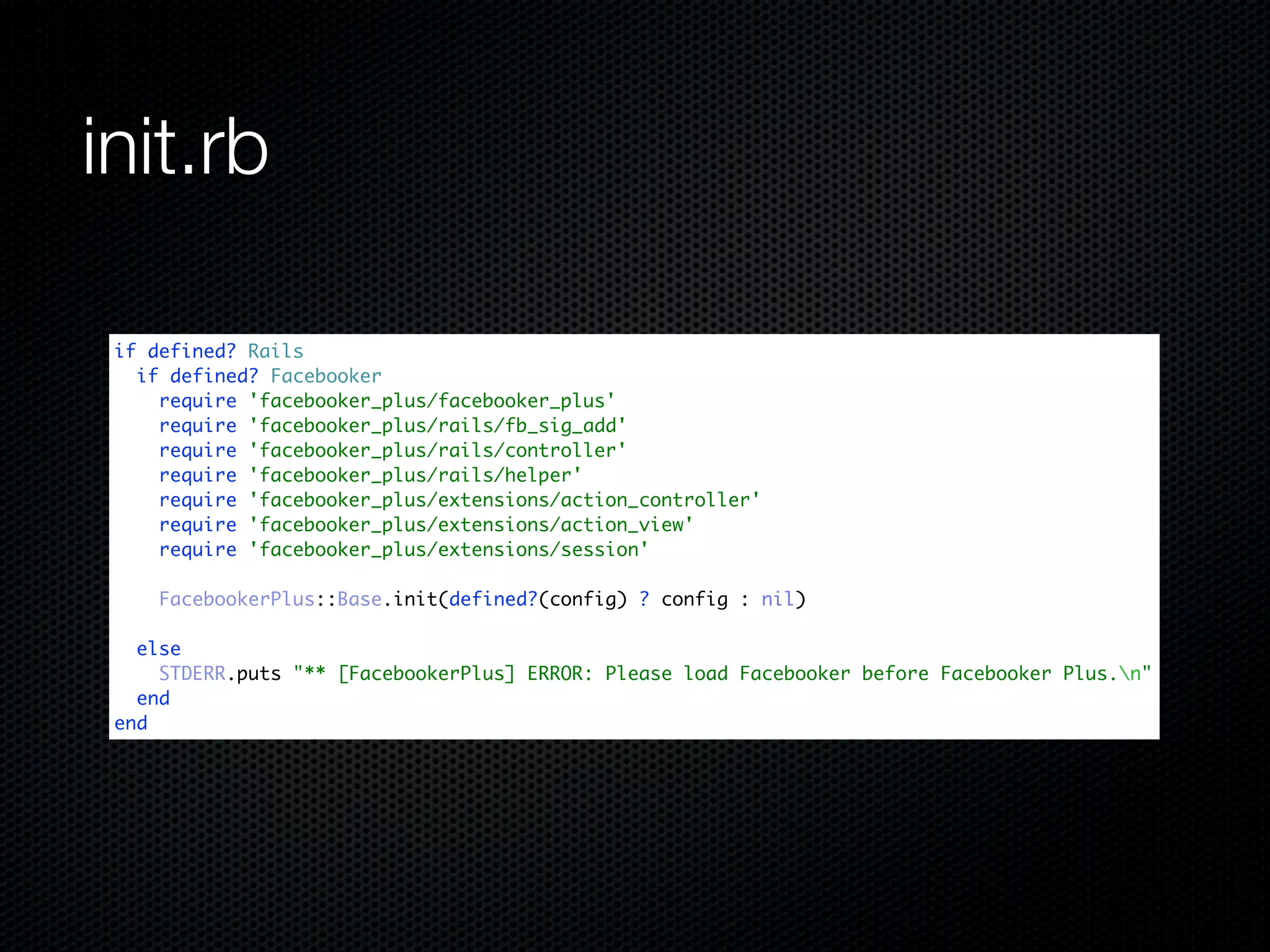

36. init.rb
if defined? Rails
if defined? Facebooker
require 'facebooker_plus/facebooker_plus'
require 'facebooker_plus/rails/fb_sig_add'
require 'facebooker_plus/rails/controller'
require 'facebooker_plus/rails/helper'
require 'facebooker_plus/extensions/action_controller'
require 'facebooker_plus/extensions/action_view'
require 'facebooker_plus/extensions/session'
FacebookerPlus::Base.init(defined?(config) ? config : nil)
else
STDERR.puts "** [FacebookerPlus] ERROR: Please load Facebooker before Facebooker Plus.n"
end
end

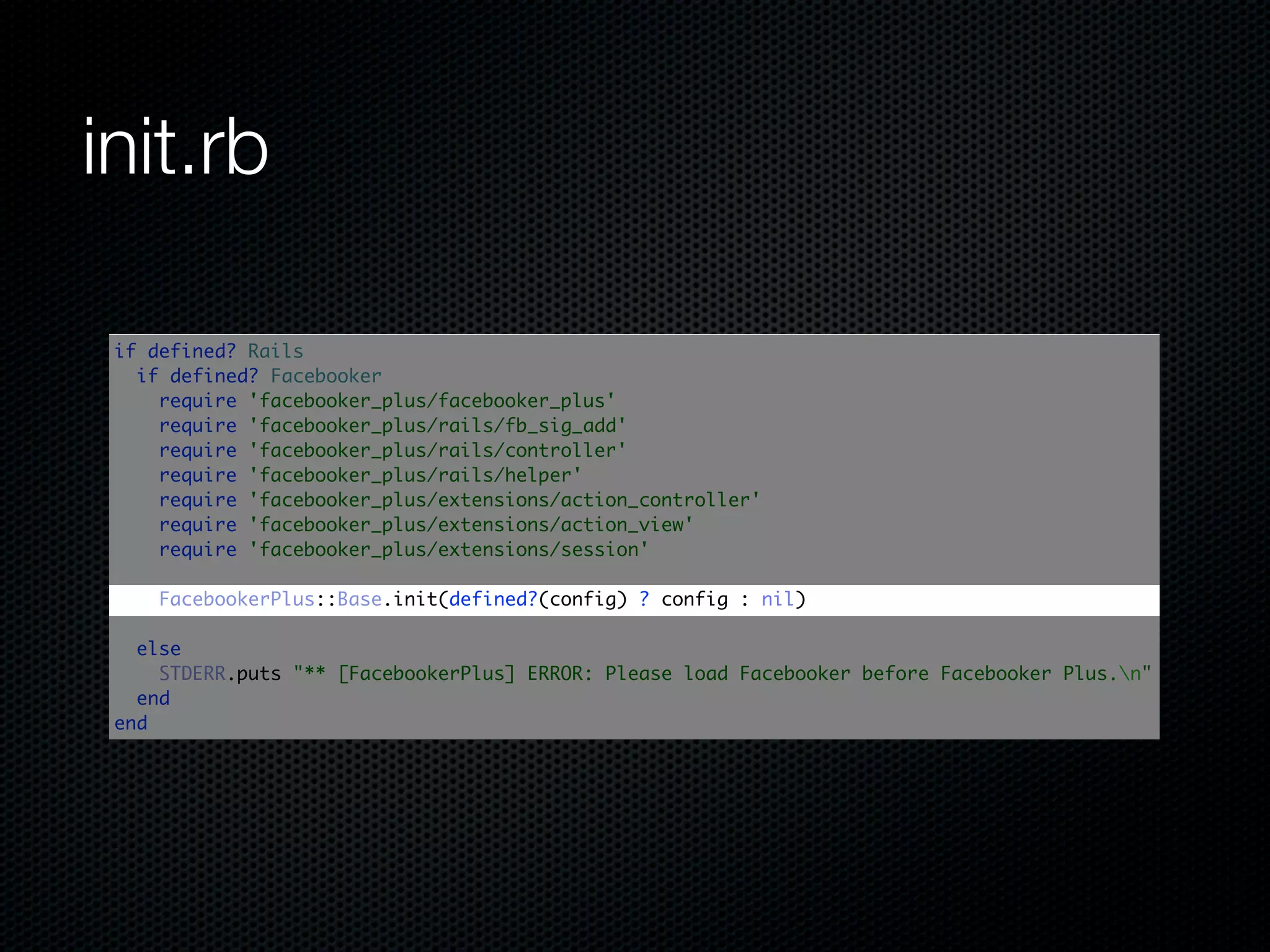

37. init.rb
if defined? Rails
if defined? Facebooker
require 'facebooker_plus/facebooker_plus'
require 'facebooker_plus/rails/fb_sig_add'
require 'facebooker_plus/rails/controller'
require 'facebooker_plus/rails/helper'
require 'facebooker_plus/extensions/action_controller'
require 'facebooker_plus/extensions/action_view'
require 'facebooker_plus/extensions/session'
FacebookerPlus::Base.init(defined?(config) ? config : nil)
else
STDERR.puts "** [FacebookerPlus] ERROR: Please load Facebooker before Facebooker Plus.n"
end
end

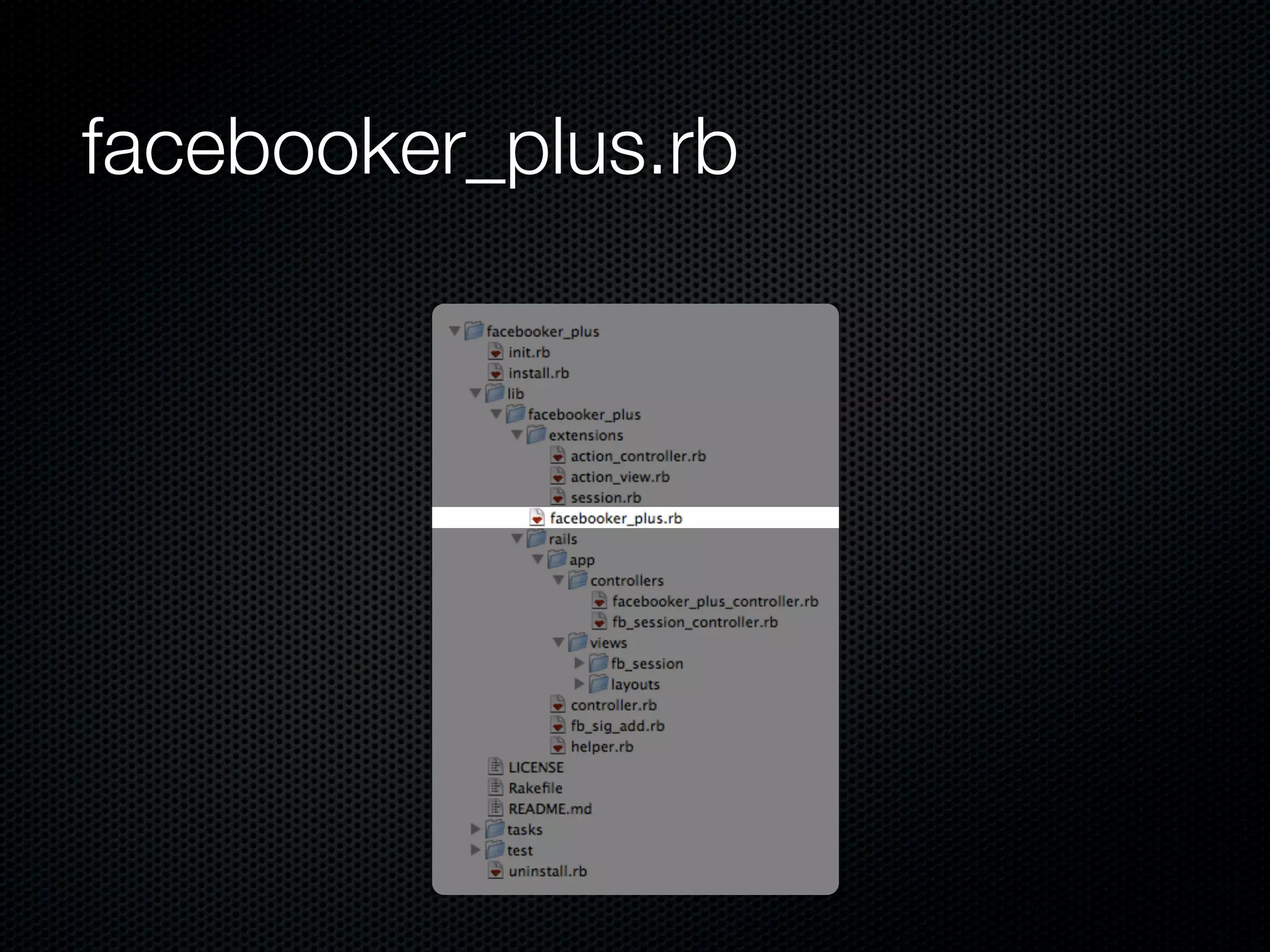

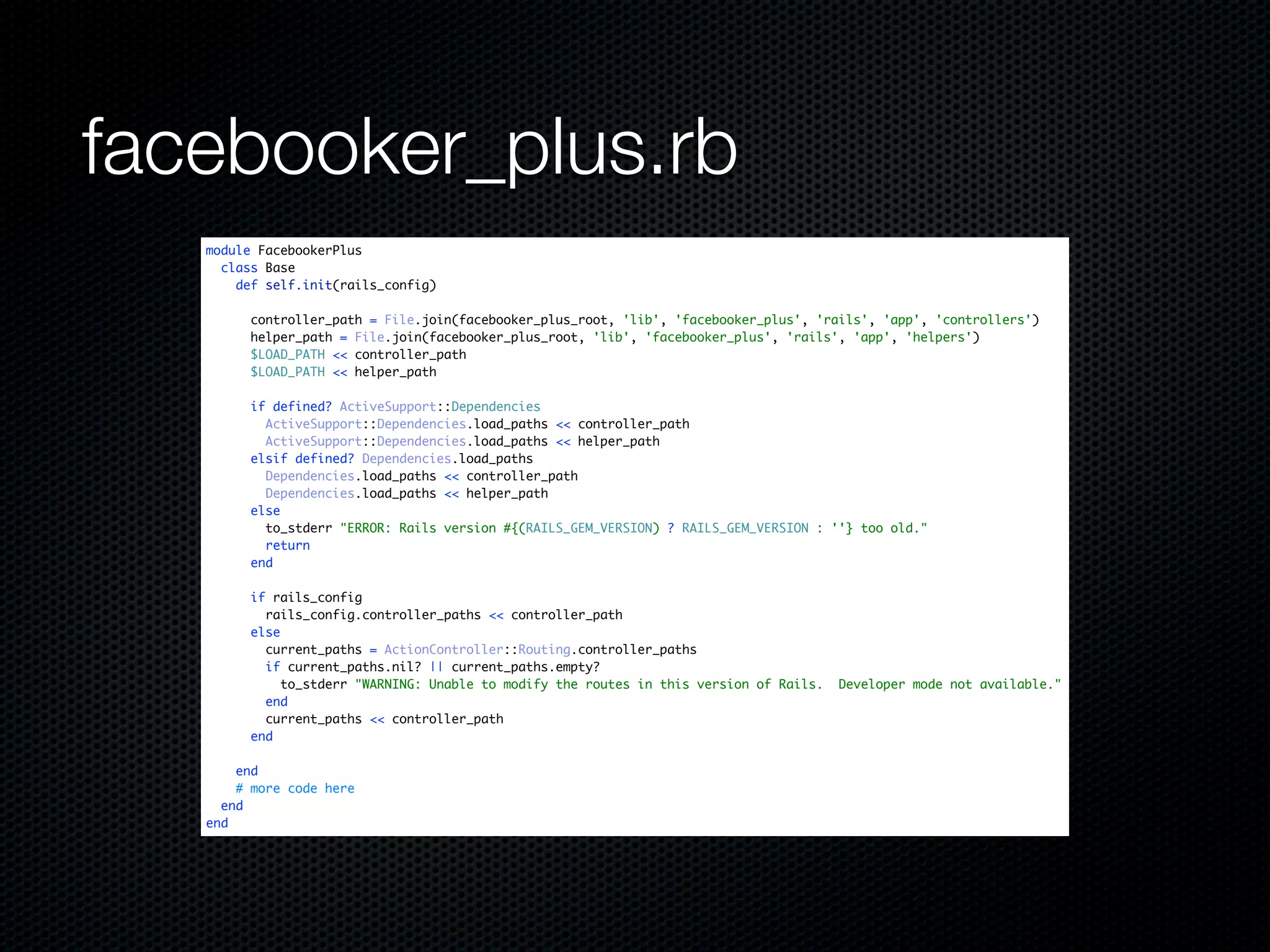

38. facebooker_plus.rb

39. facebooker_plus.rb
module FacebookerPlus
class Base
def self.init(rails_config)
controller_path = File.join(facebooker_plus_root, 'lib', 'facebooker_plus', 'rails', 'app', 'controllers')
helper_path = File.join(facebooker_plus_root, 'lib', 'facebooker_plus', 'rails', 'app', 'helpers')
$LOAD_PATH << controller_path
$LOAD_PATH << helper_path
if defined? ActiveSupport::Dependencies
ActiveSupport::Dependencies.load_paths << controller_path
ActiveSupport::Dependencies.load_paths << helper_path
elsif defined? Dependencies.load_paths
Dependencies.load_paths << controller_path
Dependencies.load_paths << helper_path
else
to_stderr "ERROR: Rails version #{(RAILS_GEM_VERSION) ? RAILS_GEM_VERSION : ''} too old."
return
end
if rails_config
rails_config.controller_paths << controller_path
else
current_paths = ActionController::Routing.controller_paths
if current_paths.nil? || current_paths.empty?
to_stderr "WARNING: Unable to modify the routes in this version of Rails. Developer mode not available."
end
current_paths << controller_path
end
end
# more code here
end
end

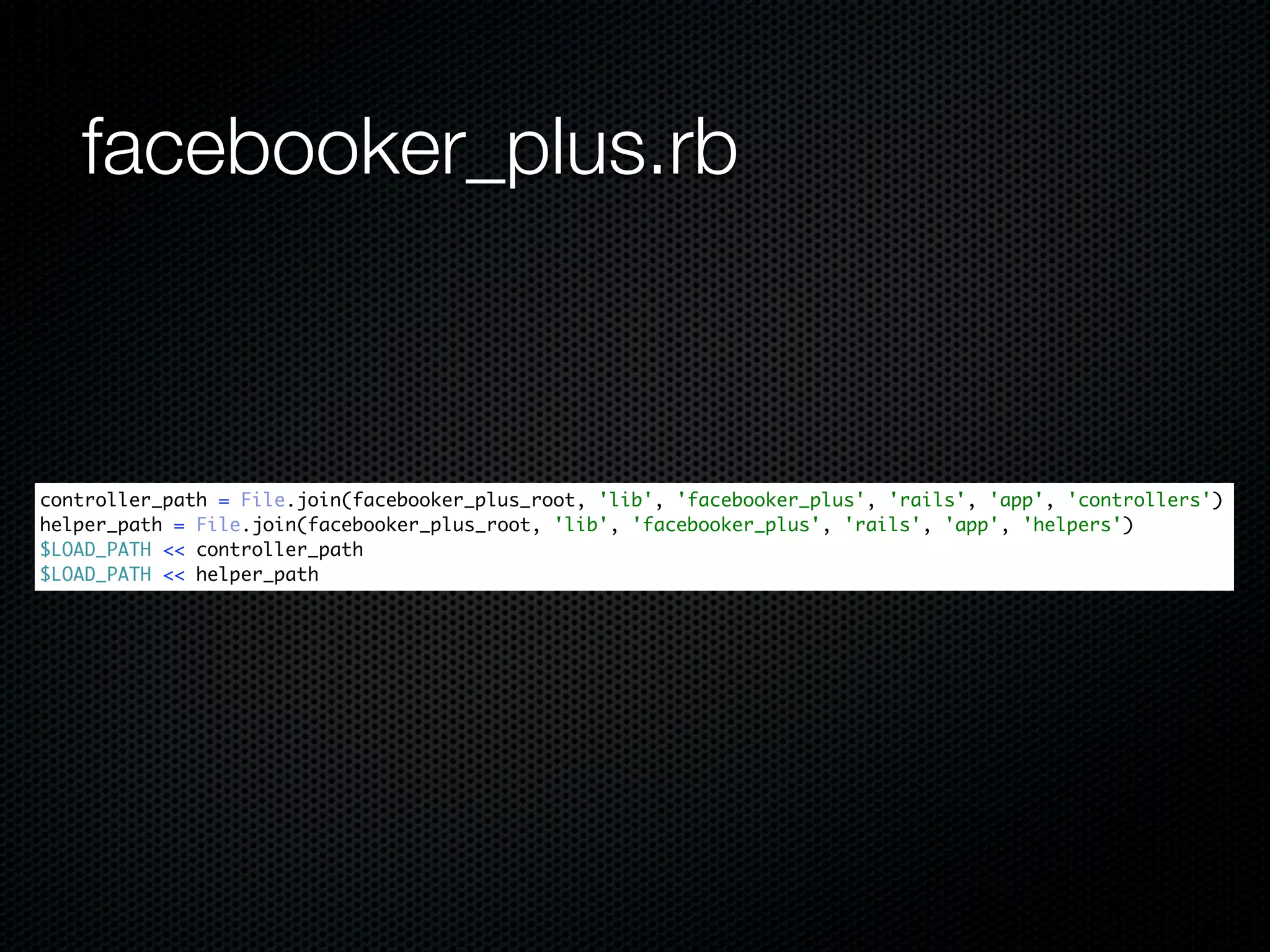

40. facebooker_plus.rb
controller_path = File.join(facebooker_plus_root, 'lib', 'facebooker_plus', 'rails', 'app', 'controllers')
helper_path = File.join(facebooker_plus_root, 'lib', 'facebooker_plus', 'rails', 'app', 'helpers')
$LOAD_PATH << controller_path
$LOAD_PATH << helper_path

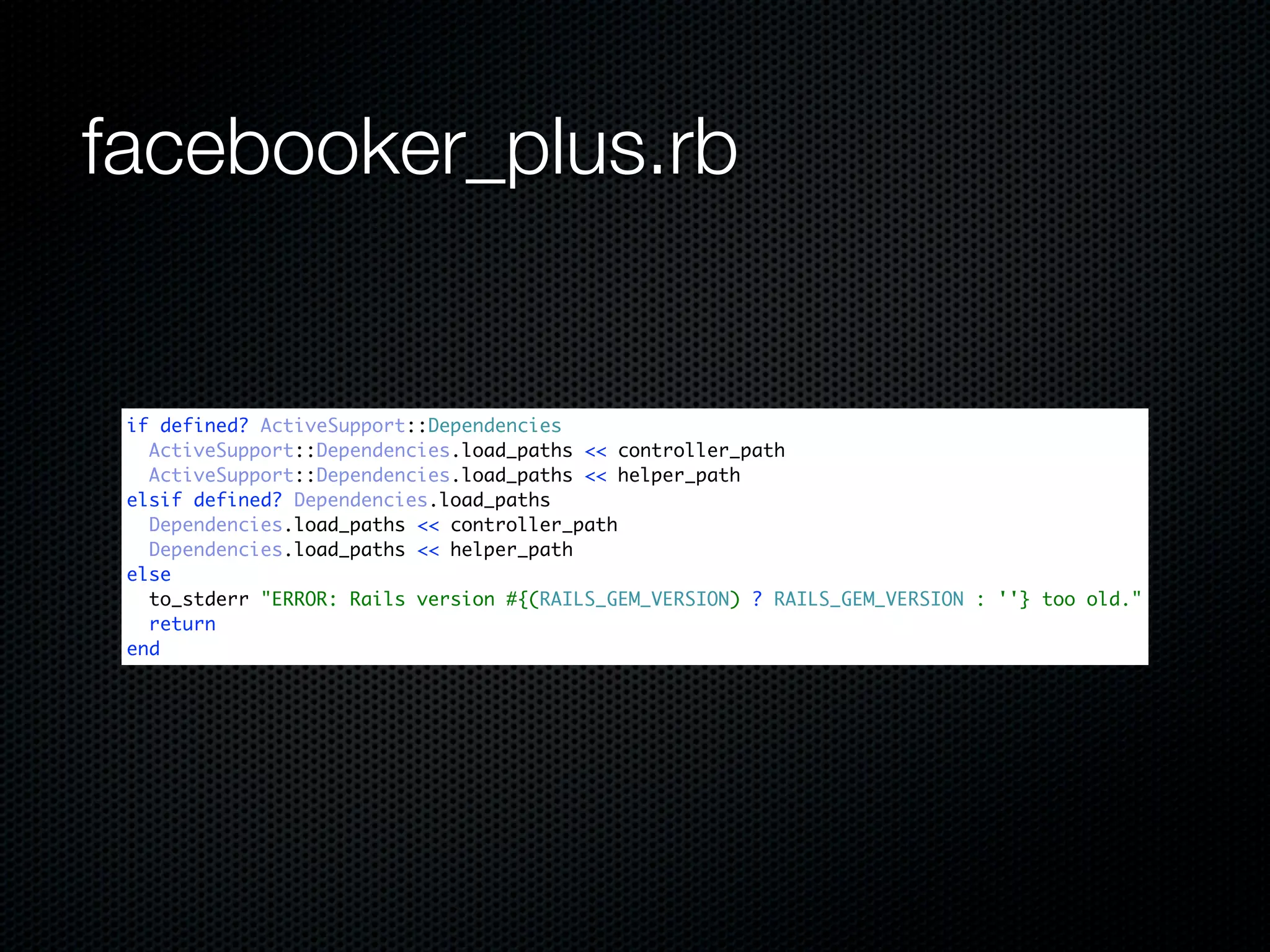

41. facebooker_plus.rb
if defined? ActiveSupport::Dependencies
ActiveSupport::Dependencies.load_paths << controller_path
ActiveSupport::Dependencies.load_paths << helper_path
elsif defined? Dependencies.load_paths
Dependencies.load_paths << controller_path
Dependencies.load_paths << helper_path
else
to_stderr "ERROR: Rails version #{(RAILS_GEM_VERSION) ? RAILS_GEM_VERSION : ''} too old."
return
end

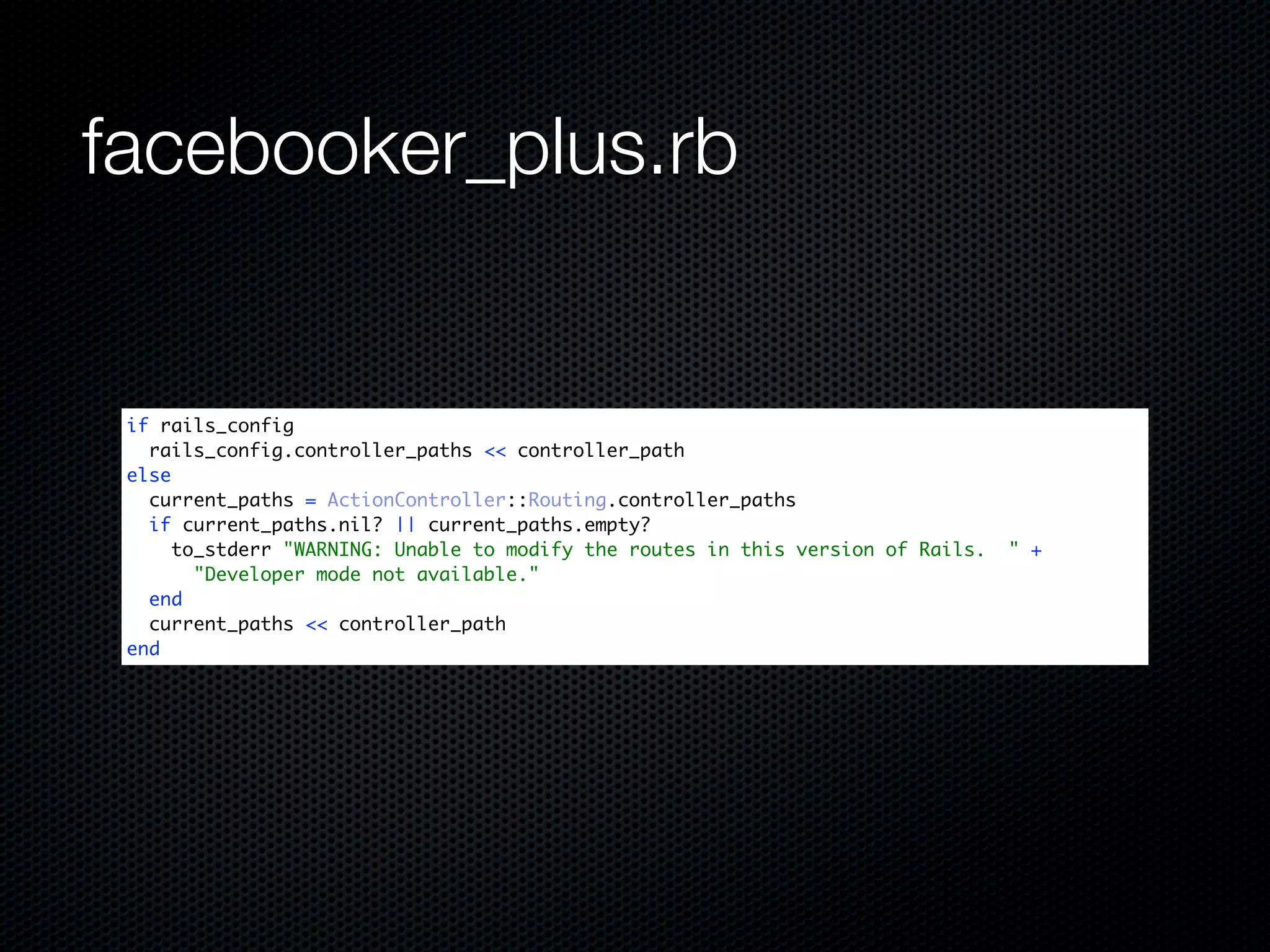

42. facebooker_plus.rb
if rails_config
rails_config.controller_paths << controller_path
else
current_paths = ActionController::Routing.controller_paths
if current_paths.nil? || current_paths.empty?
to_stderr "WARNING: Unable to modify the routes in this version of Rails. " +
"Developer mode not available."
end
current_paths << controller_path
end

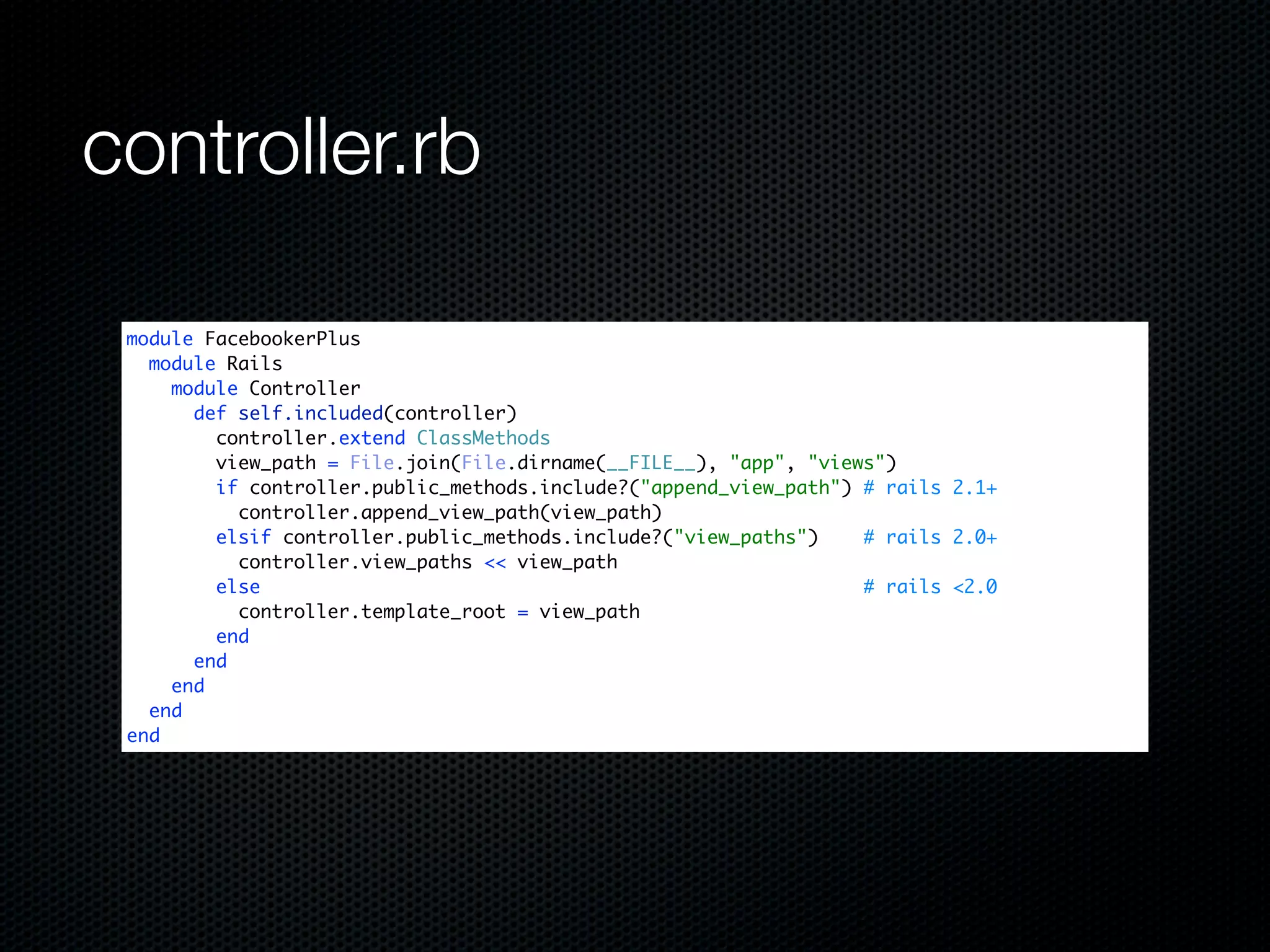

43. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
view_path = File.join(File.dirname(__FILE__), "app", "views")
if controller.public_methods.include?("append_view_path") # rails 2.1+
controller.append_view_path(view_path)
elsif controller.public_methods.include?("view_paths") # rails 2.0+
controller.view_paths << view_path
else # rails <2.0
controller.template_root = view_path
end
end
end
end
end

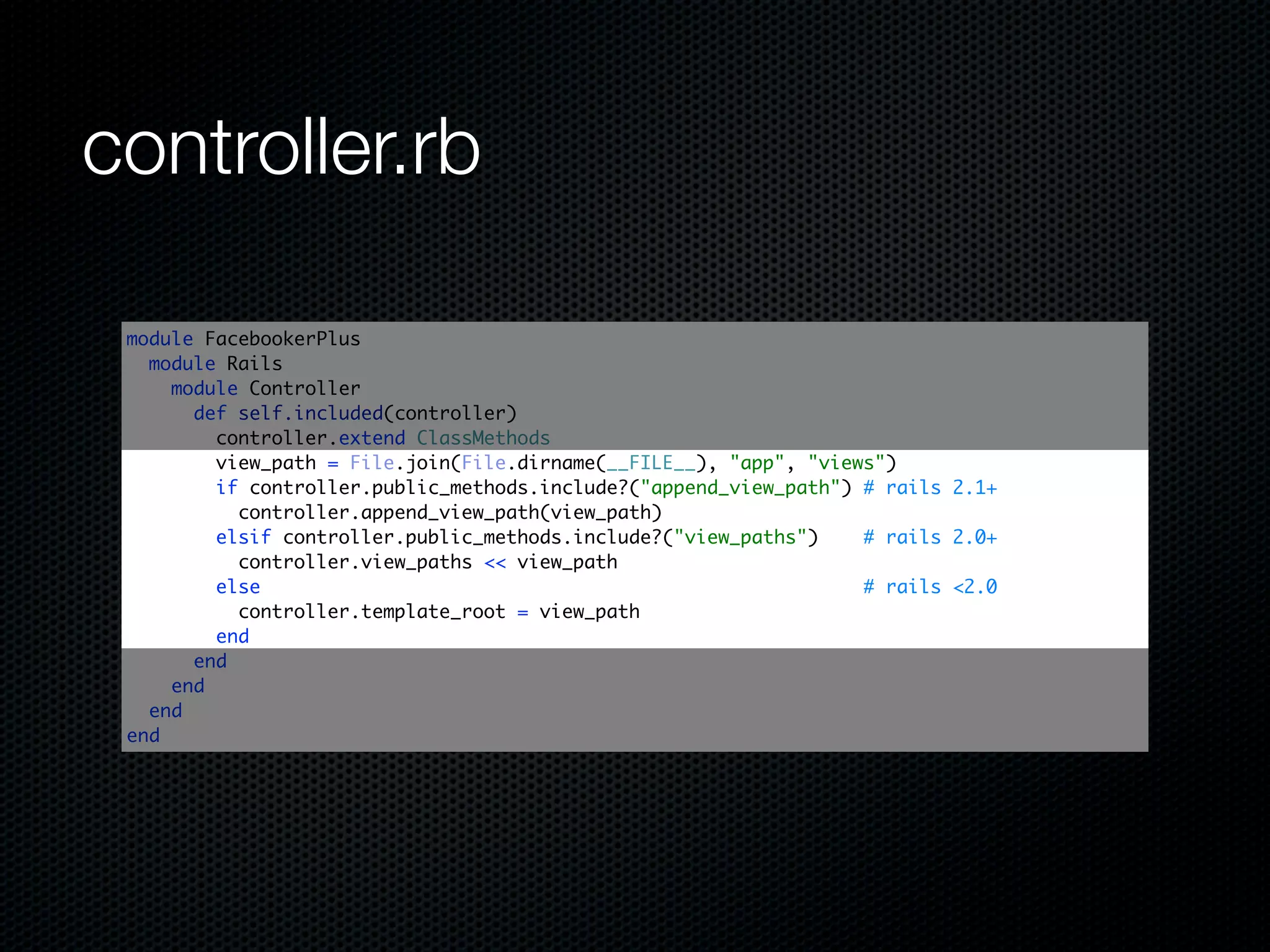

44. controller.rb
module FacebookerPlus
module Rails
module Controller
def self.included(controller)
controller.extend ClassMethods
view_path = File.join(File.dirname(__FILE__), "app", "views")
if controller.public_methods.include?("append_view_path") # rails 2.1+
controller.append_view_path(view_path)
elsif controller.public_methods.include?("view_paths") # rails 2.0+
controller.view_paths << view_path
else # rails <2.0
controller.template_root = view_path
end
end
end
end
end

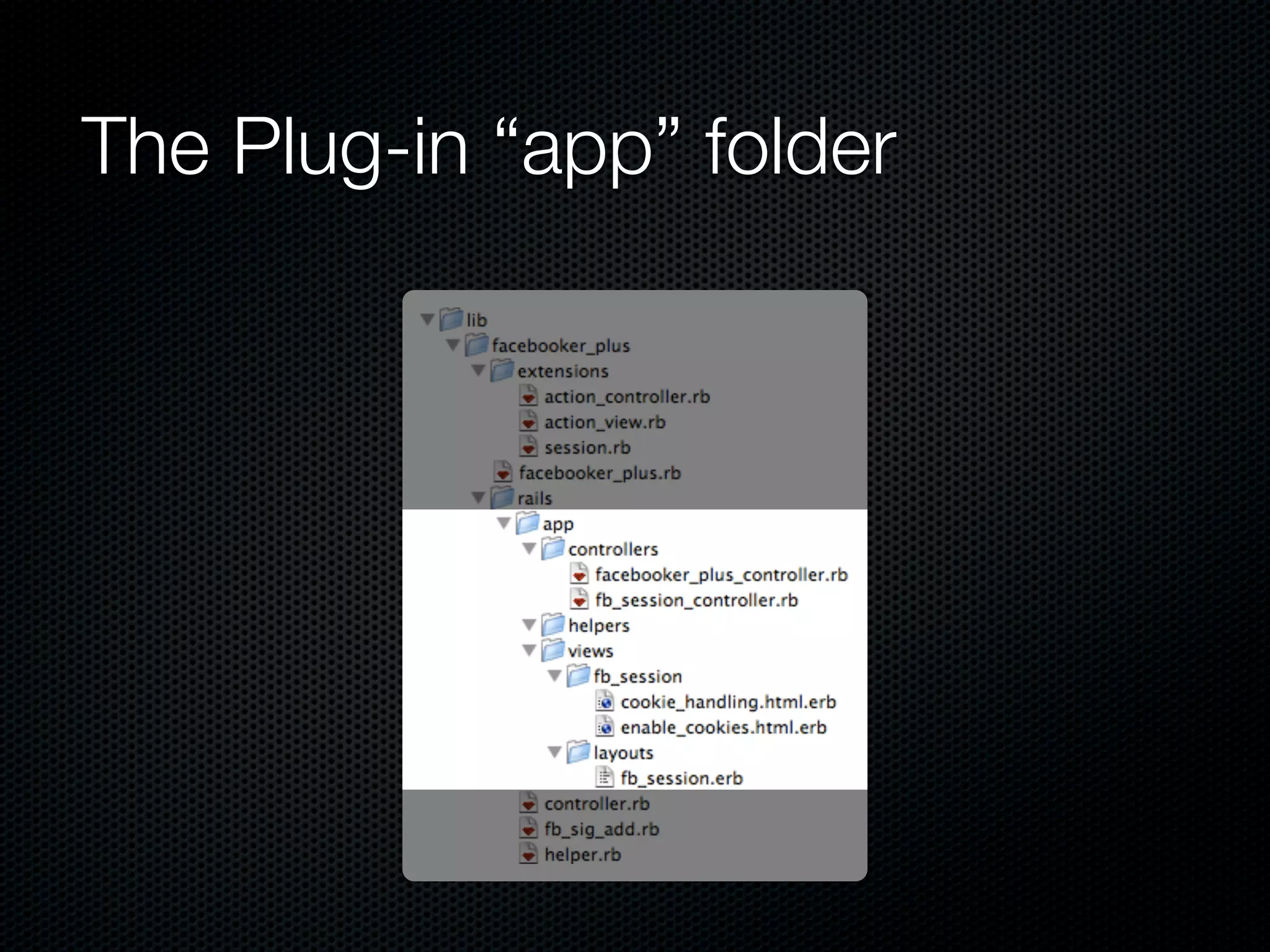

45. The Plug-in “app” folder

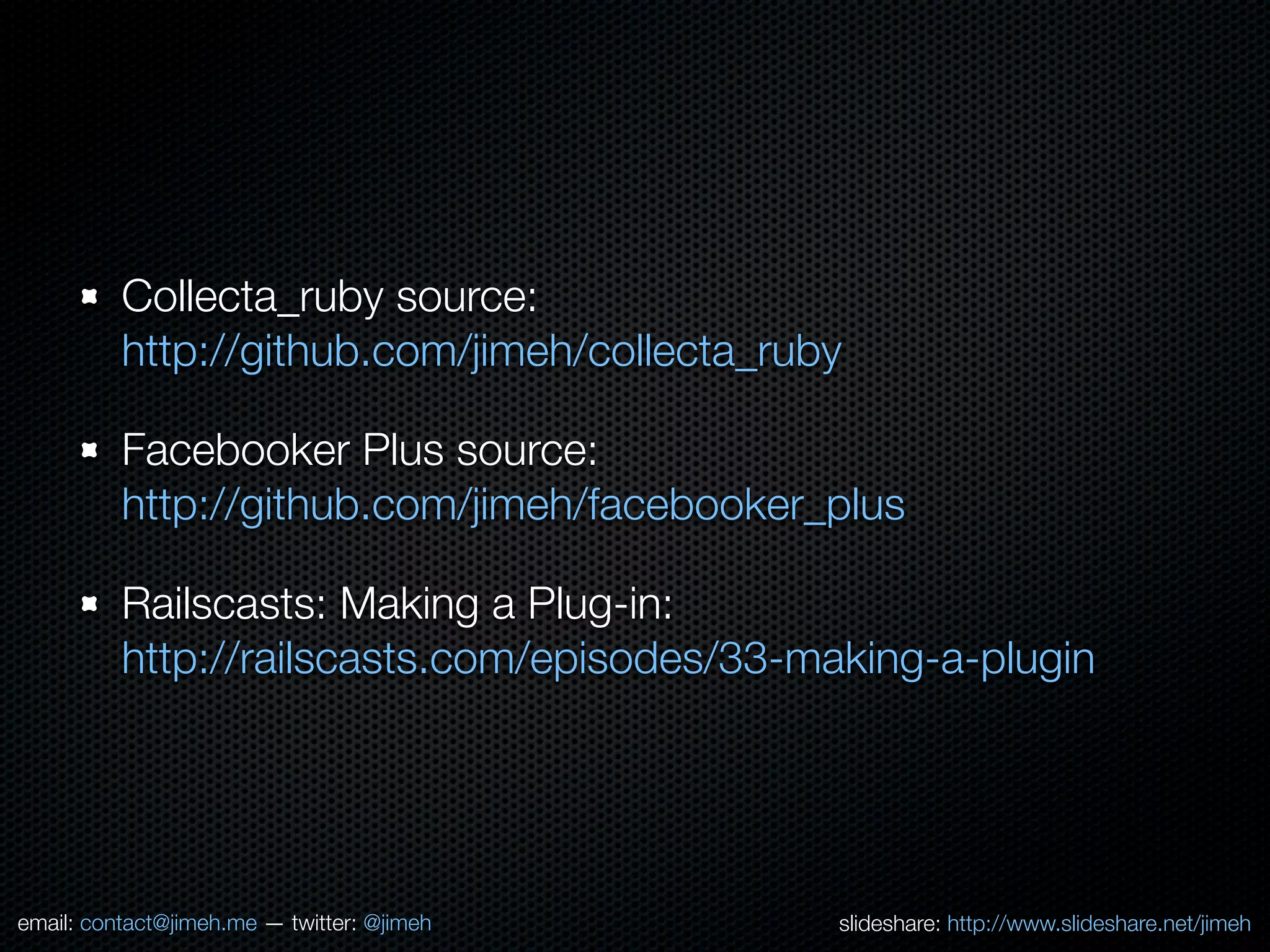

46. Collecta_ruby source:
http://github.com/jimeh/collecta_ruby
Facebooker Plus source:
http://github.com/jimeh/facebooker_plus
Railscasts: Making a Plug-in:
http://railscasts.com/episodes/33-making-a-plugin
email: contact@jimeh.me — twitter: @jimeh slideshare: http://www.slideshare.net/jimeh
