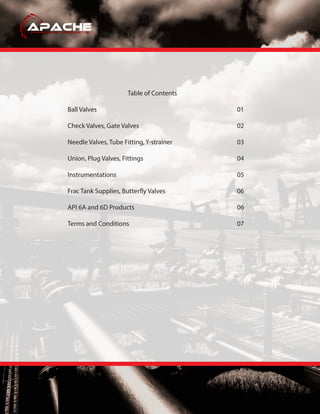

- 2. Table of Contents BallValves 01 Check Valves, Gate Valves 02 Needle Valves, Tube Fitting, Y-strainer 03 Union, Plug Valves, Fittings 04 Instrumentations 05 Frac Tank Supplies, Butterfly Valves 06 API 6A and 6D Products 06 Terms and Conditions 07

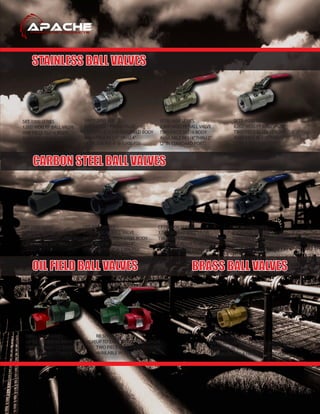

- 3. STAINLESS BALL VALVES CARBONSTEEL BALL VALVES OIL FIELD BALL VALVES BRASS BALL VALVES DIBV / CSBV SERIES UP TO 5,000 WOG RP/FP BALL VALVE TWO PIECE DI / CS BODY AVAILABLE IN 1”THRU 4“ RB SERIES UP TO 5,000 WOG RP BALL VALVE TWO PIECE DI / CS BOLTED BODY AVAILABLE IN 1”THRU 2“ BFT-600 SERIES 600 WOG / 150 SWP FP BRASS BALL VALVE AVAILABLE IN 1/4”THRU 4” (2”AVAILABLE IN A HEAVY DUTY STYLE) CRT-2000 SERIES 2,000 WOG RP BALL VALVE ONE PIECE CARBON STEEL BODY AVAILABLE IN 1/4”THRU 2“ CFT-2000 SERIES 2,000 WOG FP BALL VALVE TWO PIECE CARBON STEEL BODY AVAILABLE IN 1/4”THRU 4” (3”@1,500 PSI, 4”@ 1,000 PSI) CFTB-3000 SERIES 3,000 WOG FP BALL VALVE TWO PIECE CARBON STEEL BODY AVAILABLE IN 1/4”THRU 2“ (2”IN STANDARD PORT) CFTB-6000 SERIES 6,000 WOG FP BALL VALVE TWO PIECE CARBON STEEL SEALWELD BODY AVAILABLE IN 1/4”THRU 2“ (2”IN STANDARD PORT) SRT-1000 SERIES 1,000 WOG RP BALL VALVE ONE PIECE SS316 BODY AVAILABLE IN 1/4”THRU 2“ SWFT-2000 SERIES 2,000 WOG FP BALL VALVE TWO PIECE SS316 SEALWELD BODY AVAILABLE IN 1/4”THRU 4” (3”@1,500 PSI, 4”@ 1,000 PSI) SFTB-3600 SERIES 3,600 WOG FP BALL VALVE TWO PIECE SS316 BODY AVAILABLE IN 1/4”THRU 2” (2”IN STANDARD PORT) SFTB-6000 SERIES 6,000 WOG FP BALL VALVE TWO PIECE SS316 SEALWELD BODY AVAILABLE IN 1/4”THRU 2” (2”IN STANDARD PORT)

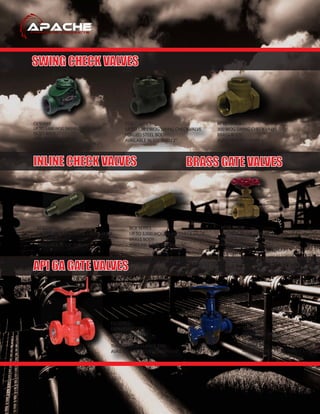

- 4. SWING CHECK VALVES API6A GATE VALVES INLINE CHECK VALVES BRASS GATE VALVES CV SERIES UP TO 5,000 WOG SWING CHECK VALVE DI / CS BODY AVAILABLE IN 1”THRU 4” (LONG BODY PATTERN AVAILABLE IN 2”) FSSCT SERIES UP TO 1,975 WOG SWING CHECK VALVE FORGED STEEL BODY AVAILABLE IN 1/2”THRU 2” SCV SERIES UP TO 6,000 WOG INLINE CHECK VALVE SS316 BODY AVAILABLE IN 1/8”THRU 1/2” BCV SERIES UP TO 3,000 WOG INLINE CHECK VALVE BRASS BODY AVAILABLE IN 1/8”THRU 1/4” BFTC SERIES 300 WOG SWING CHECK VALVE BRASS BODY AVAILABLE IN 1”THRU 4” BFTG SERIES 200 WOG FP GATE VALVE BRASS BODY AVAILABLE IN 1”THRU 4” EG SERIES EXPANDING TYPE API 6A GATE VALVE DD TRIM THREADED OR FLANGE END AVAILABLE IN 2-1/16”THRU 7 1/16” SG SERIES SLAB TYPE API 6A GATE VALVE EE TRIM FLANGE END AVAILABLE IN 1-13/16”THRU 7 1/16”

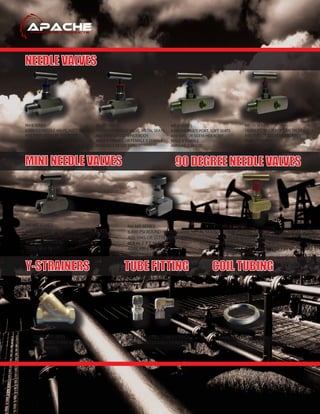

- 5. NEEDLE VALVES MINI NEEDLEVALVES 90 DEGREE NEEDLE VALVES NV-6 SERIES 6,000 PSI NEEDLE VALVE, SOFT SEATS AISI 1045 OR SS316 HEX BODY MALE X FEMALE OR FEMALE X FEMALE AVAILABLE IN 1/4”THRU 1“ NV-10 SERIES 10,000 PSI NEEDLE VALVE, METAL SEATS AISI 1045 OR SS316 HEX BODY MALE X FEMALE OR FEMALE X FEMALE AVAILABLE IN 1/4”THRU 1“ MP-6 SERIES 6,000 PSI MULTI PORT, SOFT SEATS AISI 1045 OR SS316 HEX BODY MALE X FEMALE AVAILABLE IN 1/2“ MP-10 SERIES 10,000 PSI MULTI PORT, METAL SEATS AISI 1045 OR SS316 HEX BODY MALE X FEMALE AVAILABLE IN 1/2“ NV-MT SERIES 6,000 PSI TEE HANDLE MINI, METAL SEATS AISI 1045 OR SS316 HEX BODY M X M, F X F, M X F AVAILABLE IN 1/4” NV-MR SERIES 6,000 PSI ROUND HANDLE MINI, METAL SEATS AISI 1045 OR SS316 HEX BODY M X M, F X F, M X F AVAILABLE IN 1/4” NV-A SERIES 10,000 PSI ANGLE NEEDLE VALVE, METAL SEATS A105 OR SS316 HEX BODY M X F AVAILABLE IN 1/4”THRU 1/2“ SEAMLESS COILED TUBING A 269 TP 316L, 0.375 X 0.035 WALL CLASS 800 WOG THREADED 316SS 60 MESH Y-STRAINERS STAINLESS STEEL TUBE FITTINGS SINGLE AND DOUBLE FERRULE COIL TUBINGY-STRAINERS TUBE FITTING

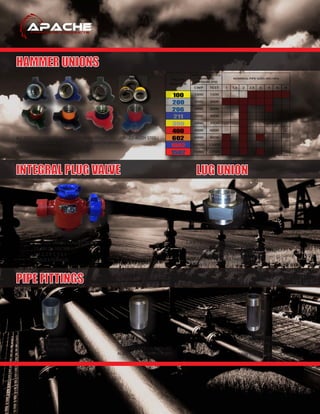

- 6. FIG 1502 UNIONCONNECTIONS 15,000 PSI NSCWP 2 X 2, 2 X 1, 3 X 3 (MALE X FEMALE) HAMMER UNIONS LUG UNION 2,000 PSI COLD WORKING PRESSURE SS316 SUBS, CARBON STEEL HEX NUT FLAT FACE CONNECTION, VITON O’RING AVAILABLE IN 1”, 2”NPT THREADED SEAMLESS NIPPLES 2”LP X 4”, 6”OAL XXH, SEAMLESS A108 STEEL CONSTRUCTION CASING NIPPLES 4.5, 5.5 OR 7”OAL AISI 1020 STEEL XXH, BULL PLUG 2”LP X 4”OAL SEAMLESS, 1018 COLD ROLLED ALSO AVAILABLE WITH 1/2”NPT CWP TEST 1 1.5 2 2.5 3 4 6 8 100 1000 1500 200 2000 3000 206 2000 3000 211 2000 3000 300 2000 3000 400 4000 6000 602 6000 9000 1002 10000 15000 1502 15000 22500 FIGURE NUMBER NON-SHOCK COLD WORKING PRESSURE (PSI) NOMINAL PIPE SIZES (INCHES) ALL STEEL CONSTRUCTION (HIGH PRESSURE UNIONS USES FORGED ALLOY STEEL) FULLY INTERCHAGEABLE WITH MOST OTHER MAJOR BRANDS AVAILABLE IN THREADED AND BUTTWELD INTEGRAL PLUG VALVE PIPE FITTINGS

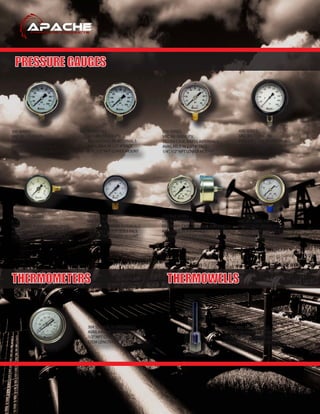

- 7. PRESSURE GAUGES THERMOMETERS THERMOWELLS 300SERIES VAC 30 - 15,000 PSI SS CRIMPT CASE, SS INTERNALS AVAILABLE IN 2.5”, 4”FACE 1/4”, 1/2”NPT LOWER MOUNT 310 SERIES VAC 30 - 15,000 PSI SS DEN CASE, SS INTERNALS AVAILABLE IN 2.5”, 4”FACE 1/4”, 1/2”NPT LOWER MOUNT 210 SERIES VAC 30 - 6,000 PSI SS DEN CASE, BRASS INTERNALS AVAILABLE IN 2.5”, 4”FACE 1/4”, 1/2”NPT LOWER MOUNT 450 SERIES VAC 30 - 15,000 PSI PHEOLIC CASE, SS INTERNALS AVAILABLE IN A 4.5”FACE 1/2”NPT LOWER MOUNT 106D/107D SERIES 0 - 30 PSI STEEL CASE, POLYCARBON LENSE AVAILABLE IN A 1.5”FACE 1/8”NPT 3 OR 9 O’CLOCK MOUNT 202/302 SERIES VAC 30 - 10,000 PSI SS CRIMPT CASE, SS/BRASS INTERNALS AVAILABLE IN A 2.5”FACE 1/4”NPT CENTER BACK MOUNT 101D SERIES VAC 30 - 6,000 PSI STEEL CASE, BRASS INTERNALS AVAILABLE IN 1.5”, 2, 2.5 FACE 1/8”, 1/4”NPT LOWER MOUNT 601LSERIES VAC 30 - 5,000 PSI BRASS CASE, BRASS INTERNALS AVAILABLE IN A 2.5 FACE 1/8”NPT LOWER MOUNT 304 SS CASE, SS INTERNALS AVAILABLE IN 3”FIXED DIAL 1/2”NPT CONNECTIONS STEM LENGTH 2.5”, 4”, 6”, 9”, AND 12” 304 SS CASE, SS INTERNALS STEPPED OR STRAIGHT SHANK 1/2”OR 3/4”NPT CONNECTIONS STEM LENGTH 2.5“, 4”, 6”, AND 9”

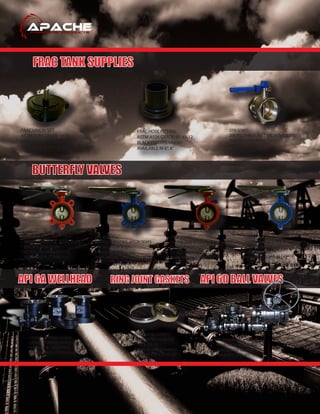

- 8. BUTTERFLY VALVES DLB SERIES 200PSI, LUG STYLE, BUNA SEATS DUCTILE IRON BODY DI, ALB, OR STAINLESS DISC AVAILABLE IN 2”THRU 12“ DLV SERIES 200 PSI, LUG STYLE, VITON SEATS DUCTILE IRON BODY STAINLESS DISC AVAILABLE IN 2”THRU 12“ DWB SERIES 200 PSI, WAFER STYLE, BUNA SEATS DUCTILE IRON BODY DI, ALB, OR STAINLESS DISC AVAILABLE IN 2”THRU 12“ DWV SERIES 200 PSI, WAFER STYLE, VITON SEATS DUCTILE IRON BODY STAINLESS DISC AVAILABLE IN 2”THRU 12“ FRAC UNION SET ASTM A216 GRADE WCB BLACK ENAMEL FINISH AVAILABLE IN 8”SUB, NUT AND BLIND FRAC HOSE FITTING ASTM A536 GRADE 65-45-12 BLACK ENAMEL FINISH AVAILABLE IN 6”, 8” RING JOINT GASKETS CARBON OR STAINLESS TYPE R, RX, BX API 6A MONOGRAMMED AVAILABLE IN 1/2”TO 36” CASING / TUBING HEADS CASING / TUBING SPOOLS FLANGES, B1 ADAPTERS, PE/HPE SEALS, GATE VALVES TRUNNION BALL VALVES FLOATING BALL VALVES CLASSES 150 TO 2500 UNI-BODY, 2PC, 3PC FRAC TANK SUPPLIES API 6A WELLHEAD API 6D BALL VALVESRING JOINT GASKETS DTB SERIES 200 PSI, THREADED TYPE, BUNA SEATS DUCTILE IRON BODY ALB DISC AVAILABLE IN 2”THRU 4“

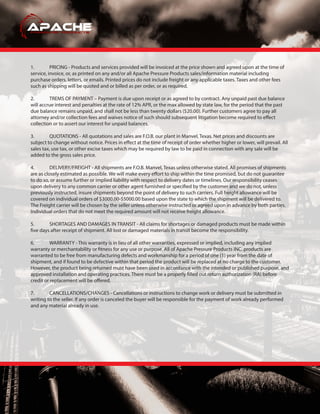

- 9. 1. PRICING -Products and services provided will be invoiced at the price shown and agreed upon at the time of service, invoice, or, as printed on any and/or all Apache Pressure Products sales/information material including purchase orders, letters, or emails. Printed prices do not include freight or any applicable taxes. Taxes and other fees such as shipping will be quoted and or billed as per order, or as required. 2. TREMS OF PAYMENT – Payment is due upon receipt or as agreed to by contract. Any unpaid past due balance will accrue interest and penalties at the rate of 12% APR, or the max allowed by state law, for the period that the past due balance remains unpaid, and shall not be less than twenty dollars ($20.00). Further customers agree to pay all attorney and/or collection fees and waives notice of such should subsequent litigation become required to effect collection or to assert our interest for unpaid balances. 3. QUOTATIONS - All quotations and sales are F.O.B. our plant in Manvel, Texas. Net prices and discounts are subject to change without notice. Prices in effect at the time of receipt of order whether higher or lower, will prevail. All sales tax, use tax, or other excise taxes which may be required by law to be paid in connection with any sale will be added to the gross sales price. 4. DELIVERY/FREIGHT - All shipments are F.O.B. Manvel, Texas unless otherwise stated. All promises of shipments are as closely estimated as possible. We will make every effort to ship within the time promised, but do not guarantee to do so, or assume further or implied liability with respect to delivery dates or timelines. Our responsibility ceases upon delivery to any common carrier or other agent furnished or specified by the customer and we do not, unless previously instructed, insure shipments beyond the point of delivery to such carriers. Full freight allowance will be covered on individual orders of $3000.00-$5000.00 based upon the state to which the shipment will be delivered to. The Freight carrier will be chosen by the seller unless otherwise instructed or agreed upon in advance by both parties. Individual orders that do not meet the required amount will not receive freight allowance. 5. SHORTAGES AND DAMAGES IN TRANSIT - All claims for shortages or damaged products must be made within five days after receipt of shipment. All lost or damaged materials in transit become the responsibility. 6. WARRANTY - This warranty is in lieu of all other warranties, expressed or implied, including any implied warranty or merchantability or fitness for any use or purpose. All of Apache Pressure Products INC. products are warranted to be free from manufacturing defects and workmanship for a period of one (1) year from the date of shipment, and if found to be defective within that period the product will be replaced at no charge to the customer. However, the product being returned must have been used in accordance with the intended or published purpose, and approved installation and operating practices. There must be a properly filled out return authorization (RA) before credit or replacement will be offered. 7. CANCELLATIONS/CHANGES - Cancellations or instructions to change work or delivery must be submitted in writing to the seller. If any order is canceled the buyer will be responsible for the payment of work already performed and any material already in use.
