This document discusses style sheet languages like CSS that are used to control the presentation of XML documents. CSS allows one to specify things like fonts, colors, spacing etc. for different elements in an XML file. A single XML file can then be formatted in multiple ways just by changing the associated CSS stylesheet without modifying the XML content. The document provides examples of using CSS selectors, rules and properties to style elements in an XML file and controlling presentation aspects like layout of elements on a page. It also discusses how to link the CSS stylesheet to an XML file using processing instructions.

1. Publishing XML

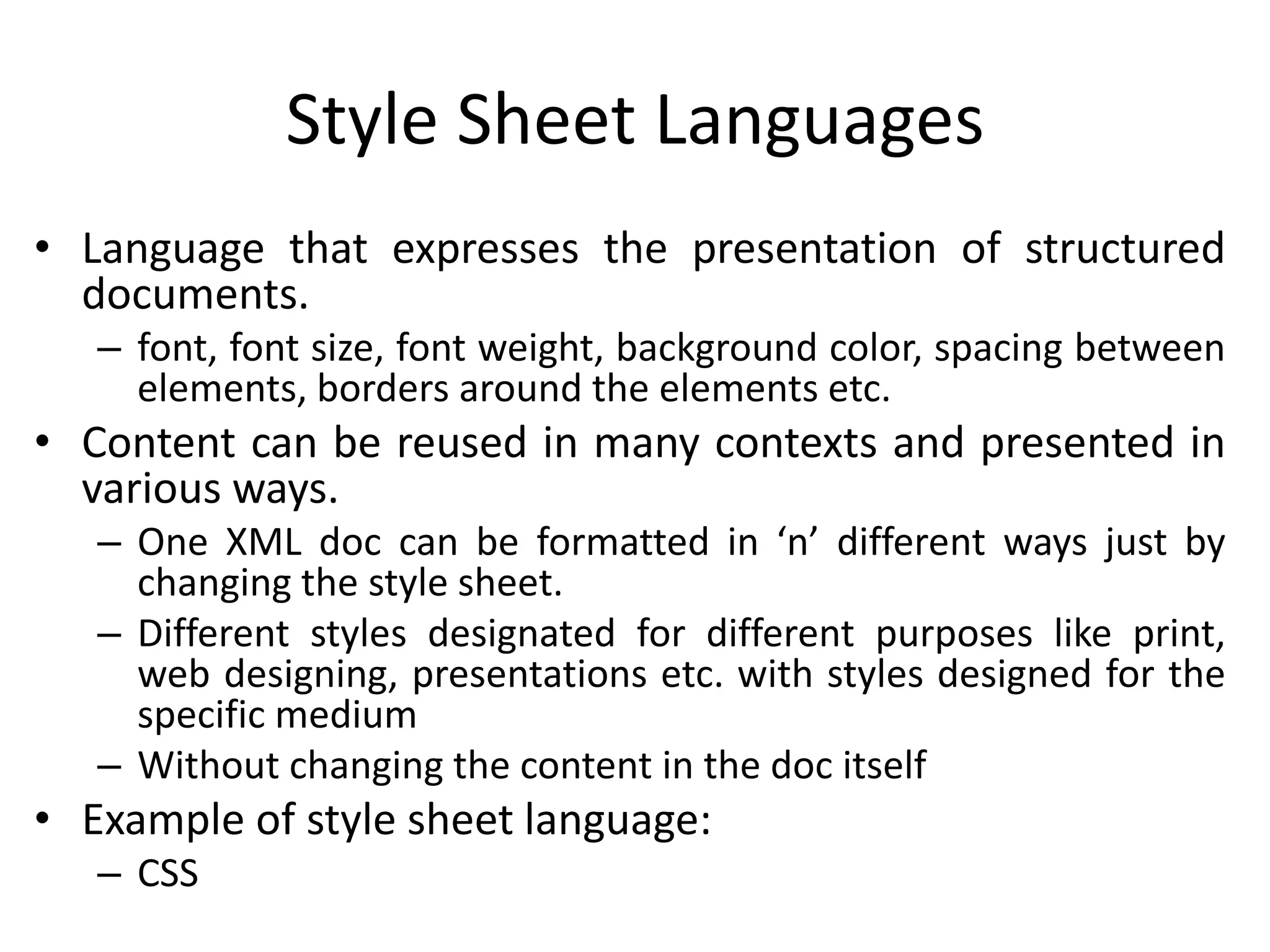

2. Style Sheet Languages
• Language that expresses the presentation of structured
documents.
– font, font size, font weight, background color, spacing between
elements, borders around the elements etc.
• Content can be reused in many contexts and presented in
various ways.
– One XML doc can be formatted in ‘n’ different ways just by
changing the style sheet.
– Different styles designated for different purposes like print,
web designing, presentations etc. with styles designed for the
specific medium
– Without changing the content in the doc itself
• Example of style sheet language:
– CSS

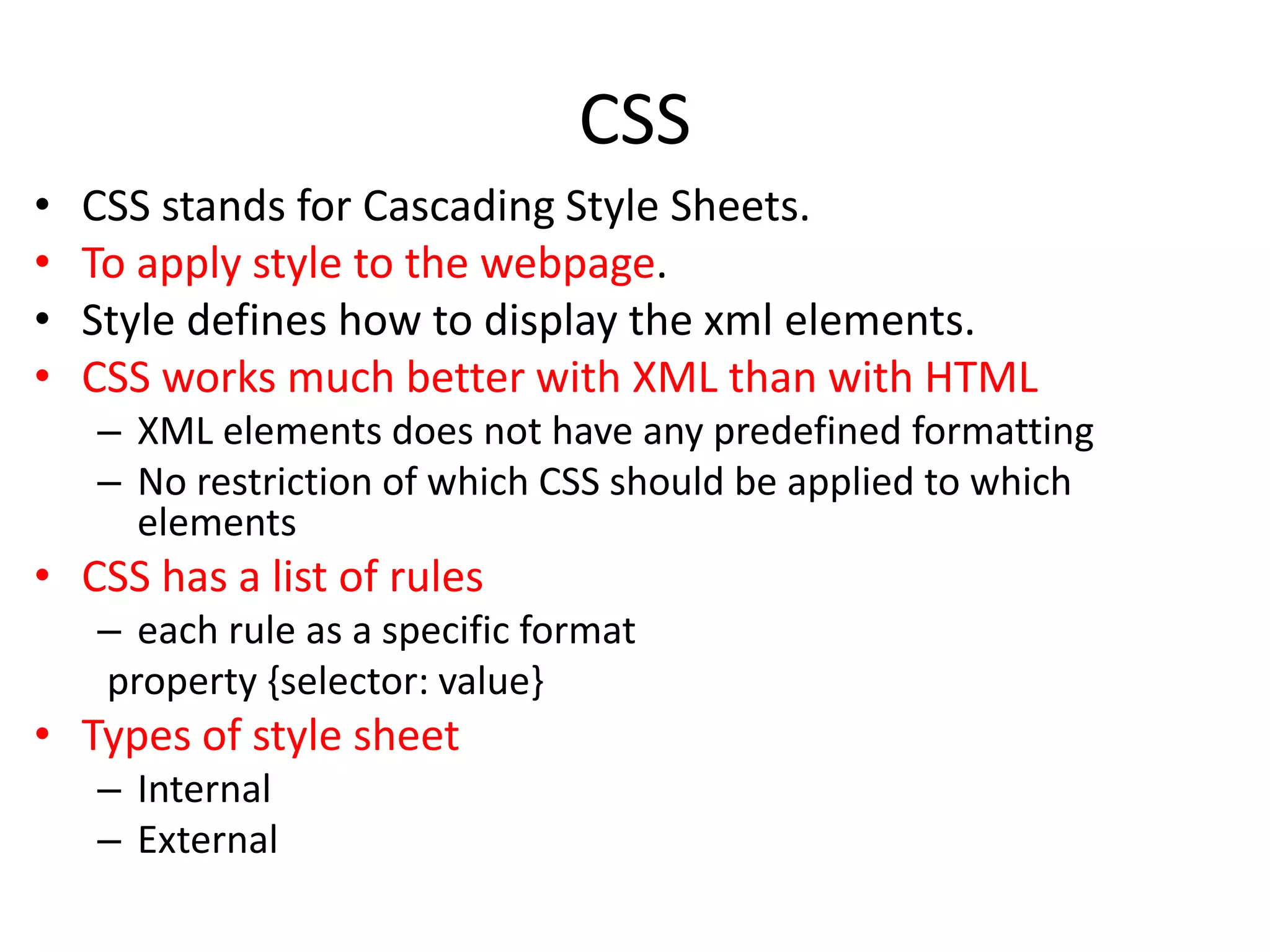

3. CSS
• CSS stands for Cascading Style Sheets.
• To apply style to the webpage.
• Style defines how to display the xml elements.
• CSS works much better with XML than with HTML
– XML elements does not have any predefined formatting
– No restriction of which CSS should be applied to which
elements
• CSS has a list of rules
– each rule as a specific format
property {selector: value}
• Types of style sheet
– Internal
– External

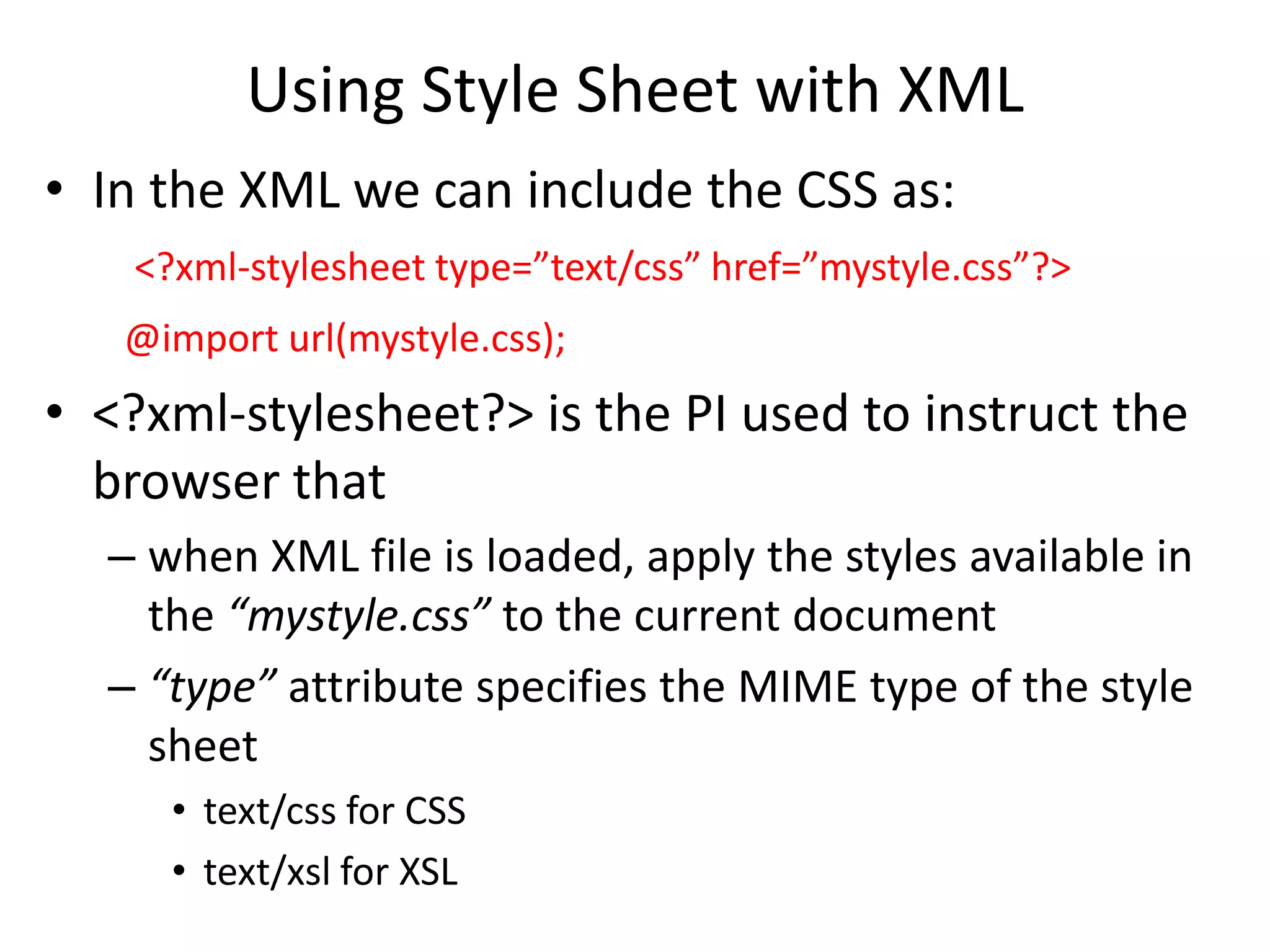

4. Using Style Sheet with XML
• In the XML we can include the CSS as:
<?xml-stylesheet type=”text/css” href=”mystyle.css”?>
@import url(mystyle.css);
• <?xml-stylesheet?> is the PI used to instruct the
browser that
– when XML file is loaded, apply the styles available in
the “mystyle.css” to the current document
– “type” attribute specifies the MIME type of the style
sheet
• text/css for CSS
• text/xsl for XSL

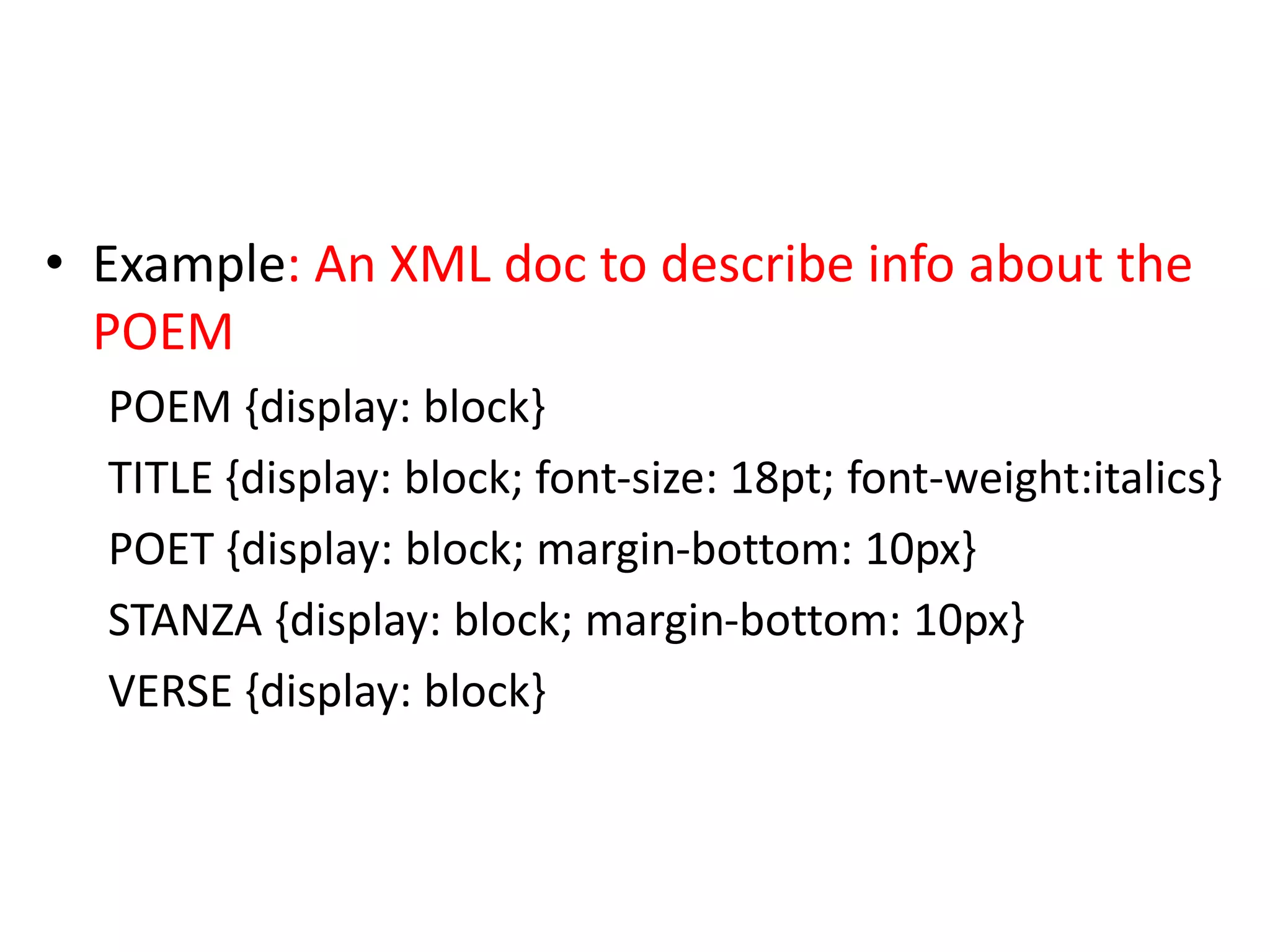

5. • Example: An XML doc to describe info about the
POEM
POEM {display: block}
TITLE {display: block; font-size: 18pt; font-weight:italics}
POET {display: block; margin-bottom: 10px}
STANZA {display: block; margin-bottom: 10px}
VERSE {display: block}

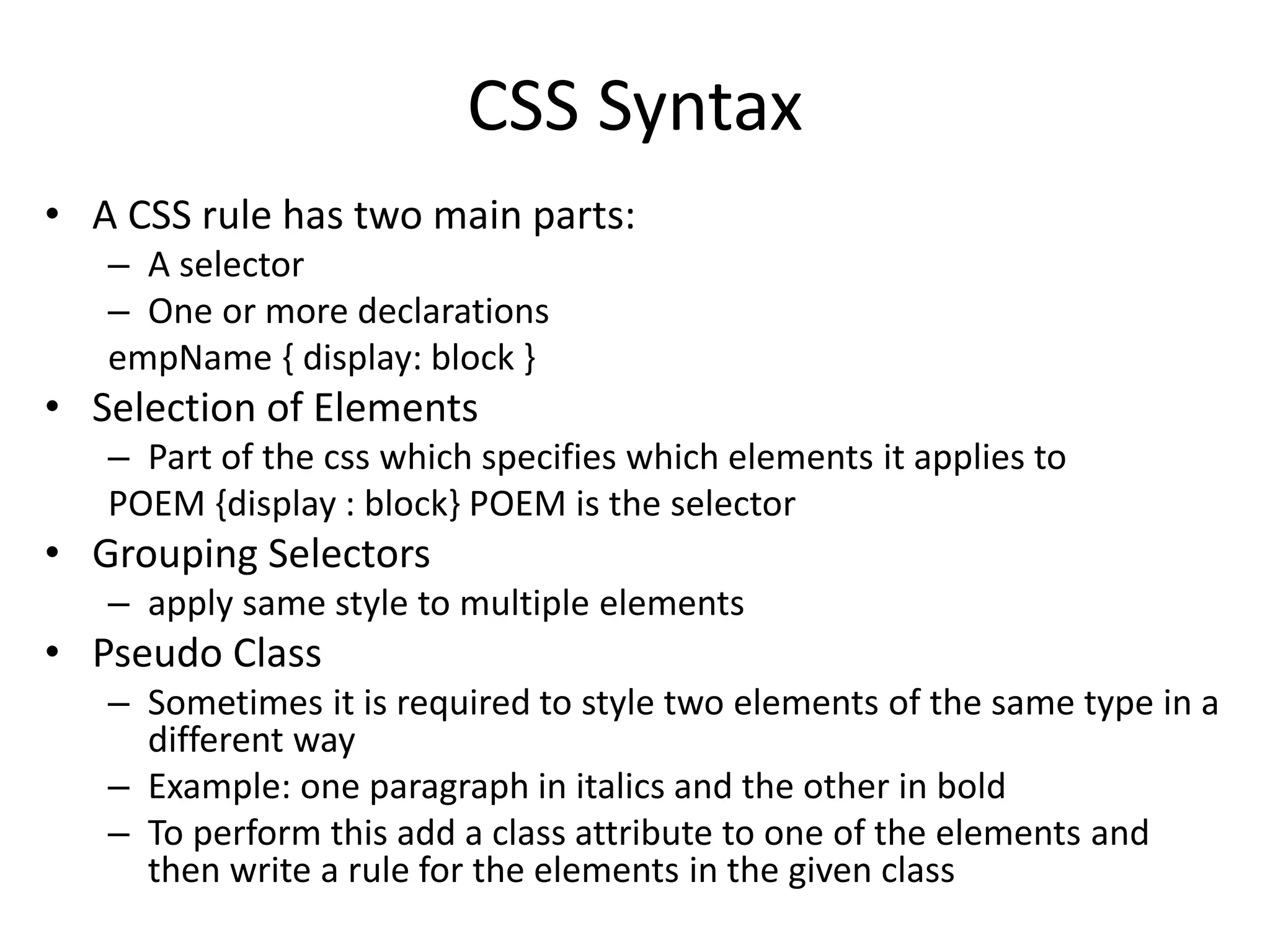

6. CSS Syntax
• A CSS rule has two main parts:
– A selector
– One or more declarations
empName { display: block }
• Selection of Elements
– Part of the css which specifies which elements it applies to
POEM {display : block} POEM is the selector
• Grouping Selectors
– apply same style to multiple elements
• Pseudo Class
– Sometimes it is required to style two elements of the same type in a
different way
– Example: one paragraph in italics and the other in bold
– To perform this add a class attribute to one of the elements and
then write a rule for the elements in the given class

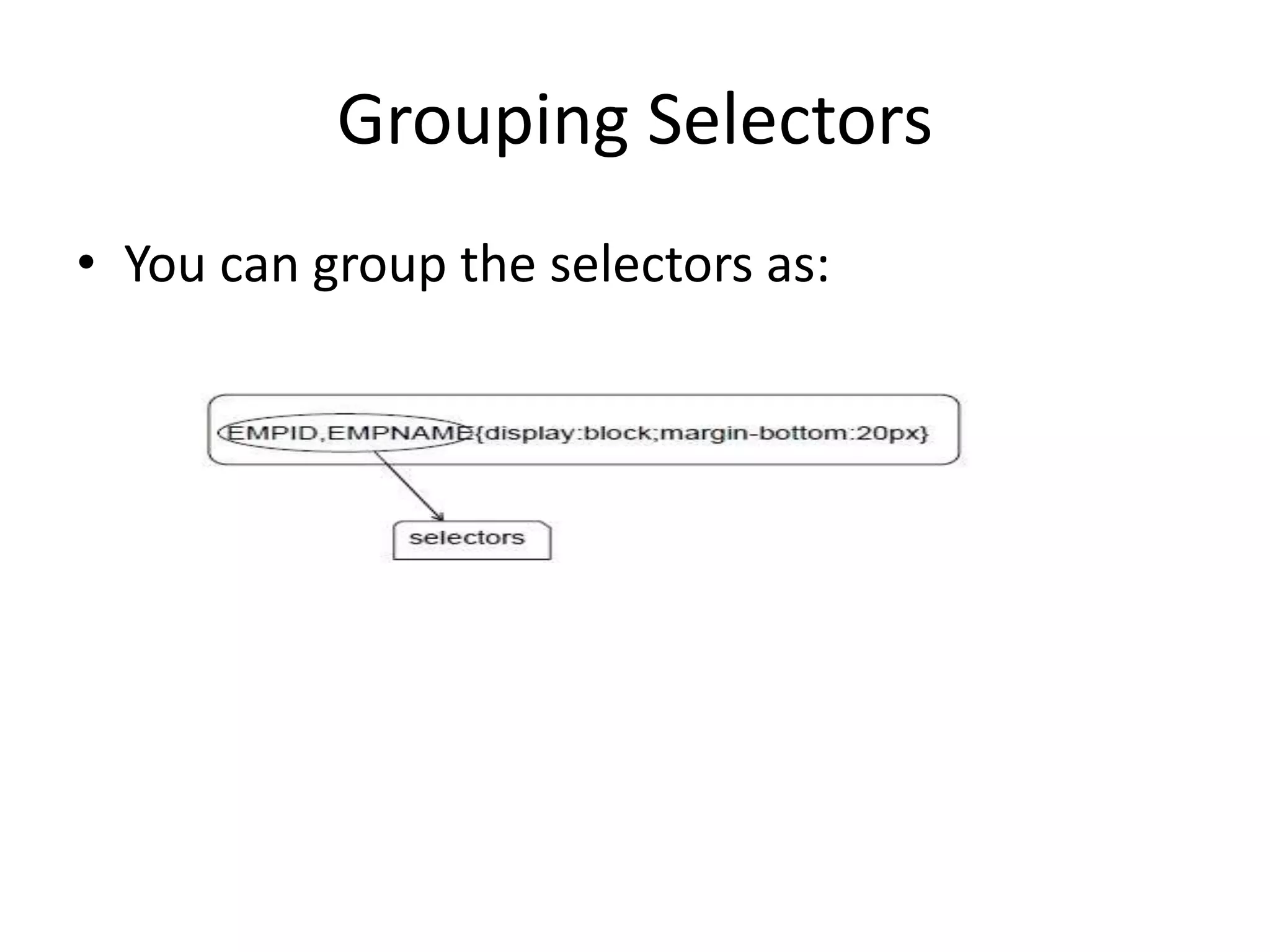

7. Grouping Selectors
• You can group the selectors as:

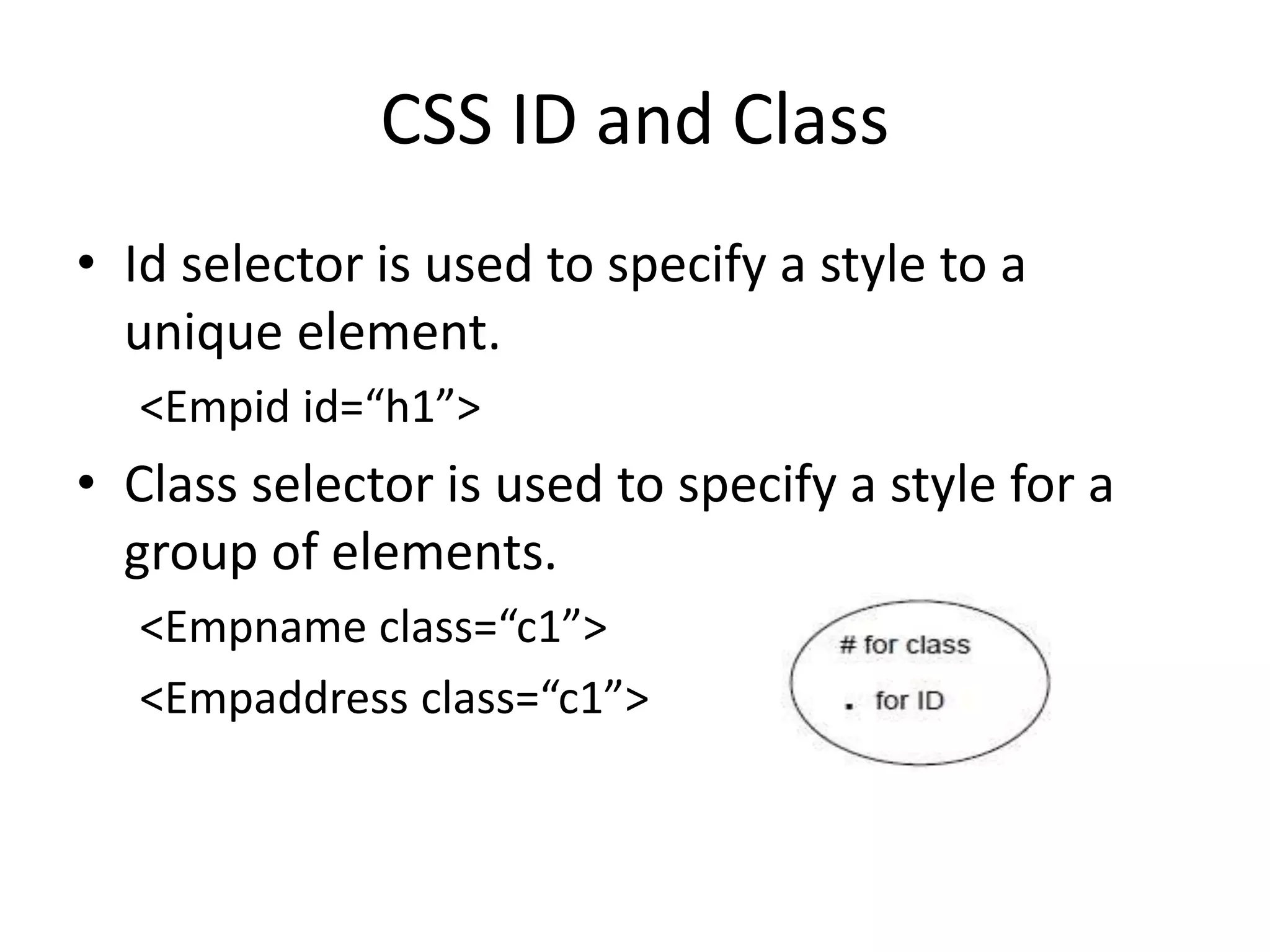

8. CSS ID and Class
• Id selector is used to specify a style to a
unique element.
<Empid id=“h1”>
• Class selector is used to specify a style for a
group of elements.
<Empname class=“c1”>
<Empaddress class=“c1”>

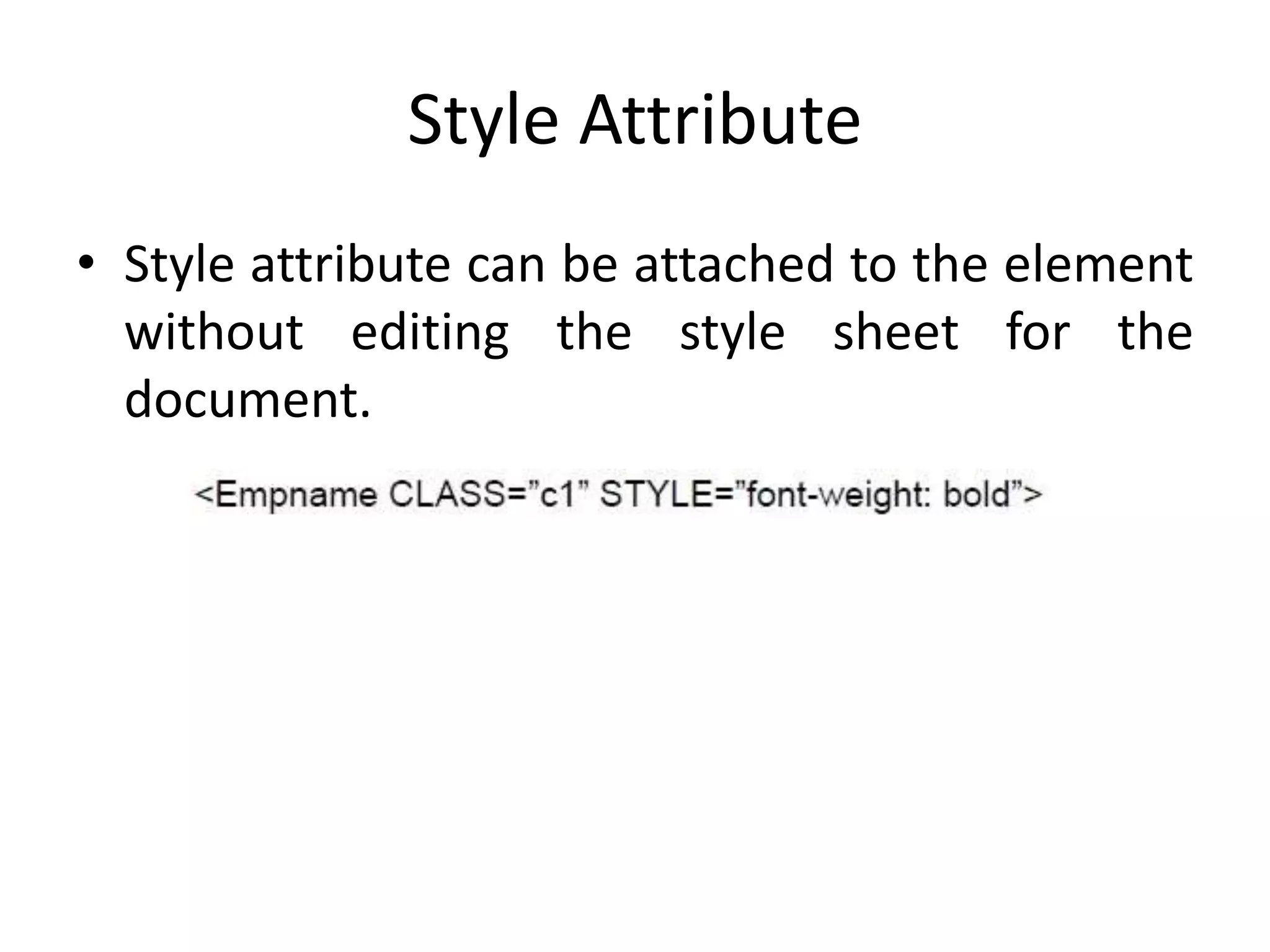

9. Style Attribute
• Style attribute can be attached to the element
without editing the style sheet for the
document.

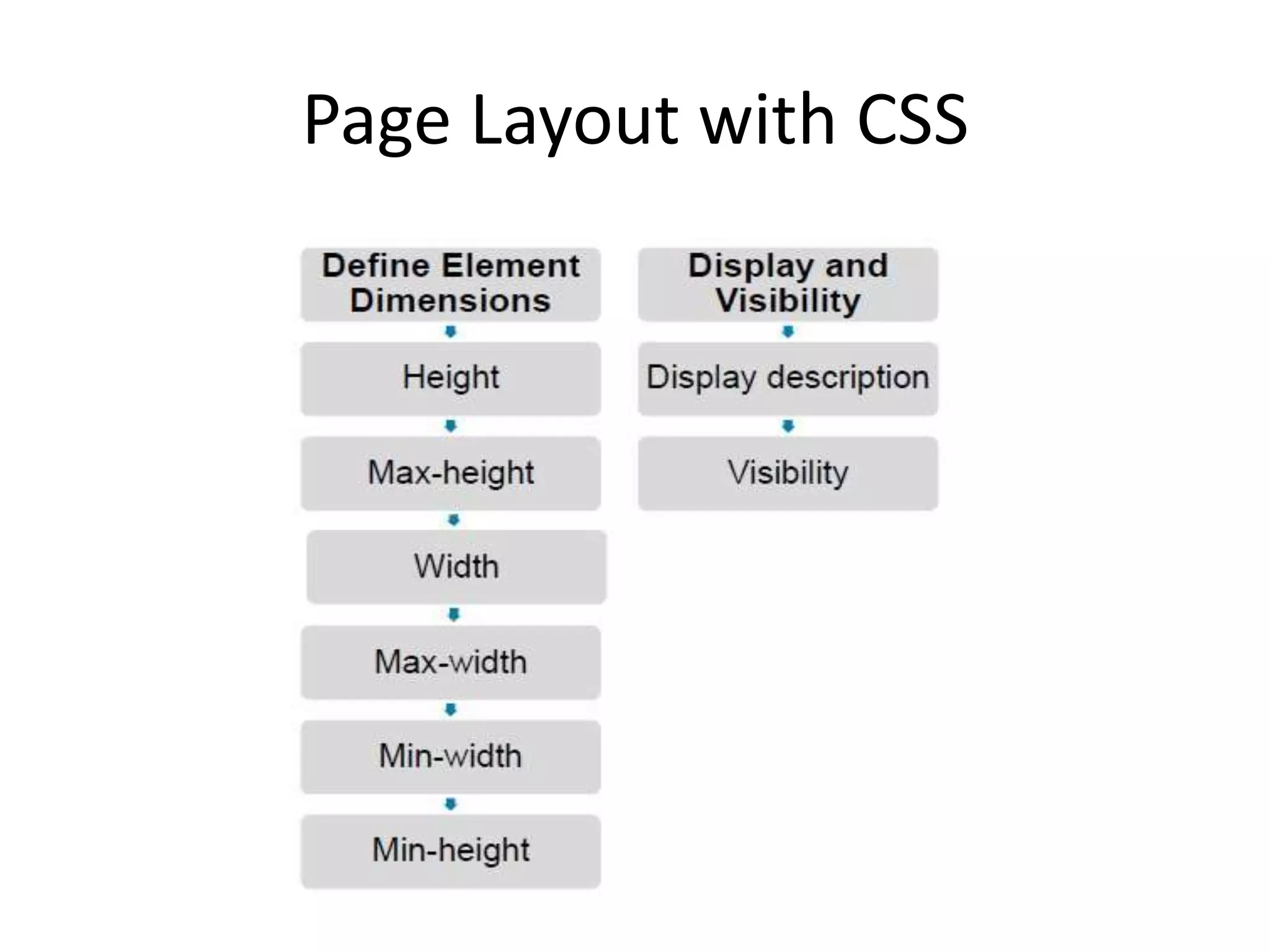

10. Page Layout with CSS
