The document discusses Fujitsu's LIFEBOOK line of notebooks, categorizing them into four groups based on screen size and functionality: Superior, Advanced, All-round, and Standard. It provides details on several models within each group, highlighting their key specs and features. These include screen size, weight, processor options, battery life, security features, and connectivity options like 3G/UMTS and Bluetooth. The matrix and portfolio slides help compare the models and their positioning within Fujitsu's mobile product range.

1. Fujitsu LIFEBOOK SH531
Your compact ultraportable companion
for everyday
0 Copyright 2011 FUJITSU

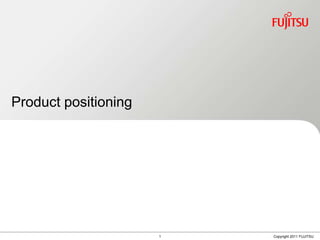

2. Product positioning
1 Copyright 2011 FUJITSU

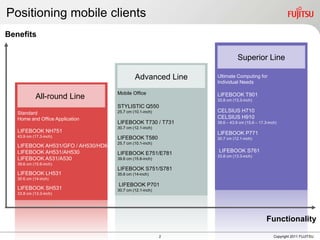

3. Positioning mobile clients
Benefits
Superior Line
Advanced Line Ultimate Computing for
Individual Needs
Mobile Office LIFEBOOK T901
All-round Line 33.8 cm (13.3-inch)
STYLISTIC Q550
Standard 25.7 cm (10.1-inch) CELSIUS H710
Home and Office Application CELSIUS H910
LIFEBOOK T730 / T731 39.6 – 43.9 cm (15.6 – 17.3-inch)
30.7 cm (12.1-inch)
LIFEBOOK NH751 LIFEBOOK P771
43.9 cm (17.3-inch) LIFEBOOK T580 30.7 cm (12.1-inch)
25.7 cm (10.1-inch)
LIFEBOOK AH531/GFO / AH530/HD6
LIFEBOOK AH531/AH530 LIFEBOOK E751/E781 LIFEBOOK S761
33.8 cm (13.3-inch)
LIFEBOOK A531/A530 39.6 cm (15.6-inch)
39.6 cm (15.6-inch)
LIFEBOOK S751/S781
LIFEBOOK LH531 35.6 cm (14-inch)
35 6 cm (14-inch)
LIFEBOOK P701
LIFEBOOK SH531 30.7 cm (12.1-inch)
33.8 cm (13.3-inch)
Functionality
2 Copyright 2011 FUJITSU

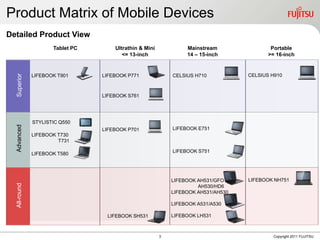

4. Product Matrix of Mobile Devices
Detailed Product View
Tablet PC Ultrathin & Mini Mainstream Portable
<= 13-inch 14 – 15-inch >= 16-inch
CELSIUS H910
Superior
LIFEBOOK T901 LIFEBOOK P771 CELSIUS H710
LIFEBOOK S761
STYLISTIC Q550
Advanced
LIFEBOOK P701 LIFEBOOK E751
LIFEBOOK T730
T731
LIFEBOOK S751
LIFEBOOK T580
LIFEBOOK AH531/GFO LIFEBOOK NH751
All-round
AH530/HD6
LIFEBOOK AH531/AH530
LIFEBOOK A531/A530
LIFEBOOK SH531 LIFEBOOK LH531
3 Copyright 2011 FUJITSU

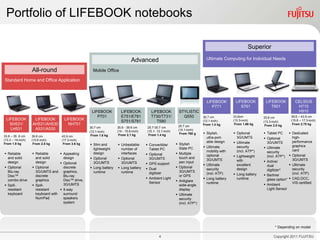

5. Portfolio of LIFEBOOK notebooks
Superior
Advanced Ultimate Computing for Individual Needs
All-round Mobile Office
Standard Home and Office Application
LIFEBOOK LIFEBOOK LIFEBOOK CELSIUS
P771 S761 T901 H710
LIFEBOOK LIFEBOOK LIFEBOOK STYLISTIC H910
P701 E751/E781 T730/T731/ Q550 30.7 cm 33.8cm 33.8 cm 39.6 – 43.9 cm
LIFEBOOK LIFEBOOK LIFEBOOK (13.3-inch) (15.6 – 17.3-inch)
S751/S781 T580 (12.1-inch) (13.3-inch)
SH531/ AH531/AH530 NH751 25.7 cm From 1.4 kg From 1.66 kg From 2.0 kg From 2.75 kg
LH531 A531/A530 30.7 cm 35.6 - 39.6 cm 25.7-30.7 cm
(14 - 15.6-inch) (10.1- 12.1-inch) (10.1-inch)
(12.1-inch)
From 2.1 kg From 1.4 kg From 760 g  Stylish,  Optional  Tablet PC  Dedicated
33.8 – 35 .6 cm 39.6 cm 43.9 cm From 1.6 kg
ultra-port- 3G/UMTS  Optional high-
(13.3 – 14-inch) (15.6-inch) (17.3-inch)
able design  Ultimate 3G/UMTS performance
From 1.9 kg From 2.5 kg From 3.6 kg  Slim and  Unbeatable  Convertible/  Stylish
 Ultimate security  Ultimate graphics
lightweight number of Tablet PC Slate PC
mobility with (incl. ATP*) security card
 Reliable  Reliable  Appealing design interfaces  Optional  Multiple
optional  Lightweight (incl. ATP*)  Optional
and solid and solid design  Optional  Optional 3G/UMTS touch and
3G/UMTS 3G/UMTS
design design pen input with  Active/
 Optional 3G/UMTS 3G/UMTS  GPS support  Ultimate excellent  Ultimate
 Optional  Optional  Optional dual
discrete  Long battery  Long battery  Dual security design security
Blu-ray 3G/UMTS and graphics, 3G/UMTS digitizer*
runtime runtime digitizer (incl. ATP) (incl. ATP)
Disc™ discrete Blu-ray or GPS  Long battery  Berliner
 Ambient Light  Long battery runtime glass option*  CAD,DCC,
combo drive graphics Disc™ drive,  Antiglare
Sensor runtime VIS certified
 Spill-  Spill- 3G/UMTS wide-angle  Ambient
resistant resistant  5-way display Light Sensor
keyboard keyboard with surround  Ultimate
NumPad speakers security
system (incl. ATP*)
* Depending on model
4 Copyright 2011 FUJITSU

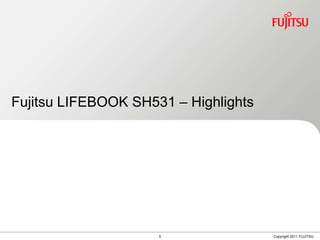

6. Fujitsu LIFEBOOK SH531 – Highlights
5 Copyright 2011 FUJITSU

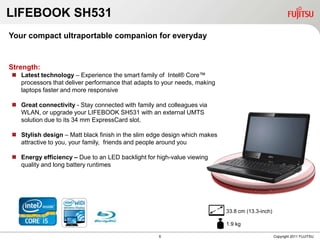

7. LIFEBOOK SH531
Your compact ultraportable companion for everyday
Strength:
 Latest technology – Experience the smart family of Intel® Core™
processors that deliver performance that adapts to your needs, making
laptops faster and more responsive
 Great connectivity - Stay connected with family and colleagues via
WLAN, or upgrade your LIFEBOOK SH531 with an external UMTS
solution due to its 34 mm ExpressCard slot.
 Stylish design – Matt black finish in the slim edge design which makes
attractive to you, your family, friends and people around you
 Energy efficiency – Due to an LED backlight for high-value viewing
quality and long battery runtimes
33.8 cm (13.3-inch)
1.9 kg
6 Copyright 2011 FUJITSU

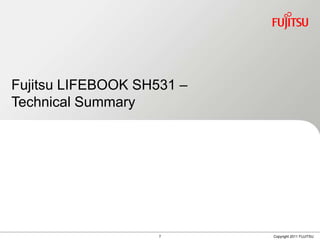

8. Fujitsu LIFEBOOK SH531 –
Technical Summary
7 Copyright 2011 FUJITSU

9. Fujitsu LIFEBOOK SH531
 Product description
 Screen size: 33.8 cm (13.3-inch) HD
 Weight: 1.9 kg
 Battery runtime: Up to 6.5 h (tbc)
 Appealing design – stylish matt black design
Technology
 2nd generation Intel® Core™ i3/i5 processors and Intel® HM65 chipset
 Memory: up to 8 GB RAM (DDR3 – 1333 Mhz)
 Hard disk capacity options: 500 GB or 320 GB
 Intel® HD graphics
 Optional Blu-ray Disc™ drive
 1.3 Mpix webcam and integrated digital microphone
 Connectivity: Gigabit Ethernet LAN, 11n WLAN, Bluetooth
 Interfaces: 1x HDMI, 1x VGA, 2x USB 2.0, 1x eSATA/USB combo,
ExpressCard slot (34 mm)
 High reliability – with Computrace® enabled BISO and
spill-resistance keyboard
8 Copyright 2011 FUJITSU

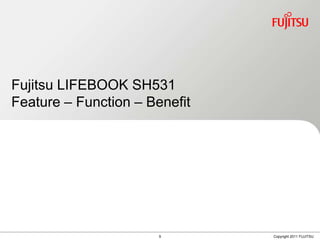

10. Fujitsu LIFEBOOK SH531
Feature – Function – Benefit
9 Copyright 2011 FUJITSU

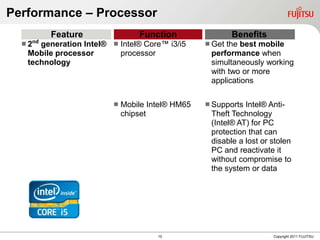

11. Performance – Processor
Feature Function Benefits
2nd
generation Intel®  Intel® Core™ i3/i5  Getthe best mobile
Mobile processor processor performance when
technology simultaneously working
with two or more
applications
 Mobile Intel® HM65  Supports Intel® Anti-
chipset Theft Technology
(Intel® AT) for PC
protection that can
disable a lost or stolen
PC and reactivate it
without compromise to
the system or data
10 Copyright 2011 FUJITSU

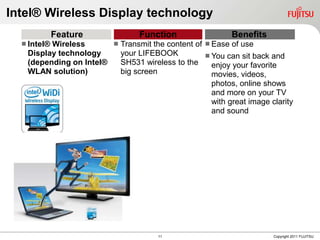

12. Intel® Wireless Display technology
Feature Function Benefits
 Intel®
Wireless  Transmit the content of  Ease of use
Display technology your LIFEBOOK  You can sit back and
(depending on Intel® SH531 wireless to the enjoy your favorite
WLAN solution) big screen movies, videos,
photos, online shows
and more on your TV
with great image clarity
and sound
11 Copyright 2011 FUJITSU

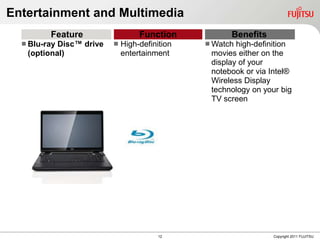

13. Entertainment and Multimedia
Feature Function Benefits
 Blu-rayDisc™ drive  High-definition  Watch high-definition
(optional) entertainment movies either on the
display of your
notebook or via Intel®
Wireless Display
technology on your big
TV screen
12 Copyright 2011 FUJITSU

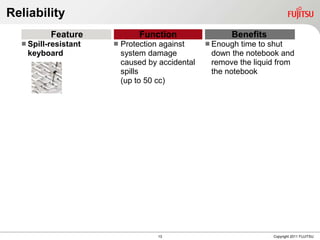

14. Reliability
Feature Function Benefits
 Spill-resistant  Protection against  Enough time to shut
keyboard system damage down the notebook and
caused by accidental remove the liquid from
spills the notebook
(up to 50 cc)
13 Copyright 2011 FUJITSU

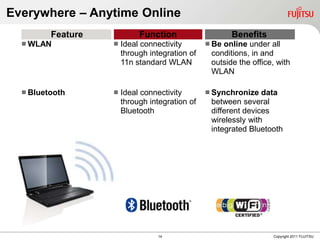

15. Everywhere – Anytime Online
Feature Function Benefits
 WLAN  Ideal connectivity  Beonline under all
through integration of conditions, in and
11n standard WLAN outside the office, with
WLAN
 Bluetooth  Ideal connectivity  Synchronize data
through integration of between several
Bluetooth different devices
wirelessly with
integrated Bluetooth
14 Copyright 2011 FUJITSU

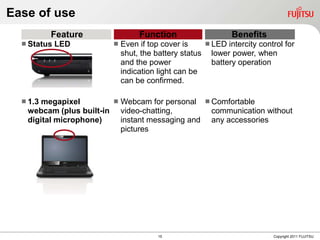

16. Ease of use
Feature Function Benefits
 Status LED  Even if top cover is  LED intercity control for
shut, the battery status lower power, when
and the power battery operation
indication light can be
can be confirmed.
 1.3megapixel  Webcam for personal  Comfortable
webcam (plus built-in video-chatting, communication without
digital microphone) instant messaging and any accessories
pictures
15 Copyright 2011 FUJITSU

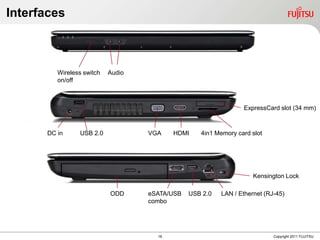

17. Interfaces
Wireless switch Audio
on/off
ExpressCard slot (34 mm)
DC in USB 2.0 VGA HDMI 4in1 Memory card slot
Kensington Lock
ODD eSATA/USB USB 2.0 LAN / Ethernet (RJ-45)
combo
16 Copyright 2011 FUJITSU

18. 17 Copyright 2011 FUJITSU
