1. Protecting National Critical Infrastructure
Case Study: Asiangames 2018
Yusuf Hadiwinata Sutandar
OWASP Jakarta Night Q4 2018

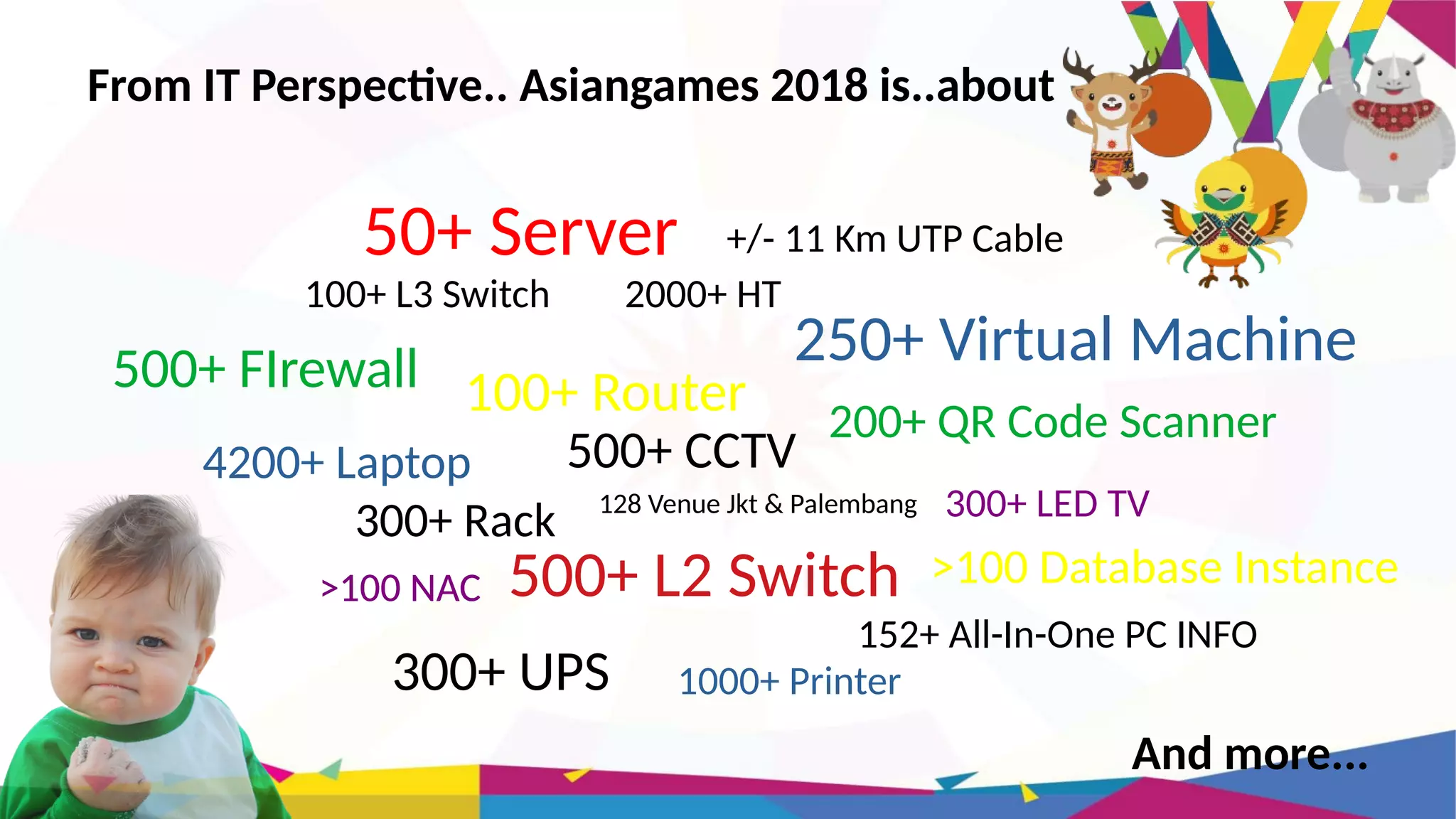

2. From IT Perspective.. Asiangames 2018 is..about
100+ Router
100+ L3 Switch
500+ L2 Switch
300+ UPS
300+ Rack
4200+ Laptop
2000+ HT
250+ Virtual Machine
500+ CCTV
+/- 11 Km UTP Cable
1000+ Printer
200+ QR Code Scanner
300+ LED TV
152+ All-In-One PC INFO
50+ Server
500+ FIrewall
>100 NAC >100 Database Instance
128 Venue Jkt & Palembang
>100 NAC
And more...

3. AsianGames 2018 – IIKN - PPKGBK
ILAB - Integration LAB
- Facilities for Testing, Debugging,
Improving GMS Environment
ITCC = IT Command Center
Infrastruktur Informasi
Kritikal Nasional (IIKN)

4. AsianGames 2018 – IIKN - WSG
COC (Command &
Operation Center)
- Top Level Decision
Making
MOC (Main Operation
Center)
- Monitoring of Activities
Ag2018
Infrastruktur Informasi
Kritikal Nasional (IIKN)

5. AsianGames 2018 – IIKN - INASGOC Office FX
Infrastruktur Informasi
Kritikal Nasional (IIKN)

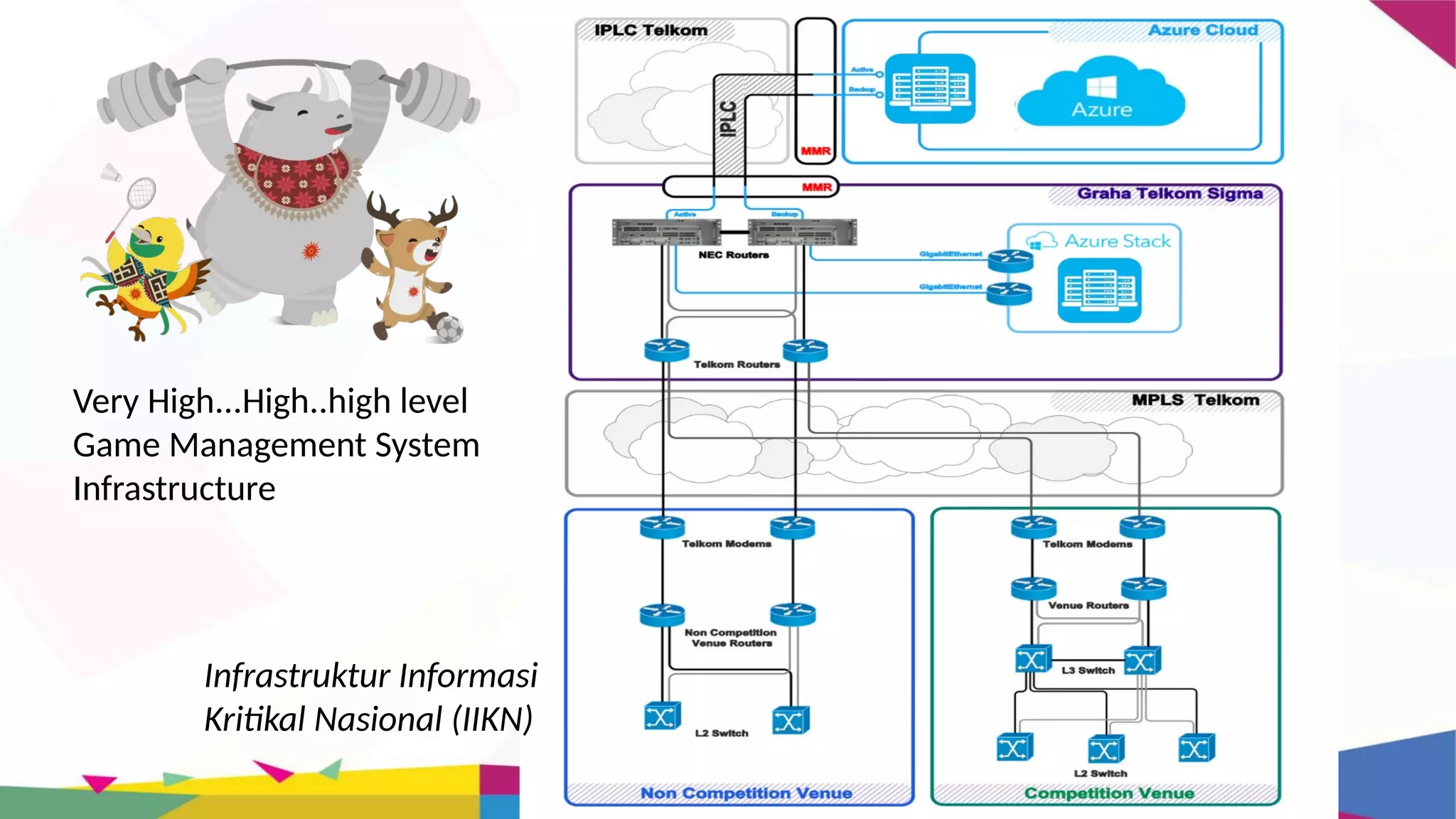

6. Very High...High..high level
Game Management System
Infrastructure
Infrastruktur Informasi
Kritikal Nasional (IIKN)

7. AsianGames 2018 – Website asiangames2018.id
Technology and Data Flow

8. AsianGames 2018 - Game Management System
Cloud Data Center Architecture

9. Games Management System

10. Asiangames 2018 – IT Information Security
3 Layer Foundation Infomation Security:
– Layer 1 : Planning, Development and Operation
– Layer 2 : Risk Management
– Layer 3 : Internal Audit

11. Asiangames 2018 – IT Information Security Implementation
• Thread Modeling – Security as a Quality Attribute
• Project Configuration Review – Security Perspective
• Security Focused Code Review
• Security Testing
– Static Application Security Testing (SAST)
– Dynamic Application Security Testing (DAST)
– More Security Testing – Pentesting, Fuzz Testing
• Security Review Acceptance Test
• Security Perimeter – DDos Protection, WAF, Firewall, ETC
• Security Operation Center
• Cyber Drill / Security Drill

12. Asiangames 2018 – Security
(1) Thread Modeling
(2) Project Configuration Review

13. Row 1 Row 2 Row 3 Row 4
0
2
4
6
8
10
12
Column 1
Column 2
Column 3

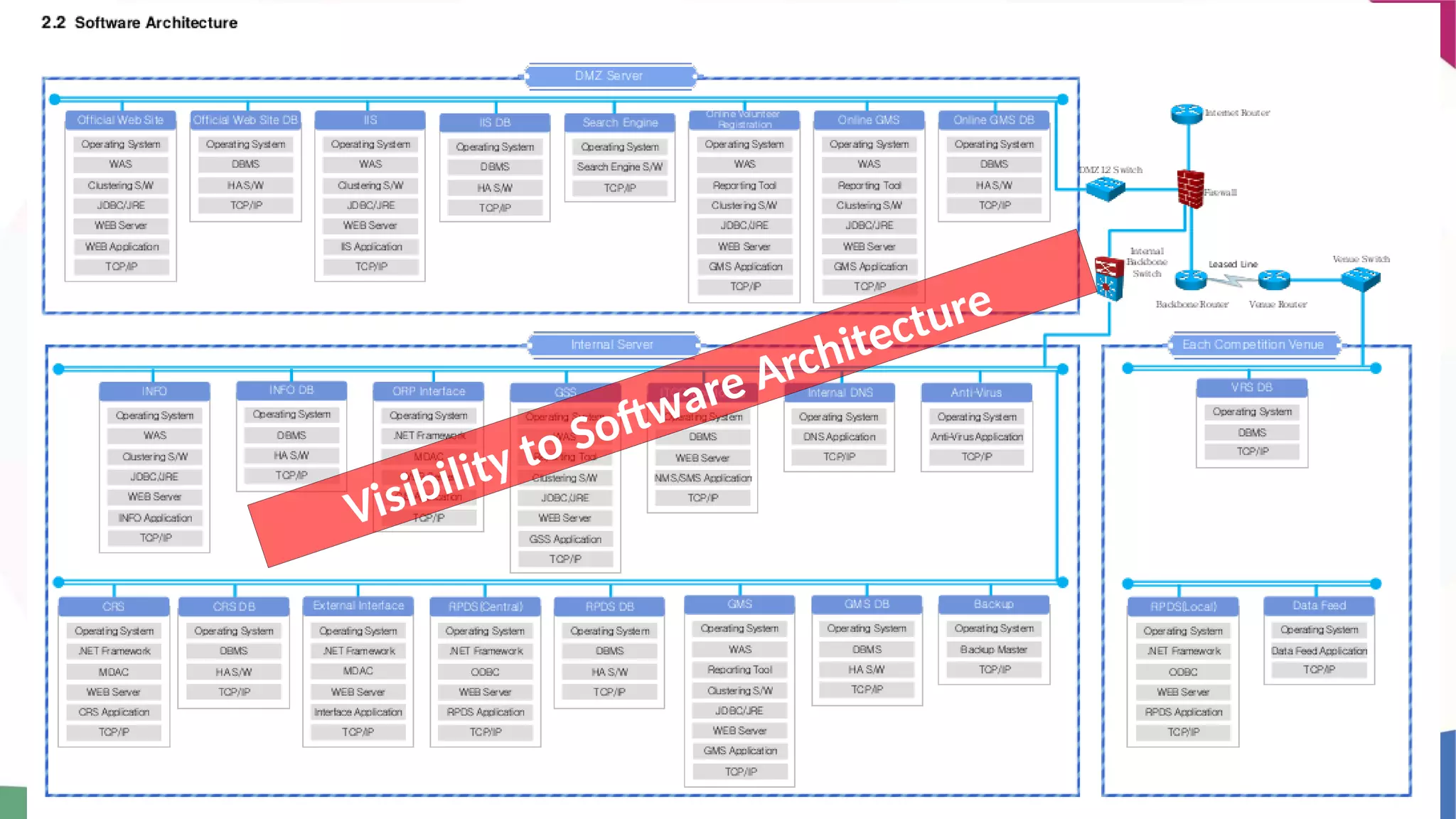

Visibility to Software Architecture

14. Ex: myinfo.asiangames2018.id
Visibility for Data Input Flow

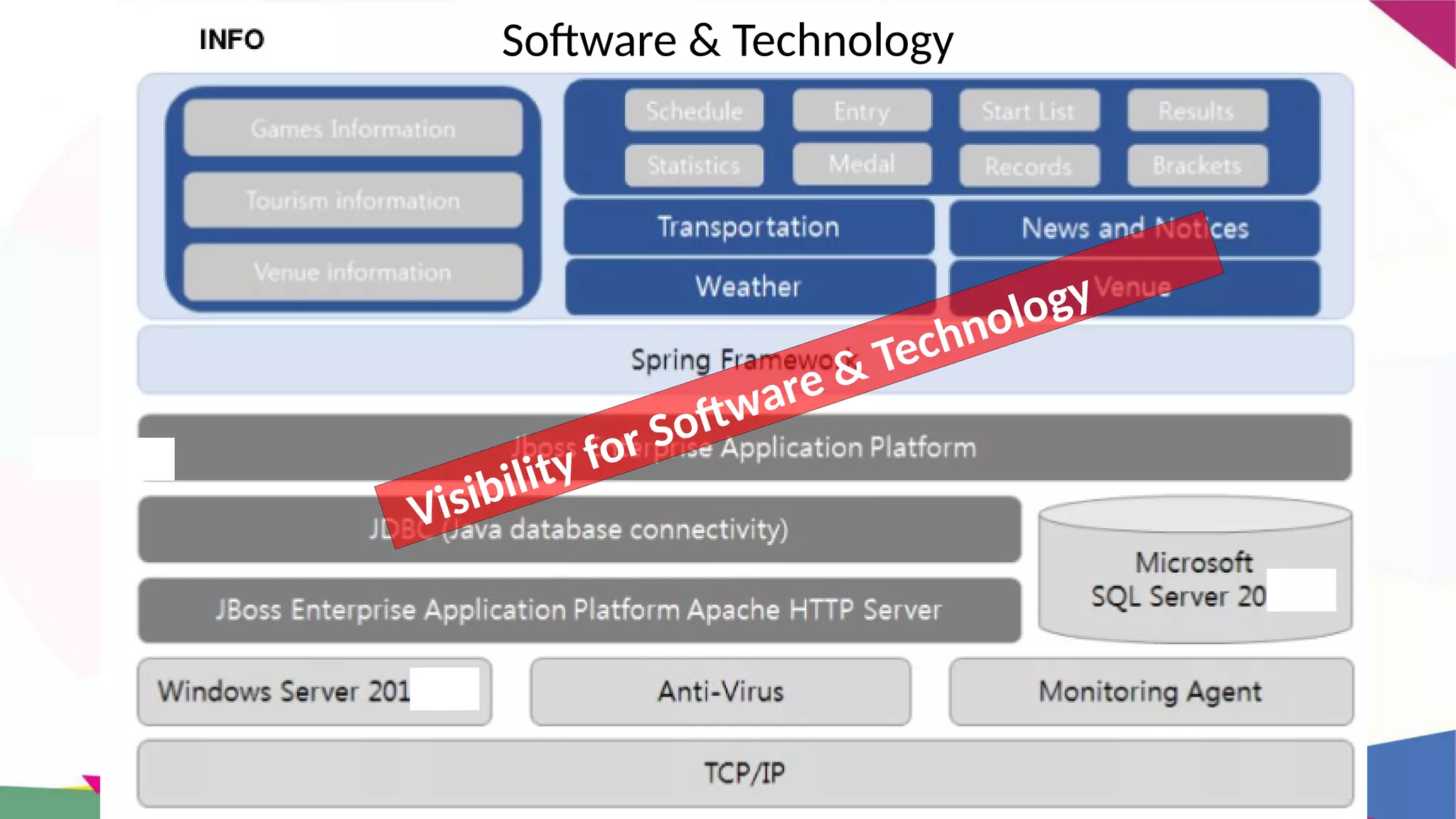

15. Software & Technology
Visibility for Software & Technology

16. Visibility for Application Logic & Business Process

17. Asiangames 2018 – Security
(3) Security Focus Code Review

18. Asiangames 2018 – Security Code Review
- Code Bugs
- Code Smell
- Vulnerability Code
- Code Compliance

19. Asiangames 2018 – Security Code Review & Compliane
• Integration with
developer IDEs
• Integration with
transfer control
system
• Integration with
Build System

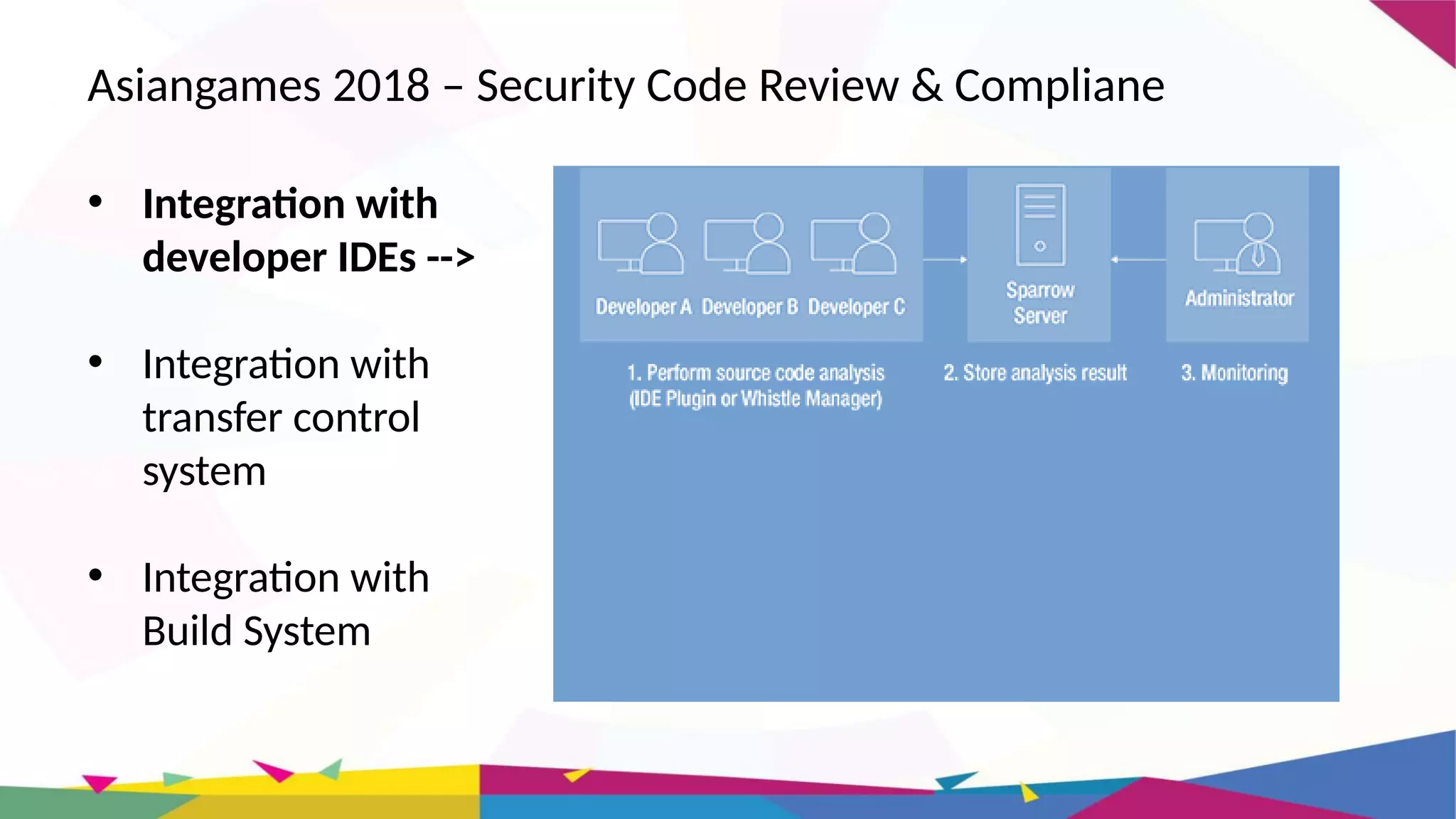

20. Asiangames 2018 – Security Code Review & Compliane
• Integration with
developer IDEs -->
• Integration with
transfer control
system
• Integration with
Build System

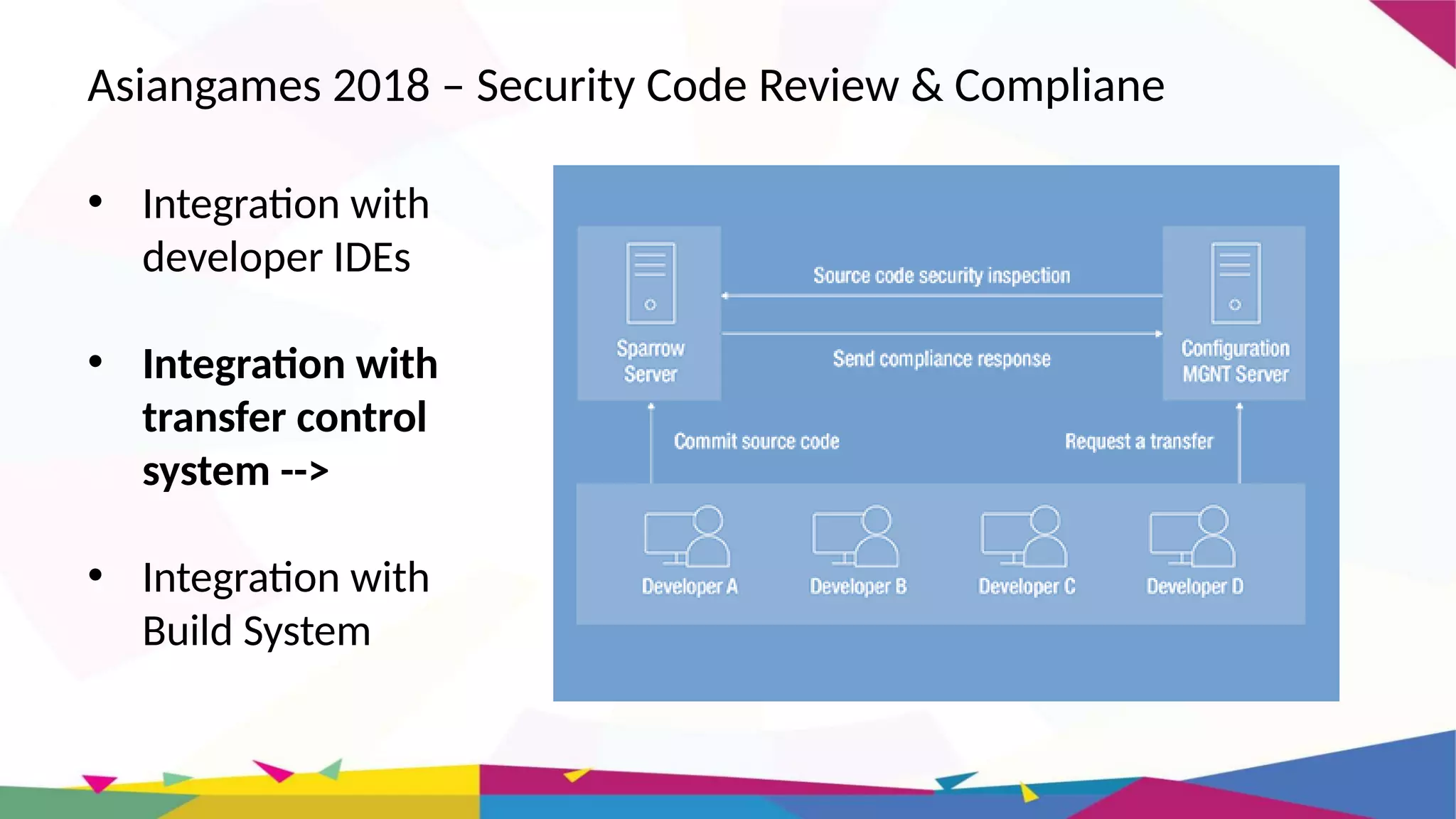

21. Asiangames 2018 – Security Code Review & Compliane
• Integration with
developer IDEs
• Integration with
transfer control
system -->
• Integration with
Build System

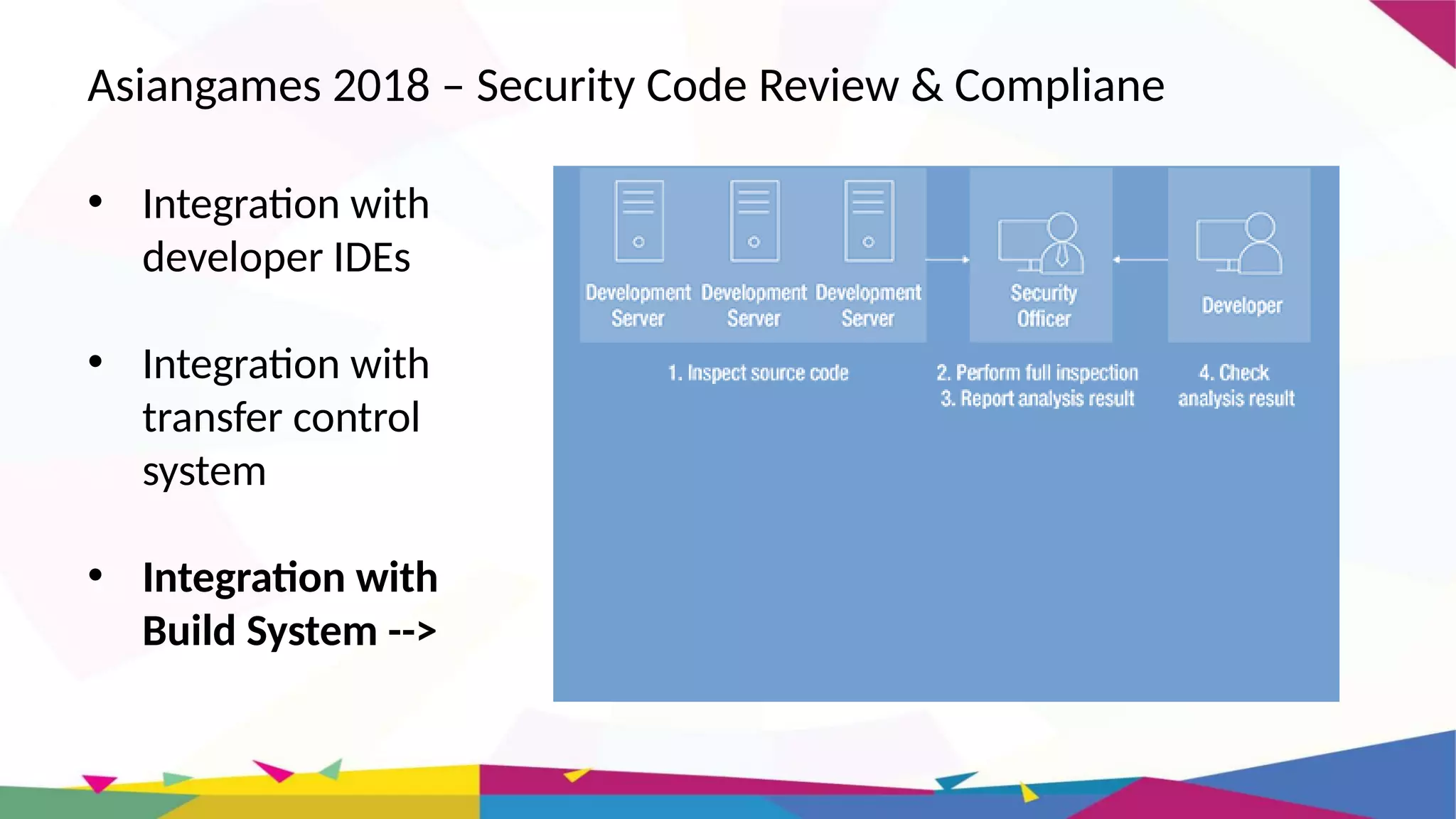

22. Asiangames 2018 – Security Code Review & Compliane
• Integration with
developer IDEs
• Integration with
transfer control
system
• Integration with
Build System -->

23. Asiangames 2018 – Security

24. Asiangames 2018 – Security
(4) Security Testing ,Hardening,
Compliance
(5) Security Review Acceptance Test

25. OS Compliance & Hardening

26. OS Compliance & Hardening

27. Application Security Compliance

28. Stress Testing & Capacity
Planning

29. Manual Penetration Testing

30. Asiangames 2018 – Security
(5) Security Perimeter &
Monitoring

31. AsianGames 2018 – Website asiangames2018.id Perimeter
Ddos + WAF Akamai
- Kona Site Defender
- Web Application Protector
- Bot Manager
- Kona Ddos Protector
- Client Reputation
- Site Shield
Azure Application Gateway
- OWASP ModSecurity Core Rule
Azure Security
Center

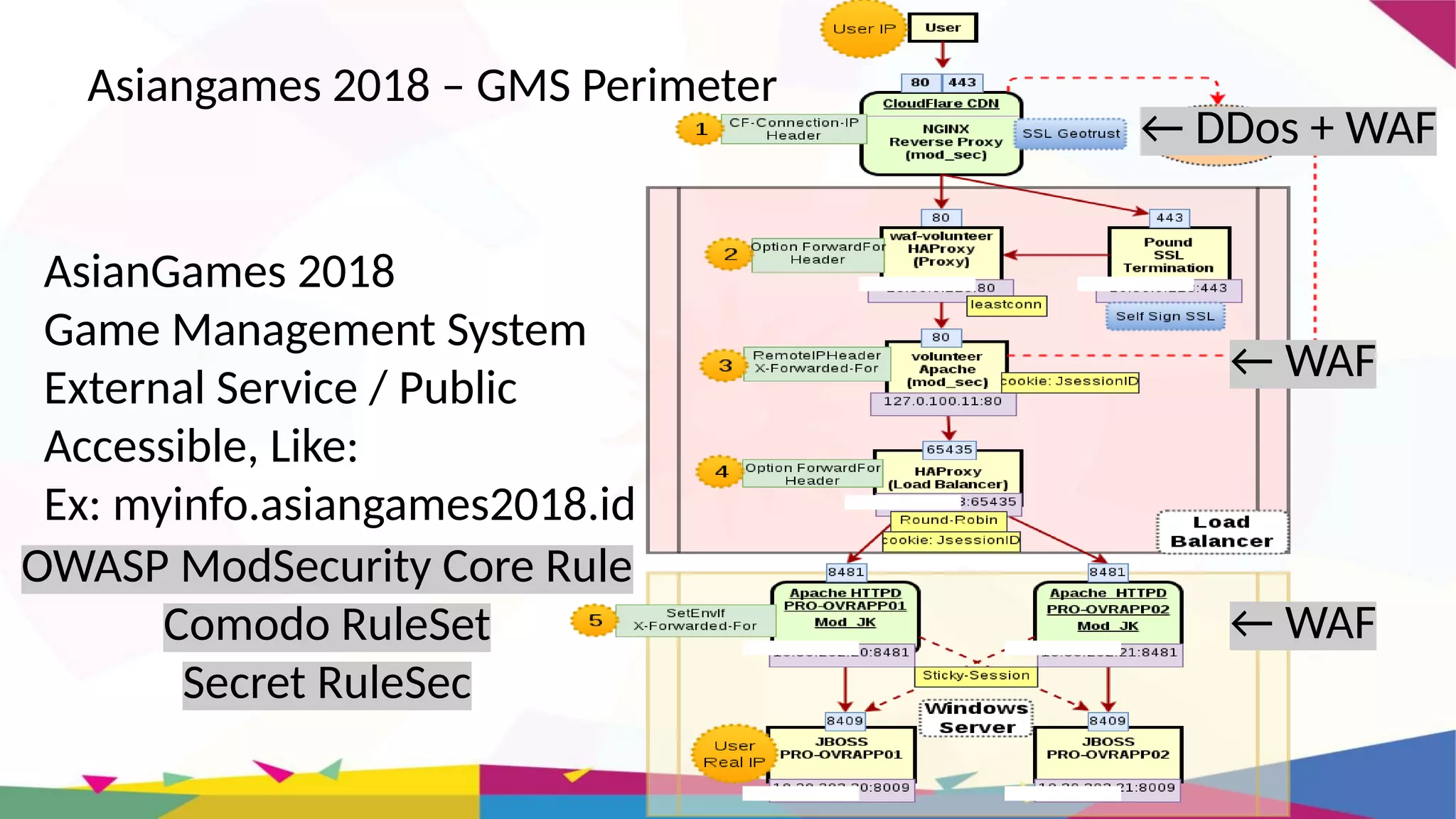

32. AsianGames 2018
Game Management System
External Service / Public
Accessible, Like:
Ex: myinfo.asiangames2018.id
← DDos + WAF
← WAF
← WAF
Asiangames 2018 – GMS Perimeter
OWASP ModSecurity Core Rule
Comodo RuleSet
Secret RuleSec

33. DDos Protection by CloudFlare

34. Web Application Firewall
w/ OWASP Top 10 RuleSet

35. Service Avability Monitoring

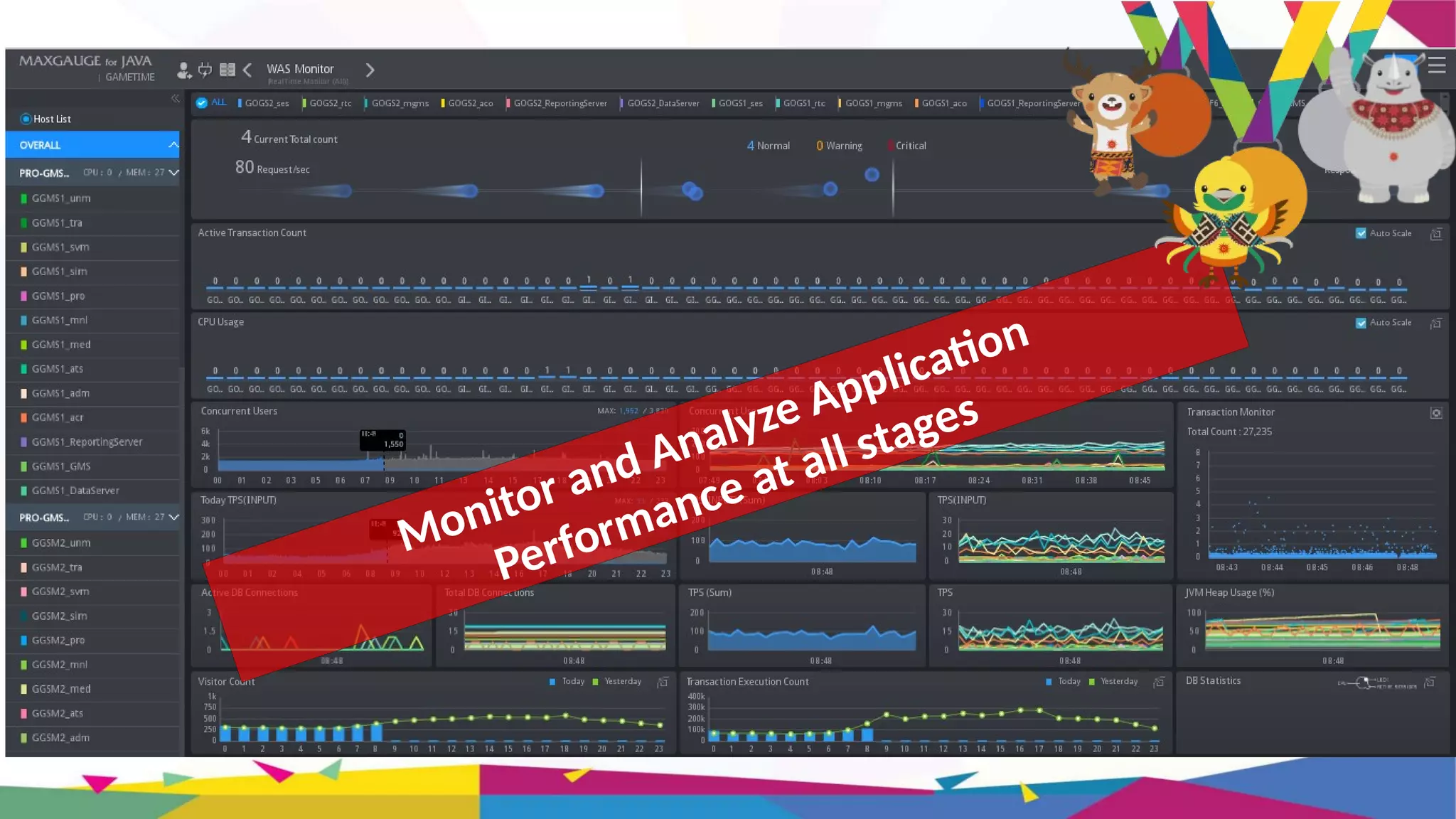

36. Monitor and Analyze Application
Performance at all stages

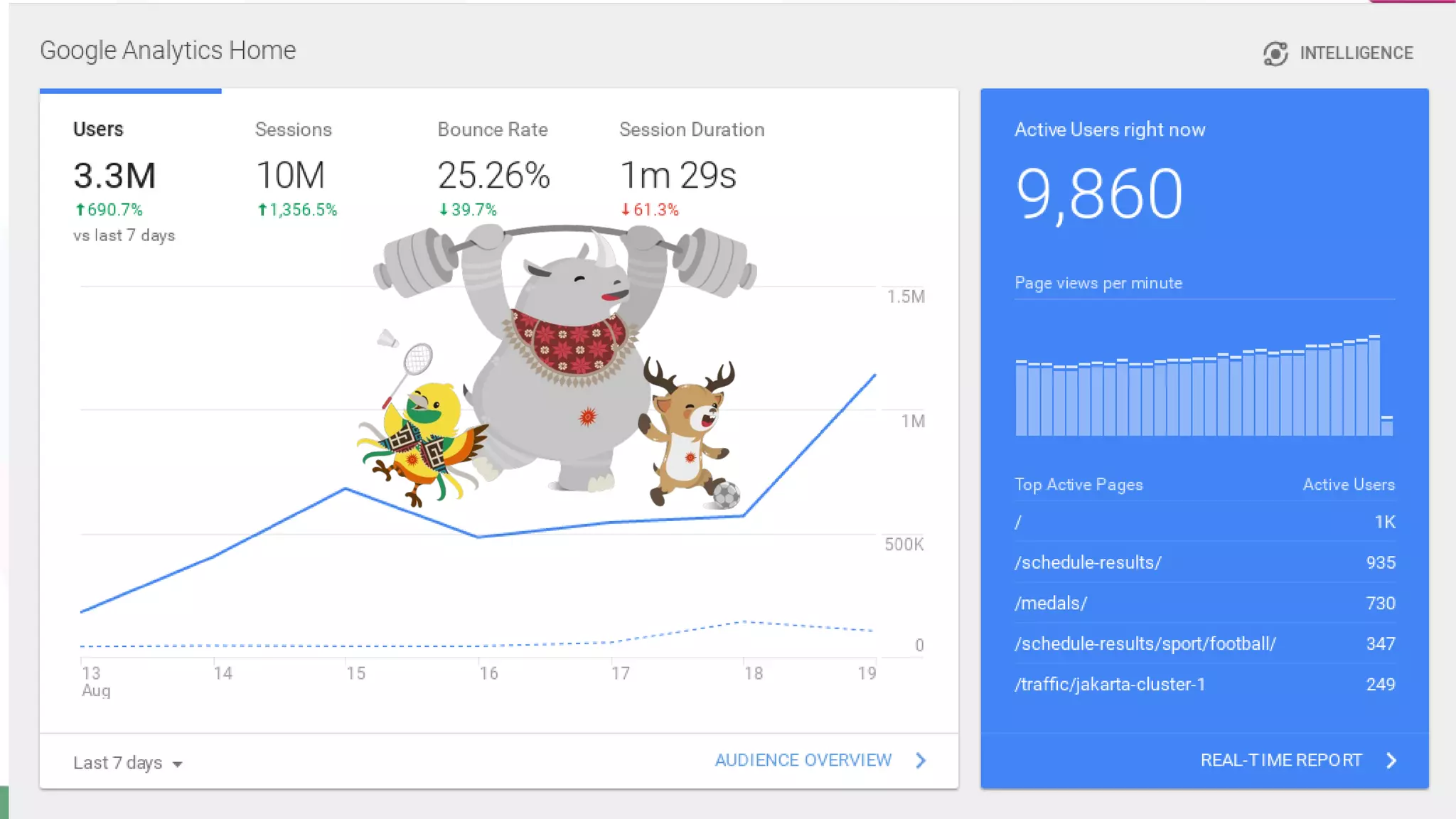

38. Asiangames 2018 – Security
(6) Security Operation Center

39. Asiangames 2018 – SOC
• Collecting Log and Information
• Parsing & Normalize
• Alerting & Notification
• Monitor
• Incident Detection

41. Asiangames 2018 – Security
(6) Cyber Drill

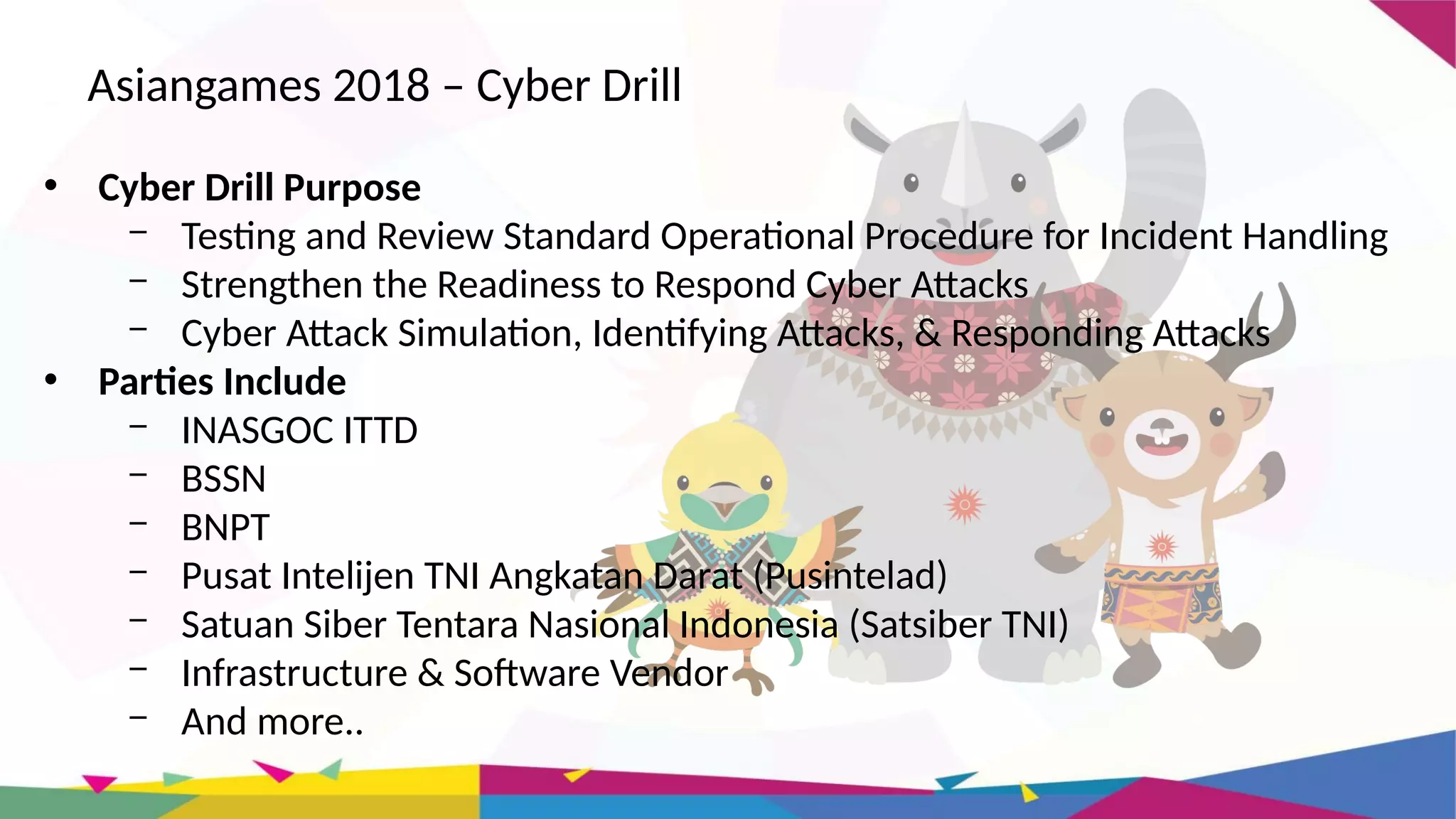

42. Asiangames 2018 – Cyber Drill
• Cyber Drill Purpose
– Testing and Review Standard Operational Procedure for Incident Handling
– Strengthen the Readiness to Respond Cyber Attacks
– Cyber Attack Simulation, Identifying Attacks, & Responding Attacks
• Parties Include
– INASGOC ITTD
– BSSN
– BNPT
– Pusat Intelijen TNI Angkatan Darat (Pusintelad)
– Satuan Siber Tentara Nasional Indonesia (Satsiber TNI)
– Infrastructure & Software Vendor
– And more..

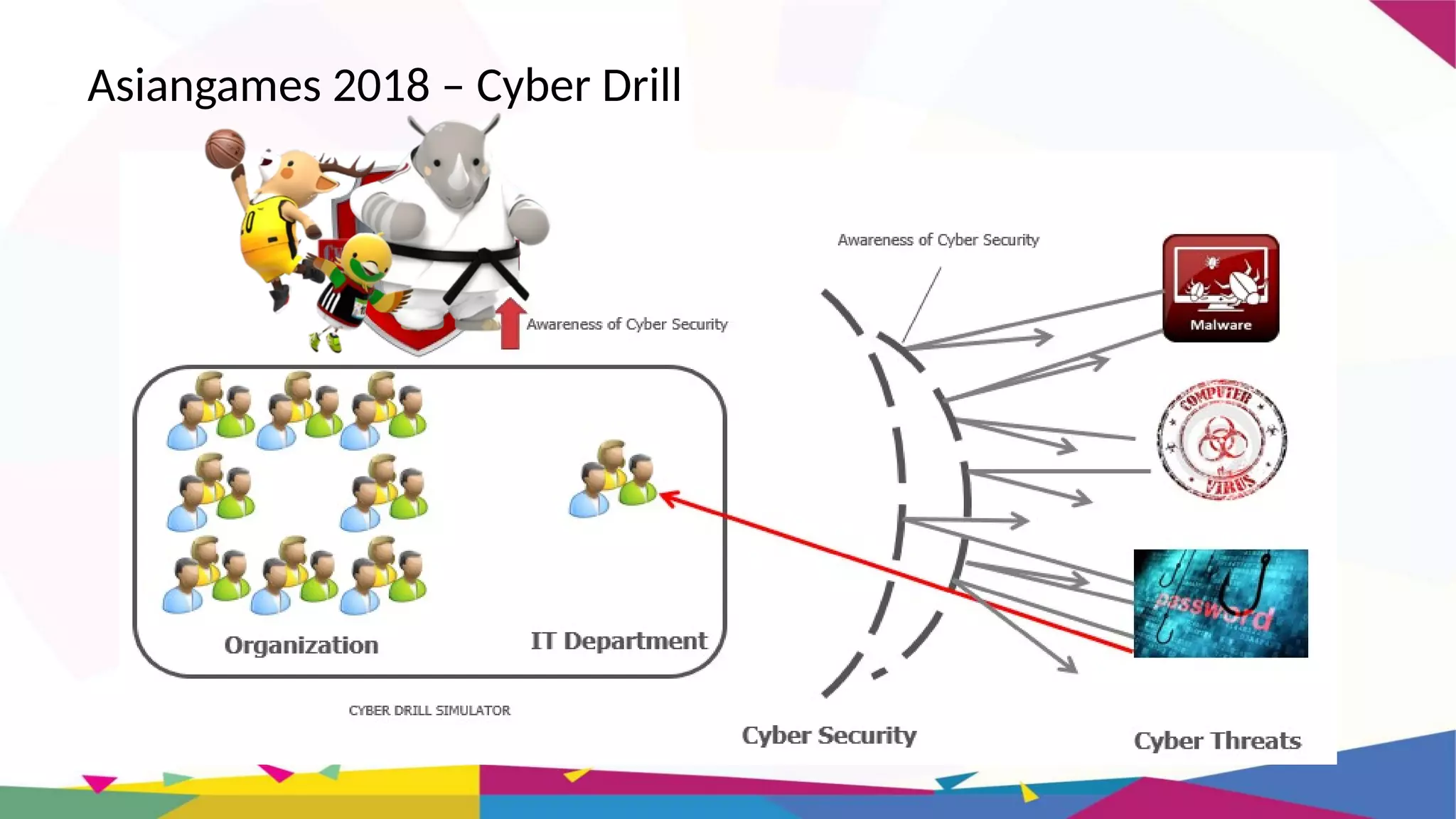

43. Asiangames 2018 – Cyber Drill

44. Asiangames 2018 – Cyber Drill
• Example Scenarios to be ready to respond in the event of a cyber security
incident:
– Phishing Emails to Inasgoc Employee
– Malicious Attachments Inasgoc Employee
– Password and Other Suspicious Requests from Vendor or Partner
– Unauthorized Computers and Devices on Network
– DDos and Defacing Website
– Arp Spoofing from Venue

47. Asiangames 2018 – Security
Question??
