The 2014 Products Brochure summarizes Power Strength's product line including selectorized machines, plate loaded equipment, benches, racks, dumbbells, and functional trainers. It provides specifications and features for over 50 products aimed at strength training, conditioning, and rehabilitation. The brochure highlights equipment like the Xi and Xi2 functional trainers that allow for a full range of user-defined exercises in a compact footprint along with multi-station cable systems and combination machines.

1. 2014 Products Brochure
POWER STRENGTH
H U M A N P E R F O R M A N C E S Y S T E M S

2. SpecificationsSpecifications
&& FeaturesFeatures
Fully enclosed pulley wheel brackets for safety.
Fiberglass-reinforced nylon
pulley wheels.
3/16” mil-spec nylon-coated
aircraft cable (4,000
test).Triple secured.
5/8” solid hard cold drawn
steel guide rods
Side-mounted Cemco®
weight stack for convenient
weight selection
Tibia pad adjustment is all
easily adjustable from a
convenient seated position
Machine “Name” for easy location
Instructional / Safety Placards
easy to read, step-by-step
instructions. correct body position
& targeted muscle groups explained.
Electrostatic powder coated, fully
welded 1½ x 4” tubular 11 gauge,
.120 wall steel frame.
(Low profile / consistent look)
Bio-fit contoured
ergonomic seat pads
Colored user friendly
pad and seat adjustments.
Colored weight stack pins are
attached with a convenient
security lanyard.
Double stitched medical grade
anti-microbial & anti-bacterial
vinyl.
2” thick high-density resilient
foam.
Thermoplastic handgrips.
Leg Extension photo shown with optional weight stack shield

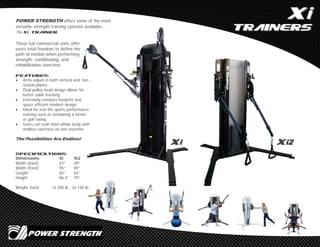

3. XXii
TrainersTrainers
POWER STRENGTH offers some of the most
versatile strength training systems available...
The Xi Trainer.
These full commercial units offer
users total freedom to define the
path of motion when performing
strength, conditioning, and
rehabilitation exercises.
Features:
 Arms adjust in both vertical and hor-
izontal planes.
 Dual pulley head design allows for
better cable tracking.
 Extremely compact footprint and
space efficient modern design.
 Ideal for true life sports performance
training such as simulating a tennis
or golf swing.
 Users can train their whole body with
endless exercises on one machine.
The Possibilities Are Endless!
SPECIFICATIONS:
Dimensions Xi Xi2
Width (back) 43” 49”
Width (front) 95” 85”
Length 65” 65”
Height 86.5” 79”
Weight Stack 1x 200 lb. 2x 150 lb.
XXii XXi2i2

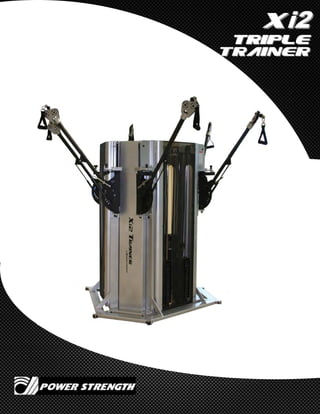

4. XXi2i2
TripleTriple
TrainerTrainer

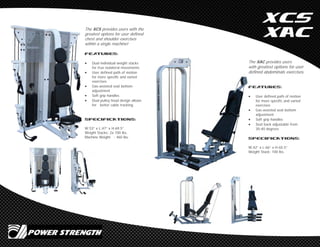

5. XCS
XAC
The XAC provides users
with greatest options for user
defined abdominals exercises.
Features:
 User defined path of motion
for more specific and varied
exercises
 Gas-assisted seat bottom
adjustment
 Soft grip handles
 Seat back adjustable from
30-40 degrees
SPECIFICATIONS:
W:42” x L:66” x H:65.5”
Weight Stack: 100 lbs.
The XCS provides users with the
greatest options for user defined
chest and shoulder exercises
within a single machine!
Features:
 Dual individual weight stacks
for true isolateral movements
 User defined path of motion
for more specific and varied
exercises
 Gas-assisted seat bottom
adjustment
 Soft grip handles
 Dual pulley head design allows
for better cable tracking.
SPECIFICATIONS:
W:53” x L:47” x H:69.5”
Weight Stacks: 2x 100 lbs.
Machine Weight : 460 lbs.

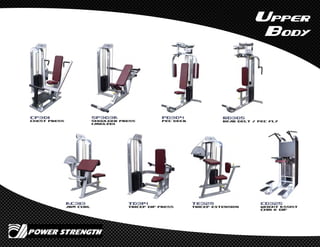

6. Upper
Body
CP301
Chest Press
SP303A
Shoulder Press
(angled)
PD304
Pec Deck
RD305
Rear Delt / Pec Fly
AC313
arm Curl
TD314
Tricep Dip Press
TE329
tricep Extension
CD325
Weight Assist
Chin & Dip

7. Lower
Body
LE315
leg extension
lc316
prone leg curl
SC330
standing Calf
GL320
glute / Hamstring
it118
Hip Adductor
ot119
hip Abductor
MH323
Multi Hip
DC322
45º Donkey Calf

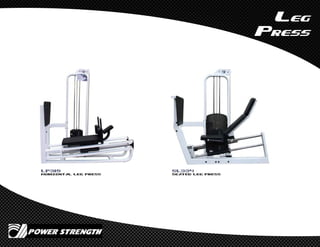

8. Leg
Press
LP319
Horizontal Leg Press
SL334
Seated Leg Press

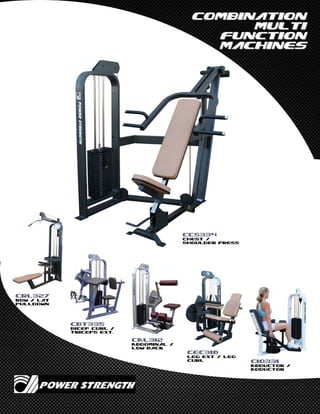

9. CombinationCombination
MultiMulti
FunctionFunction
MachinesMachines
CAL312
Abdominal /
Low Back
CBT335
Bicep Curl /
Triceps Ext.
CRL327
Row / Lat
Pulldown
CEC318
Leg Ext / Leg
Curl CIO331
Abductor /
Adductor
CCS334
Chest /
Shoulder Press

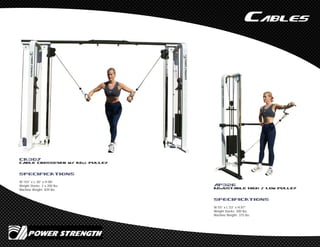

10. CA307
Cable Crossover w/ Adj. Pulley
Cables
SPECIFICATIONS
W:155” x L:30” x H:88”
Weight Stacks: 2 x 200 lbs.
Machine Weight: 839 lbs.
aP326
Adjustable High / Low Pulley
SPECIFICATIONS
W:55” x L:53” x H:87”
Weight Stacks: 200 lbs.
Machine Weight: 375 lbs.

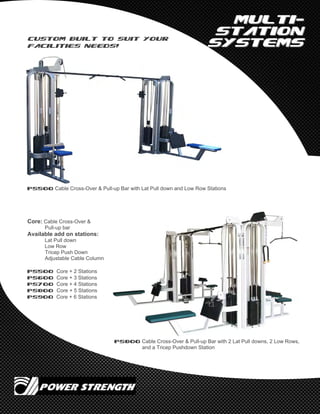

11. MultiMulti--
StationStation
SystemsSystems
PS500 Cable Cross-Over & Pull-up Bar with Lat Pull down and Low Row Stations
PS800 Cable Cross-Over & Pull-up Bar with 2 Lat Pull downs, 2 Low Rows,
and a Tricep Pushdown Station
Core: Cable Cross-Over &
Pull-up bar
Available add on stations:
Lat Pull down
Low Row
Tricep Push Down
Adjustable Cable Column
PS500 Core + 2 Stations
PS600 Core + 3 Stations
PS700 Core + 4 Stations
PS800 Core + 5 Stations
PS900 Core + 6 Stations
Custom built to suit your
facilities needs!

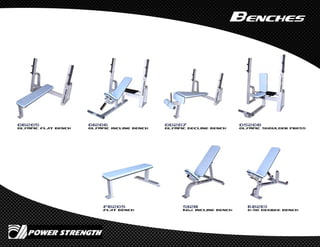

12. Benches
OB205
Olympic Flat Bench
Oi206
Olympic Incline Bench
Od207
Olympic decline Bench
Os208
Olympic shoulder press
FB209
Flat bench
Si211
Adj. Incline bench
AB213
0-90 degree bench

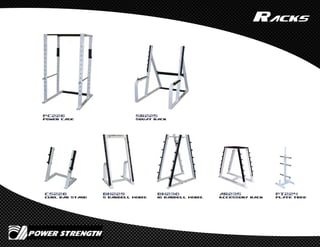

13. sr225
Squat rack
pc226
Power cage
Racks
cs228
Curl bar stand
bh229
5 barbell horiz.
bh230
10 barbell horiz.
ar235
Accessory rack
pt224
Plate tree

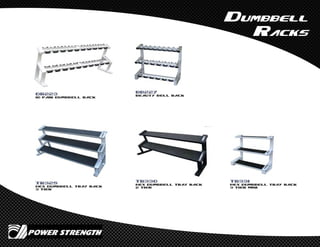

14. dr223
10 pair dumbbell rack
Dumbbell
Racks
bb227
Beauty bell rack
TR329
Hex Dumbbell Tray Rack
3 Tier
TR330
Hex Dumbbell Tray Rack
2 Tier
TR331
Hex Dumbbell Tray Rack
3 Tier Mini

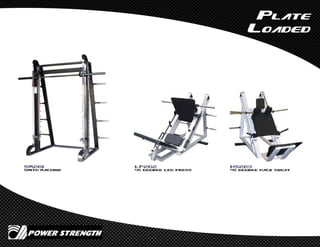

15. Plate
loaded
SM201
Smith machine
lp202
45 Degree Leg Press
HS203
45 degree hack squat

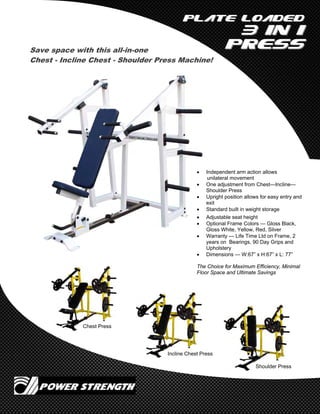

16. Plate LoadedPlate Loaded
3 in 13 in 1
PressPress
Chest Press
Incline Chest Press
Shoulder Press
Save space with this all-in-one
Chest - Incline Chest - Shoulder Press Machine!
 Independent arm action allows
unilateral movement
 One adjustment from Chest—Incline—
Shoulder Press
 Upright position allows for easy entry and
exit
 Standard built in weight storage
 Adjustable seat height
 Optional Frame Colors — Gloss Black,
Gloss White, Yellow, Red, Silver
 Warranty — Life Time Ltd on Frame, 2
years on Bearings, 90 Day Grips and
Upholstery
 Dimensions — W:67” x H:67” x L: 77”
The Choice for Maximum Efficiency, Minimal
Floor Space and Ultimate Savings

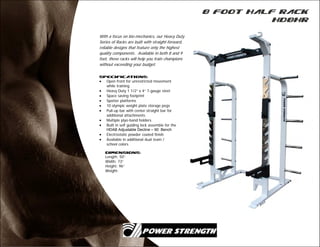

17. 8 Foot Half Rack
HD8HR
With a focus on bio-mechanics, our Heavy Duty
Series of Racks are built with straight-forward,
reliable designs that feature only the highest
quality components. Available in both 8 and 9
foot, these racks will help you train champions
without exceeding your budget.
Specifications:
 Open front for unrestricted movement
while training
 Heavy Duty 1 1/2” x 4” 7-gauge steel
 Space saving footprint
 Spotter platforms
 10 olympic weight plate storage pegs
 Pull-up bar with center straight bar for
additional attachments
 Multiple plyo-band holders
 Built in self guiding lock assemble for the
HDAB Adjustable Decline – 90 Bench
 Electrostatic powder coated finish
 Available in additional dual team /
school colors
Dimensions:
Length: 50”
Width: 73”
Height: 96”
Weight:

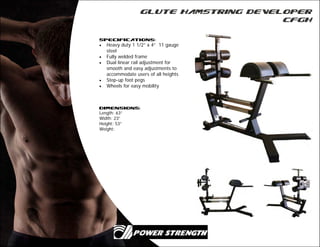

18. Glute Hamstring Developer
CFGH
Specifications:
 Heavy duty 1 1/2” x 4” 11 gauge
steel
 Fully welded frame
 Dual linear rail adjustment for
smooth and easy adjustments to
accommodate users of all heights
 Step-up foot pegs
 Wheels for easy mobility
Dimensions:
Length: 63”
Width: 23”
Height: 53”
Weight:

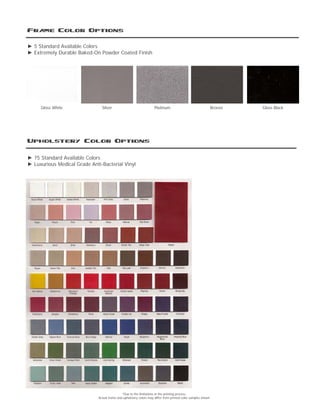

19. Frame Color Options
Gloss White Bronze Gloss BlackSilver Platinum
Upholstery Color Options
► 5 Standard Available Colors
► Extremely Durable Baked-On Powder Coated Finish
► 75 Standard Available Colors
► Luxurious Medical Grade Anti-Bacterial Vinyl
*Due to the limitations in the printing process,
Actual frame and upholstery colors may differ from printed color samples shown

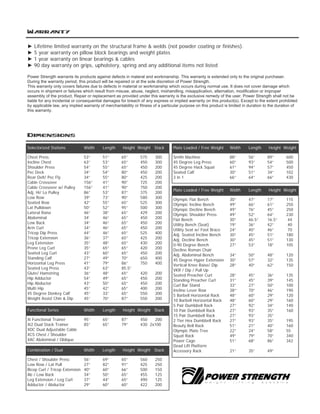

20. Warranty
Dimensions
► Lifetime limited warranty on the structural frame & welds (not powder coating or finishes).
► 5 year warranty on pillow block bearings and weight plates
► 1 year warranty on linear bearings & cables
► 90 day warranty on grips, upholstery, spring and any additional items not listed
Power Strength warrants its products against defects in materal and workmanship. This warranty is extended only to the original purchaser.
During the warranty period, this product will be repaired or at the sole discretion of Power Strength.
This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which
occurs in shipment or failures which result from misuse, abuse, neglect, mishandling, misapplication, alternation, modification or improper
assembly of the product. Repair or replacement as provided under this warranty is the exclusive remedy of the user. Power Strength shall not be
liable for any incidental or consequential damages for breach of any express or implied warranty on this product(s). Except to the extent prohibited
by applicable law, any implied warranty of merchantability or fitness of a particular purpose on this product is limited in duration to the duration of
this warranty.
Selectorized Stations Width Length Height Weight Stack
Chest Press 53” 51” 65” 575 300
Incline Chest 63” 53” 65” 450 300
Shoulder Press 54” 55” 65” 450 200
Pec Deck 34” 54” 80” 450 200
Rear Delt/ Pec Fly 34” 55” 80” 425 200
Cable Crossover 156” 41” 90” 725 200
Cable Crossover w/ Pulley 156” 41” 90” 750 200
Adj. Hi/ Lo Pulley 86” 53” 87” 375 200
Low Row 39” 73” 90” 580 300
Seated Row 42” 55” 65” 525 300
Lat Pulldown 50” 52” 95” 500 300
Lateral Raise 46” 38” 65” 429 200
Abdominal 34’ 46” 65” 450 200
Low Back 34” 46” 65” 450 200
Arm Curl 34” 46” 65” 450 200
Tricep Dip Press 44” 46” 65” 525 400
Tricep Extension 36” 37” 65” 425 200
Leg Extension 35” 48” 65” 430 200
Prone Leg Curl 35” 65” 65” 420 200
Seated Leg Curl 43” 60” 65” 450 200
Standing Calf 27” 49” 70” 650 400
Horizontal Leg Press 41” 79” 86” 750 400
Seated Leg Press 43” 63” 85.5”
Glute/ Hamstring 36” 48” 65” 420 200
Hip Adductor 54” 49” 65” 450 200
Hip Abductor 43” 50” 65” 450 200
Multi Hip 45” 42” 65” 400 200
45 Degree Donkey Calf 45” 33” 65” 550 200
Weight Assist Chin & Dip 45” 70” 87” 550 200
Xi Functional Trainer 95” 65” 87” 450 200
Xi2 Dual Stack Trainer 85” 65” 79” 430 2x100
XDC Dual Adjustable Cable
XCS Chest / Shoulder
XAC Abdominal / Oblique
Smith Machine 88” 56” 89” 600
45 Degree Leg Press 60” 93” 54” 500
45 Degree Hack Squat 61” 94” 57” 450
Seated Calf 30” 51” 34” 102
3 in 1 66” 64” 66” 430
Plate Loaded / Free Weight Width Length Height Weight
Functional Series Width Length Height Weight Stack
Combination / Dual Width Length Height Weight Stack
Chest / Shoulder Press 56” 69” 65” 560 250
Low Row / Lat Pull 27” 82” 91” 425 250
Bicep Curl / Tricep Extension 40” 60” 66” 500 150
Ab / Low Back 34” 50” 65” 455 125
Leg Extension / Leg Curl 37” 44” 65” 490 125
Adductor / Abductor 29” 60” 60” 422 200
Plate Loaded / Free Weight Width Length Height Weight
Olympic Flat Bench 30” 47” 17” 115
Olympic Incline Bench 49” 66” 61” 250
Olympic Decline Bench 49” 76” 45” 250
Olympic Shoulder Press 49” 52” 64” 230
Flat Bench 30” 46.5” 16.5” 44
Utility Bench (Seat) 19” 36” 42” 40
Utility Seat w/ Foot Brace 24” 40” 46” 70
Adj. Seated Incline Bench 30” 45” 51” 180
Adj. Decline Bench 30” 45” 51” 130
0-90 Degree Bench 27” 53” 18” 105
Decline Roman Chair
Adj. Abdominal Bench 34” 50” 48” 120
45 Degree Hyper Extension 30” 57” 32” 135
Vertical Knee Raise/ Dip 28” 40” 62” 150
VKR / Dip / Pull Up
Seated Preacher Curl 28” 45” 36” 135
Standing Preacher Curl 31” 45” 39” 145
Curl Bar Stand 33” 27” 50” 100
Incline Lever Row 38”’ 70” 46” 190
5 Barbell Horizontal Rack 48” 60” 29” 120
10 Barbell Horizontal Rack 48” 60” 29” 160
5 Pair Dumbbell Rack 27” 92” 34” 140
10 Pair Dumbbell Rack 27” 93” 35” 160
15 Pair Dumbbell Rack 27” 93” 35”
2 Tier Hex Dumbbell Rack 27” 93” 35” 195
Beauty Bell Rack 51” 21” 40” 160
Olympic Plate Tree 22” 24” 58” 55
Squat Rack 49” 79” 70” 340
Power Cage 51” 68” 86” 342
Dead Lift Platform
Accessory Rack 21” 35” 49”
