Graphics and Visualization (Pharo Days 2015)

•

2 likes•1,005 views

Yuriy Tymchuk

(original presentation contained many videos) Overview of graphics and visualization frameworks in Pharo

Software

Graphics and Visualization
Yuriy Tymchuk
(almost) Alain Plantec
Guillaume Larcheveque

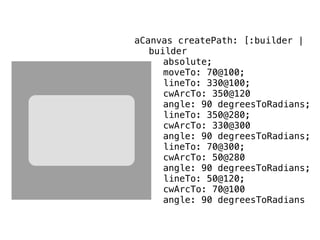

aCanvas createPath: [:builder |
builder
absolute;
moveTo: 70@100;
lineTo: 330@100;
cwArcTo: 350@120
angle: 90 degreesToRadians;
lineTo: 350@280;
cwArcTo: 330@300
angle: 90 degreesToRadians;
lineTo: 70@300;
cwArcTo: 50@280
angle: 90 degreesToRadians;
lineTo: 50@120;
cwArcTo: 70@100
angle: 90 degreesToRadians

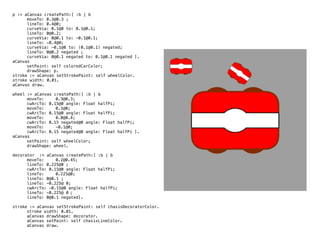

p := aCanvas createPath:[ :b | b
moveTo: 0.3@0.3 ;
lineTo: 0.4@0;
curveVia: 0.1@0 to: 0.1@0.1;
lineTo: 0@0.2;
curveVia: 0@0.1 to: -0.1@0.1;
lineTo: -0.4@0;
curveVia: -0.1@0 to: (0.1@0.1) negated;
lineTo: 0@0.2 negated ;
curveVia: 0@0.1 negated to: 0.1@0.1 negated ].
aCanvas
setPaint: self coloredCarColor;
drawShape: p.
stroke := aCanvas setStrokePaint: self wheelColor.
stroke width: 0.01.
aCanvas draw.
wheel := aCanvas createPath:[ :b | b
moveTo: 0.3@0.3;
cwArcTo: 0.15@0 angle: Float halfPi;
moveTo: 0.1@0;
cwArcTo: 0.15@0 angle: Float halfPi;
moveTo: 0.0@0.4;
cwArcTo: 0.15 negated@0 angle: Float halfPi;
moveTo: -0.1@0;
cwArcTo: 0.15 negated@0 angle: Float halfPi ].
aCanvas
setPaint: self wheelColor;
drawShape: wheel.
decorator := aCanvas createPath:[ :b | b
moveTo: 0.2@0.45;
lineTo: 0.225@0 ;
cwArcTo: 0.15@0 angle: Float halfPi;
lineTo: 0.225@0;
lineTo: 0@0.1 ;
lineTo: -0.225@ 0;
cwArcTo: -0.15@0 angle: Float halfPi;
lineTo: -0.225@ 0 ;
lineTo: 0@0.1 negated].
stroke := aCanvas setStrokePaint: self chasisDecoratorColor.
stroke width: 0.01.
aCanvas drawShape: decorator.
aCanvas setPaint: self chasisLineColor.
aCanvas draw.

Nicolas Lusa
Michele Lanza
Arc de Triomphe
Champs-Élysées

Bloc
A new 2D graphics framework for Pharo

Bloc
• a new Morph hierarchy
• a new event framework
• new layout strategies
• a new Halo framework
• new World management
• new widgets
Bloc = new Morphic implementation
+ OSWindows + Athens + TxtText

New Morph hierarchy
BlView for the rendering
BlMorph for events management

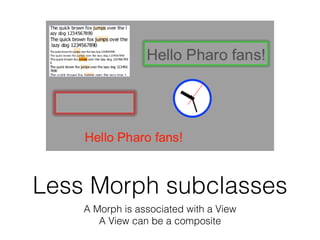

Less Morph subclasses
A Morph is associated with a View
A View can be a composite

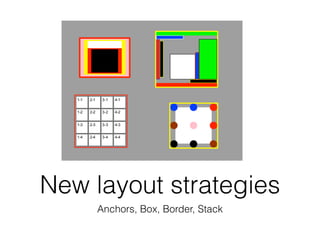

New layout strategies
Anchors, Box, Border, Stack

An more to come:
We are ready to build new widgets
Stay tuned!

Although software developers are usually reluctant to use static analysis to detect issues in their source code, our automatic just-in-time static analysis assistant was integrated into an Integrated Development Environment, and was evaluated positively by its users. We conducted interviews to understand the impact of the tool on experienced developers, and how it performs in comparison with other static analyzers. We learned that the availability of our tool as a default IDE feature and its automatic execution are the main reasons for its adoption. Moreover, the fact that immediate feedback is provided directly in the related development context is essential to keeping developers satisfied, although in certain cases feedback delivered later was deemed more useful. We also discovered that static analyzers can play an educational role, especially in combination with domain- specific rules.

Pharo Quality Engine: The Last Strokes (esug2017)

Yuriy Tymchuk

Pharo 6 was shipped with Renraku — the single quality model to rule them all. While being an advanced piece of software, Renraku alone provided no immediate benefits to end users. In this talk, we are going to present the upcoming development changes that utilize Renraku and range from advanced bug fixing guidance to the five times speed up in quality rules; as well as a few more usability features.

The False False Positives of Static Analysis (sattose2017)

Yuriy Tymchuk

Static analysis tools may produce false positive results, which negatively impact the overall usability of these tools. However, even a correct static analysis report is sometimes classified as a false positive if a developer does not understand it or does not agree with it. Lately developers' classification of false positives is treated on a par with the actual static analysis performance which may distort the knowledge about the real state of static analysis. In this paper we discuss various use cases where a false positive report is not false and the issue is caused by another aspects of static analysis. We provide an in-depth explanation of the issue for each use case followed by recommendations on how to solve it, and thus exemplify the importance of careful false positive classification.

Walls, Pillars and Beams: A 3D Decomposition of Quality Anomalies (vissoft2016)

Yuriy Tymchuk

Quality rules are used to capture important implementation and design decisions embedded in a software system’s architecture. They can automatically analyze software and assign quality grades to its components. To provide a meaningful evaluation of quality, rules have to stay up-to-date with the continuously evolving system that they describe. However one would encounter unexpected anomalies during a historical overview because the notion of quality is always changing, while the qualitative evolution analysis requires it to remain constant. To understand the anomalies in a quality history of a real-world software system we use an immersive visualization that lays out the quality fluctuations in three dimensions based on two co-evolving properties: quality rules and source code. This helps us to identify and separate the impact caused by the changes of each property, and allows us to detect significant mistakes that happened during the development process.

When QualityAssistant Meets Pharo [Enforced Code Critiques Motivate More Valu...

Yuriy Tymchuk

Static analysis tools can aid in software quality assessment, but are rarely used by software developers. Poor usage of quality analysis tools not only means missed opportunities for the quality of software systems, but also results in little feedback, which in turn slows the improvements of the quality rules themselves. We introduced a set of intrusive quality plugins and integrated them into the Pharo IDE. This not only triggered a feedback loop that led to improvements of the existing rules, but also encouraged removal of some rules and integration of new ones. Our analysis of changes to the rules suggests that precise rules capturing a domain-specific logic are more valuable than general ones.

Stories About Renraku — the new Quality Model of Pharo (esug2016)

Yuriy Tymchuk

Earlier this year Pharo 5 was released with QualityAssistant on board. However the live quality feedback in the code browser is just the tip of the iceberg. The main value comes from Renraku — a quality model that was forged during the last two years based on the requirements of quality tools. One cannot simply “show” Renraku as it is just a meta-model with a set of handy functions. And I will never allow myself to bore audience by presenting dry specifications. Luckily I have enough stories that accumulated during the development to unveil Renraku by telling about the challenges and solutions that shaped Pharo’s quality model.

Про що не говорять програмісти, про що мовчать науковці (UCU2015)

Yuriy Tymchuk

What if Clippy Would Criticize Your Code? (benevol2015)

Yuriy Tymchuk

Treating Code Quality as a First Class Entity (icsme15) [doc. symposium]

Yuriy Tymchuk

Beyond the Concept of Quality in Pharo (esug2015)

Yuriy Tymchuk

People were using the notion of quality for as long as they live, and software engineers are not an exception. Our goal is to introduce a concept of quality as a first class entity that can be used to facilitate the software evolution process. Last year we have presented ViDI - a Visual Design Inspector. Now we want to present QualityAssistant - a tool which assists you with a quality of your code right when you are working with it. QualityAssistant is based on an idea that each code entity should be able to tell about it’s quality, and the ways to improve it.

Code Review: Veni, ViDI, Vici (saner15)

Yuriy Tymchuk

!!! For the demo purposes of ViDI there was a set of videos in the presentation. You can see the full demo video here: http://youtu.be/EtdkcNBJAec Modern software development sees code review as a crucial part of the process, because not only does it facilitate the sharing of knowledge about the system at hand, but it may also lead to the early detection of defects, ultimately improving the quality of the produced software. Although supported by numerous approaches and tools, code review is still in its infancy, and indeed researchers have pointed out a number of shortcomings in the state of the art. We present a critical analysis of the state of the art of code review tools and techniques, extracting a set of desired features that code review tools should possess. We then present our vision and initial implementation of a novel code review approach named Visual Design Inspection (ViDI), illustrated through a set of usage scenarios. ViDI is based on a combination of visualization techniques, design heuristics, and static code analysis techniques.

ViDI - The Visual Design Inspector (fosdem2015)

Yuriy Tymchuk

Collaboration in Open-Source Projects: Myth or Reality? (msr14)

Yuriy Tymchuk

FAST Master's Defense (UA)

Yuriy Tymchuk

Signs of Caries at SmalltalkHub (mooseday13/2)

Yuriy Tymchuk

FAST Resolution (benevol13)

Yuriy Tymchuk

Modeling ASTs with FAST (mooseday13)Yuriy Tymchuk

AI Pilot Review: The World’s First Virtual Assistant Marketing Suite

Google

AI Pilot Review: The World’s First Virtual Assistant Marketing Suite 👉👉 Click Here To Get More Info 👇👇 https://sumonreview.com/ai-pilot-review/ AI Pilot Review: Key Features ✅Deploy AI expert bots in Any Niche With Just A Click ✅With one keyword, generate complete funnels, websites, landing pages, and more. ✅More than 85 AI features are included in the AI pilot. ✅No setup or configuration; use your voice (like Siri) to do whatever you want. ✅You Can Use AI Pilot To Create your version of AI Pilot And Charge People For It… ✅ZERO Manual Work With AI Pilot. Never write, Design, Or Code Again. ✅ZERO Limits On Features Or Usages ✅Use Our AI-powered Traffic To Get Hundreds Of Customers ✅No Complicated Setup: Get Up And Running In 2 Minutes ✅99.99% Up-Time Guaranteed ✅30 Days Money-Back Guarantee ✅ZERO Upfront Cost See My Other Reviews Article: (1) TubeTrivia AI Review: https://sumonreview.com/tubetrivia-ai-review (2) SocioWave Review: https://sumonreview.com/sociowave-review (3) AI Partner & Profit Review: https://sumonreview.com/ai-partner-profit-review (4) AI Ebook Suite Review: https://sumonreview.com/ai-ebook-suite-review

Launch Your Streaming Platforms in Minutes

Roshan Dwivedi

The claim of launching a streaming platform in minutes might be a bit of an exaggeration, but there are services that can significantly streamline the process. Here's a breakdown: Pros of Speedy Streaming Platform Launch Services: No coding required: These services often use drag-and-drop interfaces or pre-built templates, eliminating the need for programming knowledge. Faster setup: Compared to building from scratch, these platforms can get you up and running much quicker. All-in-one solutions: Many services offer features like content management systems (CMS), video players, and monetization tools, reducing the need for multiple integrations. Things to Consider: Limited customization: These platforms may offer less flexibility in design and functionality compared to custom-built solutions. Scalability: As your audience grows, you might need to upgrade to a more robust platform or encounter limitations with the "quick launch" option. Features: Carefully evaluate which features are included and if they meet your specific needs (e.g., live streaming, subscription options). Examples of Services for Launching Streaming Platforms: Muvi [muvi com] Uscreen [usencreen tv] Alternatives to Consider: Existing Streaming platforms: Platforms like YouTube or Twitch might be suitable for basic streaming needs, though monetization options might be limited. Custom Development: While more time-consuming, custom development offers the most control and flexibility for your platform. Overall, launching a streaming platform in minutes might not be entirely realistic, but these services can significantly speed up the process compared to building from scratch. Carefully consider your needs and budget when choosing the best option for you.

OpenMetadata Community Meeting - 5th June 2024

OpenMetadata

The OpenMetadata Community Meeting was held on June 5th, 2024. In this meeting, we discussed about the data quality capabilities that are integrated with the Incident Manager, providing a complete solution to handle your data observability needs. Watch the end-to-end demo of the data quality features. * How to run your own data quality framework * What is the performance impact of running data quality frameworks * How to run the test cases in your own ETL pipelines * How the Incident Manager is integrated * Get notified with alerts when test cases fail Watch the meeting recording here - https://www.youtube.com/watch?v=UbNOje0kf6E

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

rickgrimesss22

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)

Alina Yurenko

Recently uploaded

AI Pilot Review: The World’s First Virtual Assistant Marketing Suite

Google

Launch Your Streaming Platforms in Minutes

Roshan Dwivedi

OpenMetadata Community Meeting - 5th June 2024

OpenMetadata

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

rickgrimesss22

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)

Alina Yurenko

Utilocate provides Smarter, Better, Faster, Safer Locate Ticket Management

Utilocate

Utilocate offers a comprehensive solution for locate ticket management by automating and streamlining the entire process. By integrating with Geospatial Information Systems (GIS), it provides accurate mapping and visualization of utility locations, enhancing decision-making and reducing the risk of errors. The system's advanced data analytics tools help identify trends, predict potential issues, and optimize resource allocation, making the locate ticket management process smarter and more efficient. Additionally, automated ticket management ensures consistency and reduces human error, while real-time notifications keep all relevant personnel informed and ready to respond promptly. The system's ability to streamline workflows and automate ticket routing significantly reduces the time taken to process each ticket, making the process faster and more efficient. Mobile access allows field technicians to update ticket information on the go, ensuring that the latest information is always available and accelerating the locate process. Overall, Utilocate not only enhances the efficiency and accuracy of locate ticket management but also improves safety by minimizing the risk of utility damage through precise and timely locates.

Orion Context Broker introduction 20240604

Fermin Galan

Mobile App Development Company In Noida | Drona Infotech

Drona Infotech

APIs for Browser Automation (MoT Meetup 2024)

Boni García

Navigating the Metaverse: A Journey into Virtual Evolution"

Donna Lenk

A Study of Variable-Role-based Feature Enrichment in Neural Models of Code

Aftab Hussain

Understanding variable roles in code has been found to be helpful by students in learning programming -- could variable roles help deep neural models in performing coding tasks? We do an exploratory study. - These are slides of the talk given at InteNSE'23: The 1st International Workshop on Interpretability and Robustness in Neural Software Engineering, co-located with the 45th International Conference on Software Engineering, ICSE 2023, Melbourne Australia

AI Genie Review: World’s First Open AI WordPress Website Creator

Google

AI Genie Review: World’s First Open AI WordPress Website Creator 👉👉 Click Here To Get More Info 👇👇 https://sumonreview.com/ai-genie-review AI Genie Review: Key Features ✅Creates Limitless Real-Time Unique Content, auto-publishing Posts, Pages & Images directly from Chat GPT & Open AI on WordPress in any Niche ✅First & Only Google Bard Approved Software That Publishes 100% Original, SEO Friendly Content using Open AI ✅Publish Automated Posts and Pages using AI Genie directly on Your website ✅50 DFY Websites Included Without Adding Any Images, Content Or Doing Anything Yourself ✅Integrated Chat GPT Bot gives Instant Answers on Your Website to Visitors ✅Just Enter the title, and your Content for Pages and Posts will be ready on your website ✅Automatically insert visually appealing images into posts based on keywords and titles. ✅Choose the temperature of the content and control its randomness. ✅Control the length of the content to be generated. ✅Never Worry About Paying Huge Money Monthly To Top Content Creation Platforms ✅100% Easy-to-Use, Newbie-Friendly Technology ✅30-Days Money-Back Guarantee See My Other Reviews Article: (1) TubeTrivia AI Review: https://sumonreview.com/tubetrivia-ai-review (2) SocioWave Review: https://sumonreview.com/sociowave-review (3) AI Partner & Profit Review: https://sumonreview.com/ai-partner-profit-review (4) AI Ebook Suite Review: https://sumonreview.com/ai-ebook-suite-review #AIGenieApp #AIGenieBonus #AIGenieBonuses #AIGenieDemo #AIGenieDownload #AIGenieLegit #AIGenieLiveDemo #AIGenieOTO #AIGeniePreview #AIGenieReview #AIGenieReviewandBonus #AIGenieScamorLegit #AIGenieSoftware #AIGenieUpgrades #AIGenieUpsells #HowDoesAlGenie #HowtoBuyAIGenie #HowtoMakeMoneywithAIGenie #MakeMoneyOnline #MakeMoneywithAIGenie

E-commerce Application Development Company.pdf

Hornet Dynamics

Introducing Crescat - Event Management Software for Venues, Festivals and Eve...

Crescat

Crescat is industry-trusted event management software, built by event professionals for event professionals. Founded in 2017, we have three key products tailored for the live event industry. Crescat Event for concert promoters and event agencies. Crescat Venue for music venues, conference centers, wedding venues, concert halls and more. And Crescat Festival for festivals, conferences and complex events. With a wide range of popular features such as event scheduling, shift management, volunteer and crew coordination, artist booking and much more, Crescat is designed for customisation and ease-of-use. Over 125,000 events have been planned in Crescat and with hundreds of customers of all shapes and sizes, from boutique event agencies through to international concert promoters, Crescat is rigged for success. What's more, we highly value feedback from our users and we are constantly improving our software with updates, new features and improvements. If you plan events, run a venue or produce festivals and you're looking for ways to make your life easier, then we have a solution for you. Try our software for free or schedule a no-obligation demo with one of our product specialists today at crescat.io

May Marketo Masterclass, London MUG May 22 2024.pdf

Adele Miller

Graspan: A Big Data System for Big Code Analysis

Aftab Hussain

We built a disk-based parallel graph system, Graspan, that uses a novel edge-pair centric computation model to compute dynamic transitive closures on very large program graphs. We implement context-sensitive pointer/alias and dataflow analyses on Graspan. An evaluation of these analyses on large codebases such as Linux shows that their Graspan implementations scale to millions of lines of code and are much simpler than their original implementations. These analyses were used to augment the existing checkers; these augmented checkers found 132 new NULL pointer bugs and 1308 unnecessary NULL tests in Linux 4.4.0-rc5, PostgreSQL 8.3.9, and Apache httpd 2.2.18. - Accepted in ASPLOS ‘17, Xi’an, China. - Featured in the tutorial, Systemized Program Analyses: A Big Data Perspective on Static Analysis Scalability, ASPLOS ‘17. - Invited for presentation at SoCal PLS ‘16. - Invited for poster presentation at PLDI SRC ‘16.

Empowering Growth with Best Software Development Company in Noida - Deuglo

Deuglo Infosystem Pvt Ltd

Do you want Software for your Business? Visit Deuglo Deuglo has top Software Developers in India. They are experts in software development and help design and create custom Software solutions. Deuglo follows seven steps methods for delivering their services to their customers. They called it the Software development life cycle process (SDLC). Requirement — Collecting the Requirements is the first Phase in the SSLC process. Feasibility Study — after completing the requirement process they move to the design phase. Design — in this phase, they start designing the software. Coding — when designing is completed, the developers start coding for the software. Testing — in this phase when the coding of the software is done the testing team will start testing. Installation — after completion of testing, the application opens to the live server and launches! Maintenance — after completing the software development, customers start using the software.

Essentials of Automations: The Art of Triggers and Actions in FME

Safe Software

In this second installment of our Essentials of Automations webinar series, we’ll explore the landscape of triggers and actions, guiding you through the nuances of authoring and adapting workspaces for seamless automations. Gain an understanding of the full spectrum of triggers and actions available in FME, empowering you to enhance your workspaces for efficient automation. We’ll kick things off by showcasing the most commonly used event-based triggers, introducing you to various automation workflows like manual triggers, schedules, directory watchers, and more. Plus, see how these elements play out in real scenarios. Whether you’re tweaking your current setup or building from the ground up, this session will arm you with the tools and insights needed to transform your FME usage into a powerhouse of productivity. Join us to discover effective strategies that simplify complex processes, enhancing your productivity and transforming your data management practices with FME. Let’s turn complexity into clarity and make your workspaces work wonders!

GraphSummit Paris - The art of the possible with Graph Technology

Neo4j

AI Fusion Buddy Review: Brand New, Groundbreaking Gemini-Powered AI App

Google

AI Fusion Buddy Review: Brand New, Groundbreaking Gemini-Powered AI App 👉👉 Click Here To Get More Info 👇👇 https://sumonreview.com/ai-fusion-buddy-review AI Fusion Buddy Review: Key Features ✅Create Stunning AI App Suite Fully Powered By Google's Latest AI technology, Gemini ✅Use Gemini to Build high-converting Converting Sales Video Scripts, ad copies, Trending Articles, blogs, etc.100% unique! ✅Create Ultra-HD graphics with a single keyword or phrase that commands 10x eyeballs! ✅Fully automated AI articles bulk generation! ✅Auto-post or schedule stunning AI content across all your accounts at once—WordPress, Facebook, LinkedIn, Blogger, and more. ✅With one keyword or URL, generate complete websites, landing pages, and more… ✅Automatically create & sell AI content, graphics, websites, landing pages, & all that gets you paid non-stop 24*7. ✅Pre-built High-Converting 100+ website Templates and 2000+ graphic templates logos, banners, and thumbnail images in Trending Niches. ✅Say goodbye to wasting time logging into multiple Chat GPT & AI Apps once & for all! ✅Save over $5000 per year and kick out dependency on third parties completely! ✅Brand New App: Not available anywhere else! ✅ Beginner-friendly! ✅ZERO upfront cost or any extra expenses ✅Risk-Free: 30-Day Money-Back Guarantee! ✅Commercial License included! See My Other Reviews Article: (1) AI Genie Review: https://sumonreview.com/ai-genie-review (2) SocioWave Review: https://sumonreview.com/sociowave-review (3) AI Partner & Profit Review: https://sumonreview.com/ai-partner-profit-review (4) AI Ebook Suite Review: https://sumonreview.com/ai-ebook-suite-review #AIFusionBuddyReview, #AIFusionBuddyFeatures, #AIFusionBuddyPricing, #AIFusionBuddyProsandCons, #AIFusionBuddyTutorial, #AIFusionBuddyUserExperience #AIFusionBuddyforBeginners, #AIFusionBuddyBenefits, #AIFusionBuddyComparison, #AIFusionBuddyInstallation, #AIFusionBuddyRefundPolicy, #AIFusionBuddyDemo, #AIFusionBuddyMaintenanceFees, #AIFusionBuddyNewbieFriendly, #WhatIsAIFusionBuddy?, #HowDoesAIFusionBuddyWorks

Recently uploaded (20)

AI Pilot Review: The World’s First Virtual Assistant Marketing Suite

Launch Your Streaming Platforms in Minutes

OpenMetadata Community Meeting - 5th June 2024

Top Features to Include in Your Winzo Clone App for Business Growth (4).pptx

GOING AOT WITH GRAALVM FOR SPRING BOOT (SPRING IO)

Utilocate provides Smarter, Better, Faster, Safer Locate Ticket Management

Orion Context Broker introduction 20240604

Mobile App Development Company In Noida | Drona Infotech

APIs for Browser Automation (MoT Meetup 2024)

Navigating the Metaverse: A Journey into Virtual Evolution"

A Study of Variable-Role-based Feature Enrichment in Neural Models of Code

AI Genie Review: World’s First Open AI WordPress Website Creator

E-commerce Application Development Company.pdf

Introducing Crescat - Event Management Software for Venues, Festivals and Eve...

May Marketo Masterclass, London MUG May 22 2024.pdf

Graspan: A Big Data System for Big Code Analysis

Empowering Growth with Best Software Development Company in Noida - Deuglo

Essentials of Automations: The Art of Triggers and Actions in FME

GraphSummit Paris - The art of the possible with Graph Technology

AI Fusion Buddy Review: Brand New, Groundbreaking Gemini-Powered AI App

Graphics and Visualization (Pharo Days 2015)

1. Graphics and Visualization Yuriy Tymchuk (almost) Alain Plantec Guillaume Larcheveque

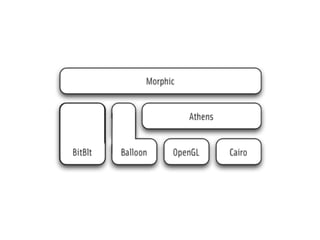

2. What are Athens?

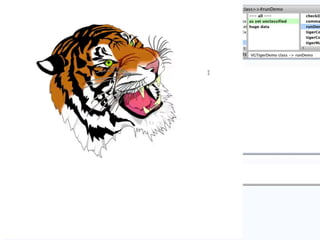

6. aCanvas createPath: [:builder | builder absolute; moveTo: 70@100; lineTo: 330@100; cwArcTo: 350@120 angle: 90 degreesToRadians; lineTo: 350@280; cwArcTo: 330@300 angle: 90 degreesToRadians; lineTo: 70@300; cwArcTo: 50@280 angle: 90 degreesToRadians; lineTo: 50@120; cwArcTo: 70@100 angle: 90 degreesToRadians

7. p := aCanvas createPath:[ :b | b moveTo: 0.3@0.3 ; lineTo: 0.4@0; curveVia: 0.1@0 to: 0.1@0.1; lineTo: 0@0.2; curveVia: 0@0.1 to: -0.1@0.1; lineTo: -0.4@0; curveVia: -0.1@0 to: (0.1@0.1) negated; lineTo: 0@0.2 negated ; curveVia: 0@0.1 negated to: 0.1@0.1 negated ]. aCanvas setPaint: self coloredCarColor; drawShape: p. stroke := aCanvas setStrokePaint: self wheelColor. stroke width: 0.01. aCanvas draw. wheel := aCanvas createPath:[ :b | b moveTo: 0.3@0.3; cwArcTo: 0.15@0 angle: Float halfPi; moveTo: 0.1@0; cwArcTo: 0.15@0 angle: Float halfPi; moveTo: 0.0@0.4; cwArcTo: 0.15 negated@0 angle: Float halfPi; moveTo: -0.1@0; cwArcTo: 0.15 negated@0 angle: Float halfPi ]. aCanvas setPaint: self wheelColor; drawShape: wheel. decorator := aCanvas createPath:[ :b | b moveTo: 0.2@0.45; lineTo: 0.225@0 ; cwArcTo: 0.15@0 angle: Float halfPi; lineTo: 0.225@0; lineTo: 0@0.1 ; lineTo: -0.225@ 0; cwArcTo: -0.15@0 angle: Float halfPi; lineTo: -0.225@ 0 ; lineTo: 0@0.1 negated]. stroke := aCanvas setStrokePaint: self chasisDecoratorColor. stroke width: 0.01. aCanvas drawShape: decorator. aCanvas setPaint: self chasisLineColor. aCanvas draw.

9. http://agilevisualization.com

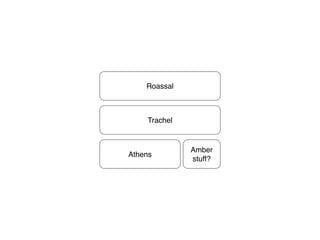

10. Athens Trachel Roassal Amber stuff?

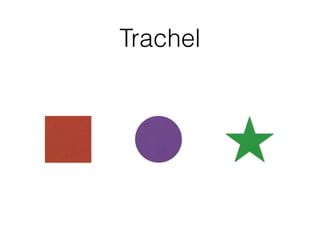

11. Trachel

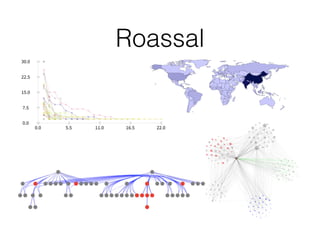

12. Roassal

13.

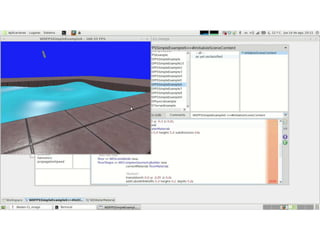

14.

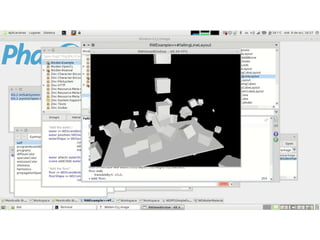

15.

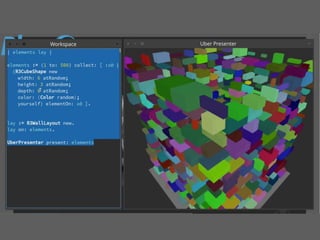

16.

17.

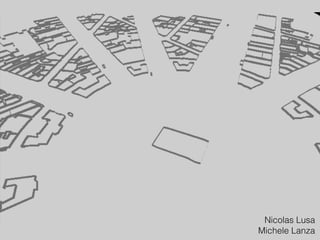

18. Nicolas Lusa Michele Lanza

19. Nicolas Lusa Michele Lanza Arc de Triomphe Champs-Élysées

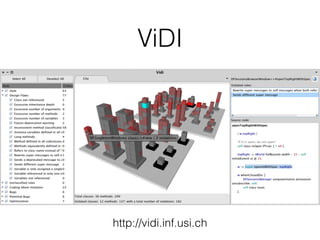

20. ViDI http://vidi.inf.usi.ch

21. Bloc A new 2D graphics framework for Pharo

22. Bloc • a new Morph hierarchy • a new event framework • new layout strategies • a new Halo framework • new World management • new widgets Bloc = new Morphic implementation + OSWindows + Athens + TxtText

23. New Morph hierarchy BlView for the rendering BlMorph for events management

24. Less Morph subclasses A Morph is associated with a View A View can be a composite

25. New layout strategies Anchors, Box, Border, Stack

26. An more to come: We are ready to build new widgets Stay tuned!

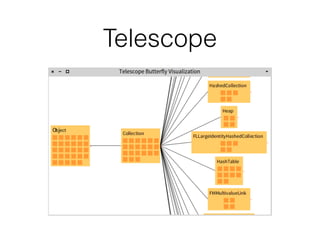

27. Telescope
