Slides about managing database changes in Postgres database a sane way from PGConf.US 2015

2. ALTER DATABASE
ADD more SANITY
PGConf US, New York
March 27, 2015

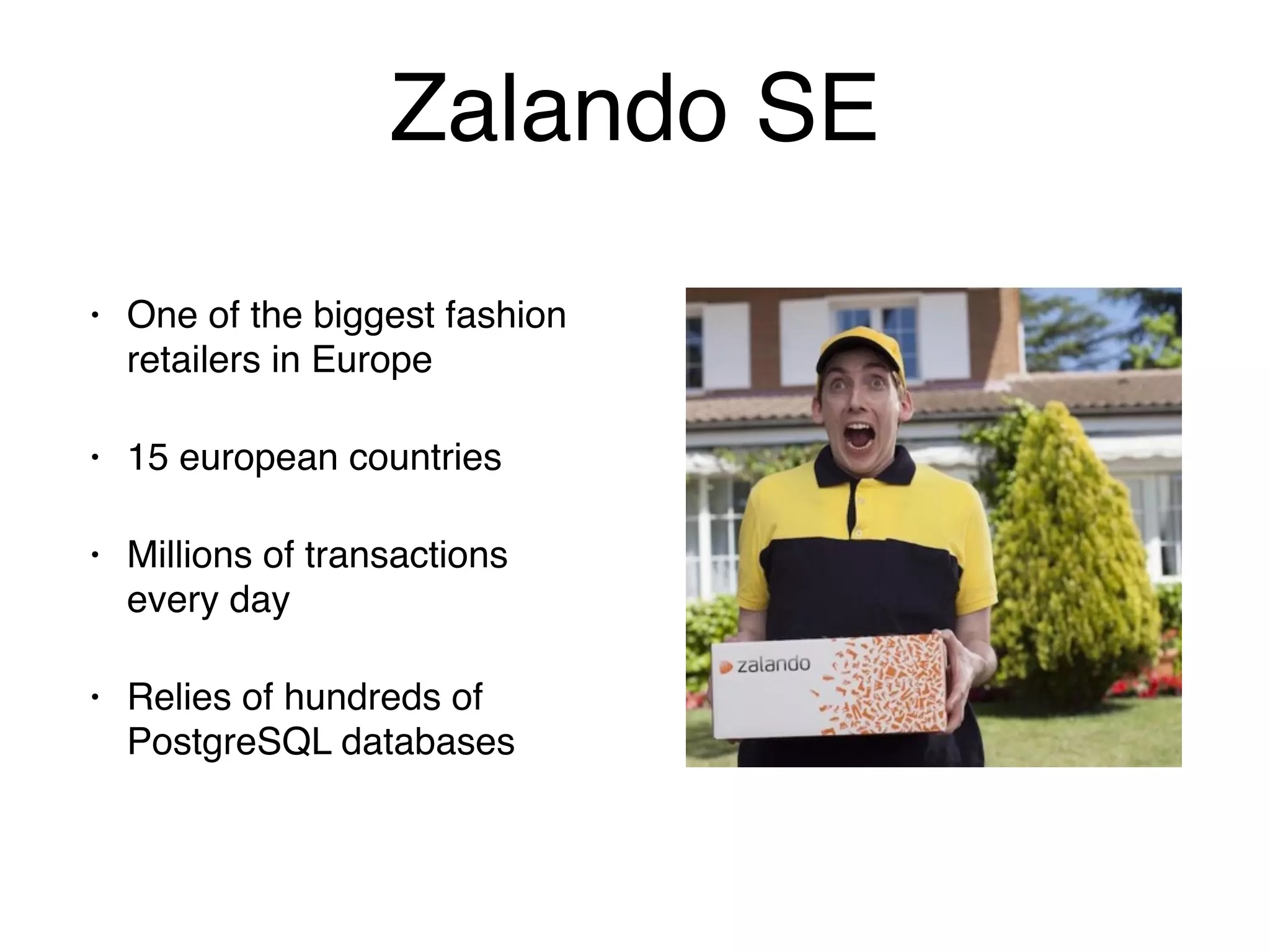

3. Zalando SE
• One of the biggest fashion
retailers in Europe
• 15 european countries
• Millions of transactions
every day
• Relies of hundreds of
PostgreSQL databases

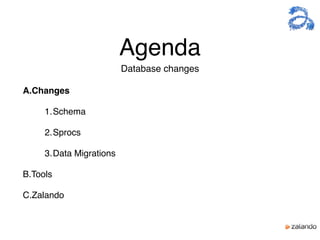

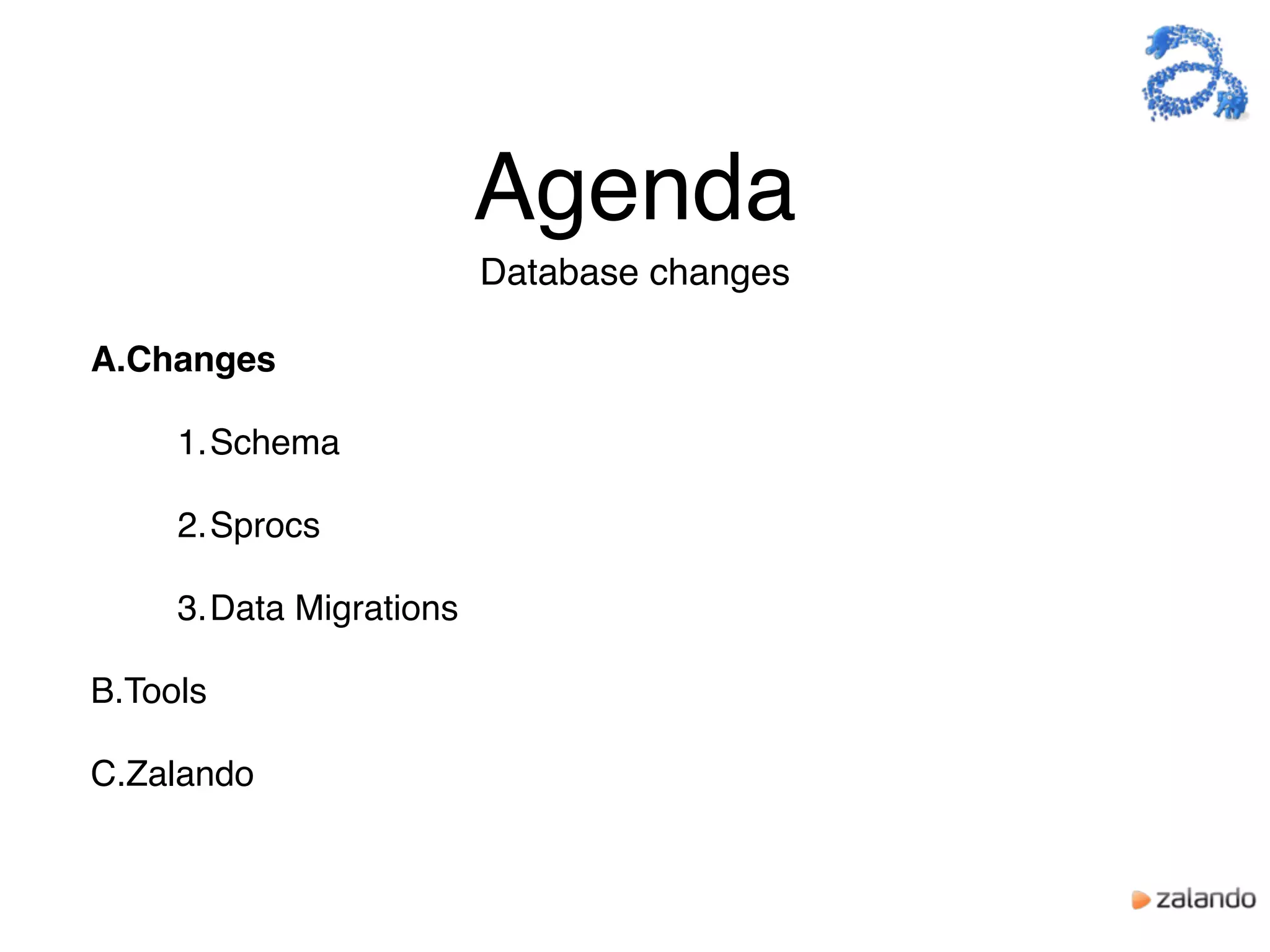

5. Agenda
A.Changes
1.Schema
2.Sprocs
3.Data Migrations
B.Tools
C.Zalando
Database changes

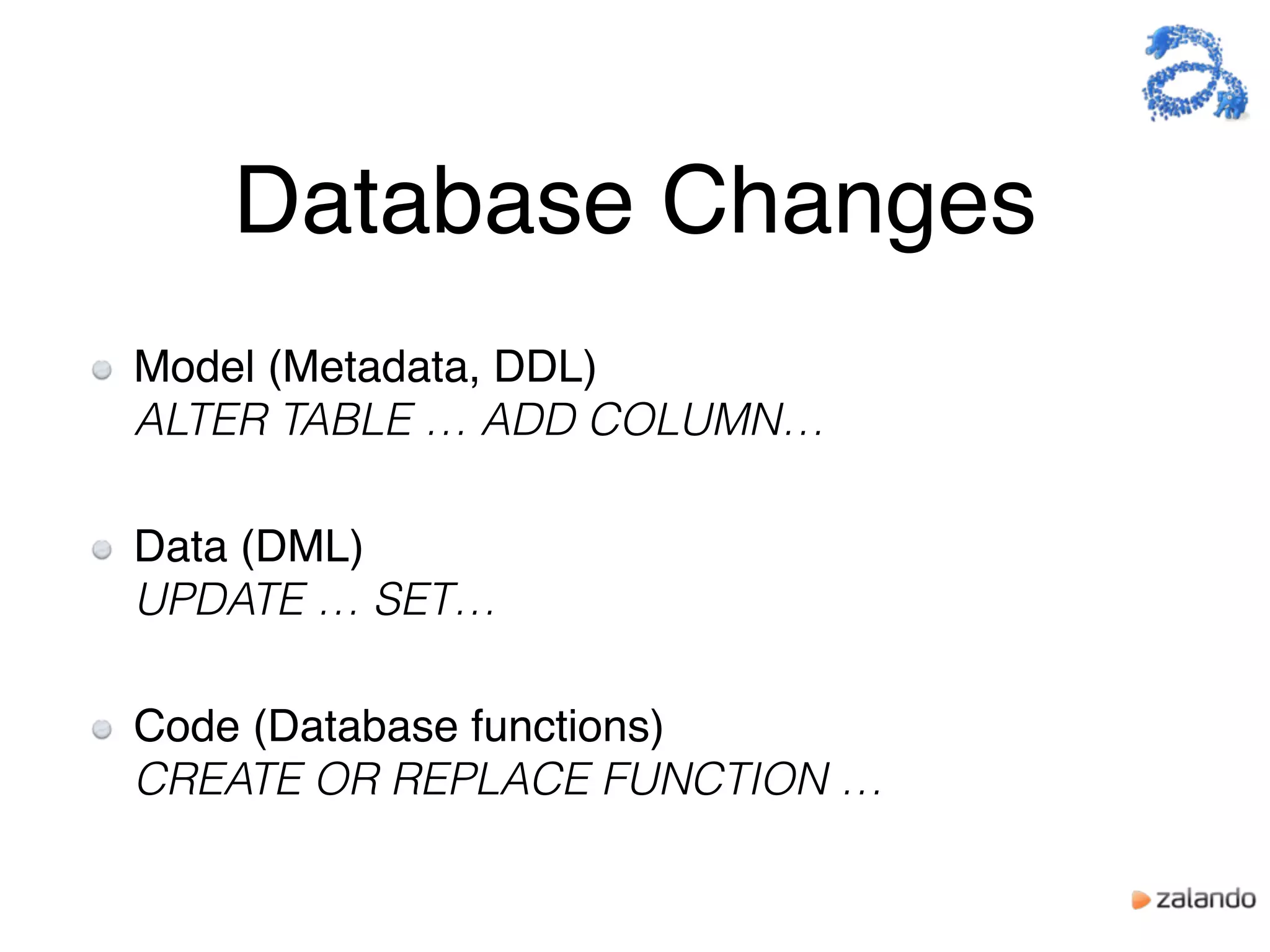

6. Database Changes
Model (Metadata, DDL)
ALTER TABLE … ADD COLUMN…
Data (DML)
UPDATE … SET…
Code (Database functions)
CREATE OR REPLACE FUNCTION …

7. …does not always work in production

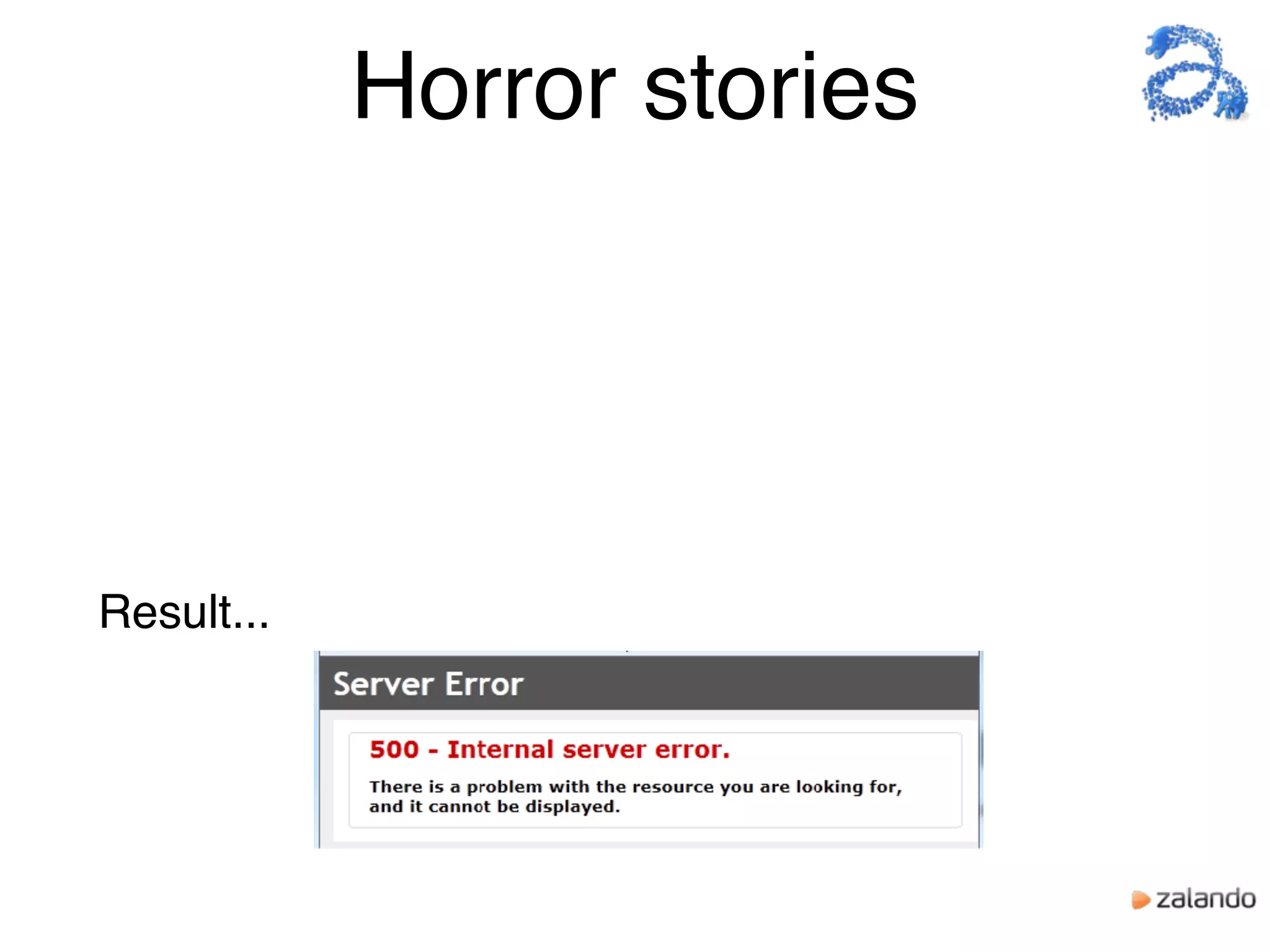

8. Horror stories
Result...

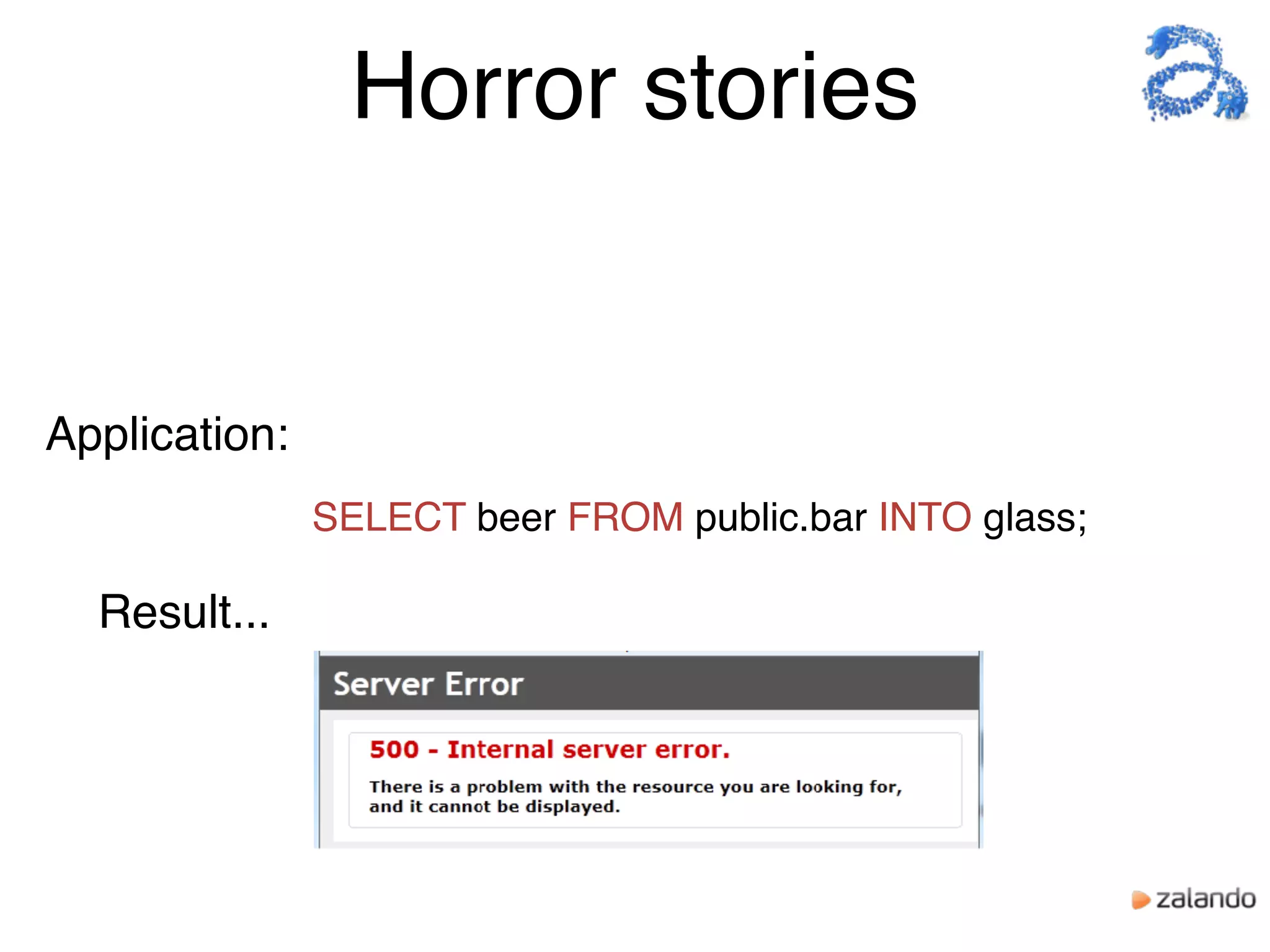

9. Horror stories
Result...
Application:
SELECT beer FROM public.bar INTO glass;

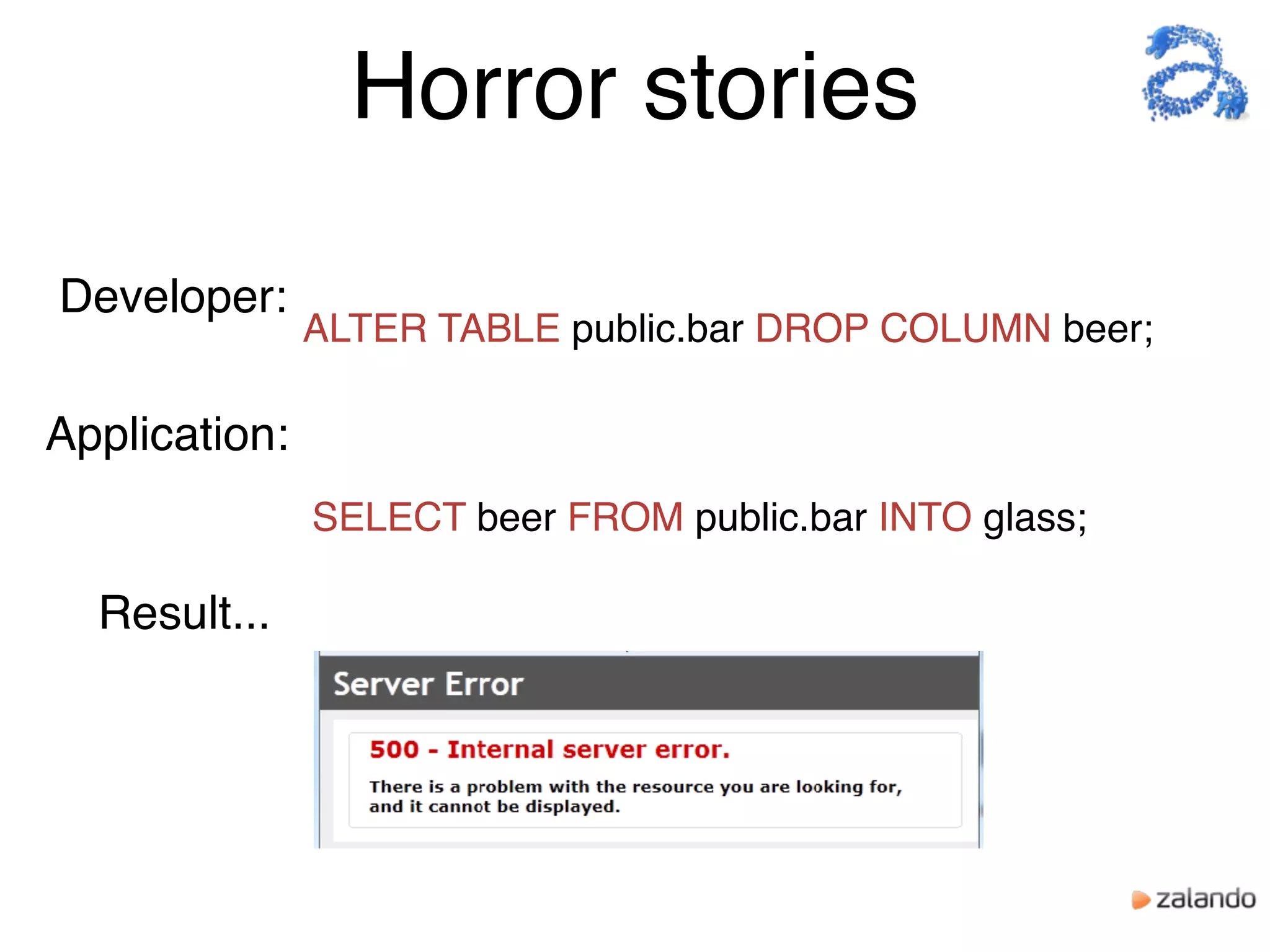

10. Horror stories
Developer:
ALTER TABLE public.bar DROP COLUMN beer;
Application:
SELECT beer FROM public.bar INTO glass;
Result...

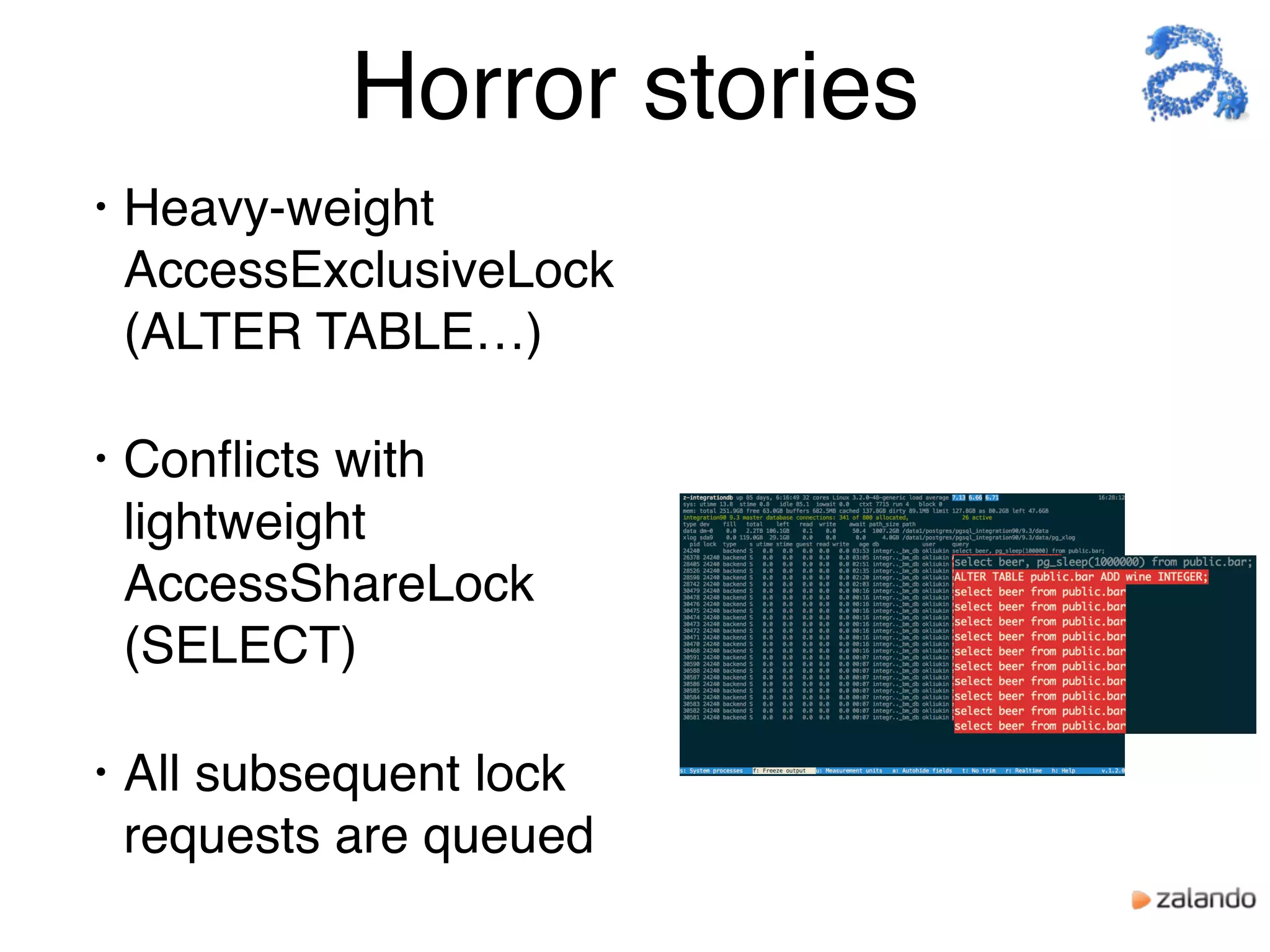

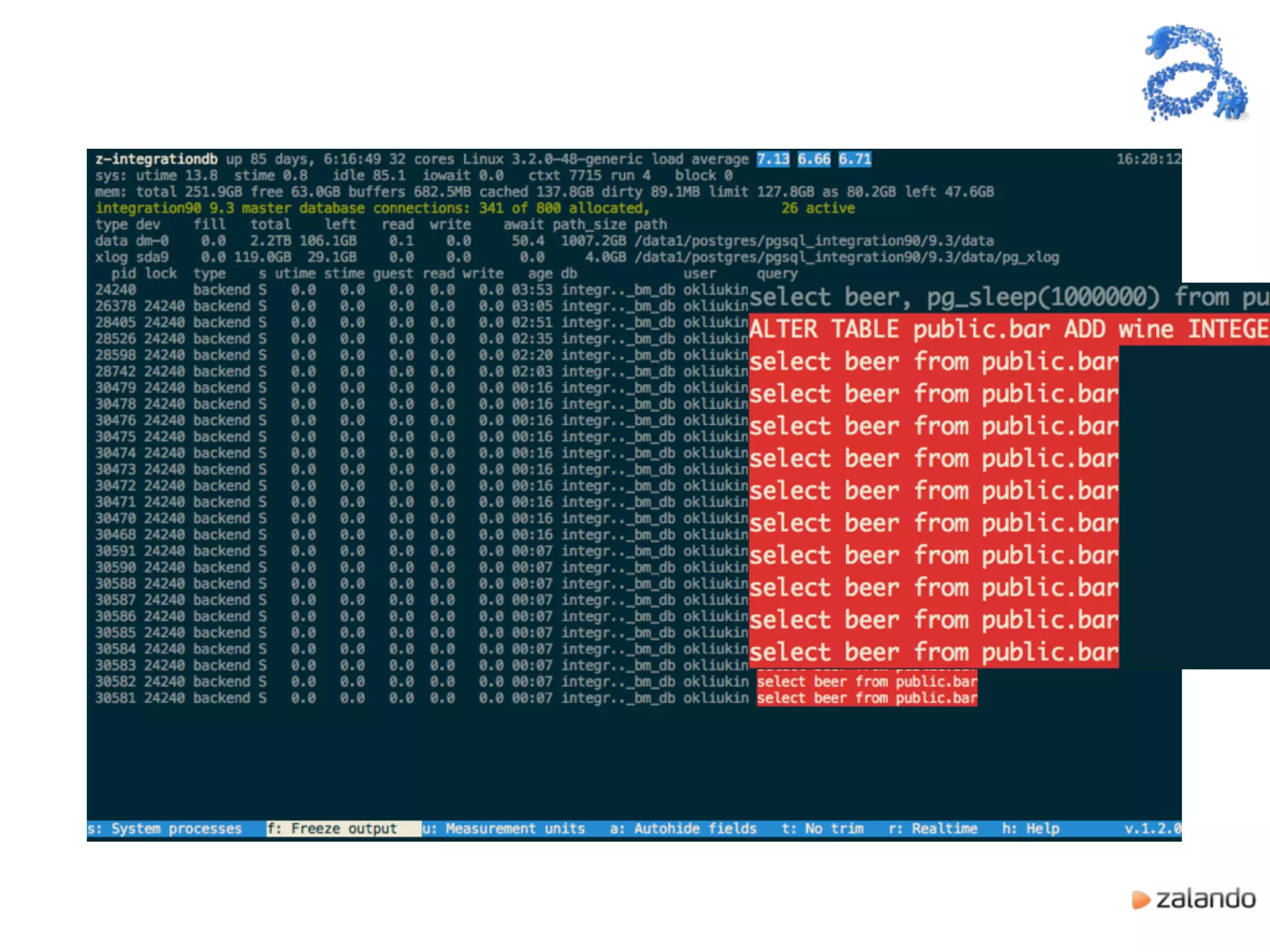

12. Horror stories
• Heavy-weight
AccessExclusiveLock
(ALTER TABLE…)
• Conflicts with
lightweight
AccessShareLock
(SELECT)
• All subsequent lock
requests are queued

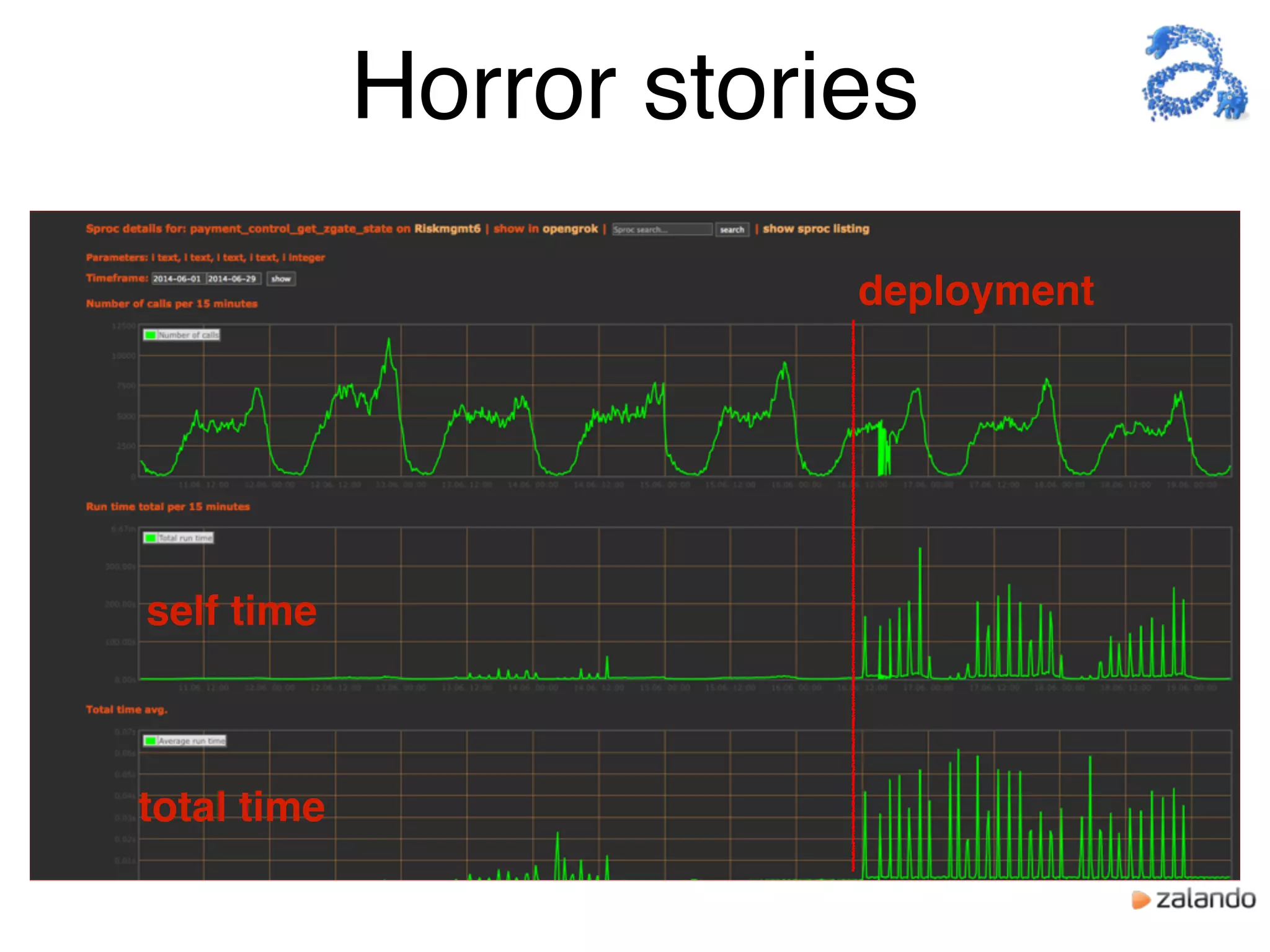

14. Horror stories
deployment
self time
total time

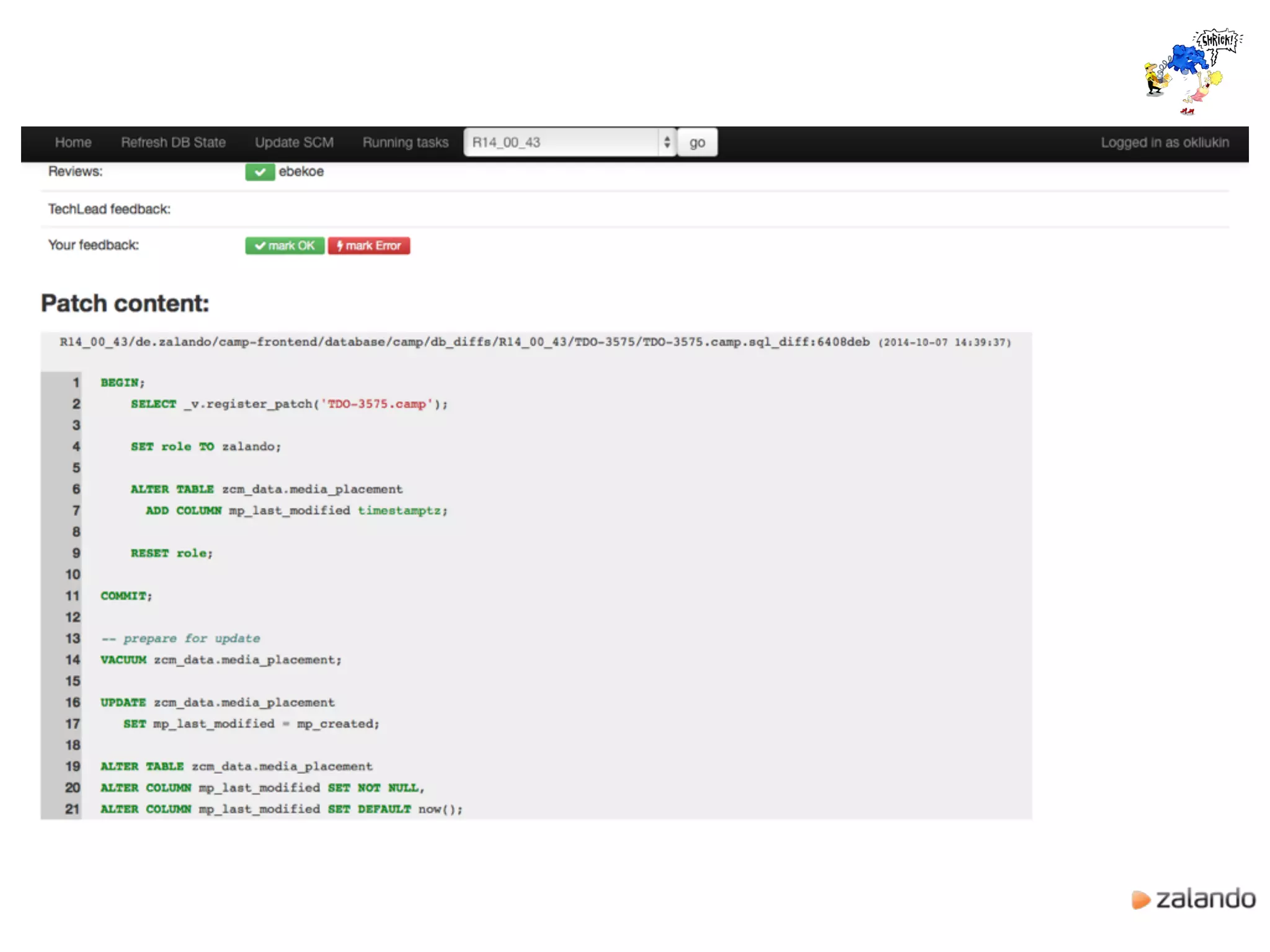

15. From source code to databases

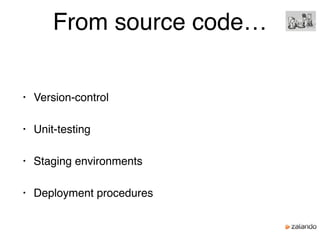

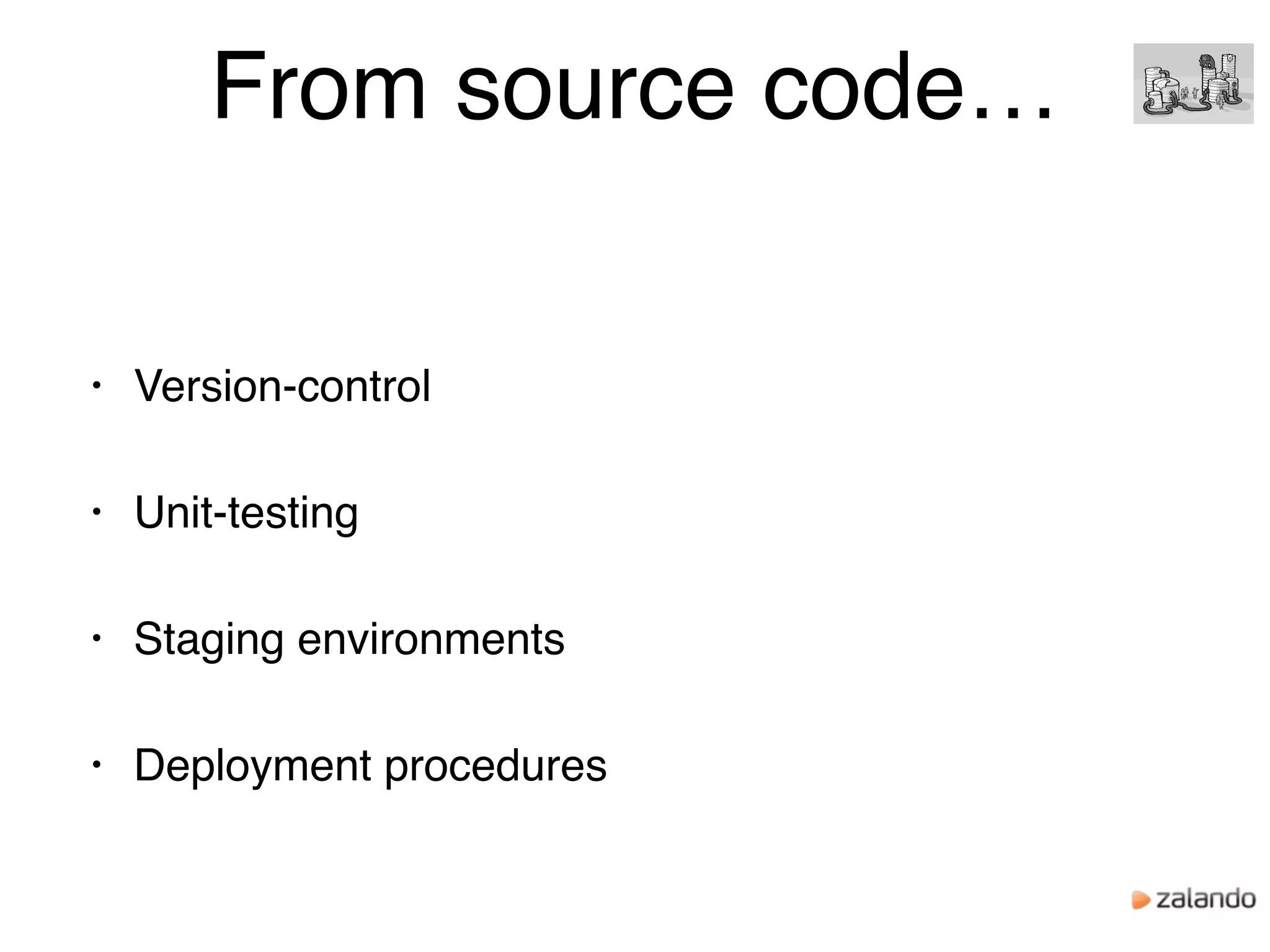

16. From source code…
• Version-control
• Unit-testing
• Staging environments
• Deployment procedures

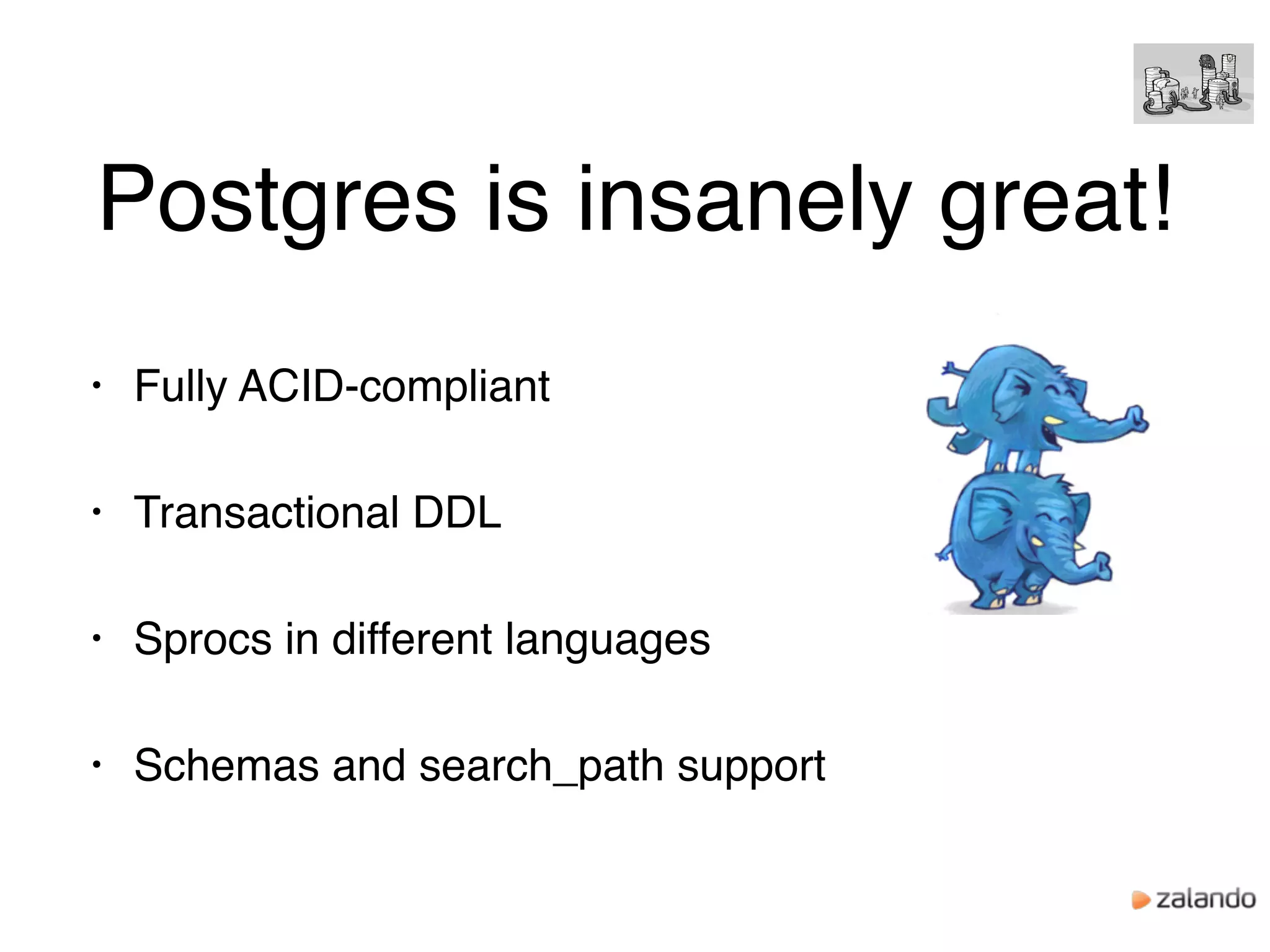

17. Postgres is insanely great!
• Fully ACID-compliant
• Transactional DDL
• Sprocs in different languages
• Schemas and search_path support

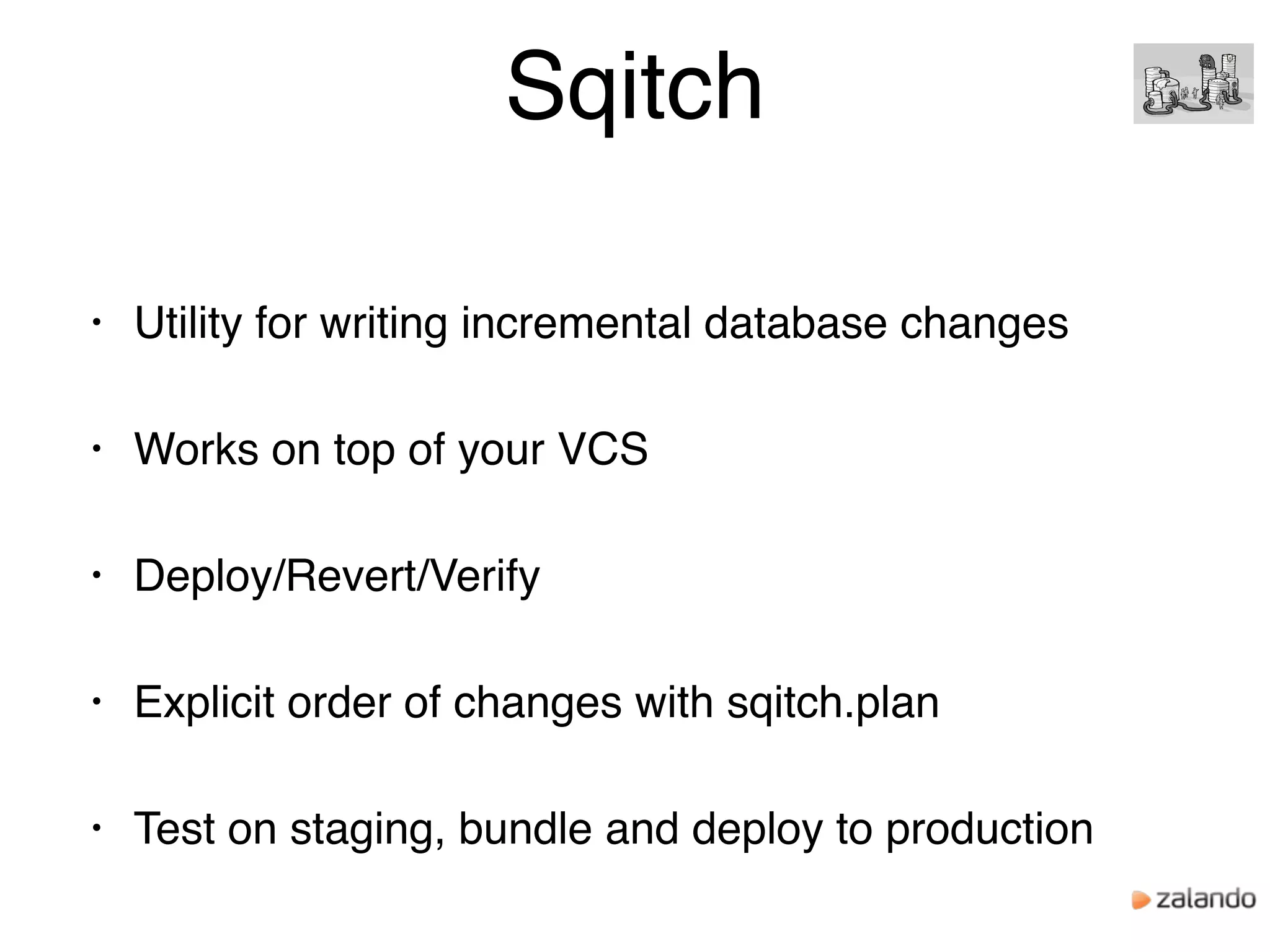

18. Sqitch
• Utility for writing incremental database changes
• Works on top of your VCS
• Deploy/Revert/Verify
• Explicit order of changes with sqitch.plan
• Test on staging, bundle and deploy to production

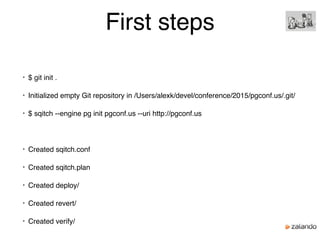

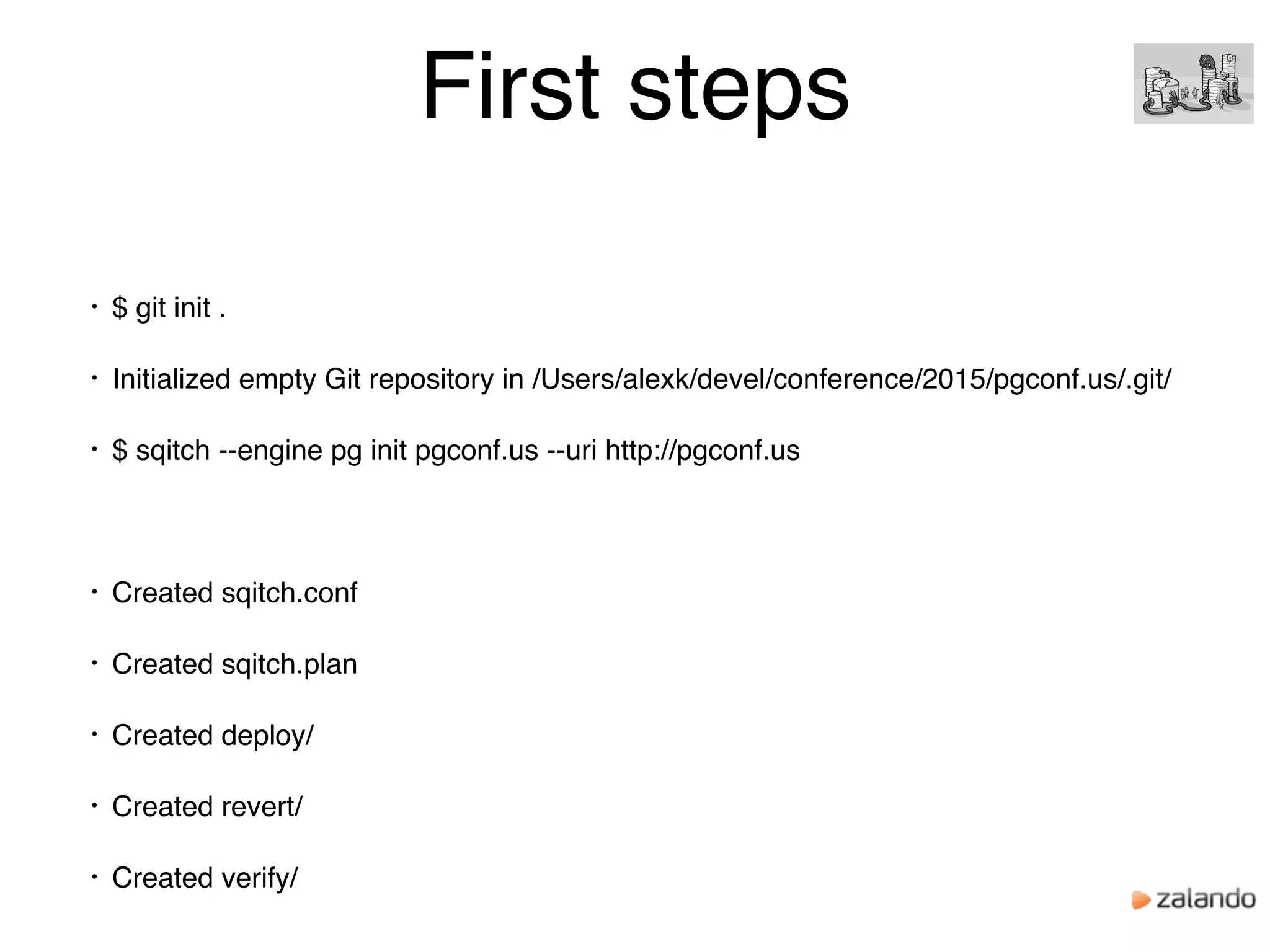

19. First steps
• $ git init .
• Initialized empty Git repository in /Users/alexk/devel/conference/2015/pgconf.us/.git/
• $ sqitch --engine pg init pgconf.us --uri http://pgconf.us
• Created sqitch.conf
• Created sqitch.plan
• Created deploy/
• Created revert/
• Created verify/

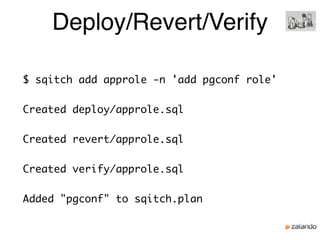

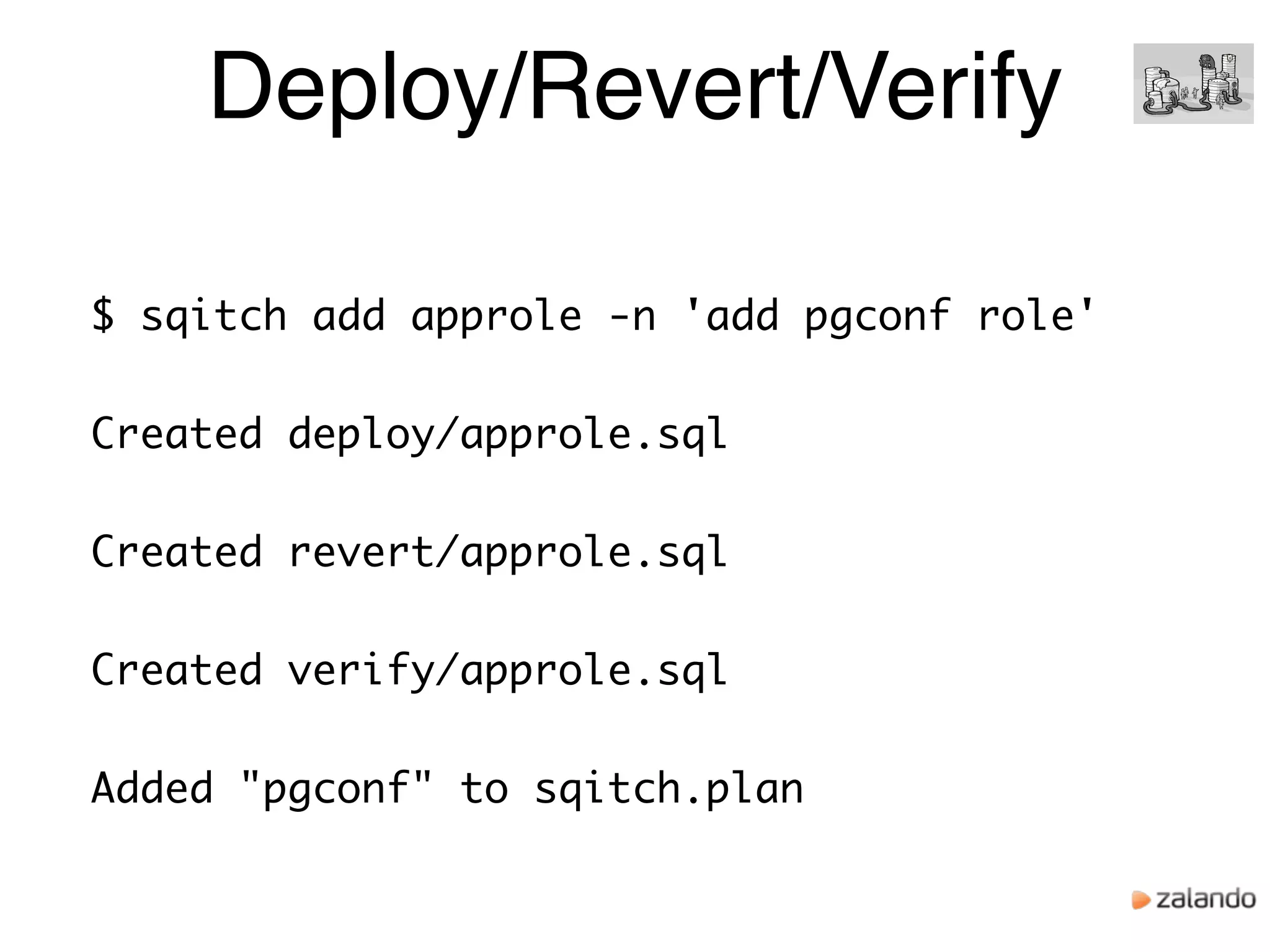

20. Deploy/Revert/Verify
$ sqitch add approle -n 'add pgconf role'
Created deploy/approle.sql
Created revert/approle.sql
Created verify/approle.sql
Added "pgconf" to sqitch.plan

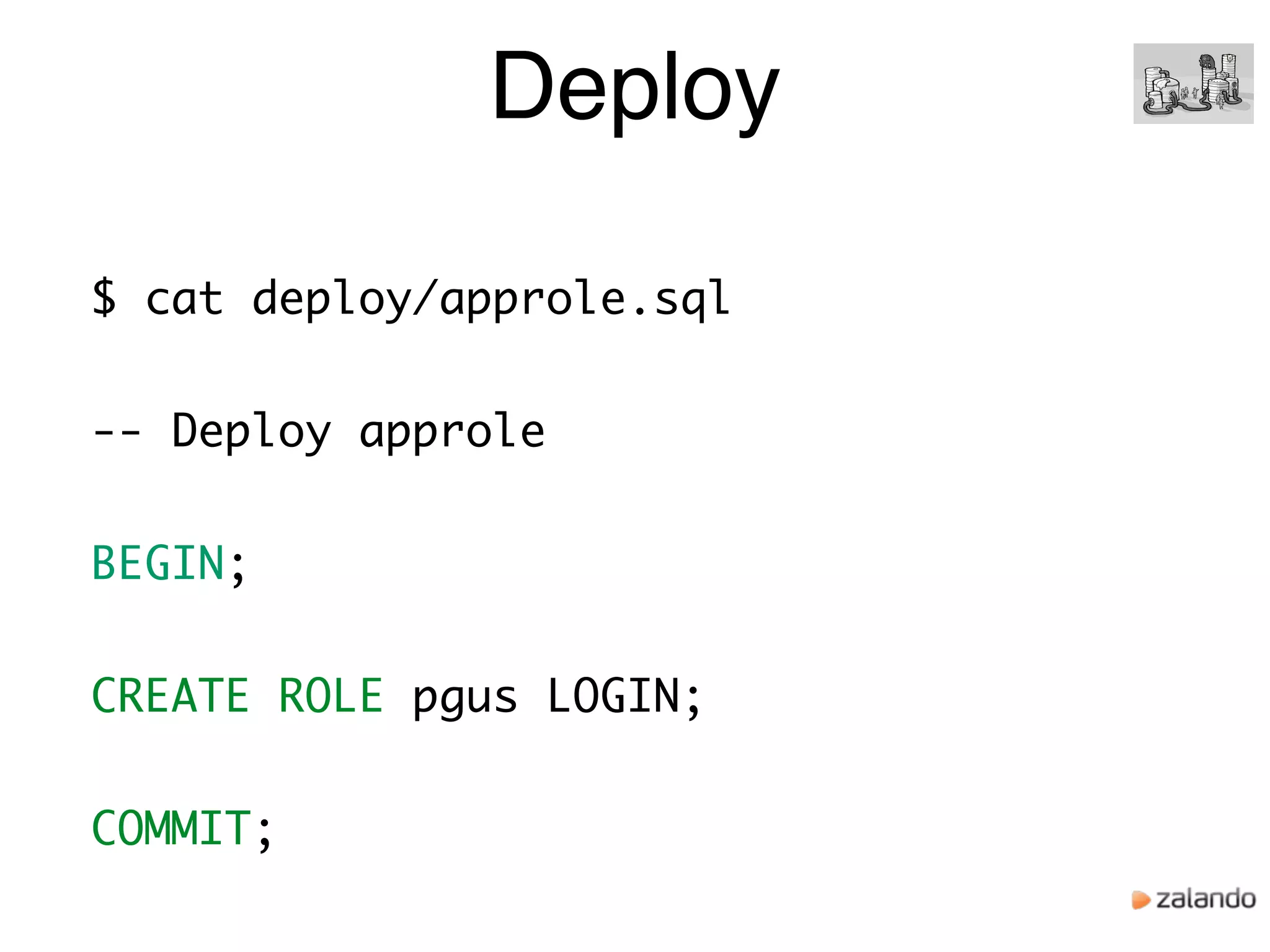

21. Deploy
$ cat deploy/approle.sql
-- Deploy approle
BEGIN;
CREATE ROLE pgus LOGIN;
COMMIT;

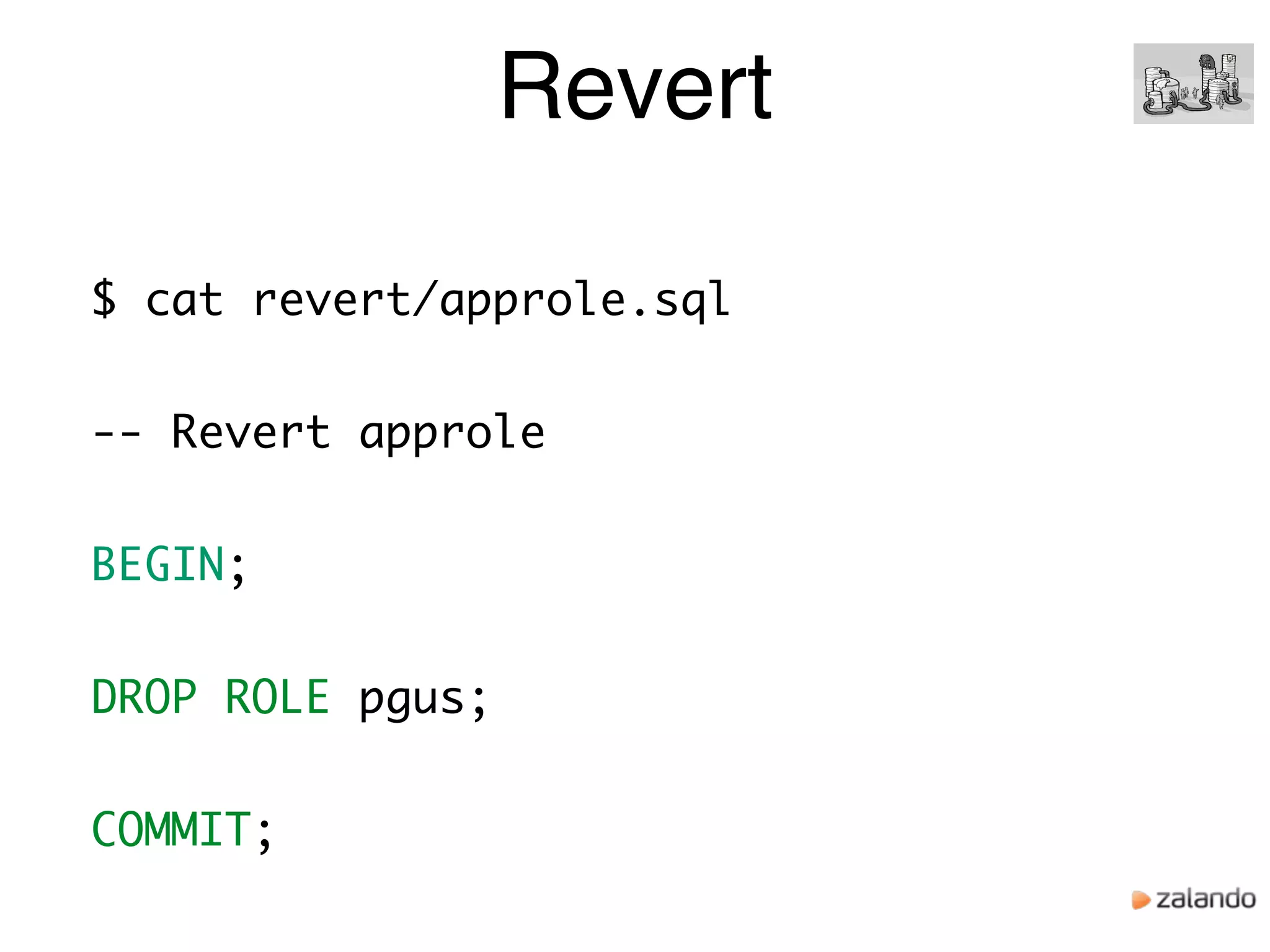

22. Revert
$ cat revert/approle.sql
-- Revert approle
BEGIN;
DROP ROLE pgus;
COMMIT;

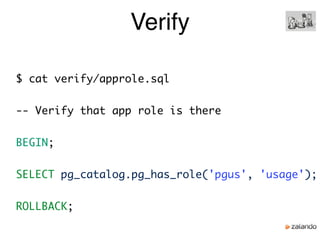

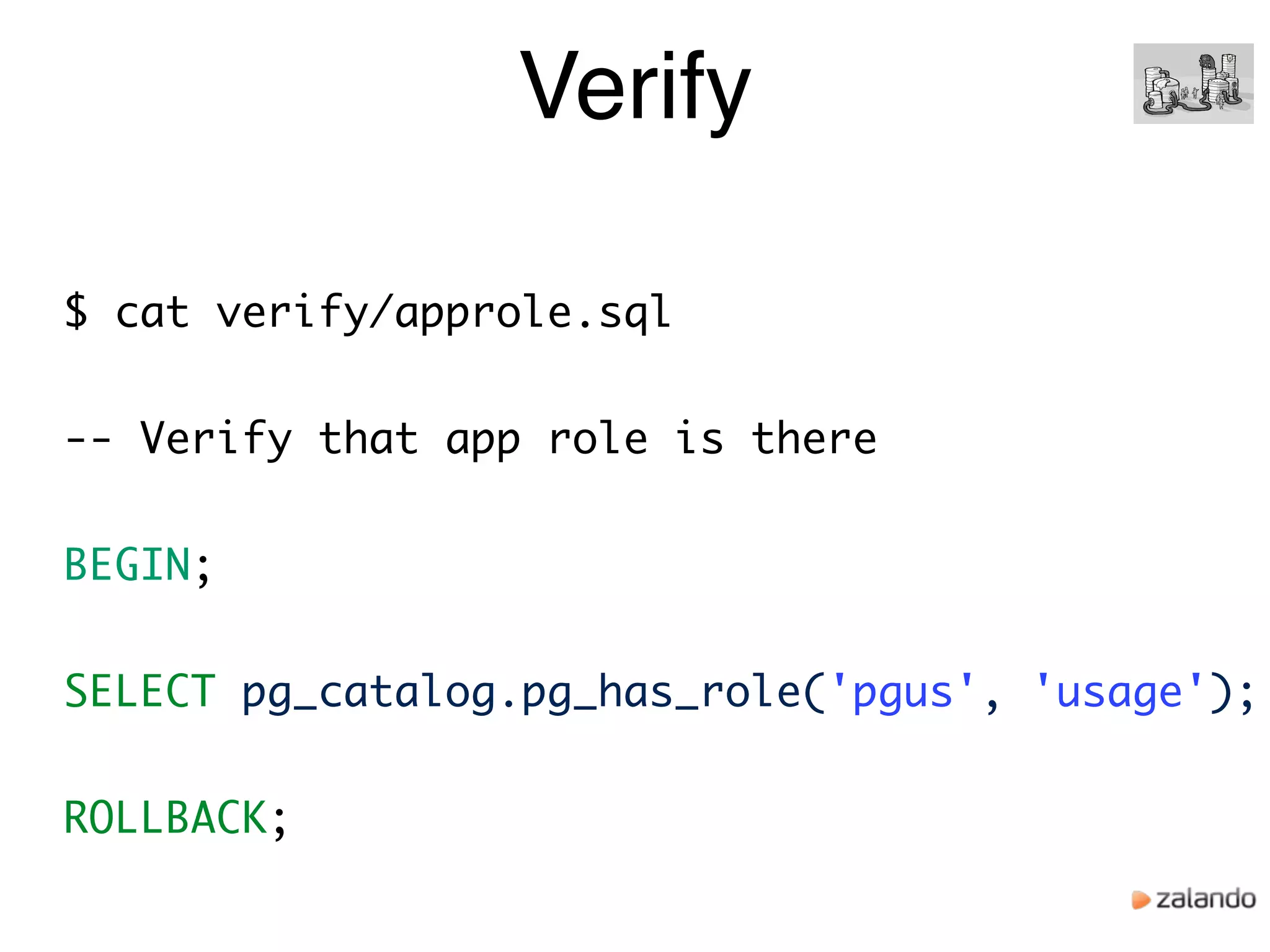

23. Verify
$ cat verify/approle.sql
-- Verify that app role is there
BEGIN;
SELECT pg_catalog.pg_has_role('pgus', 'usage');
ROLLBACK;

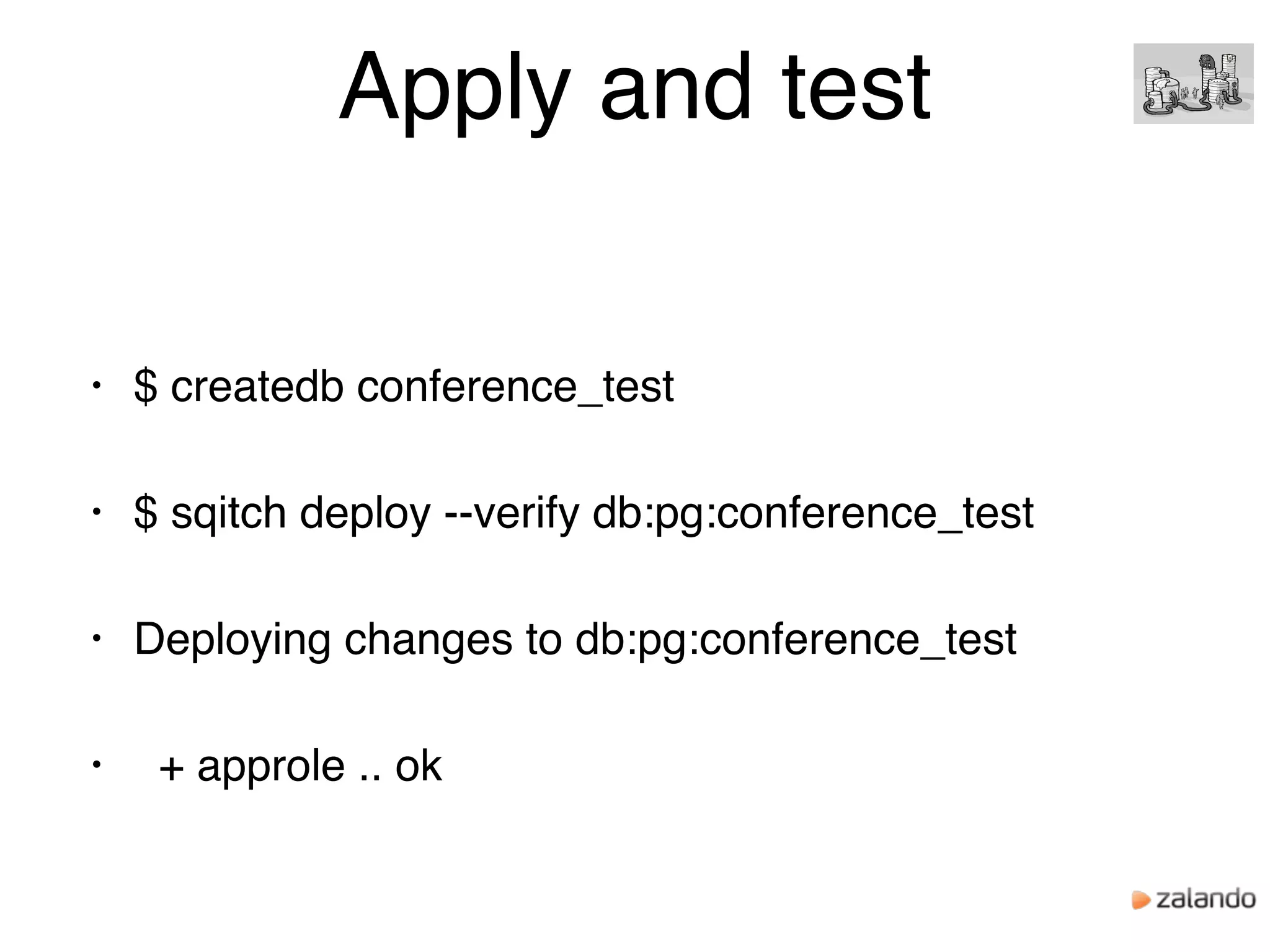

24. Apply and test
• $ createdb conference_test
• $ sqitch deploy --verify db:pg:conference_test
• Deploying changes to db:pg:conference_test
• + approle .. ok

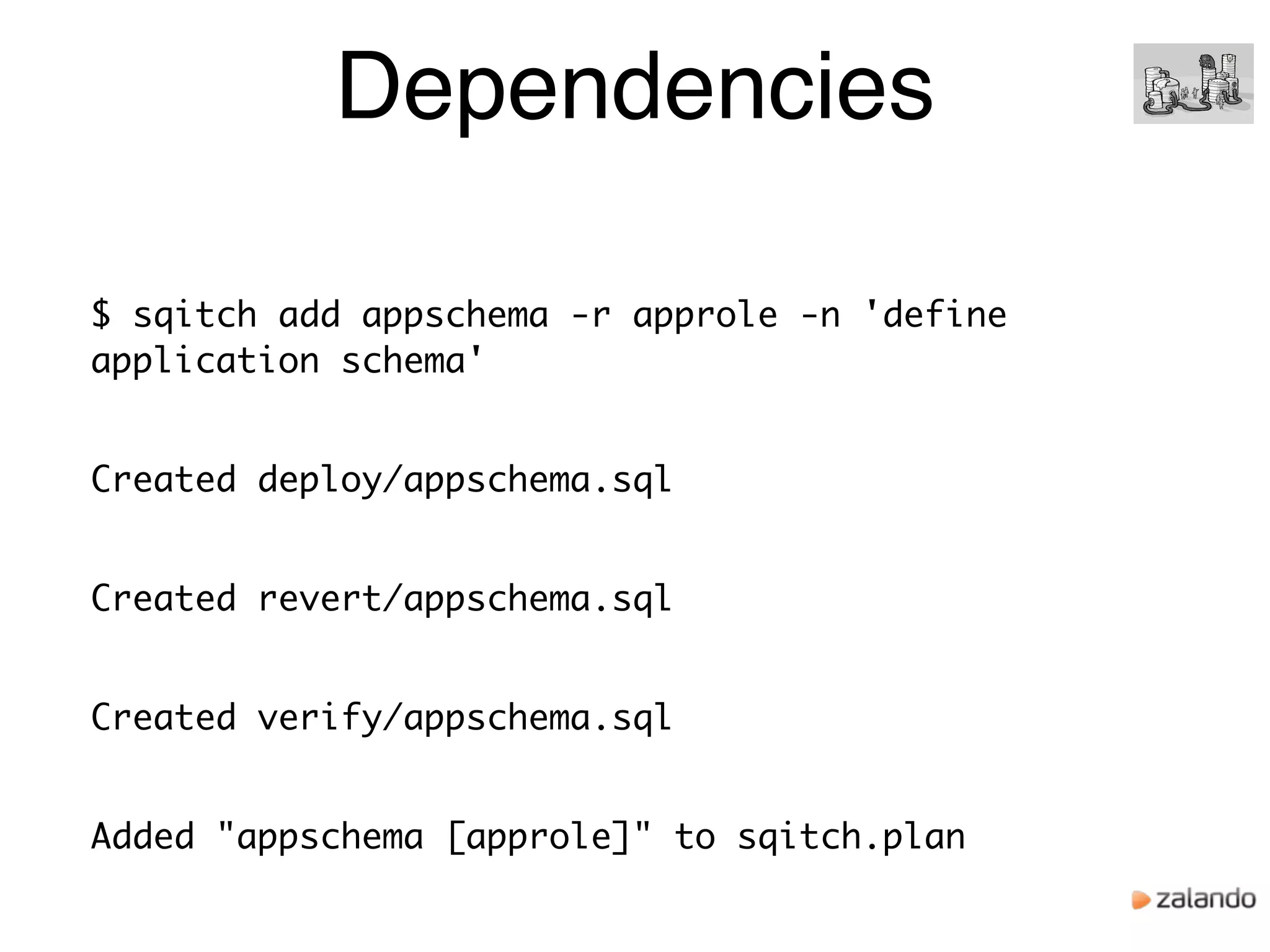

25. Dependencies
$ sqitch add appschema -r approle -n 'define
application schema'
Created deploy/appschema.sql
Created revert/appschema.sql
Created verify/appschema.sql
Added "appschema [approle]" to sqitch.plan

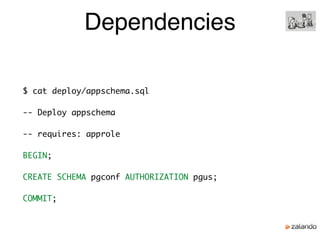

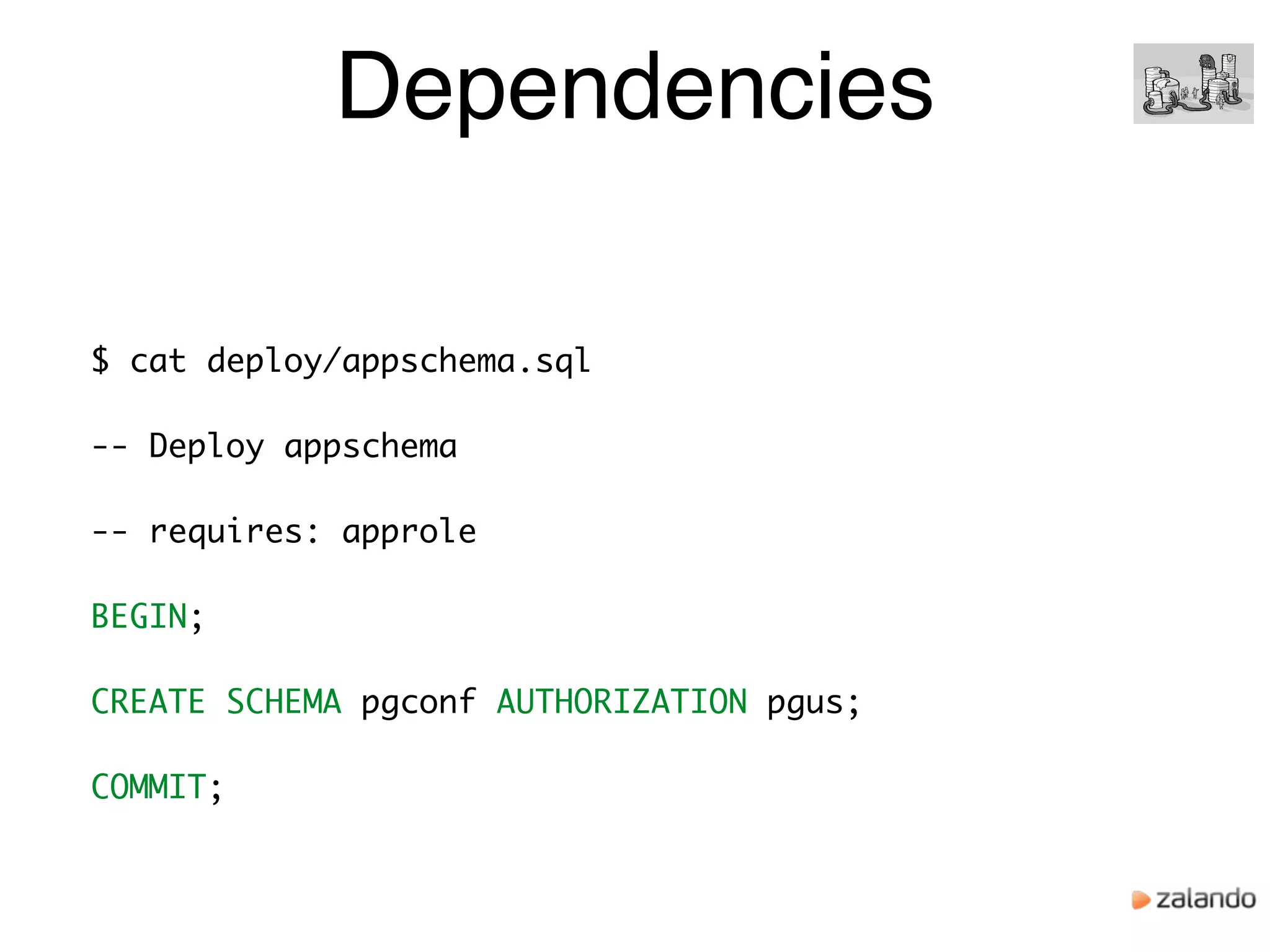

26. Dependencies
$ cat deploy/appschema.sql
-- Deploy appschema
-- requires: approle
BEGIN;
CREATE SCHEMA pgconf AUTHORIZATION pgus;
COMMIT;

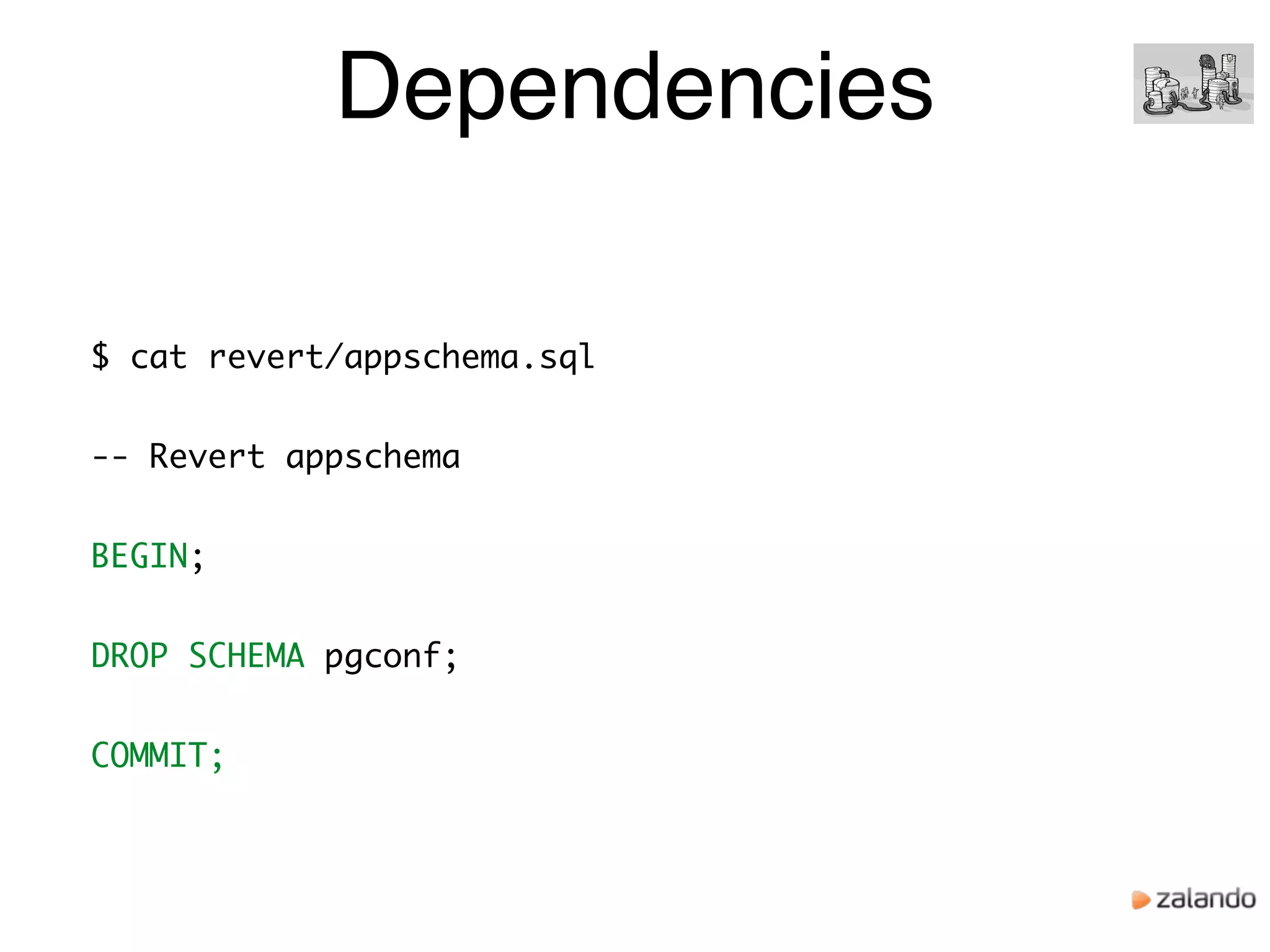

27. Dependencies
$ cat revert/appschema.sql
-- Revert appschema
BEGIN;
DROP SCHEMA pgconf;
COMMIT;

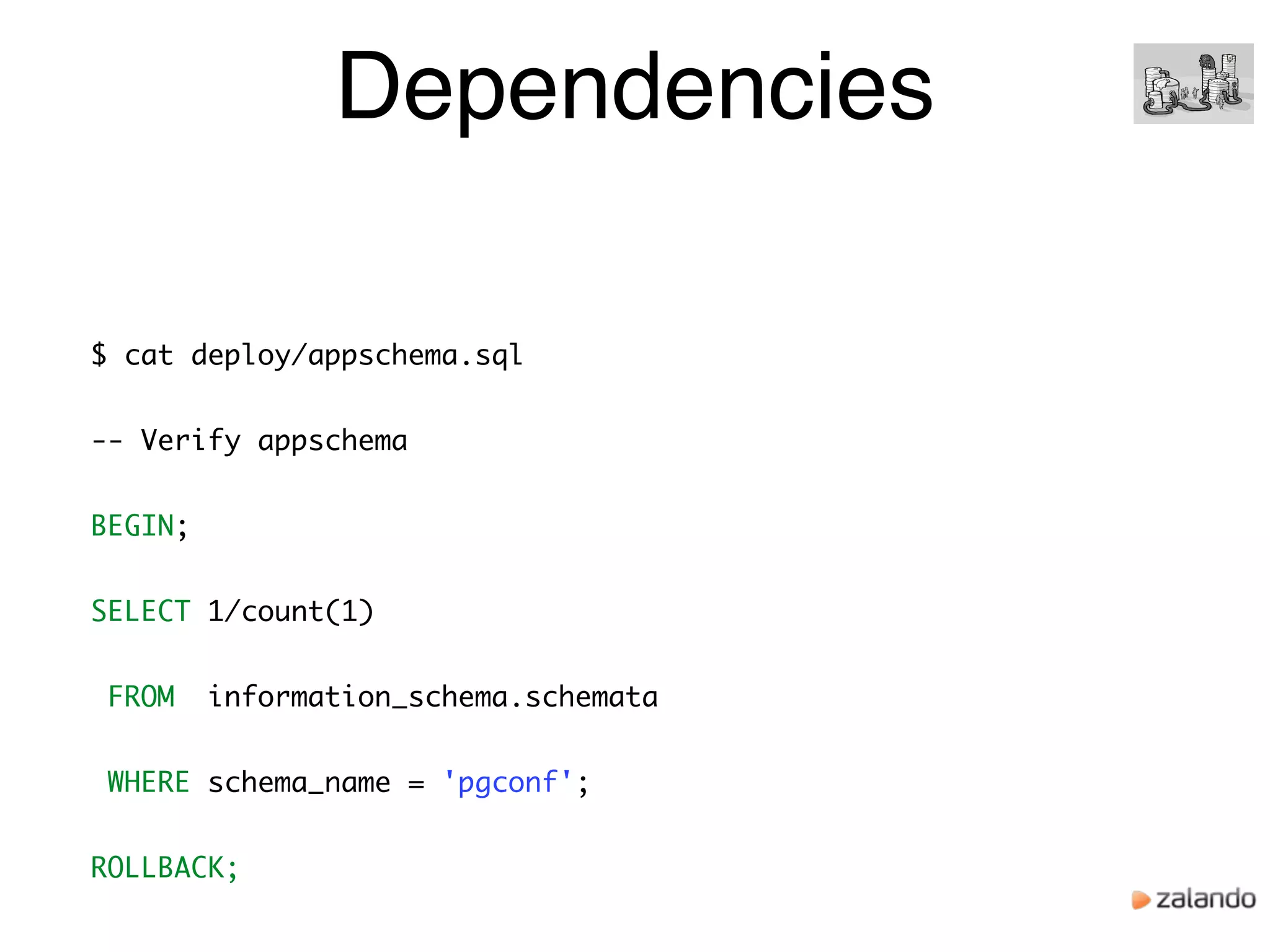

28. Dependencies
$ cat deploy/appschema.sql
-- Verify appschema
BEGIN;
SELECT 1/count(1)
FROM information_schema.schemata
WHERE schema_name = 'pgconf';
ROLLBACK;

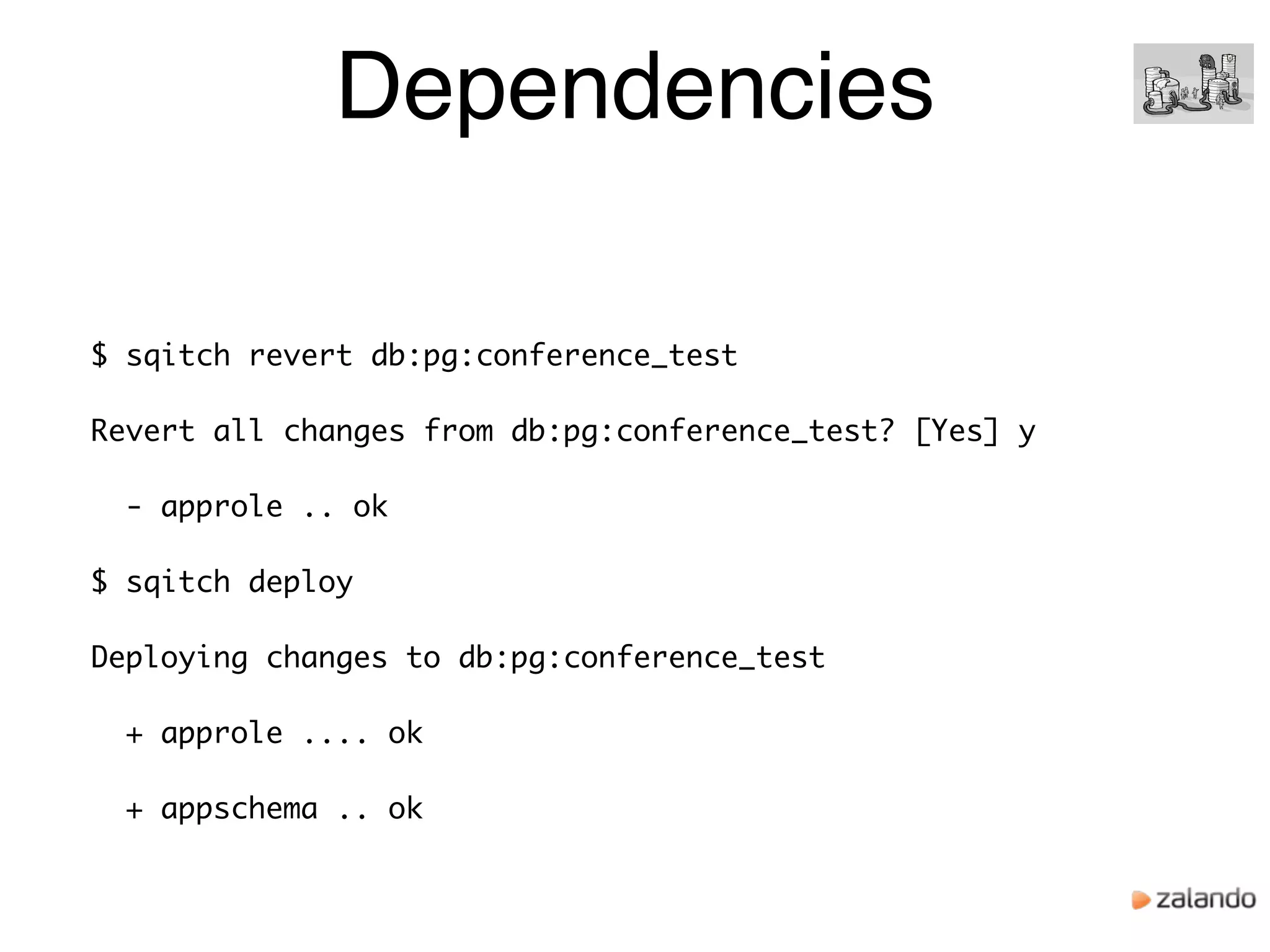

29. Dependencies
$ sqitch revert db:pg:conference_test
Revert all changes from db:pg:conference_test? [Yes] y
- approle .. ok
$ sqitch deploy
Deploying changes to db:pg:conference_test
+ approle .... ok
+ appschema .. ok

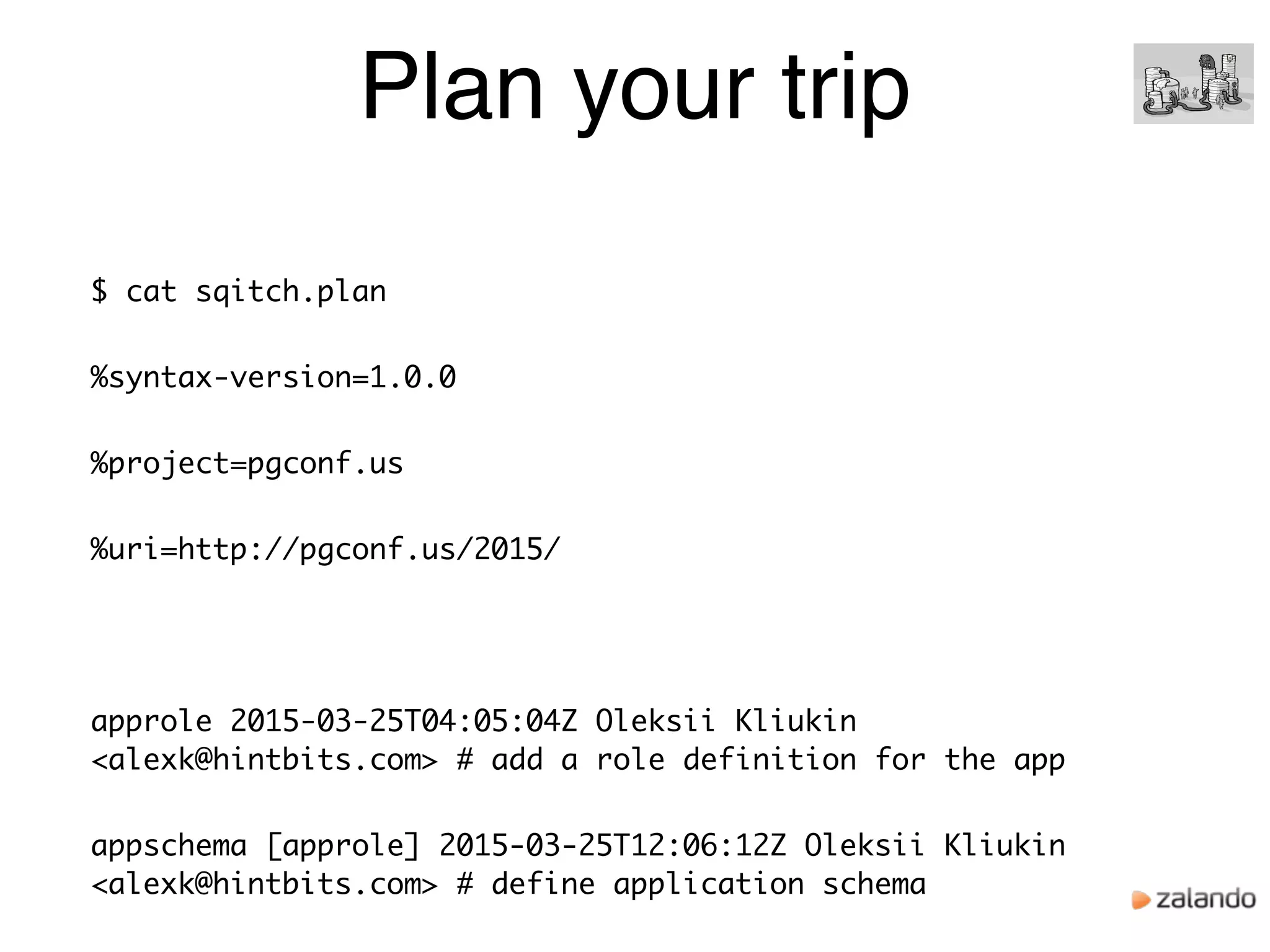

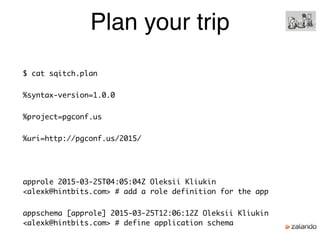

30. Plan your trip
$ cat sqitch.plan
%syntax-version=1.0.0
%project=pgconf.us
%uri=http://pgconf.us/2015/
approle 2015-03-25T04:05:04Z Oleksii Kliukin
<alexk@hintbits.com> # add a role definition for the app
appschema [approle] 2015-03-25T12:06:12Z Oleksii Kliukin
<alexk@hintbits.com> # define application schema

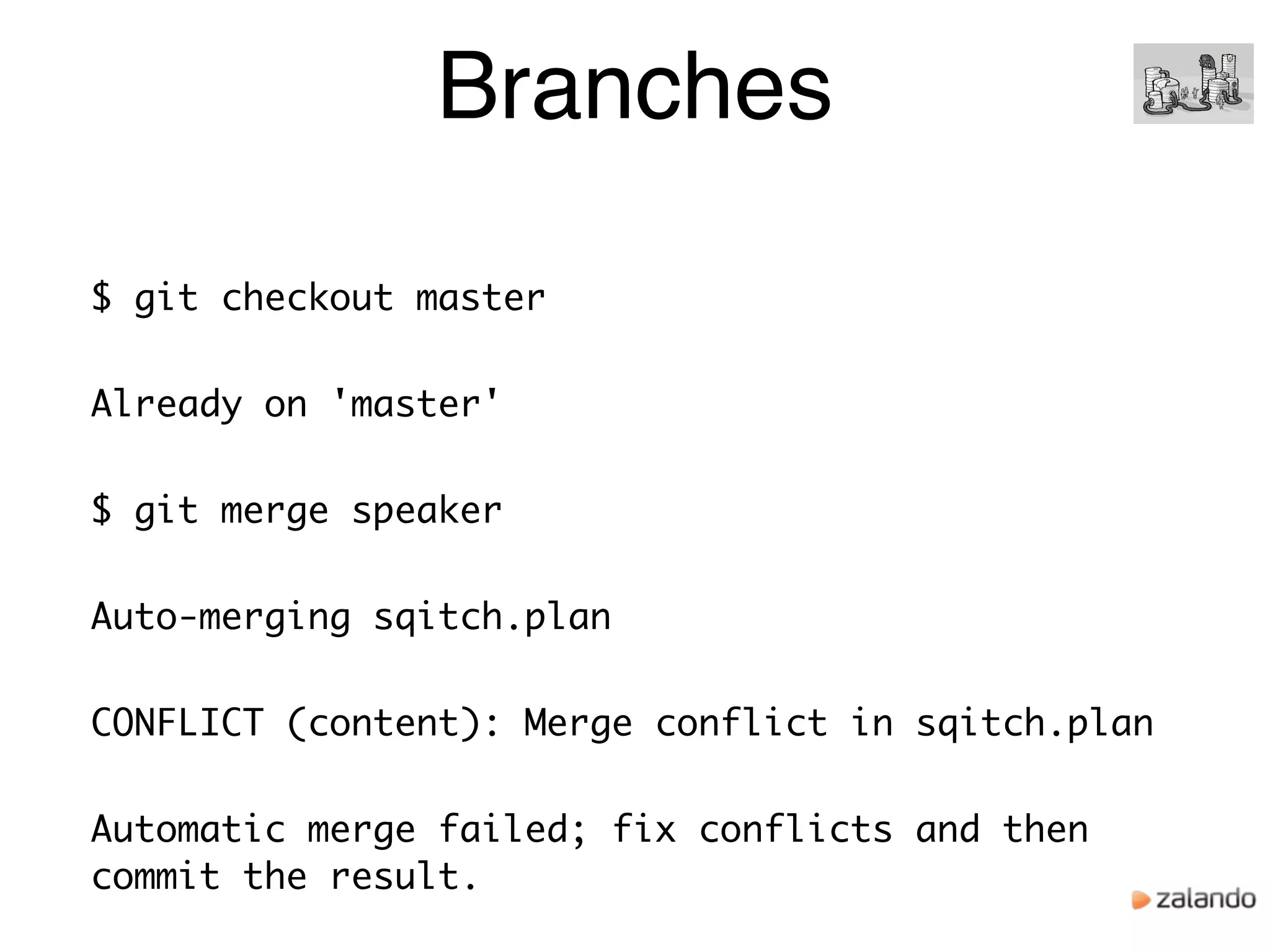

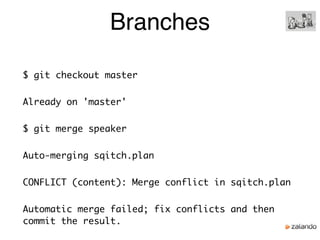

31. Branches
$ git checkout master
Already on 'master'
$ git merge speaker
Auto-merging sqitch.plan
CONFLICT (content): Merge conflict in sqitch.plan
Automatic merge failed; fix conflicts and then
commit the result.

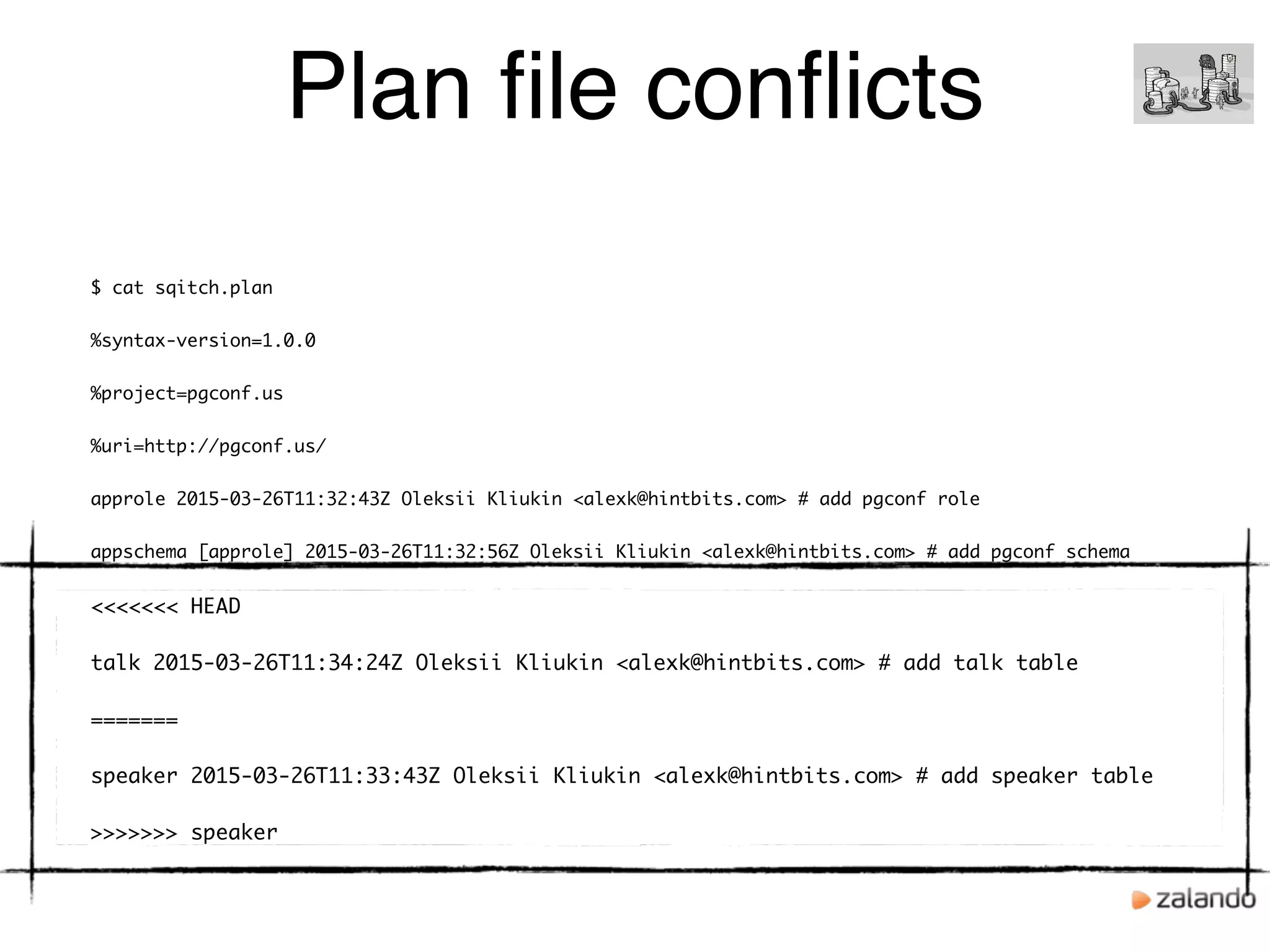

32. Plan file conflicts
$ cat sqitch.plan
%syntax-version=1.0.0
%project=pgconf.us
%uri=http://pgconf.us/
approle 2015-03-26T11:32:43Z Oleksii Kliukin <alexk@hintbits.com> # add pgconf role
appschema [approle] 2015-03-26T11:32:56Z Oleksii Kliukin <alexk@hintbits.com> # add pgconf schema
<<<<<<< HEAD
talk 2015-03-26T11:34:24Z Oleksii Kliukin <alexk@hintbits.com> # add talk table
=======
speaker 2015-03-26T11:33:43Z Oleksii Kliukin <alexk@hintbits.com> # add speaker table
>>>>>>> speaker

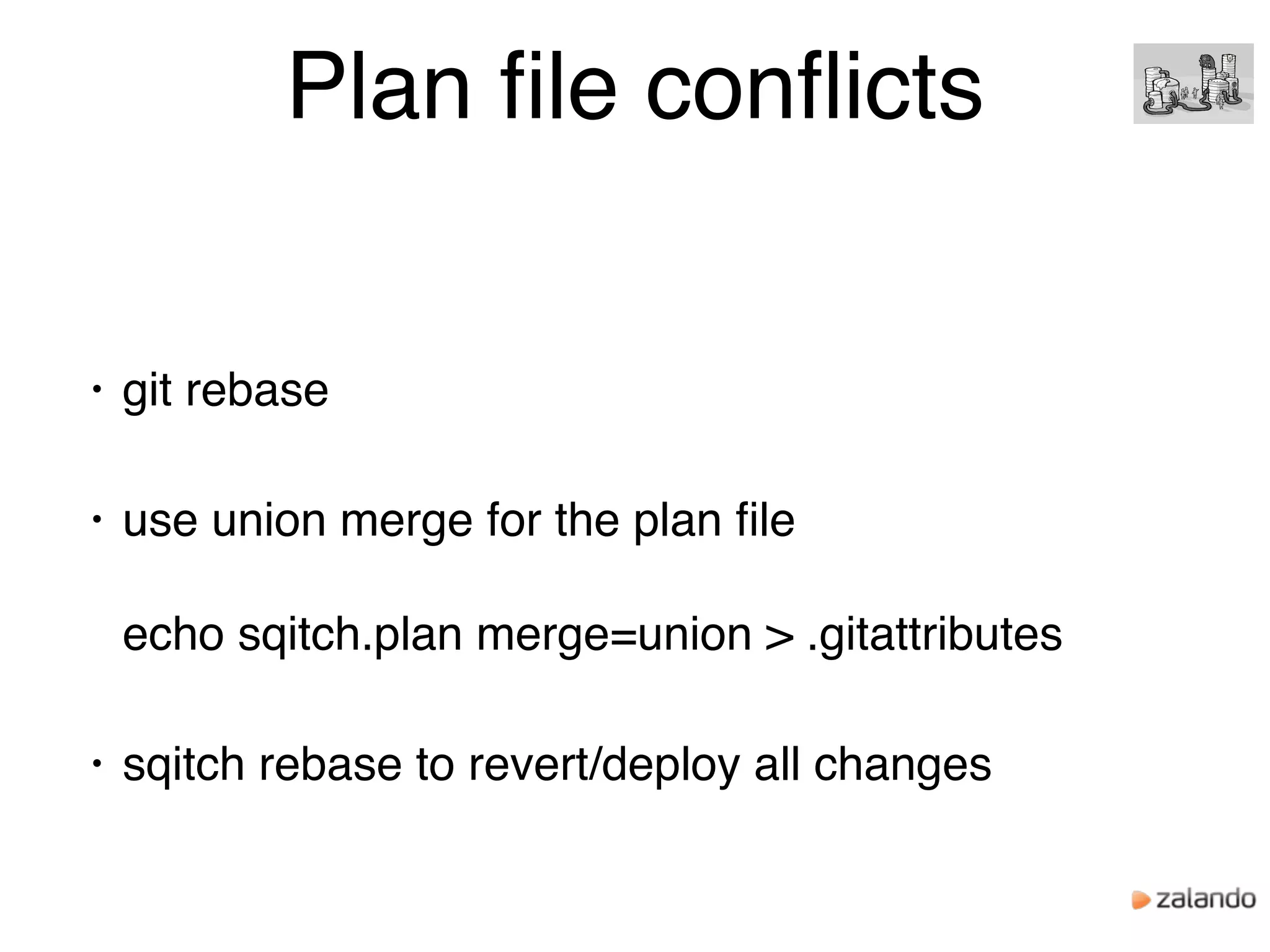

33. Plan file conflicts
• git rebase
• use union merge for the plan file
echo sqitch.plan merge=union > .gitattributes
• sqitch rebase to revert/deploy all changes

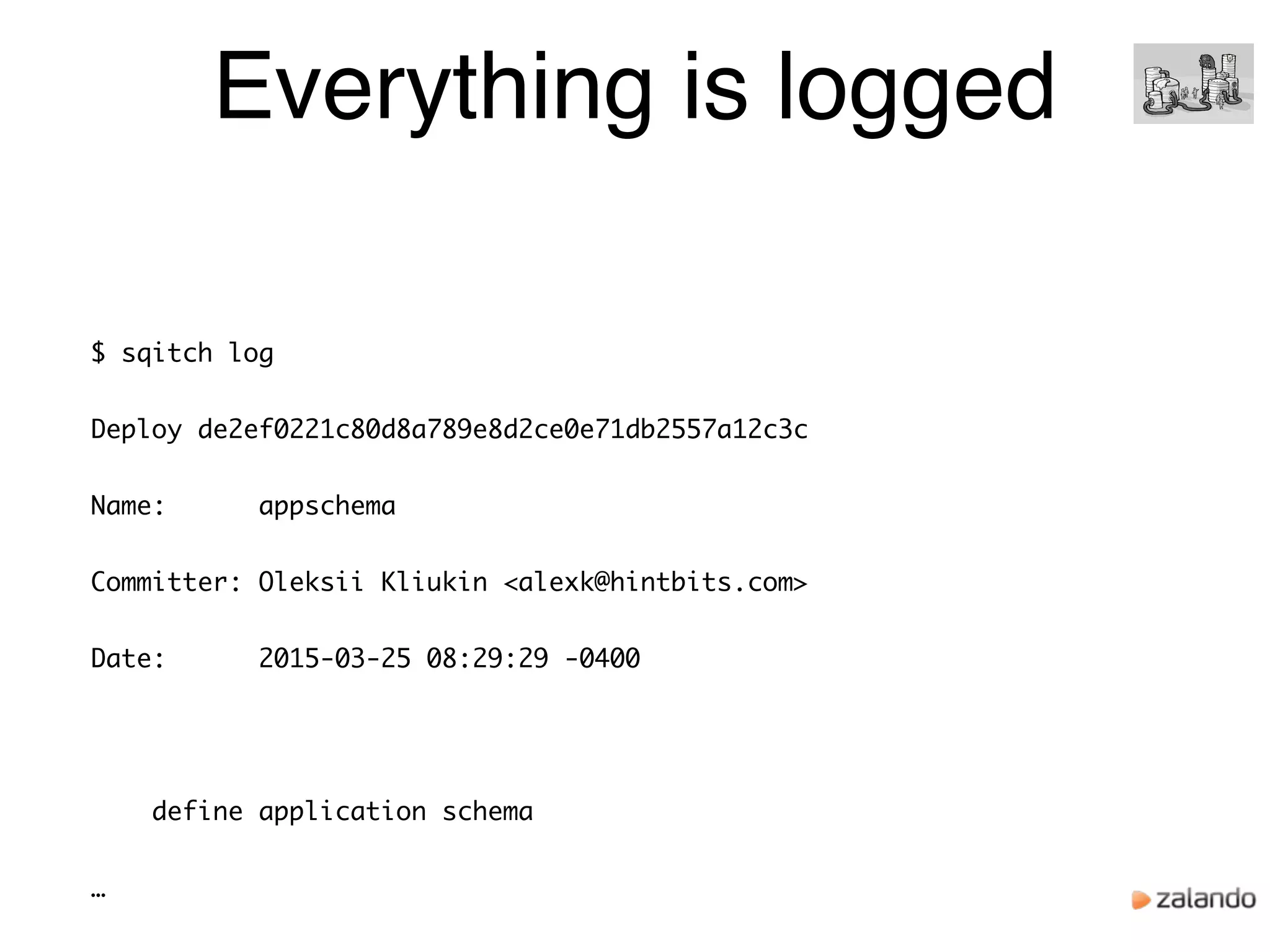

34. Everything is logged
$ sqitch log
Deploy de2ef0221c80d8a789e8d2ce0e71db2557a12c3c
Name: appschema
Committer: Oleksii Kliukin <alexk@hintbits.com>
Date: 2015-03-25 08:29:29 -0400
define application schema
…

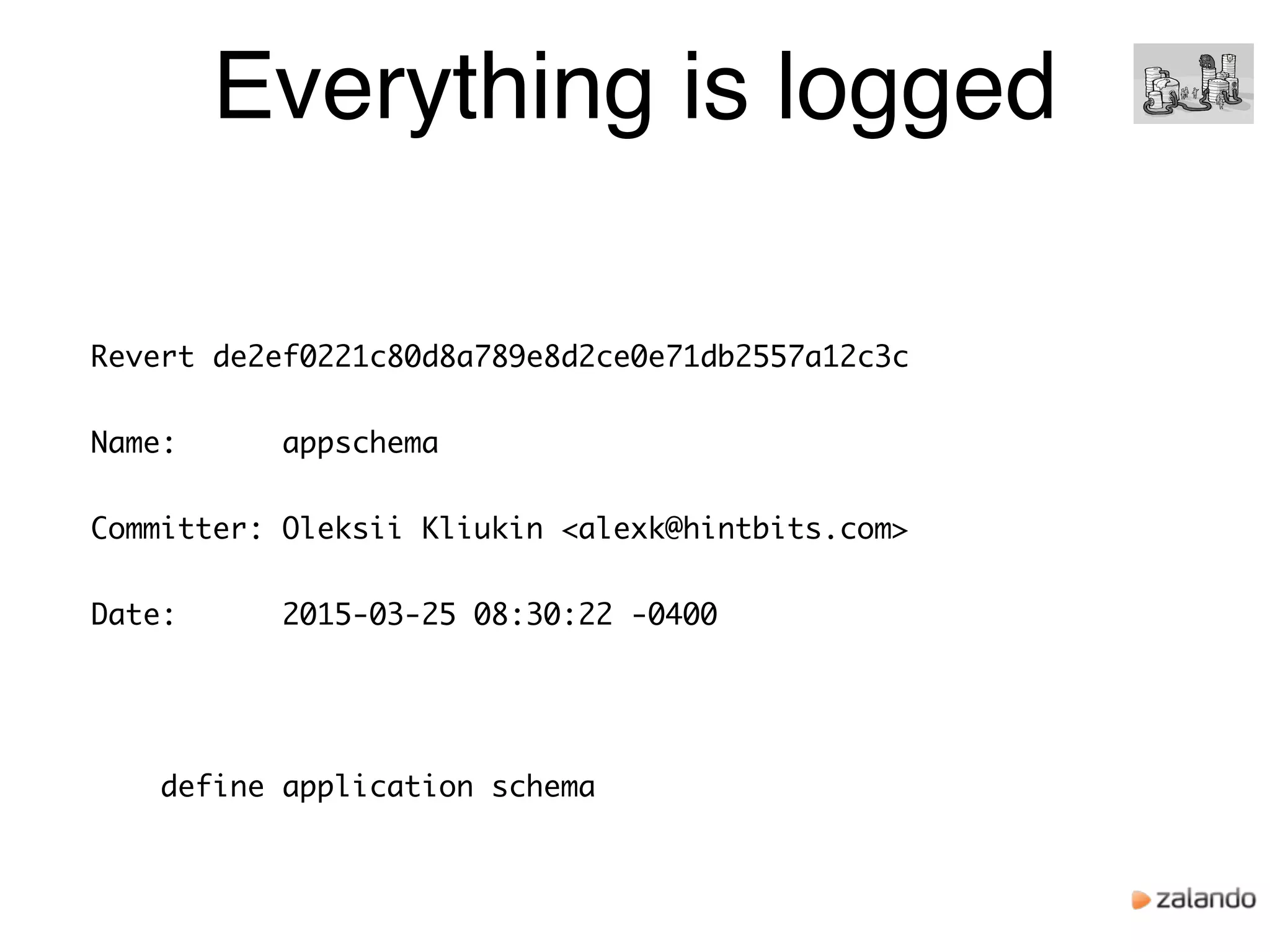

35. Everything is logged
Revert de2ef0221c80d8a789e8d2ce0e71db2557a12c3c
Name: appschema
Committer: Oleksii Kliukin <alexk@hintbits.com>
Date: 2015-03-25 08:30:22 -0400
define application schema

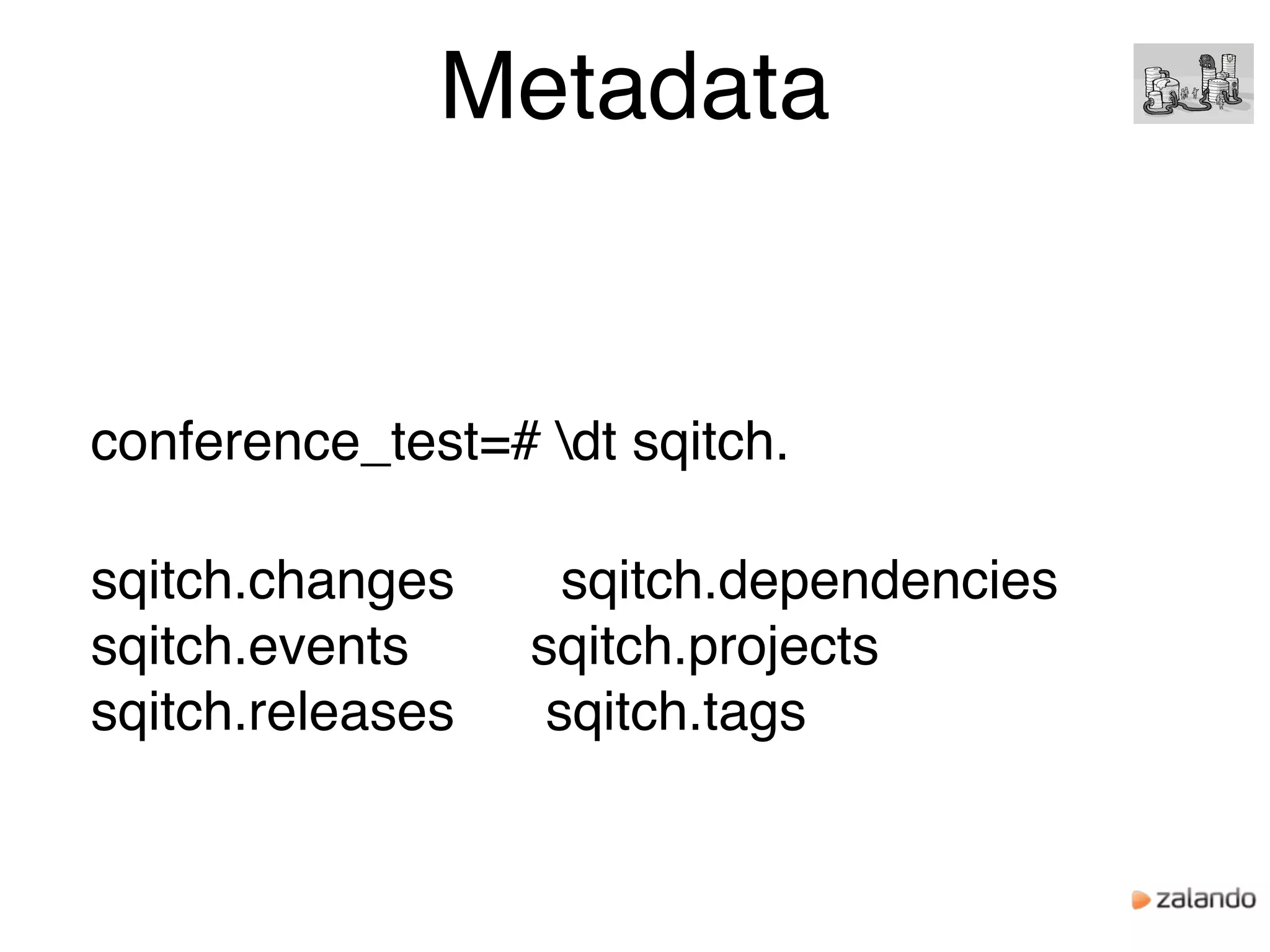

36. Metadata
conference_test=# dt sqitch.
sqitch.changes sqitch.dependencies
sqitch.events sqitch.projects
sqitch.releases sqitch.tags

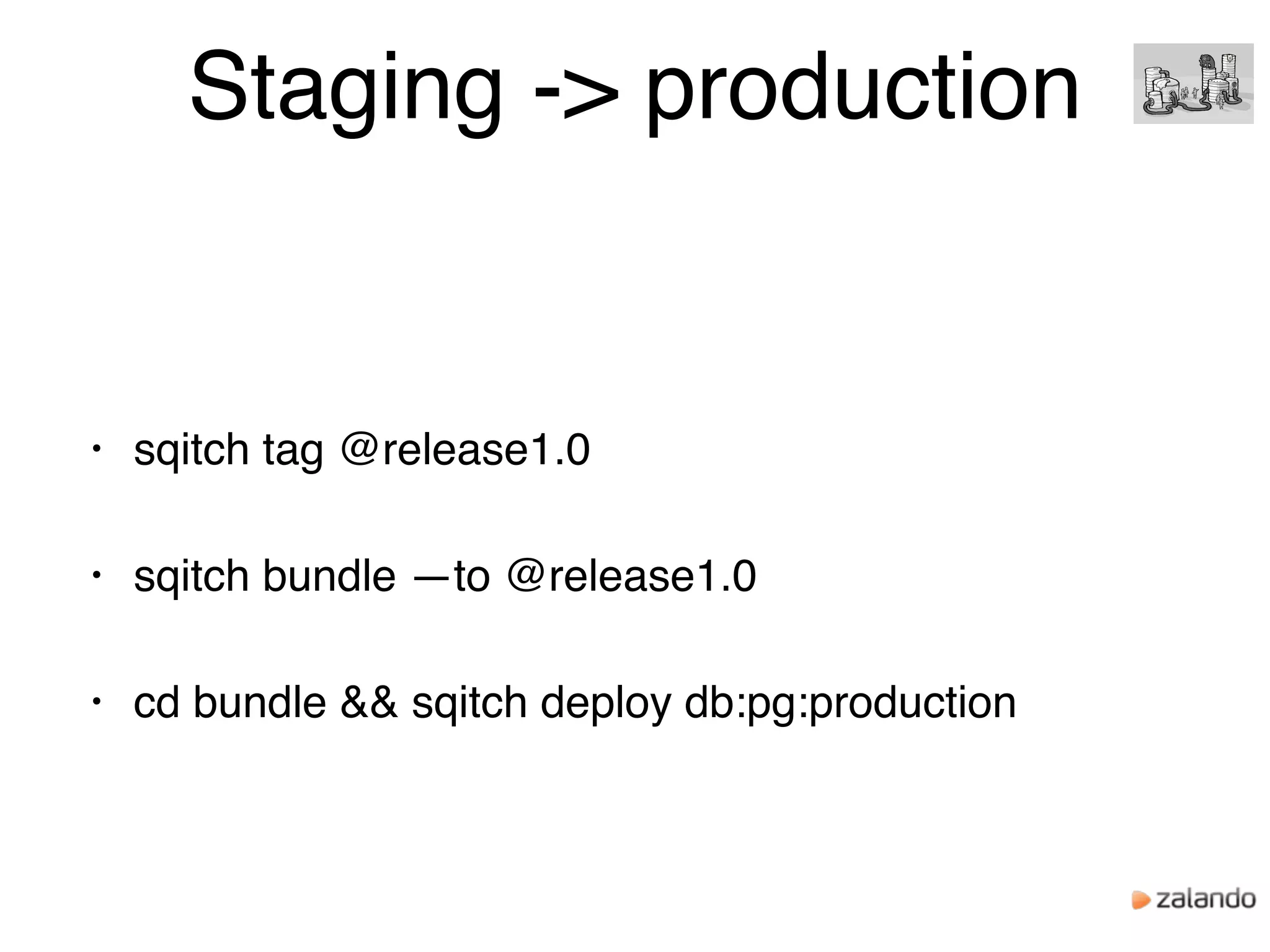

37. Staging -> production
• sqitch tag @release1.0
• sqitch bundle —to @release1.0
• cd bundle && sqitch deploy db:pg:production

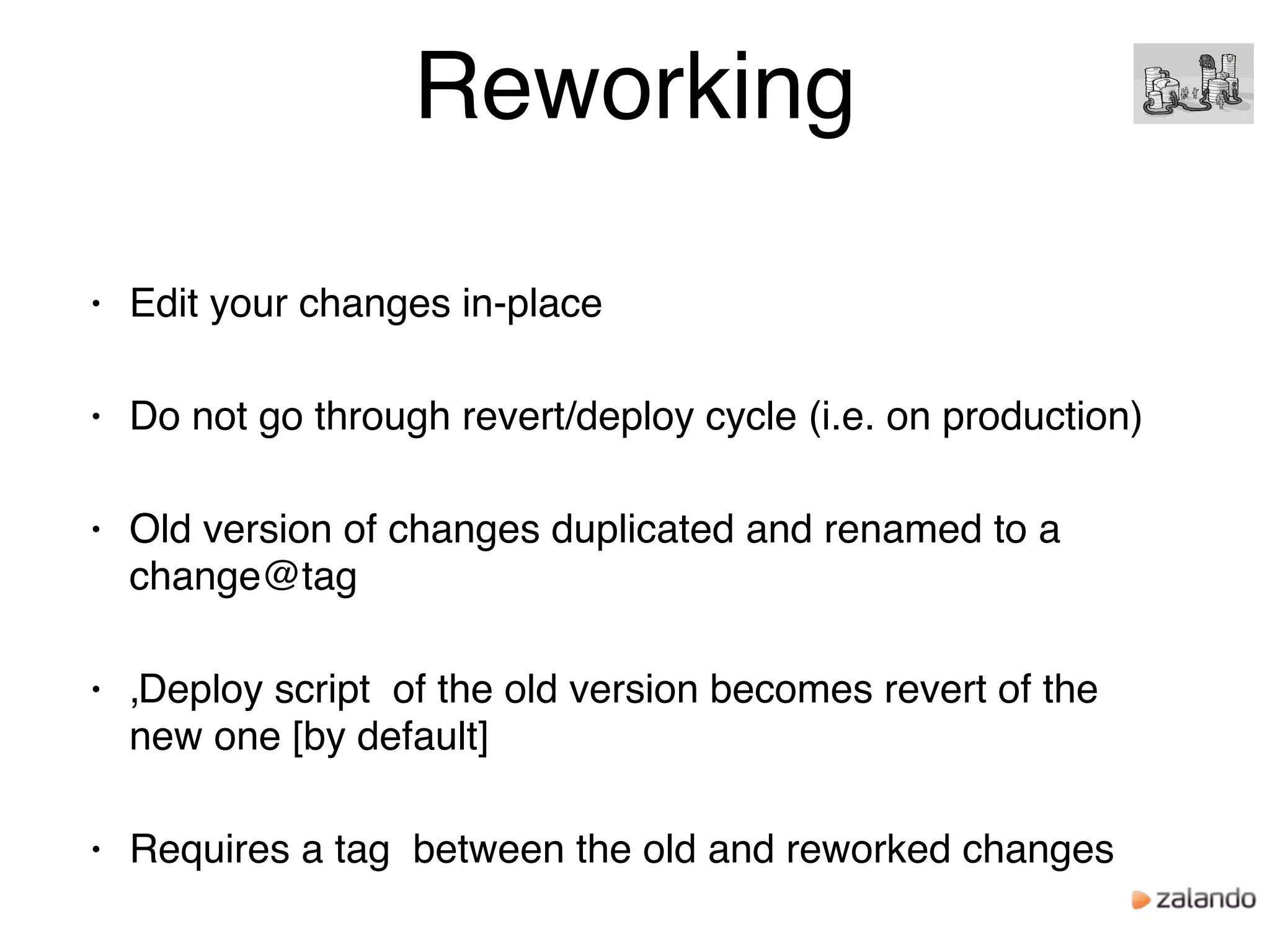

38. Reworking
• Edit your changes in-place
• Do not go through revert/deploy cycle (i.e. on production)
• Old version of changes duplicated and renamed to a
change@tag
• ‚Deploy script of the old version becomes revert of the
new one [by default]
• Requires a tag between the old and reworked changes

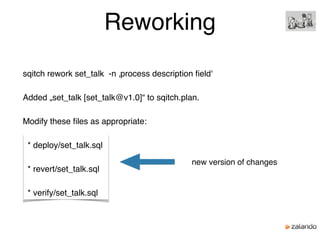

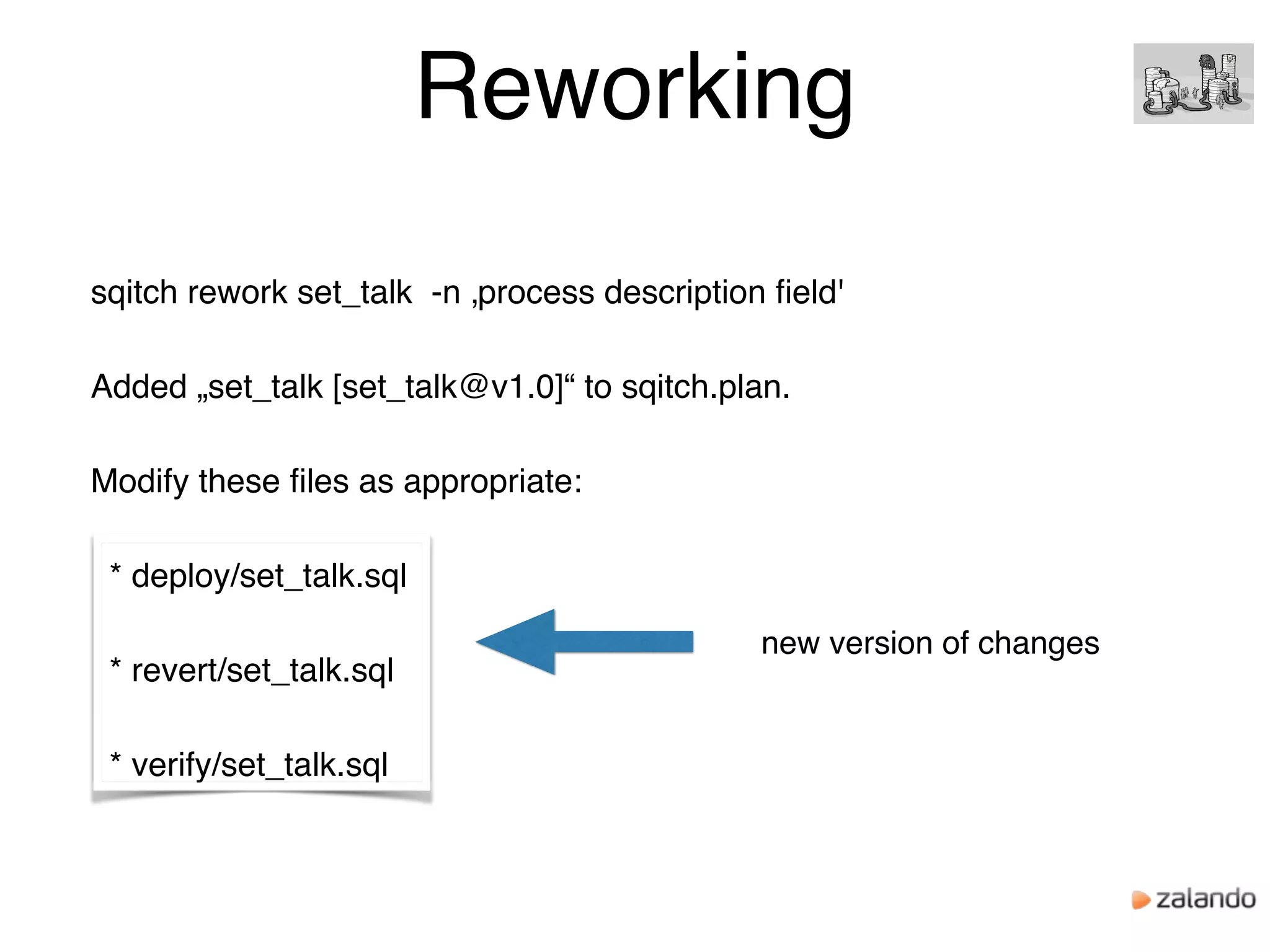

39. Reworking
sqitch rework set_talk -n ‚process description field'
Added „set_talk [set_talk@v1.0]“ to sqitch.plan.
Modify these files as appropriate:
* deploy/set_talk.sql
* revert/set_talk.sql
* verify/set_talk.sql
new version of changes

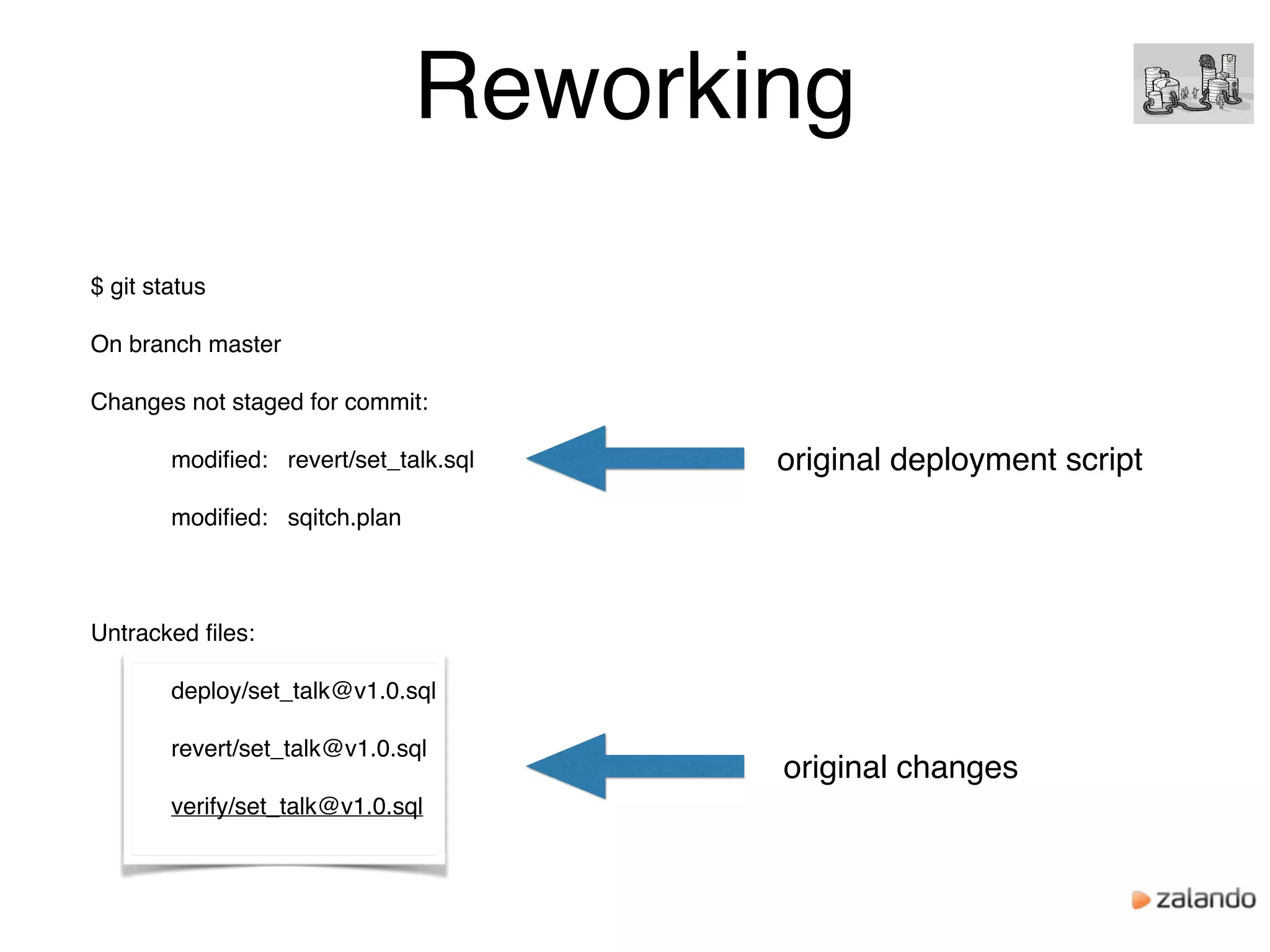

40. Reworking
$ git status
On branch master
Changes not staged for commit:
modified: revert/set_talk.sql
modified: sqitch.plan
Untracked files:
deploy/set_talk@v1.0.sql
revert/set_talk@v1.0.sql
verify/set_talk@v1.0.sql
original changes
original deployment script

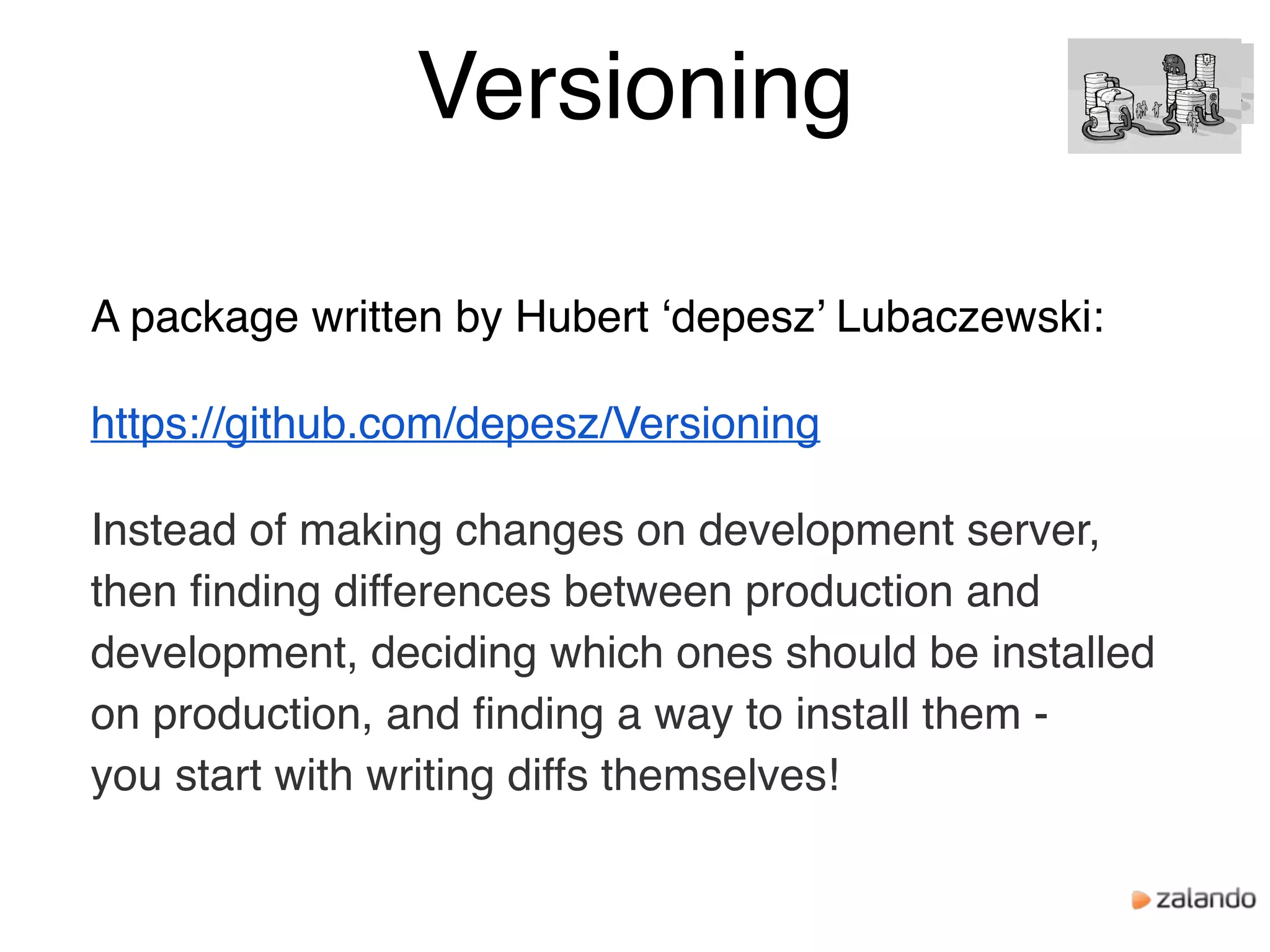

41. Versioning
A package written by Hubert ‘depesz’ Lubaczewski:
https://github.com/depesz/Versioning
Instead of making changes on development server,
then finding differences between production and
development, deciding which ones should be installed
on production, and finding a way to install them -
you start with writing diffs themselves!

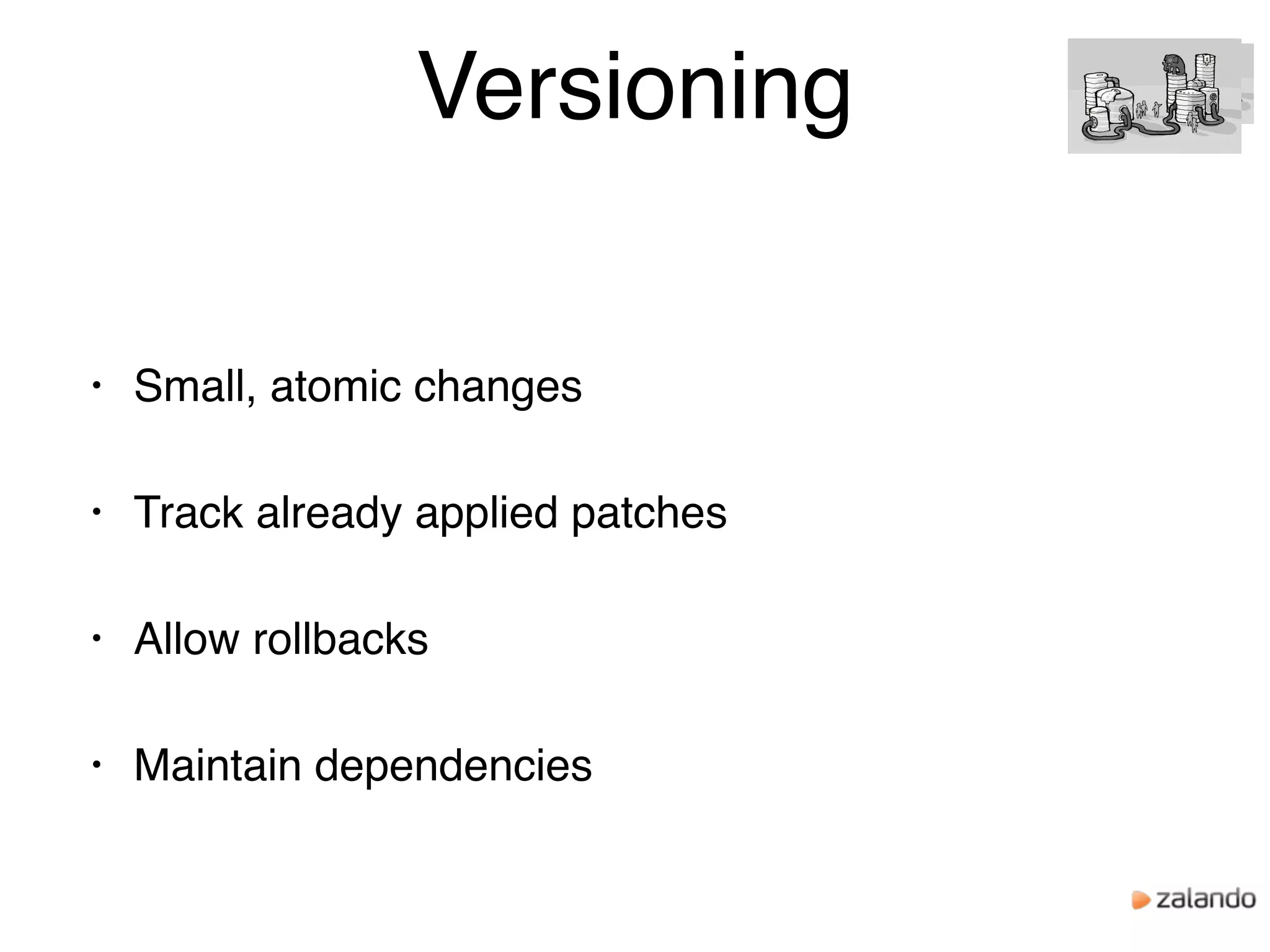

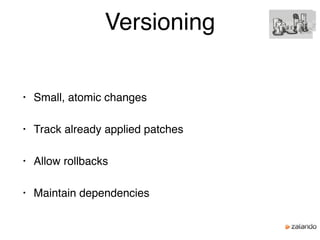

42. Versioning
• Small, atomic changes
• Track already applied patches
• Allow rollbacks
• Maintain dependencies

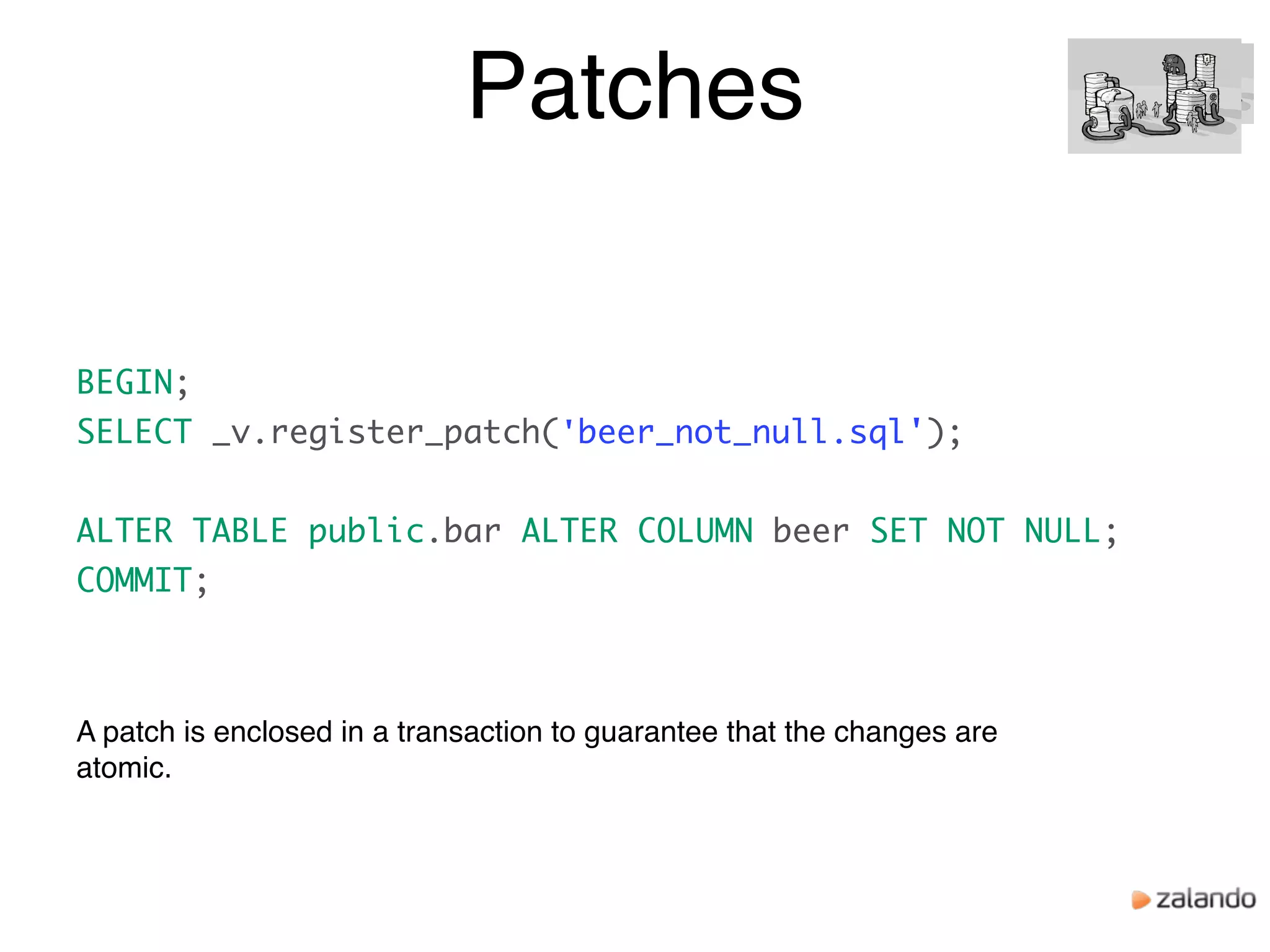

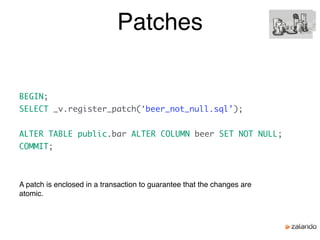

43. Patches
BEGIN;
SELECT _v.register_patch('beer_not_null.sql');
ALTER TABLE public.bar ALTER COLUMN beer SET NOT NULL;
COMMIT;
A patch is enclosed in a transaction to guarantee that the changes are
atomic.

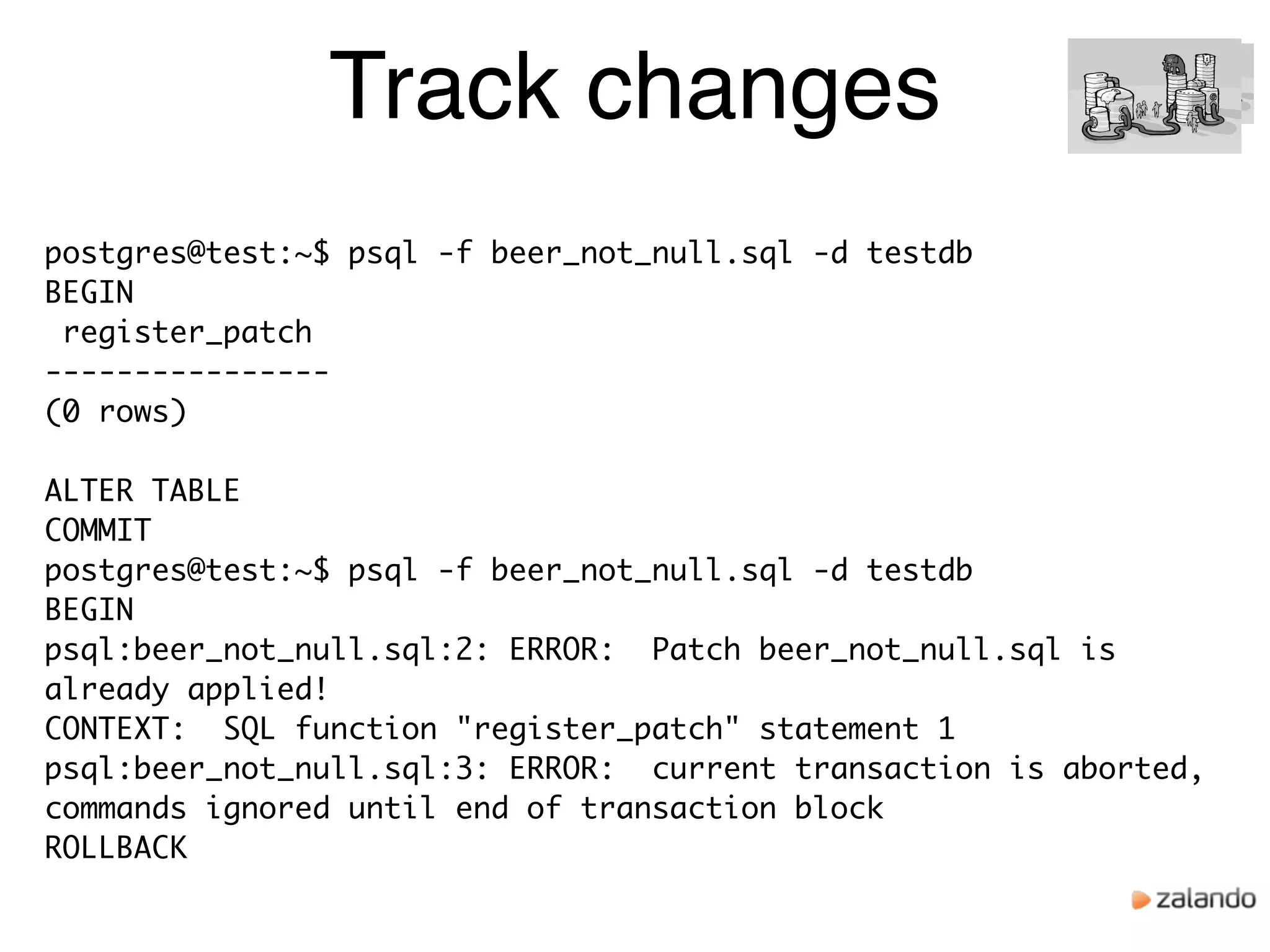

44. Track changes
postgres@test:~$ psql -f beer_not_null.sql -d testdb
BEGIN
register_patch
----------------
(0 rows)
ALTER TABLE
COMMIT
postgres@test:~$ psql -f beer_not_null.sql -d testdb
BEGIN
psql:beer_not_null.sql:2: ERROR: Patch beer_not_null.sql is
already applied!
CONTEXT: SQL function "register_patch" statement 1
psql:beer_not_null.sql:3: ERROR: current transaction is aborted,
commands ignored until end of transaction block
ROLLBACK

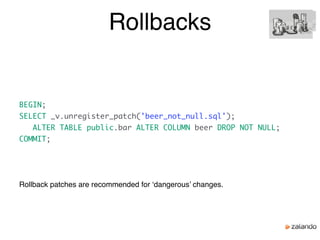

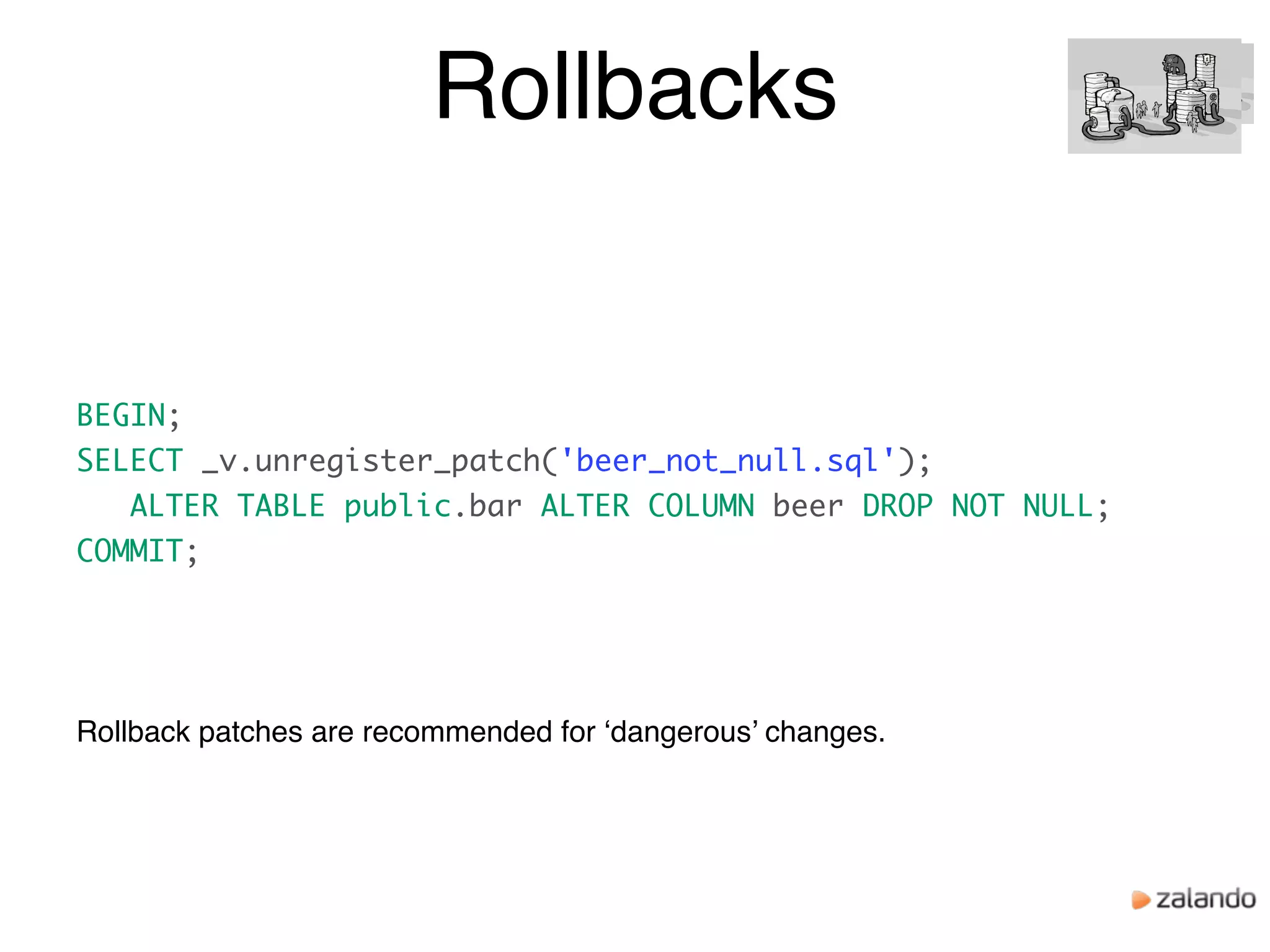

45. Rollbacks
Rollback patches are recommended for ‘dangerous’ changes.
BEGIN;
SELECT _v.unregister_patch('beer_not_null.sql');
ALTER TABLE public.bar ALTER COLUMN beer DROP NOT NULL;
COMMIT;

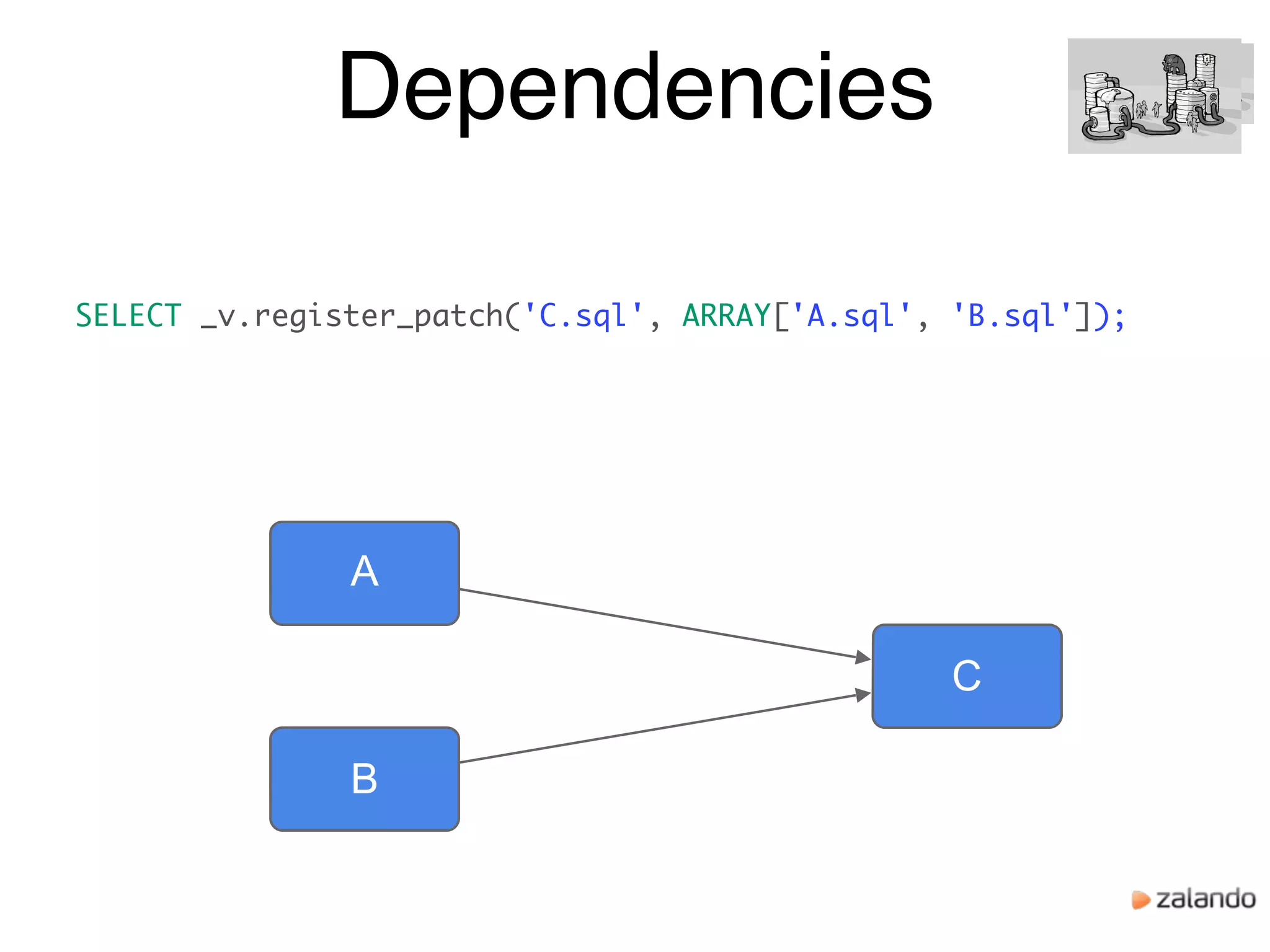

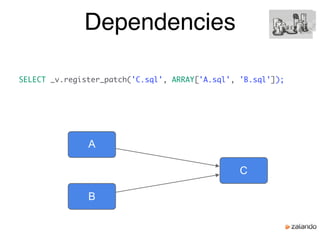

46. Dependencies
A
B
C
SELECT _v.register_patch('C.sql', ARRAY['A.sql', 'B.sql']);

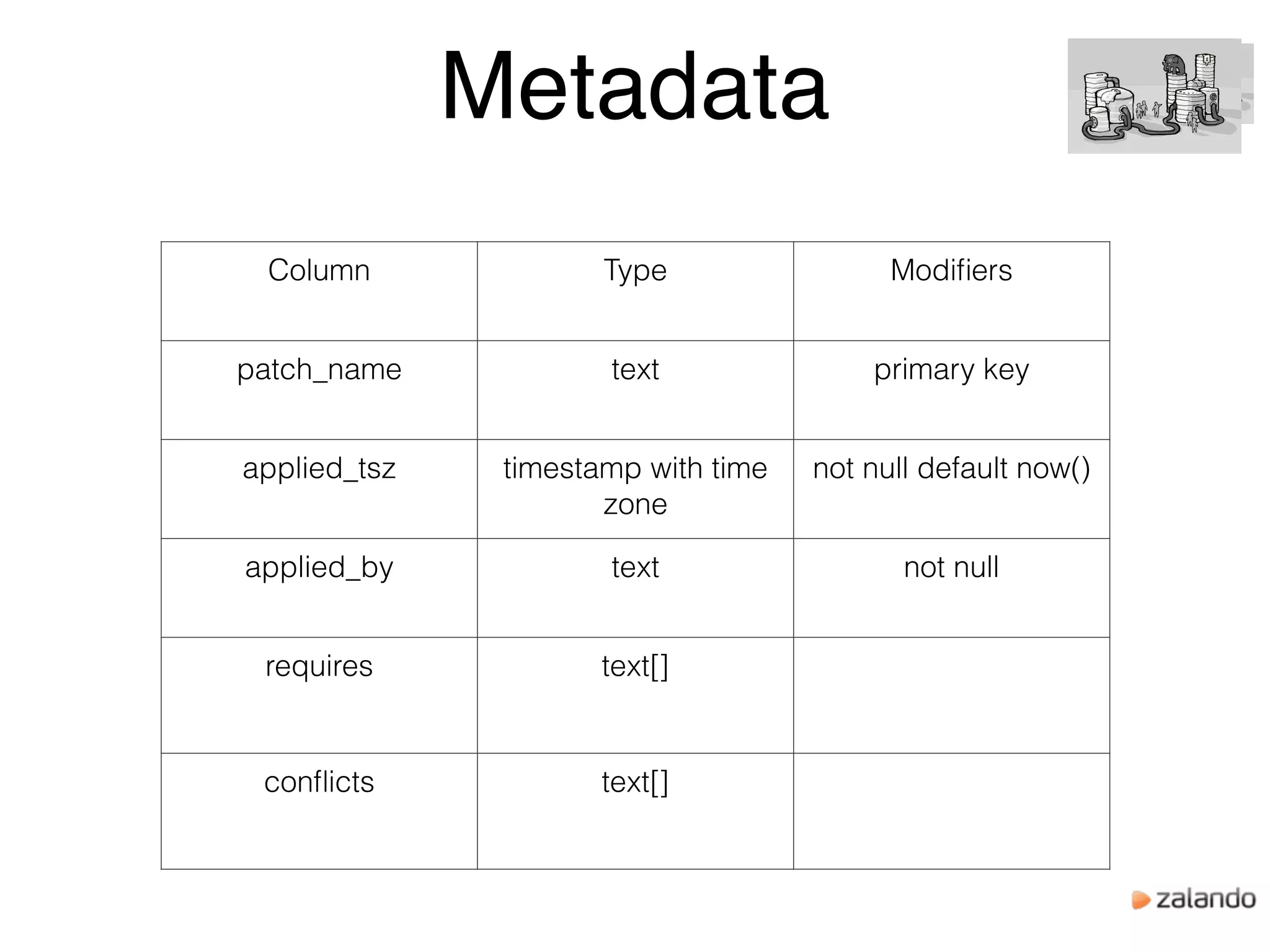

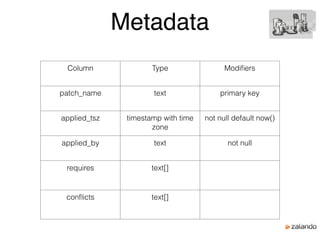

47. Metadata
Column Type Modifiers
patch_name text primary key
applied_tsz timestamp with time
zone
not null default now()
applied_by text not null
requires text[]
conflicts text[]

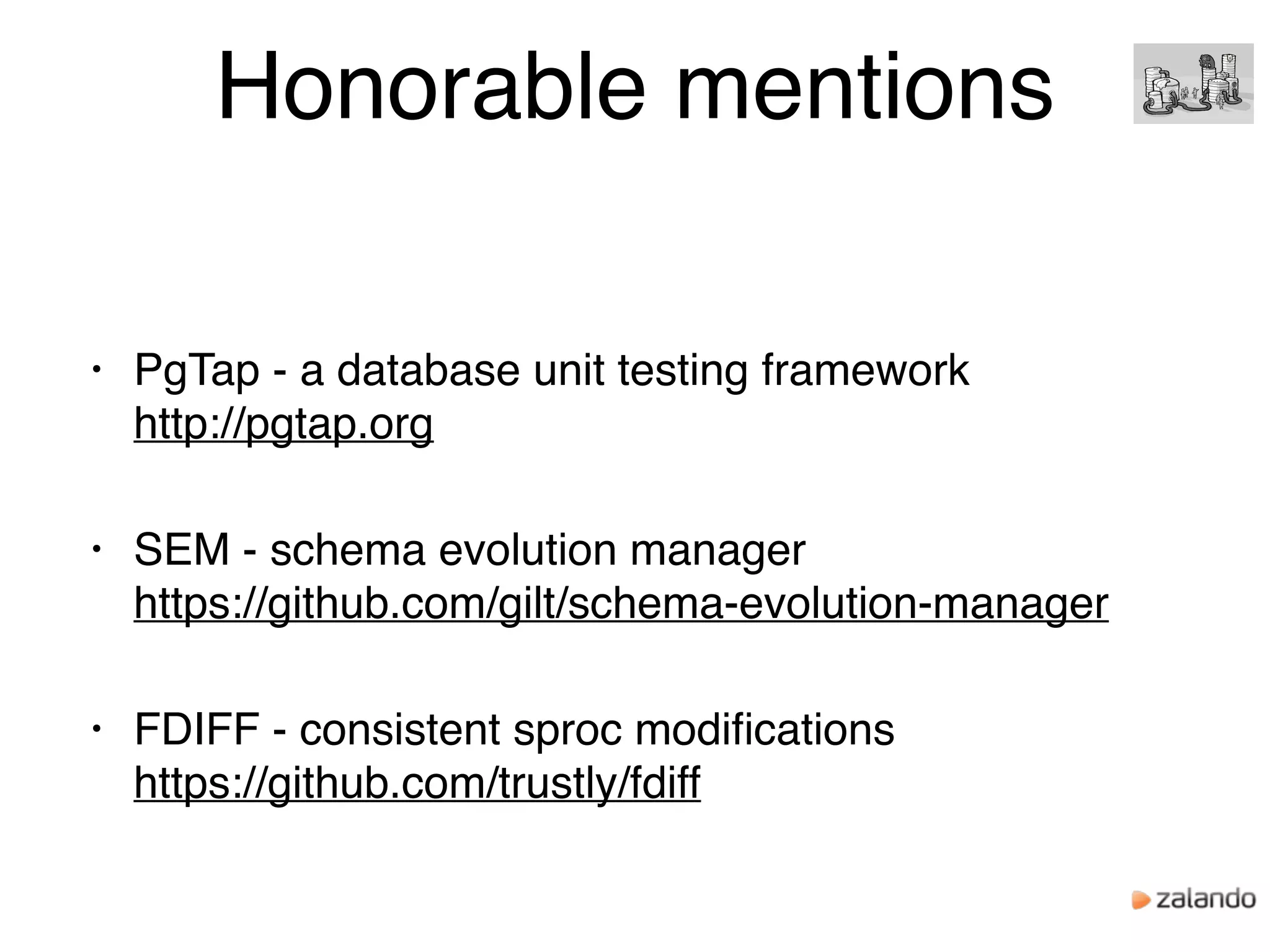

48. Honorable mentions
• PgTap - a database unit testing framework
http://pgtap.org
• SEM - schema evolution manager
https://github.com/gilt/schema-evolution-manager
• FDIFF - consistent sproc modifications
https://github.com/trustly/fdiff

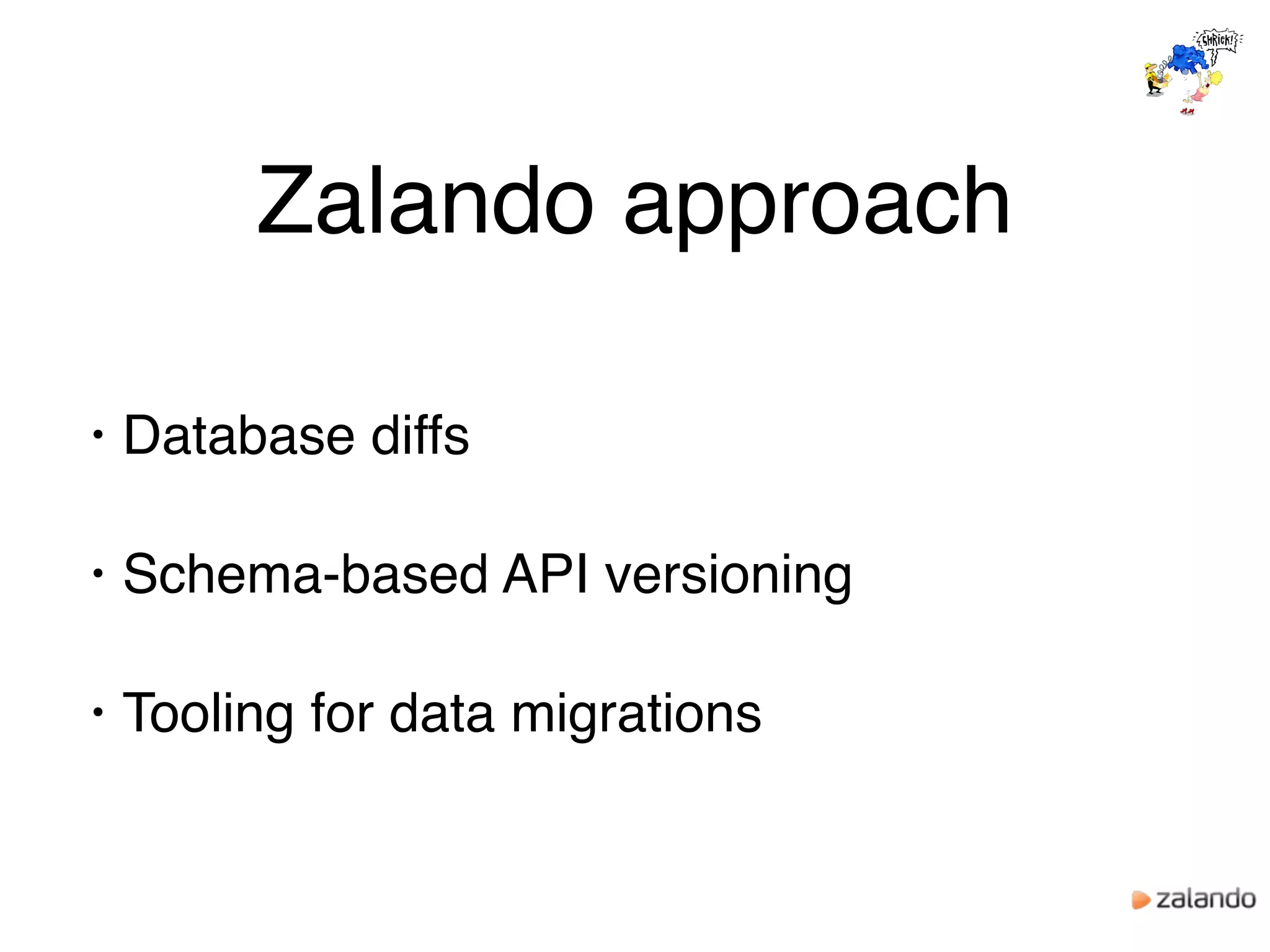

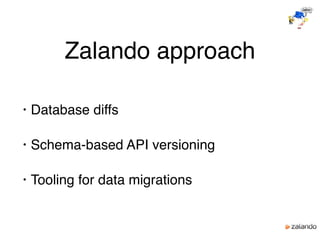

50. Zalando approach
• Database diffs
• Schema-based API versioning

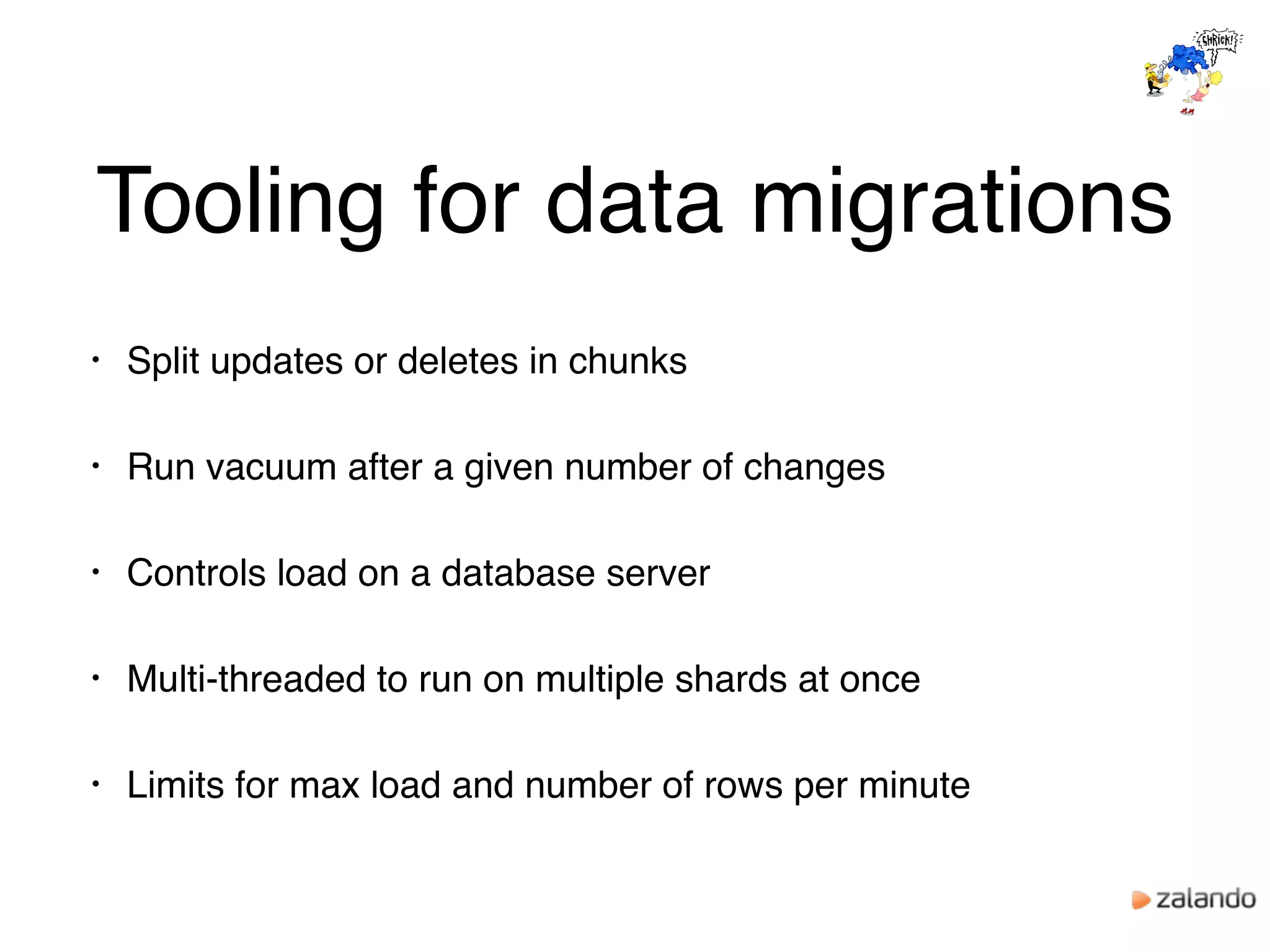

• Tooling for data migrations

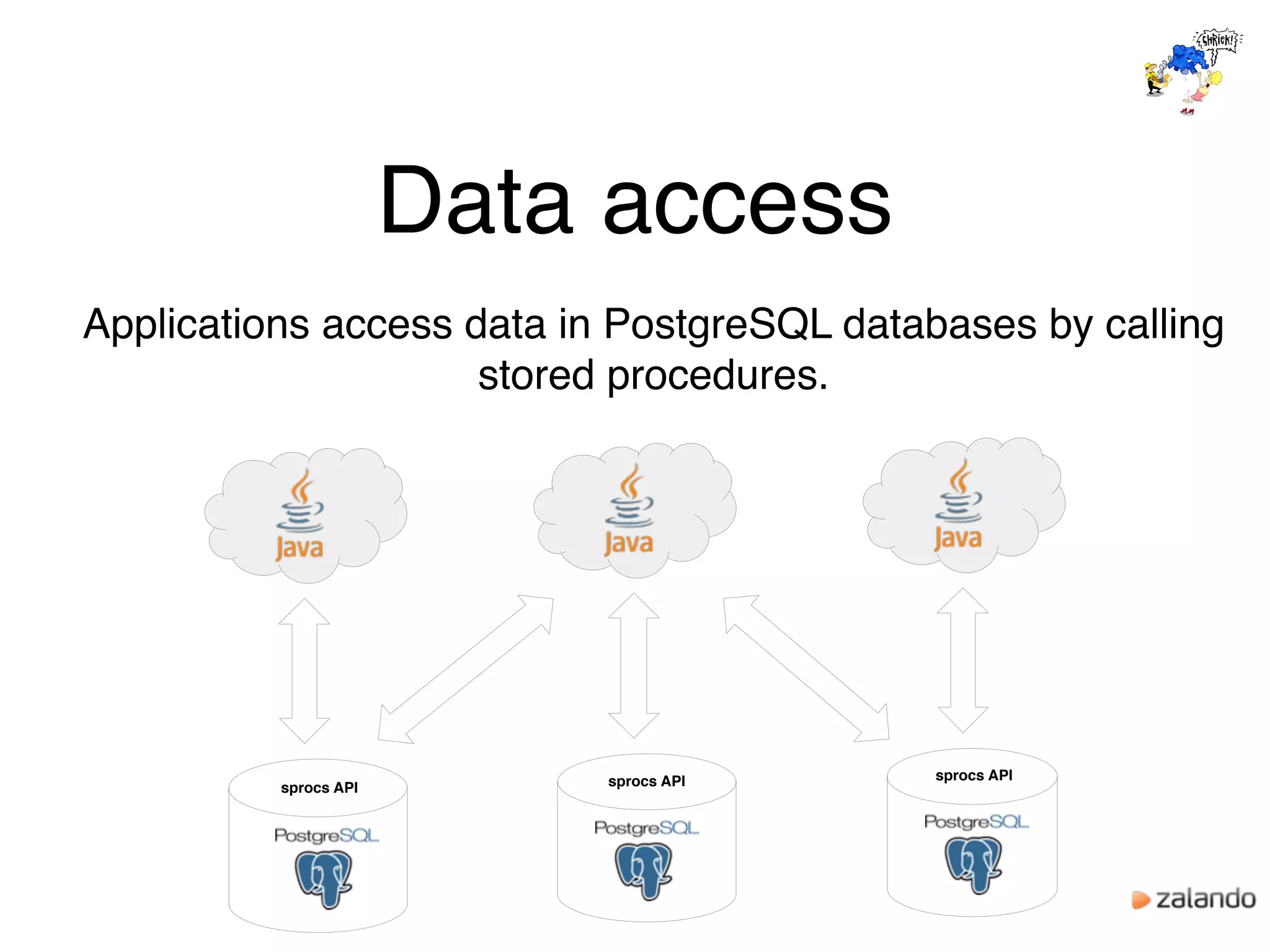

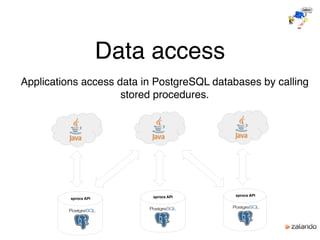

51. Data access
sprocs API sprocs API
sprocs API
Applications access data in PostgreSQL databases by calling
stored procedures.

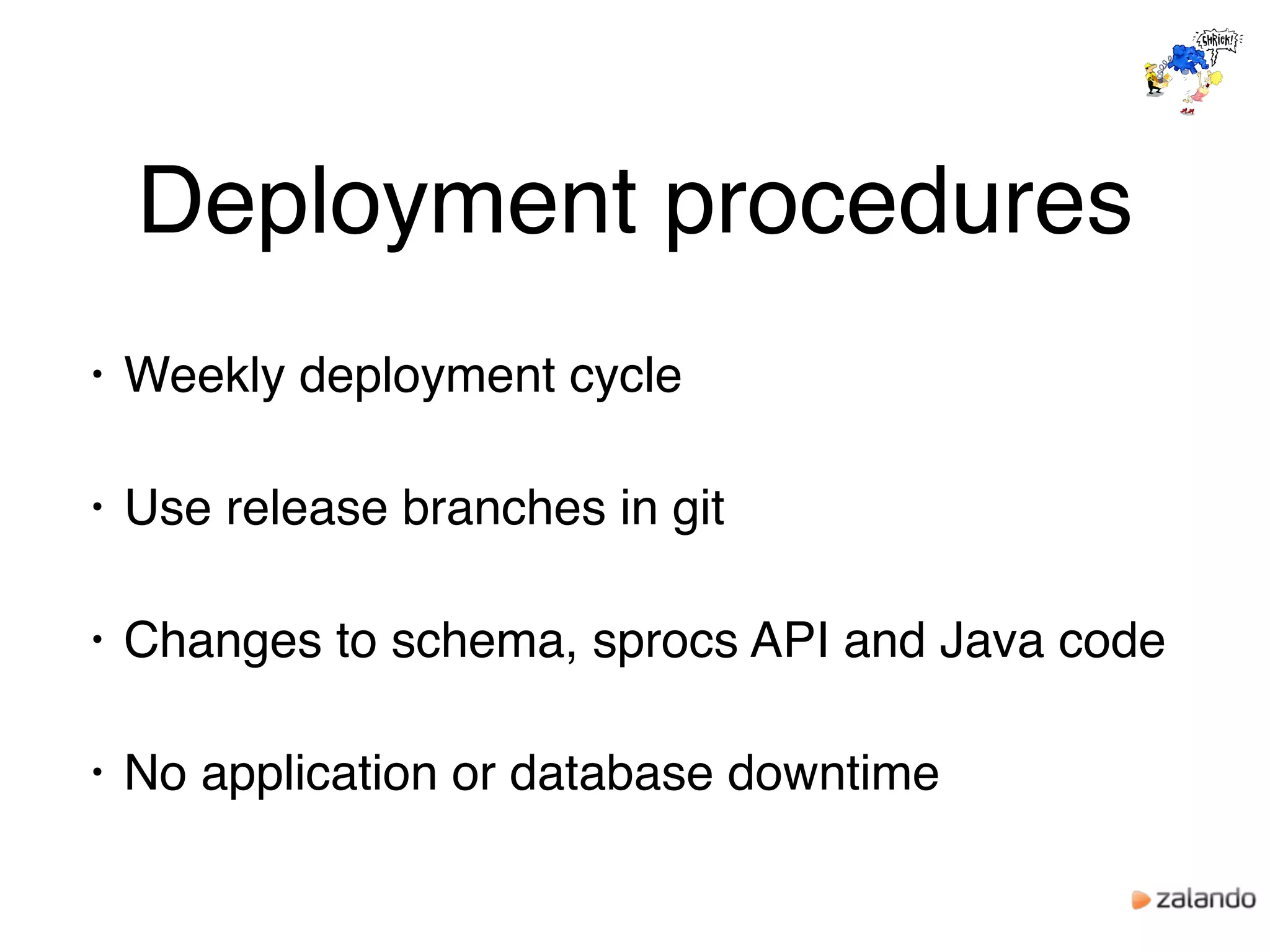

52. Deployment procedures
• Weekly deployment cycle
• Use release branches in git
• Changes to schema, sprocs API and Java code
• No application or database downtime

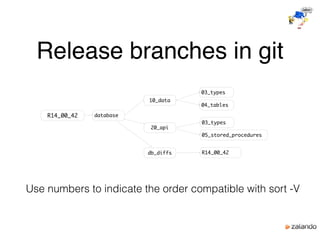

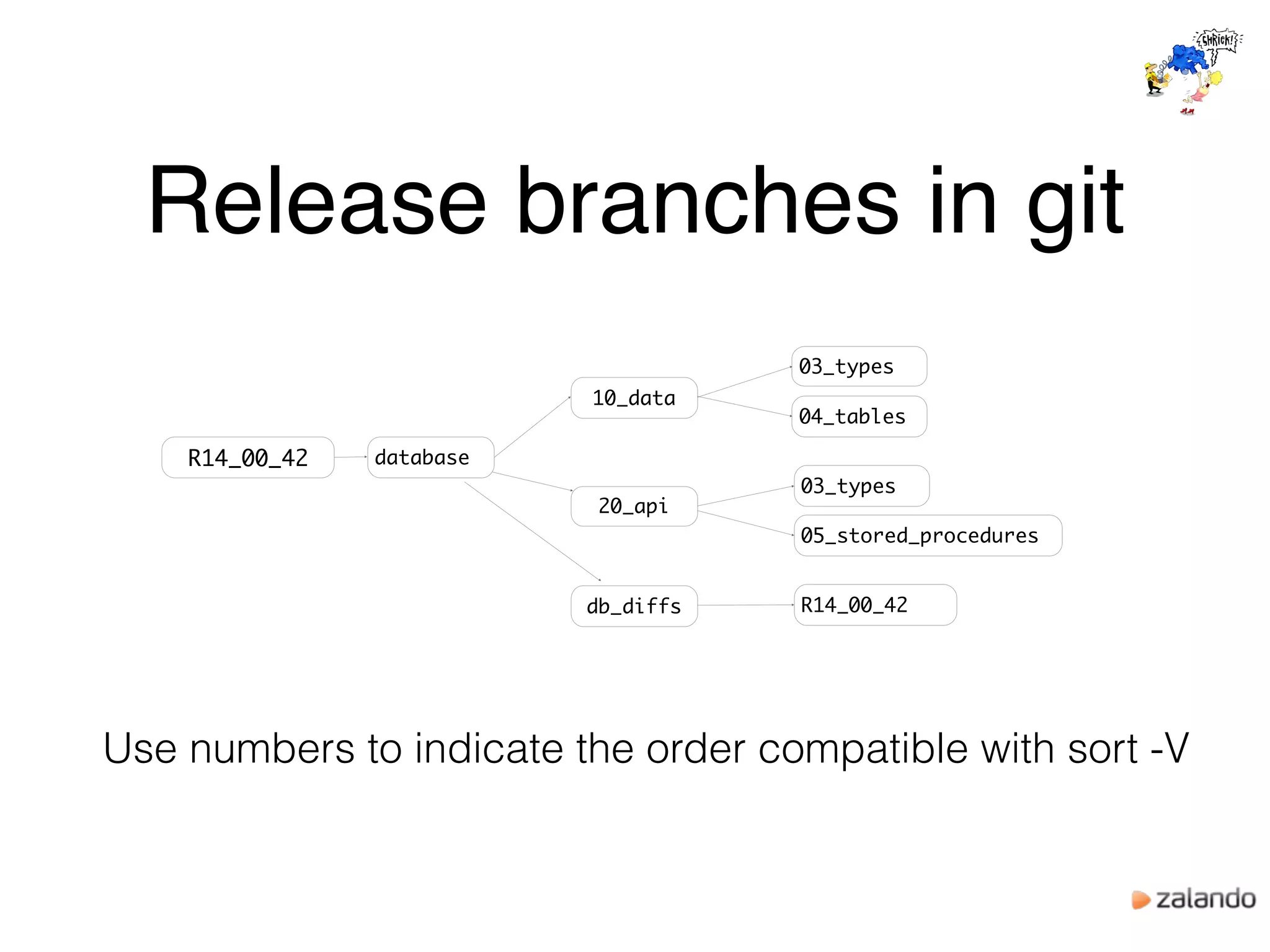

53. Release branches in git
database
10_data
20_api
03_types
04_tables
db_diffs
03_types
05_stored_procedures
R14_00_42
R14_00_42
Use numbers to indicate the order compatible with sort -V

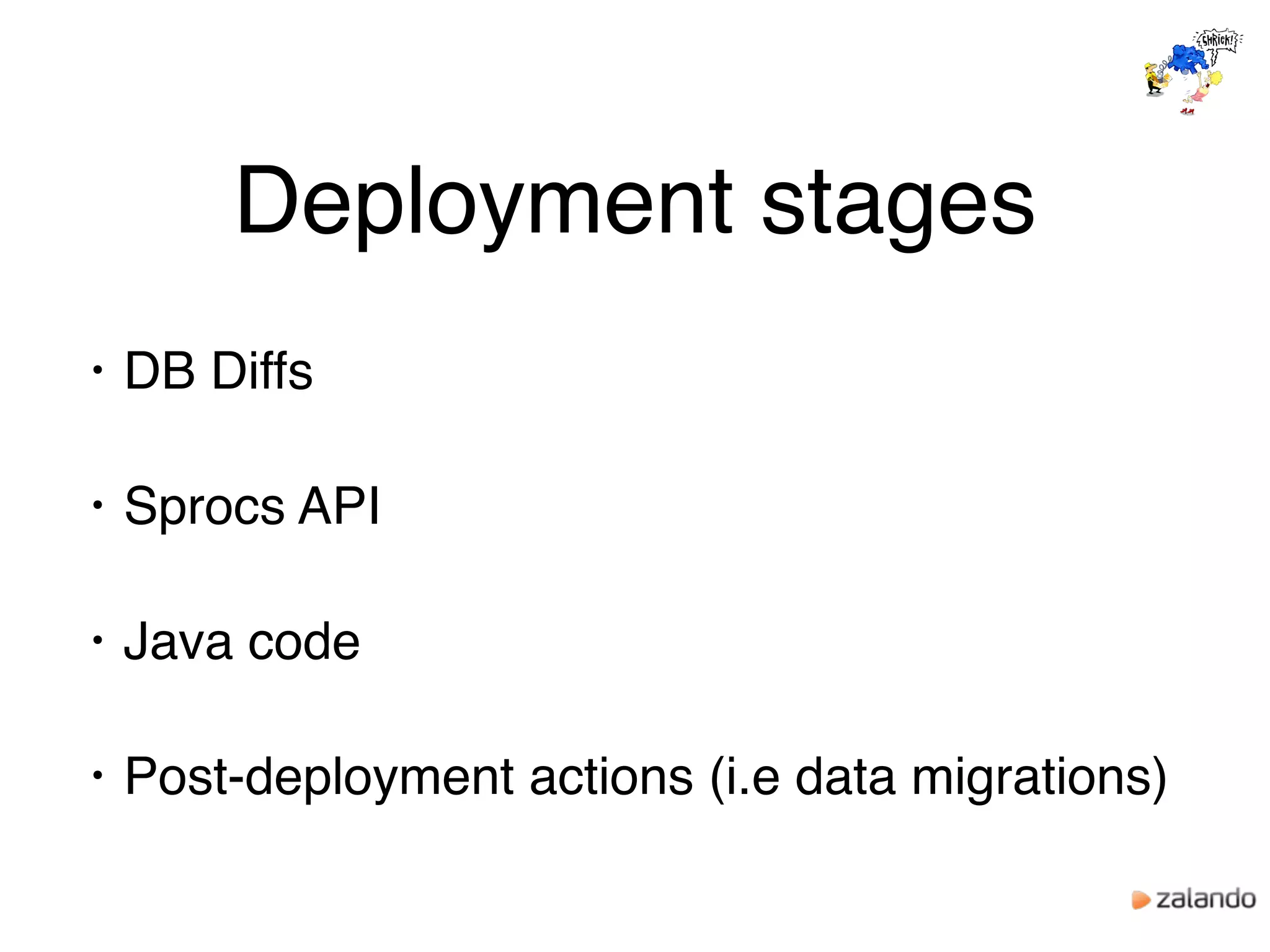

54. Deployment stages
• DB Diffs
• Sprocs API
• Java code
• Post-deployment actions (i.e data migrations)

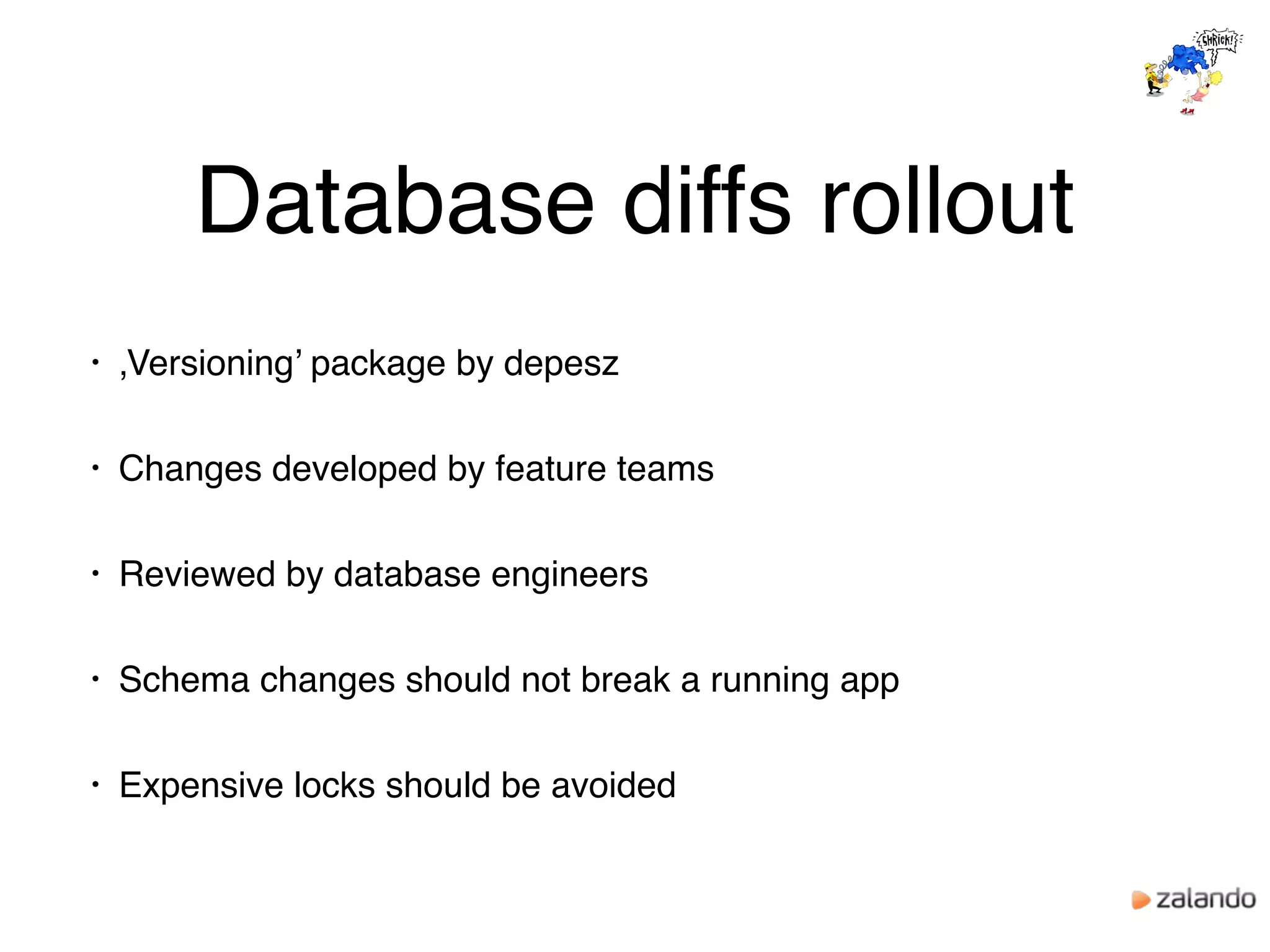

55. Database diffs rollout
• ‚Versioning’ package by depesz
• Changes developed by feature teams
• Reviewed by database engineers
• Schema changes should not break a running app
• Expensive locks should be avoided

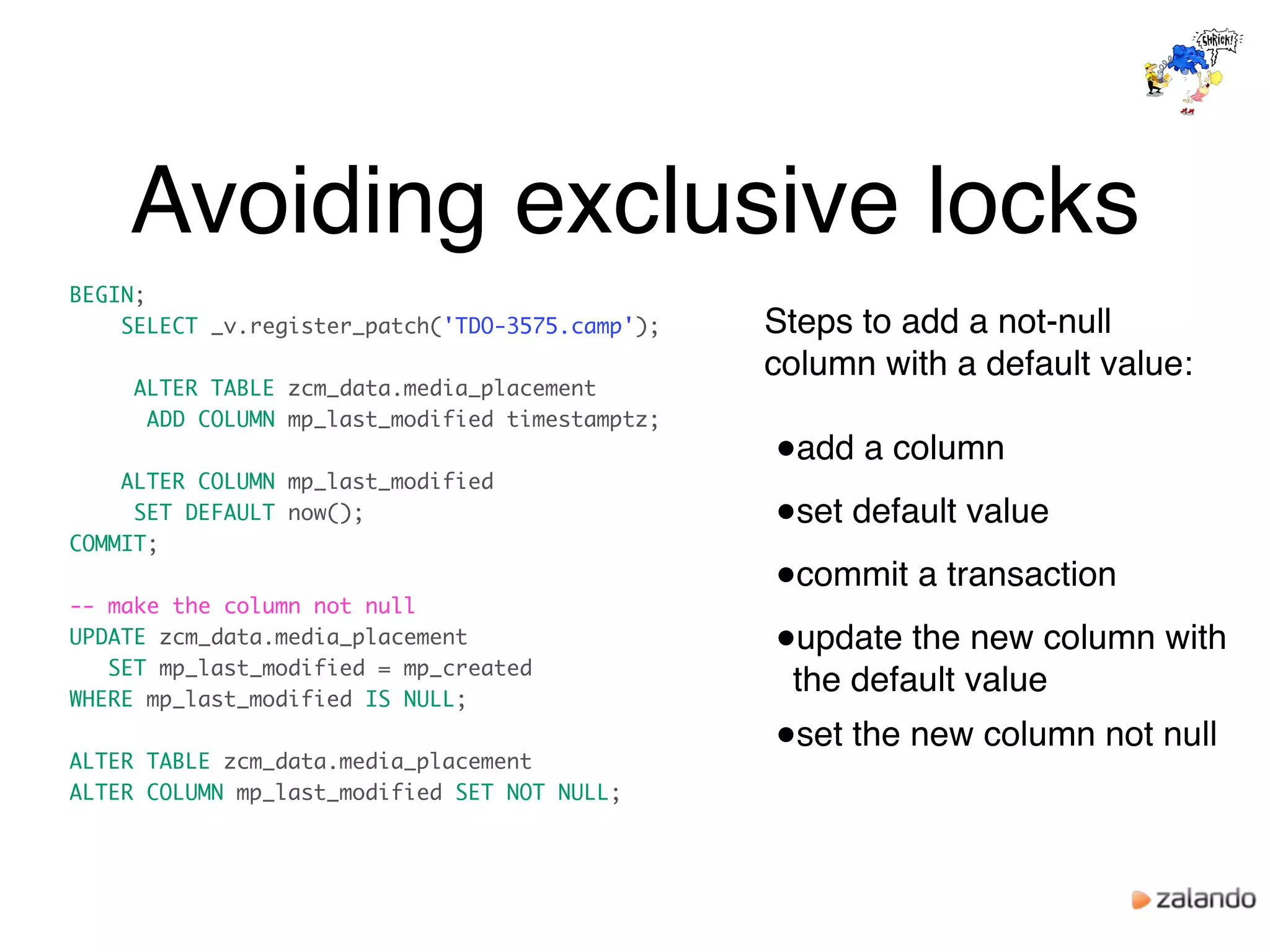

56. Avoiding exclusive locks
BEGIN;
SELECT _v.register_patch('TDO-3575.camp');
ALTER TABLE zcm_data.media_placement
ADD COLUMN mp_last_modified timestamptz;
ALTER COLUMN mp_last_modified
SET DEFAULT now();
COMMIT;
-- make the column not null
UPDATE zcm_data.media_placement
SET mp_last_modified = mp_created
WHERE mp_last_modified IS NULL;
ALTER TABLE zcm_data.media_placement
ALTER COLUMN mp_last_modified SET NOT NULL;
Steps to add a not-null
column with a default value:
●add a column
●set default value
●commit a transaction
●update the new column with
the default value
●set the new column not null

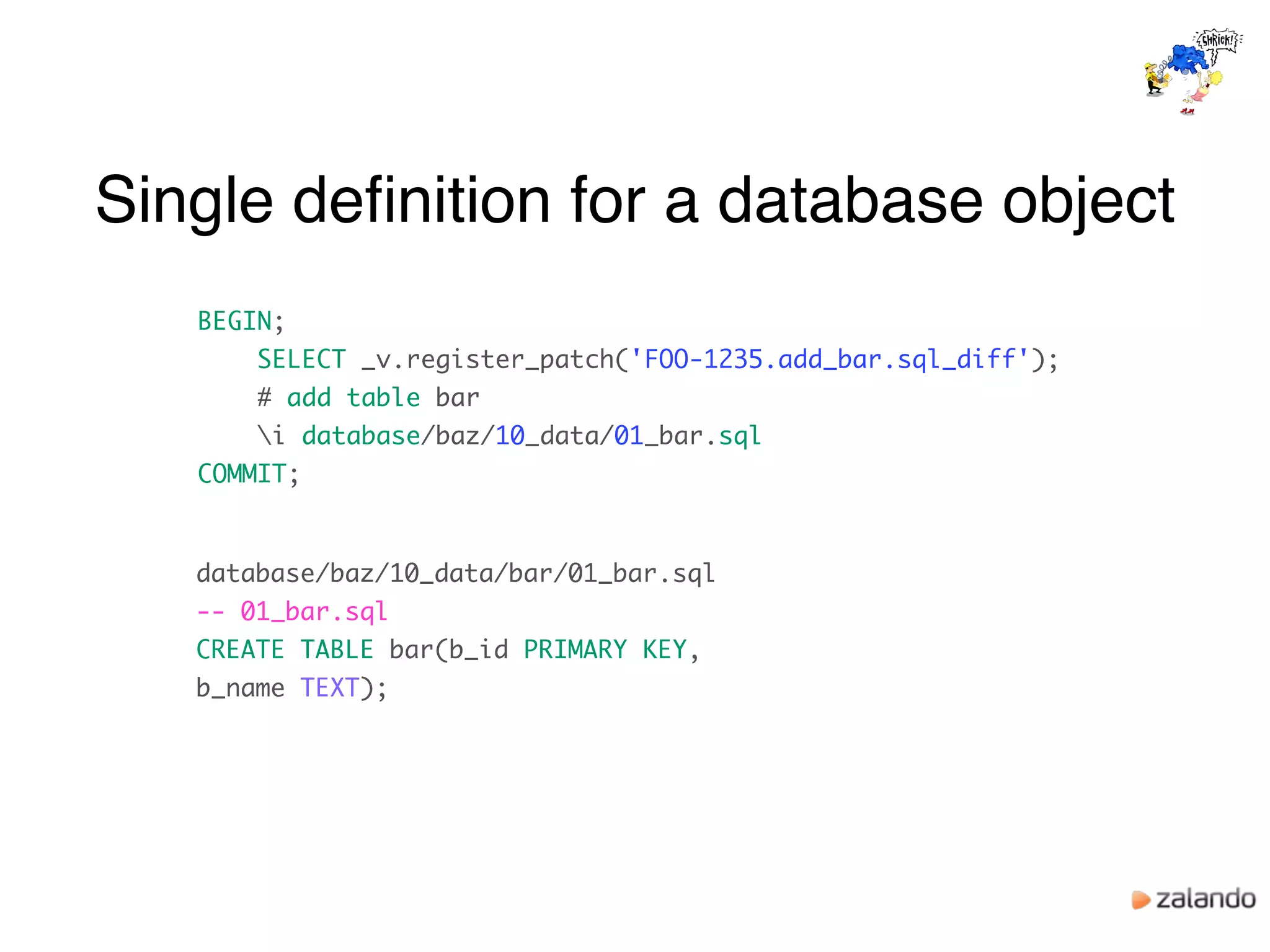

57. Single definition for a database object
BEGIN;
SELECT _v.register_patch('FOO-1235.add_bar.sql_diff');
# add table bar
i database/baz/10_data/01_bar.sql
COMMIT;
database/baz/10_data/bar/01_bar.sql
-- 01_bar.sql
CREATE TABLE bar(b_id PRIMARY KEY,
b_name TEXT);

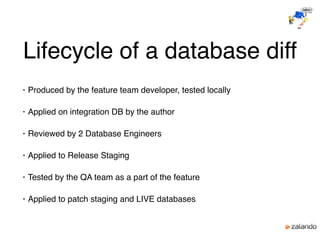

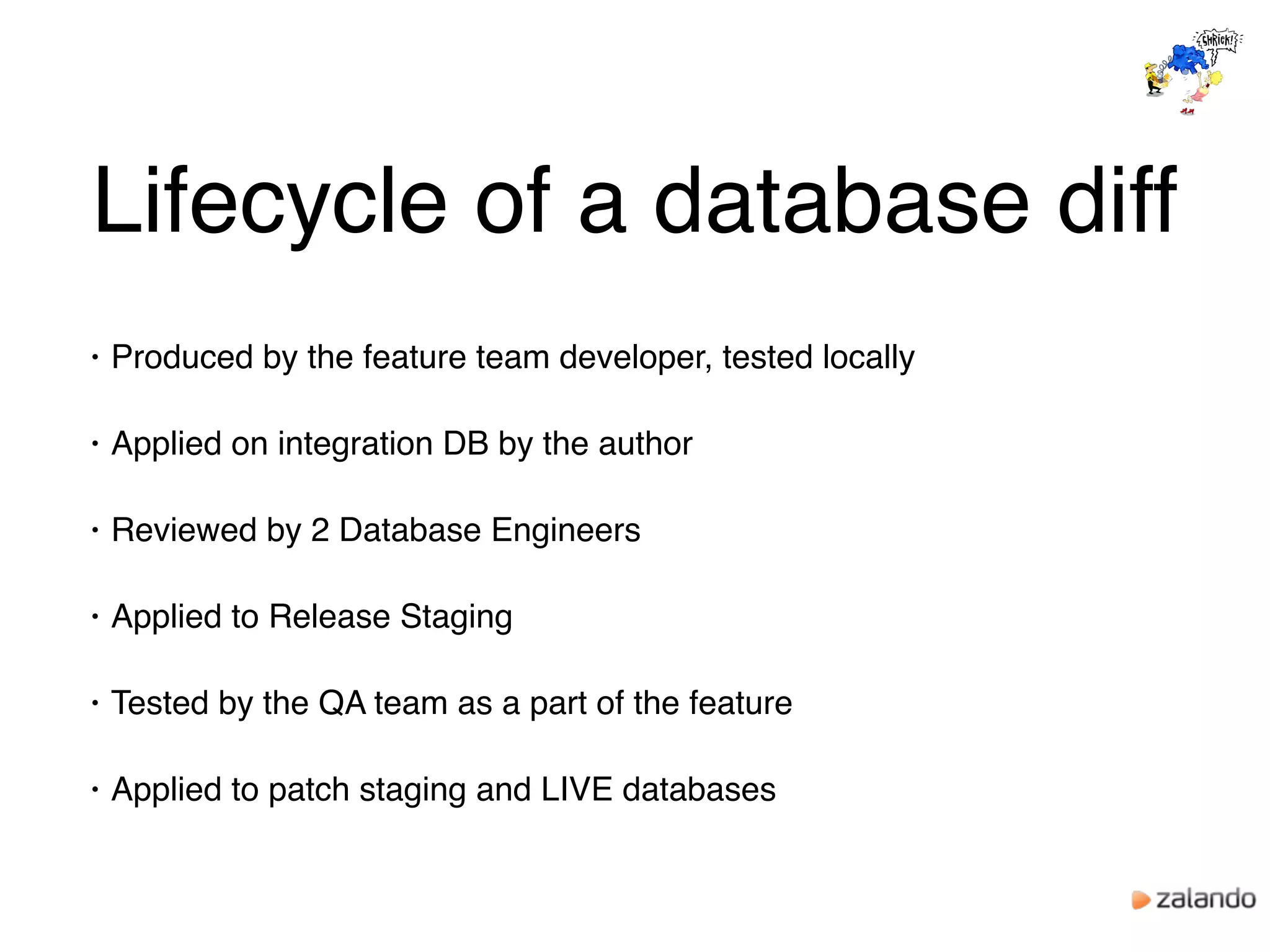

58. Lifecycle of a database diff
• Produced by the feature team developer, tested locally
• Applied on integration DB by the author
• Reviewed by 2 Database Engineers
• Applied to Release Staging
• Tested by the QA team as a part of the feature
• Applied to patch staging and LIVE databases

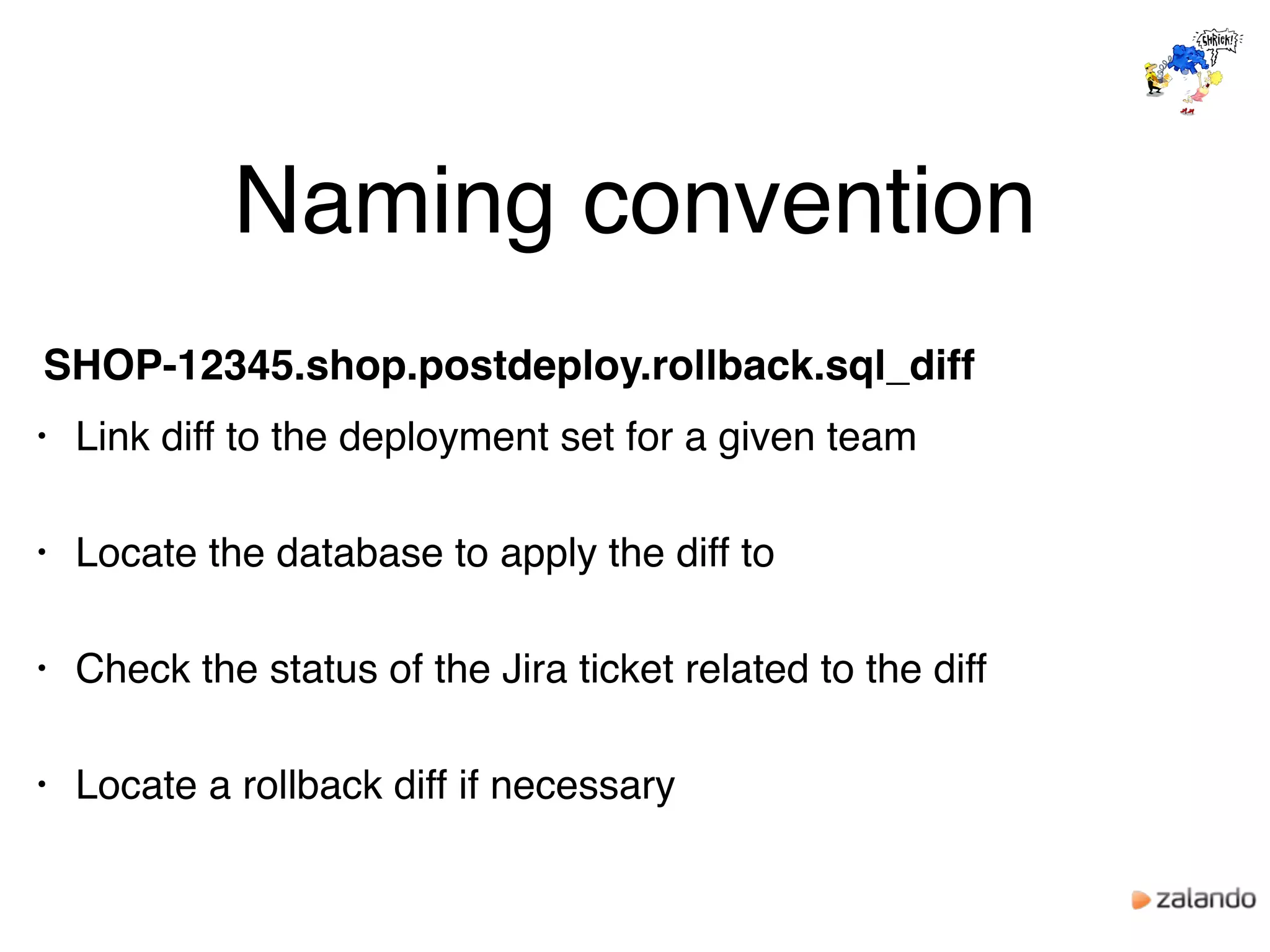

60. Naming convention
SHOP-12345.shop.postdeploy.rollback.sql_diff
• Link diff to the deployment set for a given team
• Locate the database to apply the diff to
• Check the status of the Jira ticket related to the diff
• Locate a rollback diff if necessary

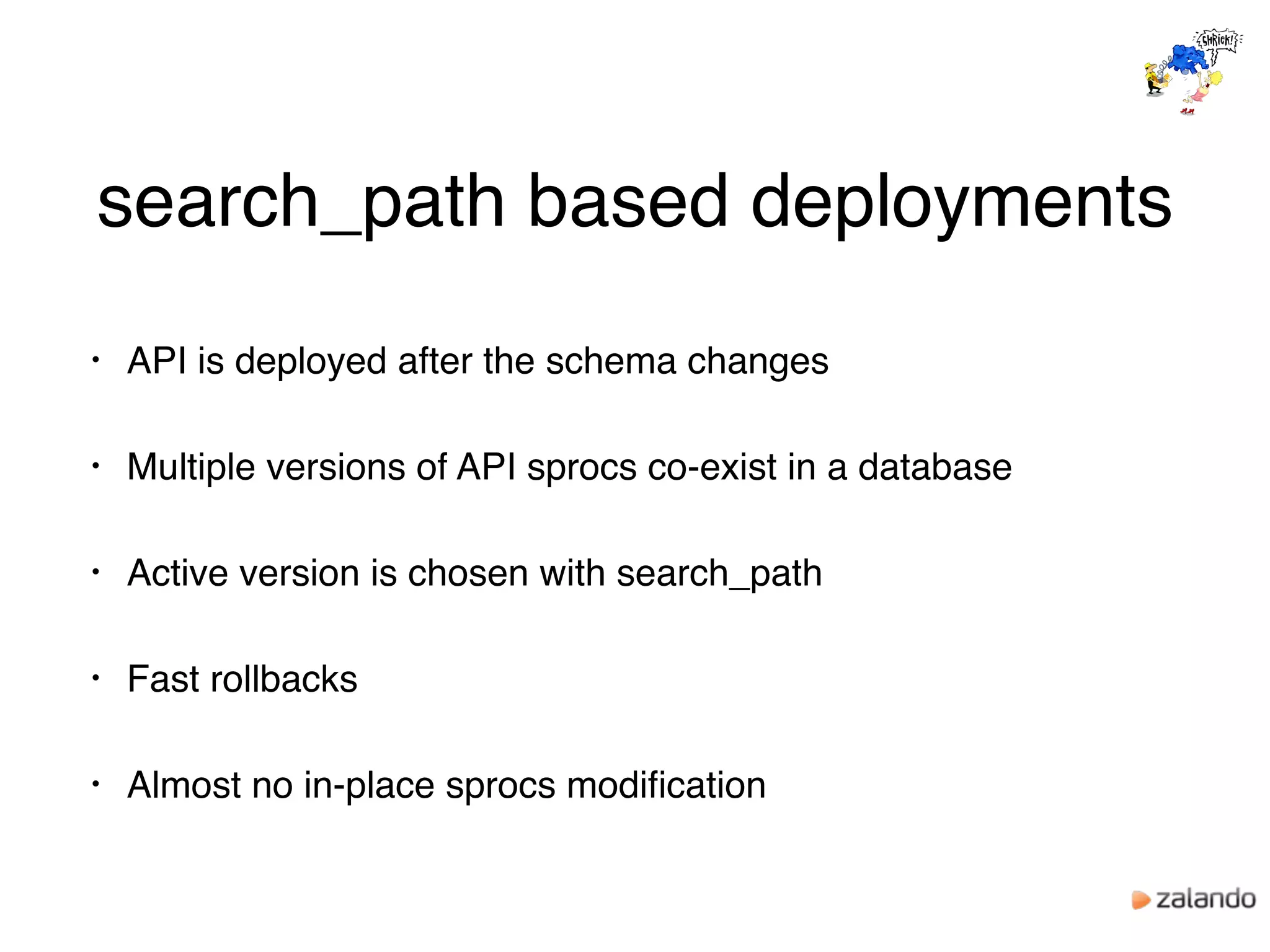

61. search_path based deployments
• API is deployed after the schema changes
• Multiple versions of API sprocs co-exist in a database
• Active version is chosen with search_path
• Fast rollbacks
• Almost no in-place sprocs modification

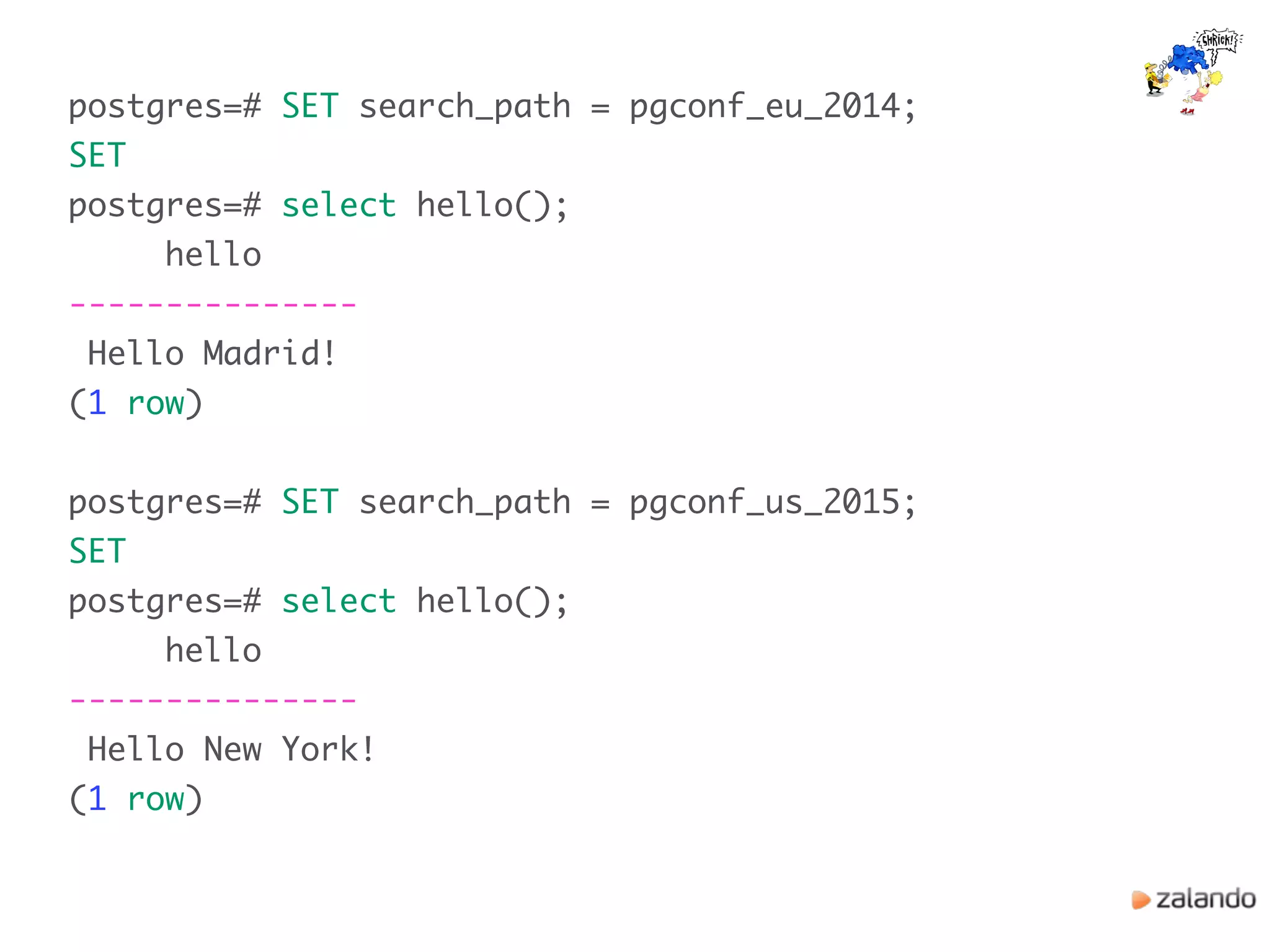

62. postgres=# SET search_path = pgconf_eu_2014;
SET
postgres=# select hello();
hello
---------------
Hello Madrid!
(1 row)
postgres=# SET search_path = pgconf_us_2015;
SET
postgres=# select hello();
hello
---------------
Hello New York!
(1 row)

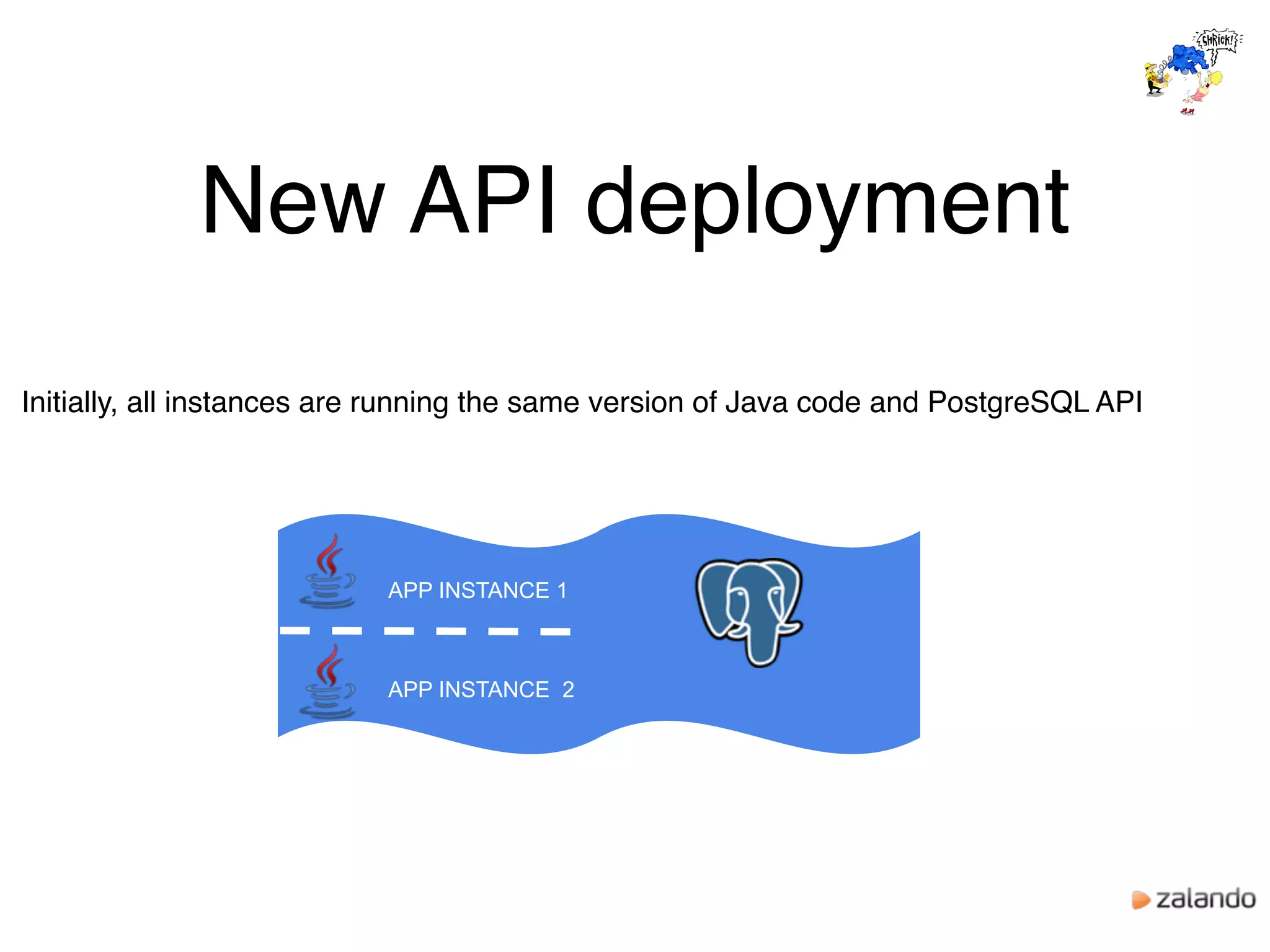

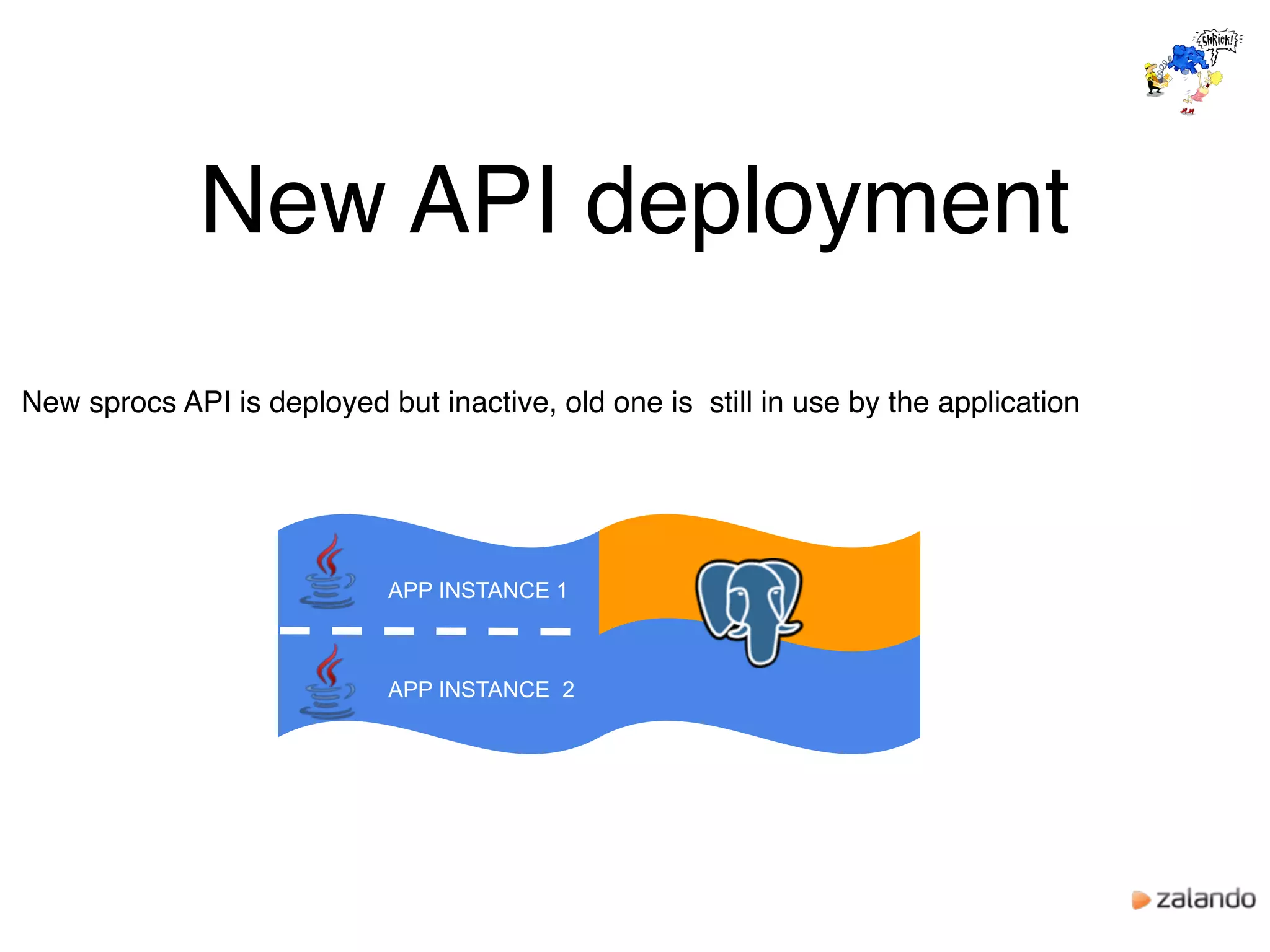

63. New API deployment
APP INSTANCE 1
APP INSTANCE 2
Initially, all instances are running the same version of Java code and PostgreSQL API

64. New API deployment
New sprocs API is deployed but inactive, old one is still in use by the application
APP INSTANCE 1
APP INSTANCE 2

65. New API deployment
One instance of the application is switched to the new API via the search_path
APP INSTANCE 1
APP INSTANCE 2

66. New API deployment
Finally, new API is in use by all application instances
APP INSTANCE 1
APP INSTANCE 2

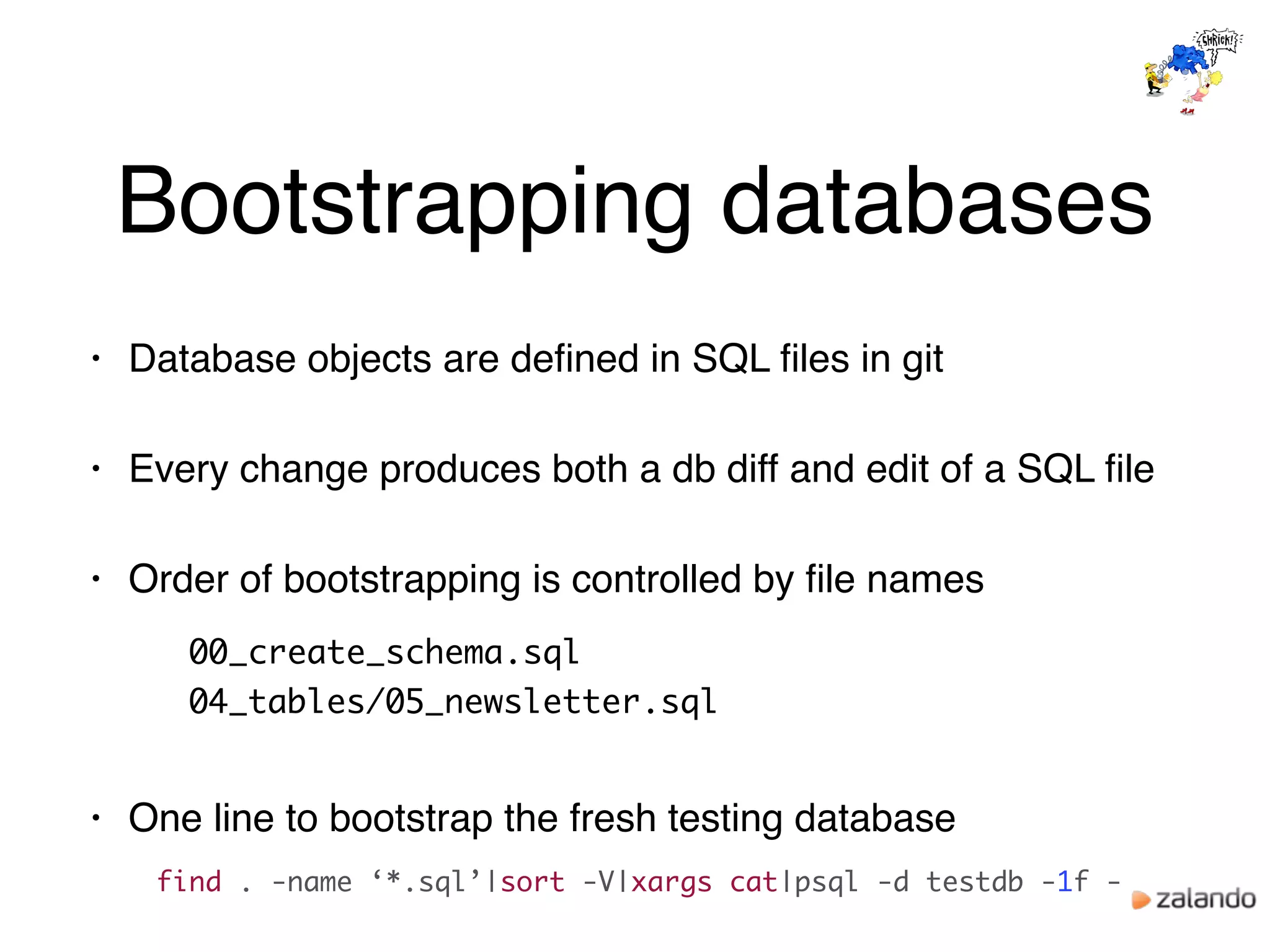

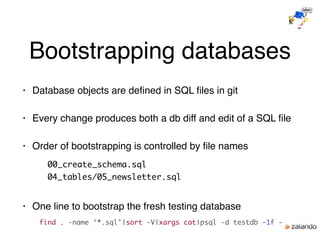

67. Bootstrapping databases
• Database objects are defined in SQL files in git
• Every change produces both a db diff and edit of a SQL file
• Order of bootstrapping is controlled by file names
00_create_schema.sql
04_tables/05_newsletter.sql
• One line to bootstrap the fresh testing database
find . -name ‘*.sql’|sort -V|xargs cat|psql -d testdb -1f -

68. Tooling for data migrations
• Split updates or deletes in chunks
• Run vacuum after a given number of changes
• Controls load on a database server
• Multi-threaded to run on multiple shards at once
• Limits for max load and number of rows per minute

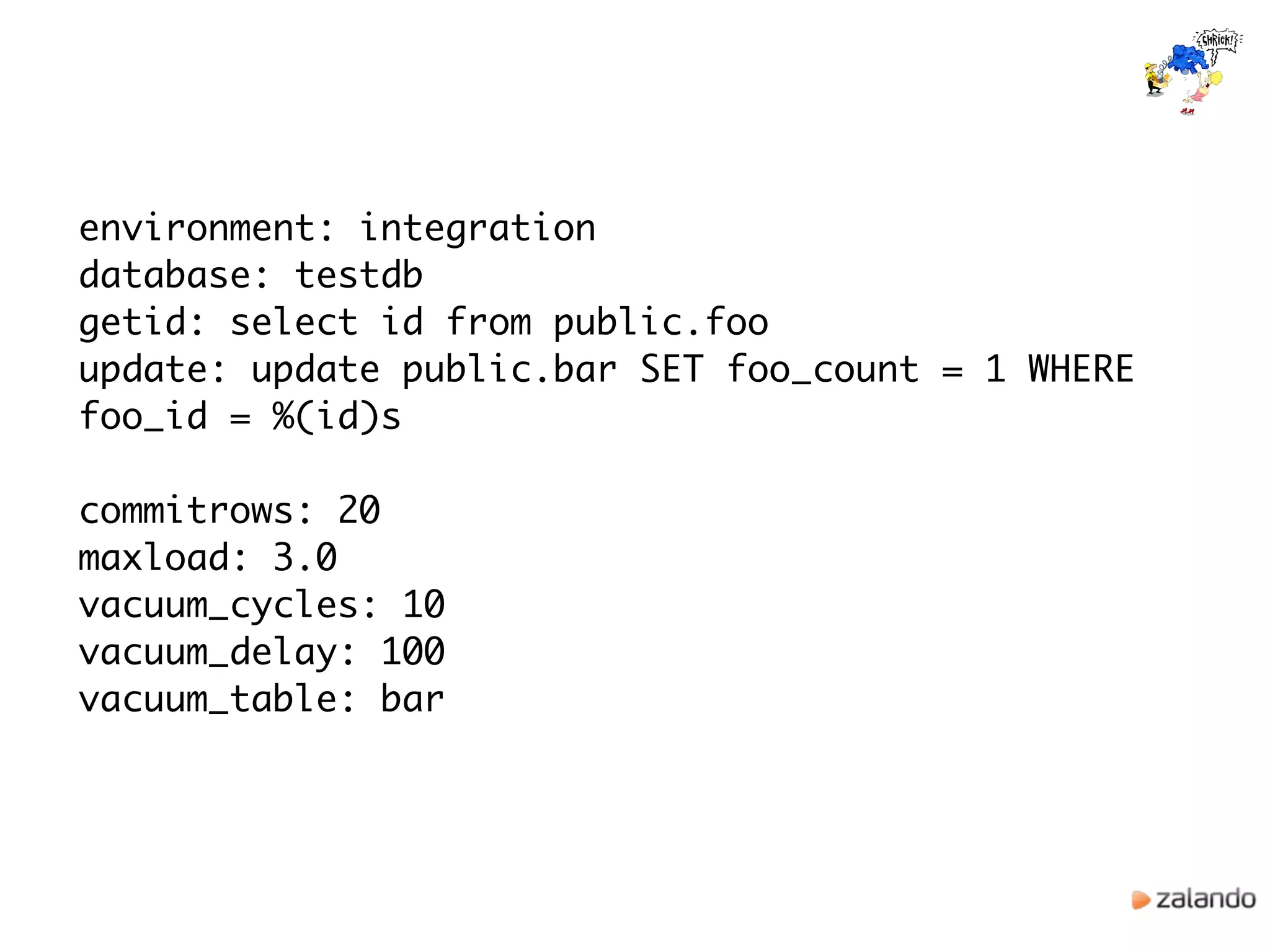

69. environment: integration
database: testdb
getid: select id from public.foo
update: update public.bar SET foo_count = 1 WHERE
foo_id = %(id)s
commitrows: 20
maxload: 3.0
vacuum_cycles: 10
vacuum_delay: 100
vacuum_table: bar

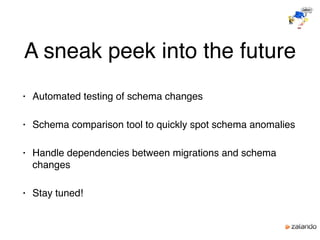

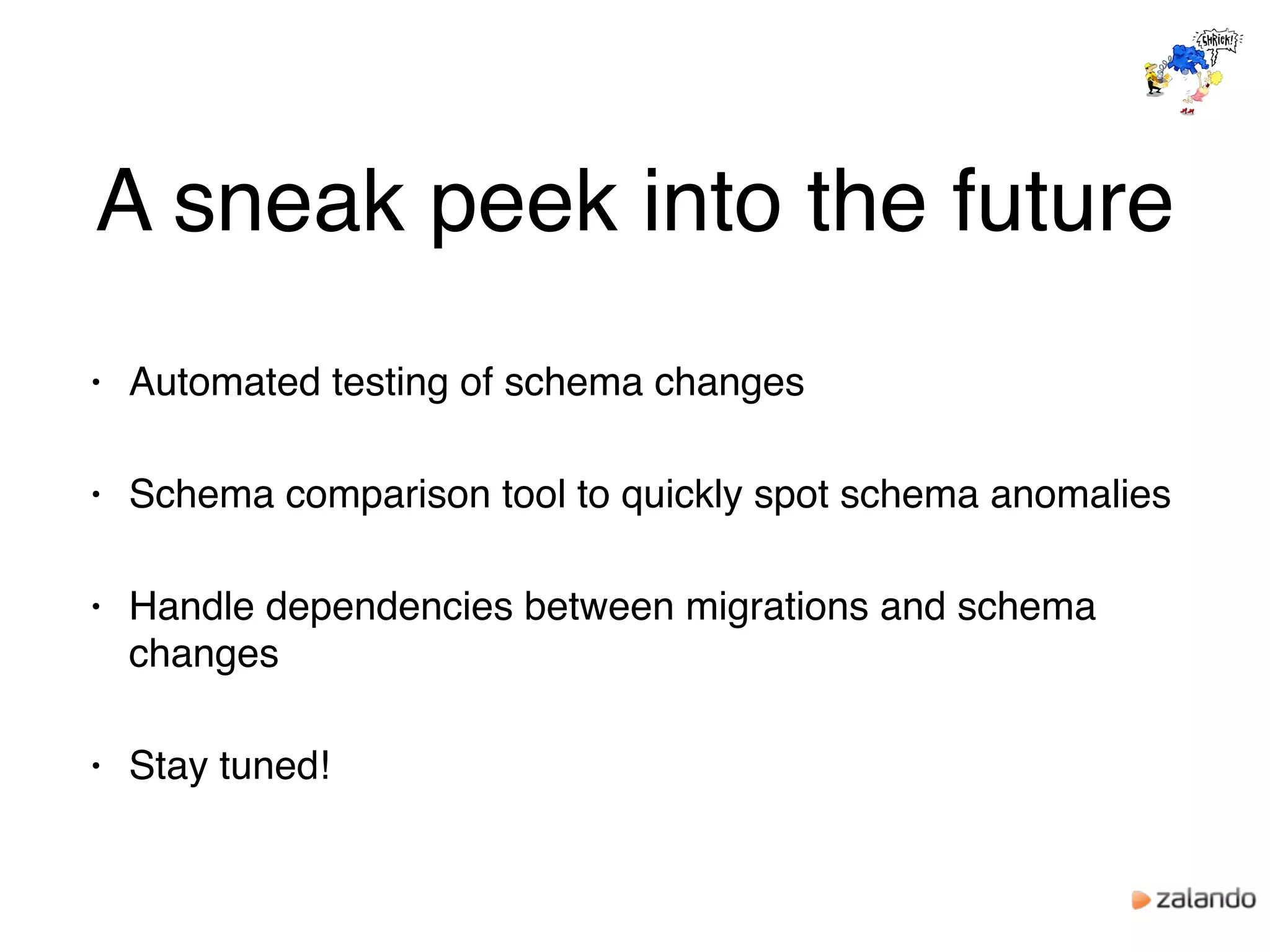

70. A sneak peek into the future
• Automated testing of schema changes
• Schema comparison tool to quickly spot schema anomalies
• Handle dependencies between migrations and schema
changes
• Stay tuned!

72. Oleksii Kliukin
Database Engineer
Zalando SE
email:
oleksii.kliukin@zalando.de
twitter: @alexeyklyukin

73. Thank you!

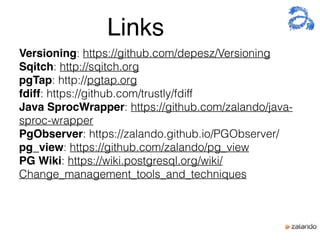

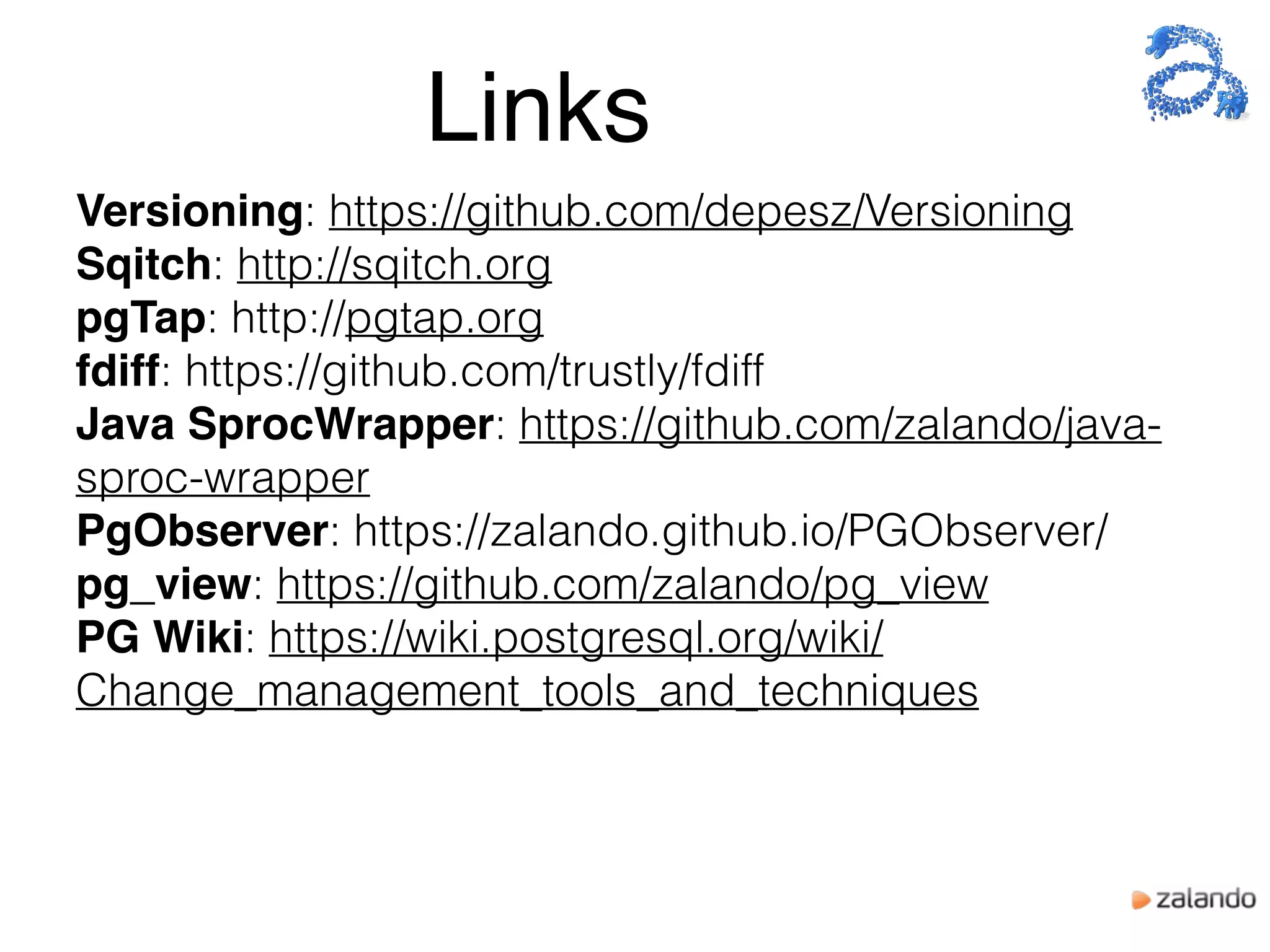

74. Versioning: https://github.com/depesz/Versioning
Sqitch: http://sqitch.org
pgTap: http://pgtap.org
fdiff: https://github.com/trustly/fdiff
Java SprocWrapper: https://github.com/zalando/java-
sproc-wrapper
PgObserver: https://zalando.github.io/PGObserver/
pg_view: https://github.com/zalando/pg_view
PG Wiki: https://wiki.postgresql.org/wiki/
Change_management_tools_and_techniques
Links
