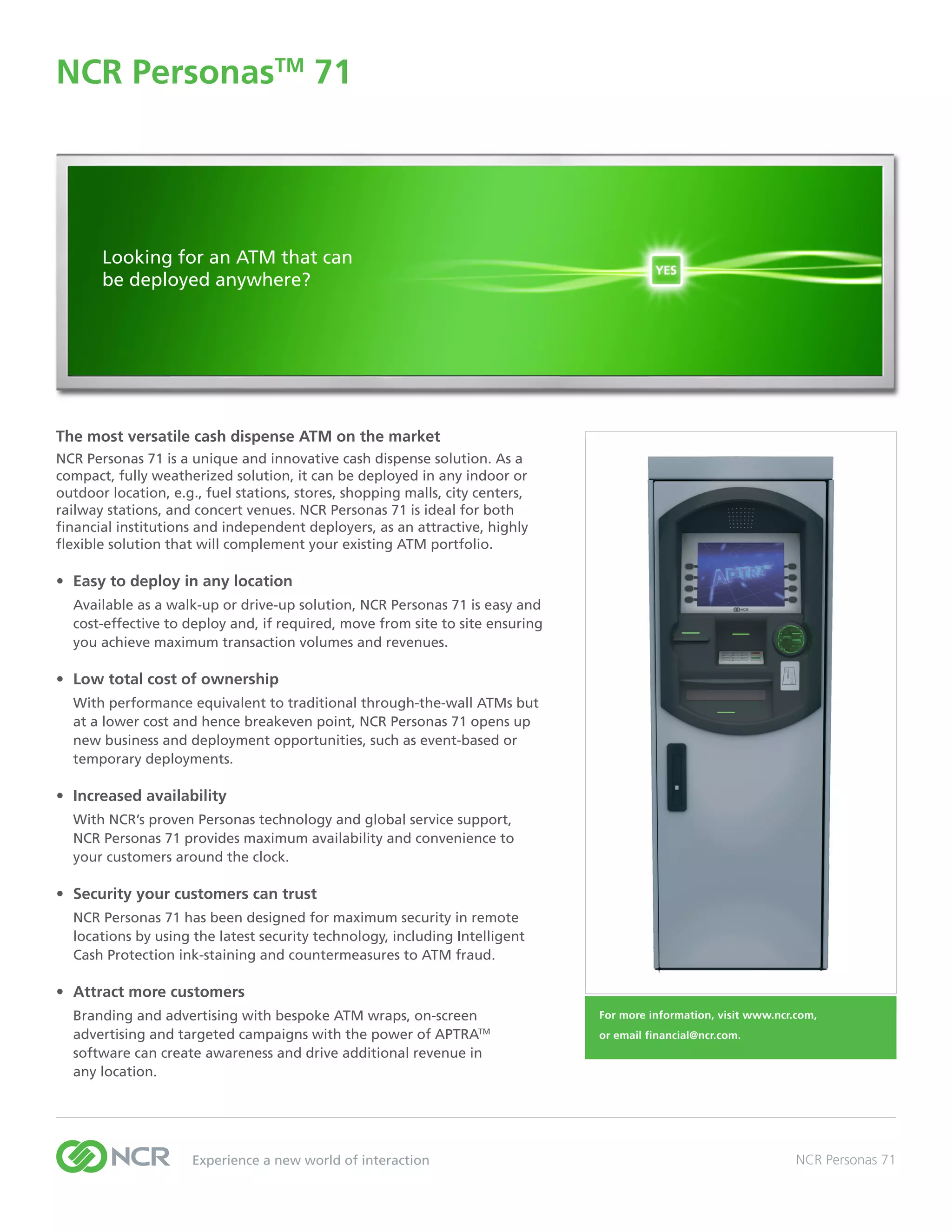

1. NCR PersonasTM 71
Through-the-wall Slimline Deposit ATM
Looking for an ATM that can
be deployed anywhere?
The most versatile cash dispense ATM on the market
NCR Personas 71 is a unique and innovative cash dispense solution. As a
compact, fully weatherized solution, it can be deployed in any indoor or
outdoor location, e.g., fuel stations, stores, shopping malls, city centers,
railway stations, and concert venues. NCR Personas 71 is ideal for both
financial institutions and independent deployers, as an attractive, highly
flexible solution that will complement your existing ATM portfolio.
• Easy to deploy in any location
Available as a walk-up or drive-up solution, NCR Personas 71 is easy and
cost-effective to deploy and, if required, move from site to site ensuring
you achieve maximum transaction volumes and revenues.
• Low total cost of ownership
With performance equivalent to traditional through-the-wall ATMs but
at a lower cost and hence breakeven point, NCR Personas 71 opens up
new business and deployment opportunities, such as event-based or
temporary deployments.
• Increased availability
With NCR’s proven Personas technology and global service support,
NCR Personas 71 provides maximum availability and convenience to
your customers around the clock.
• Security your customers can trust
NCR Personas 71 has been designed for maximum security in remote
locations by using the latest security technology, including Intelligent
Cash Protection ink-staining and countermeasures to ATM fraud.
• Attract more customers
Branding and advertising with bespoke ATM wraps, on-screen For more information, visit www.ncr.com,
advertising and targeted campaigns with the power of APTRATM or email financial@ncr.com.
software can create awareness and drive additional revenue in
any location.
Experience a new world of interaction NCR Personas 71

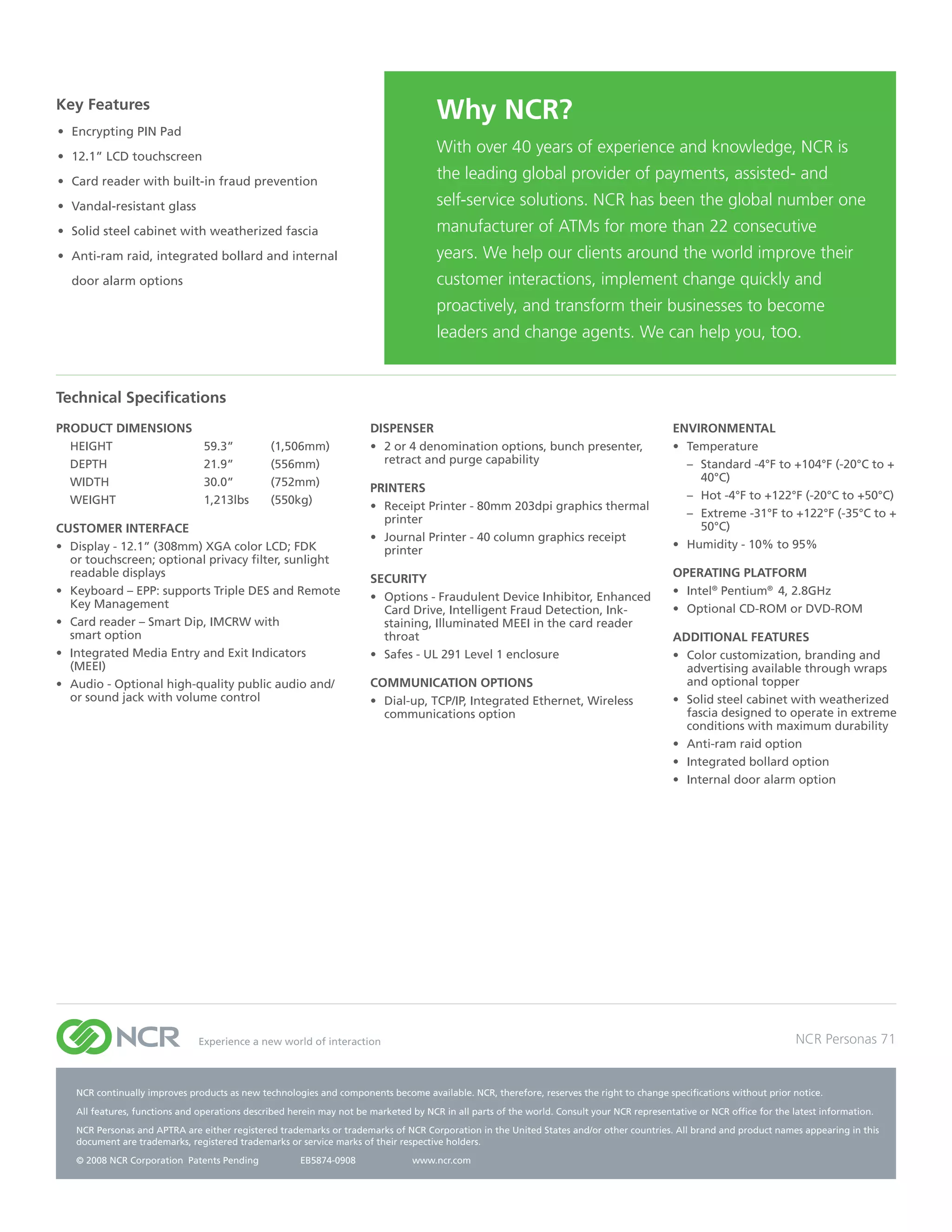

2. Key Features
Why ncr?
• Encrypting PIN Pad
• 12.1” LCD touchscreen
With over 40 years of experience and knowledge, NCR is
• Card reader with built-in fraud prevention
the leading global provider of payments, assisted- and
• Vandal-resistant glass self-service solutions. NCR has been the global number one
• Solid steel cabinet with weatherized fascia manufacturer of ATMs for more than 22 consecutive
• Anti-ram raid, integrated bollard and internal years. We help our clients around the world improve their
door alarm options customer interactions, implement change quickly and
proactively, and transform their businesses to become
leaders and change agents. We can help you, too.
Technical Specifications
proDucT DIMEnSIonS DISpEnSEr EnVIronMEnTAL
HEIGHT 59.3” (1,506mm) • 2 or 4 denomination options, bunch presenter, • Temperature
DEPTH 21.9” (556mm) retract and purge capability – Standard -4°F to +104°F (-20°C to +
WIDTH 30.0” (752mm) 40°C)
prInTErS
WEIGHT 1,213lbs (550kg) – Hot -4°F to +122°F (-20°C to +50°C)
• Receipt Printer - 80mm 203dpi graphics thermal
printer – Extreme -31°F to +122°F (-35°C to +
cuSToMEr InTErFAcE 50°C)
• Journal Printer - 40 column graphics receipt
• Display - 12.1” (308mm) XGA color LCD; FDK printer • Humidity - 10% to 95%
or touchscreen; optional privacy filter, sunlight
readable displays
SEcurITY opErATInG pLATForM
• Keyboard – EPP: supports Triple DES and Remote • Intel® Pentium® 4, 2.8GHz
• Options - Fraudulent Device Inhibitor, Enhanced
Key Management • Optional CD-ROM or DVD-ROM
Card Drive, Intelligent Fraud Detection, Ink-
• Card reader – Smart Dip, IMCRW with staining, Illuminated MEEI in the card reader
smart option throat ADDITIonAL FEATurES
• Integrated Media Entry and Exit Indicators • Safes - UL 291 Level 1 enclosure • Color customization, branding and
(MEEI) advertising available through wraps
• Audio - Optional high-quality public audio and/ coMMunIcATIon opTIonS and optional topper
or sound jack with volume control • Dial-up, TCP/IP, Integrated Ethernet, Wireless • Solid steel cabinet with weatherized
communications option fascia designed to operate in extreme
conditions with maximum durability
• Anti-ram raid option
• Integrated bollard option
• Internal door alarm option
Experience a new world of interaction NCR Personas 71
NCR continually improves products as new technologies and components become available. NCR, therefore, reserves the right to change specifications without prior notice.
All features, functions and operations described herein may not be marketed by NCR in all parts of the world. Consult your NCR representative or NCR office for the latest information.
NCR Personas and APTRA are either registered trademarks or trademarks of NCR Corporation in the United States and/or other countries. All brand and product names appearing in this
document are trademarks, registered trademarks or service marks of their respective holders.
© 2008 NCR Corporation Patents Pending EB5874-0908 www.ncr.com
