Pentagonal prism
•
0 likes•209 views

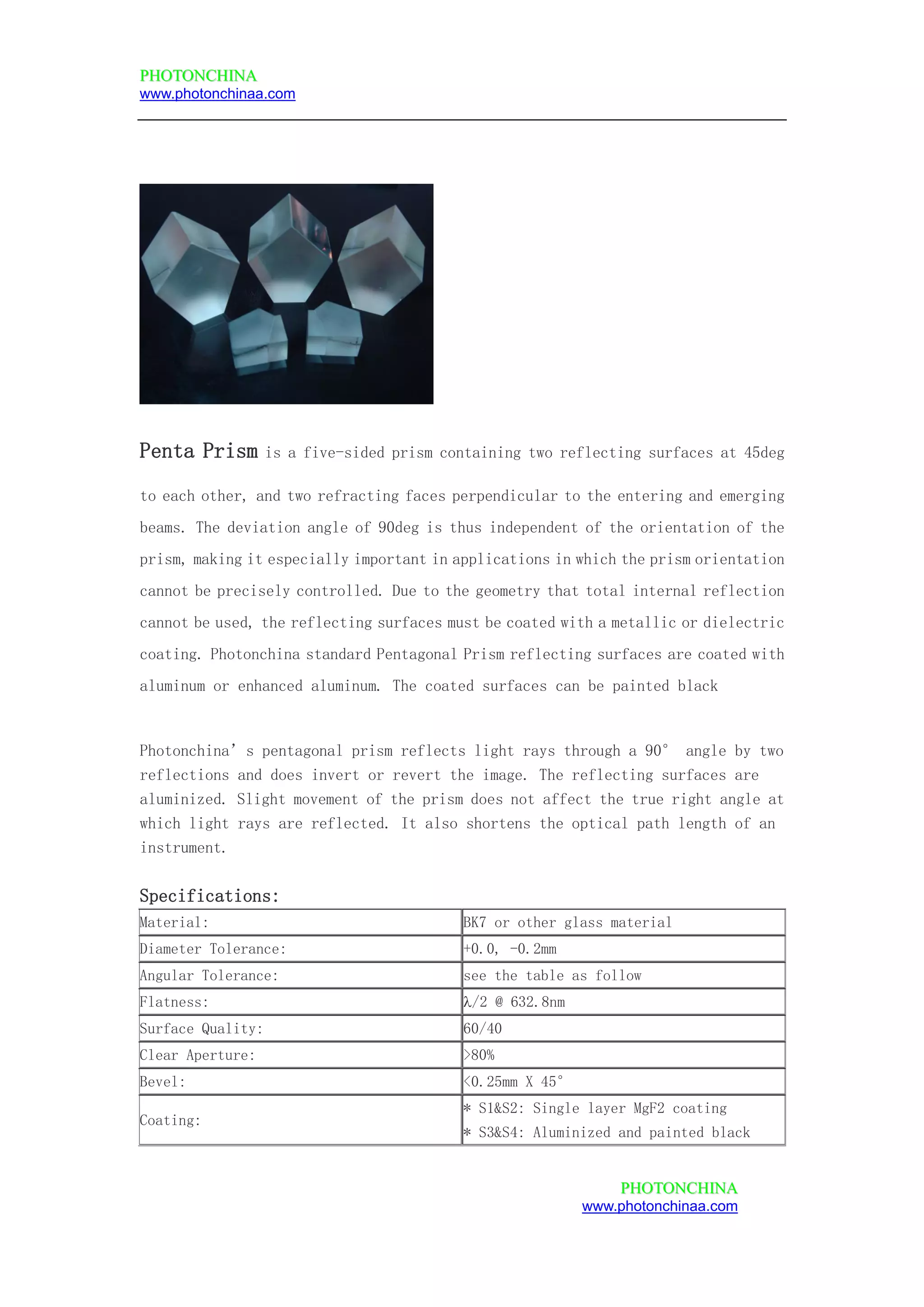

A penta prism is a five-sided prism that reflects light rays through a 90-degree angle with two reflections inside the prism. The reflecting surfaces are coated with aluminum and the coating ensures that slight movements of the prism do not change the 90-degree reflection of light rays. Photonchina offers penta prisms made of BK7 glass with aluminum coatings on the reflecting surfaces.
