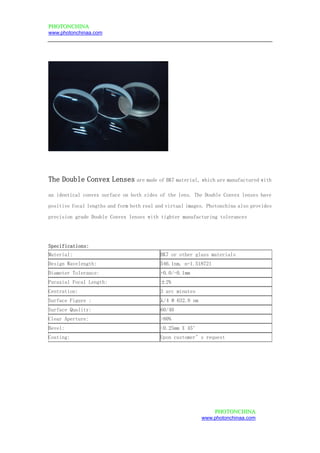

The Double Convex Lenses are made of BK7 material, which are manufactured with
an identical convex surface on both sides of the lens. The Double Convex lenses have
positive focal lengths and form both real and virtual images. Photonchina also provides
precision grade Double Convex lenses with tighter manufacturing tolerances
Specifications:
Material: BK7 or other glass materials
Design Wavelength: 546.1nm, n=1.518721
Diameter Tolerance: +0.0/-0.1mm
Paraxial Focal Length: ±2%
Centration: 3 arc minutes
Surface Figure : /4 @ 632.8 nm
Surface Quality: 60/40
Clear Aperture: >80%
Bevel: <0.25mm X 45°
Coating: Upon customer’s request
