1. PUNJAB COLLEGE OF TECHNICAL EDUCATION Presented to:- Mr. Harmanjeet Singh Faculty PCTE Presented by:- Munish Singla BCA-3D PRESENTATION ON TOUCH TECHNOLOGY IN MOBILES

2. Introduction A touch screen is an electronic visual display that can detect the presence and location of a touch within the display area. Touch screens can sense Finger and other passive objects, such as a stylus. However, if the object sensed is active, as with a light pen.

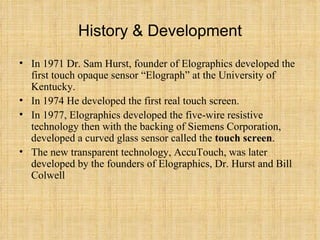

3. History & Development In 1971 Dr. Sam Hurst, founder of Elographics developed the first touch opaque sensor “Elograph” at the University of Kentucky. In 1974 He developed the first real touch screen. In 1977, Elographics developed the five-wire resistive technology then with the backing of Siemens Corporation, developed a curved glass sensor called the touch screen . The new transparent technology, AccuTouch, was later developed by the founders of Elographics, Dr. Hurst and Bill Colwell

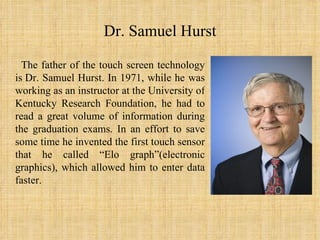

4. Dr. Samuel Hurst The father of the touch screen technology is Dr. Samuel Hurst. In 1971, while he was working as an instructor at the University of Kentucky Research Foundation, he had to read a great volume of information during the graduation exams. In an effort to save some time he invented the first touch sensor that he called “Еlo graph”(electronic graphics), which allowed him to enter data faster.

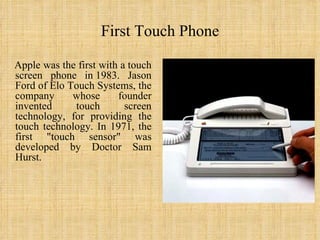

5. First Touch Phone Apple was the first with a touch screen phone in 1983. Jason Ford of Elo Touch Systems, the company whose founder invented touch screen technology, for providing the touch technology. In 1971, the first "touch sensor" was developed by Doctor Sam Hurst.

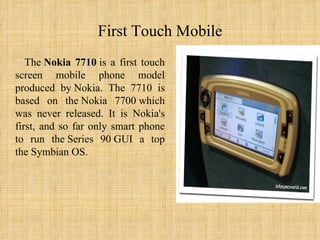

6. First Touch Mobile The Nokia 7710 is a first touch screen mobile phone model produced by Nokia. The 7710 is based on the Nokia 7700 which was never released. It is Nokia's first, and so far only smart phone to run the Series 90 GUI a top the Symbian OS.

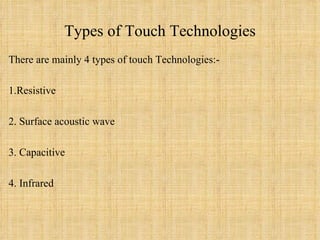

7. Types of Touch Technologies There are mainly 4 types of touch Technologies:- 1.Resistive 2. Surface acoustic wave 3. Capacitive 4. Infrared

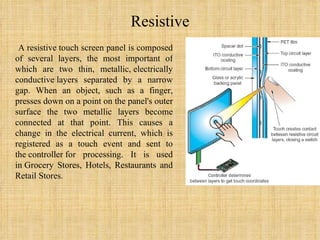

8. Resistive A resistive touch screen panel is composed of several layers, the most important of which are two thin, metallic, electrically conductive layers separated by a narrow gap. When an object, such as a finger, presses down on a point on the panel's outer surface the two metallic layers become connected at that point. This causes a change in the electrical current, which is registered as a touch event and sent to the controller for processing. It is used in Grocery Stores, Hotels, Restaurants and Retail Stores.

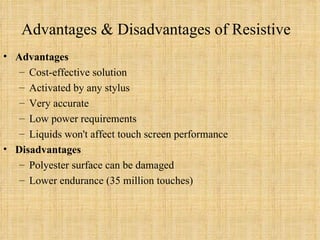

9. Advantages & Disadvantages of Resistive Advantages Cost-effective solution Activated by any stylus Very accurate Low power requirements Liquids won't affect touch screen performance Disadvantages Polyester surface can be damaged Lower endurance (35 million touches)

10. Surface Acoustic Wave (SAW) Surface acoustic wave (SAW) technology uses ultrasonic waves that pass over the touch screen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. SAW touch screen technology is suggested for use in ATMs, Amusement Parks, Gaming Environments, Industrial Control Rooms etc.

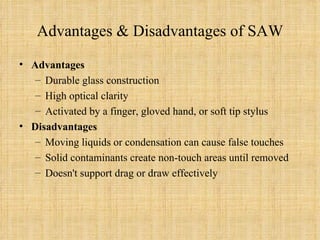

11. Advantages & Disadvantages of SAW Advantages Durable glass construction High optical clarity Activated by a finger, gloved hand, or soft tip stylus Disadvantages Moving liquids or condensation can cause false touches Solid contaminants create non-touch areas until removed Doesn't support drag or draw effectively

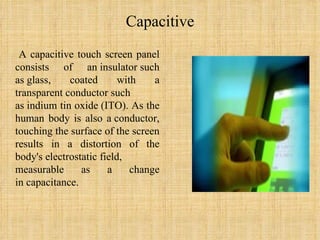

12. Capacitive A capacitive touch screen panel consists of an insulator such as glass, coated with a transparent conductor such as indium tin oxide (ITO). As the human body is also a conductor, touching the surface of the screen results in a distortion of the body's electrostatic field, measurable as a change in capacitance.

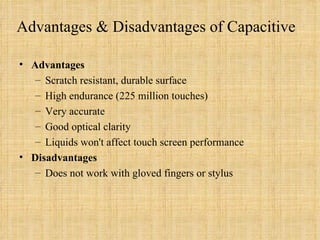

13. Advantages & Disadvantages of Capacitive Advantages Scratch resistant, durable surface High endurance (225 million touches) Very accurate Good optical clarity Liquids won't affect touch screen performance Disadvantages Does not work with gloved fingers or stylus

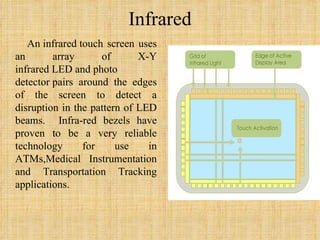

14. Infrared An infrared touch screen uses an array of X-Y infrared LED and photo detector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. Infra-red bezels have proven to be a very reliable technology for use in ATMs,Medical Instrumentation and Transportation Tracking applications.

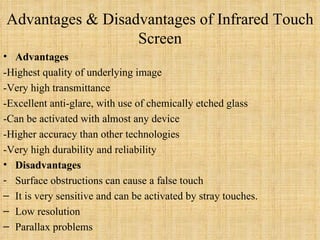

15. Advantages & Disadvantages of Infrared Touch Screen Advantages -Highest quality of underlying image -Very high transmittance -Excellent anti-glare, with use of chemically etched glass -Can be activated with almost any device -Higher accuracy than other technologies -Very high durability and reliability Disadvantages Surface obstructions can cause a false touch It is very sensitive and can be activated by stray touches. Low resolution Parallax problems

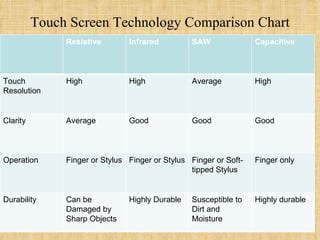

16. Touch Screen Technology Comparison Chart Resistive Infrared SAW Capacitive Touch Resolution High High Average High Clarity Average Good Good Good Operation Finger or Stylus Finger or Stylus Finger or Soft-tipped Stylus Finger only Durability Can be Damaged by Sharp Objects Highly Durable Susceptible to Dirt and Moisture Highly durable

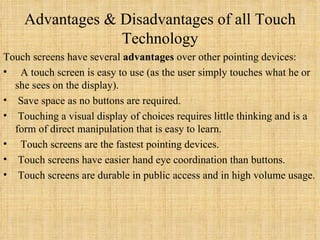

17. Advantages & Disadvantages of all Touch Technology Touch screens have several advantages over other pointing devices: A touch screen is easy to use (as the user simply touches what he or she sees on the display). Save space as no buttons are required. Touching a visual display of choices requires little thinking and is a form of direct manipulation that is easy to learn. Touch screens are the fastest pointing devices. Touch screens have easier hand eye coordination than buttons. Touch screens are durable in public access and in high volume usage.

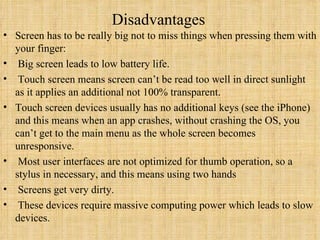

18. Disadvantages Screen has to be really big not to miss things when pressing them with your finger: Big screen leads to low battery life. Touch screen means screen can’t be read too well in direct sunlight as it applies an additional not 100% transparent. Touch screen devices usually has no additional keys (see the iPhone) and this means when an app crashes, without crashing the OS, you can’t get to the main menu as the whole screen becomes unresponsive. Most user interfaces are not optimized for thumb operation, so a stylus in necessary, and this means using two hands Screens get very dirty. These devices require massive computing power which leads to slow devices.

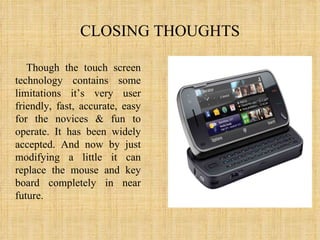

19. CLOSING THOUGHTS Though the touch screen technology contains some limitations it’s very user friendly, fast, accurate, easy for the novices & fun to operate. It has been widely accepted. And now by just modifying a little it can replace the mouse and key board completely in near future.

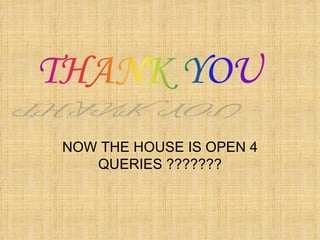

20. NOW THE HOUSE IS OPEN 4 QUERIES ???????
