The LB-10ODD oxygen detector is a portable device that measures oxygen levels with a range of 0% to 25% and features an electrochemical measuring principle. It includes sound and light alarms, has an adjustable alarm threshold, and operates for over 10 hours on a 3.7 V lithium battery. The device is suitable for industrial applications, including monitoring processes on oil rigs and in firefighting.

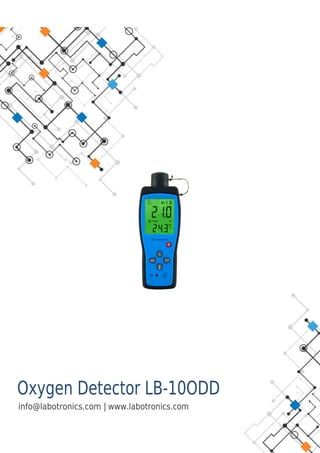

1. Oxygen Detector LB-10ODD
|
info@labotronics.com www.labotronics.com

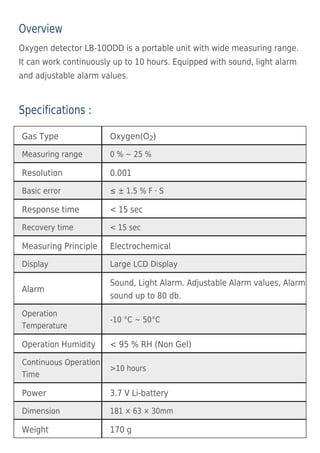

2. Overview
Oxygen detector LB-10ODD is a portable unit with wide measuring range.
It can work continuously up to 10 hours. Equipped with sound, light alarm
and adjustable alarm values.
Specifications :
Gas Type Oxygen(O )
2
Measuring range 0 % ~ 25 %
Resolution 0.001
Basic error ≤ ± 1.5 % F · S
Response time < 15 sec
Recovery time < 15 sec
Measuring Principle Electrochemical
Display Large LCD Display
Alarm
Sound, Light Alarm. Adjustable Alarm values, Alarm
sound up to 80 db.
Operation
Temperature
-10 °C ~ 50°C
Operation Humidity < 95 % RH (Non Gel)
Continuous Operation
Time
>10 hours
Power 3.7 V Li-battery
Dimension 181 × 63 × 30mm
Weight 170 g

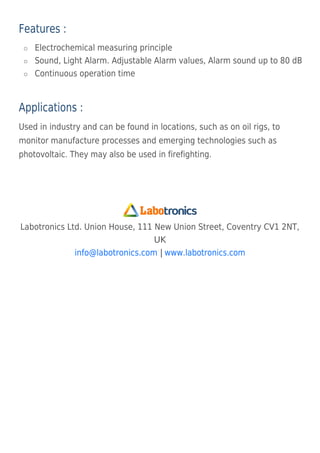

3. Features :
Electrochemical measuring principle

Sound, Light Alarm. Adjustable Alarm values, Alarm sound up to 80 dB

Continuous operation time

Applications :
Used in industry and can be found in locations, such as on oil rigs, to
monitor manufacture processes and emerging technologies such as
photovoltaic. They may also be used in firefighting.
Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT,
UK
|
info@labotronics.com www.labotronics.com
