The document discusses TheSchwartz, an open-source queueing system for reliably processing asynchronous jobs. It describes problems with initial approaches like single daemon queues and multiple daemon solutions. TheSchwartz uses a database to store jobs and worker processes to reliably process them. Workers can handle one or more job types and jobs are pulled from the database to be processed. TheSchwartz has been used to process over 100 jobs per second for LiveJournal.

1. Keeping Your Workers In Line: Brad Whitaker Lisa Phillips use TheSchwartz;

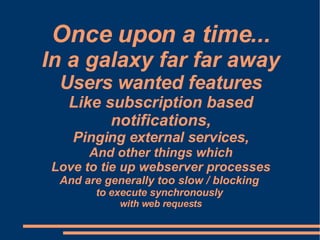

2. Once upon a time... In a galaxy far far away Users wanted features Like subscription based notifications, Pinging external services, And other things which Love to tie up webserver processes And are generally too slow / blocking to execute synchronously with web requests

3. (Yes, that was really my best slide-foo, so bear with me)

4. So we needed to solve the problems these features create

5. Which can easily result in a mess

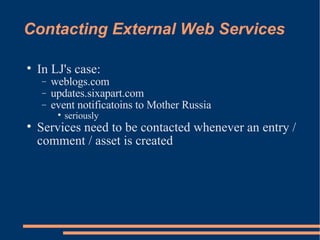

6. Contacting External Web Services In LJ's case: weblogs.com updates.sixapart.com event notificatoins to Mother Russia seriously Services need to be contacted whenever an entry / comment / asset is created

7. Processing Uploaded Media Pictures need to be scaled Videos need to be transcoded Shouldn’t be done on the webserver -too slow -hogs CPU/Memory resources requires unnecessary libraries loaded in to Apache

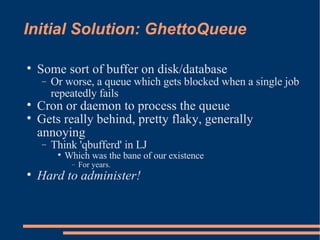

8. Initial Solution: GhettoQueue Some sort of buffer on disk/database Or worse, a queue which gets blocked when a single job repeatedly fails Cron or daemon to process the queue Gets really behind, pretty flaky, generally annoying Think 'qbufferd' in LJ Which was the bane of our existence For years. Hard to administer!

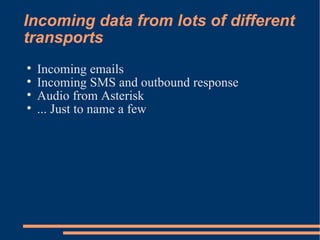

9. Incoming data from lots of different transports Incoming emails Incoming SMS and outbound response Audio from Asterisk ... Just to name a few

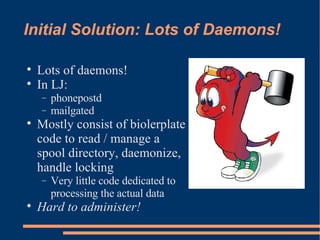

10. Initial Solution: Lots of Daemons! Lots of daemons! In LJ: phonepostd mailgated Mostly consist of biolerplate code to read / manage a spool directory, daemonize, handle locking Very little code dedicated to processing the actual data Hard to administer!

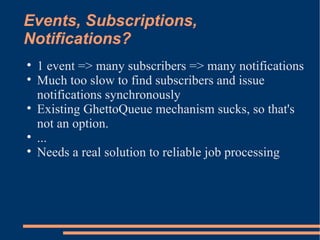

11. Events, Subscriptions, Notifications? 1 event => many subscribers => many notifications Much too slow to find subscribers and issue notifications synchronously Existing GhettoQueue mechanism sucks, so that's not an option. ... Needs a real solution to reliable job processing

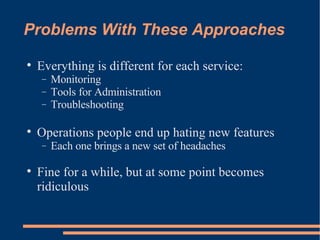

12. Problems With These Approaches Everything is different for each service: Monitoring Tools for Administration Troubleshooting Operations people end up hating new features Each one brings a new set of headaches Fine for a while, but at some point becomes ridiculous

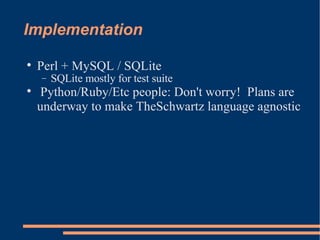

14. Implementation Perl + MySQL / SQLite SQLite mostly for test suite Python/Ruby/Etc people: Don't worry! Plans are underway to make TheSchwartz language agnostic

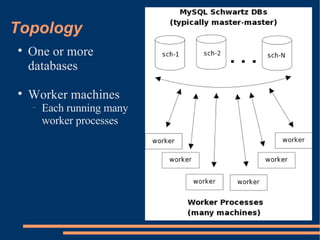

15. Topology One or more databases Worker machines Each running many worker processes

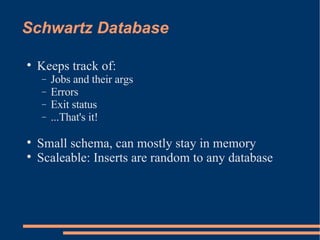

16. Schwartz Database Keeps track of: Jobs and their args Errors Exit status ...That's it! Small schema, can mostly stay in memory Scaleable: Inserts are random to any database

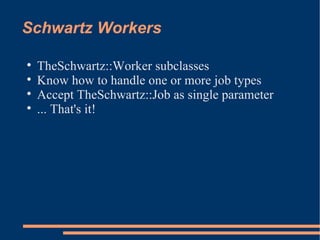

17. Schwartz Workers TheSchwartz::Worker subclasses Know how to handle one or more job types Accept TheSchwartz::Job as single parameter ... That's it!

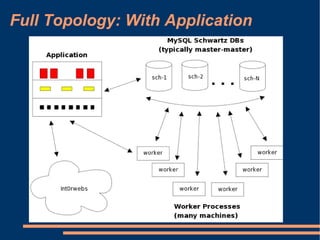

18. Full Topology: With Application

19. Request Cycle 1) Event to application 2) Application registers Schwartz job 3) Worker grabs Schwartz job 4) Worker does work, (usually modifying application data) 5) Worker (optionally) stores result in Schwartz database

20. Let's look at some code...

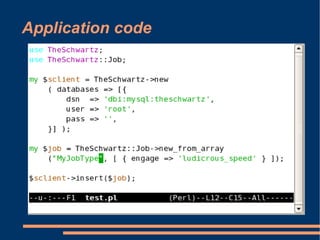

21. Application code

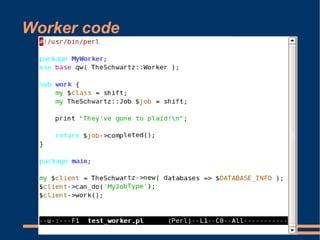

22. Worker code

23. It's really that simple...

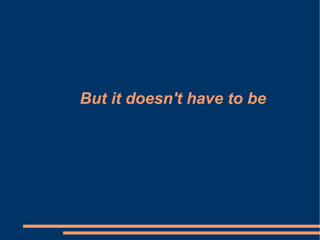

24. But it doesn't have to be

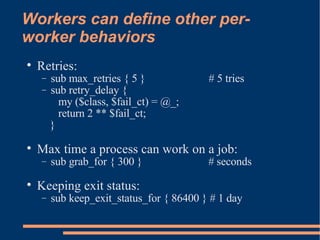

25. Workers can define other per-worker behaviors Retries: sub max_retries { 5 } # 5 tries sub retry_delay { my ($class, $fail_ct) = @_; return 2 ** $fail_ct; } Max time a process can work on a job: sub grab_for { 300 } # seconds Keeping exit status: sub keep_exit_status_for { 86400 } # 1 day

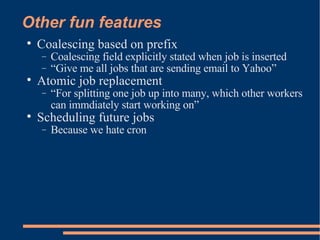

26. Other fun features Coalescing based on prefix Coalescing field explicitly stated when job is inserted “ Give me all jobs that are sending email to Yahoo” Atomic job replacement “ For splitting one job up into many, which other workers can immdiately start working on” Scheduling future jobs Because we hate cron

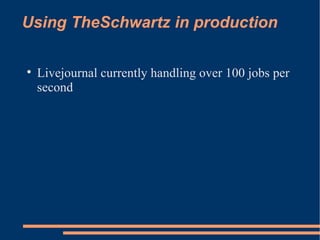

27. Using TheSchwartz in production Livejournal currently handling over 100 jobs per second

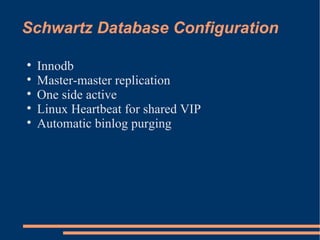

28. Schwartz Database Configuration Innodb Master-master replication One side active Linux Heartbeat for shared VIP Automatic binlog purging

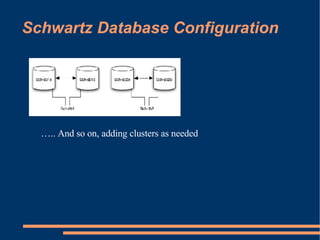

29. Schwartz Database Configuration … .. And so on, adding clusters as needed

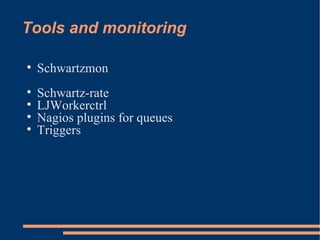

30. Tools and monitoring Schwartzmon Schwartz-rate LJWorkerctrl Nagios plugins for queues Triggers

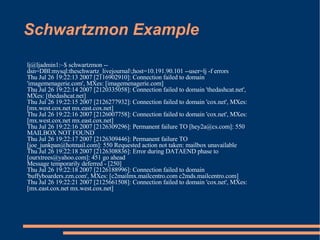

31. Schwartzmon Example lj@ljadmin1:~$ schwartzmon --dsn=DBI:mysql:theschwartz_livejournal\;host=10.191.90.101 --user=lj -f errors Thu Jul 26 19:22:13 2007 [2116902910]: Connection failed to domain 'imagemenagerie.com', MXes: [imagemenagerie.com] Thu Jul 26 19:22:14 2007 [2120335058]: Connection failed to domain 'thedashcat.net', MXes: [thedashcat.net] Thu Jul 26 19:22:15 2007 [2126277932]: Connection failed to domain 'cox.net', MXes: [mx.west.cox.net mx.east.cox.net] Thu Jul 26 19:22:16 2007 [2126007758]: Connection failed to domain 'cox.net', MXes: [mx.west.cox.net mx.east.cox.net] Thu Jul 26 19:22:16 2007 [2126309296]: Permanent failure TO [hey2a@cs.com]: 550 MAILBOX NOT FOUND Thu Jul 26 19:22:17 2007 [2126309446]: Permanent failure TO [joe_junkpan@hotmail.com]: 550 Requested action not taken: mailbox unavailable Thu Jul 26 19:22:18 2007 [2126308836]: Error during DATAEND phase to [ourxtrees@yahoo.com]: 451 go ahead Message temporarily deferred - [250] Thu Jul 26 19:22:18 2007 [2126188996]: Connection failed to domain 'buffyboarders.zzn.com', MXes: [c2mailmx.mailcentro.com c2mds.mailcentro.com] Thu Jul 26 19:22:21 2007 [2125661508]: Connection failed to domain 'cox.net', MXes: [mx.east.cox.net mx.west.cox.net]

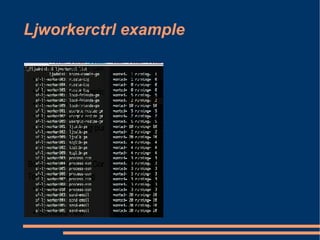

32. Ljworkerctrl example

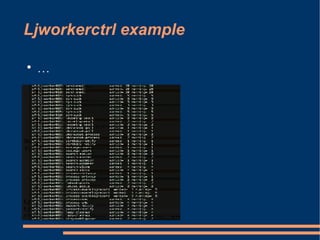

33. Ljworkerctrl example …

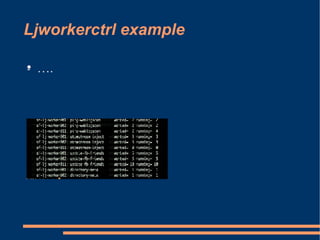

34. Ljworkerctrl example … . -

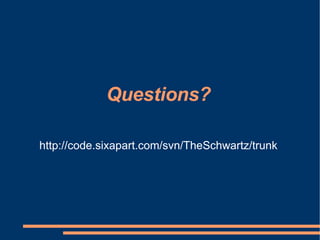

35. Questions? http://code.sixapart.com/svn/TheSchwartz/trunk
