1. ORTHOGRAPHIC
PROJECTION

2. OBJECTIVES:
• Define orthographic projection
• Draw Orthographic projection

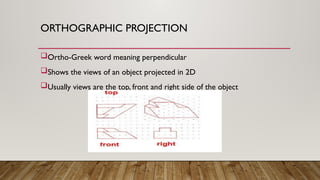

3. ORTHOGRAPHIC PROJECTION
Ortho-Greek word meaning perpendicular
Shows the views of an object projected in 2D
Usually views are the top, front and right side of the object

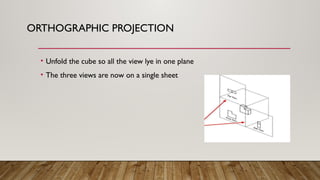

4. ORTHOGRAPHIC PROJECTION
• Unfold the cube so all the view lye in one plane
• The three views are now on a single sheet

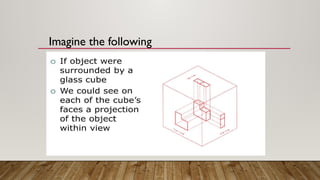

5. Imagine the following

6. THE THREEVIEWS
Front view
Height andWidth
Top view
Width and depth
Right view
Depth and height

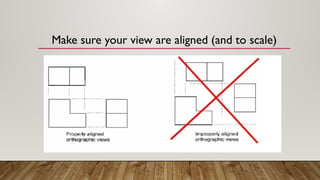

7. Make sure your view are aligned (and to scale)
