The document summarizes Oracle Cloud services including Platform as a Service (PaaS), Infrastructure as a Service (IaaS), and Software as a Service (SaaS). It provides an overview of Oracle database, middleware, and engineered systems available on Oracle Cloud. It also discusses how to create a database on Oracle Cloud using REST APIs and cURL, and how to perform RMAN backups to Oracle Cloud Storage. Finally, it covers connecting to databases on Oracle Cloud using Enterprise Manager and SQL Developer.

1. ORACLE CLOUD SERVİSLERİ
Özgür Umut VURGUN / Erkan ÜLGEY
Oracle Cloud Day
İstanbul
Nov 2015

2. 2006 - Comp.Eng.
2008 - OCP
2012 - MBA @ Bahcesehir University
2012 - Blogger,Author,Speaker
@ www.ozgurumutvurgun.com
@ www.otechmag.com
@ www.turkceoracle.com
@ www.dwh.gen.tr
2013 - Lecturer , Eskisehir Osmangazi University
2013 - RAC and Grid Cert. Expert
2007 - 2015 DBA
Şimdilerde her şey ile uğraşıyor..
Haberleşelim 
ozgurumutvurgun@gmail.com
tr.linkedin.com/in/ozgurumutvurgun
twitter.com/ozgurumutvurgun
Biz Kimiz ?
2010 Comp.Eng. @ Itu
2010 - 2014 DBA @ TUBITAK
2012 - ~ M.Sc. @ Boun
2013 - ~ Blogger @ kamudba.blogspot.com.tr
2013 - ~ 11g OCP & Perf. Tuning Cert. Expert
2014 TSK 
2015 - ~ DBA @ Garanti Teknoloji
Şimdilerde Big Data ile uğraşıyor..
Haberleşelim 
ulgey.erkan@gmail.com
tr.linkedin.com/in/erkanulgey
twitter.com/erkanulgey

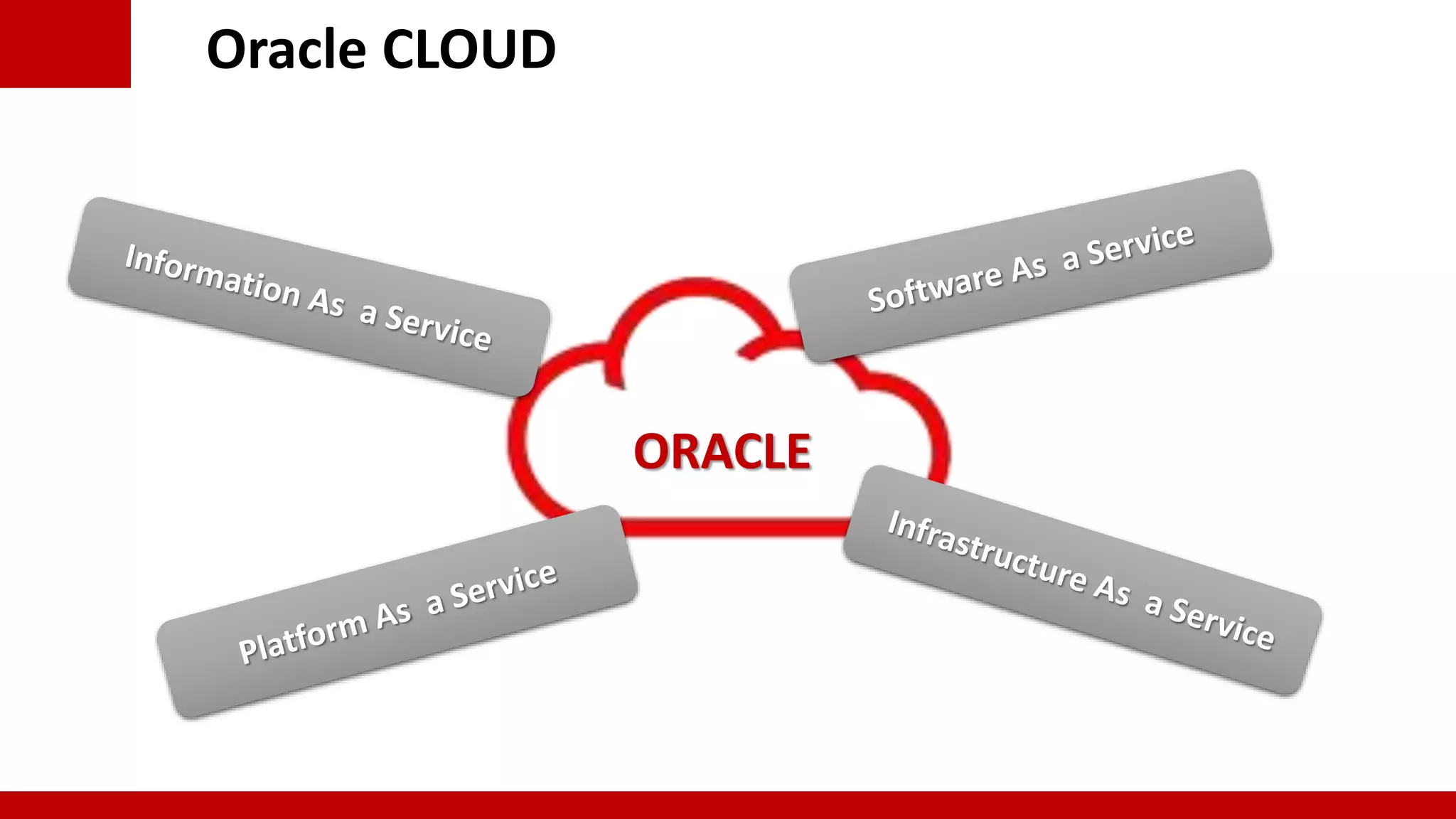

3. Oracle CLOUD
ORACLE

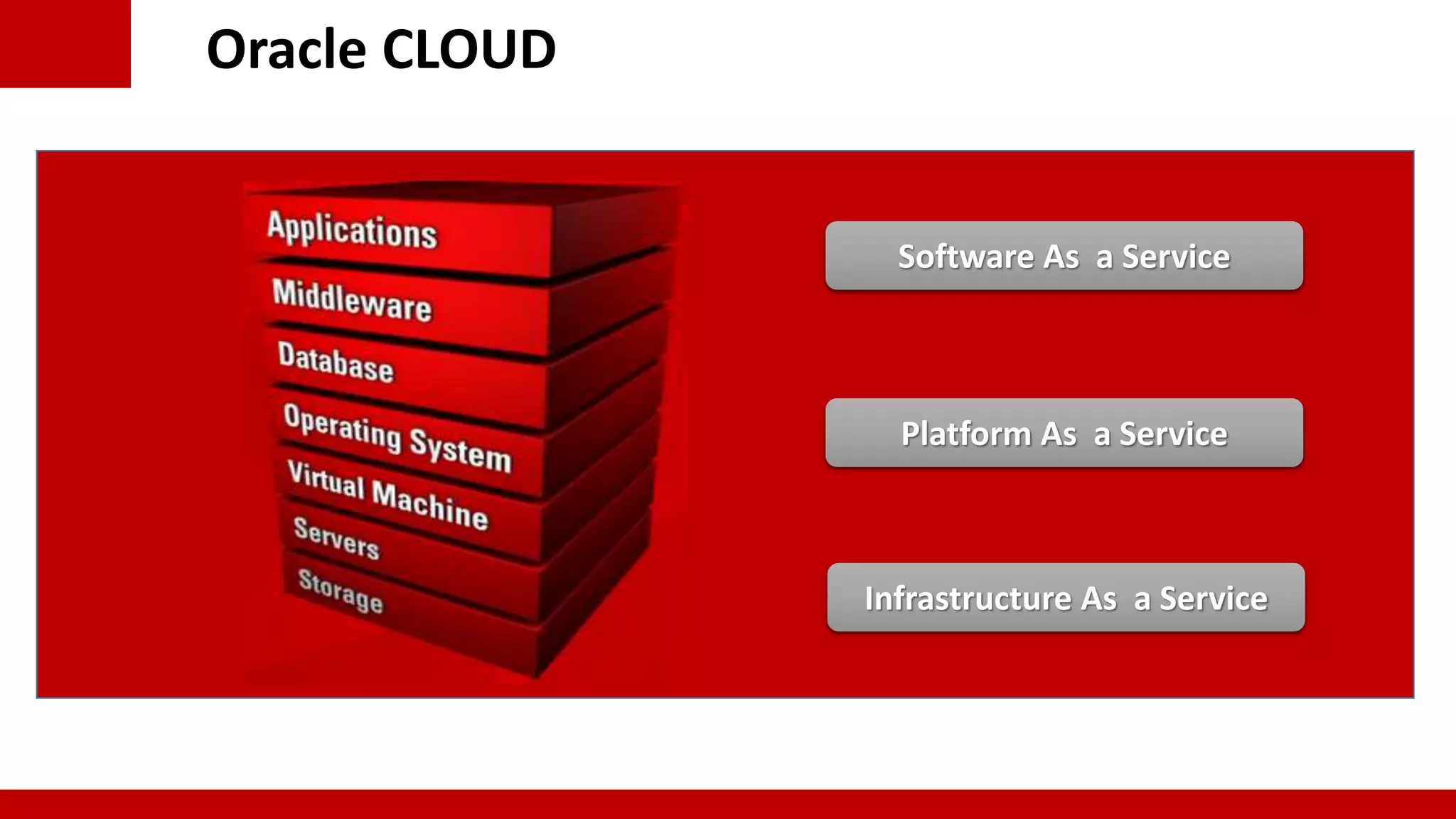

4. Oracle CLOUD
Platform As a Service
Infrastructure As a Service
Software As a Service

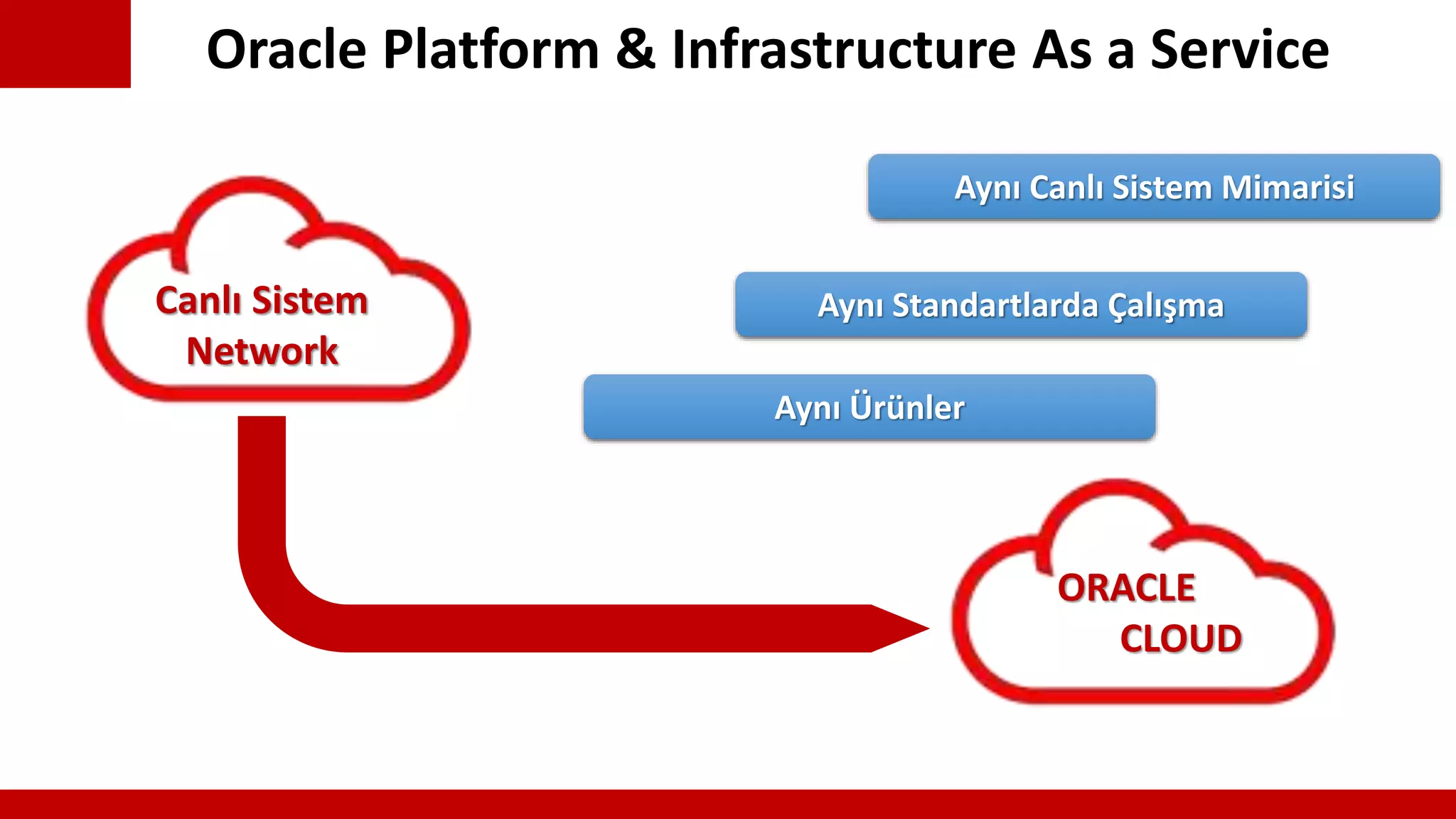

5. Oracle Platform & Infrastructure As a Service
ORACLE
CLOUD
Canlı Sistem
Network
Aynı Canlı Sistem Mimarisi
Aynı Standartlarda Çalışma
Aynı Ürünler

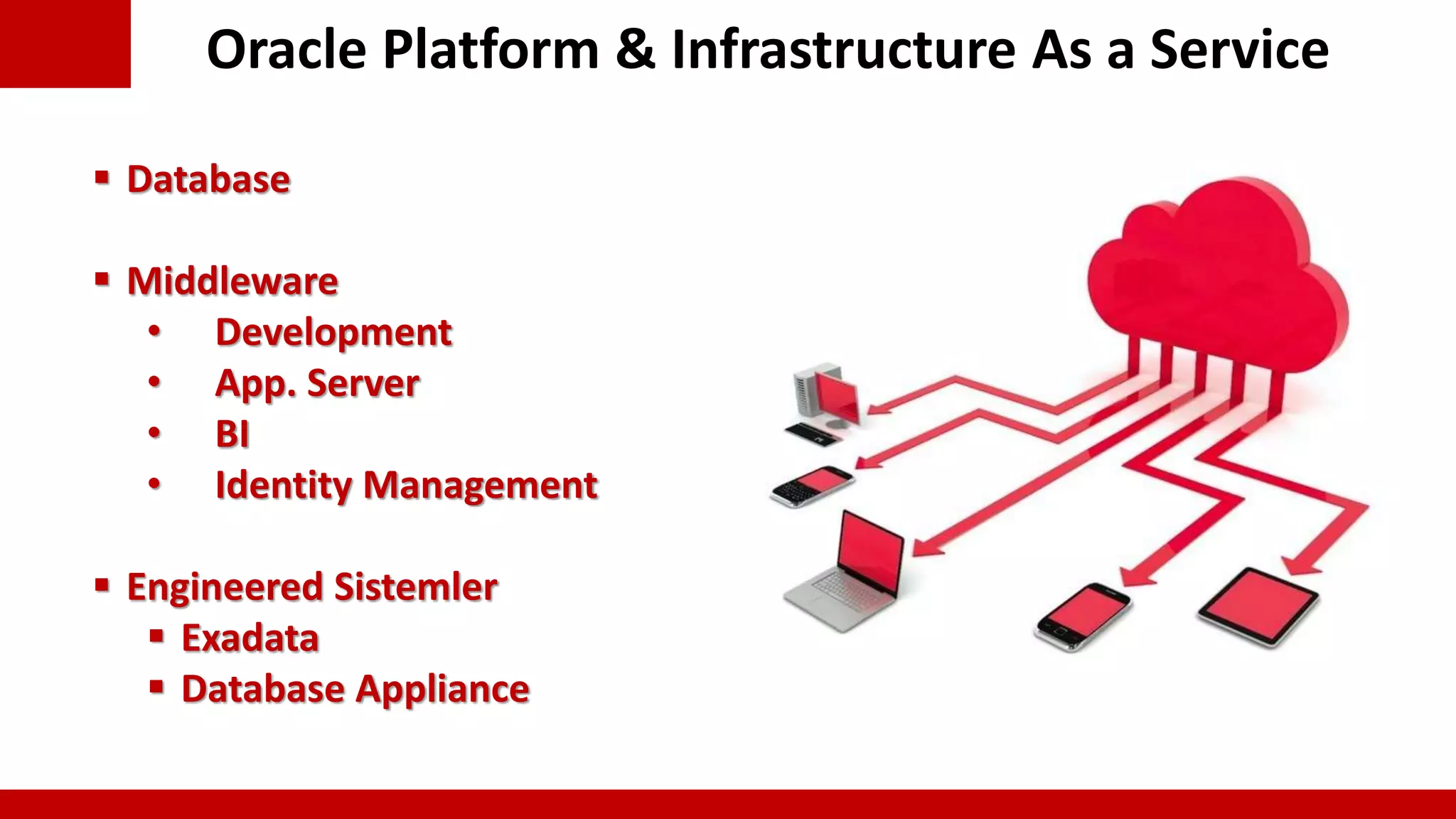

6. Oracle Platform & Infrastructure As a Service
 Database
 Middleware
• Development
• App. Server
• BI
• Identity Management
 Engineered Sistemler
 Exadata
 Database Appliance

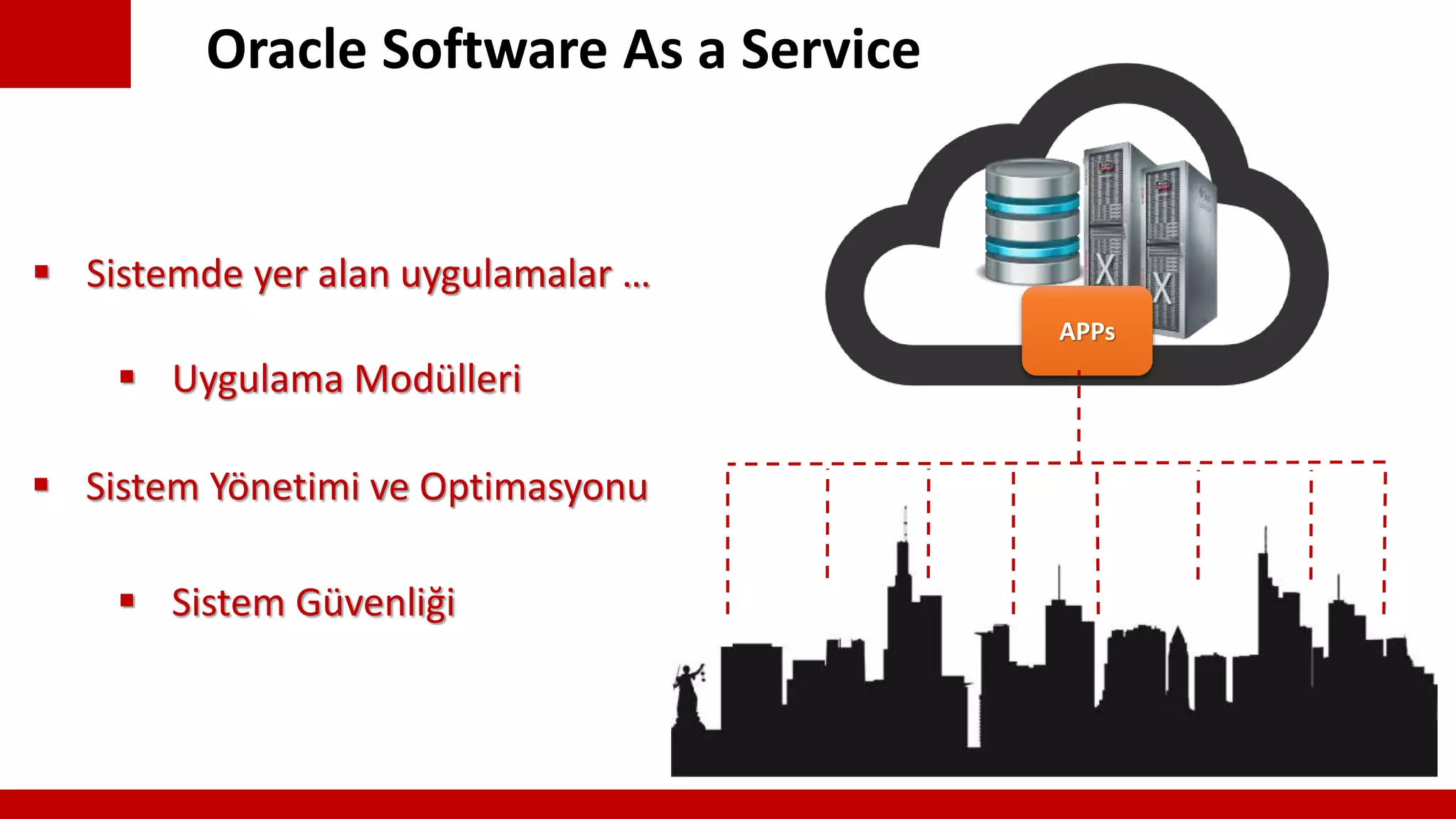

7. Oracle Software As a Service
 Sistemde yer alan uygulamalar …
 Uygulama Modülleri
 Sistem Güvenliği
APPs
 Sistem Yönetimi ve Optimasyonu

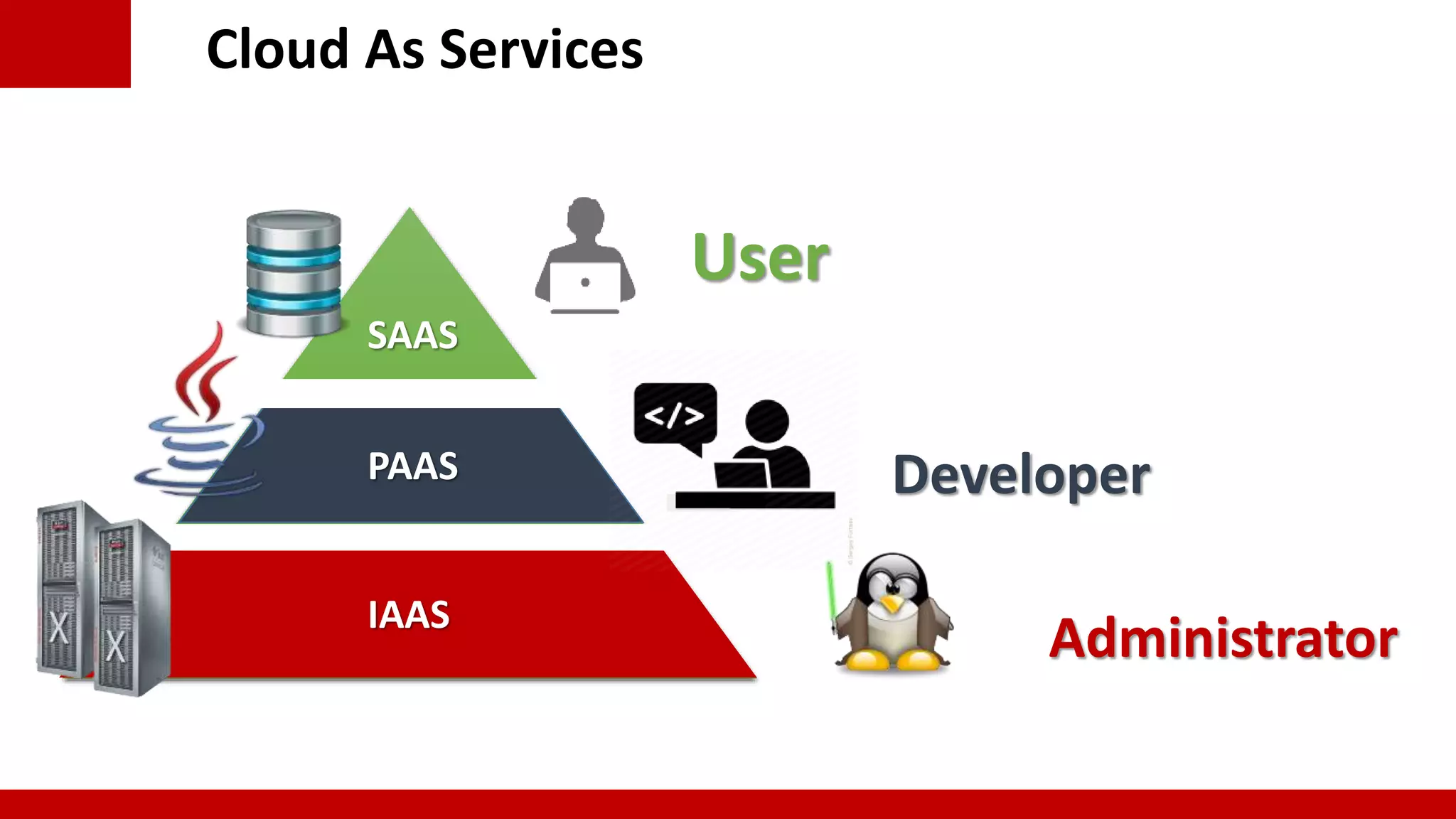

8. Cloud As Services
SAAS
PAAS
IAAS
User
Developer
Administrator

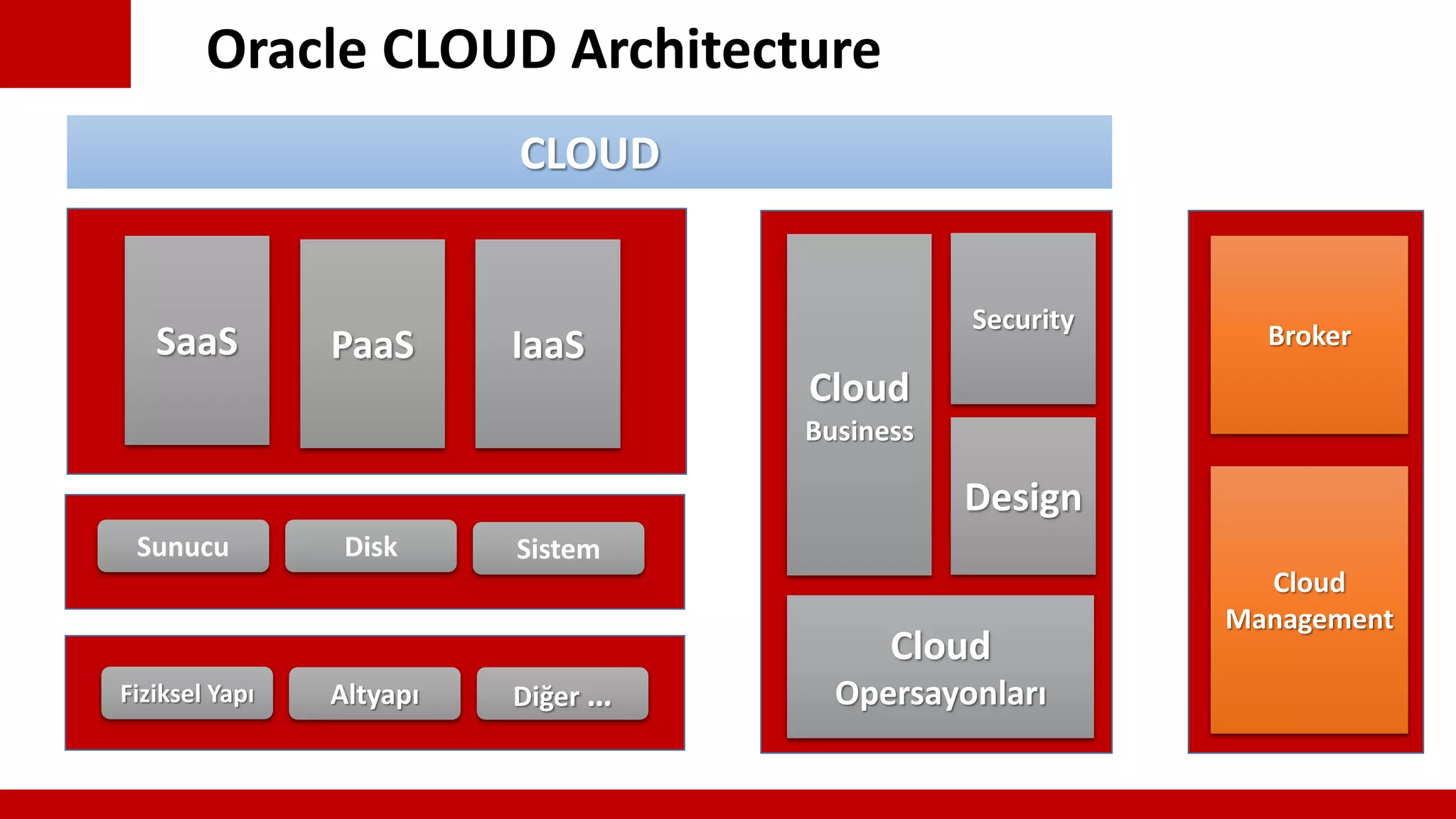

9. Oracle CLOUD Architecture
Fiziksel Yapı Altyapı Diğer …
Sunucu Disk Sistem
SaaS PaaS IaaS
Cloud
Business
Cloud
Opersayonları
Security
Design
Broker
Cloud
Management
CLOUD

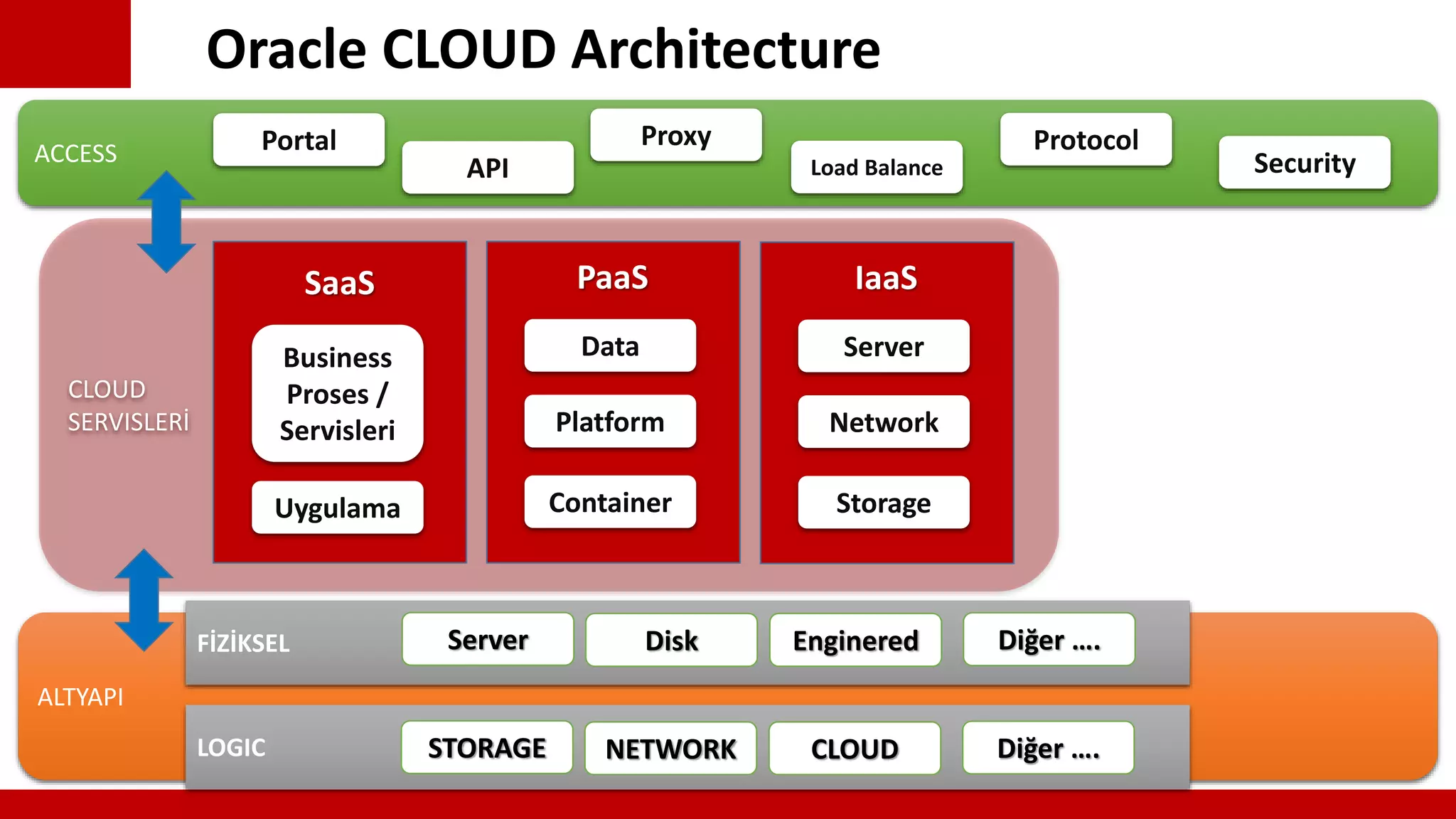

10. ALTYAPI
Oracle CLOUD Architecture
LOGIC
FİZİKSEL
STORAGE NETWORK CLOUD Diğer ….
Server Disk Enginered Diğer ….
ACCESS
CLOUD
SERVISLERİ
SaaS
Business
Proses /
Servisleri
Uygulama
PaaS
Data
Platform
Container
IaaS
Server
Network
Storage
Portal
API
Proxy
Load Balance
Protocol
Security

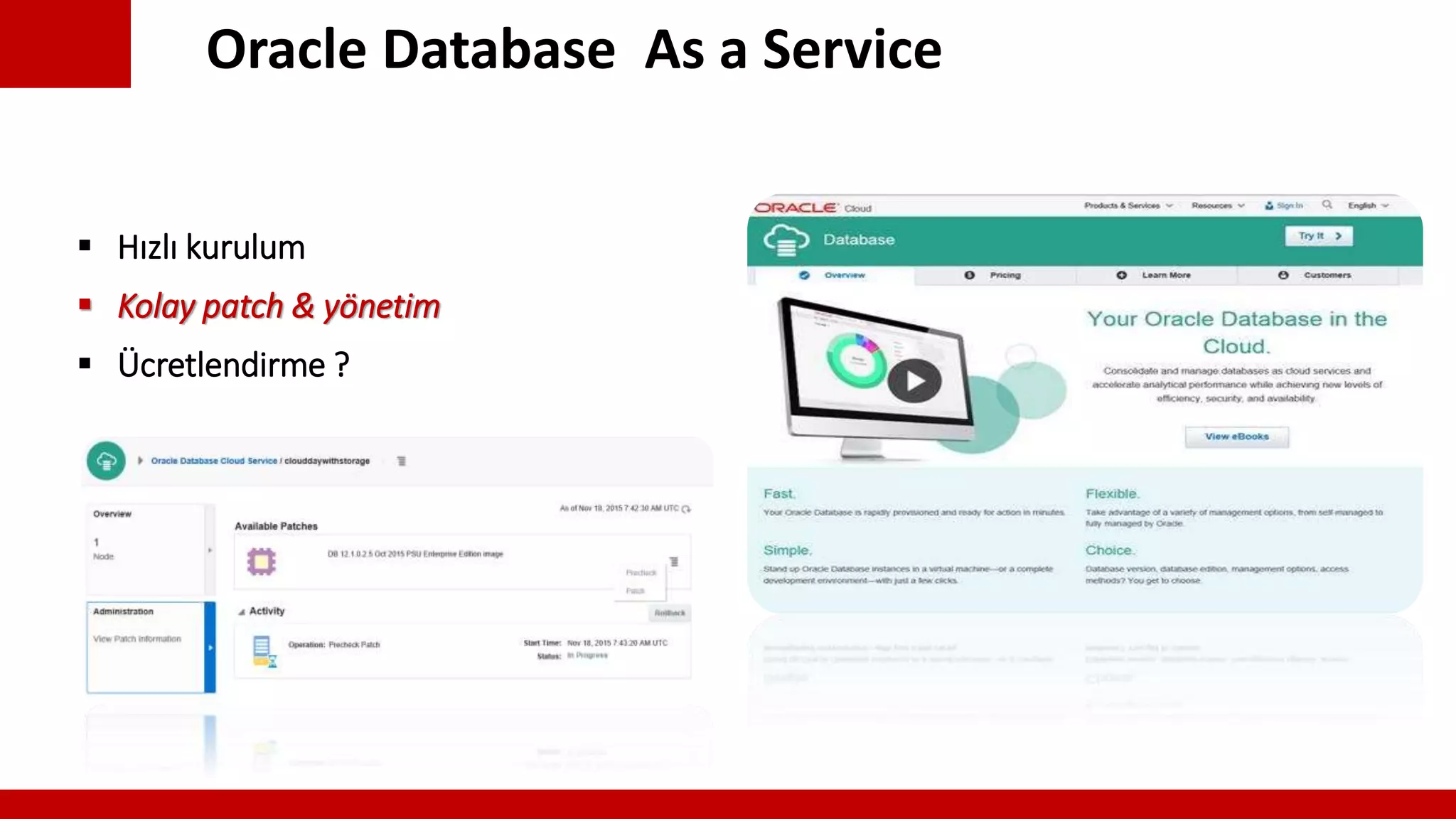

11. Oracle Database As a Service
 Hızlı kurulum
 Kolay patch & yönetim
 Ücretlendirme ?

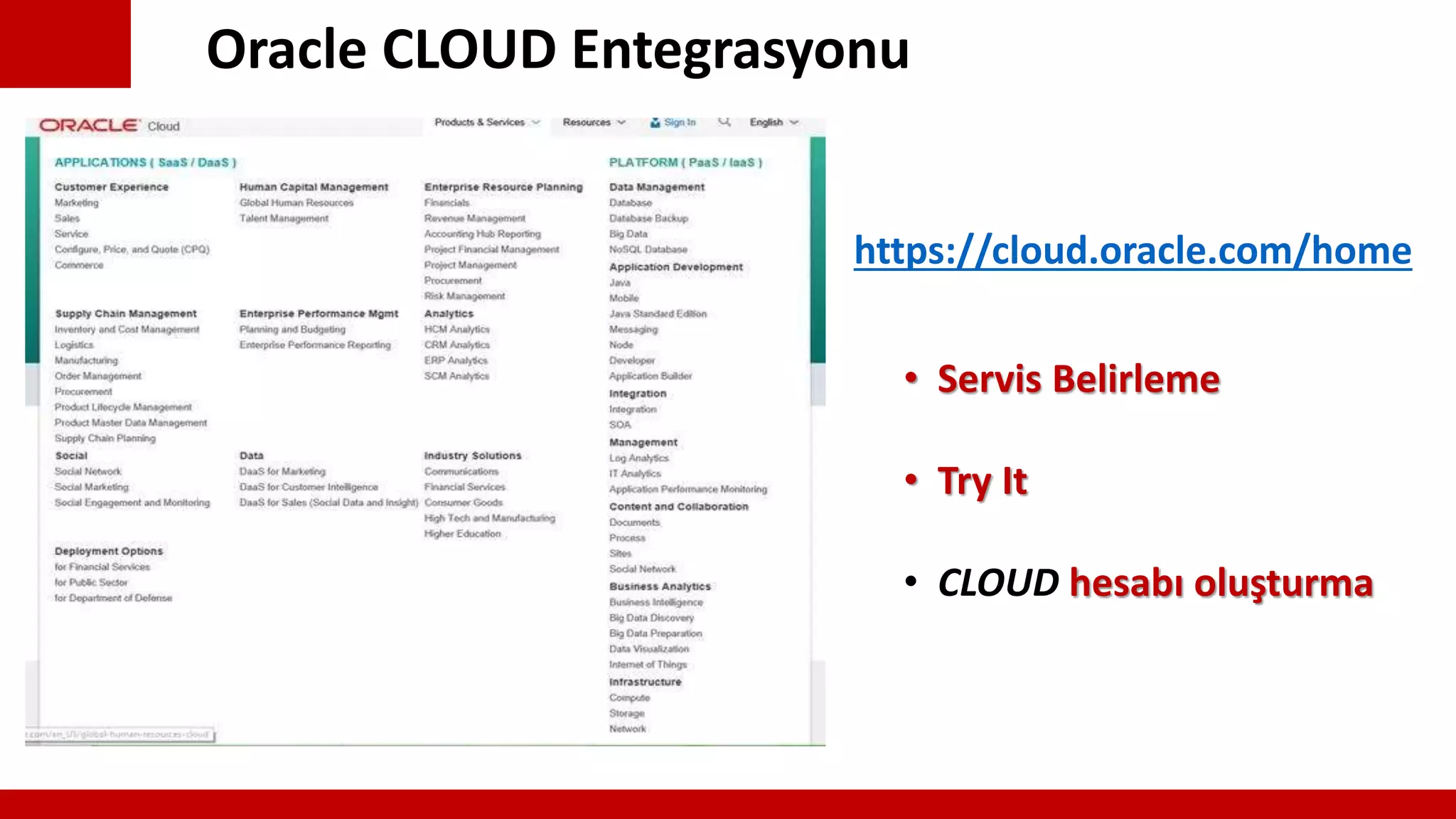

12. Oracle CLOUD Entegrasyonu
https://cloud.oracle.com/home
• Servis Belirleme
• Try It
• CLOUD hesabı oluşturma

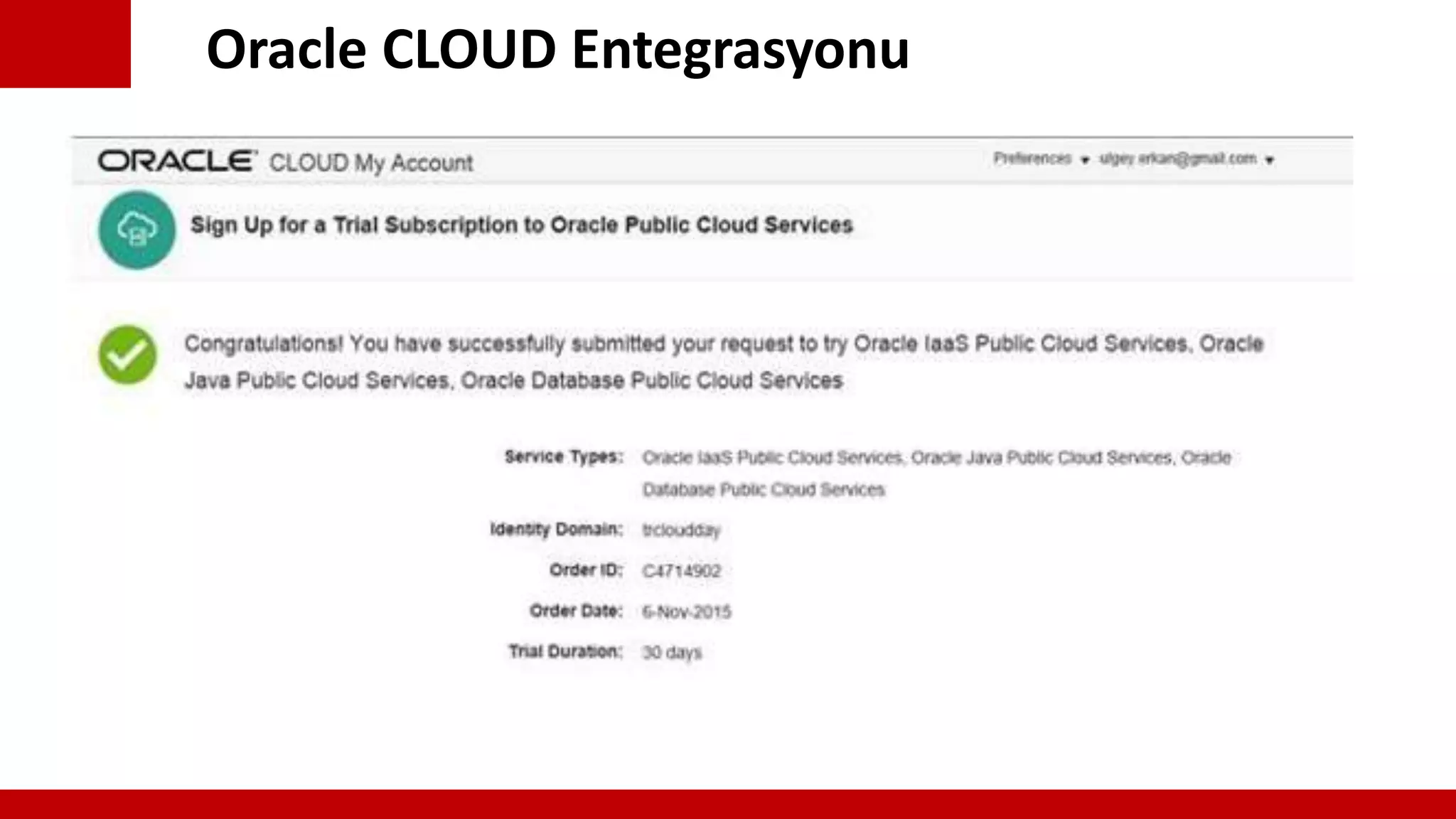

13. Oracle CLOUD Entegrasyonu

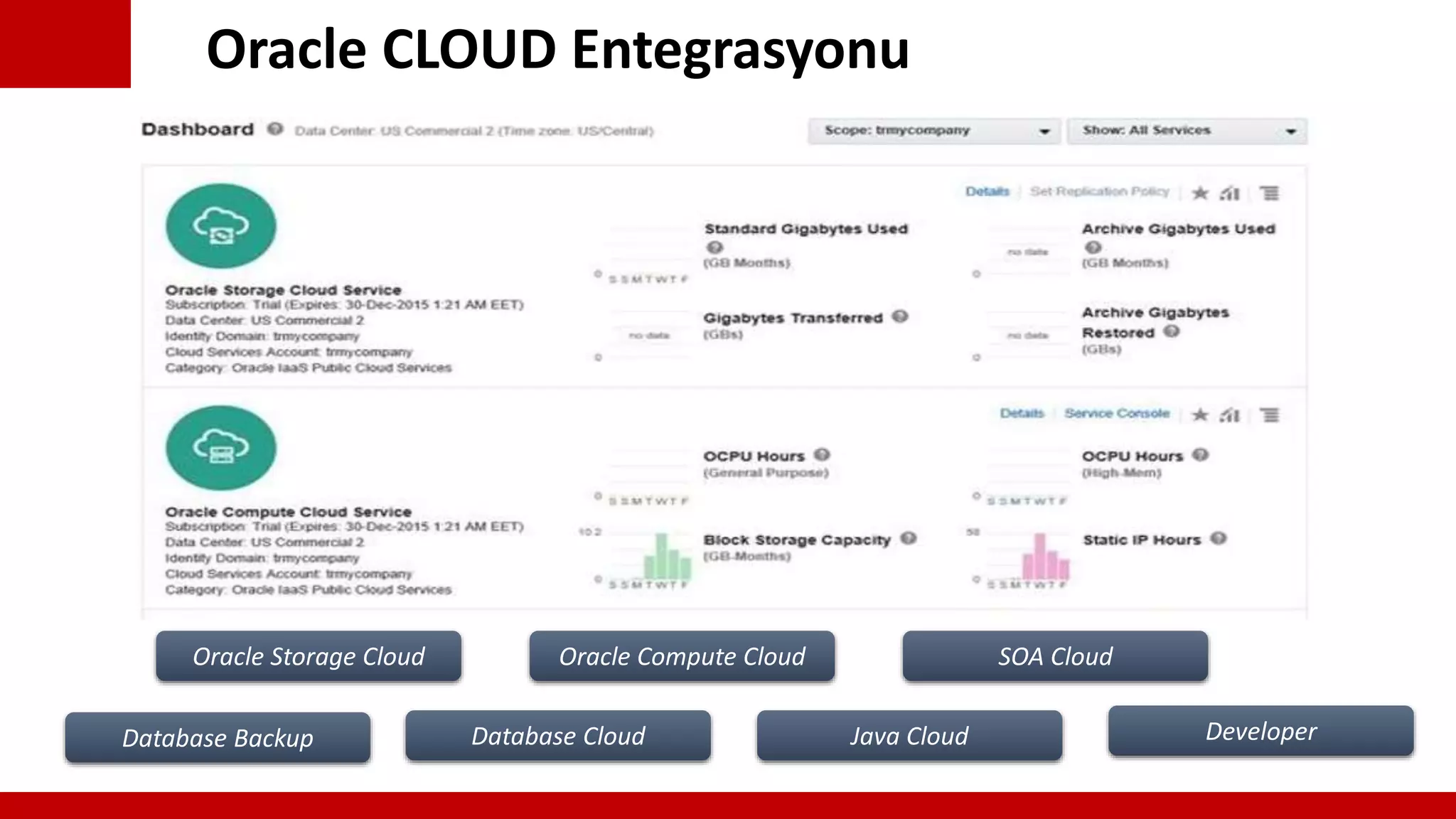

14. Oracle CLOUD Entegrasyonu
Oracle Storage Cloud
Database Backup
Oracle Compute Cloud
Database Cloud
SOA Cloud
Java Cloud Developer

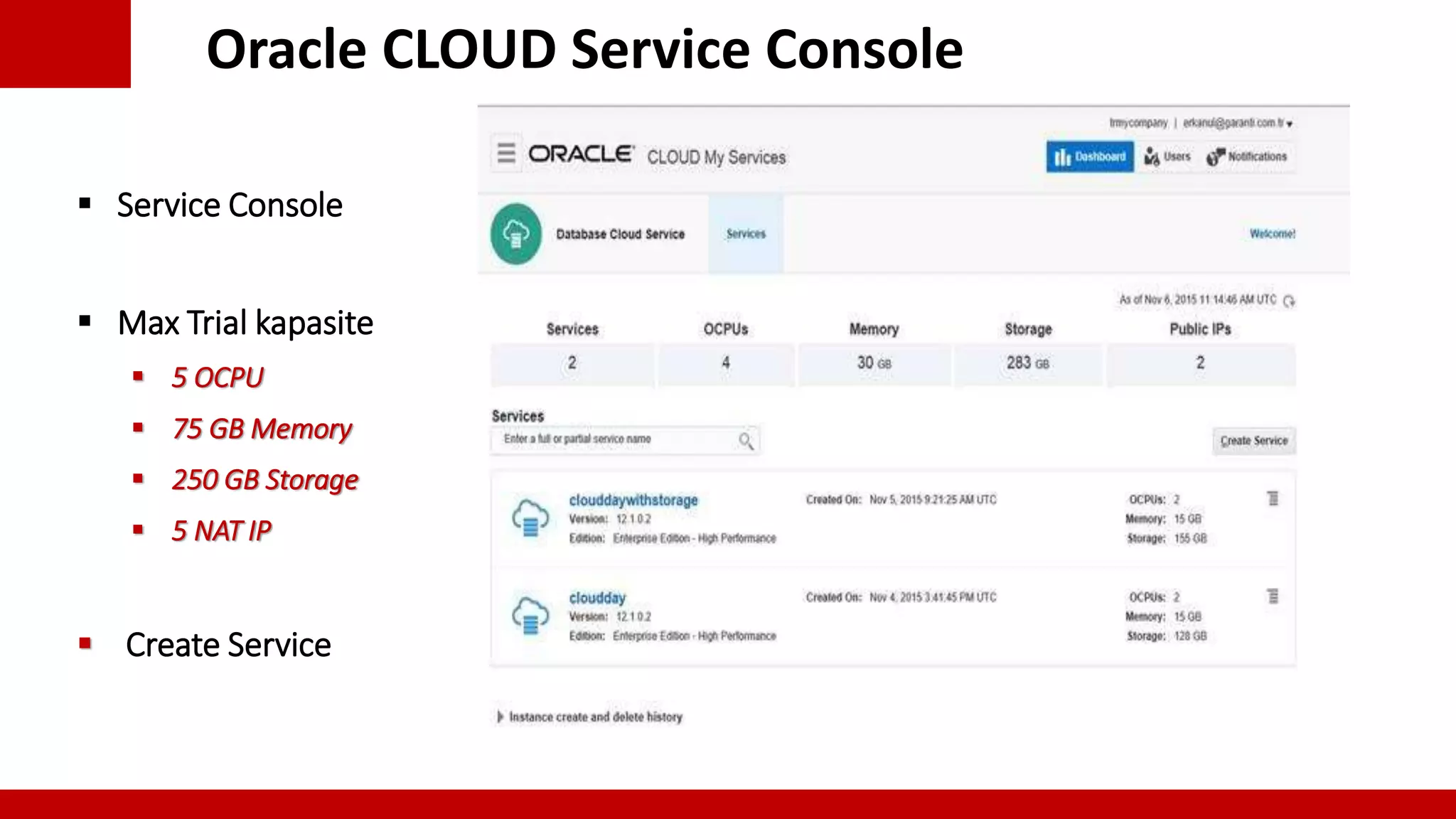

15. Oracle CLOUD Service Console
 Service Console
 Max Trial kapasite
 5 OCPU
 75 GB Memory
 250 GB Storage
 5 NAT IP
 Create Service

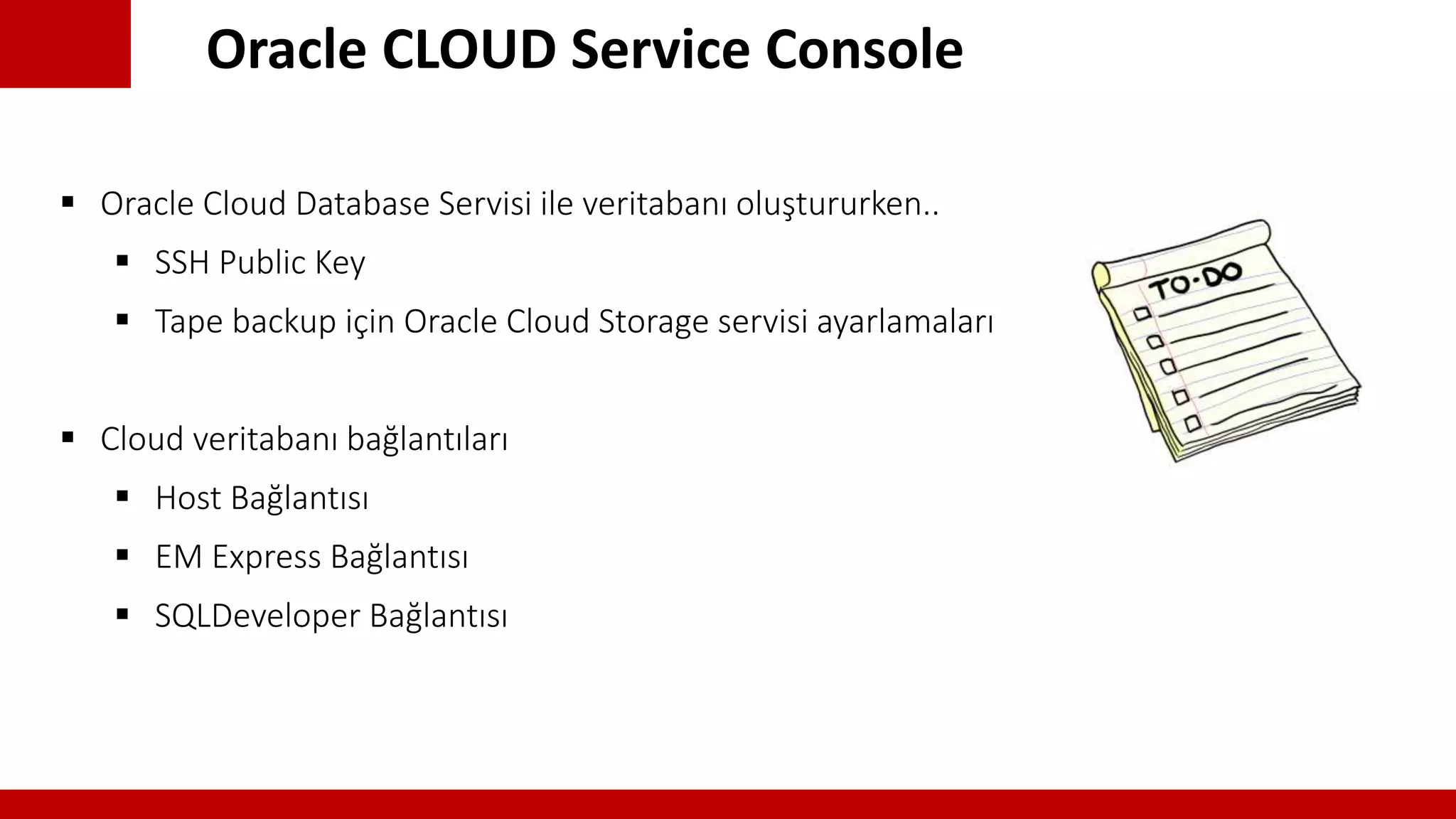

16. Oracle CLOUD Service Console
 Oracle Cloud Database Servisi ile veritabanı oluştururken..
 SSH Public Key
 Tape backup için Oracle Cloud Storage servisi ayarlamaları
 Cloud veritabanı bağlantıları
 Host Bağlantısı
 EM Express Bağlantısı
 SQLDeveloper Bağlantısı

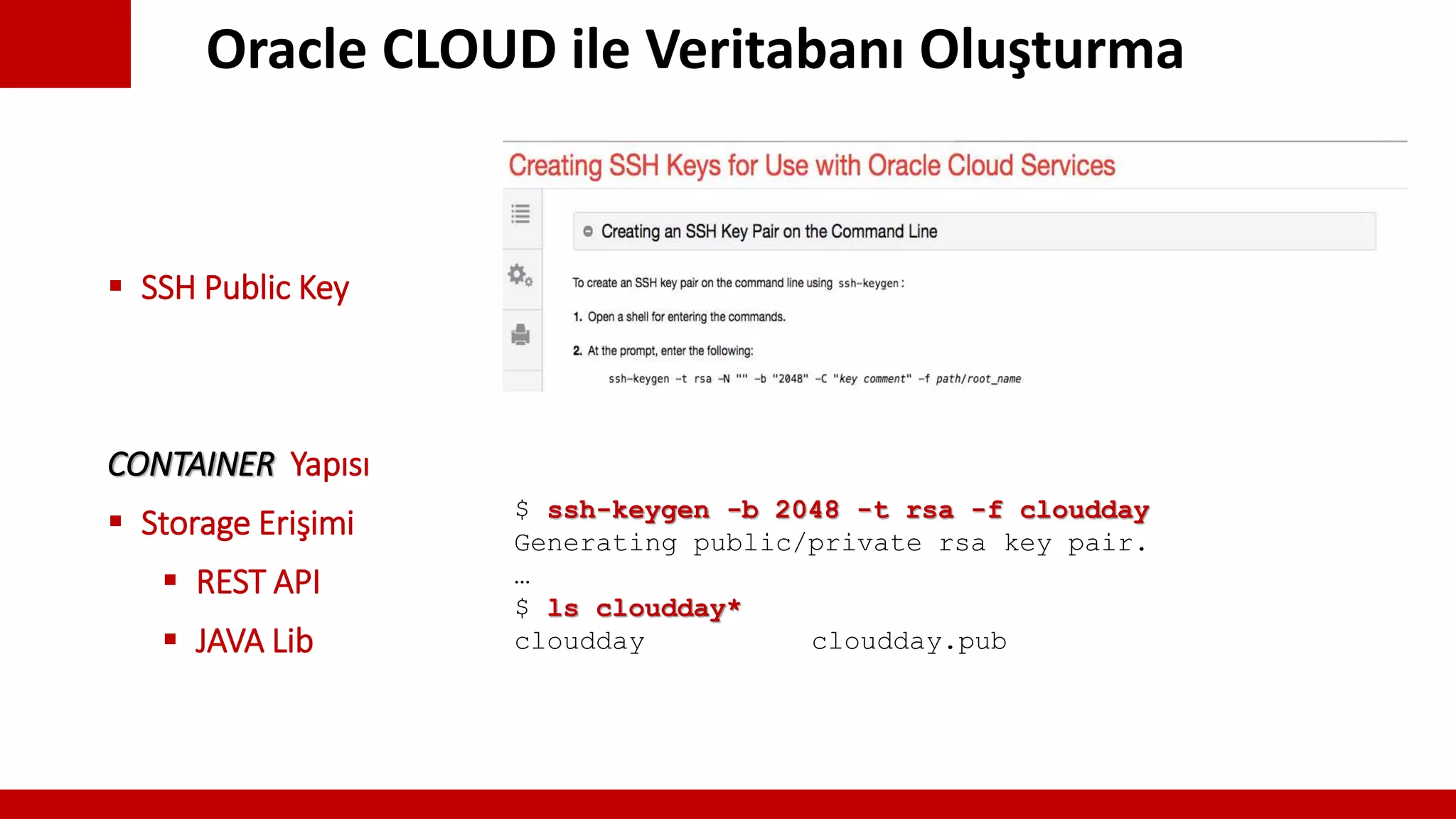

17. Oracle CLOUD ile Veritabanı Oluşturma
 SSH Public Key
CONTAINER Yapısı
 Storage Erişimi
 REST API
 JAVA Lib
$ ssh-keygen -b 2048 -t rsa -f cloudday
Generating public/private rsa key pair.
…
$ ls cloudday*
cloudday cloudday.pub

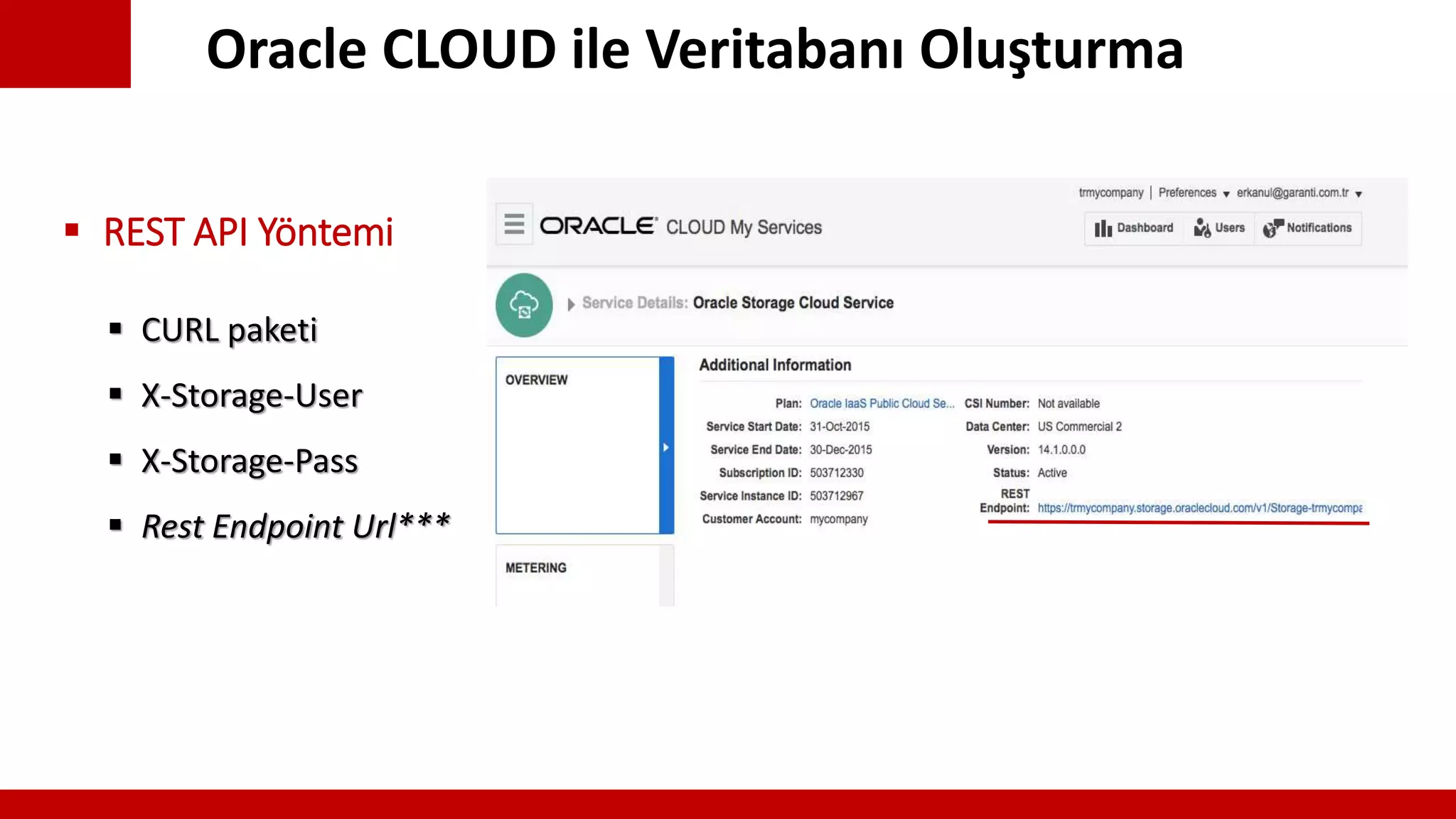

18. Oracle CLOUD ile Veritabanı Oluşturma
 CURL paketi
 X-Storage-User
 X-Storage-Pass
 Rest Endpoint Url***
 REST API Yöntemi

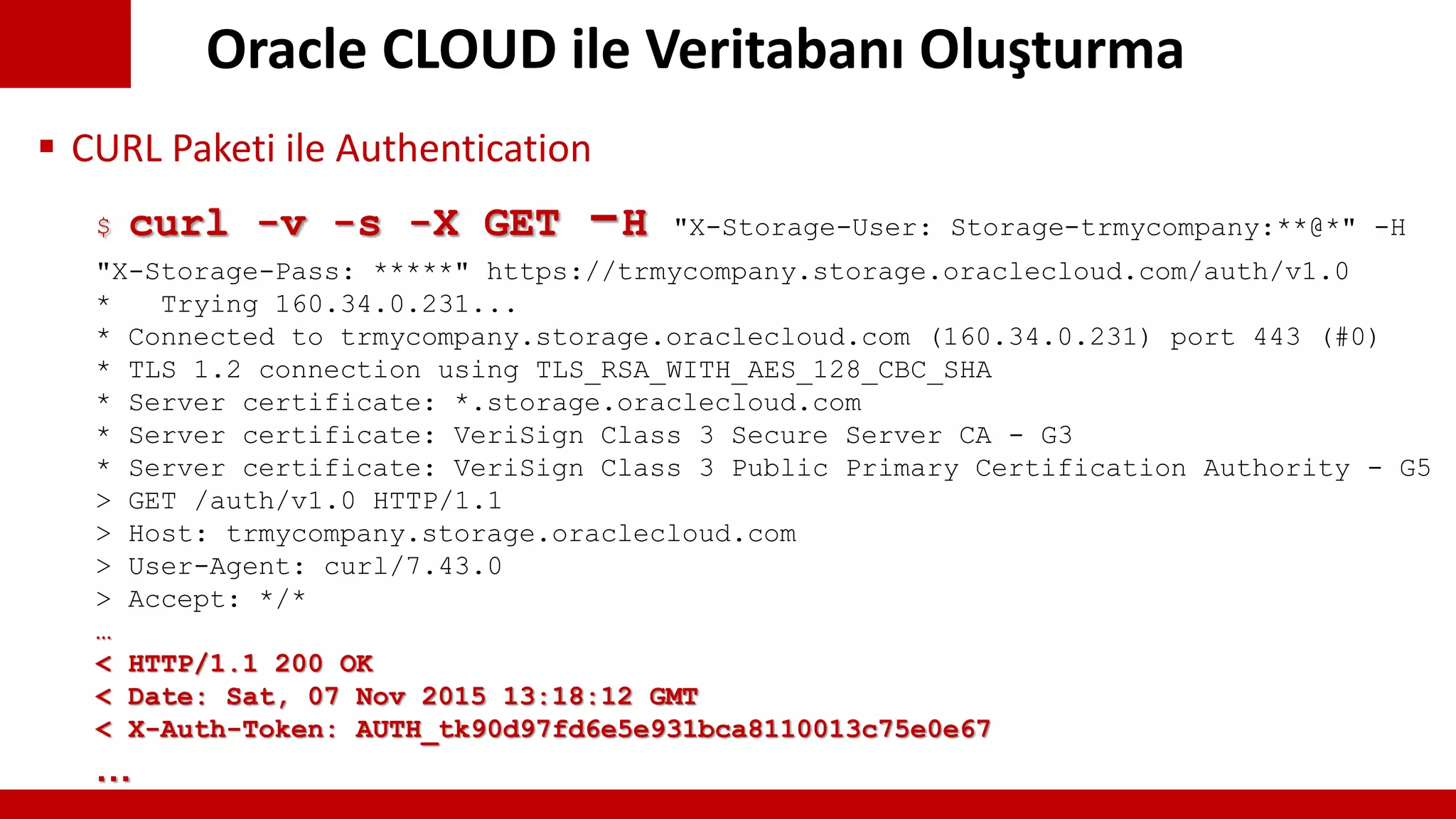

19. Oracle CLOUD ile Veritabanı Oluşturma
$ curl -v -s -X GET -H "X-Storage-User: Storage-trmycompany:**@*" -H
"X-Storage-Pass: *****" https://trmycompany.storage.oraclecloud.com/auth/v1.0
* Trying 160.34.0.231...
* Connected to trmycompany.storage.oraclecloud.com (160.34.0.231) port 443 (#0)
* TLS 1.2 connection using TLS_RSA_WITH_AES_128_CBC_SHA
* Server certificate: *.storage.oraclecloud.com
* Server certificate: VeriSign Class 3 Secure Server CA - G3
* Server certificate: VeriSign Class 3 Public Primary Certification Authority - G5
> GET /auth/v1.0 HTTP/1.1
> Host: trmycompany.storage.oraclecloud.com
> User-Agent: curl/7.43.0
> Accept: */*
…
< HTTP/1.1 200 OK
< Date: Sat, 07 Nov 2015 13:18:12 GMT
< X-Auth-Token: AUTH_tk90d97fd6e5e931bca8110013c75e0e67
…
 CURL Paketi ile Authentication

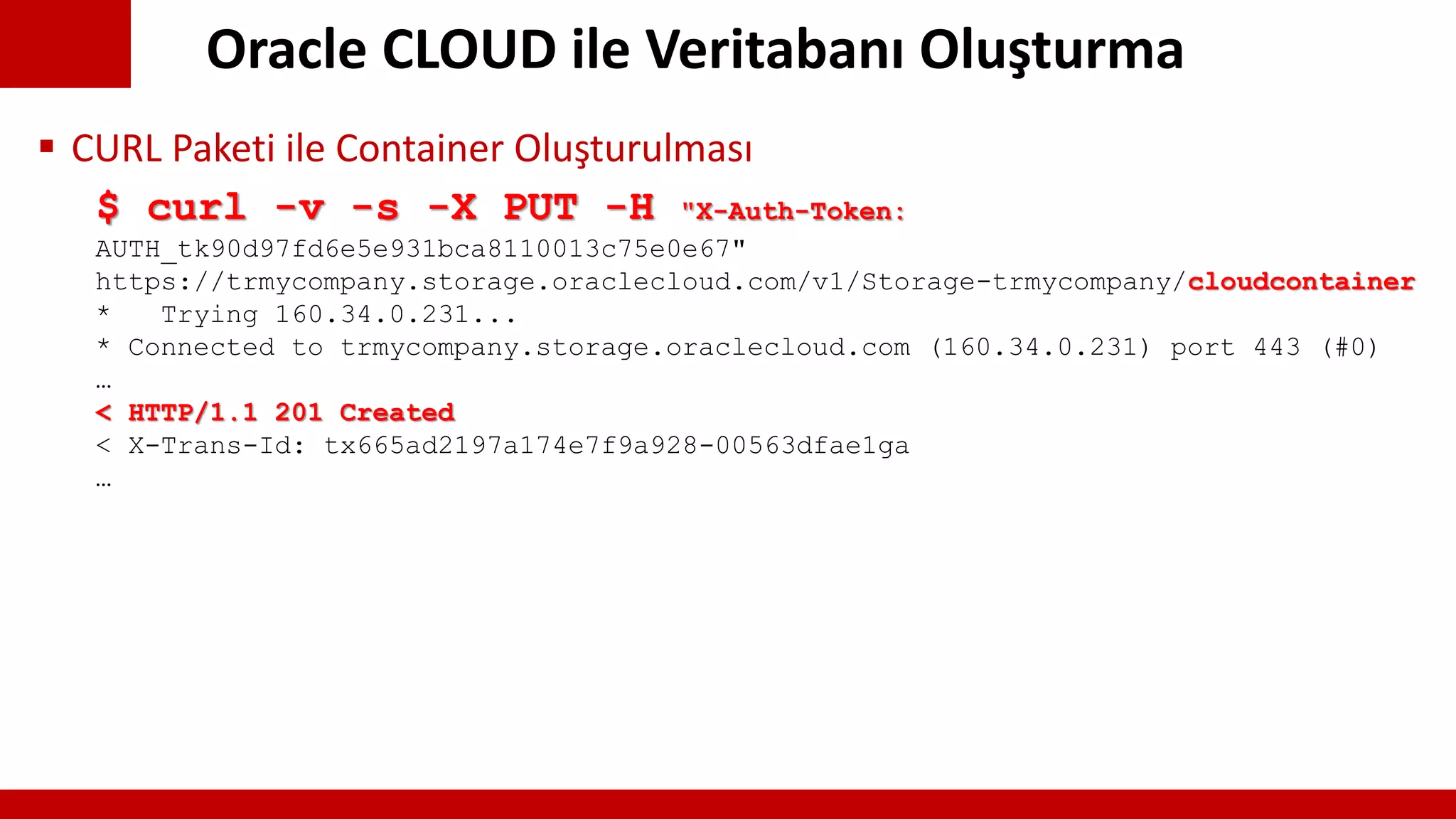

20. Oracle CLOUD ile Veritabanı Oluşturma
$ curl -v -s -X PUT -H "X-Auth-Token:
AUTH_tk90d97fd6e5e931bca8110013c75e0e67"
https://trmycompany.storage.oraclecloud.com/v1/Storage-trmycompany/cloudcontainer
* Trying 160.34.0.231...
* Connected to trmycompany.storage.oraclecloud.com (160.34.0.231) port 443 (#0)
…
< HTTP/1.1 201 Created
< X-Trans-Id: tx665ad2197a174e7f9a928-00563dfae1ga
…
 CURL Paketi ile Container Oluşturulması

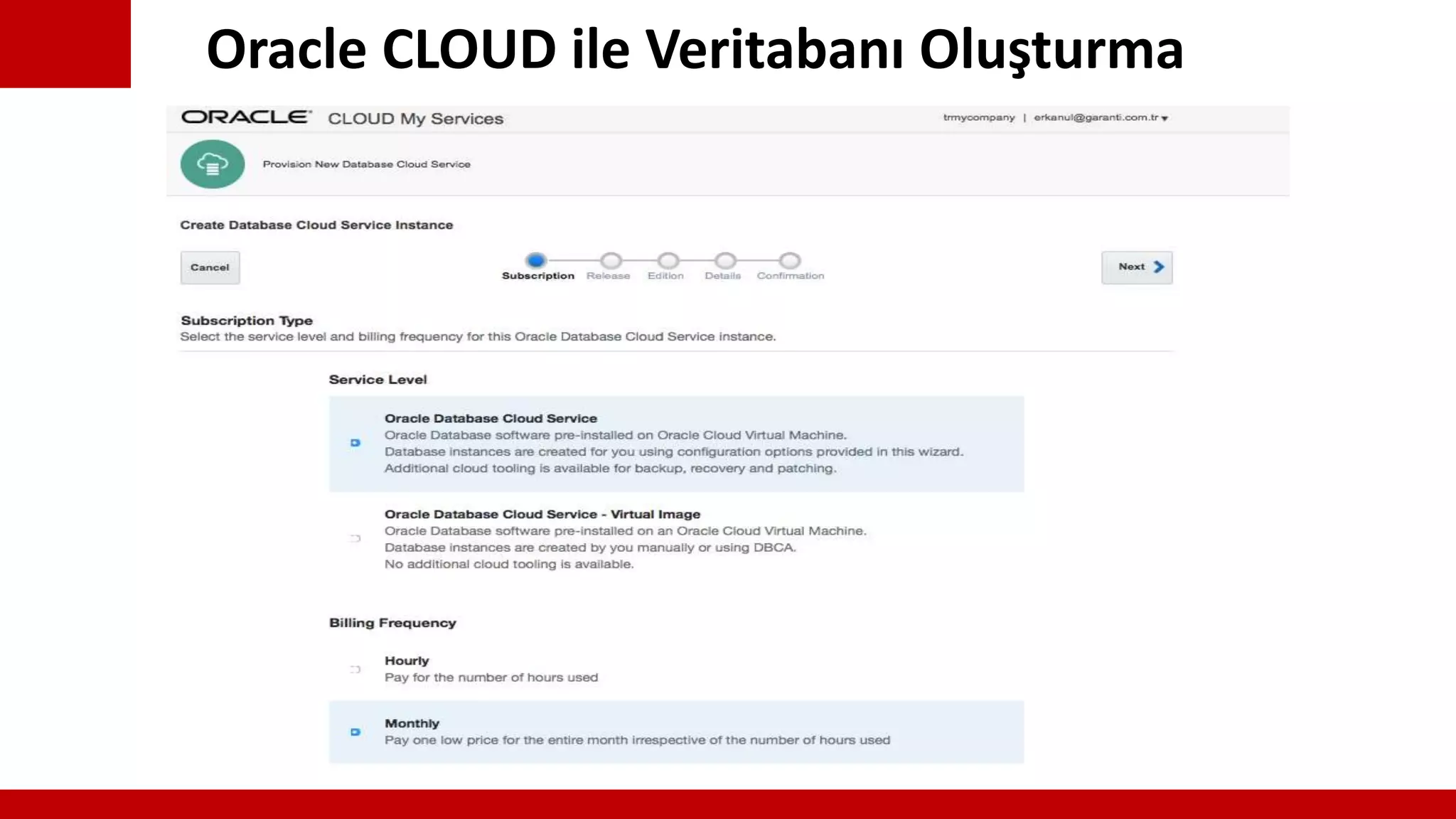

21. Oracle CLOUD ile Veritabanı Oluşturma

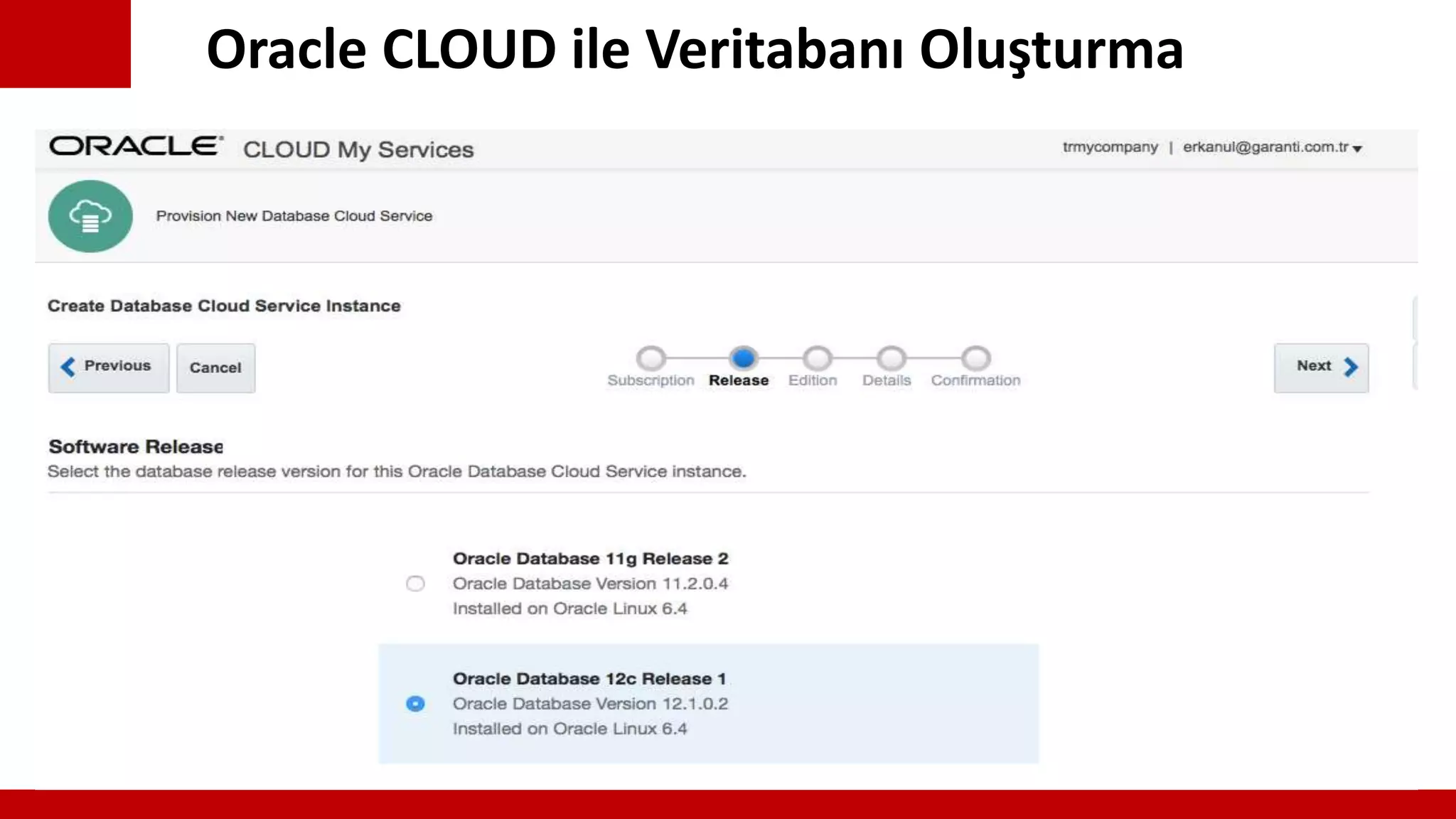

22. Oracle CLOUD ile Veritabanı Oluşturma

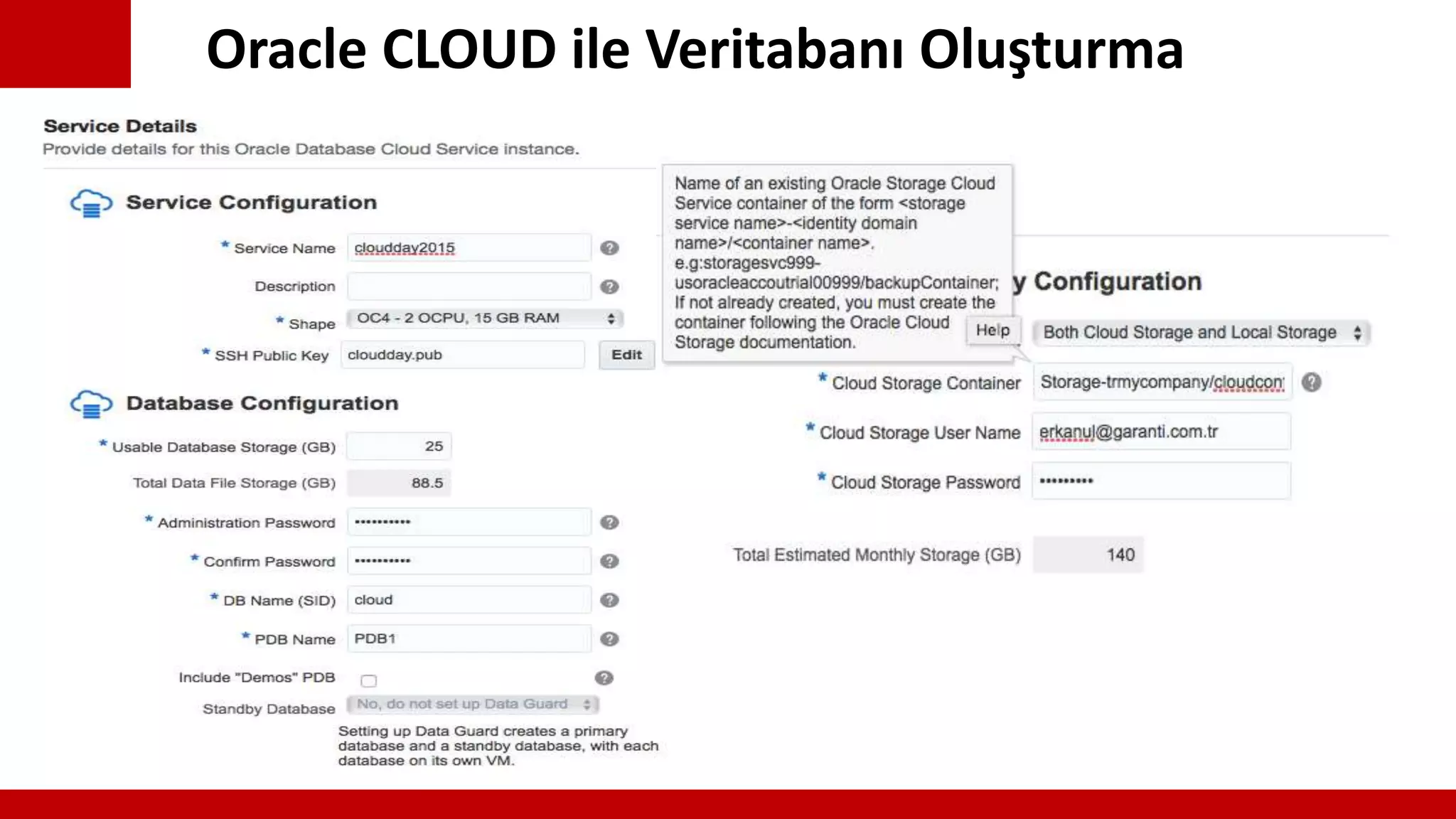

23. Oracle CLOUD ile Veritabanı Oluşturma

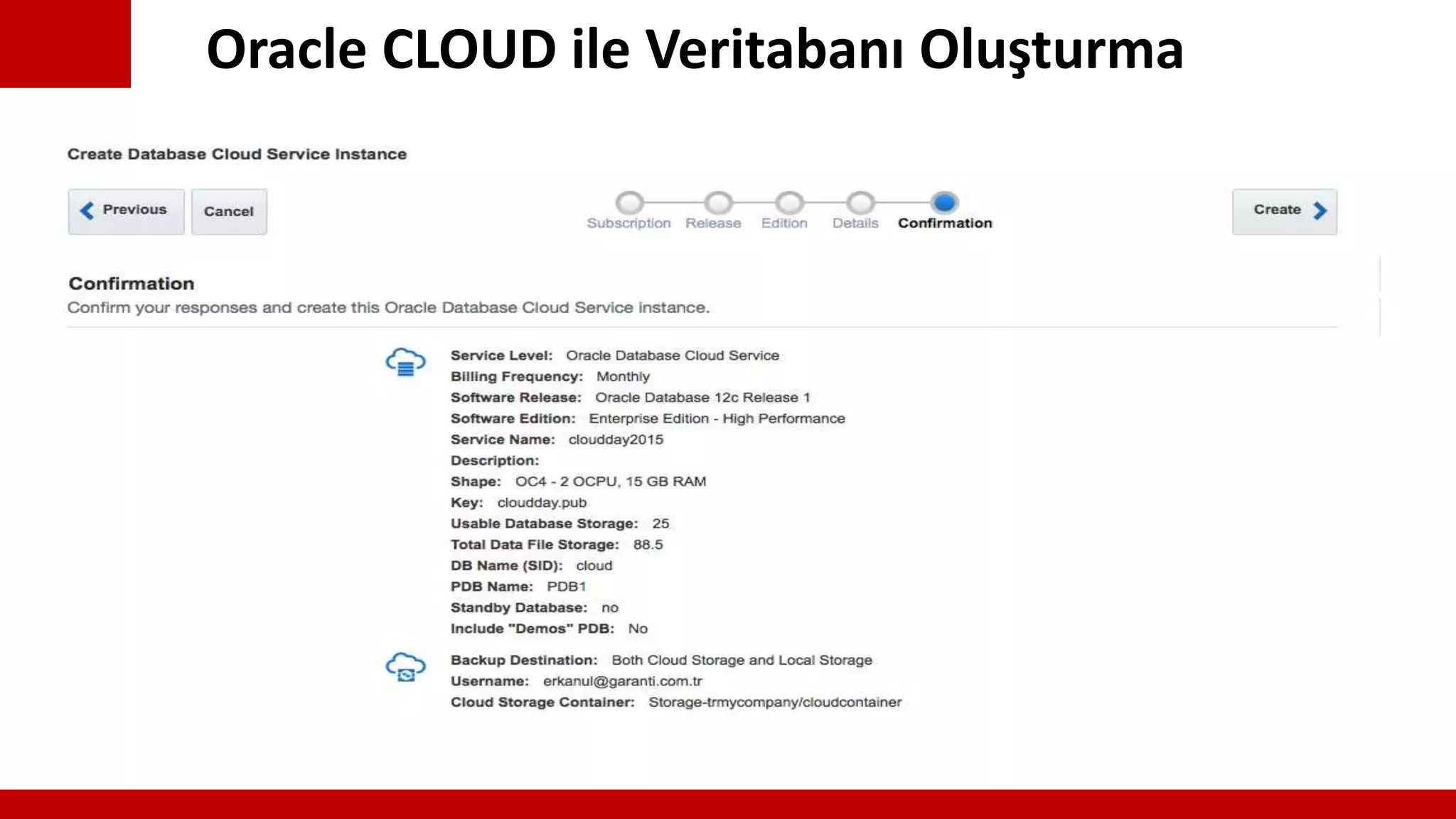

24. Oracle CLOUD ile Veritabanı Oluşturma

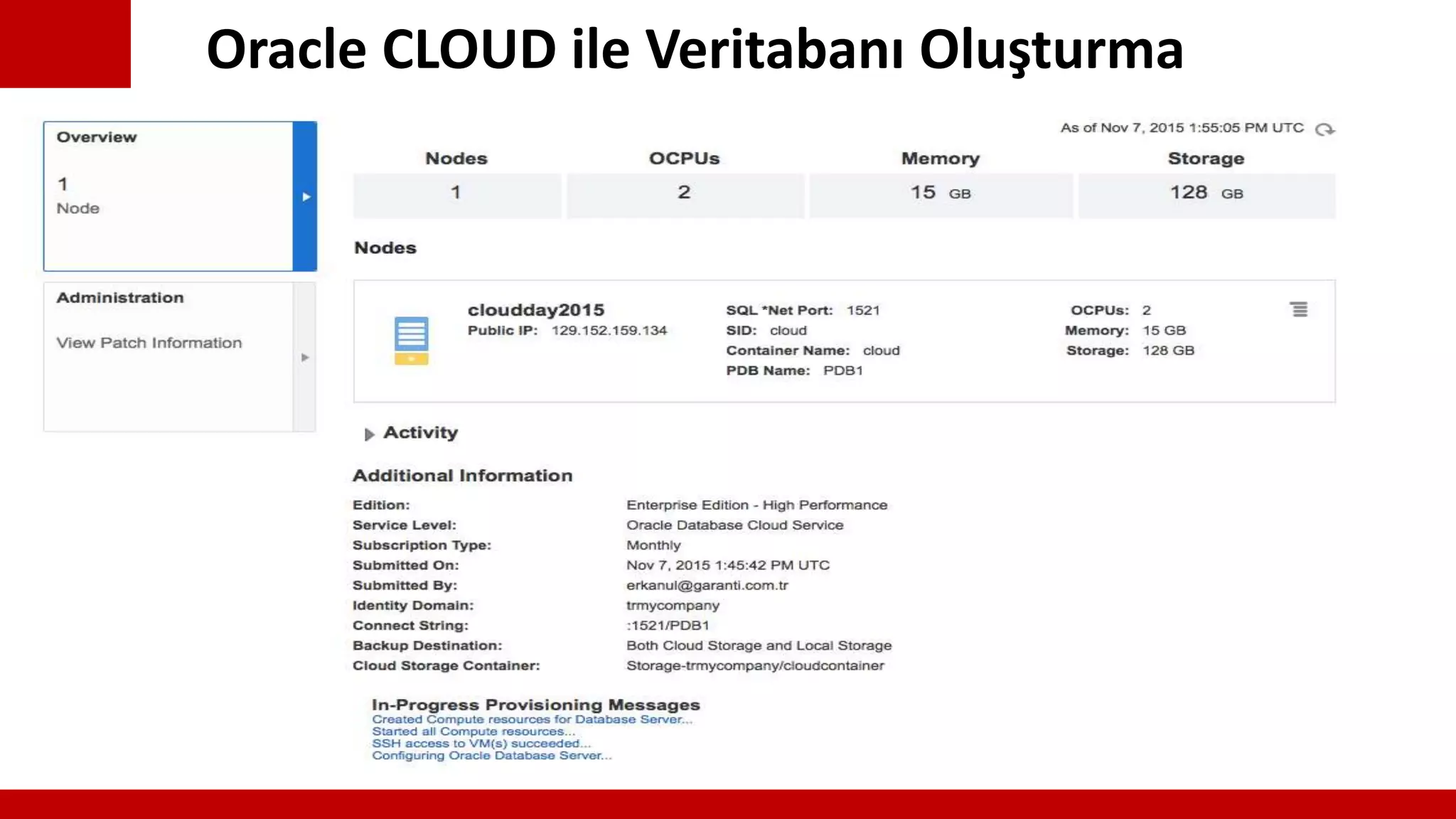

25. Oracle CLOUD ile Veritabanı Oluşturma

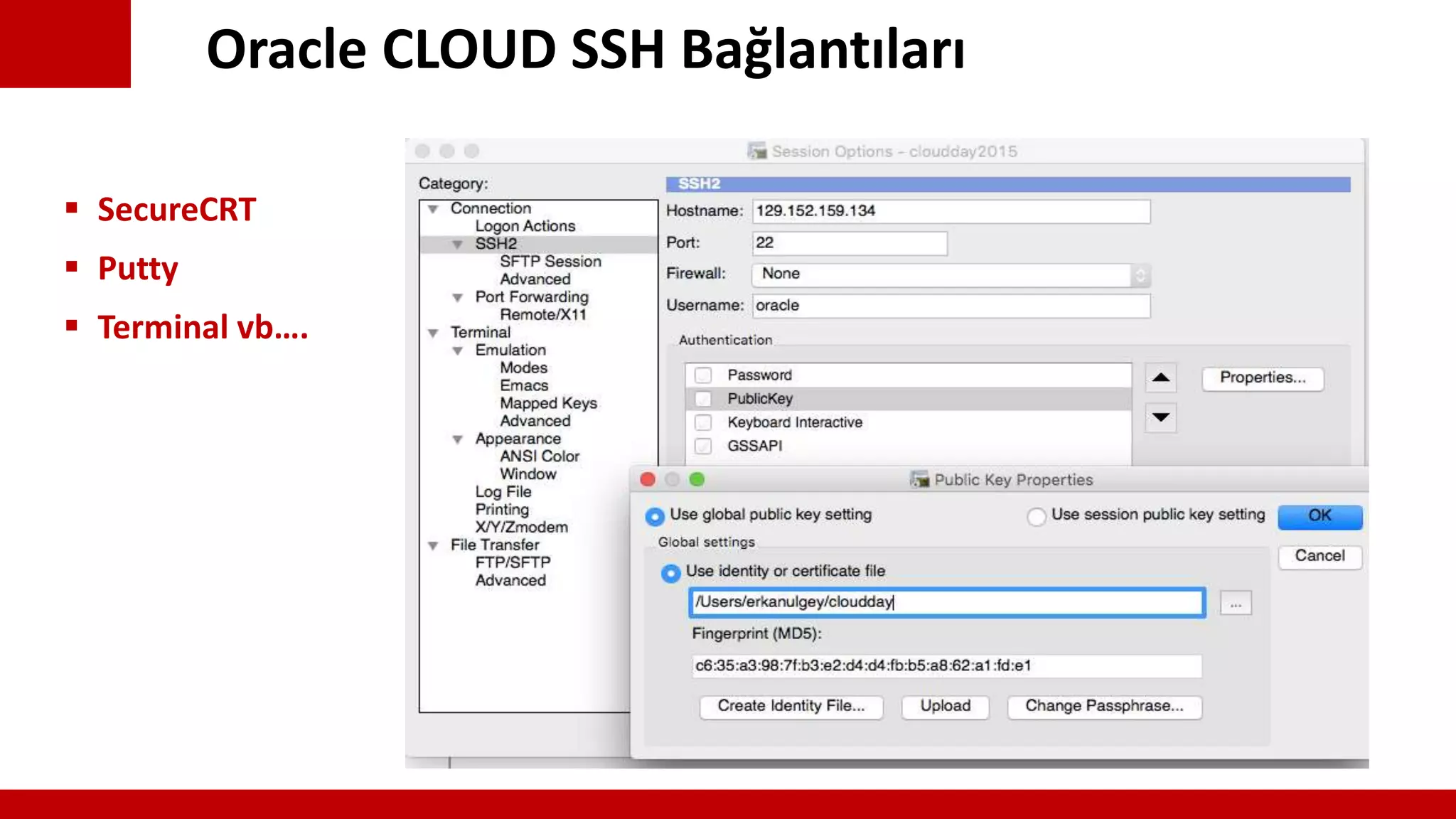

26. Oracle CLOUD SSH Bağlantıları
 SecureCRT
 Putty
 Terminal vb….

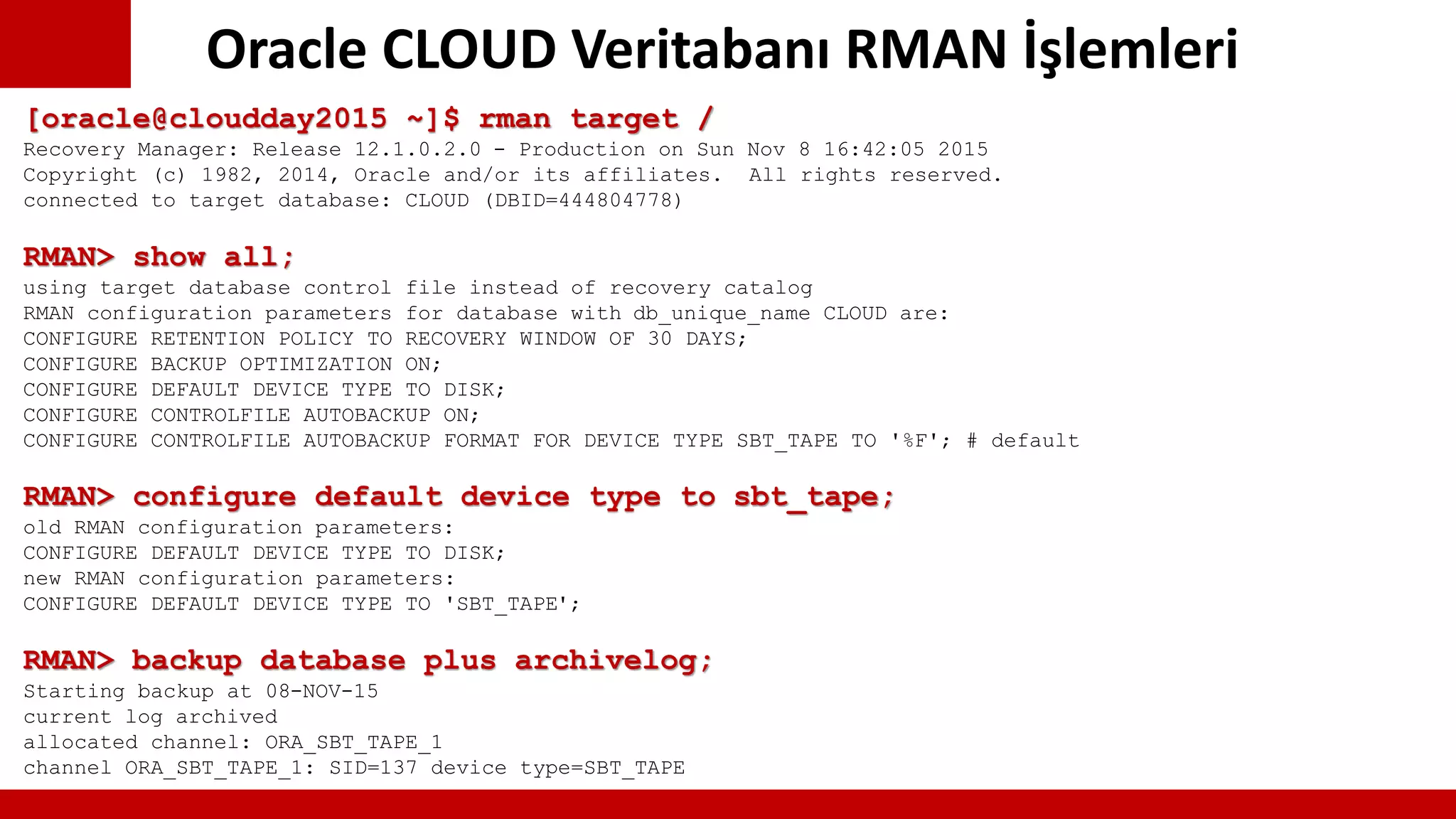

27. Oracle CLOUD Veritabanı RMAN İşlemleri
[oracle@cloudday2015 ~]$ rman target /
Recovery Manager: Release 12.1.0.2.0 - Production on Sun Nov 8 16:42:05 2015
Copyright (c) 1982, 2014, Oracle and/or its affiliates. All rights reserved.
connected to target database: CLOUD (DBID=444804778)
RMAN> show all;
using target database control file instead of recovery catalog
RMAN configuration parameters for database with db_unique_name CLOUD are:
CONFIGURE RETENTION POLICY TO RECOVERY WINDOW OF 30 DAYS;
CONFIGURE BACKUP OPTIMIZATION ON;
CONFIGURE DEFAULT DEVICE TYPE TO DISK;
CONFIGURE CONTROLFILE AUTOBACKUP ON;
CONFIGURE CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE SBT_TAPE TO '%F'; # default
RMAN> configure default device type to sbt_tape;
old RMAN configuration parameters:
CONFIGURE DEFAULT DEVICE TYPE TO DISK;
new RMAN configuration parameters:
CONFIGURE DEFAULT DEVICE TYPE TO 'SBT_TAPE';
RMAN> backup database plus archivelog;
Starting backup at 08-NOV-15
current log archived
allocated channel: ORA_SBT_TAPE_1
channel ORA_SBT_TAPE_1: SID=137 device type=SBT_TAPE

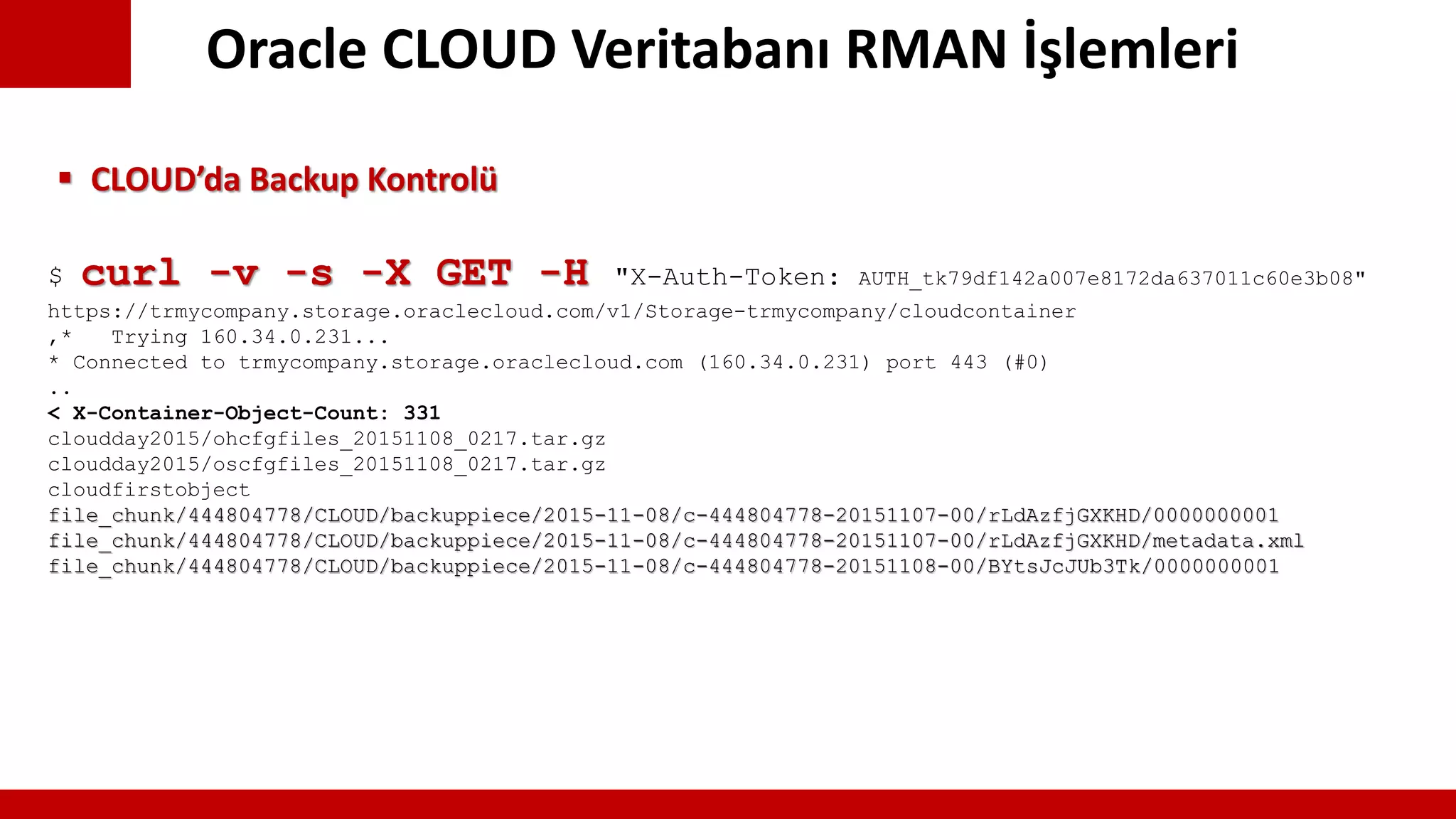

28. Oracle CLOUD Veritabanı RMAN İşlemleri
$ curl -v -s -X GET -H "X-Auth-Token: AUTH_tk79df142a007e8172da637011c60e3b08"
https://trmycompany.storage.oraclecloud.com/v1/Storage-trmycompany/cloudcontainer
,* Trying 160.34.0.231...
* Connected to trmycompany.storage.oraclecloud.com (160.34.0.231) port 443 (#0)
..
< X-Container-Object-Count: 331
cloudday2015/ohcfgfiles_20151108_0217.tar.gz
cloudday2015/oscfgfiles_20151108_0217.tar.gz
cloudfirstobject
file_chunk/444804778/CLOUD/backuppiece/2015-11-08/c-444804778-20151107-00/rLdAzfjGXKHD/0000000001
file_chunk/444804778/CLOUD/backuppiece/2015-11-08/c-444804778-20151107-00/rLdAzfjGXKHD/metadata.xml
file_chunk/444804778/CLOUD/backuppiece/2015-11-08/c-444804778-20151108-00/BYtsJcJUb3Tk/0000000001
 CLOUD’da Backup Kontrolü

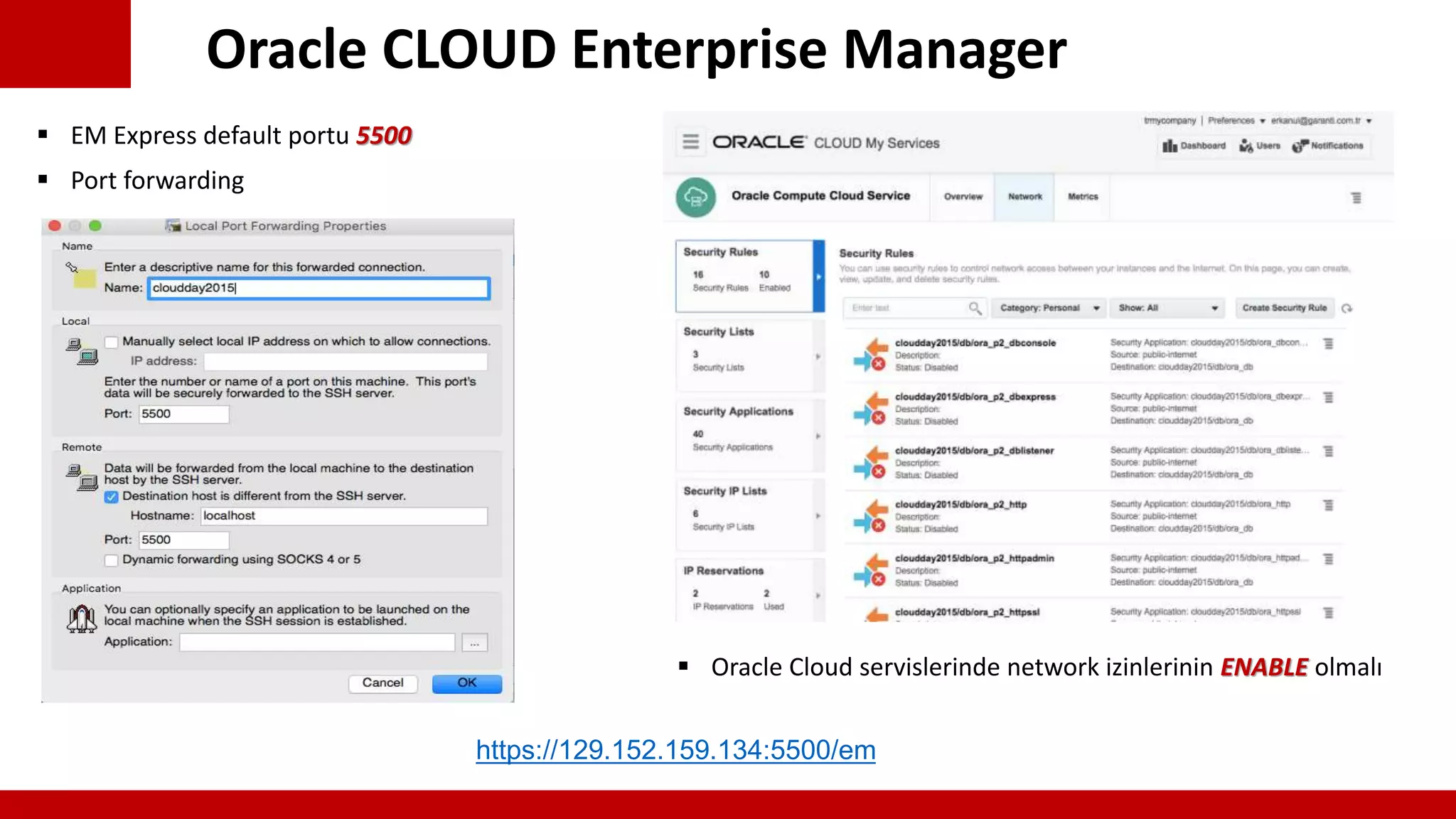

29. Oracle CLOUD Enterprise Manager
 EM Express default portu 5500
 Port forwarding
 Oracle Cloud servislerinde network izinlerinin ENABLE olmalı
https://129.152.159.134:5500/em

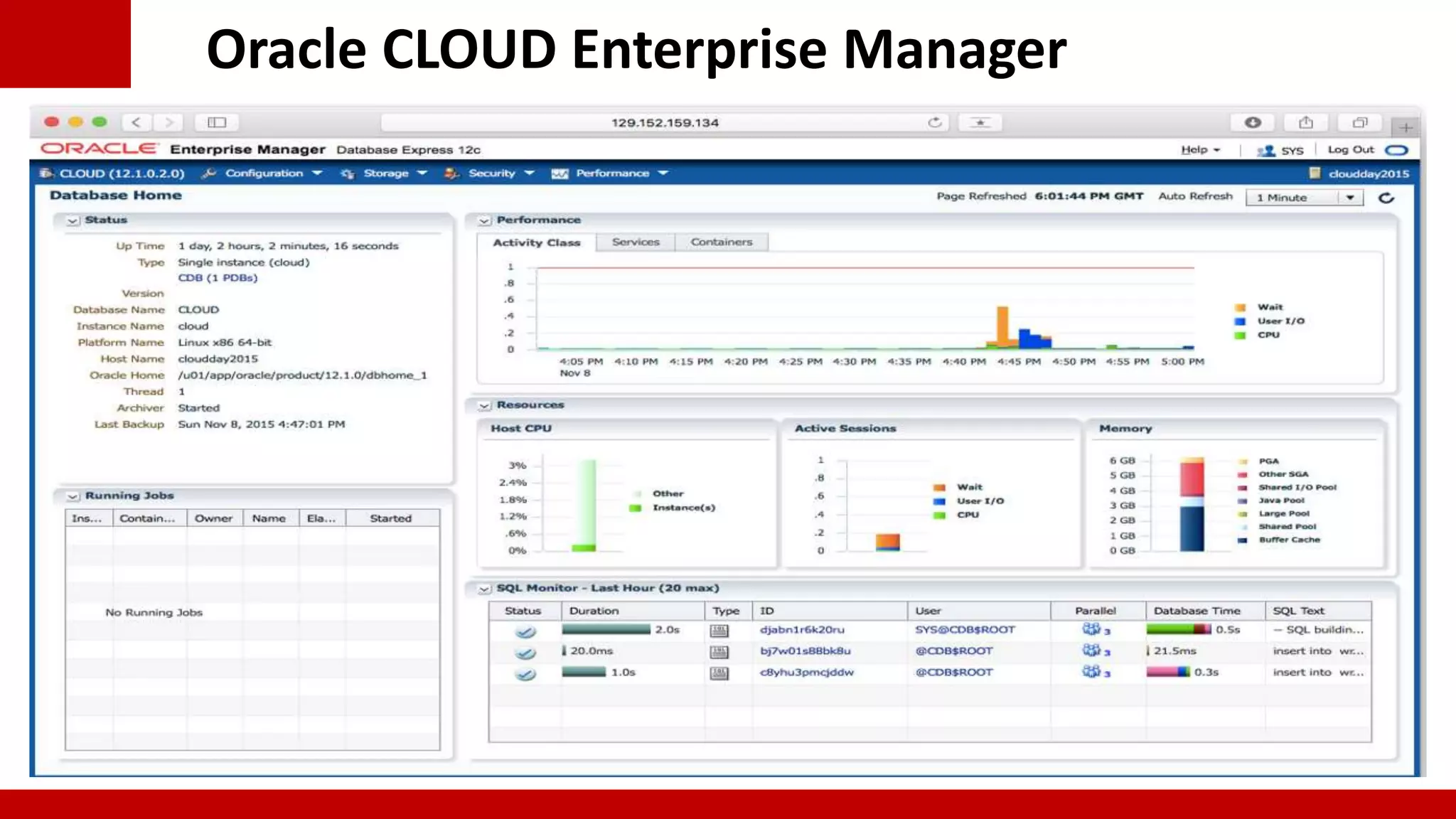

30. Oracle CLOUD Enterprise Manager

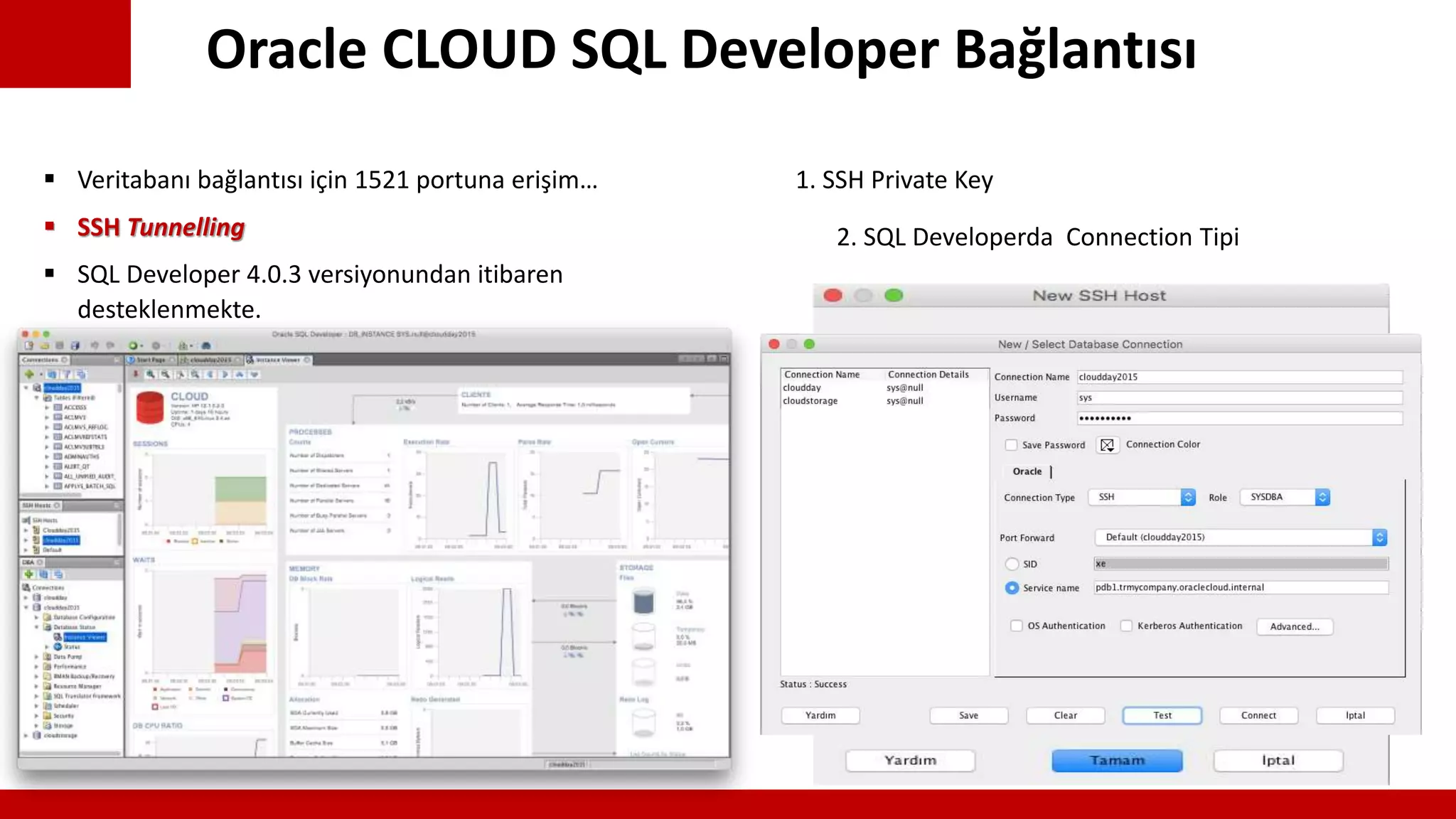

31. Oracle CLOUD SQL Developer Bağlantısı
 Veritabanı bağlantısı için 1521 portuna erişim…
 SSH Tunnelling
 SQL Developer 4.0.3 versiyonundan itibaren
desteklenmekte.
1. SSH Private Key
2. SQL Developerda Connection Tipi
