MySQL
User Conference and Expo 2010



  Optimizing
Stored Routines

     Blog: http://rpbouman.blogspot.com/   1
     twitter: @rolandbouman
Welcome, thanks for attending!


●   Roland Bouman; Leiden, Netherlands
●   Ex MySQL AB, Sun Microsystems
●   Web and BI Developer
●   Co-author of “Pentaho Solutions”
●   Blog: http://rpbouman.blogspot.com/
●   Twitter: @rolandbouman
            Blog: http://rpbouman.blogspot.com/   2
            twitter: @rolandbouman
Program
●   Stored routine issues
●   Variables and assignments
●   Flow of control
●   Cursor handling
●   Summary




            Blog: http://rpbouman.blogspot.com/   3
            twitter: @rolandbouman
Program
●   Stored routine issues?
●   Variables and assignments
●   Flow of control
●   Cursor handling
●   Summary




            Blog: http://rpbouman.blogspot.com/   4
            twitter: @rolandbouman
Stored Routines: Definition
●   Stored routines:
        –   stored functions (SQL functions)
        –   stored procedures
        –   triggers
        –   events




               Blog: http://rpbouman.blogspot.com/   5
               twitter: @rolandbouman
Performance Issues
●   SQL inside stored routines is still SQL,
    ...but...
        –   invocation overhead
       –    suboptimal computational performance
●   Benchmarking method
        –   BENCHMARK(1000000, expression)
        –   Appropriate for computation speed
        –   1 million times
●   MySQL 5.1.36, Windows
               Blog: http://rpbouman.blogspot.com/   6
               twitter: @rolandbouman
Invocation overhead
●   Plain expression (10 mln)
    mysql> SELECT BENCHMARK(10000000, 1);
    +------------------------+
    | benchmark(10000000, 1) |
    +------------------------+
    |                       0 |
    +------------------------+
    1 row in set (0.19 sec)

●   Equivalent function (10 mln)
    mysql> CREATE FUNCTION f_one() RETURNS INT RETURN 1;

    mysql> SELECT BENCHMARK(10000000, f_one());
    +----------------------------+
    | benchmark(10000000, f_one) |
    +----------------------------+
    |                          0 |
    +----------------------------+
    1 row in set (24.59 sec)

●   Slowdown 130 times

                  Blog: http://rpbouman.blogspot.com/      7
                  twitter: @rolandbouman
Computation inefficiency
●   Plain addition
    mysql> SELECT BENCHMARK(10000000, 1+1);
    +--------------------------+
    | benchmark(10000000, 1+1) |
    +--------------------------+
    |                        0 |
    +--------------------------+
    1 row in set (0.30 sec)

●   Equivalent function
    mysql> CREATE FUNCTION f_one_plus_one() RETURNS INT RETURN 1+1;

    mysql> SELECT BENCHMARK(10000000, f_one_plus_one());
    +---------------------------------------+
    | benchmark(10000000, f_one_plus_one()) |
    +---------------------------------------+
    |                                     0 |
    +---------------------------------------+
    1 row in set (28.73 sec)



                  Blog: http://rpbouman.blogspot.com/                 8
                  twitter: @rolandbouman
Computation inefficiency
●   Raw measurements
                                 plain expression         function   ratio
      1   f_one()                                0.19        24.59    0.0077
    1+1   f_one_plus_one()                       0.29        28.73    0.0101


●   Correction for invocation overhead
                                 plain expression         function   ratio
     1    f_one()                                0.00        00.00
    1+1   f_one_plus_one()                       0.10         4.14   0.0242

●   Slowdown about 40 times
          –   after correction for invocation overhead

                    Blog: http://rpbouman.blogspot.com/                        9
                    twitter: @rolandbouman
Program
●   Stored routine issues
●   Variables and assignments
●   Flow of control
●   Cursor handling
●   Summary




            Blog: http://rpbouman.blogspot.com/   10
            twitter: @rolandbouman
Types of Variables
●   User-defined variables
         –   session scope
         –   runtime type
    SET @user_defined_variable := 'some value';

●   Local variables
         –   block scope
         –   declared type
    BEGIN
         DECLARE v_local_variable VARCHAR(50);
         SET v_local_variable := 'some value';
         ...
    END;
                Blog: http://rpbouman.blogspot.com/   11
                twitter: @rolandbouman
User-defined variable Benchmark
 ●   Baseline
     CREATE FUNCTION f_variable_baseline()
     RETURNS INT
     BEGIN
          DECLARE a INT DEFAULt 1;
          RETURN a;
     END;

 ●   Local variable
     CREATE FUNCTION f_variable_baseline()
     RETURNS INT
     BEGIN
          DECLARE a INT DEFAULT 1;
          SET a := 1;
          RETURN a;
     END;

 ●   User-defined variable
     CREATE FUNCTION f_variable_baseline()
     RETURNS INT
     BEGIN
          DECLARE a INT DEFAULT 1;
          SET @a := 1;
          RETURN a;
     END;


                     Blog: http://rpbouman.blogspot.com/   12
                     twitter: @rolandbouman
User-defined variables
●   User-defined variables about 5x slower
              9

              8

              7

              6

              5

              4                                                                         Row 45

              3

              2

              1

              0
                    f_variable_baseline   f_local_variable   f _user_defined_variable




        baseline      local variable                 User-defined variable
             4.6                          5.32                                           7.89
             0.0                          0.72                                           3.29
                                                                   0.72/3.29 = 0,22


                  Blog: http://rpbouman.blogspot.com/                                            13
                  twitter: @rolandbouman

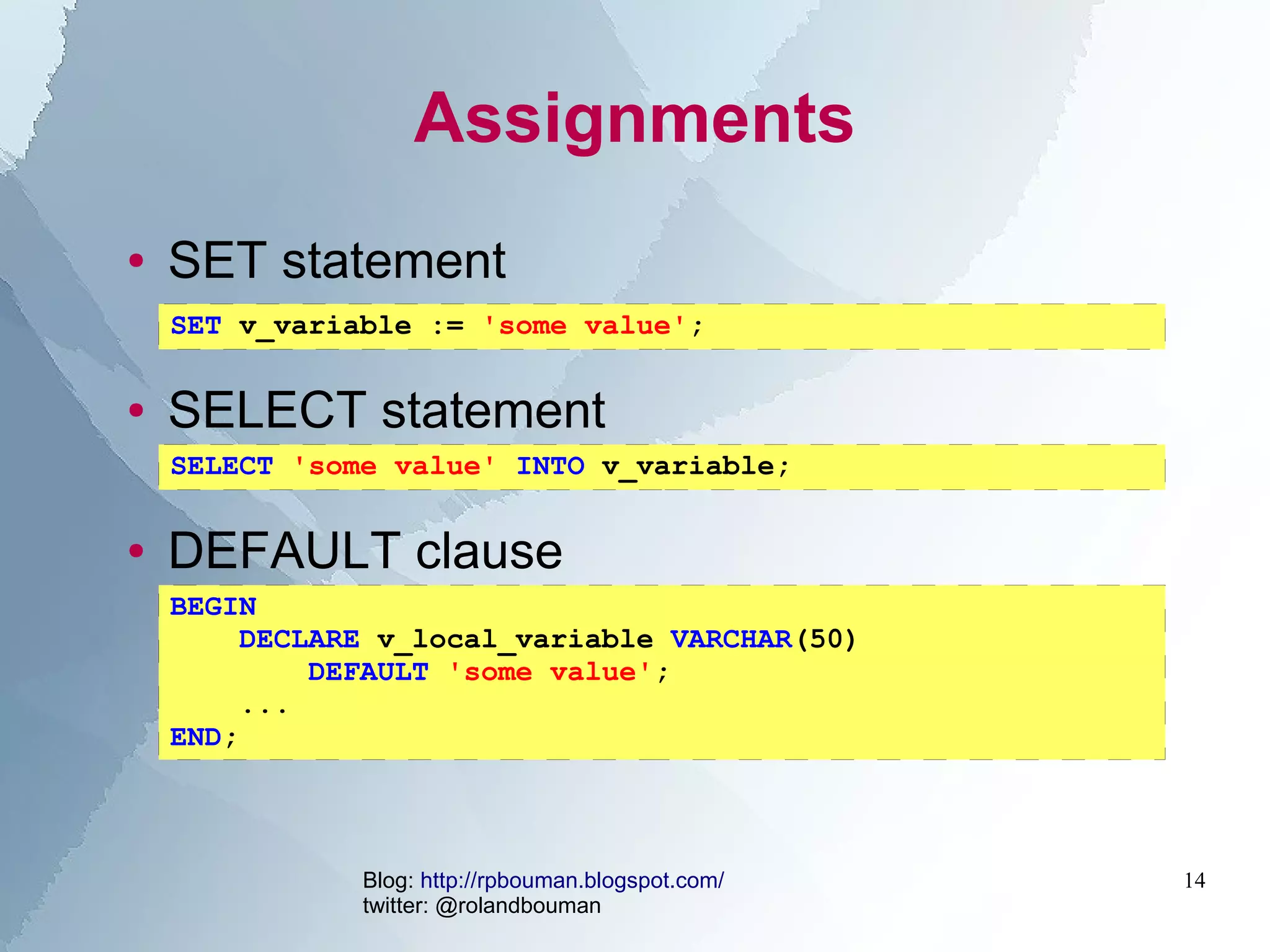

Assignments
●   SET statement
    SET v_variable := 'some value';

●   SELECT statement
    SELECT 'some value' INTO v_variable;

●   DEFAULT clause
    BEGIN
         DECLARE v_local_variable VARCHAR(50)
             DEFAULT 'some value';
         ...
    END;



               Blog: http://rpbouman.blogspot.com/   14
               twitter: @rolandbouman
Assignment Benchmarks
    ●   SELECT INTO about 60% slower than SET
    ●   SET about 40% slower than DEFAULT
                                                            30
baseline       DEFAULT     SET             SELECT
                                                            25
        8.2       15.06           18.25          32.08
                                                            20
           0       6.86           10.05          23.88
                                                            15
                                  100%         42.09%                                                                         Row 29

                                                            10
                  100%         68.26%
                                                                5


                                                                0
                                                                    default clause   set statement   select into statement




                          Blog: http://rpbouman.blogspot.com/                                                                15
                          twitter: @rolandbouman
More about SELECT INTO

●   Assigning from a SELECT...INTO statement:
         –   ok if you're assigning from a real query
         –   not so much if you're assigning literals

                                                SELECT   COUNT(*)
SELECT   1                                      ,        user_id
,        'some value'                           INTO     v_count
INTO     v_number                               ,        v_user_id
,        v_string                               FROM     t_users



                 Blog: http://rpbouman.blogspot.com/                 16
                 twitter: @rolandbouman
Sample function:
           Sakila rental count
CREATE FUNCTION f_assign_select_into(p_customer_id INT) RETURNS INT
BEGIN
     DECLARE c INT;
     SELECT SQL_NO_CACHE, COUNT(*)
     INTO    c
     FROM    sakila.rental
     WHERE   customer_id = p_customer_id;
     RETURN c;
END;

CREATE FUNCTION f_assign_select_set(p_customer_id INT) RETURNS INT
BEGIN
     DECLARE c INT;
     SET c := ( SELECT SQL_NO_CACHE, COUNT(*)
                 FROM   sakila.rental
                 WHERE  customer_id = p_customer_id);
     RETURN c;
END;

CREATE FUNCTION f_noassign_select(p_customer_id INT) RETURNS INT
BEGIN
     RETURN  ( SELECT SQL_NO_CACHE, COUNT(*)
                FROM    sakila.rental
                WHERE   customer_id = p_customer_id);
END;

               Blog: http://rpbouman.blogspot.com/                    17
               twitter: @rolandbouman

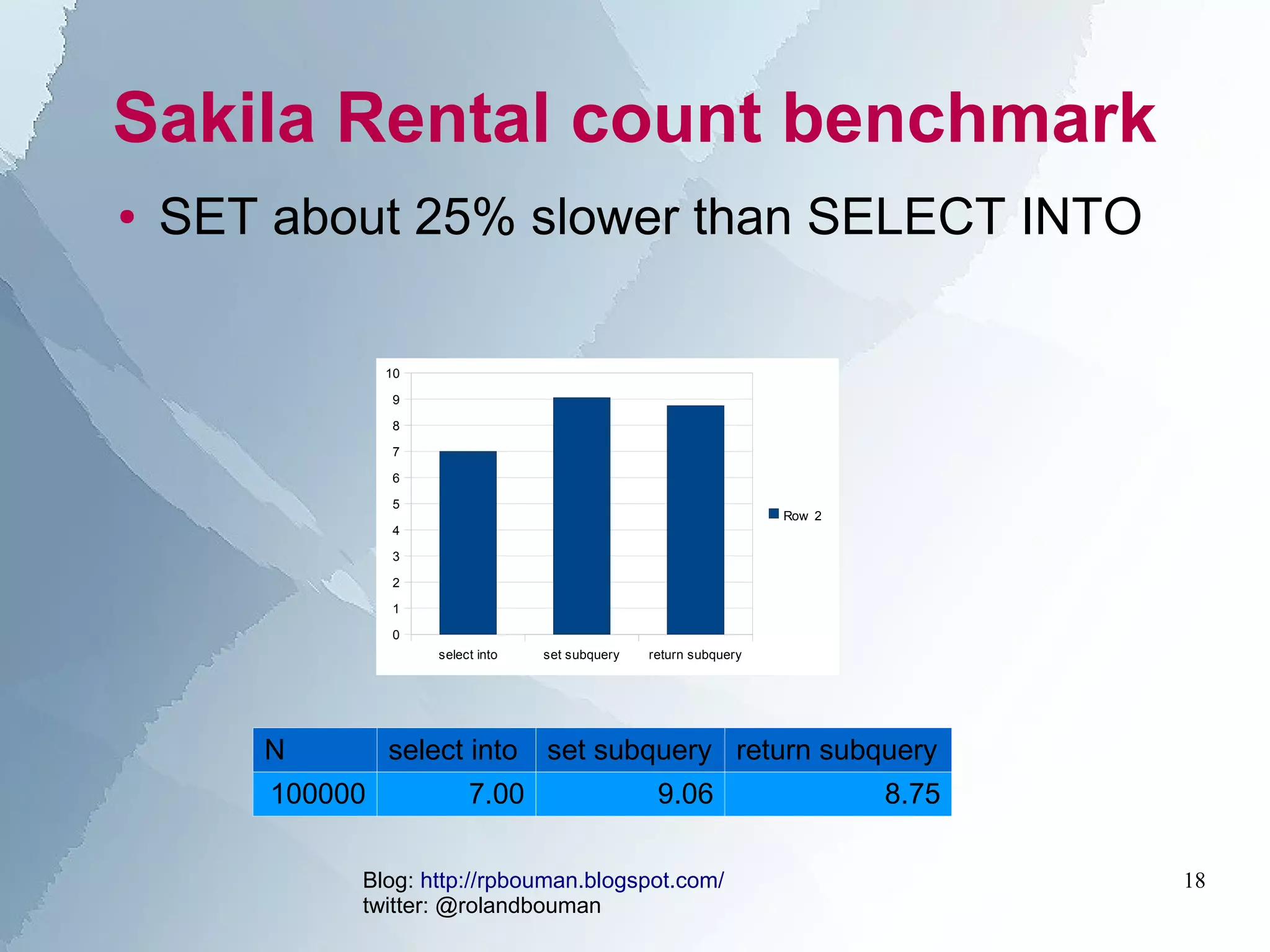

Sakila Rental count benchmark
●   SET about 25% slower than SELECT INTO

                 10

                  9

                  8

                  7

                  6

                  5
                                                                     Row 2
                  4

                  3

                  2

                  1

                  0
                      select into   set subquery   return subquery




       N         select into        set subquery return subquery
        100000             7.00                     9.06                     8.75

             Blog: http://rpbouman.blogspot.com/                                    18
             twitter: @rolandbouman

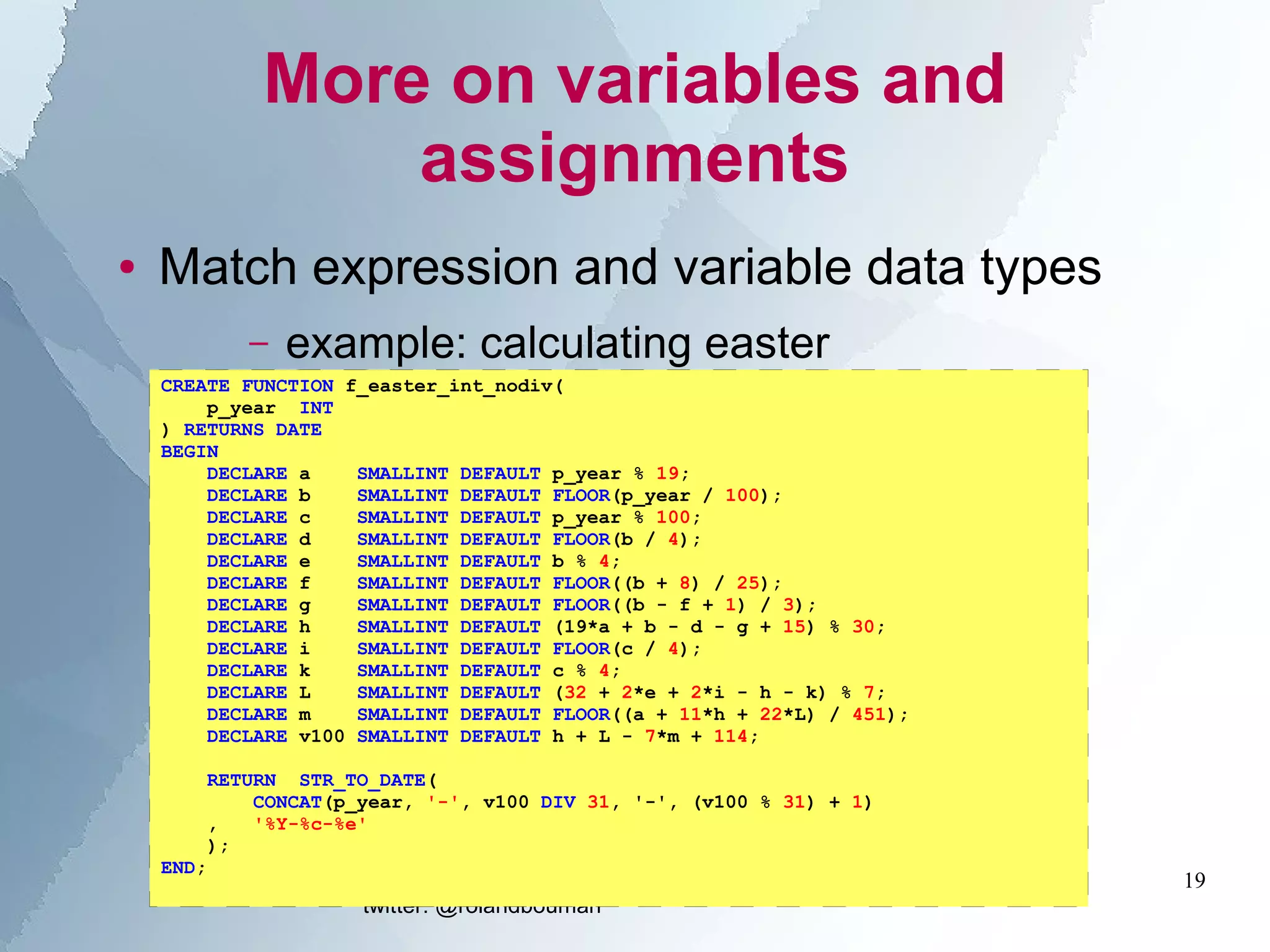

More on variables and
                assignments
●   Match expression and variable data types
           –   example: calculating easter
    CREATE FUNCTION f_easter_int_nodiv(
        p_year INT
    ) RETURNS DATE
    BEGIN
        DECLARE a    SMALLINT DEFAULT p_year % 19;
        DECLARE b    SMALLINT DEFAULT FLOOR(p_year / 100);
        DECLARE c    SMALLINT DEFAULT p_year % 100;
        DECLARE d    SMALLINT DEFAULT FLOOR(b / 4);
        DECLARE e    SMALLINT DEFAULT b % 4;
        DECLARE f    SMALLINT DEFAULT FLOOR((b + 8) / 25);
        DECLARE g    SMALLINT DEFAULT FLOOR((b - f + 1) / 3);
        DECLARE h    SMALLINT DEFAULT (19*a + b - d - g + 15) % 30;
        DECLARE i    SMALLINT DEFAULT FLOOR(c / 4);
        DECLARE k    SMALLINT DEFAULT c % 4;
        DECLARE L    SMALLINT DEFAULT (32 + 2*e + 2*i - h - k) % 7;
        DECLARE m    SMALLINT DEFAULT FLOOR((a + 11*h + 22*L) / 451);
        DECLARE v100 SMALLINT DEFAULT h + L - 7*m + 114;

        RETURN STR_TO_DATE(
            CONCAT(p_year, '-', v100 DIV 31, '-', (v100 % 31) + 1)
        ,   '%Y-%c-%e'
        );
    END;
                     Blog: http://rpbouman.blogspot.com/                19
                     twitter: @rolandbouman

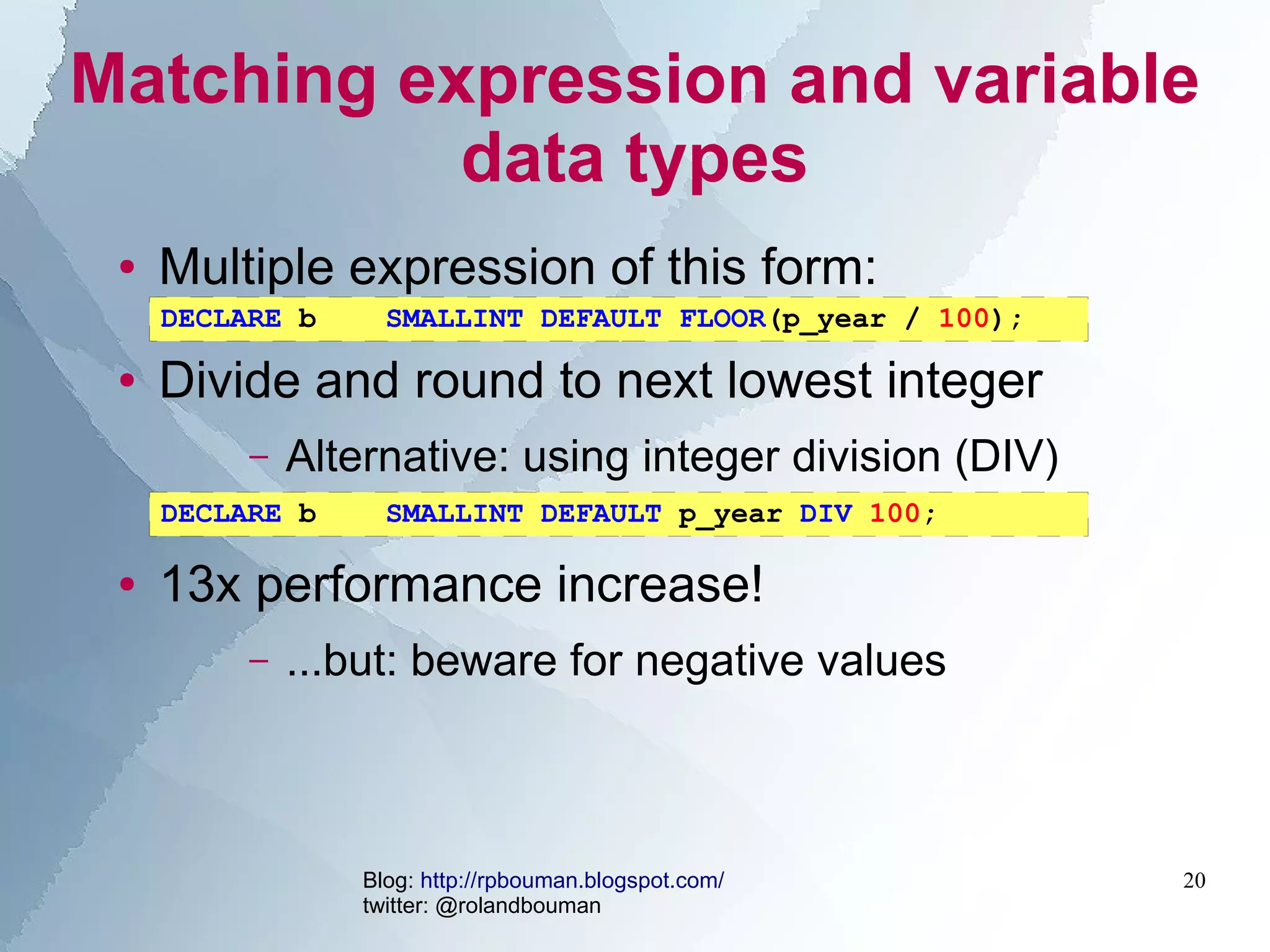

Matching expression and variable
           data types
 ●   Multiple expression of this form:
     DECLARE b      SMALLINT DEFAULT FLOOR(p_year / 100);

 ●   Divide and round to next lowest integer
          –   Alternative: using integer division (DIV)
     DECLARE b      SMALLINT DEFAULT p_year DIV 100;

 ●   13x performance increase!
          –   ...but: beware for negative values



                  Blog: http://rpbouman.blogspot.com/       20
                  twitter: @rolandbouman

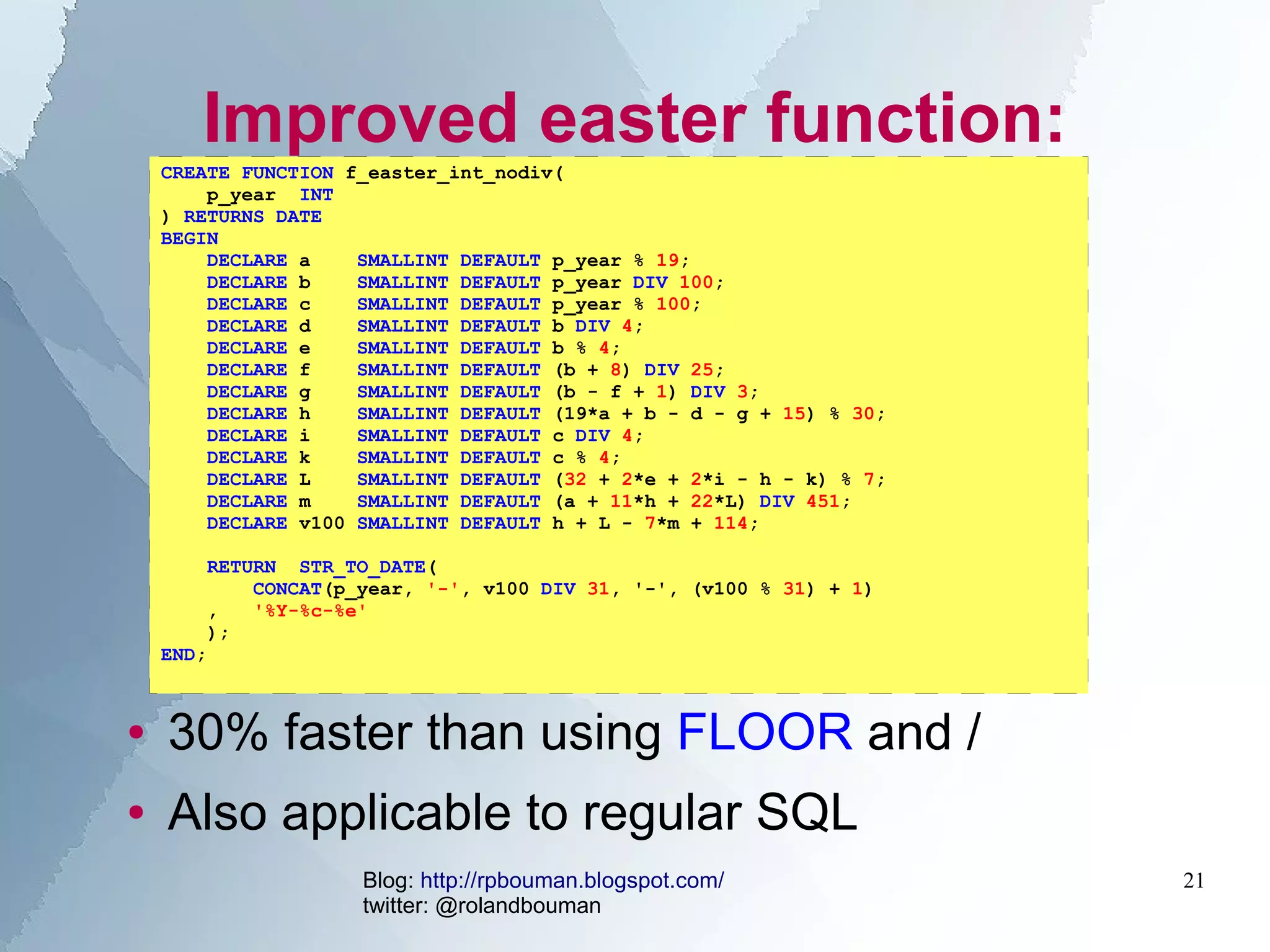

Improved easter function:
    CREATE FUNCTION f_easter_int_nodiv(
        p_year INT
    ) RETURNS DATE
    BEGIN
        DECLARE a    SMALLINT DEFAULT p_year % 19;
        DECLARE b    SMALLINT DEFAULT p_year DIV 100;
        DECLARE c    SMALLINT DEFAULT p_year % 100;
        DECLARE d    SMALLINT DEFAULT b DIV 4;
        DECLARE e    SMALLINT DEFAULT b % 4;
        DECLARE f    SMALLINT DEFAULT (b + 8) DIV 25;
        DECLARE g    SMALLINT DEFAULT (b - f + 1) DIV 3;
        DECLARE h    SMALLINT DEFAULT (19*a + b - d - g + 15) % 30;
        DECLARE i    SMALLINT DEFAULT c DIV 4;
        DECLARE k    SMALLINT DEFAULT c % 4;
        DECLARE L    SMALLINT DEFAULT (32 + 2*e + 2*i - h - k) % 7;
        DECLARE m    SMALLINT DEFAULT (a + 11*h + 22*L) DIV 451;
        DECLARE v100 SMALLINT DEFAULT h + L - 7*m + 114;

        RETURN STR_TO_DATE(
            CONCAT(p_year, '-', v100 DIV 31, '-', (v100 % 31) + 1)
        ,   '%Y-%c-%e'
        );
    END;



●   30% faster than using FLOOR and /
●   Also applicable to regular SQL
                     Blog: http://rpbouman.blogspot.com/              21
                     twitter: @rolandbouman
Variable and assignment
             Summary
●   Don't use user-defined variables
       –   Use local variables instead
●   If possible, use DEFAULT
       –   If you don't, time is wasted
●   Beware of SELECT INTO
       –   Only use it for assigning values from queries
       –   Use SET instead for assigning literals
●   Match expression and variable data type

               Blog: http://rpbouman.blogspot.com/         22
               twitter: @rolandbouman

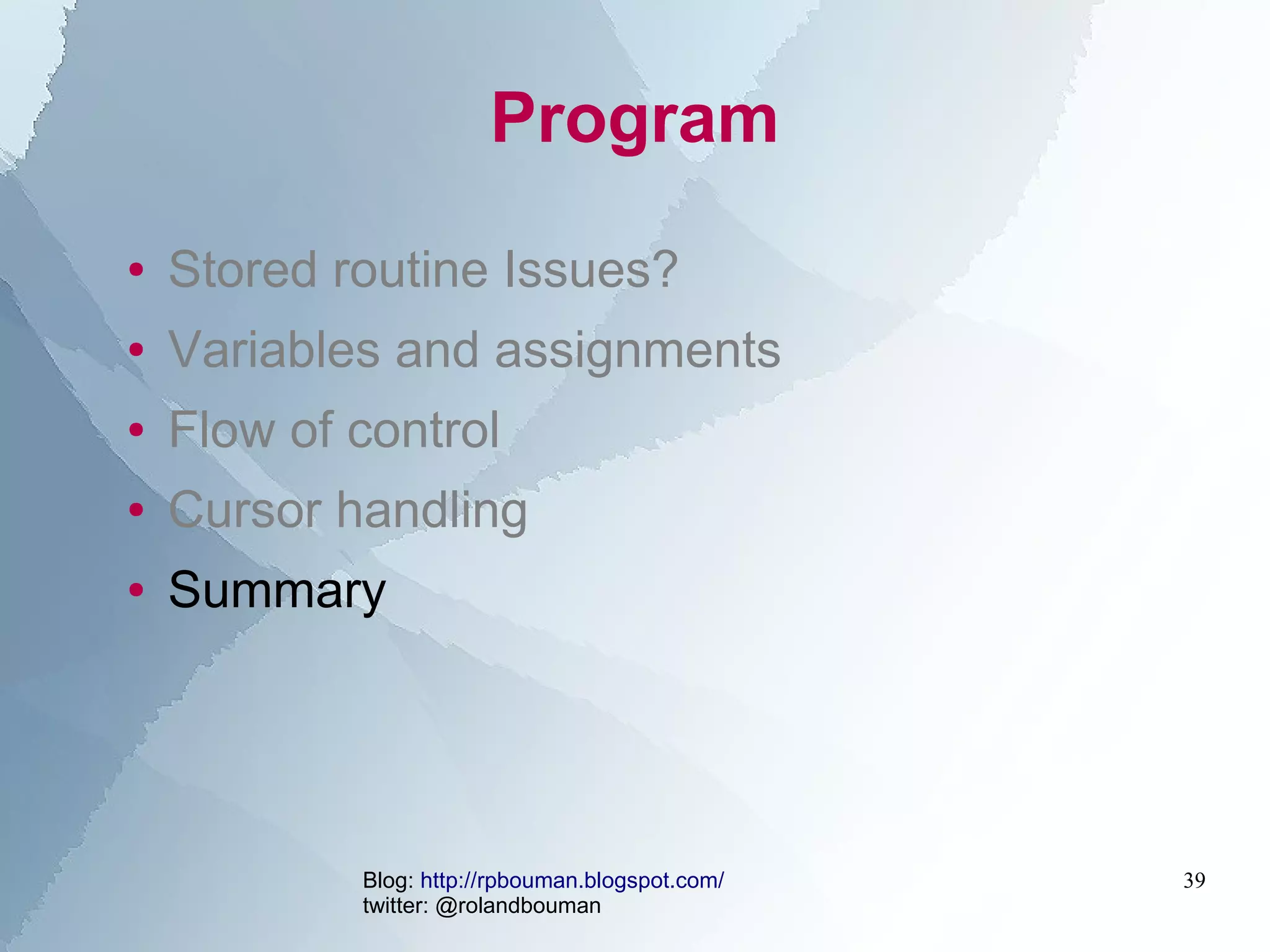

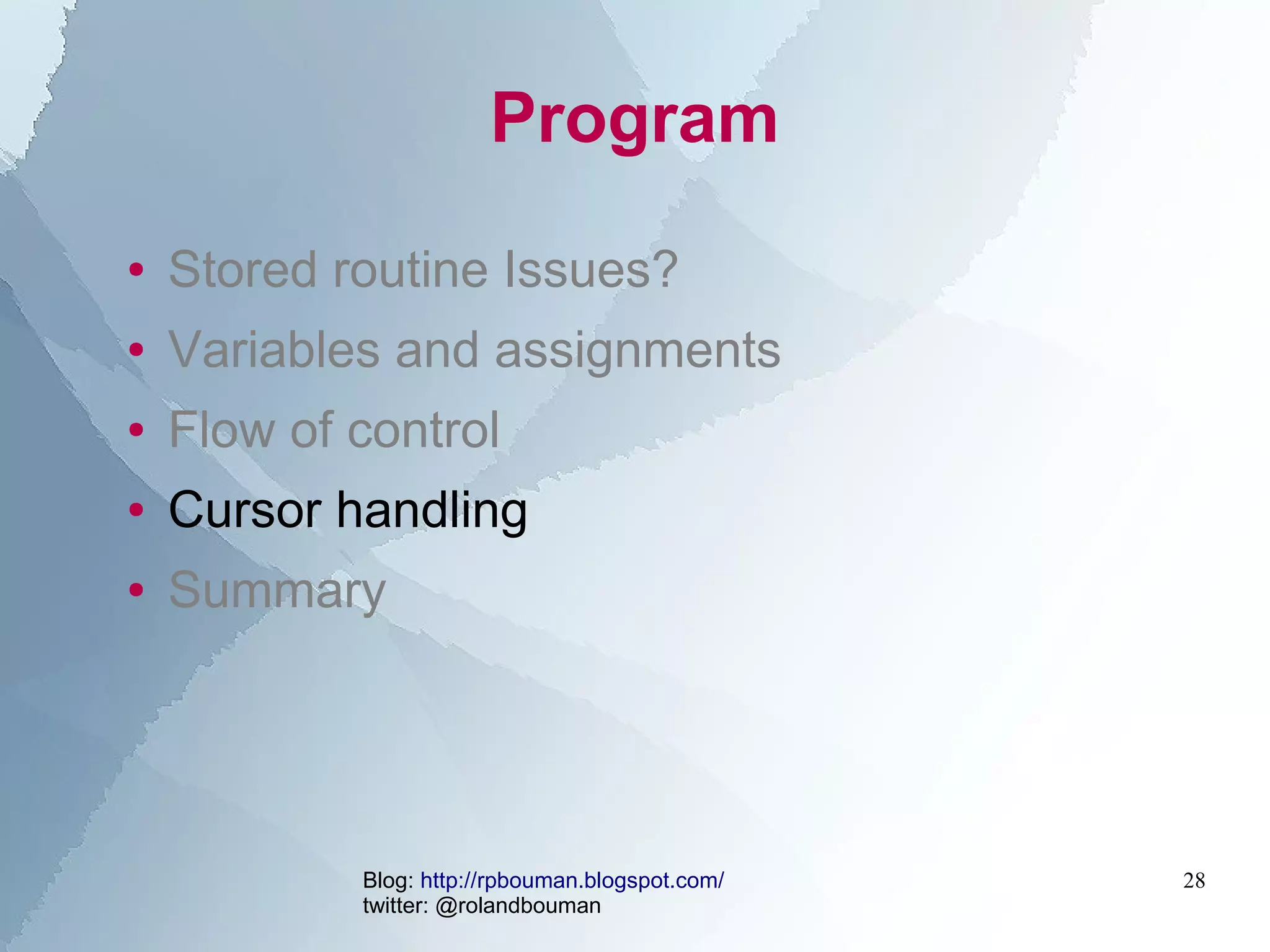

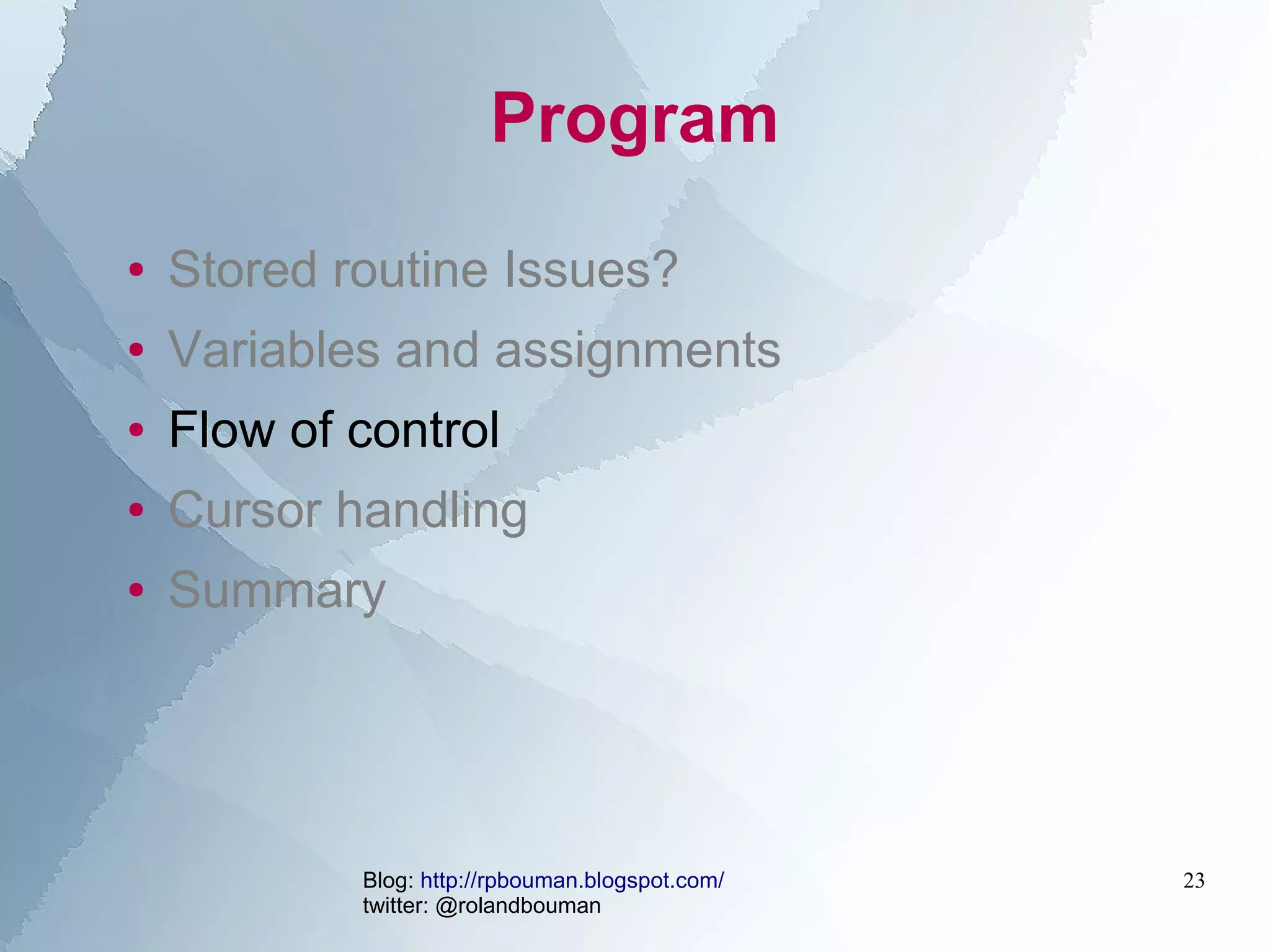

Program
●   Stored routine Issues?
●   Variables and assignments
●   Flow of control
●   Cursor handling
●   Summary




            Blog: http://rpbouman.blogspot.com/   23
            twitter: @rolandbouman

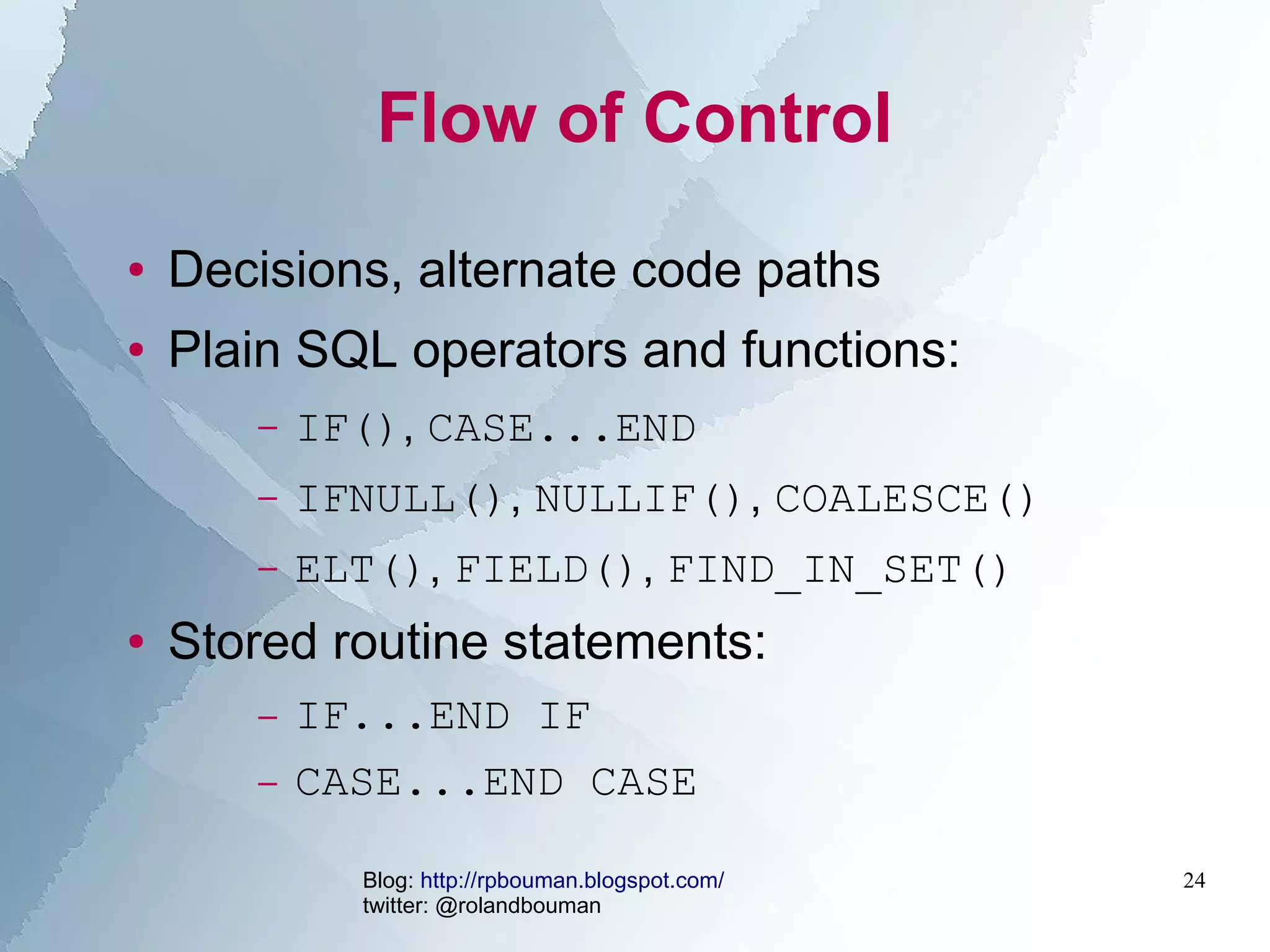

Flow of Control
●   Decisions, alternate code paths
●   Plain SQL operators and functions:
       –   IF(), CASE...END
       –   IFNULL(), NULLIF(), COALESCE()
       –   ELT(), FIELD(), FIND_IN_SET()
●   Stored routine statements:
       –   IF...END IF
       –   CASE...END CASE

             Blog: http://rpbouman.blogspot.com/   24
             twitter: @rolandbouman

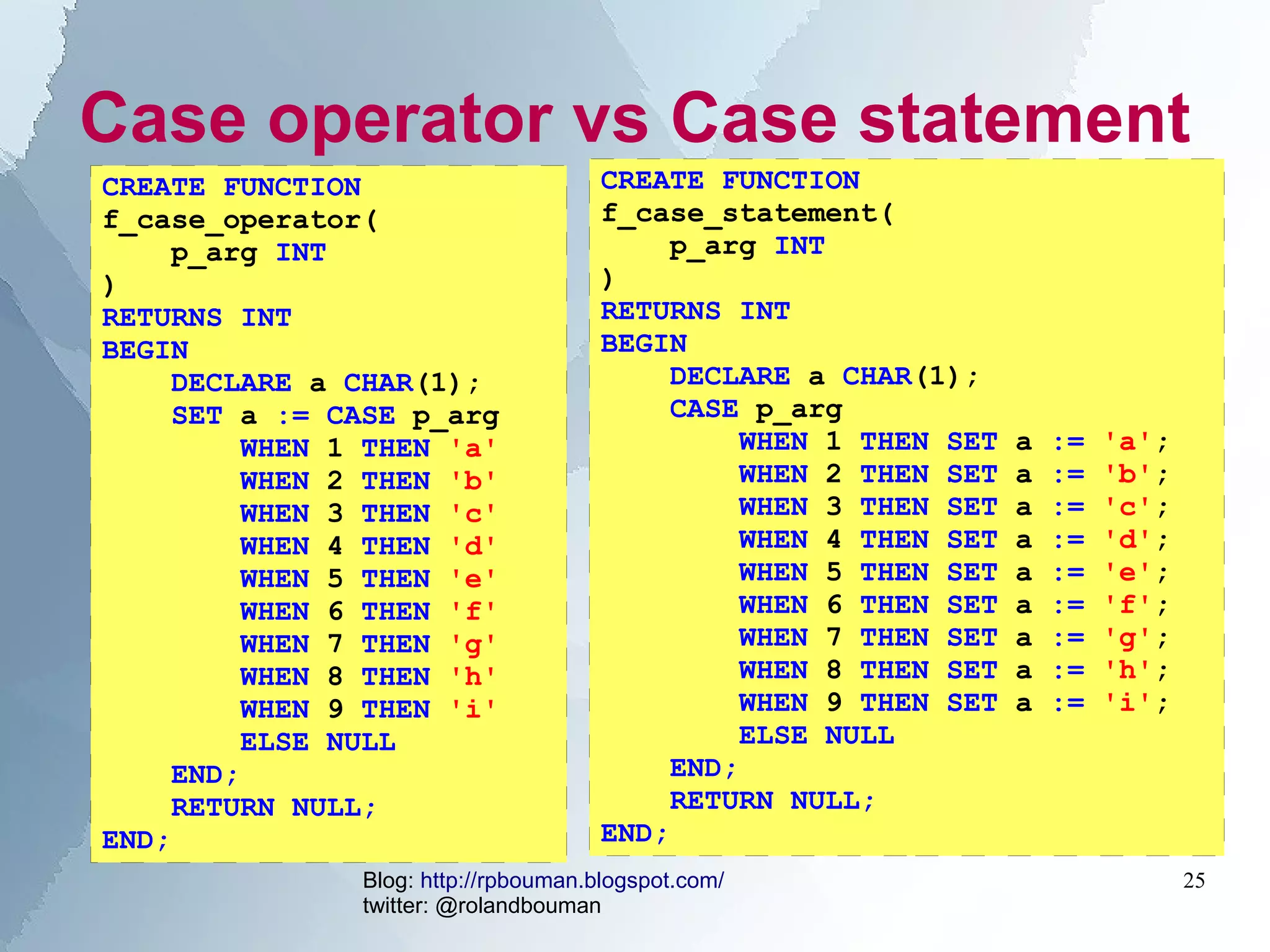

Case operator vs Case statement
CREATE FUNCTION                       CREATE FUNCTION
f_case_operator(                      f_case_statement(
     p_arg INT                            p_arg INT
)                                     )
RETURNS INT                           RETURNS INT
BEGIN                                 BEGIN
     DECLARE a CHAR(1);                   DECLARE a CHAR(1);
     SET a := CASE p_arg                  CASE p_arg
         WHEN 1 THEN 'a'                      WHEN 1 THEN SET   a   :=   'a';
         WHEN 2 THEN 'b'                      WHEN 2 THEN SET   a   :=   'b';
         WHEN 3 THEN 'c'                      WHEN 3 THEN SET   a   :=   'c';
         WHEN 4 THEN 'd'                      WHEN 4 THEN SET   a   :=   'd';
         WHEN 5 THEN 'e'                      WHEN 5 THEN SET   a   :=   'e';
         WHEN 6 THEN 'f'                      WHEN 6 THEN SET   a   :=   'f';
         WHEN 7 THEN 'g'                      WHEN 7 THEN SET   a   :=   'g';
         WHEN 8 THEN 'h'                      WHEN 8 THEN SET   a   :=   'h';
         WHEN 9 THEN 'i'                      WHEN 9 THEN SET   a   :=   'i';
         ELSE NULL                            ELSE NULL
     END;                                 END;
     RETURN NULL;                         RETURN NULL;
END;                                  END;
               Blog: http://rpbouman.blogspot.com/                              25
               twitter: @rolandbouman
Case operator vs Case statement
     ●     linear slowdown of the CASE statement
                          30



                          25



                          20



                          15                                                  case operator
                                                                              case statement

                          10



                           5



                           0
                               1   2   3   4    5       6    7   8   9   10




argument           1       2           3            4            5       6                7       8      9      10
case operator    9,27   9,31       9,33        9,33          9,36    9,38           9,36        9,36   9,36    9,05
case statement   10,2 11,55 12,83          14,14            15,45 16,75 18,09                  19,41 20,75    24,83

                        Blog: http://rpbouman.blogspot.com/                                                    26
                        twitter: @rolandbouman
Flow of control summary

●   Use conditional expressions if possible




             Blog: http://rpbouman.blogspot.com/   27
             twitter: @rolandbouman
Program
●   Stored routine Issues?
●   Variables and assignments
●   Flow of control
●   Cursor handling
●   Summary




            Blog: http://rpbouman.blogspot.com/   28
            twitter: @rolandbouman

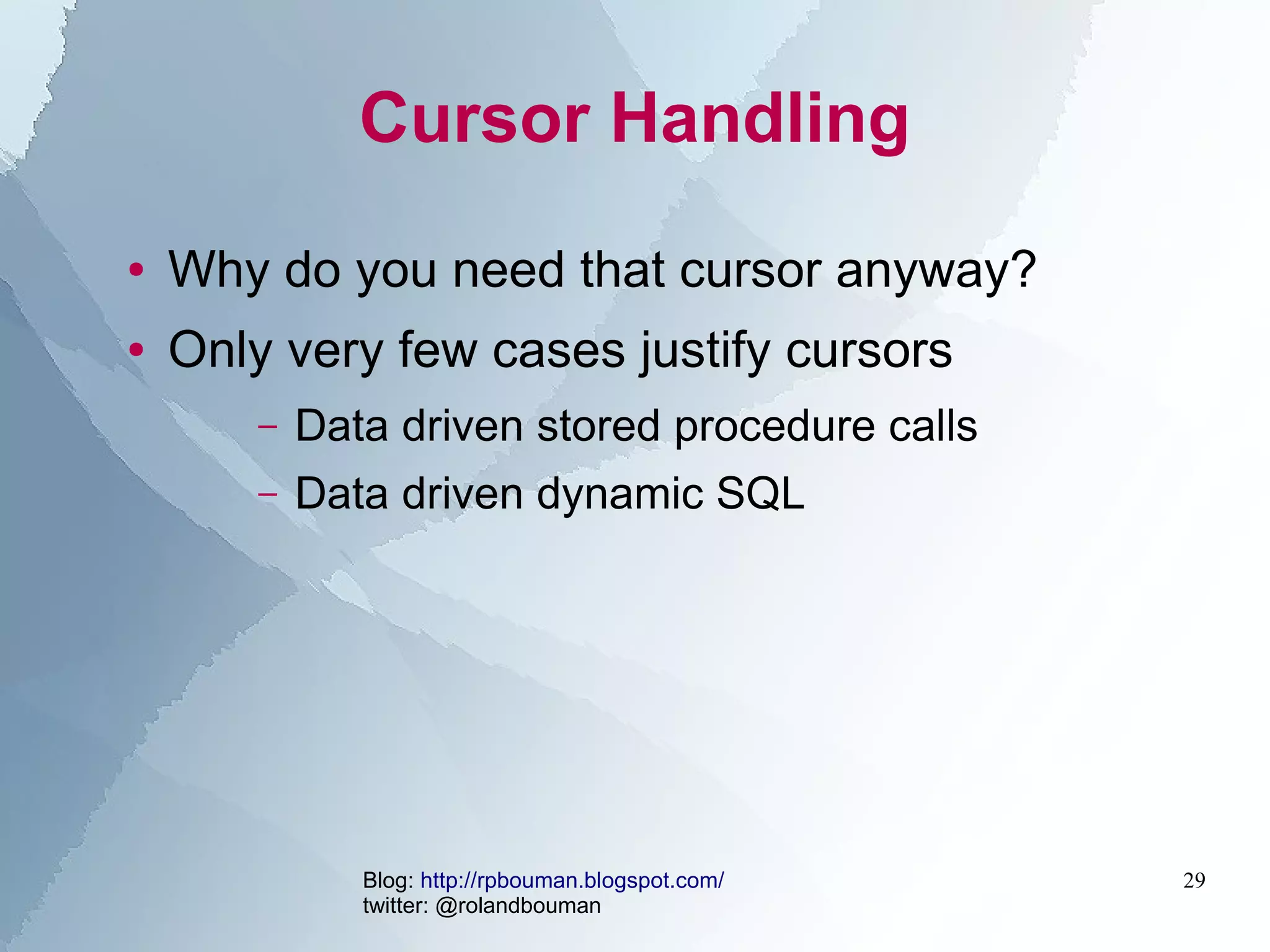

Cursor Handling
●   Why do you need that cursor anyway?
●   Only very few cases justify cursors
        –   Data driven stored procedure calls
        –   Data driven dynamic SQL




               Blog: http://rpbouman.blogspot.com/   29
               twitter: @rolandbouman

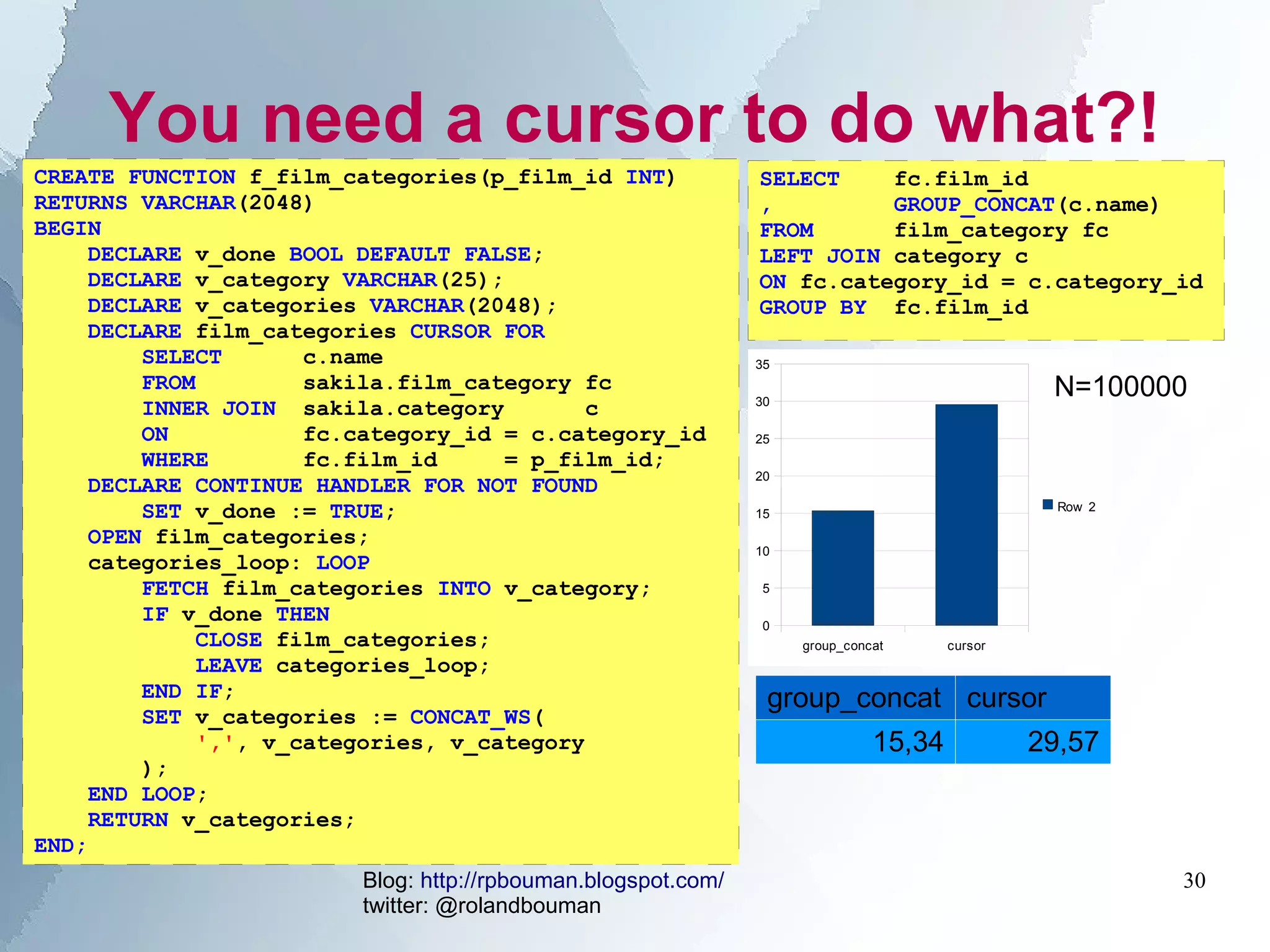

You need a cursor to do what?!
CREATE FUNCTION f_film_categories(p_film_id INT)              SELECT    fc.film_id
RETURNS VARCHAR(2048)                                         ,         GROUP_CONCAT(c.name)
BEGIN                                                         FROM      film_category fc
     DECLARE v_done BOOL DEFAULT FALSE;                       LEFT JOIN category c
     DECLARE v_category VARCHAR(25);                          ON fc.category_id = c.category_id
     DECLARE v_categories VARCHAR(2048);                      GROUP BY fc.film_id
     DECLARE film_categories CURSOR FOR
         SELECT      c.name                                   35
         FROM        sakila.film_category fc
                                                              30
                                                                                               N=100000
         INNER JOIN sakila.category        c
         ON          fc.category_id = c.category_id           25
         WHERE       fc.film_id      = p_film_id;
                                                              20
     DECLARE CONTINUE HANDLER FOR NOT FOUND
         SET v_done := TRUE;                                  15
                                                                                                Row 2

     OPEN film_categories;
                                                              10
     categories_loop: LOOP
         FETCH film_categories INTO v_category;                5

         IF v_done THEN                                        0
             CLOSE film_categories;                                group_concat      cursor
             LEAVE categories_loop;
         END IF;                                               group_concat cursor
         SET v_categories := CONCAT_WS(
             ',', v_categories, v_category                                   15,34            29,57
         );
     END LOOP;
     RETURN v_categories;
END;
                        Blog: http://rpbouman.blogspot.com/                                             30
                        twitter: @rolandbouman

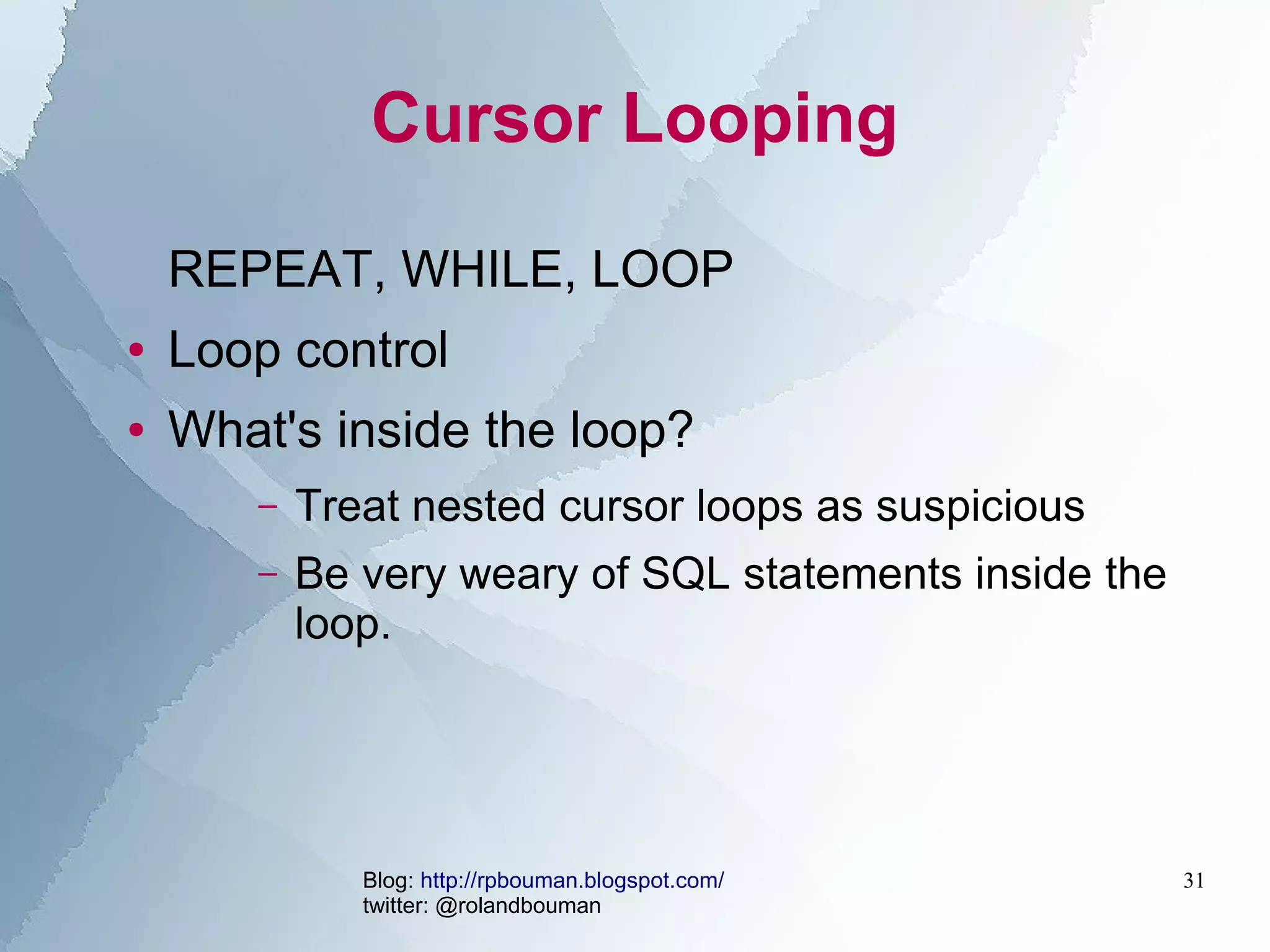

Cursor Looping

    REPEAT, WHILE, LOOP
●   Loop control
●   What's inside the loop?
       –   Treat nested cursor loops as suspicious
       –   Be very weary of SQL statements inside the
           loop.




              Blog: http://rpbouman.blogspot.com/       31
              twitter: @rolandbouman
Why to avoid cursor loops with
          REPEAT
●   Always runs at least once
        –   So what if the set is empty?
●   Iteration before checking the loop condition
        –   Always requires an additional explicit check
            inside the loop
●   Loop control scattered:
        –   Both in top and bottom of the loop



               Blog: http://rpbouman.blogspot.com/         32
               twitter: @rolandbouman

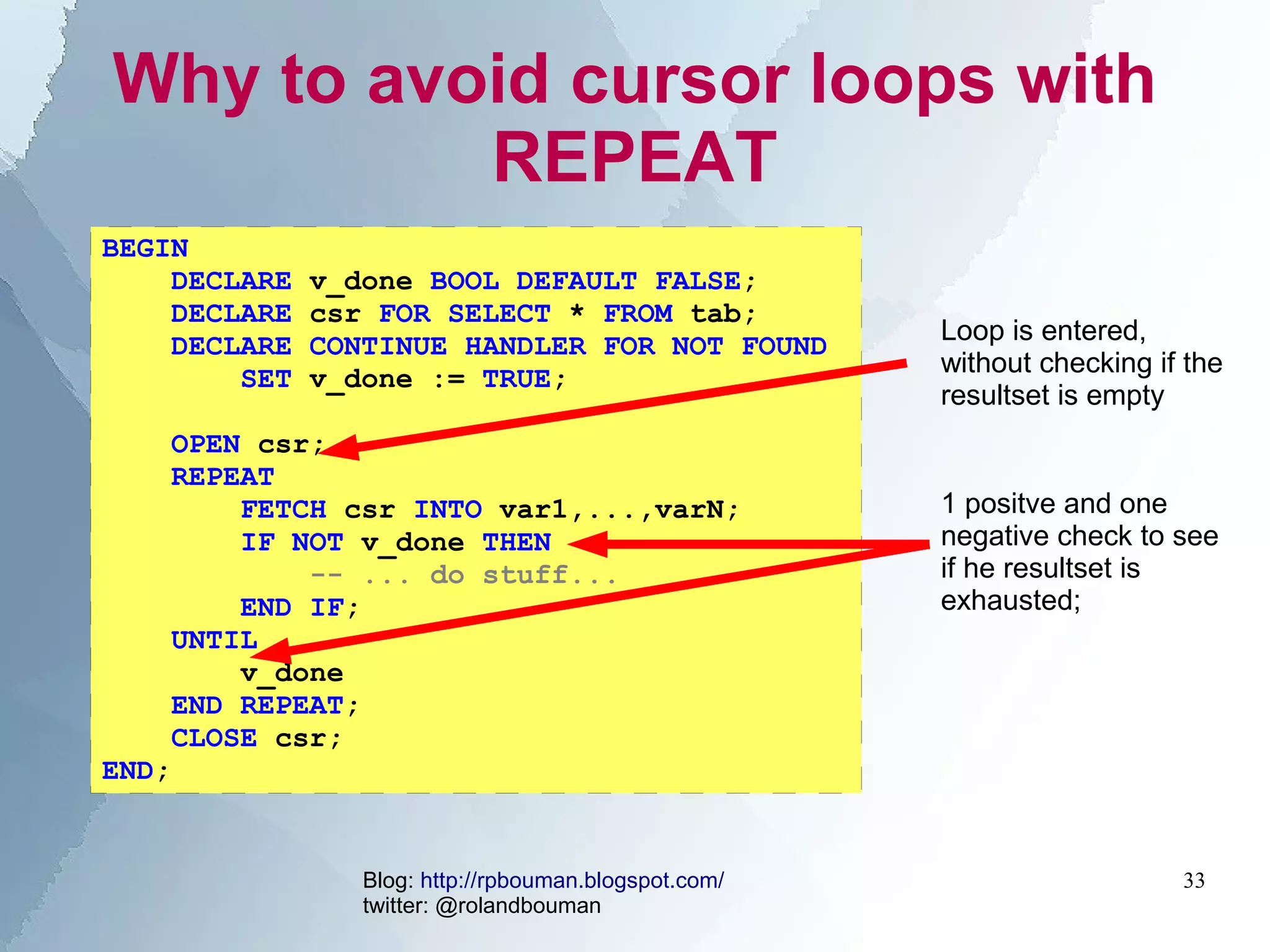

Why to avoid cursor loops with
          REPEAT
BEGIN
    DECLARE   v_done BOOL DEFAULT FALSE;
    DECLARE   csr FOR SELECT * FROM tab;
                                                       Loop is entered,
    DECLARE   CONTINUE HANDLER FOR NOT FOUND
                                                       without checking if the
        SET   v_done := TRUE;
                                                       resultset is empty
    OPEN csr;
    REPEAT
        FETCH csr INTO var1,...,varN;                  1 positve and one
        IF NOT v_done THEN                             negative check to see
            -- ... do stuff...                         if he resultset is
        END IF;                                        exhausted;
    UNTIL
        v_done
    END REPEAT;
    CLOSE csr;
END;


                 Blog: http://rpbouman.blogspot.com/                      33
                 twitter: @rolandbouman

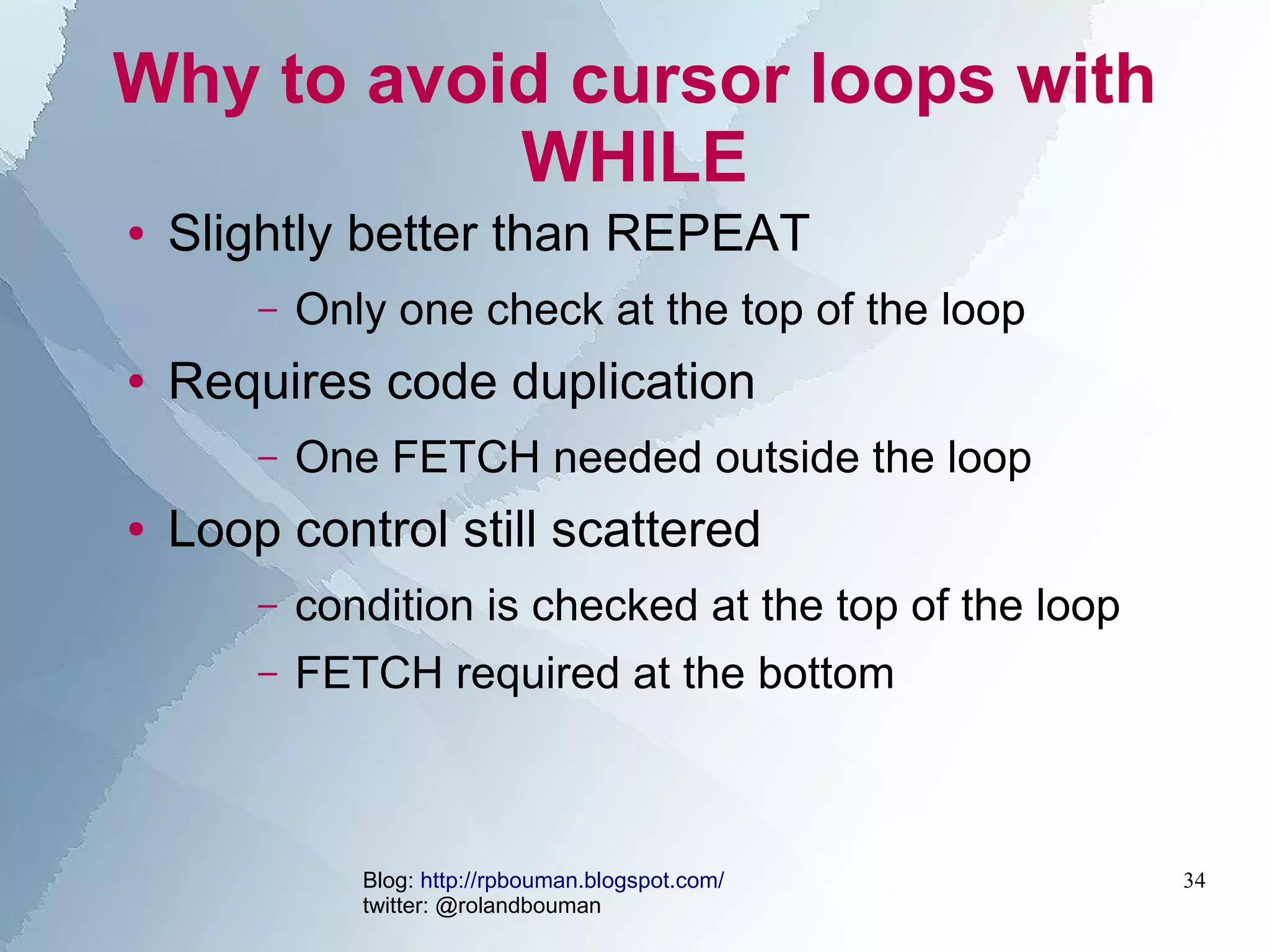

Why to avoid cursor loops with
           WHILE
●   Slightly better than REPEAT
        –   Only one check at the top of the loop
●   Requires code duplication
        –   One FETCH needed outside the loop
●   Loop control still scattered
        –   condition is checked at the top of the loop
        –   FETCH required at the bottom



               Blog: http://rpbouman.blogspot.com/        34
               twitter: @rolandbouman

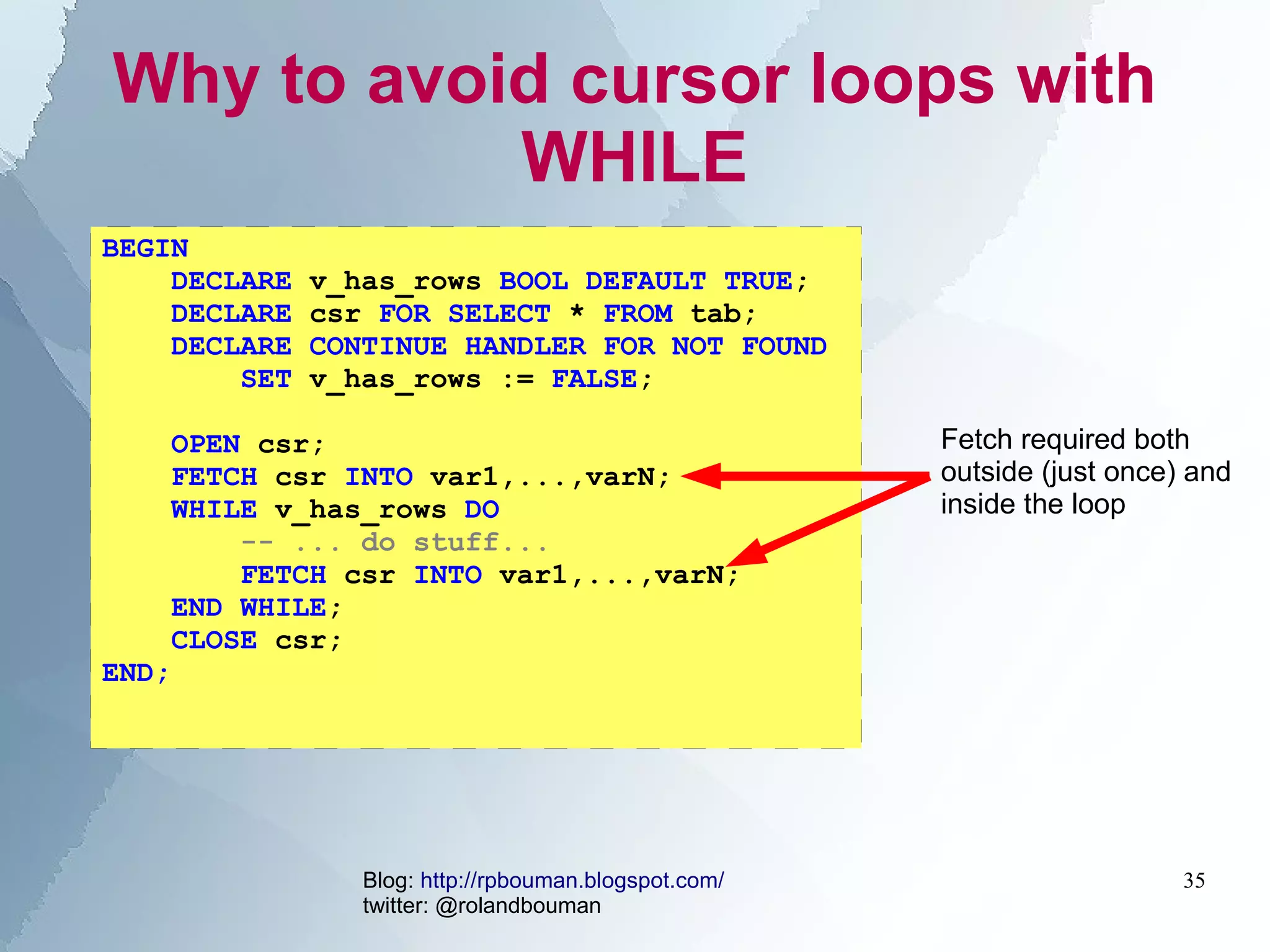

Why to avoid cursor loops with
           WHILE
BEGIN
    DECLARE   v_has_rows BOOL DEFAULT TRUE;
    DECLARE   csr FOR SELECT * FROM tab;
    DECLARE   CONTINUE HANDLER FOR NOT FOUND
        SET   v_has_rows := FALSE;

       OPEN csr;                                        Fetch required both
       FETCH csr INTO var1,...,varN;                    outside (just once) and
       WHILE v_has_rows DO                              inside the loop
           -- ... do stuff...
           FETCH csr INTO var1,...,varN;
       END WHILE;
       CLOSE csr;
END;




                  Blog: http://rpbouman.blogspot.com/                      35
                  twitter: @rolandbouman

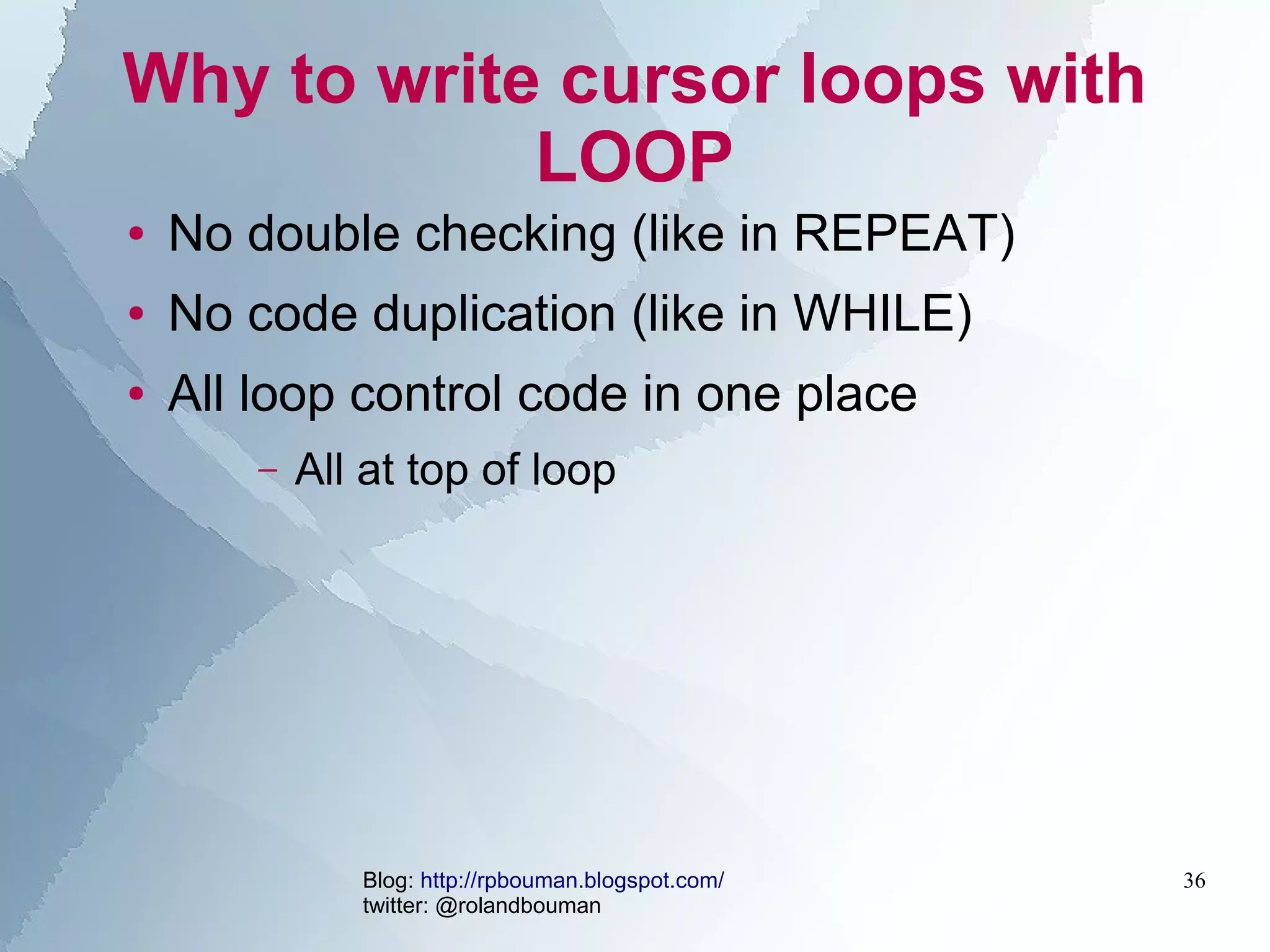

Why to write cursor loops with
            LOOP
●   No double checking (like in REPEAT)
●   No code duplication (like in WHILE)
●   All loop control code in one place
        –   All at top of loop




               Blog: http://rpbouman.blogspot.com/   36
               twitter: @rolandbouman

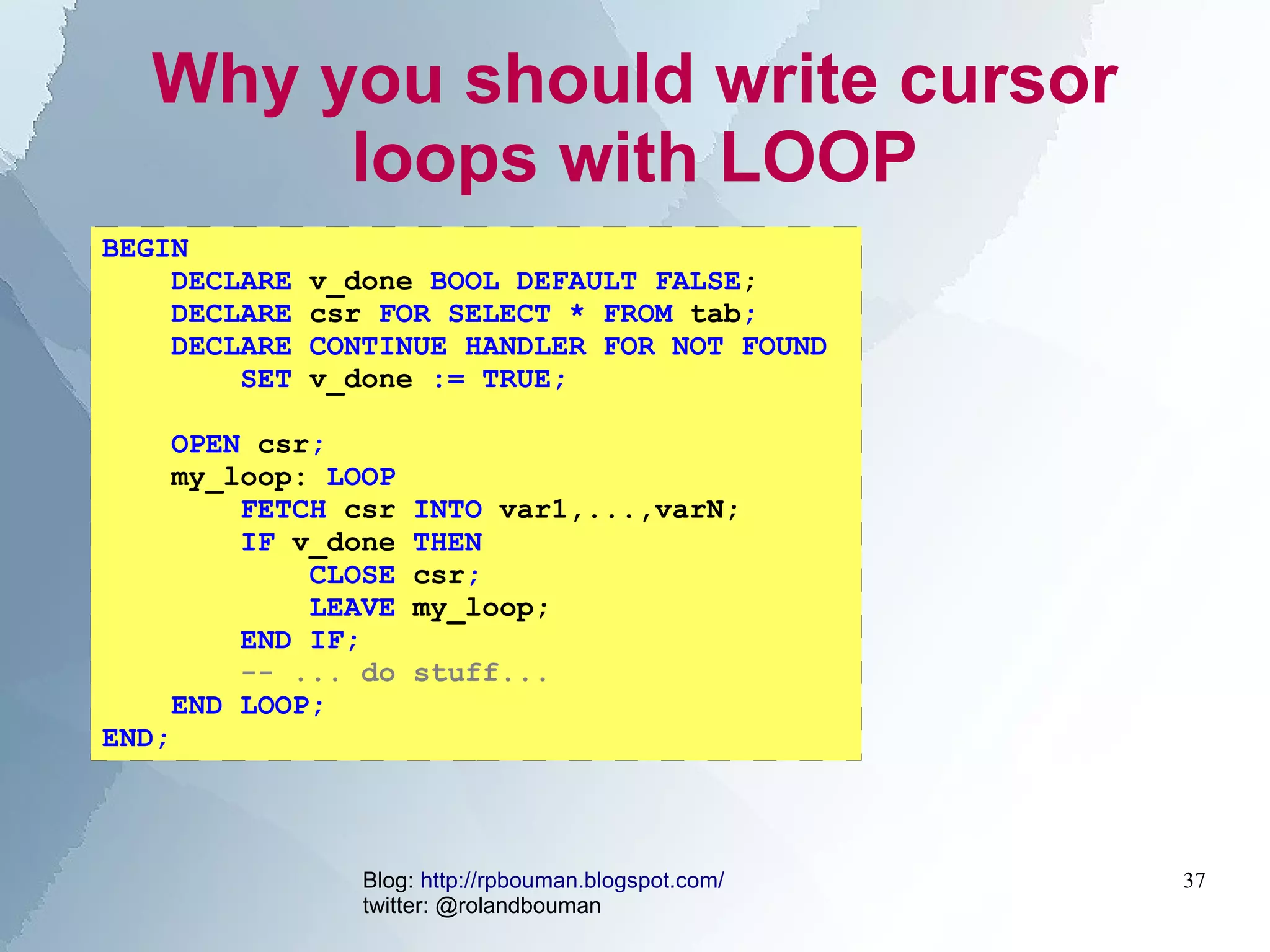

Why you should write cursor
       loops with LOOP
BEGIN
    DECLARE   v_done BOOL DEFAULT FALSE;
    DECLARE   csr FOR SELECT * FROM tab;
    DECLARE   CONTINUE HANDLER FOR NOT FOUND
        SET   v_done := TRUE;

       OPEN csr;
       my_loop: LOOP
           FETCH csr   INTO var1,...,varN;
           IF v_done   THEN
               CLOSE   csr;
               LEAVE   my_loop;
           END IF;
           -- ... do   stuff...
       END LOOP;
END;



                  Blog: http://rpbouman.blogspot.com/   37
                  twitter: @rolandbouman

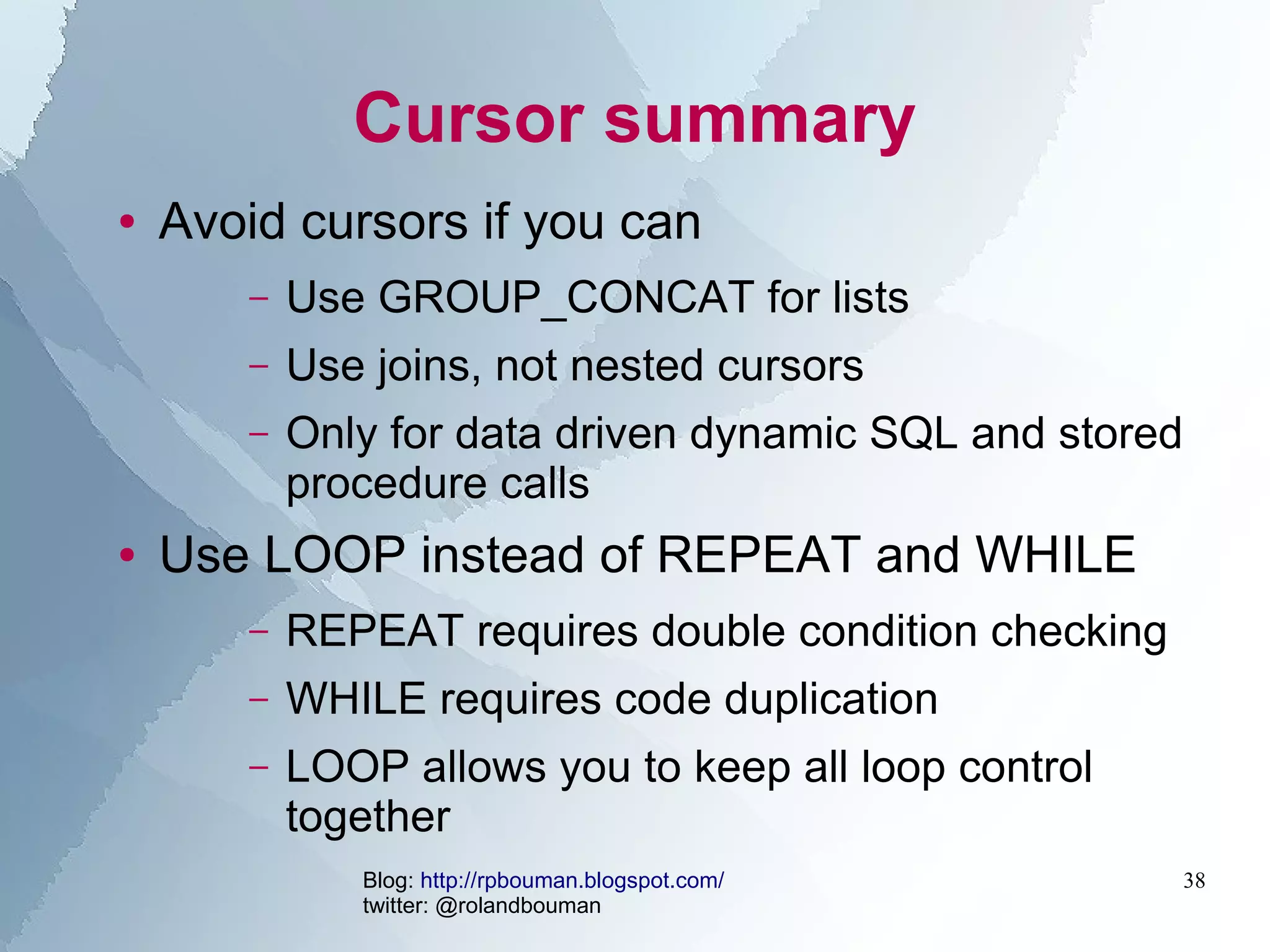

Cursor summary
●   Avoid cursors if you can
        –   Use GROUP_CONCAT for lists
        –   Use joins, not nested cursors
        –   Only for data driven dynamic SQL and stored
            procedure calls
●   Use LOOP instead of REPEAT and WHILE
        –   REPEAT requires double condition checking
        –   WHILE requires code duplication
        –   LOOP allows you to keep all loop control
            together
               Blog: http://rpbouman.blogspot.com/        38
               twitter: @rolandbouman
Program
●   Stored routine Issues?
●   Variables and assignments
●   Flow of control
●   Cursor handling
●   Summary




            Blog: http://rpbouman.blogspot.com/   39
            twitter: @rolandbouman
Summary
●   Variables
       –   Use local rather than user-defined variables
●   Assignments
       –   Use DEFAULT and SET for simple values
       –   Use SELECT INTO for queries
●   Flow of Control
       –   Use functions and operators rather than
           statements
●   Cursors
       –   Avoid if possible
       –   Use LOOP, not REPEAT and WHILE
              Blog: http://rpbouman.blogspot.com/         40
              twitter: @rolandbouman

More Related Content

Similar to Optimizing mysql stored routines uc2010

Buytaert kris tools
Buytaert kris toolsBuytaert kris tools
Buytaert kris tools
kuchinskaya

Subqueries views stored procedures_triggers_transactions
Subqueries views stored procedures_triggers_transactionsSubqueries views stored procedures_triggers_transactions
Subqueries views stored procedures_triggers_transactions
maxpane

Upcoming changes in MySQL 5.7
Upcoming changes in MySQL 5.7Upcoming changes in MySQL 5.7
Upcoming changes in MySQL 5.7
Morgan Tocker

Verilog TASKS & FUNCTIONS
Verilog TASKS & FUNCTIONSVerilog TASKS & FUNCTIONS
Verilog TASKS & FUNCTIONS
Dr.YNM

Sql transacation
Sql transacationSql transacation
PLSQL Tutorial
PLSQL TutorialPLSQL Tutorial
PLSQL Tutorial
Quang Minh Đoàn

7 tools for your devops stack
7 tools for your devops stack7 tools for your devops stack
7 tools for your devops stack
Kris Buytaert

A New View of Database Views
A New View of Database ViewsA New View of Database Views
A New View of Database Views
Michael Rosenblum

Interesting and Useful Features of the DeltaV PID Controller
Interesting and Useful Features of the DeltaV PID ControllerInteresting and Useful Features of the DeltaV PID Controller
Interesting and Useful Features of the DeltaV PID Controller
Jim Cahill

Webinar: Zend framework Getting to grips (ZF1)
Webinar: Zend framework Getting to grips (ZF1)Webinar: Zend framework Getting to grips (ZF1)
Webinar: Zend framework Getting to grips (ZF1)
Ryan Mauger

MySQL8.0.22リリースノートをみてわいわい言う勉強会
MySQL8.0.22リリースノートをみてわいわい言う勉強会 MySQL8.0.22リリースノートをみてわいわい言う勉強会
MySQL8.0.22リリースノートをみてわいわい言う勉強会
sakaik

Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...
Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...
Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...
Cuneyt Goksu

Performance measurement and tuning
Performance measurement and tuningPerformance measurement and tuning
Performance measurement and tuning
AOE

In Search of Plan Stability - Part 1
In Search of Plan Stability - Part 1In Search of Plan Stability - Part 1
In Search of Plan Stability - Part 1
Enkitec

No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
Pixie Labs

No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
Zain Asgar

Lessons learned from Isbank - A Story of a DB2 for z/OS Initiative
Lessons learned from Isbank - A Story of a DB2 for z/OS InitiativeLessons learned from Isbank - A Story of a DB2 for z/OS Initiative
Lessons learned from Isbank - A Story of a DB2 for z/OS Initiative
Cuneyt Goksu

Yahoo: Experiences with MySQL GTID and Multi Threaded Replication
Yahoo: Experiences with MySQL GTID and Multi Threaded ReplicationYahoo: Experiences with MySQL GTID and Multi Threaded Replication
Yahoo: Experiences with MySQL GTID and Multi Threaded Replication
Yashada Jadhav

Oracle Forms : Transnational Triggers
Oracle Forms : Transnational TriggersOracle Forms : Transnational Triggers
Oracle Forms : Transnational Triggers
Sekhar Byna

OSMC 2012 | Shinken by Jean Gabès
OSMC 2012 | Shinken by Jean GabèsOSMC 2012 | Shinken by Jean Gabès
OSMC 2012 | Shinken by Jean Gabès
NETWAYS


Similar to Optimizing mysql stored routines uc2010 (20)

Buytaert kris tools
Buytaert kris toolsBuytaert kris tools
Buytaert kris tools

Subqueries views stored procedures_triggers_transactions
Subqueries views stored procedures_triggers_transactionsSubqueries views stored procedures_triggers_transactions
Subqueries views stored procedures_triggers_transactions

Upcoming changes in MySQL 5.7
Upcoming changes in MySQL 5.7Upcoming changes in MySQL 5.7
Upcoming changes in MySQL 5.7

Verilog TASKS & FUNCTIONS
Verilog TASKS & FUNCTIONSVerilog TASKS & FUNCTIONS
Verilog TASKS & FUNCTIONS

Sql transacation
Sql transacationSql transacation
Sql transacation

PLSQL Tutorial
PLSQL TutorialPLSQL Tutorial
PLSQL Tutorial

7 tools for your devops stack
7 tools for your devops stack7 tools for your devops stack
7 tools for your devops stack

A New View of Database Views
A New View of Database ViewsA New View of Database Views
A New View of Database Views

Interesting and Useful Features of the DeltaV PID Controller
Interesting and Useful Features of the DeltaV PID ControllerInteresting and Useful Features of the DeltaV PID Controller
Interesting and Useful Features of the DeltaV PID Controller

Webinar: Zend framework Getting to grips (ZF1)
Webinar: Zend framework Getting to grips (ZF1)Webinar: Zend framework Getting to grips (ZF1)
Webinar: Zend framework Getting to grips (ZF1)

MySQL8.0.22リリースノートをみてわいわい言う勉強会
MySQL8.0.22リリースノートをみてわいわい言う勉強会 MySQL8.0.22リリースノートをみてわいわい言う勉強会
MySQL8.0.22リリースノートをみてわいわい言う勉強会

Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...
Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...
Understanding IBM Tivoli OMEGAMON for DB2 Batch Reporting, Customization and ...

Performance measurement and tuning
Performance measurement and tuningPerformance measurement and tuning
Performance measurement and tuning

In Search of Plan Stability - Part 1
In Search of Plan Stability - Part 1In Search of Plan Stability - Part 1
In Search of Plan Stability - Part 1

No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)

No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)
No instrumentation Golang Logging with eBPF (GoSF talk 11/11/20)

Lessons learned from Isbank - A Story of a DB2 for z/OS Initiative
Lessons learned from Isbank - A Story of a DB2 for z/OS InitiativeLessons learned from Isbank - A Story of a DB2 for z/OS Initiative
Lessons learned from Isbank - A Story of a DB2 for z/OS Initiative

Yahoo: Experiences with MySQL GTID and Multi Threaded Replication
Yahoo: Experiences with MySQL GTID and Multi Threaded ReplicationYahoo: Experiences with MySQL GTID and Multi Threaded Replication
Yahoo: Experiences with MySQL GTID and Multi Threaded Replication

Oracle Forms : Transnational Triggers
Oracle Forms : Transnational TriggersOracle Forms : Transnational Triggers
Oracle Forms : Transnational Triggers

OSMC 2012 | Shinken by Jean Gabès
OSMC 2012 | Shinken by Jean GabèsOSMC 2012 | Shinken by Jean Gabès
OSMC 2012 | Shinken by Jean Gabès


Optimizing mysql stored routines uc2010

  • 1. MySQL User Conference and Expo 2010 Optimizing Stored Routines Blog: http://rpbouman.blogspot.com/ 1 twitter: @rolandbouman
  • 2. Welcome, thanks for attending! ● Roland Bouman; Leiden, Netherlands ● Ex MySQL AB, Sun Microsystems ● Web and BI Developer ● Co-author of “Pentaho Solutions” ● Blog: http://rpbouman.blogspot.com/ ● Twitter: @rolandbouman Blog: http://rpbouman.blogspot.com/ 2 twitter: @rolandbouman
  • 3. Program ● Stored routine issues ● Variables and assignments ● Flow of control ● Cursor handling ● Summary Blog: http://rpbouman.blogspot.com/ 3 twitter: @rolandbouman
  • 4. Program ● Stored routine issues? ● Variables and assignments ● Flow of control ● Cursor handling ● Summary Blog: http://rpbouman.blogspot.com/ 4 twitter: @rolandbouman
  • 5. Stored Routines: Definition ● Stored routines: – stored functions (SQL functions) – stored procedures – triggers – events Blog: http://rpbouman.blogspot.com/ 5 twitter: @rolandbouman
  • 6. Performance Issues ● SQL inside stored routines is still SQL, ...but... – invocation overhead – suboptimal computational performance ● Benchmarking method – BENCHMARK(1000000, expression) – Appropriate for computation speed – 1 million times ● MySQL 5.1.36, Windows Blog: http://rpbouman.blogspot.com/ 6 twitter: @rolandbouman
  • 7. Invocation overhead ● Plain expression (10 mln) mysql> SELECT BENCHMARK(10000000, 1); +------------------------+ | benchmark(10000000, 1) | +------------------------+ | 0 | +------------------------+ 1 row in set (0.19 sec) ● Equivalent function (10 mln) mysql> CREATE FUNCTION f_one() RETURNS INT RETURN 1; mysql> SELECT BENCHMARK(10000000, f_one()); +----------------------------+ | benchmark(10000000, f_one) | +----------------------------+ | 0 | +----------------------------+ 1 row in set (24.59 sec) ● Slowdown 130 times Blog: http://rpbouman.blogspot.com/ 7 twitter: @rolandbouman
  • 8. Computation inefficiency ● Plain addition mysql> SELECT BENCHMARK(10000000, 1+1); +--------------------------+ | benchmark(10000000, 1+1) | +--------------------------+ | 0 | +--------------------------+ 1 row in set (0.30 sec) ● Equivalent function mysql> CREATE FUNCTION f_one_plus_one() RETURNS INT RETURN 1+1; mysql> SELECT BENCHMARK(10000000, f_one_plus_one()); +---------------------------------------+ | benchmark(10000000, f_one_plus_one()) | +---------------------------------------+ | 0 | +---------------------------------------+ 1 row in set (28.73 sec) Blog: http://rpbouman.blogspot.com/ 8 twitter: @rolandbouman
  • 9. Computation inefficiency ● Raw measurements plain expression function ratio 1 f_one() 0.19 24.59 0.0077 1+1 f_one_plus_one() 0.29 28.73 0.0101 ● Correction for invocation overhead plain expression function ratio 1 f_one() 0.00 00.00 1+1 f_one_plus_one() 0.10 4.14 0.0242 ● Slowdown about 40 times – after correction for invocation overhead Blog: http://rpbouman.blogspot.com/ 9 twitter: @rolandbouman
  • 10. Program ● Stored routine issues ● Variables and assignments ● Flow of control ● Cursor handling ● Summary Blog: http://rpbouman.blogspot.com/ 10 twitter: @rolandbouman
  • 11. Types of Variables ● User-defined variables – session scope – runtime type SET @user_defined_variable := 'some value'; ● Local variables – block scope – declared type BEGIN DECLARE v_local_variable VARCHAR(50); SET v_local_variable := 'some value'; ... END; Blog: http://rpbouman.blogspot.com/ 11 twitter: @rolandbouman
  • 12. User-defined variable Benchmark ● Baseline CREATE FUNCTION f_variable_baseline() RETURNS INT BEGIN DECLARE a INT DEFAULt 1; RETURN a; END; ● Local variable CREATE FUNCTION f_variable_baseline() RETURNS INT BEGIN DECLARE a INT DEFAULT 1; SET a := 1; RETURN a; END; ● User-defined variable CREATE FUNCTION f_variable_baseline() RETURNS INT BEGIN DECLARE a INT DEFAULT 1; SET @a := 1; RETURN a; END; Blog: http://rpbouman.blogspot.com/ 12 twitter: @rolandbouman
  • 13. User-defined variables ● User-defined variables about 5x slower 9 8 7 6 5 4 Row 45 3 2 1 0 f_variable_baseline f_local_variable f _user_defined_variable baseline local variable User-defined variable 4.6 5.32 7.89 0.0 0.72 3.29 0.72/3.29 = 0,22 Blog: http://rpbouman.blogspot.com/ 13 twitter: @rolandbouman
  • 14. Assignments ● SET statement SET v_variable := 'some value'; ● SELECT statement SELECT 'some value' INTO v_variable; ● DEFAULT clause BEGIN DECLARE v_local_variable VARCHAR(50) DEFAULT 'some value'; ... END; Blog: http://rpbouman.blogspot.com/ 14 twitter: @rolandbouman
  • 15. Assignment Benchmarks ● SELECT INTO about 60% slower than SET ● SET about 40% slower than DEFAULT 30 baseline DEFAULT SET SELECT 25 8.2 15.06 18.25 32.08 20 0 6.86 10.05 23.88 15 100% 42.09% Row 29 10 100% 68.26% 5 0 default clause set statement select into statement Blog: http://rpbouman.blogspot.com/ 15 twitter: @rolandbouman
  • 16. More about SELECT INTO ● Assigning from a SELECT...INTO statement: – ok if you're assigning from a real query – not so much if you're assigning literals SELECT COUNT(*) SELECT 1 , user_id , 'some value' INTO v_count INTO v_number , v_user_id , v_string FROM t_users Blog: http://rpbouman.blogspot.com/ 16 twitter: @rolandbouman
  • 17. Sample function: Sakila rental count CREATE FUNCTION f_assign_select_into(p_customer_id INT) RETURNS INT BEGIN DECLARE c INT; SELECT SQL_NO_CACHE, COUNT(*) INTO c FROM sakila.rental WHERE customer_id = p_customer_id; RETURN c; END; CREATE FUNCTION f_assign_select_set(p_customer_id INT) RETURNS INT BEGIN DECLARE c INT; SET c := ( SELECT SQL_NO_CACHE, COUNT(*) FROM sakila.rental WHERE customer_id = p_customer_id); RETURN c; END; CREATE FUNCTION f_noassign_select(p_customer_id INT) RETURNS INT BEGIN RETURN ( SELECT SQL_NO_CACHE, COUNT(*) FROM sakila.rental WHERE customer_id = p_customer_id); END; Blog: http://rpbouman.blogspot.com/ 17 twitter: @rolandbouman
  • 18. Sakila Rental count benchmark ● SET about 25% slower than SELECT INTO 10 9 8 7 6 5 Row 2 4 3 2 1 0 select into set subquery return subquery N select into set subquery return subquery 100000 7.00 9.06 8.75 Blog: http://rpbouman.blogspot.com/ 18 twitter: @rolandbouman
  • 19. More on variables and assignments ● Match expression and variable data types – example: calculating easter CREATE FUNCTION f_easter_int_nodiv( p_year INT ) RETURNS DATE BEGIN DECLARE a SMALLINT DEFAULT p_year % 19; DECLARE b SMALLINT DEFAULT FLOOR(p_year / 100); DECLARE c SMALLINT DEFAULT p_year % 100; DECLARE d SMALLINT DEFAULT FLOOR(b / 4); DECLARE e SMALLINT DEFAULT b % 4; DECLARE f SMALLINT DEFAULT FLOOR((b + 8) / 25); DECLARE g SMALLINT DEFAULT FLOOR((b - f + 1) / 3); DECLARE h SMALLINT DEFAULT (19*a + b - d - g + 15) % 30; DECLARE i SMALLINT DEFAULT FLOOR(c / 4); DECLARE k SMALLINT DEFAULT c % 4; DECLARE L SMALLINT DEFAULT (32 + 2*e + 2*i - h - k) % 7; DECLARE m SMALLINT DEFAULT FLOOR((a + 11*h + 22*L) / 451); DECLARE v100 SMALLINT DEFAULT h + L - 7*m + 114; RETURN STR_TO_DATE( CONCAT(p_year, '-', v100 DIV 31, '-', (v100 % 31) + 1) , '%Y-%c-%e' ); END; Blog: http://rpbouman.blogspot.com/ 19 twitter: @rolandbouman
  • 20. Matching expression and variable data types ● Multiple expression of this form: DECLARE b SMALLINT DEFAULT FLOOR(p_year / 100); ● Divide and round to next lowest integer – Alternative: using integer division (DIV) DECLARE b SMALLINT DEFAULT p_year DIV 100; ● 13x performance increase! – ...but: beware for negative values Blog: http://rpbouman.blogspot.com/ 20 twitter: @rolandbouman
  • 21. Improved easter function: CREATE FUNCTION f_easter_int_nodiv( p_year INT ) RETURNS DATE BEGIN DECLARE a SMALLINT DEFAULT p_year % 19; DECLARE b SMALLINT DEFAULT p_year DIV 100; DECLARE c SMALLINT DEFAULT p_year % 100; DECLARE d SMALLINT DEFAULT b DIV 4; DECLARE e SMALLINT DEFAULT b % 4; DECLARE f SMALLINT DEFAULT (b + 8) DIV 25; DECLARE g SMALLINT DEFAULT (b - f + 1) DIV 3; DECLARE h SMALLINT DEFAULT (19*a + b - d - g + 15) % 30; DECLARE i SMALLINT DEFAULT c DIV 4; DECLARE k SMALLINT DEFAULT c % 4; DECLARE L SMALLINT DEFAULT (32 + 2*e + 2*i - h - k) % 7; DECLARE m SMALLINT DEFAULT (a + 11*h + 22*L) DIV 451; DECLARE v100 SMALLINT DEFAULT h + L - 7*m + 114; RETURN STR_TO_DATE( CONCAT(p_year, '-', v100 DIV 31, '-', (v100 % 31) + 1) , '%Y-%c-%e' ); END; ● 30% faster than using FLOOR and / ● Also applicable to regular SQL Blog: http://rpbouman.blogspot.com/ 21 twitter: @rolandbouman
  • 22. Variable and assignment Summary ● Don't use user-defined variables – Use local variables instead ● If possible, use DEFAULT – If you don't, time is wasted ● Beware of SELECT INTO – Only use it for assigning values from queries – Use SET instead for assigning literals ● Match expression and variable data type Blog: http://rpbouman.blogspot.com/ 22 twitter: @rolandbouman
  • 23. Program ● Stored routine Issues? ● Variables and assignments ● Flow of control ● Cursor handling ● Summary Blog: http://rpbouman.blogspot.com/ 23 twitter: @rolandbouman
  • 24. Flow of Control ● Decisions, alternate code paths ● Plain SQL operators and functions: – IF(), CASE...END – IFNULL(), NULLIF(), COALESCE() – ELT(), FIELD(), FIND_IN_SET() ● Stored routine statements: – IF...END IF – CASE...END CASE Blog: http://rpbouman.blogspot.com/ 24 twitter: @rolandbouman
  • 25. Case operator vs Case statement CREATE FUNCTION CREATE FUNCTION f_case_operator( f_case_statement( p_arg INT p_arg INT ) ) RETURNS INT RETURNS INT BEGIN BEGIN DECLARE a CHAR(1); DECLARE a CHAR(1); SET a := CASE p_arg CASE p_arg WHEN 1 THEN 'a' WHEN 1 THEN SET a := 'a'; WHEN 2 THEN 'b' WHEN 2 THEN SET a := 'b'; WHEN 3 THEN 'c' WHEN 3 THEN SET a := 'c'; WHEN 4 THEN 'd' WHEN 4 THEN SET a := 'd'; WHEN 5 THEN 'e' WHEN 5 THEN SET a := 'e'; WHEN 6 THEN 'f' WHEN 6 THEN SET a := 'f'; WHEN 7 THEN 'g' WHEN 7 THEN SET a := 'g'; WHEN 8 THEN 'h' WHEN 8 THEN SET a := 'h'; WHEN 9 THEN 'i' WHEN 9 THEN SET a := 'i'; ELSE NULL ELSE NULL END; END; RETURN NULL; RETURN NULL; END; END; Blog: http://rpbouman.blogspot.com/ 25 twitter: @rolandbouman
  • 26. Case operator vs Case statement ● linear slowdown of the CASE statement 30 25 20 15 case operator case statement 10 5 0 1 2 3 4 5 6 7 8 9 10 argument 1 2 3 4 5 6 7 8 9 10 case operator 9,27 9,31 9,33 9,33 9,36 9,38 9,36 9,36 9,36 9,05 case statement 10,2 11,55 12,83 14,14 15,45 16,75 18,09 19,41 20,75 24,83 Blog: http://rpbouman.blogspot.com/ 26 twitter: @rolandbouman
  • 27. Flow of control summary ● Use conditional expressions if possible Blog: http://rpbouman.blogspot.com/ 27 twitter: @rolandbouman
  • 28. Program ● Stored routine Issues? ● Variables and assignments ● Flow of control ● Cursor handling ● Summary Blog: http://rpbouman.blogspot.com/ 28 twitter: @rolandbouman
  • 29. Cursor Handling ● Why do you need that cursor anyway? ● Only very few cases justify cursors – Data driven stored procedure calls – Data driven dynamic SQL Blog: http://rpbouman.blogspot.com/ 29 twitter: @rolandbouman
  • 30. You need a cursor to do what?! CREATE FUNCTION f_film_categories(p_film_id INT) SELECT fc.film_id RETURNS VARCHAR(2048) , GROUP_CONCAT(c.name) BEGIN FROM film_category fc DECLARE v_done BOOL DEFAULT FALSE; LEFT JOIN category c DECLARE v_category VARCHAR(25); ON fc.category_id = c.category_id DECLARE v_categories VARCHAR(2048); GROUP BY fc.film_id DECLARE film_categories CURSOR FOR SELECT c.name 35 FROM sakila.film_category fc 30 N=100000 INNER JOIN sakila.category c ON fc.category_id = c.category_id 25 WHERE fc.film_id = p_film_id; 20 DECLARE CONTINUE HANDLER FOR NOT FOUND SET v_done := TRUE; 15 Row 2 OPEN film_categories; 10 categories_loop: LOOP FETCH film_categories INTO v_category; 5 IF v_done THEN 0 CLOSE film_categories; group_concat cursor LEAVE categories_loop; END IF; group_concat cursor SET v_categories := CONCAT_WS( ',', v_categories, v_category 15,34 29,57 ); END LOOP; RETURN v_categories; END; Blog: http://rpbouman.blogspot.com/ 30 twitter: @rolandbouman
  • 31. Cursor Looping REPEAT, WHILE, LOOP ● Loop control ● What's inside the loop? – Treat nested cursor loops as suspicious – Be very weary of SQL statements inside the loop. Blog: http://rpbouman.blogspot.com/ 31 twitter: @rolandbouman
  • 32. Why to avoid cursor loops with REPEAT ● Always runs at least once – So what if the set is empty? ● Iteration before checking the loop condition – Always requires an additional explicit check inside the loop ● Loop control scattered: – Both in top and bottom of the loop Blog: http://rpbouman.blogspot.com/ 32 twitter: @rolandbouman
  • 33. Why to avoid cursor loops with REPEAT BEGIN DECLARE v_done BOOL DEFAULT FALSE; DECLARE csr FOR SELECT * FROM tab; Loop is entered, DECLARE CONTINUE HANDLER FOR NOT FOUND without checking if the SET v_done := TRUE; resultset is empty OPEN csr; REPEAT FETCH csr INTO var1,...,varN; 1 positve and one IF NOT v_done THEN negative check to see -- ... do stuff... if he resultset is END IF; exhausted; UNTIL v_done END REPEAT; CLOSE csr; END; Blog: http://rpbouman.blogspot.com/ 33 twitter: @rolandbouman
  • 34. Why to avoid cursor loops with WHILE ● Slightly better than REPEAT – Only one check at the top of the loop ● Requires code duplication – One FETCH needed outside the loop ● Loop control still scattered – condition is checked at the top of the loop – FETCH required at the bottom Blog: http://rpbouman.blogspot.com/ 34 twitter: @rolandbouman
  • 35. Why to avoid cursor loops with WHILE BEGIN DECLARE v_has_rows BOOL DEFAULT TRUE; DECLARE csr FOR SELECT * FROM tab; DECLARE CONTINUE HANDLER FOR NOT FOUND SET v_has_rows := FALSE; OPEN csr; Fetch required both FETCH csr INTO var1,...,varN; outside (just once) and WHILE v_has_rows DO inside the loop -- ... do stuff... FETCH csr INTO var1,...,varN; END WHILE; CLOSE csr; END; Blog: http://rpbouman.blogspot.com/ 35 twitter: @rolandbouman
  • 36. Why to write cursor loops with LOOP ● No double checking (like in REPEAT) ● No code duplication (like in WHILE) ● All loop control code in one place – All at top of loop Blog: http://rpbouman.blogspot.com/ 36 twitter: @rolandbouman
  • 37. Why you should write cursor loops with LOOP BEGIN DECLARE v_done BOOL DEFAULT FALSE; DECLARE csr FOR SELECT * FROM tab; DECLARE CONTINUE HANDLER FOR NOT FOUND SET v_done := TRUE; OPEN csr; my_loop: LOOP FETCH csr INTO var1,...,varN; IF v_done THEN CLOSE csr; LEAVE my_loop; END IF; -- ... do stuff... END LOOP; END; Blog: http://rpbouman.blogspot.com/ 37 twitter: @rolandbouman
  • 38. Cursor summary ● Avoid cursors if you can – Use GROUP_CONCAT for lists – Use joins, not nested cursors – Only for data driven dynamic SQL and stored procedure calls ● Use LOOP instead of REPEAT and WHILE – REPEAT requires double condition checking – WHILE requires code duplication – LOOP allows you to keep all loop control together Blog: http://rpbouman.blogspot.com/ 38 twitter: @rolandbouman
  • 39. Program ● Stored routine Issues? ● Variables and assignments ● Flow of control ● Cursor handling ● Summary Blog: http://rpbouman.blogspot.com/ 39 twitter: @rolandbouman
  • 40. Summary ● Variables – Use local rather than user-defined variables ● Assignments – Use DEFAULT and SET for simple values – Use SELECT INTO for queries ● Flow of Control – Use functions and operators rather than statements ● Cursors – Avoid if possible – Use LOOP, not REPEAT and WHILE Blog: http://rpbouman.blogspot.com/ 40 twitter: @rolandbouman
