Dynamic Mesh in OpenFOAM Fumiya Nozaki Last updated: 31 December 2015 114 PAGES 1

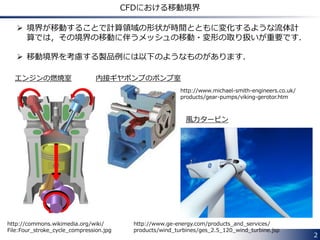

Disclaimer “This offering is not approved or endorsed by OpenCFD Limited, the producer of the OpenFOAM software and owner of the OPENFOAM® and OpenCFD® trade marks.” 2
Dynamic Mesh in OpenFOAM In OpenFOAM, the mesh motions and the topology changes are handled by Dynamic Mesh functionality. Settings for Dynamic Mesh are described in dynamicMeshDict file located in the constant directory. Solvers that can handle these mesh changes have the letters “DyM”, an abbreviation for Dynamic Mesh, in its name. e.g. pimpleDyMFoam, interDyMFoam 3

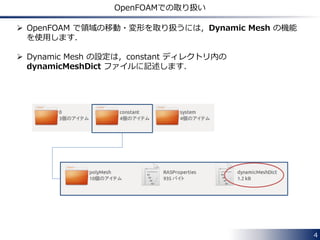

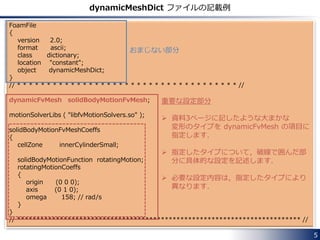

Dynamic Mesh in OpenFOAM FoamFile { version 2.0; format ascii; class dictionary; location "constant"; object dynamicMeshDict; } // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * // dynamicFvMesh solidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solidBodyMotionFvMeshCoeffs { cellZone rotor; solidBodyMotionFunction rotatingMotion; rotatingMotionCoeffs { origin (0 0 0); axis (0 0 1); omega 6.2832; // rad/s } } // ************************************************************************* // constant/dynamicMeshDict Selection of dynamicFvMesh type from available options Settings for the selected dynamicFvMesh 4
Dynamic Mesh in OpenFOAM In OpenFOAM, the mesh motions and the topology changes are handled by Dynamic Mesh functionality. Settings for Dynamic Mesh are described in dynamicMeshDict file located in the constant directory. Solvers that can handle these mesh changes have the letters “DyM”, an abbreviation for Dynamic Mesh, in its name. e.g. pimpleDyMFoam, interDyMFoam 5

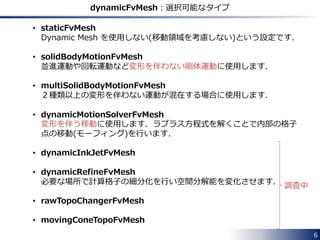

while (runTime.run()) { #include "readControls.H" #include "CourantNo.H" #include "setDeltaT.H" runTime++; Info<< "Time = " << runTime.timeName() << nl << endl; mesh.update(); // Calculate absolute flux from the mapped surface velocity phi = mesh.Sf() & Uf; if (mesh.changing() && correctPhi) { #include "correctPhi.H" } // Make the flux relative to the mesh motion fvc::makeRelative(phi, U); if (mesh.changing() && checkMeshCourantNo) { #include "meshCourantNo.H" } applications/solvers/incompressible/pimpleFoam/pimpleDyMFoam/pimpleDyMFoam.C It calls the mesh motion library to calculate the new position of points and update the mesh. Dynamic Mesh in OpenFOAM 6
Available types of dynamicFvMesh without topological changes • staticFvMesh Disable dynamic mesh • solidBodyMotionFvMesh Perform the rigid-body motions such as translational and rotational movements • multiSolidBodyMotionFvMesh Perform the rigid-body motions in multiple regions • dynamicMotionSolverFvMesh Solve a Laplace’s equation for the motion displacement or motion velocity to calculate the updated position of points • dynamicInkJetFvMesh Move mesh points sinusoidally in the x direction by explicitly calculating the new positions • dynamicRefineFvMesh Refine the mesh depending on the user specified field values 7

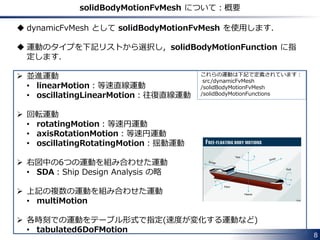

Available types of dynamicFvMesh with topological changes • rawTopoChangerFvMesh • movingConeTopoFvMesh • mixerFvMesh • linearValveFvMesh • linearValveLayersFvMesh Under survey 8
Inheritance diagram for dynamicFvMesh models dynamicFvMesh staticFvMesh dynamicInkJetFvMeshsolidBodyMotionFvMesh multiSolidBodyMotionFvMesh dynamicMotionSolverFvMesh dynamicRefineFvMesh Abstract base class for geometry and/or topology changing fvMesh 9
Inheritance diagram for dynamicFvMesh models dynamicFvMesh rawTopoChangerFvMesh movingConeTopoFvMesh mixerFvMesh linearValveFvMesh linearValveLayersFvMesh topoChangerFvMesh Abstract base class for a topology changing fvMesh 10

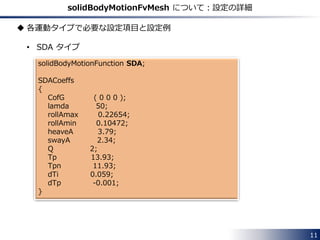

solidBodyMotionFvMesh
Available types of solid motions  Translational motions • linearMotion : Uniform linear motion with constant velocity • oscillatingLinearMotion : Oscillating linear motion  Rotational motions • rotatingMotion : Uniform circular motion • axisRotationMotion : Uniform circular motion • oscillatingRotatingMotion : Oscillating rotation motion  Ship Design Analysis [1] • SDA  Tabulated data • tabulated6DoFMotion  Combination of above types • multiMotion 12

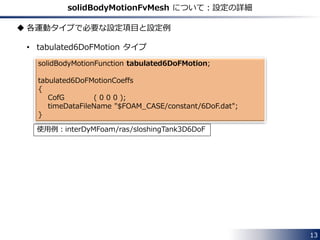

linearMotion dynamicFvMesh solidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solidBodyMotionFvMeshCoeffs { solidBodyMotionFunction linearMotion; linearMotionCoeffs { velocity (1 0 0); } } constant/dynamicMeshDict 13

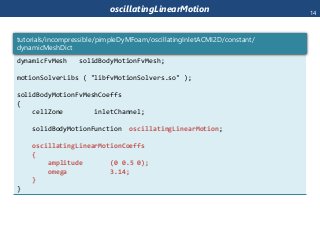

oscillatingLinearMotion dynamicFvMesh solidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solidBodyMotionFvMeshCoeffs { cellZone inletChannel; solidBodyMotionFunction oscillatingLinearMotion; oscillatingLinearMotionCoeffs { amplitude (0 0.5 0); omega 3.14; } } tutorials/incompressible/pimpleDyMFoam/oscillatingInletACMI2D/constant/ dynamicMeshDict 14

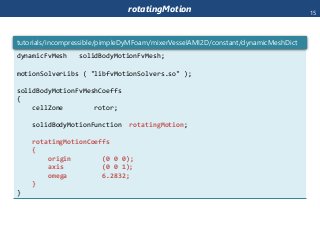

rotatingMotion dynamicFvMesh solidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solidBodyMotionFvMeshCoeffs { cellZone rotor; solidBodyMotionFunction rotatingMotion; rotatingMotionCoeffs { origin (0 0 0); axis (0 0 1); omega 6.2832; } } tutorials/incompressible/pimpleDyMFoam/mixerVesselAMI2D/constant/dynamicMeshDict 15

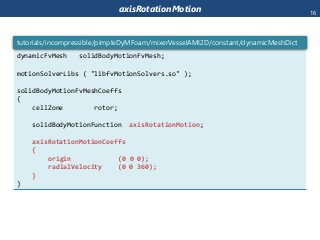

axisRotationMotion dynamicFvMesh solidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solidBodyMotionFvMeshCoeffs { cellZone rotor; solidBodyMotionFunction axisRotationMotion; axisRotationMotionCoeffs { origin (0 0 0); radialVelocity (0 0 360); } } tutorials/incompressible/pimpleDyMFoam/mixerVesselAMI2D/constant/dynamicMeshDict 16
oscillatingRotatingMotion dynamicFvMesh solidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solidBodyMotionFvMeshCoeffs { cellZone rotor; solidBodyMotionFunction oscillatingRotatingMotion; oscillatingRotatingMotionCoeffs { origin (0 0 0); omega 6.28; amplitude (0 0 45); } } tutorials/incompressible/pimpleDyMFoam/mixerVesselAMI2D/constant/dynamicMeshDict 17
oscillatingRotatingMotion rotor 18
oscillatingRotatingMotion rotor 19
oscillatingRotatingMotion rotor 20
oscillatingRotatingMotion rotor 21
oscillatingRotatingMotion rotor 22

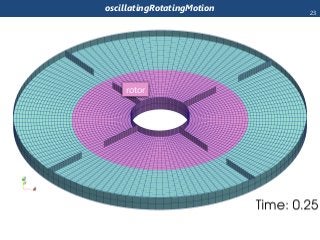

oscillatingRotatingMotion rotor 23
oscillatingRotatingMotion rotor 24
oscillatingRotatingMotion rotor 25
oscillatingRotatingMotion rotor 26
oscillatingRotatingMotion rotor 27
oscillatingRotatingMotion rotor 28

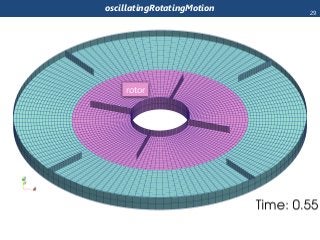

oscillatingRotatingMotion rotor 29

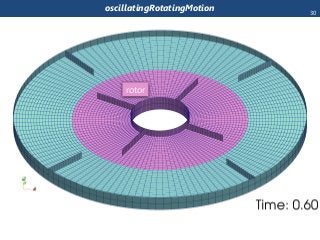

oscillatingRotatingMotion rotor 30
oscillatingRotatingMotion rotor 31
oscillatingRotatingMotion rotor 32
oscillatingRotatingMotion rotor 33
oscillatingRotatingMotion rotor 34
oscillatingRotatingMotion rotor 35
oscillatingRotatingMotion rotor 36
oscillatingRotatingMotion rotor 37
oscillatingRotatingMotion rotor 38

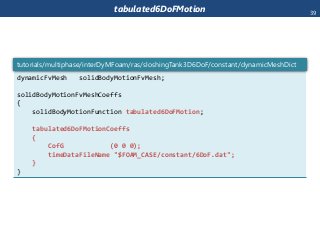

tabulated6DoFMotion dynamicFvMesh solidBodyMotionFvMesh; solidBodyMotionFvMeshCoeffs { solidBodyMotionFunction tabulated6DoFMotion; tabulated6DoFMotionCoeffs { CofG (0 0 0); timeDataFileName "$FOAM_CASE/constant/6DoF.dat"; } } tutorials/multiphase/interDyMFoam/ras/sloshingTank3D6DoF/constant/dynamicMeshDict 39

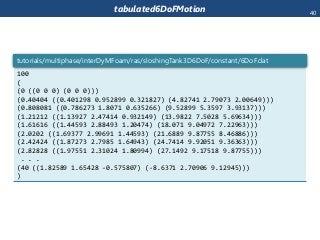

100 ( (0 ((0 0 0) (0 0 0))) (0.40404 ((0.401298 0.952899 0.321827) (4.82741 2.79073 2.00649))) (0.808081 ((0.786273 1.8071 0.635266) (9.52899 5.3597 3.93137))) (1.21212 ((1.13927 2.47414 0.932149) (13.9822 7.5028 5.69634))) (1.61616 ((1.44593 2.88493 1.20474) (18.071 9.04972 7.22963))) (2.0202 ((1.69377 2.99691 1.44593) (21.6889 9.87755 8.46886))) (2.42424 ((1.87273 2.7985 1.64943) (24.7414 9.92051 9.36363))) (2.82828 ((1.97551 2.31024 1.80994) (27.1492 9.17518 9.87755))) . . . (40 ((1.82589 1.65428 -0.575807) (-8.6371 2.70906 9.12945))) ) tutorials/multiphase/interDyMFoam/ras/sloshingTank3D6DoF/constant/6DoF.dat tabulated6DoFMotion 40

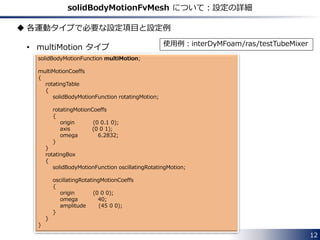

multiMotion dynamicFvMesh solidBodyMotionFvMesh; solidBodyMotionFvMeshCoeffs { solidBodyMotionFunction multiMotion; multiMotionCoeffs { // Table rotating in z axis rotatingTable { solidBodyMotionFunction rotatingMotion; rotatingMotionCoeffs { origin (0 0.1 0); axis (0 0 1); omega 6.2832; // rad/s } } // Tube rocking on rotating table rotatingBox { solidBodyMotionFunction oscillatingRotatingMotion; oscillatingRotatingMotionCoeffs { origin (0 0 0); omega 40; amplitude (45 0 0); } } } } tutorials/multiphase/interDyMFoam/ras/testTubeMixer/constant/dynamicMeshDict // Table rotating in z axis rotatingTable { solidBodyMotionFunction rotatingMotion; rotatingMotionCoeffs { origin (0 0.1 0); axis (0 0 1); omega 6.2832; } } // Tube rocking on rotating table rotatingBox { solidBodyMotionFunction oscillatingRotatingMotion; oscillatingRotatingMotionCoeffs { origin (0 0 0); omega 40; amplitude (45 0 0); } } 41
multiSolidBodyMotionFvMesh

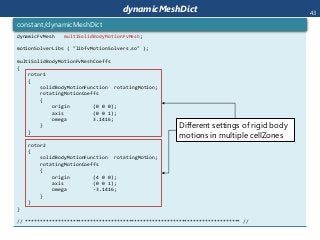

dynamicMeshDict dynamicFvMesh multiSolidBodyMotionFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); multiSolidBodyMotionFvMeshCoeffs { rotor1 { solidBodyMotionFunction rotatingMotion; rotatingMotionCoeffs { origin (0 0 0); axis (0 0 1); omega 3.1416; } } rotor2 { solidBodyMotionFunction rotatingMotion; rotatingMotionCoeffs { origin (4 0 0); axis (0 0 1); omega -3.1416; } } } // ************************************************************************* // constant/dynamicMeshDict Different settings of rigid body motions in multiple cellZones 43

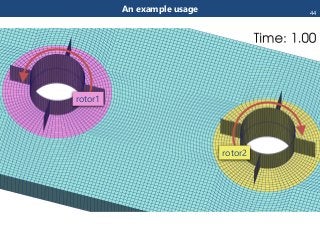

An example usage rotor2 rotor1 44
dynamicMotionSolverFvMesh
Brief description of dynamicMotionSolverFvMesh  Solve a Laplace’s equation for the motion displacement 𝑑 𝑚 [𝑚] or motion velocity 𝑢 𝑚 [ 𝑚 𝑠]: 𝛻 ∙ 𝛾𝛻𝑑 𝑚 = 0 or 𝛻 ∙ 𝛾𝛻𝑢 𝑚 = 0  Users can select which equations to be solved.  Users need to specify how to calculate the diffusion coefficient 𝛾 of the equation. 46

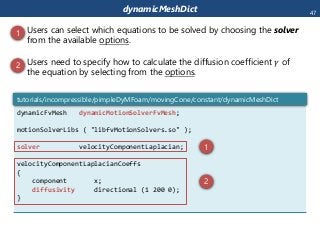

dynamicMeshDict dynamicFvMesh dynamicMotionSolverFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); solver velocityComponentLaplacian; velocityComponentLaplacianCoeffs { component x; diffusivity directional (1 200 0); } tutorials/incompressible/pimpleDyMFoam/movingCone/constant/dynamicMeshDict  Users can select which equations to be solved by choosing the solver from the available options.  Users need to specify how to calculate the diffusion coefficient 𝛾 of the equation by selecting from the options. 1 2 1 2 47

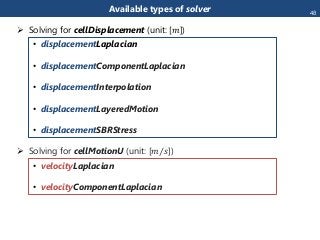

Available types of solver  Solving for cellDisplacement (unit: [𝑚]) • displacementLaplacian • displacementComponentLaplacian • displacementInterpolation • displacementLayeredMotion • displacementSBRStress  Solving for cellMotionU (unit: [ 𝑚 𝑠]) • velocityLaplacian • velocityComponentLaplacian 48

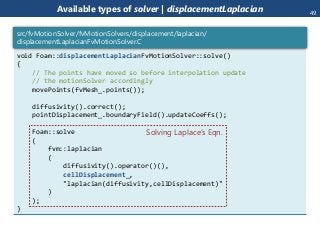

Available types of solver | displacementLaplacian void Foam::displacementLaplacianFvMotionSolver::solve() { // The points have moved so before interpolation update // the motionSolver accordingly movePoints(fvMesh_.points()); diffusivity().correct(); pointDisplacement_.boundaryField().updateCoeffs(); Foam::solve ( fvm::laplacian ( diffusivity().operator()(), cellDisplacement_, "laplacian(diffusivity,cellDisplacement)" ) ); } src/fvMotionSolver/fvMotionSolvers/displacement/laplacian/ displacementLaplacianFvMotionSolver.C Solving Laplace’s Eqn. 49
Available types of solver | velocityLaplacian void Foam::velocityLaplacianFvMotionSolver::solve() { // The points have moved so before interpolation update // the fvMotionSolver accordingly movePoints(fvMesh_.points()); diffusivityPtr_->correct(); pointMotionU_.boundaryField().updateCoeffs(); Foam::solve ( fvm::laplacian ( diffusivityPtr_->operator()(), cellMotionU_, "laplacian(diffusivity,cellMotionU)" ) ); } src/fvMotionSolver/fvMotionSolvers/velocity/laplacian/ velocityLaplacianFvMotionSolver.C Solving Laplace’s Eqn. 50

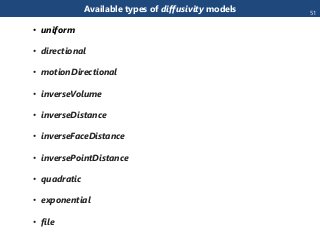

Available types of diffusivity models • uniform • directional • motionDirectional • inverseVolume • inverseDistance • inverseFaceDistance • inversePointDistance • quadratic • exponential • file 51
Class diagram of diffusivity models motionDiffusivity uniformDiffusivity quadraticDiffusivity exponentialDiffusivity fileDiffusivity directionalDiffusivity motionDirectionalDiffusivity inverseVolumeDiffusivity inverseDistanceDiffusivity inverseFaceDistanceDiffusivity inversePointDistanceDiffusivity  Source Code: src/fvMotionSolver/motionDiffusivity/ 52
Class diagram of diffusivity models motionDiffusivity class //- Return diffusivity field virtual tmp<surfaceScalarField> operator()() const = 0; // Protected data surfaceScalarField faceDiffusivity_; correct() //- Correct the motion diffusivity virtual void correct() = 0; uniformDiffusivity class virtual tmp<surfaceScalarField> operator()() const { return faceDiffusivity_; } directionalDiffusivity class motionDirectionalDiffusivity class inverseVolumeDiffusivity class inverseDistanceDiffusivity class inverseFaceDistanceDiffusivity class inversePointDistanceDiffusivity class override override 53
Class diagram of diffusivity models motionDiffusivity class //- Return diffusivity field virtual tmp<surfaceScalarField> operator()() const = 0; Foam::tmp<Foam::surfaceScalarField> Foam::quadraticDiffusivity::operator()() const { return sqr(basicDiffusivityPtr_->operator()()); } //- Correct the motion diffusivity virtual void correct() = 0; quadraticDiffusivity class override void Foam::quadraticDiffusivity::correct() { basicDiffusivityPtr_->correct(); } 54

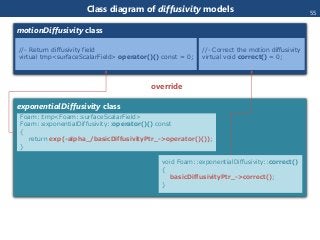

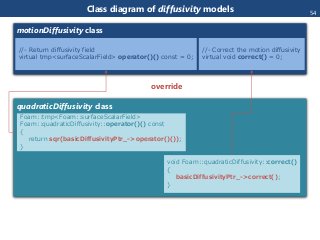

Class diagram of diffusivity models motionDiffusivity class //- Return diffusivity field virtual tmp<surfaceScalarField> operator()() const = 0; Foam::tmp<Foam::surfaceScalarField> Foam::exponentialDiffusivity::operator()() const { return exp(-alpha_/basicDiffusivityPtr_->operator()()); } //- Correct the motion diffusivity virtual void correct() = 0; exponentialDiffusivity class override void Foam::exponentialDiffusivity::correct() { basicDiffusivityPtr_->correct(); } 55

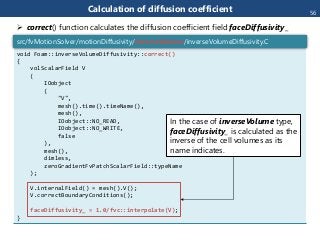

Calculation of diffusion coefficient void Foam::inverseVolumeDiffusivity::correct() { volScalarField V ( IOobject ( "V", mesh().time().timeName(), mesh(), IOobject::NO_READ, IOobject::NO_WRITE, false ), mesh(), dimless, zeroGradientFvPatchScalarField::typeName ); V.internalField() = mesh().V(); V.correctBoundaryConditions(); faceDiffusivity_ = 1.0/fvc::interpolate(V); } src/fvMotionSolver/motionDiffusivity/inverseVolume/inverseVolumeDiffusivity.C In the case of inverseVolume type, faceDiffusivity_ is calculated as the inverse of the cell volumes as its name indicates.  correct() function calculates the diffusion coefficient field faceDiffusivity_ 56

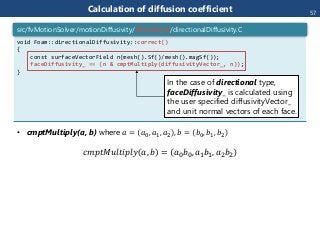

• cmptMultiply(a, b) where 𝑎 = 𝑎0, 𝑎1, 𝑎2 , 𝑏 = 𝑏0, 𝑏1, 𝑏2 𝑐𝑚𝑝𝑡𝑀𝑢𝑙𝑡𝑖𝑝𝑙𝑦 𝑎, 𝑏 = 𝑎0 𝑏0, 𝑎1 𝑏1, 𝑎2 𝑏2 Calculation of diffusion coefficient void Foam::directionalDiffusivity::correct() { const surfaceVectorField n(mesh().Sf()/mesh().magSf()); faceDiffusivity_ == (n & cmptMultiply(diffusivityVector_, n)); } src/fvMotionSolver/motionDiffusivity/directional/directionalDiffusivity.C In the case of directional type, faceDiffusivity_ is calculated using the user specified diffusivityVector_ and unit normal vectors of each face. 57

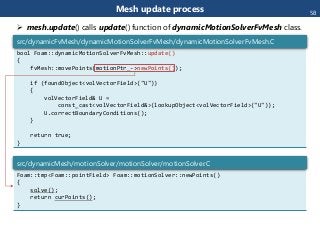

Mesh update process bool Foam::dynamicMotionSolverFvMesh::update() { fvMesh::movePoints(motionPtr_->newPoints()); if (foundObject<volVectorField>("U")) { volVectorField& U = const_cast<volVectorField&>(lookupObject<volVectorField>("U")); U.correctBoundaryConditions(); } return true; } src/dynamicFvMesh/dynamicMotionSolverFvMesh/dynamicMotionSolverFvMesh.C Foam::tmp<Foam::pointField> Foam::motionSolver::newPoints() { solve(); return curPoints(); } src/dynamicMesh/motionSolver/motionSolver/motionSolver.C  mesh.update() calls update() function of dynamicMotionSolverFvMesh class. 58
void Foam::velocityComponentLaplacianFvMotionSolver::solve() { // The points have moved so before interpolation update // the fvMotionSolver accordingly movePoints(fvMesh_.points()); diffusivityPtr_->correct(); pointMotionU_.boundaryField().updateCoeffs(); Foam::solve ( fvm::laplacian ( diffusivityPtr_->operator()(), cellMotionU_, "laplacian(diffusivity,cellMotionU)" ) ); } src/fvMotionSolver/fvMotionSolvers/componentVelocity/componentLaplacian/ velocityComponentLaplacianFvMotionSolver.C Foam::tmp<Foam::pointField> Foam::motionSolver::newPoints() { solve(); return curPoints(); } src/dynamicMesh/motionSolver/motionSolver/motionSolver.C Solve Laplace’s Eqn. Update the diffusion coefficient field Mesh update process 59
Foam::tmp<Foam::pointField> Foam::motionSolver::newPoints() { solve(); return curPoints(); } src/dynamicMesh/motionSolver/motionSolver/motionSolver.C Foam::tmp<Foam::pointField> Foam::velocityComponentLaplacianFvMotionSolver::curPoints() const { volPointInterpolation::New(fvMesh_).interpolate ( cellMotionU_, pointMotionU_ ); tmp<pointField> tcurPoints(new pointField(fvMesh_.points())); tcurPoints().replace ( cmpt_, tcurPoints().component(cmpt_) + fvMesh_.time().deltaTValue()*pointMotionU_.internalField() ); twoDCorrectPoints(tcurPoints()); return tcurPoints; } src/fvMotionSolver/fvMotionSolvers/componentVelocity/componentLaplacian/ velocityComponentLaplacianFvMotionSolver.C Calculate the new position of points Interpolate the motion velocity from cell centres to points Mesh update process 60

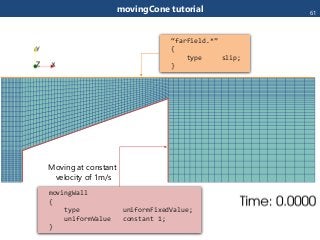

movingWall { type uniformFixedValue; uniformValue constant 1; } Moving at constant velocity of 1m/s “farField.*” { type slip; } movingCone tutorial 61

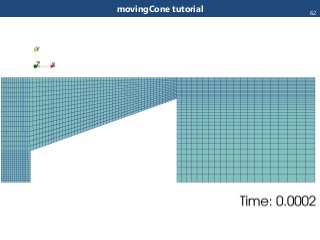

movingCone tutorial 62

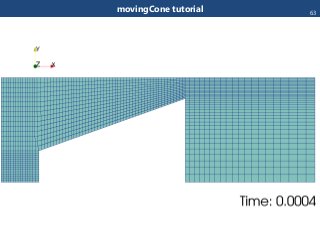

movingCone tutorial 63

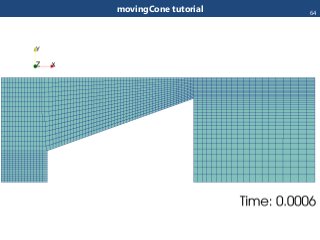

movingCone tutorial 64

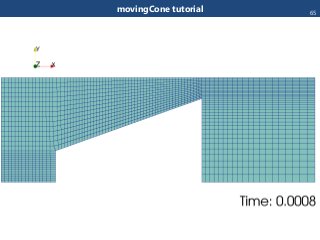

movingCone tutorial 65

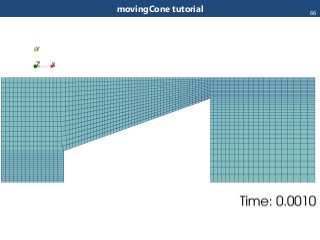

movingCone tutorial 66

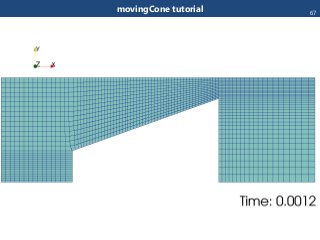

movingCone tutorial 67
movingCone tutorial 68

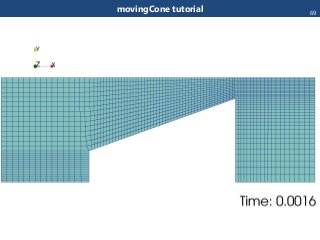

movingCone tutorial 69

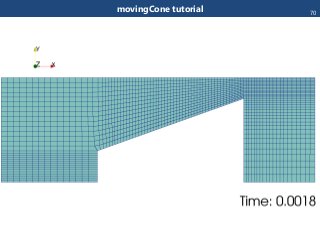

movingCone tutorial 70
movingCone tutorial 71

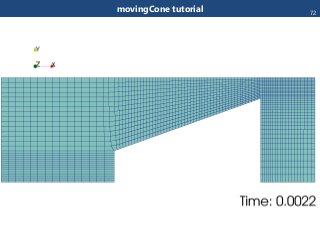

movingCone tutorial 72

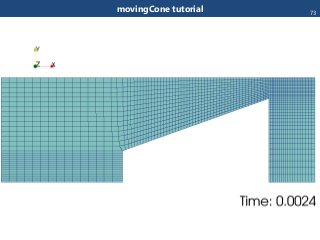

movingCone tutorial 73

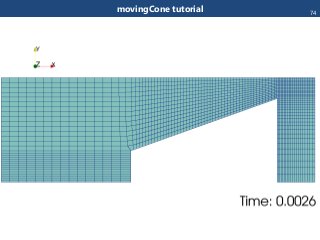

movingCone tutorial 74
movingCone tutorial 75

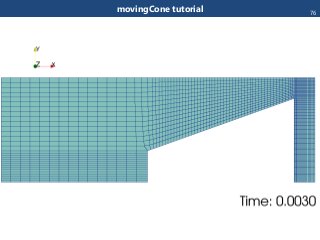

movingCone tutorial 76
dynamicInkJetFvMesh

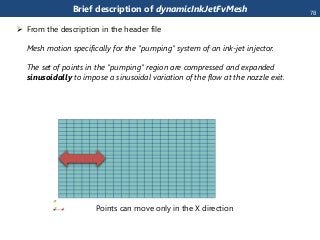

Brief description of dynamicInkJetFvMesh  From the description in the header file  Mesh motion specifically for the "pumping" system of an ink-jet injector.  The set of points in the "pumping" region are compressed and expanded sinusoidally to impose a sinusoidal variation of the flow at the nozzle exit. Points can move only in the X direction 78
Brief description of dynamicInkJetFvMesh Points can move only in the X direction  From the description in the header file  Mesh motion specifically for the "pumping" system of an ink-jet injector.  The set of points in the "pumping" region are compressed and expanded sinusoidally to impose a sinusoidal variation of the flow at the nozzle exit. 79

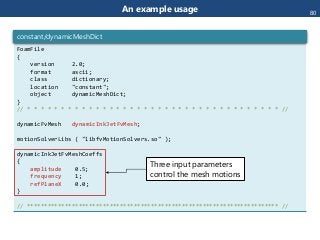

An example usage FoamFile { version 2.0; format ascii; class dictionary; location "constant"; object dynamicMeshDict; } // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * // dynamicFvMesh dynamicInkJetFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); dynamicInkJetFvMeshCoeffs { amplitude 0.5; frequency 1; refPlaneX 0.0; } // ************************************************************************* // constant/dynamicMeshDict Three input parameters control the mesh motions 80
An example usage refPlaneX -1.0 -0.5 0.0 0.5 1.0 81
An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 82

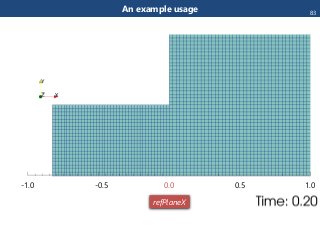

An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 83

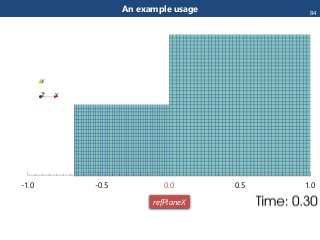

An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 84

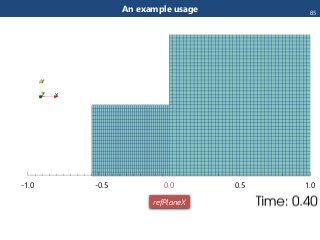

An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 85

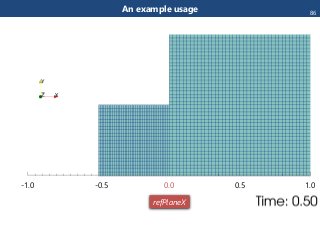

An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 86
An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 87
An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 88

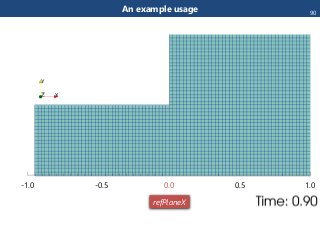

An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 89
An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 90

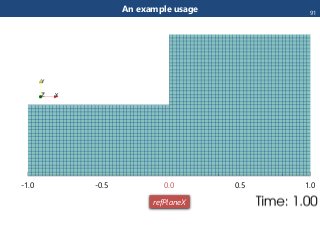

An example usage -1.0 -0.5 0.0 0.5 1.0 refPlaneX 91

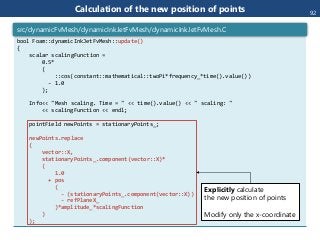

Calculation of the new position of points bool Foam::dynamicInkJetFvMesh::update() { scalar scalingFunction = 0.5* ( ::cos(constant::mathematical::twoPi*frequency_*time().value()) - 1.0 ); Info<< "Mesh scaling. Time = " << time().value() << " scaling: " << scalingFunction << endl; pointField newPoints = stationaryPoints_; newPoints.replace ( vector::X, stationaryPoints_.component(vector::X)* ( 1.0 + pos ( - (stationaryPoints_.component(vector::X)) - refPlaneX_ )*amplitude_*scalingFunction ) ); src/dynamicFvMesh/dynamicInkJetFvMesh/dynamicInkJetFvMesh.C Explicitly calculate the new position of points Modify only the x-coordinate 92
Calculation of the new position of points fvMesh::movePoints(newPoints); volVectorField& U = const_cast<volVectorField&>(lookupObject<volVectorField>("U")); U.correctBoundaryConditions(); return true; } src/dynamicFvMesh/dynamicInkJetFvMesh/dynamicInkJetFvMesh.C 93
dynamicRefineFvMesh Under survey
movingConeTopoFvMesh
Brief description of movingConeTopoFvMesh  From the description in the header file  Sample topoChangerFvMesh that moves an object in x direction  and introduces/removes layers.  It is designed exclusively for use with the movingCone tutorial. 96

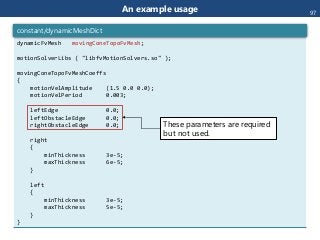

An example usage dynamicFvMesh movingConeTopoFvMesh; motionSolverLibs ( "libfvMotionSolvers.so" ); movingConeTopoFvMeshCoeffs { motionVelAmplitude (1.5 0.0 0.0); motionVelPeriod 0.003; leftEdge 0.0; leftObstacleEdge 0.0; rightObstacleEdge 0.0; right { minThickness 3e-5; maxThickness 6e-5; } left { minThickness 3e-5; maxThickness 5e-5; } } constant/dynamicMeshDict These parameters are required but not used. 97
 Read dynamicMeshDict and set the values of private data // * * * * * * * * * * * * * * * * Constructors * * * * * * * * * * * * * * // // Construct from components Foam::movingConeTopoFvMesh::movingConeTopoFvMesh(const IOobject& io) : topoChangerFvMesh(io), motionDict_ ( IOdictionary ( IOobject ( "dynamicMeshDict", time().constant(), *this, IOobject::MUST_READ_IF_MODIFIED, IOobject::NO_WRITE, false ) ).subDict(typeName + "Coeffs") ), src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C Constructors 98
motionVelAmplitude_(motionDict_.lookup("motionVelAmplitude")), motionVelPeriod_(readScalar(motionDict_.lookup("motionVelPeriod"))), curMotionVel_ ( motionVelAmplitude_* Foam::sin(time().value()*M_PI/motionVelPeriod_) ), leftEdge_(readScalar(motionDict_.lookup("leftEdge"))), curLeft_(readScalar(motionDict_.lookup("leftObstacleEdge"))), curRight_(readScalar(motionDict_.lookup("rightObstacleEdge"))) { Pout<< "Initial time:" << time().value() << " Initial curMotionVel_:" << curMotionVel_ << endl; addZonesAndModifiers(); src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C Constructors (cont’d) Read the parameters from dynamicMeshDict • motionVelAmplitude • motionVelPeriod • leftEdge • leftObstacleEdge • rightObstacleEdge Create two faceZones • rightExtrusionFaces • leftExtrusionFaces and modifiers for motion action 99

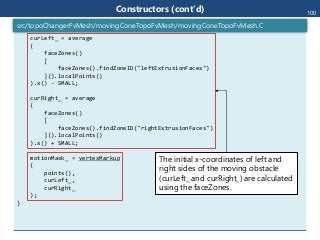

curLeft_ = average ( faceZones() [ faceZones().findZoneID("leftExtrusionFaces") ]().localPoints() ).x() - SMALL; curRight_ = average ( faceZones() [ faceZones().findZoneID("rightExtrusionFaces") ]().localPoints() ).x() + SMALL; motionMask_ = vertexMarkup ( points(), curLeft_, curRight_ ); } src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C Constructors (cont’d) 100 The initial x-coordinates of left and right sides of the moving obstacle (curLeft_ and curRight_) are calculated using the faceZones.

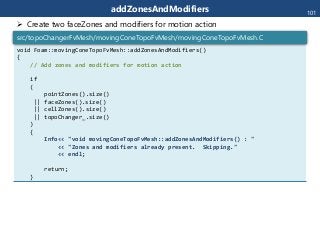

addZonesAndModifiers void Foam::movingConeTopoFvMesh::addZonesAndModifiers() { // Add zones and modifiers for motion action if ( pointZones().size() || faceZones().size() || cellZones().size() || topoChanger_.size() ) { Info<< "void movingConeTopoFvMesh::addZonesAndModifiers() : " << "Zones and modifiers already present. Skipping." << endl; return; } src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 101  Create two faceZones and modifiers for motion action

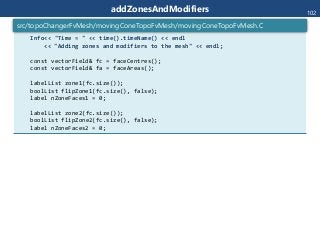

addZonesAndModifiers Info<< "Time = " << time().timeName() << endl << "Adding zones and modifiers to the mesh" << endl; const vectorField& fc = faceCentres(); const vectorField& fa = faceAreas(); labelList zone1(fc.size()); boolList flipZone1(fc.size(), false); label nZoneFaces1 = 0; labelList zone2(fc.size()); boolList flipZone2(fc.size(), false); label nZoneFaces2 = 0; src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 102

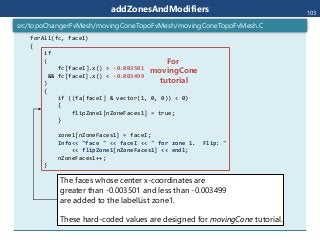

addZonesAndModifiers forAll(fc, faceI) { if ( fc[faceI].x() > -0.003501 && fc[faceI].x() < -0.003499 ) { if ((fa[faceI] & vector(1, 0, 0)) < 0) { flipZone1[nZoneFaces1] = true; } zone1[nZoneFaces1] = faceI; Info<< "face " << faceI << " for zone 1. Flip: " << flipZone1[nZoneFaces1] << endl; nZoneFaces1++; } src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 103 The faces whose center x-coordinates are greater than -0.003501 and less than -0.003499 are added to the labelList zone1. These hard-coded values are designed for movingCone tutorial. For movingCone tutorial

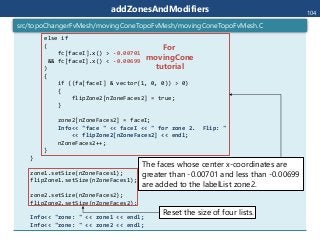

addZonesAndModifiers else if ( fc[faceI].x() > -0.00701 && fc[faceI].x() < -0.00699 ) { if ((fa[faceI] & vector(1, 0, 0)) > 0) { flipZone2[nZoneFaces2] = true; } zone2[nZoneFaces2] = faceI; Info<< "face " << faceI << " for zone 2. Flip: " << flipZone2[nZoneFaces2] << endl; nZoneFaces2++; } } zone1.setSize(nZoneFaces1); flipZone1.setSize(nZoneFaces1); zone2.setSize(nZoneFaces2); flipZone2.setSize(nZoneFaces2); Info<< "zone: " << zone1 << endl; Info<< "zone: " << zone2 << endl; src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 104 The faces whose center x-coordinates are greater than -0.00701 and less than -0.00699 are added to the labelList zone2. Reset the size of four lists. For movingCone tutorial
addZonesAndModifiers List<pointZone*> pz(0); List<faceZone*> fz(2); List<cellZone*> cz(0); label nFz = 0; fz[nFz] = new faceZone ( "rightExtrusionFaces", zone1, flipZone1, nFz, faceZones() ); nFz++; fz[nFz] = new faceZone ( "leftExtrusionFaces", zone2, flipZone2, nFz, faceZones() ); nFz++; fz.setSize(nFz); Info<< "Adding mesh zones." << endl; addZones(pz, fz, cz); src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 105 Create two faceZones • rightExtrusionFaces from zone1 and flipZone1 • leftExtrusionFaces from zone2 and flipZone2

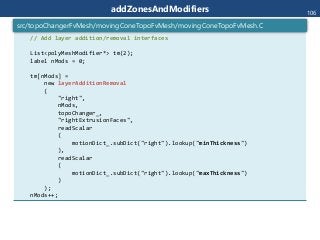

addZonesAndModifiers // Add layer addition/removal interfaces List<polyMeshModifier*> tm(2); label nMods = 0; tm[nMods] = new layerAdditionRemoval ( "right", nMods, topoChanger_, "rightExtrusionFaces", readScalar ( motionDict_.subDict("right").lookup("minThickness") ), readScalar ( motionDict_.subDict("right").lookup("maxThickness") ) ); nMods++; src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 106
addZonesAndModifiers tm[nMods] = new layerAdditionRemoval ( "left", nMods, topoChanger_, "leftExtrusionFaces", readScalar ( motionDict_.subDict("left").lookup("minThickness") ), readScalar ( motionDict_.subDict("left").lookup("maxThickness") ) ); nMods++; tm.setSize(nMods); Info<< "Adding " << nMods << " mesh modifiers" << endl; topoChanger_.addTopologyModifiers(tm); write(); } src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 107

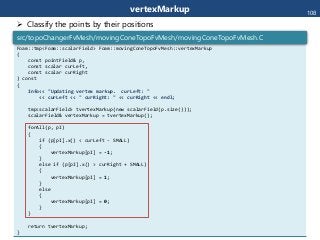

vertexMarkup Foam::tmp<Foam::scalarField> Foam::movingConeTopoFvMesh::vertexMarkup ( const pointField& p, const scalar curLeft, const scalar curRight ) const { Info<< "Updating vertex markup. curLeft: " << curLeft << " curRight: " << curRight << endl; tmp<scalarField> tvertexMarkup(new scalarField(p.size())); scalarField& vertexMarkup = tvertexMarkup(); forAll(p, pI) { if (p[pI].x() < curLeft - SMALL) { vertexMarkup[pI] = -1; } else if (p[pI].x() > curRight + SMALL) { vertexMarkup[pI] = 1; } else { vertexMarkup[pI] = 0; } } return tvertexMarkup; } src/topoChangerFvMesh/movingConeTopoFvMesh/movingConeTopoFvMesh.C 108  Classify the points by their positions

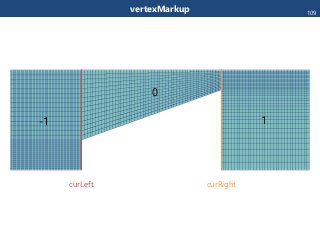

vertexMarkup 109 curLeft curRight -1 1 0

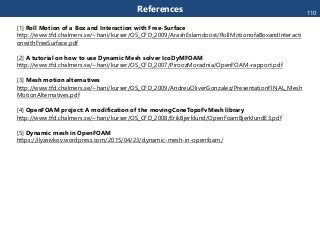

References [1] Roll Motion of a Box and Interaction with Free-Surface http://www.tfd.chalmers.se/~hani/kurser/OS_CFD_2009/ArashEslamdoost/RollMotionofaBoxandInteracti onwithFreeSurface.pdf [2] A tutorial on how to use Dynamic Mesh solver IcoDyMFOAM http://www.tfd.chalmers.se/~hani/kurser/OS_CFD_2007/PiroozMoradnia/OpenFOAM-rapport.pdf [3] Mesh motion alternatives http://www.tfd.chalmers.se/~hani/kurser/OS_CFD_2009/AndreuOliverGonzalez/PresentationFINAL_Mesh MotionAlternatives.pdf [4] OpenFOAM project: A modification of the movingConeTopoFvMesh library http://www.tfd.chalmers.se/~hani/kurser/OS_CFD_2008/ErikBjerklund/OpenFoamBjerklundE3.pdf [5] Dynamic mesh in OpenFOAM https://ilyasivkov.wordpress.com/2015/04/23/dynamic-mesh-in-openfoam/ 110
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License. You should have received a copy of the license along with this work. If not, see <http://creativecommons.org/licenses/by-sa/4.0/>. 111
