Introduction to Object Oriented Design in Ruby for the February 2010 NHRuby (http://nhruby.org) meeting.

1. Object Oriented
Design in Ruby
Brian Turnbull
NHRuby

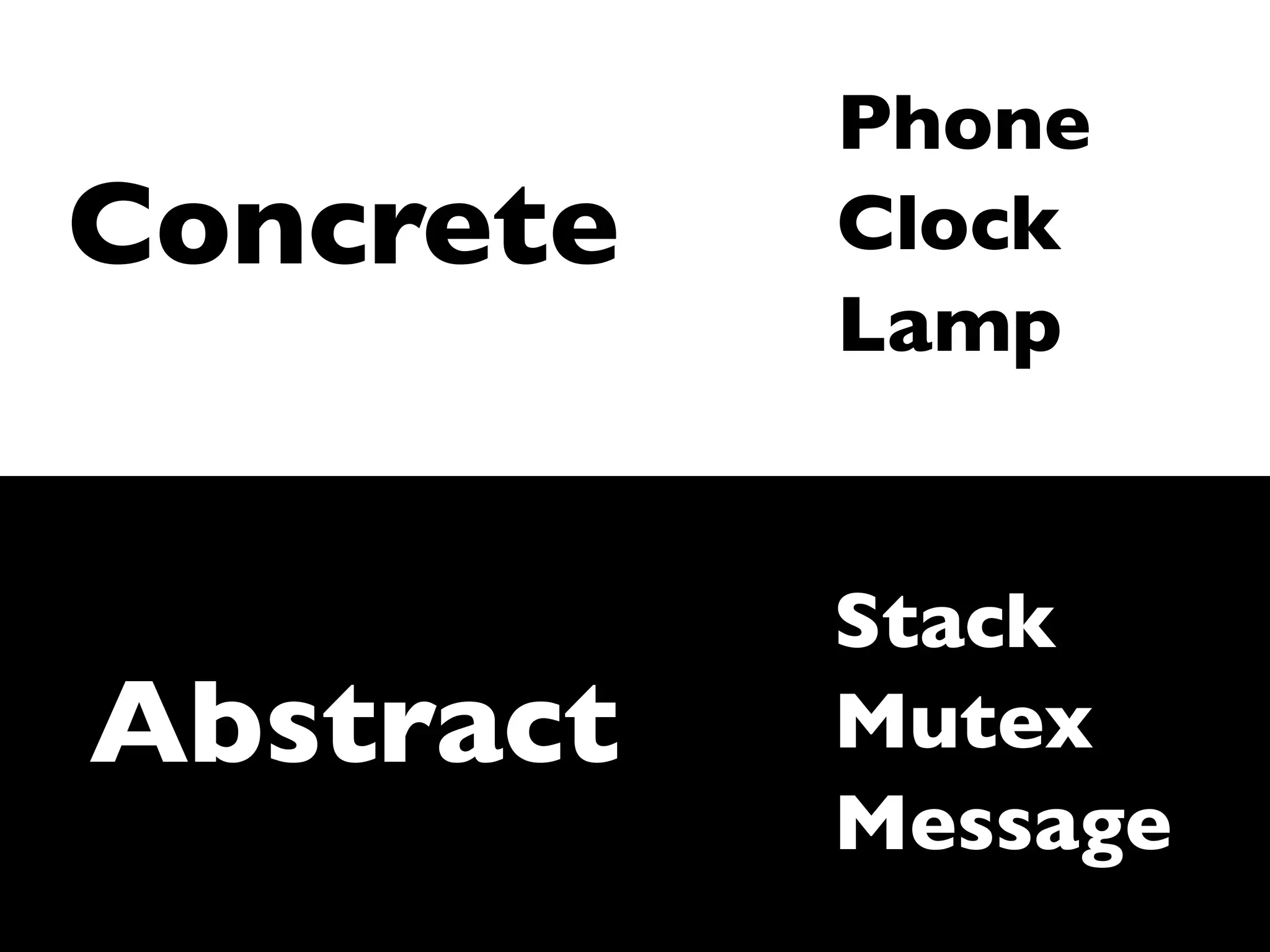

2. Phone
Concrete Clock
Lamp
Stack
Abstract Mutex
Message

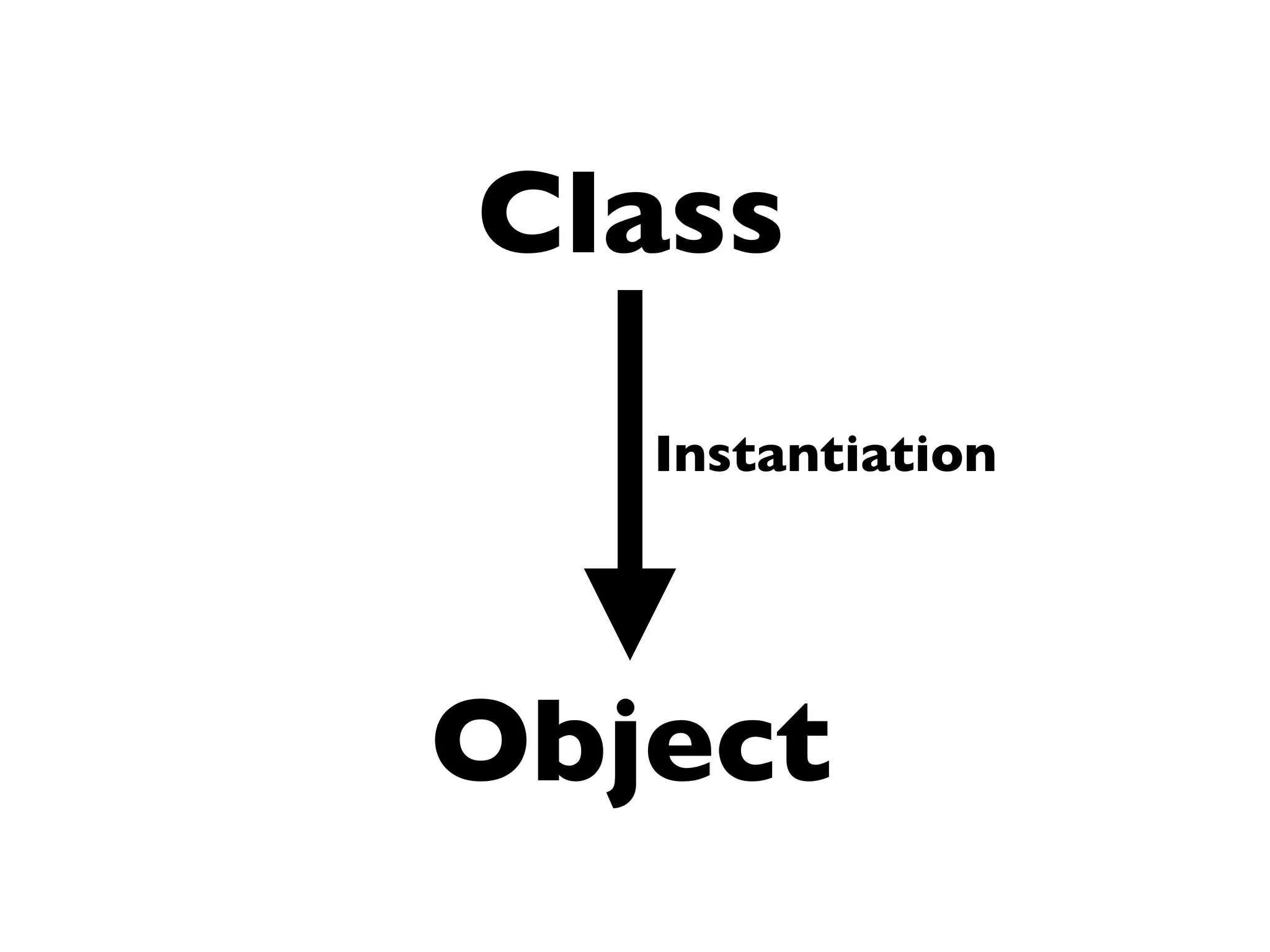

3. Class
Instantiation
Object

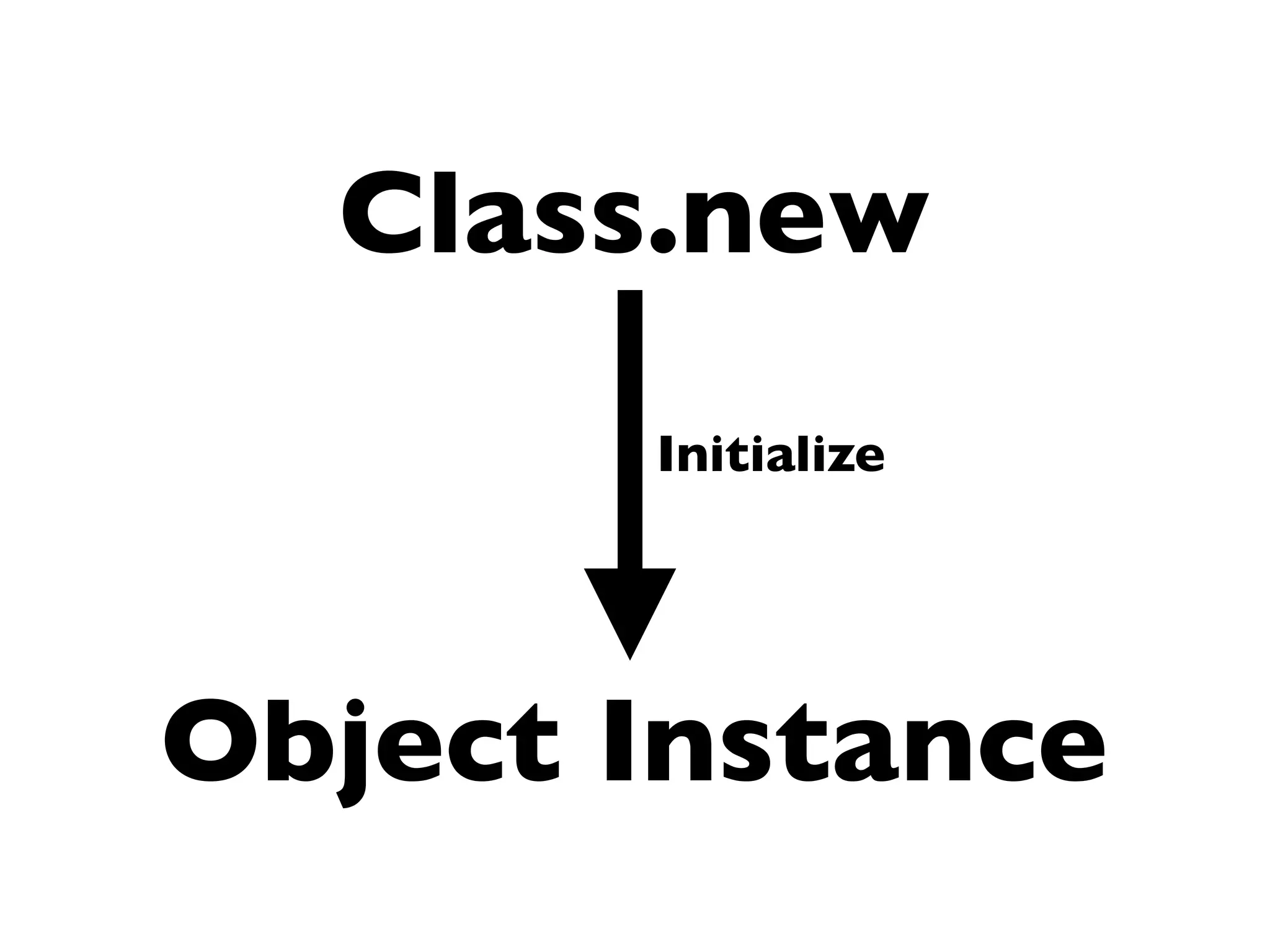

4. Class.new
Initialize
Object Instance

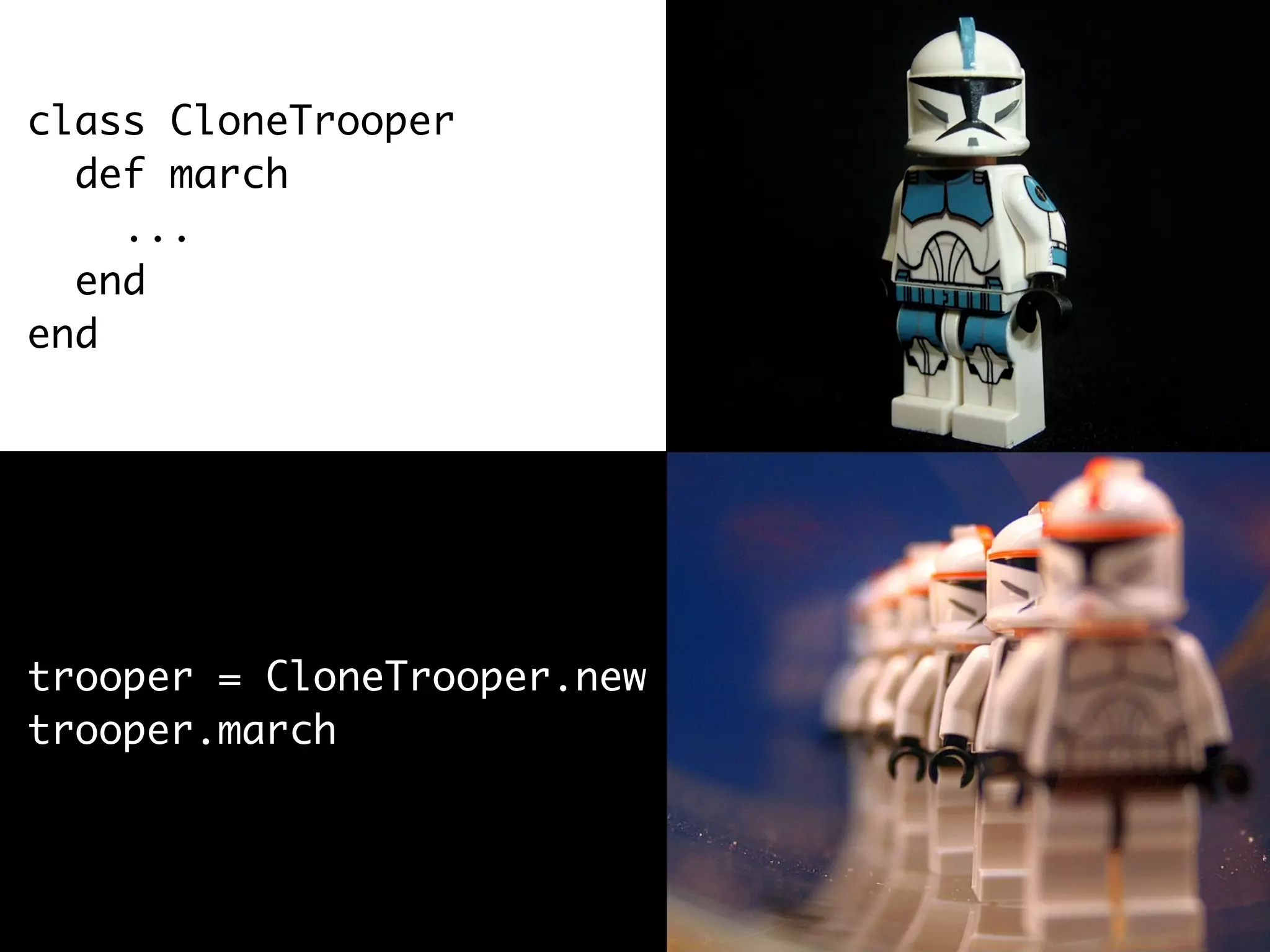

5. class CloneTrooper
def march
...
end
end
trooper = CloneTrooper.new
trooper.march

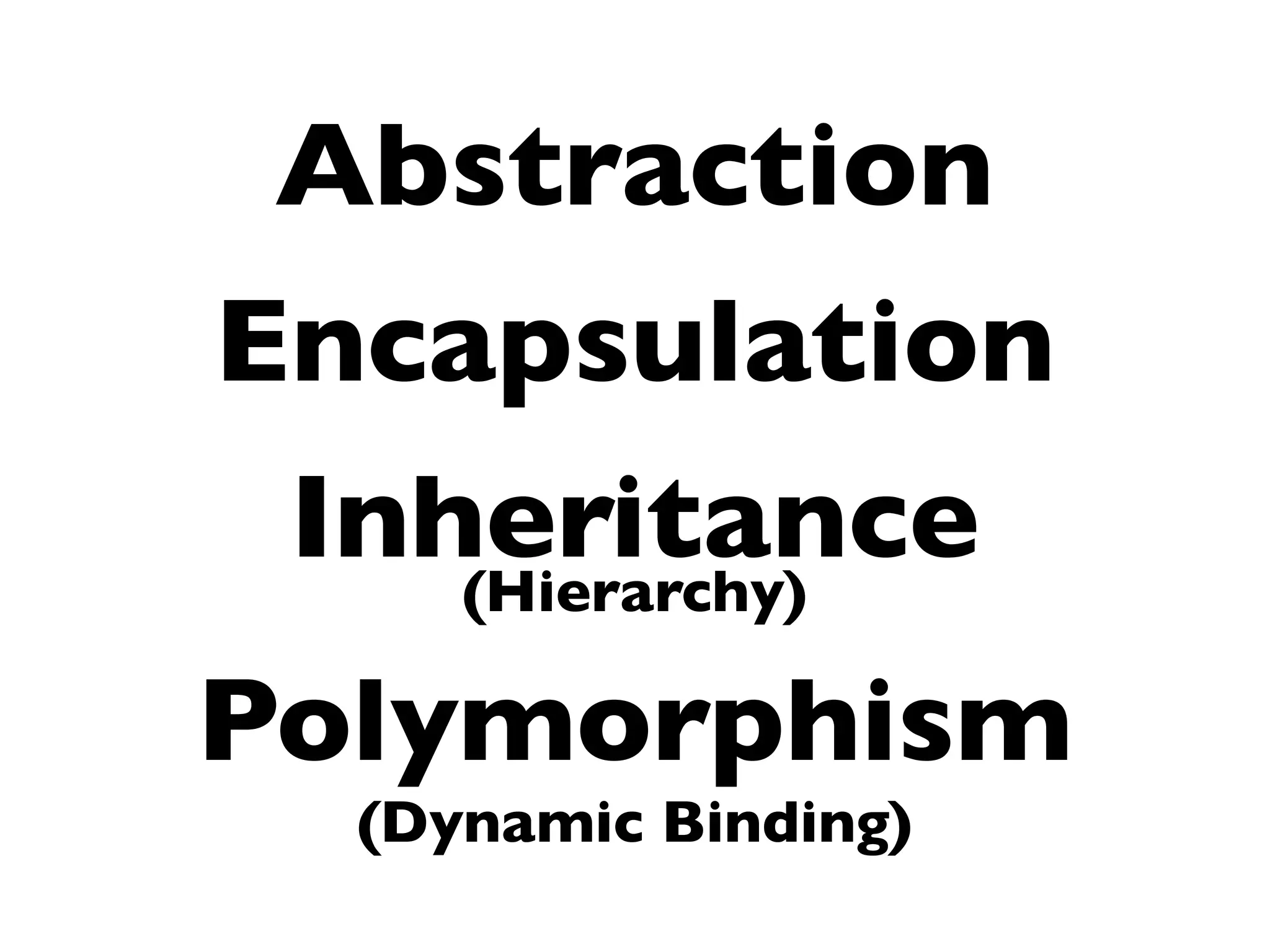

6. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

7. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

8. Interface
Implementation

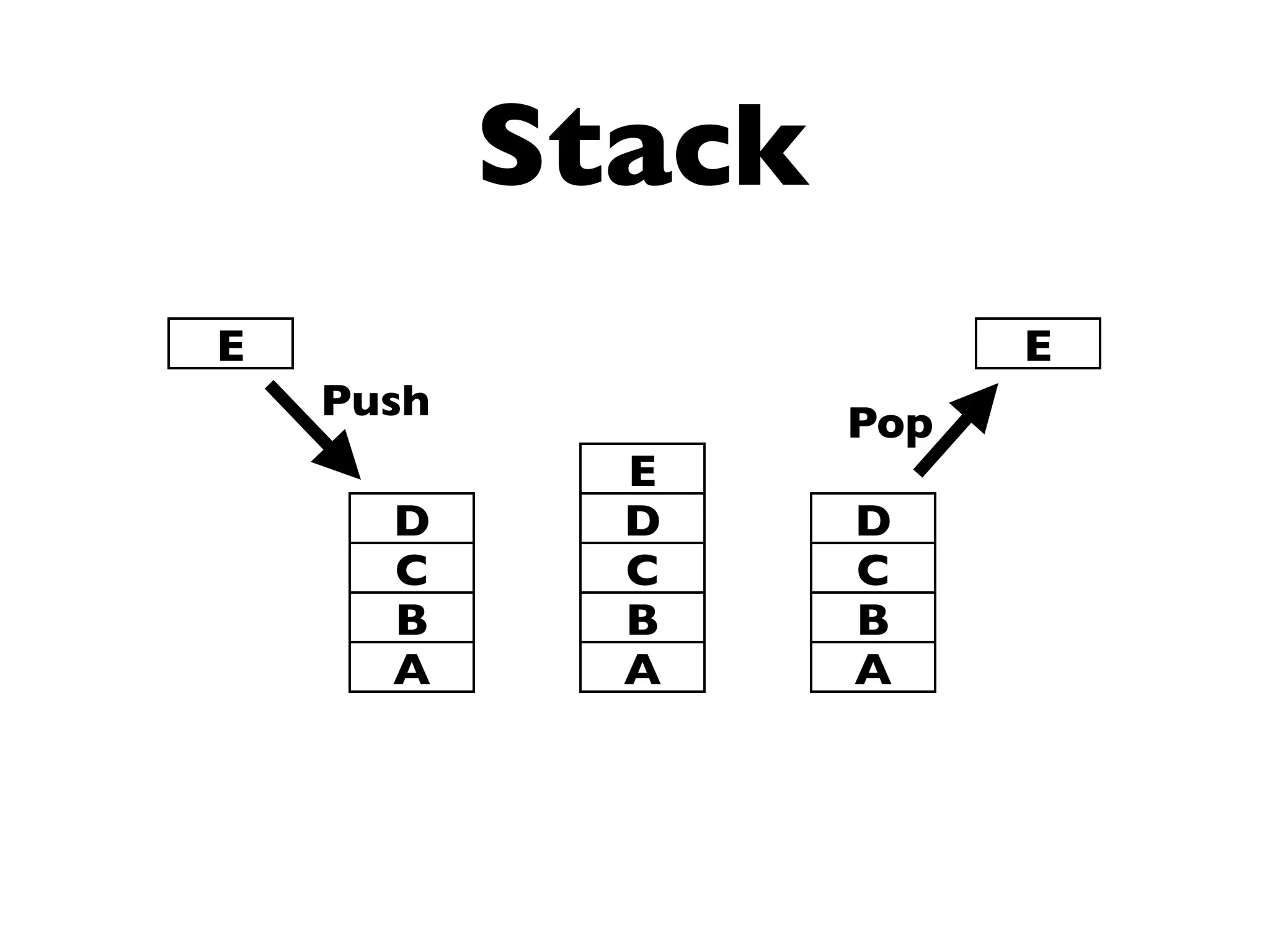

9. Stack
E E
Push Pop
E
D D D
C C C
B B B
A A A

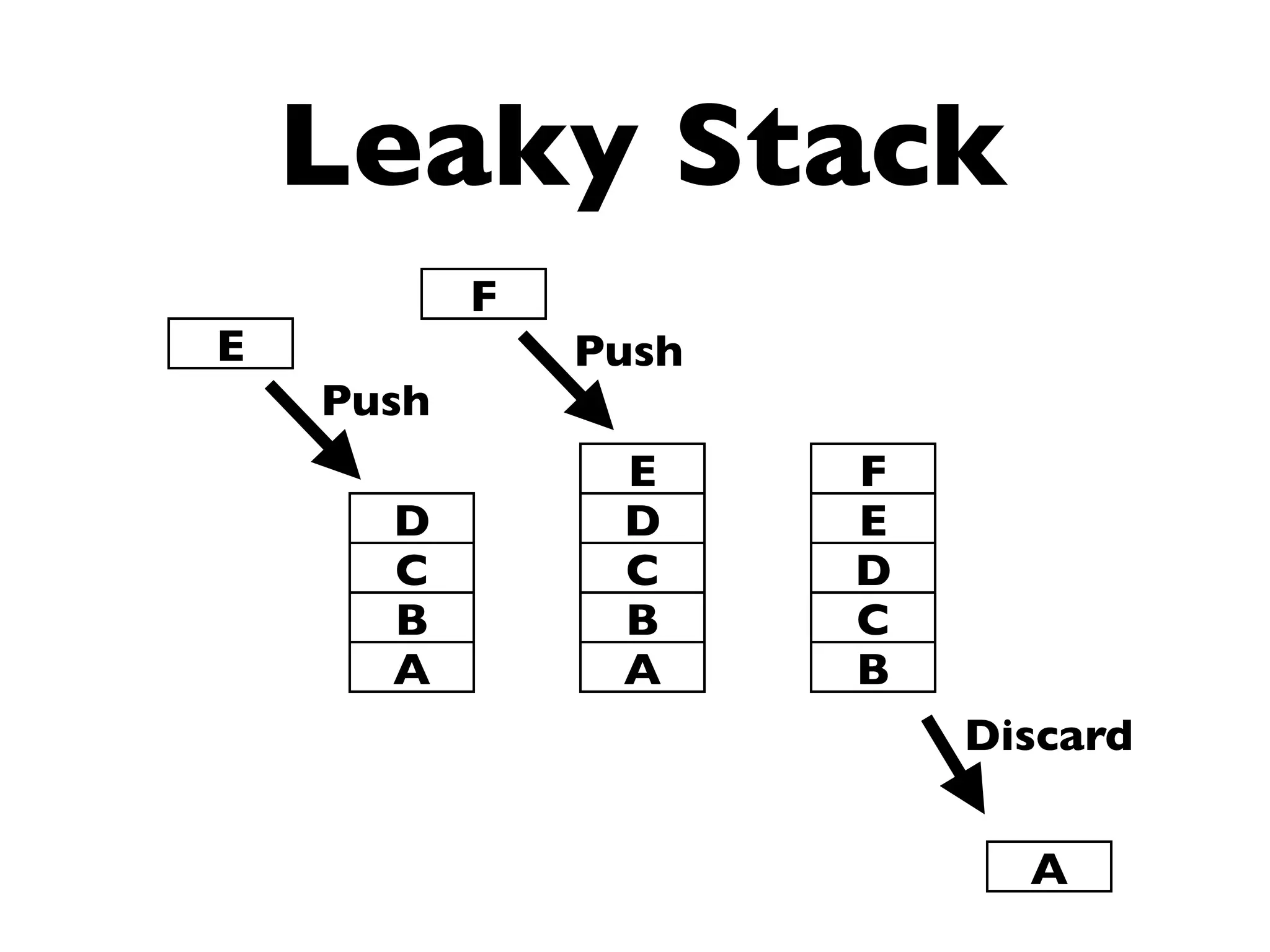

10. Leaky Stack
F
E Push
Push
E F
D D E
C C D
B B C
A A B
Discard
A

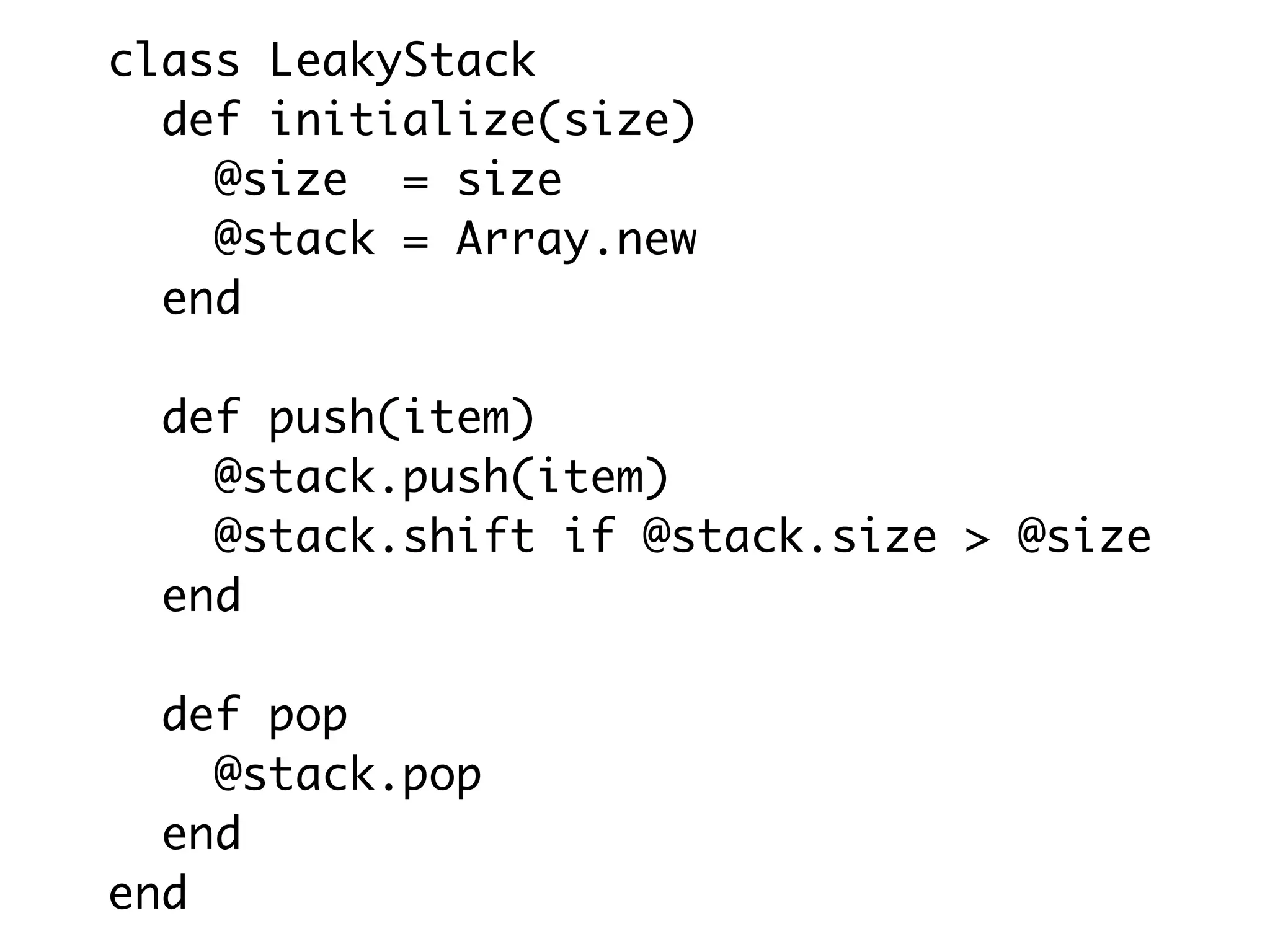

11. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
@stack.shift if @stack.size > @size
end
def pop
@stack.pop
end
end

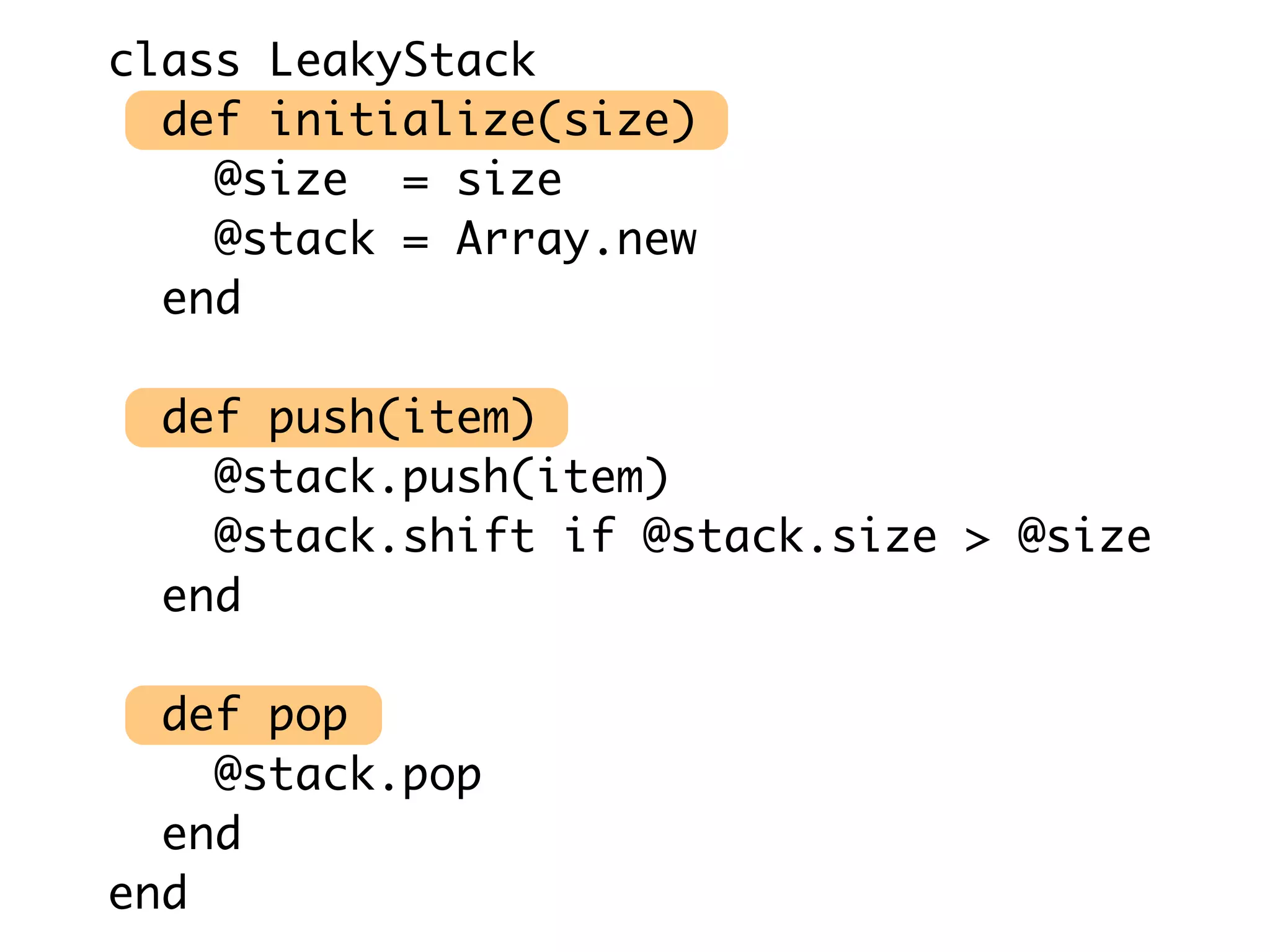

12. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
@stack.shift if @stack.size > @size
end
def pop
@stack.pop
end
end

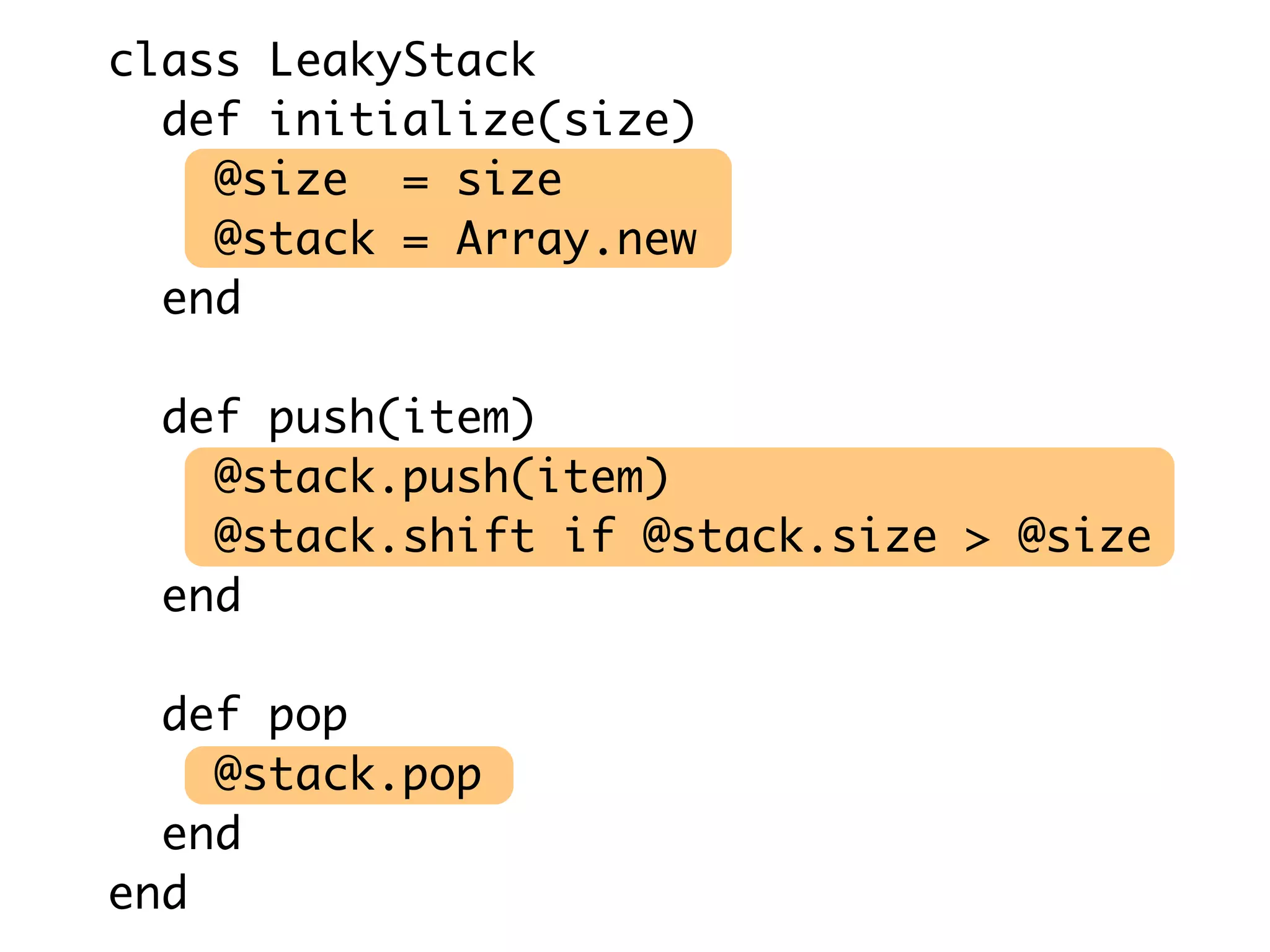

13. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
@stack.shift if @stack.size > @size
end
def pop
@stack.pop
end
end

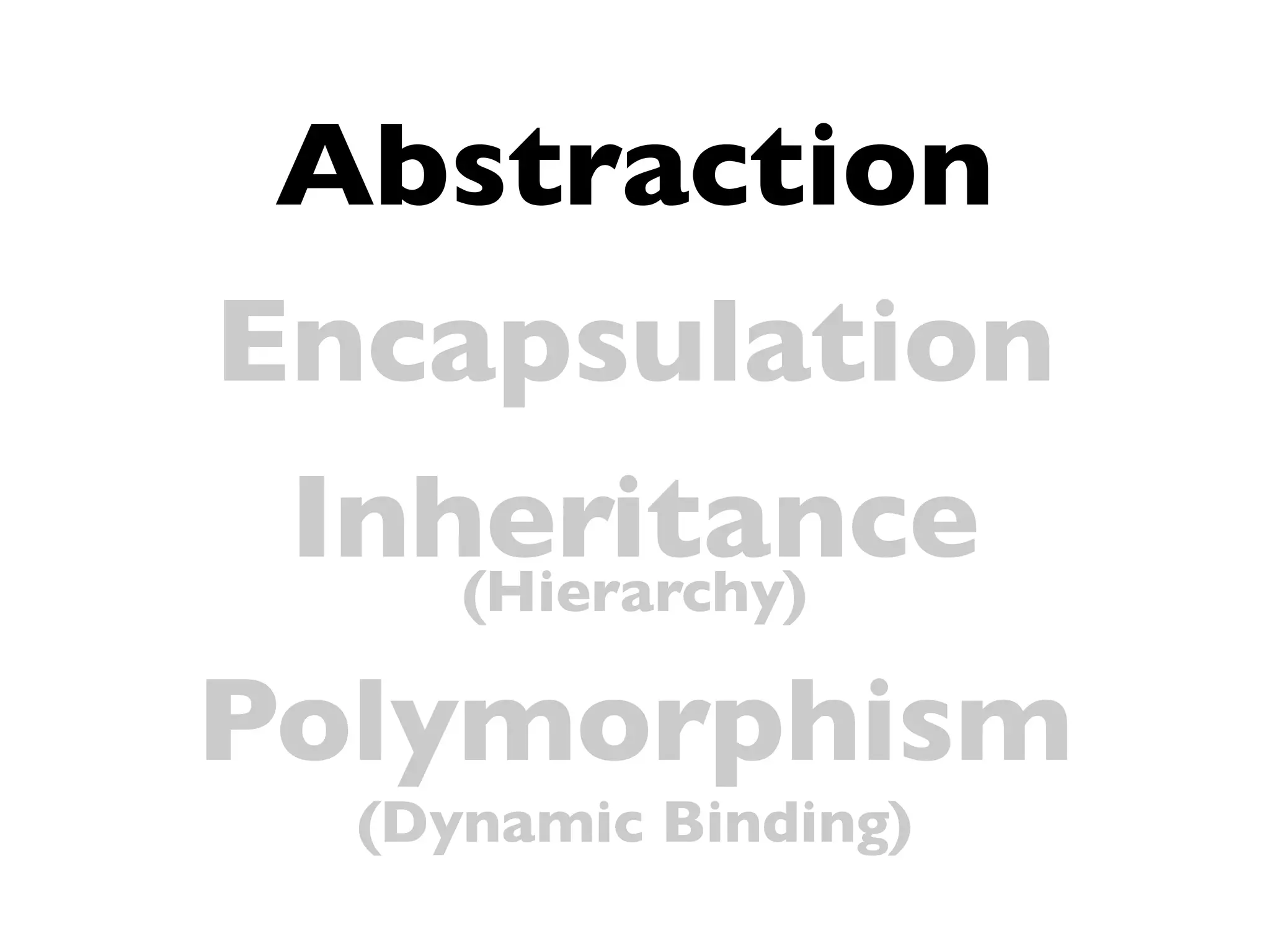

14. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

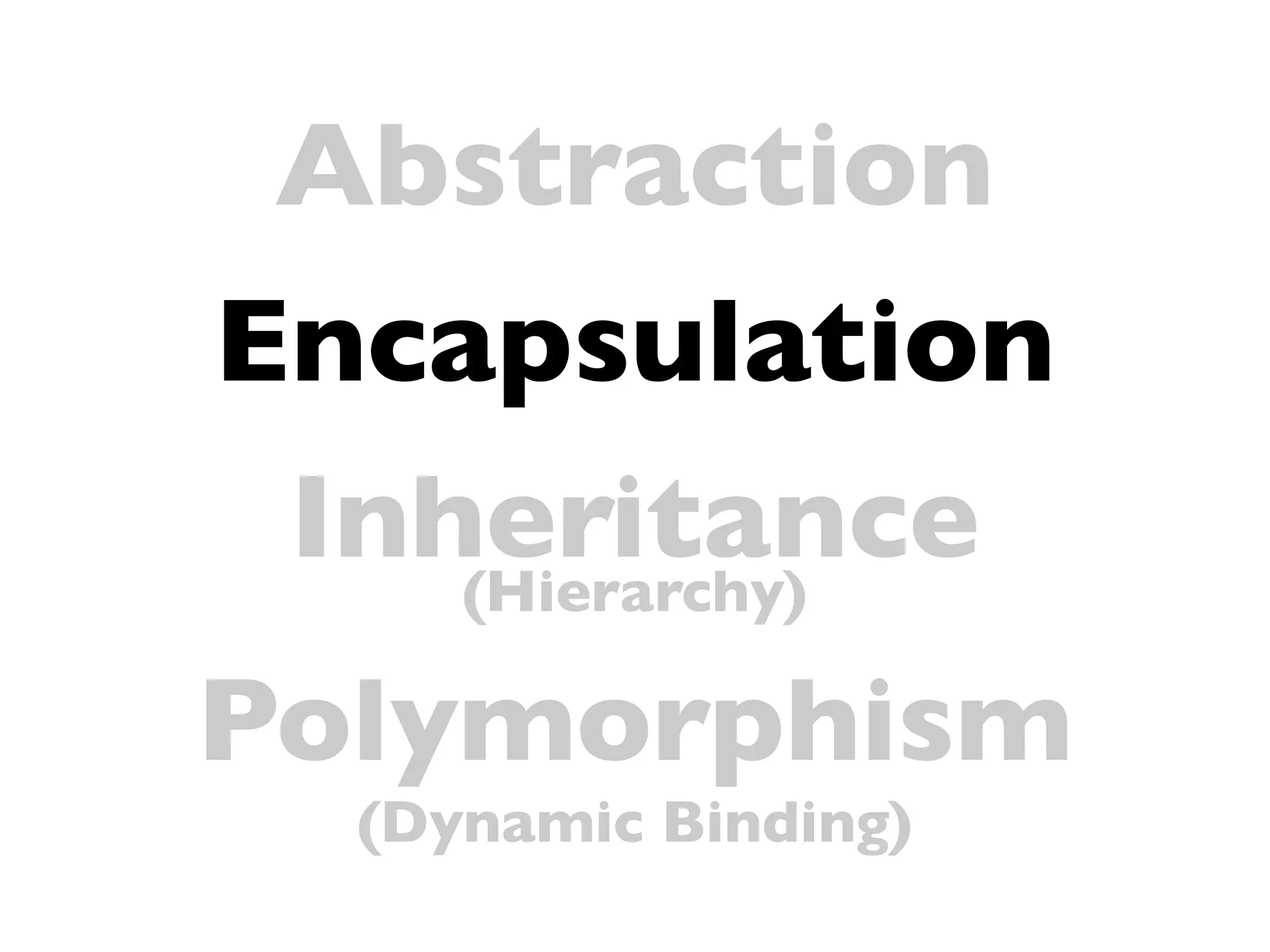

15. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

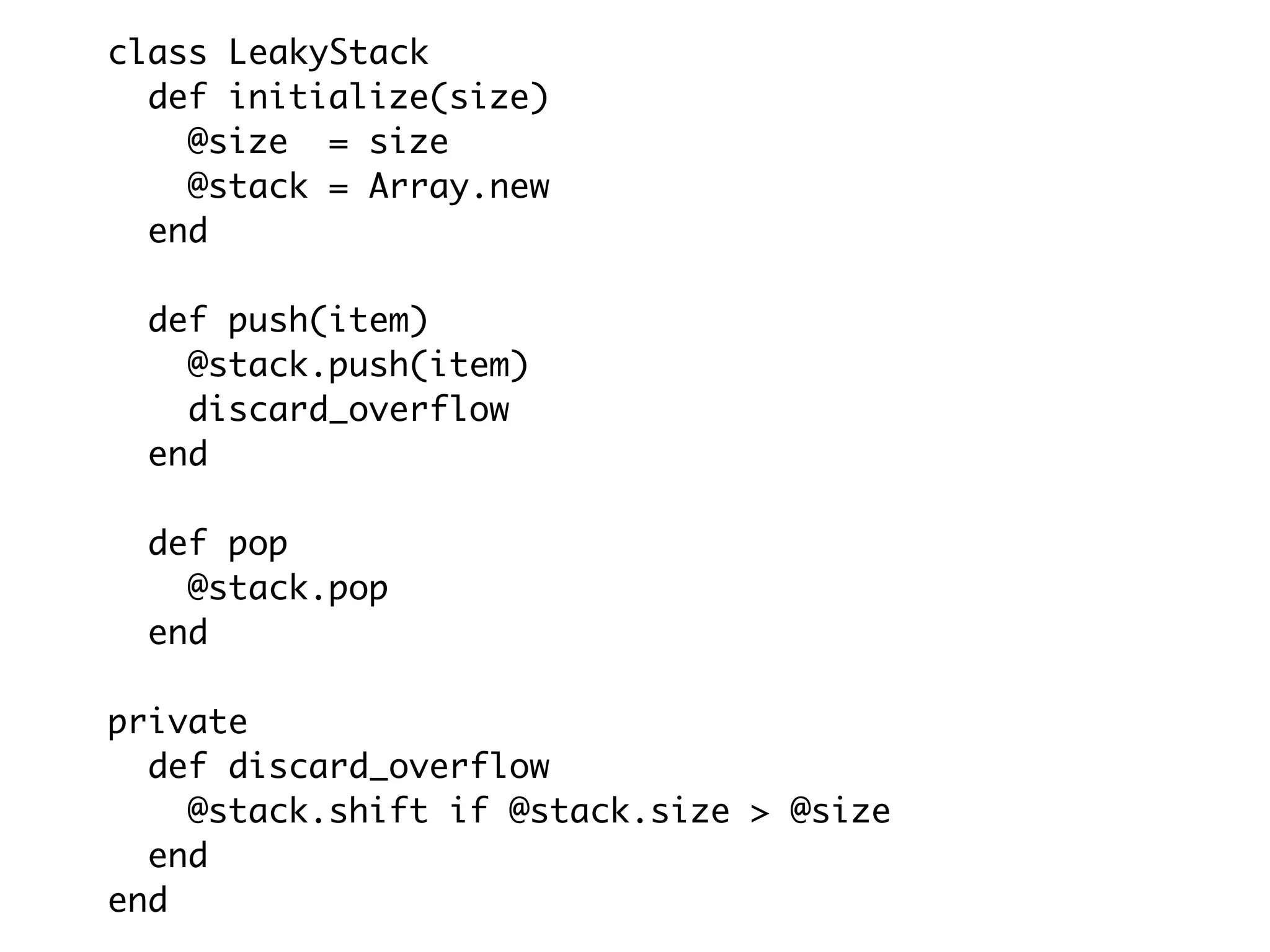

17. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
discard_overflow
end
def pop
@stack.pop
end
private
def discard_overflow
@stack.shift if @stack.size > @size
end
end

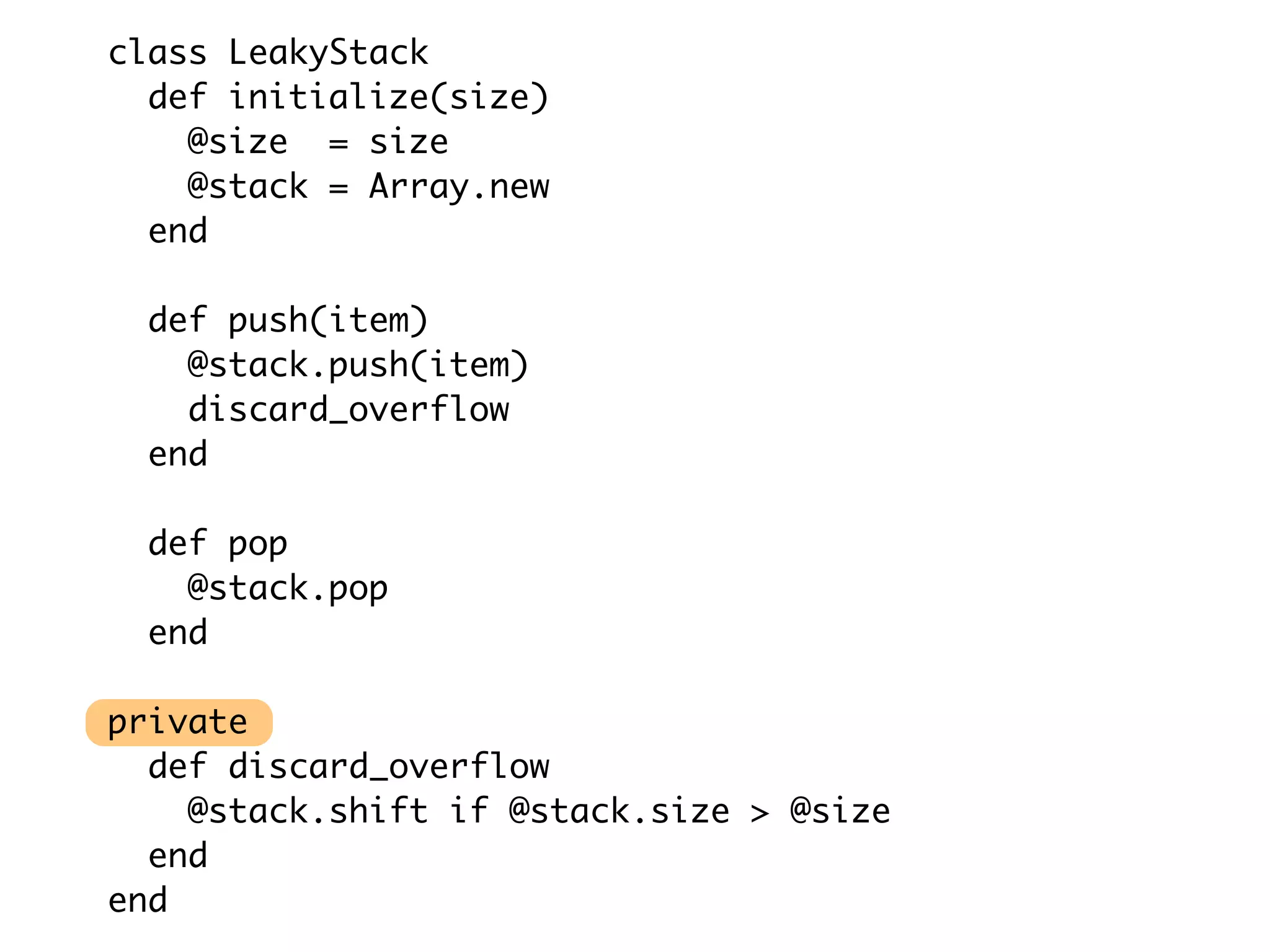

18. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
discard_overflow
end
def pop
@stack.pop
end
private
def discard_overflow
@stack.shift if @stack.size > @size
end
end

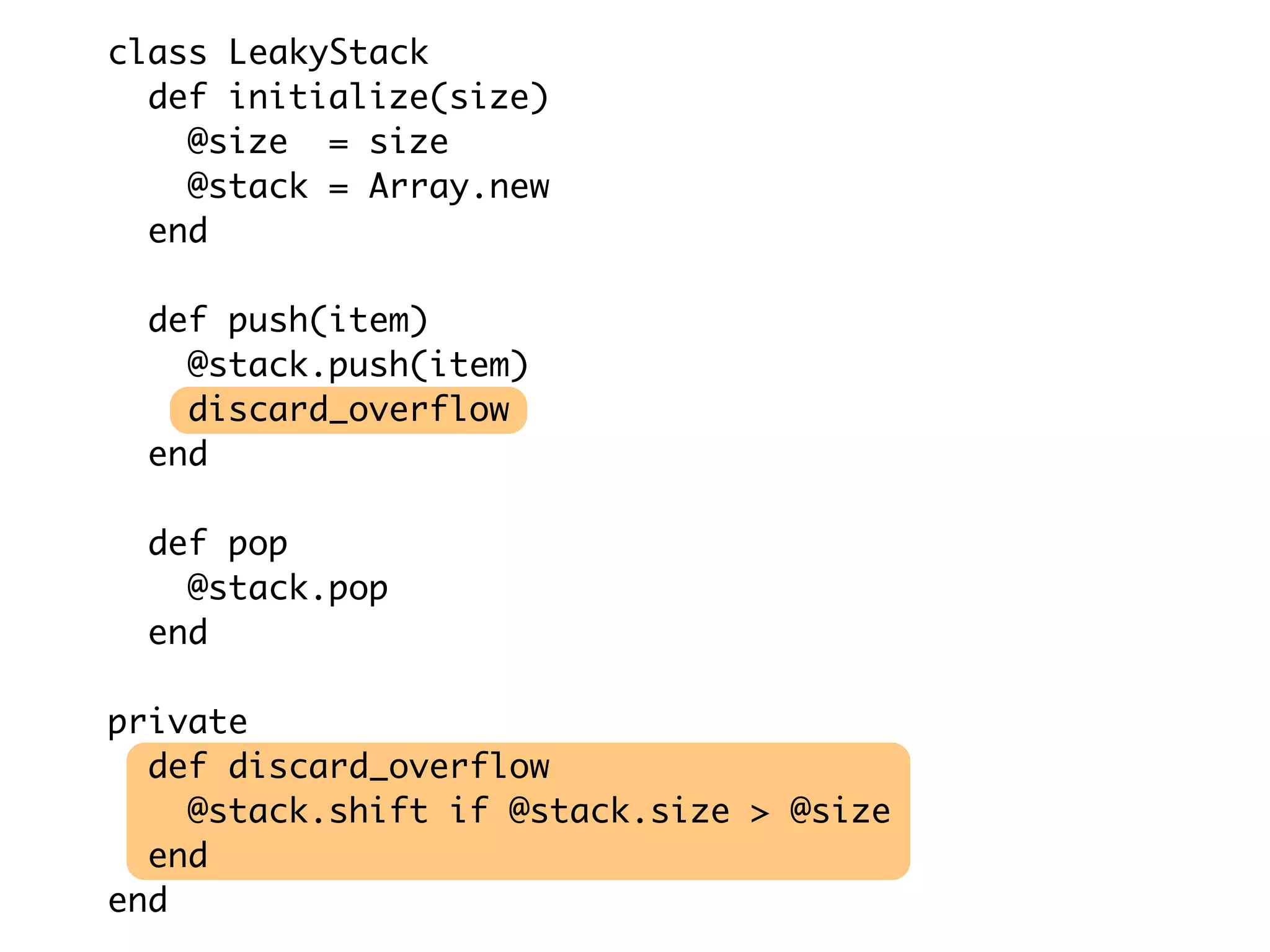

19. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
discard_overflow
end
def pop
@stack.pop
end
private
def discard_overflow
@stack.shift if @stack.size > @size
end
end

20. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

21. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

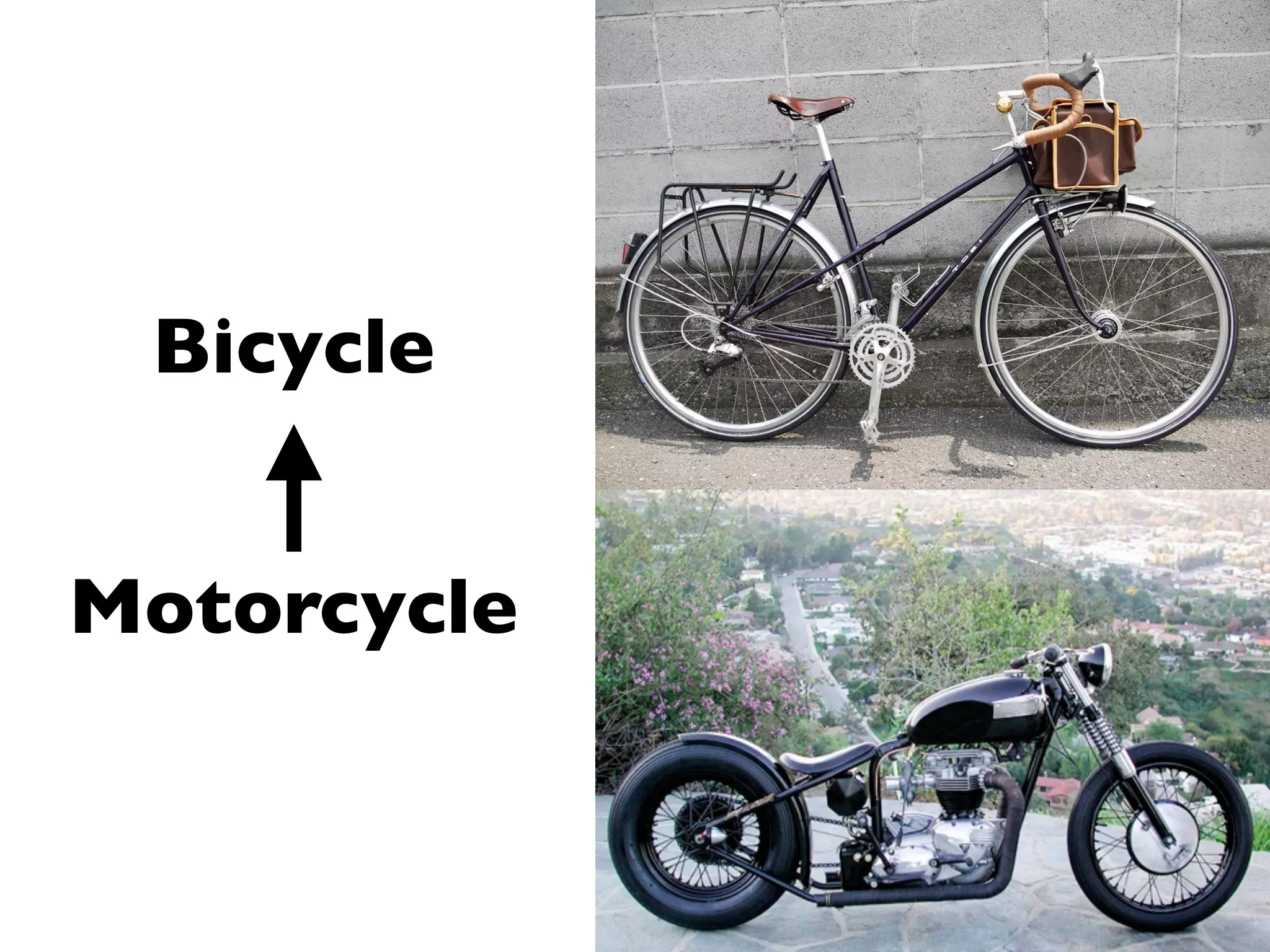

22. Bicycle
Motorcycle

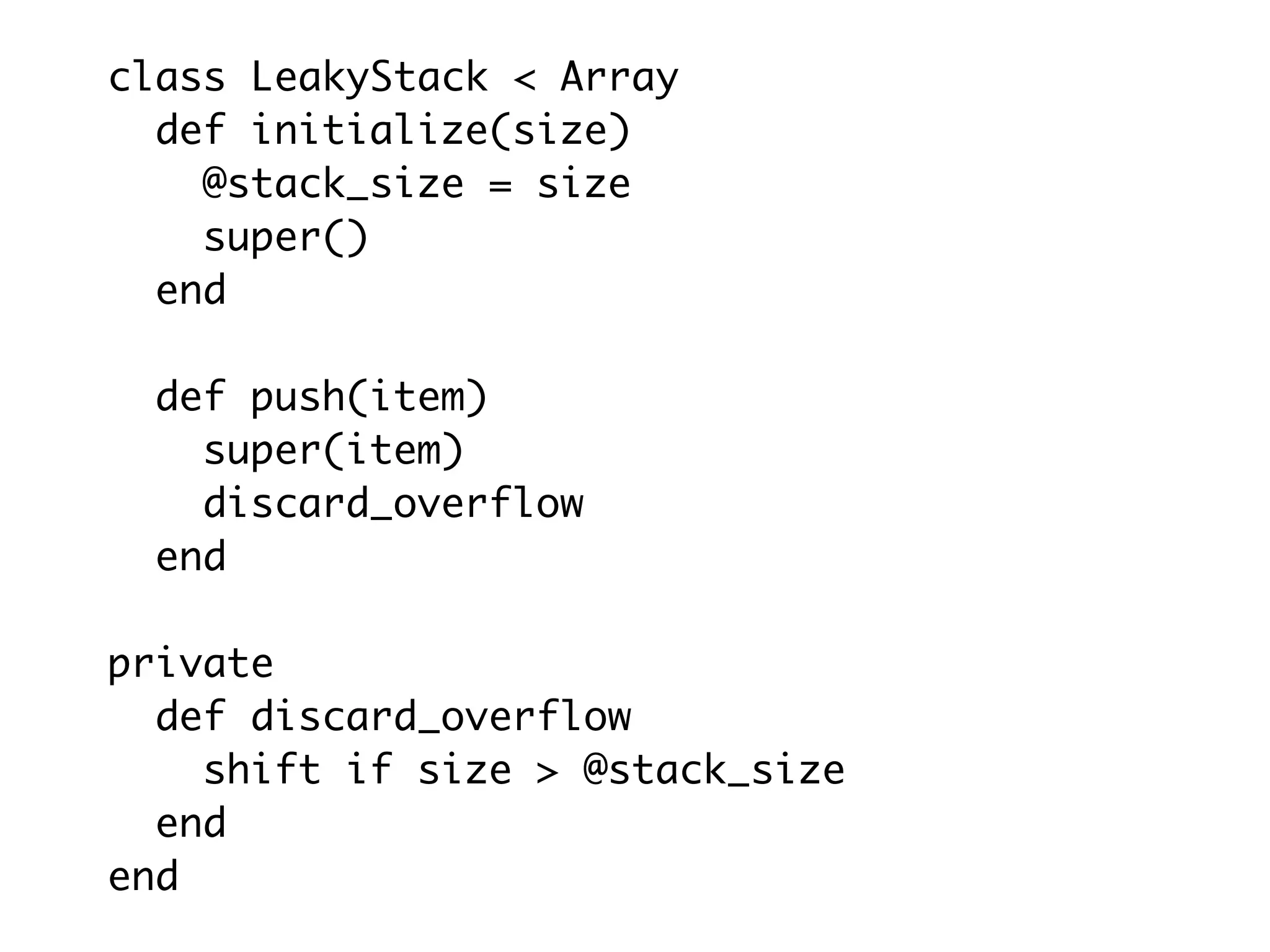

23. class LeakyStack < Array
def initialize(size)
@stack_size = size
super()
end
def push(item)
super(item)
discard_overflow
end
private
def discard_overflow
shift if size > @stack_size
end
end

24. class LeakyStack < Array
def initialize(size)
@stack_size = size
super()
end
def push(item)
super(item)
discard_overflow
end
private
def discard_overflow
shift if size > @stack_size
end
end

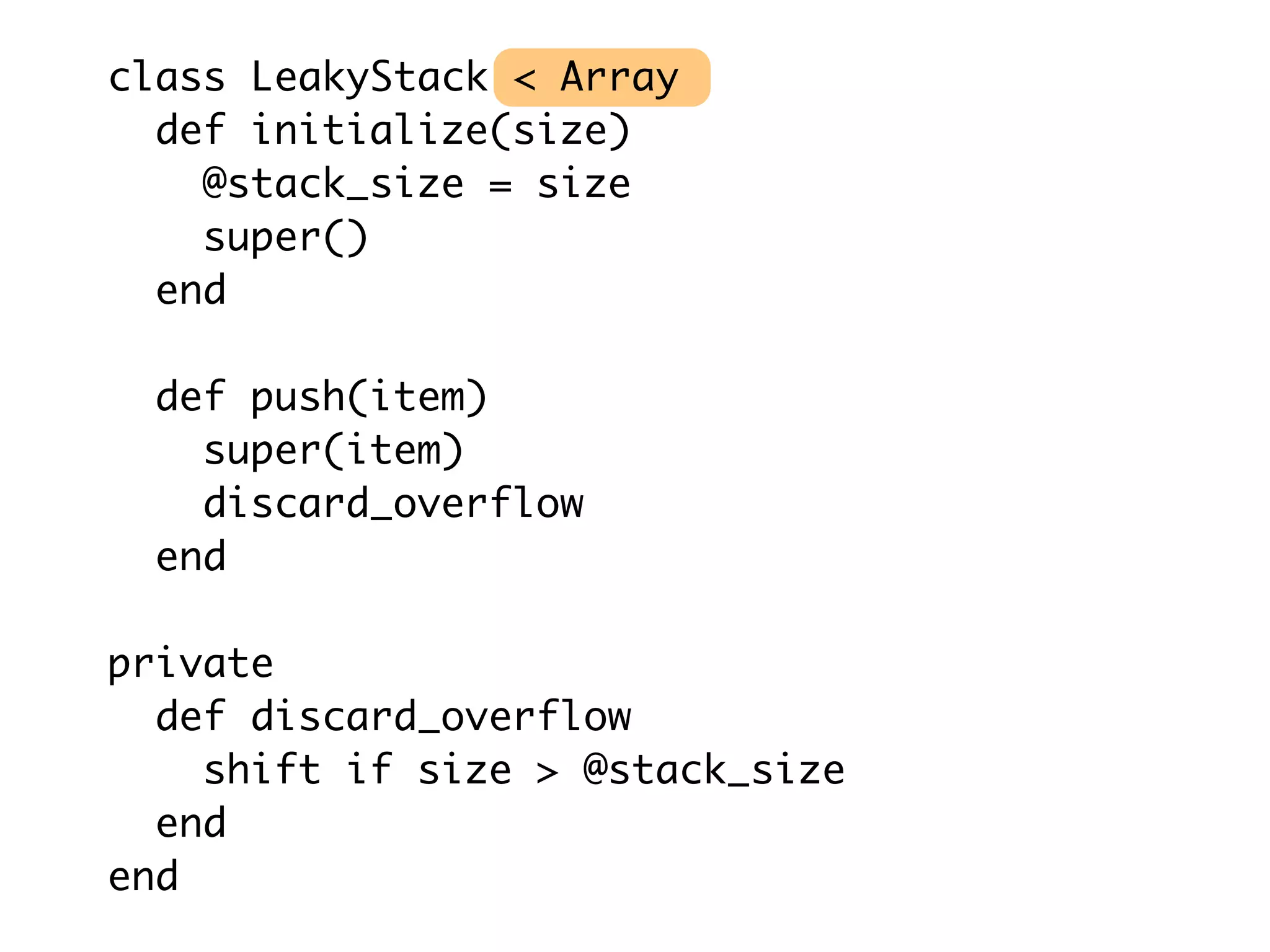

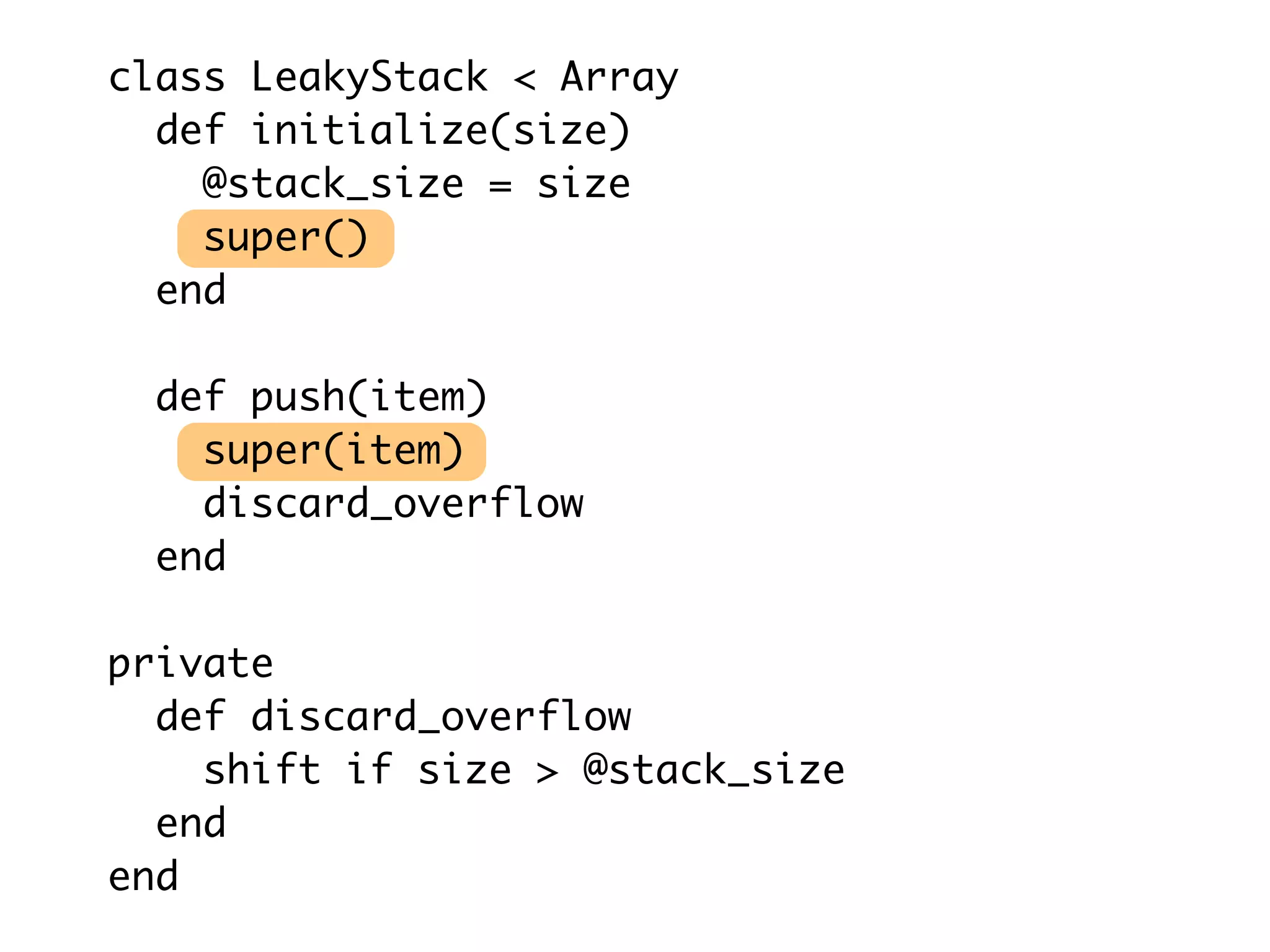

25. class LeakyStack < Array
def initialize(size)
@stack_size = size
super()
end
def push(item)
super(item)
discard_overflow
end
private
def discard_overflow
shift if size > @stack_size
end
end

26. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Polymorphism
(Dynamic Binding)

27. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Dynamic Binding
(Polymorphism)

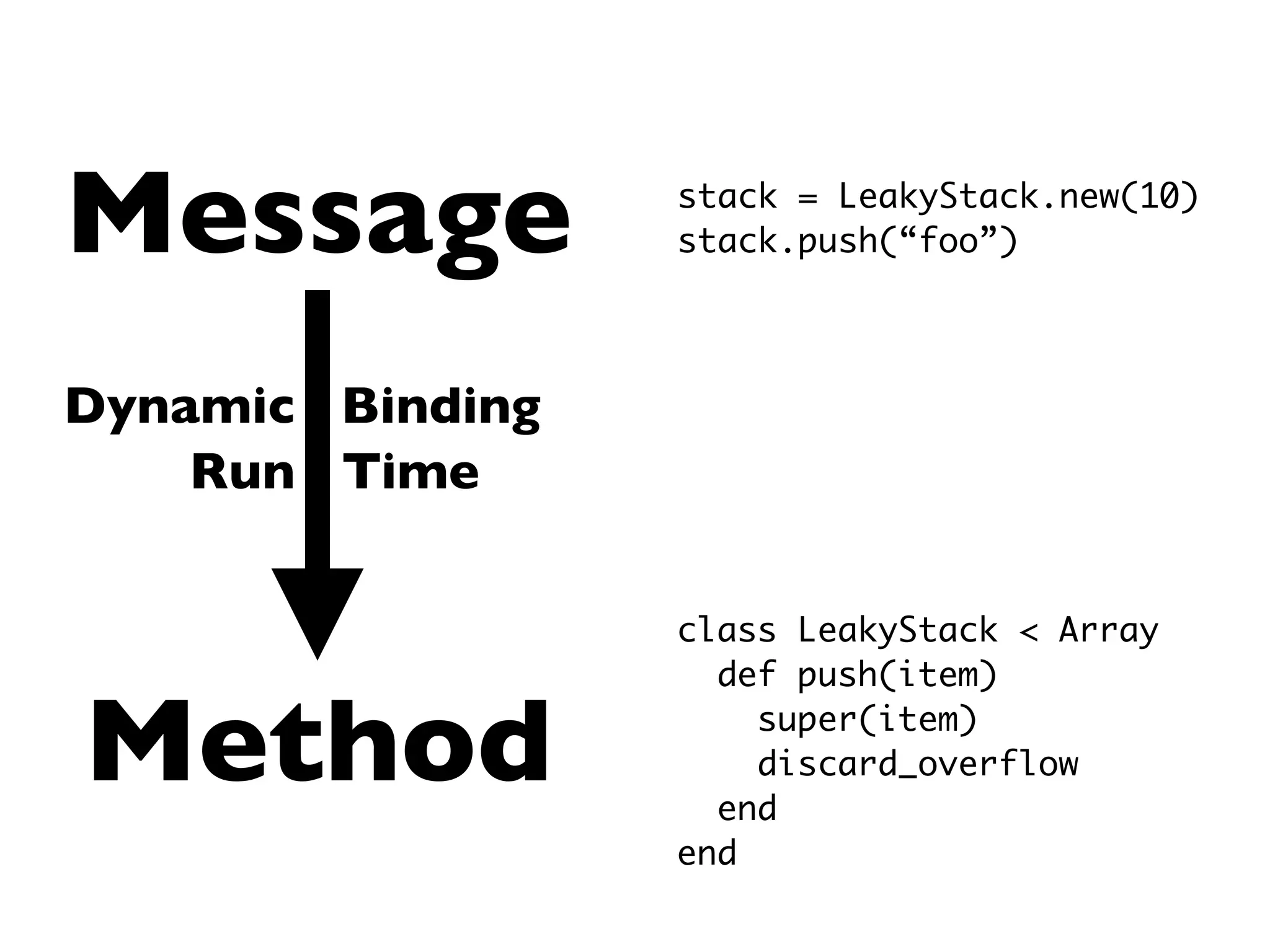

28. Message stack = LeakyStack.new(10)
stack.push(“foo”)
Dynamic Binding
Run Time
class LeakyStack < Array
def push(item)
Method super(item)
discard_overflow
end
end

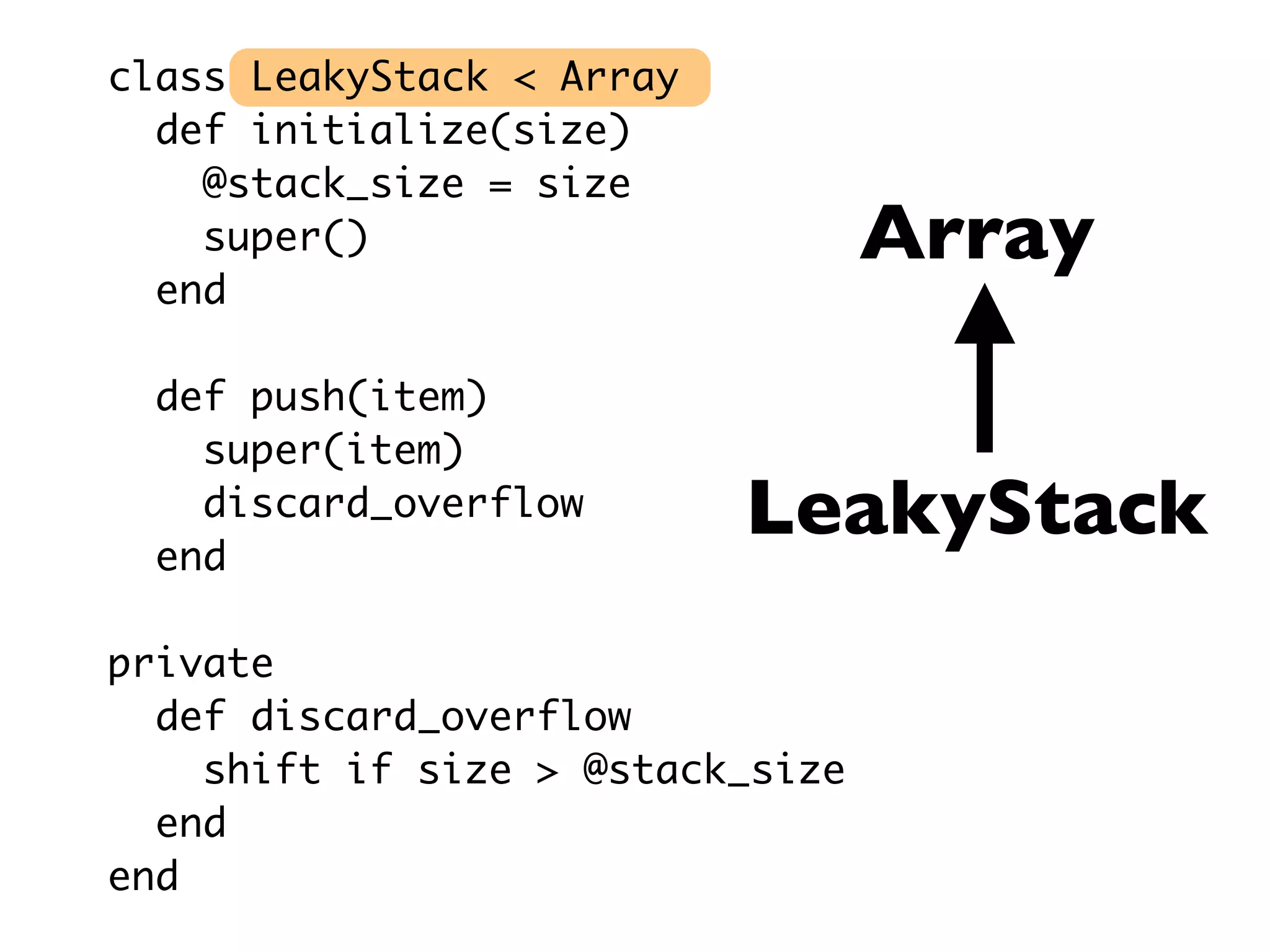

29. class LeakyStack < Array
def initialize(size)
@stack_size = size
super() Array
end
def push(item)
super(item)
discard_overflow
end
LeakyStack
private
def discard_overflow
shift if size > @stack_size
end
end

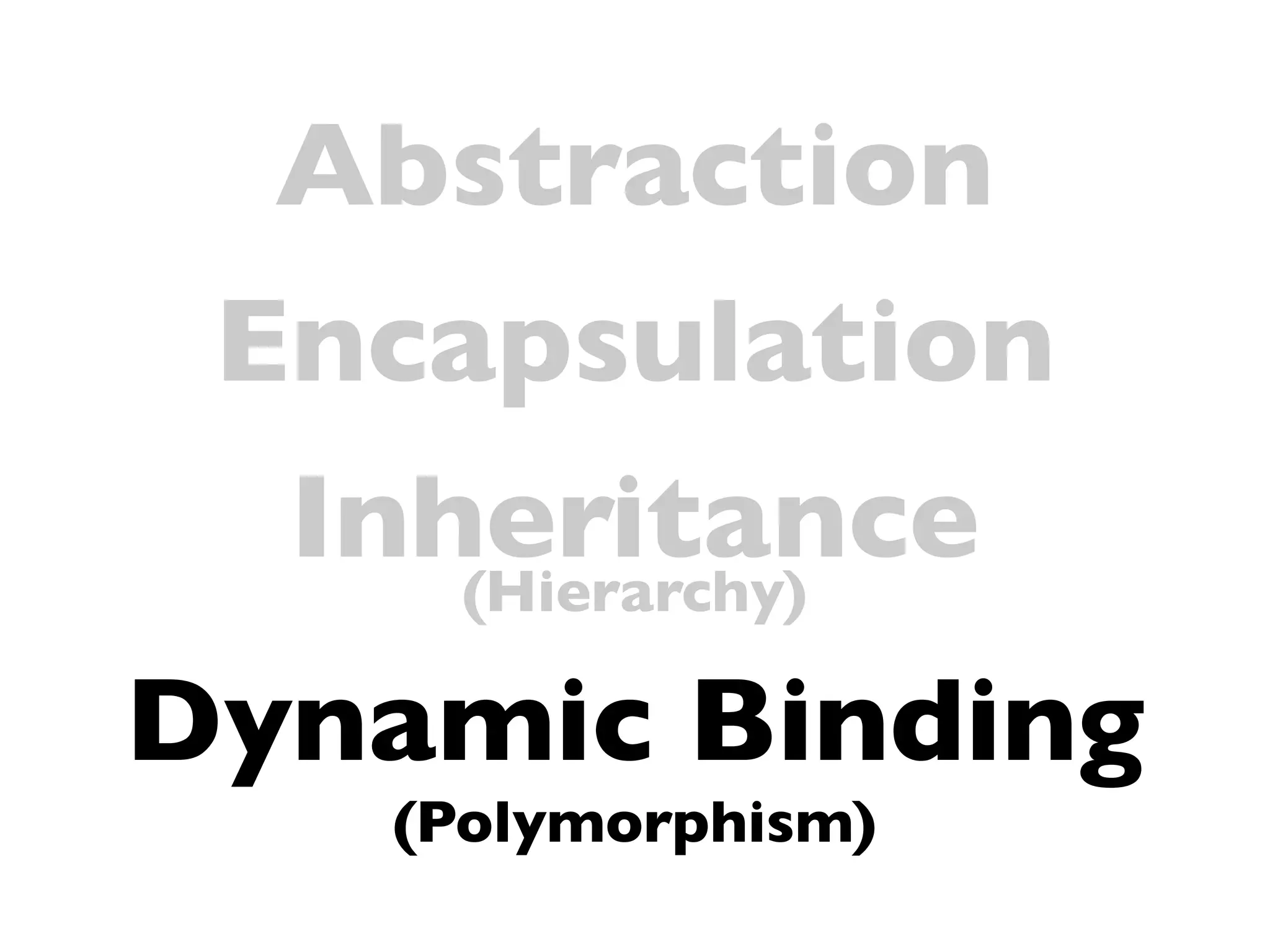

30. Abstraction
Encapsulation
Inheritance
(Hierarchy)
Dynamic Binding
(Polymorphism)

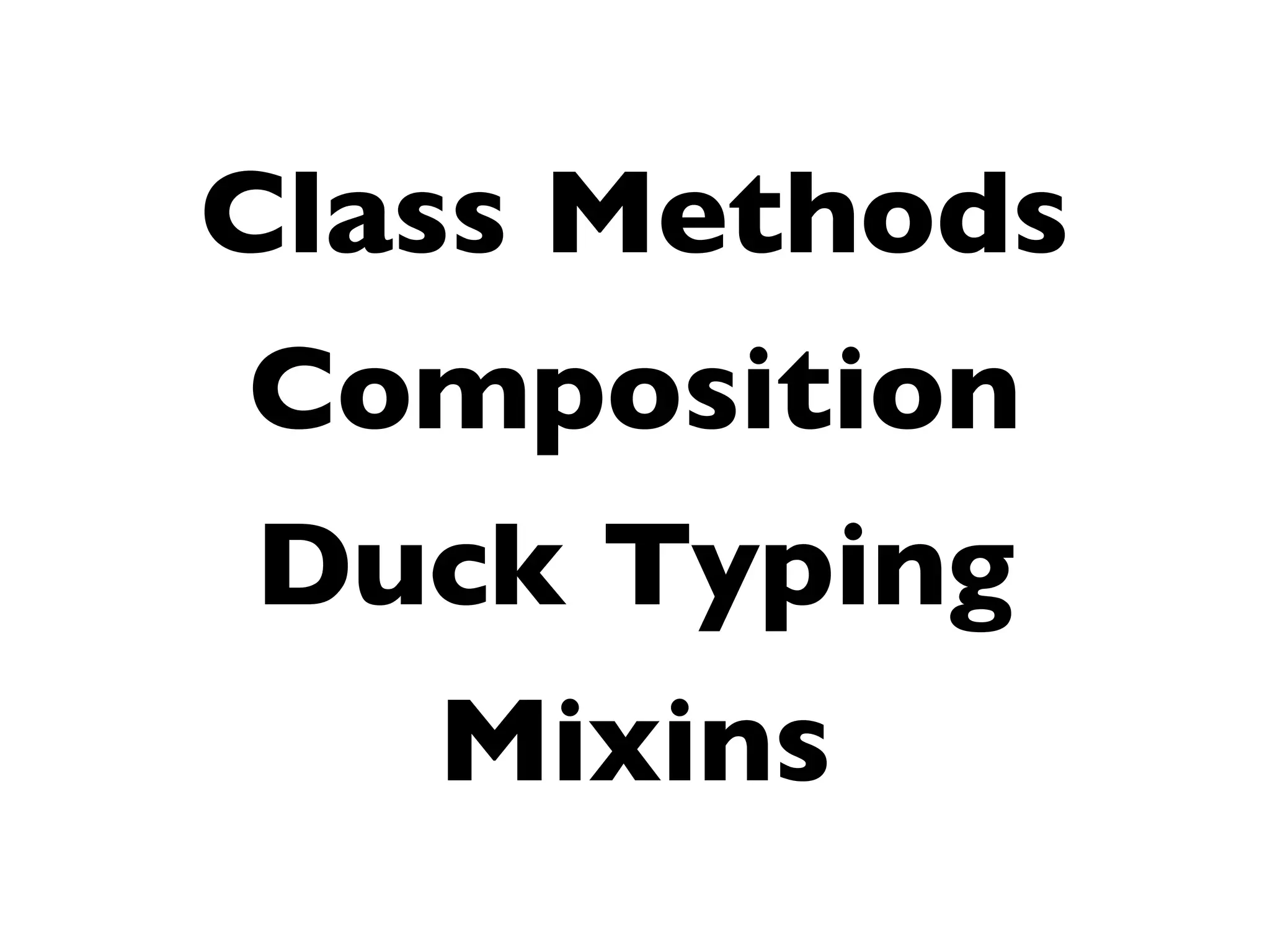

31. Class Methods
Composition
Duck Typing
Mixins

32. Class Methods
Composition
Duck Typing
Mixins

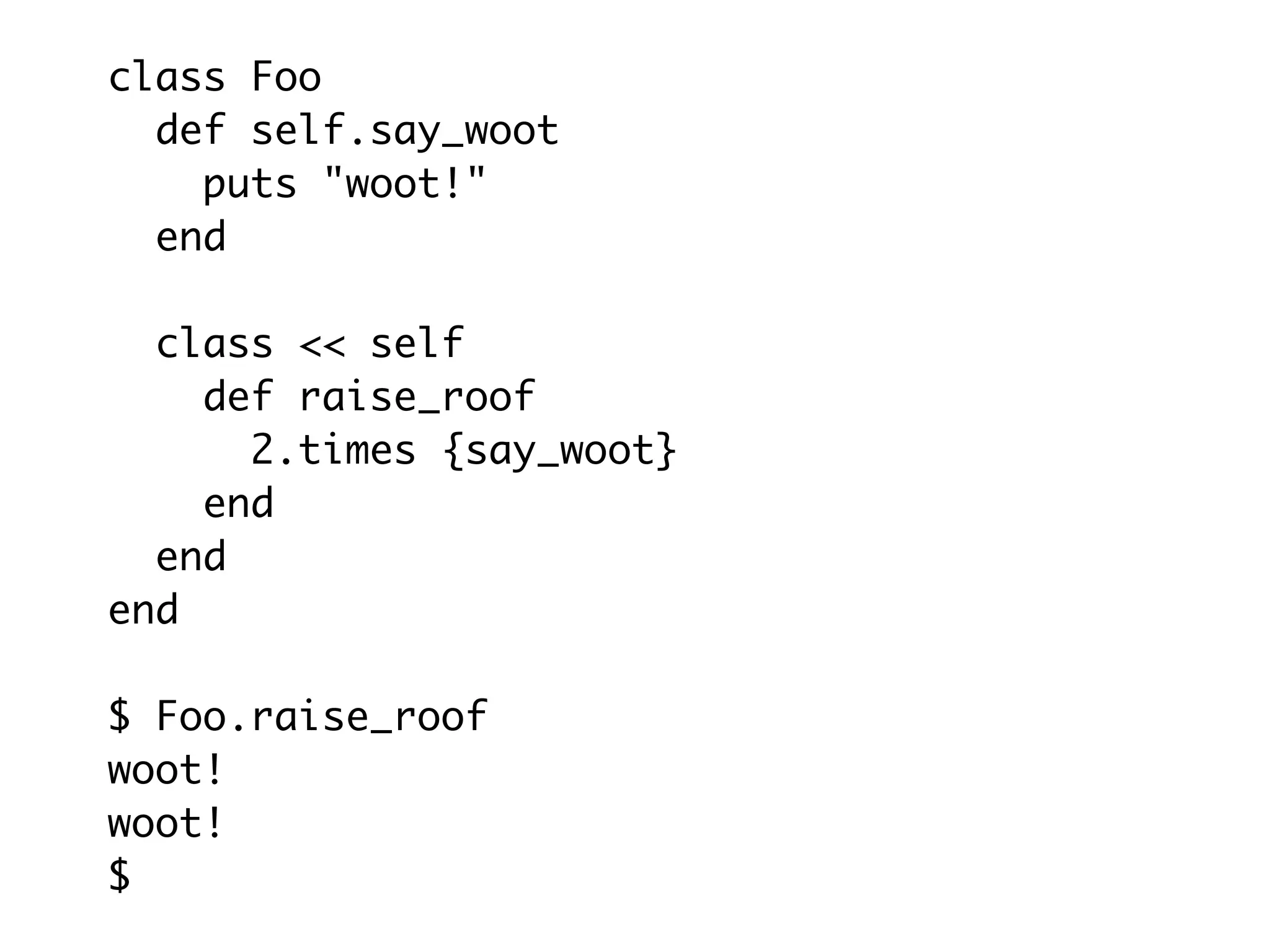

33. class Foo
def self.say_woot
puts "woot!"
end
class << self
def raise_roof
2.times {say_woot}
end
end
end
$ Foo.raise_roof
woot!
woot!
$

34. Class Methods
Composition
Duck Typing
Mixins

35. Class Methods
Composition
Duck Typing
Mixins

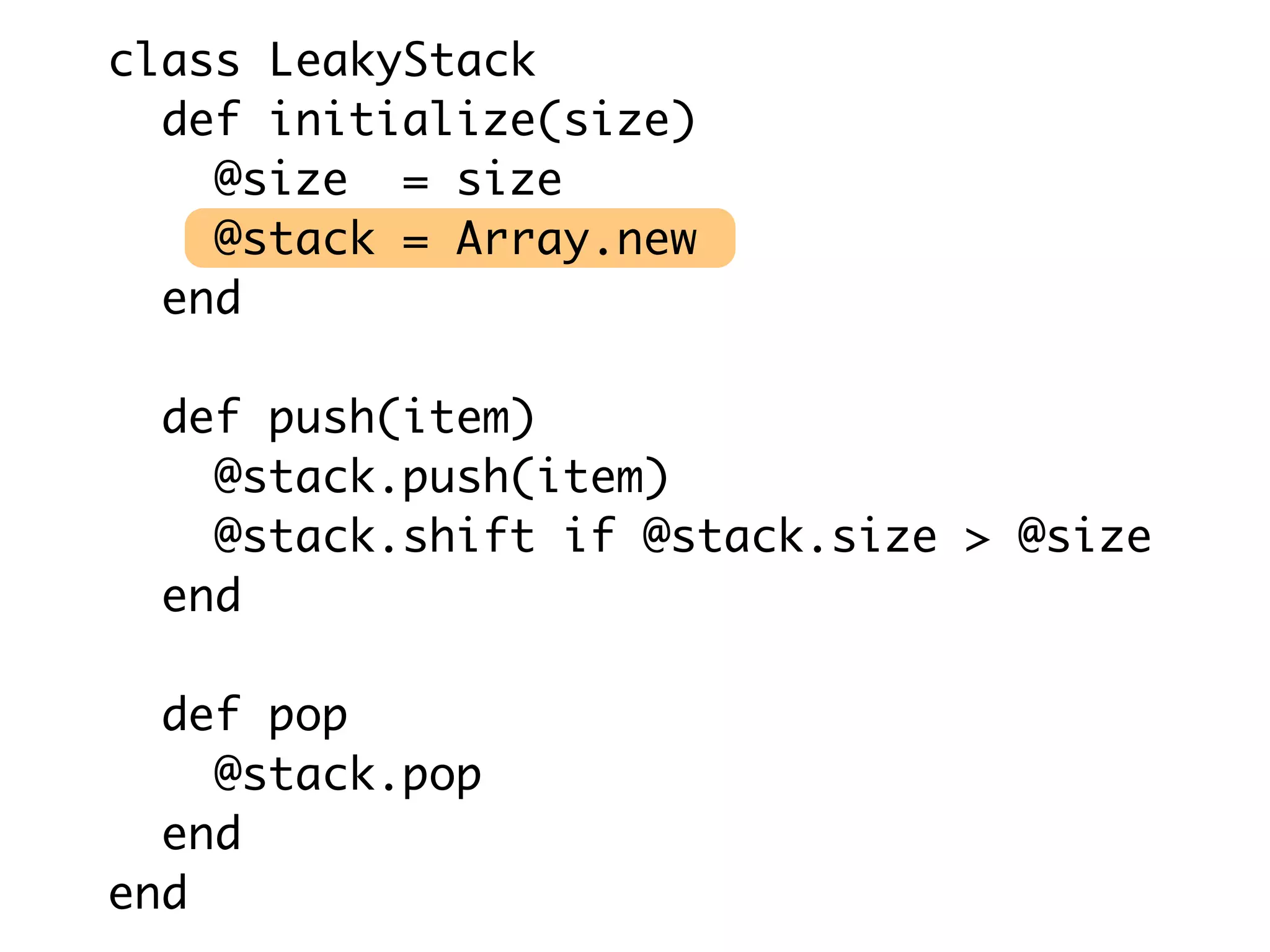

36. class LeakyStack
def initialize(size)
@size = size
@stack = Array.new
end
def push(item)
@stack.push(item)
@stack.shift if @stack.size > @size
end
def pop
@stack.pop
end
end

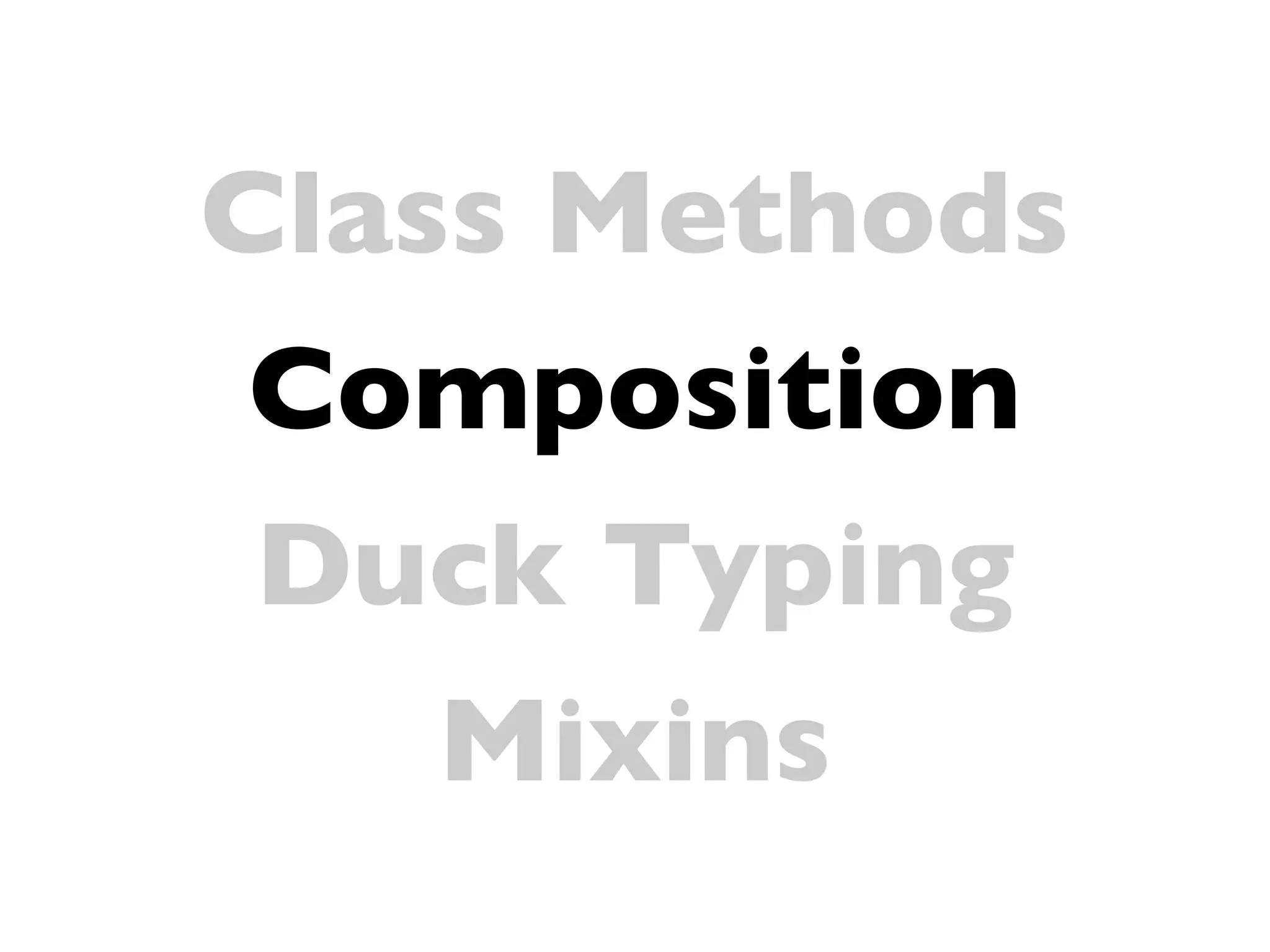

37. Class Methods
Composition
Duck Typing
Mixins

38. Class Methods
Composition
Duck Typing
Mixins

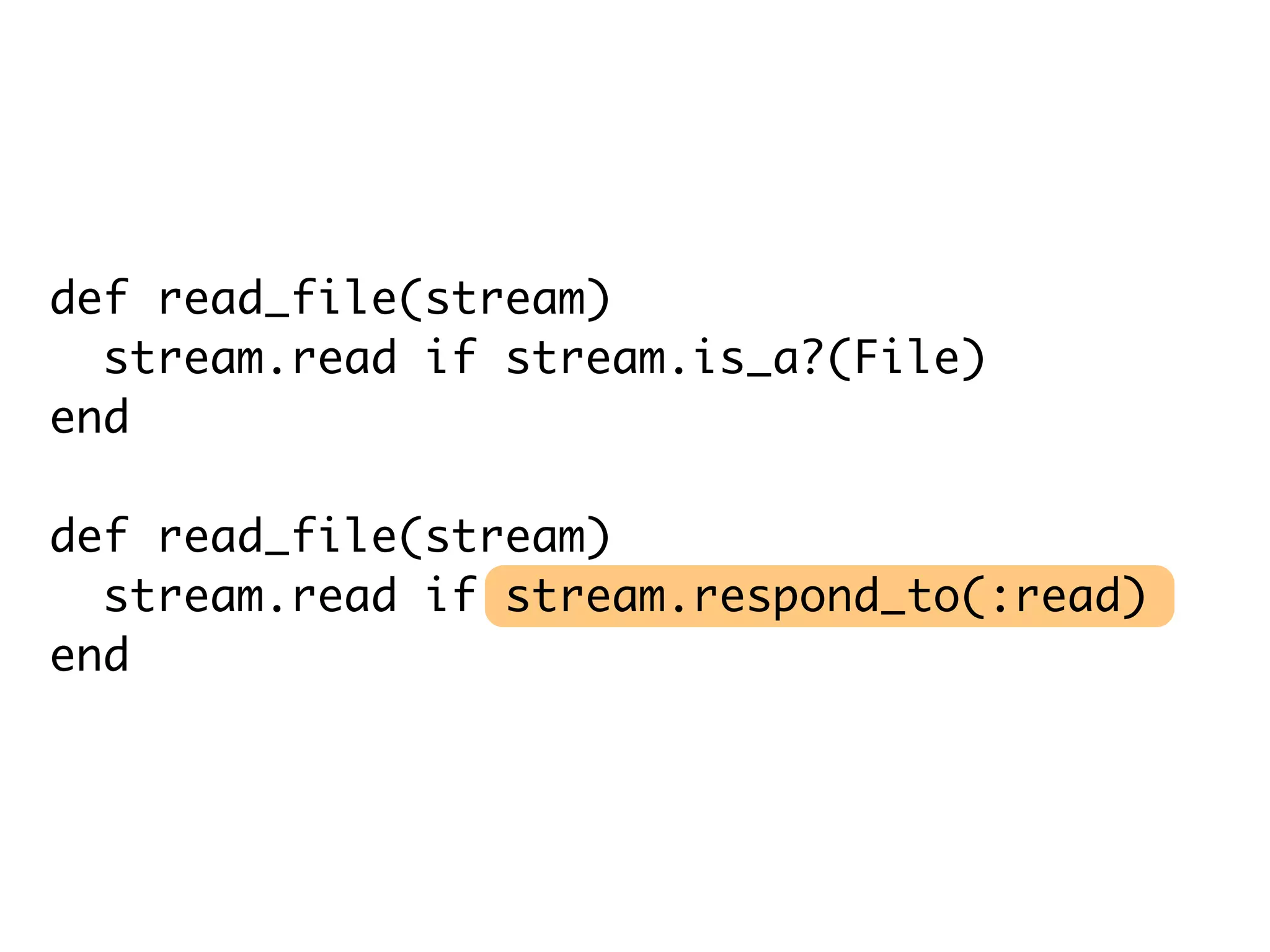

40. def read_file(stream)
stream.read if stream.is_a?(File)
end
def read_file(stream)
stream.read if stream.respond_to(:read)
end

41. Class Methods
Composition
Duck Typing
Mixins

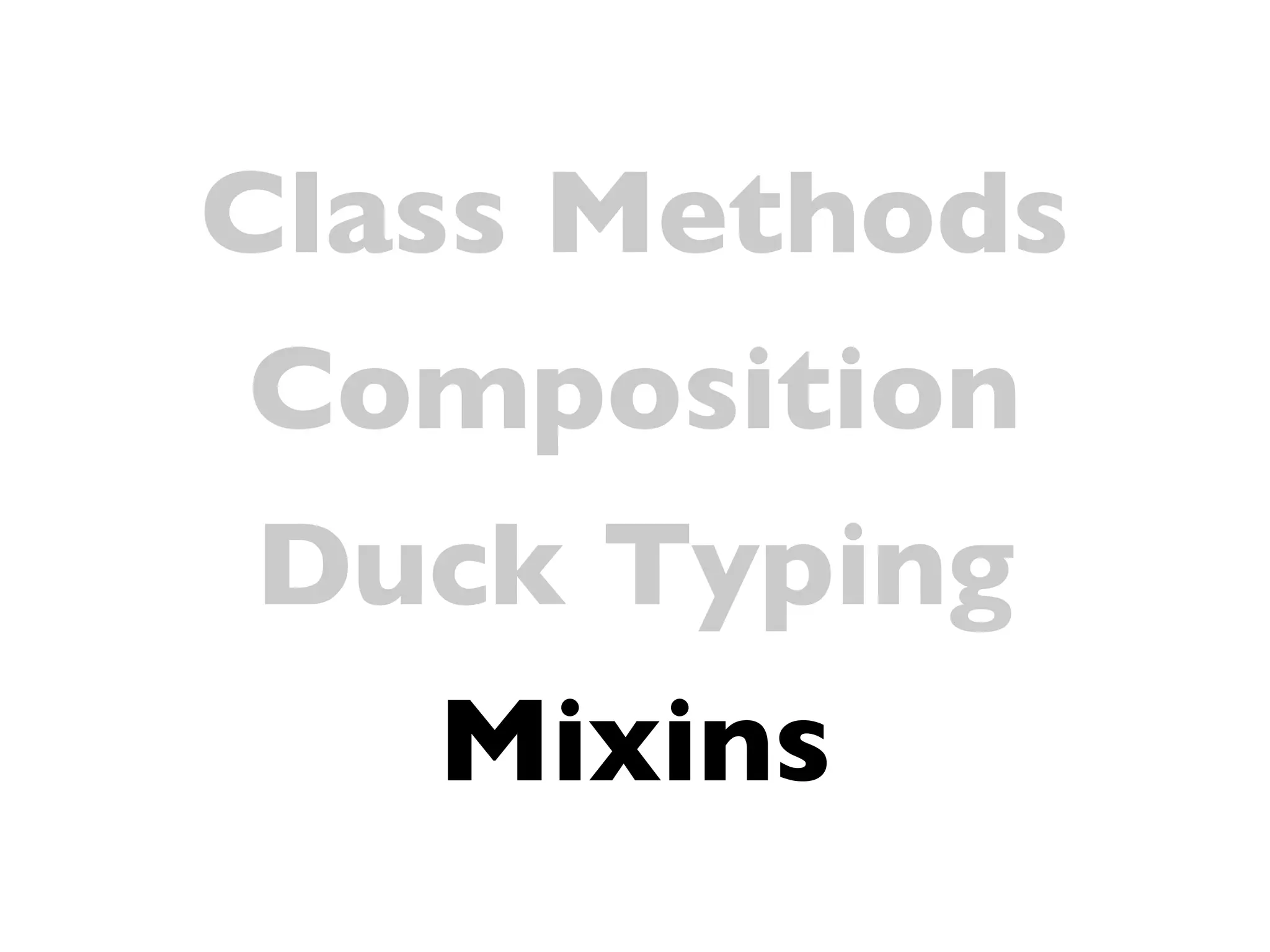

42. Class Methods
Composition
Duck Typing
Mixins

44. Class Methods
Composition
Duck Typing
Mixins

45. The Complete
Class

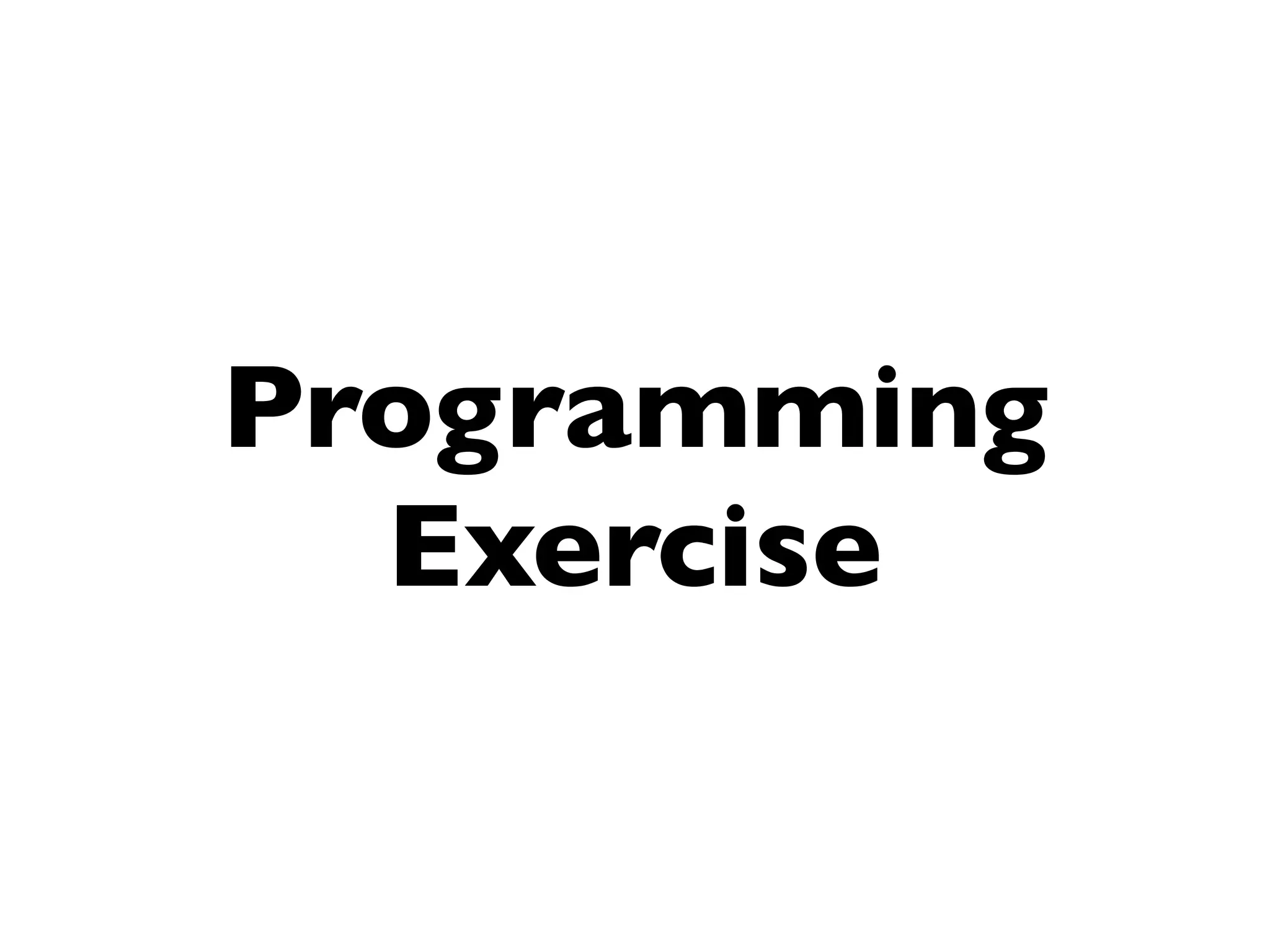

46. Programming
Exercise

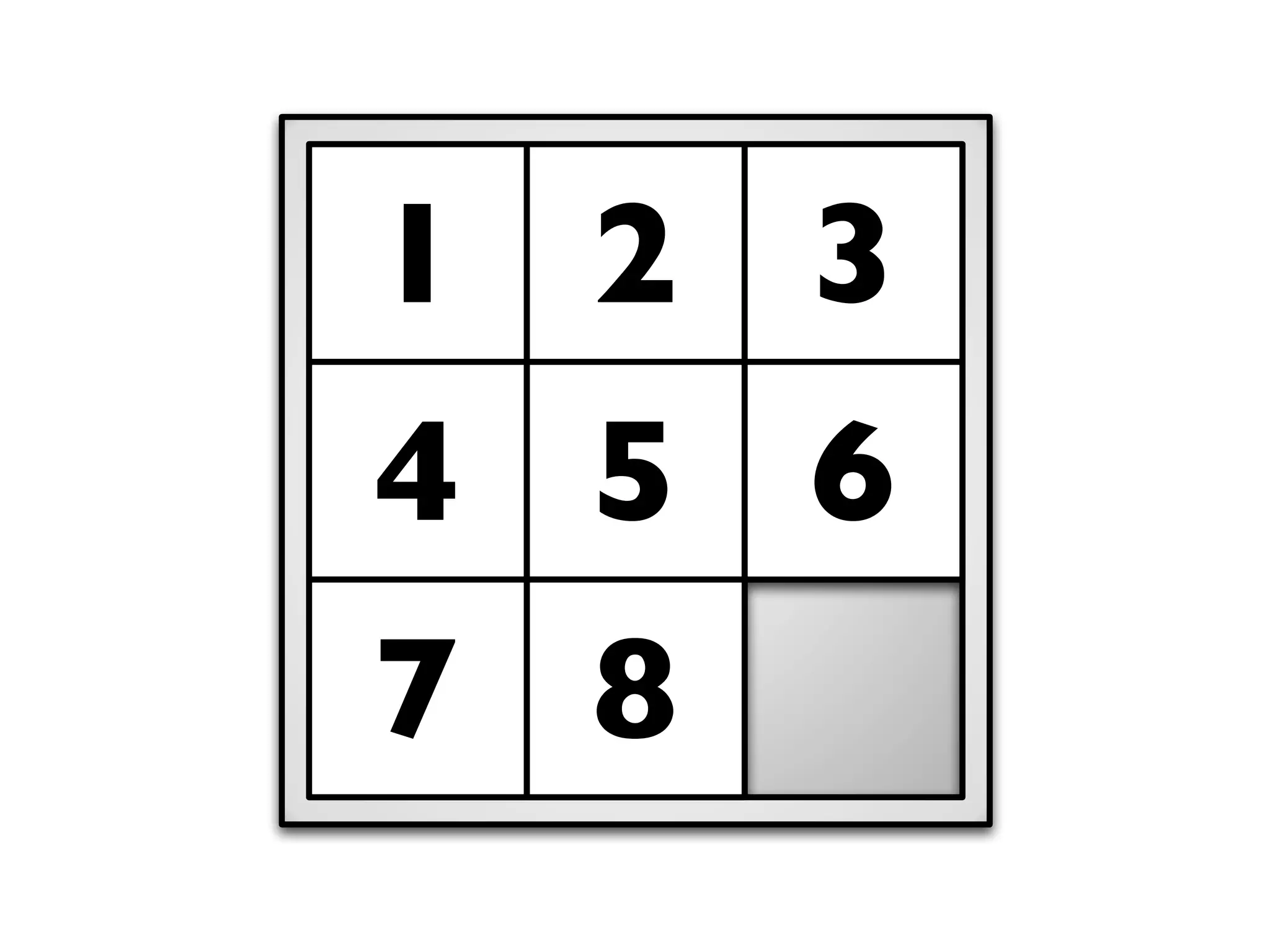

47. 1 2 3
4 5 6
7 8

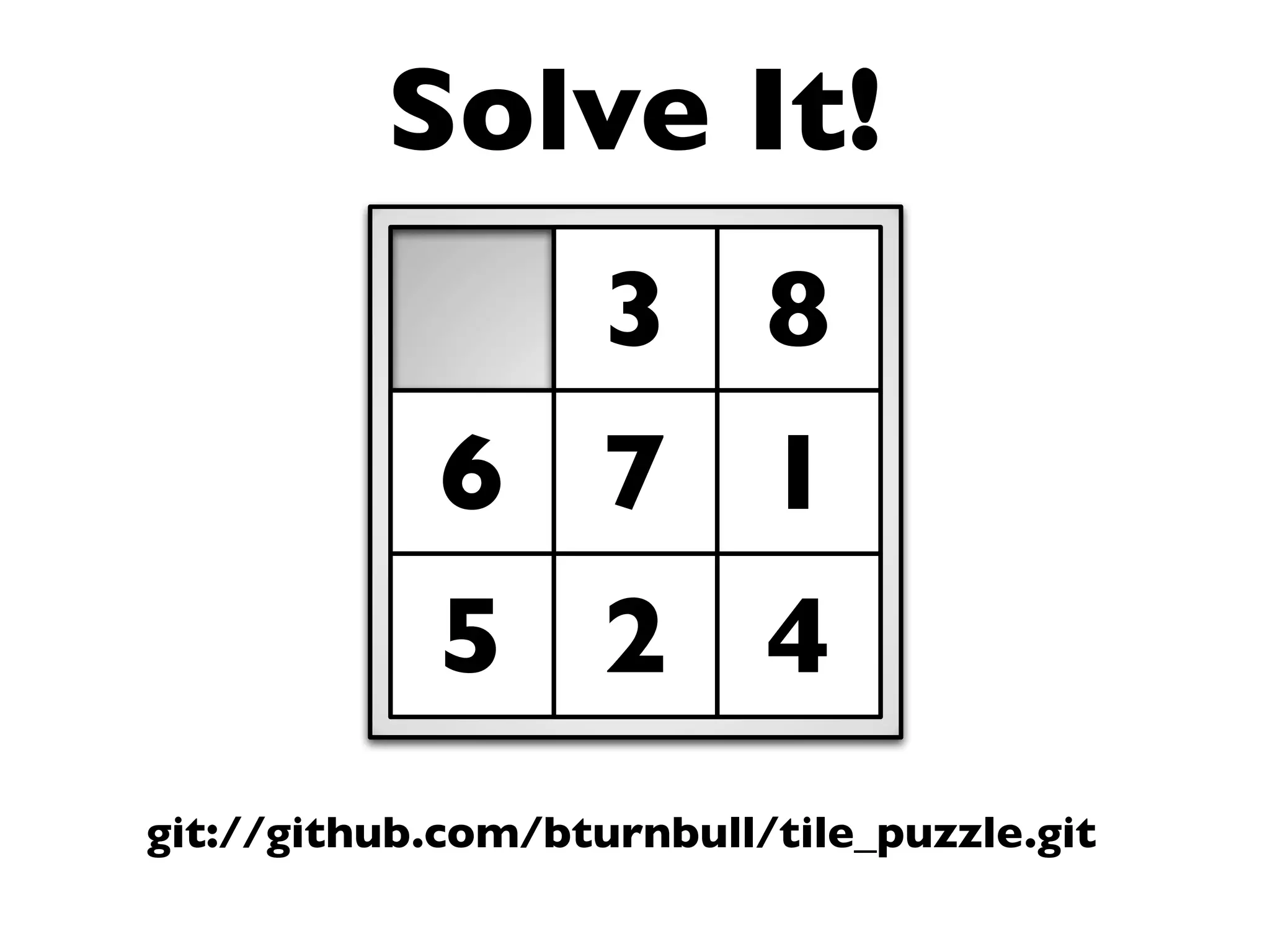

48. Solve It!
3 8
6 7 1
5 2 4
git://github.com/bturnbull/tile_puzzle.git

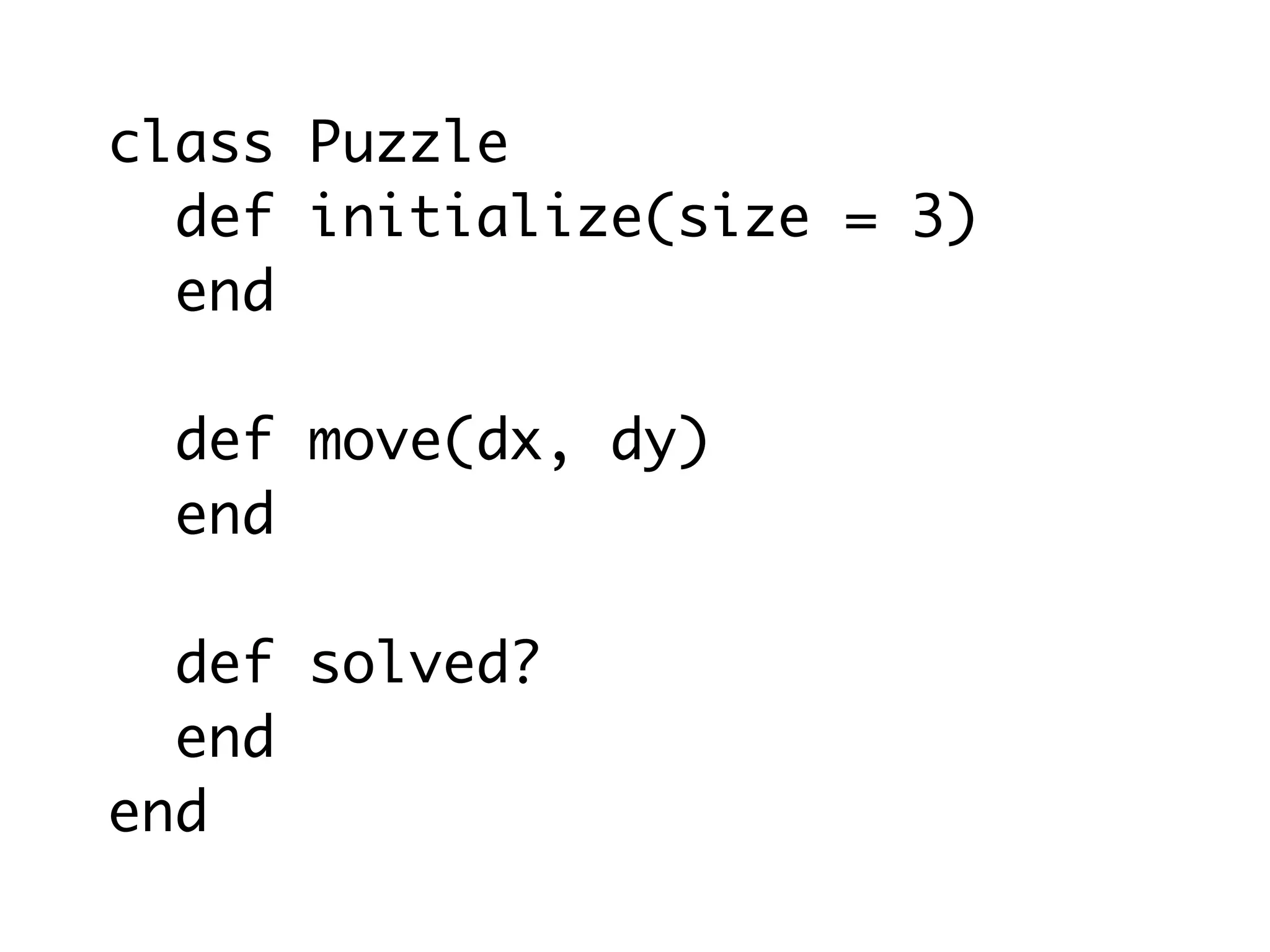

49. class Puzzle
def initialize(size = 3)
end
def move(dx, dy)
end
def solved?
end
end

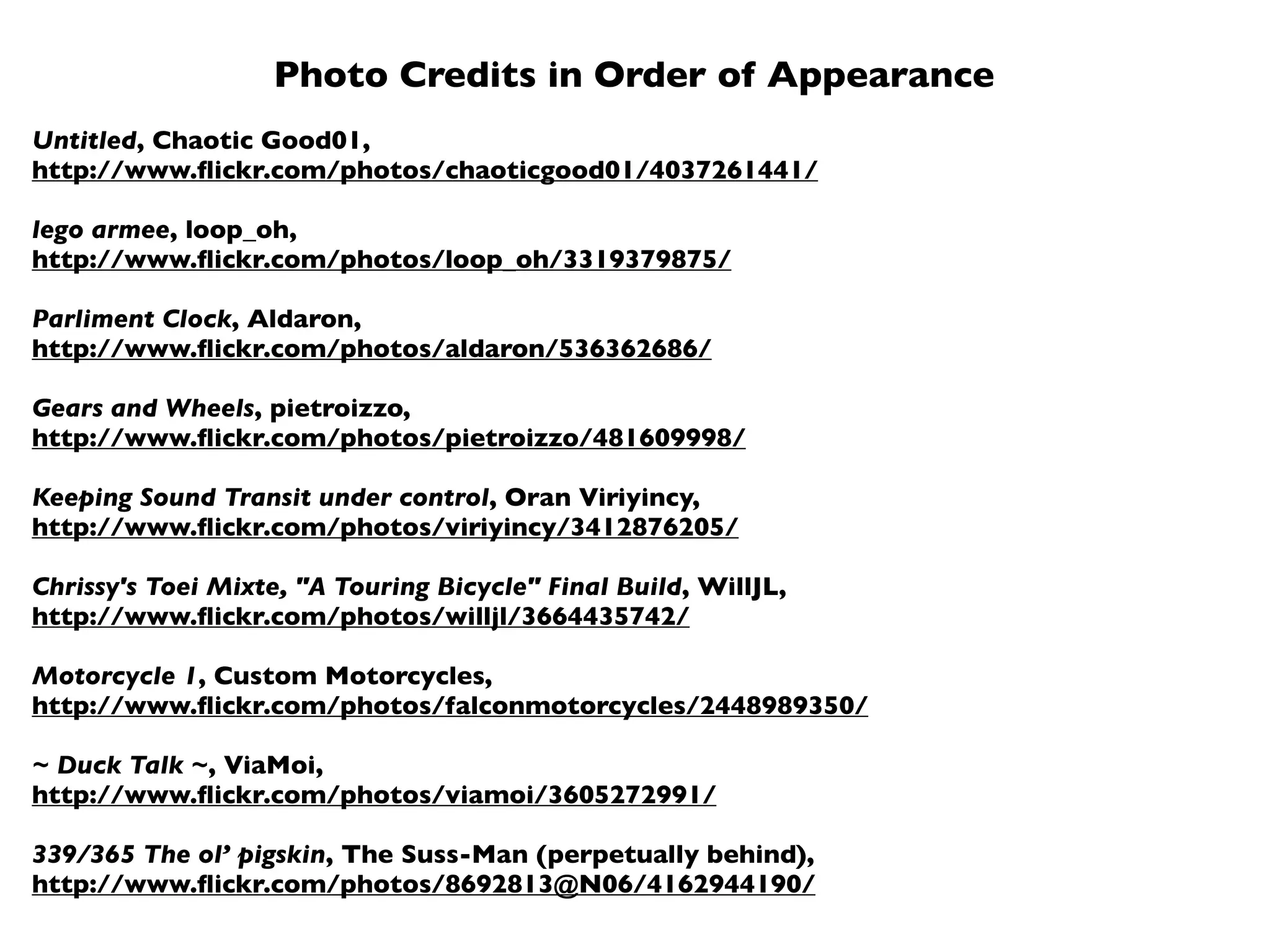

50. Photo Credits in Order of Appearance
