1. Unit - 2

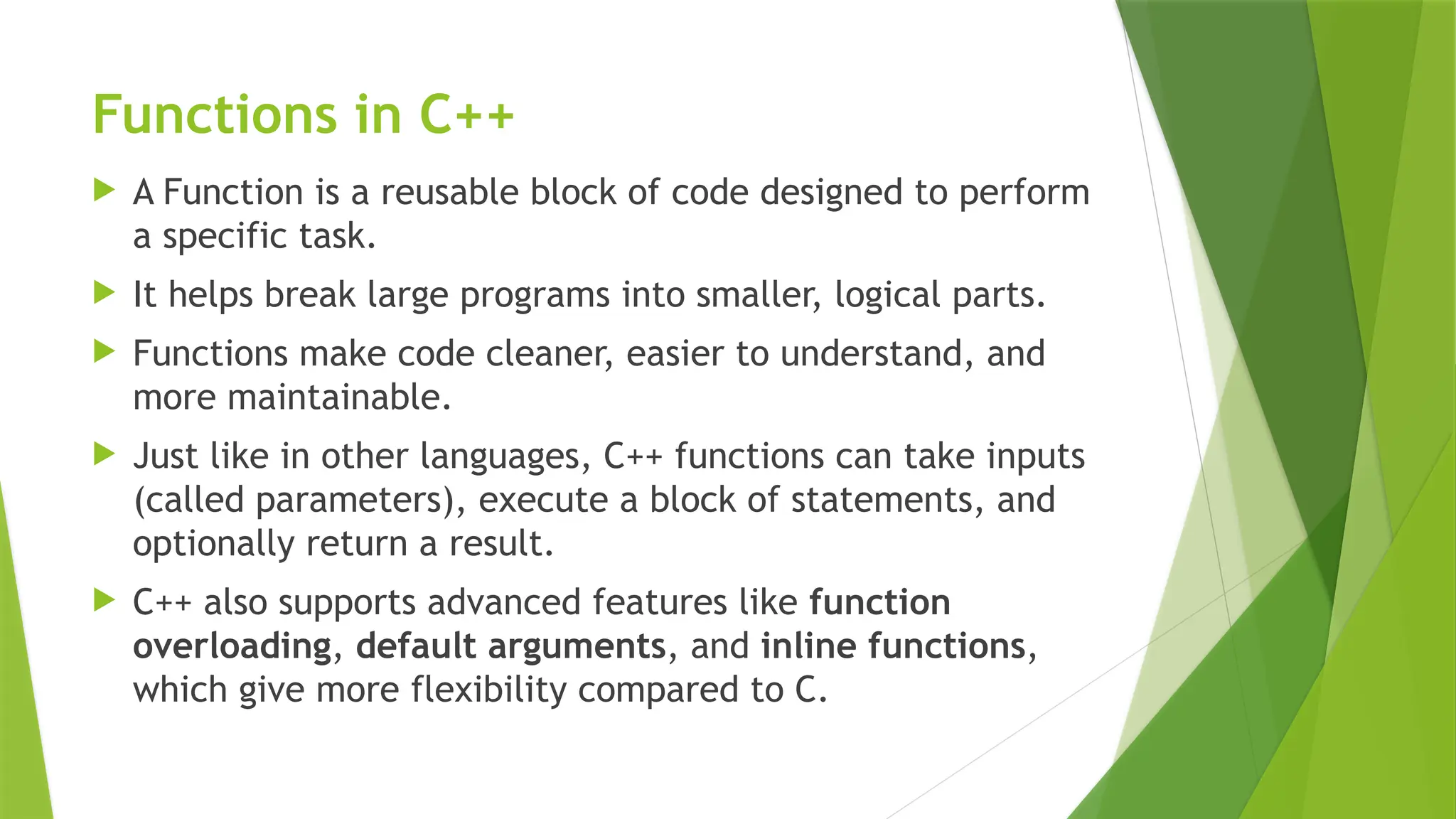

2. Functions in C++
 A Function is a reusable block of code designed to perform
a specific task.
 It helps break large programs into smaller, logical parts.
 Functions make code cleaner, easier to understand, and
more maintainable.
 Just like in other languages, C++ functions can take inputs
(called parameters), execute a block of statements, and
optionally return a result.
 C++ also supports advanced features like function
overloading, default arguments, and inline functions,
which give more flexibility compared to C.

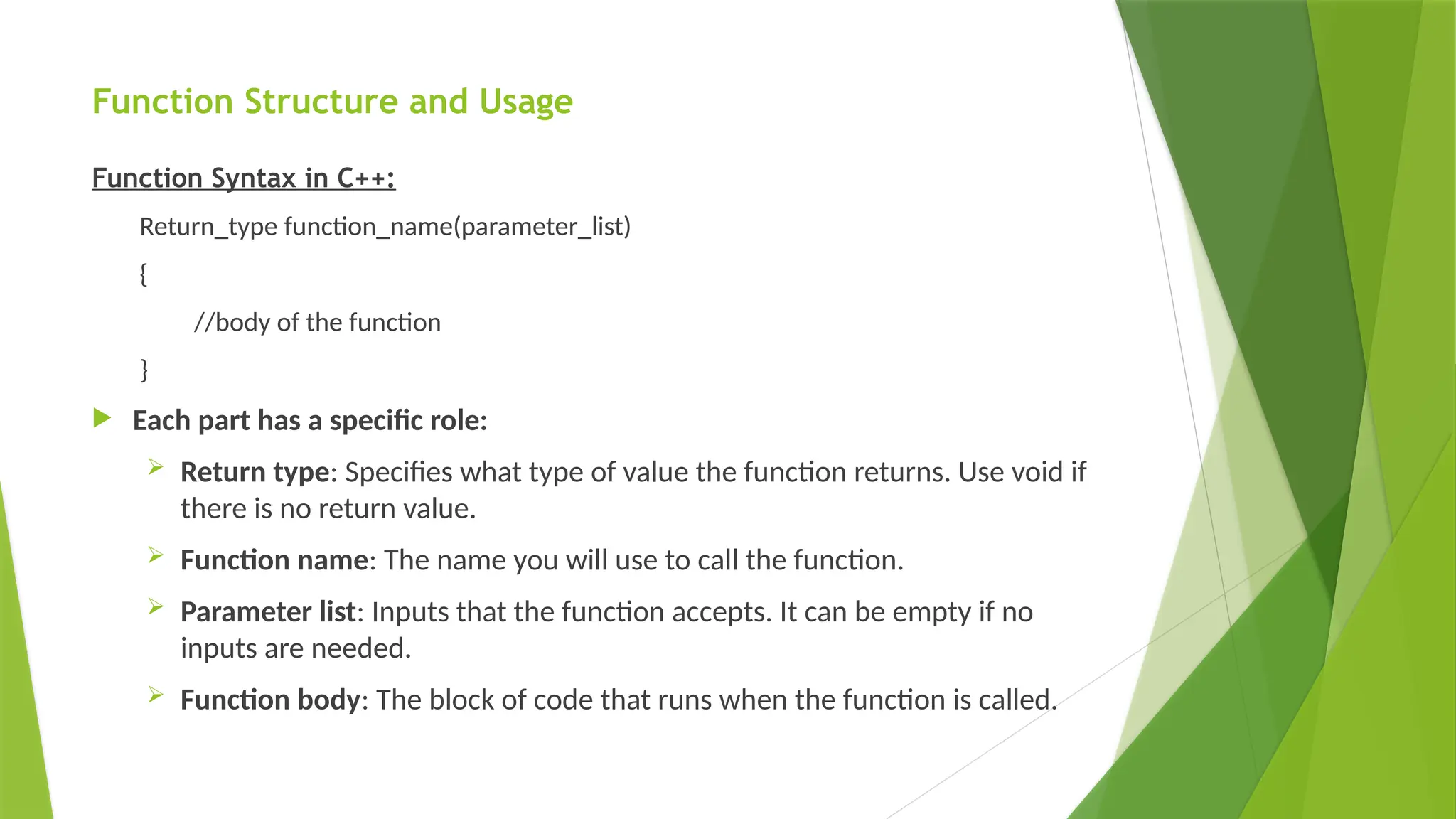

4. Function Structure and Usage
Function Syntax in C++:
Return_type function_name(parameter_list)
{
//body of the function
}
 Each part has a specific role:
 Return type: Specifies what type of value the function returns. Use void if
there is no return value.
 Function name: The name you will use to call the function.
 Parameter list: Inputs that the function accepts. It can be empty if no
inputs are needed.
 Function body: The block of code that runs when the function is called.

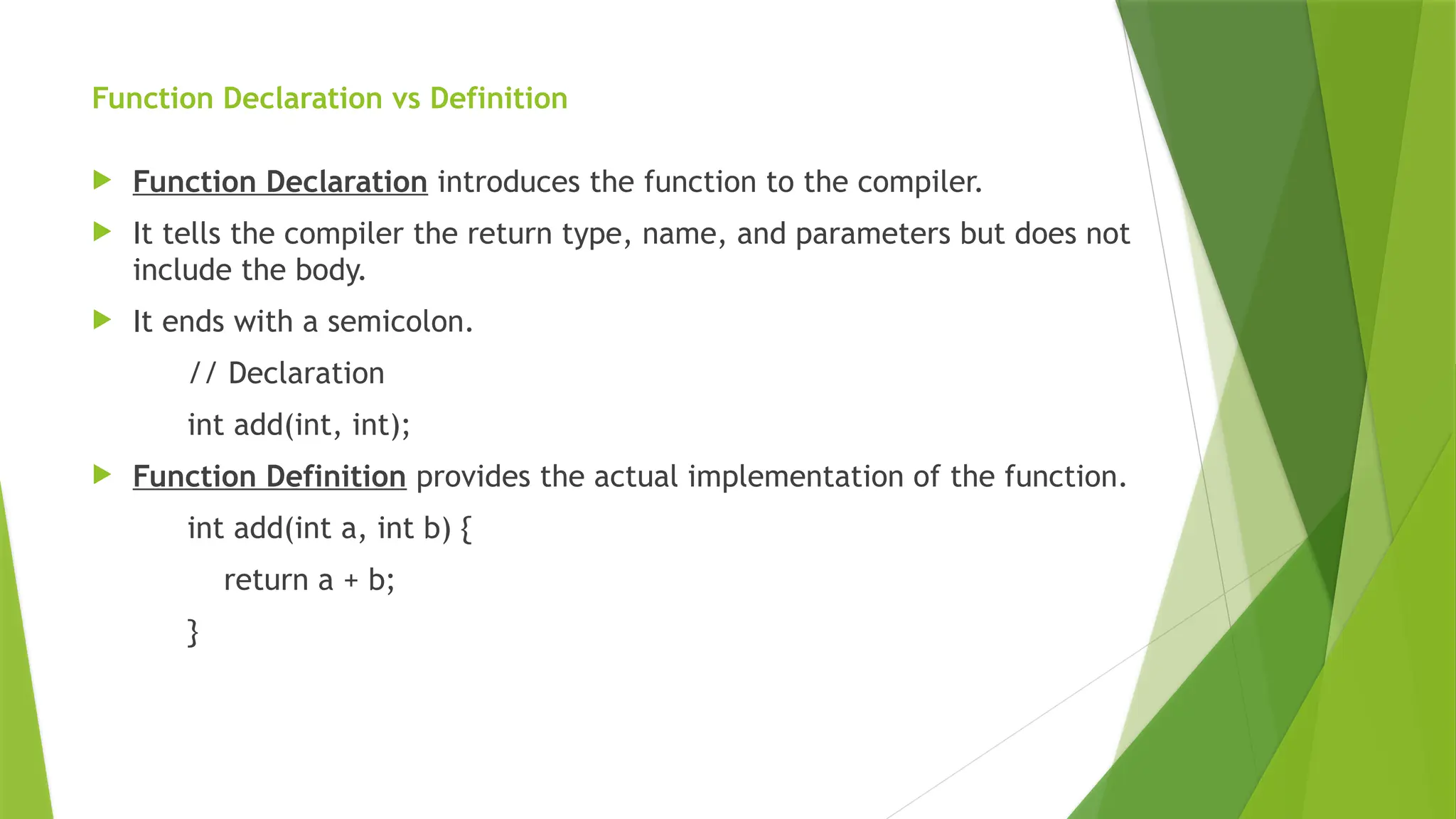

5. Function Declaration vs Definition
 Function Declaration introduces the function to the compiler.
 It tells the compiler the return type, name, and parameters but does not
include the body.
 It ends with a semicolon.
// Declaration
int add(int, int);
 Function Definition provides the actual implementation of the function.
int add(int a, int b) {
return a + b;
}

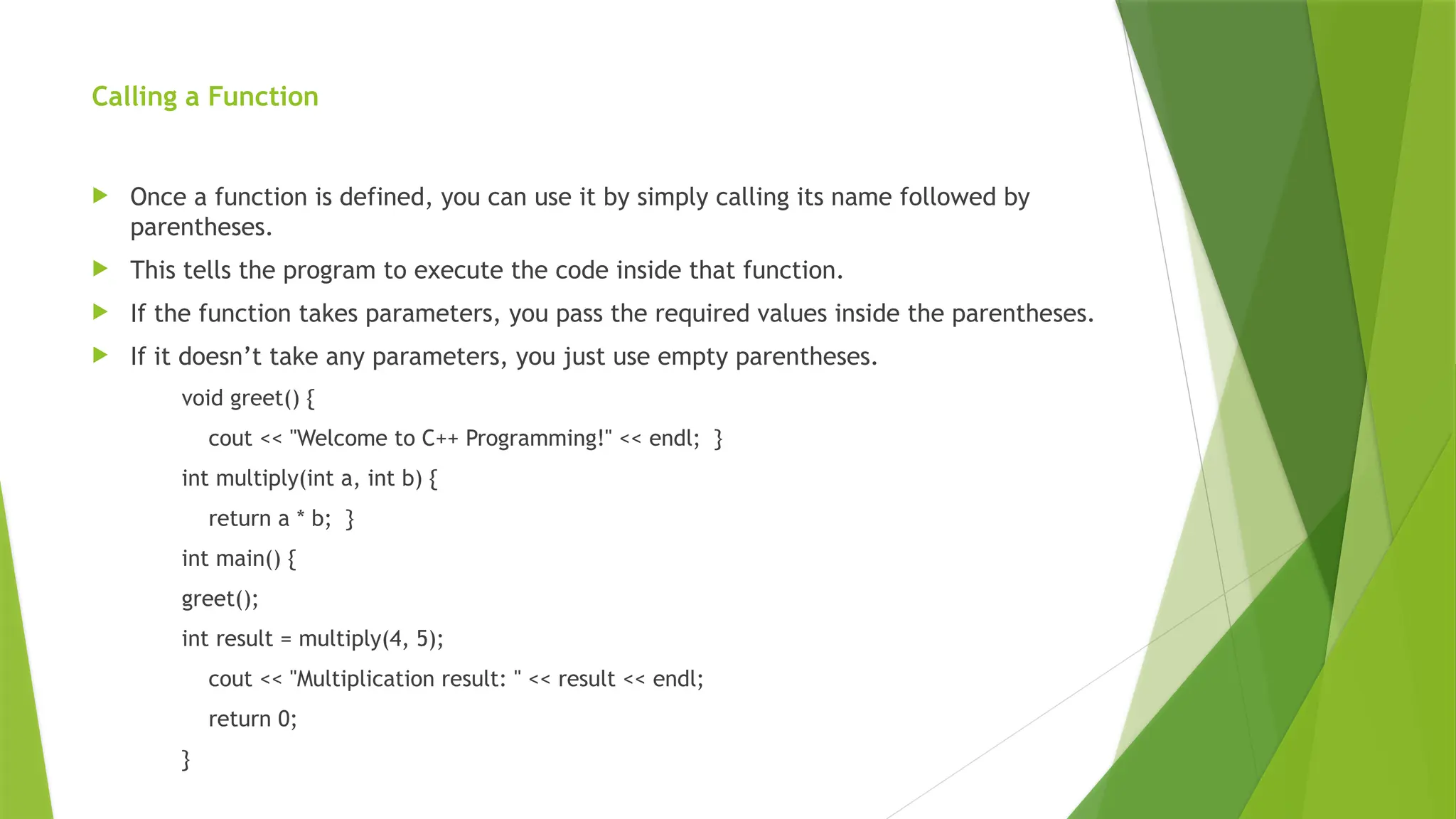

6. Calling a Function
 Once a function is defined, you can use it by simply calling its name followed by
parentheses.
 This tells the program to execute the code inside that function.
 If the function takes parameters, you pass the required values inside the parentheses.
 If it doesn’t take any parameters, you just use empty parentheses.
void greet() {
cout << "Welcome to C++ Programming!" << endl; }
int multiply(int a, int b) {
return a * b; }
int main() {
greet();
int result = multiply(4, 5);
cout << "Multiplication result: " << result << endl;
return 0;
}

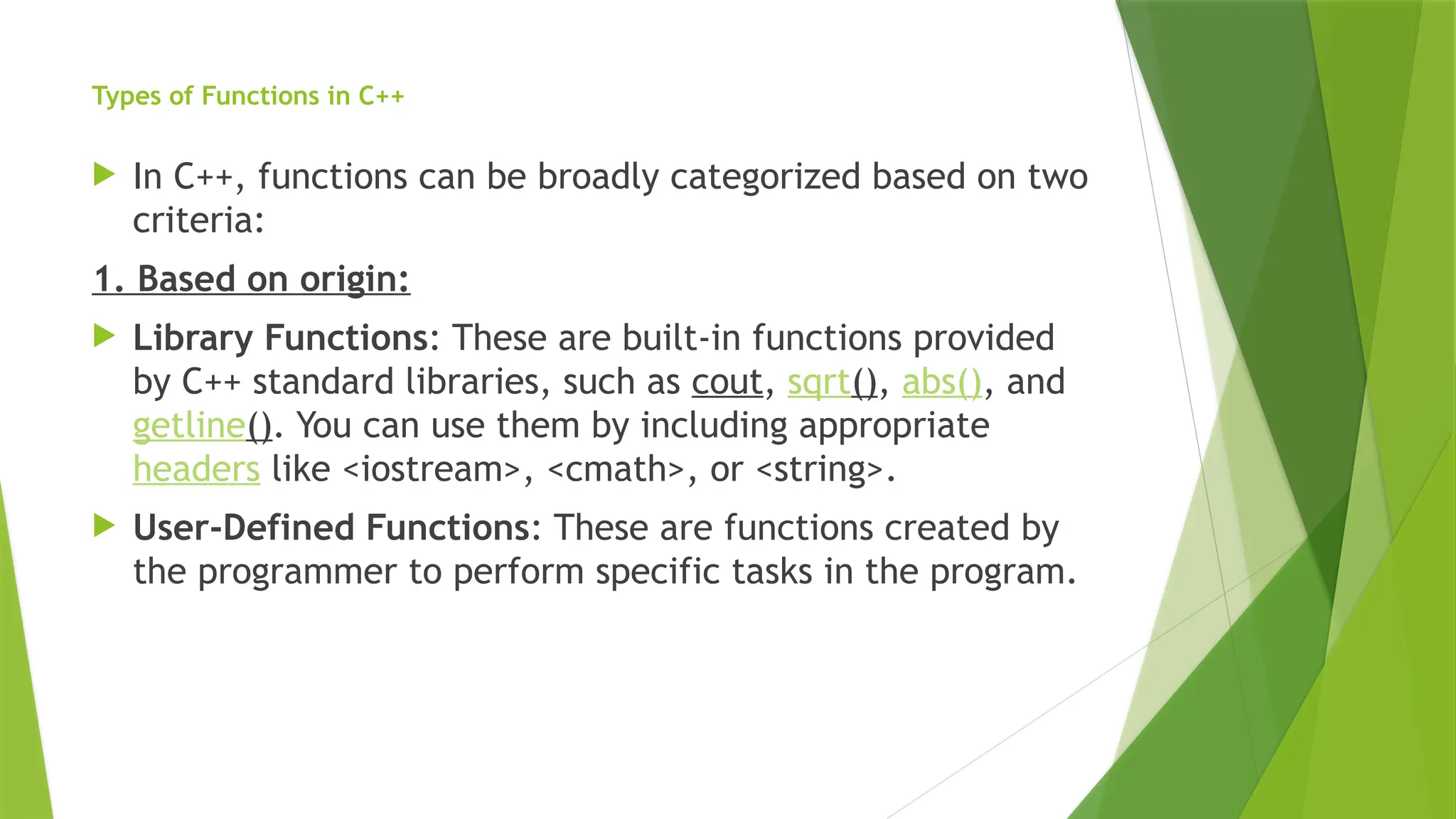

7. Types of Functions in C++
 In C++, functions can be broadly categorized based on two
criteria:
1. Based on origin:
 Library Functions: These are built-in functions provided
by C++ standard libraries, such as cout, sqrt(), abs(), and
getline(). You can use them by including appropriate
headers like <iostream>, <cmath>, or <string>.
 User-Defined Functions: These are functions created by
the programmer to perform specific tasks in the program.

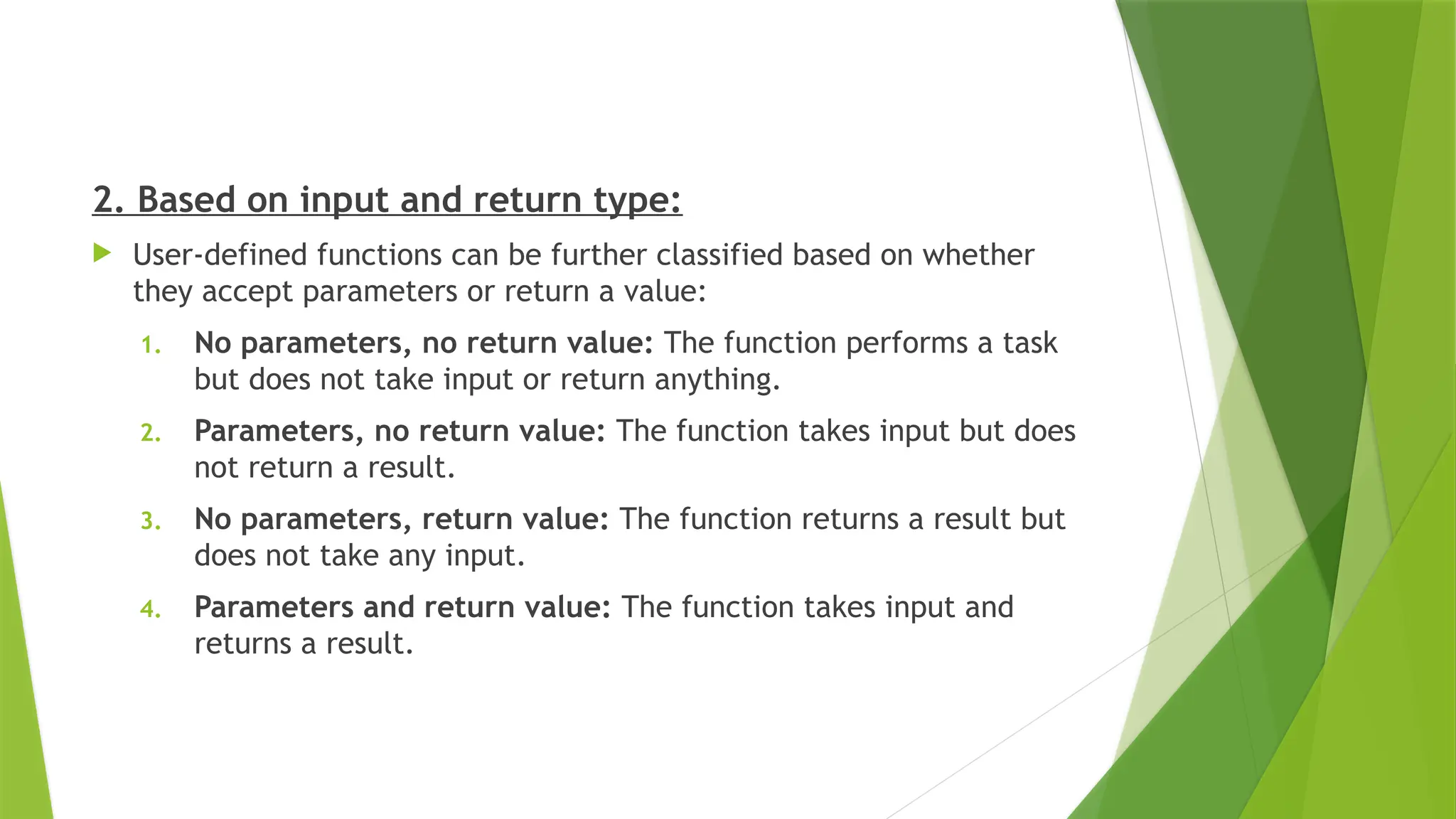

8. 2. Based on input and return type:
 User-defined functions can be further classified based on whether
they accept parameters or return a value:
1. No parameters, no return value: The function performs a task
but does not take input or return anything.
2. Parameters, no return value: The function takes input but does
not return a result.
3. No parameters, return value: The function returns a result but
does not take any input.
4. Parameters and return value: The function takes input and
returns a result.

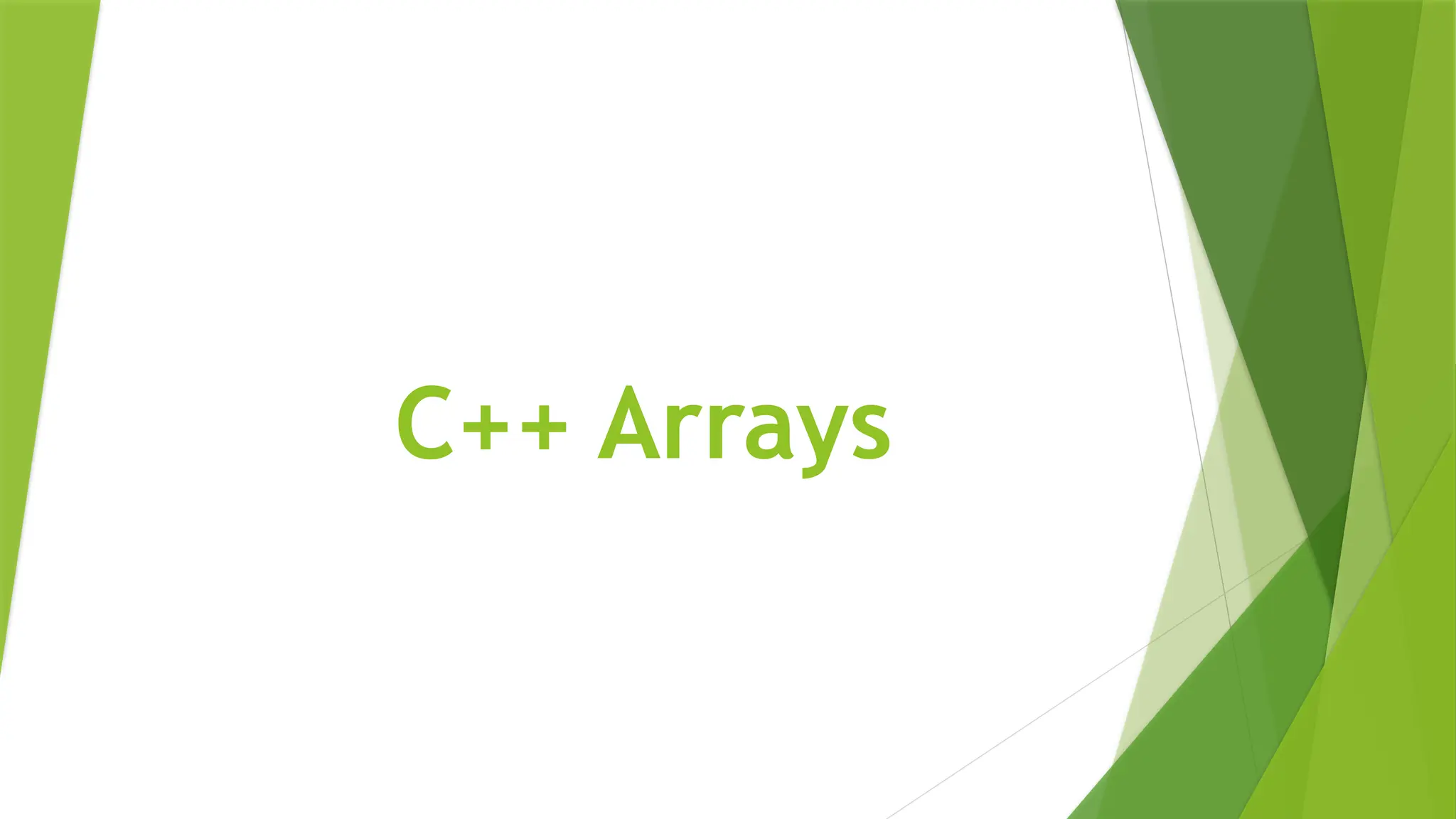

9. C++ Arrays

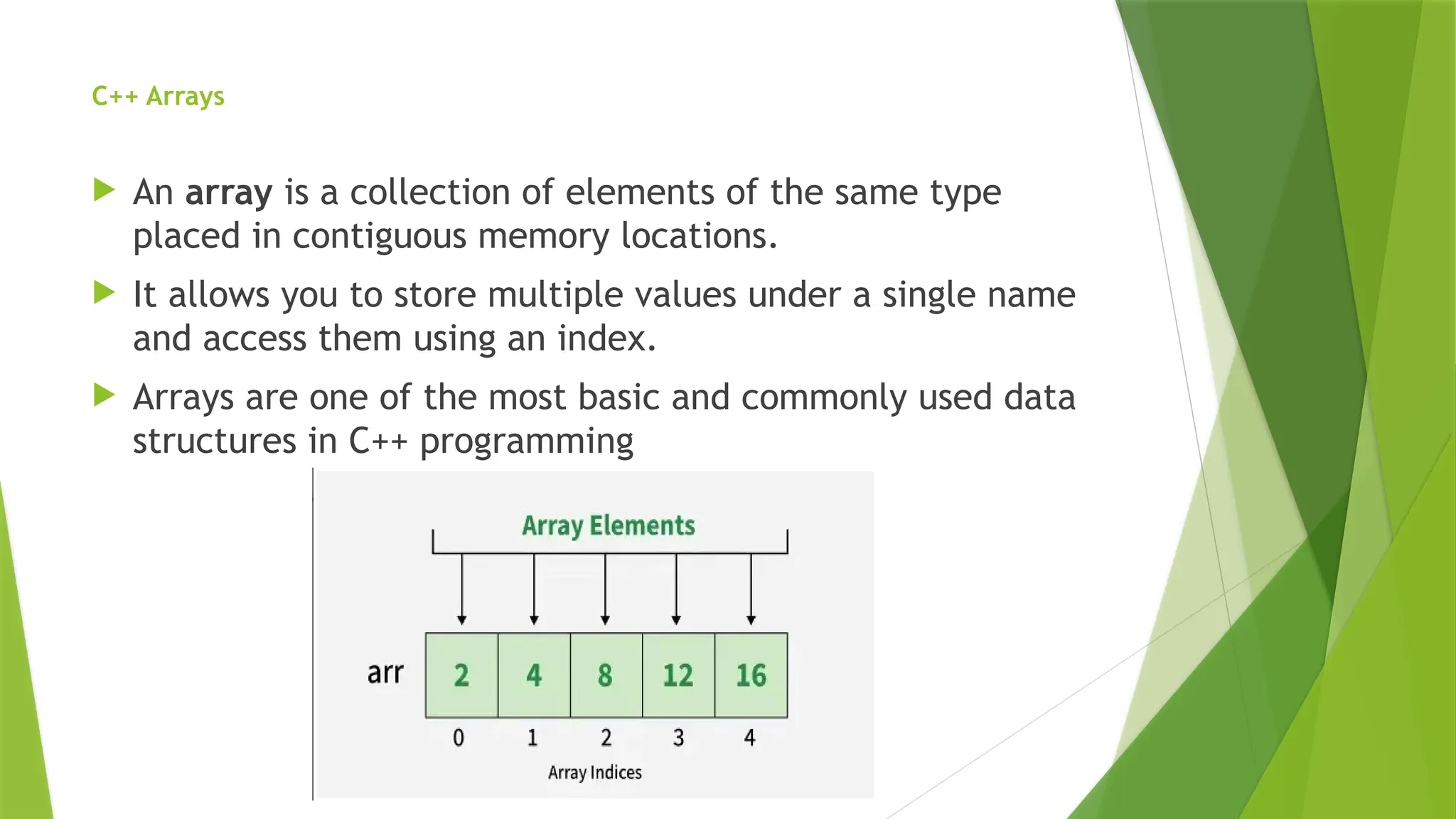

10. C++ Arrays
 An array is a collection of elements of the same type
placed in contiguous memory locations.
 It allows you to store multiple values under a single name
and access them using an index.
 Arrays are one of the most basic and commonly used data
structures in C++ programming

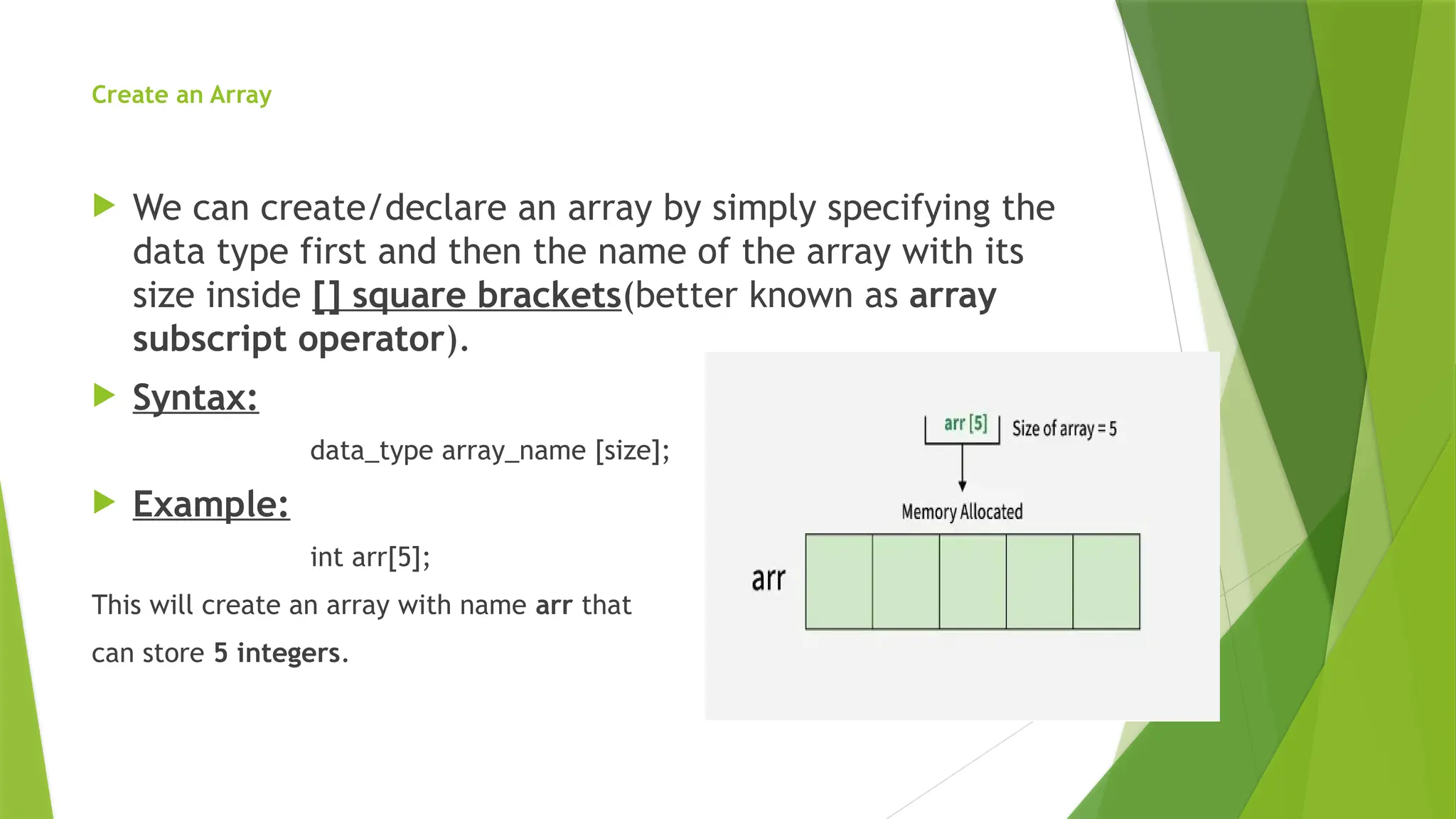

11. Create an Array
 We can create/declare an array by simply specifying the
data type first and then the name of the array with its
size inside [] square brackets(better known as array
subscript operator).
 Syntax:
data_type array_name [size];
 Example:
int arr[5];
This will create an array with name arr that
can store 5 integers.

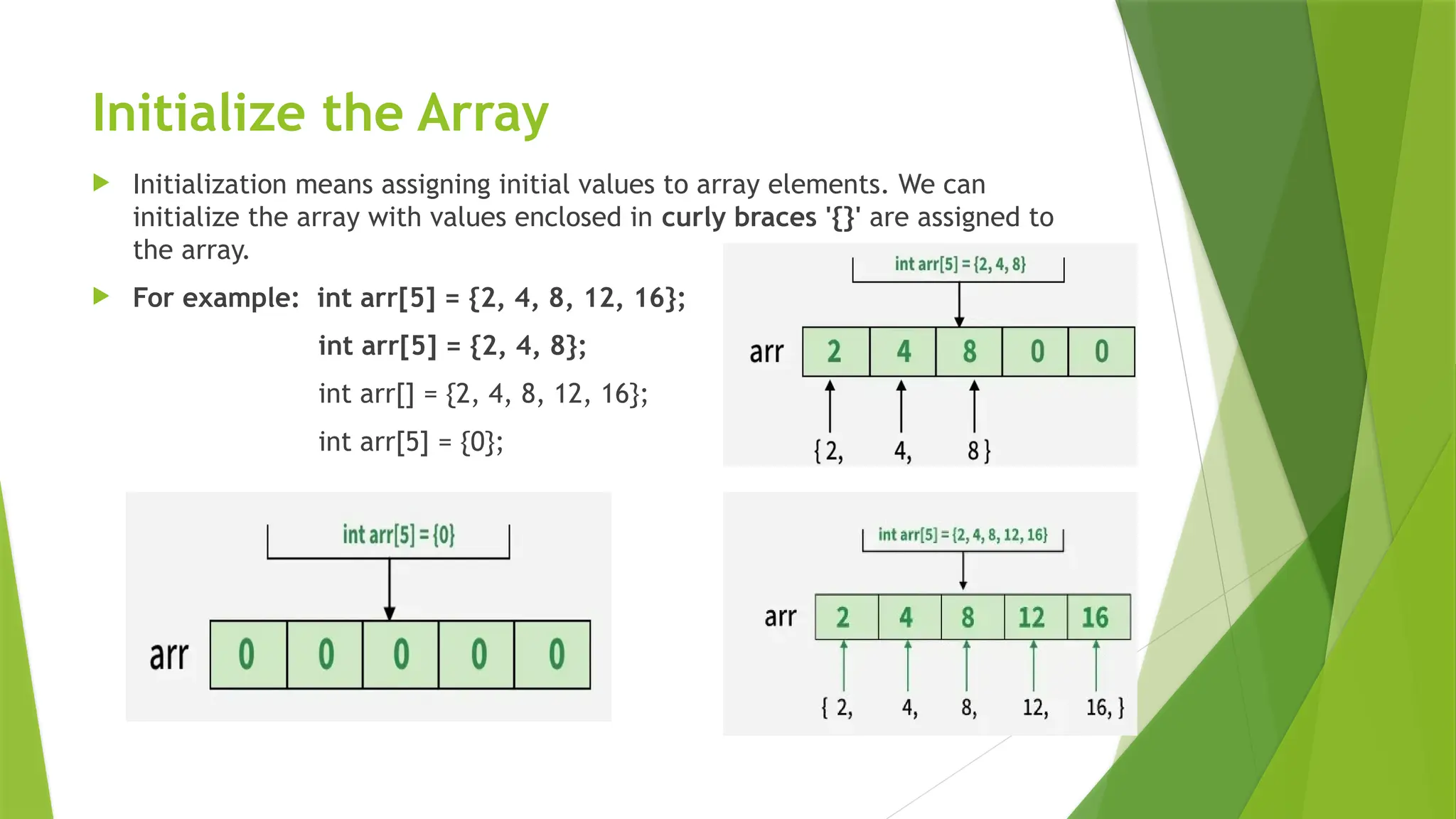

12. Initialize the Array
 Initialization means assigning initial values to array elements. We can
initialize the array with values enclosed in curly braces '{}' are assigned to
the array.
 For example: int arr[5] = {2, 4, 8, 12, 16};
int arr[5] = {2, 4, 8};
int arr[] = {2, 4, 8, 12, 16};
int arr[5] = {0};

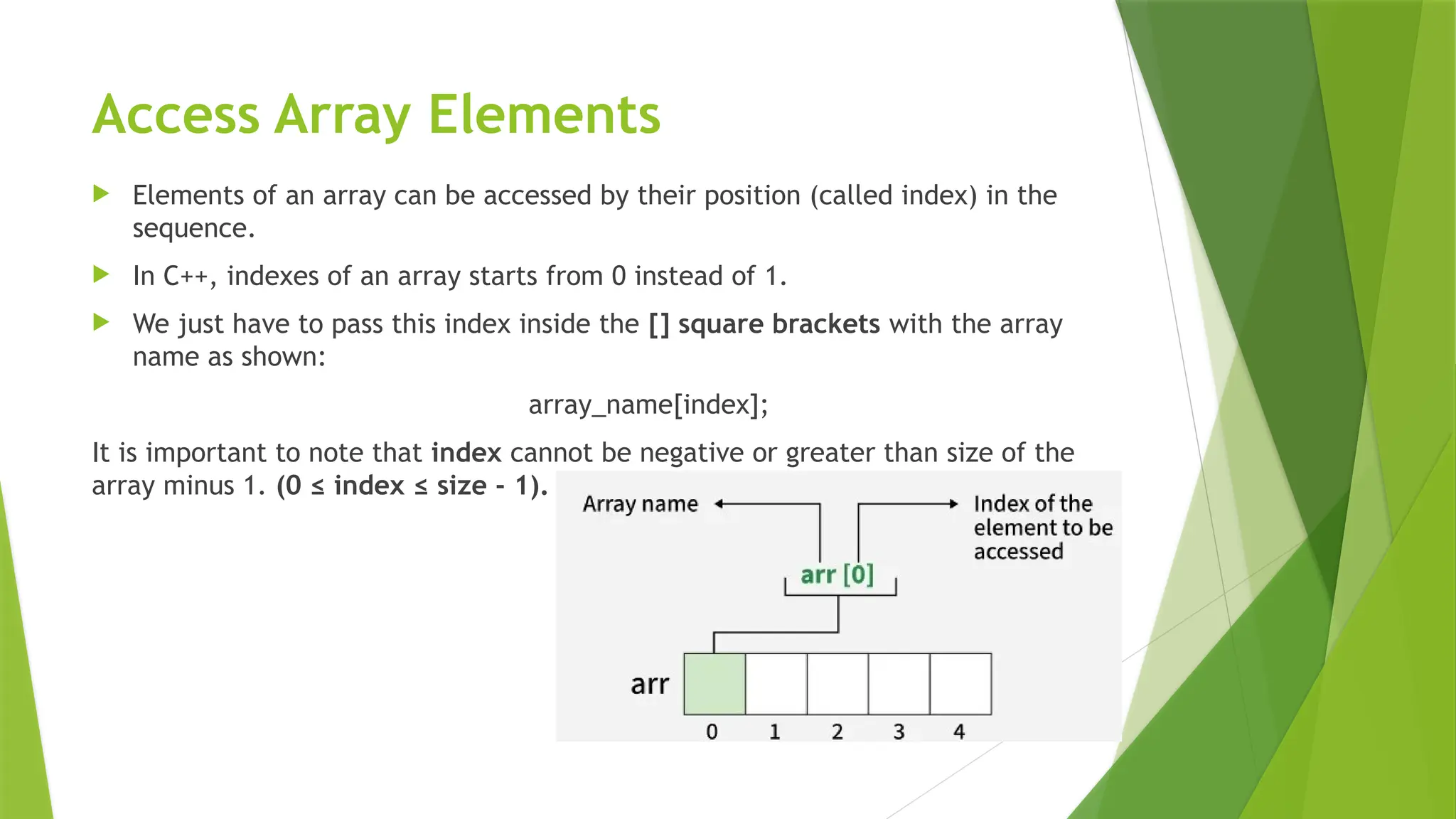

13. Access Array Elements
 Elements of an array can be accessed by their position (called index) in the
sequence.
 In C++, indexes of an array starts from 0 instead of 1.
 We just have to pass this index inside the [] square brackets with the array
name as shown:
array_name[index];
It is important to note that index cannot be negative or greater than size of the
array minus 1. (0 ≤ index ≤ size - 1).

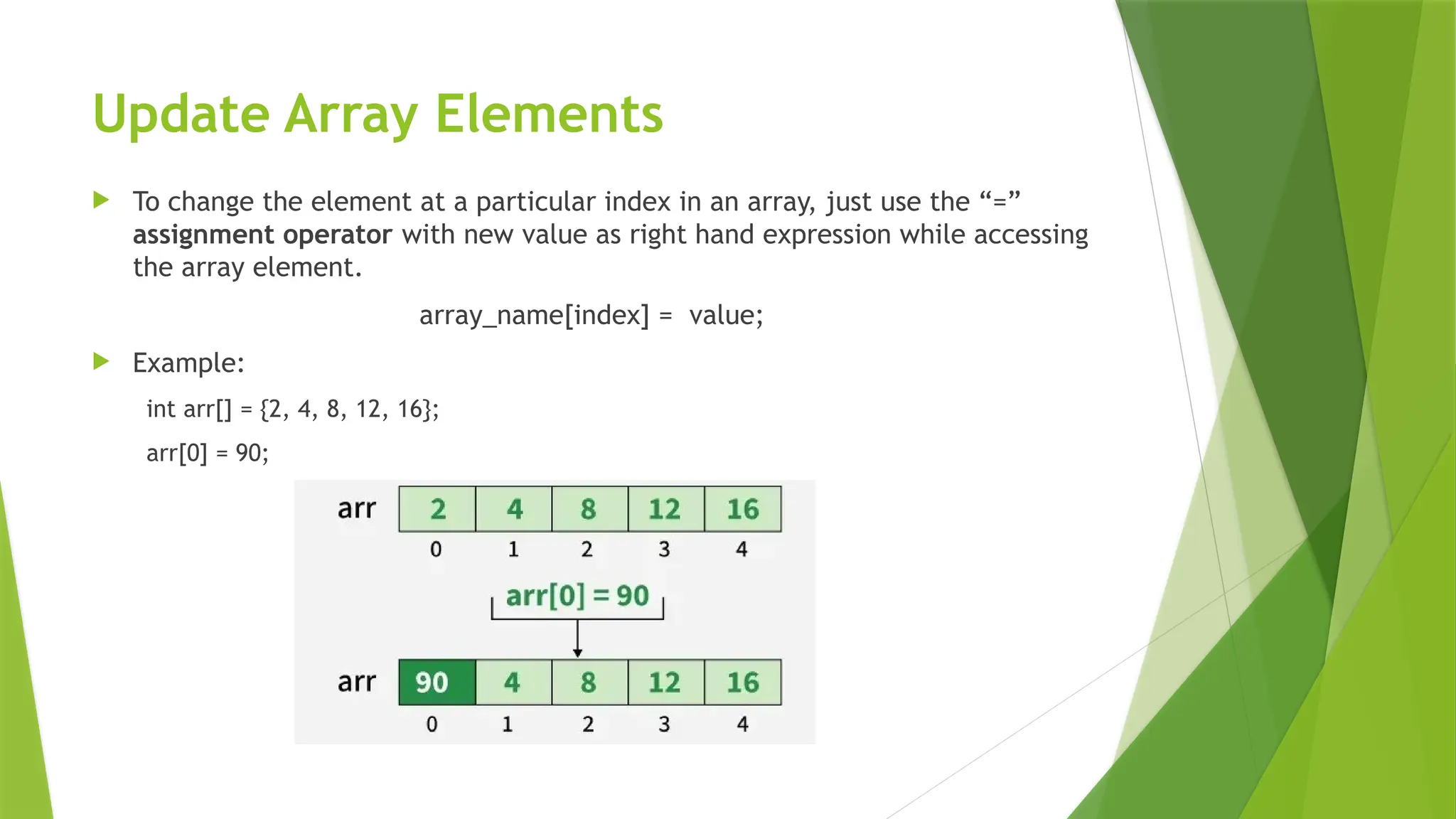

14. Update Array Elements
 To change the element at a particular index in an array, just use the “=”
assignment operator with new value as right hand expression while accessing
the array element.
array_name[index] = value;
 Example:
int arr[] = {2, 4, 8, 12, 16};
arr[0] = 90;

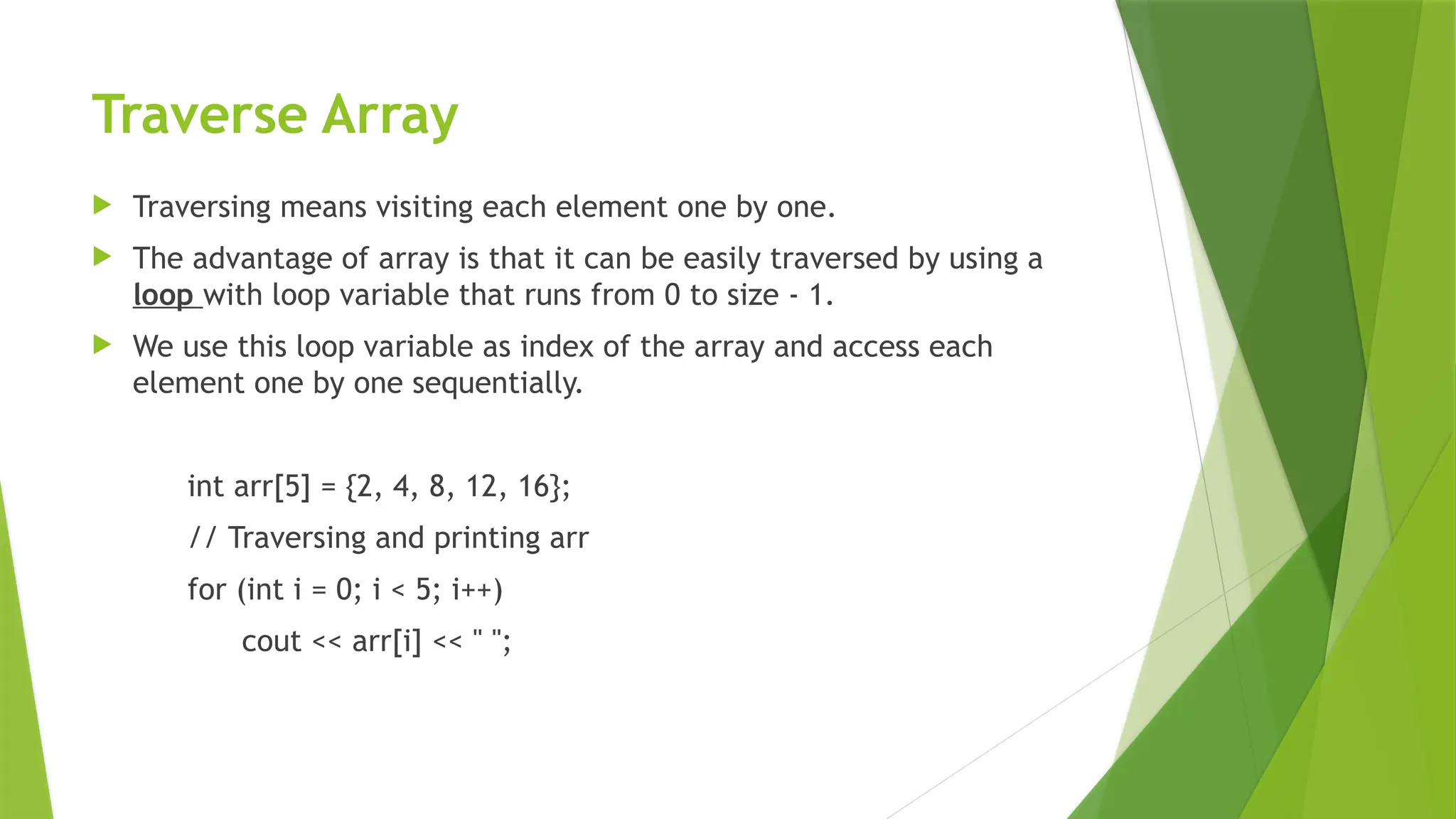

15. Traverse Array
 Traversing means visiting each element one by one.
 The advantage of array is that it can be easily traversed by using a
loop with loop variable that runs from 0 to size - 1.
 We use this loop variable as index of the array and access each
element one by one sequentially.
int arr[5] = {2, 4, 8, 12, 16};
// Traversing and printing arr
for (int i = 0; i < 5; i++)
cout << arr[i] << " ";

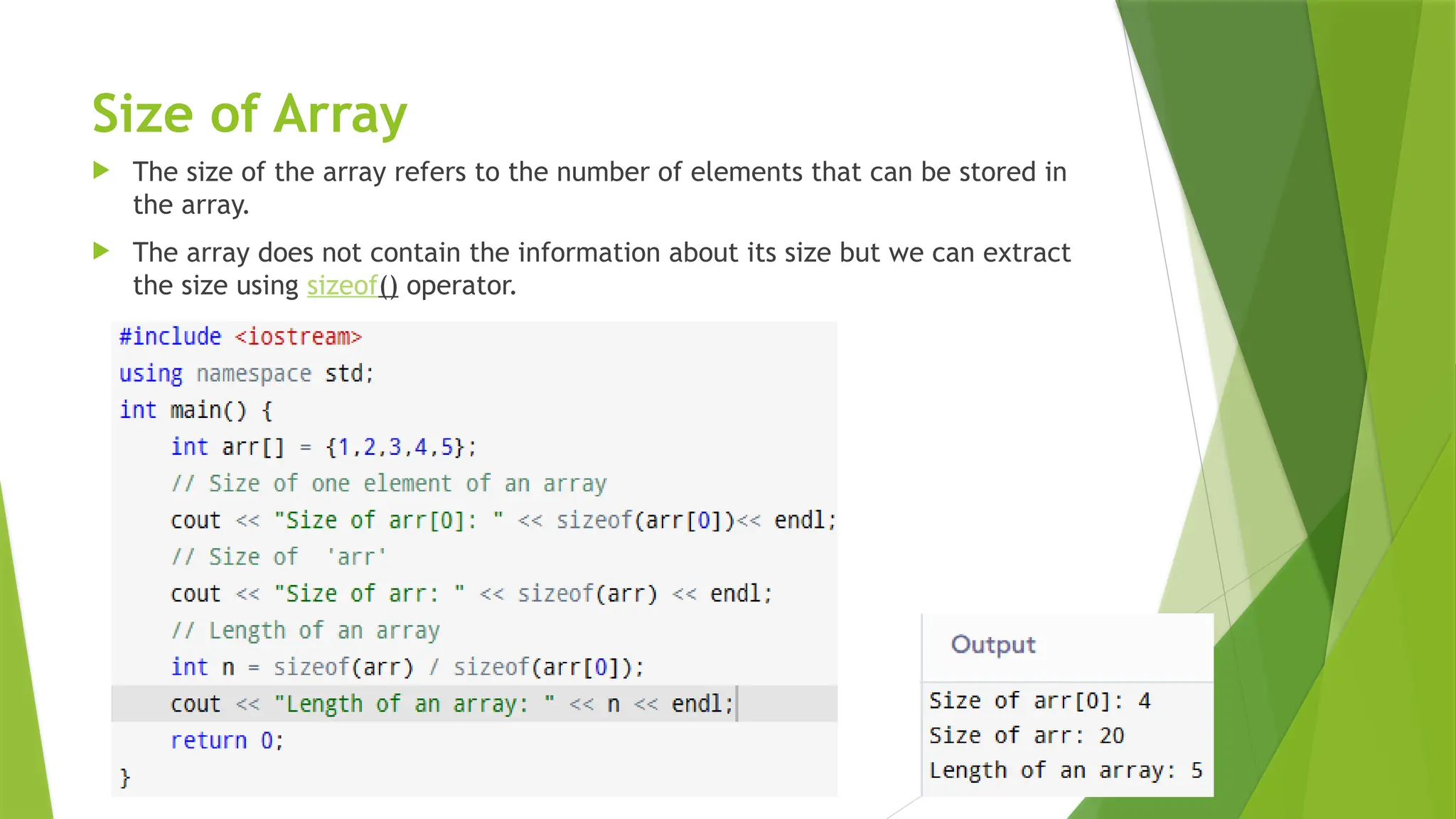

16. Size of Array
 The size of the array refers to the number of elements that can be stored in
the array.
 The array does not contain the information about its size but we can extract
the size using sizeof() operator.

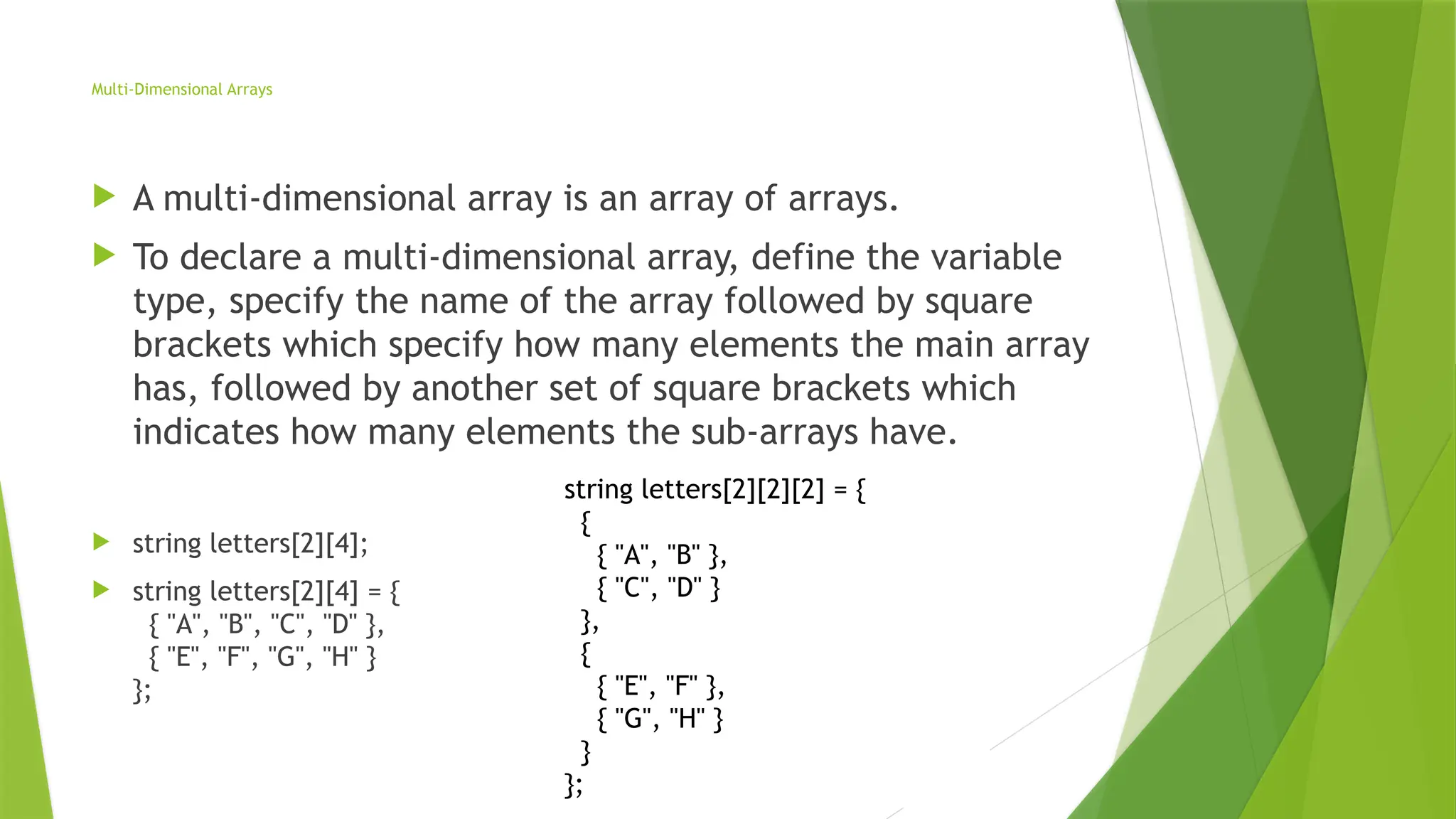

17. string letters[2][2][2] = {
{
{ "A", "B" },
{ "C", "D" }
},
{
{ "E", "F" },
{ "G", "H" }
}
};
Multi-Dimensional Arrays
 A multi-dimensional array is an array of arrays.
 To declare a multi-dimensional array, define the variable
type, specify the name of the array followed by square
brackets which specify how many elements the main array
has, followed by another set of square brackets which
indicates how many elements the sub-arrays have.
 string letters[2][4];
 string letters[2][4] = {
{ "A", "B", "C", "D" },
{ "E", "F", "G", "H" }
};

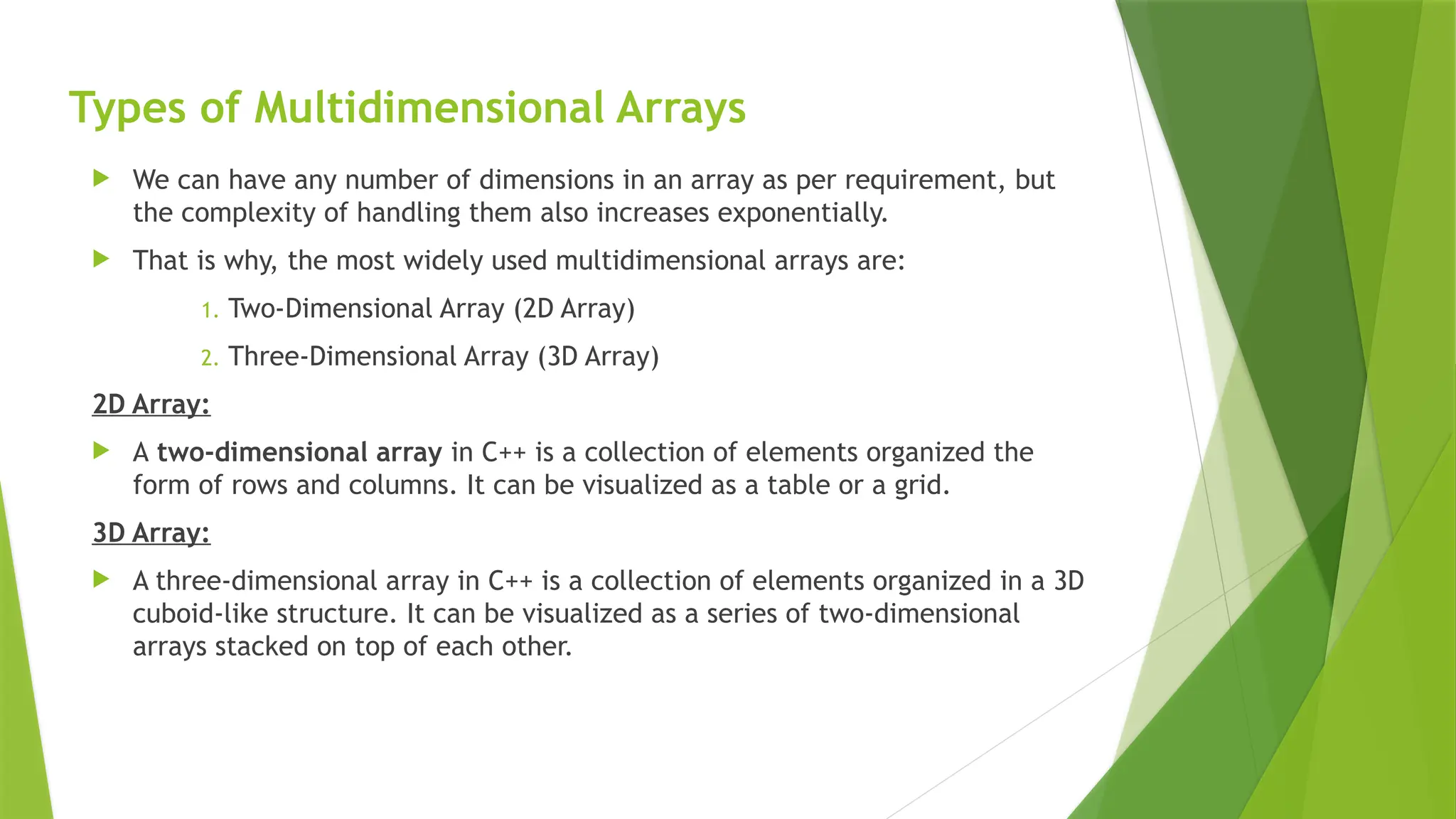

18. Types of Multidimensional Arrays
 We can have any number of dimensions in an array as per requirement, but
the complexity of handling them also increases exponentially.
 That is why, the most widely used multidimensional arrays are:
1. Two-Dimensional Array (2D Array)
2. Three-Dimensional Array (3D Array)
2D Array:
 A two-dimensional array in C++ is a collection of elements organized the
form of rows and columns. It can be visualized as a table or a grid.
3D Array:
 A three-dimensional array in C++ is a collection of elements organized in a 3D
cuboid-like structure. It can be visualized as a series of two-dimensional
arrays stacked on top of each other.

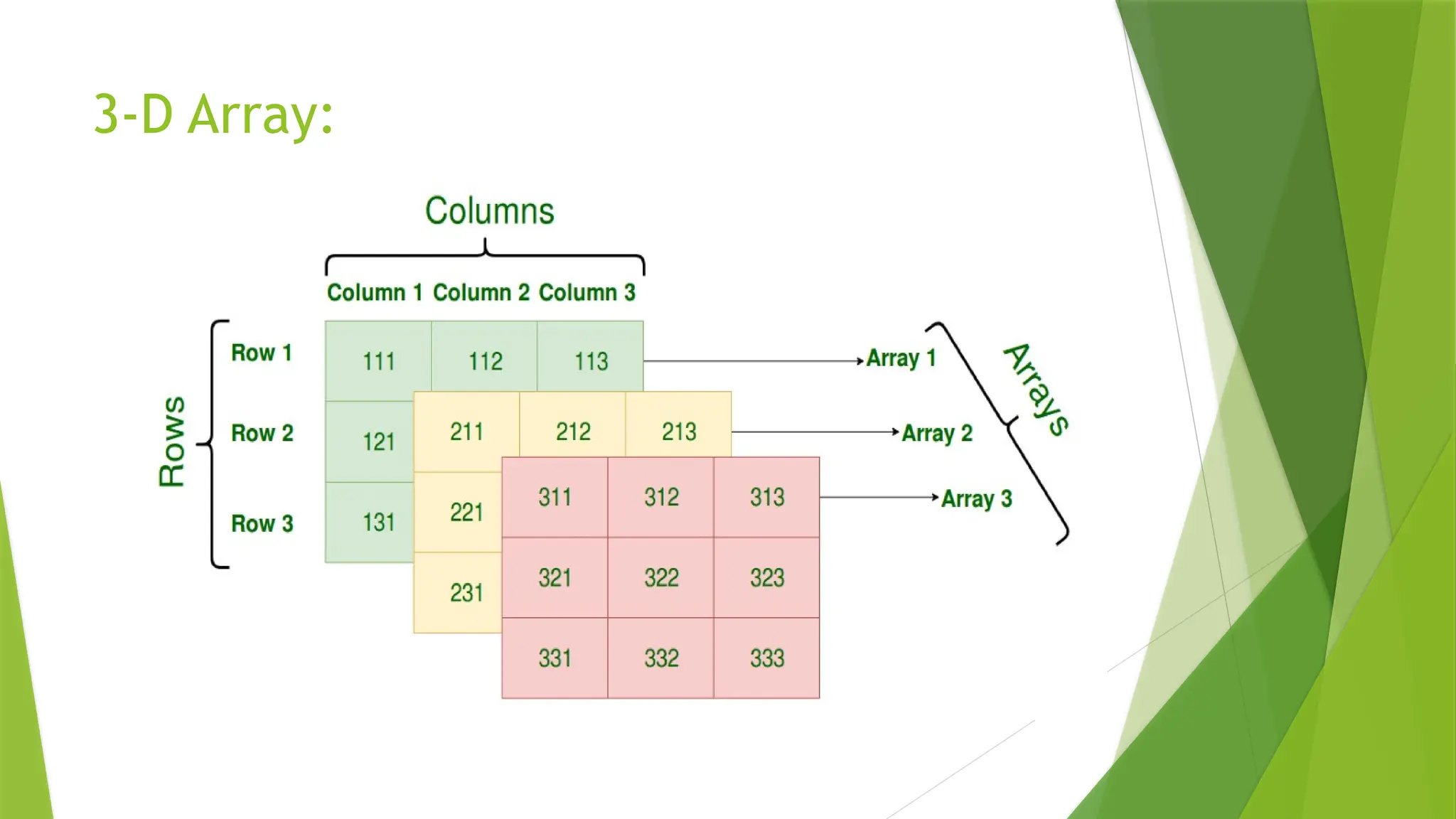

19. 3-D Array:

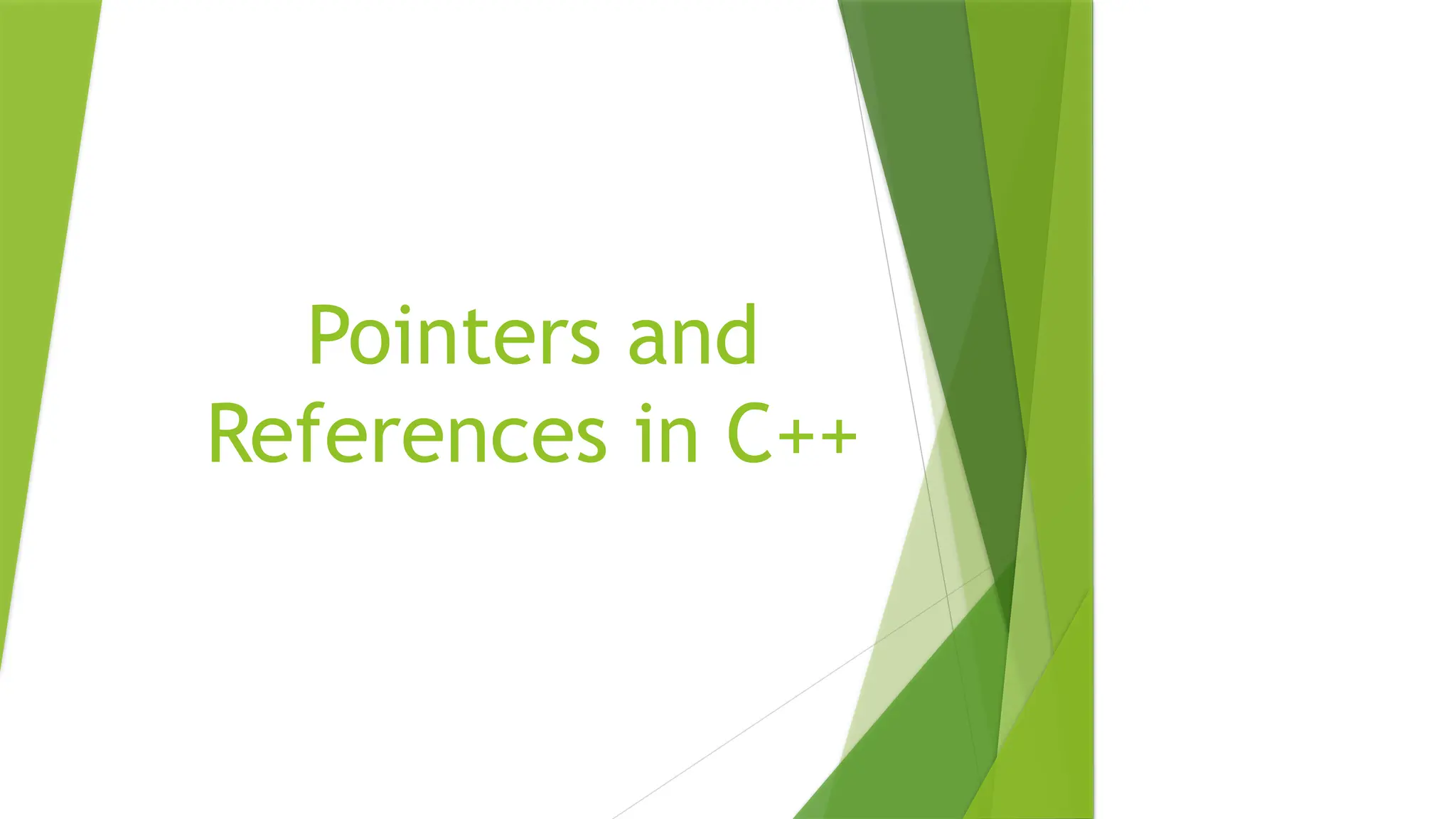

20. Pointers and
References in C++

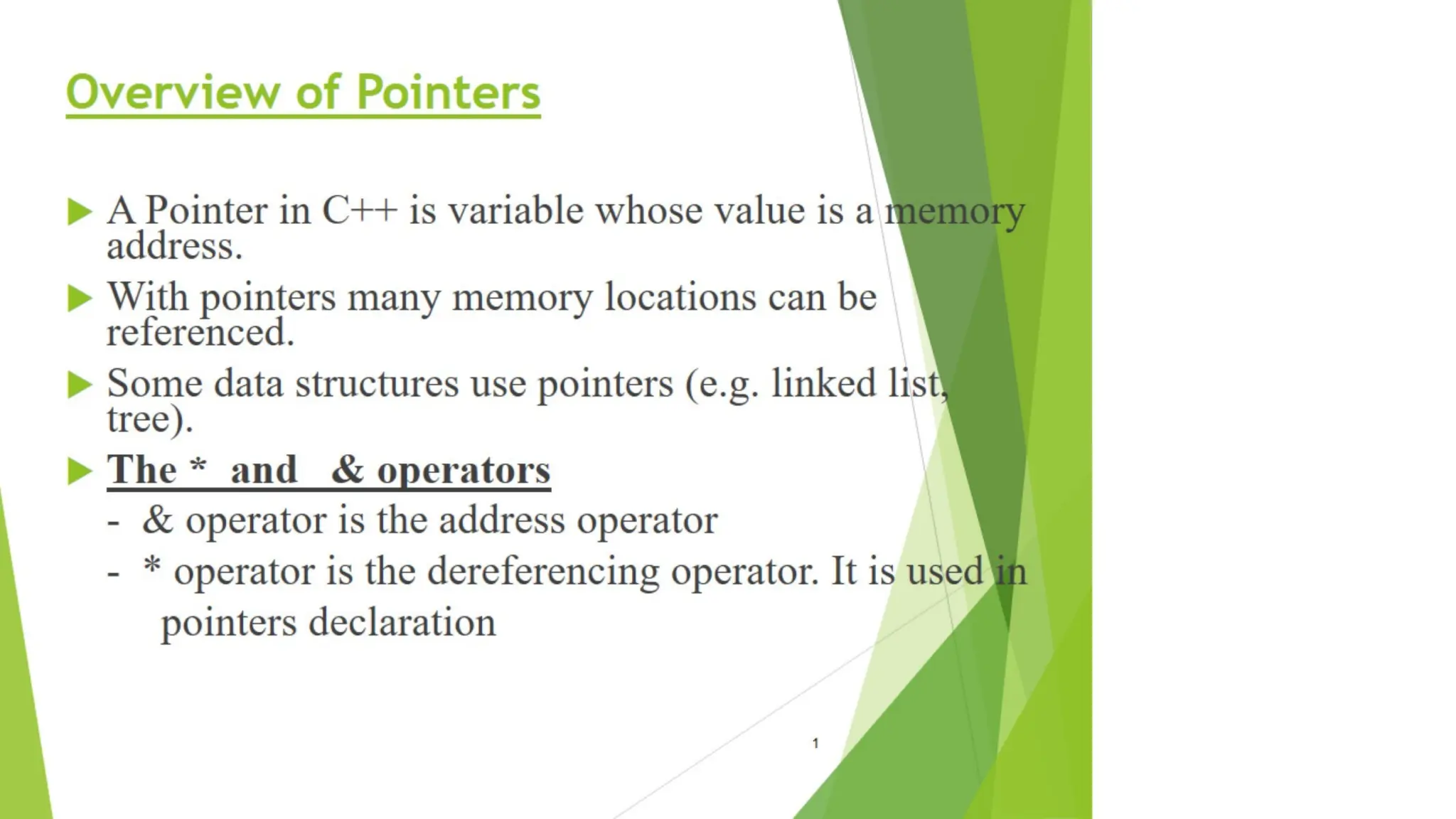

21. Overview of Pointers

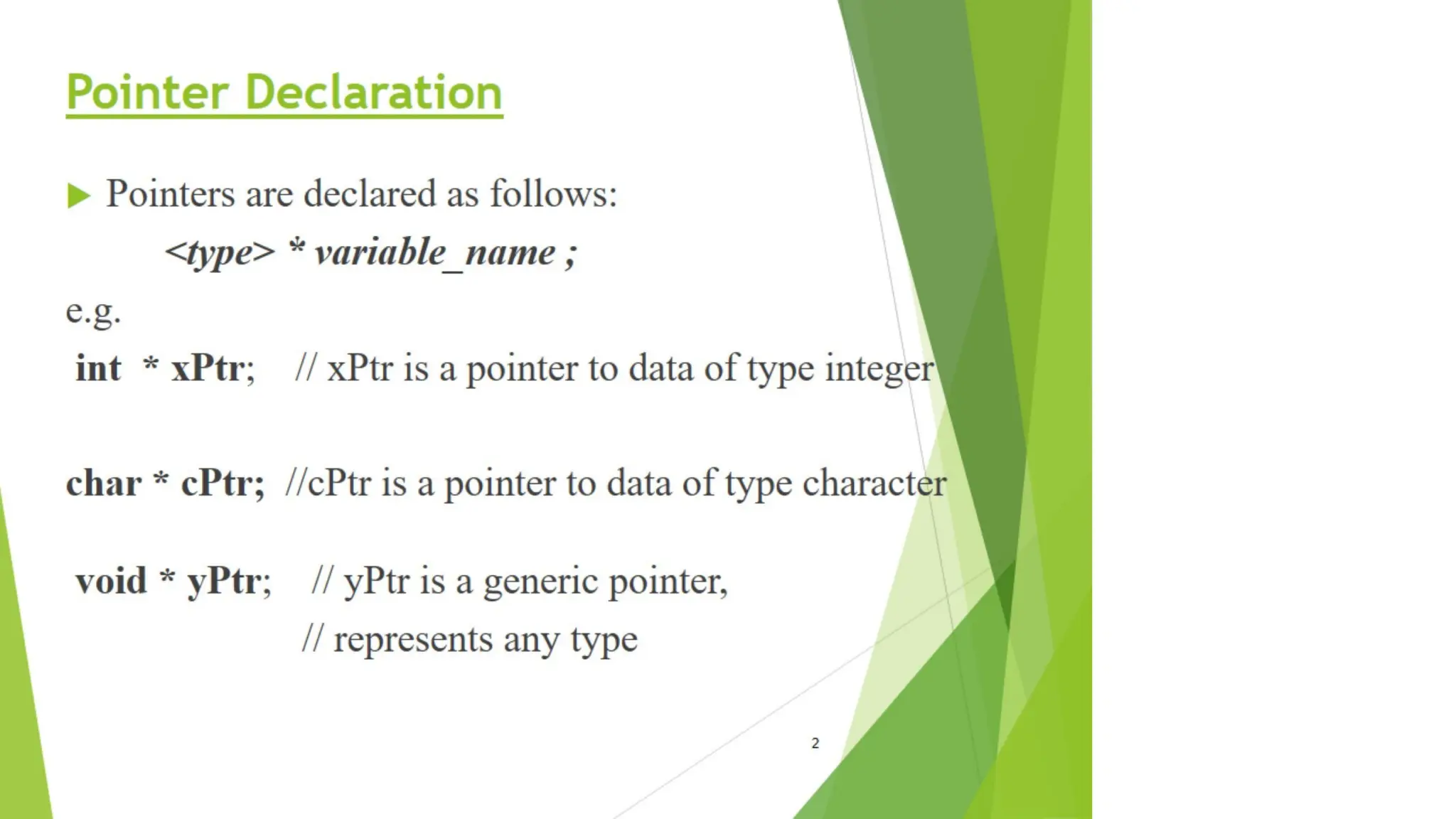

22. Pointer Declaration

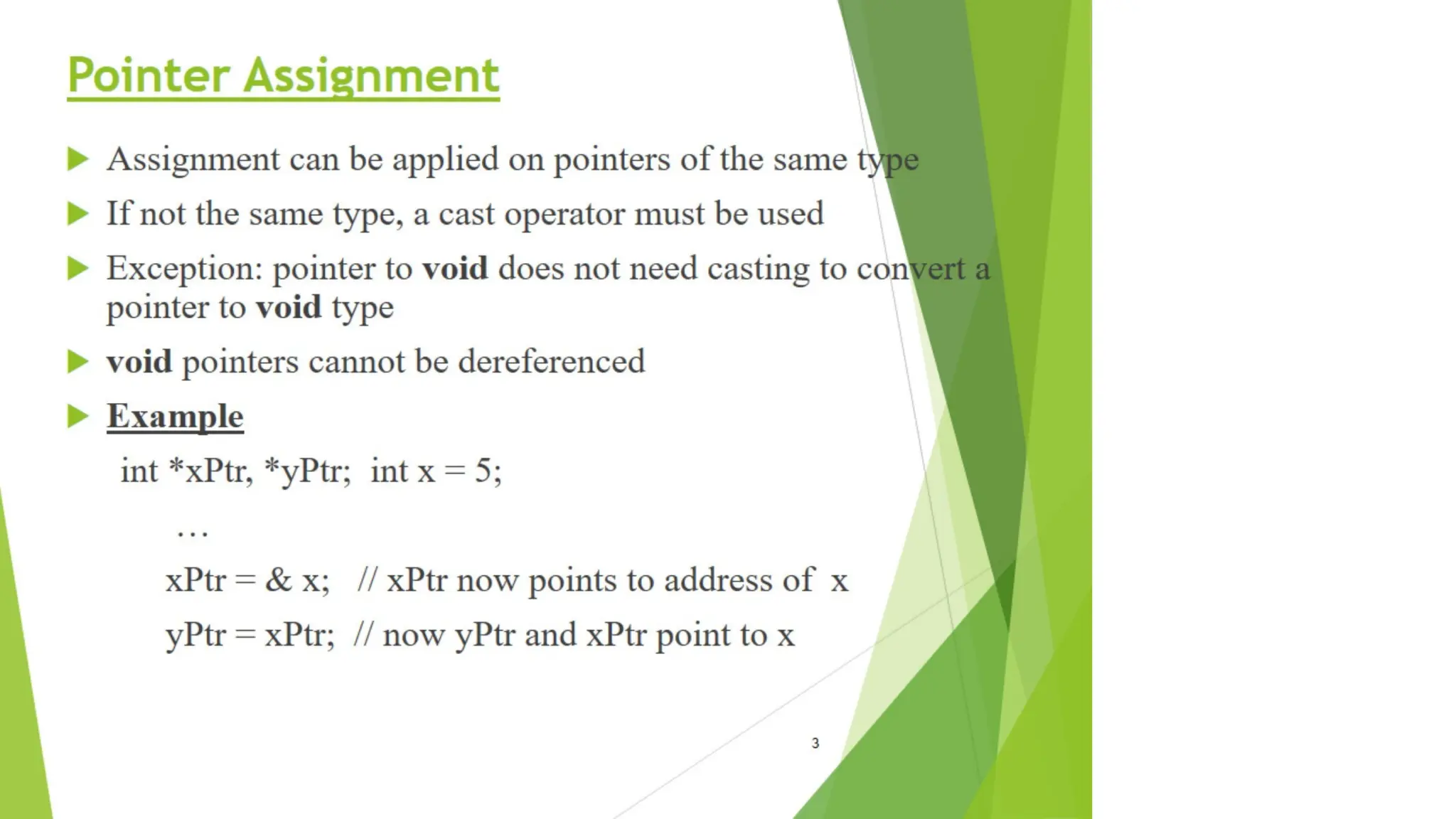

23. Pointer Assignment

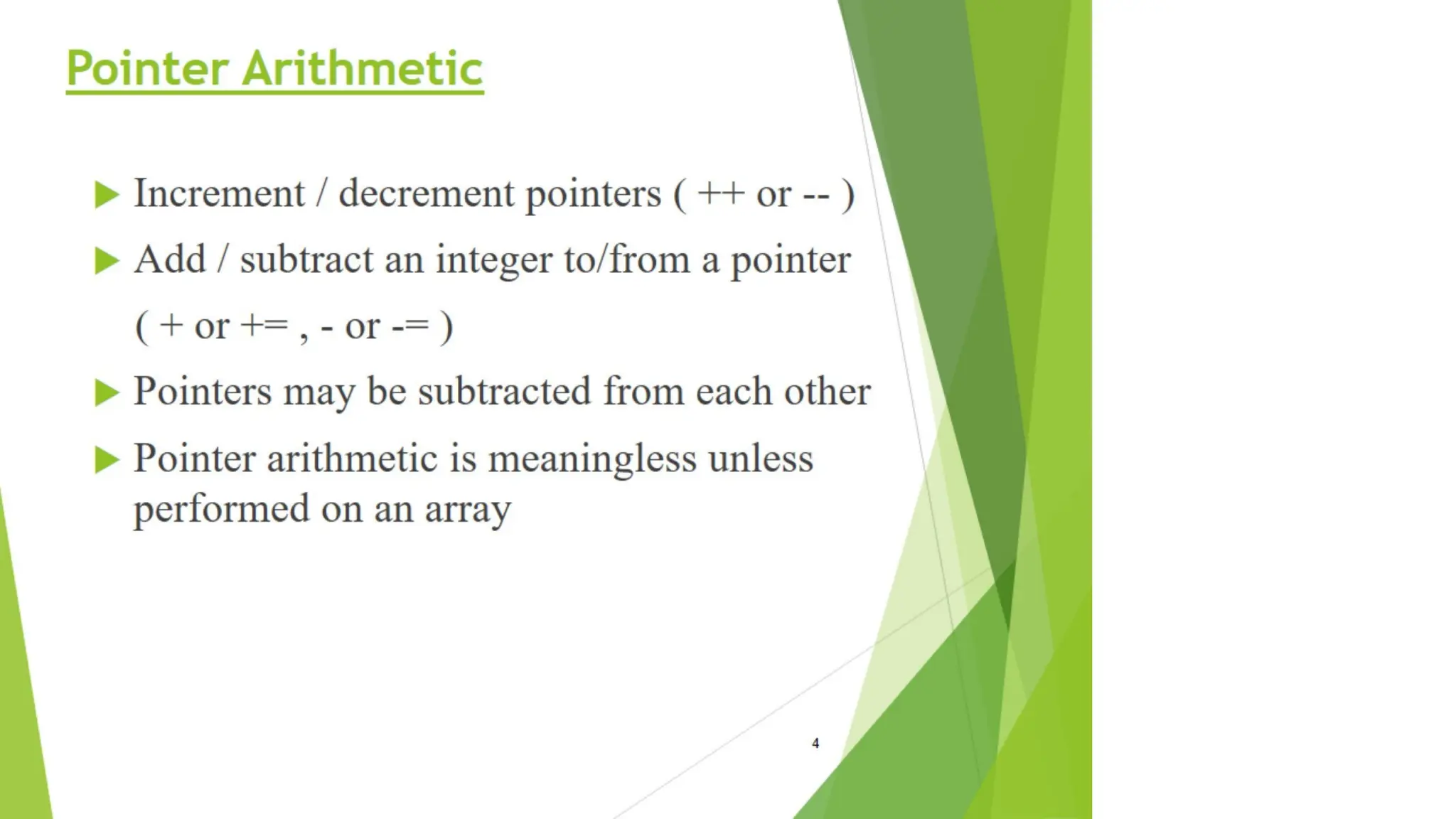

24. Pointer Arithmetic

25. Pointer Arithmetic (Cont.)

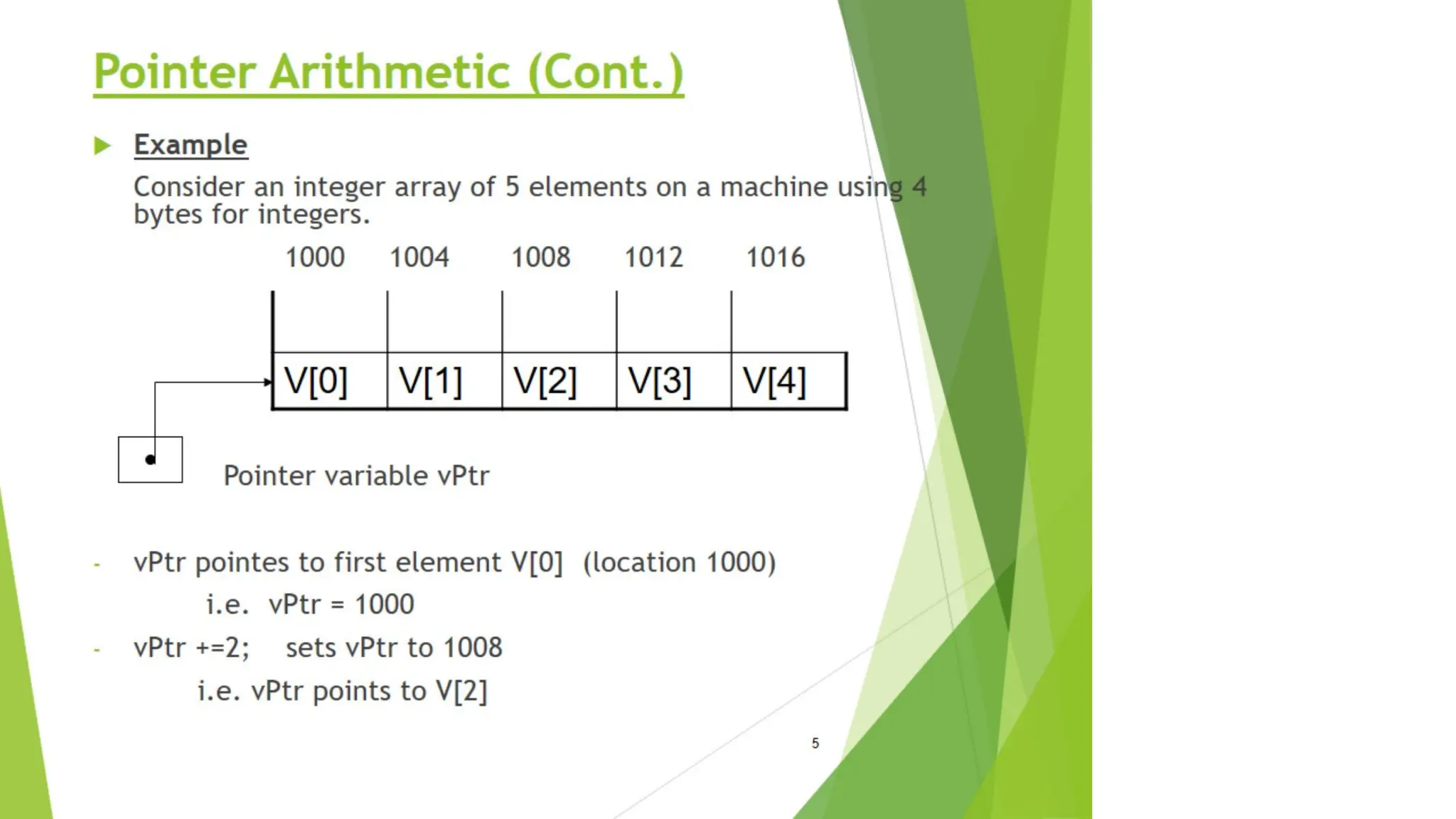

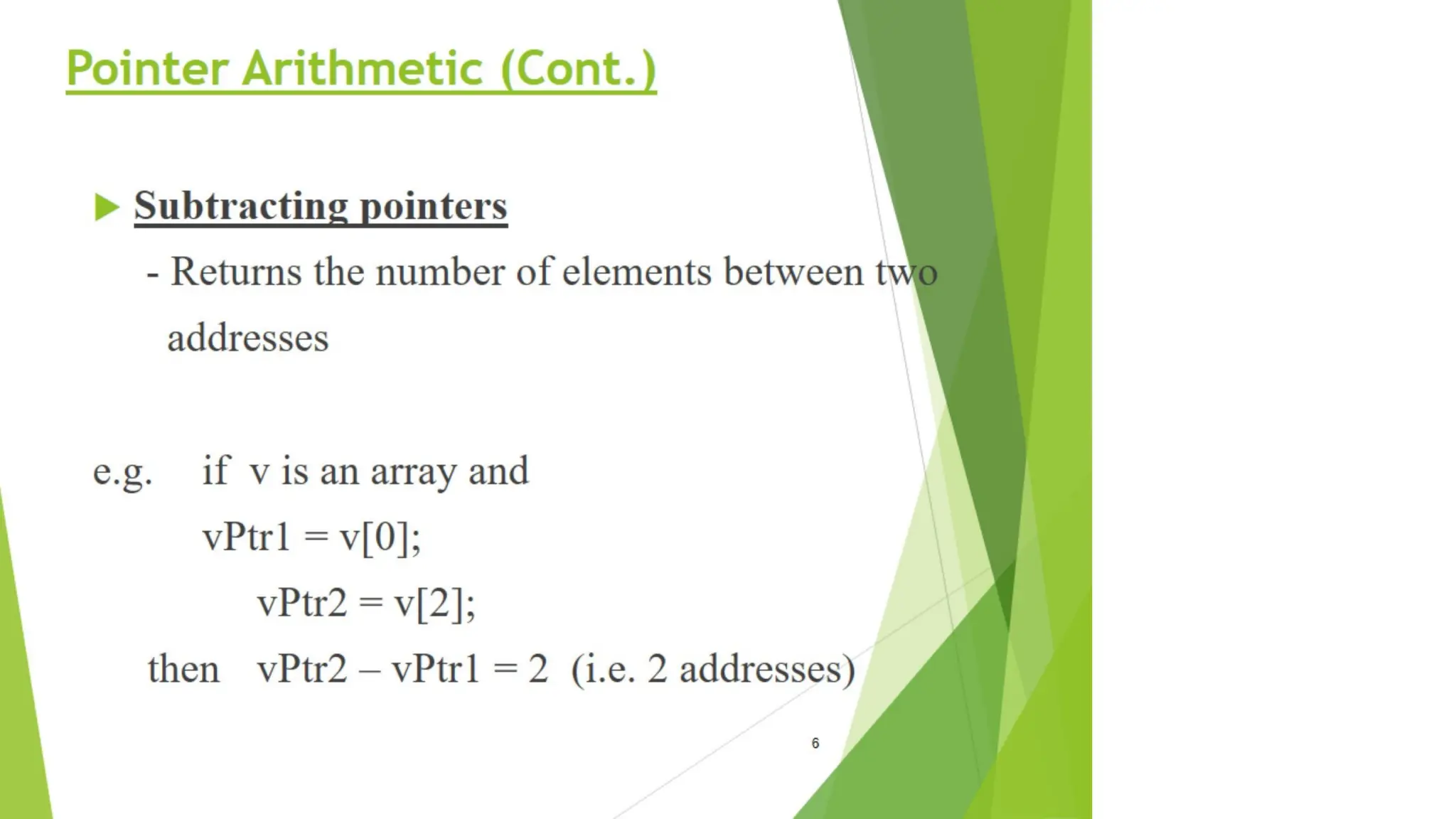

26. Pointer Arithmetic (Cont.)

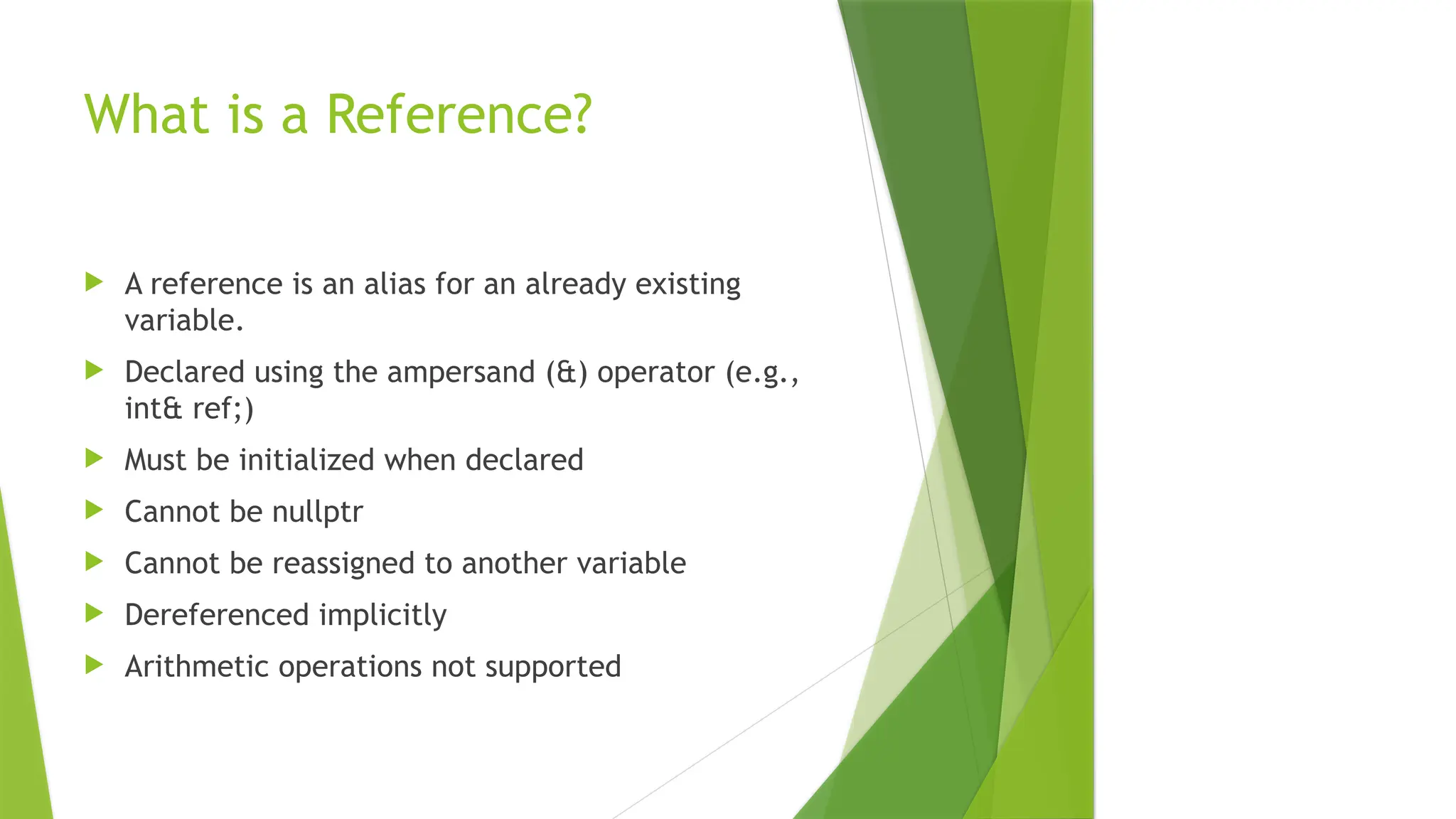

28. What is a Reference?
 A reference is an alias for an already existing
variable.
 Declared using the ampersand (&) operator (e.g.,
int& ref;)
 Must be initialized when declared
 Cannot be nullptr
 Cannot be reassigned to another variable
 Dereferenced implicitly
 Arithmetic operations not supported

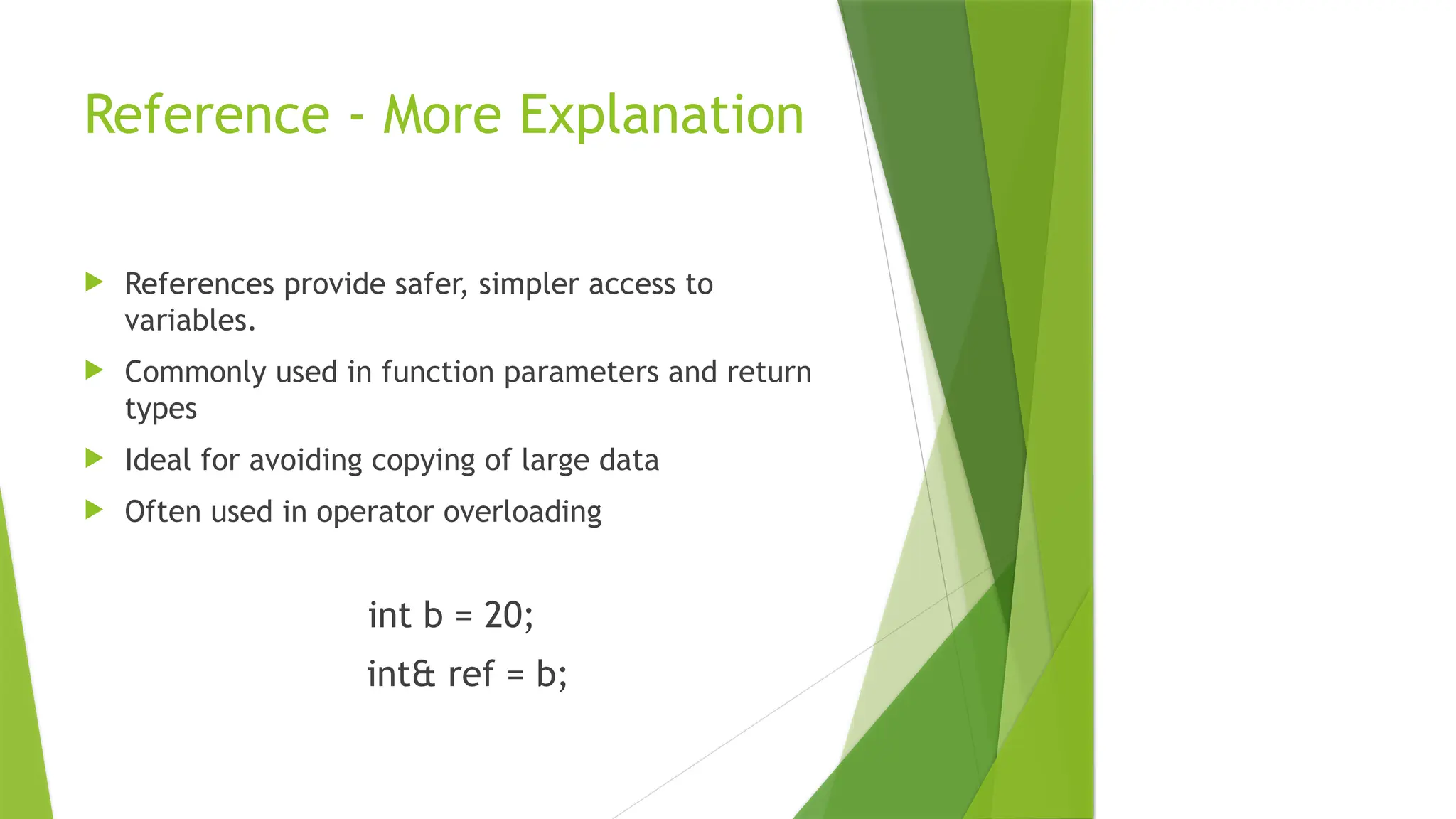

29. Reference - More Explanation
 References provide safer, simpler access to
variables.
 Commonly used in function parameters and return
types
 Ideal for avoiding copying of large data
 Often used in operator overloading

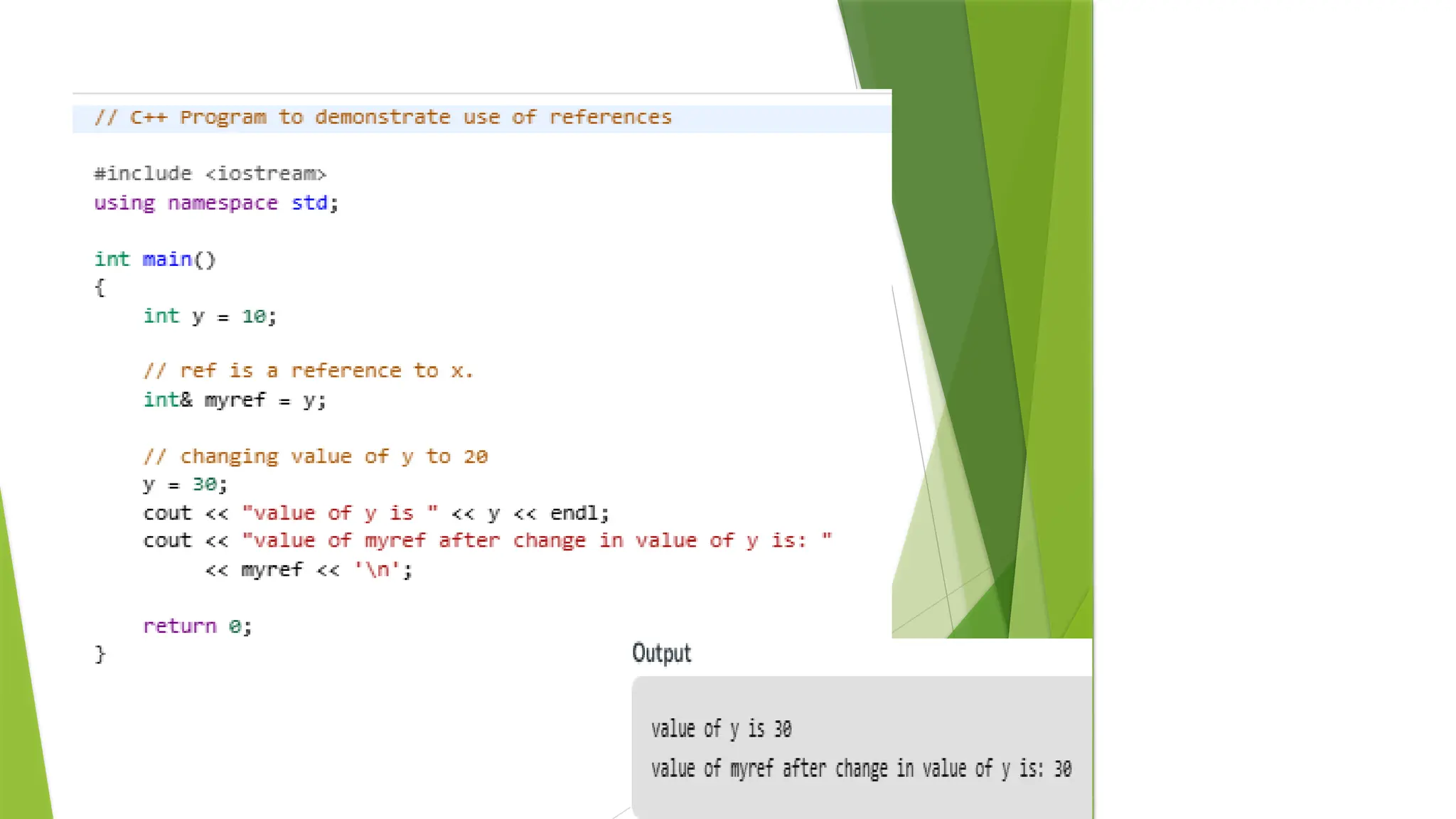

int b = 20;
int& ref = b;

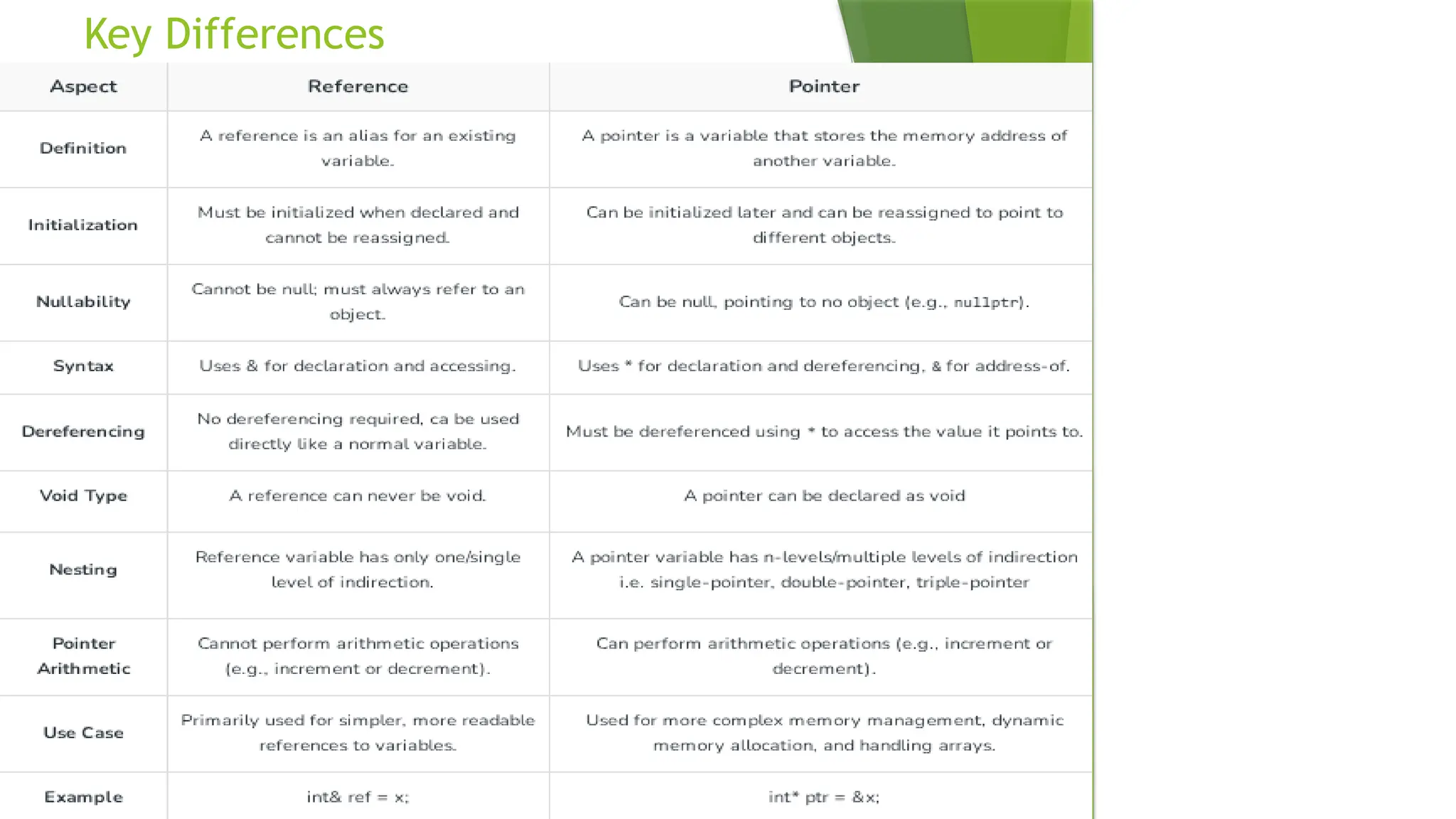

31. Key Differences

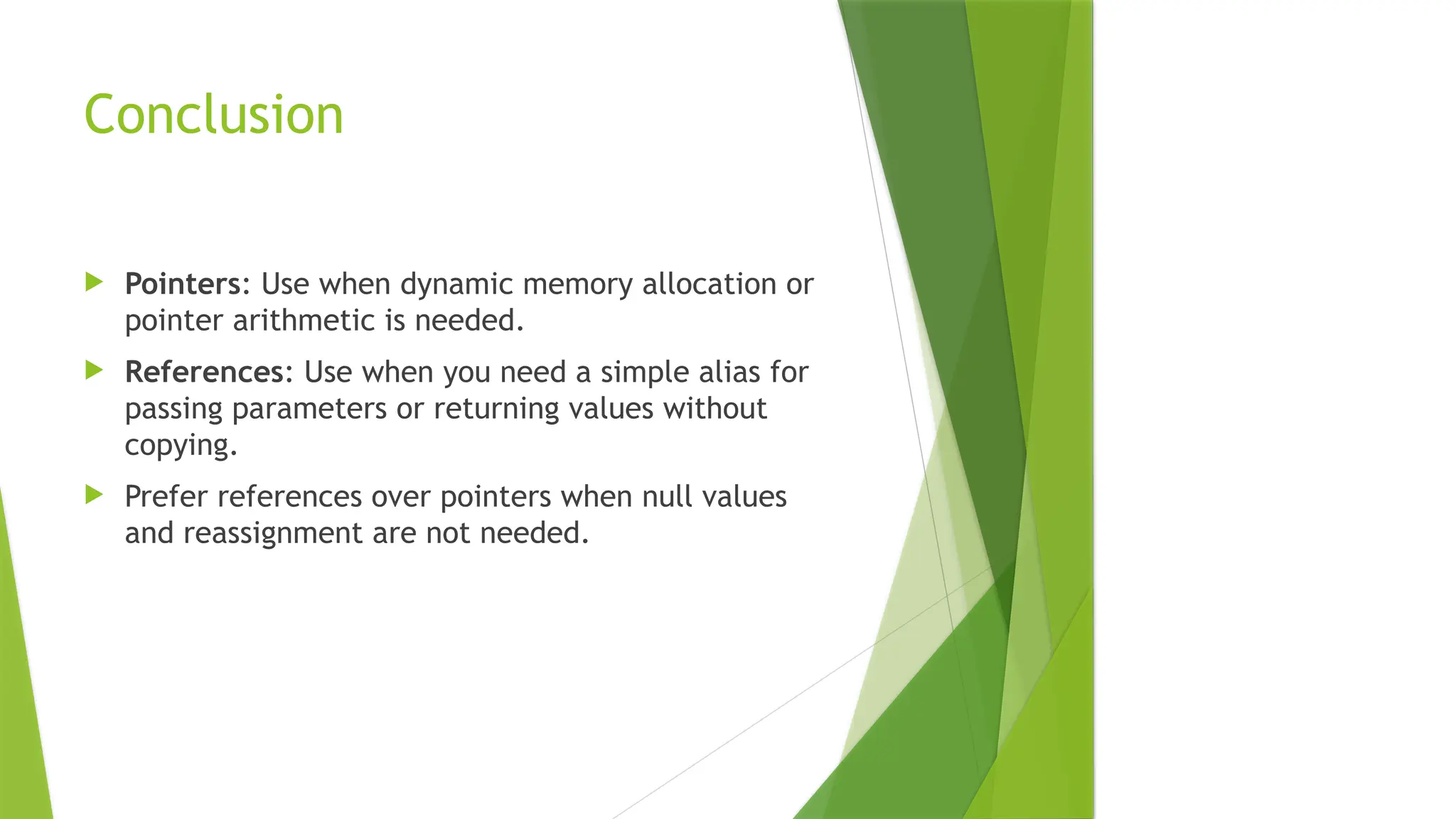

32. Conclusion
 Pointers: Use when dynamic memory allocation or
pointer arithmetic is needed.
 References: Use when you need a simple alias for
passing parameters or returning values without
copying.
 Prefer references over pointers when null values
and reassignment are not needed.

33. Function Objects

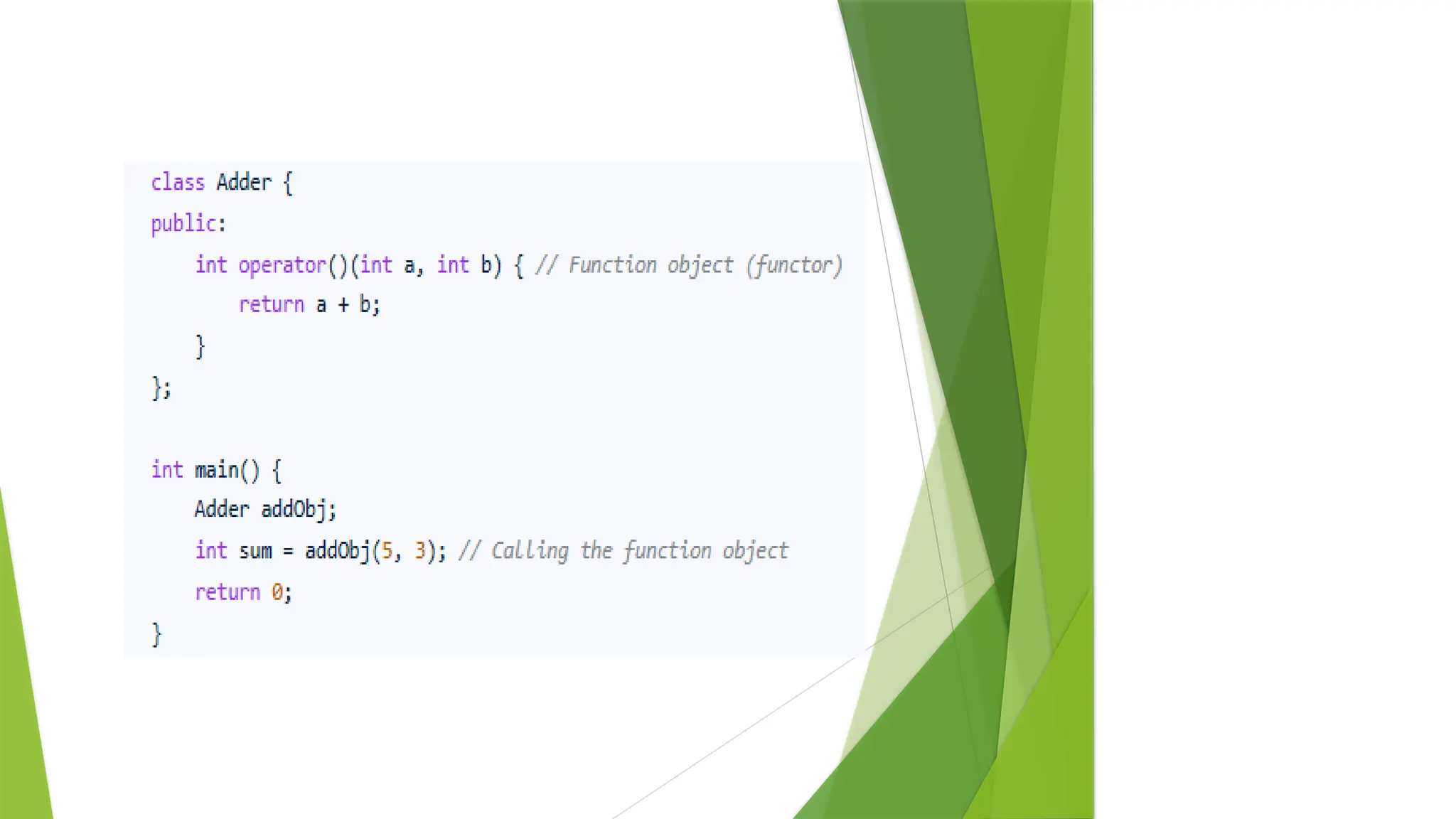

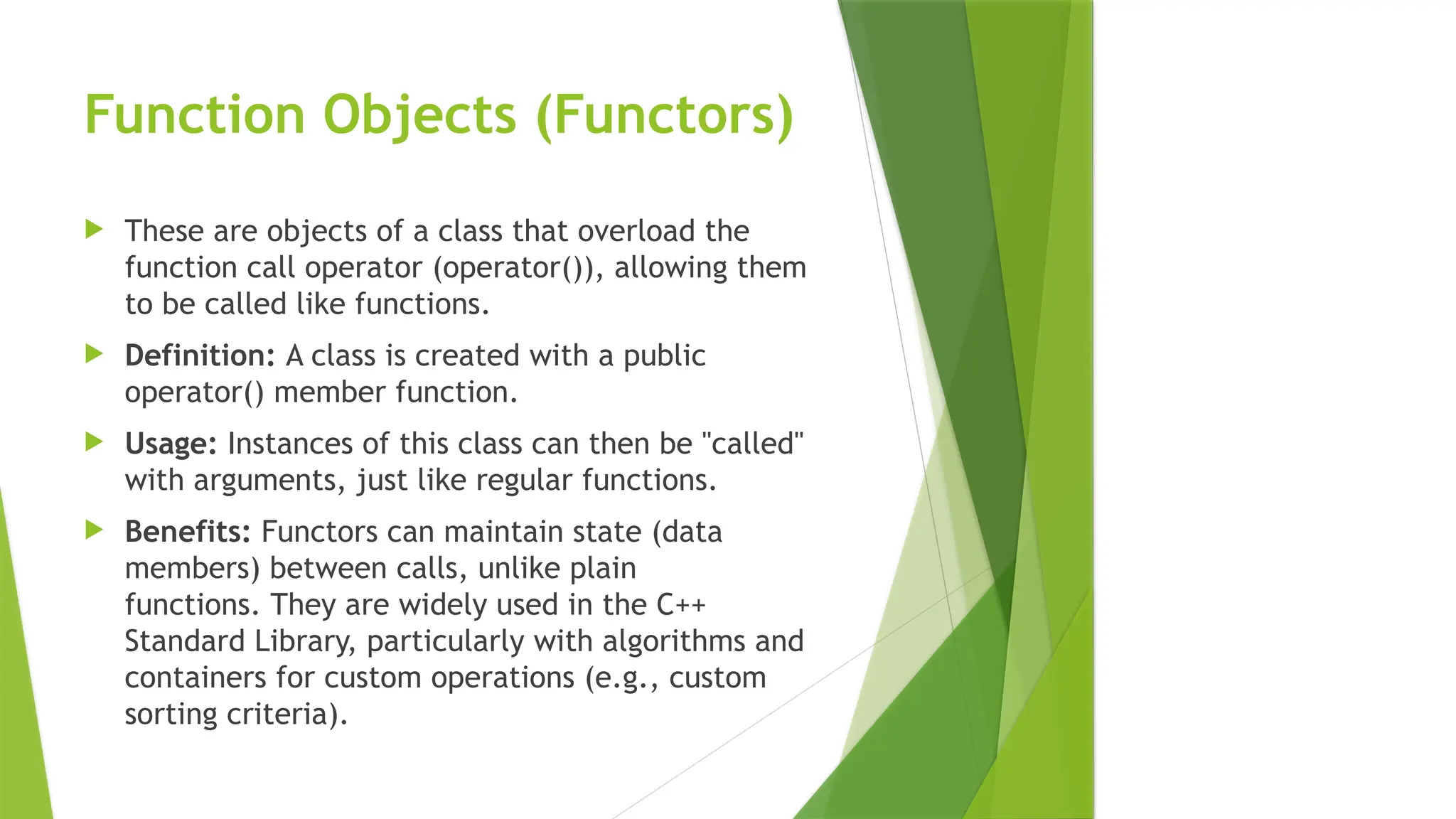

34. Function Objects (Functors)
 These are objects of a class that overload the
function call operator (operator()), allowing them
to be called like functions.
 Definition: A class is created with a public
operator() member function.
 Usage: Instances of this class can then be "called"
with arguments, just like regular functions.
 Benefits: Functors can maintain state (data
members) between calls, unlike plain
functions. They are widely used in the C++
Standard Library, particularly with algorithms and
containers for custom operations (e.g., custom
sorting criteria).

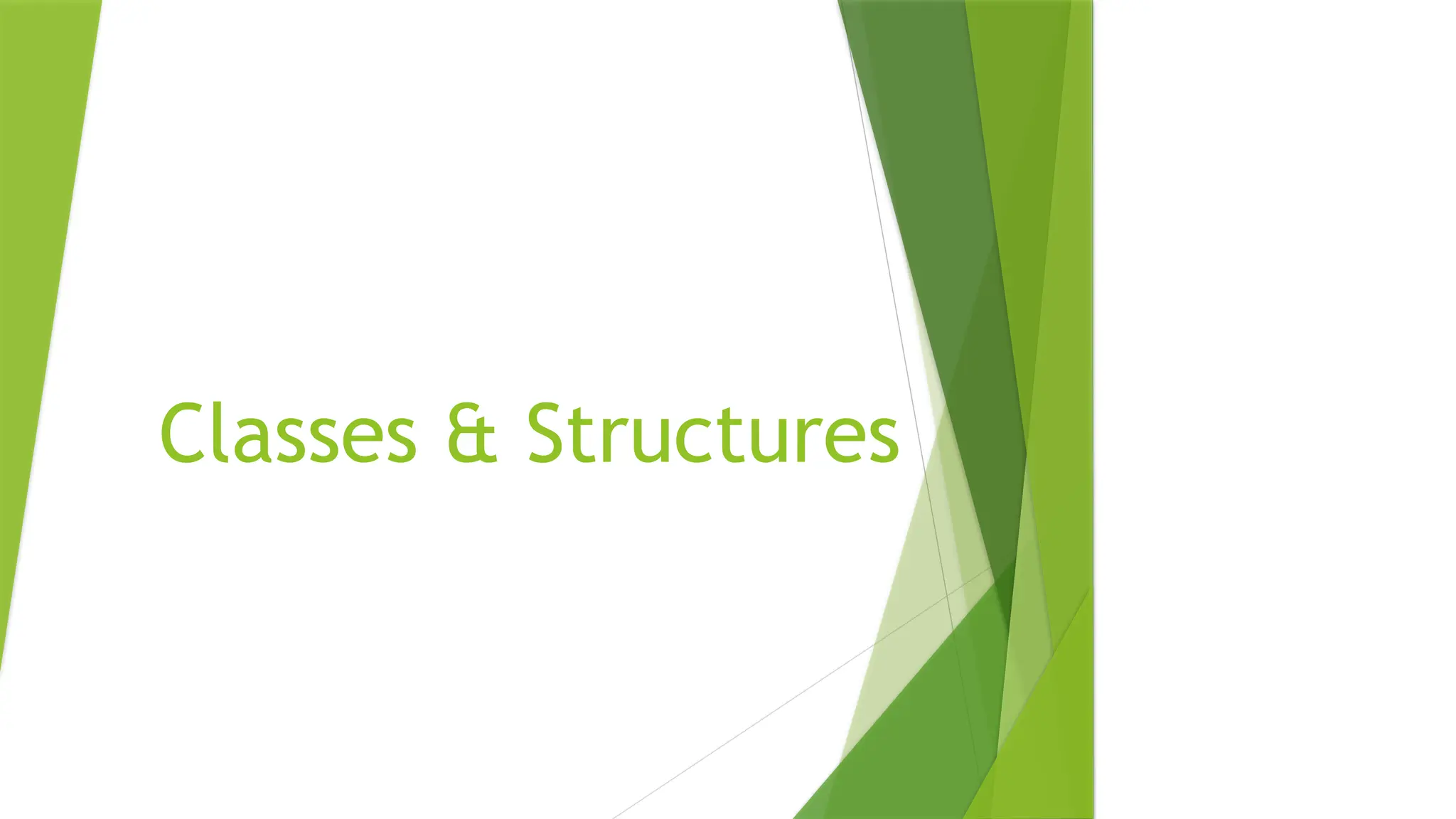

36. Classes & Structures

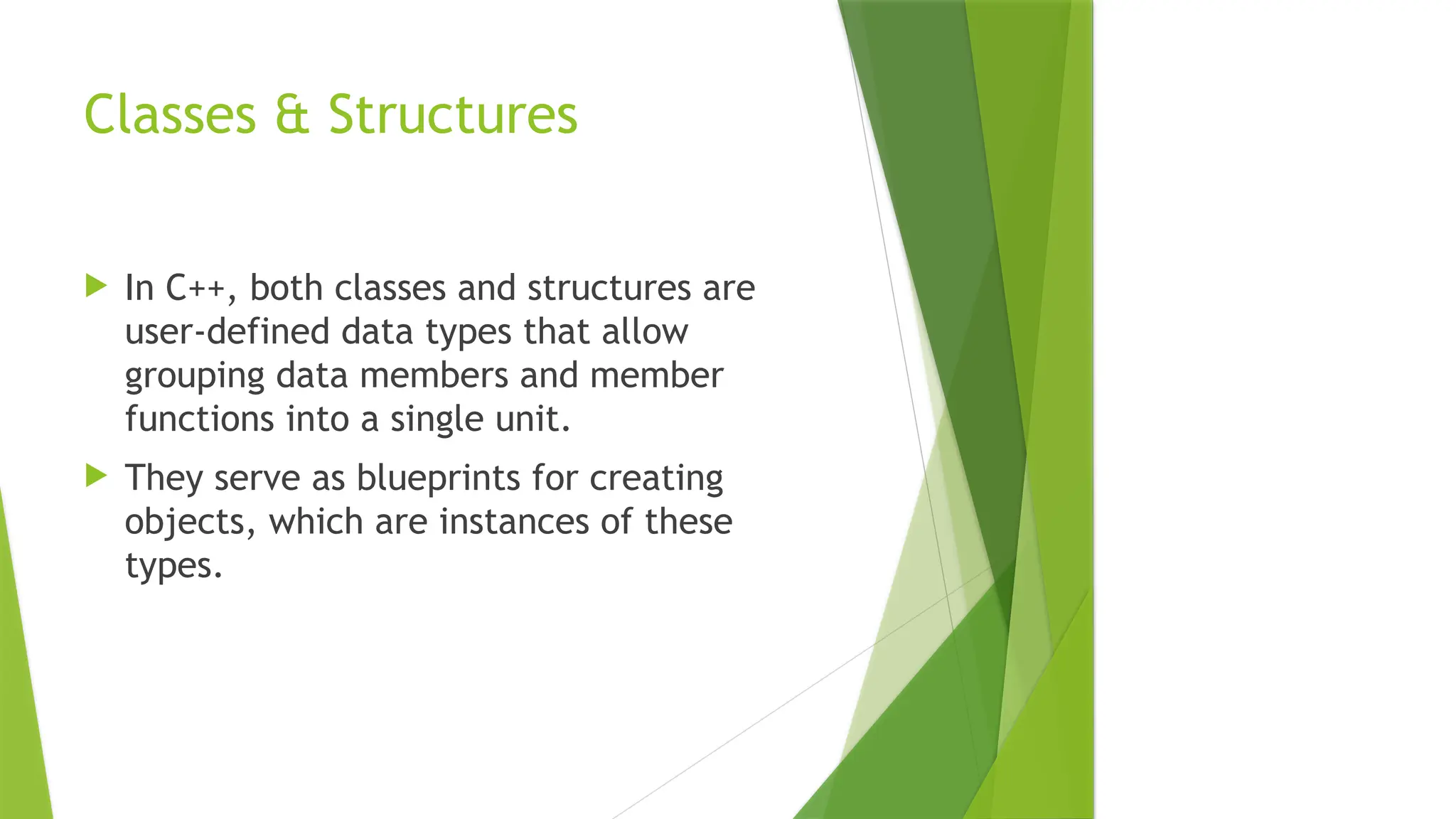

37. Classes & Structures
 In C++, both classes and structures are
user-defined data types that allow
grouping data members and member
functions into a single unit.
 They serve as blueprints for creating
objects, which are instances of these
types.

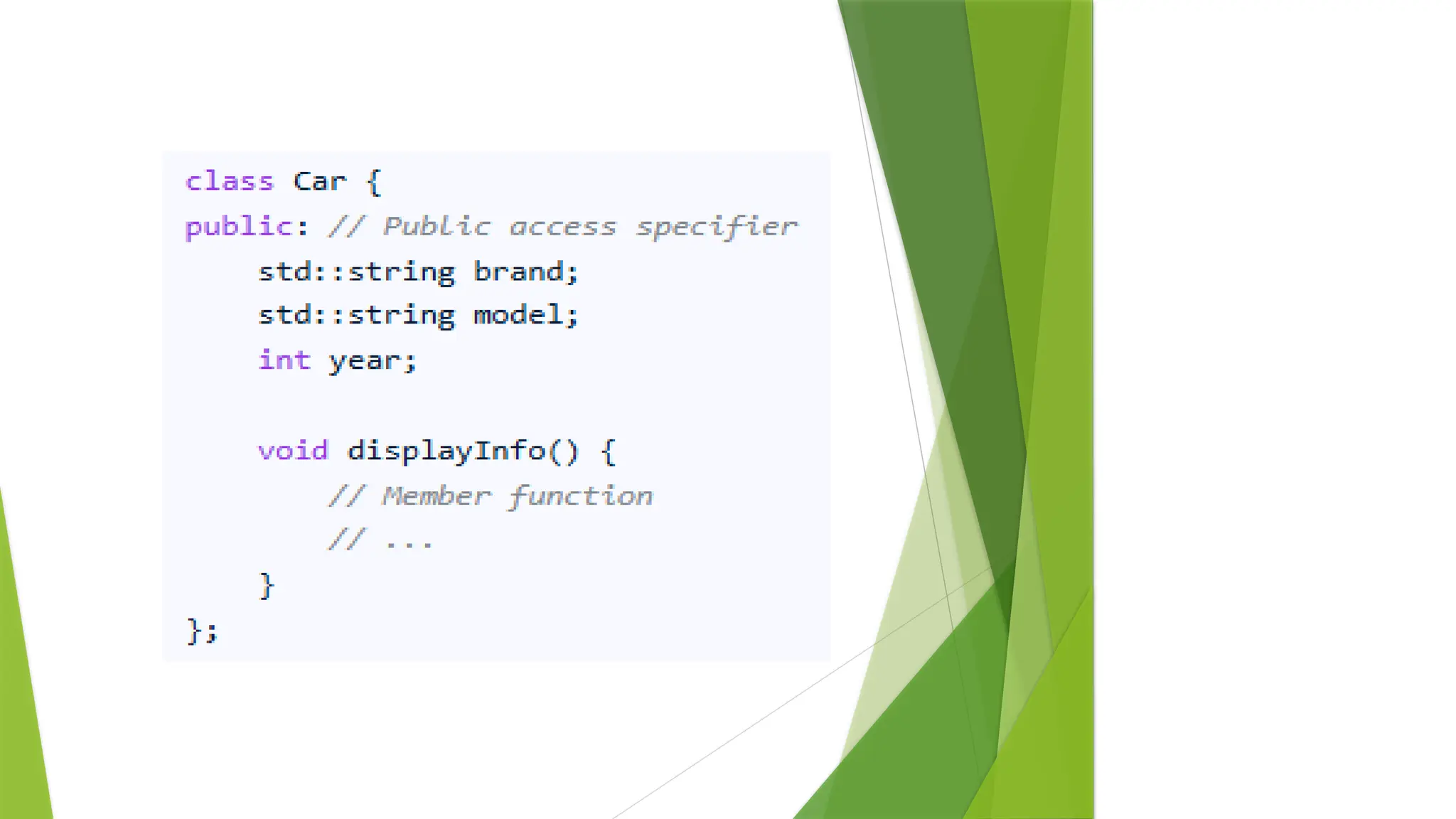

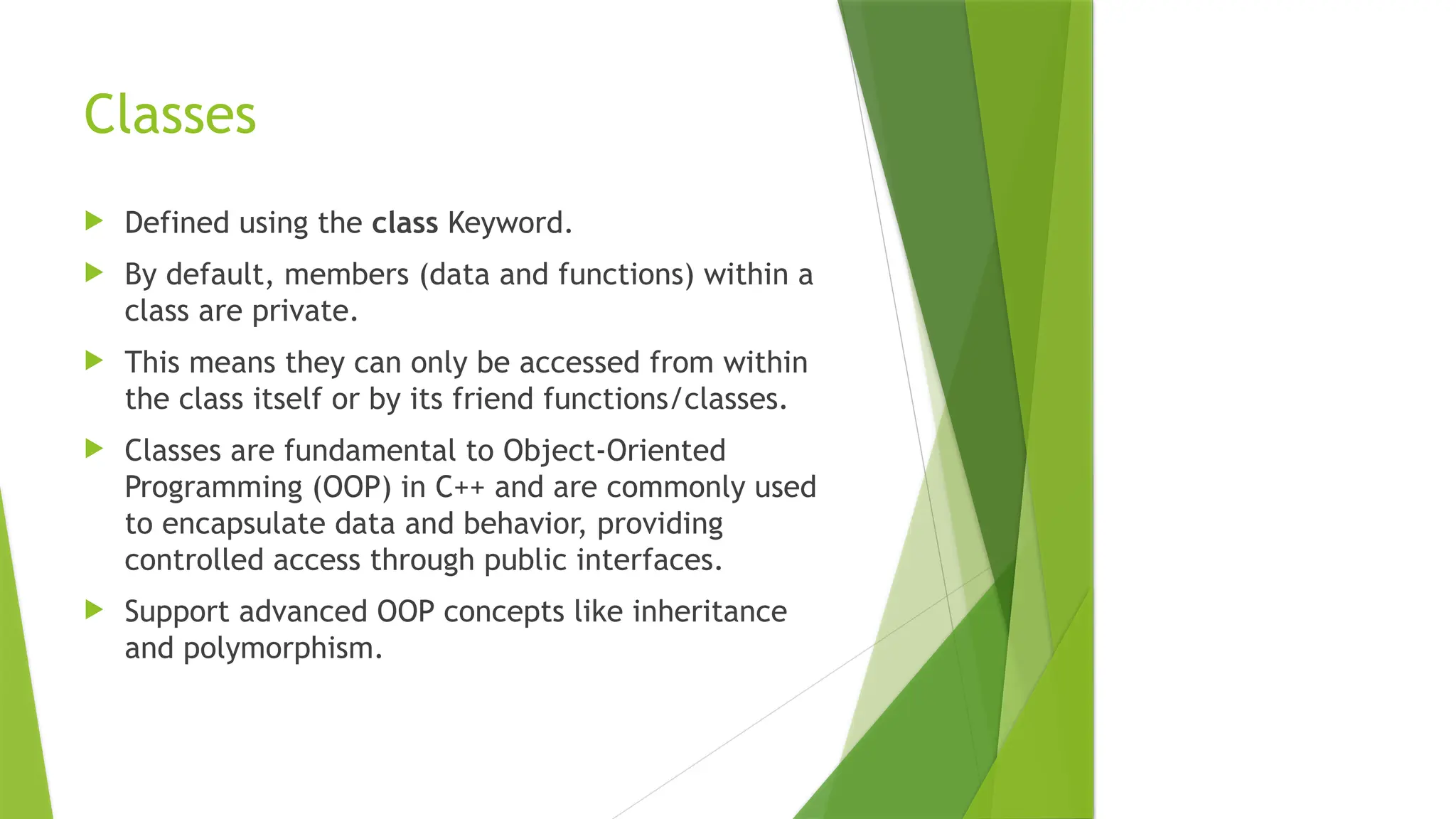

38. Classes
 Defined using the class Keyword.
 By default, members (data and functions) within a
class are private.
 This means they can only be accessed from within
the class itself or by its friend functions/classes.
 Classes are fundamental to Object-Oriented
Programming (OOP) in C++ and are commonly used
to encapsulate data and behavior, providing
controlled access through public interfaces.
 Support advanced OOP concepts like inheritance
and polymorphism.

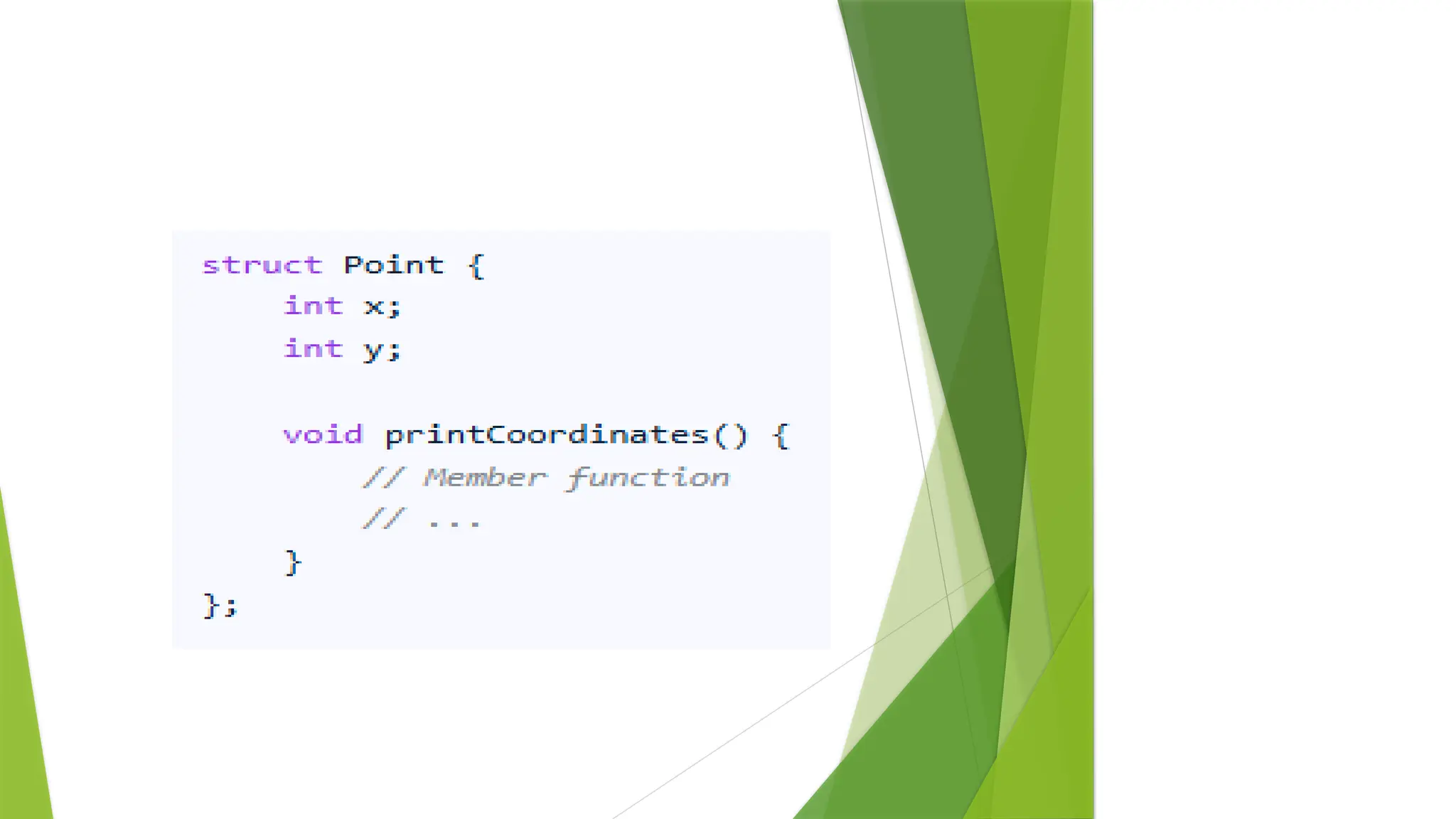

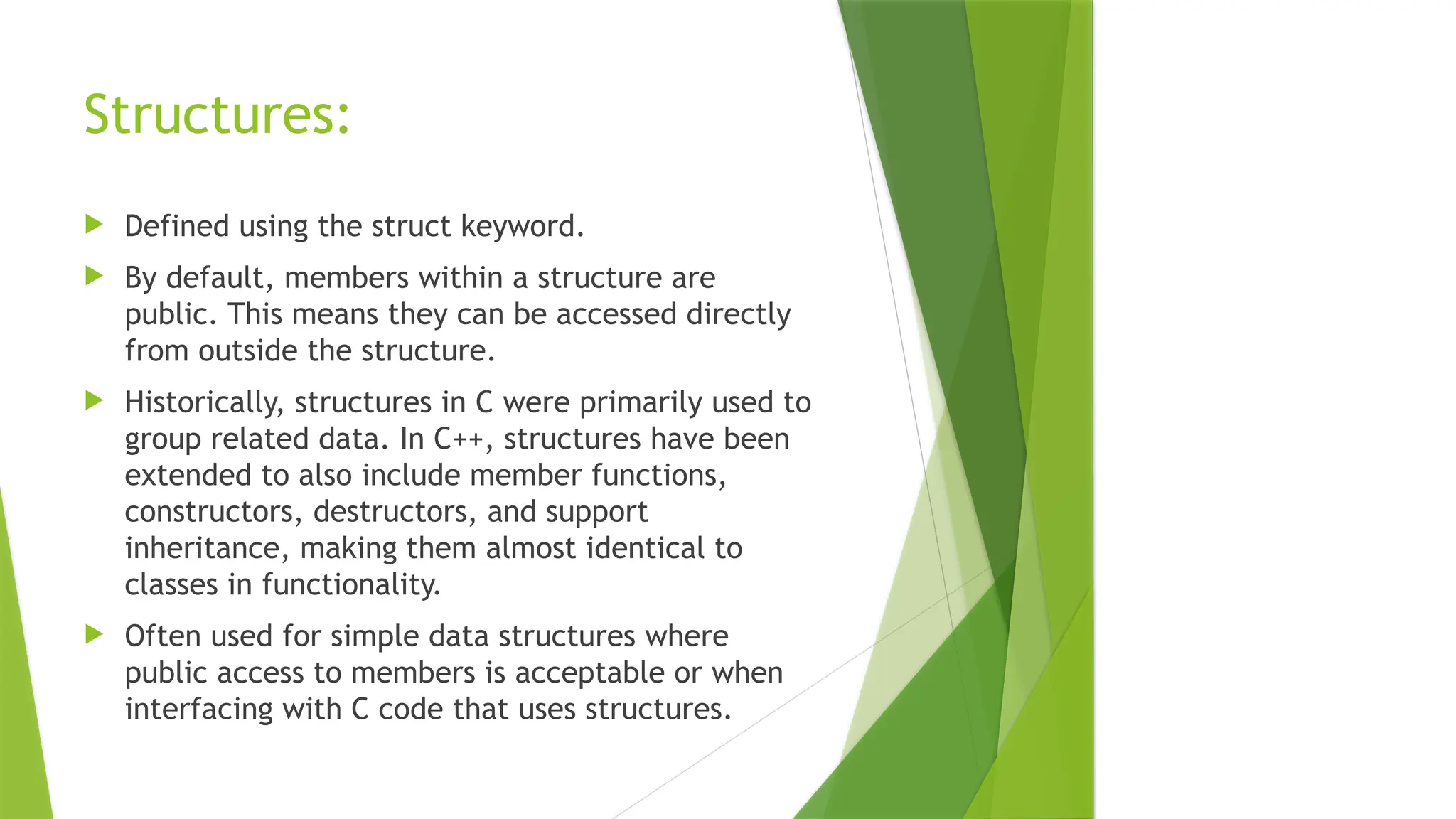

40. Structures:
 Defined using the struct keyword.
 By default, members within a structure are
public. This means they can be accessed directly
from outside the structure.
 Historically, structures in C were primarily used to
group related data. In C++, structures have been
extended to also include member functions,
constructors, destructors, and support
inheritance, making them almost identical to
classes in functionality.
 Often used for simple data structures where
public access to members is acceptable or when
interfacing with C code that uses structures.

42. FRIEND FUNCTIONS

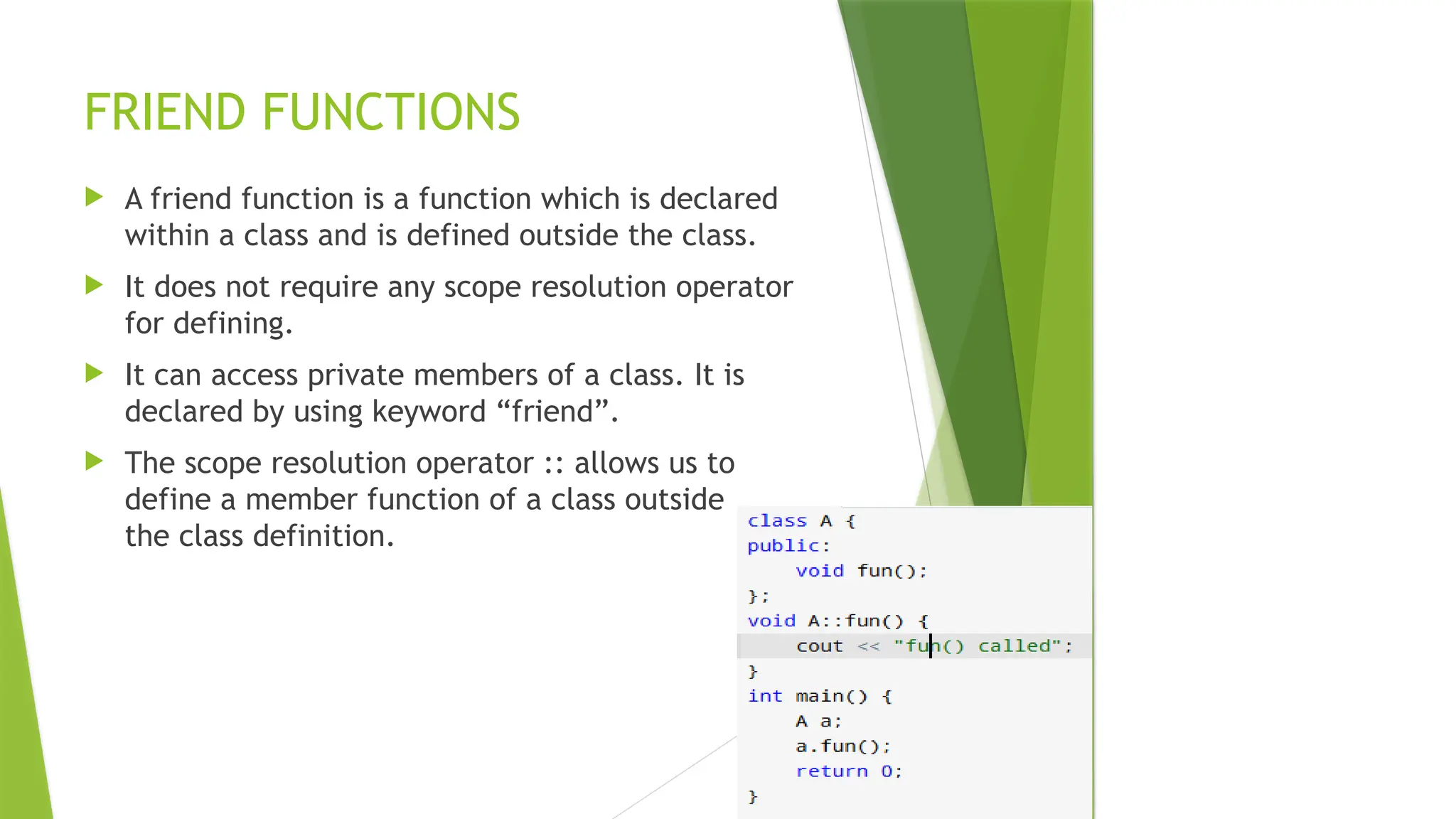

43. FRIEND FUNCTIONS
 A friend function is a function which is declared
within a class and is defined outside the class.
 It does not require any scope resolution operator
for defining.
 It can access private members of a class. It is
declared by using keyword “friend”.
 The scope resolution operator :: allows us to
define a member function of a class outside
the class definition.

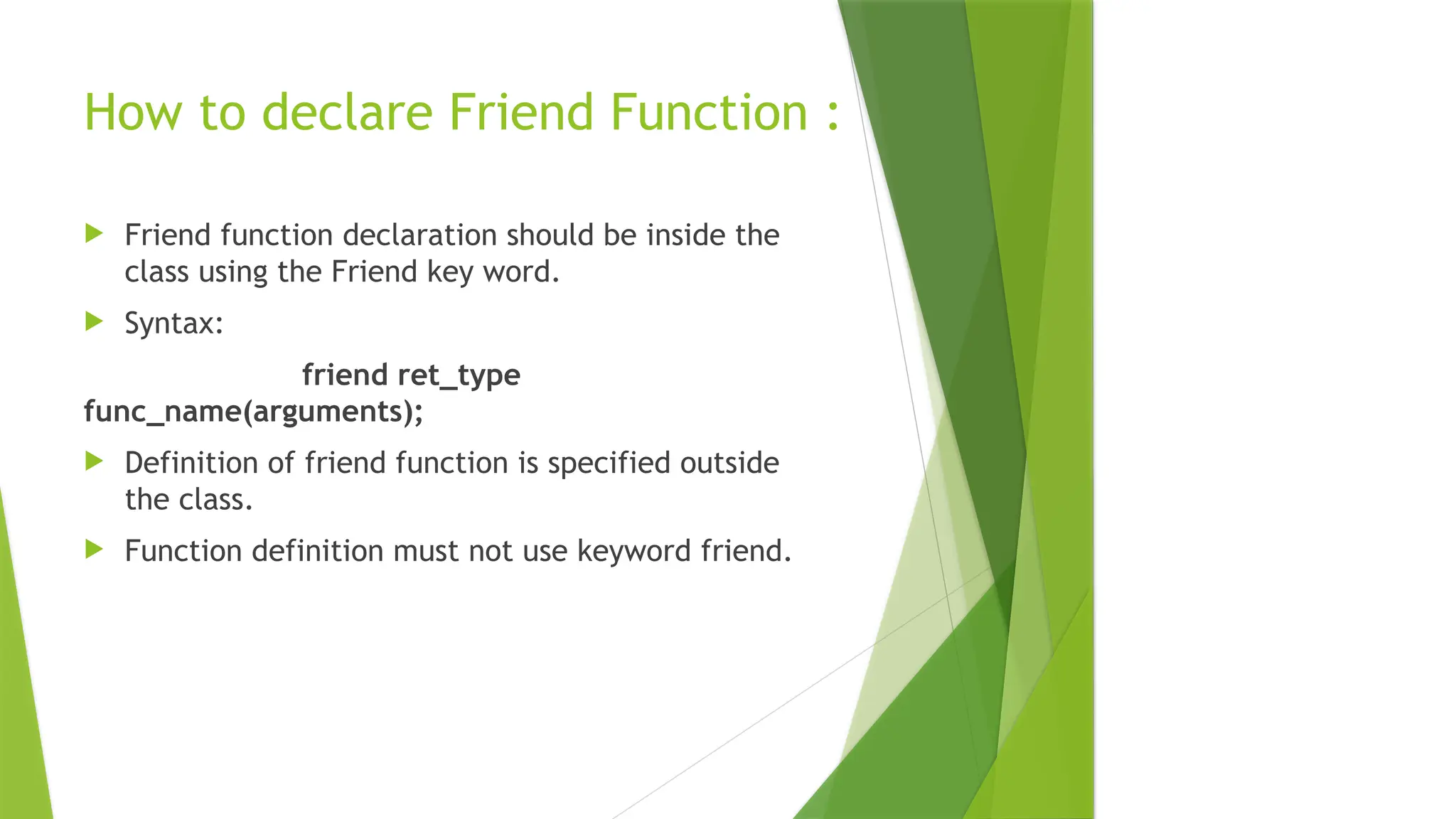

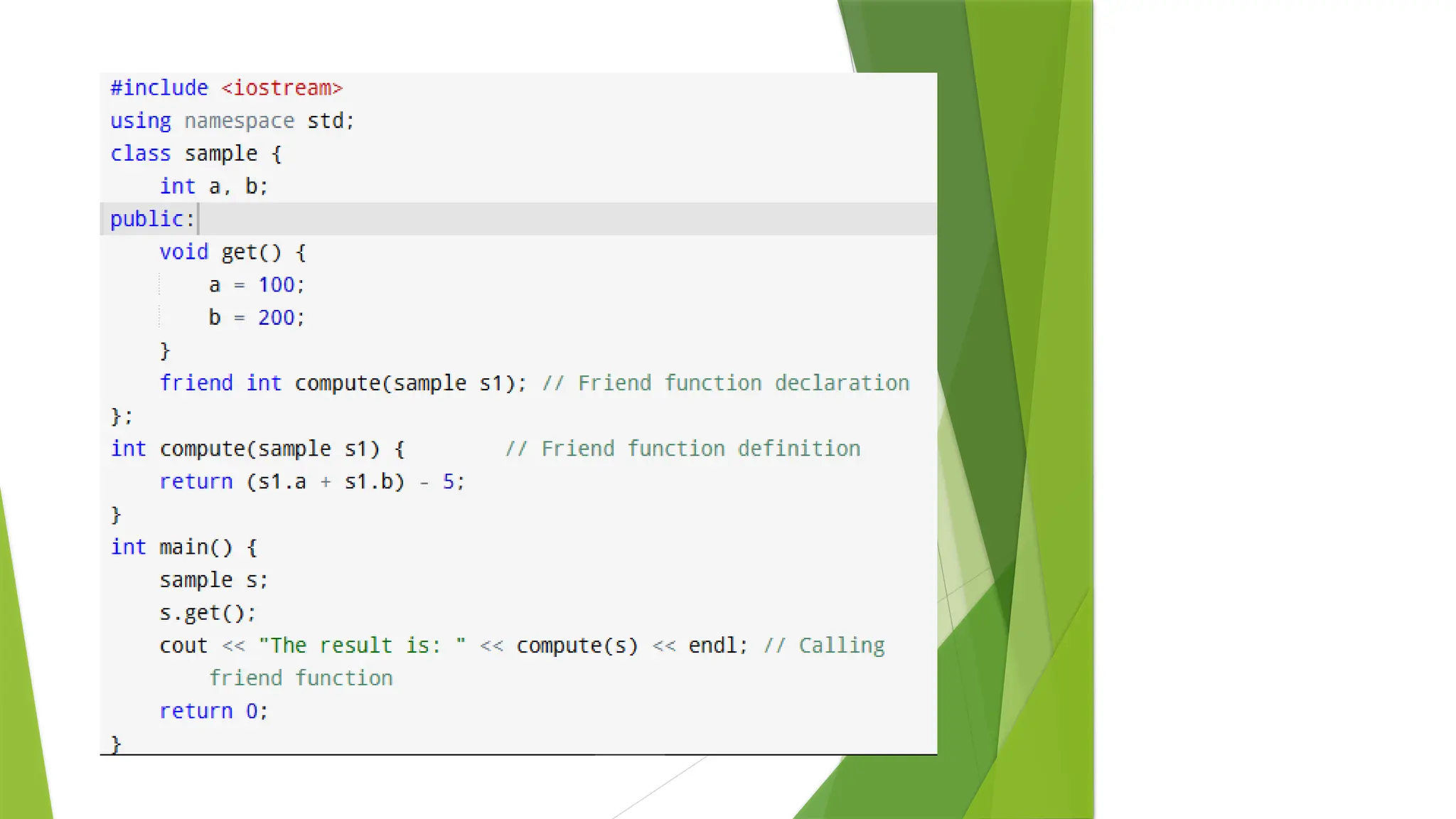

44. How to declare Friend Function :
 Friend function declaration should be inside the
class using the Friend key word.
 Syntax:
friend ret_type
func_name(arguments);
 Definition of friend function is specified outside
the class.
 Function definition must not use keyword friend.

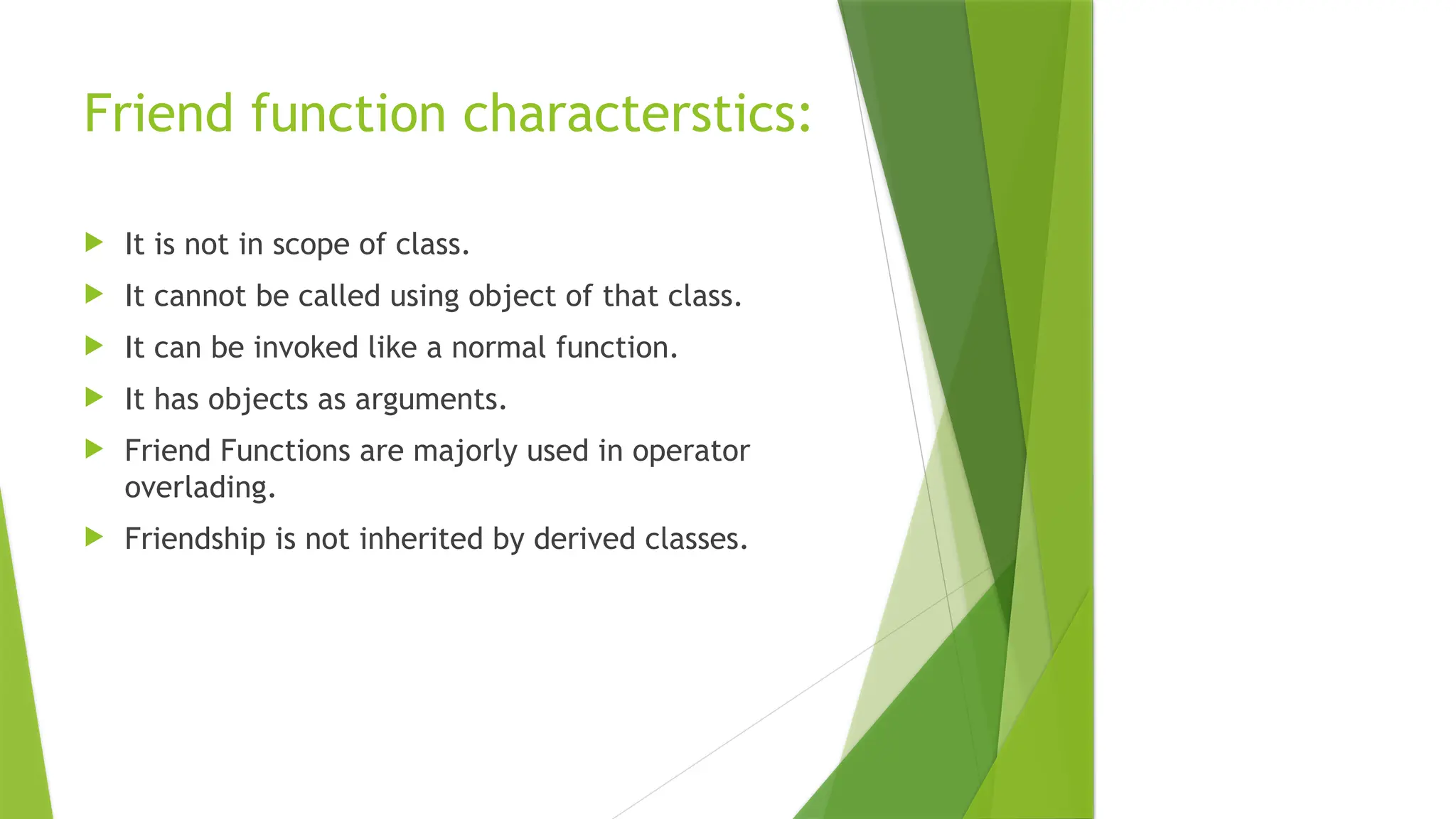

45. Friend function characterstics:
 It is not in scope of class.
 It cannot be called using object of that class.
 It can be invoked like a normal function.
 It has objects as arguments.
 Friend Functions are majorly used in operator
overlading.
 Friendship is not inherited by derived classes.

47. Inline Functions

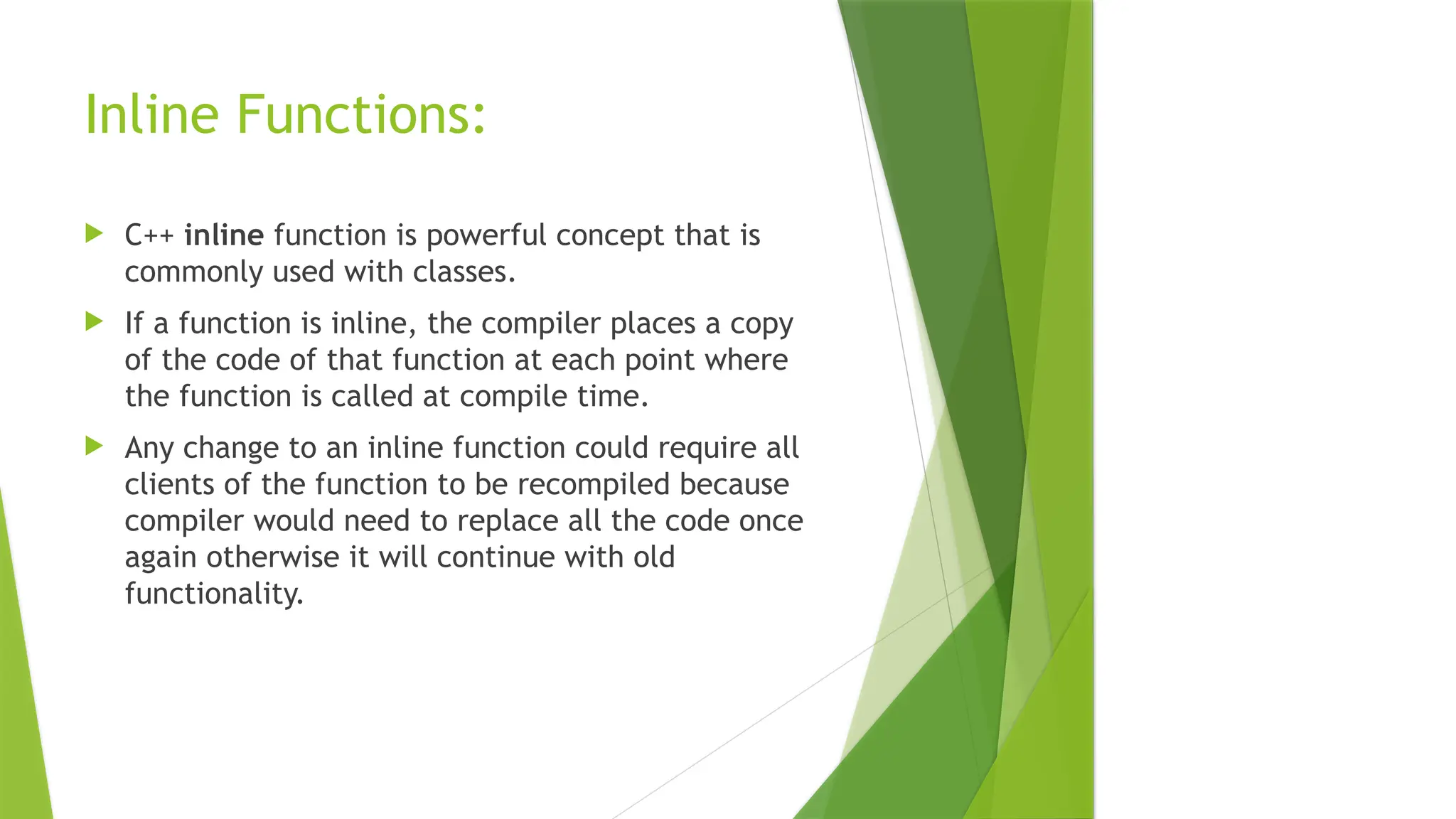

48. Inline Functions:
 C++ inline function is powerful concept that is
commonly used with classes.
 If a function is inline, the compiler places a copy
of the code of that function at each point where
the function is called at compile time.
 Any change to an inline function could require all
clients of the function to be recompiled because
compiler would need to replace all the code once
again otherwise it will continue with old
functionality.

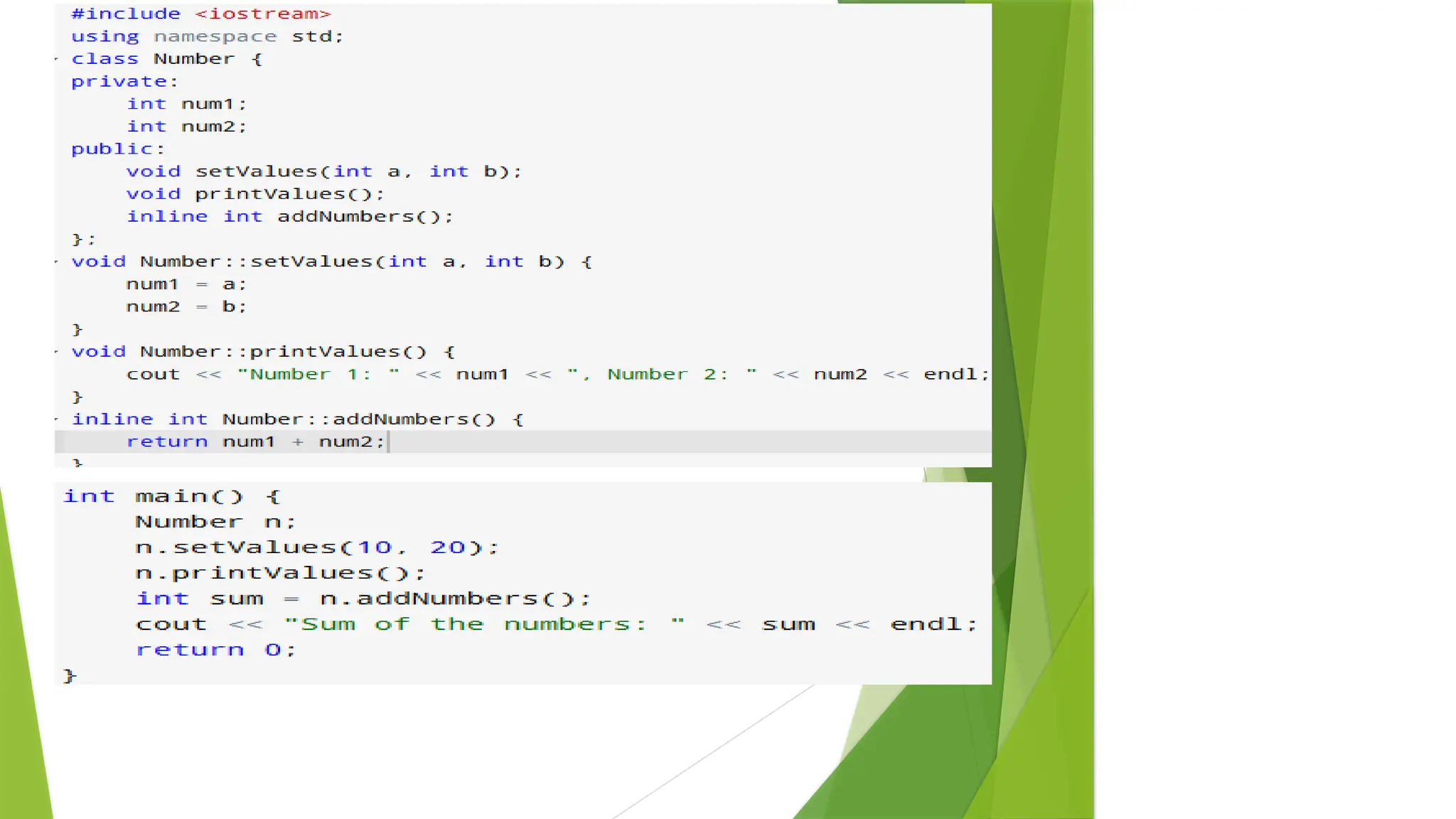

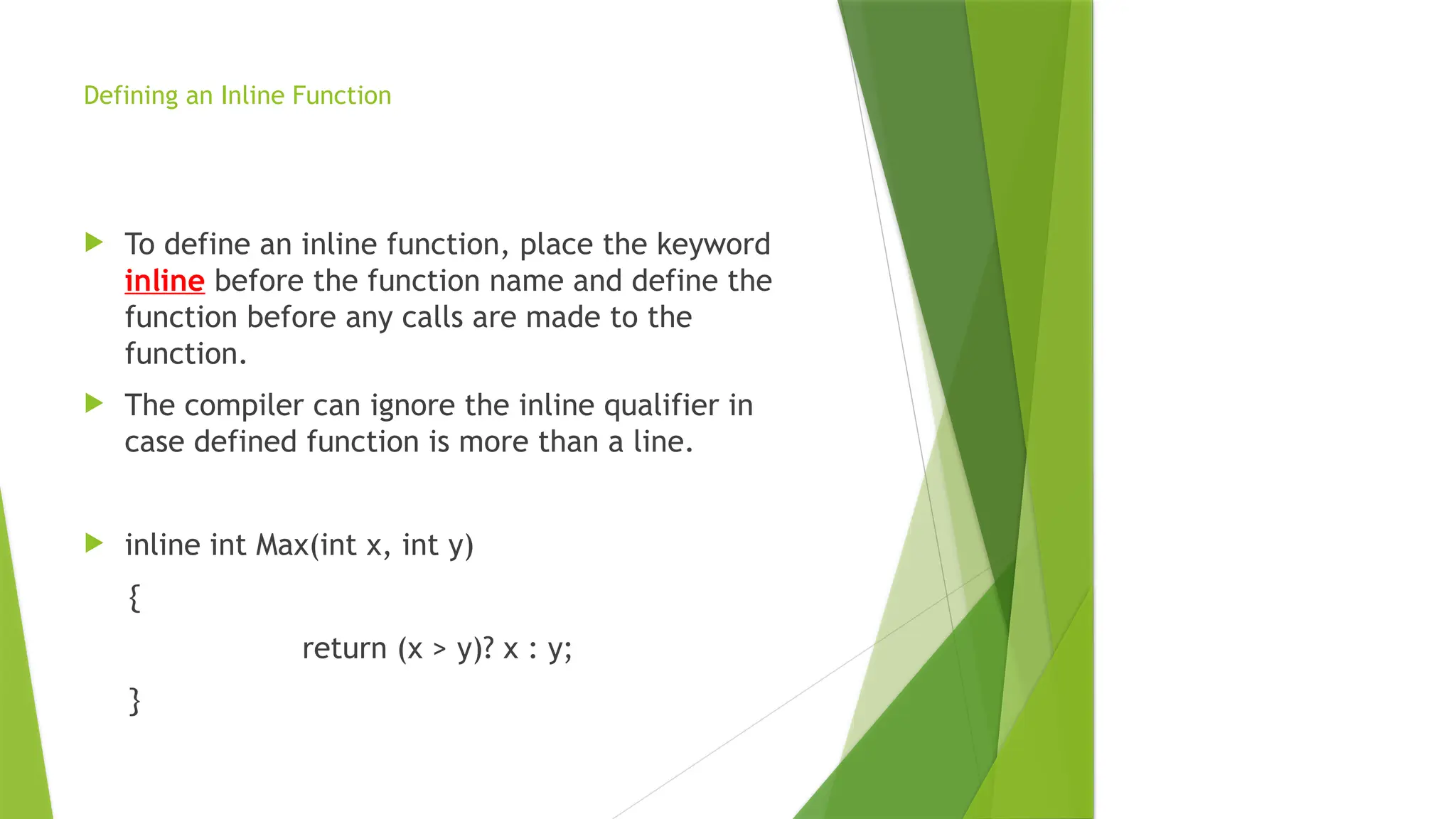

49. Defining an Inline Function
 To define an inline function, place the keyword
inline before the function name and define the
function before any calls are made to the
function.
 The compiler can ignore the inline qualifier in
case defined function is more than a line.
 inline int Max(int x, int y)
{
return (x > y)? x : y;
}

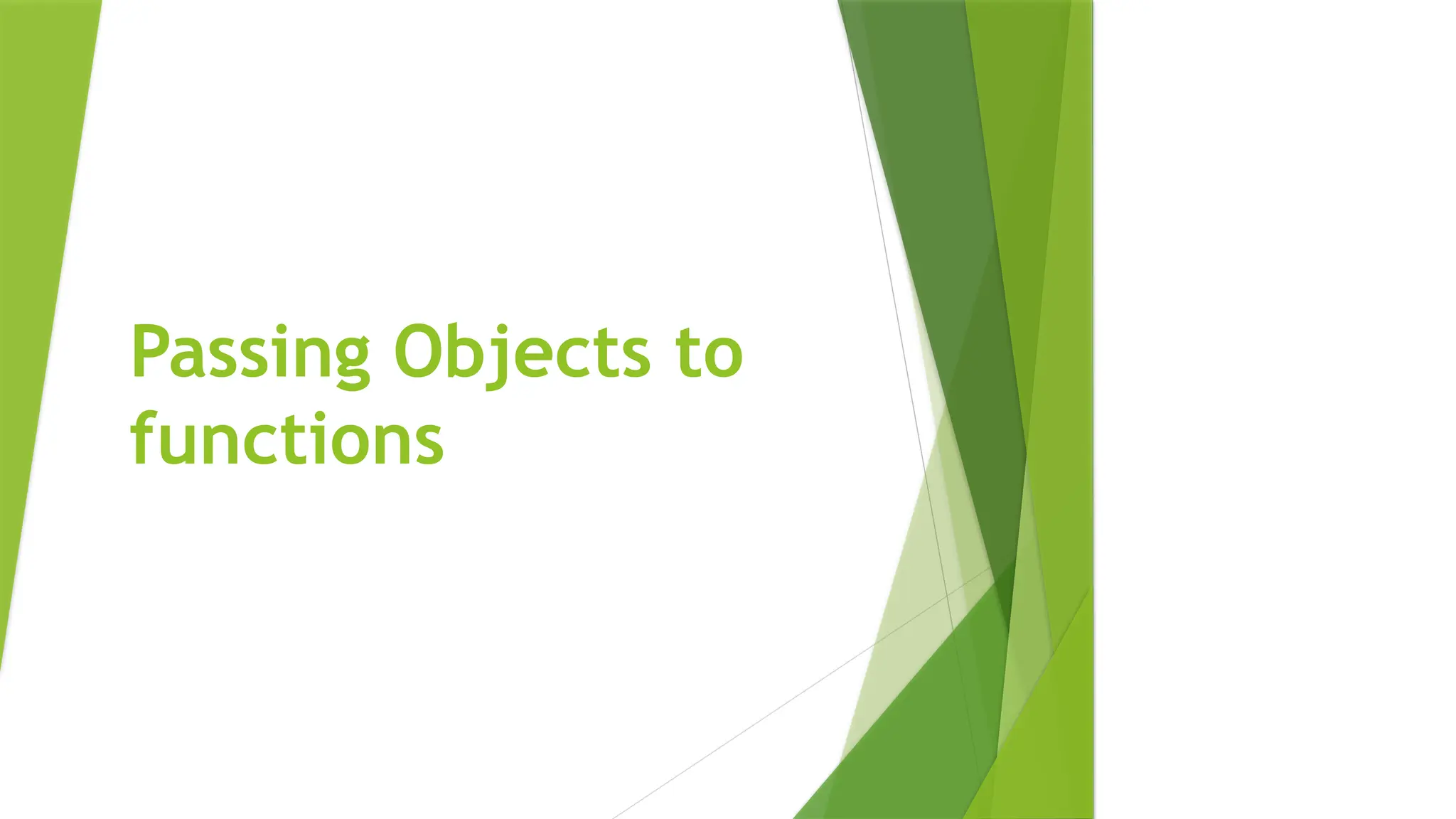

51. Passing Objects to
functions

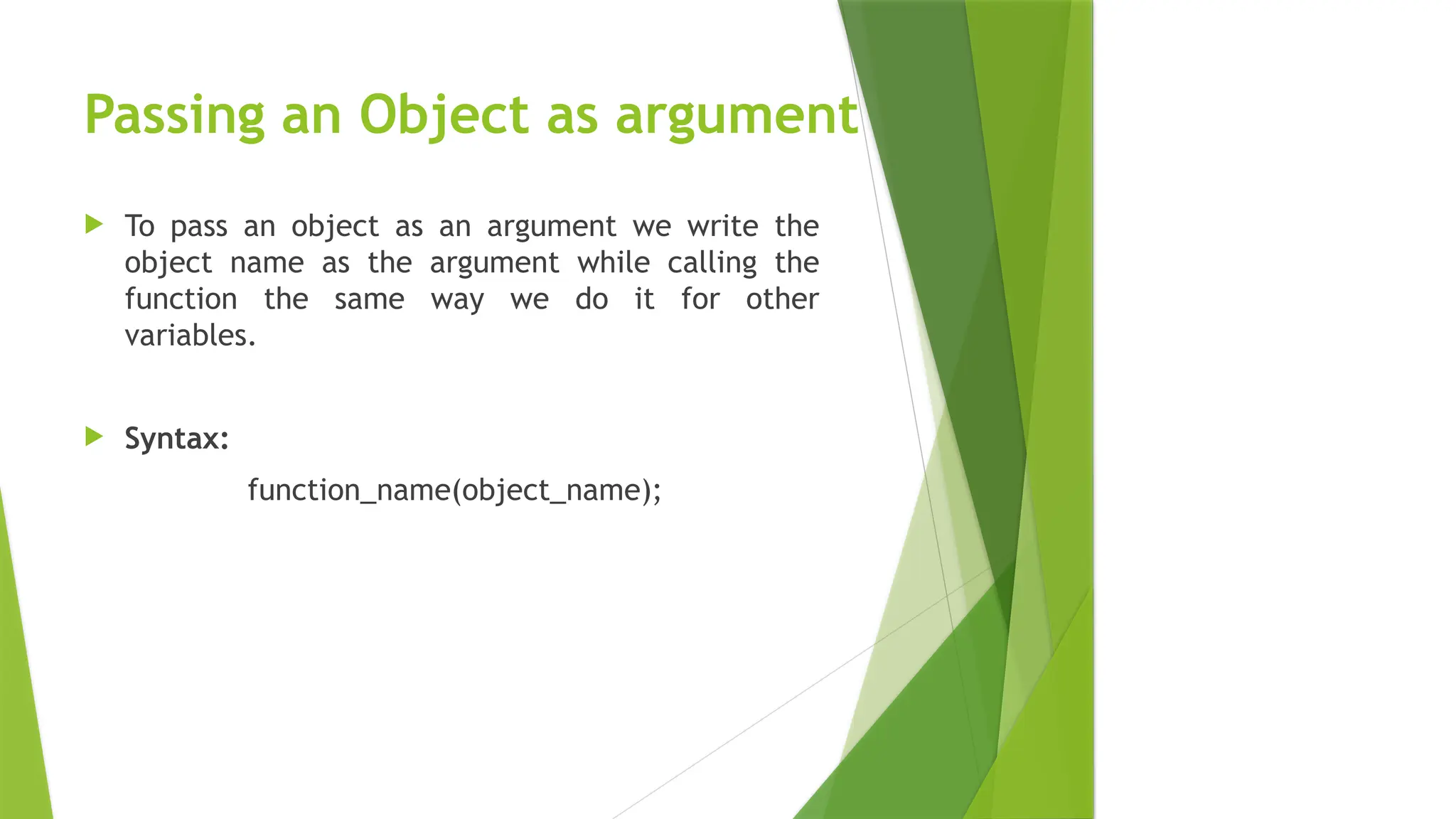

52. Passing an Object as argument
 To pass an object as an argument we write the
object name as the argument while calling the
function the same way we do it for other
variables.
 Syntax:
function_name(object_name);

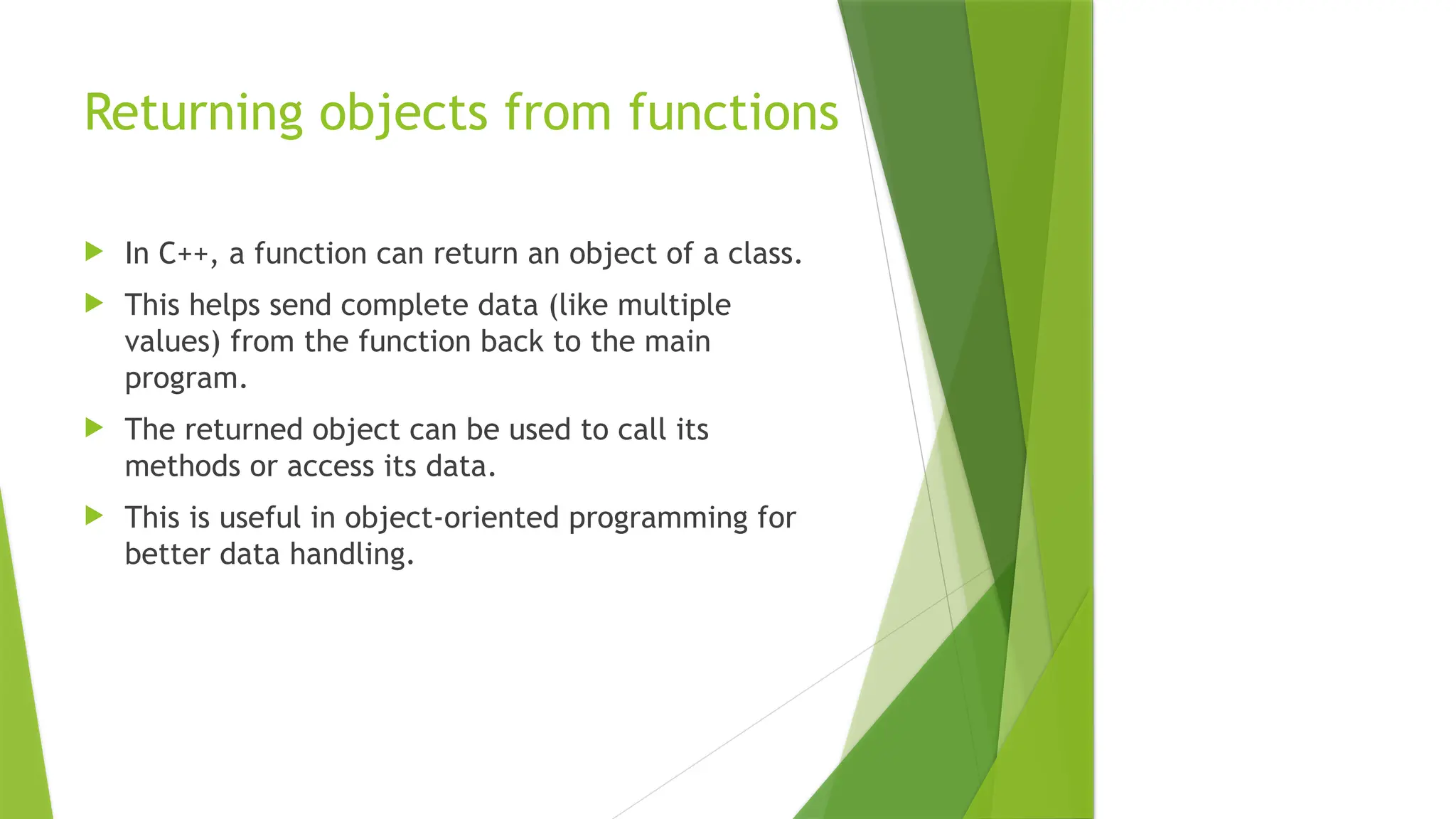

54. Returning objects from functions
 In C++, a function can return an object of a class.
 This helps send complete data (like multiple
values) from the function back to the main
program.
 The returned object can be used to call its
methods or access its data.
 This is useful in object-oriented programming for
better data handling.

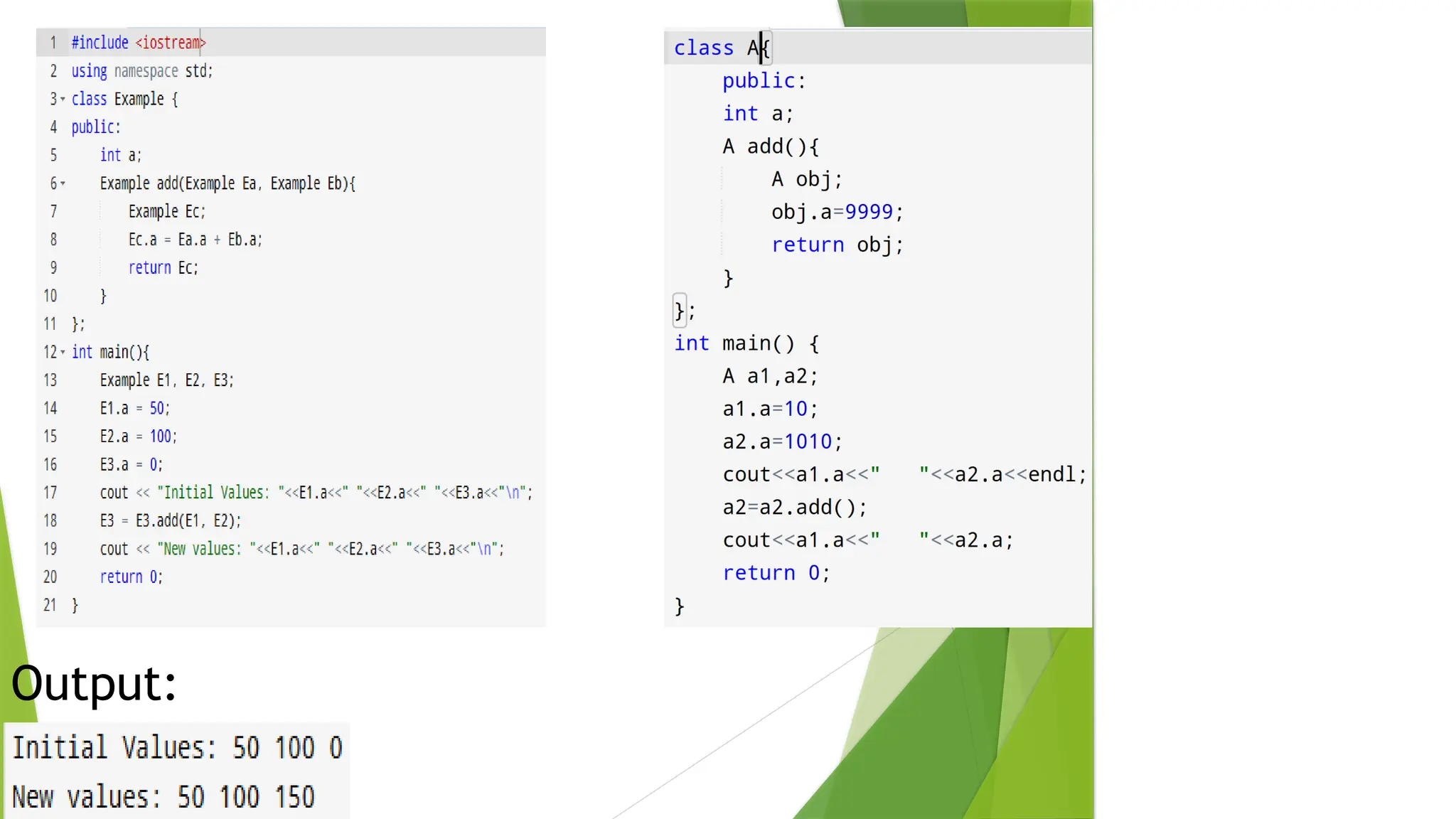

55. Output:

56. THANK YOU
