This document provides a table of monthly water flow data from 1963 to 2021 for the El Tigre station. It then calculates several statistics on the annual water availability (supply) for the point of interest for the irrigation project, including the median (Q50%), third quartile (Q75%), and 90th percentile (Q90%). The water availability is calculated based on the long-term monthly flow data from the El Tigre station.

1. Pregunta 2 (1.5 puntos)
Calcule la oferta hídrica para el punto en interés del proyecto de irrigación.
Para el cálculo de esta pregunta cada grupo debe sustentar sus datos y estos debenser
actualizados (1950-2020).
SOLUCIÓN:
Oferta Hídrica  La oferta hídrica de una cuenca, corresponde también al volumen disponible
de agua para satisfacer la demanda generada por las actividades sociales y económicas del
hombre. Al cuantificar la escorrentía superficial a partir del balance hídrico de la cuenca, se
está estimando la oferta de agua superficial de la misma.
Q = V1*A1 + V2*A2 + V3*A3 + V4*A4 + V5*A5
Q = ∑Ai*Vi
Para determinarlaofertahídricausamosloscaudalesmediosmensuales.
Nuestrosdatosobtenidossonconbase enel registrohistóricodesde1963 hasta el presente año,
2021, de la estaciónEl Tigre.

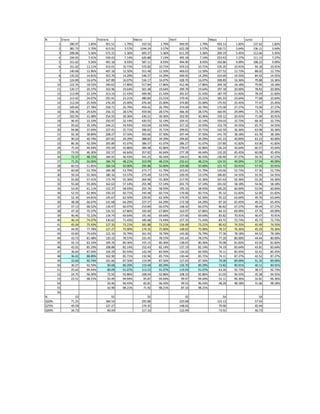

2. N Enero Febrero Marzo Abril Mayo Junio
1 390.97 1.85% 951.51 1.79% 310.16 1.79% 949.95 1.79% 493.13 1.82% 137.62 1.82%
2 381.73 3.70% 613.91 3.57% 1244.24 3.57% 622.28 3.57% 330.71 3.64% 136.11 3.64%
3 208.06 5.56% 573.15 5.36% 693.37 5.36% 611.29 5.36% 269.19 5.45% 112.66 5.45%
4 194.05 7.41% 549.43 7.14% 626.88 7.14% 495.18 7.14% 253.43 7.27% 111.13 7.27%
5 151.62 9.26% 491.18 8.93% 587.11 8.93% 494.90 8.93% 242.86 9.09% 108.22 9.09%
6 151.62 11.11% 415.01 10.71% 572.82 10.71% 474.53 10.71% 235.35 10.91% 94.18 10.91%
7 140.68 12.96% 407.18 12.50% 551.48 12.50% 469.63 12.50% 227.52 12.73% 88.02 12.73%
8 135.02 14.81% 353.70 14.29% 546.57 14.29% 449.92 14.29% 210.69 14.55% 84.42 14.55%
9 124.89 16.67% 347.89 16.07% 534.17 16.07% 428.70 16.07% 208.89 16.36% 79.88 16.36%
10 122.35 18.52% 340.62 17.86% 517.84 17.86% 412.46 17.86% 204.18 18.18% 79.85 18.18%
11 120.17 20.37% 332.96 19.64% 501.48 19.64% 399.79 19.64% 197.18 20.00% 78.83 20.00%
12 113.99 22.22% 313.33 21.43% 499.96 21.43% 391.67 21.43% 187.79 21.82% 78.29 21.82%
13 113.42 24.07% 291.91 23.21% 480.84 23.21% 379.45 23.21% 181.33 23.64% 77.68 23.64%
14 112.04 25.93% 276.20 25.00% 476.40 25.00% 374.80 25.00% 175.93 25.45% 77.47 25.45%
15 109.84 27.78% 258.71 26.79% 459.42 26.79% 374.09 26.79% 175.09 27.27% 73.99 27.27%
16 106.36 29.63% 256.15 28.57% 459.06 28.57% 366.30 28.57% 160.95 29.09% 73.70 29.09%
17 102.95 31.48% 254.55 30.36% 430.21 30.36% 352.95 30.36% 159.12 30.91% 71.69 30.91%
18 96.45 33.33% 250.97 32.14% 420.55 32.14% 324.41 32.14% 159.03 32.73% 68.30 32.73%
19 95.62 35.19% 244.21 33.93% 410.04 33.93% 317.22 33.93% 153.79 34.55% 65.75 34.55%
20 94.86 37.04% 227.41 35.71% 396.65 35.71% 299.81 35.71% 142.59 36.36% 63.98 36.36%
21 92.30 38.89% 208.27 37.50% 393.66 37.50% 297.44 37.50% 141.70 38.18% 63.78 38.18%
22 90.24 40.74% 207.81 39.29% 388.83 39.29% 294.82 39.29% 141.33 40.00% 63.23 40.00%
23 86.36 42.59% 205.89 41.07% 386.57 41.07% 286.27 41.07% 137.80 41.82% 63.06 41.82%
24 75.43 44.44% 193.59 42.86% 384.48 42.86% 278.67 42.86% 136.24 43.64% 60.57 43.64%
25 73.93 46.30% 192.57 44.64% 357.82 44.64% 277.39 44.64% 132.20 45.45% 60.08 45.45%
26 72.37 48.15% 184.91 46.43% 341.25 46.43% 236.61 46.43% 130.40 47.27% 59.35 47.27%
27 71.25 50.00% 184.74 48.21% 319.99 48.21% 232.61 48.21% 124.55 49.09% 57.94 49.09%
28 60.53 51.85% 184.54 50.00% 295.88 50.00% 229.08 50.00% 121.72 50.91% 57.93 50.91%
29 60.00 53.70% 184.38 51.79% 273.77 51.79% 223.81 51.79% 116.66 52.73% 57.36 52.73%
30 59.24 55.56% 180.16 53.57% 273.49 53.57% 220.95 53.57% 106.85 54.55% 55.93 54.55%
31 55.60 57.41% 173.79 55.36% 264.96 55.36% 217.95 55.36% 101.63 56.36% 55.26 56.36%
32 55.60 59.26% 162.63 57.14% 255.98 57.14% 201.73 57.14% 101.02 58.18% 54.46 58.18%
33 53.45 61.11% 152.37 58.93% 255.76 58.93% 195.33 58.93% 100.20 60.00% 53.94 60.00%
34 52.55 62.96% 150.33 60.71% 245.48 60.71% 176.06 60.71% 95.32 61.82% 52.60 61.82%
35 52.10 64.81% 145.67 62.50% 229.05 62.50% 174.95 62.50% 95.22 63.64% 49.70 63.64%
36 48.28 66.67% 141.68 64.29% 227.27 64.29% 172.58 64.29% 87.26 65.45% 49.21 65.45%
37 47.13 68.52% 136.47 66.07% 219.89 66.07% 168.42 66.07% 86.82 67.27% 48.44 67.27%
38 47.10 70.37% 135.55 67.86% 192.69 67.86% 163.97 67.86% 84.33 69.09% 47.76 69.09%
39 46.46 72.22% 134.74 69.64% 191.46 69.64% 157.66 69.64% 83.82 70.91% 46.47 70.91%
40 46.14 74.07% 130.62 71.43% 185.68 71.43% 157.33 71.43% 83.72 72.73% 45.73 72.73%
41 45.04 75.93% 127.35 73.21% 181.88 73.21% 156.49 73.21% 80.42 74.55% 45.49 74.55%
42 44.95 77.78% 127.27 75.00% 174.35 75.00% 148.02 75.00% 78.37 76.36% 45.29 76.36%
43 43.83 79.63% 122.16 76.79% 161.93 76.79% 145.00 76.79% 77.36 78.18% 44.52 78.18%
44 43.73 81.48% 120.32 78.57% 155.45 78.57% 141.64 78.57% 77.20 80.00% 44.44 80.00%
45 42.13 83.33% 109.76 80.36% 155.15 80.36% 138.65 80.36% 76.98 81.82% 43.92 81.82%
46 42.01 85.19% 108.88 82.14% 152.43 82.14% 137.19 82.14% 74.19 83.64% 43.81 83.64%
47 36.64 87.04% 104.29 83.93% 142.49 83.93% 134.02 83.93% 74.11 85.45% 42.61 85.45%
48 36.42 88.89% 102.90 85.71% 132.96 85.71% 130.44 85.71% 74.11 87.27% 42.52 87.27%
49 33.60 90.74% 101.66 87.50% 119.99 87.50% 127.03 87.50% 74.00 89.09% 41.35 89.09%
50 30.27 92.59% 90.68 89.29% 119.48 89.29% 126.70 89.29% 73.82 90.91% 40.11 90.91%
51 25.62 94.44% 89.09 91.07% 113.53 91.07% 119.93 91.07% 63.26 92.73% 38.57 92.73%
52 24.75 96.30% 72.92 92.86% 108.04 92.86% 108.10 92.86% 61.03 94.55% 35.58 94.55%
53 23.51 98.15% 50.49 94.64% 95.87 94.64% 99.97 94.64% 53.11 96.36% 32.81 96.36%
54 50.46 96.43% 82.81 96.43% 99.53 96.43% 48.28 98.18% 31.66 98.18%
55 42.90 98.21% 71.92 98.21% 87.10 98.21%
56
N 53 55 55 55 54 54
Q50% 71.25 184.54 295.88 229.08 123.13 57.93
Q75% 45.59 127.27 174.35 148.02 79.90 45.44
Q90% 34.73 90.04 117.10 123.99 73.91 40.73

3. N Julio Agosto Setiembre Octubre Noviembre Diciembre
1 78.23 1.82% 58.71 1.82% 46.01 1.75% 43.54 1.79% 35.40 1.85% 113.23 1.85%
2 70.12 3.64% 57.53 3.64% 43.40 3.51% 39.01 3.57% 32.79 3.70% 86.62 3.70%
3 57.75 5.45% 44.21 5.45% 40.53 5.26% 35.68 5.36% 30.77 5.56% 86.58 5.56%
4 57.52 7.27% 38.79 7.27% 34.18 7.02% 33.25 7.14% 28.49 7.41% 77.75 7.41%
5 54.94 9.09% 36.17 9.09% 31.42 8.77% 30.52 8.93% 28.40 9.26% 58.31 9.26%
6 52.98 10.91% 36.07 10.91% 30.64 10.53% 29.36 10.71% 26.93 11.11% 51.91 11.11%
7 52.74 12.73% 35.62 12.73% 29.86 12.28% 26.67 12.50% 26.02 12.96% 50.70 12.96%
8 51.49 14.55% 35.25 14.55% 29.73 14.04% 23.83 14.29% 23.18 14.81% 50.42 14.81%
9 49.84 16.36% 35.03 16.36% 29.37 15.79% 23.76 16.07% 22.91 16.67% 49.97 16.67%
10 49.09 18.18% 34.98 18.18% 27.18 17.54% 23.75 17.86% 22.28 18.52% 39.12 18.52%
11 48.06 20.00% 34.55 20.00% 26.42 19.30% 23.42 19.64% 21.47 20.37% 37.80 20.37%
12 46.26 21.82% 34.03 21.82% 26.20 21.05% 22.99 21.43% 21.25 22.22% 37.75 22.22%
13 44.80 23.64% 33.68 23.64% 25.37 22.81% 21.59 23.21% 19.95 24.07% 35.71 24.07%
14 44.35 25.45% 32.80 25.45% 24.32 24.56% 21.01 25.00% 19.52 25.93% 34.05 25.93%
15 44.22 27.27% 31.90 27.27% 23.75 26.32% 20.85 26.79% 19.52 27.78% 33.26 27.78%
16 42.62 29.09% 29.85 29.09% 23.54 28.07% 20.72 28.57% 19.14 29.63% 31.62 29.63%
17 42.47 30.91% 29.16 30.91% 22.83 29.82% 20.37 30.36% 18.73 31.48% 30.91 31.48%
18 42.03 32.73% 28.84 32.73% 22.09 31.58% 19.98 32.14% 17.63 33.33% 28.52 33.33%
19 41.77 34.55% 28.30 34.55% 21.43 33.33% 19.29 33.93% 17.48 35.19% 28.50 35.19%
20 41.15 36.36% 28.16 36.36% 21.34 35.09% 18.92 35.71% 17.45 37.04% 28.11 37.04%
21 41.02 38.18% 27.53 38.18% 21.16 36.84% 18.83 37.50% 17.29 38.89% 26.90 38.89%
22 40.73 40.00% 27.26 40.00% 21.09 38.60% 18.56 39.29% 17.23 40.74% 26.14 40.74%
23 39.37 41.82% 26.29 41.82% 20.74 40.35% 18.43 41.07% 17.19 42.59% 25.63 42.59%
24 39.27 43.64% 26.05 43.64% 20.69 42.11% 17.39 42.86% 16.85 44.44% 25.23 44.44%
25 37.38 45.45% 25.87 45.45% 20.26 43.86% 17.36 44.64% 16.79 46.30% 25.15 46.30%
26 37.28 47.27% 24.39 47.27% 19.97 45.61% 16.58 46.43% 16.76 48.15% 24.86 48.15%
27 36.73 49.09% 24.30 49.09% 19.15 47.37% 16.41 48.21% 16.66 50.00% 23.82 50.00%
28 36.68 50.91% 24.03 50.91% 18.40 49.12% 16.06 50.00% 16.60 51.85% 23.74 51.85%
29 36.09 52.73% 23.99 52.73% 18.30 50.88% 16.04 51.79% 16.54 53.70% 22.88 53.70%
30 35.43 54.55% 23.94 54.55% 17.66 52.63% 15.99 53.57% 16.16 55.56% 22.69 55.56%
31 33.80 56.36% 23.67 56.36% 17.64 54.39% 15.79 55.36% 16.16 57.41% 22.69 57.41%
32 33.64 58.18% 23.29 58.18% 17.49 56.14% 15.50 57.14% 15.63 59.26% 22.12 59.26%
33 32.98 60.00% 23.10 60.00% 17.34 57.89% 15.29 58.93% 15.33 61.11% 21.56 61.11%
34 31.76 61.82% 22.93 61.82% 17.20 59.65% 15.03 60.71% 15.19 62.96% 19.65 62.96%
35 31.24 63.64% 22.76 63.64% 17.12 61.40% 14.97 62.50% 15.02 64.81% 19.40 64.81%
36 30.12 65.45% 22.44 65.45% 16.97 63.16% 14.73 64.29% 14.85 66.67% 19.17 66.67%
37 30.03 67.27% 21.94 67.27% 16.93 64.91% 14.65 66.07% 14.84 68.52% 19.07 68.52%
38 29.85 69.09% 20.34 69.09% 16.74 66.67% 14.57 67.86% 14.66 70.37% 18.92 70.37%
39 29.66 70.91% 19.88 70.91% 16.69 68.42% 14.17 69.64% 13.77 72.22% 18.17 72.22%
40 29.17 72.73% 19.60 72.73% 16.49 70.18% 14.15 71.43% 13.76 74.07% 17.64 74.07%
41 28.23 74.55% 19.58 74.55% 16.25 71.93% 14.15 73.21% 13.62 75.93% 17.34 75.93%
42 28.04 76.36% 19.45 76.36% 16.24 73.68% 14.12 75.00% 13.44 77.78% 17.27 77.78%
43 27.53 78.18% 18.84 78.18% 15.02 75.44% 13.37 76.79% 13.36 79.63% 16.90 79.63%
44 27.51 80.00% 18.77 80.00% 14.86 77.19% 13.17 78.57% 13.08 81.48% 16.61 81.48%
45 27.18 81.82% 18.59 81.82% 14.72 78.95% 13.14 80.36% 12.95 83.33% 16.39 83.33%
46 26.55 83.64% 18.33 83.64% 14.62 80.70% 12.58 82.14% 12.47 85.19% 16.29 85.19%
47 26.25 85.45% 17.82 85.45% 14.56 82.46% 12.43 83.93% 12.30 87.04% 16.15 87.04%
48 26.02 87.27% 17.64 87.27% 14.38 84.21% 12.38 85.71% 12.10 88.89% 15.64 88.89%
49 25.95 89.09% 17.61 89.09% 14.34 85.96% 11.92 87.50% 11.70 90.74% 15.31 90.74%
50 24.99 90.91% 17.58 90.91% 14.09 87.72% 11.80 89.29% 11.70 92.59% 14.74 92.59%
51 23.75 92.73% 17.43 92.73% 13.43 89.47% 11.64 91.07% 10.98 94.44% 12.26 94.44%
52 22.71 94.55% 17.05 94.55% 13.24 91.23% 11.61 92.86% 10.79 96.30% 8.76 96.30%
53 22.53 96.36% 16.81 96.36% 13.22 92.98% 11.31 94.64% 7.73 98.15% 8.72 98.15%
54 14.21 98.18% 16.06 98.18% 12.78 94.74% 11.14 96.43%
55 11.72 96.49% 10.71 98.21%
56 8.79 98.25%
N 54 54 56 55 53 53
Q50% 36.71 24.17 18.35 16.06 16.66 23.82
Q75% 28.18 19.55 15.32 14.12 13.69 17.49
Q90% 25.47 17.60 13.37 11.74 11.86 15.44

4. OfertaHídrica mensual al 50%, 75% y 90% de persistencia.
Gráfico (Q50%,Q75% y Q90%).
BALANCEHÍDRICO:
 RIEGO POR GRAVEDAD
Mes Q50% Q75% Q90%
Enero 71.25 45.59 34.73
Febrero 184.54 127.27 90.04
Marzo 295.88 174.35 117.10
Abril 229.08 148.02 123.99
Mayo 123.13 79.90 73.91
Junio 57.93 45.44 40.73
Julio 36.71 28.18 25.47
Agosto 24.17 19.55 17.60
Setiembre 18.35 15.32 13.37
Octubre 16.06 14.12 11.74
Noviembre 16.66 13.69 11.86
Diciembre 23.82 17.49 15.44
Caudales ofertados (m3/s)
0.00
50.00
100.00
150.00
200.00
250.00
300.00
350.00
Caudal
(m3/s)
Mes
Oferta hídricaEst. El Tigre
Q50%
Q75%
Q90%
Mes Enero Febrero Marzo Abril Mayo Junio Julio Agosto Setiembre Octubre Noviembre Diciembre
Oferta (MMC) 122.11 307.88 466.97 383.67 214.02 117.79 75.48 52.35 39.72 37.81 35.49 46.84
Demanda (MMC) 9.30 8.99 5.92 0.36 8.12 7.88 8.08 7.98 6.28 0.61 10.08 8.22

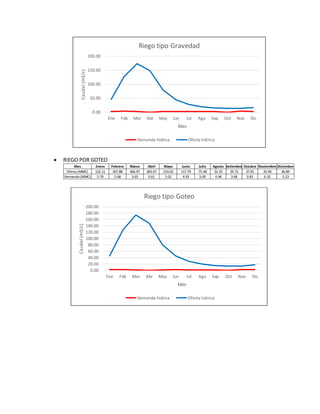

5.  RIEGO POR GOTEO
0.00
50.00
100.00
150.00
200.00
Ene Feb Mar Abr May Jun Jul Ago Sep Oct Nov Dic
Caudal
(m3/s)
Mes
Riego tipo Gravedad
Demanda hidrica Oferta hidrica
Mes Enero Febrero Marzo Abril Mayo Junio Julio Agosto Setiembre Octubre Noviembre Diciembre
Oferta (MMC) 122.11 307.88 466.97 383.67 214.02 117.79 75.48 52.35 39.72 37.81 35.49 46.84
Demanda (MMC) 5.79 5.68 3.65 0.61 5.02 4.93 5.09 4.98 3.68 0.83 6.32 5.23
0.00
20.00
40.00
60.00
80.00
100.00
120.00
140.00
160.00
180.00
200.00
Ene Feb Mar Abr May Jun Jul Ago Sep Oct Nov Dic
Caudal
(m3/s)
Mes
Riego tipo Goteo
Demanda hidrica Oferta hidrica
