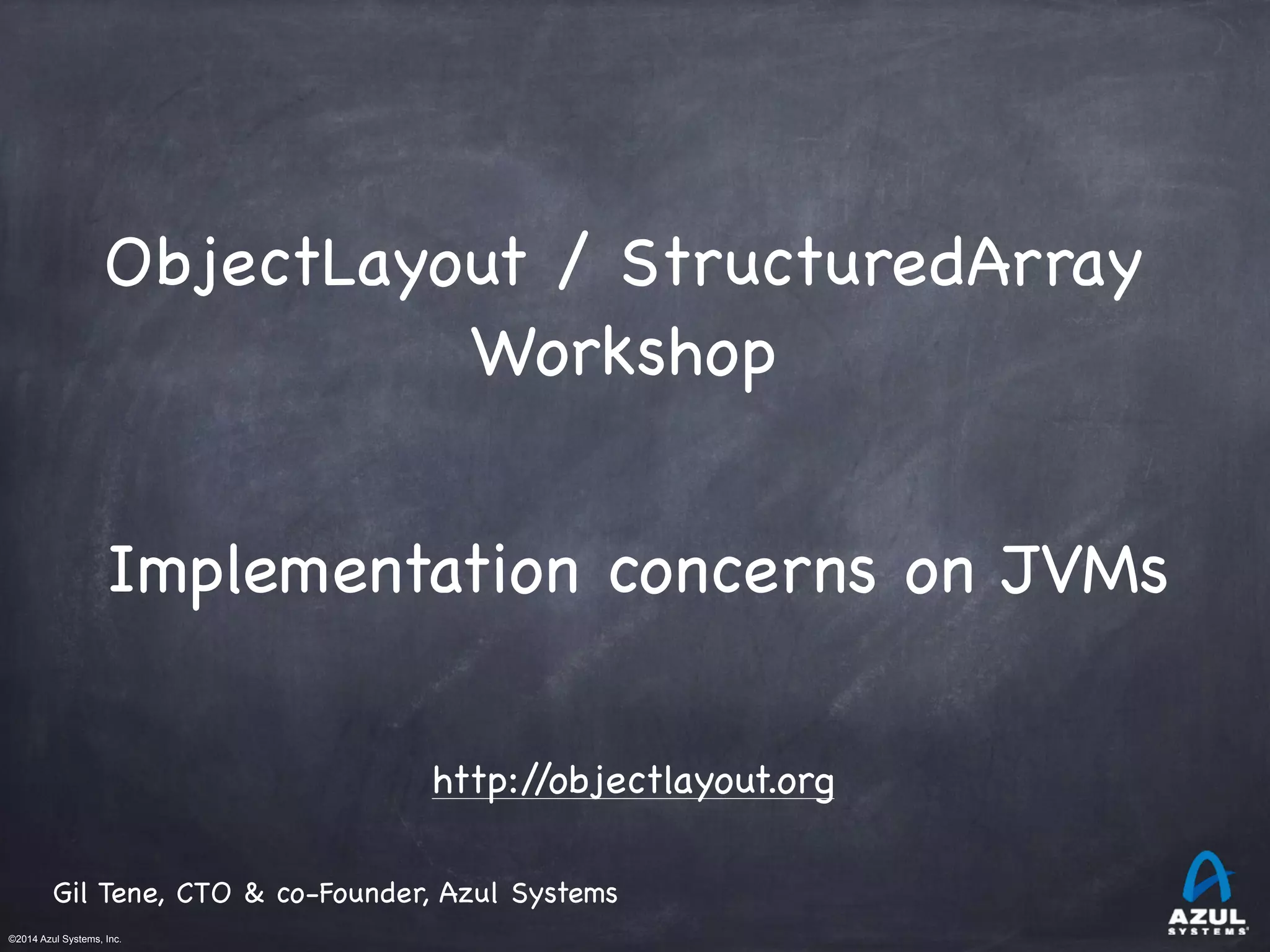

1. ©2014 Azul Systems, Inc.
Implementation concerns on JVMs
Gil Tene, CTO & co-Founder, Azul Systems
http://objectlayout.org
ObjectLayout / StructuredArray
Workshop
!

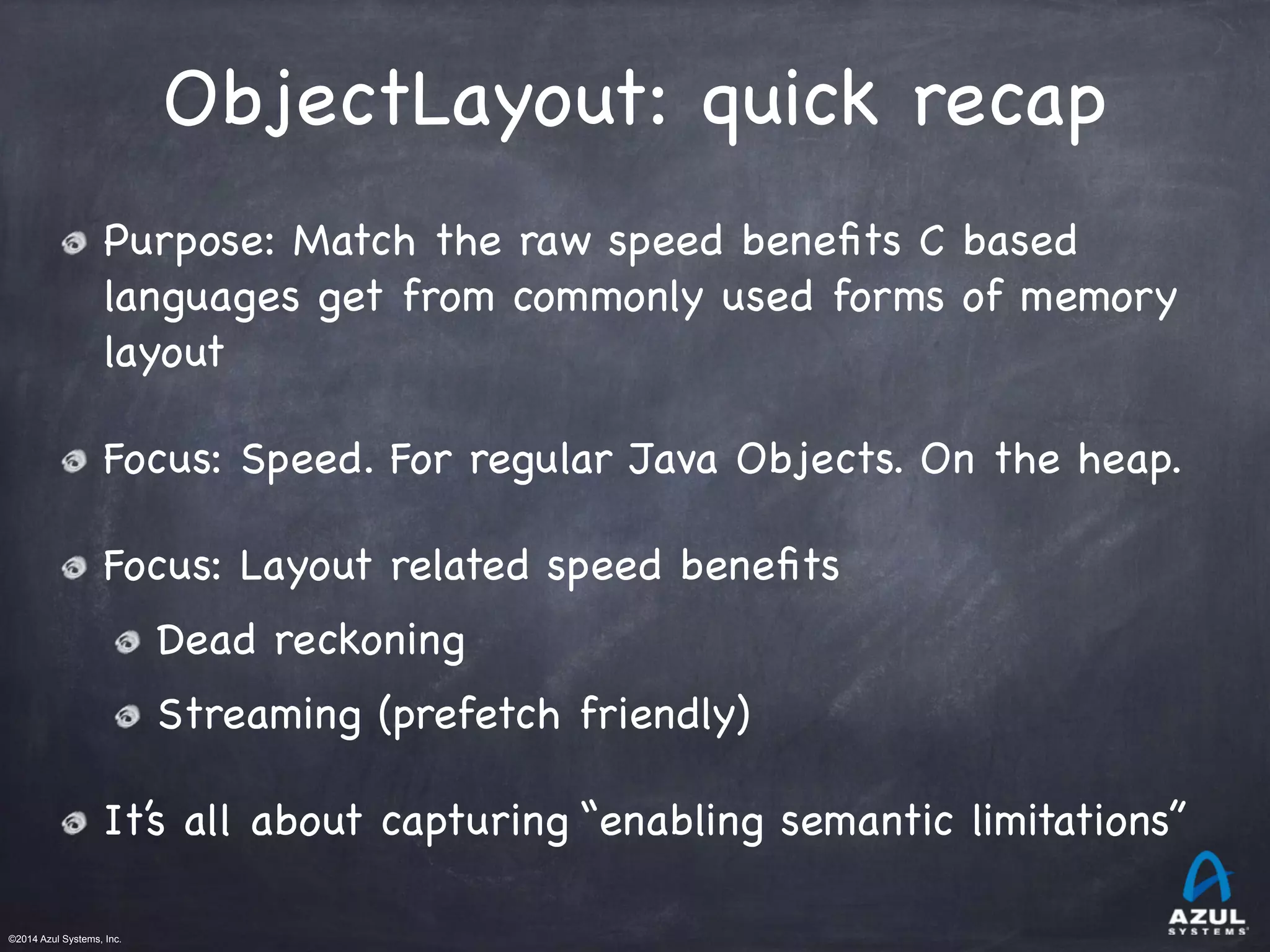

2. ©2014 Azul Systems, Inc.
ObjectLayout: quick recap
Purpose: Match the raw speed benefits C based
languages get from commonly used forms of memory
layout
Focus: Speed. For regular Java Objects. On the heap.
Focus: Layout related speed benefits
Dead reckoning
Streaming (prefetch friendly)
It’s all about capturing “enabling semantic limitations”

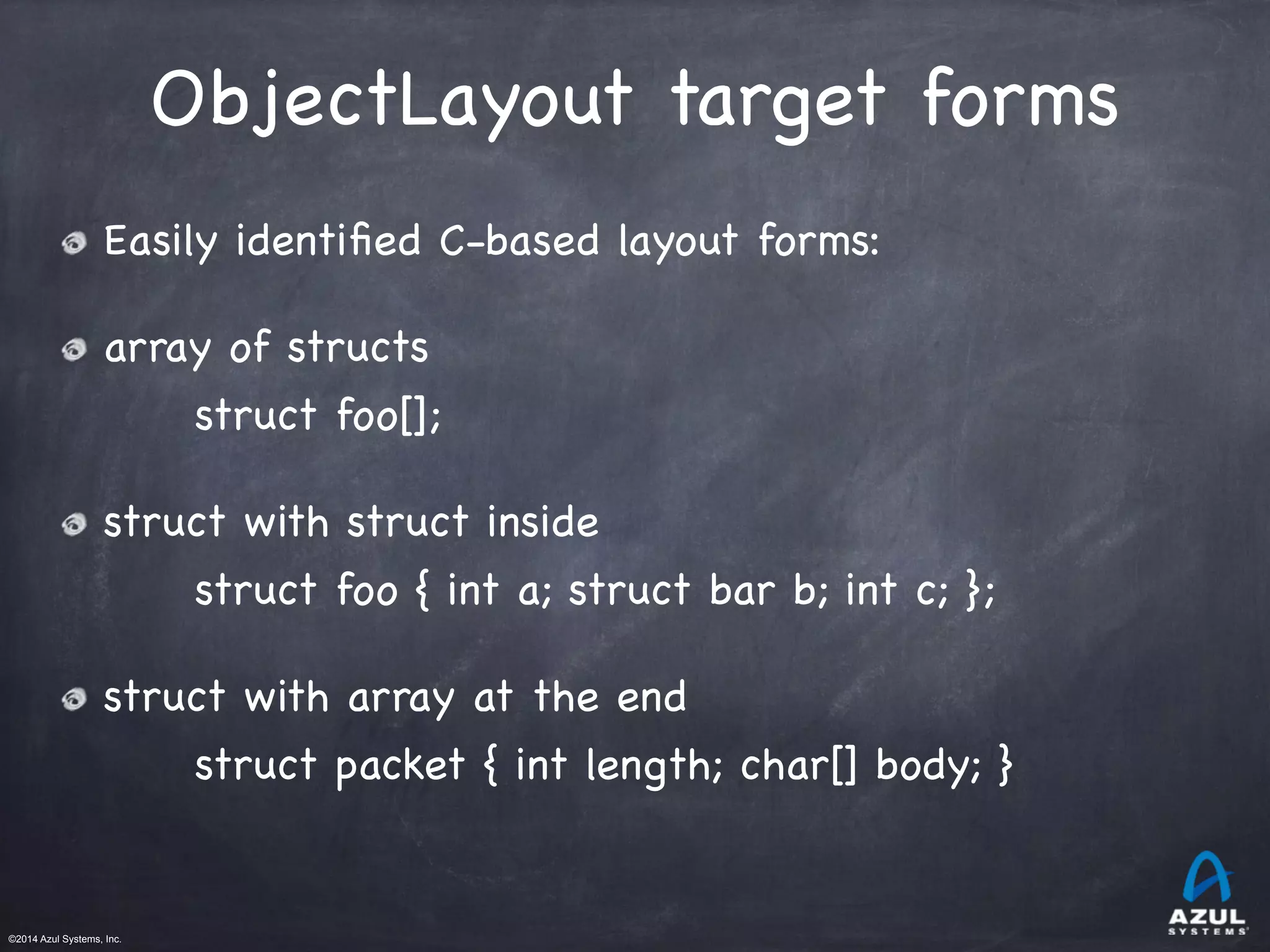

3. ©2014 Azul Systems, Inc.
ObjectLayout target forms
Easily identified C-based layout forms:
array of structs
struct foo[];
struct with struct inside
struct foo { int a; struct bar b; int c; };
struct with array at the end
struct packet { int length; char[] body; }

4. ©2014 Azul Systems, Inc.

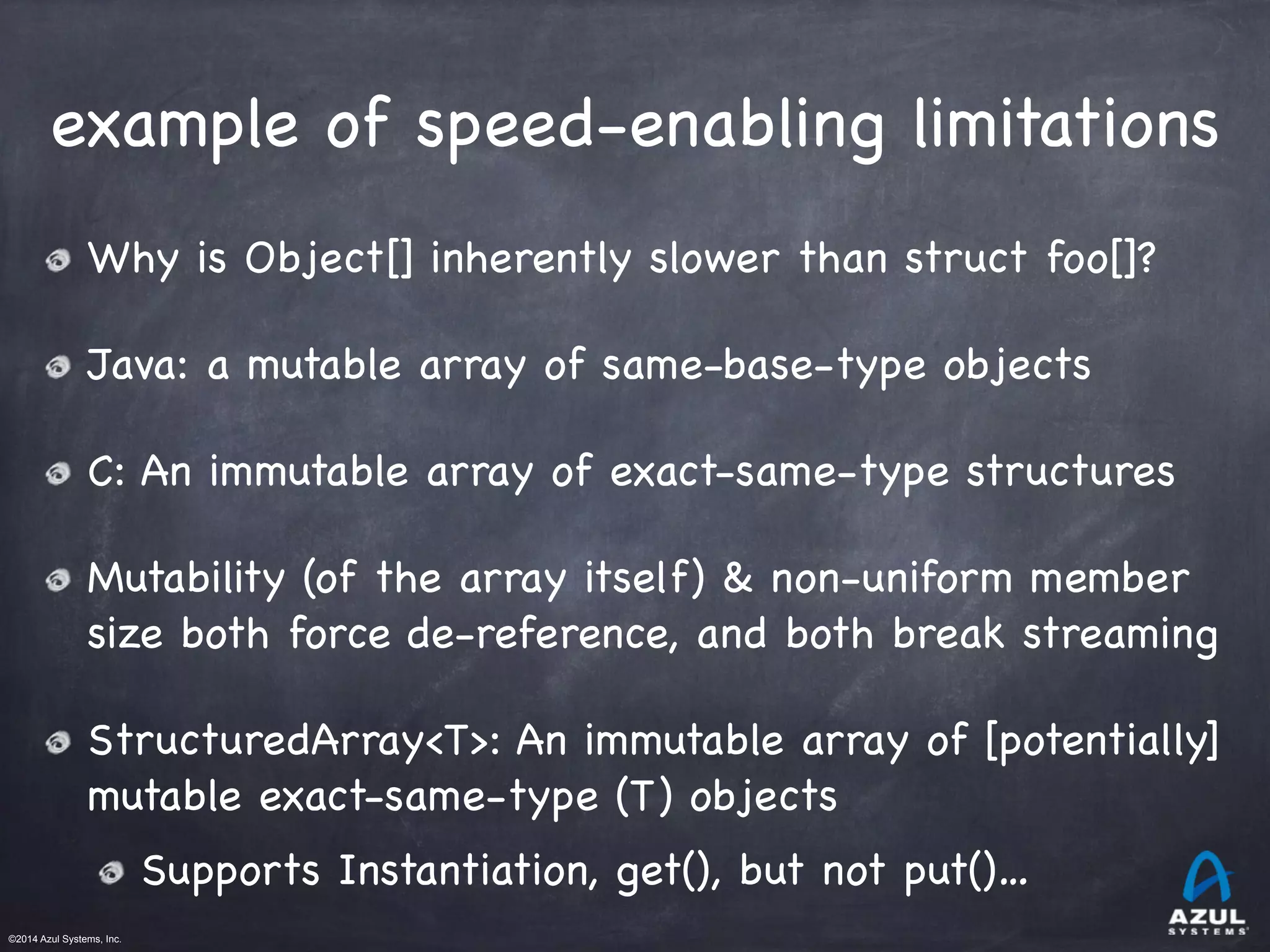

example of speed-enabling limitations
Why is Object[] inherently slower than struct foo[]?
Java: a mutable array of same-base-type objects
C: An immutable array of exact-same-type structures
Mutability (of the array itself) & non-uniform member
size both force de-reference, and both break streaming
StructuredArray<T>: An immutable array of [potentially]
mutable exact-same-type (T) objects
Supports Instantiation, get(), but not put()…

5. ©2014 Azul Systems, Inc.

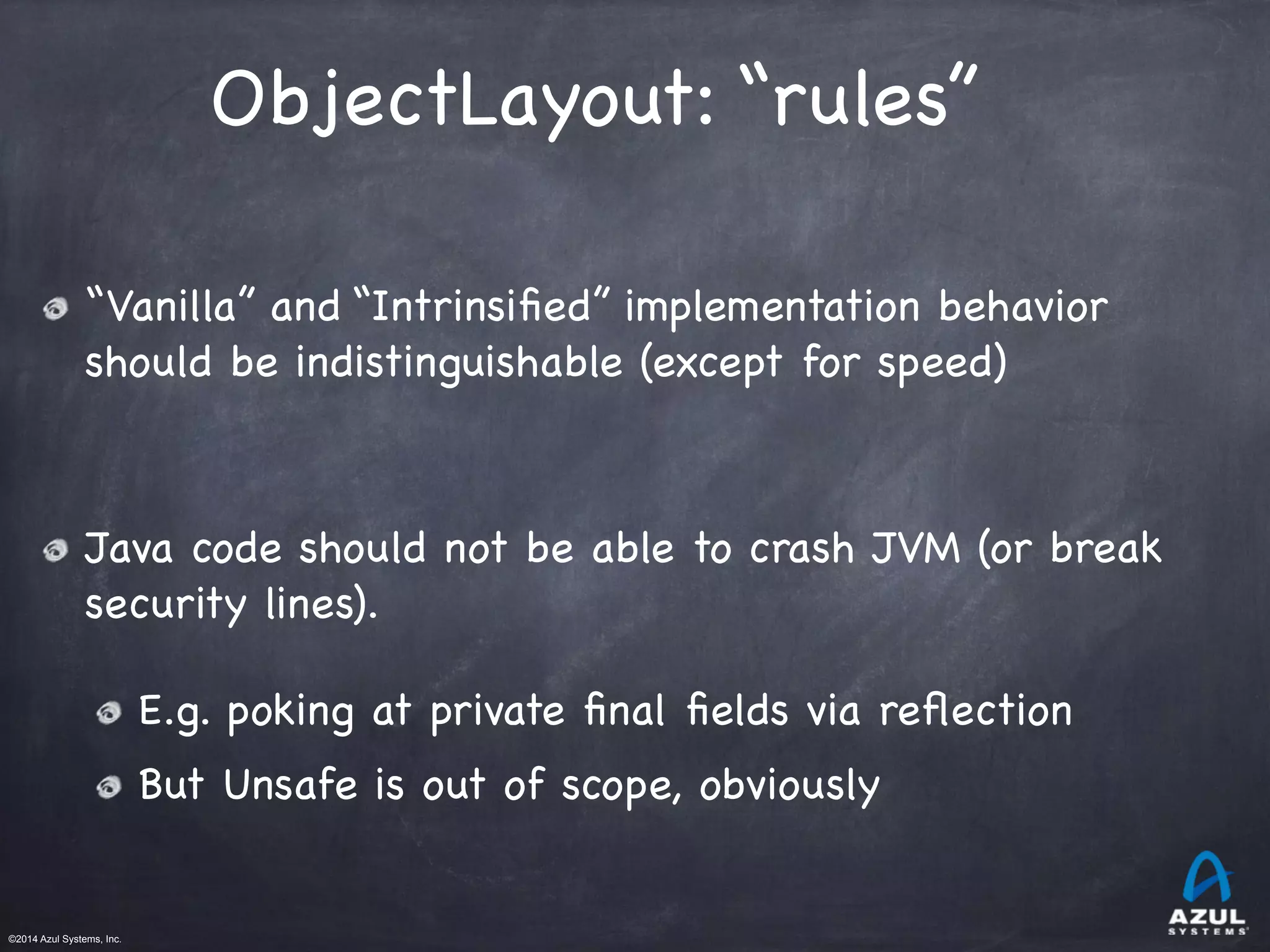

ObjectLayout: “rules”
“Vanilla” and “Intrinsified” implementation behavior
should be indistinguishable (except for speed)
Java code should not be able to crash JVM (or break
security lines).
E.g. poking at private final fields via reflection
But Unsafe is out of scope, obviously

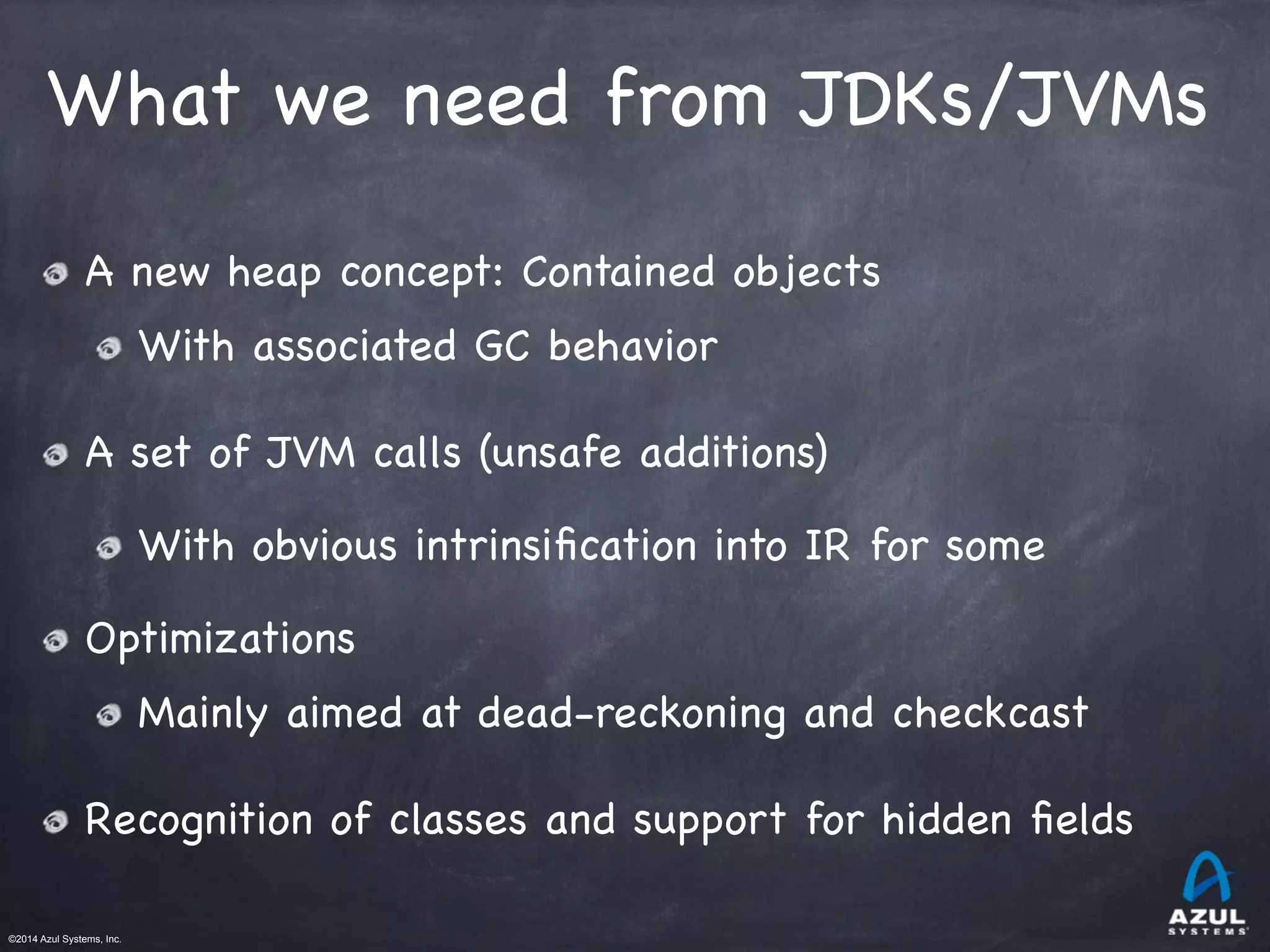

6. ©2014 Azul Systems, Inc.
What we need from JDKs/JVMs
A new heap concept: Contained objects
With associated GC behavior
A set of JVM calls (unsafe additions)
With obvious intrinsification into IR for some
Optimizations
Mainly aimed at dead-reckoning and checkcast
Recognition of classes and support for hidden fields

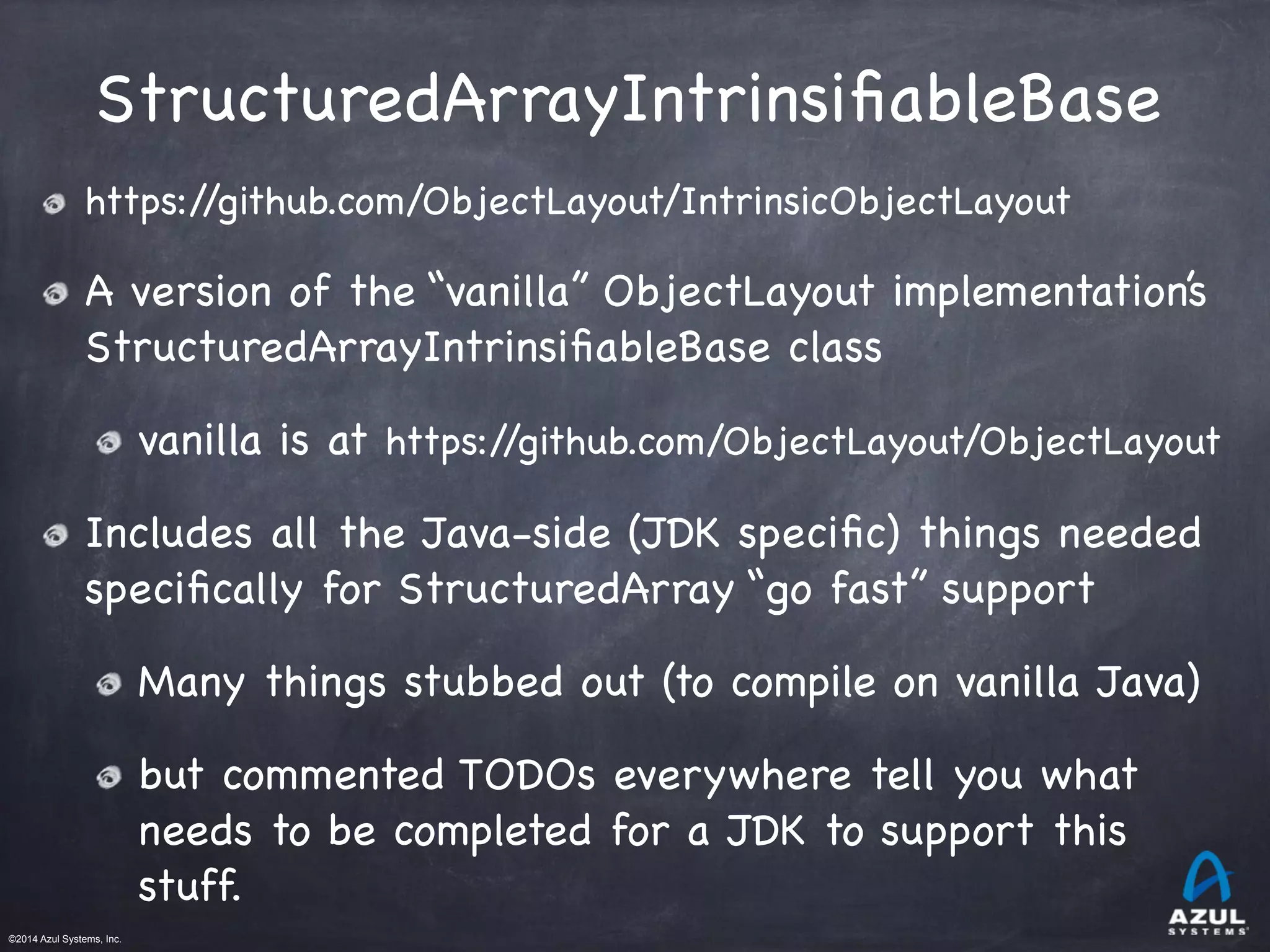

7. ©2014 Azul Systems, Inc.
StructuredArrayIntrinsifiableBase
https://github.com/ObjectLayout/IntrinsicObjectLayout
A version of the “vanilla” ObjectLayout implementation’s
StructuredArrayIntrinsifiableBase class
vanilla is at https://github.com/ObjectLayout/ObjectLayout
Includes all the Java-side (JDK specific) things needed
specifically for StructuredArray “go fast” support
Many things stubbed out (to compile on vanilla Java)
but commented TODOs everywhere tell you what
needs to be completed for a JDK to support this
stuff.

8. ©2014 Azul Systems, Inc.

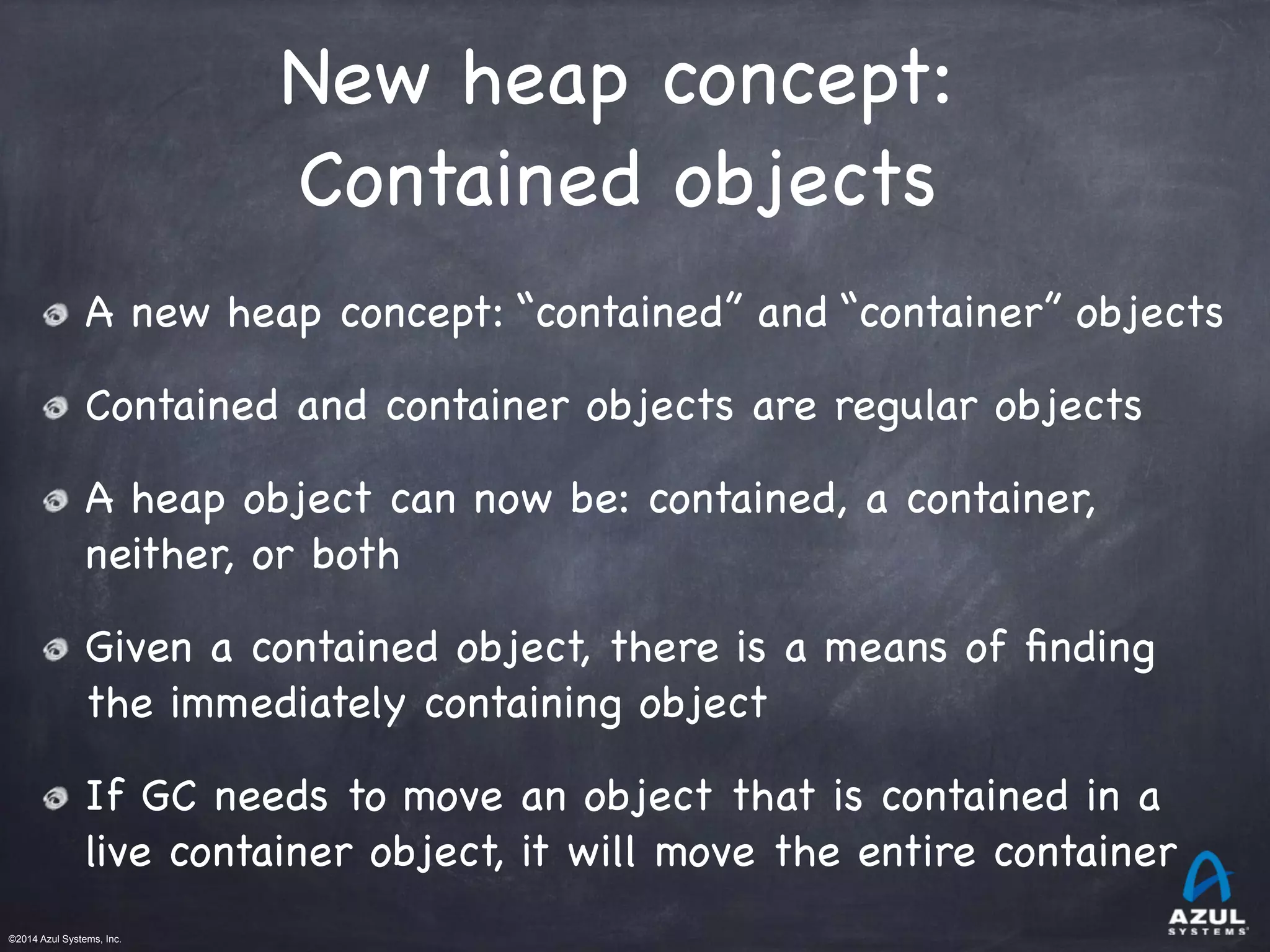

New heap concept:
Contained objects
A new heap concept: “contained” and “container” objects
Contained and container objects are regular objects
A heap object can now be: contained, a container,
neither, or both
Given a contained object, there is a means of finding
the immediately containing object
If GC needs to move an object that is contained in a
live container object, it will move the entire container

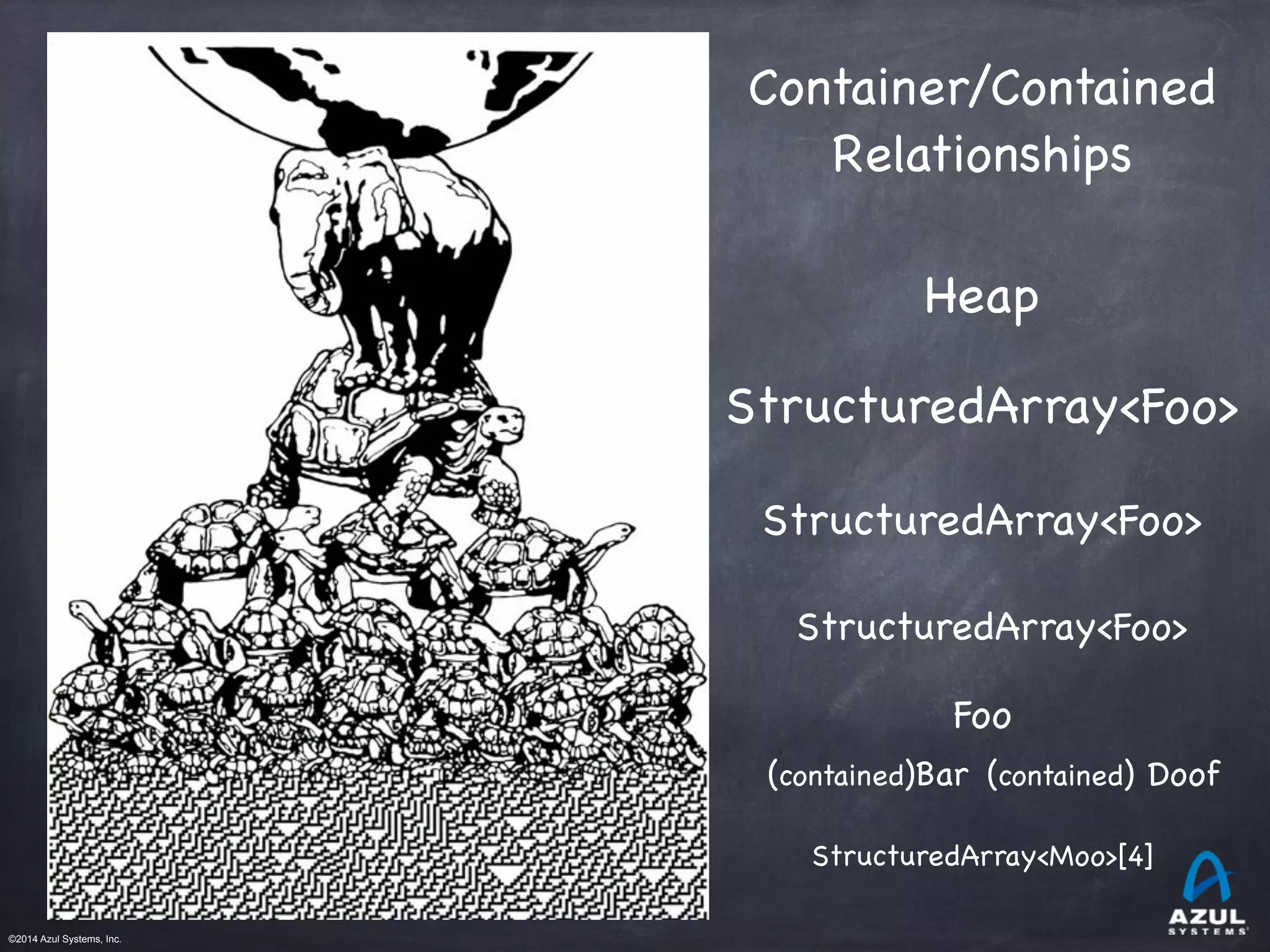

9. ©2014 Azul Systems, Inc.
StructuredArray<Foo>
StructuredArray<Foo>
Heap
StructuredArray<Foo>
Foo
(contained)Bar (contained) Doof
StructuredArray<Moo>[4]
Container/Contained
Relationships

10. ©2014 Azul Systems, Inc.

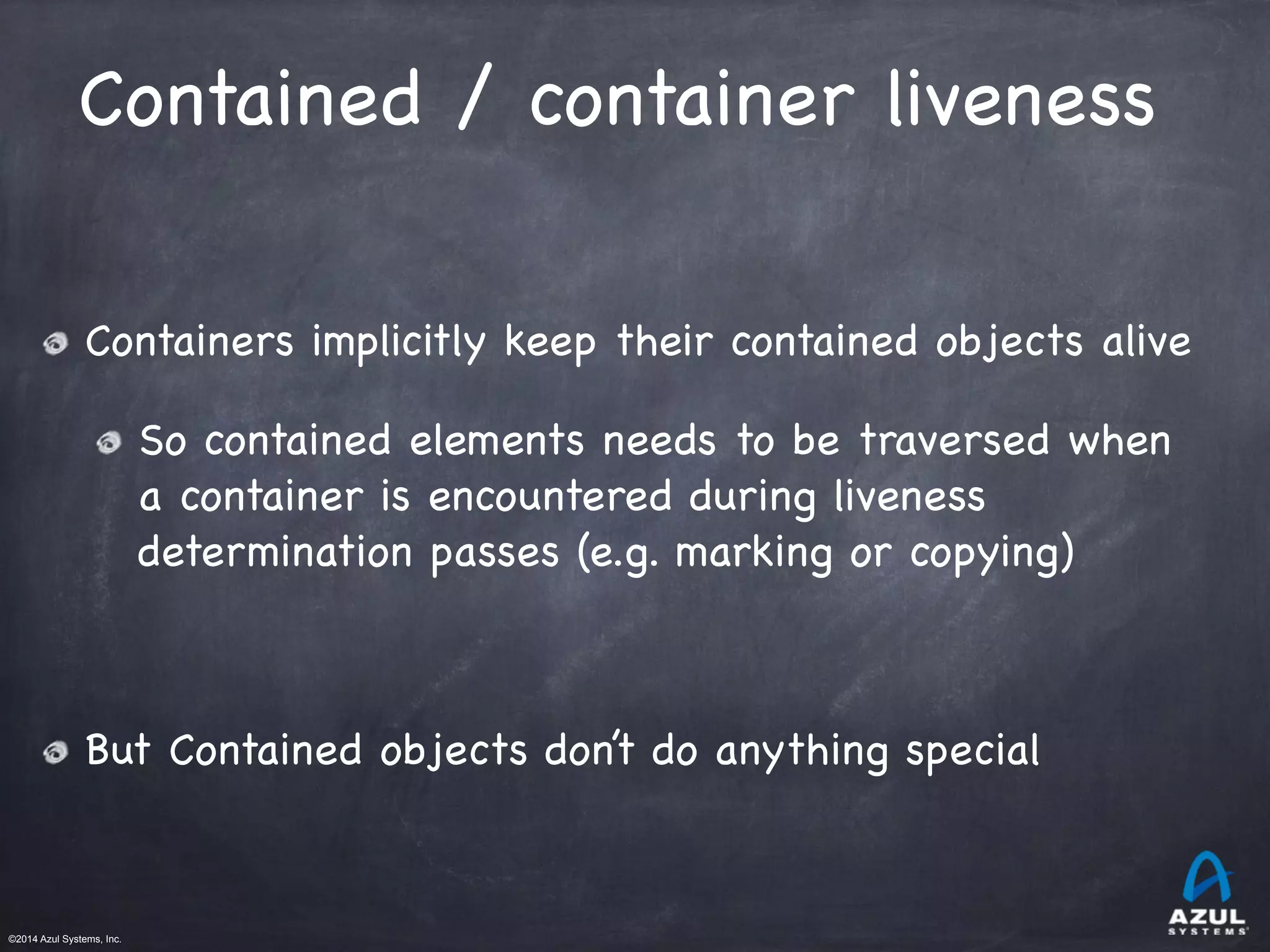

Contained / container liveness
Containers implicitly keep their contained objects alive
So contained elements needs to be traversed when
a container is encountered during liveness
determination passes (e.g. marking or copying)
!
But Contained objects don’t do anything special

11. ©2014 Azul Systems, Inc.

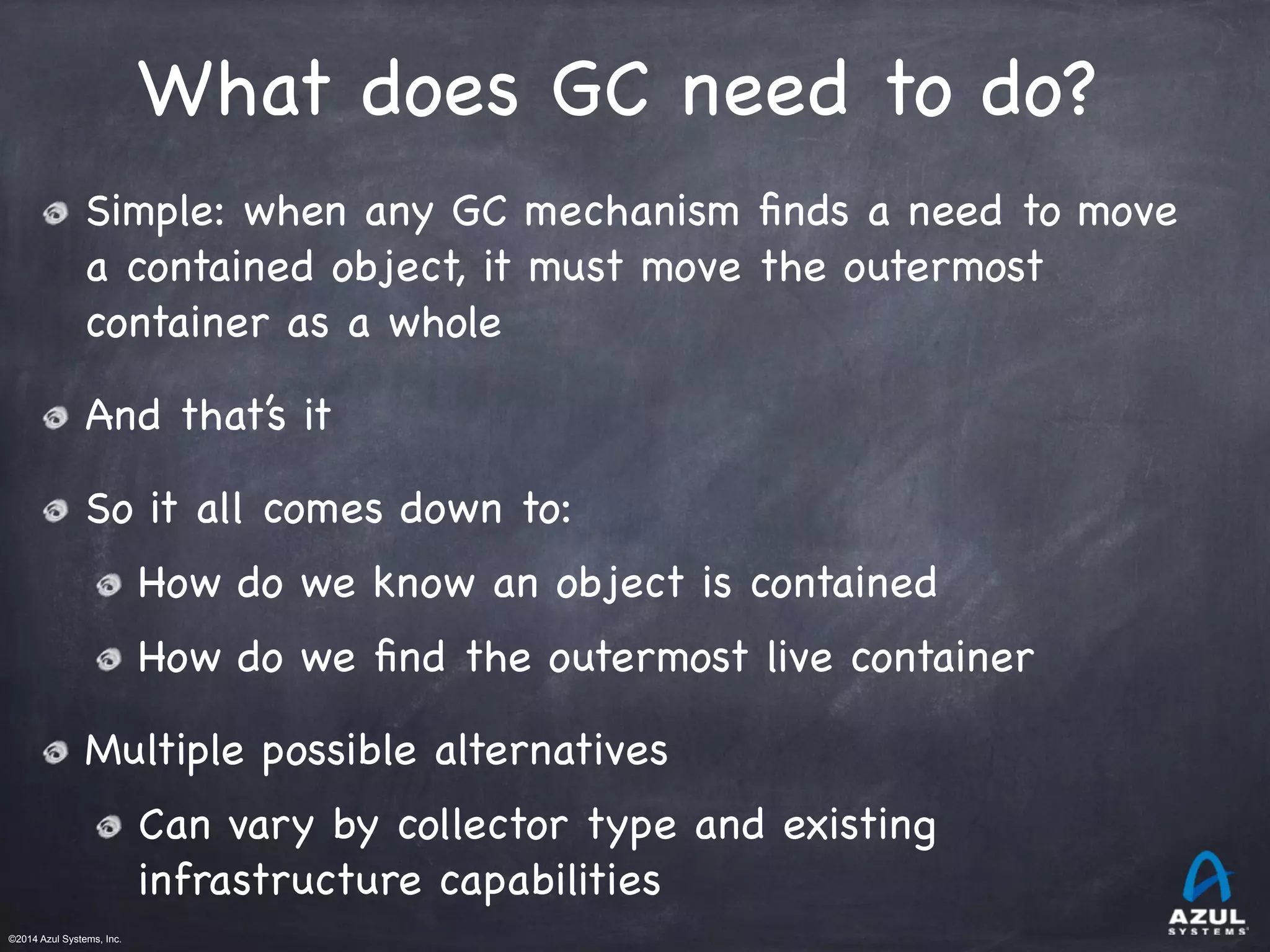

What does GC need to do?
Simple: when any GC mechanism finds a need to move
a contained object, it must move the outermost
container as a whole
And that’s it
So it all comes down to:
How do we know an object is contained
How do we find the outermost live container
Multiple possible alternatives
Can vary by collector type and existing
infrastructure capabilities

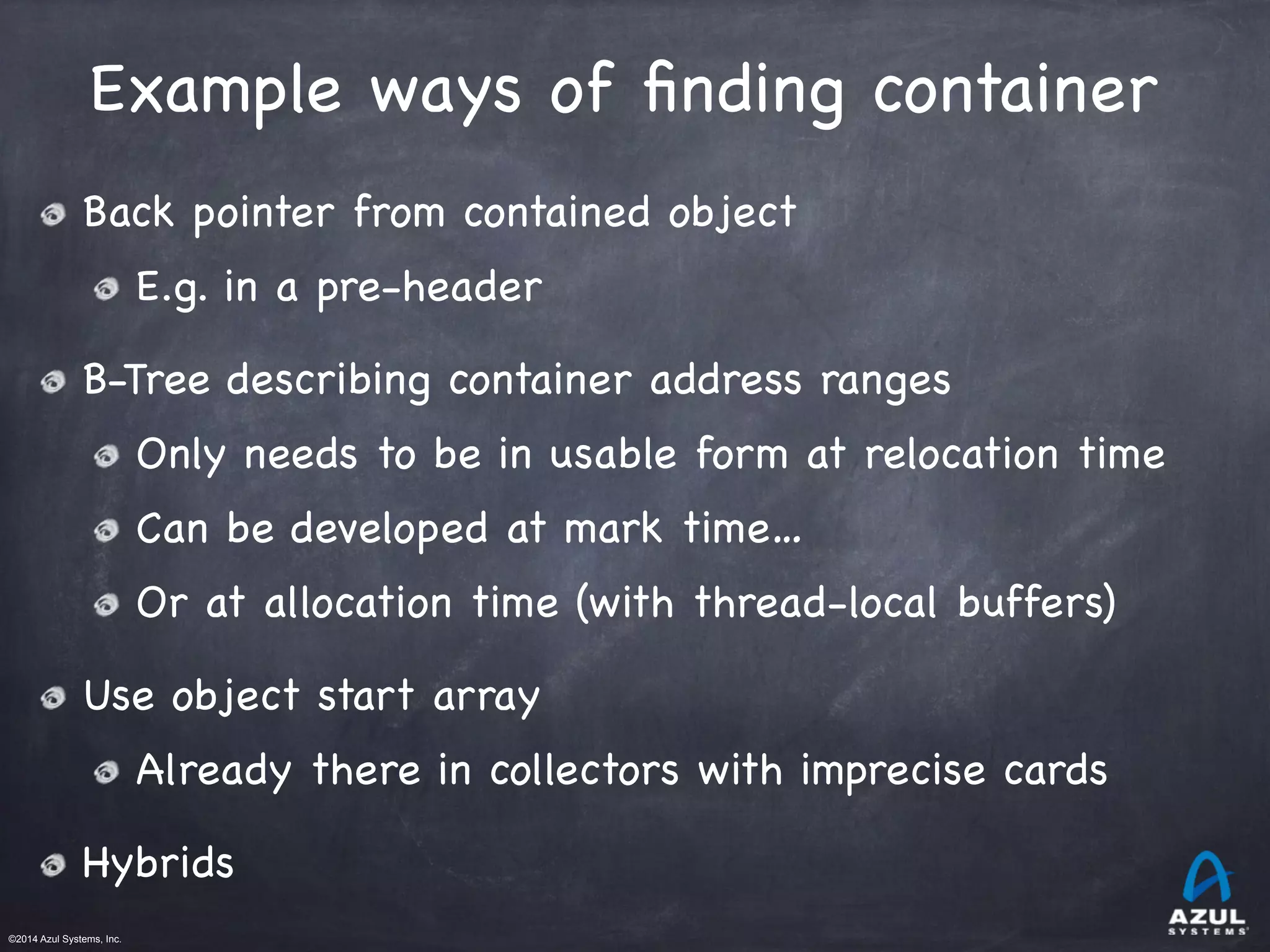

12. ©2014 Azul Systems, Inc.
Example ways of finding container
Back pointer from contained object
E.g. in a pre-header
B-Tree describing container address ranges
Only needs to be in usable form at relocation time
Can be developed at mark time…
Or at allocation time (with thread-local buffers)
Use object start array
Already there in collectors with imprecise cards
Hybrids

13. ©2014 Azul Systems, Inc.

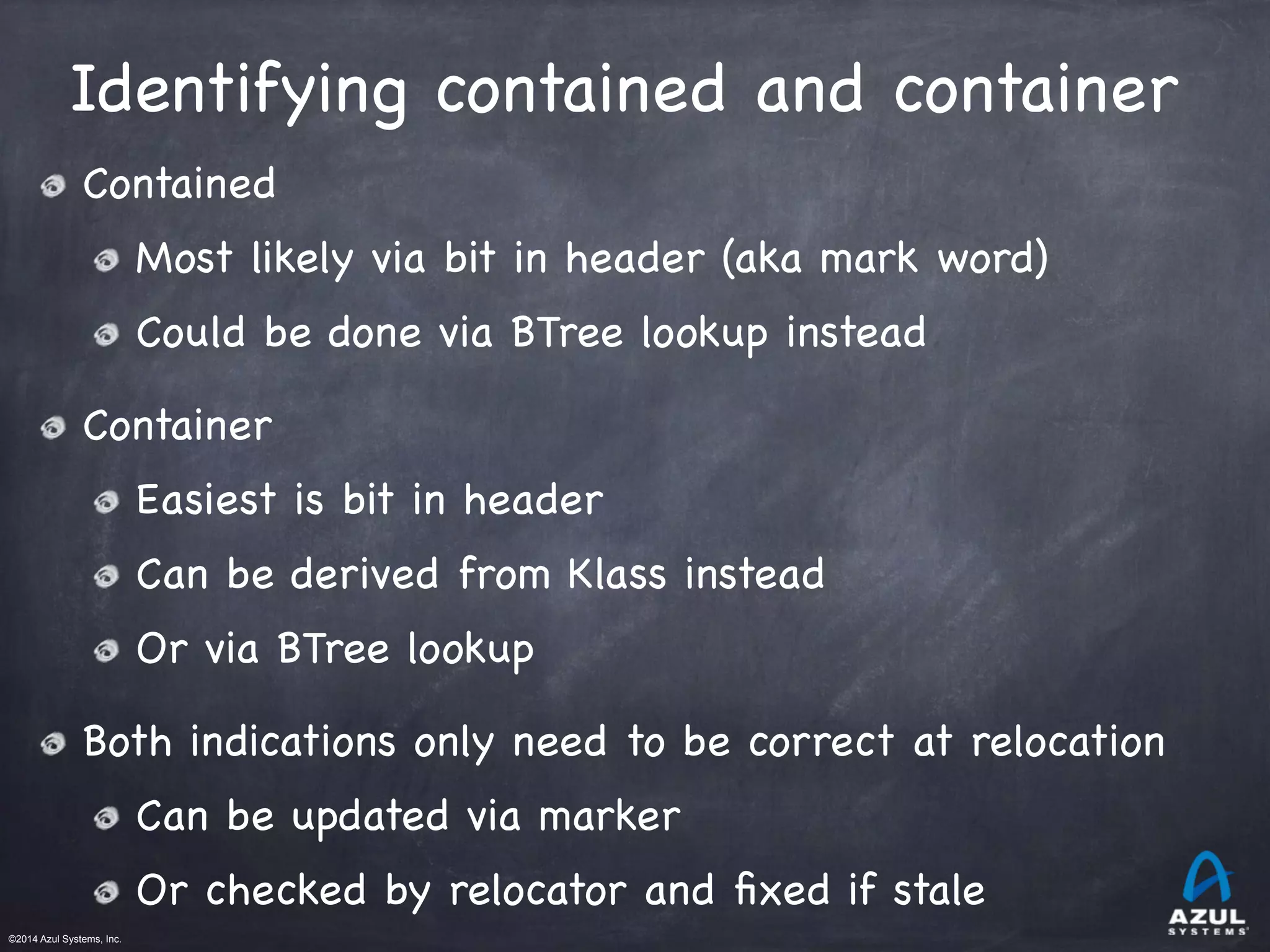

Identifying contained and container
Contained
Most likely via bit in header (aka mark word)
Could be done via BTree lookup instead
Container
Easiest is bit in header
Can be derived from Klass instead
Or via BTree lookup
Both indications only need to be correct at relocation
Can be updated via marker
Or checked by relocator and fixed if stale

14. ©2014 Azul Systems, Inc.

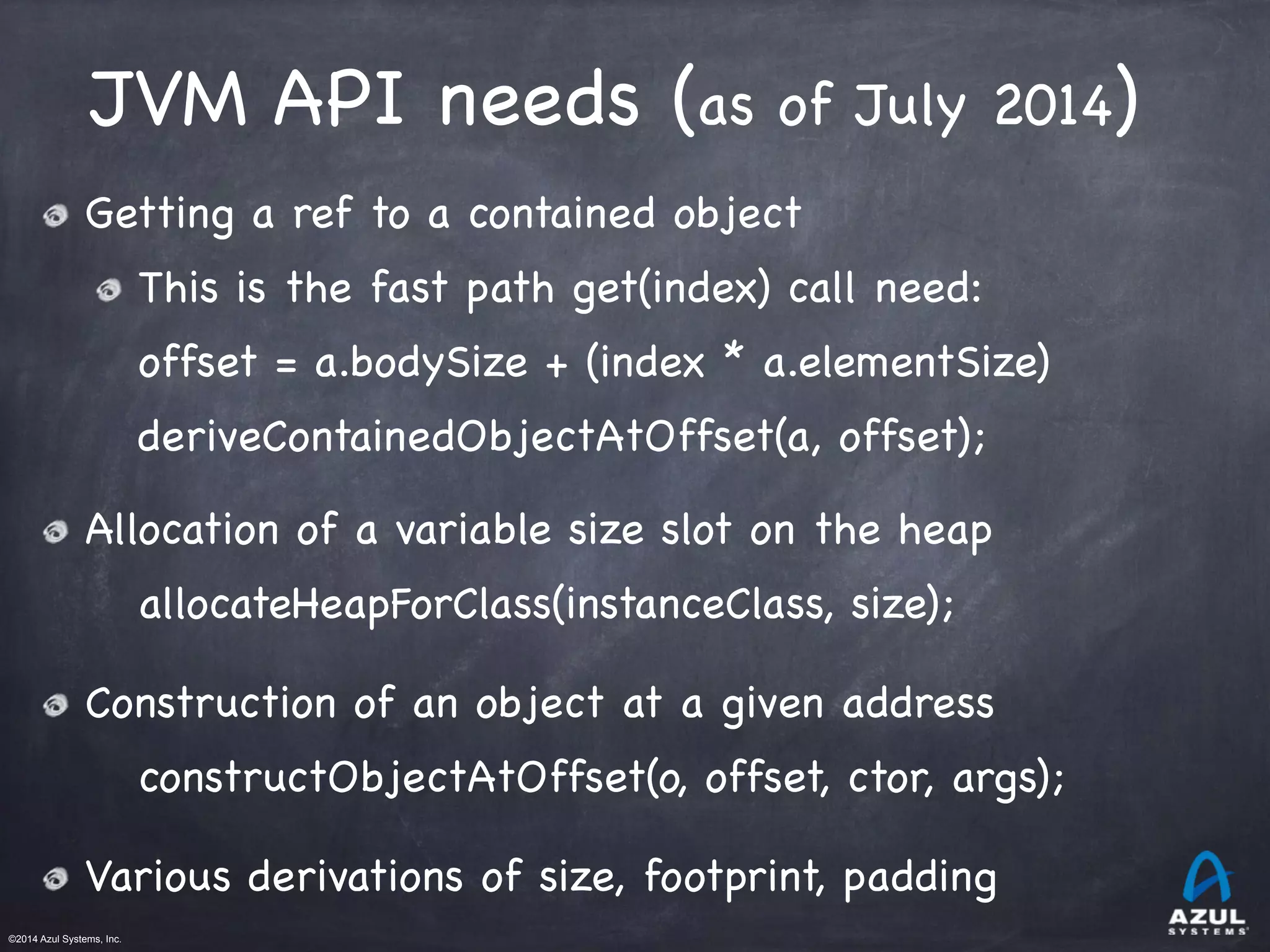

JVM API needs (as of July 2014)
Getting a ref to a contained object
This is the fast path get(index) call need:
offset = a.bodySize + (index * a.elementSize)
deriveContainedObjectAtOffset(a, offset);
Allocation of a variable size slot on the heap
allocateHeapForClass(instanceClass, size);
Construction of an object at a given address
constructObjectAtOffset(o, offset, ctor, args);
Various derivations of size, footprint, padding

15. ©2014 Azul Systems, Inc.

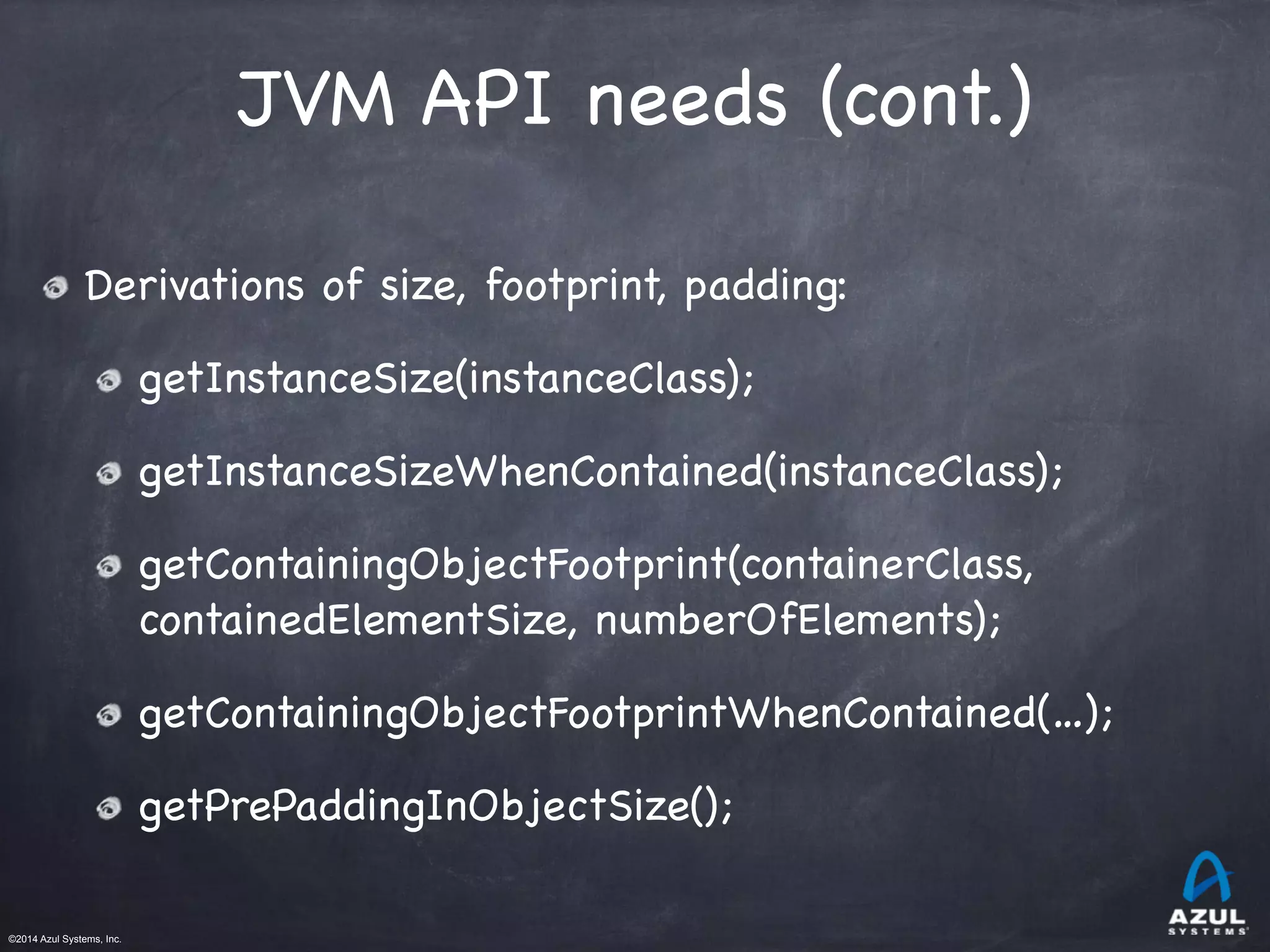

JVM API needs (cont.)
Derivations of size, footprint, padding:
getInstanceSize(instanceClass);
getInstanceSizeWhenContained(instanceClass);
getContainingObjectFootprint(containerClass,
containedElementSize, numberOfElements);
getContainingObjectFootprintWhenContained(…);
getPrePaddingInObjectSize();

16. ©2014 Azul Systems, Inc.

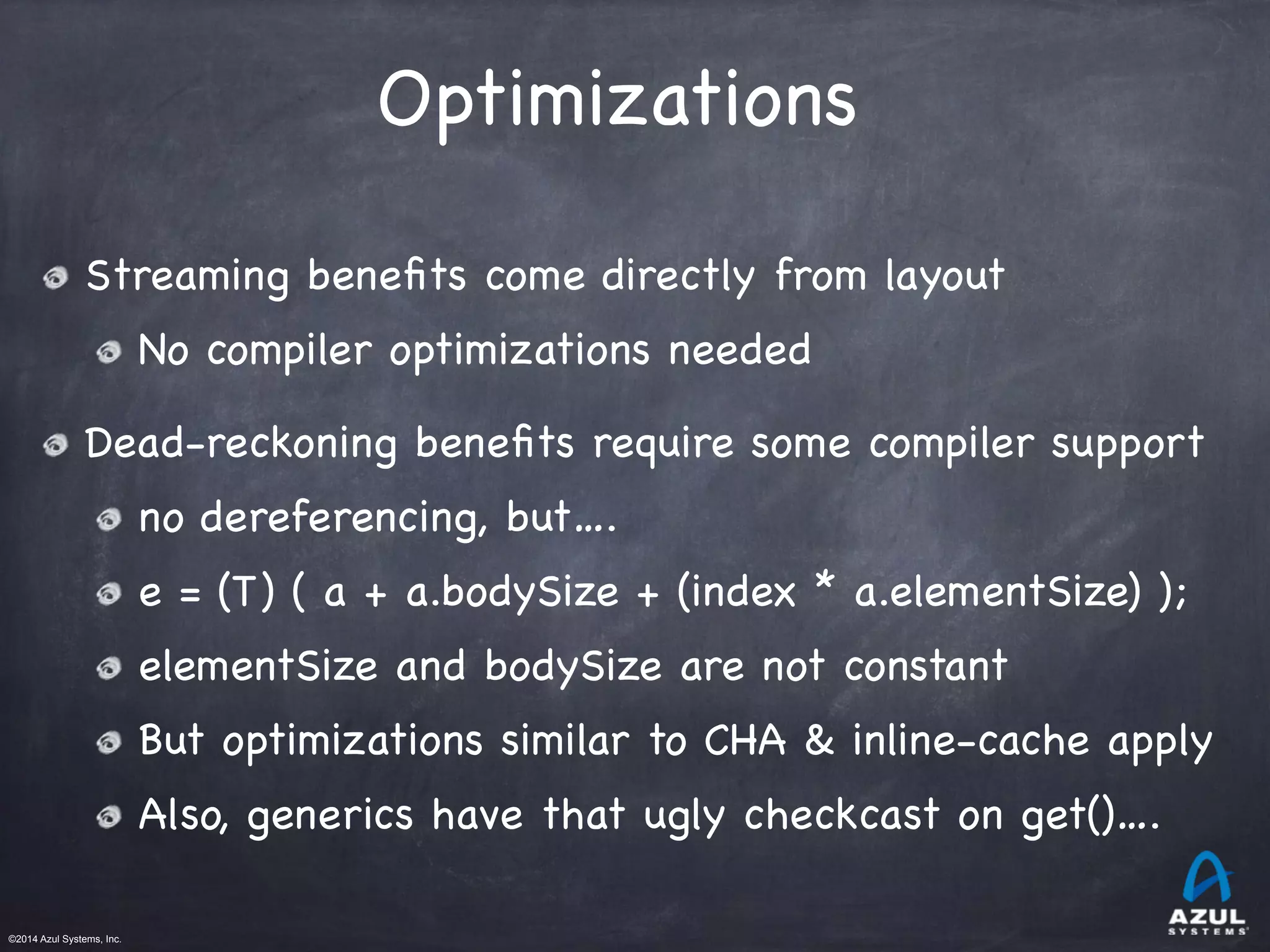

Optimizations
Streaming benefits come directly from layout
No compiler optimizations needed
Dead-reckoning benefits require some compiler support
no dereferencing, but….
e = (T) ( a + a.bodySize + (index * a.elementSize) );
elementSize and bodySize are not constant
But optimizations similar to CHA & inline-cache apply
Also, generics have that ugly checkcast on get()….

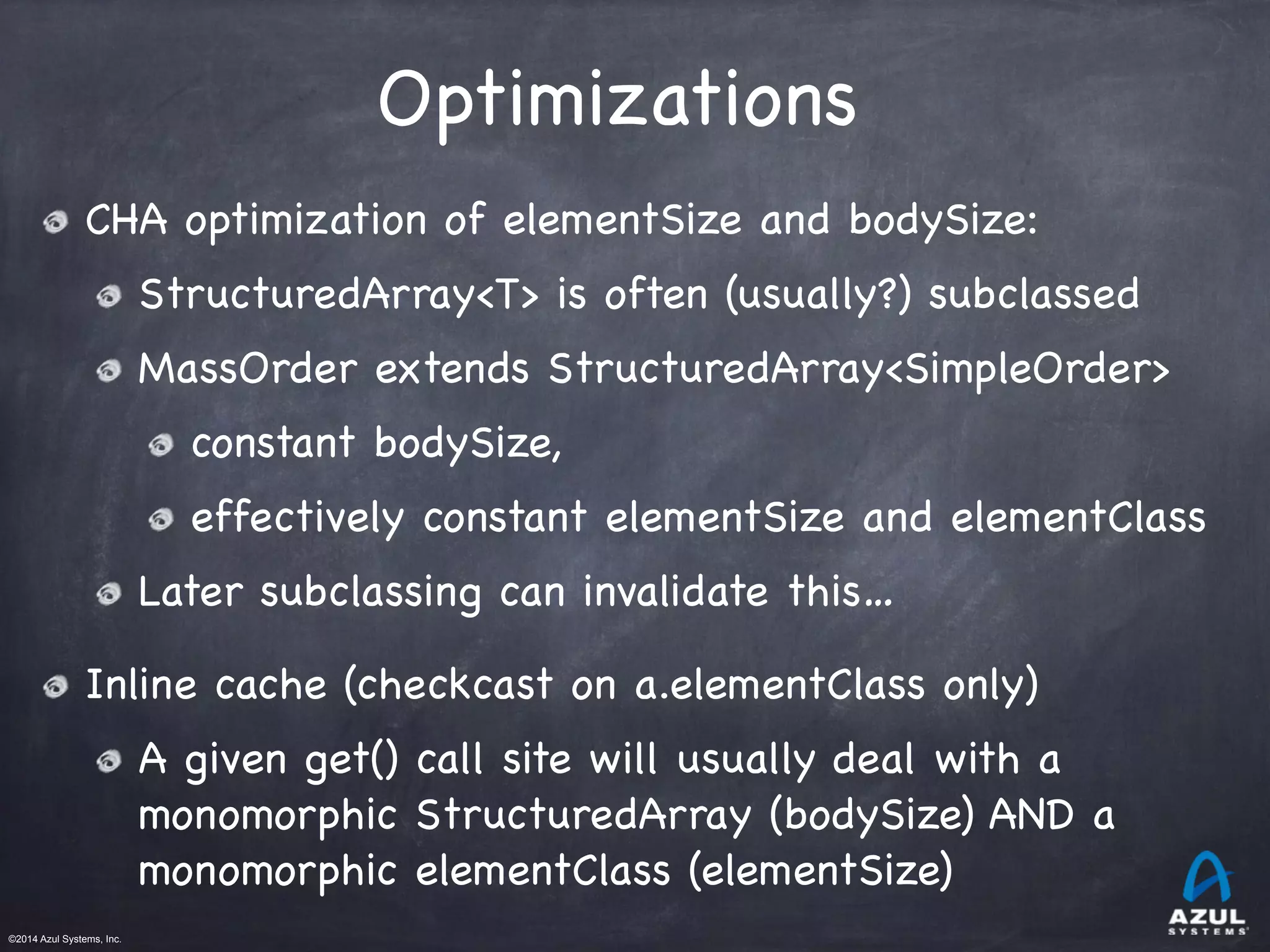

17. ©2014 Azul Systems, Inc.
Optimizations
CHA optimization of elementSize and bodySize:
StructuredArray<T> is often (usually?) subclassed
MassOrder extends StructuredArray<SimpleOrder>
constant bodySize,
effectively constant elementSize and elementClass
Later subclassing can invalidate this…
Inline cache (checkcast on a.elementClass only)
A given get() call site will usually deal with a
monomorphic StructuredArray (bodySize) AND a
monomorphic elementClass (elementSize)

18. ©2014 Azul Systems, Inc.

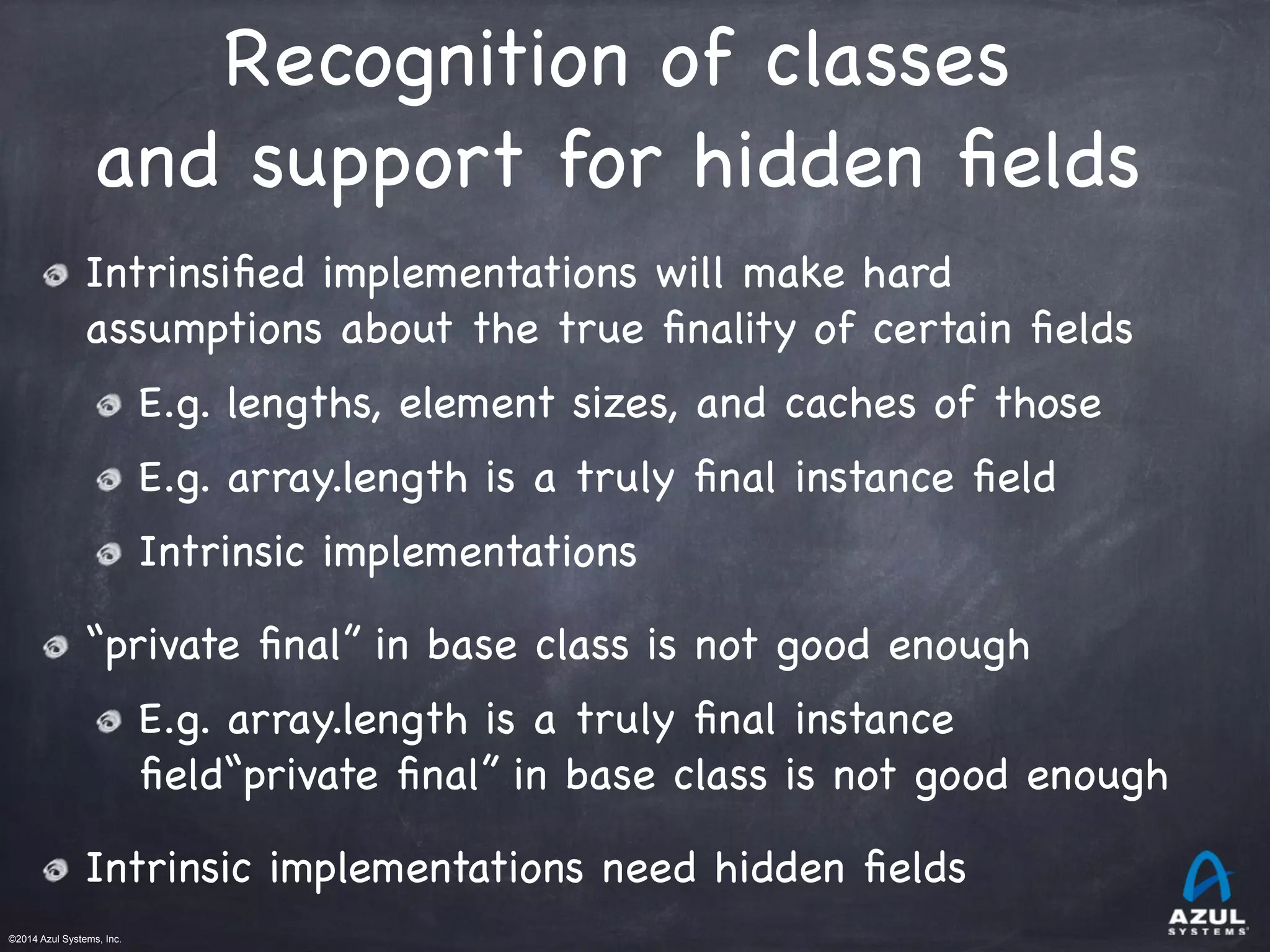

Recognition of classes
and support for hidden fields
Intrinsified implementations will make hard
assumptions about the true finality of certain fields
E.g. lengths, element sizes, and caches of those
E.g. array.length is a truly final instance field
Intrinsic implementations
“private final” in base class is not good enough
E.g. array.length is a truly final instance
field“private final” in base class is not good enough
Intrinsic implementations need hidden fields

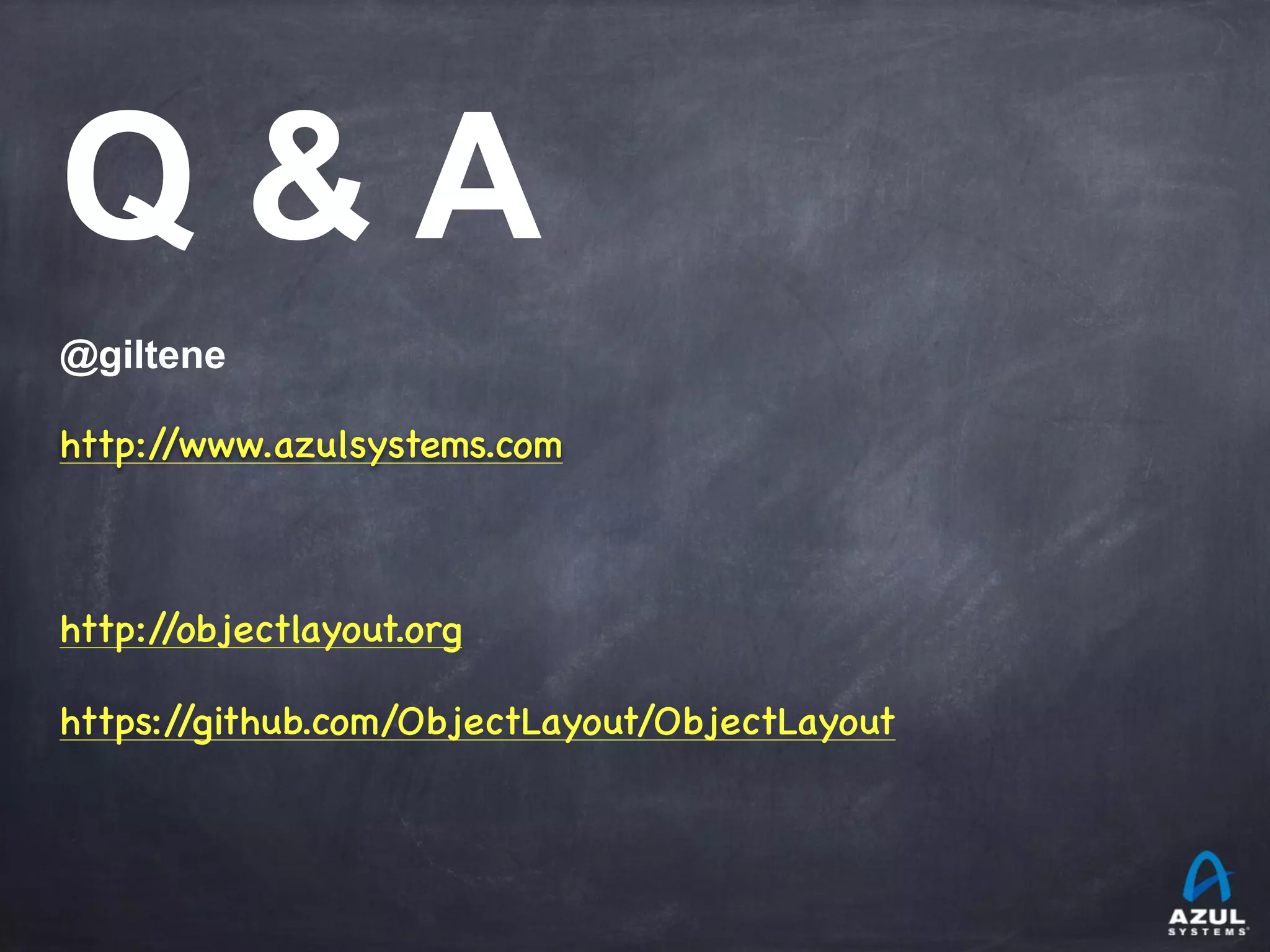

19. Q & A
