The document discusses using UML as a platform for integrating different modeling standards and domains. It outlines pros and cons of using UML, such as its extensive infrastructure but also complexity. The author describes how their tool, MagicDraw, can be transformed into a domain-specific language solution by customizing the metamodel, diagrams, GUI, and adding validation rules without coding. This provides integrated, traceable models in a user-friendly interface instead of a technical one based on UML.

1. The Truth is in the Models
Adopting UML as
modeling platform
by Andrius Strazdauskas
No Magic

2. About myself
• Andrius Strazdauskas
• European Sales Director @ No Magic
• 13 years in modeling industry
• Former:
• Programmer @ No Magic
• Project manager @ No Magic
• Product manager @ No Magic
• Standards Architect @ OMG
` 2

3. Evolution of modeling standards
A lot of modeling standards are available:
– UML
– SysML
– BPMN
– SoaML
– UPDM
– SBVR
– IMM
– and many more
3

4. 4

5. Evolution of modeling
• Models are getting larger
• Models are getting more complex
• Models are used at more and more domains
• Models tend to overlap
As a result there are a lot of disconnected models
that are modeling connected things
5

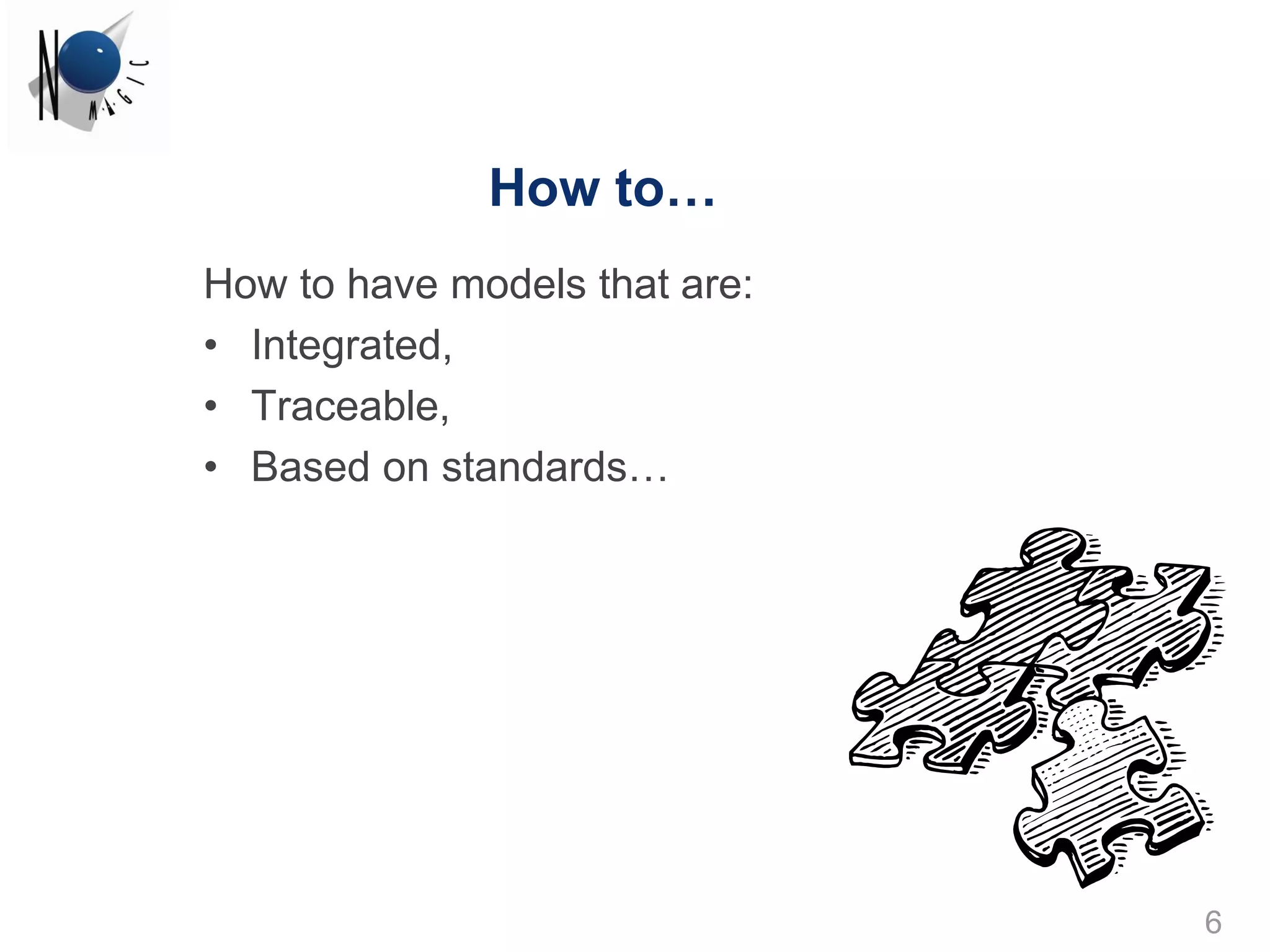

6. How to…
How to have models that are:
• Integrated,
• Traceable,
• Based on standards…
6

7. UML as platform for model
integration
Pros:
• UML has infrastructure
• UML has extensibility mechanism
• UML is rich enough to cover most types of models
• A lot modeling standards are built on UML
• Wide support in tooling
• Standard persistence
7

8. UML as platform for model
integration (2)
Cons:
• UML is very complex (~250 concepts)
• UML is perceived as technical/IT language
• A UML profile need to be created for each new
modeling standard in order to integrate it into
master model
• Can be extended, but not subtracted
8

9. What’s next?
• So if UML can host any type of model…
• …literally every UML tool can allow working on any
kind of model !..
• Or… is something that is good for everything is
really good for nothing?..
9

10. Is this BPMN?
10

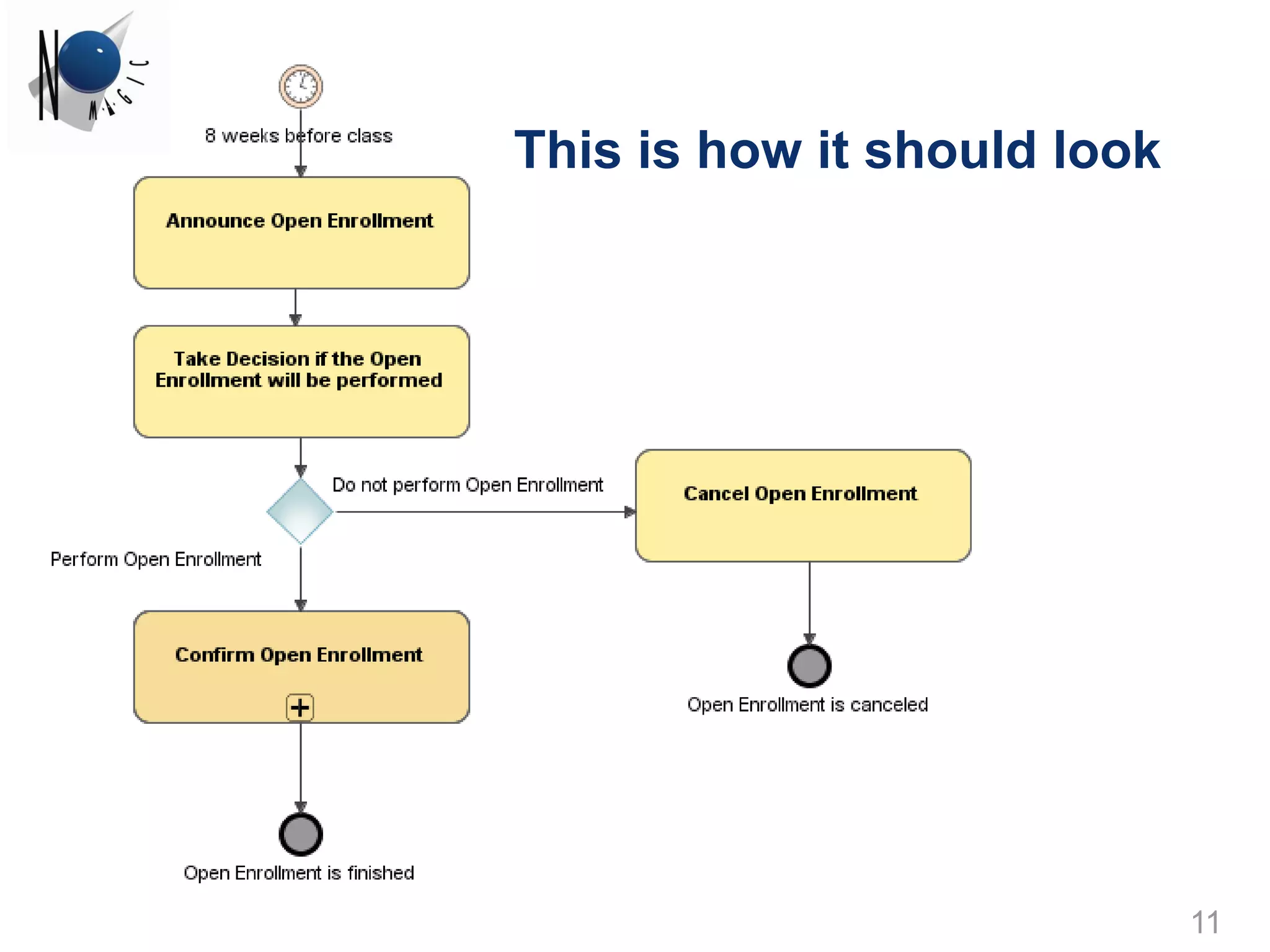

11. This is how it should look
11

12. What are the challenges for UML tool?
If a tool needs to model non-UML models it needs to
stop being a UML tool :
• Hide UML
• Show domain specific information
12

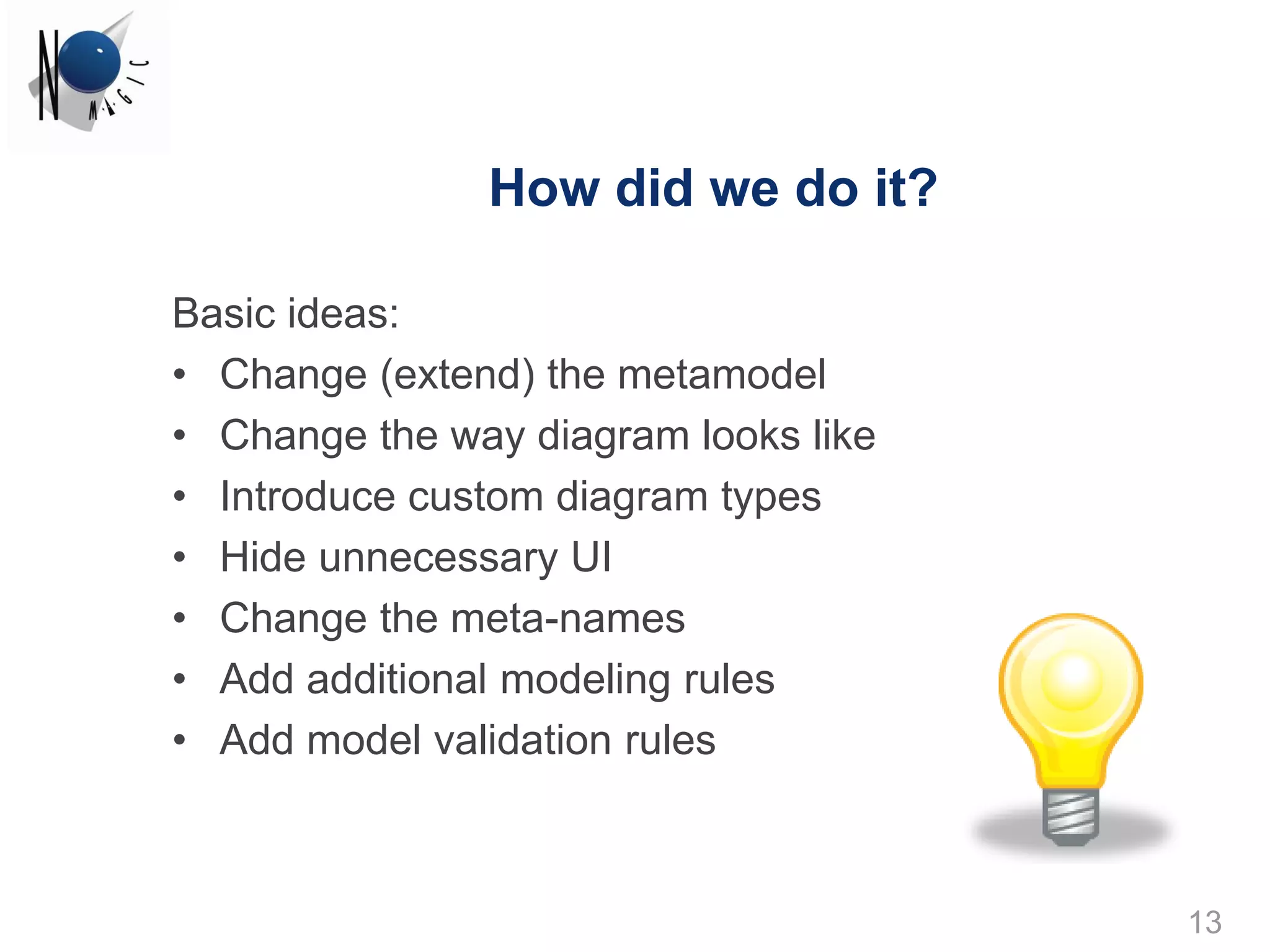

13. How did we do it?
Basic ideas:
• Change (extend) the metamodel
• Change the way diagram looks like
• Introduce custom diagram types
• Hide unnecessary UI
• Change the meta-names
• Add additional modeling rules
• Add model validation rules
13

14. Metamodel changes
14

15. Diagram Element Change
15

16. New diagram types
Domain-specific
diagram palette
Diagrams are
customized using
MagicDraw UI
This customization is UI driven, no coding is required.
16

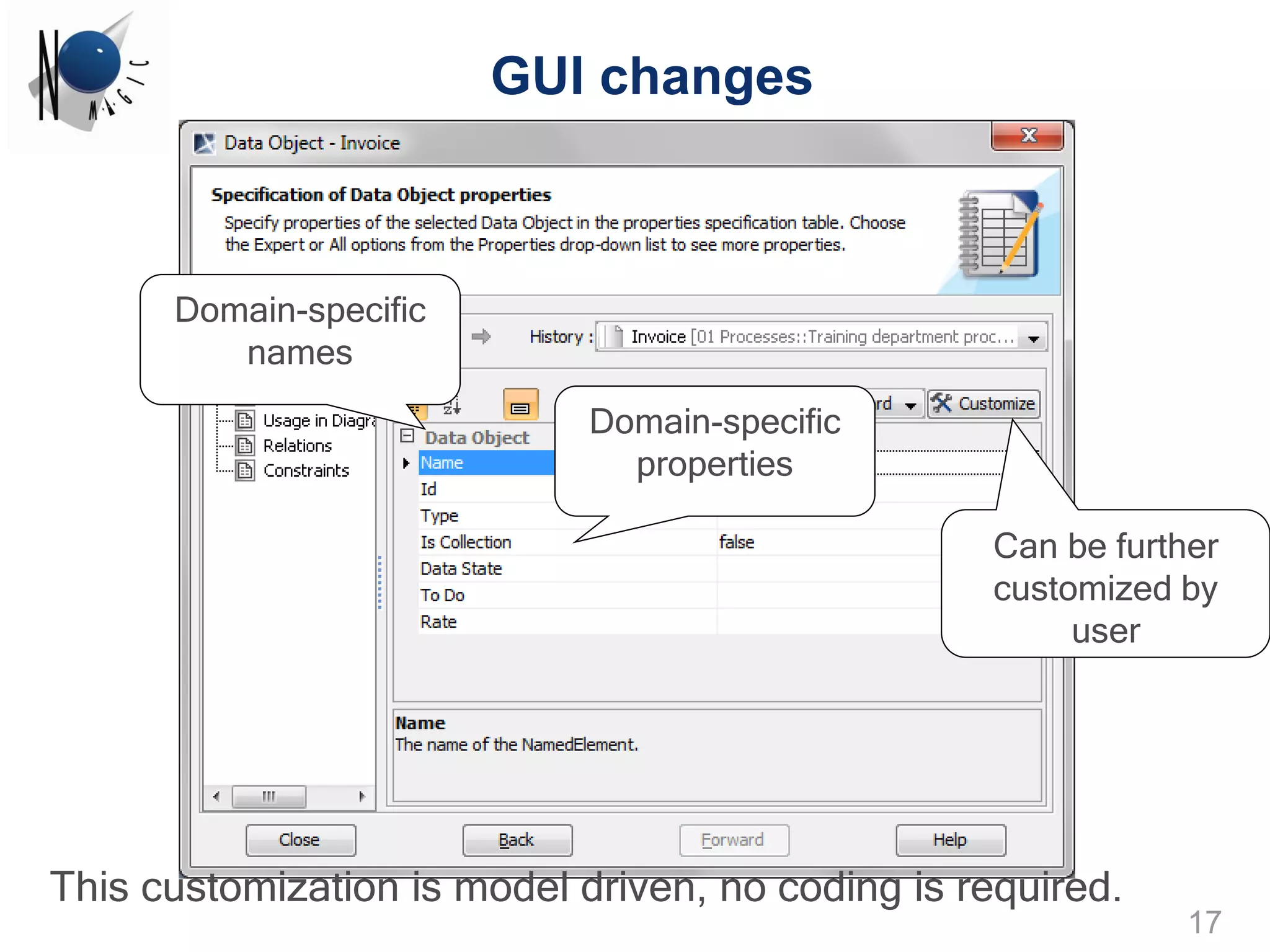

17. GUI changes
Domain-specific
names
Domain-specific
properties
Can be further
customized by
user
This customization is model driven, no coding is required.
17

18. Role-based perspectives
This customization is UI driven, no coding is required.
18

19. Validation
Model-
based
(OCL) rule
Validation definition
results
This customization is model driven, no coding is required.
19

20. Summary
• UML can be used as a platform for different kinds
of models
• MagicDraw can be transformed into a DSL
solution at a pretty low cost
• User friendly / domain specific interface instead
of technical one is the key
20
