1. HEART
RATE
MONITORING
SYSTEM

2. GROUP MEMBERS
• ROSHAN BORSE
• SHRIKANT SURVASE
• AKASH YADAV
• SALMAN MOMIN

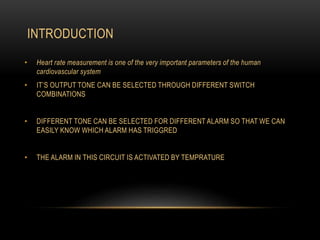

3. INTRODUCTION
• Heart rate measurement is one of the very important parameters of the human
cardiovascular system
• IT’S OUTPUT TONE CAN BE SELECTED THROUGH DIFFERENT SWITCH
COMBINATIONS
• DIFFERENT TONE CAN BE SELECTED FOR DIFFERENT ALARM SO THAT WE CAN
EASILY KNOW WHICH ALARM HAS TRIGGRED
• THE ALARM IN THIS CIRCUIT IS ACTIVATED BY TEMPRATURE

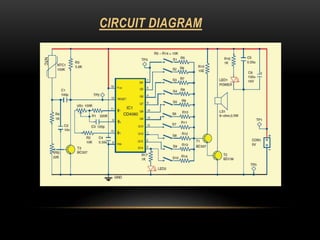

4. CIRCUIT DIAGRAM

5. COMPONENTS
• IC CD 4060:-

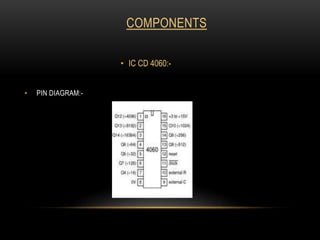

• PIN DIAGRAM:-

6. DESCRIPTION OF CD 4060
• IT IS A 16 PIN DIP, CMOS INTEGRATED, COUNTER CUM OSCILLATOR
• IC CD 4060 HAS INBUILT OSCILLATOR AND 14-STAGE RIPPLE COUNTER/DIVIDER
• IT HAS THREE OSCILLATOR TERMINAL AT PIN 9,10,11
• IT HAS TEN BUFFERED OUTPUT OF THE COUNTER( Q4-Q10, Q12-Q14) AND AN ACTIVE
HIGH MASTER RESET AT PIN 12
• IT IS USED IN PROJECTS WHERE THERE IS A REQUIRMENT OF TEN DIFFERENT
SQUARE WAVE AT SAME TIME AS REQUIRED IN THIS PROJECT
• THE OSCILLATOR FREQUENCY MAINLY DEPENDS ON RESISTOR AND CAPACITOR
CONNECTED AT PIN 9, 10,11

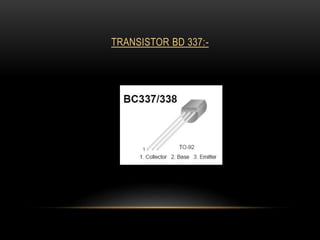

7. TRANSISTOR BD 337:-

8. DISCRIPTION OF BC 337
• The transistor schematic for an NPN transistor indicates the emitter with an arrow
pointing away from the transistor
• . It is known as a bipolar junction transistor because it uses a positive (P)-type
semiconductor BC337 transistor is a three-terminal current control device used for
general purposes. Based on the semiconductor type used, the BC337 transistor is a
negative-positive-negative (NPN) type because the main terminals use a negative
(N)-type material.
• conductor material sandwiched between two N-type materials. Semiconductors,
such as silicon and germanium, are used in the BC337 transistor to control the flow
of electrical charges by allowing a control current to vary the conductivity of the
transistor’s main terminals.
• This NPN transistor has a base or the control terminal, an emitter terminal, and a
collector terminal. On the base-to-emitter junction, the amount of current flow
determines the collector current. The ratio of the collector current to the base
current is known as beta.

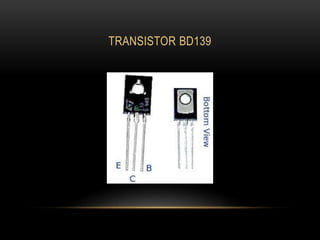

9. TRANSISTOR BD139

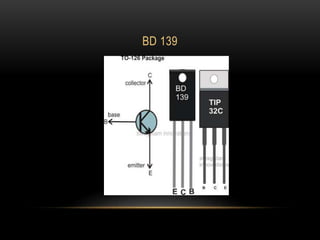

10. BD 139

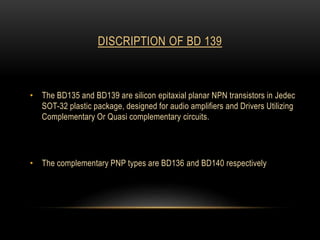

11. DISCRIPTION OF BD 139
• The BD135 and BD139 are silicon epitaxial planar NPN transistors in Jedec
SOT-32 plastic package, designed for audio amplifiers and Drivers Utilizing
Complementary Or Quasi complementary circuits.
• The complementary PNP types are BD136 and BD140 respectively

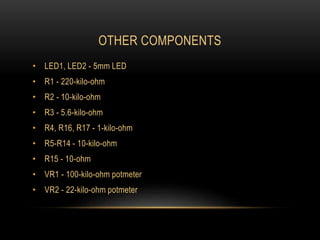

12. OTHER COMPONENTS
• LED1, LED2 - 5mm LED
• R1 - 220-kilo-ohm
• R2 - 10-kilo-ohm
• R3 - 5.6-kilo-ohm
• R4, R16, R17 - 1-kilo-ohm
• R5-R14 - 10-kilo-ohm
• R15 - 10-ohm
• VR1 - 100-kilo-ohm potmeter
• VR2 - 22-kilo-ohm potmeter

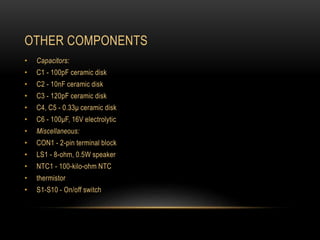

13. OTHER COMPONENTS
• Capacitors:
• C1 - 100pF ceramic disk
• C2 - 10nF ceramic disk
• C3 - 120pF ceramic disk
• C4, C5 - 0.33μ ceramic disk
• C6 - 100μF, 16V electrolytic
• Miscellaneous:
• CON1 - 2-pin terminal block
• LS1 - 8-ohm, 0.5W speaker
• NTC1 - 100-kilo-ohm NTC
• thermistor
• S1-S10 - On/off switch

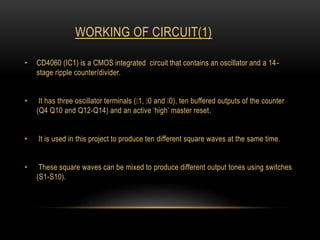

14. WORKING OF CIRCUIT(1)
• CD4060 (IC1) is a CMOS integrated circuit that contains an oscillator and a 14-
stage ripple counter/divider.
• It has three oscillator terminals ( 1, 0 and 0), ten buffered outputs of the counter
(Q4 Q10 and Q12-Q14) and an active ‘high’ master reset.
• It is used in this project to produce ten different square waves at the same time.
• These square waves can be mixed to produce different output tones using switches
(S1-S10).

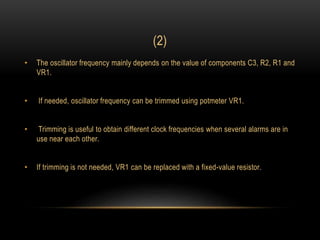

15. (2)
• The oscillator frequency mainly depends on the value of components C3, R2, R1 and
VR1.
• If needed, oscillator frequency can be trimmed using potmeter VR1.
• Trimming is useful to obtain different clock frequencies when several alarms are in
use near each other.
• If trimming is not needed, VR1 can be replaced with a fixed-value resistor.

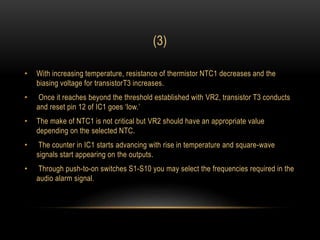

16. (3)
• With increasing temperature, resistance of thermistor NTC1 decreases and the
biasing voltage for transistorT3 increases.
• Once it reaches beyond the threshold established with VR2, transistor T3 conducts
and reset pin 12 of IC1 goes ‘low.’
• The make of NTC1 is not critical but VR2 should have an appropriate value
depending on the selected NTC.
• The counter in IC1 starts advancing with rise in temperature and square-wave
signals start appearing on the outputs.
• Through push-to-on switches S1-S10 you may select the frequencies required in the
audio alarm signal.

17. (4)
• The produced composite signal available at the base of transistor T1 is amplified to
drive loudspeaker LS1.
• The mixed multitone signal produced is generally difficult to ignore.
• Though 5V power supply is recommended here, the circuit works with 2V to 6V.
• Also, CD4060 may be replaced with 74HCT4060 or 74HC4060 for IC1.
• LED1 indicates the presence of power supply, and resistor R16 is for current
limiting.

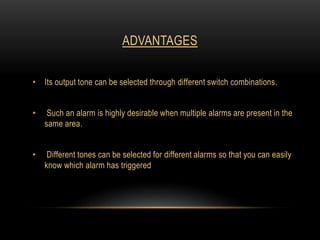

18. ADVANTAGES
• Its output tone can be selected through different switch combinations.
• Such an alarm is highly desirable when multiple alarms are present in the
same area.
• Different tones can be selected for different alarms so that you can easily
know which alarm has triggered

19. APPLICATION AND FUTURE ASPECTS

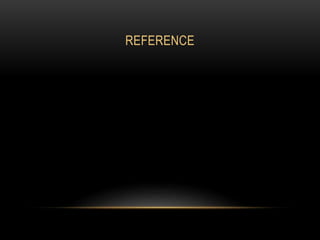

20. REFERENCE

21. THANK YOU
