The VM-28H is a distribution amplifier that takes a single HDMI input signal, reclocks and equalizes it, and distributes it to 8 identical HDMI outputs. It supports HDMI bandwidth up to 2.25Gbps and features such as 3D pass-through, HDCP compliance, EDID processing, and Kramer equalization and re-clocking technology to rebuild and reclock the signal for longer cable runs. It can be controlled via front panel buttons, IR remote, or RS-232 and includes power supply, rack ears, and output status LEDs.

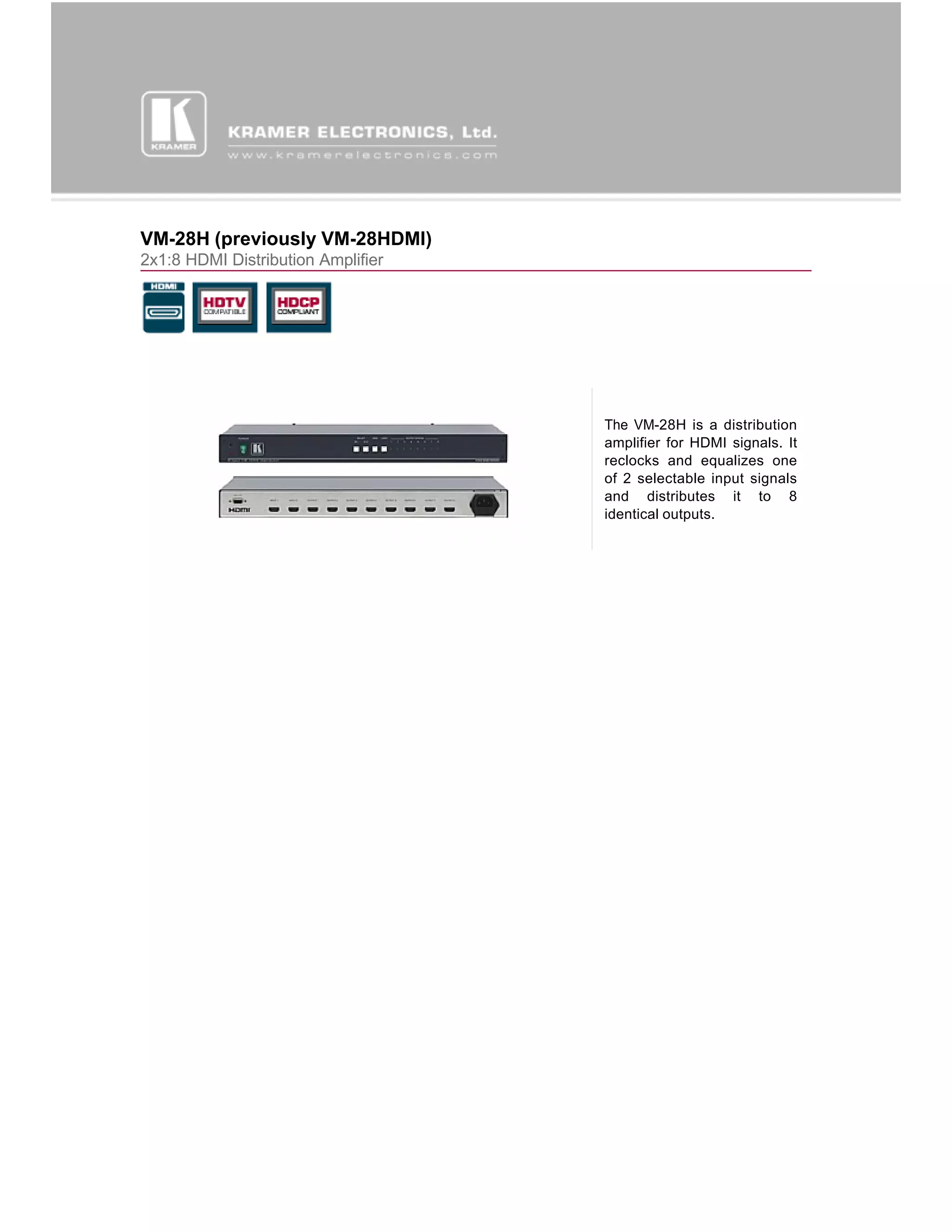

1. VM-28H (previously VM-28HDMI)
2x1:8 HDMI Distribution Amplifier
The VM-28H is a distribution
amplifier for HDMI signals. It
reclocks and equalizes one
of 2 selectable input signals
and distributes it to 8
identical outputs.

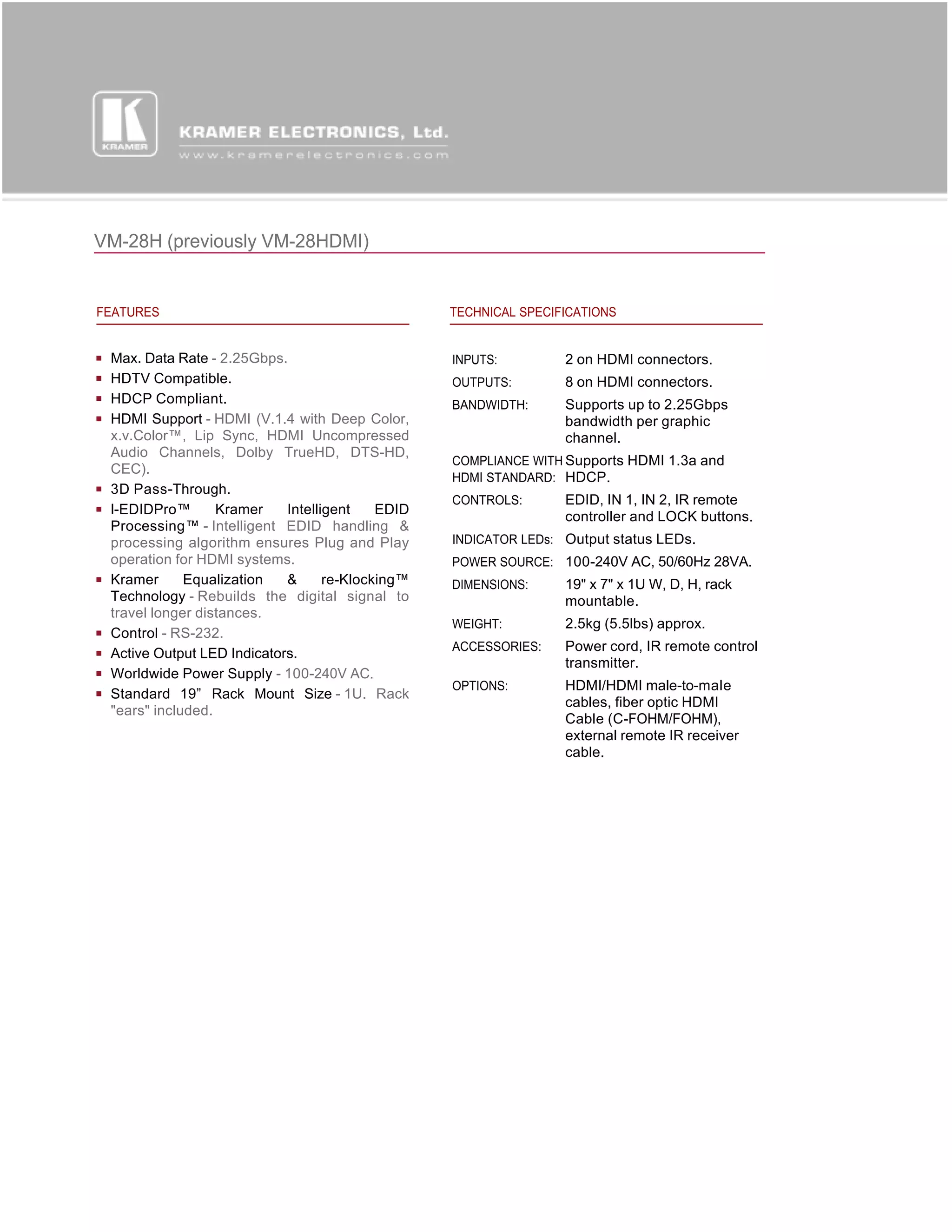

2. VM-28H (previously VM-28HDMI)
FEATURES TECHNICAL SPECIFICATIONS
Max. Data Rate - 2.25Gbps. INPUTS: 2 on HDMI connectors.
HDTV Compatible. OUTPUTS: 8 on HDMI connectors.
HDCP Compliant. BANDWIDTH: Supports up to 2.25Gbps
HDMI Support - HDMI (V.1.4 with Deep Color, bandwidth per graphic
x.v.Color™, Lip Sync, HDMI Uncompressed channel.
Audio Channels, Dolby TrueHD, DTS-HD,
COMPLIANCE WITH Supports HDMI 1.3a and
CEC).
HDMI STANDARD: HDCP.
3D Pass-Through.
CONTROLS: EDID, IN 1, IN 2, IR remote
I-EDIDPro™ Kramer Intelligent EDID
controller and LOCK buttons.
Processing™ - Intelligent EDID handling &
processing algorithm ensures Plug and Play INDICATOR LEDs: Output status LEDs.
operation for HDMI systems. POWER SOURCE: 100-240V AC, 50/60Hz 28VA.
Kramer Equalization & re-Klocking™ DIMENSIONS: 19" x 7" x 1U W, D, H, rack
Technology - Rebuilds the digital signal to mountable.
travel longer distances.
WEIGHT: 2.5kg (5.5lbs) approx.
Control - RS-232.
ACCESSORIES: Power cord, IR remote control
Active Output LED Indicators.
transmitter.
Worldwide Power Supply - 100-240V AC.
OPTIONS: HDMI/HDMI male-to-male
Standard 19” Rack Mount Size - 1U. Rack
cables, fiber optic HDMI
"ears" included.
Cable (C-FOHM/FOHM),
external remote IR receiver
cable.
