Data administrators face the challenge of integrating disparate data technologies into a cohesive and performant data platform. This is especially true when using diverse query languages and protocols. This session will focus on how to integrate SQL-aware applications into a MongoDB data platform.

1. #MDBlocal
Managing Diverse User Needs
with MongoDB and SQL
Seth Payne
Sr. Product Manager, SQL API & Enterprise Tools
seth.payne@mongodb.com
LONDON

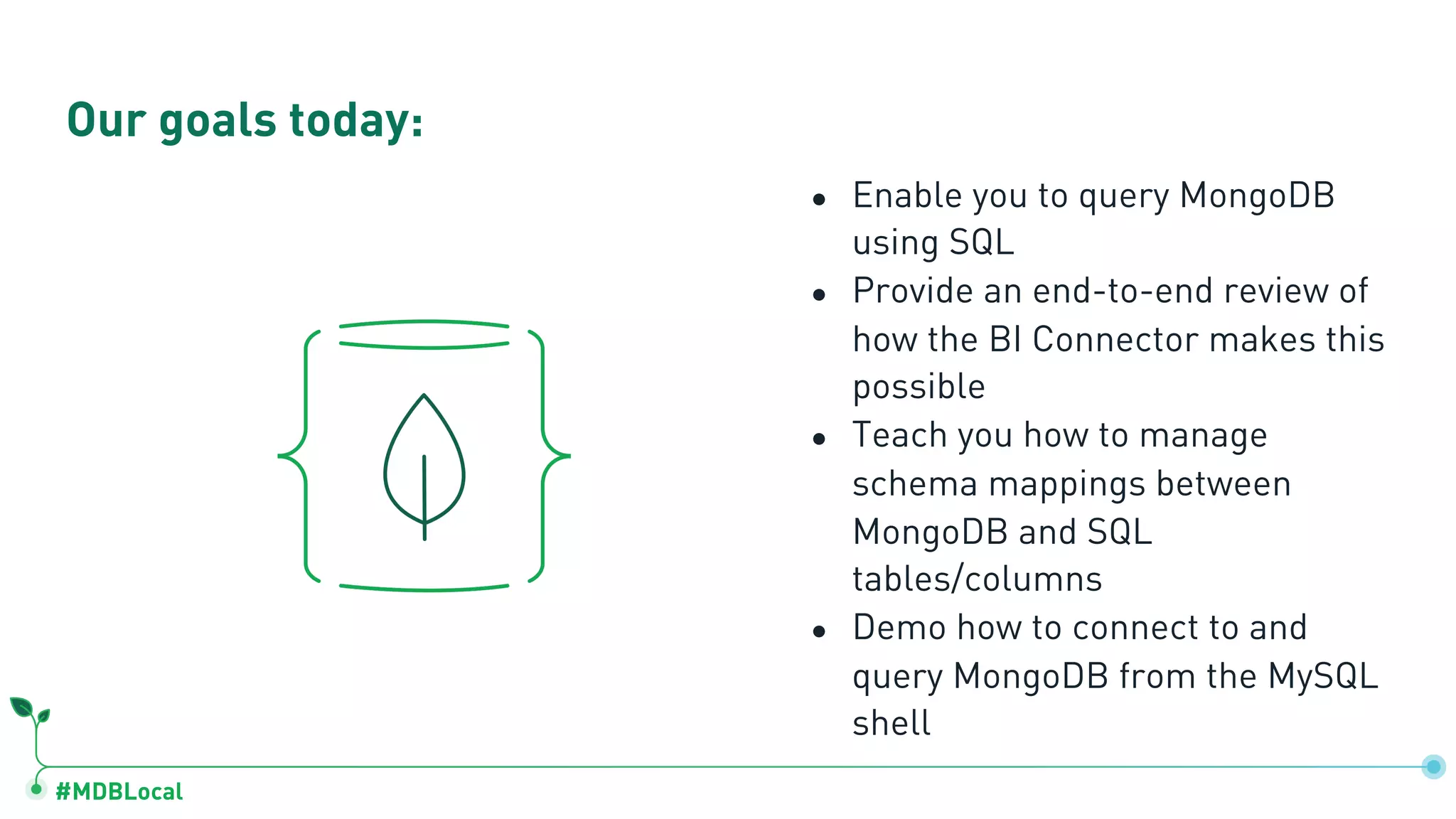

2. #MDBLocal
● Enable you to query MongoDB
using SQL
● Provide an end-to-end review of
how the BI Connector makes this
possible
● Teach you how to manage
schema mappings between
MongoDB and SQL
tables/columns
● Demo how to connect to and
query MongoDB from the MySQL
shell
Our goals today:

3. #MDBLocal
● Download BI Connector 2.12
● Query MongoDB using default
schema mapping
● Create a custom schema
mapping
● Query MongoDB via SQL using
your custom schema
When you leave this session:

4. #MDBLocal
A bit about me
vs.

5. #MDBLocal

6. #MDBLocal
My unique role at MongoDB

7. #MDBLocal
Data technology is changing
• Key question:
• How can I optimize disparate technologies to support a robust
and feature-rich data stack to support a broad set of use cases?

8. #MDBLocal
Data technologies are like life
• To accomplish big things and solve difficult problems, systems
must be able to talk to each other
• It’s ok to have strong opinions
• MongoDB and the MongoDB Query Language is the best way to
interrogate data
• SQL is a widely-adopted, powerful query language that
empowers both developers and data analysts to gain valuable
insights
• In the end, it is results that matter most

9. #MDBLocal
Data Access
API
Change
Data
Capture
(CDC)
Extract
Transform
Load
(ETL)
MongoDB Cluster
Document Data Model
Distributed Systems
Architecture
Cloud | On-Premises
Operational Apps and
Systems of Record
Producers
Operational Data Layer
Consumers
Mainframe Systems
CRM
ERP
Order Management
Supply Chain Mgmt
Data Lake
Marketing Automation
Website
Social Media
Reference Data
Third-Party APIs
Etc.
Batch Load
API CallsBatch File
Exports
Real-Time
Data Changes
Delta Load
MongoDB Change Streams
Write Back to Producer Systems (Optional)
MongoDB
Native Drivers
Consuming Operational Apps
and Services
Internal apps, customer-facing
services, and APIs for
third-party consumption – across
any channel
Business Intelligence (BI)
and Advanced Analytics
Visualization and reporting,
data analysis, artificial
intelligence, machine learning
and more
Human Capital Mgmt
MongoDB Connectors

10. #MDBLocal
Jane is a MongoDB admin. She recently learned that an analytics
team she serves, requires SQL-based access to data sitting in
MongoDB. She needs to provide this access and wants to avoid an expensive and
error-prone ETL workflow.
● MongoDB Admins need a way to provide their business users
access to MongoDB.
● SQL-based applications need to read MongoDB data
Problem Statement

11. #MDBLocal
Solution: MongoDB BI Connector

12. #MDBLocal
What is the BI Connector?
● Provides read-only SQL access to any MongoDB standalone or replica set
● Translates incoming SQL queries to MQL aggregation pipelines
○ Pipeline executed on MongoDB cluster
○ Tabular results returned to client via BI Connector
● Supports:
○ ODBC
○ JDBC
○ MySQL

13. #MDBLocal
BI Connector: Maturity and Adoption
1 2.0 - 2.4 2.5 - 2.10 2.11+
Adoption
● Proof of Concept
● Hyper-focus on
Tableau
● Expanded SQL
function
support
● Performance
improvements
● Improved usability
● Near 100% coverage of
standard SQL functions
● Capable of displacing of
RDMS systems
● Performance
improvements
● Enterprise
management features
● mongotranslate
● Query optimization
● Performance
improvements

14. #MDBLocal
August 2019 –MongoDB Atlas BIC
SQL Queries ProcessedFull Translation Success Rate

15. #MDBLocal
● BI Connector is presented as MySQL
● Abstract relational schema defined
○ INFORMATION_SCHEMA
● Mapping between tabular schema and
MongoDB document structure
● Schema defined in several ways:
○ Sampling
○ Document Relational Definition
Language - mongodrdl
We need a relational schema to query

16. #MDBLocal
Default schema: mapping via document sampling
Mongosqld
connects to
MongoDB
Documents
sampled from
namespace(s)
Relational schema
available to
incoming
connections
MongoDB Document Relational Schema: _id foreign key
Database Database
Collection Root Table
Field Column
Arrays & Objects Sub-tables

17. #MDBLocal
> db.sql.findOne()
{
"_id": ObjectId("5bfabde76f280102ddf27969"),
"band": "Slayer",
"formation": {
"year": ISODate("1982-01-01T00:00:00Z"),
"city": "Los Angeles"
},
"popular_albums": [
"Show No Mercy!",
"Seasons in the Abyss",
"Haunting the Chapel",
"Divine Intervention"
],
"members": [
{
"name": "Tom Araya",
"dob": ISODate("1961-06-06T07:00:00Z"),
"primary_instrument": "Bass/Vocals"
},
{
"name": "Kerry King",
"dob": ISODate("1964-06-03T07:00:00Z"),
"primary_instrument": "Guitar"
}
]}

18. #MDBLocal
mysql> show tables;
+-----------------------------------------+
| Tables_in_sql |
+-----------------------------------------+
| bands |
| bands_members |
| bands_popular_albums |
mysql> SELECT * FROM bands
-> JOIN bands_popular_albums ON bands._id = bands_popular_albums._id;

19. Custom Schema
Create a tabular schema to meet specific needs of users

20. #MDBLocal
Document Relational Definition Language (DRDL)
● Often, we need to adjust the default schema generated by BIC
schema creation logic
● Output generated by mongodrdl
● Utilizes BIC default sampling logic
● Defines both names and data types

21. #MDBLocal
Generate
mongodrdl
output
Edit output to
create
desired
schema
Import
schema to
MongoDB
Provide
unique name
Start
mongosqld
with named
schema

22. #MDBLocal
Generate DRDL Output using mongodrdl
mongodrdl -d sql -c bands > bands.drdl

23. schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: []
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: band
MongoType: string
SqlName: band
SqlType: varchar
- Name: formation.city
MongoType: string
SqlName: formation.city
SqlType: varchar
- Name: formation.year
MongoType: date
SqlName: formation.year
SqlType: timestamp
- table: bands_members
collection: bands
pipeline:
- $unwind:
includeArrayIndex: members_idx
path: $members
preserveNullAndEmptyArrays: false
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: members.dob
MongoType: date
SqlName: members.dob
SqlType: timestamp
- Name: members.name
MongoType: string
SqlName: members.name
SqlType: varchar
- Name: members.primary_instrument
MongoType: string
SqlName: members.primary_instrument
SqlType: varchar
- Name: members_idx
MongoType: int
SqlName: members_idx
SqlType: int
Root table: bands Sub-table: bands_members

24. - table: bands_popular_albums
collection: bands
pipeline:
- $unwind:
includeArrayIndex: popular_albums_idx
path: $popular_albums
preserveNullAndEmptyArrays: false
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: popular_albums
MongoType: string
SqlName: popular_albums
SqlType: varchar
- Name: popular_albums_idx
MongoType: int
SqlName: popular_albums_idx
SqlType: int
Sub-table: bands_popular_albums

25. #MDBLocal
Current vs Desired
mysql> show tables;
+-----------------------------------------+
| Tables_in_sql |
+-----------------------------------------+
| bands |
| bands_members |
| bands_popular_albums |
mysql> show tables;
+-----------------------------------------+
| Tables_in_sql |
+-----------------------------------------+
| bands |

26. #MDBLocal
Define new document structure with aggregation
[{$unwind: {
path: "$popular_albums" }},
{$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: [{$unwind: {path: "$popular_albums"}},
{$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
Use aggregation to create document structure: Add pipeline to drdl:

27. #MDBLocal
Edit table/field names and data types
schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: [{$unwind: {
path: "$popular_albums"
}}, {$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: band
MongoType: string
SqlName: band
SqlType: varchar
- Name: city
MongoType: string
SqlName: city
SqlType: timestamp
- Name: popular_album
MongoType: string
SqlName: album
SqlType: varchar
- Name: formed
MongoType: date
SqlName: formed
SqlType: timestamp

28. #MDBLocal
Import schema and provide name
mongodrdl upload --drdl bands_flat.drdl --schemaSource=bic_schema
mongodrdl name-schema --name bands_flat --schemaSource=bic_schema -
-schema <unique ID>

29. #MDBLocal
Start mongosqld in “custom mode”
mongosqld --schemaSource=bic_schemas /
--schemaName=bands_flat /
--schemaMode=custom

30. #MDBLocal
Updated schema:
mysql> describe bands;
+-------+----------------+------+------+---------+-------+
| Field | Type | Null | Key | Default | Extra |
+-------+----------------+------+------+---------+-------+
| _id | varchar(24) | YES | PRI | NULL | |
| album | varchar(65535) | YES | | NULL | |
| band | varchar(65535) | YES | | NULL | |
| city | datetime | YES | | NULL | |
+-------+----------------+------+------+---------+-------+

31. Demo

32. #MDBLocal
● Get you excited about querying
MongoDB using SQL
● Provide an end-to-end review of
how the BI Connector enables
this
● Teach you how to manage
schema mappings between
MongoDB and SQL
tables/columns
● Demonstrate how to connect to
and query MongoDB from the
MySQL shell
Revisiting our goals today:

33. #MDBLocal
● Download BI Connector 2.12
● Query MongoDB using default
schema mapping
● Create a custom schema
mapping
● Query MongoDB via SQL using
your custom schema
Now you can:
