1. Modelling and Code Generation
on the .NET Platform
@
Rubén Jiménez rjimenez@icinetic.com
@rubenjmarrufo
Pedro J. Molina, PhD pjmolina@icinetic.com
@pmolinam

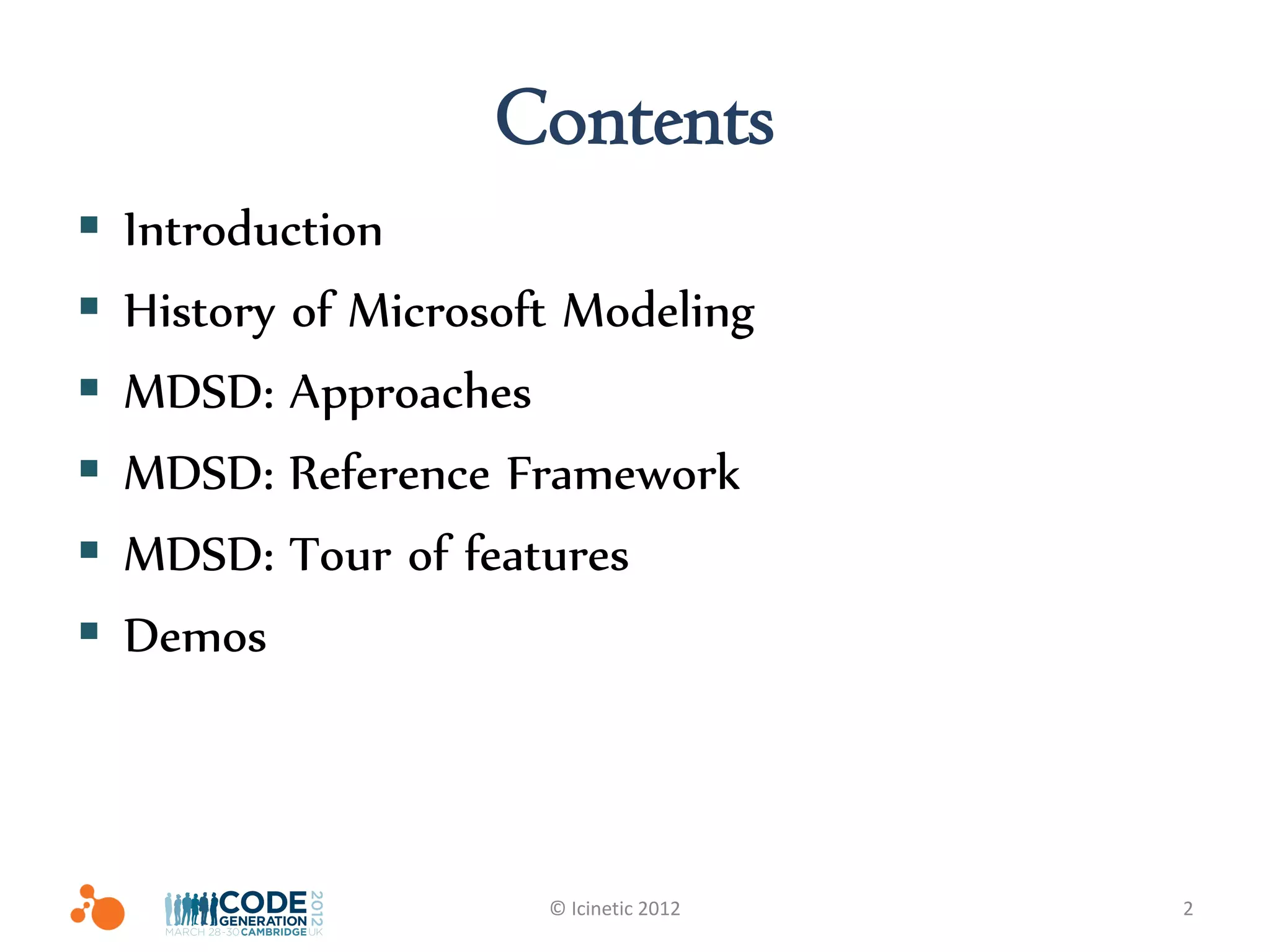

2. Contents
 Introduction
 History of Microsoft Modeling
 MDSD: Approaches
 MDSD: Reference Framework
 MDSD: Tour of features
 Demos
© Icinetic 2012 2

3. Introduction
 We do MDSD Tools for developers
 Focused on .NET technologies &
Architecture Services
 HQ in Seville, Spain
© Icinetic 2012 3

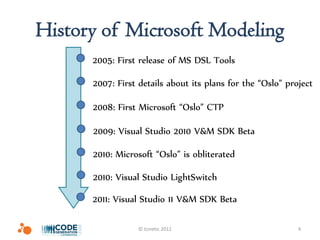

4. History of Microsoft Modeling
2005: First release of MS DSL Tools
2007: First details about its plans for the “Oslo” project
2008: First Microsoft “Oslo” CTP
2009: Visual Studio 2010 V&M SDK Beta
2010: Microsoft “Oslo” is obliterated
2010: Visual Studio LightSwitch
2011: Visual Studio 11 V&M SDK Beta
© Icinetic 2012 4

5. .NET & MDSD
Ready to dive?
© Icinetic 2012 5

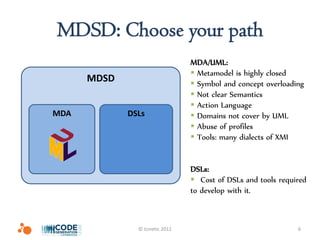

6. MDSD: Choose your path
MDA/UML:
 Metamodel is highly closed
MDSD  Symbol and concept overloading
 Not clear Semantics
 Action Language
MDA DSLs  Domains not cover by UML
 Abuse of profiles
 Tools: many dialects of XMI
DSLs:
 Cost of DSLs and tools required
to develop with it.
© Icinetic 2012 6

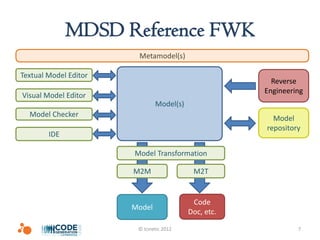

7. MDSD Reference FWK
Metamodel(s)
Textual Model Editor
Reverse
Engineering
Visual Model Editor
Model(s)
Model Checker
Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 7

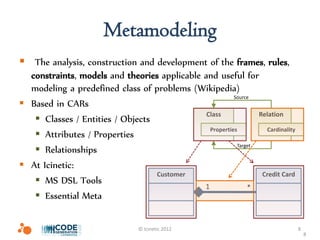

8. Metamodeling
 The analysis, construction and development of the frames, rules,
constraints, models and theories applicable and useful for
modeling a predefined class of problems (Wikipedia)
Source
 Based in CARs
Class Relation
 Classes / Entities / Objects
Properties Cardinality
 Attributes / Properties
 Relationships
Target
 At Icinetic:
Customer Credit Card
 MS DSL Tools
1 *
 Essential Meta
© Icinetic 2012 8
8

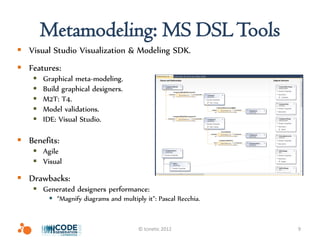

9. Metamodeling: MS DSL Tools
 Visual Studio Visualization & Modeling SDK.
 Features:
 Graphical meta-modeling.
 Build graphical designers.
 M2T: T4.
 Model validations.
 IDE: Visual Studio.
 Benefits:
 Agile
 Visual
 Drawbacks:
 Generated designers performance:
 “Magnify diagrams and multiply it”: Pascal Recchia.
© Icinetic 2012 9

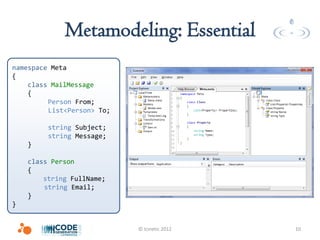

10. Metamodeling: Essential
namespace Meta
{
class MailMessage
{
Person From;
List<Person> To;
string Subject;
string Message;
}
class Person
{
string FullName;
string Email;
}
}
© Icinetic 2012 10

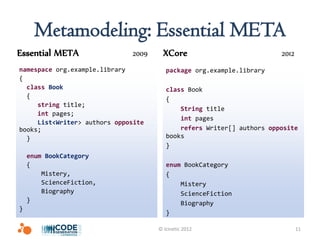

11. Metamodeling: Essential META
Essential META 2009 XCore 2012
namespace org.example.library package org.example.library
{
class Book class Book
{ {
string title;
String title
int pages;
int pages
List<Writer> authors opposite
books; refers Writer[] authors opposite
} books
}
enum BookCategory
{ enum BookCategory
Mistery, {
ScienceFiction, Mistery
Biography ScienceFiction
} Biography
}
}
© Icinetic 2012 11

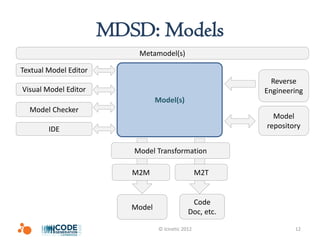

12. MDSD: Models
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker
Model
IDE repository
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 12

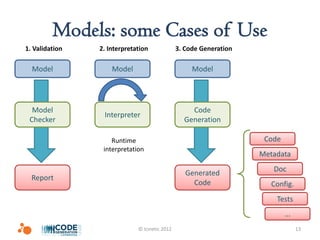

13. Models: some Cases of Use
1. Validation 2. Interpretation 3. Code Generation
Model Model Model
Model Code
Interpreter
Checker Generation
Runtime Code
interpretation
Metadata
Generated Doc
Report
Code Config.
Tests
...
© Icinetic 2012 13

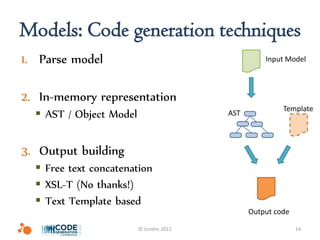

14. Models: Code generation techniques
1. Parse model Input Model
2. In-memory representation
Template
 AST / Object Model AST
3. Output building
 Free text concatenation
 XSL-T (No thanks!)
 Text Template based
Output code
© Icinetic 2012 14

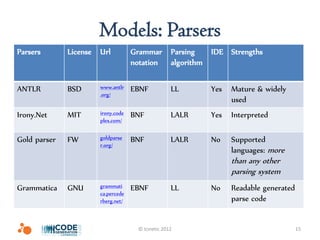

15. Models: Parsers
Parsers License Url Grammar Parsing IDE Strengths
notation algorithm
ANTLR BSD www.antlr EBNF LL Yes Mature & widely
.org/
used
Irony.Net MIT irony.code BNF LALR Yes Interpreted
plex.com/
Gold parser FW goldparse BNF LALR No Supported
r.org/
languages: more
than any other
parsing system
Grammatica GNU grammati EBNF LL No Readable generated
ca.percede
rberg.net/ parse code
© Icinetic 2012 15

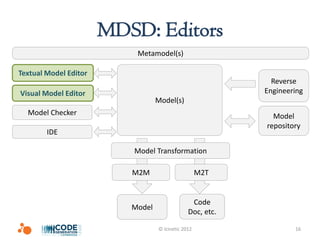

16. MDSD: Editors
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 16

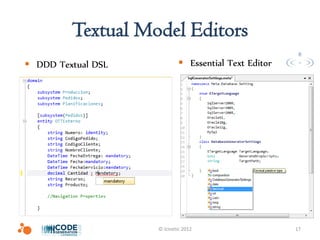

17. Textual Model Editors
 DDD Textual DSL  Essential Text Editor
© Icinetic 2012 17

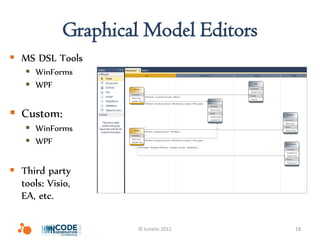

18. Graphical Model Editors
 MS DSL Tools
 WinForms
 WPF
 Custom:
 WinForms
 WPF
 Third party
tools: Visio,
EA, etc.
© Icinetic 2012 18

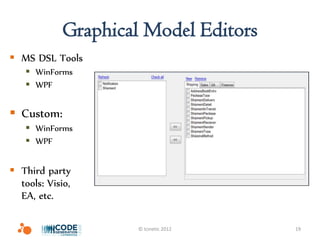

19. Graphical Model Editors
 MS DSL Tools
 WinForms
 WPF
 Custom:
 WinForms
 WPF
 Third party
tools: Visio,
EA, etc.
© Icinetic 2012 19

20. Graphical Model Editors
 MS DSL Tools
 WinForms
 WPF
 Custom:
 WinForms
 WPF
 Third party
tools: Visio,
EA, etc.
© Icinetic 2012 20

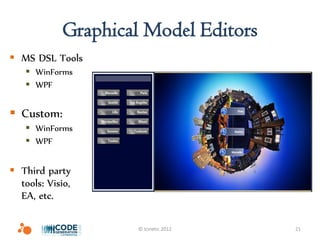

21. Graphical Model Editors
 MS DSL Tools
 WinForms
 WPF
 Custom:
 WinForms
 WPF
 Third party
tools: Visio,
EA, etc.
© Icinetic 2012 21

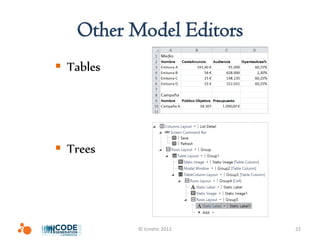

22. Other Model Editors
 Tables
 Trees
© Icinetic 2012 22

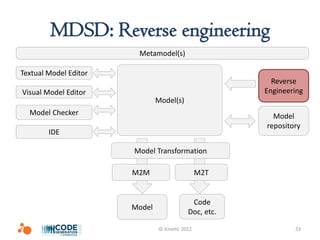

23. MDSD: Reverse engineering
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 23

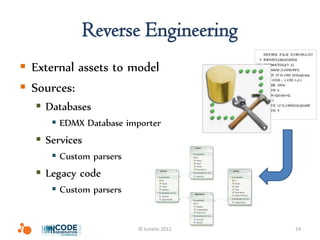

24. Reverse Engineering
 External assets to model
 Sources:
 Databases
 EDMX Database importer
 Services
 Custom parsers
 Legacy code
 Custom parsers
© Icinetic 2012 24

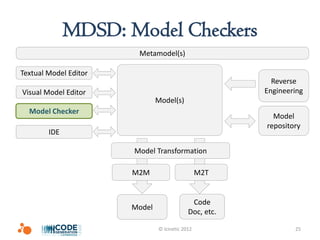

25. MDSD: Model Checkers
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker
Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 25

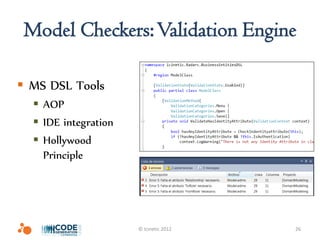

26. Model Checkers: Validation Engine
 MS DSL Tools
 AOP
 IDE integration
 Hollywood
Principle
© Icinetic 2012 26

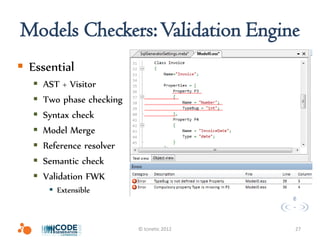

27. Models Checkers: Validation Engine
 Essential
 AST + Visitor
 Two phase checking
 Syntax check
 Model Merge
 Reference resolver
 Semantic check
 Validation FWK
 Extensible
© Icinetic 2012 27

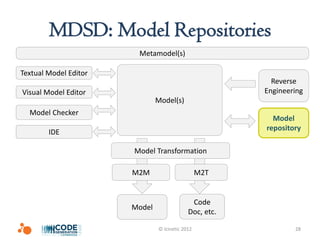

28. MDSD: Model Repositories
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker
Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 28

29. Model Repositories
 XML serialization to file
 Text serialization to file
 Relational DBMS
 Documental DB / NoSQL
© Icinetic 2012 29

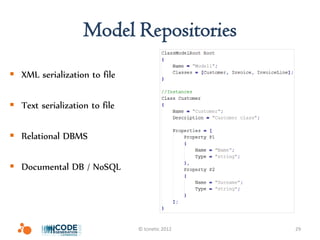

30. Model Repositories
 XML serialization to file
 Text serialization to file
 Relational DBMS
 Documental DB / NoSQL
© Icinetic 2012 30

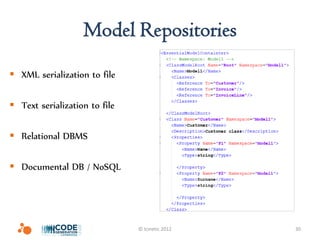

31. Model Repositories
 XML serialization to file
 Text serialization to file
 Relational DBMS
 Documental DB / NoSQL
© Icinetic 2012 31

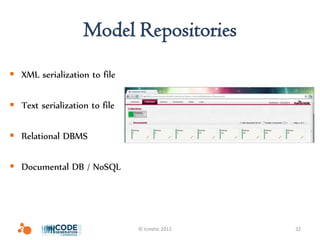

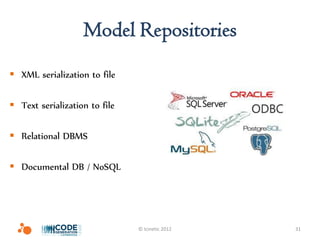

32. Model Repositories
 XML serialization to file
 Text serialization to file
 Relational DBMS
 Documental DB / NoSQL
© Icinetic 2012 32

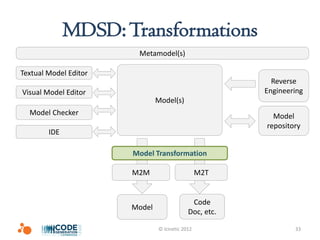

33. MDSD: Transformations
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 33

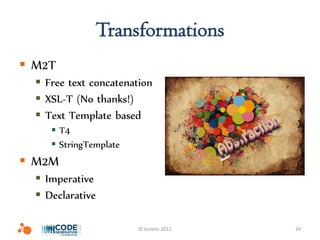

34. Transformations
 M2T
 Free text concatenation
 XSL-T (No thanks!)
 Text Template based
 T4
 StringTemplate
 M2M
 Imperative
 Declarative
© Icinetic 2012 34

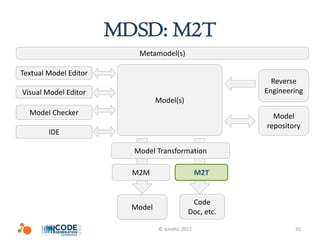

35. MDSD: M2T
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 35

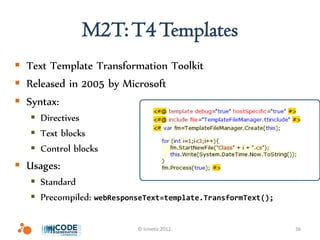

36. M2T: T4 Templates
 Text Template Transformation Toolkit
 Released in 2005 by Microsoft
 Syntax:
 Directives
 Text blocks
 Control blocks
 Usages:
 Standard
 Precompiled: webResponseText=template.TransformText();
© Icinetic 2012. 36

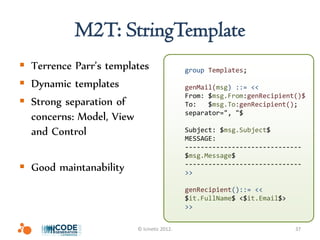

37. M2T: StringTemplate
 Terrence Parr’s templates group Templates;
 Dynamic templates genMail(msg) ::= <<
From: $msg.From:genRecipient()$
 Strong separation of To: $msg.To:genRecipient();
separator=", "$
concerns: Model, View
and Control Subject: $msg.Subject$
MESSAGE:
------------------------------
$msg.Message$
 Good maintanability ------------------------------
>>
genRecipient()::= <<
$it.FullName$ <$it.Email$>
>>
© Icinetic 2012. 37

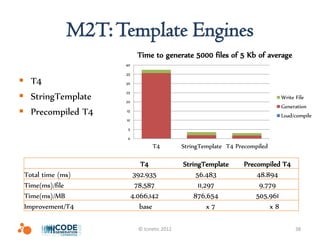

38. M2T: Template Engines
Time to generate 5000 files of 5 Kb of average
40
35
 T4 30
 StringTemplate
25
Write File
20
Generation
 Precompiled T4 15
Load/compile
10
5
0
T4 StringTemplate T4 Precompiled
T4 StringTemplate Precompiled T4
Total time (ms) 392.935 56.483 48.894
Time(ms)/file 78,587 11,297 9,779
Time(ms)/MB 4.066,142 876,654 505,961
Improvement/T4 base x7 x8
© Icinetic 2012 38

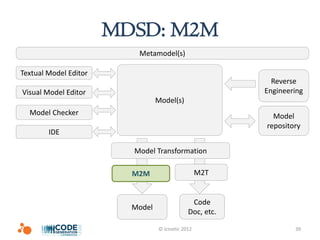

39. MDSD: M2M
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 39

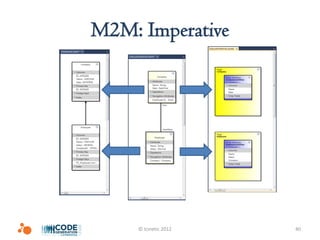

40. M2M: Imperative
© Icinetic 2012 40

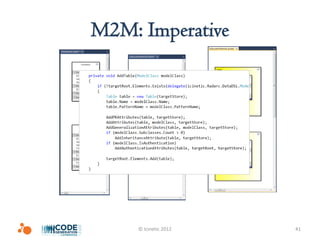

41. M2M: Imperative
© Icinetic 2012 41

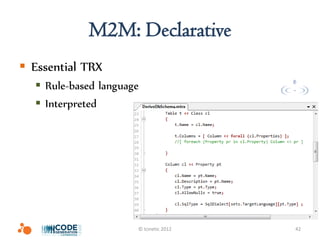

42. M2M: Declarative
 Essential TRX
 Rule-based language
 Interpreted
© Icinetic 2012 42

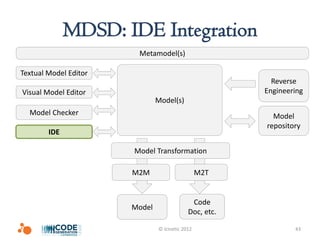

43. MDSD: IDE Integration
Metamodel(s)
Textual Model Editor
Reverse
Visual Model Editor Engineering
Model(s)
Model Checker Model
repository
IDE
Model Transformation
M2M M2T
Code
Model
Doc, etc.
© Icinetic 2012 43

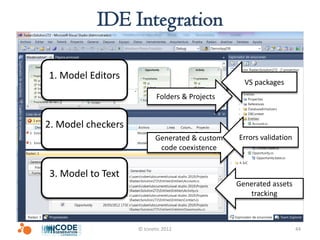

44. IDE Integration
1. Model Editors
VS packages
Folders & Projects
2. Model checkers
Generated & custom Errors validation
code coexistence
3. Model to Text
Generated assets
tracking
© Icinetic 2012 44

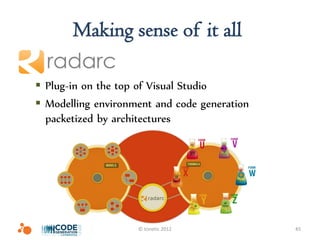

45. Making sense of it all
 Radarc
 Plug-in on the top of Visual Studio
 Modelling environment and code generation
packetized by architectures
© Icinetic 2012 45

46. Radarc Formulas
 A Formula is a code  Formulas available
generator including:
 ASP.NET WebForms
 Models / DSLs  ASP.NET MVC
 Editors  MVC + Azure
 Traceability rules  Windows Phone 7
 Best practices  DDD N-Layered
 Templates
 … and growing
© Icinetic 2012 46

47. Demo
© Icinetic 2012 47

48. Conclusions
 Modelling and code generation
technologies have matured a lot
in the latest years
 The .NET platform has a strong
base of tools to make MDSD
approaches feasible.
 MDSD is not more a luxury, is a
precision tool. Take profit!
© Icinetic 2012 48

49. Questions & (might be) Anwers
© Icinetic 2012 49

50. www.radarc.net
@RadarcNet
pjmolina.com/essential
