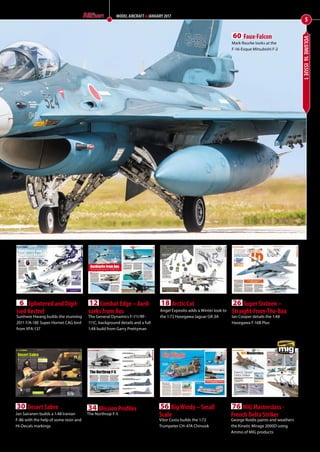

6 Splintered and Digit-
ised Kestrel
Sunhwie Hwang builds the stunning
2011 F/A-18E Super Hornet CAG bird
from VFA-137
30 Desert Sabre
Jan Sairanen builds a 1:48 Iranian
F-86 with the help of some resin and
Hi-Decals markings
12 Combat Edge – Aard-
varks from Aus
The General Dynamics F-111/RF-
111C, background details and a full
1:48 build from Garry Prettyman
34 Mission Profiles
The Northrop F-5
18 Arctic Cat
Angel Exposito adds a Winter look to
the 1:72 Hasegawa Jaguar GR.3A
26 Super Sixteen –
Straight-From-The-Box
Ian Cooper details the 1:48
Hasegawa F-16B Plus
76 MIG Masterclass -
French Delta Striker
George Roidis paints and weathers
the Kinetic Mirage 2000D using
Ammo of MIG products
56 Big Windy – Small
Scale
Vitor Costa builds the 1:72
Trumpeter CH-47A Chinook
60 Faux-Falcon
Mark Rourke looks at the
F-16-Esque Mitsubishi F-2
04-05-Contents-MA-0117.indd 5 11/12/2016 15:17

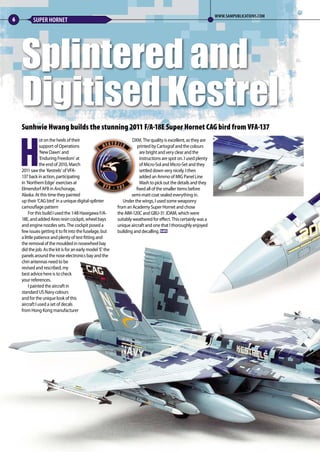

Sunhwie Hwang builds the stunning 2011 F/A-18E Super Hornet CAG bird from VFA-137
H
ot on the heels of their
support of Operations
‘New Dawn’ and
‘Enduring Freedom’ at
the end of 2010, March
2011 saw the ‘Kestrels’ of VFA-
137 back in action, participating
in ‘Northern Edge’ exercises at
Elmendorf AFB in Anchorage,
Alaska. At this time they painted
up their ‘CAG bird’ in a unique digital-splinter
camouflage pattern
For this build I used the 1:48 Hasegawa F/A-
18E, and added Aires resin cockpit, wheel bays
and engine nozzles sets. The cockpit posed a
few issues getting it to fit into the fuselage, but
a little patience and plenty of test fitting and
the removal of the moulded in nosewheel bay
did the job. As the kit is for an early model ‘E’ the
panels around the nose electronics bay and the
chin antennas need to be
revised and rescribed, my
best advice here is to check
your references.
I painted the aircraft in
standard US Navy colours
and for the unique look of this
aircraft I used a set of decals
from Hong Kong manufacturer
DXM. The quality is excellent, as they are
printed by Cartograf and the colours
are bright and very clear and the
instructions are spot on. I used plenty
of Micro-Sol and Micro-Set and they
settled down very nicely. I then
added an Ammo of MIG Panel Line
Wash to pick out the details and they
fixed all of the smaller items before
semi-matt coat sealed everything in.
Under the wings, I used some weaponry
from an Academy Super Hornet and chose
the AIM-120C and GBU-31 JDAM, which were
suitably weathered for effect. This certainly was a
unique aircraft and one that I thoroughly enjoyed
building and decalling. MA
Splintered and
Digitised Kestrel
6 SUPER HORNET
06-09-Kestrel-MA-0117.indd 6 11/12/2016 15:16

DIGITISEDKESTREL
7

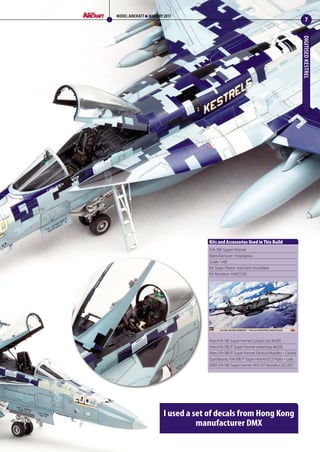

I used a set of decals from Hong Kong
manufacturer DMX
F/A-18E Super Hornet
Manufacturer: Hasegawa
Scale: 1:48
Kit Type: Plastic injection moulded
Kit Number: HA07239
Aires F/A-18E Super Hornet Cockpit Set #4295
Aires F/A-18E/F Super Hornet wheel bay #4293
Aires F/A-18E/F Super Hornet Exhaust Nozzles – Closed
Quickboost, F/A-18E/F Super Hornet ECS Pipes – Late
DMX F/A-18E Super Hornet VFA-137 Kestrels CAG 2011
Kits and Accessories Used in This Build
06-09-Kestrel-MA-0117.indd 7 11/12/2016 15:16

8 SUPER HORNET

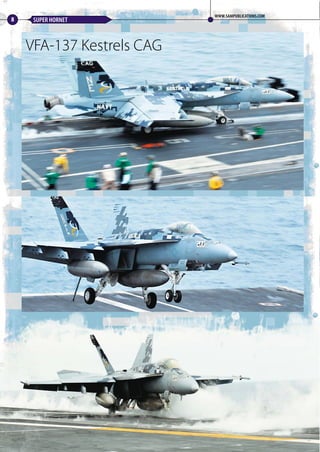

VFA-137 Kestrels CAG
