1. Miltec Rugged
Computing Solutions
Seminar by Aurin Bose

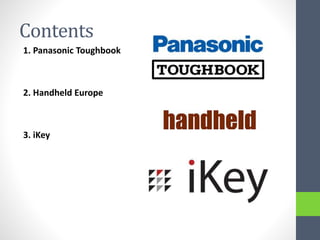

2. Contents
1. Panasonic Toughbook
2. Handheld Europe
3. iKey

3. Panasonic Toughbook
Overview:
• Rugged reliability, low cost of ownership.
• In today's business environment, staying connected is no
longer a luxury. It's the new standard for doing business.
Therefore Panasonic Toughpad tablets and Toughbook
computers

4. Benefits of Digital Communities
• Increases Government Efficiency
• Improves citizen satisfaction
• Energizes economic vitality
• Minimize downtime

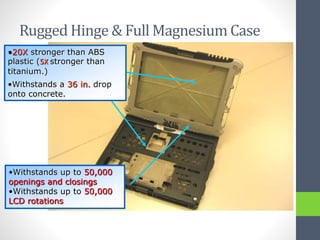

5. Rugged Hinge & Full Magnesium Case
•20X stronger than ABS
plastic (5X stronger than
titanium.)
•Withstands a 36 in. drop
onto concrete.
•Withstands up to 50,000
openings and closings
•Withstands up to 50,000
LCD rotations

6. Testing Process
Toughbooks are tested in our
laboratories and
in independent facilities:
• Drop tests
• Vibration tests
• Water-resistance tests
• Dust-resistance tests
• High and low temperature
tests
• Thermal shock test
• ESD Spark test
• Explosive atmosphere test
Fully rugged Toughbooks are
MIL-STD-810G Compliant.

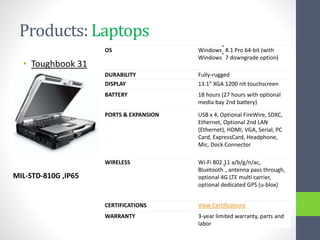

7. Products: Laptops
• Toughbook 31
OS Windows
®
8.1 Pro 64-bit (with
Windows
®
7 downgrade option)
DURABILITY Fully-rugged
DISPLAY 13.1” XGA 1200 nit touchscreen
BATTERY 18 hours (27 hours with optional
media bay 2nd battery)
PORTS & EXPANSION USB x 4, Optional FireWire, SDXC,
Ethernet, Optional 2nd LAN
(Ethernet), HDMI, VGA, Serial, PC
Card, ExpressCard, Headphone,
Mic, Dock Connector
WIRELESS Wi-Fi 802.11 a/b/g/n/ac,
Bluetooth
®
, antenna pass through,
optional 4G LTE multi carrier,
optional dedicated GPS (u-blox)
CERTIFICATIONS View Certifications
WARRANTY 3-year limited warranty, parts and
labor
MIL-STD-810G ,IP65

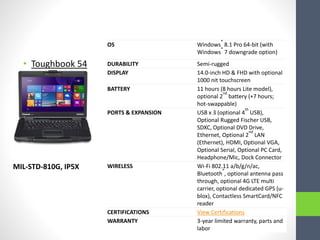

8. • Toughbook 54
OS Windows
®
8.1 Pro 64-bit (with
Windows
®
7 downgrade option)
DURABILITY Semi-rugged
DISPLAY 14.0-inch HD & FHD with optional
1000 nit touchscreen
BATTERY 11 hours (8 hours Lite model),
optional 2
nd
battery (+7 hours;
hot-swappable)
PORTS & EXPANSION USB x 3 (optional 4
th
USB),
Optional Rugged Fischer USB,
SDXC, Optional DVD Drive,
Ethernet, Optional 2
nd
LAN
(Ethernet), HDMI, Optional VGA,
Optional Serial, Optional PC Card,
Headphone/Mic, Dock Connector
WIRELESS Wi-Fi 802.11 a/b/g/n/ac,
Bluetooth
®
, optional antenna pass
through, optional 4G LTE multi
carrier, optional dedicated GPS (u-
blox), Contactless SmartCard/NFC
reader
CERTIFICATIONS View Certifications
WARRANTY 3-year limited warranty, parts and
labor
MIL-STD-810G, IP5X

9. • Toughbook 53
OS Windows
®
8.1 Pro 64-bit (with
Windows
®
7 downgrade option)
DURABILITY Semi-rugged
DISPLAY 14.0" HD with optional 850 nit
touchscreen
BATTERY 15 hours (10 hours Lite model)
PORTS & EXPANSION USB x 4, Optional FireWire, SDXC,
DVD Drive, Ethernet, Optional
2nd LAN (Ethernet), Optional RJ-
11 Modem, HDMI, VGA, Serial, PC
Card, ExpressCard, Headphone,
Mic, Dock Connector
WIRELESS Wi-Fi 802.11 a/b/g/n/ac,
Bluetooth
®
, optional antenna pass
through, optional 4G LTE multi
carrier, optional dedicated GPS (u-
blox), Contactless
SmartCard/RFID HF reader
CERTIFICATIONS View Certifications
WARRANTY 3-year limited warranty, parts and
labor
MIL-STD-810G

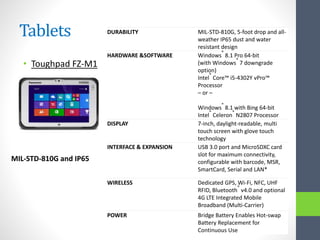

10. Tablets
• Toughpad FZ-M1
DURABILITY MIL-STD-810G, 5-foot drop and all-
weather IP65 dust and water
resistant design
HARDWARE &SOFTWARE Windows
®
8.1 Pro 64-bit
(with Windows
®
7 downgrade
option)
Intel
®
Core™ i5-4302Y vPro™
Processor
– or –
Windows
®
8.1 with Bing 64-bit
Intel
®
Celeron
®
N2807 Processor
DISPLAY 7-inch, daylight-readable, multi
touch screen with glove touch
technology
INTERFACE & EXPANSION USB 3.0 port and MicroSDXC card
slot for maximum connectivity,
configurable with barcode, MSR,
SmartCard, Serial and LAN*
WIRELESS Dedicated GPS, Wi-Fi, NFC, UHF
RFID, Bluetooth
®
v4.0 and optional
4G LTE Integrated Mobile
Broadband (Multi-Carrier)
POWER Bridge Battery Enables Hot-swap
Battery Replacement for
Continuous Use
MIL-STD-810G and IP65

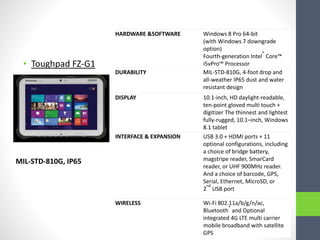

11. • Toughpad FZ-G1
HARDWARE &SOFTWARE Windows 8 Pro 64-bit
(with Windows 7 downgrade
option)
Fourth-generation Intel
®
Core™
i5vPro™ Processor
DURABILITY MIL-STD-810G, 4-foot drop and
all-weather IP65 dust and water
resistant design
DISPLAY 10.1-inch, HD daylight-readable,
ten-point gloved multi touch +
digitizer The thinnest and lightest
fully-rugged, 10.1–inch, Windows
8.1 tablet
INTERFACE & EXPANSION USB 3.0 + HDMI ports + 11
optional configurations, including
a choice of bridge battery,
magstripe reader, SmarCard
reader, or UHF 900MHz reader.
And a choice of barcode, GPS,
Serial, Ethernet, MicroSD, or
2
nd
USB port
WIRELESS Wi-Fi 802.11a/b/g/n/ac,
Bluetooth
®
and Optional
integrated 4G LTE multi carrier
mobile broadband with satellite
GPS
MIL-STD-810G, IP65

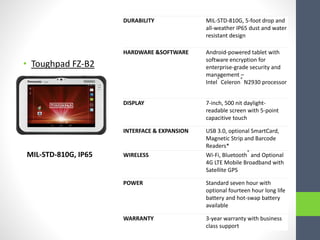

12. • Toughpad FZ-B2
DURABILITY MIL-STD-810G, 5-foot drop and
all-weather IP65 dust and water
resistant design
HARDWARE &SOFTWARE Android-powered tablet with
software encryption for
enterprise-grade security and
management –
Intel
®
Celeron
®
N2930 processor
DISPLAY 7-inch, 500 nit daylight-
readable screen with 5-point
capacitive touch
INTERFACE & EXPANSION USB 3.0, optional SmartCard,
Magnetic Strip and Barcode
Readers*
WIRELESS Wi-Fi, Bluetooth
®
and Optional
4G LTE Mobile Broadband with
Satellite GPS
POWER Standard seven hour with
optional fourteen hour long life
battery and hot-swap battery
available
WARRANTY 3-year warranty with business
class support
MIL-STD-810G, IP65

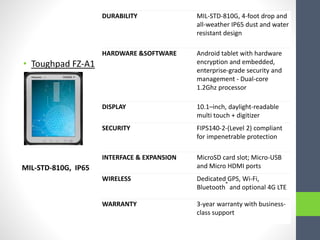

13. • Toughpad FZ-A1
DURABILITY MIL-STD-810G, 4-foot drop and
all-weather IP65 dust and water
resistant design
HARDWARE &SOFTWARE Android tablet with hardware
encryption and embedded,
enterprise-grade security and
management - Dual-core
1.2Ghz processor
DISPLAY 10.1–inch, daylight-readable
multi touch + digitizer
SECURITY FIPS140-2-(Level 2) compliant
for impenetrable protection
INTERFACE & EXPANSION MicroSD card slot; Micro-USB
and Micro HDMI ports
WIRELESS Dedicated GPS, Wi-Fi,
Bluetooth
®
and optional 4G LTE
WARRANTY 3-year warranty with business-
class support
MIL-STD-810G, IP65

14. • Toughbook H2
HARDWARE &SOFTWARE Windows
®
7 Professional 32-
bit or Windows
®
7
Professional 64-bit
DURABILITY MIL-STD-810G certified;
MIL-STD-461F certified; IP65
certified sealed all-weather
design
DISPLAY 10.1" XGA sunlight-viewable
LED 1024 x 768 dual touch
POWER SUPPLY 7 hrs; Twin hot-swappable
Li-Ion battery packs
INTERFACE & EXPANSION Dedicated 19-pin; D-sub 9-
pin; 4-pin; RJ45; Serial port;
USB 3.0; 10/100/1000
ethernet
WIRELESS Optional integrated 4G LTE
mobile broadband with
satellite GPS or integrated
3G Gobi™3000 mobile
broadband with satellite
GPS
MIL-STD-810G ; MIL-STD-461F
; IP65

15. Convertible Tablets
• Toughbook 19
OS Windows
®
8.1 Pro 64-bit (with
Windows
®
7 downgrade option)
DURABILITY Fully rugged
DISPLAY 10.1” XGA 6000 nit touchscreen
with optional multi touch +
digitizer display
BATTERY 10 hours
PORTS & EXPANSION USB x 2, FireWire, SDXC,
Ethernet, Optional 2nd LAN
(Ethernet), VGA, Serial, PC Card,
ExpressCard, Headphone, Mic,
Dock Connector
WIRELESS Wi-Fi 802.11 a/b/g/n,
Bluetooth
®
, antenna pass
through, optional 4G LTE multi
carrier, optional dedicated
GPS(u-blox)
MIL-STD-810G, MIL-
STD-461F, IP65

16. Handheld Tablets
• Toughpad FZ-E1
HARDWARE &SOFTWARE Windows
®
Embedded 8.1
Handheld
DURABILITY IP65 (high-pressure jet spray)
and IP68 (submersible up to 5ft.
for 30 minutes)
DISPLAY 5-inch high definition 1280 x
720 sunlight-viewable display;
10-point capacitive multi-touch
with glove touch mode
POWER SUPPLY 14 hours; Hot Swap Li-Ion
battery pack, 6200mAh, Quick
50% charge in only 1 hour
INTERFACE & EXPANSION Built-in NFC; USB 2.0 port(micro
USB) x 1
WIRELESS IEEE802.11 a/b/g/n/ac; 4G LTE,
HSPA+, UMTS, EDGE, GPRS,
CDMA 1x, EVDO Rev.A
WARRANTY 3-year limited warranty, parts
and labor
IP65 and IP68

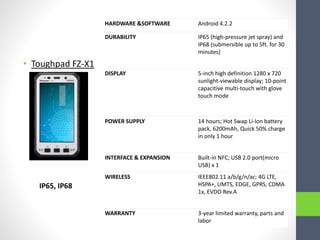

17. • Toughpad FZ-X1
HARDWARE &SOFTWARE Android 4.2.2
DURABILITY IP65 (high-pressure jet spray) and
IP68 (submersible up to 5ft. for 30
minutes)
DISPLAY 5-inch high definition 1280 x 720
sunlight-viewable display; 10-point
capacitive multi-touch with glove
touch mode
POWER SUPPLY 14 hours; Hot Swap Li-Ion battery
pack, 6200mAh, Quick 50% charge
in only 1 hour
INTERFACE & EXPANSION Built-in NFC; USB 2.0 port(micro
USB) x 1
WIRELESS IEEE802.11 a/b/g/n/ac; 4G LTE,
HSPA+, UMTS, EDGE, GPRS, CDMA
1x, EVDO Rev.A
WARRANTY 3-year limited warranty, parts and
labor
IP65, IP68

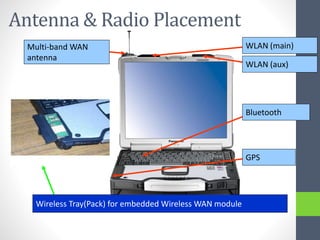

18. WLAN (aux)
WLAN (main)
Bluetooth
GPS
Antenna & Radio Placement
Multi-band WAN
antenna
Wireless Tray(Pack) for embedded Wireless WAN module

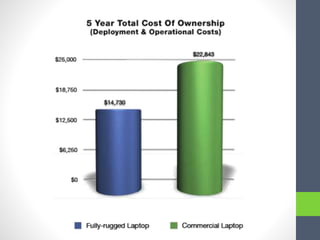

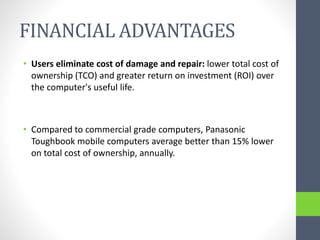

19. FINANCIAL ADVANTAGES
• Users eliminate cost of damage and repair: lower total cost of
ownership (TCO) and greater return on investment (ROI) over
the computer's useful life.
• Compared to commercial grade computers, Panasonic
Toughbook mobile computers average better than 15% lower
on total cost of ownership, annually.

21. Areas of solution provided
• Architecture and Design- Job site inspections, Drawing up
plans
• Automation- Mobile Device Management, Auto dealer
management, Diagnostics and Servicing
• Education- Classroom Management Device, School Safety,
Campus surveillance
• Food Services- Drive thru services, Electronic menus,
Mobile management
• Government- Durable Flight Line Maintenance Solution,
Situational Awareness, Logistics Support, EFB
• Healthcare- Infection control, Connectivity, Security
• Hospitality- Curbside check-in, line busting and concierge
service, to real-time housekeeping and maintenance
reports

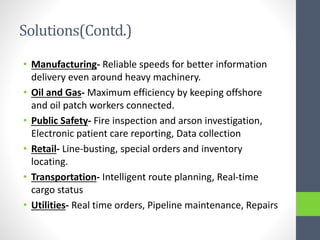

22. Solutions(Contd.)
• Manufacturing- Reliable speeds for better information
delivery even around heavy machinery.
• Oil and Gas- Maximum efficiency by keeping offshore
and oil patch workers connected.
• Public Safety- Fire inspection and arson investigation,
Electronic patient care reporting, Data collection
• Retail- Line-busting, special orders and inventory
locating.
• Transportation- Intelligent route planning, Real-time
cargo status
• Utilities- Real time orders, Pipeline maintenance, Repairs

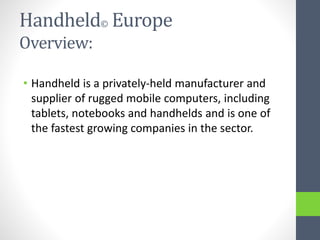

23. Handheld© Europe
Overview:
• Handheld is a privately-held manufacturer and
supplier of rugged mobile computers, including
tablets, notebooks and handhelds and is one of
the fastest growing companies in the sector.

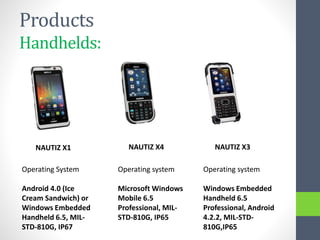

24. Products
Handhelds:
NAUTIZ X1
NAUTIZ X1 NAUTIZ X3NAUTIZ X4
Operating System
Android 4.0 (Ice
Cream Sandwich) or
Windows Embedded
Handheld 6.5, MIL-
STD-810G, IP67
Operating system
Microsoft Windows
Mobile 6.5
Professional, MIL-
STD-810G, IP65
Operating system
Windows Embedded
Handheld 6.5
Professional, Android
4.2.2, MIL-STD-
810G,IP65

25. NAUTIZ X5 NAUTIZ X8 NAUTIZ ETICKET PRO
Operating system
Windows Mobile 6.1,
MIL-STD-810G, IP65
Operating System
Windows Embedded
Handheld 6.5.3
Android 4.2.2, MIL-STD-
810G, IP67
Operating system
Windows Mobile
6.1, MIL-STD-810G,
IP65

26. Tablets and Notebooks
Operating System
Microsoft Windows 7
Ultimate, MIL-STD-
810G, IP65
Operating System
Windows Embedded 8.1
Industry Pro (64-bit) /
Windows 7 Ultimate (64-
bit), MIL-STD-810G, IP65
Operating System
Microsoft Windows
7 Ultimate, MIL-STD-
810G, IP65

27. Field Solutions Provided
• Track livestock with
RFID, manage farm
inventory, run
irrigation control
systems.
• Carrying blueprints to
the field, doing on-site
job calculations, to
keeping track of on-
site inventory
• Collect sea ice
samples, use precise
GPS information to
speed cleanup of oil
spill sites after a
tornado, and inspect
and monitor
stormwater.

28. Solutions(Contd.)
• Timber cruising, GPS
navigation, wildlife
surveying and other
types of forest
management.
• Used by NATO troops,
in Iraq and
Afghanistan as well as
other remote regions
of the world.
• Rugged PDAs for
tracking patient data,
rugged tablets for
navigating unfamiliar
routes and pre-planning
for fire departments.
And many more……..

29. Case Studies
Field Electricians in New Zealand
CHALLENGE
• Find and pair a combination of customized software
and rugged field tools that will allow field technicians
to begin 220,000 electrical meters in New Zealand.
SOLUTION
• Use the Nautiz X5 rugged handheld computer to
capture and transmit data from the field in real time.
RESULTS
• Able to deliver accurate data and reports in
compliance with work requirements and industry
regulations.

30. Denver Zoo Ticketing
CHALLENGE
• Find an efficient way to admit thousands of visitors
at once for large events hosted at the Denver Zoo.
SOLUTION
• Using Handheld’s Nautiz X5 — a rugged PDA with
barcode-scanning capabilities — to verify printed
ticket data.
RESULTS
• The Nautiz X5 provides a durable outdoor ticket-
scanning solution that has helped the Zoo decrease
wait times and improve guest experiences.

31. iKey Rugged Accessories
The iKey Advantage:

32. • iKey prides itself on innovative solutions, quality products, and
superior customer service.
• All iKey products are submitted for approval according to
recognized industrial, medical, military and public safety
standards:
-NEMA 4, 4X (Watertight)
-UL-1950
-CE
-Factory Mutual
-Intrinsically Safe (IS)
-Non-incendive (NI)
-FCC Class 15, Part B

33. Product Line
• Keyboards
• Pointing Devices
• Display
• Cable/Connectivity
• Key Material
• Case Material

34. iKey Medical Case study
Challenge
• Prevent cross-contamination in medical settings to
help protect the lives of patients and staff.
Solution
• iKey medical keyboards are designed for infection
control, liquid-proof, and easily cleanable.
Results
• iKey’s keyboards were tested and showed they are
well suited and beneficial to medical communities

35. Markets Serviced
• Public Safety
• Medical
• Industrial
• Oil and Gas
• Enterprise
• Military
