The document provides an overview of Windows Azure Storage, highlighting its capabilities such as storing over 9 trillion objects and handling 900,000 requests per second, with a variety of data types supported. It discusses different NoSQL and SQL technologies, operational and analytical data services, and references major document storage systems. Additional links are provided for further information and resources related to Azure Data Services.

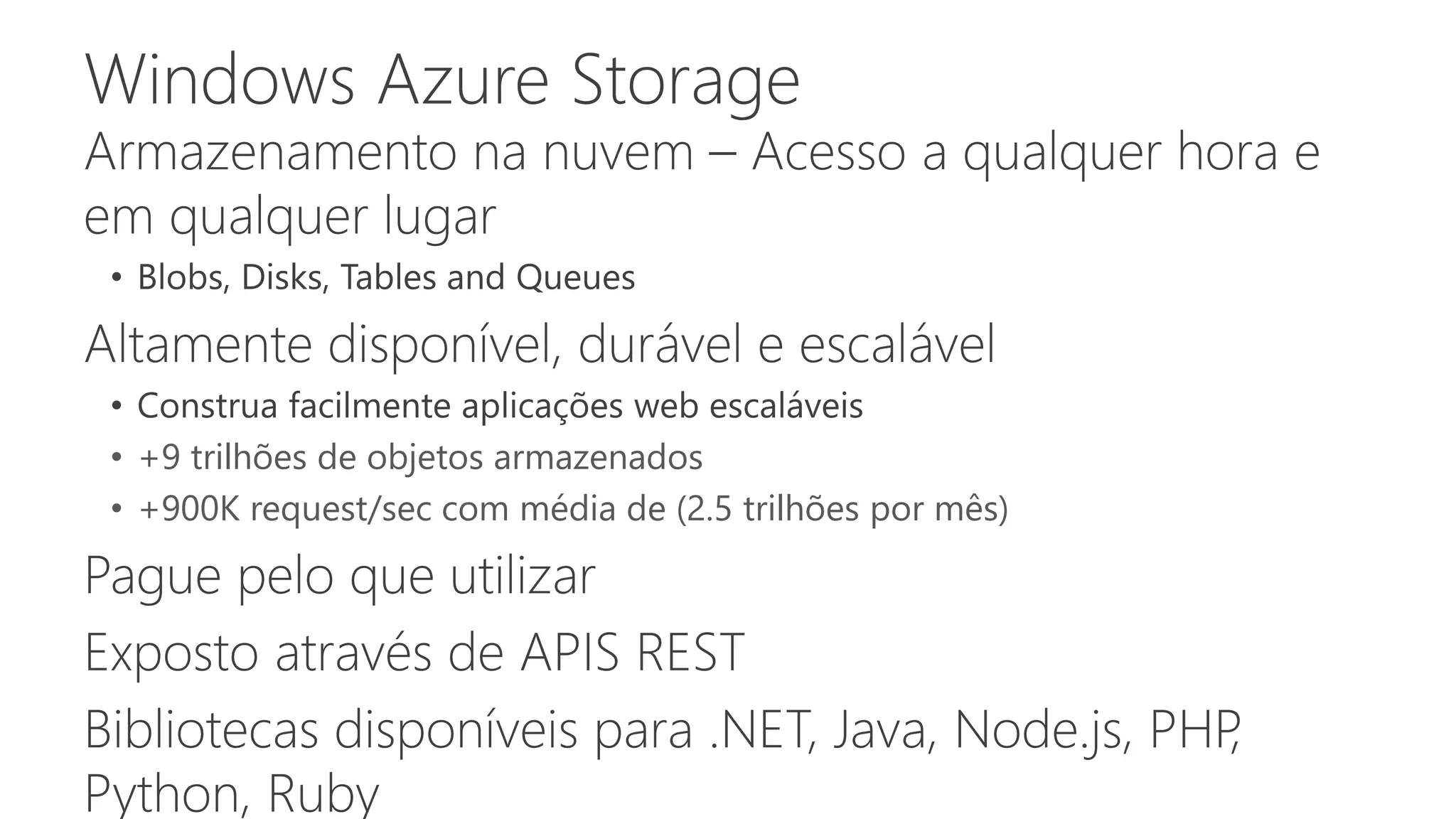

4. • +9 trilhões de objetos armazenados
• +900K request/sec com média de (2.5 trilhões por mês)

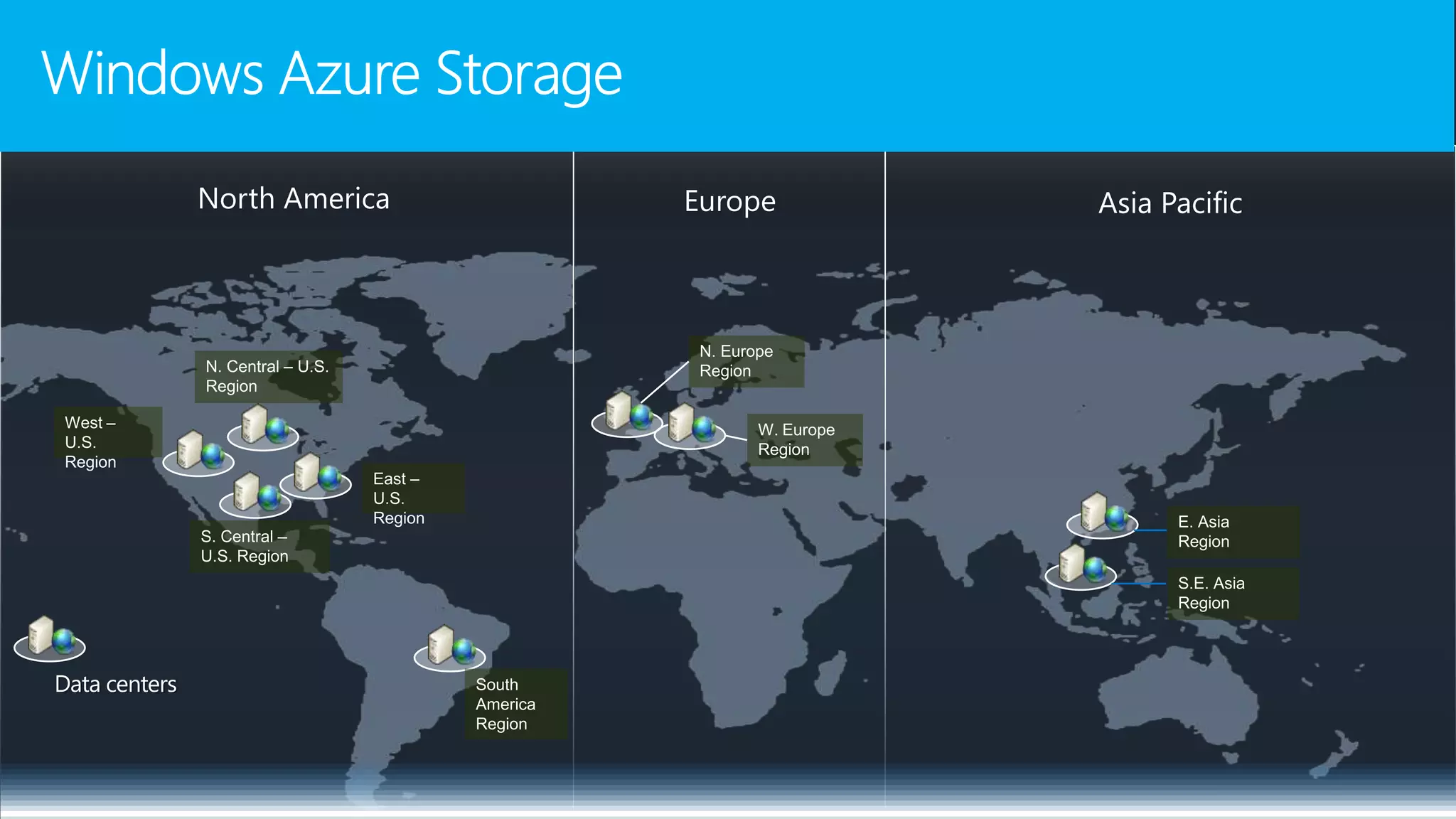

7. Data centers

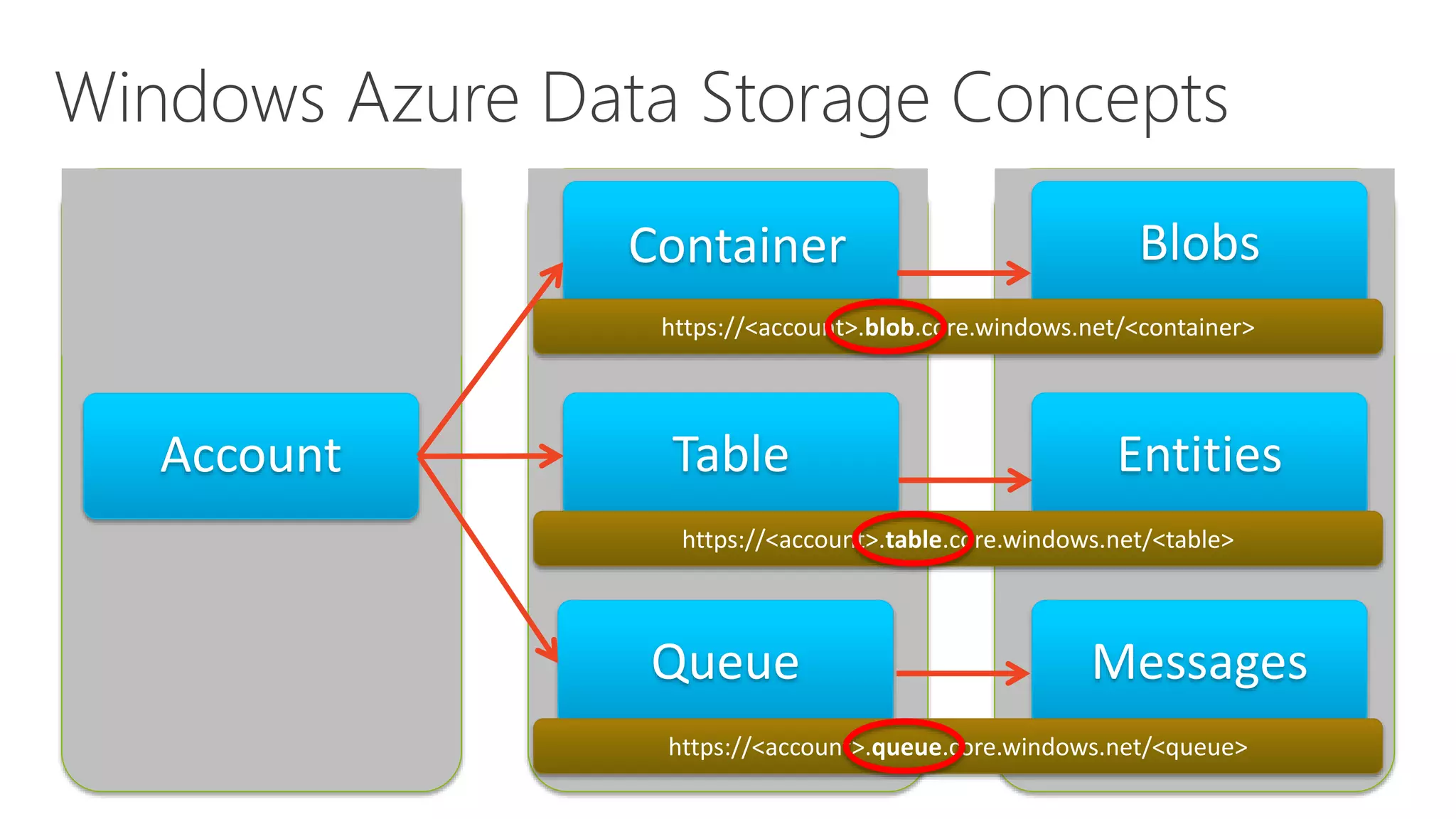

8. Account

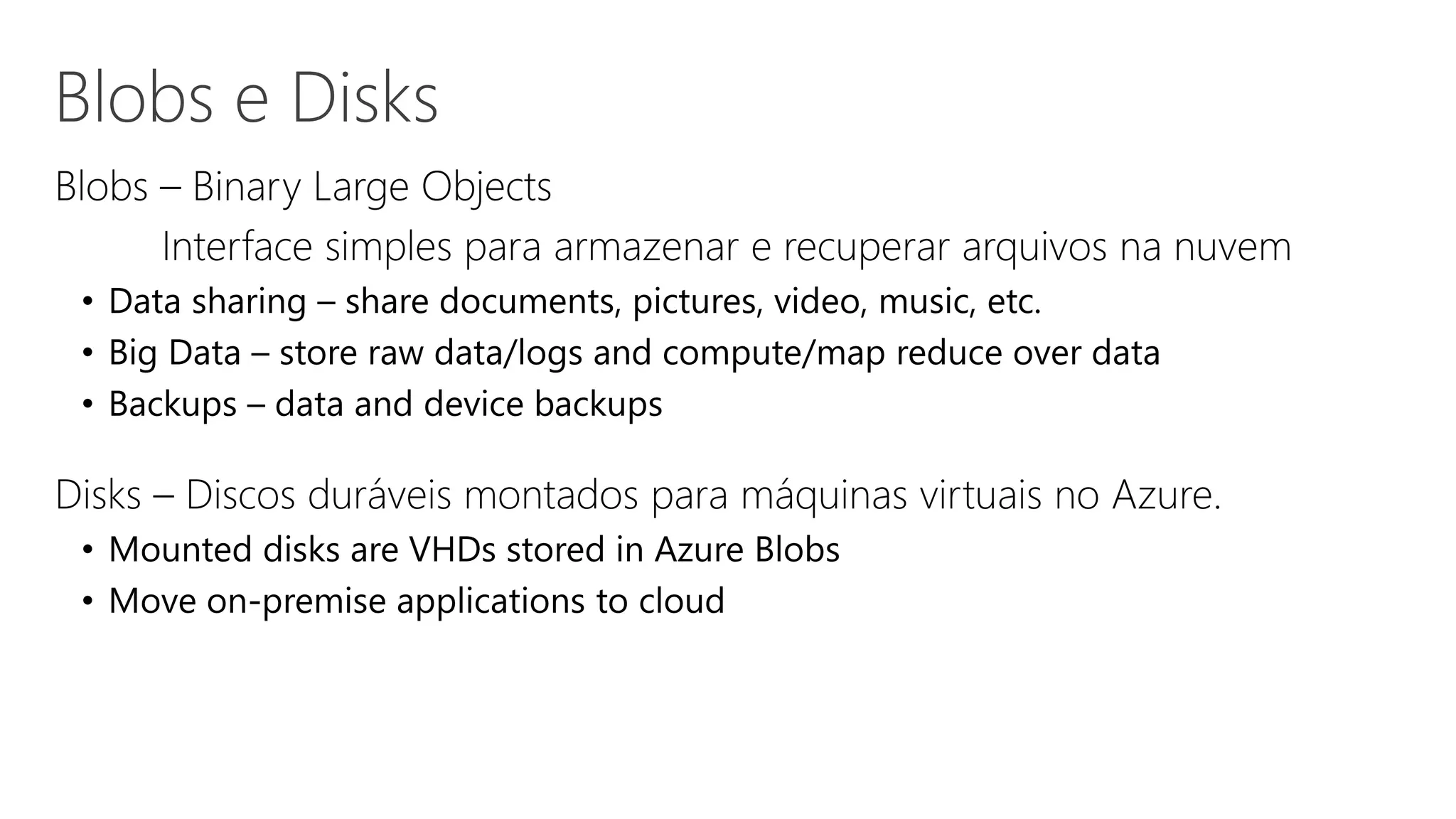

Container Blobs

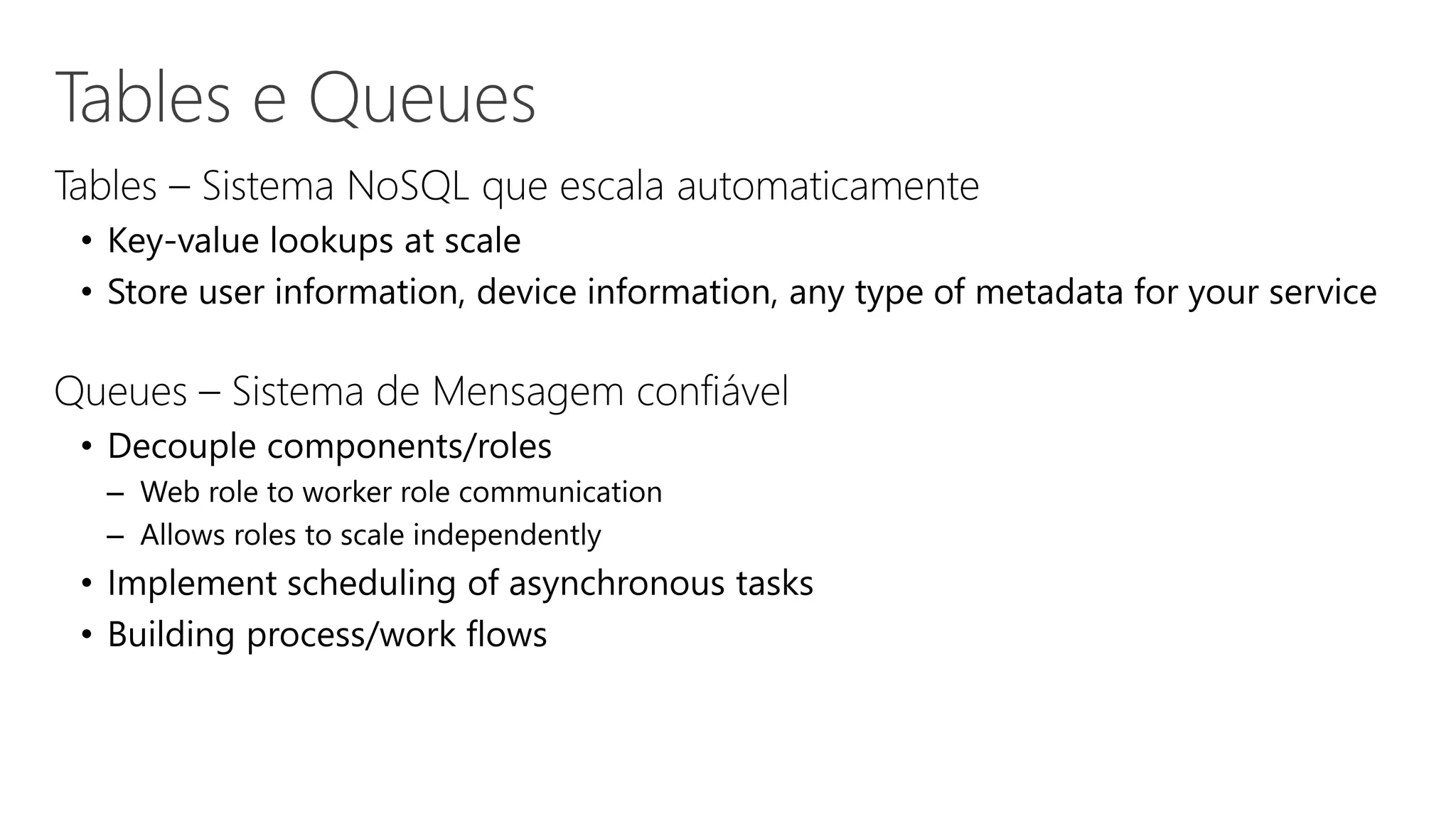

Table Entities
Queue Messages
https://<account>.blob.core.windows.net/<container>
https://<account>.table.core.windows.net/<table>
https://<account>.queue.core.windows.net/<queue>

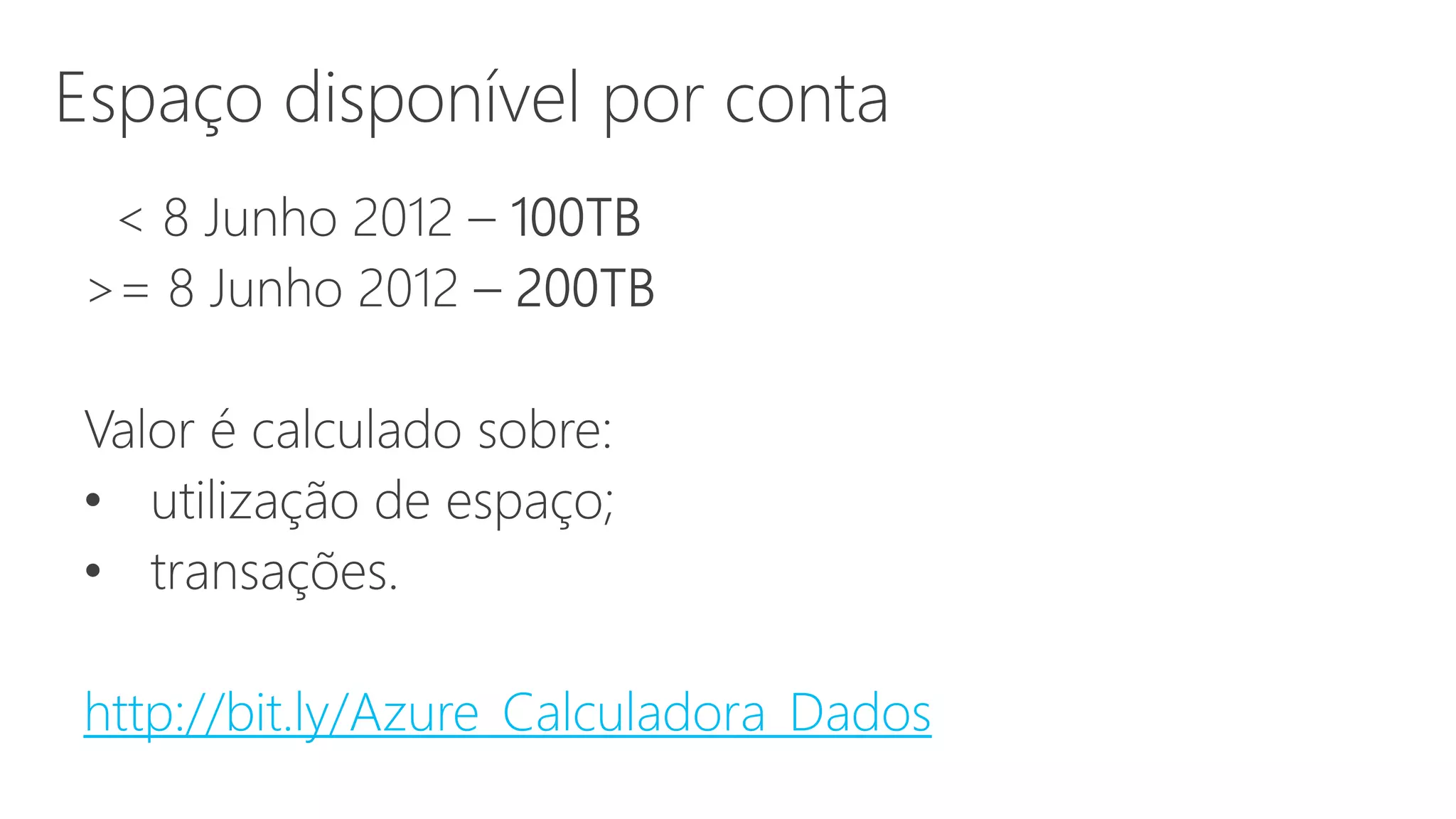

9. http://bit.ly/Azure_Calculadora_Dados

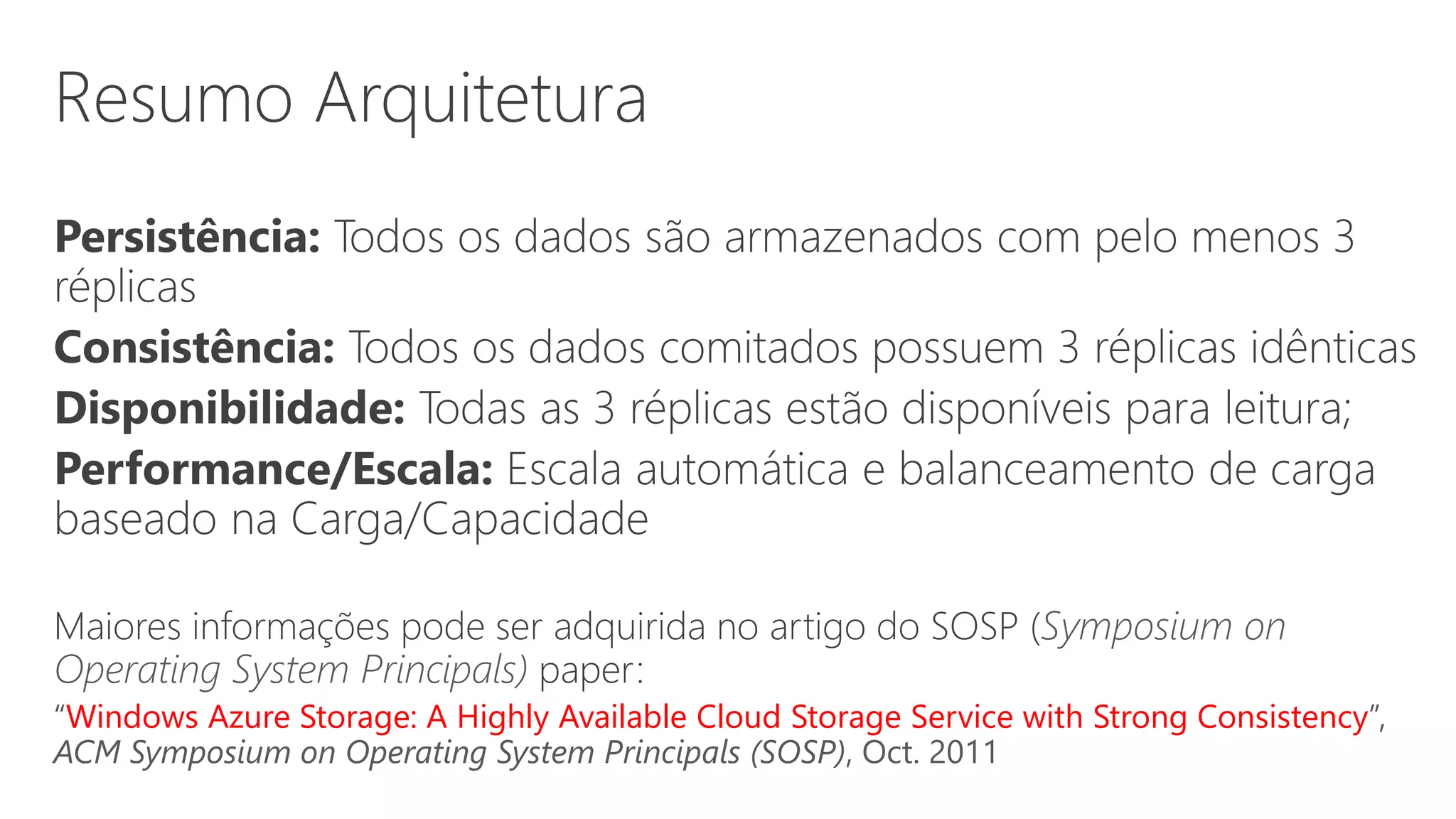

10. Symposium on
Operating System Principals)
“Windows Azure Storage: A Highly Available Cloud Storage Service with Strong Consistency”,
ACM Symposium on Operating System Principals (SOSP), Oct. 2011

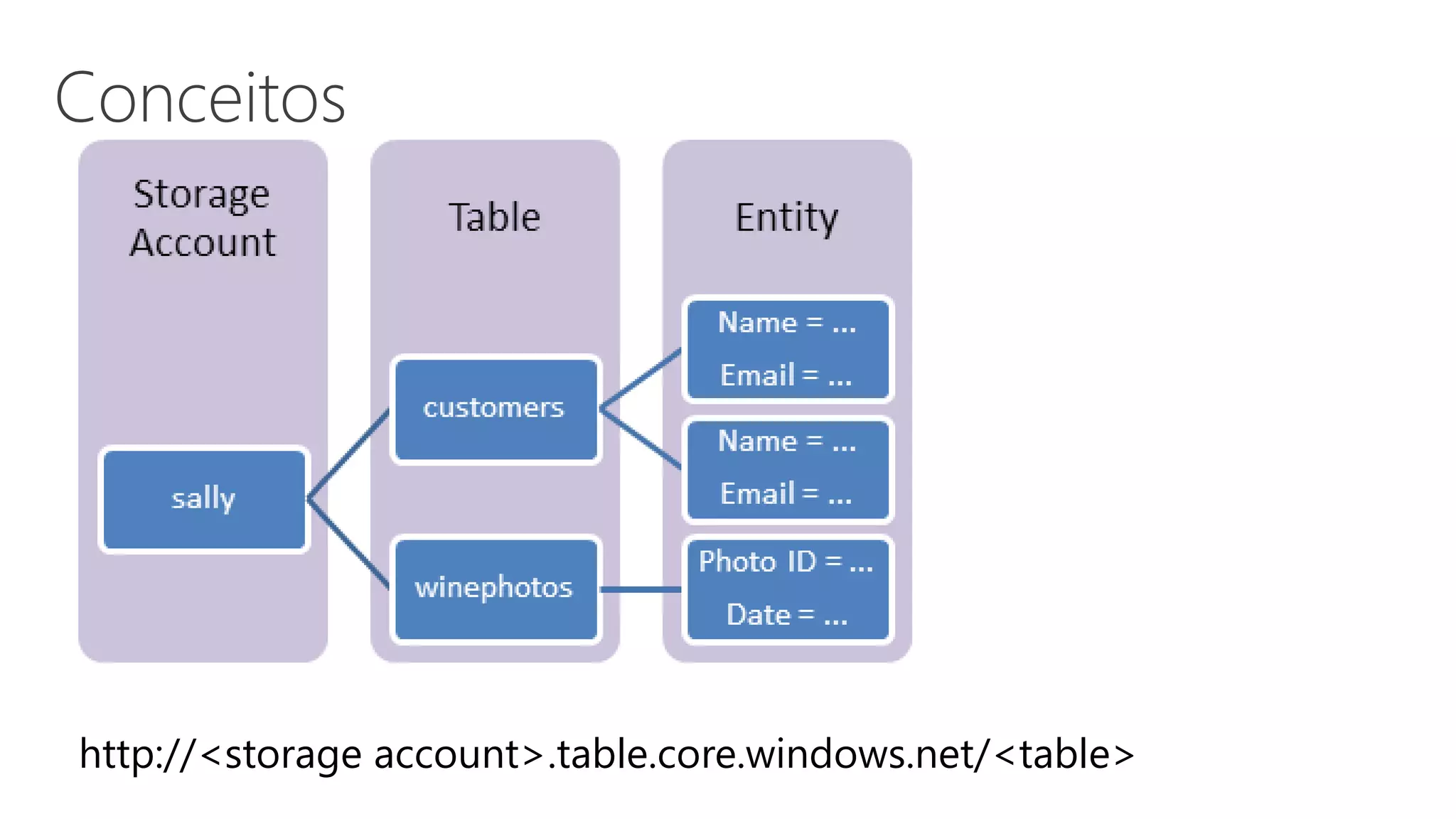

11. http://<storage account>.table.core.windows.net/<table>

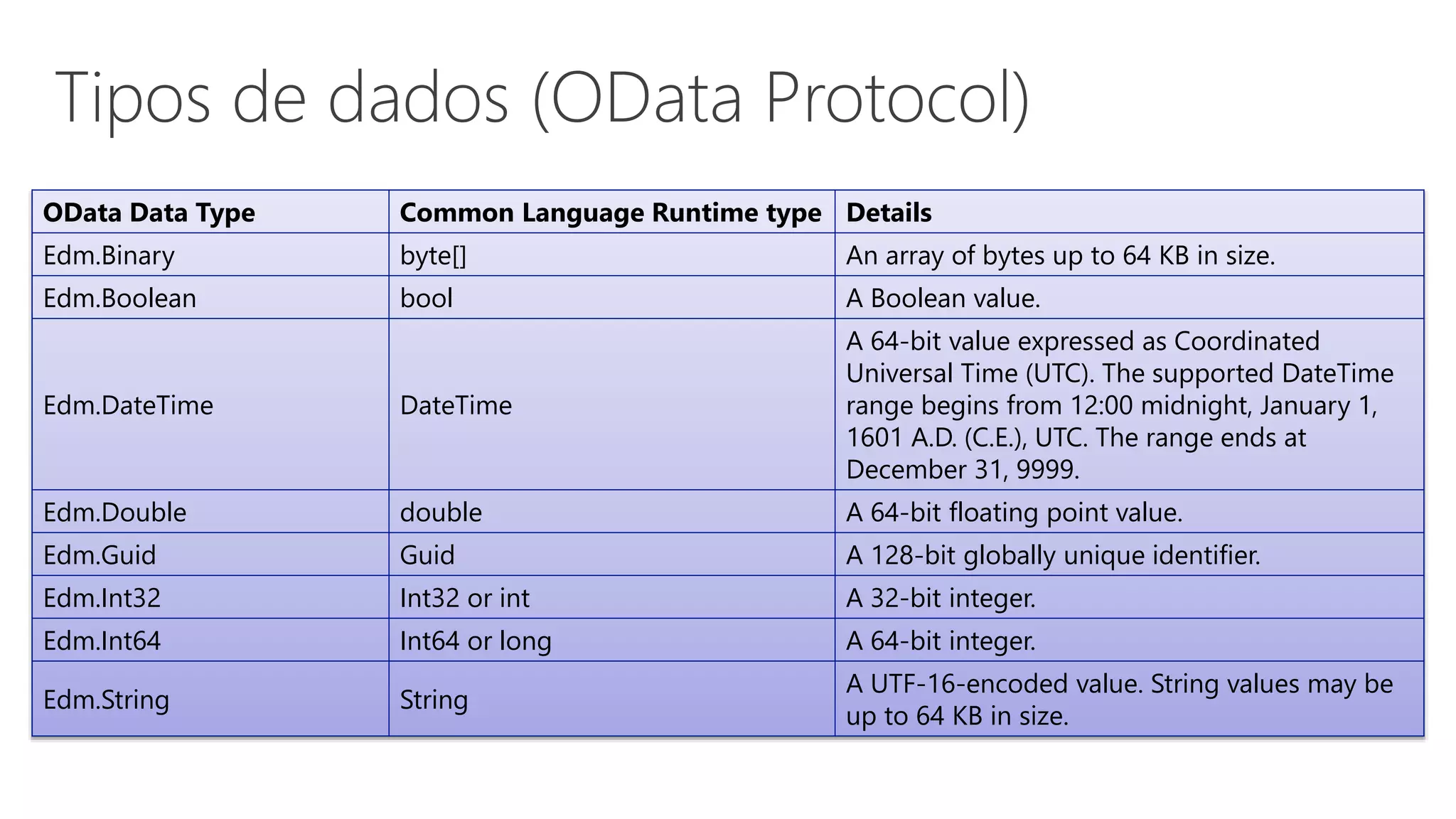

16. OData Data Type Common Language Runtime type Details
Edm.Binary byte[] An array of bytes up to 64 KB in size.
Edm.Boolean bool A Boolean value.
Edm.DateTime DateTime
A 64-bit value expressed as Coordinated
Universal Time (UTC). The supported DateTime
range begins from 12:00 midnight, January 1,
1601 A.D. (C.E.), UTC. The range ends at
December 31, 9999.
Edm.Double double A 64-bit floating point value.
Edm.Guid Guid A 128-bit globally unique identifier.
Edm.Int32 Int32 or int A 32-bit integer.
Edm.Int64 Int64 or long A 64-bit integer.
Edm.String String
A UTF-16-encoded value. String values may be
up to 64 KB in size.

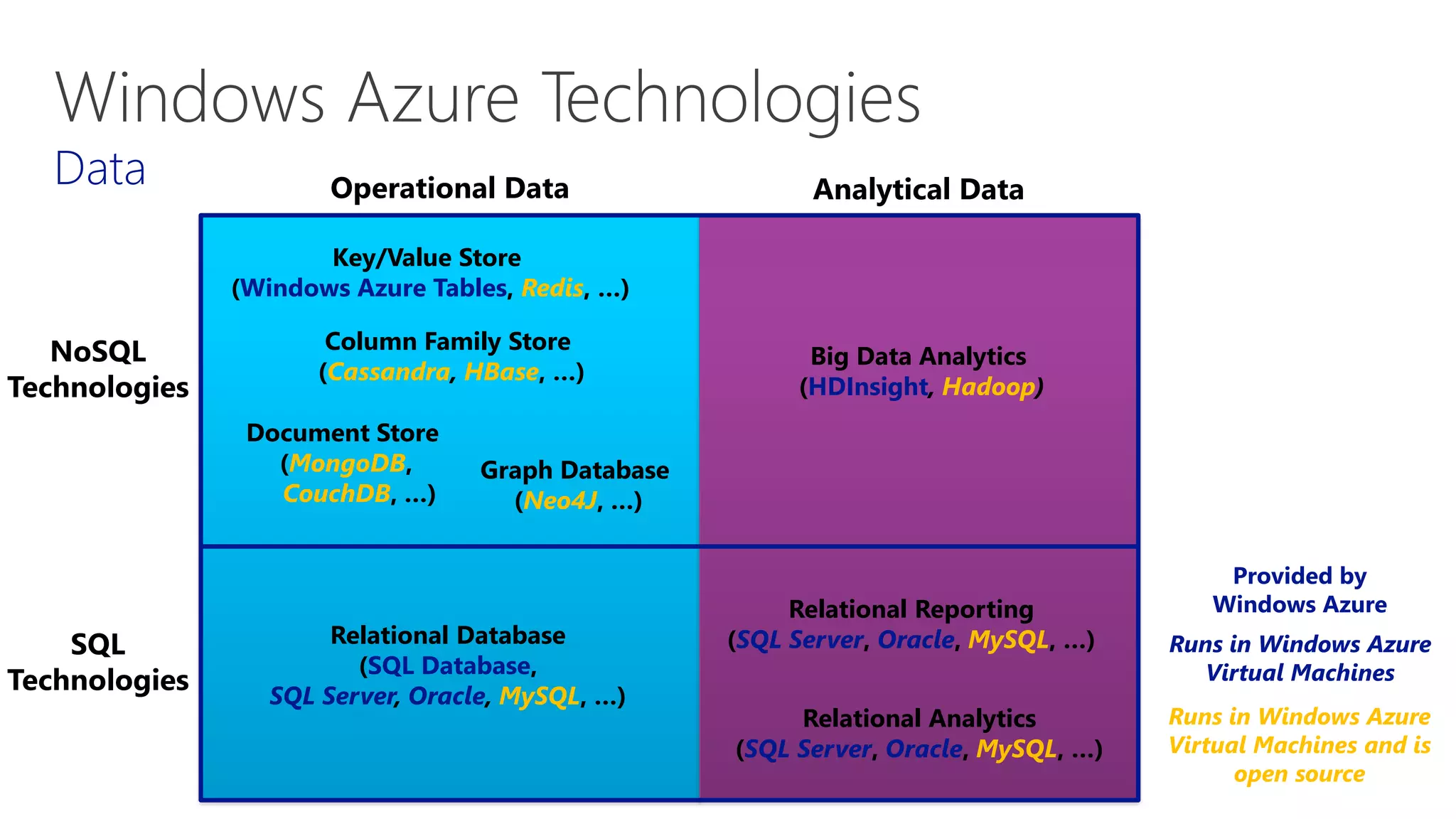

24. Operational Data Analytical Data
Provided by
Windows Azure
Key/Value Store
(Windows Azure Tables, Redis, …)
Runs in Windows Azure
Virtual Machines
NoSQL
Technologies
SQL
Technologies
Big Data Analytics
(HDInsight, Hadoop)
Document Store
(MongoDB,
CouchDB, …)
Relational Database
(SQL Database,
SQL Server, Oracle, MySQL, …)
Column Family Store
(Cassandra, HBase, …)
Relational Reporting
(SQL Server, Oracle, MySQL, …)
Graph Database
(Neo4J, …)
Relational Analytics
(SQL Server, Oracle, MySQL, …)
Runs in Windows Azure
Virtual Machines and is
open source

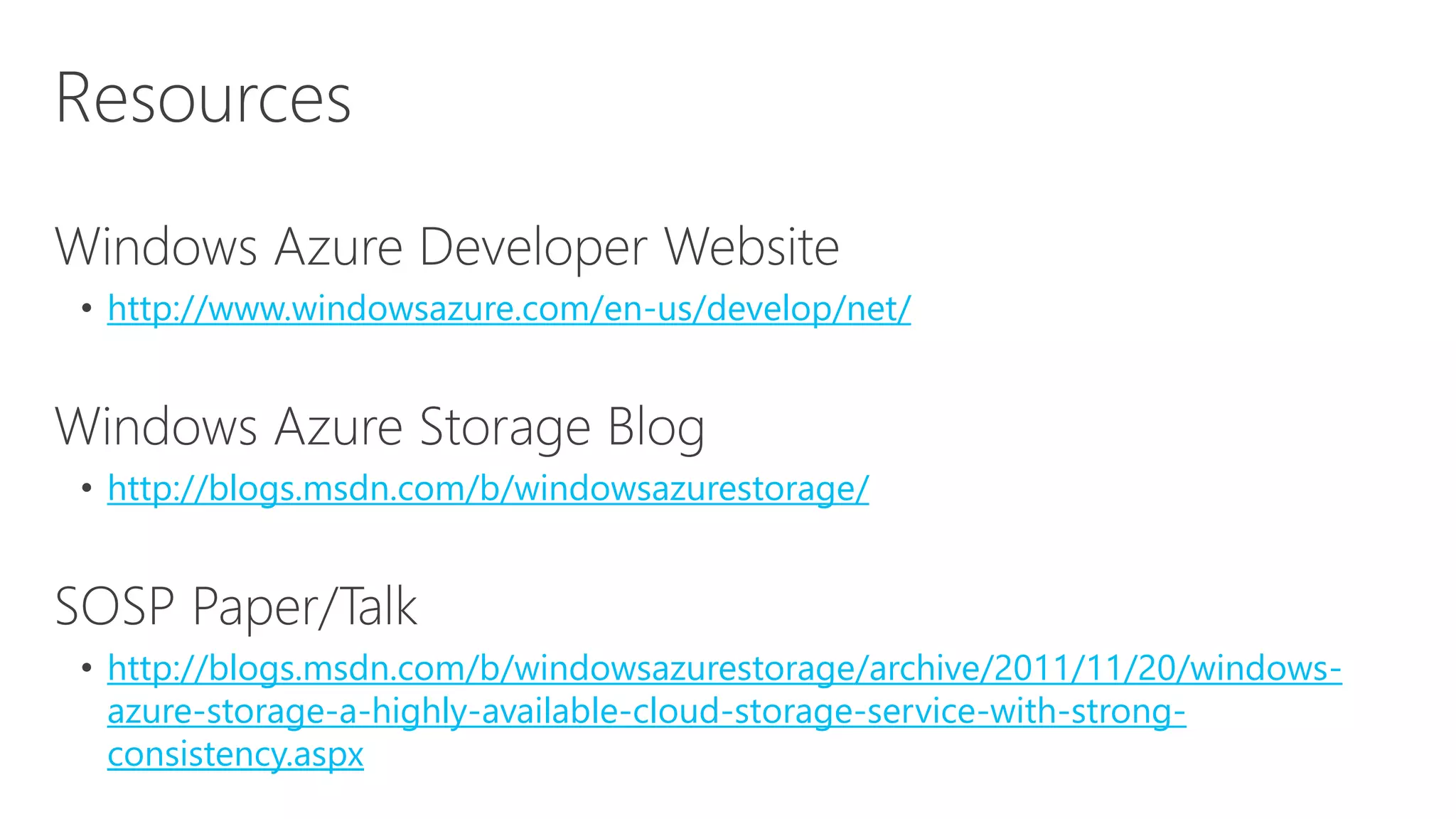

25. http://www.windowsazure.com/en-us/develop/net/
http://blogs.msdn.com/b/windowsazurestorage/
http://blogs.msdn.com/b/windowsazurestorage/archive/2011/11/20/windows-
azure-storage-a-highly-available-cloud-storage-service-with-strong-
consistency.aspx
