1. VLSI Technology
(EC 325)
Dr. Vivek Garg
Department of Electronics Engineering
S. V. National Institute of Technology (SVNIT)
Surat
email: vivekg@eced.svnit.ac.in; vivekgarg0101@gmail.com

2. 11/2/2023 2

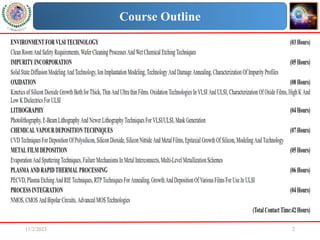

Course Outline

3. 11/2/2023 3

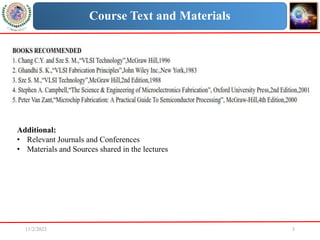

Course Text and Materials
Additional:
• Relevant Journals and Conferences
• Materials and Sources shared in the lectures

4. 11/2/2023 Vivek Garg 4
FESEM/ESEM

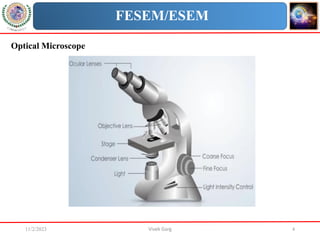

Optical Microscope

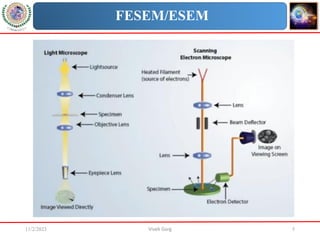

5. 11/2/2023 Vivek Garg 5

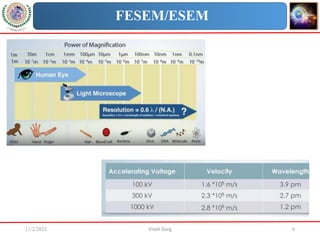

FESEM/ESEM

6. 11/2/2023 Vivek Garg 6
FESEM/ESEM

7. 11/2/2023 Vivek Garg 7
FESEM/ESEM

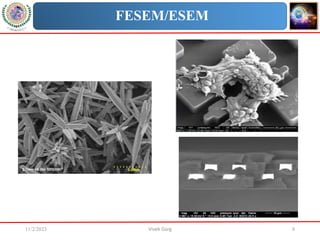

8. 11/2/2023 Vivek Garg 8
FESEM/ESEM

9. 11/2/2023 Vivek Garg 9
FESEM/ESEM

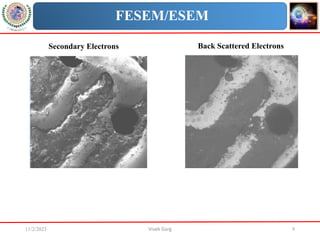

Secondary Electrons Back Scattered Electrons

10. 11/2/2023 Vivek Garg 10
FESEM/ESEM

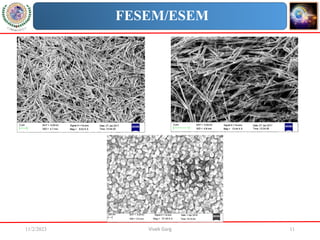

11. 11/2/2023 Vivek Garg 11
FESEM/ESEM

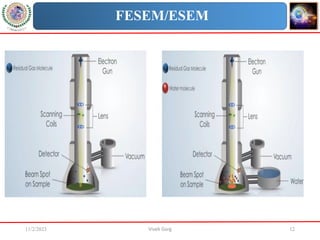

12. 11/2/2023 Vivek Garg 12
FESEM/ESEM

13. 11/2/2023 Vivek Garg 13

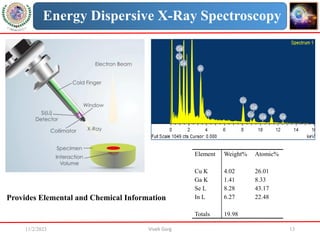

Energy Dispersive X-Ray Spectroscopy
Element Weight% Atomic%
Cu K 4.02 26.01
Ga K 1.41 8.33
Se L 8.28 43.17
In L 6.27 22.48
Totals 19.98
Provides Elemental and Chemical Information

14. 11/2/2023 Vivek Garg 14

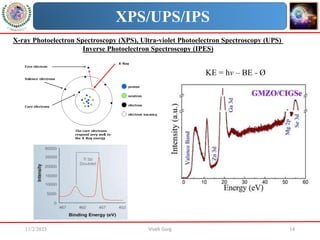

X-ray Photoelectron Spectroscopy (XPS), Ultra-violet Photoelectron Spectroscopy (UPS)
Inverse Photoelectron Spectroscopy (IPES)
KE = hv – BE - Ø
XPS/UPS/IPS

15. 11/2/2023 Vivek Garg 15

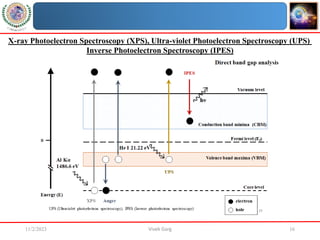

X-ray Photoelectron Spectroscopy (XPS), Ultra-violet Photoelectron Spectroscopy (UPS)
Inverse Photoelectron Spectroscopy (IPES)

16. 11/2/2023 Vivek Garg 16
X-ray Photoelectron Spectroscopy (XPS), Ultra-violet Photoelectron Spectroscopy (UPS)
Inverse Photoelectron Spectroscopy (IPES)

17. 17
XPS/UPS
0.0 1.5 3.0 4.5 6.0
0
2
4
6
8
CIGSe
Ef
VBOn
Intensity
(a.u.)
Energy (eV)
0 2 4
0
10
20
30
GZO
Ef
VBOn
Intensity
(a.u.)
Energy (eV)
∆𝐸𝐶 = 𝐸𝑔
𝐺𝑍𝑂
− 𝐸𝑔
𝐶𝐼𝐺𝑆𝑒
− ∆𝐸v
0 10 20 30 40 50 60
0.2
0.4
0.6
0.8
1.0
(Ga3d -Se3d)
Valence
Band
Zn
3d
Se
3d
Ga
3d
Intensity
(a.u.)
Energy (eV)
GZO/CIGSe
∆𝐸𝑉 = 𝐸𝑆𝑒 3𝑑
𝐶𝐼𝐺𝑆𝑒
− 𝐸𝑉𝐵𝑂𝑛
𝐶𝐼𝐺𝑆𝑒
− 𝐸𝐺𝑎 3𝑑
𝐺𝑍𝑂
− 𝐸𝑉𝐵𝑂𝑛
𝐺𝑍𝑂
+ ∆𝐸𝐶𝐿
0 10 20 30 40 50 60
0
2
4
6
8
10
12
Se
3d
CIGSe
VBOn
Intensity
(a.u.)
Energy (eV)
(Se3d - VBOn)
0 10 20 30 40
0
50
100
150
200
Ga
3d
(Ga3d - VBOn)
GZO
VBOn
Intensity
(a.u.)
Energy (eV)
Band Alignment

18. 11/2/2023 Vivek Garg 18

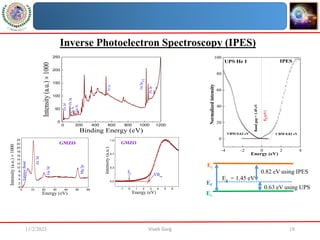

Inverse Photoelectron Spectroscopy (IPES)
-4 -2 0 2 4
0
20
40
60
80
100
E
f
(eV)
CBM 0.82 eV
IPES
Normalized
intensity
Energy (eV)
UPS He I
VBM 0.63 eV
Band
gap
=
1.45
eV
-------------------------------
------
Ec
Ev
Ef
Eg = 1.45 eV
0.82 eV using IPES
0.63 eV using UPS
-1 0 1 2 3 4 5 6
0.0
0.3
0.7
1.0
Energy (eV)
Ef
VBon
GMZO
Intensity
(a.u.)
0 10 20 30 40 50 60
0
2
4
6
8
10
12
14
16
18
20
22
24
Mg
2p
Ga
3d
Zn
3d
Valence
Band
Intensity
(a.u.)

1000
Energy (eV)
GMZO
0 200 400 600 800 1000 1200
0
50
100
150
200
250
Zn
2p
Zn
3s
Zn
3p
O
1s
Ga
3s
Zn
3d
Ga
2p
3/2
Intensity
(a.u.)

1000
Binding Energy (eV)

19. 11/2/2023 Vivek Garg 19
