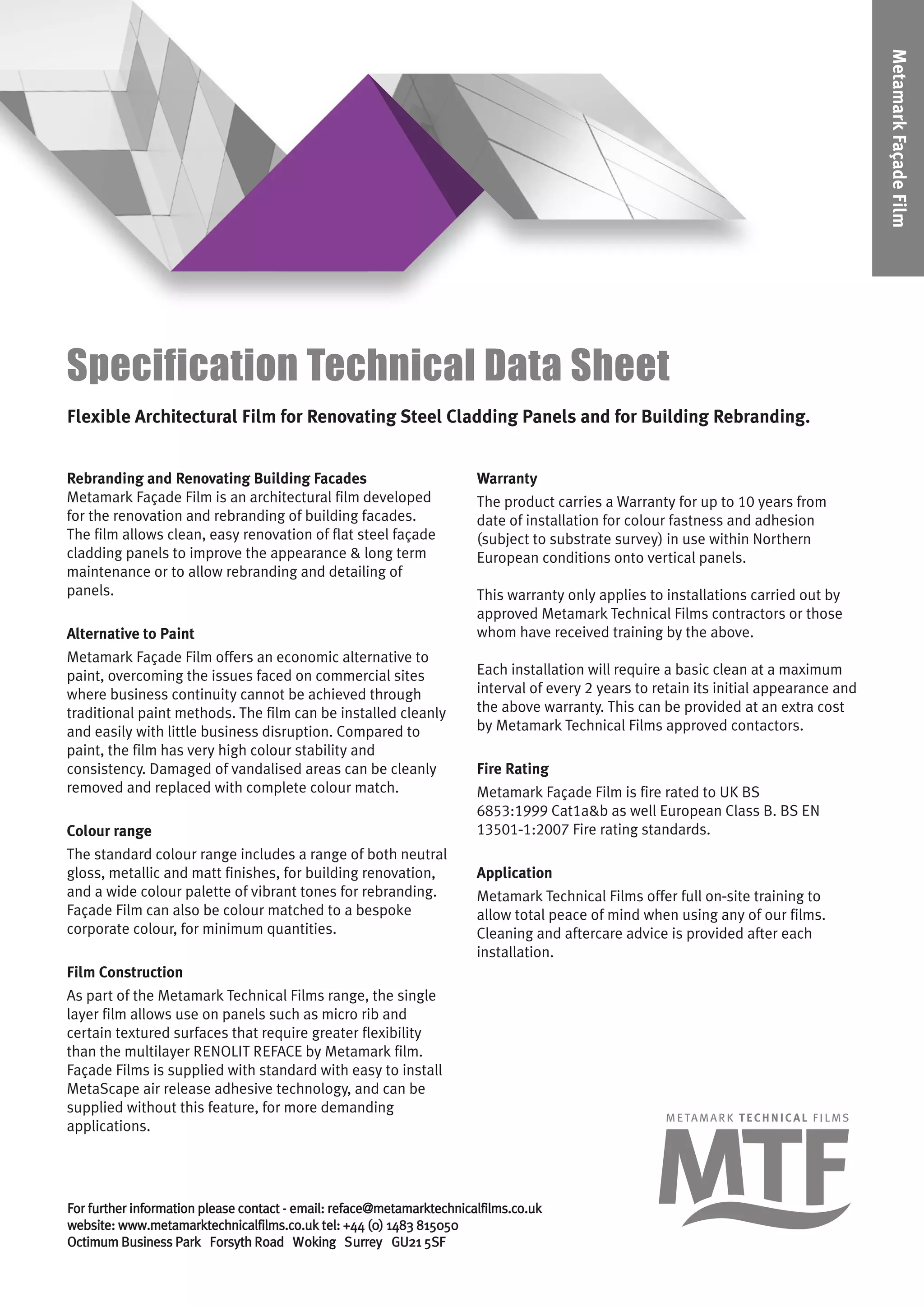

Metamark Facade Film - Specification Technical Data Sheet
1. Rebranding and Renovating Building Facades
Metamark Façade Film is an architectural film developed
for the renovation and rebranding of building facades.
The film allows clean, easy renovation of flat steel façade
cladding panels to improve the appearance & long term
maintenance or to allow rebranding and detailing of
panels.
Alternative to Paint
Metamark Façade Film offers an economic alternative to
paint, overcoming the issues faced on commercial sites
where business continuity cannot be achieved through
traditional paint methods. The film can be installed cleanly
and easily with little business disruption. Compared to
paint, the film has very high colour stability and
consistency. Damaged of vandalised areas can be cleanly
removed and replaced with complete colour match.
Colour range
The standard colour range includes a range of both neutral
gloss, metallic and matt finishes, for building renovation,
and a wide colour palette of vibrant tones for rebranding.
Façade Film can also be colour matched to a bespoke
corporate colour, for minimum quantities.
Film Construction
As part of the Metamark Technical Films range, the single
layer film allows use on panels such as micro rib and
certain textured surfaces that require greater flexibility
than the multilayer RENOLIT REFACE by Metamark film.
Façade Films is supplied with standard with easy to install
MetaScape air release adhesive technology, and can be
supplied without this feature, for more demanding
applications.
Warranty
The product carries a Warranty for up to 10 years from
date of installation for colour fastness and adhesion
(subject to substrate survey) in use within Northern
European conditions onto vertical panels.
This warranty only applies to installations carried out by
approved Metamark Technical Films contractors or those
whom have received training by the above.
Each installation will require a basic clean at a maximum
interval of every 2 years to retain its initial appearance and
the above warranty. This can be provided at an extra cost
by Metamark Technical Films approved contactors.
Fire Rating
Metamark Façade Film is fire rated to UK BS
6853:1999 Cat1a&b as well European Class B. BS EN
13501‐1:2007 Fire rating standards.
Application
Metamark Technical Films offer full on‐site training to
allow total peace of mind when using any of our films.
Cleaning and aftercare advice is provided after each
installation.
Specification Technical Data Sheet
For further information please contact - email: reface@metamarktechnicalfilms.co.uk
website: www.metamarktechnicalfilms.co.uk tel: +44 (0) 1483 815050
Octimum Business Park Forsyth Road Woking Surrey GU21 5SF
Flexible Architectural Film for Renovating Steel Cladding Panels and for Building Rebranding.
MetamarkFaçadeFilm
2. Specifications
Face Film 70 micron Polymeric Calendered PVC. (90 micron Including Adhesive)
Tensile Strength 47N/25mm MD / 43N/25mm TD. Elongation at break 180% MD nominal
Shrinkage -0.5% MD max / -0.2% TD max
Adhesive ‘MetaScape’ permanent solvent acrylic with air channels as standard
Adhesion to Steel 20 mins 15N/25mm nominal / 24 hour 20N/25mm nominal
Application temperature +5°C to +60°C
Service temperature -30°C to +110°C
Release Liner 140 gsm nominal. Structured ‘layflat’ kraft paper with PE coating. FSC® approved.
Durability Up to 10 years. (Northern European conditions onto Vertical panels)
Shelf Life 2 years
Fire Rating BS EN 13501-1:2007 - Class B / S2 / D0. BS 6853:1999 - Cat1a&b
Chemical Resistance Resistant to mineral oils, fats and fuels, aliphatic solvents, mild acids, salt and alkali.
Compliance REACH compliant
For further information please contact - email: reface@metamarktechnicalfilms.co.uk
website: www.metamarktechnicalfilms.co.uk tel: +44 (0) 1483 815050
Octimum Business Park Forsyth Road Woking Surrey GU21 5SF
Specification Technical Data Sheet
MetamarkFaçadeFilm

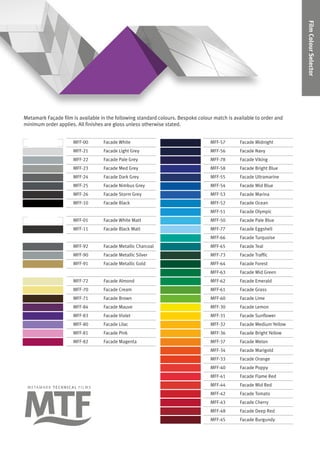

3. FilmColourSelector
Metamark Façade film is available in the following standard colours. Bespoke colour match is available to order and
minimum order applies. All finishes are gloss unless otherwise stated.
MFF-00 Facade White MFF-57 Facade Midnight
MFF-21 Facade Light Grey MFF-56 Facade Navy
MFF-22 Facade Pale Grey MFF-78 Facade Viking
MFF-23 Facade Med Grey MFF-58 Facade Bright Blue
MFF-24 Facade Dark Grey MFF-55 Facade Ultramarine
MFF-25 Facade Nimbus Grey MFF-54 Facade Mid Blue
MFF-26 Facade Storm Grey MFF-53 Facade Marina
MFF-10 Facade Black MFF-52 Facade Ocean
MFF-51 Facade Olympic
MFF-01 Facade White Matt MFF-50 Facade Pale Blue
MFF-11 Facade Black Matt MFF-77 Facade Eggshell
MFF-66 Facade Turquoise
MFF-92 Facade Metallic Charcoal MFF-65 Facade Teal
MFF-90 Facade Metallic Silver MFF-73 Facade Traffic
MFF-91 Facade Metallic Gold MFF-64 Facade Forest
MFF-63 Facade Mid Green
MFF-72 Facade Almond MFF-62 Facade Emerald
MFF-70 Facade Cream MFF-61 Facade Grass
MFF-71 Facade Brown MFF-60 Facade Lime
MFF-84 Facade Mauve MFF-30 Facade Lemon
MFF-83 Facade Violet MFF-31 Facade Sunflower
MFF-80 Facade Lilac MFF-32 Facade Medium Yellow
MFF-81 Facade Pink MFF-36 Facade Bright Yellow
MFF-82 Facade Magenta MFF-37 Facade Melon
MFF-34 Facade Marigold
MFF-33 Facade Orange
MFF-40 Facade Poppy
MFF-41 Facade Flame Red
MFF-44 Facade Mid Red
MFF-42 Facade Tomato
MFF-43 Facade Cherry
MFF-48 Facade Deep Red
MFF-45 Facade Burgundy

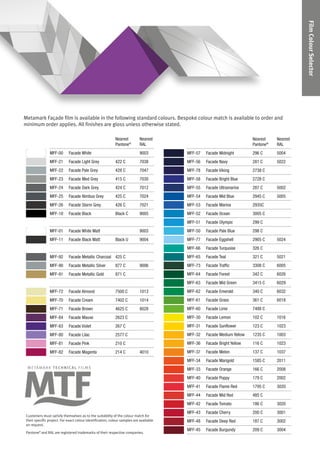

4. Nearest Nearest
Pantone®
RAL
MFF-00 Facade White 9003
MFF-21 Facade Light Grey 422 C 7038
MFF-22 Facade Pale Grey 428 C 7047
MFF-23 Facade Med Grey 415 C 7030
MFF-24 Facade Dark Grey 424 C 7012
MFF-25 Facade Nimbus Grey 425 C 7024
MFF-26 Facade Storm Grey 426 C 7021
MFF-10 Facade Black Black C 9005
MFF-01 Facade White Matt 9003
MFF-11 Facade Black Matt Black U 9004
MFF-92 Facade Metallic Charcoal 425 C
MFF-90 Facade Metallic Silver 877 C 9006
MFF-91 Facade Metallic Gold 871 C
MFF-72 Facade Almond 7500 C 1013
MFF-70 Facade Cream 7402 C 1014
MFF-71 Facade Brown 4625 C 8028
MFF-84 Facade Mauve 2623 C
MFF-83 Facade Violet 267 C
MFF-80 Facade Lilac 2577 C
MFF-81 Facade Pink 210 C
MFF-82 Facade Magenta 214 C 4010
FilmColourSelector
Metamark Façade film is available in the following standard colours. Bespoke colour match is available to order and
minimum order applies. All finishes are gloss unless otherwise stated.
Nearest Nearest
Pantone®
RAL
MFF-57 Facade Midnight 296 C 5004
MFF-56 Facade Navy 281 C 5022
MFF-78 Facade Viking 2738 C
MFF-58 Facade Bright Blue 2728 C
MFF-55 Facade Ultramarine 287 C 5002
MFF-54 Facade Mid Blue 2945 C 5005
MFF-53 Facade Marina 2935C
MFF-52 Facade Ocean 3005 C
MFF-51 Facade Olympic 299 C
MFF-50 Facade Pale Blue 298 C
MFF-77 Facade Eggshell 2905 C 5024
MFF-66 Facade Turquoise 326 C
MFF-65 Facade Teal 321 C 5021
MFF-73 Facade Traffic 3308 C 6005
MFF-64 Facade Forest 342 C 6026
MFF-63 Facade Mid Green 3415 C 6029
MFF-62 Facade Emerald 340 C 6032
MFF-61 Facade Grass 361 C 6018
MFF-60 Facade Lime 7488 C
MFF-30 Facade Lemon 102 C 1016
MFF-31 Facade Sunflower 123 C 1023
MFF-32 Facade Medium Yellow 1235 C 1003
MFF-36 Facade Bright Yellow 116 C 1023
MFF-37 Facade Melon 137 C 1037
MFF-34 Facade Marigold 1585 C 2011
MFF-33 Facade Orange 166 C 2008
MFF-40 Facade Poppy 179 C 2002
MFF-41 Facade Flame Red 1795 C 3020
MFF-44 Facade Mid Red 485 C
MFF-42 Facade Tomato 186 C 3020
MFF-43 Facade Cherry 200 C 3001
MFF-48 Facade Deep Red 187 C 3002
MFF-45 Facade Burgundy 209 C 3004
Customers must satisfy themselves as to the suitability of the colour match for
their specific project. For exact colour identification, colour samples are available
on request.
Pantone®
and RAL are registered trademarks of their respective companies.
