The HRLV‑MaxSonar‑EZ0 has the widest and most sensitive beam pattern of any unit from HRLV‑MaxSonar‑EZ sensor line. This makes the HRLV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.
The smoke detector Z-Wave detects fire and smoke emissions. In case of emergency, it gives an audible alert and sends an alarm signal to the Z-Wave network
1. The document provides information about the Sensoair Z-Wave CO2 Sensor, including its features, specifications, and how it operates within a Z-Wave network.
2. As a Z-Wave device, it can join and leave a Z-Wave network and communicate with other Z-Wave devices as either a sensor or controller.
3. It measures carbon dioxide levels and reports them to the primary Z-Wave controller, and can control other devices through associations.
This document provides information about a Z-Wave compatible smoke detector, including instructions for inclusion into a Z-Wave network, descriptions of its operating modes like alarm, low battery, and testing modes, and details about its configuration parameters and associations with other Z-Wave devices.
Secure Surveillance Using Virtual Intelligent Agent With Dominatingsindhuls
This document describes a secure surveillance system using a virtual intelligent agent robot. The robot is equipped with sensors like PIR, ultrasonic, IR and a metal detector to detect intruders and weapons. It also has a GPS and GSM modem to track locations and alert authorities. When an intruder is detected, the robot follows it using sensors while transmitting video via a camera. The system is designed using hardware like a microcontroller, sensors and software like Embedded C on an ATMEL chip. It has applications in defense, security of facilities like banks, industries and educational institutions.
This document provides an operating manual for the FIBARO Smart Implant device, which allows connecting various wired sensors to a Z-Wave network. The manual describes:
1) Main features of the device including supporting up to 6 temperature sensors and 2 each of analog, binary, and button inputs.
2) Installation instructions for connecting different sensor types like temperature, humidity, analog, binary, and buttons.
3) Instructions for adding the device to a Z-Wave network manually or via SmartStart and removing it from the network.
4) Details on the device's operation including button functions, menus, resetting, and testing.
This document provides information on the Mercury TM3000V vacuum rated smart encoder. It can achieve resolutions down to 0.020um for linear scales and 16.8 million counts per revolution for rotary scales. The encoder sensor is rated for vacuum environments down to 10-8 Torr and features programmable interpolation, compact size, and easy alignment. The document includes details on specifications, outputs, electronics, scales and ordering information.
This document provides information on the Mercury TM1000 Analog Output Encoder Systems from Electromate. It describes the key features and specifications of the encoder system, which includes the sensor, double shielded cable, connector, and either a linear or rotary glass scale. The encoder system offers high resolution, accuracy, and flexibility, with standard and customizable scale options. It provides analog sine/cosine output along with other standard and optional features.
The document provides information about the Sensoair Z-Wave CO2 sensor. It can measure carbon dioxide (CO2) concentration in indoor rooms and transmit readings via Z-Wave. The sensor requires inclusion in a Z-Wave network to communicate. It supports configuration parameters for settings like enabling unsolicited sensor reports and adjusting the interval for reports.
The smoke detector Z-Wave detects fire and smoke emissions. In case of emergency, it gives an audible alert and sends an alarm signal to the Z-Wave network
1. The document provides information about the Sensoair Z-Wave CO2 Sensor, including its features, specifications, and how it operates within a Z-Wave network.
2. As a Z-Wave device, it can join and leave a Z-Wave network and communicate with other Z-Wave devices as either a sensor or controller.
3. It measures carbon dioxide levels and reports them to the primary Z-Wave controller, and can control other devices through associations.
This document provides information about a Z-Wave compatible smoke detector, including instructions for inclusion into a Z-Wave network, descriptions of its operating modes like alarm, low battery, and testing modes, and details about its configuration parameters and associations with other Z-Wave devices.
Secure Surveillance Using Virtual Intelligent Agent With Dominatingsindhuls
This document describes a secure surveillance system using a virtual intelligent agent robot. The robot is equipped with sensors like PIR, ultrasonic, IR and a metal detector to detect intruders and weapons. It also has a GPS and GSM modem to track locations and alert authorities. When an intruder is detected, the robot follows it using sensors while transmitting video via a camera. The system is designed using hardware like a microcontroller, sensors and software like Embedded C on an ATMEL chip. It has applications in defense, security of facilities like banks, industries and educational institutions.
This document provides an operating manual for the FIBARO Smart Implant device, which allows connecting various wired sensors to a Z-Wave network. The manual describes:
1) Main features of the device including supporting up to 6 temperature sensors and 2 each of analog, binary, and button inputs.
2) Installation instructions for connecting different sensor types like temperature, humidity, analog, binary, and buttons.
3) Instructions for adding the device to a Z-Wave network manually or via SmartStart and removing it from the network.
4) Details on the device's operation including button functions, menus, resetting, and testing.
This document provides information on the Mercury TM3000V vacuum rated smart encoder. It can achieve resolutions down to 0.020um for linear scales and 16.8 million counts per revolution for rotary scales. The encoder sensor is rated for vacuum environments down to 10-8 Torr and features programmable interpolation, compact size, and easy alignment. The document includes details on specifications, outputs, electronics, scales and ordering information.
This document provides information on the Mercury TM1000 Analog Output Encoder Systems from Electromate. It describes the key features and specifications of the encoder system, which includes the sensor, double shielded cable, connector, and either a linear or rotary glass scale. The encoder system offers high resolution, accuracy, and flexibility, with standard and customizable scale options. It provides analog sine/cosine output along with other standard and optional features.
The document provides information about the Sensoair Z-Wave CO2 sensor. It can measure carbon dioxide (CO2) concentration in indoor rooms and transmit readings via Z-Wave. The sensor requires inclusion in a Z-Wave network to communicate. It supports configuration parameters for settings like enabling unsolicited sensor reports and adjusting the interval for reports.
The document describes the Mercury TM1000V vacuum rated analog encoder. It has a resolution determined by customer electronics of up to 0.078μm for linear scales and up to 4.2 million counts per revolution for rotary scales. The encoder sensor is only 8.4mm high and rated for use down to a vacuum of 10-8 Torr. It includes analog sine and cosine outputs and an index window and requires a SmartPrecision alignment tool for setup.
The document discusses a multisensor device that can detect motion, door/window status, temperature, and light levels. It provides instructions on installing, setting up, and using the sensor as part of a smart home automation system or security system. The sensor supports Z-Wave networking and can trigger lights, heaters, fans and other devices based on its readings.
The document describes the Mercury TM3500V vacuum rated smart encoder. It has programmable interpolation in integer steps down to 5 nanometers and is rated for use down to 10-8 Torr vacuum. It has high resolution for both linear and rotary scales. The encoder has small sensor size, easy alignment, and high performance making it well-suited for applications requiring operation in vacuum environments.
This document provides instructions for a Z-Wave thermostat and sensor device. The device can measure temperature, detect binary sensor states, and control heating devices as a thermostat. It communicates using the Z-Wave wireless protocol and operates on batteries. The summary includes instructions for inclusion, exclusion, configuration, and operating the temperature, binary sensor, and thermostat functions.
The document describes the Mercury TM1500 Digital Output Encoder Systems. Key details include:
- The encoder system includes the sensor, double shielded cable, connector, and linear or rotary glass scale.
- The sensor is small at 8.4mm x 12.7mm x 20.6mm and lightweight at 1.6g.
- Resolutions range from 5um to 0.50um for linear scales and 6,600 to 655,000 counts per revolution for rotary scales.
- The encoder has generous alignment tolerances and standoff clearance for easy installation in tight spaces.
This document provides information about a Zipato smoke sensor, including:
- It uses Z-Wave 500 series technology for wireless communication and includes a smoke detector, sound alarm, and tamper switch.
- It has a range of 30 meters indoors, 70 meters outdoors, and can connect to other Z-Wave devices as a repeater.
- It requires a CR123A lithium battery and includes instructions for installation, setup, testing and configuration through a Z-Wave controller.
The document provides information on the Mercury TM1500P PCB-Mount Digital Encoders from Electromate, including specifications for the encoders, available scales, and ordering information. The Mercury 1500P encoder is a small, digital output encoder designed for mounting directly onto printed circuit boards. It is available with either linear or rotary sensing and offers resolutions down to 0.5 microns with various scale length and diameter options.
This document provides specifications for an installation contactor for switching motors, heating, lighting, and electrical equipment. The contactor has a rated current of 32A, thermal current of 32A, and can be installed on a 35mm DIN rail. It has advanced operation for fast switching of loads with degrees of protection IP20.
Sensative Door Window Sensor Strip Z-Wave Plus User ManualDomotica daVinci
Strips is a Z-Wave magnet sensor that can be installed invisibly in windows and doors to detect their opening and closing. It communicates with a Z-Wave controller to monitor the home remotely. The document provides instructions on adding Strips to a Z-Wave network, planning its placement, mounting it correctly for optimal functionality and range, and includes details on its LED signals and configuration parameters.
This document summarizes the specifications of the Mercury TM1500V Vacuum Rated Digital Output Encoders. It describes the encoder sensor as being the size of a dime and capable of resolutions down to 0.5 microns. It also lists the encoder's key features such as a digital A-quad-B output signal, vacuum rating of 10-8 Torr, and factory set interpolation resolutions between 5 microns and 0.5 microns for linear scales and 6,600 CPR to 655,000 CPR for rotary scales. The document provides tables comparing the encoder's performance specifications to competing encoder brands.
Dry contact sensor with temperature sensor start guideDomotica daVinci
This document provides instructions for a Z-Wave binary sensor, thermostat, and temperature sensor device. It describes how to include the device in a Z-Wave network, set up its temperature monitoring and thermostat functions, and configure its battery-saving wakeup intervals. The document also summarizes the device's technical specifications and supported Z-Wave command classes.
Manual Outdoor motion detector Z-Wave Plus - PhilioDomotica daVinci
The motion sensor uses Z-Wave wireless technology to detect motion. It can be included in a Z-Wave network to remotely control devices. The sensor detects motion using a PIR sensor and supports two operation modes. It can associate with other devices and report events wirelessly. The device settings can be configured including sensitivity, detection interval, and auto reporting frequency.
The 6 in 1 multisensor from Aeon Labs is a Z-WAve Plus multifunction peripheral which is both a temperature sensor, humidity, movement, UV light and vibration.
The micromodule Zipato energy meter monitors the power consumption of two different circuits and signals to any compatible Z-Wave controller in real time.
This document provides information about a remotely controlled light dimming module. The dimmer module can be connected to two-wire or three-wire cable to operate with or without a neutral lead. It can switch or dim connected light sources via radio waves or an external wall switch. The dimmer is equipped with an algorithm to automatically detect the connected light source type to make configuration easier. It can operate various light sources including incandescent, halogen, LED, CFL, and dimmable fluorescent lights. The dimmer module has specifications for power supply, consumption, temperature range, dimensions, load current, and radio frequency protocol. It also provides instructions for installation, inclusion into a Z-Wave network, resetting, and
This document provides instructions for installing and operating a solar-powered outdoor siren that communicates using Z-Wave technology. The siren receives power from a solar panel and internal battery, and can be controlled wirelessly. It includes an alarm with flashing light and reports temperature. The document outlines how to include the device in a Z-Wave network and configure its behavior and sensor reporting settings.
The document describes the Mercury TM2000V vacuum rated smart encoder. It has the following key features:
- Programmable interpolation to resolutions as small as 0.078um for linear scales and 4.2 million counts per revolution for rotary scales.
- Rated for use in high vacuum environments down to 10-8 Torr.
- Smallest sensor size of any encoder, only 1/3 the size of competitors' sensors.
- Easy bolt-in alignment and setup using LED indicators.
Micro e systems_mercuryii4000_datasheetElectromate
The document describes the Mercury II 4000 Series high performance encoders. It summarizes that the encoders offer class-leading resolution and accuracy with resolutions up to 1.22nm and accuracy of ±1μm. The same sensor can be used for tape, glass, linear or rotary scales. The encoders provide high speed operation up to 4m/s at 0.1μm resolution. Included software enables setup, monitoring and diagnostics.
Micro e systems_mercury3000si_dual_axis_averager_datasheetElectromate
This document describes the Mercury 3000Si Dual Axis Averager encoder system which provides motion control feedback by averaging the readings from two encoders. It has high resolution from 5um to 0.020um for linear scales and up to 16.8 million counts per revolution for rotary scales. The system averages the two encoder readings to eliminate eccentricity errors and increase accuracy for rotary positioning applications. The small sensor size and broad alignment tolerances make it easy to install and integrate into motion control systems.
This document describes an ultrasonic sensor fusion system for autonomous vehicle applications. It uses an array of 10 HCSR04 ultrasonic sensors interfaced with a PIC18F26K80 microcontroller to detect obstacles within 2 meters of a vehicle. The sensors are grouped and triggered in sequences to minimize interference. Sensor data is sent over CAN bus using a MCP2551 transceiver. A LabVIEW program is used to interface with the CAN bus and generate echo values from the ultrasonic sensors for applications like obstacle detection, collision warning, and accident prevention. The system provides standard interface and control, integrated development, and easy installation/modification for system integrators.
Security System Based on Ultrasonic Sensor TechnologyIOSR Journals
Abstract : In this paper we design and implement a security system with an ultrasonic sensor module to enhance the system’s reliability. The ultrasonic sensor contains a transmitter and a receiver and the module is placed in a rotating motor. It is assumed that an ultrasonic sensor is set in a rotating motor to cover a wide range. The Ultrasonic transmitter periodically emits ultrasonic signals into an open area. A rotating motor is used to allow the sensor to cover whole 360 degrees. If the signal ever hits any physical objects, it will be reflected back and the receiver part of the sensor will then capture it. The microcontroller unit (MCU) will constantly check for the receiver output of the ultrasonic transmitter. If the receiver output is high, the MCU will perform distance analysis of the object from the sensor using the fact that ultrasonic waves travel in air at 340m/s. The time taken for the waves to hit the object and return can be calculated as the time taken for the receiver output to be high after the transmitter has been initiated to send ultrasonic waves. Once the distance is calculated, MCU checks whether the object is within the range threshold specified within the MCU for initiating the alert. If the object is within the range threshold, the MCU initiates a sound alarm and also the global system for mobile communications (GSM) modem to send short message service (SMS) or call to the concerned person. Keywords: GSM Module,Microcontroller unit(MCU),Motor controller driver unit,Ultrasonic sensor(obstacles detection).
This document discusses interfacing an ultrasonic rangefinder module with an AVR microcontroller. It begins by describing the limitations of basic infrared obstacle sensors, such as not being able to measure accurate distances. Ultrasonic rangefinder modules are introduced as a better solution, being able to measure distances from 1cm to 400cm with 1cm accuracy. The document then discusses the characteristics and advantages of ultrasonic sensors, how they interface with microcontrollers, and provides an overview of the hardware that will be used to build a test circuit around an ATmega32 microcontroller and LCD display.
The document describes the Mercury TM1000V vacuum rated analog encoder. It has a resolution determined by customer electronics of up to 0.078μm for linear scales and up to 4.2 million counts per revolution for rotary scales. The encoder sensor is only 8.4mm high and rated for use down to a vacuum of 10-8 Torr. It includes analog sine and cosine outputs and an index window and requires a SmartPrecision alignment tool for setup.
The document discusses a multisensor device that can detect motion, door/window status, temperature, and light levels. It provides instructions on installing, setting up, and using the sensor as part of a smart home automation system or security system. The sensor supports Z-Wave networking and can trigger lights, heaters, fans and other devices based on its readings.
The document describes the Mercury TM3500V vacuum rated smart encoder. It has programmable interpolation in integer steps down to 5 nanometers and is rated for use down to 10-8 Torr vacuum. It has high resolution for both linear and rotary scales. The encoder has small sensor size, easy alignment, and high performance making it well-suited for applications requiring operation in vacuum environments.
This document provides instructions for a Z-Wave thermostat and sensor device. The device can measure temperature, detect binary sensor states, and control heating devices as a thermostat. It communicates using the Z-Wave wireless protocol and operates on batteries. The summary includes instructions for inclusion, exclusion, configuration, and operating the temperature, binary sensor, and thermostat functions.
The document describes the Mercury TM1500 Digital Output Encoder Systems. Key details include:
- The encoder system includes the sensor, double shielded cable, connector, and linear or rotary glass scale.
- The sensor is small at 8.4mm x 12.7mm x 20.6mm and lightweight at 1.6g.
- Resolutions range from 5um to 0.50um for linear scales and 6,600 to 655,000 counts per revolution for rotary scales.
- The encoder has generous alignment tolerances and standoff clearance for easy installation in tight spaces.
This document provides information about a Zipato smoke sensor, including:
- It uses Z-Wave 500 series technology for wireless communication and includes a smoke detector, sound alarm, and tamper switch.
- It has a range of 30 meters indoors, 70 meters outdoors, and can connect to other Z-Wave devices as a repeater.
- It requires a CR123A lithium battery and includes instructions for installation, setup, testing and configuration through a Z-Wave controller.
The document provides information on the Mercury TM1500P PCB-Mount Digital Encoders from Electromate, including specifications for the encoders, available scales, and ordering information. The Mercury 1500P encoder is a small, digital output encoder designed for mounting directly onto printed circuit boards. It is available with either linear or rotary sensing and offers resolutions down to 0.5 microns with various scale length and diameter options.
This document provides specifications for an installation contactor for switching motors, heating, lighting, and electrical equipment. The contactor has a rated current of 32A, thermal current of 32A, and can be installed on a 35mm DIN rail. It has advanced operation for fast switching of loads with degrees of protection IP20.
Sensative Door Window Sensor Strip Z-Wave Plus User ManualDomotica daVinci
Strips is a Z-Wave magnet sensor that can be installed invisibly in windows and doors to detect their opening and closing. It communicates with a Z-Wave controller to monitor the home remotely. The document provides instructions on adding Strips to a Z-Wave network, planning its placement, mounting it correctly for optimal functionality and range, and includes details on its LED signals and configuration parameters.
This document summarizes the specifications of the Mercury TM1500V Vacuum Rated Digital Output Encoders. It describes the encoder sensor as being the size of a dime and capable of resolutions down to 0.5 microns. It also lists the encoder's key features such as a digital A-quad-B output signal, vacuum rating of 10-8 Torr, and factory set interpolation resolutions between 5 microns and 0.5 microns for linear scales and 6,600 CPR to 655,000 CPR for rotary scales. The document provides tables comparing the encoder's performance specifications to competing encoder brands.
Dry contact sensor with temperature sensor start guideDomotica daVinci
This document provides instructions for a Z-Wave binary sensor, thermostat, and temperature sensor device. It describes how to include the device in a Z-Wave network, set up its temperature monitoring and thermostat functions, and configure its battery-saving wakeup intervals. The document also summarizes the device's technical specifications and supported Z-Wave command classes.
Manual Outdoor motion detector Z-Wave Plus - PhilioDomotica daVinci
The motion sensor uses Z-Wave wireless technology to detect motion. It can be included in a Z-Wave network to remotely control devices. The sensor detects motion using a PIR sensor and supports two operation modes. It can associate with other devices and report events wirelessly. The device settings can be configured including sensitivity, detection interval, and auto reporting frequency.
The 6 in 1 multisensor from Aeon Labs is a Z-WAve Plus multifunction peripheral which is both a temperature sensor, humidity, movement, UV light and vibration.
The micromodule Zipato energy meter monitors the power consumption of two different circuits and signals to any compatible Z-Wave controller in real time.
This document provides information about a remotely controlled light dimming module. The dimmer module can be connected to two-wire or three-wire cable to operate with or without a neutral lead. It can switch or dim connected light sources via radio waves or an external wall switch. The dimmer is equipped with an algorithm to automatically detect the connected light source type to make configuration easier. It can operate various light sources including incandescent, halogen, LED, CFL, and dimmable fluorescent lights. The dimmer module has specifications for power supply, consumption, temperature range, dimensions, load current, and radio frequency protocol. It also provides instructions for installation, inclusion into a Z-Wave network, resetting, and
This document provides instructions for installing and operating a solar-powered outdoor siren that communicates using Z-Wave technology. The siren receives power from a solar panel and internal battery, and can be controlled wirelessly. It includes an alarm with flashing light and reports temperature. The document outlines how to include the device in a Z-Wave network and configure its behavior and sensor reporting settings.
The document describes the Mercury TM2000V vacuum rated smart encoder. It has the following key features:
- Programmable interpolation to resolutions as small as 0.078um for linear scales and 4.2 million counts per revolution for rotary scales.
- Rated for use in high vacuum environments down to 10-8 Torr.
- Smallest sensor size of any encoder, only 1/3 the size of competitors' sensors.
- Easy bolt-in alignment and setup using LED indicators.
Micro e systems_mercuryii4000_datasheetElectromate
The document describes the Mercury II 4000 Series high performance encoders. It summarizes that the encoders offer class-leading resolution and accuracy with resolutions up to 1.22nm and accuracy of ±1μm. The same sensor can be used for tape, glass, linear or rotary scales. The encoders provide high speed operation up to 4m/s at 0.1μm resolution. Included software enables setup, monitoring and diagnostics.
Micro e systems_mercury3000si_dual_axis_averager_datasheetElectromate
This document describes the Mercury 3000Si Dual Axis Averager encoder system which provides motion control feedback by averaging the readings from two encoders. It has high resolution from 5um to 0.020um for linear scales and up to 16.8 million counts per revolution for rotary scales. The system averages the two encoder readings to eliminate eccentricity errors and increase accuracy for rotary positioning applications. The small sensor size and broad alignment tolerances make it easy to install and integrate into motion control systems.
This document describes an ultrasonic sensor fusion system for autonomous vehicle applications. It uses an array of 10 HCSR04 ultrasonic sensors interfaced with a PIC18F26K80 microcontroller to detect obstacles within 2 meters of a vehicle. The sensors are grouped and triggered in sequences to minimize interference. Sensor data is sent over CAN bus using a MCP2551 transceiver. A LabVIEW program is used to interface with the CAN bus and generate echo values from the ultrasonic sensors for applications like obstacle detection, collision warning, and accident prevention. The system provides standard interface and control, integrated development, and easy installation/modification for system integrators.
Security System Based on Ultrasonic Sensor TechnologyIOSR Journals
Abstract : In this paper we design and implement a security system with an ultrasonic sensor module to enhance the system’s reliability. The ultrasonic sensor contains a transmitter and a receiver and the module is placed in a rotating motor. It is assumed that an ultrasonic sensor is set in a rotating motor to cover a wide range. The Ultrasonic transmitter periodically emits ultrasonic signals into an open area. A rotating motor is used to allow the sensor to cover whole 360 degrees. If the signal ever hits any physical objects, it will be reflected back and the receiver part of the sensor will then capture it. The microcontroller unit (MCU) will constantly check for the receiver output of the ultrasonic transmitter. If the receiver output is high, the MCU will perform distance analysis of the object from the sensor using the fact that ultrasonic waves travel in air at 340m/s. The time taken for the waves to hit the object and return can be calculated as the time taken for the receiver output to be high after the transmitter has been initiated to send ultrasonic waves. Once the distance is calculated, MCU checks whether the object is within the range threshold specified within the MCU for initiating the alert. If the object is within the range threshold, the MCU initiates a sound alarm and also the global system for mobile communications (GSM) modem to send short message service (SMS) or call to the concerned person. Keywords: GSM Module,Microcontroller unit(MCU),Motor controller driver unit,Ultrasonic sensor(obstacles detection).
This document discusses interfacing an ultrasonic rangefinder module with an AVR microcontroller. It begins by describing the limitations of basic infrared obstacle sensors, such as not being able to measure accurate distances. Ultrasonic rangefinder modules are introduced as a better solution, being able to measure distances from 1cm to 400cm with 1cm accuracy. The document then discusses the characteristics and advantages of ultrasonic sensors, how they interface with microcontrollers, and provides an overview of the hardware that will be used to build a test circuit around an ATmega32 microcontroller and LCD display.
Navigation system for blind using GPS & GSMPrateek Anand
Currently, blind people use a traditional cane as a tool for directing them when they move from one place to another. Although, the traditional cane is the most widespread means that is used today by the visually impaired people, it could not help them to detect dangers from all levels of obstacles. In this context, we propose a new intelligent system for guiding individuals who are blind or partially sighted. The system is used to enable blind people to move with the same ease and confidence as a sighted people. The system is linked with a GSM-GPS module to pin-point the location of the blind person and to establish a two way communication path in a wireless fashion. Moreover, it provides the direction information as well as information to avoid obstacles based on ultrasonic sensors. A beeper, an accelerometer sensor and vibrator are also added to the system. The whole system is designed to be small, light and is used in conjunction with the white cane. The results have shown that the blinds that used this system could move independently and safely.
Infra systems manufactures various automation sensors and products for home, building, and industrial automation. This includes digital counters, timers, safety guards, anti-crane collision switches, and other devices. The company's products are used to automate processes, improve safety, and save on electricity and water costs when used in buildings and facilities.
Infra systems manufactures various automation sensors and products for home, building, and industrial automation. This includes digital counters, timers, safety guards, anti-crane collision switches, and other devices. The company's products are used to automate processes, improve safety, and save on electricity and water costs when used in homes and buildings. Infra systems also makes safety guards that use infrared beams to detect objects in dangerous machine areas.
The document describes the OPSTM Series optical encoders from Electromate. The encoders deliver high performance and value with built-in interpolation and auto gain control. They can be configured with optical limits and work with various linear and rotary scales. Installation and commissioning is fast and simple using intuitive alignment tools and software. The encoders provide high resolution, accuracy and reliability for positioning applications.
Amo incremental _length_encoder_catalogElectromate
The document provides information about AMO GmbH's incremental length measuring systems based on the AMOSIN inductive measuring principle. It includes details about non-guided and guided AMOSIN measuring systems. The non-guided systems use measuring scales that can be mounted with adhesive and are compatible with various miniature and integrated scanning heads. The guided systems use measuring rails and scanning heads enclosed in a guide.
This document describes an earthquake early warning system that uses sensors to detect vibrations and send alerts. It includes specifications for the hardware components - an Arduino board, flex sensor, force sensor, vibration sensor, and XBee modules. When an earthquake occurs, the vibration sensor will detect P and S waves and send the alert message to the public through an IoT network and NodeMCU for a more accurate warning. The system aims to provide an early warning from a few seconds to minutes before the strongest shaking arrives.
Ultrasonic Distance Measurement NRF905 Wireless Transmission System Based on ...Wanita Long
ICStation Team introduce you this ultrasonic distance measurement NRF905 wireless transmission system with ICStation UNO and Mega 2560 compatible with Arduino. The working voltage is DC5V. It uses ultrasonic to measure distance and realizes wireless transmission with NRF905. The minimum accuracy of this design is one centimeter. The measuring effect is best between 3 and 100 centimeter. It can be used in the area where has no high demand of accuracy, such as the obstacle avoidance of robot and the distance detection alarm when reversing a car.
Iaetsd ethernet based intelligent security systemIaetsd Iaetsd
This document describes an Ethernet-based intelligent security system that uses both PIR (pyroelectric infrared) sensors and ultrasonic sensors for intruder detection. The system architecture includes indoor and outdoor sensor groups that detect intruders and trigger a majority voting mechanism (MVM). The MVM then activates indoor PIR and ultrasonic sensors. If the MVM detects an intruder, it triggers an embedded board to power a webcam for capturing images. The document discusses the working of the PIR sensors, ultrasonic sensors, and GSM modem used for remote monitoring and alarm functions. It also provides circuit diagrams and explains the working of the sensor processing, alarm, and GSM interfacing segments of the security system.
Distance measuring unit with zigbee protocol, Ultra sonic sensorAshok Raj
With Zigbee protocol, developed a distance measurement unit using an ultrasonic sensor, Arduino and X-bee trans-receiver for communication between displays and monitoring unit.
Software used: Arduino
This document summarizes an article from the International Journal of Technical Research and Applications about developing an ultrasonic peripatetic scanner using a Raspberry Pi to enable autonomous object detection for a test bench. Key points:
- An ultrasonic sensor is mounted on servo motors controlled by a Raspberry Pi to horizontally and vertically scan an area and measure distances to objects for an autonomous test bench.
- The Raspberry Pi provides wireless connectivity and processing power for the portable ultrasonic scanner. Python programs control the ultrasonic sensor and servo motors.
- Details are provided on setting up the Raspberry Pi, installing Raspbian OS, connecting an RTC for clock functions, enabling the I2C and SPI buses, and
IRJET- Automated Targeting System for Open Space Military AreaIRJET Journal
This document describes an automated targeting system for open space military areas using an ultrasonic sensor mounted on a servo motor. The system uses an Arduino microcontroller connected to the ultrasonic sensor and servo motor. When the ultrasonic sensor detects an object within its range, it will trigger the buzzer and display the detection on an LCD screen. The system aims to allow military surveillance of open areas using low-cost components like ultrasonic sensors and servos controlled by an Arduino.
The document describes AMO GmbH's incremental length measuring systems based on the AMOSIN inductive measuring principle. It provides information on various non-guided and guided measuring scale and scanning head options. The scales can be mounted with adhesive or on a stainless steel carrier. Scanning heads are available with external or integrated electronics, and output either analog sine/cosine signals or digital square waves. Reference marks for absolute position are integrated into the scales.
Blind Navigation by using Arduino is about the project that helps blind community to get better access to the environment. The design is incorporated with Ultrasonic sensor for Obstacle detection and a dark sensor for detecting darkness and a buzzer to alert the blind. Ultrasonic sensors are used to calculate the distance of the obstacle around the blind person.
TURCK announces the high speed Q25 inductive linear sensor to the automation market. The internal measuring frequency is user selectable and can be as high as 5 kHz resulting in accurate measuring speeds of 5 meters.
The document describes a vacuum stability testing instrument called STABIL VI. It can automatically determine the chemical stability of powders, explosives, nitrocellulose and other materials by measuring the gases released during long-term isothermal heating of samples in vacuum or inert/oxidizing atmospheres. The instrument provides objective results for evaluating stability and can test multiple samples simultaneously in its heating chamber. It has high sensitivity electronic pressure sensors and communicates with a PC for automated data collection, analysis and archiving.
Introduction of SG-O CIS / ALS / Light-Sensor Wafer TesterEnlitech
Introduction of SG-O CIS / ALS / Light-Sensor Wafer Tester
Original link:https://enlitechnology.com/home/products/image-sensor/sg-o/
*About Enlitech
Enlitech was founded in March 2009.
The core technologies include artificial light source and spectrum analyzing technique.Enlitech’s four main product markets include image sensor testing solutions, advanced photoelectric detector testing systems, quantum efficiency test solutions, and various light simulators.
Our popular products are QER and SS-X solar simulator. If you are interested, please visit the official website to understand more!
https://enlitechnology.com/
The introduction to Arduino labs at Malmö University. These slides have been handed down since the beginning of Arduino. They have more authors then i can remember and should by no means be considered mine.
Sensors are devices that detect and respond to some type of input from the physical environment. This document discusses several common sensors used in manufacturing, including proximity sensors, LVDT sensors, ultrasonic sensors, encoders, switches, inductive sensors, optical sensors, strain gauges, and pressure switches. It provides details on their functions and applications for tasks like distance sensing, contour tracking, machine vision, and process parameter monitoring. Essential features for sensors in manufacturing include precision, accuracy, response speed, operating range, reliability, ease of calibration, and cost.
Similar to Mb1003 hrlv max sonar-ez0 ultrasonic rangefinder (20)
Meet up Milano 14 _ Axpo Italia_ Migration from Mule3 (On-prem) to.pdfFlorence Consulting
Quattordicesimo Meetup di Milano, tenutosi a Milano il 23 Maggio 2024 dalle ore 17:00 alle ore 18:30 in presenza e da remoto.
Abbiamo parlato di come Axpo Italia S.p.A. ha ridotto il technical debt migrando le proprie APIs da Mule 3.9 a Mule 4.4 passando anche da on-premises a CloudHub 1.0.
Ready to Unlock the Power of Blockchain!Toptal Tech
Imagine a world where data flows freely, yet remains secure. A world where trust is built into the fabric of every transaction. This is the promise of blockchain, a revolutionary technology poised to reshape our digital landscape.
Toptal Tech is at the forefront of this innovation, connecting you with the brightest minds in blockchain development. Together, we can unlock the potential of this transformative technology, building a future of transparency, security, and endless possibilities.
Bridging the Digital Gap Brad Spiegel Macon, GA Initiative.pptxBrad Spiegel Macon GA
Brad Spiegel Macon GA’s journey exemplifies the profound impact that one individual can have on their community. Through his unwavering dedication to digital inclusion, he’s not only bridging the gap in Macon but also setting an example for others to follow.
Instagram has become one of the most popular social media platforms, allowing people to share photos, videos, and stories with their followers. Sometimes, though, you might want to view someone's story without them knowing.
Understanding User Behavior with Google Analytics.pdfSEO Article Boost
Unlocking the full potential of Google Analytics is crucial for understanding and optimizing your website’s performance. This guide dives deep into the essential aspects of Google Analytics, from analyzing traffic sources to understanding user demographics and tracking user engagement.
Traffic Sources Analysis:
Discover where your website traffic originates. By examining the Acquisition section, you can identify whether visitors come from organic search, paid campaigns, direct visits, social media, or referral links. This knowledge helps in refining marketing strategies and optimizing resource allocation.
User Demographics Insights:
Gain a comprehensive view of your audience by exploring demographic data in the Audience section. Understand age, gender, and interests to tailor your marketing strategies effectively. Leverage this information to create personalized content and improve user engagement and conversion rates.
Tracking User Engagement:
Learn how to measure user interaction with your site through key metrics like bounce rate, average session duration, and pages per session. Enhance user experience by analyzing engagement metrics and implementing strategies to keep visitors engaged.
Conversion Rate Optimization:
Understand the importance of conversion rates and how to track them using Google Analytics. Set up Goals, analyze conversion funnels, segment your audience, and employ A/B testing to optimize your website for higher conversions. Utilize ecommerce tracking and multi-channel funnels for a detailed view of your sales performance and marketing channel contributions.
Custom Reports and Dashboards:
Create custom reports and dashboards to visualize and interpret data relevant to your business goals. Use advanced filters, segments, and visualization options to gain deeper insights. Incorporate custom dimensions and metrics for tailored data analysis. Integrate external data sources to enrich your analytics and make well-informed decisions.
This guide is designed to help you harness the power of Google Analytics for making data-driven decisions that enhance website performance and achieve your digital marketing objectives. Whether you are looking to improve SEO, refine your social media strategy, or boost conversion rates, understanding and utilizing Google Analytics is essential for your success.
1. Page 1
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
HRLV-MaxSonar®
- EZ™
Series
High Resolution, Precision, Low Voltage Ultrasonic Range Finder
MB1003, MB1013, MB1023, MB1033, MB1043
The HRLV-MaxSonar-EZ sensor line is the most cost-effective solution for
applications where precision range-finding, low-voltage operation, and low-cost are
needed. This sensor component module allows users of other more costly precision
rangefinders to lower the cost of their systems without sacrificing performance.
The HRLV-MaxSonar-EZ sensor line provides high accuracy and high resolution ultrasonic proximity detection and
ranging in air, in a package less than one cubic inch. This sensor line features 1-mm resolution, target-size and
operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-
of-sound temperature compensation and optional external speed-of-sound temperature compensation. This
ultrasonic sensor detects objects from 1-mm to 5-meters, senses range to objects from 30-cm to 5-meters, with large
objects closer than 30-cm are typically reported as 30-cm1
. The interface output formats are pulse width, analog
voltage, and serial digital in either RS232 or TTL. Factory calibration is standard. 1
See Close Range Operation
Precision Range Sensing
• Range-finding at a fraction of the
cost of other precision rangefinders
• Reading-to-reading stability of 1-mm
at 1-meter is typical
• Accuracy is factory-matched at
1-meter to 0.1% providing a typical
large target accuracy of 1% or better
for most voltages and uses2
• Calibrated acoustic detection zones
allows selection of the part number
that matches a specific application
• Compensation for target size
variation and operating voltage range
• Standard internal temperature
compensation and optional external
temperature compensation
Range Outputs
• Pulse width, (1uS/mm)
• Analog Voltage, (5mm resolution)
• Serial, (RS232 or TTL using
solder-able jumper or volume orders
available as no-cost factory installed
jumper)
Easy to Use Component
Module
• Gracefully handles other ultrasonic
sensors4
• Stable and reliable range readings
and excellent noise rejection make
the sensor easy to use
• Easy to use interface with distance
provided in a variety of outputs
• Target size compensation provides
greater consistency and accuracy
when switching targets
• Sensor automatically handles
acoustic noise2,3
• Sensor ignores other acoustic noise
sources
• Small and easy to mount
• Calibrated sensor eliminates most
sensor to sensor variations
• Very low power ranger, excellent for
multiple sensors or battery based
systems
General Characteristics
• Low-cost ultrasonic rangefinder
• Size less than 1 cubic inch with easy
mounting
• Object proximity detection from
1-mm to 5-meters
• Resolution of 1-mm
• Excellent3
Mean Time Between
Failure (MTBF)
• Triggered operation yields a real-time
• 100mS measurement cycle
• Free run operation uses a 2Hz filter,
with 100mS measurement and output
cycle
• Operating temperature range
from -15°C to +65°C, provided
proper frost prevention is employed
• Operating voltage from 2.5V to 5.5V
• Nominal current draw of 2.5mA at
3.3V, and 3.1mA at 5V
• Low current draw reduces current
drain for battery operation
• Fast first reading after power-up
eases battery requirements
Notes:
2
Users are encouraged to evaluate the sensor
performance in their application.
3
By design.
4
See page 5 for multi-sensor operation
Close Range Operation
Applications requiring 100% reading-to-reading reliability should not use MaxSonar sensors at a distance closer than
30cm. Although most users find MaxSonar sensors to work reliably from 0 to 30cm for detecting objects in many
applications, MaxBotix®
Inc. does not guarantee operational reliability for objects closer than the minimum reported
distance. Because of ultrasonic physics, these sensors are unable to achieve 100% reliability at close distances.
_______________________________________________________________________________________________________________________________________
Warning: Personal Safety Applications
We do not recommend or endorse this product be used as a component in any personal safety applications. This product is
not designed, intended or authorized for such use. These sensors and controls do not include the self-checking redundant
circuitry needed for such use. Such unauthorized use may create a failure of the MaxBotix®
Inc. product which may result
in personal injury or death. MaxBotix®
Inc. will not be held liable for unauthorized use of this component.
2. Page 2
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Pin Out Description
Pin 1- Temperature Sensor Connection: Leave this pin unconnected if an external
temperature sensor is not used. For best accuracy, this pin is optionally connected to the
HR-MaxTemp temperature sensor. Look up the HR-MaxTemp temperature sensor for
additional information.
Pin 2- Pulse Width Output: This pin outputs a pulse width representation of the distance
with a scale factor of 1uS per mm. Output range is 300uS for 300-mm to 5000uS for
5000-mm. Pulse width output is +/- 1% of the serial data sent.
Pin 3- Analog Voltage Output: On power-up, the voltage on this pin is set to 0V, after
which, the voltage on this pin has the voltage corresponding to the latest measured distance.
This pin outputs an analog voltage scaled representation of the distance with a scale factor of (Vcc/1024) per 5-mm. (This
output voltage is referenced to GND, Pin 7.) The analog voltage output is typically within ±10-mm of the serial output.
Using a 10bit analog to digital convertor, one can read the analog voltage bits (i.e. 0 to 1023) directly and just multiply the
number of bits in the value by 5 to yield the range in mm. For example, 60 bits corresponds to 300-mm (where 60 * 5 =
300), and 1000 bits corresponds to 5000-mm (where 1000 * 5 = 5000-mm).
For users of this output that desire to work in voltage, a 5V power supply yields~4.88mV per 5 mm. Output voltage range
when powered with 5V is 293mV for 300-mm, and 4.885V for 5000-mm.
Pin 4- Ranging Start/Stop: This pin is internally pulled high. If this pin is left unconnected or held high, the sensor will
continually measure and output the range data. If held low, the HRLV-MaxSonar-EZ will stop ranging. Bring high for
20uS or longer to command a range reading.
Real-time Range Data: When pin 4 is low and then brought high, the sensor will operate in real time and the first reading
output will be the range measured from this first commanded range reading. When the sensor tracks that the RX pin is low
after each range reading, and then the RX pin is brought high, unfiltered real time range information can be obtained as
quickly as every 100mS.
Filtered Range Data: When pin 4 is left high, the sensor will continue to range every 100mS, but the output will pass
through a 2Hz filter, where the sensor will output the range based on recent range information.
Pin 5-Serial Output: By default, the serial output is RS232 format (0 to Vcc) with a 1-mm resolution. If TTL
output is desired, solder the TTL jumper pads on the back side of the PCB as shown in the photo to the right.
For volume orders, the TTL option is available as no-cost factory installed jumper. The output is an ASCII
capital “R”, followed by four ASCII character digits representing the range in millimeters, followed by a
carriage return (ASCII 13). The maximum distance reported is 5000. The serial output is the most accurate of the range
outputs. Serial data sent is 9600 baud, with 8 data bits, no parity, and one stop bit.
V+ Pin 6 - Positive Power, Vcc: The sensor operates on voltages from 2.5V - 5.5V DC. For best operation, the sensor
requires that the DC power be free from electrical noise. (For installations with known dirty electrical power, a 100uF
capacitor placed at the sensor pins between V+ and GND will typically correct the electrical noise.)
GND Pin 7 – Sensor ground pin: DC return, and circuit common ground.
———————————————————————————————————————————————————————–————————————
About Ultrasonic Sensors
Our ultrasonic sensors are in air, non-contact object detection and ranging sensors that detect objects within an area. These
sensors are not affected by the color or other visual characteristics of the detected object. Ultrasonic sensors use high
frequency sound to detect and localize objects in a variety of environments. Ultrasonic sensors measure the time of flight
for sound that has been transmitted to and reflected back from nearby objects. Based upon the time of flight, the sensor
then outputs a range reading.
Applications & Uses
• Proximity zone detection
• People detection
• Robots ranging sensor
• Autonomous navigation Distance
measuring
• Long range object detection
• Automated factory systems
• This product is not recommended as
a device for personal safety
• Designed for protected indoor envi-
ronments
• Motion detectors
• Limited tank level measurements
• Box dimensions
• Environments with acoustic and elec-
trical noise
• Height monitors
• Auto sizing
3. Page 3
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Auto Calibration
Each time the HRLV-MaxSonar-EZ takes a range reading, it calibrates itself. The sensor then uses this data to range
objects. If the temperature, humidity, or applied voltage changes during sensor operation; the sensor will continue to
function normally over the rated temperature range while applying compensation for changes caused by temperature and
voltage.
Sensor Operation: Free-Run
When operating in free run mode, the HRLV-MaxSonar-EZ sensors are designed to be used in a variety of indoor
environments. Most range readings are accurately reported. If the range readings are affected, the effect is typically less
than 5 mm. This allows users to employ real-time ultrasonic distance sensing without the need for additional supporting
circuitry or complicated user software.
Many acoustic noise sources will have little to no effect on the reported range of the HRLV-MaxSonar-EZ sensors.
However, users are encouraged to test sensor operation in the operating environment.
Sensor Minimum Distance
The sensor minimum reported distance is 30-cm (11.8 inches). However, the HRLV-MaxSonar-EZ will range and report
targets to within 1-mm of the front sensor face. Large targets closer than 30-cm will typically range as 300-mm.
Sensor Operation from 30-cm to 50-cm
Because of acoustic phase effects in the near field, objects between 30-cm and 50-cm may experience acoustic phase
cancellation of the returning waveform resulting in inaccuracies of up to 5-mm. These effects become less prevalent as the
target distance increases, and has not been observed past 50-cm. For this reason, industrial users that require the highest
sensor accuracy are encouraged to mount the HRLV-MaxSonar-EZ from objects that are farther than 50-cm.
Range “0” Location
The HRLV-MaxSonar-EZ reports the range to distant targets starting from the back of the sensor PCB as shown in the
diagram below.
In general, the HRLV-MaxSonar-EZ will report the range to the leading edge of the closest detectable object. Target
detection has been characterized in the sensor beam patterns.
Target Size Compensation
Most low cost ultrasonic rangefinders will report the range to smaller size targets as farther than the actual distance. In
addition, they may also report the range to larger size targets as closer than the actual distance.
The HRLV-MaxSonar-EZ sensor line correctly compensates for target size differences. This means that, provided an
object is large enough to be detected, the sensor will report the same distance, typically within 2%, regardless of target
size. Smaller targets can have additional detection noise that may limit this feature. In addition, targets with small or
rounded surfaces may have an apparent distance that is slightly farther, where the distance reported may be a composite of
the sensed object(s). Compensation for target size is applied to all range outputs: pulse width, analog voltage, and serial
RS232 or TTL.
4. Page 4
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Supply Voltage Droop and Charge Compensation
During power up, the HRLV-MaxSonar-EZ sensor line will calibrate itself for changes in supply voltage. Additionally,
the sensor will compensate if the supplied voltage gradually changes.
If the voltage applied to the sensor changes faster than 0.5V per second, it is best to remove and reapply power to the
sensor.
The sensor requires noise free power for best operation. If the sensor is used with noise on the supplied power, the
readings may be affected. Typically adding a 100uF capacitor at the sensor between the V+ and GND pins will correct
most power related electrical noise issues.
_______________________________________________________________________________________________________________________________________
Mechanical Dimensions
_______________________________________________________________________________________________________________________________________
Temperature Compensation
On Board - Internal Temperature Compensation
The speed of sound in air increases about 0.6 meters per second, per degree centigrade. Because of this, each
HRLV-MaxSonar-EZ is equipped with an internal temperature sensor which allows the sensor to apply a compensation
for speed of sound changes.
The self heating (15mW at 5V, or 8mW at 3.3V) will change the temperature of the sensor by about 1 degree C. The
amount of self heating is dependent upon user mounting.
Most importantly, the actual air temperature of the path between the sensor and the target may not match the temperature
measured at the sensor electronics. Sensors mounted in vertical applications, or applications where the environmental
temperature gradient is severe, may experience a large temperature measurement error which will effect the sensor
accuracy. For example, buildings with a height of 2-meters can have floor to ceiling temperature variations of 5°C or
more. Because of these temperature effects, users desiring the highest accuracy output are encouraged to use a properly
mounted external temperature sensor or to manually account for this measurement error.
HR-MaxTemp®
External Temperature Sensor
Although the HRLV-MaxSonar-EZ has an internal temperature sensor; for best accuracy, users are encouraged to use the
optional external temperature sensor. On power-up the HRLV-MaxSonar-EZ will automatically detect an attached
HR-MaxTemp temperature sensor and begin to apply temperature compensation using the external temperature sensor.
The external temperature sensor allows for the most accurate temperature compensation, by eliminating sensor
self-heating from the sensor electronics, and by allowing the user to place the temperature sensor closer to the center of
the acoustic ranging path.
For best results users are encouraged to connect the temperature sensor midway between the HRLV-MaxSonar-EZ and
the expected target distance.
Paint Dot Color Black Brown Red Orange Yellow
Part Number MB1003 MB1013 MB1023 MB1033 MB1043
Paint Dot & Location
5. Page 5
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Operating Modes
Multiple Sensor Operation
Multiple HRLV-MaxSonar-EZ sensors can be used simultaneously in the same environment generally with little to no
interference (cross-talk). Even so, some cross-talk may still occur for users wishing to use a large number of sensors in
the same environment. This interference is rare and can be up to +/- 1 cm of the target’s distance. Because of this, sensor
to sensor interference must be accounted for. To avoid interference between sensors, chaining can be used to prevent
cross-talk between sensors. This will be necessary when using 3+ sensors depending on mounting and environment.
The recommended chaining method is AN Output Commanded Loop. The first sensor will range, then trigger the next
sensor to range and so on for all the sensors in the array. Once the last sensor has ranged, the array stops until the first
sensor is triggered to range again. Below is a diagram on how to set this up.
Another recommended chaining method is AN Output Constantly Looping. The first sensor will range, then trigger the
next sensor to range and so on for all the sensors in the array. Once the last sensor has ranged, it will trigger the first
sensor in the array to range again and will continue this loop indefinitely. Below is a diagram on how to set this up.
6. Page 6
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Operating Modes Cont.
Independent Sensor Operation
The HRLV-MaxSonar-EZ sensors have the capability to operate independently when the user desires. When using the
HRLV-MaxSonar-EZ sensors in single or independent sensor operation, it is easiest to allow the sensor to free-run.
Free-run is the default mode of operation for all of the MaxBotix Inc., sensors. The HRLV-MaxSonar-EZ sensors have
three separate outputs that update the range data simultaneously: Analog Voltage, Pulse Width, and Serial Data. Below
are diagrams on how to connect the sensor for each of the three outputs when operating in a single or independent sensor
operating environment.
_______________________________________________________________________________________________________________________________________
Operations and Timing
7. Page 7
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Operations and Timing Continued
Real-Time Operation - Triggered
Real-time or triggered operation allows users to take advantage of a few functions unavailable during free run mode. By
operating in triggered mode, a maximum refresh rate of 10Hz can be achieved. This can be valuable for instance, as
triggered operation allows users to range targets moving away from or closer to the sensor faster than 240mm/s.
Users can enter and remain in the Real-time or Triggered Operation by making sure that after each range cycle, the
voltage level on Pin 4 is set low. After the sensor has completed the last reading, then the voltage on Pin 4 is brought
high. This starts a brand new range cycle and the HRLV-MaxSonar-EZ will output the most recent range data without
filtering. Please reference the Real-time Triggered Operation timing diagram for full implementation details.
Readings during triggered operation are less accurate than the 2Hz filtered readings by about +/- 5-mm. Also, because the
range readings are not filtered, noise tolerance can be greatly reduced. Take care to make sure that only one sensor is
sampling range at a time.
8. Page 8
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Operations and Timing Continued
Sensor Operation - Free-Run
When operating in free run mode, the HRLV-MaxSonar-EZ sensors are designed to be used in a variety of indoor
environments. Many acoustic noise sources will have little to no effect on the reported range of the HRLV-MaxSonar-EZ
sensors.
Most range readings are accurately reported. If the range readings are affected, the effect is typically less than 5-mm. This
allows users to employ real-time ultrasonic distance sensing without the need for additional supporting circuitry or
complicated user software.
Filtered Operation - Free-Run
The HRLV-MaxSonar-EZ uses an internal 2Hz bandwidth filter to process range data; which reports the latest range every
100mS or 10Hz. This improves the sensor’s performance for accuracy, noise rejection, and reading to reading stability.
The filtering in the free-run operation also permits additional acoustic and electrical noise tolerance.
9. Page 9
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
Selecting a HRLV-MaxSonar-EZ
Different applications require different sensors. The HRLV-MaxSonar-EZ product line offers varied sensitivity to allow
you to select the best sensor to meet your needs.
The diagram above shows how each product balances sensitivity and noise tolerance. This does not affect the maximum
range, pin outputs, or other operations of the sensor. To view how each sensor will function to different sized targets
reference the HRLV-MaxSonar-EZ-Beam Patterns.
_______________________________________________________________________________________________________________________________________
HRLV-MaxSonar®
-EZ™
Beam Patterns
Background Information Regarding our Beam Patterns
Each HRLV-MaxSonar-EZ sensor has a calibrated beam pattern. Each sensor is matched to provide
the approximate detection pattern shown in this datasheet. This allows end users to select the part
number that matches their given sensing application. Each part number has a consistent field of
detection so additional units of the same part number will have similar beam patterns. The beam
plots are provided to help identify an estimated detection zone for an application based on the
acoustic properties of a target versus the plotted beam patterns.
Each beam pattern is a 2D representation of the detection area of the sensor. The beam pattern is
actually shaped like a 3D cone (having the same detection pattern both vertically and horizontally).
Detection patterns for dowels are used to show the beam pattern of each sensor. Dowels are long
cylindered targets of a given diameter. The dowels provide consistent target detection characteristics
for a given size target which allows easy comparison of one MaxSonar sensor to another MaxSonar
sensor.
For each part number, the four patterns (A, B, C, and D) represent the detection zone for a given target size. Each beam
pattern shown is determined by the sensor’s part number and target size.
The actual beam angle changes over the full range. Use the beam pattern for a specific target at any given distance to
calculate the beam angle for that target at the specific distance. Generally, smaller targets are detected over a narrower
beam angle and a shorter distance. Larger targets are detected over a wider beam angle and a longer range.
People Sensing:
For users that
desire to detect
people, the
detection area to
the 1-inch
diameter dowel, in
general, represents
the area that the
sensor will
reliably detect
people.
10. Page 10
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
MB1003 HRLV-MaxSonar-EZ0 Beam Pattern and Uses
The HRLV-MaxSonar-EZ0 is the highest sensitivity and widest beam sensor of the HRLV-MaxSonar-EZ sensor series.
The wide beam makes this sensor ideal for a variety of applications including people detection, autonomous navigation,
and wide beam applications.
MB1003 Features and
Benefits
• Factory calibrated wide beam
width
• Low operating voltages from
2.5V to 5.5V
• All range outputs are active
simultaneously
• High acoustic sensitivity
• Detects small targets to longer
distances
• Widest beam width for the
HRLV-MaxSonar-EZ sensors
MB1003 Applications and
Uses
• People detection
• Small target detection
• High sensitivity applications
• Obstacle avoidance
11. Page 11
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
MB1013 HRLV-MaxSonar-EZ1 Beam Pattern and Uses
The HRLV-MaxSonar-EZ1 is an indoor ultrasonic sensor and is a quality, low-cost starting place for a customer not sure
of which HRLV-MaxSonar-EZ sensor to use. It balances the detection of people and other objects with a narrow beam
width.
MB1013 Features and
Benefits
• Good balance between people
detection and beam pattern width
• Well balanced acoustic sensitivity
• Ignores some small targets
• Detects most targets to long
distances
• Wider, balanced beam width
• Sensitive long narrow beam
MB1013 Applications and
Uses
• Our most recommended
HRLV-MaxSonar-EZ Sensor
• People Detection
• Well balanced detection
• Autonomous Navigation
12. Page 12
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
MB1023 HRLV-MaxSonar-EZ2 Beam Pattern and Uses
The HRLV-MaxSonar-EZ2 is a good compromise between sensitivity and side object rejection. The
HRLV-MaxSonar-EZ2 is an excellent choice for applications that requires slightly less side object detection and
sensitivity than the MB1013 HRLV-MaxSonar-EZ1.
MB1023 Features and
Benefits
• Good balance between high
sensitivity and noise tolerance
• Well balanced acoustic sensitivity
• Ignores some small targets
• Detects most targets to long
distances
• Balanced Beam Width
• Best compromise for beam width,
sensitivity and sensor range
MB1023 Applications and
Uses
• Well balanced detection
• Applications where the
HRLV-MaxSonar-EZ1 is too
wide
13. Page 13
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA
MB1033 HRLV-MaxSonar-EZ3 Beam Pattern and Uses
The HRLV-MaxSonar-EZ3 is a narrow beam sensor with good side object rejection. The HRLV-MaxSonar-EZ3 has
slightly wider beam width than the MB1043 HRLV-MaxSonar-EZ4 which makes it a good choice for when the
HRLV-MaxSonar-EZ4 does not have enough sensitivity for the application.
MB1033 Features and
Benefits
• More sensitive then the
HRLV-MaxSonar-EZ4
• More noise tolerant acoustic
sensitivity
• Ignores some small targets and
medium targets
• Detects most targets to long
distances
• Narrow Beam Width
MB1033 Applications and
Uses
• Large target detection
• Short range medium target
detection
• Applications requiring high noise
tolerance
14. Page 14
Web: www.maxbotix.com
PD11721i
MaxBotix®
Inc.
Copyright 2005 - 2014 MaxBotix Incorporated
Patent 7,679,996
HRLV-MaxSonar®
- EZ™
Series
MaxBotix Inc., products are engineered and assembled in the USA

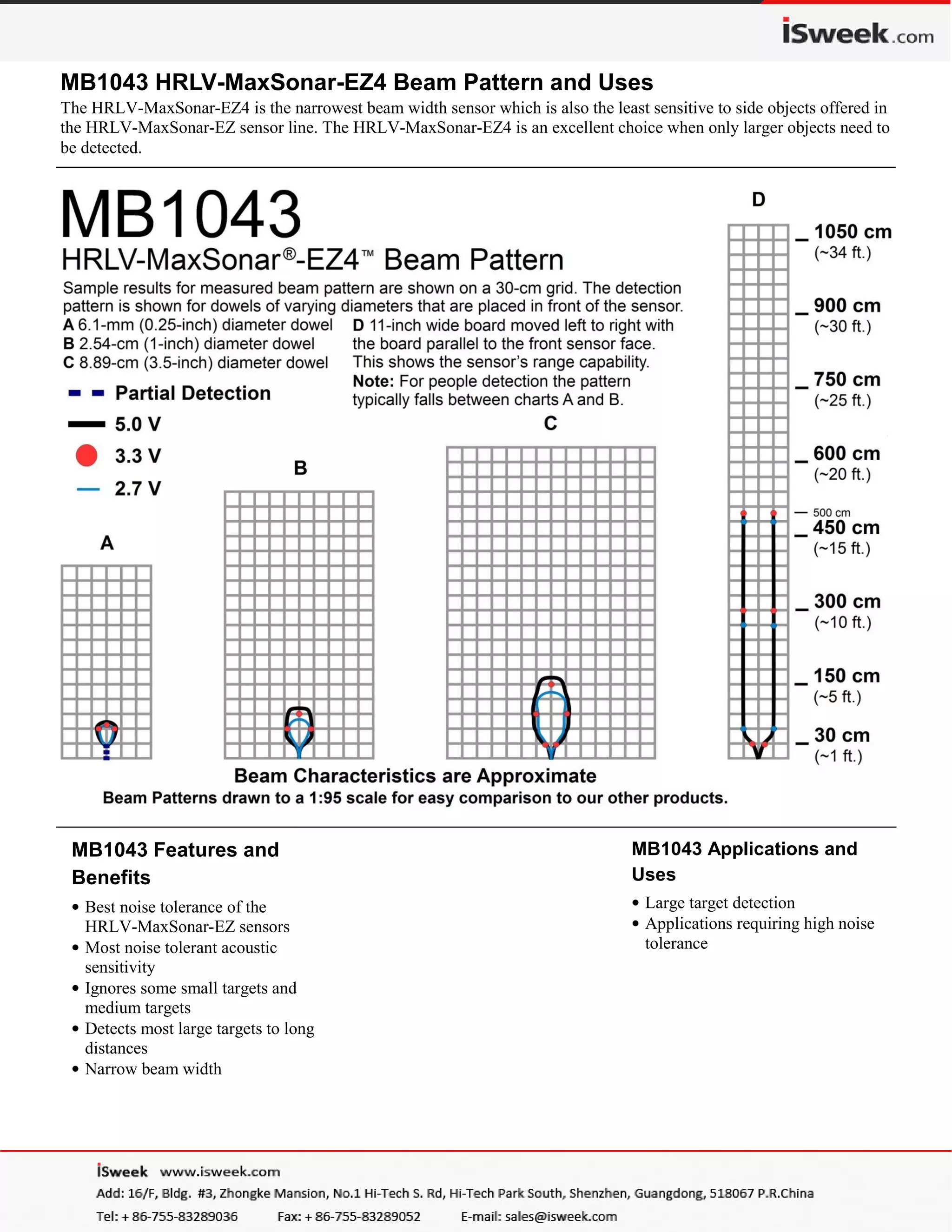

MB1043 HRLV-MaxSonar-EZ4 Beam Pattern and Uses
The HRLV-MaxSonar-EZ4 is the narrowest beam width sensor which is also the least sensitive to side objects offered in
the HRLV-MaxSonar-EZ sensor line. The HRLV-MaxSonar-EZ4 is an excellent choice when only larger objects need to
be detected.
MB1043 Features and
Benefits
• Best noise tolerance of the
HRLV-MaxSonar-EZ sensors
• Most noise tolerant acoustic
sensitivity
• Ignores some small targets and
medium targets
• Detects most large targets to long
distances
• Narrow beam width
MB1043 Applications and
Uses
• Large target detection
• Applications requiring high noise
tolerance
