The term data quality is used to describe the correctness, reliability, and usability of datasets. Data scientists and business analysts often determine the quality of a dataset by its trustworthiness and completeness. But what information might be needed to differentiate between good vs bad data? How quickly can data quality issues be identified and explored? More importantly, how can metadata enable data scientists to make better sense of the high volume of data within their organization from a variety of data sources? To maximize the usefulness of datasets for data-intensive applications, it is critical that metadata is collected, maintained, and shared across the organization. The investment in metadata enables: Data lineage, Data governance, and Data discovery. Machine Learning (ML) jobs, just another type of data-intensive application, would benefit from metadata as well. But unlike most software projects which use established tools for maintaining quality, ML projects have fewer safeguards to prevent defects. Marquez helps fill the tooling gap available for ML jobs by tracking the relationships between training jobs, input datasets, and ML models. Marquez also links the different variations of training jobs which can grow wildly due to experimentation and hyperparameter optimization. Data lineage tracking in Marquez also reveals unexpected changes in upstream data dependencies which can harm model performance and be time consuming to debug. In this talk, we introduce Marquez: an open source metadata service for the collection, aggregation, and visualization of a data ecosystem’s metadata. We will demonstrate how metadata management with Marquez helps maintain high model performance and prevent quality issues.

1. Data Platform
Marquez:
An Open Source Metadata Service for ML
Platforms
AI NEXTCon SF ‘19

2. Data Platform
Software Engineer
Marquez Team, Data Platform
@wslulciuc
Staff Engineer
ML Team, Data Platform
@theshah

3. AGENDA
Intro to Marquez
Demo
02
03
Why metadata?01
Data Platform
ML + Marquez04

4. Why metadata?01

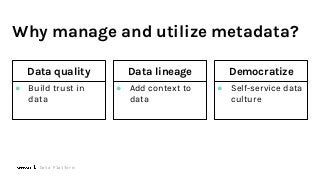

5. Data lineage
● Add context to
data
Democratize
● Self-service data
culture
Data quality
● Build trust in
data
Why manage and utilize metadata?
Data Platform

6. … creating a healthy data
ecosystem

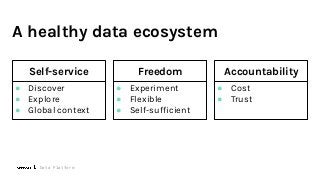

7. Freedom
● Experiment
● Flexible
● Self-sufficient
Accountability
● Cost
● Trust
Self-service
● Discover
● Explore
● Global context
A healthy data ecosystem
Data Platform

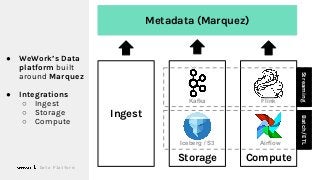

8. Metadata (Marquez)
Ingest
Storage Compute
StreamingBatch/ETL
● WeWork’s Data
platform built
around Marquez
● Integrations
○ Ingest
○ Storage
○ Compute
Data Platform
Flink
Airflow
Kafka
Iceberg / S3

9. Intro to Marquez02

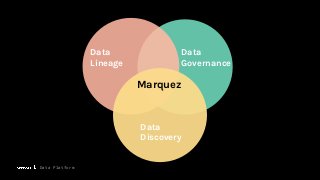

10. Data
Lineage
Data
Governance
Data
Discovery
Marquez
Data Platform

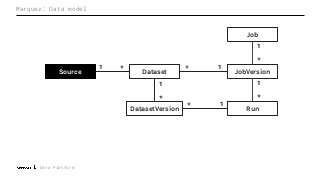

11. Marquez: Data model
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*
Data Platform
Source
1 *

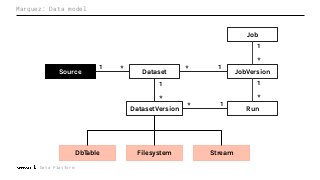

12. Marquez: Data model
DbTable Filesystem Stream
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*
Data Platform
Source
1 *

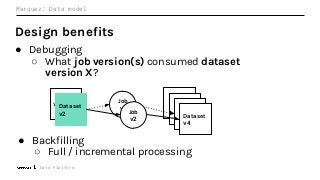

13. Data Platform
v1 v4Dataset
v2
v4
v4
Job
v1
Dataset
v4
Job
v2
Marquez: Data model
● Debugging
○ What job version(s) consumed dataset
version X?
● Backfilling
○ Full / incremental processing
Design benefits

14. Data Platform

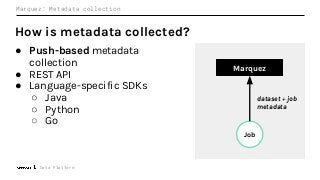

Marquez: Metadata collection
How is metadata collected?
● Push-based metadata
collection
● REST API
● Language-specific SDKs
○ Java
○ Python
○ Go
Marquez
Job
dataset + job
metadata

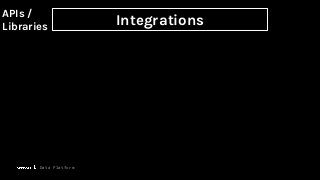

15. Integrations
APIs /
Libraries
Data Platform

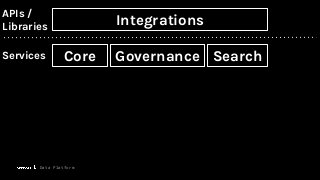

16. Core Governance SearchServices
Integrations
APIs /
Libraries
Data Platform

17. Core Governance
Metadata
DB
Graph
Search
Search
Services
Storage
Integrations
APIs /
Libraries
Data Platform

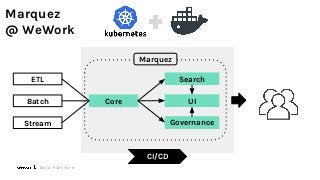

18. Data Platform
Core
ETL
Batch
Stream
Search
Governance
UI
CI/CD
Marquez
@ WeWork
Marquez

19. +Marquez
Data Platform

20. Data Platform
● Enables global task-level
metadata collection
● Extends Airflow’s DAG class
from marquez_airflow import DAG
from airflow.operators.postgres_operator import PostgresOperator
...
room_bookings_7_days_dag.py
Marquez: Airflow
Airflow support for Marquez

21. Airflow
DAG
DAG
DAG
DAG
Marquez Lib.
Data Platform
● Metadata
○ Task lifecycle
○ Task parameters
○ Task runs linked to versioned code
○ Task inputs / outputs
● Lineage
○ Track origin of data
Marquez: Airflow
Airflow support for Marquez (cont.)

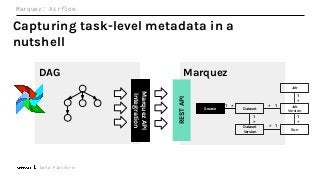

22. Data Platform
DAG
MarquezAPI
Integration
Marquez
RESTAPI
Capturing task-level metadata in a
nutshell
Marquez: Airflow
Job
Dataset
Job
Version
Run
Dataset
Version
*
1
*
1
1*
1*
Source
1 *
*
1

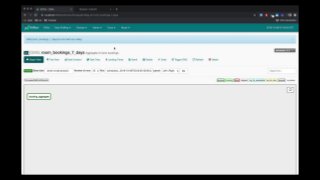

23. Demo03

25. ML + Marquez04

26. Data Platform
Let’s start with a (familiar?) story...

27. Data Platform
● You are a successful Data
Scientist or Machine Learning
Engineer
● Your organization has a healthy
data ecosystem
● Occasionally you build ML
models for periodic, offline use

28. Data Platform
● You are a successful Data
Scientist or Machine Learning
Engineer
● Your organization has a healthy
data ecosystem
● Occasionally you build ML
models for one-time use
● Life is good

29. Data Platform
● Your CTO schedules a
meeting with you
● He says those ML models are
great and all…
● But he wants way more
models ...making real-time
predictions… driving
impactful business
decisions

30. Data Platform
● You’re going from ML in “the
Small” to ML in “the Large”1
● What happens next?
1
https://al3x.net/posts/2010/07/27/node.html

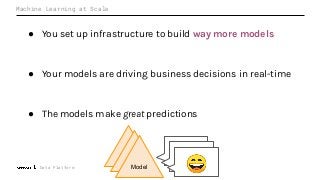

31. Data Platform
Machine Learning at Scale
● You set up infrastructure to build way more models
● Your models are driving business decisions in real-time
● The models make great predictions
Model 😄Model
Model
😄😄

32. Some problems emerge

33. Data Platform
Machine Learning at Scale
● For some models, accuracy is declining without
explanation
● There are no bugs in the training workflow
● Changing learning algorithms does not help
Model 😭

34. Data Platform
Machine Learning at Scale
https://xkcd.com/1838/

35. Model Lineage Tracking in Marquez

36. Machine Learning at Scale
Check the upstream data!
Data Platform

37. Machine Learning at Scale
Check the training data!
Model
Data Platform

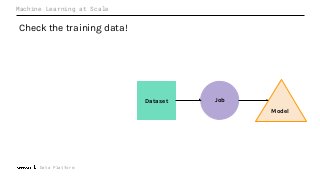

38. Machine Learning at Scale
Check the training data!
Dataset
Model
Job
Data Platform

39. Machine Learning at Scale
Check the training data!
Job Dataset
Model
Job
Data Platform

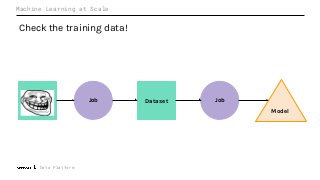

40. Machine Learning at Scale
Check the training data!
Job Dataset
Model
Dataset Job
Data Platform

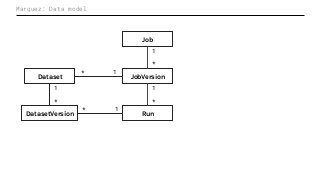

41. Marquez: Data model
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*

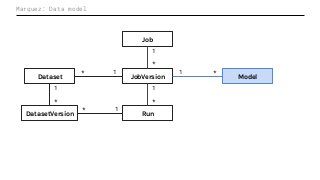

42. Marquez: Data model
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*
Model
*1

43. Lineage Visualization!
Marquez: Data model

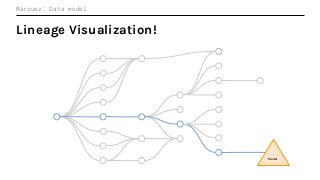

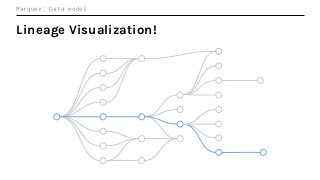

44. Lineage Visualization!
Marquez: Data model
Model

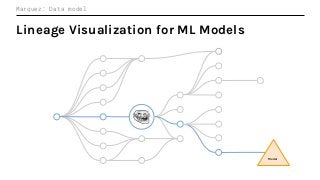

45. Lineage Visualization for ML Models
Marquez: Data model
Model

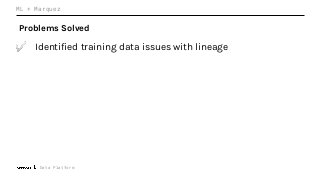

46. Data Platform
ML + Marquez
Problems Solved
✅ Identified training data issues with lineage

47. Things are not OK yet

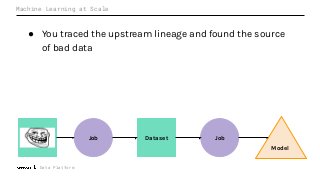

48. Data Platform
Machine Learning at Scale
● You traced the upstream lineage and found the source
of bad data
Job Dataset
Model
Dataset Job

49. Data Platform
Machine Learning at Scale
● You traced the upstream lineage and found the source
of bad data
● But it will take days of data cleansing work to before
model accuracy is restored
Job Dataset
Model
Dataset Job

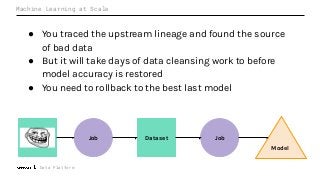

50. Data Platform
Machine Learning at Scale
● You traced the upstream lineage and found the source
of bad data
● But it will take days of data cleansing work to before
model accuracy is restored
● You need to rollback to the best last model
Job Dataset
Model
Dataset Job

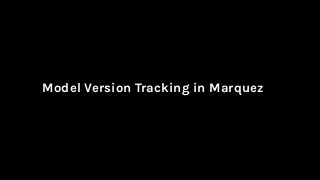

51. Model Version Tracking in Marquez

52. Marquez: Data model
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*
Model
ModelVersion
*1
1
*
*
1
Model Version Tracking!

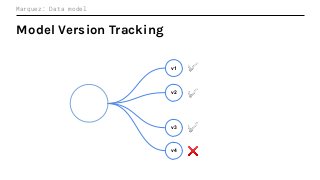

53. Model Version Tracking
v1
Marquez: Data model
��
v2
v3
v4
✅
✅
✅
❌

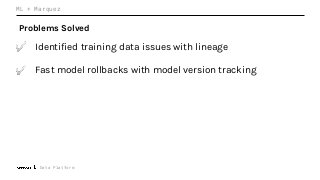

54. Data Platform
ML + Marquez
Problems Solved
✅ Identified training data issues with lineage
✅ Fast model rollbacks with model version tracking

55. Could this have been prevented?

56. Data Platform
Machine Learning at Scale
● Regularly test quality of upstream datasets?
Model

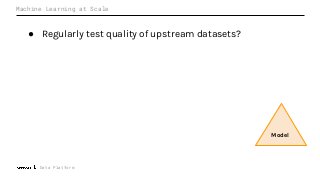

57. Data Platform
Machine Learning at Scale
● Regularly test quality of upstream datasets?
Dataset
Model
Job
Test
✅

58. Data Platform
Machine Learning at Scale
● Regularly test quality of upstream datasets?
Job Dataset
Model
Dataset JobDataset
Test
✅
Test
❌

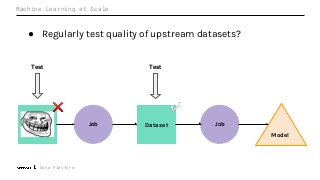

59. Data Platform
Machine Learning at Scale
● Regularly test quality of upstream datasets?
● Automatically alert an engineer for faster resolution
Job Dataset
Model
Dataset JobDataset
Test
✅
Test
❌
��

60. Data Quality Tracking
Leverage existing Data Quality Frameworks

61. Dataset Quality Tracking in Marquez

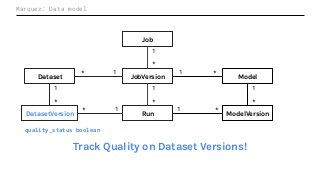

62. Marquez: Data model
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*
Model
ModelVersion
*1
1
*
*
1
Track Quality on Dataset Versions!
quality_status boolean

63. Is Quality Monitoring Enough?

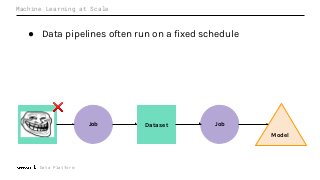

64. Data Platform
Machine Learning at Scale
● Data pipelines often run on a fixed schedule
Job Dataset
Model
Dataset JobDataset
❌

65. Data Platform
Machine Learning at Scale
● Data pipelines often run on a fixed schedule
● It’s a race to fix the issue before bad data propagates
Job Dataset
Model
Dataset JobDataset
❌

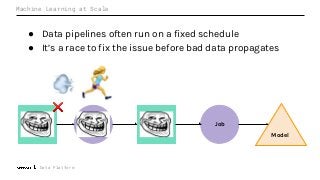

66. Data Platform
Machine Learning at Scale
● Data pipelines often run on a fixed schedule
● It’s a race to fix the issue before bad data propagates
Job Dataset
Model
Dataset JobDataset
❌

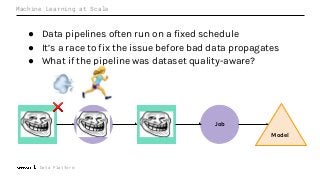

67. Data Platform
Machine Learning at Scale
● Data pipelines often run on a fixed schedule
● It’s a race to fix the issue before bad data propagates
● What if the pipeline was dataset quality-aware?
Job Dataset
Model
Dataset JobDataset
❌

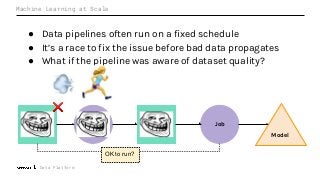

68. Data Platform
Machine Learning at Scale
● Data pipelines often run on a fixed schedule
● It’s a race to fix the issue before bad data propagates
● What if the pipeline was aware of dataset quality?
Job Dataset
Model
Dataset JobDataset
❌
OK to run?

69. Disable Training when quality checks fail

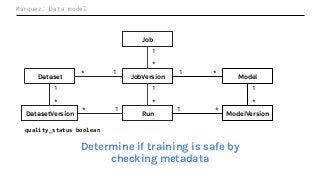

70. Marquez: Data model
Job
Dataset JobVersion
RunDatasetVersion
*
1
*
1
*
1
1*
1*
Model
ModelVersion
*1
1
*
*
1
Determine if training is safe by
checking metadata
DatasetVersion
quality_status boolean

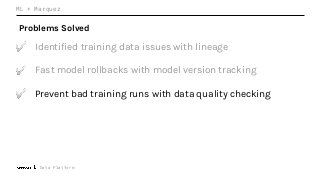

71. Data Platform
ML + Marquez
Problems Solved
✅ Identified training data issues with lineage
✅ Fast model rollbacks with model version tracking
✅ Prevent bad training runs with data quality checking

72. Thanks!
Data Platform

73. github.com/MarquezProject
@MarquezProject

74. Questions?
Data Platform AI NEXTCon SF ‘19
