Managing distributed-cloud-apps
The document describes a multi-target application (MTA) deployment descriptor that defines modules, resources, and dependencies for deploying a sample Spring Music application in a distributed cloud environment. The MTA descriptor uses YAML files to specify configuration properties, placeholders, and references that allow flexible deployment of the application and its modules.
Managing distributed-cloud-apps
- 1.
- 2. Managing Distributed CloudNative Applications Made Easy

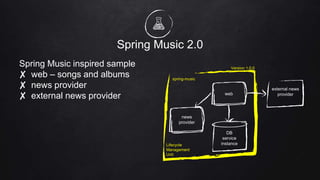

- 3. Spring Music 2.0 SpringMusic inspired sample ✘ web – songs and albums ✘ news provider ✘ external news provider spring-music Lifecycle Management Unit Version 1.0.0 news provider web DB service instance external news provider

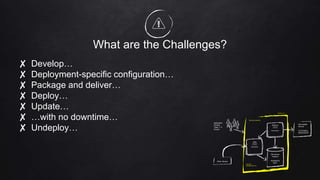

- 4. What are theChallenges? ✘ Develop… ✘ Deployment-specific configuration… ✘ Package and deliver… ✘ Deploy… ✘ Update… ✘ …with no downtime… ✘ Undeploy… Application DevOps Team (~ 2 Pizzas) Other Service Business capability Lifecycle Management Unit Version x.y.z Java (heavy data processing) “BACKEND” Node.Js (heavy data processing) ”FRONTEND” DB service instance “PERSISTE NCE” Geo-spatial Service “EXTERNAL RESOURCE“

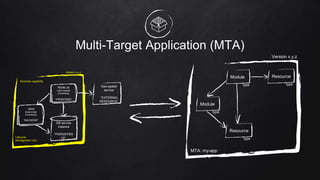

- 5. Multi-Target Application (MTA) Businesscapability Lifecycle Management Unit Version x.y.z Java (heavy data processing) “BACKEND” Node.Js (user request processing) ”FRONTEND” DB service instance “PERSISTEN CE” Geo-spatial service “EXTERNAL RESOURCE“ MTA: my-app Module type Resource type Module type Resource type Version x.y.z

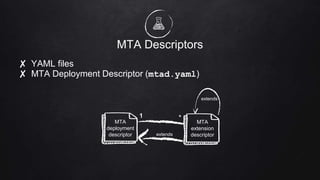

- 6. MTA Descriptors ✘ YAMLfiles extends MTA deployment descriptor MTA extension descriptor *1 extends

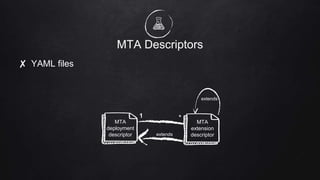

- 7. MTA Descriptors ✘ YAMLfiles ✘ MTA Deployment Descriptor (mtad.yaml) extends MTA deployment descriptor MTA extension descriptor *1 extends

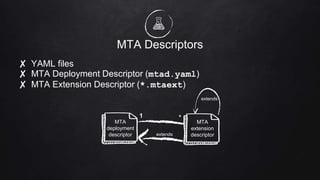

- 8. MTA Descriptors ✘ YAMLfiles ✘ MTA Deployment Descriptor (mtad.yaml) ✘ MTA Extension Descriptor (*.mtaext) extends MTA deployment descriptor MTA extension descriptor *1 extends

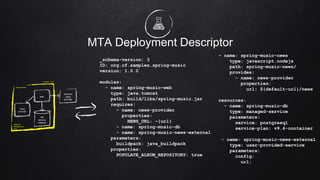

- 9. MTA Deployment Descriptor _schema-version:3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url: spring-music Lifecycle Management Unit Version 1.0.0 news provider web DB service instance external news provider

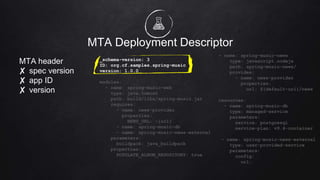

- 10. MTA Deployment Descriptor MTAheader ✘ spec version ✘ app ID ✘ version _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:
- 11. MTA Deployment Descriptor Modules ✘name ✘ type ✘ path _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:
- 12. MTA Deployment Descriptor Modules ✘buildpack ✘ route ✘ other parameters _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

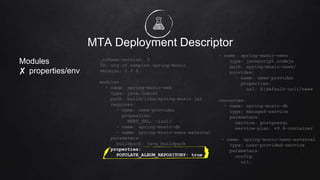

- 13. MTA Deployment Descriptor Modules ✘properties/env _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

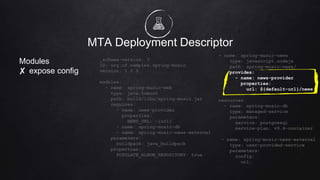

- 14. MTA Deployment Descriptor Modules ✘expose config _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

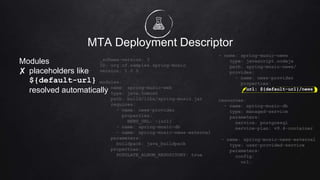

- 15. MTA Deployment Descriptor Modules ✘placeholders like ${default-url} resolved automatically _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

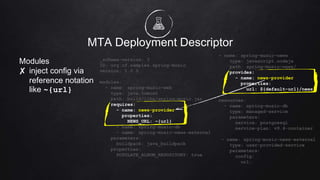

- 16. MTA Deployment Descriptor Modules ✘inject config via reference notation like ~{url} _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

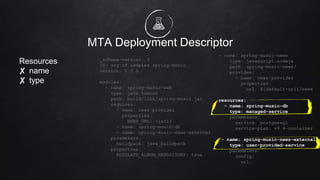

- 17. MTA Deployment Descriptor Resources ✘name ✘ type _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

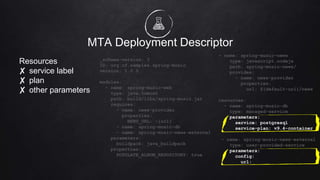

- 18. MTA Deployment Descriptor Resources ✘service label ✘ plan ✘ other parameters _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

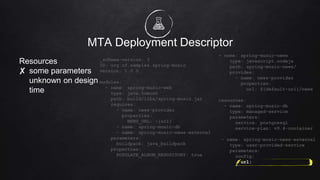

- 19. MTA Deployment Descriptor Resources ✘some parameters unknown on design time _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

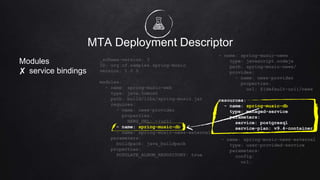

- 20. MTA Deployment Descriptor Modules ✘service bindings _schema-version: 3 ID: org.cf.samples.spring-music version: 1.0.0 modules: - name: spring-music-web type: java.tomcat path: build/libs/spring-music.jar requires: - name: news-provider properties: NEWS_URL: ~{url} - name: spring-music-db - name: spring-music-news-external parameters: buildpack: java_buildpack properties: POPULATE_ALBUM_REPOSITORY: true - name: spring-music-news type: javascript.nodejs path: spring-music-news/ provides: - name: news-provider properties: url: ${default-url}/news resources: - name: spring-music-db type: managed-service parameters: service: postgresql service-plan: v9.4-container - name: spring-music-news-external type: user-provided-service parameters: config: url:

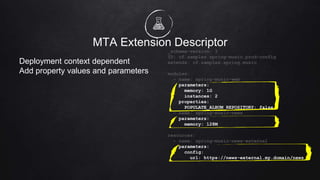

- 21. MTA Extension Descriptor Deploymentcontext dependent Add property values and parameters _schema-version: 3 ID: cf.samples.spring-music.prod-config extends: cf.samples.spring.music modules: - name: spring-music-web parameters: memory: 1G instances: 2 properties: POPULATE_ALBUM_REPOSITORY: false - name: spring-music-news parameters: memory: 128M resources: - name: spring-music-news-external parameters: config: url: https://news-external.my.domain/news

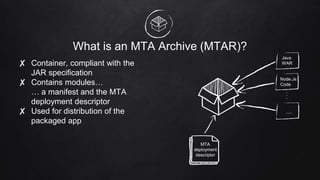

- 22. What is anMTA Archive (MTAR)? ✘ Container, compliant with the JAR specification ✘ Contains modules… … a manifest and the MTA deployment descriptor ✘ Used for distribution of the packaged app MTA deployment descriptor Java WAR Node.Js Code … ...

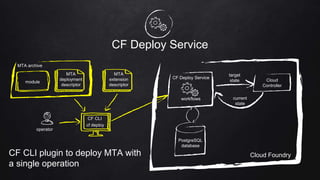

- 23. CF Deploy Service CFCLI plugin to deploy MTA with a single operation MTA deployment descriptor MTA archive module MTA extension descriptor CF CLI operator Cloud Foundry Cloud Controller CF Deploy Service PostgreSQL database target state workflows cf deploy current state

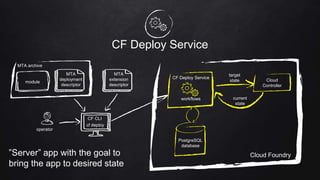

- 24. CF Deploy Service MTA deployment descriptor MTAarchive module MTA extension descriptor CF CLI operator Cloud Foundry Cloud Controller CF Deploy Service PostgreSQL database target state workflows cf deploy current state ”Server” app with the goal to bring the app to desired state
- 25.
- 26. Supported Operations ✘ Deploy(incl. from Git, in future from directory) ✘ Update (incremental) ✘ Blue-green deploy ✘ Cross-MTA configuration

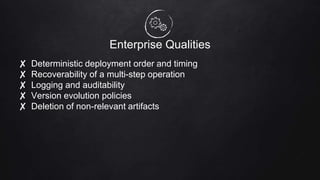

- 27. Enterprise Qualities ✘ Deterministicdeployment order and timing ✘ Recoverability of a multi-step operation ✘ Logging and auditability ✘ Version evolution policies ✘ Deletion of non-relevant artifacts
- 28. >1000Deploys per day >100Realapps >1500Distinct MTAs (incl. test ones) @ SAP Cloud Platform
- 29. It is OpenSource
- 30. Open Source Availability MTAmodel guide MTA parsers, validators, persistence and utilities CF MTA plugin CF MTA deploy service Spring Music MTA
- 31. Outlook Evaluation from CFController API team – Pivotal tracker item [done] Proposal for incubation in CF Extensions [pending]

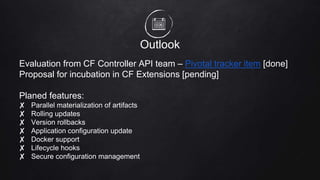

- 32. Outlook Evaluation from CFController API team – Pivotal tracker item [done] Proposal for incubation in CF Extensions [pending] Planed features: ✘ Parallel materialization of artifacts ✘ Rolling updates ✘ Version rollbacks ✘ Application configuration update ✘ Docker support ✘ Lifecycle hooks ✘ Secure configuration management
- 33. thanks! Any questions? You canfind me at nikolay.valchev@sap.com nvvalchev@gmail.com
- 34. Credits Special thanks toall the people who made and released these awesome resources for free: ✘ Presentation template by SlidesCarnival ✘ Photographs by Unsplash
- 35. SlidesCarnival icons areeditable shapes. This means that you can: ● Resize them without losing quality. ● Change fill color and opacity. Isn’t that nice? :) Examples:
- 36.
