This document provides information on the M25 modular shelving system from CAEM Shelving Engineering. It is a shelving system based on 25mm upright slots designed for food and non-food retail environments. The document outlines the various components of the M25 system including uprights, bases, back panels, shelves, and brackets that provide modularity and compatibility. Dimensions and load capacities are provided for the different components.

1. CONCEPT
M25

2. CAEM-Magrini S.p.A.
Via Volta 10
52010 Subbiano (AR), ITALY
T. +39 0575 42801
F +39 0575 428080
information@caem.it - www.caem.net
CAEM Shelving Engineering is a global
company for manufacturing and services
related to the shopfitting industry.
The M25 System is the modular shelving
system based on 25mm uprights slots. It is
designed and developed for food and non
food retail environments.
CAEM Shelving Engineering est un groupe
mondial fournisseur de solutions pour
l’Industrie de l’Agencement de magasins.
Le système M25 est un système de
rayonnage modulaire avec des montants
au pas de 25 mm conçu pour la Grande
Distribution Food et Non Food.
CAEM è azienda leader nella produzione di
scaffalature per arredamento negozi.
Il sistema M25 è basato su montante
asolato a passo 25mm,con schienale
tradizionale e centrale, pensato per la media
e grande distribuzione Food e Non Food.
AUSTRALIA
UNITED KINGDOM
ITALY
M25
Pictures
Photos
Foto
ITALY - Subbiano (AR)
UK - Stoke On Trent
UAE - Sharjah
AUSTRALIA - Perth
INDIA - Nagpur
CHINA - Shanghai
USA - Los Angeles
MEXICO

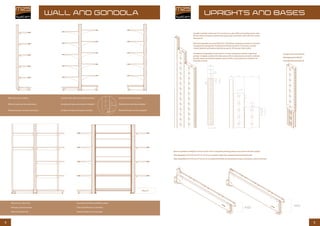

3. 54
Wall Unit with Low Base. Gondola Unit with Low and Normal Base. Wall Unit with Normal Base.
4Post Front, 4Post Top Gondola Ends With and Without Base
Tête de gondole avec ou sans base
Testata Gondola con e senza base
PALLET
Elément mural avec base extra basse Gondole avec bases extra basse et standard Elément mural avec base standard
Mini rack, mini rack avancé
Elemento murale con basse extra bassa Gondola con base extra bassa e standard Elemento Murale con base standard
4Post Front,4Post Top
Upright available in 8x3 and 11x3 sections to cater different loading needs, with
25mm slots for brackets and frontal back panels and 50mm side-slots for central
back panels
Base is available in Height H=10cm and H=15cm and patent pending unique connection with the upright
Base disponible en H=10 cm et H=15 cm avec un système unique de connexion base/montant breveté
Base disponibile in H=10 cm e H=15cm con un sistema brevettato di connessione tra base e montante, unico nel mercato
H10
H15
Montant disponible en section 80x30 et 110x30 pour répondre au besoin en cap acité
en capacité de chargement. Perforations frontales au pas de 25 mm pour consoles
et fond standard, perforations latérales au pas de 50 mm pour fond central
Il montante è disponibile in sezioni 8x3 e 11x3 per rispondere a diverse esigenze di
portata. La doppia asolatura frontale a passo 25mm è pensata per mensole e schienali
frontali, mentre la asolatura laterale a passo 50mm è necessaria per le soluzioni con
schienale centrale
Upright Extension 80x30
Rallongemontant 80x30
Prolunga Montante 80x30
WALL AND GONDOLA UPRIGHTS AND BASES

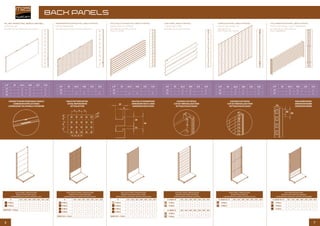

4. 76
CONNECTION BETWEEN BACK PANELS
CONNEXION ENTRE LES FONDS
CONNESSIONE TRA PANNELLI POSTERIORI
HOLES PATTERN DETAIL
DETAIL PERFORATIONS
DETTAGLIO FORI
MULTISLAT DIMENSIONS
DIMENSIONS MULTI LAMES
DIMENSIONI MULTILAMA
LOCKING CLIP DETAIL
CLIP DE VERROUILLAGE FOND
DETTAGLIO BLOCCAGGIO
LOCKING CLIP DETAIL
CLIP DE VERROUILLAGE FOND
DETTAGLIO BLOCCAGGIO
BAR DIMENSIONS
DIMENSIONS BARRE
DIMENSIONI BARRE
PLAIN FRONTAL BACK PANEL PERFORATED FRONTAL BACK PANEL MULTISLAT FRONTAL BACK PANEL CENTRAL BACK PANEL WIRE CENTRAL BACK PANEL MULTIBAR CENTRAL BACK PANE
FOND PLEIN FOND PERFORE FOND MULTI LAMES FOND CENTRAL FOND CENTRAL FIL FOND CENTRAL MULTI BARRES
SCHIENALE FRONTALE LISCIO SCHIENALE FRONTALE FORATO SCHIENALE FRONTALE
MULTILAMA
SCHIENALE CENTRALE SCHIENALE
CENTRALE IN FILO
SCHIENALE CENTRALE
MULTIBARRA
BACK PANELS
L/P 50 66,5 100 125 133
10 - ✓ ✓ - ✓
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - - - - -
40 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
60 - ✓ ✓ - ✓
80 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - - - - -
40 - ✓ ✓ - ✓
39
9
12
38
50
50
30
15
PLAIN PANELS BREAKDOWN
REPARTITION FONDS PLEINS
COMPOSIZIONE SCHIENALI FRONTALI LISCI
H 143 163 183 203 223 243 263
H 40cm 1 3 2 4 3 5 4
H 30cm 3 1 3 1 3 1 3
CENTRAL PANELS BREAKDOWN
REPARTITION FONDS CENTRAUX
COMPOSIZIONE SCHIENALI CENTRALI
H / BASE 10 143 163 183 203 223 243 263
H 40cm 2 4 3 5 4 6 5
H 30cm 2 0 2 0 2 0 2
WIRE PANELS BREAKDOWN
REPARTITION FONDS FIL
COMPOSIZIONE SCHIENALI CENTRALI IN FILO
H / BASE 10; 15 143 163 183 203 223 243 263
H 60cm 1 0 3 2 1 0 3
H 80cm 1 2 0 1 2 3 1
MULTIBAR BREAKDOWN
REPARTITION FONDS MULTIBARRES
COMPOSIZIONE SCHIENALI CENTRALI MULTIBARRA
H / BASE 10; 15 143 163 183 203 223 243 263
H 40cm 3 3 4 4 5 5 6
H 30cm 0 1 0 1 0 1 0
H 10cm 1 0 1 0 1 0 1
H / BASE 15 143 163 183 203 223 243 263
H 40cm 1 3 2 4 3 5 4
H 30cm 3 1 3 1 3 1 3
PERFORATED PANELS BREAKDOWN
REPARTITION FONDS PERFORES
COMPOSIZIONE SCHIENALI FRONTALI FORATI
H 143 163 183 203 223 243 263
H 40cm 3 3 4 4 5 5 5
H 40cm 0 0 0 0 0 0 1
H 30cm 0 1 0 1 0 1 0
H 10cm 1 0 1 0 1 0 1
MULTISLAT PANELS BREAKDOWN
REPARTITION FONDS MULTI LAMES
COMPOSIZIONE SCHIENALI FRONTALI MULTILAMA
H 143 163 183 203 223 243 263
H 40cm 3 3 4 4 5 5 5
H 40cm 0 0 0 0 0 0 1
H 30cm 0 1 0 1 0 1 0
H 10cm 1 0 1 0 1 0 1
BASE H10 H 6cm 1 1 1 1 1 1 1
BASE H10 H 6cm 1 1 1 1 1 1 1 BASE H10 H 6cm 1 1 1 1 1 1 1
12,5

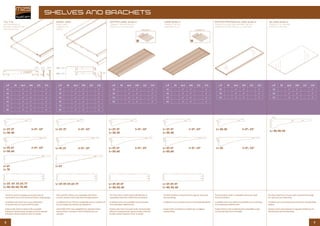

5. 98
S50 and S25C shelves are compatible with 50mm
systems’ shelves and accept their dividing systems
The Extra shelf is available perforated and not
perforated, has no U channels and hosts a hinging epos
The ‘Extra Wire’ shelf is build with Wire but is
compatible with Extra shelf front and dividers
The Wire Shelf has a lowered front edge for improved
merchandising
The Extra Glass shelf is compatible with Extra shelf
front and dividers
The Glass Shelf has no frame with a lowered front edge
for improved merchandising
La tablette extra verre métal est compatible avec les frontaux
et les séparateurs tablette extra
La tablette verre a une épaisseur de 8 mm pour merchandising
optimal
Il piano in vetro senza telaio ha un ingombro minimo per un’
ottimizzazione del merchandising
Il piano Extra in vetro su telaio forato è compatibile con gli
accessori del piano Extra in metallo.
La tablette l a un ord amainci pour un merchandising optimal
Il piano in filo con anteriore in tondino per un migliore
merchandising
La tablette extra l est compatible avec les frontaux
et les séparateurs tablette extra
Il piano in filo ‘Extra’ è un piano in filo che ha il profilo
anteriore in lamiera forato, questo accetta i sistemi di
frontali e divisori del piano ‘Extra’ in metallo
S25C, S50
SHELVES
TABLETTE
PIANO
‘EXTRA WIRE’ SHELF
TABLETTE EXTRA FIL
PIANO IN FILO ‘EXTRA’
VERSION A VERSION A
WIRE SHELF
TABLETTE FIL
PIANO IN FILO
EXTRA FRAMED GLASS SHELF
TABLETTE EXTRA VERRE METAL
PIANO ‘EXTRA’ METALLO VETRO
GLASS SHELF
TABLETTE VERRE
PIANO IN VETRO
Les tablettes S25 et S50 sont compatibles avec les systèmes 50
mm et acceptent les systèmes de séparateurs
La tablette extra existe avec ou sans perforation,
n’a pas de canal U et reçoit un PE basculant.
I piani S50 e S25C sono compatibili con i piani dei sistemi
a passo 50mm e accettano i sistemi di divisori per essi
concepiti
Il piano in filo ‘Extra’ è il piano in filo con profilo
anteriore in lamiera forato, dunque accetta le soluzioni
di frontali e divisori del piano ‘Extra’ in metallo
L= 47; 57L= 47; 57
L= 50; 60
L= 47; 57
L= 50; 60
L= 47; 57
L= 50; 60
L= 50
L= 30; 40; 50
L= 67L= 67
L= 70
I= 0°; -15° I= 0°; -15° I= 0°; -15° I= 0°; -15°I= 0°; -15°
I= 0°; -15° I= 0°; -15° I= 0°; -15° I= 0°; -15°I= 0°; -15°L= 27; 37L= 27; 37
L= 30; 40
L= 27; 37
L= 30; 40
L= 27; 37
L= 30; 40
L= 30; 40
L= 37; 47; 57; 67; 77L= 37; 47; 57; 67; 77
L= 40; 50; 60; 70; 80
L= 37; 47; 57
L= 40; 50; 60
L= 37; 47; 57
L= 40; 50; 60
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
50 - ✓ ✓ - ✓
60 - ✓ ✓ - ✓
70 - ✓ ✓ - ✓
80 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
50 - ✓ ✓ - ✓
60 - ✓ ✓ - ✓
70 - ✓ ✓ - ✓
80 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
50 - ✓ ✓ - ✓
60 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
50 - ✓ ✓ - ✓
60 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
50 - ✓ ✓ - ✓
L/P 50 66,5 100 125 133
30 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
50 - ✓ ✓ - ✓
SHELVES AND BRACKETS
T14, T13
EXTRA SHELF
EXTRA TABLETTE
PIANO EXTRA
H25 H32 H40
H40
S25 - H22
S50 - H32

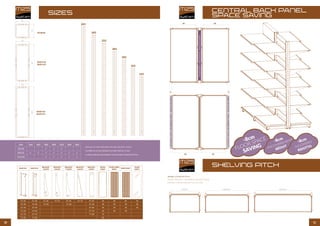

6. 1110
SIZES CENTRAL BACK PANEL
SPACE SAVING
SHELVING PITCH
263
243
223
203
183
163
143
S/H 143 163 183 203 223 243 263
30x30 - - ✓ ✓ ✓ - -
80x30 ✓ ✓ ✓ ✓ ✓ ✓ ✓
110x30 - - ✓ ✓ ✓ ✓ ✓
Sizes are in cm for indication only, the real size is -0,5cm
SHELVING PITCH
50
50
50
50
4 4
665mm 1000mm 1330mm
DIMENSIONS LINEAIRES RAYONNAGE
PASSI LINEARI SCAFFALATURE
Les tailles en cm sont indicatives, la taille réelle est -0,5cm
Le misure indicate sono nominali, la misura reale è inferiore di 0.5cm
BASE H15 BASE H10
BRACKET
3 SLOTS
BRACKET
4 SLOTS
BRACKET
5 SLOTS
BRACKET
6 SLOTS
BRACKET
4 POST
METAL
SHELF
EXTRA WIRE
SHELF
WIRE SHELF
GLASS
SHELF
27; 30 27; 30 27; 30 47; 50 47; 50 67; 70 37; 40 30 30 30 30
37; 40 37; 40 37; 40 57; 60 47; 50 40 40 40 40
47; 50 47; 50 57; 60 50 50 50 50
57; 60 57; 60 67; 70 60 60 60
67; 70 67; 70 77; 80 70
77; 80 77; 80 80
BASE H10
BASE H15
BASE H10
BASE H15
NO BASE3080110
30
30
30
FLOORSPACESAVING-EMCOMBREMENTRÉDUIT-RIDUZIONEINGOMBRO
FLOORSPACESAVING-EMCOMBREMENTRÉDUIT-RIDUZIONEINGOMBRO
UNUSEDSPACE-SPACEINUTILISE-SPAZIOINUTLIZZATO
-8cm
FLOOR SPACE
SAVING
-8cm
ENCOMBREMENT
RÉDUIT
-8cm
INGOMBRO
RIDOTTO

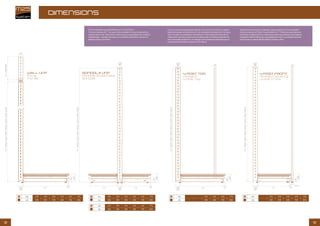

7. 1312
DIMENSIONS
GONDOLA UNIT
Gondole double face
Gondola
4 POST TOP
MiniRack
4 Post Top
4 POST FRONT
MiniRack Advance
4 Post Front
WALL UNIT
Mural
Murale
140
140
140
140
90
90
90
90
19 19 19
33,5
19110
80
110
80
110
80
110
80
110
80
30
H=1425;1625;1825;2025;2225;2425;2625
H=1425;1625;1825;2025;2225;2425;2625
H=1425;1625;1825;2025;2225;2425;2625
H=1425;1625;1825;2025;2225;2425;2625
H=200;400
L b L b L b L bL a
L b 270 370 470 570 670 770
L b 308 408 508 608 708 808
L b - - 470 570 670 770
L b - - 508 608 708 808
L b - 370 470 570 670 770
L b - 408 508 608 708 808
L a 270 370 470 570 670 770
L a 308 408 508 608 708 808
L b 270 370 470 570 670 770
L b 308 408 508 608 708 808
80
110
80
110
80 30
The threaded feet are adjustable from 15mm to 50mm.
The sizes ending with ‘7’ are specifically available for central back panels
configurations only. They deliver a floor space saving of 80mm for a double
sided gondola. Upright extensions are available in 80x30mm sections in
heights of 20cm and 40cm.
Les vérins en acier ont une hauteur mini de 15 mm et maxi de 50 mm. La hauteur
réelle des montants est inférieure de 5 mm à la hauteur nominale soit H=163 pour
162,5 cm réels. Les profondeurs terminant par 7 sont uniquement réservées au
congurations avec fond central, soit une réductionde l’encombrement de 60 mm
pour une gondole double face. Les rallonges sont uniquement disponibles pour le
montant section 80x30 et existent en 20 et 40 cm.
I piedini in acciaio hanno un’ ingombro in altezza minimo di 15mm regolabili
fino ad un massimo di 50mm. Le profondità con il ‘7’ finale sono espressamente
previste per configurazioni con schienale centrale che permettono una riduzione
d’ingombro totale di 80mm per ogni gondola bi-facciale. Le prolunghe montanti
sono previste in sezione 80x30 e altezze di 20cm e 40cm

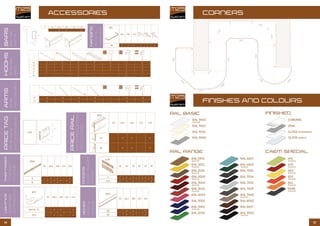

8. 1514
L
20 -✓ ✓ ✓ ✓ ✓ ✓ ✓
30 ✓ ✓ ✓ ✓ ✓ ✓ ✓
40 ✓ ✓ ✓ ✓ ✓ ✓ ✓
50 ✓ - ✓ - - ✓ ✓
60 - - ✓ - - ✓ -
L -
40 -✓ ✓ ✓ ✓ - ✓ ✓
50 ✓ ✓ ✓ ✓ - ✓ ✓
L/H
50 66,5 100 125 133
32 - ✓ ✓ - ✓
40 - ✓ ✓ - ✓
P/T
50 66,5 100 125 133
NEON - T5 - ✓ ✓ - ✓
LED - ✓ ✓ - ✓
P/H
50 66,5 100 125 133
3 - ✓ ✓ - ✓
6 - ✓ ✓ - ✓
P/H
50 66,5 100 125 133
10 - ✓ ✓ - ✓
15 - ✓ ✓ - ✓
30 40 50 60 70 80
6 ✓ ✓ ✓ ✓ ✓ ✓
14/6 ✓ ✓ ✓ ✓ ✓ ✓
ACCESSORIES
BARS
Barres
Barre
HOOKS
Broches
Ganci
ARMS
Bras
Perroquets
FRONTRISER
Fronton
Frontali
KICKER
Plinthe
Zoccoli
LIGHTNING
Eclairage
Illuminazione
DIVIDERS
Separateurs
Divisori
PRICETAG
PEBroche
Portacartellino
PRICERAIL
Porteétiquettes
Portaprezzi
CORNERS
FINISHES AND COLOURS
RAL BASIC
RAL RANGE CAEM SPECIAL
FINISHED
RAL 9003
Textured
RAL 1021
Textured
RAL 3000
Textured
435
Textured
RAL 9001
RAL 5005
Textured
RAL 9005
Textured
RAL 9010
RAL 9006
RAL 6029
Textured
FERR
Textured
ZINK.
GLASS TRANSPARENT
GLASS OPAQUE
835
Textured
861
Textured
RAL 4003
RAL 5002
441
Textured
CHROME.
463
Textured
RAL 0955
Textured
RAL 6027
RAL 3033
Textured
RAL 1035
Textured
RAL 7048
Textured
RAL 3004
Textured
RAL 6018
RAL 7035
RAL 7016
RAL 8002
RAL 7010
RAL 7039
RAL 8017
P 50 66,5 100 125 133
- ✓ ✓ - ✓
30
15
H=4
L= 7,5
L/H
P/H
66,5 100 133
30 ✓ ✓ ✓ ✓ ✓ ✓
HANGING
Penderie
Appenderie
P/L
100
133
A
AT
AAI
AAI
100
66,5
100
A
A
A
AER
ATR
ATR

9. VERSATILITY
CUSTOM DESIGN
RESISTANCE
CUSTOMER CARE
www.caem.net
CAEM-Magrini S.p.A.
Via Volta 10
52010 Subbiano (AR), ITALY
T. +39 0575 42801
F +39 0575 428080
www.caem.net
GraphicsandDTP-Keyidea.it
MarketingCommunication-Keylearning.it
