The document describes an LPR (license plate recognition) system developed by Doron Technologies. The system uses IR cameras to capture license plate images and software to extract the plate characters. It can identify authorized vehicles in a database and open gates for access control. The system includes LPR cameras, a controller, and software for database management, transaction reporting, and configuration. It provides day and night license plate recognition for vehicle access applications.

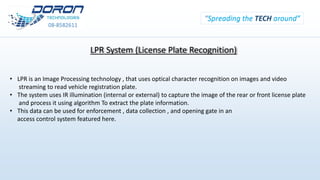

1. LPR System (License Plate Recognition)
08-8582611
“Spreading the TECH around”
• LPR is an Image Processing technology , that uses optical character recognition on images and video
streaming to read vehicle registration plate.
• The system uses IR illumination (internal or external) to capture the image of the rear or front license plate
and process it using algorithm To extract the plate information.
• This data can be used for enforcement , data collection , and opening gate in an
access control system featured here.

2. “Spreading the TECH around”
Doron Technologies LPR system – ViewPark
08-8582611
• The system was developed in Israel by Doron Technologies.
• Live streaming and image capturing abilities.
• Real time video processing at 1280X960 resolution and 25fps rate.
• Multi thread video processing for maximum performance.
• Database management (subscribers , companies , etc )
• Gate status information (open , closed)
• Report generator for subscribers activity.
• Guest reservations by web access.
• “Tailor made” solution for special needs or configurations.

3. System Operation Flow
“Spreading the TECH around”
08-8582611
• Vehicle approaches the gate , The LPR camera
captures the license plate
• Captured Plate Information is sent to the PRC controller
For analyzing and plate information extraction.
• Plate information is searched in ParkView database
for approval.
If found – “Open Gate” command is sent to the gate.
• Gate opens only for authorized members
found in database.

4. System Components
“Spreading the TECH around”
08-8582611
LPR Camera – VHC-201
• 2MP(1920*1080/25fps) IR Bullet camera
1/2.9" Progressive Scan CMOS （Sony）
Super Low Illumination
• H.264 high,mid,low profile or mjpeg encoding ,dual stream
• ICR dual filtering cut
• Built-in surge protection, lighting protection
• 4pcs array IR leds 30m IR night vision
• Megapixel 2.8-12mm varifocal lens
• DC 12V power supply / POE
• alarm in/out

5. System Components
“Spreading the TECH around”
08-8582611
PRC-2 Controller (2 lanes max)
• 5th generation Intel® Core™ i5 Processor
• 2X LAN RJ-45
• WLAN 802.11ac (2.4/5GHz dual band Intel 7260HMW)
• 4x USB 3.0
• 2x USB 2.0
• Power Consumption 6w-24w
• 8gb Ram memory
• 128SSD HDD

6. “Spreading the TECH around”
08-8582611
ViewPark Login Screen

7. “Spreading the TECH around”
08-8582611
Authorized Members List

8. “Spreading the TECH around”
08-8582611
History Transactions Search

9. “Spreading the TECH around”
08-8582611
LPR Configuration Module

10. “Spreading the TECH around”
08-8582611
LPR Configuration Module

11. “Spreading the TECH around”
08-8582611
Entry Lane Capture

12. “Spreading the TECH around”
08-8582611
Entry Lane Capture

13. “Spreading the TECH around”
08-8582611
Exit Lane Capture

14. “Spreading the TECH around”
08-8582611
Exit Lane Capture

15. “Spreading the TECH around”
08-8582611
Night Entry Capture

16. “Spreading the TECH around”
08-8582611
Night Entry Capture

17. “Spreading the TECH around”
08-8582611
Night Exit Capture

18. “Spreading the TECH around”
08-8582611
Night Exit Capture
