1. Low Level Hookup
By - Ankush Asthana

2. Agenda
 Definition
 Windows Library
 Flowchart
 Implementation with an example

3. Definition
 A low level hook-up is a point in the system’s message-handling mechanism where an
application can install a subroutine.
 Reason for low level hooking are:-
 To monitor the message traffic in the system.
 To process certain types of messages before they reach the target Windows procedure.

4. Windows Library
 For the keyboard and mouse hook-up we have to make use of the following
Microsoft windows library:-
 user32.dll is a module that contains Windows API functions related the
Windows user interface (Window handling, basic UI functions, and so forth).
The methods we are going to user are as follows:-
 SetWindowsHookEx
 UnhookWindowsHookEx
 CallNextHookEx
 GetForegroundWindow
 GetWindowThreadProcessId
 kernel32.dll exposes to applications most of the Win32 base APIs, such as
memory management, input/output operations, (process and thread)
creation, and synchronization functions.
 GetModuleHandle

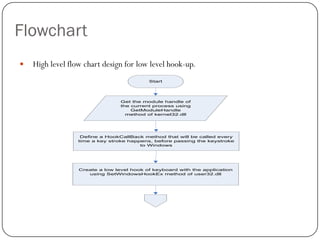

5. Flowchart
 High level flow chart design for low level hook-up.
Start
Get the module handle of
the current process using
GetModuleHandle
method of kernel32.dll
Define a HookCallBack method that will be called every
time a key stroke happens, before passing the keystroke
to Windows
Create a low level hook of keyboard with the application
using SetWindowsHookEx method of user32.dll

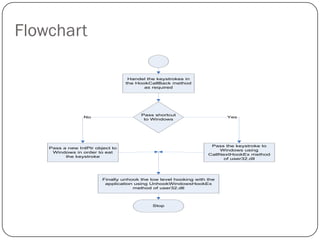

6. Flowchart
Handel the keystrokes in
the HookCallBack method
as required
Pass shortcut
No Yes
to Windows
Pass the keystroke to
Pass a new IntPtr object to
Windows using
Windows in order to eat
CallNextHookEx method
the keystroke
of user32.dll
Finally unhook the low level hooking with the
application using UnhookWindowsHookEx
method of user32.dll
Stop

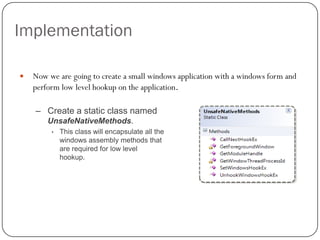

7. Implementation
 Now we are going to create a small windows application with a windows form and
perform low level hookup on the application.
– Create a static class named
UnsafeNativeMethods.
• This class will encapsulate all the
windows assembly methods that
are required for low level
hookup.

8. Implementation (Cont…)
– Create another static class named
Shortcuts.
• This class will have the list of all the keystrokes
(shortcuts) that has to be handled in the
application using low level hookup.
• It exposes InitializeShortcuts() method that will be
used to initialize the list of shortcut.
– Create an Enum named
ShortcutOperationName.
• This enum will contain the name of the handlers
(methods) in the form which will be called on a
given shortcut.

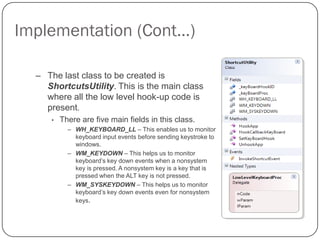

9. Implementation (Cont…)
– The last class to be created is
ShortcutsUtility. This is the main class
where all the low level hook-up code is
present.
• There are five main fields in this class.
– WH_KEYBOARD_LL – This enables us to monitor
keyboard input events before sending keystroke to
windows.
– WM_KEYDOWN – This helps us to monitor
keyboard’s key down events when a nonsystem
key is pressed. A nonsystem key is a key that is
pressed when the ALT key is not pressed.
– WM_SYSKEYDOWN – This helps us to monitor
keyboard’s key down events even for nonsystem
keys.

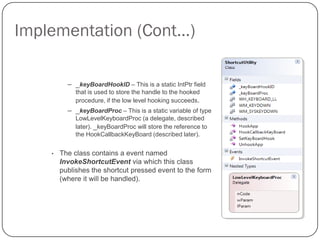

10. Implementation (Cont…)
– _keyBoardHookID – This is a static IntPtr field
that is used to store the handle to the hooked
procedure, if the low level hooking succeeds.
– _keyBoardProc – This is a static variable of type
LowLevelKeyboardProc (a delegate, described
later). _keyBoardProc will store the reference to
the HookCallbackKeyBoard (described later).
• The class contains a event named
InvokeShortcutEvent via which this class
publishes the shortcut pressed event to the form
(where it will be handled).

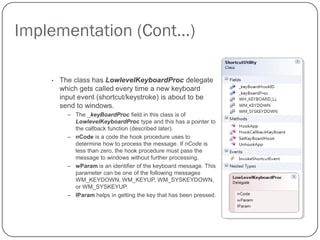

11. Implementation (Cont…)
• The class has LowlevelKeyboardProc delegate
which gets called every time a new keyboard
input event (shortcut/keystroke) is about to be
send to windows.
– The _keyBoardProc field in this class is of
LowlevelKeyboardProc type and this has a pointer to
the callback function (described later).
– nCode is a code the hook procedure uses to
determine how to process the message. If nCode is
less than zero, the hook procedure must pass the
message to windows without further processing.
– wParam is an identifier of the keyboard message. This
parameter can be one of the following messages
WM_KEYDOWN, WM_KEYUP, WM_SYSKEYDOWN,
or WM_SYSKEYUP.
– lParam helps in getting the key that has been pressed.

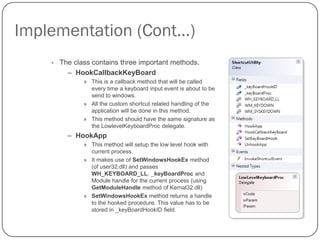

12. Implementation (Cont…)
• The class contains three important methods.
– HookCallbackKeyBoard
» This is a callback method that will be called
every time a keyboard input event is about to be
send to windows.
» All the custom shortcut related handling of the
application will be done in this method.
» This method should have the same signature as
the LowlevelKeyboardProc delegate.
– HookApp
» This method will setup the low level hook with
current process.
» It makes use of SetWindowsHookEx method
(of user32.dll) and passes
WH_KEYBOARD_LL, _keyBoardProc and
Module handle for the current process (using
GetModuleHandle method of Kernal32.dll)
» SetWindowsHookEx method returns a handle
to the hooked procedure. This value has to be
stored in _keyBoardHookID field.

13. Implementation (Cont…)
– UnhookApp
» This method will remove the low level hooking with current process.
» It makes use of UnhookWindowsHookEx method (of user32.dll), for removing
the hooking and passes _keyBoardHookID as parameter to the method.
– To setup the hookup in our application.
• Goto Program file and in main() method call HookApp
method before launching the main form.
• After launching the main form call UnhookApp
method of ShortcutUtility.

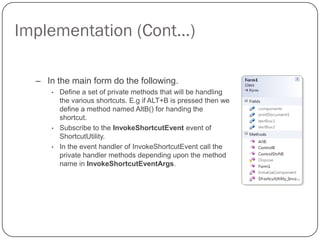

14. Implementation (Cont…)
– In the main form do the following.
• Define a set of private methods that will be handling
the various shortcuts. E.g if ALT+B is pressed then we
define a method named AltB() for handing the
shortcut.
• Subscribe to the InvokeShortcutEvent event of
ShortcutUtility.
• In the event handler of InvokeShortcutEvent call the
private handler methods depending upon the method
name in InvokeShortcutEventArgs.

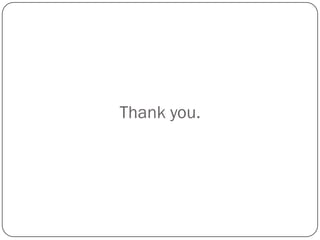

15. Thank you.
