1. LoRa interference
Mina Yonan
m.yonan@aucegypt.edu

2. LoRa Symbol Generation
LoRa Modulation Main Parameters :
• Spreading Factor (7- 12)
• The minimal and maximal frequency (𝑓 𝑚𝑖𝑛, 𝑓𝑚𝑎𝑥)
• Scalable Bandwidth 𝐵 = 125, 250, 500 𝑘𝐻𝑧
• Starting frequency 𝑓𝑖𝑛𝑖𝑡𝑖𝑎𝑙
𝑐ℎ𝑖𝑝 𝑟𝑎𝑡𝑒 𝑅 𝑐 = 𝐵
𝑁𝑜. 𝑜𝑓 𝑆𝑡𝑎𝑟𝑡𝑖𝑛𝑔 𝑝𝑜𝑖𝑛𝑡𝑠 =
𝐵
𝑁𝑜. 𝑜𝑓 𝑠𝑦𝑚𝑏𝑜𝑙𝑠
=
𝐵
2 𝑆𝐹
𝑓𝑖𝑛𝑖𝑡𝑖𝑎𝑙 = 𝑓 𝑚𝑖𝑛 + 𝑛
𝐵
2 𝑆𝐹

3. LoRa Symbol Generation
𝑠𝑦𝑚𝑏𝑜𝑙 𝑟𝑎𝑡𝑒 (𝑅 𝑠) = 𝑅 𝑐 ∗ 2 𝑆𝐹 =
2 𝑆𝐹
𝐵
𝐵𝑖𝑡 𝑟𝑎𝑡𝑒 𝑅 𝑏 = 𝑅 𝑠 ∗ 𝑆𝐹 = 𝑆𝐹 ∗
2 𝑆𝐹
𝐵
𝑓(𝑡) = ቊ
𝑓𝑚𝑎𝑥+𝑚(𝑡 − 𝑛𝑇𝑐) 𝑖𝑓 𝑛𝑇𝑐 > 𝑡 ≥ 0
𝑓 𝑚𝑖𝑛 + 𝑚(𝑡 − 𝑛𝑇𝑐) 𝑖𝑓 𝑇𝑠 > 𝑡 ≥ 𝑛𝑇𝑐
𝑚 (𝑠𝑙𝑜𝑝𝑒) = 𝑓𝑚𝑎𝑥 − 𝑓 𝑚𝑖𝑛/𝑇𝑠

4. LoRa Symbol Generation

5. LoRa Interference
Co-SF and inter-SF Interference
• The same or different SFs can overlap in time and
frequency.
• The demodulator output can be indistinct depending on
the isolation threshold and the processing gain of the SFs.
• The SIR of the desired signal is above the isolation
threshold
• Each element 𝛿𝑖𝑗 [dB] in ∆ is the SIR margin that a packet
sent at 𝑆𝐹𝑖 must have in order to be decoded correctly if
the colliding packet is sent at 𝑆𝐹𝑗.

6. LoRa Interference
Co-SF and inter-SF Interference
• Each element 𝛿𝑖𝑗 [dB] in ∆ is the SIR margin that a packet
sent at 𝑆𝐹𝑖 must have in order to be decoded correctly if
the colliding packet is sent at 𝑆𝐹𝑗.

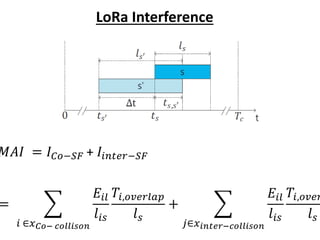

8. LoRa Interference
𝑀𝐴𝐼 = 𝐼 𝐶𝑜−𝑆𝐹 + 𝐼𝑖𝑛𝑡𝑒𝑟−𝑆𝐹
= ෍
𝑖 ∈𝑥 𝐶𝑜− 𝑐𝑜𝑙𝑙𝑖𝑠𝑜𝑛
𝐸𝑖𝑙
𝑙𝑖𝑠
𝑇𝑖,𝑜𝑣𝑒𝑟𝑙𝑎𝑝
𝑙 𝑠
+ ෍
𝑗∈𝑥 𝑖𝑛𝑡𝑒𝑟−𝑐𝑜𝑙𝑙𝑖𝑠𝑜𝑛
𝐸𝑖𝑙
𝑙𝑖𝑠
𝑇𝑖,𝑜𝑣𝑒𝑟
𝑙 𝑠
