The document introduces Lockwood homes and provides information about their plans. It highlights that the planbook contains 22 home plans ranging from traditional to modern designs. Homeowners can choose a preexisting plan or work with designers to customize a plan to their lifestyle. Lockwood prides itself on helping people transform their home visions into high quality, enduring homes for over 55 years in New Zealand and other countries. Their homes are built for strength and durability.

2. A Lockwood home will
delight your senses

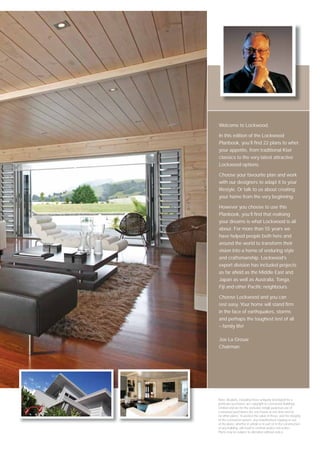

3. Welcome to Lockwood.
In this edition of the Lockwood
Planbook, you’ll find 22 plans to whet
your appetite, from traditional Kiwi
classics to the very latest attractive
Lockwood options.
Choose your favourite plan and work
with our designers to adapt it to your
lifestyle. Or talk to us about creating
your home from the very beginning.
However you choose to use this
Planbook, you’ll find that realising
your dreams is what Lockwood is all
about. For more than 55 years we
have helped people both here and
around the world to transform their
vision into a home of enduring style
and craftsmanship. Lockwood’s
export division has included projects
as far afield as the Middle East and
Japan as well as Australia, Tonga,
Fiji and other Pacific neighbours.
Choose Lockwood and you can
rest easy. Your home will stand firm
in the face of earthquakes, storms
and perhaps the toughest test of all
– family life!
Joe La Grouw
Chairman
Note: All plans, including those uniquely developed for a
particular purchaser, are copyright to Lockwood Buildings
Limited and are for the exclusive (single purpose) use of
Lockwood purchasers (for one house at one time and for
no other plans). To protect the value of these, and the integrity
of the Lockwood system, any unauthorised copying or use
of the plans, whether in whole or in part or in the construction
of any building, will result in criminal and/or civil action.
Plans may be subject to alteration without notice.

4. solid, secure, natural
External cladding Strength for earthquake Warm in winter, cool
options. and wind protection. in summer.
VG pine weatherboard Superwall®
Walls are locked together - not nailed
Eco friendly Solid timber cavity construction
Engineered aluminium locking profiles
Stable and durable Thermally efficient exterior
Vertical tie rods in walls for strength
Aluminium weatherboard Resistance to earthquakes and winds Foam insulation barrier
No frequent painting required Flexible insulation properties Double the insulation
Easy to clean and maintain Ideal for very hot or cold climates
Lockwood’s new quartersawn pine Lockwood’s walls are locked together, The new Lockwood Superwall cavity
weatherboards offer greater stability and not just nailed together. Our intricately system povides the ultimate in insulation.
durability than ever before. Their unique engineered aluminium profiles slot into With an R value of 3.7, it is almost double
laminated ‘vertical grain’ composition the machined corners of laminated pine, the legal requirement and the perfect
means superior resistance to water so locking the wood into position. option for those trying to achieve a
changes in humidity don’t cause the This patented system, combined with near zero heating energy use. Between
same degree of expansion as normal the use of vertical tie rods in the walls, the solid walls lies the 90 mm cavity
‘flat grain’ pine weatherboards. Yet all has proven resistant to earthquakes and which provides more benefits than
the environmental advantages of being a cyclones all over the world, and have just insulation, it is also a great way to
low carbon, renewable building resource emerged from 22 simulated earthquakes conceal wall stiffening posts and lintels,
remain intact. And, of course, Lockwood’s of up to 7.0 on the Richter scale with and streamlining the internal lines in the
renowned low maintenance aluminium barely a scratch. Even glass remained house even further. But that’s not all; it
sheathed weatherboards are still available intact and windows opened freely. By dramatically improves the acoustic rating
too. With either option you get the kiln-drying our timber, twisting, warping and makes a marked difference
beauty and warmth of pine interior panels and shrinking is reduced. in the external noise perceived inside
available in choice of finishes. the house.

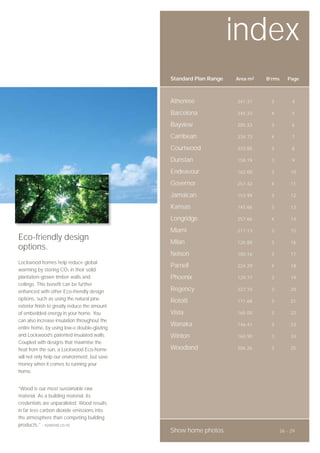

5. index
Standard Plan Range Area m2 B’rms Page
Athenree 241.31 3 4
Barcelona 245.33 4 5
Bayview 205.33 3 6
Carribean 234.73 4 7
Courtwood 233.85 3 8
Dunstan 158.19 3 9
Endeavour 162.00 3 10
Governor 257.42 4 11
Jamaican 153.99 3 12
Kansas 145.86 3 13
Longridge 257.66 4 14
Miami 217.13 3 15
Eco-friendly design Milan 126.88 3 16
options.
Nelson 100.16 3 17
Lockwood homes help reduce global
Parnell 224.29 4 18
warming by storing CO2 in their solid
plantation-grown timber walls and Phoenix 129.77 3 19
ceilings. This benefit can be further
enhanced with other Eco-friendly design Regency 227.10 3 20
options, such as using the natural pine Rotoiti 171.68 3 21
exterior finish to greatly reduce the amount
of embedded energy in your home. You Vista 165.00 3 22
can also increase insulation throughout the

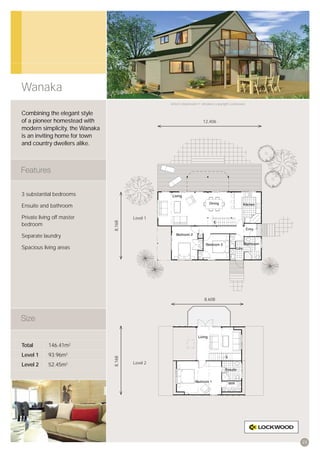

Wanaka 146.41 3 23
entire home, by using low-e double-glazing
and Lockwood’s patented insulated walls. Winton 160.90 3 24
Coupled with designs that maximise the
heat from the sun, a Lockwood Eco-home Woodland 206.26 3 25
will not only help our environment, but save
money when it comes to running your
home.
“Wood is our most sustainable raw
material. As a building material, its
credentials are unparalleled. Wood results
in far less carbon dioxide emissions into
the atmosphere than competing building
products.” - nzwood.co.nz
Show home photos 26 - 29

6. Athenree
Artist’s impression © All plans copyright Lockwood.
A spacious three bedroom
home with imaginative flow 20,388
and ideal dimensions for
restricted urban sites.
Level 1
3 spacious bedrooms
Ensuite off master bedroom
16,880
Centrally-placed kitchen with
open access to two living
and dining room areas
Covered decks off
each living
Separate toilet
12,582
Total 241.31m2 Level 2
Level 1 185.24m2
Level 2 56.07m2
7,032
04

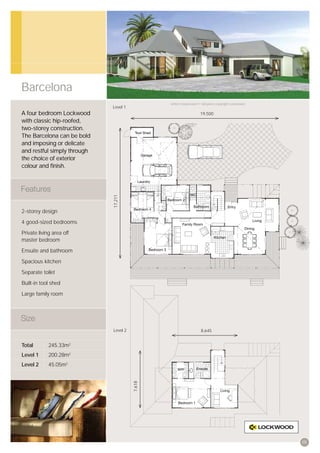

7. Barcelona
Artist’s impression © All plans copyright Lockwood.
Level 1
A four bedroom Lockwood 19,500
with classic hip-roofed,
two-storey construction.
The Barcelona can be bold
and imposing or delicate
and restful simply through
the choice of exterior
colour and finish.
17,211
2-storey design
4 good-sized bedrooms
Private living area off
master bedroom
Ensuite and bathroom
Spacious kitchen
Separate toilet
Built-in tool shed
Large family room
Level 2 8,645
Total 245.33m2
Level 1 200.28m2
Level 2 45.05m2
7,618
05

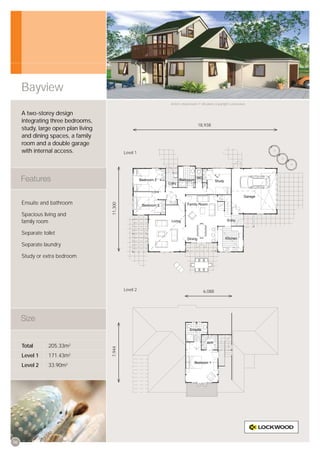

8. Bayview
Artist’s impression © All plans copyright Lockwood.
A two-storey design
integrating three bedrooms,
18,938
study, large open plan living
and dining spaces, a family
room and a double garage
with internal access. Level 1
Ensuite and bathroom
11,300
Spacious living and
family room
Separate toilet
Separate laundry
Study or extra bedroom
Level 2 6,088
Total 205.33m2
7,944
Level 1 171.43m2
Level 2 33.90m2
06

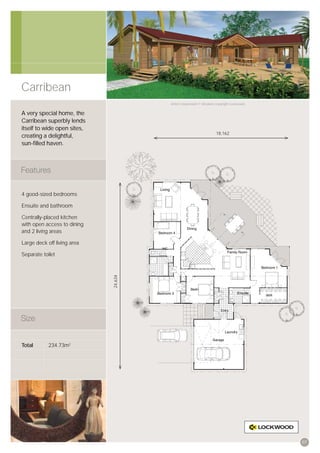

9. Carribean
Artist’s impression © All plans copyright Lockwood.
A very special home, the
Carribean superbly lends
itself to wide open sites,
18,162
creating a delightful,
sun-filled haven.
4 good-sized bedrooms
Ensuite and bathroom
Centrally-placed kitchen
with open access to dining
and 2 living areas
Large deck off living area
Separate toilet
24,634
Total 234.73m2
07

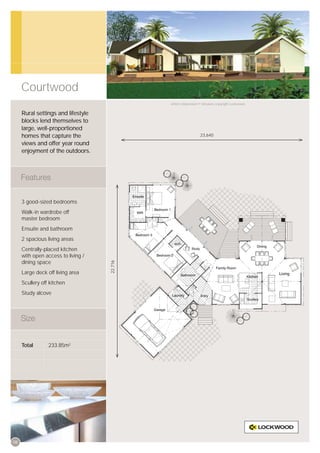

10. Courtwood
Artist’s impression © All plans copyright Lockwood.
Rural settings and lifestyle
blocks lend themselves to
large, well-proportioned
homes that capture the 23,640
views and offer year round
enjoyment of the outdoors.
3 good-sized bedrooms
Walk-in wardrobe off
master bedroom
Ensuite and bathroom
2 spacious living areas
Centrally-placed kitchen
with open access to living /
dining space
22,716
Large deck off living area
Scullery off kitchen
Study alcove
Total 233.85m2
08

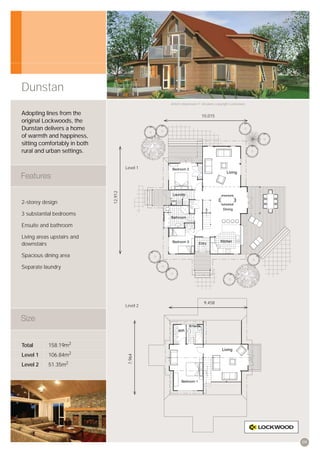

11. Dunstan
Artist’s impression © All plans copyright Lockwood.
Adopting lines from the 10,015
original Lockwoods, the
Dunstan delivers a home
of warmth and happiness,
sitting comfortably in both
rural and urban settings.
Level 1
12,912
2-storey design
3 substantial bedrooms
Ensuite and bathroom
Living areas upstairs and
downstairs
Spacious dining area
Separate laundry
9,458
Level 2
Total 158.19m2
Level 1 106.84m2
7,964
Level 2 51.35m2
09

12. Endeavour
Artist’s impression © All plans copyright Lockwood.
Cosy and charming,
this traditional floor plan
delivers generous rooms
and additional services.
The space afforded by the
14,438
deceptive proportions of
this plan offers a master
suite, family room and a
surprisingly large living area.
3 good-sized bedrooms
Ensuite and bathroom
Substantial living area opening
on to expansive deck
15,338
Walk-in wardrobe off master
bedroom
Separate laundry
Total 162.00m2
10

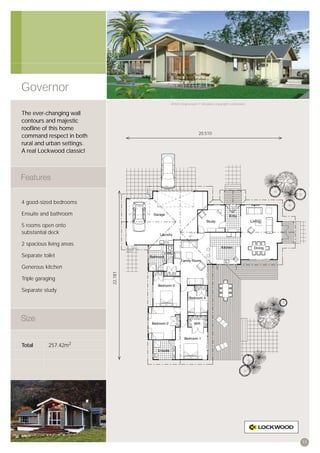

13. Governor
Artist’s impression © All plans copyright Lockwood.
The ever-changing wall
contours and majestic
roofline of this home
20,510
command respect in both
rural and urban settings.
A real Lockwood classic!
4 good-sized bedrooms
Ensuite and bathroom
5 rooms open onto
substantial deck
2 spacious living areas
Separate toilet
Generous kitchen
22,181
Triple garaging
Separate study
Total 257.42m2
11

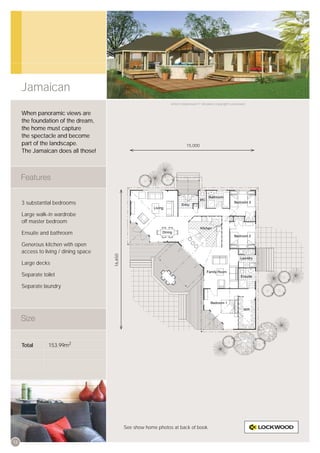

14. Jamaican
Artist’s impression © All plans copyright Lockwood.
When panoramic views are
the foundation of the dream,
the home must capture
the spectacle and become
part of the landscape. 15,000
The Jamaican does all those!
3 substantial bedrooms
Large walk-in wardrobe
off master bedroom
Ensuite and bathroom
Generous kitchen with open
access to living / dining space
16,650
Large decks
Separate toilet
Separate laundry
Total 153.99m2
See show home photos at back of book.
12

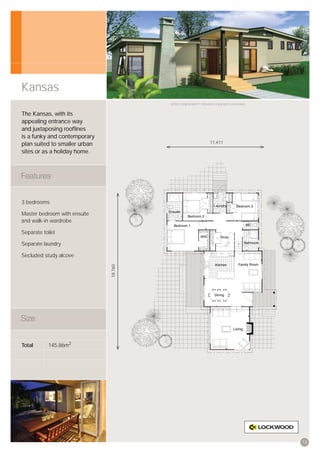

15. Kansas
Artist’s impression © All plans copyright Lockwood.
The Kansas, with its
appealing entrance way
and juxtaposing rooflines
is a funky and contemporary
plan suited to smaller urban 11,411
sites or as a holiday home.
3 bedrooms
Master bedroom with ensuite
and walk-in wardrobe
Separate toilet
Separate laundry
Secluded study alcove
18,760
Total 145.86m2
13

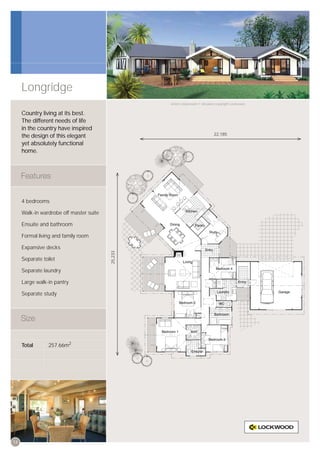

16. Longridge
Artist’s impression © All plans copyright Lockwood.
Country living at its best.
The different needs of life
in the country have inspired
the design of this elegant 22,185
yet absolutely functional
home.
4 bedrooms
Walk-in wardrobe off master suite
Ensuite and bathroom
Formal living and family room
Expansive decks
25,233
Separate toilet
Separate laundry
Large walk-in pantry
Separate study
Total 257.66m2
14

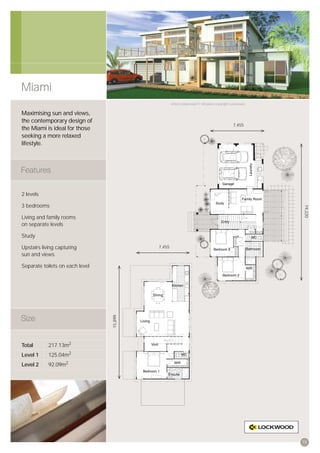

17. Miami
Artist’s impression © All plans copyright Lockwood.
Maximising sun and views,
the contemporary design of
7,455
the Miami is ideal for those
seeking a more relaxed
lifestyle.
2 levels
3 bedrooms
19,220
Living and family rooms
on separate levels
Study
Upstairs living capturing 7,455
sun and views
Separate toilets on each level
15,899
Total 217.13m2
Level 1 125.04m2
Level 2 92.09m2
15

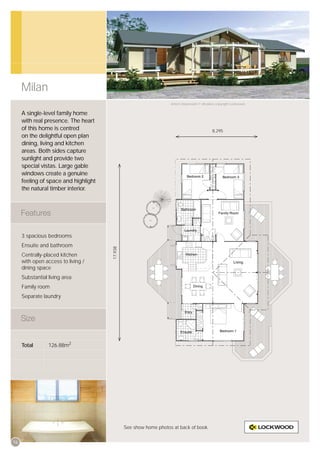

18. Milan
Artist’s impression © All plans copyright Lockwood.
A single-level family home
with real presence. The heart
of this home is centred 8,295
on the delightful open plan
dining, living and kitchen
areas. Both sides capture
sunlight and provide two
special vistas. Large gable
windows create a genuine
feeling of space and highlight
the natural timber interior.
3 spacious bedrooms
Ensuite and bathroom
17,938
Centrally-placed kitchen
with open access to living /
dining space
Substantial living area
Family room
Separate laundry
Total 126.88m2
See show home photos at back of book.
16

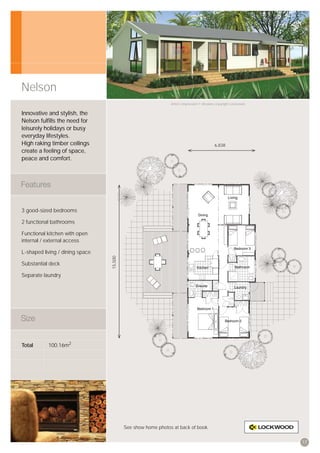

19. Nelson
Artist’s impression © All plans copyright Lockwood.
Innovative and stylish, the
Nelson fulfills the need for
leisurely holidays or busy
everyday lifestyles.
High raking timber ceilings 6,838
create a feeling of space,
peace and comfort.
3 good-sized bedrooms
2 functional bathrooms
Functional kitchen with open
internal / external access
L-shaped living / dining space
15,500
Substantial deck
Separate laundry
Total 100.16m2
See show home photos at back of book.
17

20. Parnell
Artist’s impression © All plans copyright Lockwood.
Designed to take advantage
of sunshine, exploit the view
and provide protection from
20,587
prevailing winds, this clever
design offers exceptional
living and entertaining
qualities.
4 good-sized bedrooms
Walk-in wardrobe off
master bedroom
Ensuite and bathroom
Centrally-placed kitchen
21,965
with open access to living /
dining space
Large family room
Separate laundry
Total 224.29m2
18

21. Phoenix
Artist’s impression © All plans copyright Lockwood.
Combining the best of
contemporary, minimalist
design with Lockwood’s
famous indoor/outdoor
flow, the compact Phoenix
10,271
is ideal for smaller urban
sites or as a holiday home.
Galley style kitchen
3 good-sized bedrooms
Separate family and living areas
Easy outdoor flow from
17,607
living areas
Ensuite and bathroom
Separate laundry
Total 129.77m2
See show home photos at back of book.
19

22. Regency
Artist’s impression © All plans copyright Lockwood.
Balance and style describe
this gracious Lockwood
17,732
design. Befitting a lifestyle
block or rural location, this
large home envelopes a
wonderful decked courtyard,
surrounded by the master
suite and living areas.
3 good-sized bedrooms
Walk-in wardrobe off master
bedroom
Ensuite and bathroom
Centrally-placed kitchen
20,000
Separate toilet
Separate laundry
Large formal entry
Separate study
Total 227.10m2
20

23. Rotoiti
Artist’s impression © All plans copyright Lockwood.
The heart of this family
home is situated within 10,188
an impressive living area
enriched by a beamed
and sarked gable ceiling.
Steep settler-pitched
rooflines create airy spaces
and offer a welcoming glow.
3 substantial bedrooms
Walk-in wardrobe off master
bedroom
Ensuite and bathroom
Spacious living area
Large garage
21,874
Indoor / outdoor flow
Separate laundry
Total 171.68m2
21

24. Vista
Artist’s impression © All plans copyright Lockwood.
This light, airy home is a
pared back and refined
version of our Canopy 14,655
design. It is now more
practical and more
affordable than ever.
The two splay wings are
connected by a central
living space with a floating
canopy roof high above.
It’s the perfect mix of
uncomplicated style and
modern architecture.
23,821
Stunning entranceway
3 substantial bedrooms Study
Ensuite and bathroom
Separate toilet
Single garage and carport
Carport
Separate study area
Total 165.00m2
22

25. Wanaka
Artist’s impression © All plans copyright Lockwood.
Combining the elegant style
of a pioneer homestead with 12,406
modern simplicity, the Wanaka
is an inviting home for town
and country dwellers alike.
3 substantial bedrooms
Ensuite and bathroom
Private living off master Level 1
8,168
bedroom
Separate laundry
Spacious living areas
8,608
Total 146.41m2
Level 1 93.96m2
8,168
Level 2 52.45m2 Level 2
23

26. Winton
Artist’s impression © All plans copyright Lockwood.
A kiwi icon, this Lockwood
8,616
plan has been revisited
and upgraded for the new
millennium! The Winton
delivers superb outdoor living,
modern conveniences, stylish
design and low maintenance
construction.
3 large bedrooms
Ensuite and bathroom
Large, open-plan living /
dining / kitchen area
Galley-style kitchen with
26,068
open access to living area
Separate laundry
Good-sized study to suit modern
‘work at home’ lifestyle
Stunning outdoor courtyard
Total 160.90m2
24

27. Woodland
Artist’s impression © All plans copyright Lockwood.
Wonderful outdoor living
spaces are created by
this superb design, as it
15,107
ingeniously combines three
bedrooms, two bathrooms,
two living areas and a large
garage in a compact format.
3 good-sized bedrooms
Walk-in wardrobe off
master bedroom
Ensuite and bathroom
Centrally-placed kitchen
with open access to
living / dining space
21,686
Living and family room
Large garage
Separate toilet
Total 206.26m2
25

28. Show homes
With over 20 show homes nationwide, you’re never far away from experiencing
the warm, natural beauty of Lockwood. So why not hop in your car and visit us
this weekend. Or hop on line at www.lockwood.co.nz and find your favourite
show home.
Opito
Coastwood Homes, Main Rd, Kopu, Thames.
Ph 07 868 8733 for opening hours
Parawai
Coastwood Homes, Main Rd, Kopu, Thames.
Ph 07 868 8733 for opening hours
Skill an
26

29. Jamaican
Waikato Living, 5 Karewa Place, Te Rapa,
Hamilton. Ph 07 849 2271 for opening hours
(see floor plan
(see floor pllan on page 12)
plan page
Milan
212 Ultrawood Homes, Great South Road,
Takanini. Ph 09 299 6556 for opening hours
(see floor plan
(see floor plan on page 16)
page
d craftsmanship combined with experience you can trust.
bi d ith i
solid, secure, natural
27

30. Kinloch
P
Peter Richards Builders, Woodward St,
Taupo. Ph 07 378 9475 for opening hours
T
Style, flexibility and
Individuality
Phoenix
Tuohy Homes, Ulric St, Plimmerton.
Ph 04 233 8018 for opening hours
28

31. Nelson
Adstyle Homes, 303 Otaika Rd, Whangarei.
Ph 09 438 9900 for opening hours
solid, secure, natural
If you can’t find one of our great standard Lockwood plans to fit your site, or if you
just want to personalise your home, talk to us how we can design a home uniquely
yours, with Lockwood’s Design & Build services.
solid, secure, natural
29

32. lockwood.co.nz 0508 Lockwood or 0508 562 5966
solid, secure, natural
07/2009/14593/2000
