The re-lab project is a collaboration between gimp.ru and giadram inc., focused on reverse-engineering various proprietary file formats. It features tools like ole toy, which evolved from earlier projects and supports multiple formats including MS Publisher, Corel Draw, and Excel. Additionally, the project aims to troubleshoot and enhance the capabilities of LibreOffice and other applications related to these file formats.

1. RE-LAB Project

2. A little shy joint efforts project of the GIMP.RU and Giadram Inc.
Reverse-engineering of proprietary file formats
Alexandre Prokoudine & Valek Filippov

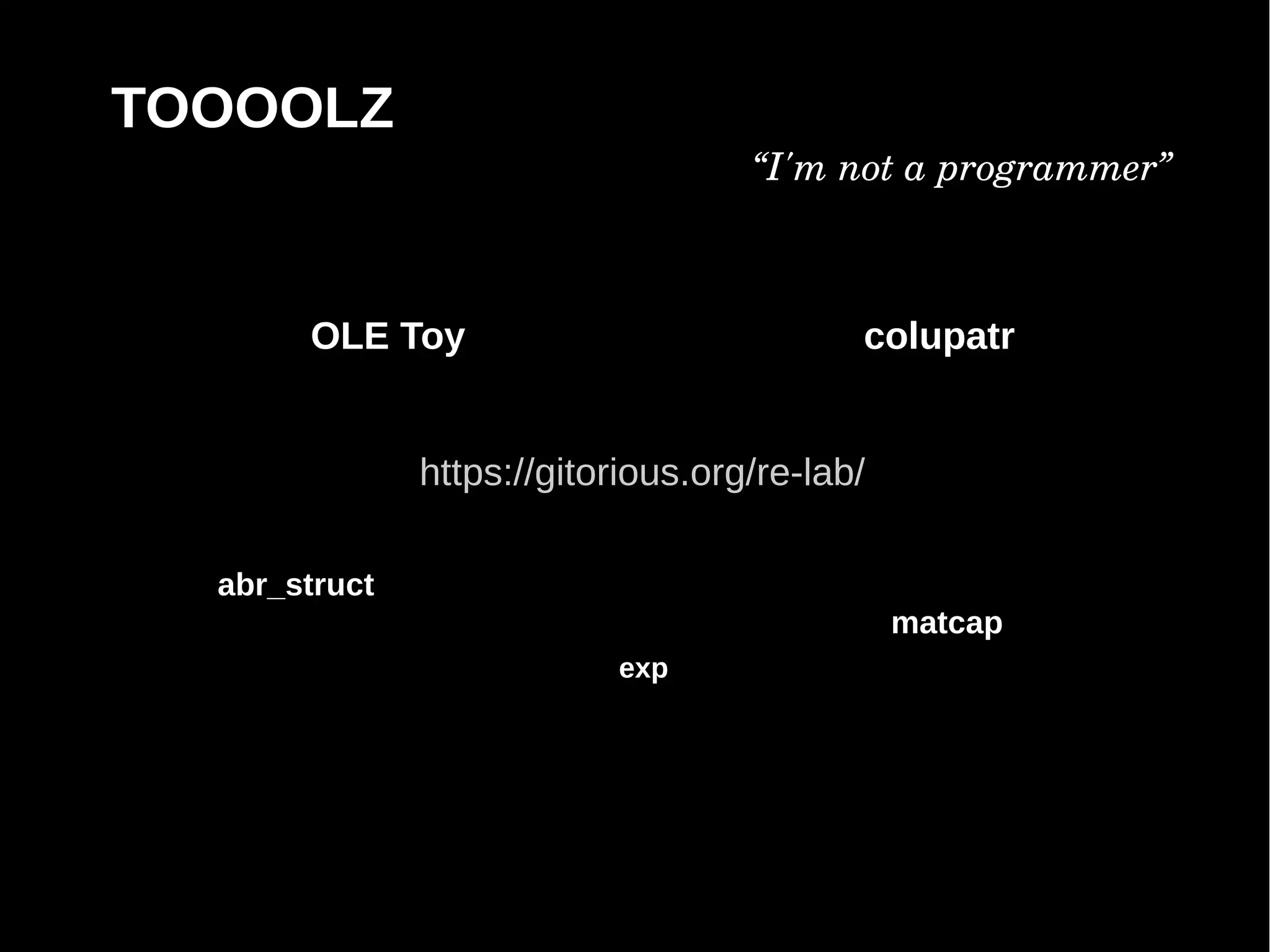

3. TOOOOLZ
“I'm not a programmer”
OLE Toy colupatr
https://gitorious.org/re-lab/
abr_struct
matcap
exp

4. OLE Toy

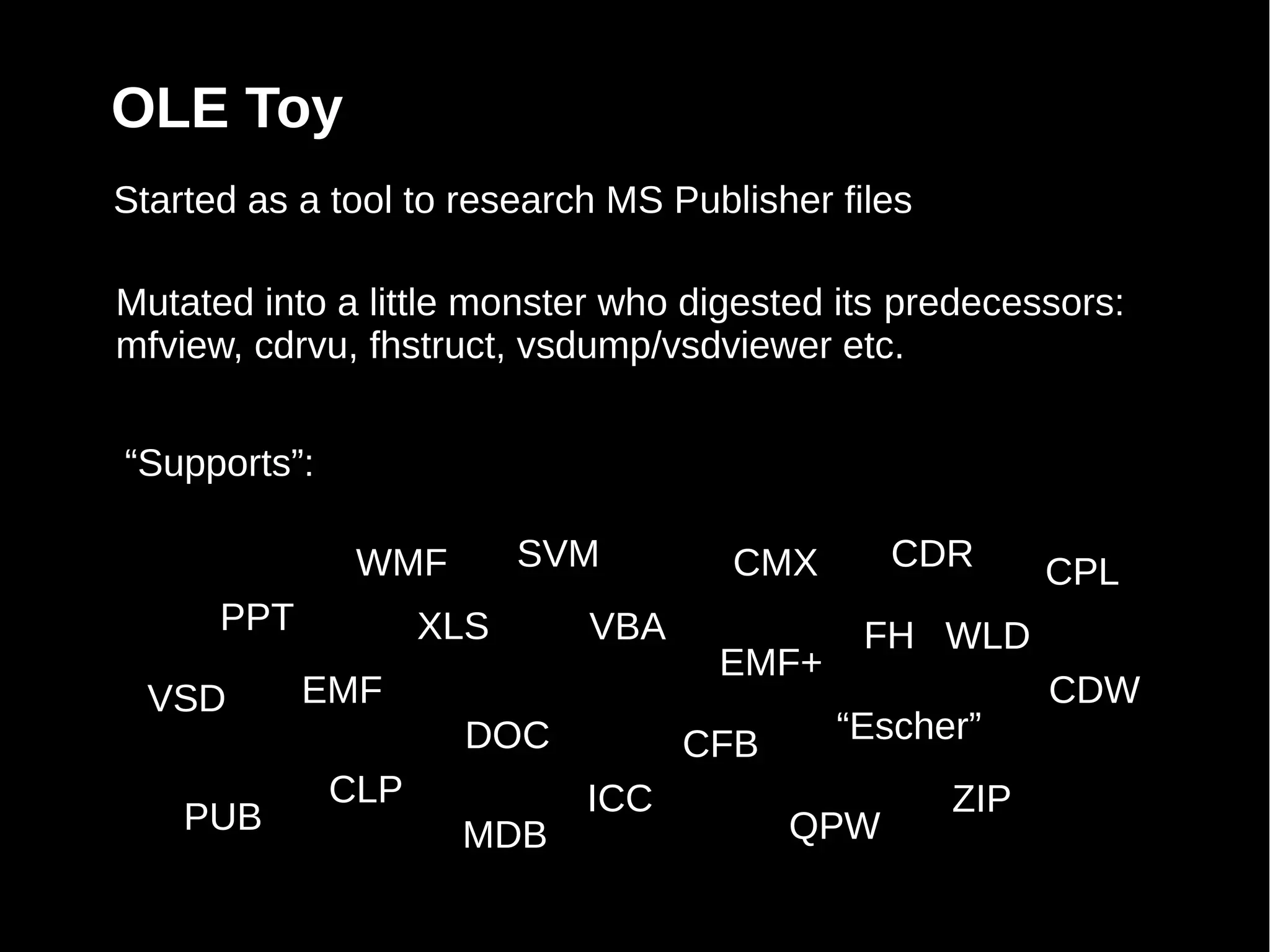

Started as a tool to research MS Publisher files
Mutated into a little monster who digested its predecessors:
mfview, cdrvu, fhstruct, vsdump/vsdviewer etc.
“Supports”:
WMF SVM CMX CDR CPL
PPT XLS VBA FH WLD
EMF+
VSD EMF CDW
DOC CFB “Escher”
CLP ICC ZIP
PUB MDB QPW

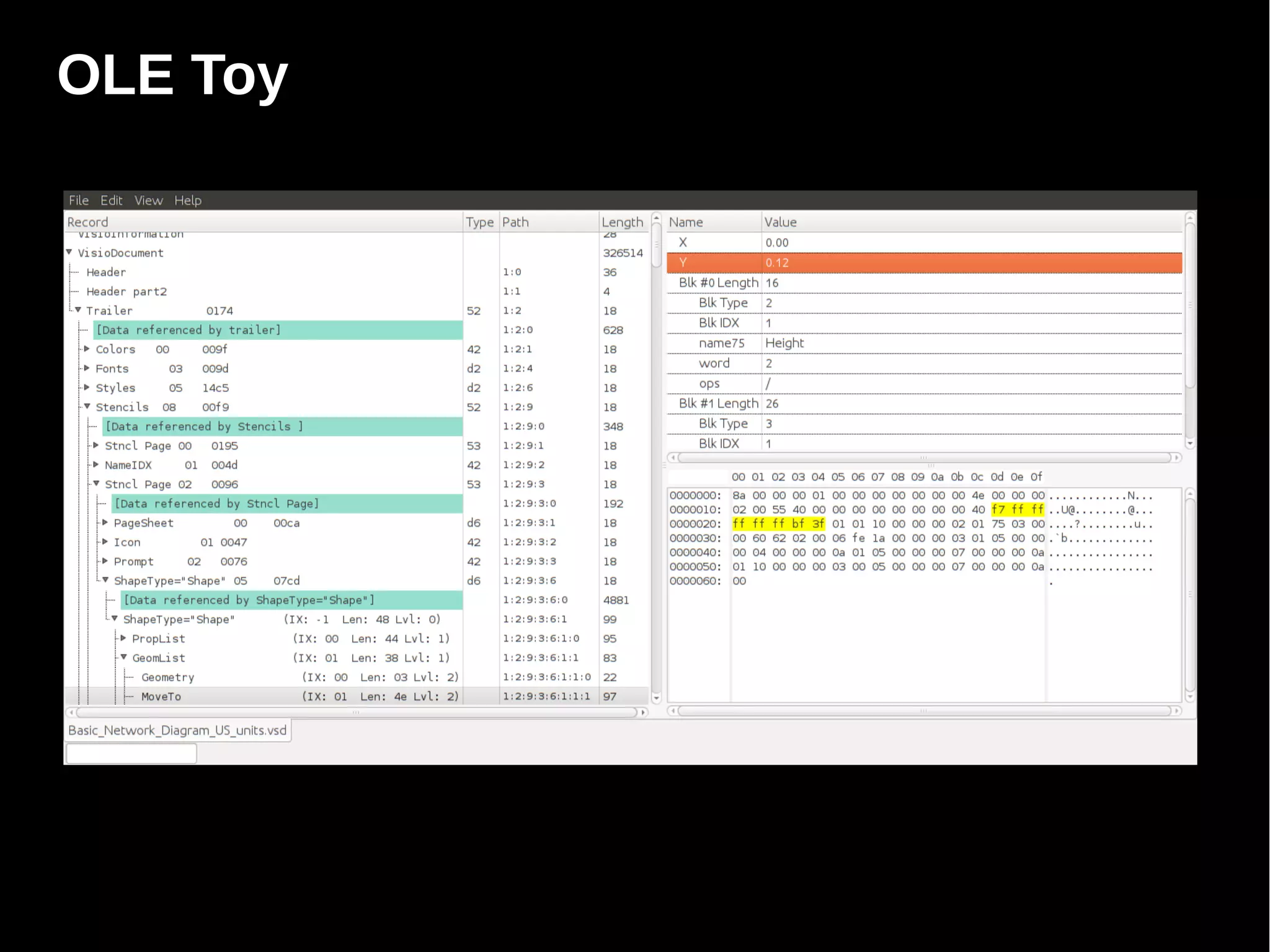

5. OLE Toy

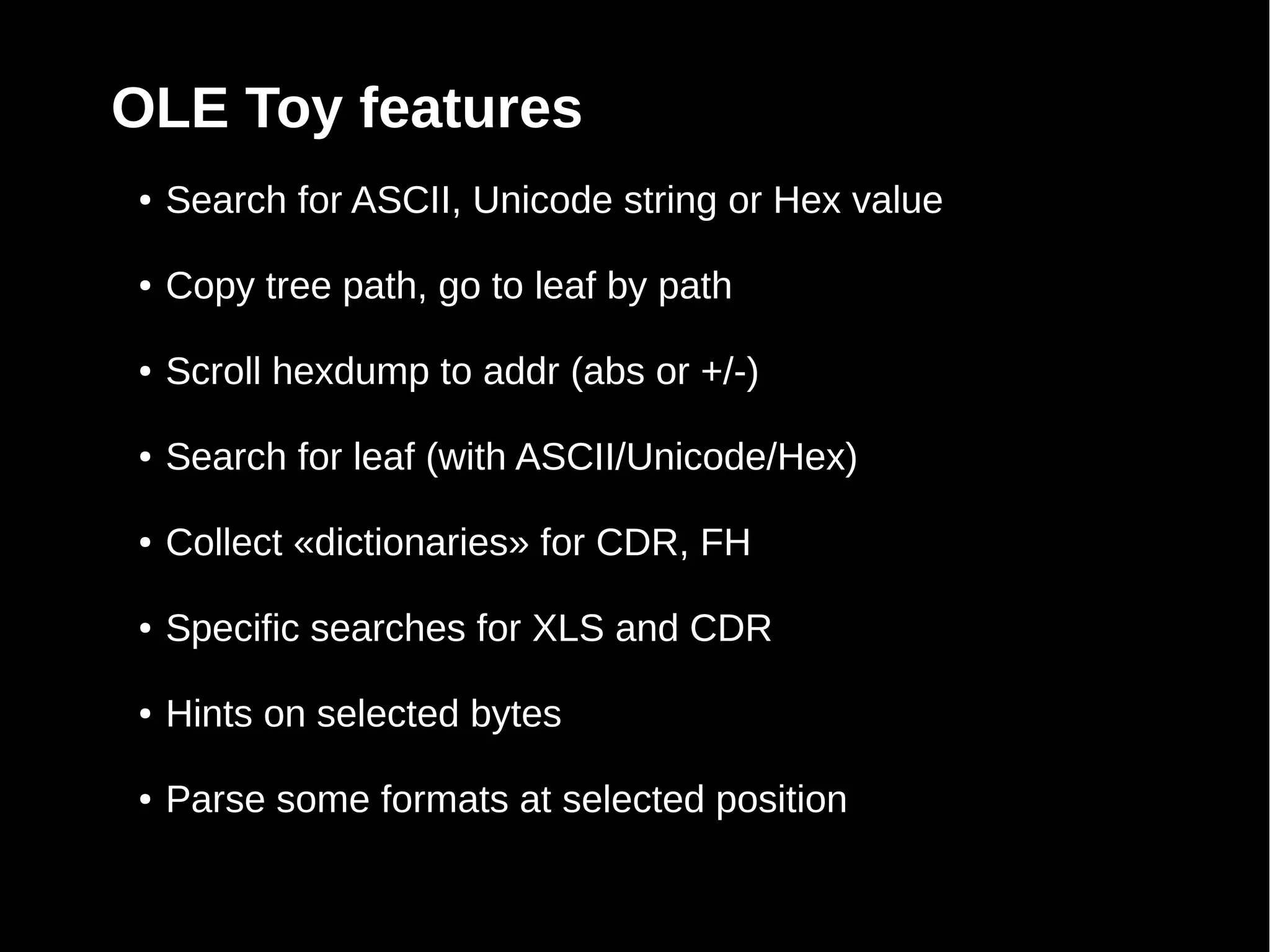

6. OLE Toy features
● Search for ASCII, Unicode string or Hex value
● Copy tree path, go to leaf by path
● Scroll hexdump to addr (abs or +/-)
● Search for leaf (with ASCII/Unicode/Hex)
● Collect «dictionaries» for CDR, FH
● Specific searches for XLS and CDR
● Hints on selected bytes
● Parse some formats at selected position

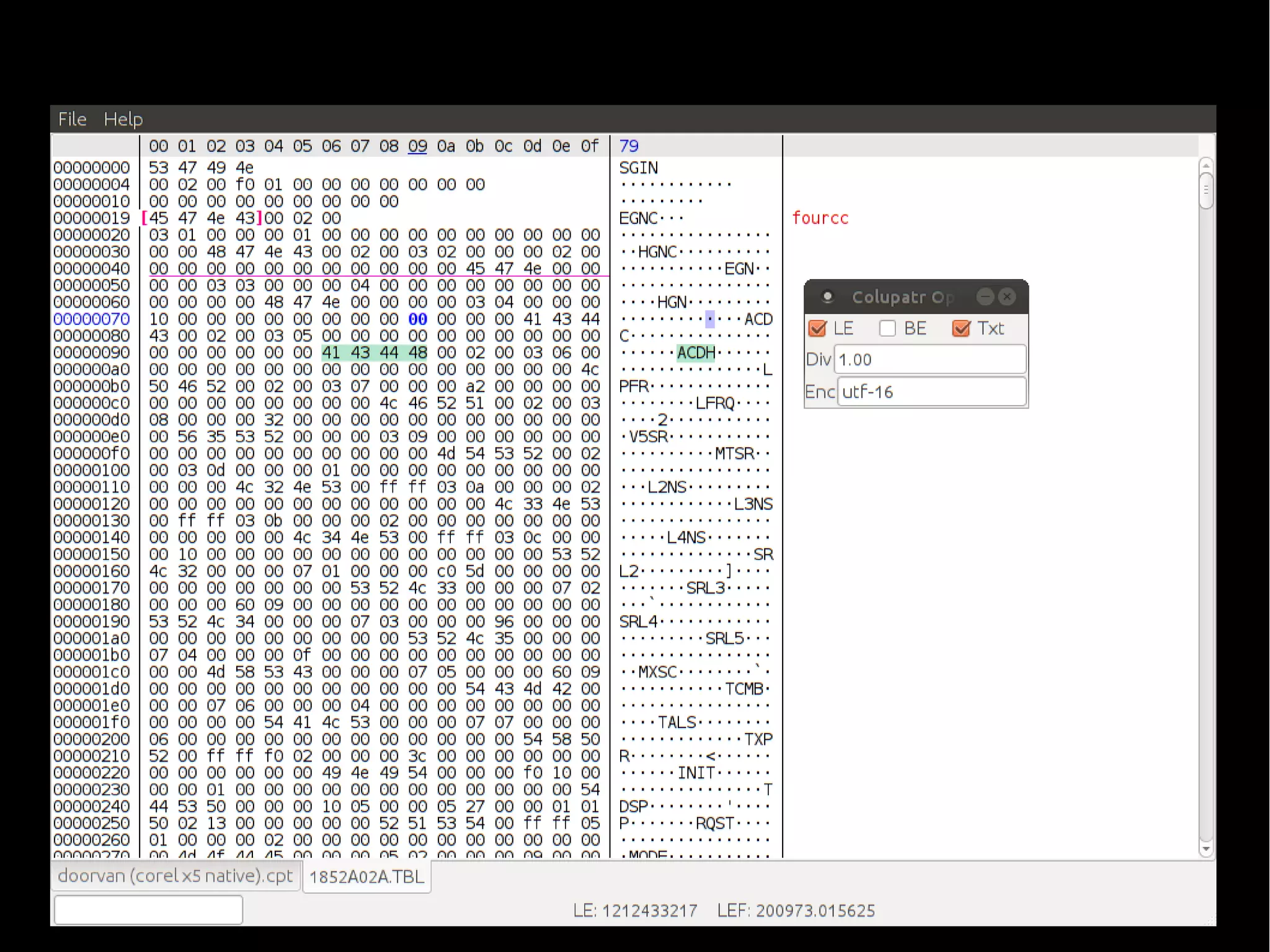

7. colupatr
Hexviewer on ster^W LSD
Made to reduce r.engineering pains with normal
hexviewers:
● Variable lengths of lines
● Comments
● CLI commands to change lines
● Parse hexdump from clipboard

9. YIELD

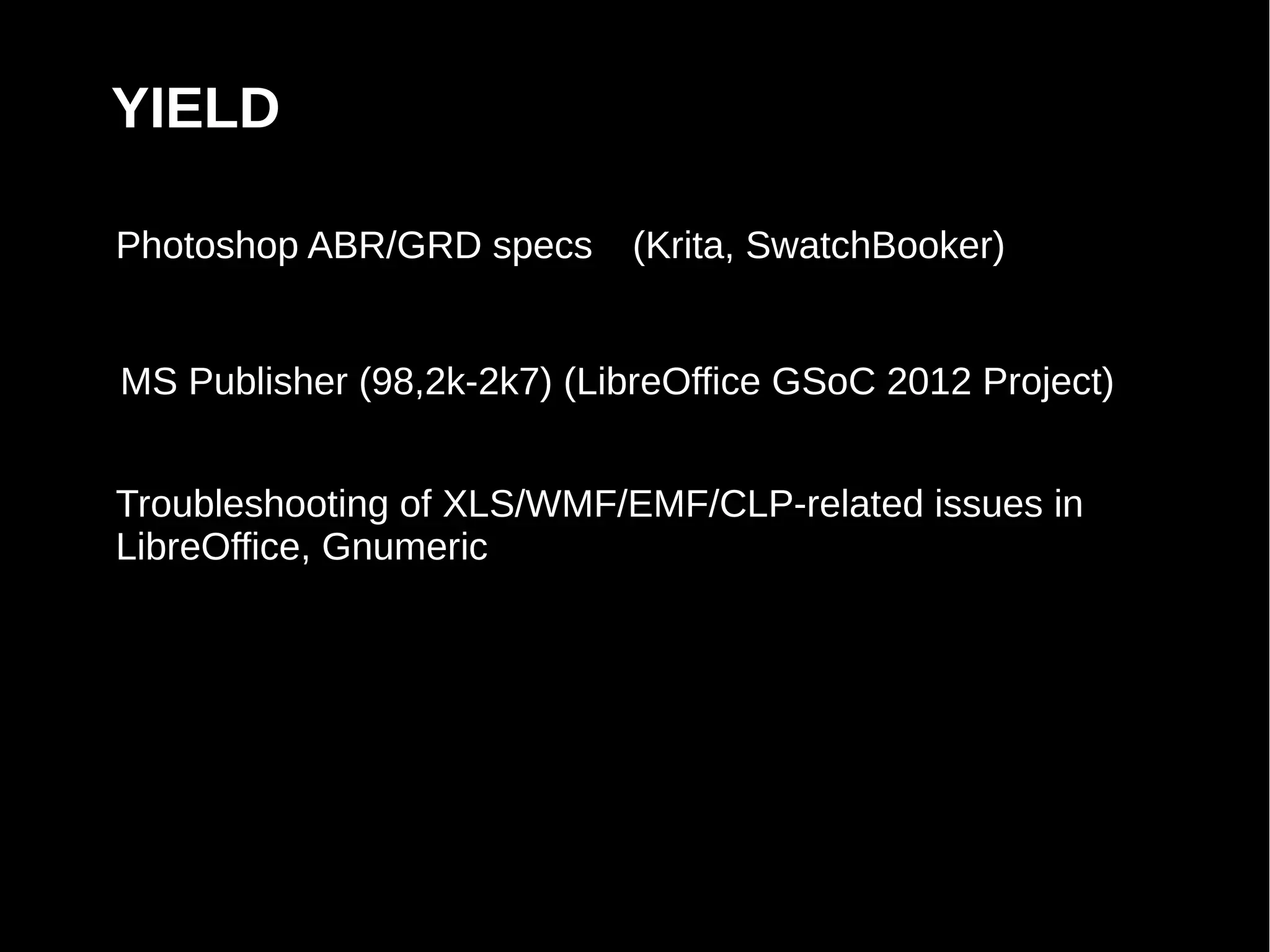

Photoshop ABR/GRD specs (Krita, SwatchBooker)
MS Publisher (98,2k-2k7) (LibreOffice GSoC 2012 Project)
Troubleshooting of XLS/WMF/EMF/CLP-related issues in
LibreOffice, Gnumeric

10. YIELD

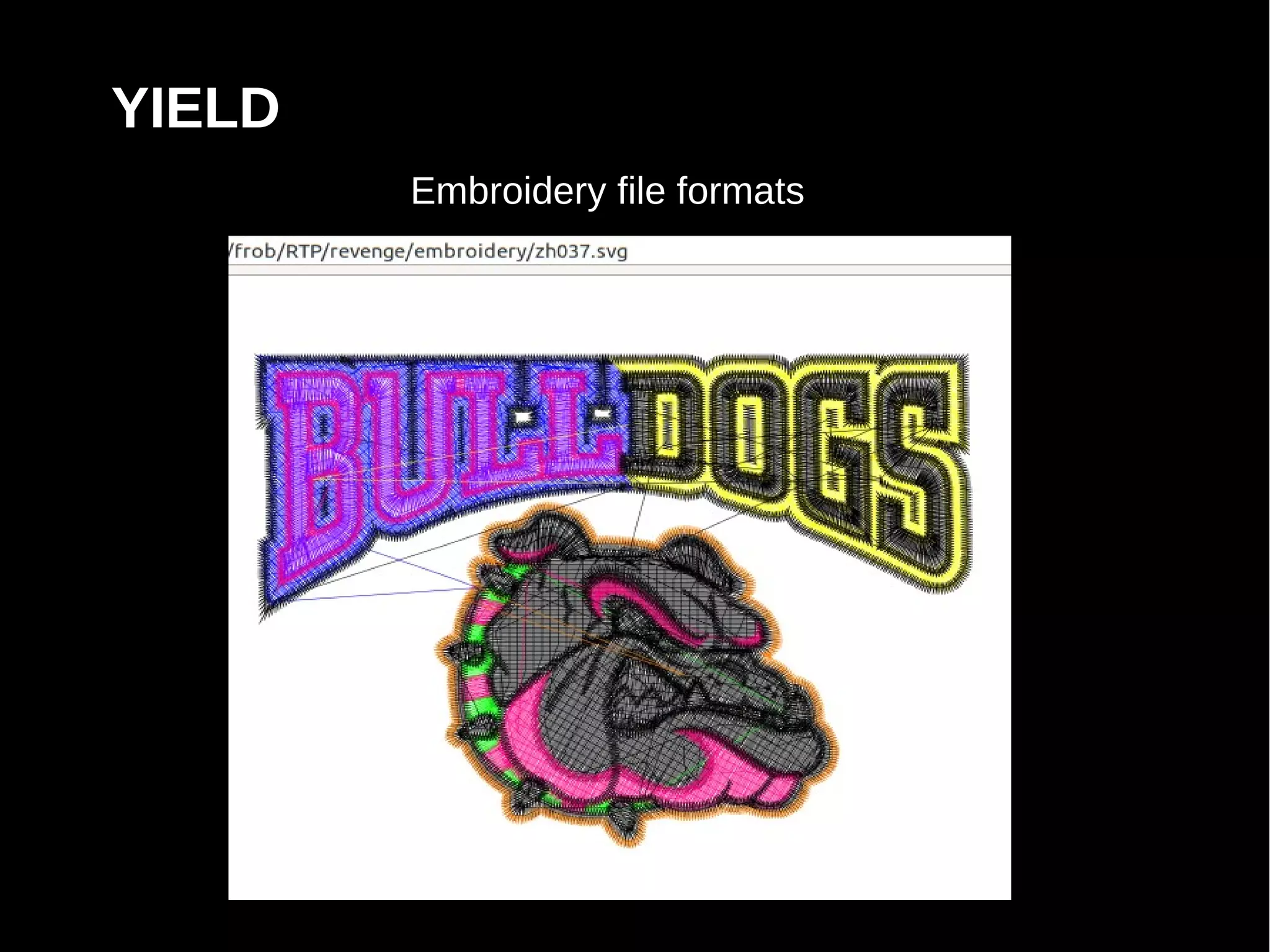

Embroidery file formats

11. YIELD

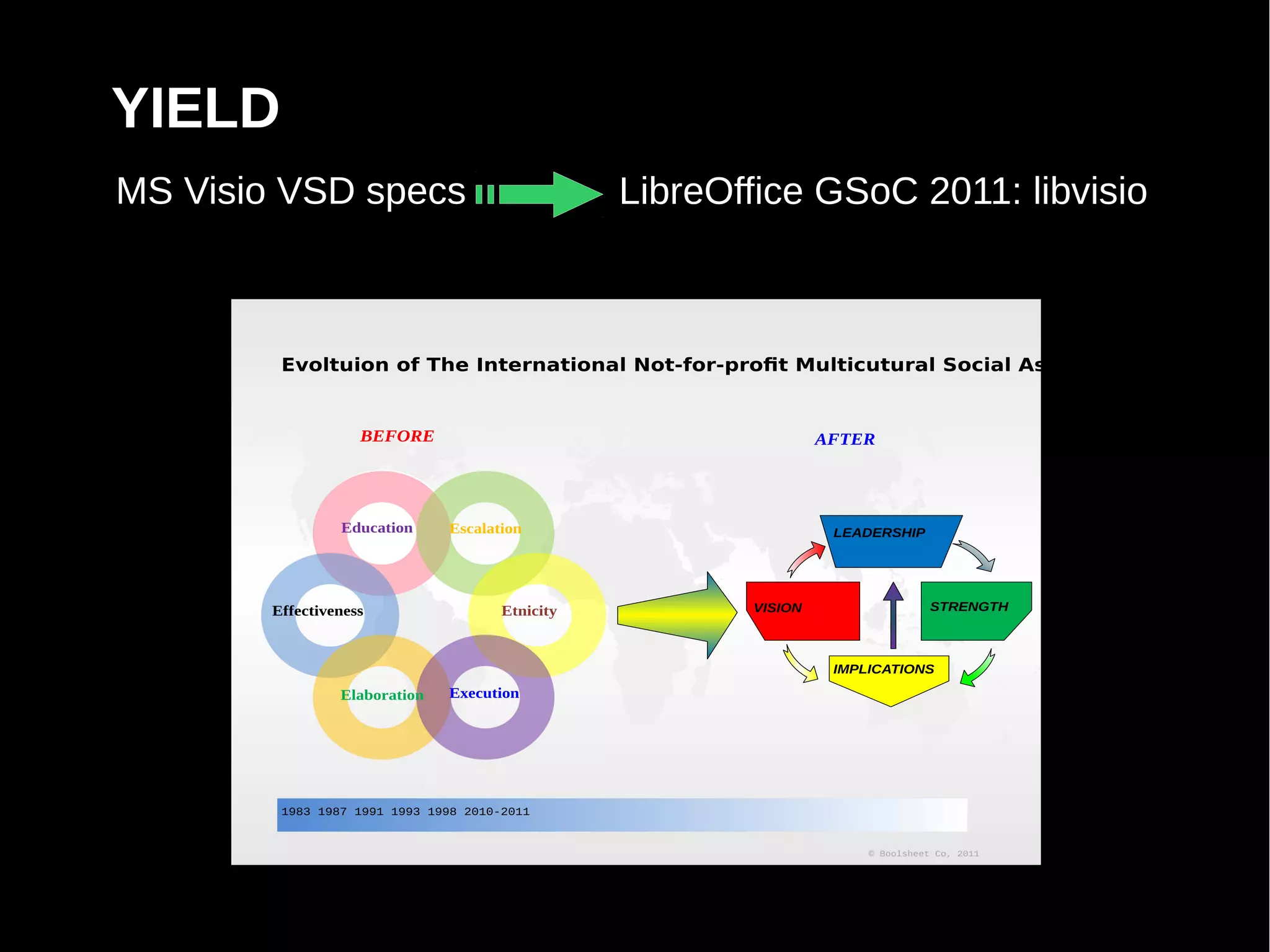

MS Visio VSD specs LibreOffice GSoC 2011: libvisio

12. YIELD
Corel DRAW CDR LibreOffice libcdr

13. YIELD

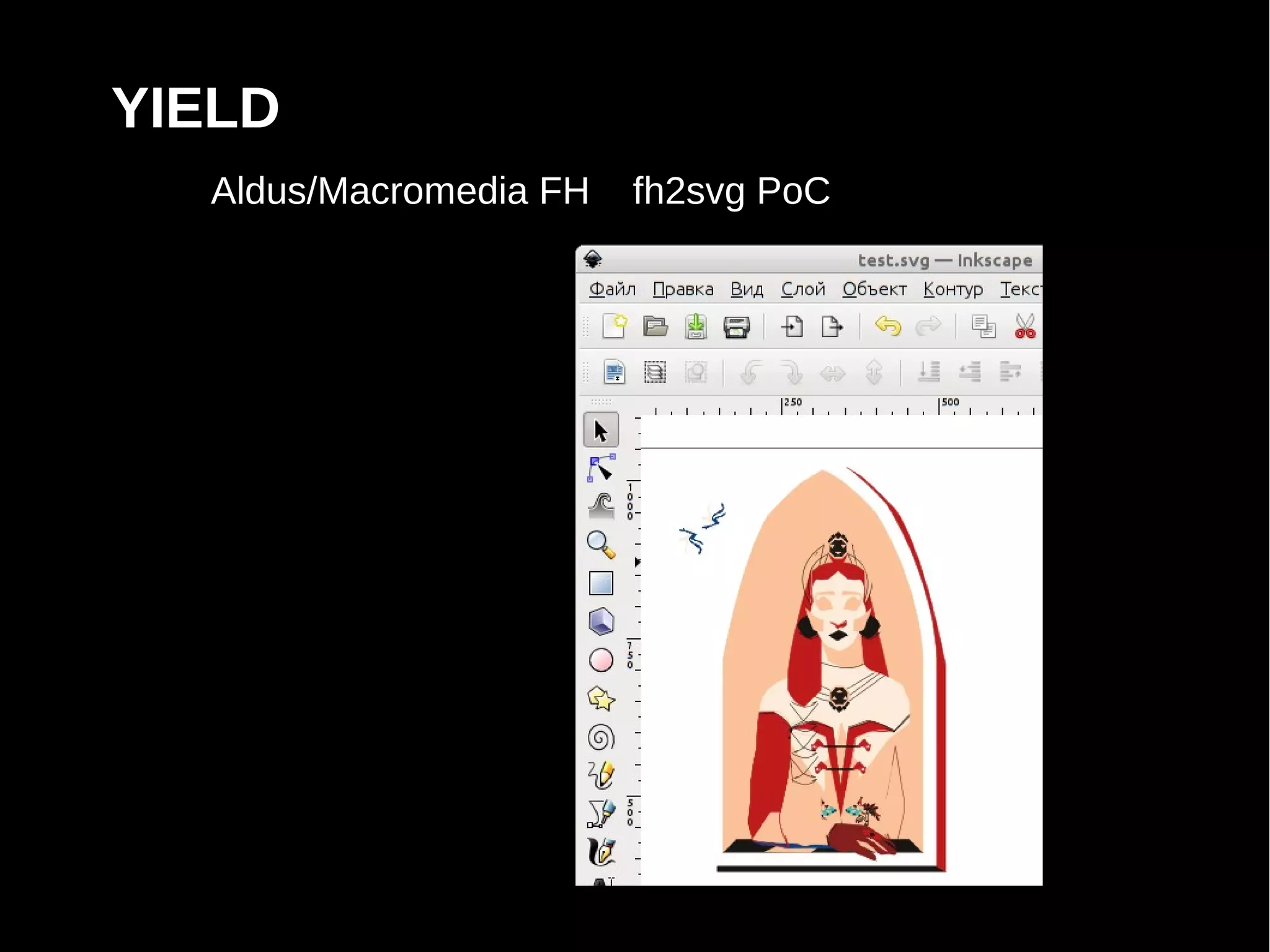

Aldus/Macromedia FH fh2svg PoC

14. Live demo

15. Tomatoes
Q&A
