1. Let’s make Robots
Sudar Muthu (@sudarmuthu)
Research Engineer, Yahoo! Labs
http://hardwarefun.com
http://github.com/sudar

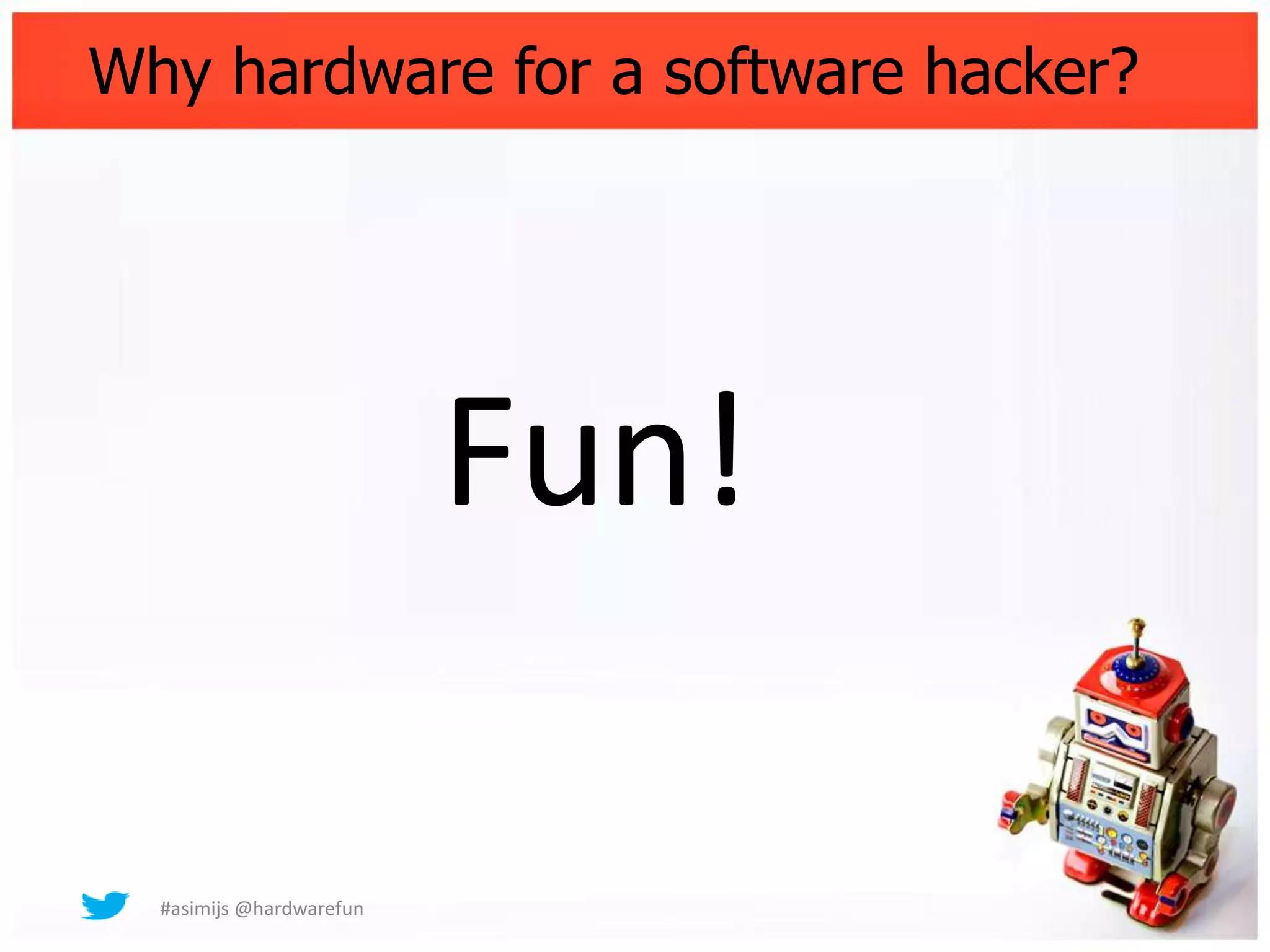

2. Why hardware for a software hacker?
Fun!
#asimijs @hardwarefun

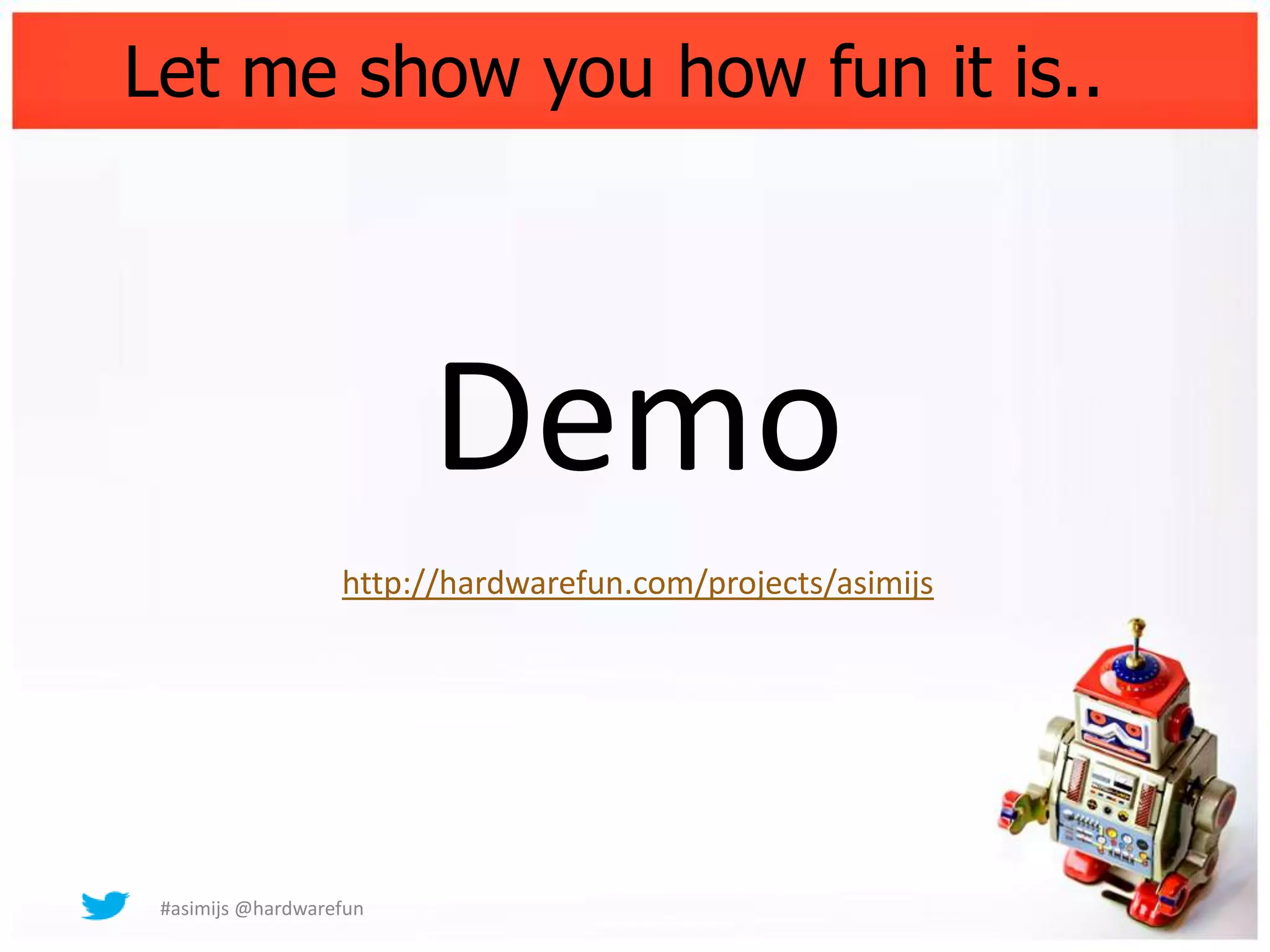

3. Let me show you how fun it is..
Demo
http://hardwarefun.com/projects/asimijs
#asimijs @hardwarefun

4. Participate in the demo 
Visit
http://hardwarefun.com:3000
#asimijs @hardwarefun

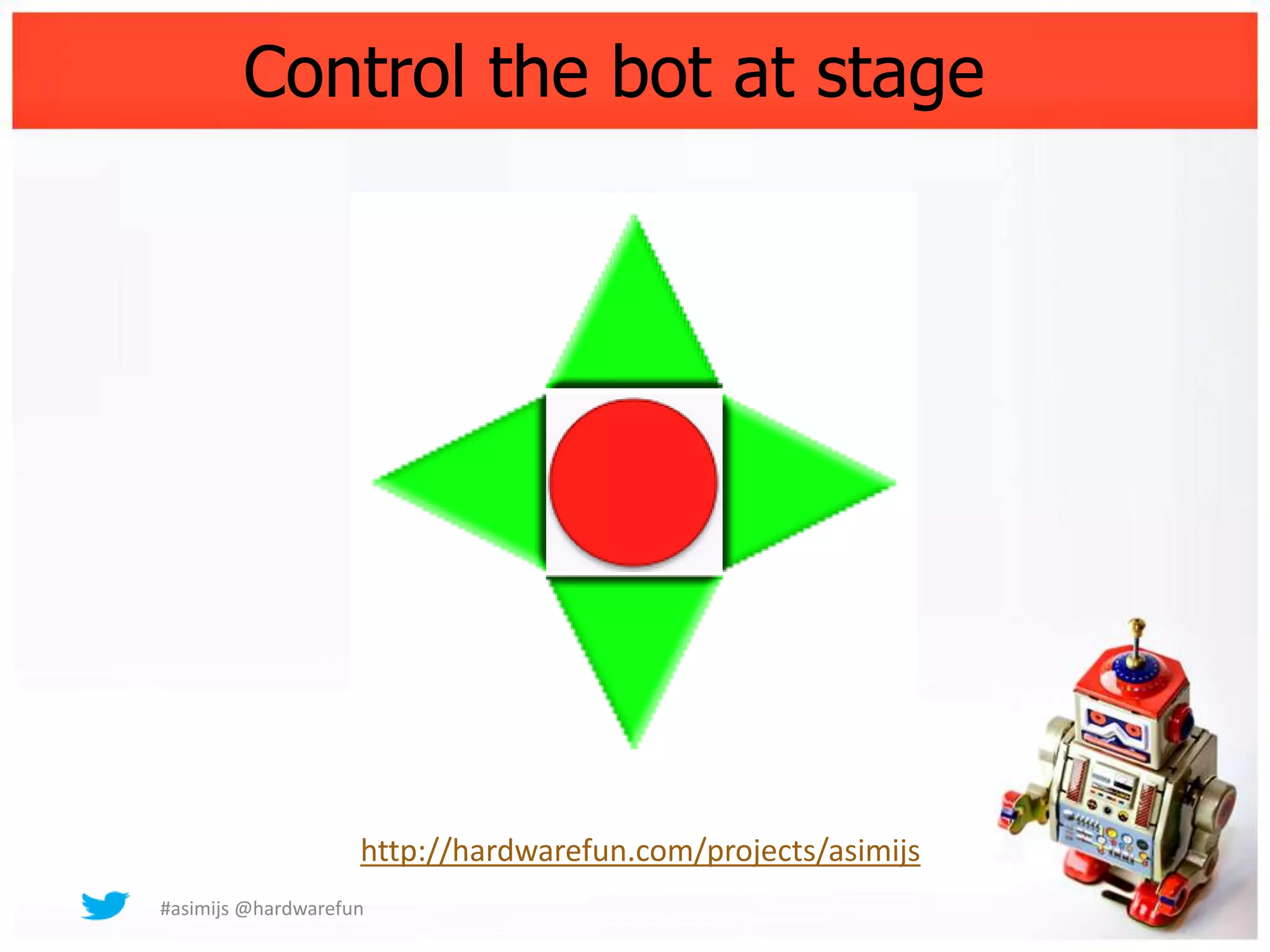

5. Control the bot at stage
http://hardwarefun.com/projects/asimijs
#asimijs @hardwarefun

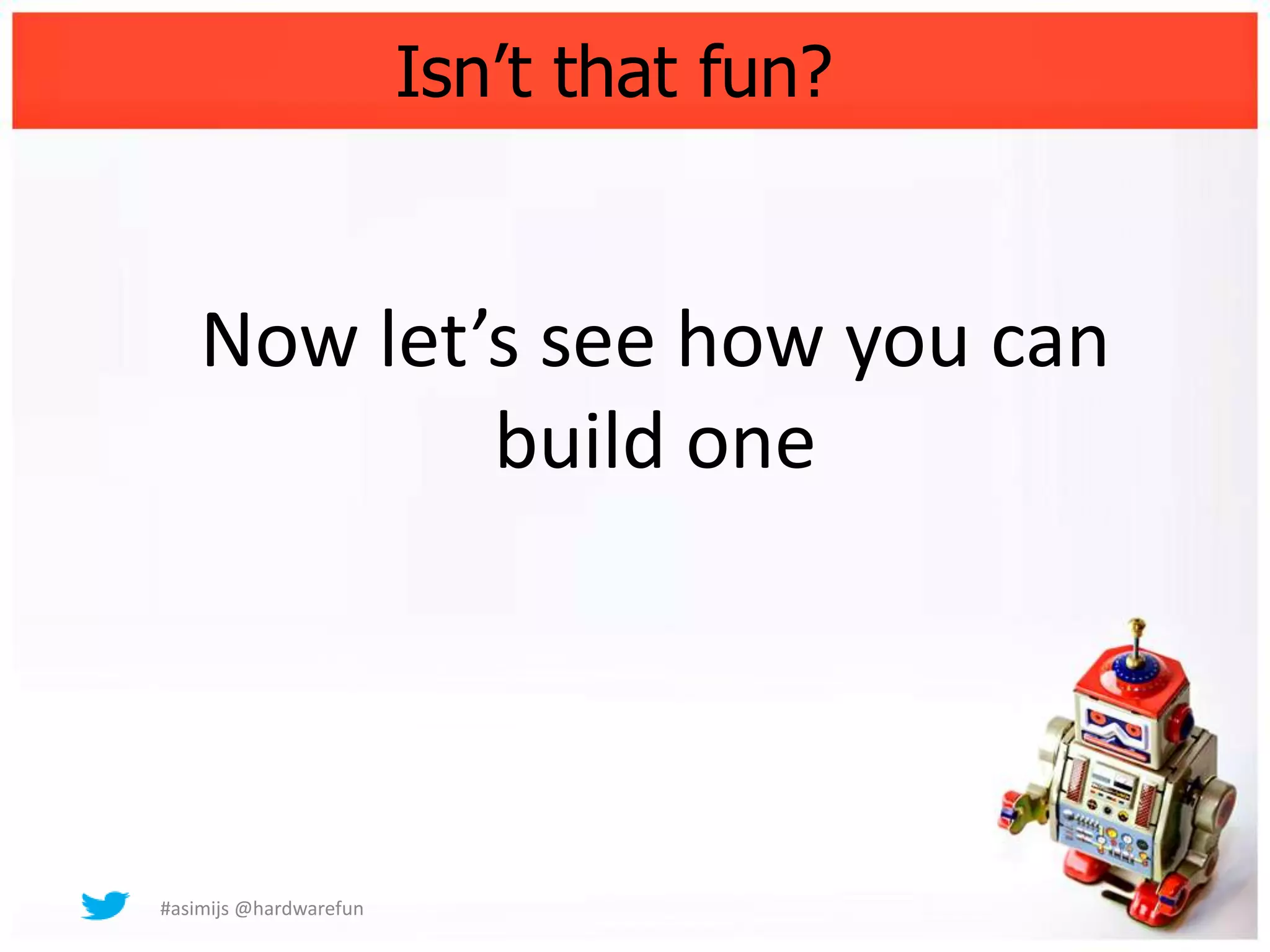

6. Isn’t that fun?
Now let’s see how you can
build one
#asimijs @hardwarefun

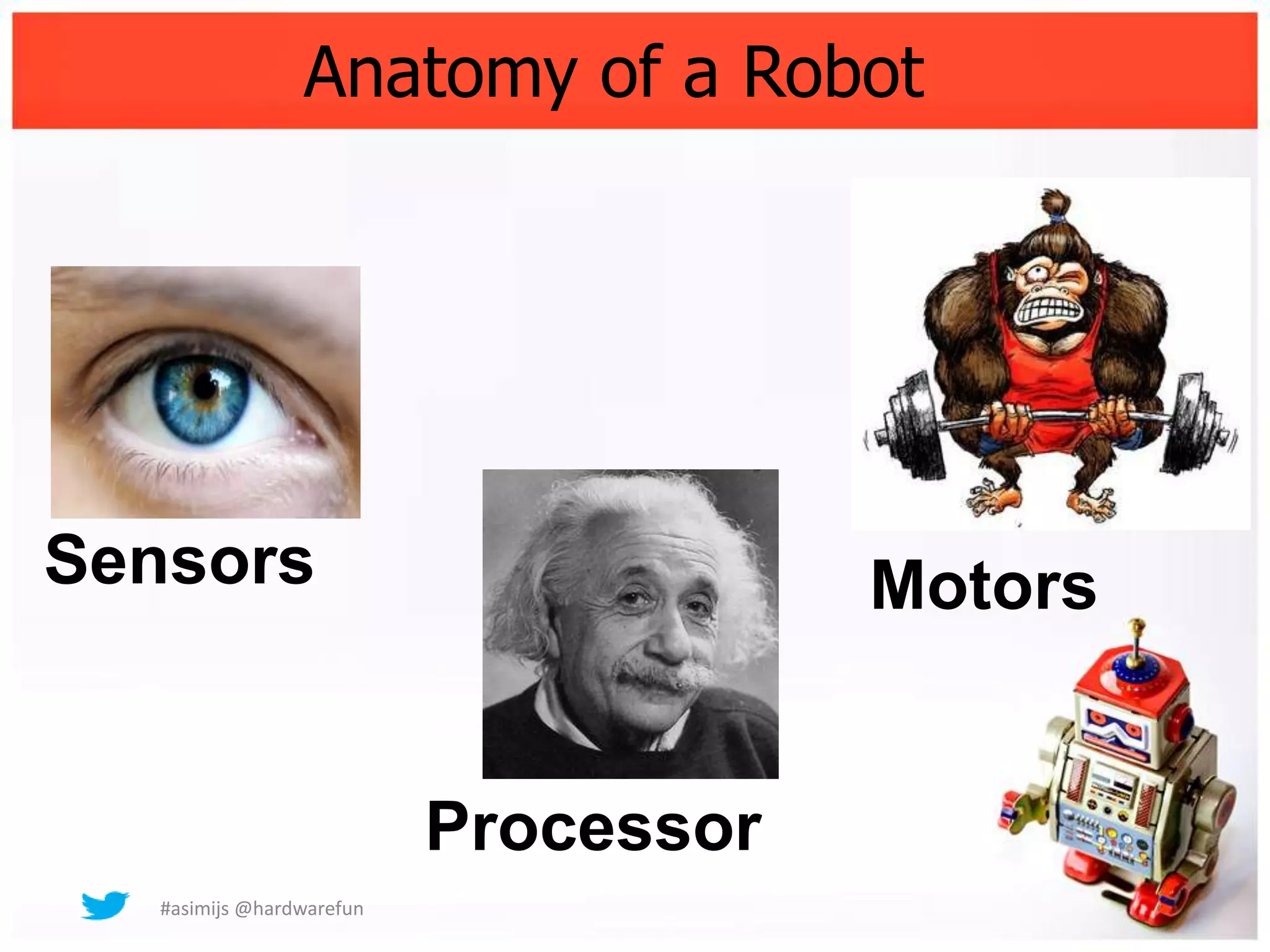

7. Anatomy of a Robot
Sensors Motors
Processor
#asimijs @hardwarefun

8. Sensors (Input)
#asimijs @hardwarefun

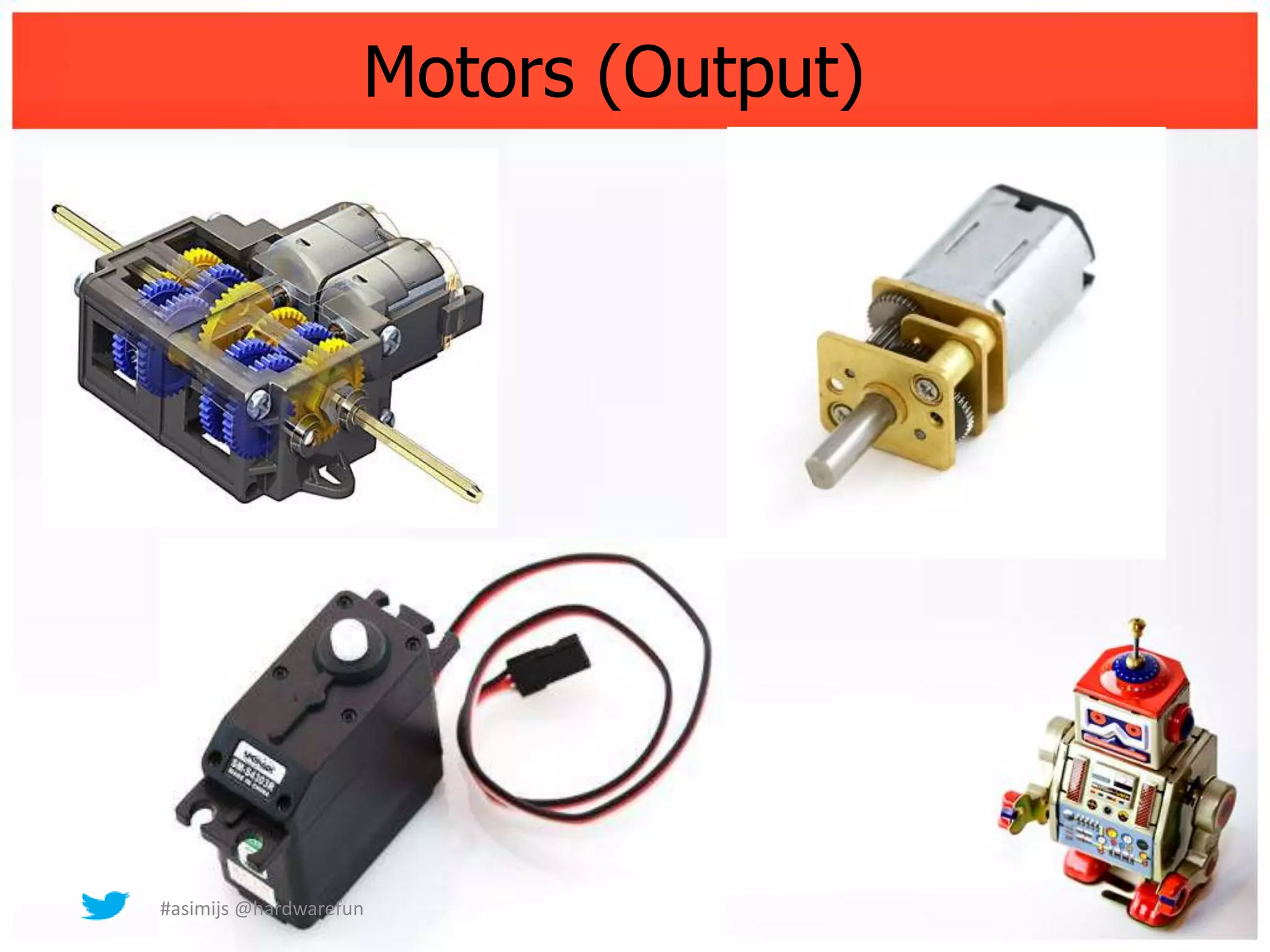

9. Motors (Output)
#asimijs @hardwarefun

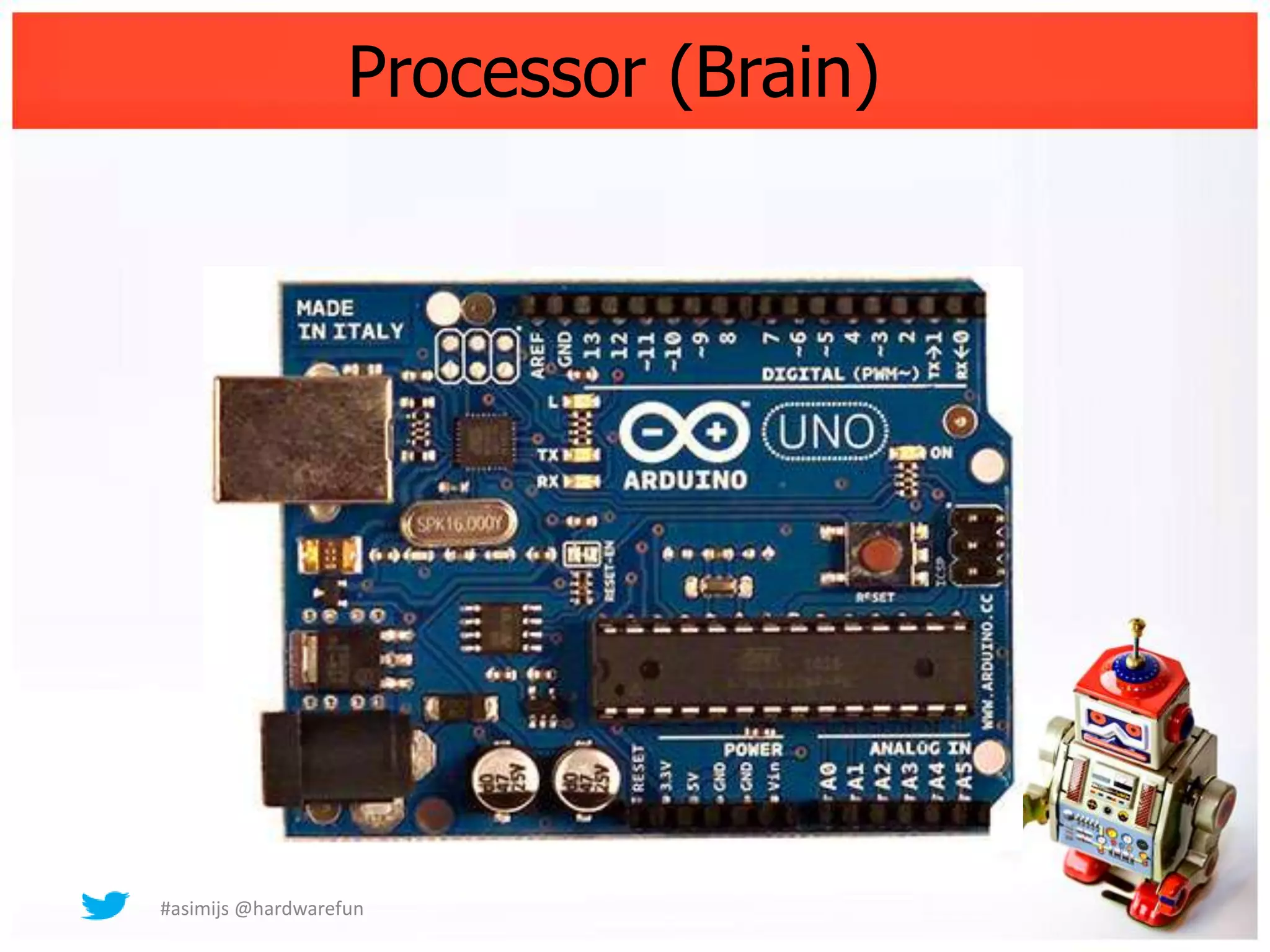

10. Processor (Brain)
#asimijs @hardwarefun

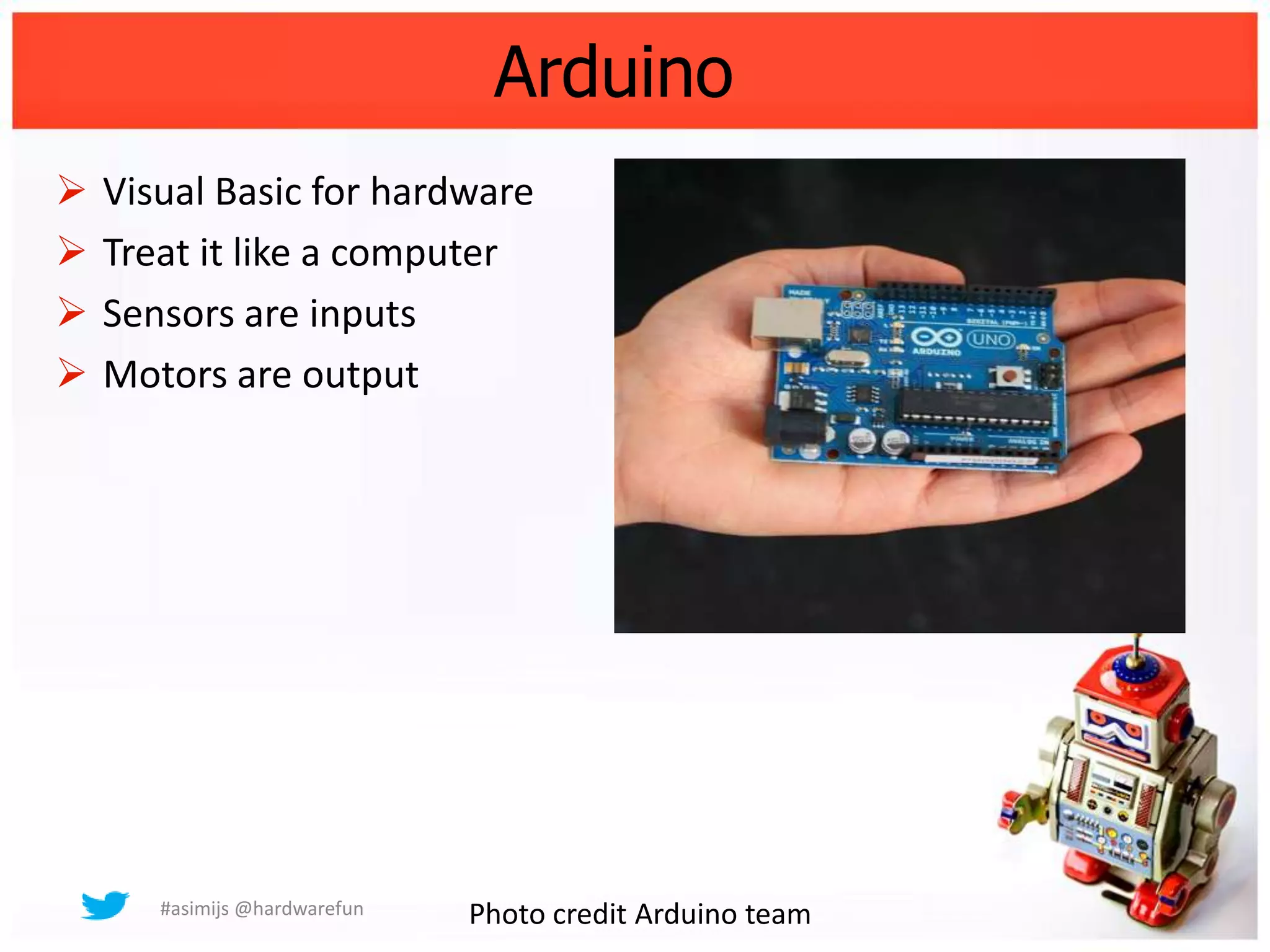

11. Arduino
 Visual Basic for hardware
 Treat it like a computer
 Sensors are inputs
 Motors are output
#asimijs @hardwarefun Photo credit Arduino team

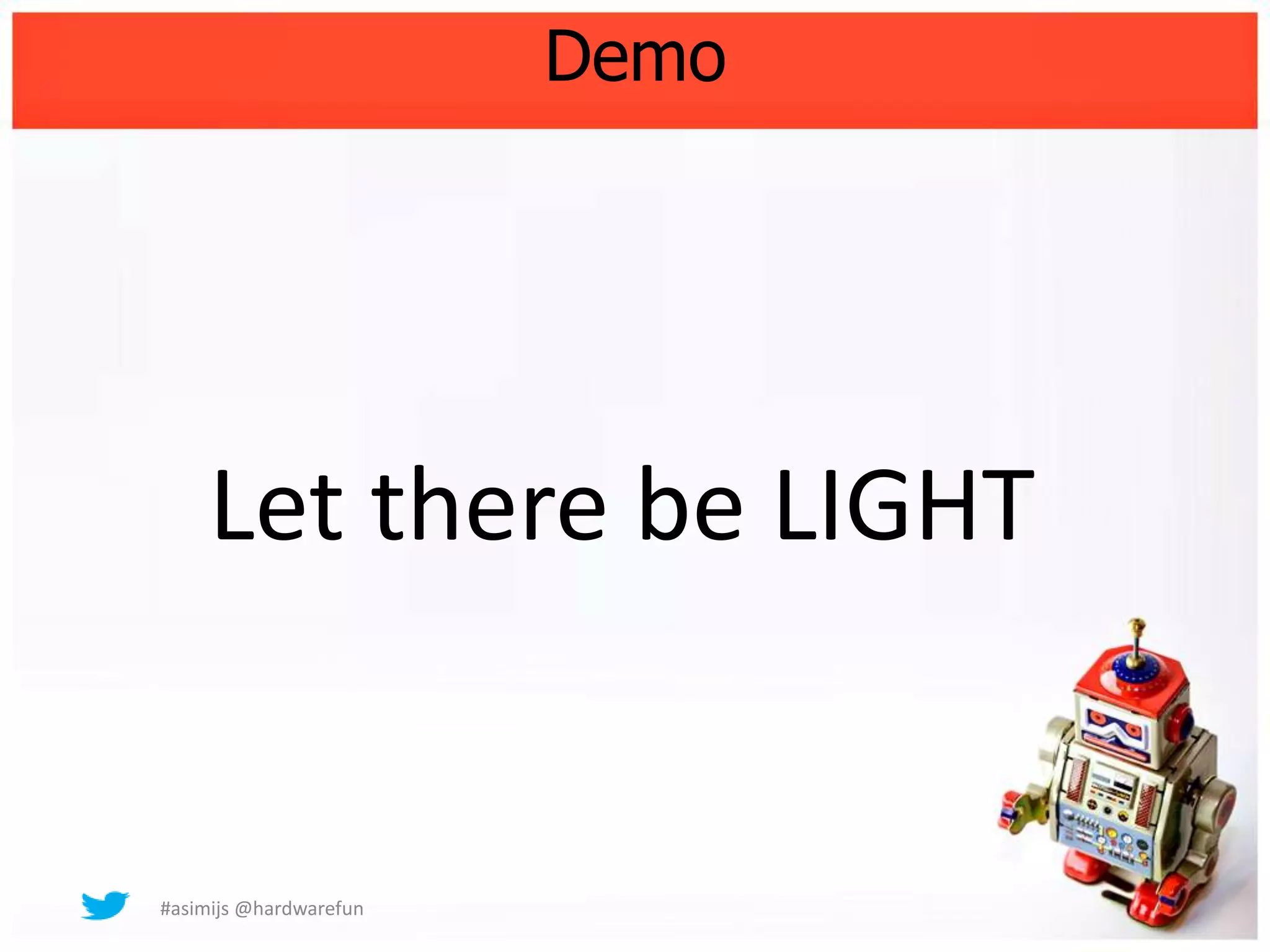

12. Demo
Let there be LIGHT
#asimijs @hardwarefun

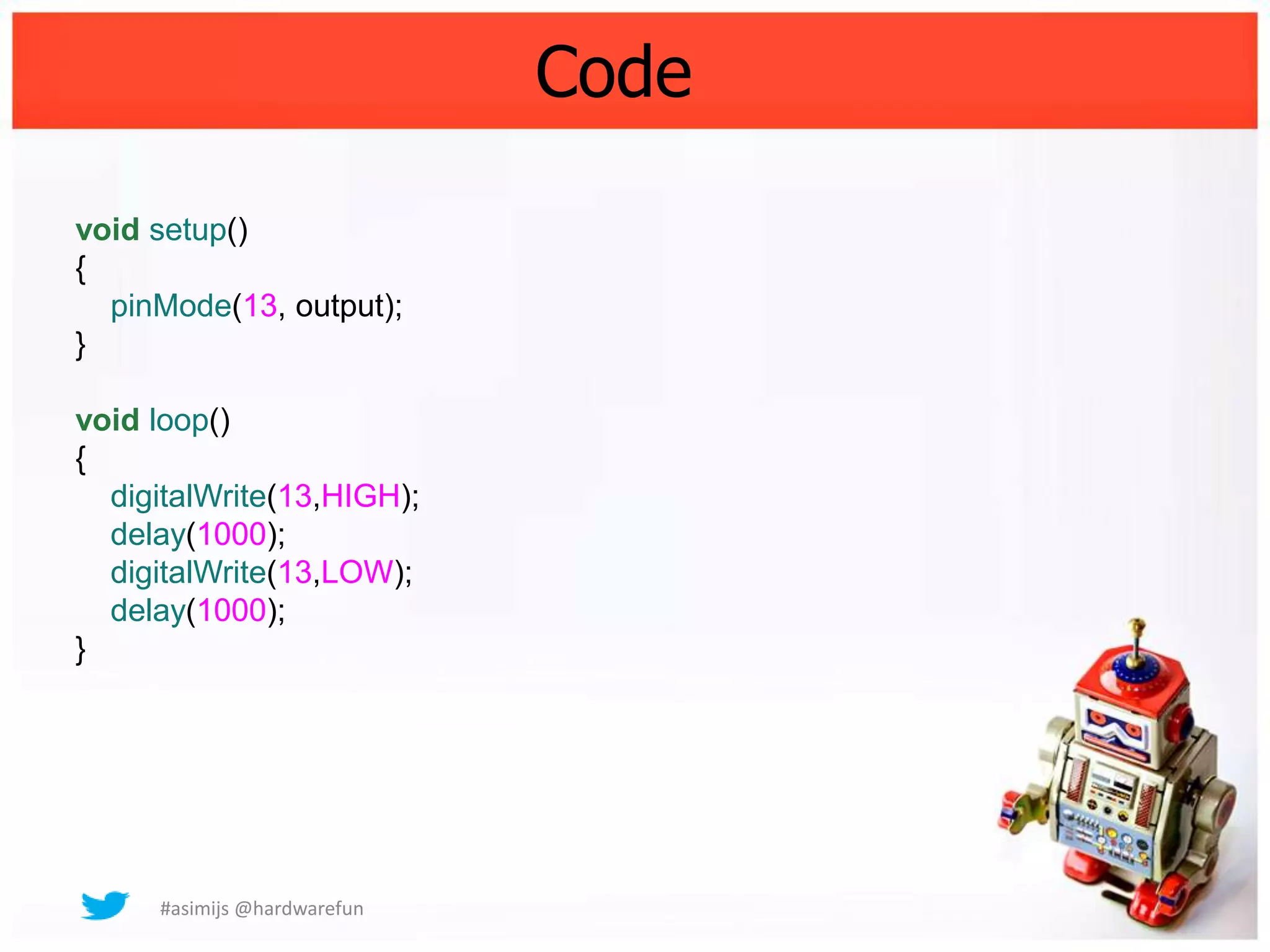

13. Code
void setup()
{
pinMode(13, output);
}
void loop()
{
digitalWrite(13,HIGH);
delay(1000);
digitalWrite(13,LOW);
delay(1000);
}
#asimijs @hardwarefun

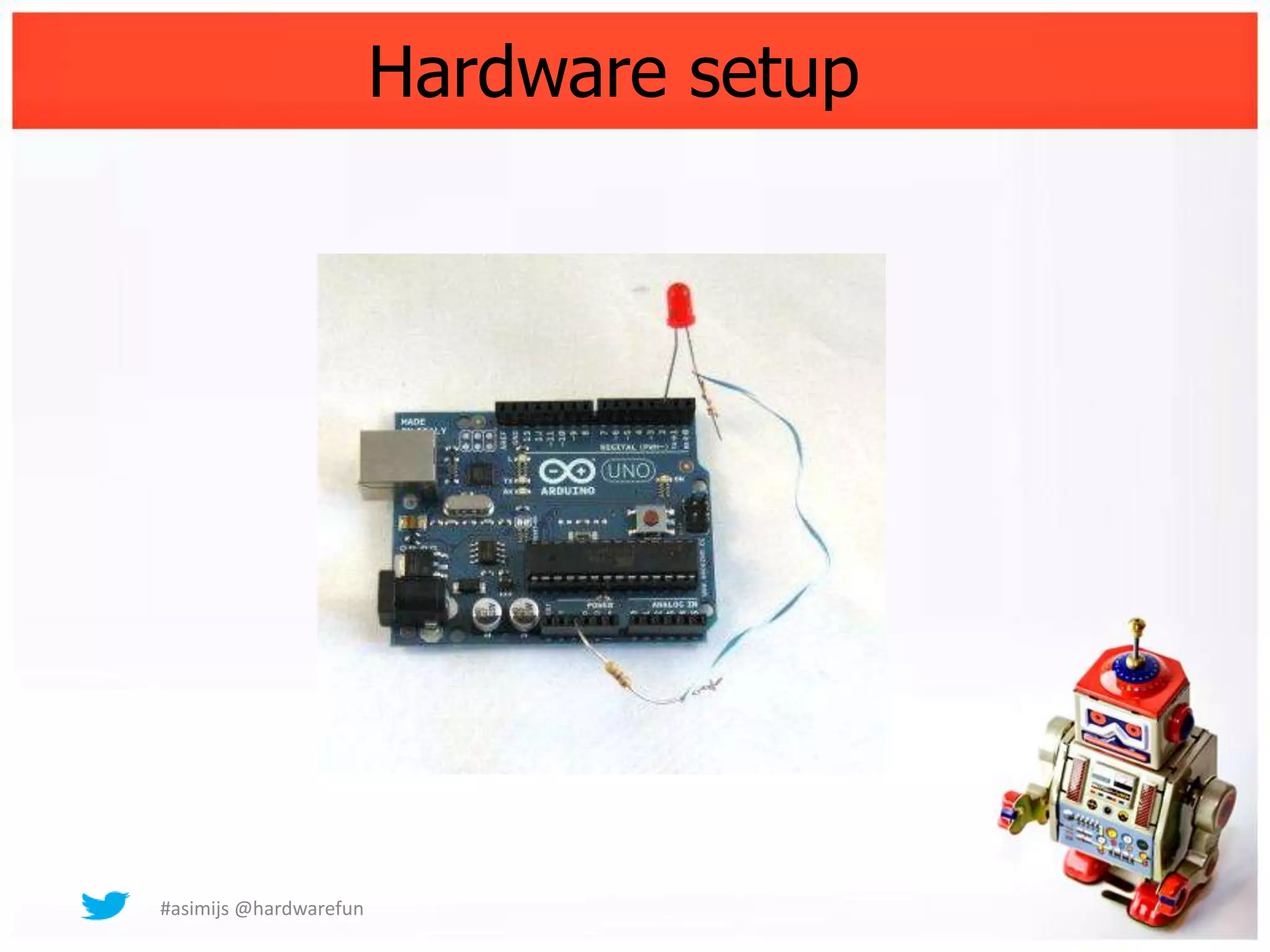

14. Hardware setup
#asimijs @hardwarefun

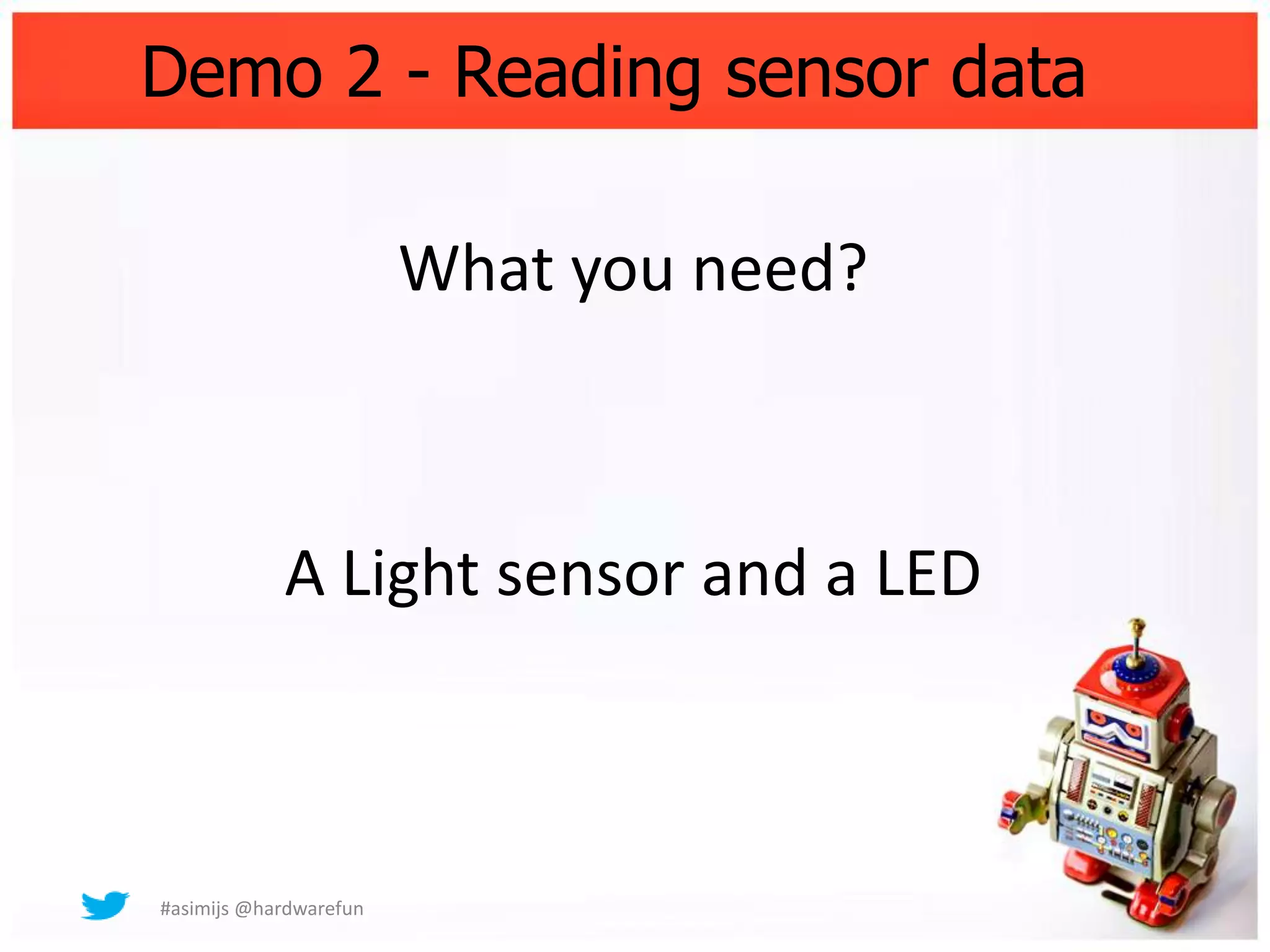

15. Demo 2 - Reading sensor data
What you need?
A Light sensor and a LED
#asimijs @hardwarefun

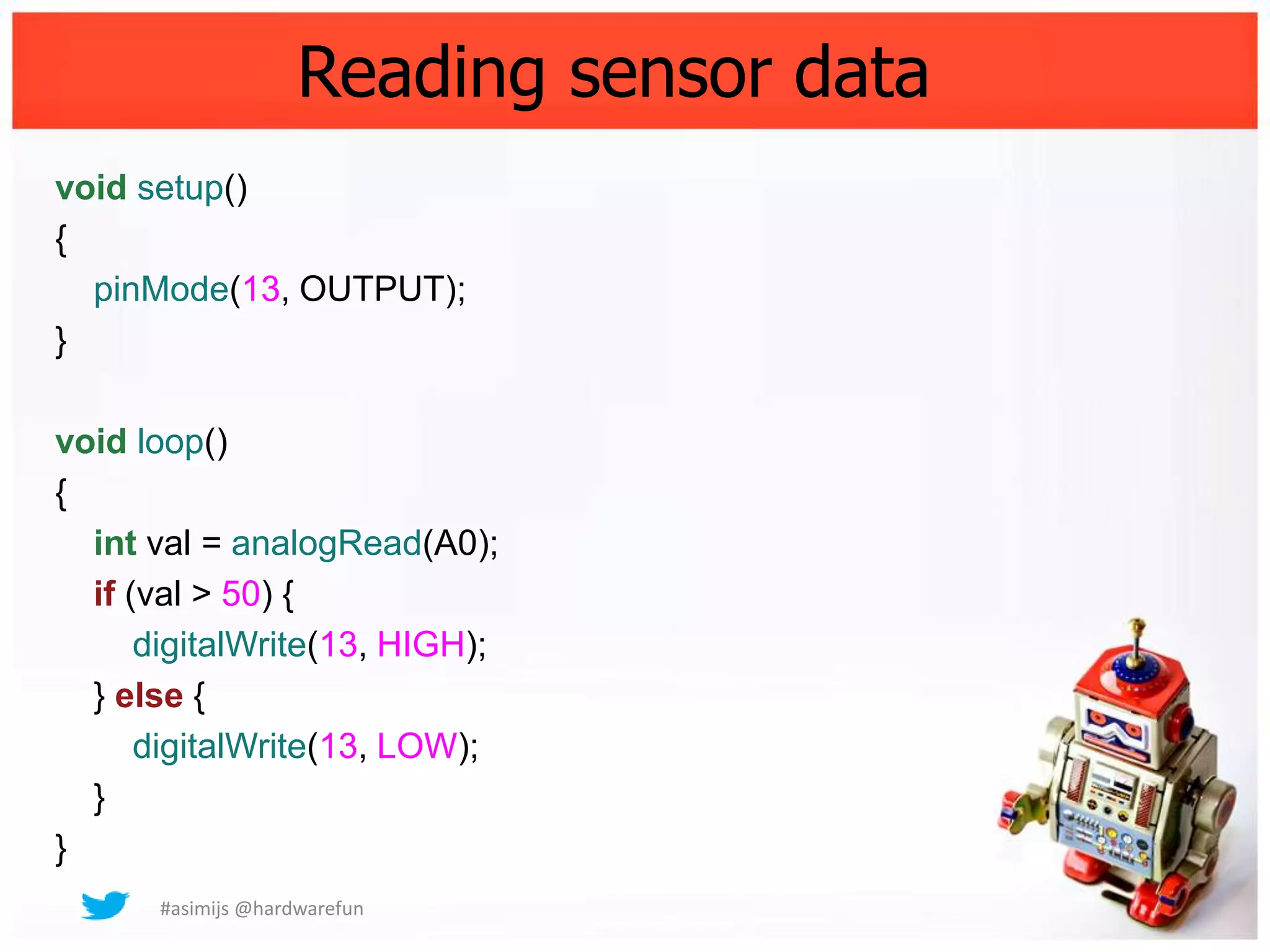

16. Reading sensor data
void setup()
{
pinMode(13, OUTPUT);
}
void loop()
{
int val = analogRead(A0);
if (val > 50) {
digitalWrite(13, HIGH);
} else {
digitalWrite(13, LOW);
}
}
#asimijs @hardwarefun

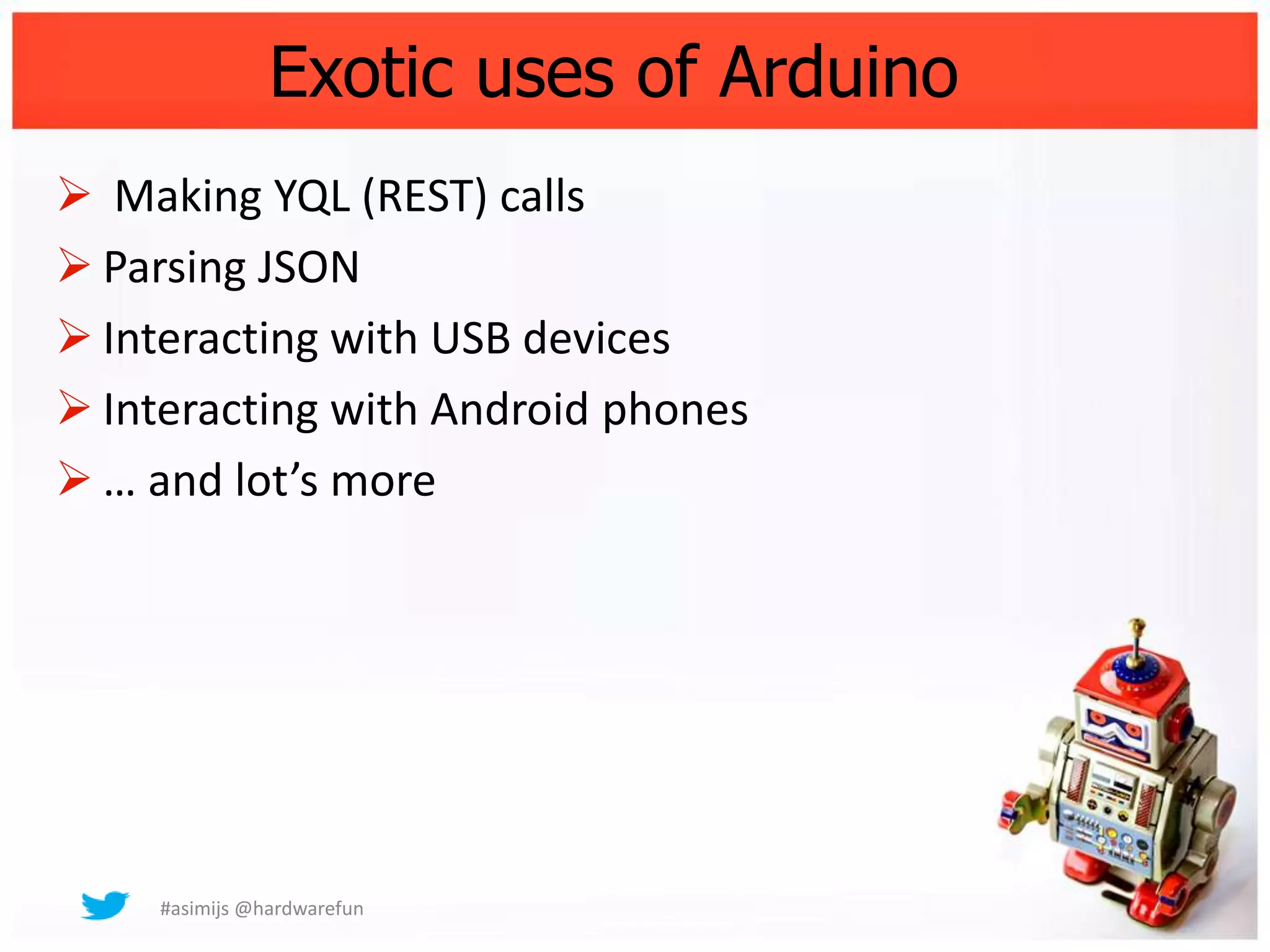

17. Exotic uses of Arduino
 Making YQL (REST) calls
 Parsing JSON
 Interacting with USB devices
 Interacting with Android phones
 … and lot’s more
#asimijs @hardwarefun

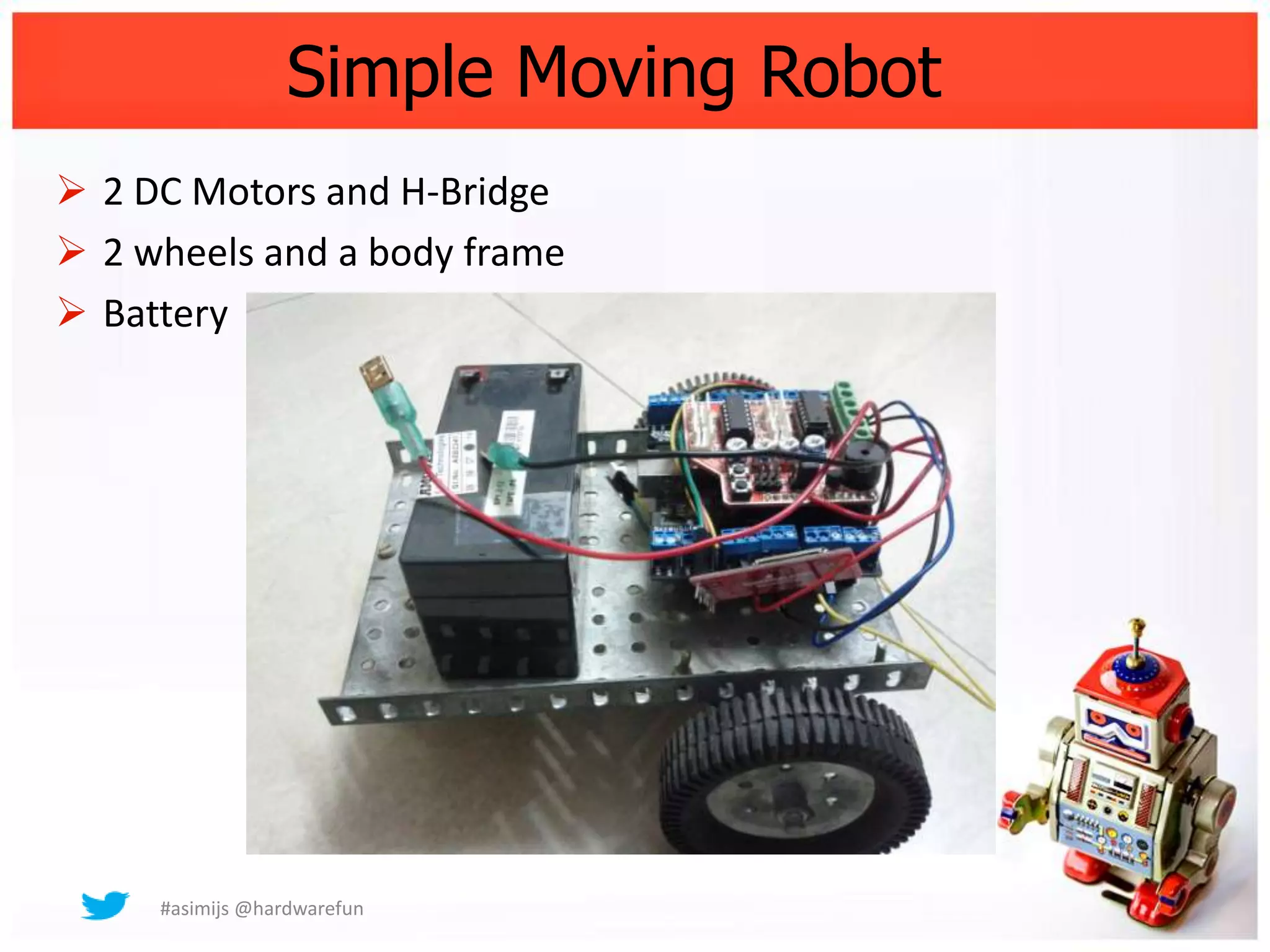

18. Simple Moving Robot
 2 DC Motors and H-Bridge
 2 wheels and a body frame
 Battery
#asimijs @hardwarefun

19. Teaching robot to crawl
Move Forward
Both motors rotate in the forward direction
Move Backward
Both motors rotate in the reverse direction
Turn left
Left motor stops. Only right motor rotates forward
Turn Right
Left motor moves forward. Right motor stops
#asimijs @hardwarefun

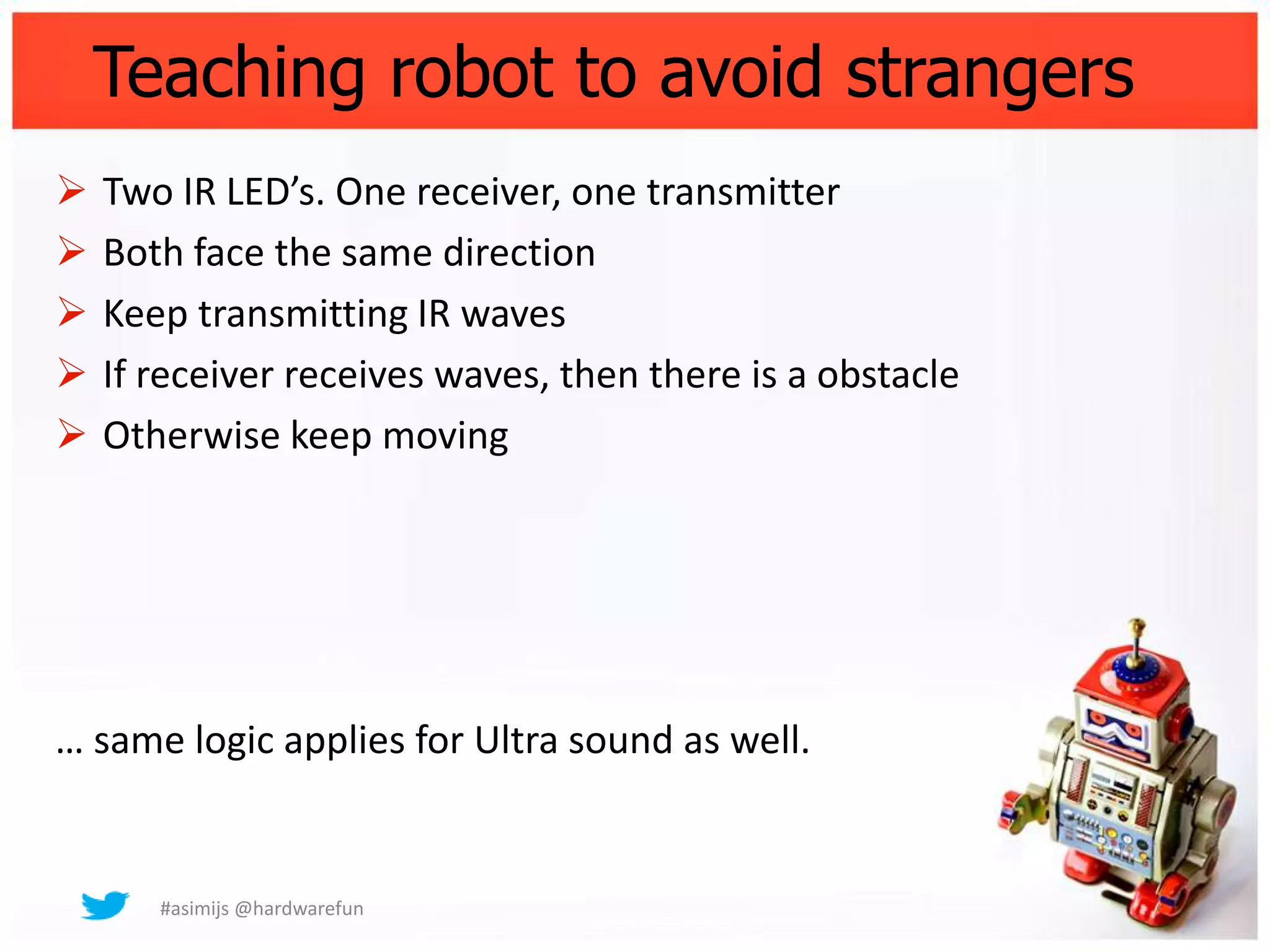

20. Teaching robot to avoid strangers
 Two IR LED’s. One receiver, one transmitter
 Both face the same direction
 Keep transmitting IR waves
 If receiver receives waves, then there is a obstacle
 Otherwise keep moving
… same logic applies for Ultra sound as well.
#asimijs @hardwarefun

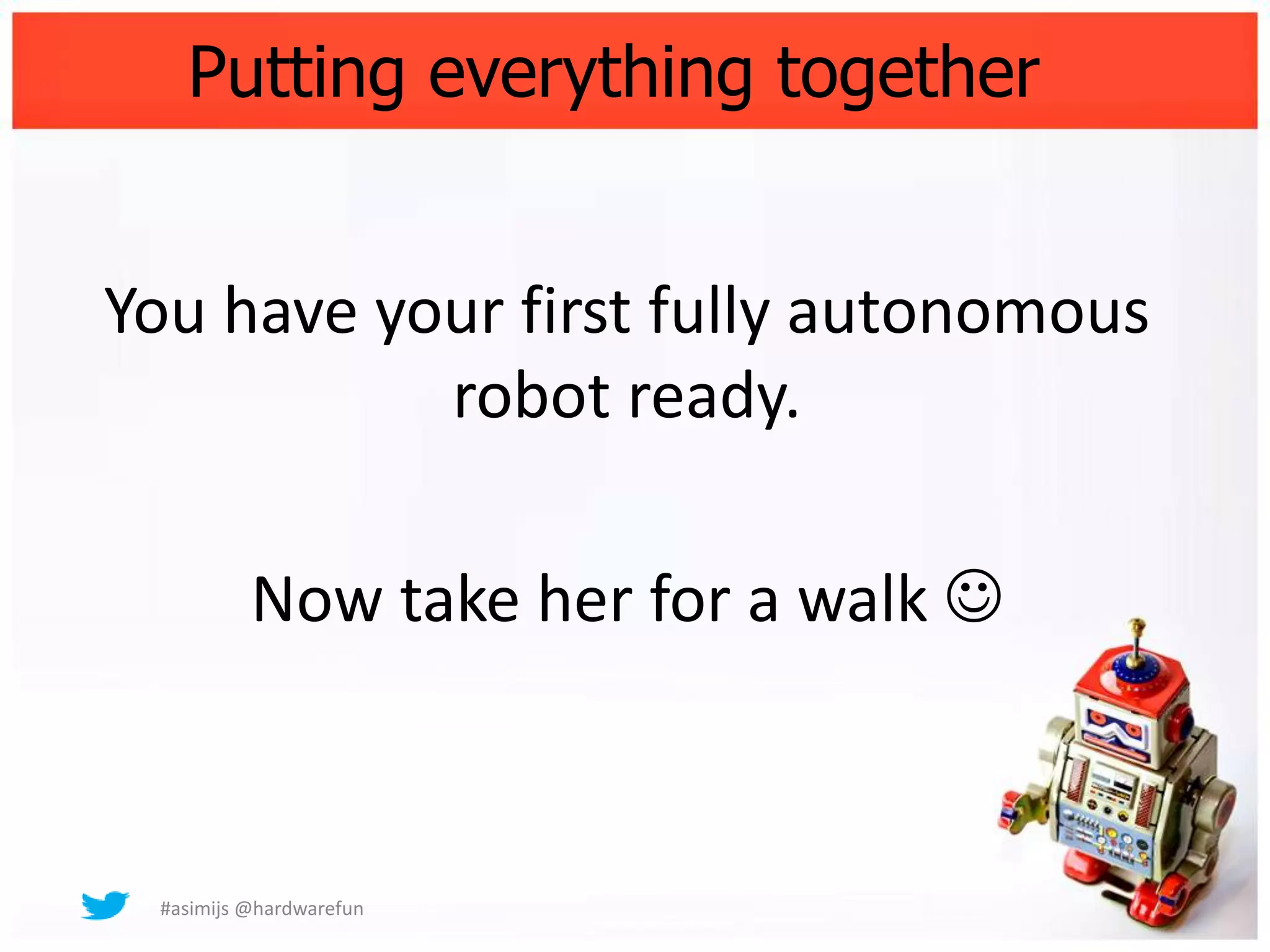

21. Putting everything together
You have your first fully autonomous
robot ready.
Now take her for a walk 
#asimijs @hardwarefun

22. What’s Next?
Do join us upstairs.
We are going to implement Machine
Learning Alogo to Asimi 
#asimijs @hardwarefun

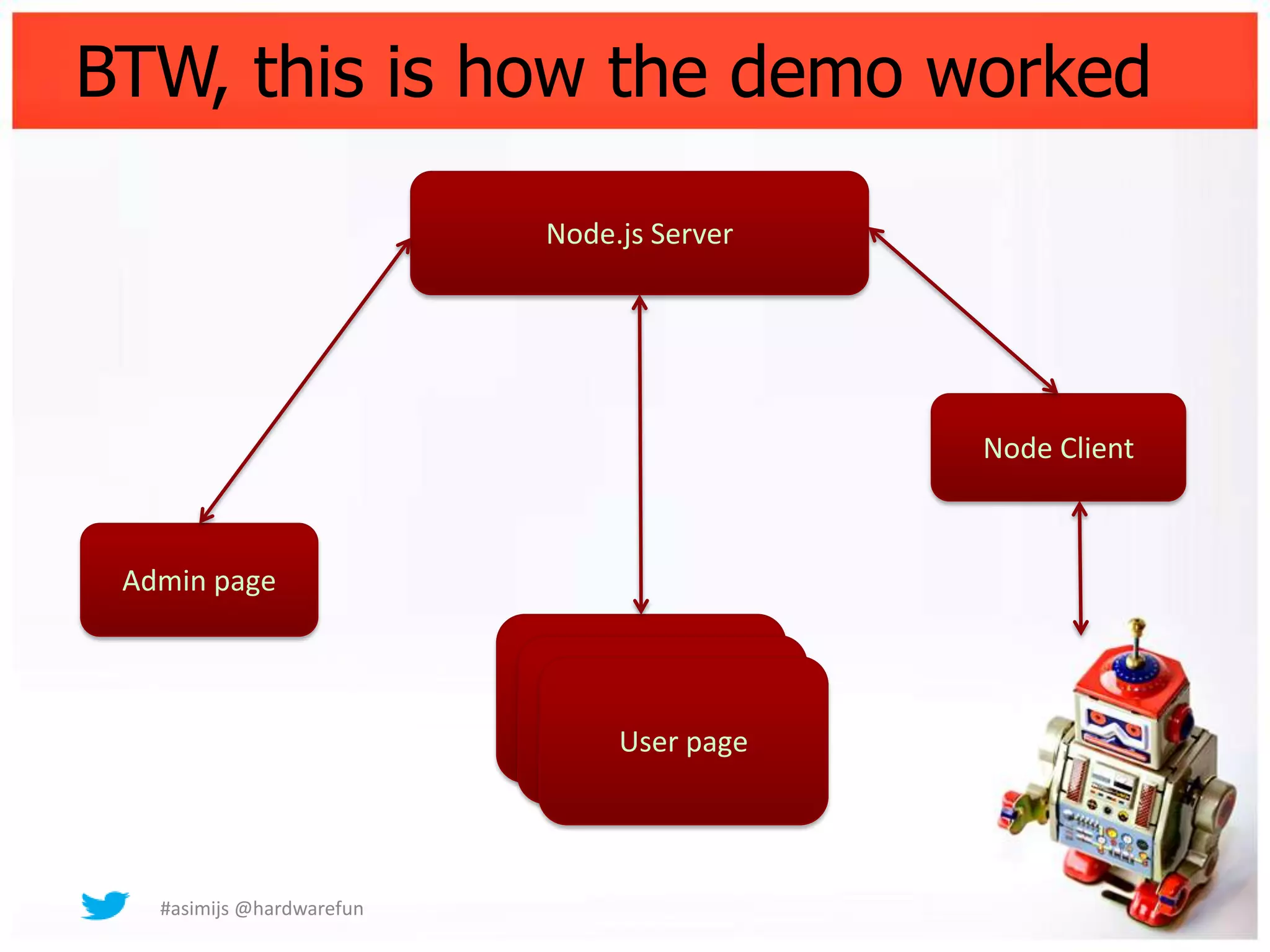

23. BTW, this is how the demo worked
Node.js Server
Node Client
Admin page
User page
User page
User page
#asimijs @hardwarefun

24. Links
 Arduino – http://arduino.cc
 AsimiJS – The demo that I showed initially
http://hardwarefun.com/projects/asimijs
 Asimi – A simple bot using Arduino
http://hardwarefun.com/project/asimi
 Getting started with hardware programming
http://hardwarefun.com/tutorials/getting-started-with-
hardware-programming
 Getting started with Arduino
http://hardwarefun.com/tutorials/getting-started-with-arduino-
and-avr
#asimijs @hardwarefun

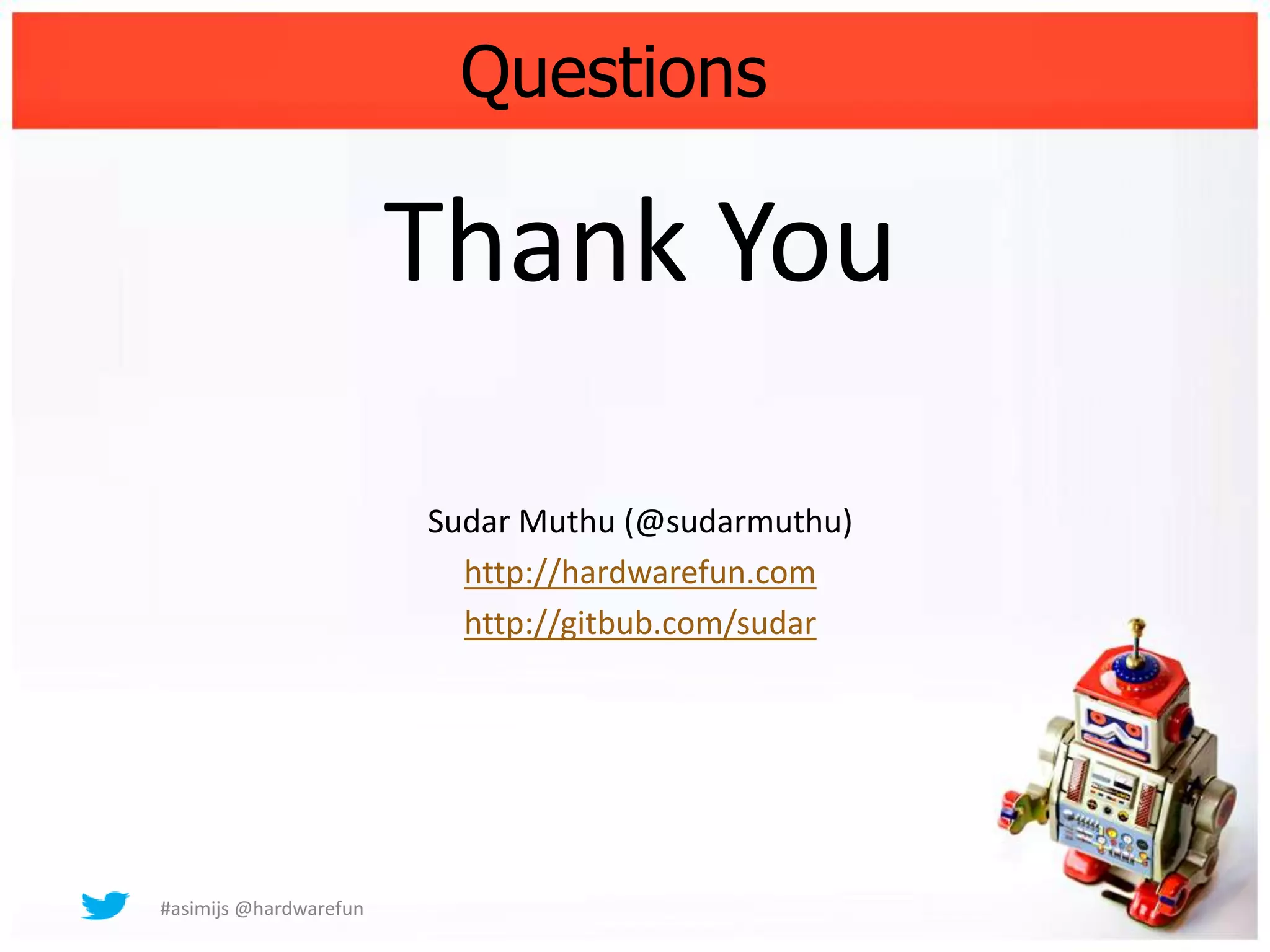

25. Questions
Thank You
Sudar Muthu (@sudarmuthu)
http://hardwarefun.com
http://gitbub.com/sudar
#asimijs @hardwarefun
