Overview: This document covers slope calculation, visualization, and contour placement for site analysis and design. - **Understanding Slope Calculation and Application**: Slope is the angle of a, surface expressed as a percentage using the formula S = V/H. - **Visualizing and Comparing Different Slopes**: Slope can be shallow or steep, with 100% slope equating to a 45-degree angle. - **Drawing and Placing Site**: Knowledge Contours of slope allows for accurate contour placement on site plans, considering different contour intervals.

1. WEEK 5 LECTURE
SLOPES & PROFILES

2. LEARNING OBJECTIVES
• UNDERSTAND HOW TO CALCULATE
SLOPE
• APPLY THE S=V/H FORMULA
• VISUALIZE AND COMPARE
DIFFERENT SLOPES
• ANALYZE A SITE FOR SUITABLE USES
• DRAW A SITE PROFILE
• BUILD A SITE CONTOUR MODEL
PAGE 4-7
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

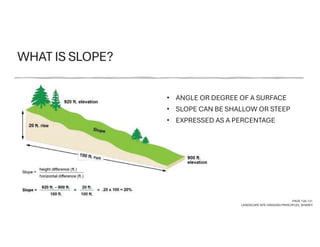

3. WHAT IS SLOPE?
PAGE 120-121
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY
• ANGLE OR DEGREE OF A SURFACE
• SLOPE CAN BE SHALLOW OR STEEP
• EXPRESSED AS A PERCENTAGE

4. EXAMPLES
PAGE 122
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

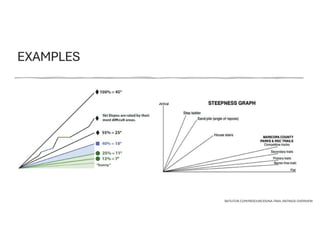

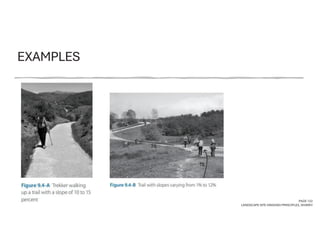

5. EXAMPLES
SKITUTOR.COM/RESOURCES/NA-TRAIL-RATINGS-OVERVIEW

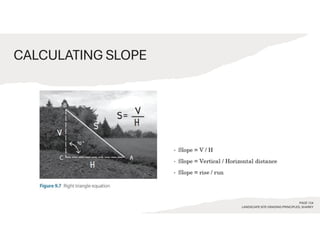

6. CALCULATING SLOPE
PAGE 124
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

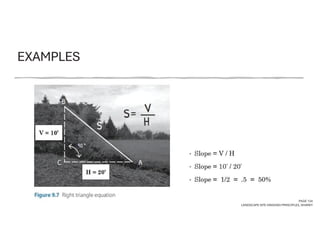

7. EXAMPLES
PAGE 124
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

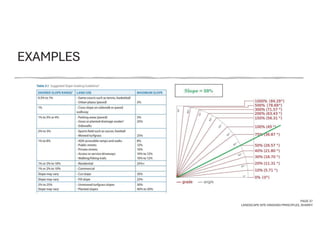

8. EXAMPLES
PAGE 37
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

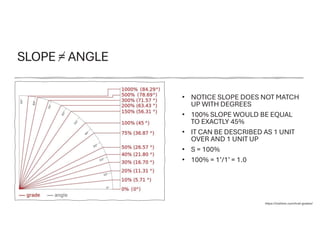

9. SLOPE = ANGLE
https://trailism.com/trail-grades/
• NOTICE SLOPE DOES NOT MATCH
UP WITH DEGREES
• 100% SLOPE WOULD BE EQUAL
TO EXACTLY 45%
• IT CAN BE DESCRIBED AS 1 UNIT
OVER AND 1 UNIT UP
• S = 100%
• 100% = 1’/1’ = 1.0

10. SHOWING SLOPE IN PLAN
PAGE 124
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY
HOW DOES SLOPE CORRESPOND TO
OUR SITE PLAN AND CONTOURS?
• REMEMBER THE BASIC EQUATION
• SLOPE = VERTICAL DISTANCE
DIVIDED BY HORIZONTAL DISTANCE
• S = V/H

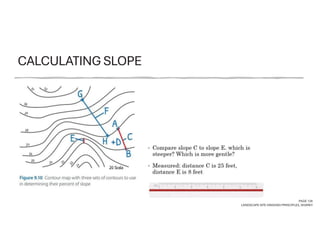

11. CALCULATING SLOPE
PAGE 126
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

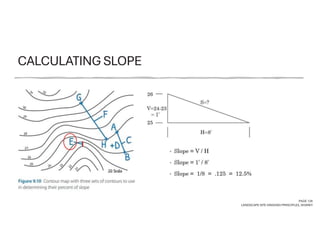

12. CALCULATING SLOPE
PAGE 126
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

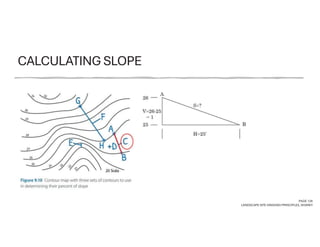

13. CALCULATING SLOPE
PAGE 126
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

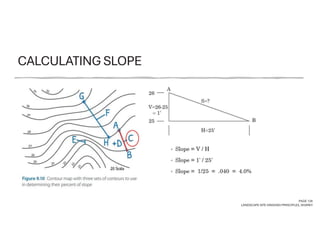

14. CALCULATING SLOPE
PAGE 126
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

15. CALCULATING SLOPE
PAGE 126
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

16. CALCULATING SLOPE
PAGE 126
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

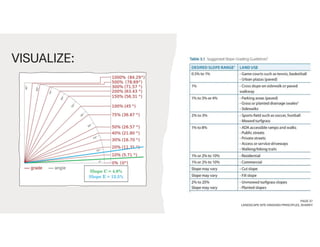

17. VISUALIZE:
PAGE 37
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

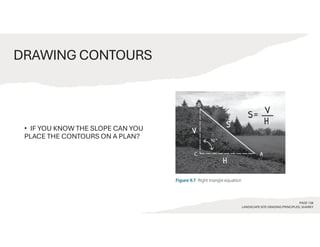

18. DRAWING CONTOURS
PAGE 128
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY
• IF YOU KNOW THE SLOPE CAN YOU
PLACE THE CONTOURS ON A PLAN?

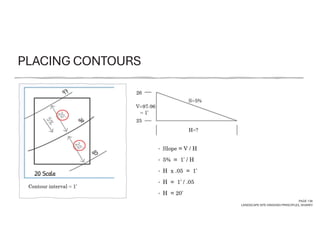

19. PLACING CONTOURS
PAGE 136
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

20. PLACING CONTOURS
PAGE 136
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

21. PLACING CONTOURS
PAGE 136
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

22. PLACING CONTOURS
PAGE 136
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY

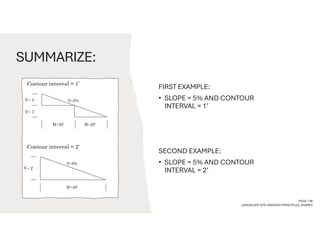

23. SUMMARIZE:
PAGE 136
LANDSCAPE SITE GRADING PRINCIPLES, SHARKY
FIRST EXAMPLE:
• SLOPE = 5% AND CONTOUR
INTERVAL = 1’
SECOND EXAMPLE:
• SLOPE = 5% AND CONTOUR
INTERVAL = 2’
