This document contains a list of part numbers, revisions, pages and titles for various electrical drawings related to a DataPlace LCL system. It includes assemblies for printed circuit boards, electrical panels, sensors and other electrical and electronic components. Revisions provide information on changes made to drawings and released versions.

1. DataPlace LCL Electrical Drawing List
Part Number Rev # Pages Title Comments
090065-740 B 1 ASSY, PCB, CONV/SMEMA CONTROL
090065-741 B 1 SCHEMATIC, PCB, CONV/SMEMA CONTROL
090067-700 B 1 ASSY, PCB PRINTER TIMER
090067-701 B 1 SCHEMATIC, PCB PRINTER TIMER

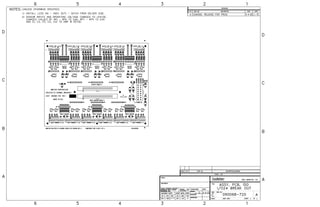

090068-720 A 1 ASSY, PCB, ISO I/024 BREAK OUT

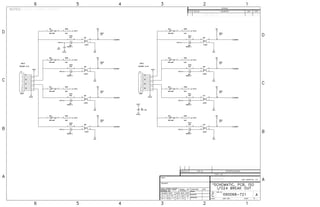

090068-721 A 6 SCHEMATIC, PCB, ISO 1/024 BREAK OUT
141662-001 D 1 ASSY, PRINTER APPLICATOR PORT
271401-002 D 2 ASSY, ELECTRICAL PANEL obsolete cat 2
271401-003 B 2 ASSY, ELECT PANEL

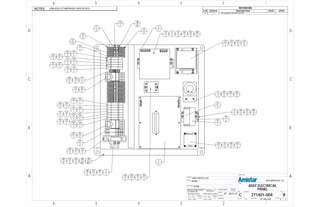

271401-004 B 2 ASSY, ELECTRICAL PANEL, CE NR, ≥ SN016/CE LABEL
271402-002 C 1 ASSY, ELECTRICAL ENCLOSURE obsolete cat 2
271402-003 C 1 ASSY, ELECT ENCLOSURE, CE NR, ≥ SN016/CE LABEL

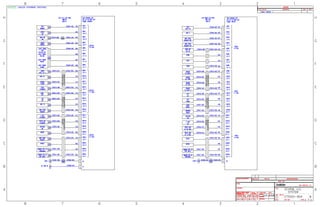

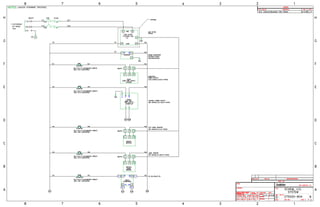

275000-801 D 3 SCHEMATIC, LCL SYSTEM ≤ SN015

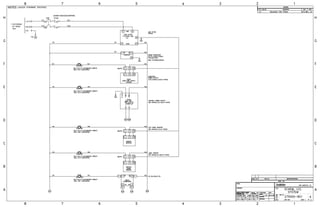

275000-804 B 3 SCHEMATIC, LCL SYSTEM NR, ≥ SN016/CE LABEL

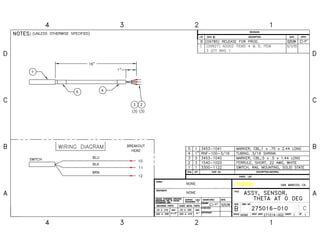

275016-002 C 1 ASSY, SENSOR Z-AXIS
275016-004 C 1 ASSY, SENSOR, LIFT DOWN
275016-005 C 1 ASSY, SENSOR, LIFT UP
275016-007 D 1 ASSY, SENSOR, BOARD AT STOP
275016-009 B 1 ASSY, SENSOR, MAIN AIR
275016-010 C 1 ASSY, SENSOR, THETA AT 0 DEG
275016-011 C 1 ASSY, SENSOR, THETA AT 90 DEG
275031-001 C 1 ASSY, PALM E-STOP SWITCH
275031-002 B 1 ASSY, PALM E-STOP SWITCH NR, ≥ SN016/CE LABEL
275032-003 B 1 ASSY, E-STOP ENABLE BUTTONS NR, ≥ SN016/CE LABEL
Cat 2 designates an assembly that is no longer current but supported by Spares
